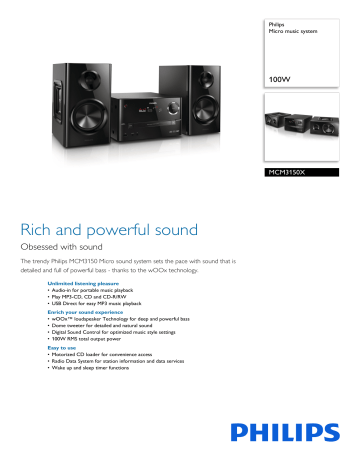

MCM3150X/78 Philips Micro music system

MCM3150X/78 Philips Micro music system
Philips
Micro music system
100W
MCM3150X
Rich and powerful sound
Obsessed with sound
The trendy Philips MCM3150 Micro sound system sets the pace with sound that is
detailed and full of powerful bass - thanks to the wOOx technology.
Unlimited listening pleasure
• Audio-in for portable music playback
• Play MP3-CD, CD and CD-R/RW
• USB Direct for easy MP3 music playback
Enrich your sound experience
• wOOx™ loudspeaker Technology for deep and powerful bass
• Dome tweeter for detailed and natural sound
• Digital Sound Control for optimized music style settings
• 100W RMS total output power
Easy to use
• Motorized CD loader for convenience access
• Radio Data System for station information and data services
• Wake up and sleep timer functions
MCM3150X/78
Micro music system
100W
Highlights
wOOx™ Technology
wOOx technology is a revolutionary
loudspeaker concept that allows you to hear
and feel profoundly deep bass that is richer
than any other audio system. Special speaker
drivers work in harmony with the wOOx bass
radiator, and precise tuning between the main
driver and the tweeter ensures smooth
transitions from low-mid to high frequencies.
Dual suspension and a totally symmetrical
sandwich construction deliver low and precise
base without noticeable distortion. wOOx
produces exceptionally deep and dynamic bass
by using the speaker box full volume to truly
magnify the impact of the music.
Radio Data System (RDS)
The Radio Data System (RDS) lets you tune
into radio stations without having to
remember the frequencies. In standard mode.
RDS displays the station name instead of the
transmission frequency, facilitating quick and
easy tuning. RDS also allows stations to send
text messages such as news and station
information directly to the radio display.
Commonly used in Europe, RDS text is sent
out on the same frequency the radio station
broadcasts on. You can choose either the basic
RDS display (station name) or subscribe to
additional text-based services.
Dome tweeter
Dome tweeters reproduce clear high and midrange frequencies that enhance the overall
sound clarity coming from the speakers.
Delivering a harmonious blend of undistorted
and uncolored wide-ranging sound, they offer
detailed vocal clarity and instruments tone
purity, thereby balancing the overall sound
when paired with a combination of woofers.
Digital Sound Control
Digital Sound Control offers you a choice of
pre-set Jazz, Rock, Pop and Classic controls
you can use to optimise the frequency ranges
for different musical styles. Each mode uses
graphic equalizing technology to automatically
adjust the sound balance and enhance the most
important sound frequencies in your chosen
music style. Ultimately, Digital Sound Control
makes it easy for you get the most out of your
music by precisely adjusting the sound balance
to match the type of music you are playing.
USB Direct for easy MP3 music
Thanks to the complete file transferability, you
can easily enjoy the convenience and fun of
accessing more digital music via the built-in
USB Direct.
Play MP3-CD, CD and CD-R/RW
MP3 stands for "MPEG 1 Audio layer-7.6 cm
(3") .MP3 is a revolutionary compression
technology by which large digital music files can
be made up to 10 times smaller without
radically degrading their audio quality. MP3 has
become the standard audio compression
format used on the world wide web, allowing
quick and easy audio file transfer.
MCM3150X/78
Micro music system
100W
Specifications
Sound
• Output power (RMS): 100W
• Sound Enhancement: Digital Sound Control
• Headphone: 3.5 mm
• 3.5mm stereo line in: Audio in
• Other connections: FM Antenna
Loudspeakers
Convenience
• Loudspeaker types: Dome tweeter
• Main Speaker: wOOx Bass Radiator, 2 way
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD
• Disc Playback Modes: 20-Track Programmable,
Repeat/one/all/program, Shuffle Play, Fast Forward/
Backward, Next/Previous Track Search
• Loader Type: Tray, Motorised
• USB Direct Modes: Fast Backward/Fast Forward,
Play/Pause, Previous/Next, Program Play, Repeat,
Shuffle, Stop
Tuner/Reception/Transmission
•
•
•
•
•
•
Auto digital tuning
RDS: Station Name, Program Type
Station presets: 20
Tuner Enhancements: Auto Store
Tuner Bands: FM Stereo
Antenna: FM antenna (75 ohm)
Connectivity
• USB: USB host
•
•
•
•
Alarms: CD Alarm, Radio Alarm, USB alarm
Clock: On main display
Display Type: VFD display
Sleep timer
Accessories
• Included accessories: FM antenna, AC Power
Cord, World Wide Warranty leaflet
• Remote control
• User Manual: Multi-language
Power
• Power supply: 110-240V, 50/60 Hz
Dimensions
• Set dimensions (W x H x D): 230 x 145 x 237 mm
• Main speaker dimensions (W x H x D):
139 x 259 x 210 mm
• Packaging dimensions (W x H x D):
510 x 314 x 280 mm
• Weight incl. Packaging: 7.4 kg
• Set weight: 6.2 kg
•
Issue date 2014-07-30
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 2.0.2
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 001 02619
EAN: 87 12581 68647 5
www.philips.com
