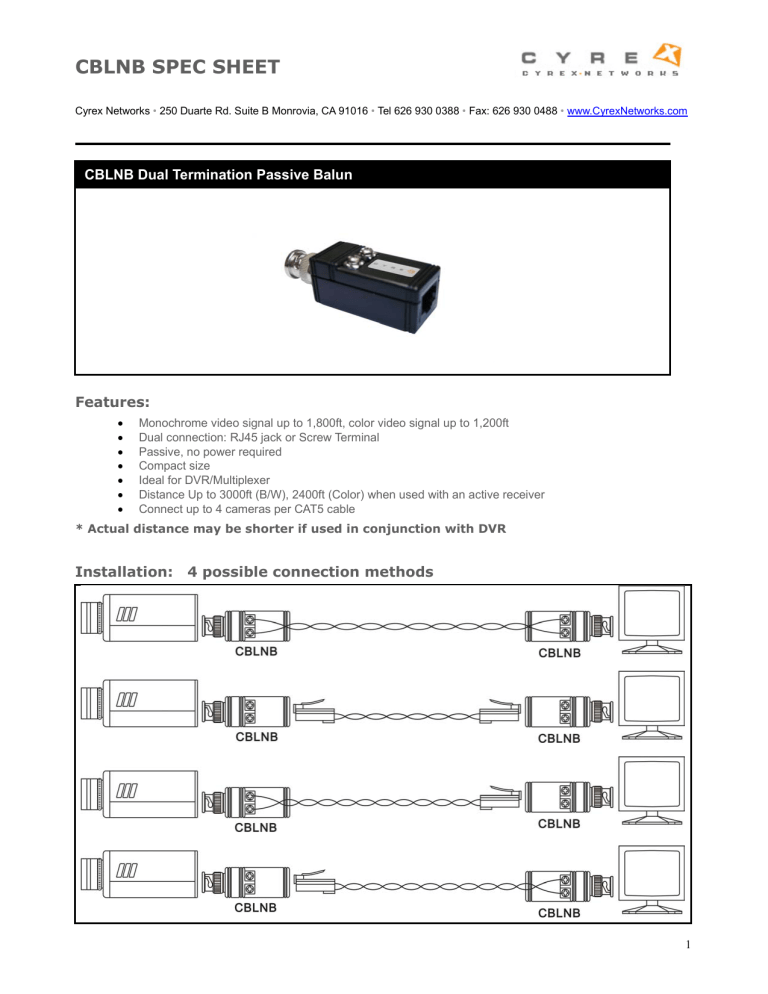

CBLNB SPEC SHEET
Cyrex Networks • 250 Duarte Rd. Suite B Monrovia, CA 91016 • Tel 626 930 0388 • Fax: 626 930 0488 • www.CyrexNetworks.com
CBLNB Dual Termination Passive Balun
Features:
•
•
•
•
•
•
•
Monochrome video signal up to 1,800ft, color video signal up to 1,200ft
Dual connection: RJ45 jack or Screw Terminal
Passive, no power required
Compact size
Ideal for DVR/Multiplexer
Distance Up to 3000ft (B/W), 2400ft (Color) when used with an active receiver
Connect up to 4 cameras per CAT5 cable
* Actual distance may be shorter if used in conjunction with DVR
Installation:
4 possible connection methods
1
CBLNB SPEC SHEET
Cyrex Networks • 250 Duarte Rd. Suite B Monrovia, CA 91016 • Tel 626 930 0388 • Fax: 626 930 0488 • www.CyrexNetworks.com
RJ-45 Jack Pin Definition
Specification:
Video Format
Maximum Input
Insertion Loss
Return Loss
Frequency Response
Attenuation
Common Mode Rejection
Impedance:
Coax, Male BNC
Terminal
Power
Temperature range
Humidity range
Wire type
Distance
Connectors
Case
Dimension W x H x D mm
NTSC, PAL, SECAM
1VP-P
Less than 2dB per pair over the frequency range from DC to 5Mhz
Greater than 15dB over the frequency range from DC to 5Mhz
DC to 5 MHz
DC to 5 MHz 1.5dB Max
15KHz to 5 MHz , 60 dB
75 Ohms
100Ohms
No power required
10 ~ 120F
0 ~ 95%
UTP (Unshielded Twisted Pair) 24 AWG or thicker
B/W = 1,800ft / Color = 1,200ft
Screw terminals and RJ45
ABS Plastic
45 x 21 x 21.5mm
Rev 3/06
