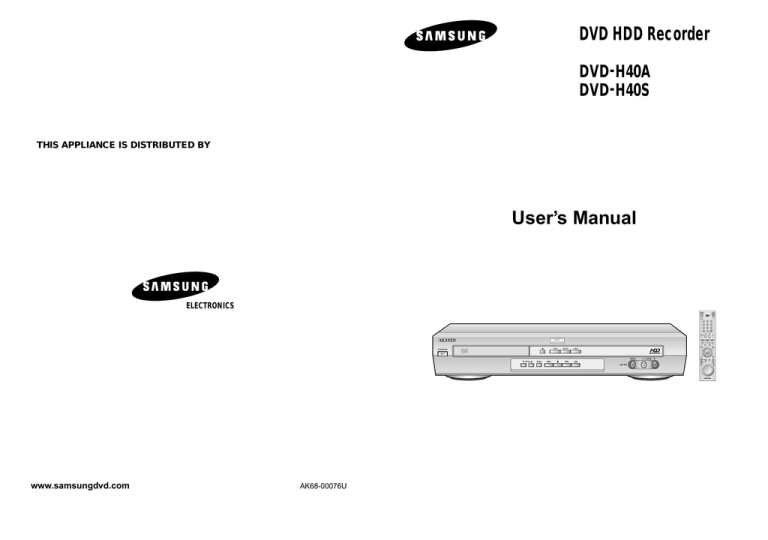

DVD HDD Recorder
DVD-H40A
DVD-H40S
THIS APPLIANCE IS DISTRIBUTED BY
User’s Manual
ELECTRONICS
www.samsungdvd.com
AK68-00076U
Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
The following illustrations represent precautions.
The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE REAR COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
DO NOT OPEN THE DHR. Refer to service personnel.
CAUTION-INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCKS DEFEATED,
AVOID EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage
which can cause electric shock is present inside
this unit.
10%
75%
40¡C
H
This Compact Disc player is classified
as a CLASS 1 LASER product.
H
5¡C
This symbol alerts you to important operating
and maintenance instructions accompanying
the unit.
WARNING: To reduce the risk of fire or electric
shock, do not expose this appliance to
rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO
WIDE SLOT, FULLY INSERT.
Do NOT expose the DHR to
extreme temperature conditions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).
Do NOT expose the DHR to
direct sunlight.
Do NOT expose the DHR to
any liquids.
Do NOT place any objects on
the DHR or remote control.
During a storm and/or lightning, unplug the DHR from the
mains jack and aerial.
If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS
2
3
Key features of DVD-H40A/S
1. Digital Video Recording.
2. Recorded Program List.
3. Highlight Play.
4. Editing Recorded Video.
5. DVD, CD, VCD, MP3, Photo CD Play.
6. Digital Audio Juke Box.
7. Family Photo Album.
8. Connection with DVC, VCR or STB.
1. Digital Video Recording
“ Instant recording ” of TV program by pushing one button.
Unlike VCR, it provides consumer to record TV program instantly by touching record button on the remote.
“ Live TV Pause ” guarantees consumer not to miss a single
TV scene.
This function allows consumer who is watching TV program
to work on other stuffs without missing a single scene.
“ High Quality Video recording ” from TV DVD (VCD), DVC and
STB to HDD.
It supports 3 video recording modes at the different bit rates such as SQ (2Mbps / 40h), HQ (4Mbps / 20h)
and SHQ (6Mbps / 13 hours). It can be stored up to 500 Clips.
Key features of DVD-H40A/S (cont.)
2. Recorded Program List
• If customer record the video program, “ Program List ” will be generated automatically for easy
understanding of the recorded program.
• This program list includes “Title Name”, “Date” and “Length”. Title name can be changed by the
“Title Insert Function”.
Thumbnail picture of the
first clip will be displayed.
Every necessary keys for operating
the current menu screen are also
arranged in this bottom area with
icons and instructions.
3. Highlight Play
• At the program list, if you push “ P – List ” button on the remote, you can preview the highlight of selected
video program like as you can see in the start part of the movie for introducing the next coming movie.
“ Live TV Control ” allows you to go back in time axes and experience what you missed on the live TV
broadcasting.
Simply press the Pause button ( ❿II ) when you leave and when you return, DVD-H40 will instantly replay
what you missed while you were away.
Playback
for 5 sec
Jump
Repeat highlight playback
4. Editing the Recorded Video Program
• Samsung DVD-H40 will offer the fun to generate his own video program by himself.
• User can combine 2 or more video programs as a one video program.
shows the selected file information
4
5
Key features of DVD-H40A/S (cont.)
Key features of DVD-H40A/S (cont.)
4. Editing the Recorded Video Program
6. Digital Audio Jukebox
• DVD-H40 can divide selected video program as 2 or more programs.
1. playing picture ( I frame )
2. FPS, RPS, pause keys
can be used
< start position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(White -> Blue)
• “Juke box” enables consumer to enjoy thousands of music in HDD without replacing Audio CD every time.
DVD-H40 allows MP3 music from CD to be downloaded into HDD as many as consumer wants.
( Max. capacity of HDD for MP3 : 10GB)
Indicates selected file
< end position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(Blue->White)
3. Create sub-picture
divided
File
Current
position
White bar
File length
• DVD-H40 can delete unnecessary video programs.
• Even partial deletion of selected video program is possible.
• If user include his/her favorite photos in the same music folder, then user can enjoy the music slide show
also.
Play list
Selected file enter key, then display
pop-up menu for delete option
Mark
Play list
Total : 012
Name
MP3
MP3
MP3
MP3
MP3
MP3
MP3
MP3
Something like you
Back for good
Love of my life
Slide
More than words
Power of love
Autumn
Tears in heaven
My love
Mark
MP3
MP3
MP3
MP3
Show TimeSinger : Queen
Time : 04:13
MP3
MP3
MP3
05
MP3
Repeat All
Total : 012
Name
Something like you
Back for good
Love of my life
More than words
Power of love
Autumn
Tears in heaven
My love
Slide Show
Repeat All
lnstructions
Slide Show
lnstructions
5. DVD, CD, VCD, MP3, Photo CD Play
• DVD-H40 can play many kinds of discs like as DVD, Audio CD, Video CD, MP3 (CD-R/RW), Photo CD
(Kodak), CD-G, etc.
• At the edit mode, user can generate his/her own music folder like as “CLASSIC”, “JAZZ”, “POP SONG” and
so on.
Edit
Mark
MP3
Total : 777
Name
pops
Select All
Jazz
Copy
Clear
to HDD
All
MP3
BREAD - IF
Copy
Move
to File
HDD
MP3
HEAVEN
Copy
Delete
to HDD
File
MP3
Video Kill the
MP3
CARELESS WHISPER
MP3
Three Times AL
MP3
I cant Tell you
Copy
MaketoFolder
HDD
Copy
Rename
to HDD
Copy
DeletetoFolder
HDD
lnstructions
6
7
Key features of DVD-H40A/S (cont.)
Key features of DVD-H40A/S (cont.)
• Editing function enables you to select, clear, delete, move or rename your favorite images or photo
and make your own directory.
7. Family Photo Album
• Enjoy JPEG Images from CD or HDD with easy & user friendly GUI.
Up to 10,000 JPEG images (Standard file size 100kbyte) can be saved and edited in HDD.
It supports Kodak Photo CD format.
Page indicates number of
pages of thumbnails
8 Thumbnails per page
Selected photo is
highlighted for enlargement.
“Enter” on remote control
enlarges photo to full
screen
Navigate between
thumbnails using remote
control directional
buttons
Indicates selected file
Date show when the
selected photo was taken
Limited to 20 string
• User can easily select the photos what he wants to copy from CD to HDD at the below GUI screen.
• “Viewing Individual Photo”
Indicates selected file
8. Connection to DVC or DSC
• “Slide Show”
• Connecting DSC or DVC through A/V Input port enables to enjoy and edit those video programs simply
through TV screen.
Store /Edit in HDD
Time setting range
3 sec ~ 10 sec
Pushed “enter” key, then pop-up menu will be
display.
After delay time setting, started slide show.
8
Image from
DVC or DSC
Enjoy through TV
9
Contents
Contents (cont.)
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corpration and other rights owners. Use of this copyright protection
technology must by authorized by Macrovision Corporized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
INTRODUCTION
Disc Type and Characteristics
MP3 Play (CD-R MP3 disc requirements)
Front View of the DHR(DVD HDD Recorder)
Rear View of the DHR(DVD HDD Recorder)
Display Indicators
Accessaries
Infrared Remote Control
Inserting Batteries in the Remote Control
Deciding How to Connect DHR(DVD HDD Recorder)
Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable
Connecting DHR(DVD HDD Recorder) to the TV using the RCA Cable
Connecting Other Equipment to Your DHR
Using the TV Button on the Remote Control
Basic Connections/Auto Setup
DVD/HDD View
Basic DVD Playback
Basic TV Tuner Operations
Playing a Disc
12
13
14
14
15
15
16
17
18
19
19
20
21
22
23
23
24
25
SETUP DHR(DVD HDD Recorder)
Digital Recorder
Watch the recorded program in HDD
Set the parental lock
Change the lock password
Edit the recorded program in HDD(Combine)
Edit the recorded program in HDD(Divide)
Edit the recorded program in HDD(Delete)
Edit the recorded program in HDD(Partial Delete)
Record TV program(Timer program setting)
Recording Television Broadcast
Record TV program (One Touch Recording)
34
35
36
37
38
39
40
41
42
43
DVD player
Disc Copy
Preset of DVD language
Set the parental lock
Change the lock password
Using the Disc/Title Menu
3D Sound Function
Selecting the Audio Language
Selecting the Subtitle Language
Using the Display Function
Special Playback Features
A-B Repeat
Using the Zoom (DVD/VCD)
Changing the Camera Angle
Using the Bookmark Function (DVD/VCD)
45
46
47
48
49
49
50
50
51
52
53
54
54
55
Juke Box
View the MP3 file list in HDD/CD
Edit the MP3 file in HDD
Copy MP3 file from CD to HDD
57
58
59
Photo Album
View the JPEG file list in HDD/CD
Edit the JPEG file in HDD
Copy JPEG file from CD to HDD
61
62
63
SET-UP
Change set language
Set the TV channel
Set the clock
Set the time-shift buffering time
Set the output audio options
Set the display options
HDD Format
10
27
28
29
29
30
31
32
OTHERS
Technical Specifications
64
Problems and Solutions
65
11
Disc Type and Characteristics
MP3 Play (CD-R MP3 disc requirements)
This DHR player is capable of playing the following types of discs
with the corresponding logos :
Disc Types
(Logos)
Recording Disc Size
Types
DVD
12 Cm
Audio
+
Video
8 Cm
VIDEO-CD
12 Cm
Max.
Playing
Time(files)
Characteristics
Single-sided
240 min.
Double-sided
480 min.
Single-sided
80 min.
Double-sided
160 min.
• DVD contains excellent sound
and video due to Dolby Digital
and MPEG-2 system.
• Various screen and audio
functions can be easily selected
through the on-screen menu.
74 min.
• Video with CD sound, VHS
quality & MPEG-1 compression
technology.
Audio
+
Video
8 Cm
AUDIO-CD
20 min.
12 Cm
74 min.
8 Cm
20 min.
12 Cm
WAV: 74min
MP3: about 150
JPG: up to file
size
Audio
CD-R
Audio
+
Video
8 Cm
CD-RW
12 Cm
Audio
+
Video
8 Cm
➢
* Discs which cannot be played with this player:
• DVD-ROM
• DVD-RAM
• CD-ROM
• CDV
• CDI
• HD layer of super Audio CD
• CDGs play audio only, not graphics.
12
When playing CD-R/RW discs, please follow the recommendations below:
WAV: 20min
MP3: about 60
JPG: up to file
size
WAV: 74min
MP3: about 150
JPG: up to file
size
WAV: 20min
MP3: about 60
JPG: up to file
size
• An LP is recorded as an analog
signal with more distortion. CD
is recorded as a Digital Signal
with better audio quality, less
distortion and less deterioration
of audio quality over time.
• Your MP3 files should be ISO 9660 or JOLIET format.
ISO 9660 format and JOLIET MP3 files are compatible with Microsoft's DOS and Windows, and with
Apple's Mac. These two formats are the most widely used.
• When naming your MP3 files do not exceed 15 characters, and place ".mp3" as the file extension.
General name format of: Title.mp3. When composing your title, make sure that you use 15 characters or
less.
• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate of compression/decompression you choose.
Getting audio CD quality sound requires an analog/digital sampling rate (conversion to MP3 format) of at
least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely
give better sound quality. Conversely, files with sampling rates below 128 Kbps will not be played
properly.
• Do not try recording copyright protected MP3 files.
Certain "secured" files are encrypted and code protected to prevent illegal copying. These files are of the
following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered trade mark
of The SDMI Foundation). You cannot copy such files.
Disc Markings
~
• Permanent data storage
- cannot be erased or over written.
• Storing music, images, photos.
PAL
NTSC
• Record and rewrite up to 1000
times and can be read
indefinitely
* Ability to play back may depend on recording
conditions:
• DVD-R, +R
• CD-RW
• DVD+RW, -RW
• Photo CD : JPG file
• Playback Region Number
Both the DHR player and the discs are coded by region.
These regional codes must match in order for the disc to play. If the codes do not match,
the disk will not be played.
The Region Number for this player is described on the rear panel of the player.
• PAL colour system in U.K, France, Germany, Australia, etc.
• NTSC broadcast system in USA,
Canada, Japan, South Korea, etc.
• Dolby Digital disc
STEREO
DIGITAL
SOUND
• Stereo disc
• Digital Audio disc
• DTS disc
13
Front View of the DHR(DVD HDD Recorder)
STANDBY/ON
BUTTON
DVD DECK
OPEN/CLOSE
BUTTON
COPY BUTTON
DVD SELECT
BUTTON
Display Indicators
1
2
3
9
11
13
12
5
6
7
8
FRONT PANEL
DISPLAY
HDD SELECT
BUTTON
10
CHANNEL BUTTONS
RECORD
BUTTON
4
STOP
BUTTON
AUDIO L, R
INPUT2 JACK
F.F /SKIP NEXT
BUTTON
REW /SKIP BACK
PLAY/PAUSE BUTTON
BUTTON
VIDEO
INPUT2 JACK
1
2
3
4
5
6
7
8
14
14
DVD Deck mode indicator
Disc type indicator
JPEG file indicator
MP3 file indicator
The time, current position, time remaining or
current status is displayed
A Timer Recording is programmed or in progress.
STEREO indicator
HDD mode indicator
15
16
9
DVD disc is active
10
11
12
13
14
15
16
3D Sound is active
A DVD with a DTS soundtrack is loaded
LPCM type indicator
Dolby digital indicator
NICAM is active
Recording Quality indicator
HDD is active
Rear View of the DHR(DVD HDD Recorder)
AUDIO IN1
JACK
RF ANTENNA
INPUT
AUDIO L, R
INJACKS
DIGITAL AUDIO OUT
JACK (OPTICAL)
COMPONENT
VIDEO OUT JACKS
VIDEO IN1
JACK
S-VIDEO IN
JACK
Accessaries
DIGITAL AUDIO OUT
JACK (COAXIAL)
You have just purchased a SAMSUNG DHR.
Together with your DHR, you will find the following accessaries in the box.
REMOTE CONTROL
& BATTERIES
VIDEO OUT1
JACK
RF OUT TO
TV
14
AUDIO OUT1
JACKS
S-VIDEO OUT
JACK
AUDIO & VIDEO
CABLE
USER’S
MANUAL
S-VIDEO CABLE
COAXIAL CABLE
VIDEO OUT2
JACK
AUDIO L, R OUT2
JACKS
15
Infrared Remote Control
1
STANDBY/ON button
2
ZOOM/TV MUTE button
3
0~9 button
4
3D button
5
VOLUME +/ - button
6
INPUT SELECT button
7
DVD button
8
REVERSE PICTURE SEARCH/SKIP
PREVIOUS button
9
STOP button
Inserting Batteries in the Remote Control
1
17
2
18
4
19
11 CLEAR button
5
20
12 ENTER/DIRECTION button
6
21
7
22
23
24
25
26
27
13 RECORD button
15 DISC MENU button
16 SUBTITLE/TIMER button
17 OPEN/CLOSE button
18 TV/DHR button (not used)
◆ Purchase the DHR
◆ Find that the remote control is no longer working
correctly
1
Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2
Insert two AA, R6 or equivalent batteries, taking care to respect the
polarities:
◆
+ on the battery with + on the remote control
◆
– on the battery with – on the remote control
3
Replace the cover by aligning it with the base of the remote control
and pushing it back into place.
3
10 MENU button
14 TITLE/SPEED button
You must insert or replace the batteries in the remote control when
you:
8
9
10
11
➢
Do not mix different battery types (manganese and alkaline
for example).
19 REPEAT A-B button
20 PROGRAM button
12
21 TEXT button
22 TV button
23 HDD button
13
28
24 FORWARD PICTURE SEARCH/
SKIP NEXT button
14
15
29
30
D
FW
25 PLAY/PAUSE button
26 DISPLAY button
27 PLAY LIST button
28 RETURN button
16
31
32
29 MARK button
30 ANGLE button
31 AUDIO button
32 JOG/SHUTTLE
16
17
Deciding How to Connect DHR(DVD HDD Recorder)
Connecting DHR(DVD HDD Recorder) to the TV using the Coaxial Cable
To receive television programs a signal must be received from one
of the following sources:
You must take into account various factors when connecting audio or video systems:
◆ Types of connectors available on your systems
◆ Systems connected permanently to the DHR (satellite receiver for example) or temporarily
(camcorder for example)
Your DHR is equipped with the following connectors.
Connector
LINE
AUDIO input
COMPONENT
output
➢
◆
◆
◆
◆
An outdoor aerial
An indoor aerial
A cable television network
A satellite receiver
Make sure that both the television and the DHR are
switched off before connecting the cables.
Location
Type
Direction
Recommended Use
1
Remove the aerial or network input cable from the television.
Rear/Front
Audio/Video RCA
In/Out
◆ Television
◆ Other VCR/DVD
◆ Satellite receiver
2
Connect this cable to the 75Ω coaxial socket marked IN (PROM
ANT.) on the rear of your DHR.
3
Plug the coaxial cable supplied into the socket marked OUT (TO TV)
on your DHR.
4
Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
5
To obtain better quality pictures and sound on your television, you
can also connect your DHR to the television via the RCA cable
(see section below) if your television is equipped with this type of
connection.
Rear
Rear
Audio RCA
RCA
In
Out
2
TV
◆ Audio In for S-VIDEO
◆ COMPONENT out
3
4
Connecting DHR(DVD HDD Recorder) to the TV using the RCA Cable
S-VIDEO
input/output
Rear
S-JACK
In/Out
◆ S-Video in/out
Aerial
TV
Digital AUDIO
output
Rear
Optical
coaxial
Out
◆ Digital Audio out
3
OUT TO TV
IN FROM ANT.
Rear
Rear
75 Ω
Coaxial
Out
75 Ω
In
Coaxial
◆ Television
RF coaxial cable
◆ Aerial
◆ Cable television network
◆ Satellite receiver
☛
Whenever you connect an audio or video system to your DHR,
ensure that all elements are switched off.
Refer to the documentation supplied with your equipment for detailed
connection instructions and associated safety precautions.
18
2
You can connect your DHR to the television using the RCA cable if the appropriate input is available on
the television. You thus:
◆ Obtain better quality sound and pictures
◆ Simplify the setting up procedure of your DHR
➢
◆ Regardless of the type of connection chosen, you must always connect the coaxial cable
supplied. Otherwise, no picture will be visible on the screen when the DHR is switched off.
◆ Make sure that both the television and the DHR are switched off before connecting the cables.
1
Connect the coaxial cable as indicated in the above section.
2
Connect one end of the RCA Audio/Video cable to the Video output and Audio L, R output socket on the rear
of the DHR.
3
Plug the other end into the appropriate connector on the television.
19
Connecting Other Equipment to Your DHR
Your DHR remote control will work with Samsung televisions and
compatible brands.
You can connect other audio and/or video equipment to your DHR in different ways.
The following illustrations give a few examples of the connection possibilities.
➢
Using the TV Button on the Remote Control
To determine whether your television is compatible, follow the instructions
below.
The RCA input/output connectors on the rear of the DHR are used for equipment, such as
camcorders, VCRs or sound systems.
1
Switch your television on.
2
Point the remote control towards the television.
3
Hold down the TV button and enter the two-figure code corresponding
to the brand of your television, by pressing the appropriate
numeric buttons.
3
Camcorder
Brand
SAMSUNG
AKAI
GRUNDIG
LOEWE
PANASONIC
VCR/DVD
REAR OF THE DHR
Codes
01 to 06
09, 23
09, 17, 21
02
08, 23 to 27
Brand
Codes
PHILIPS
SABA
SONY
THOMSON
TOSHIBA
02, 20, 22
13, 14, 22 to 24
15, 16
13, 14, 24
07, 16 to 19, 21
Sound system
• If your television is compatible with the remote control, it will be
switched off. It is now programmed to operate with the remote control.
➢
◆ If several codes are indicated for your television brand,
try each one in turn until you find one that works.
◆ When you change the batteries in the remote control,
you must reprogram the code, following the same procedure.
You can control the television using the following buttons.
Button
Function
STANDBY/ON
Used to switch the television on and off.
INPUT SEL.
Used to select an external source.
VOL. + or -
Used to adjust the volume of the television.
PROG. Up or Down
Used to select the required channel.
TV MUTE
Used to toggle the sound on and off.
➢
20
The various functions will not necessarily work on all
televisions. If you encounter problems, operate the
television directly.
21
Basic Connections/Auto Setup
In this section, you will connect the DHR to your television and run
Auto Setup, which automatically searches for channels and sets the
DVD/HDD View
The DHR uses one set of controls to operate DVD & HDD. The
following buttons are helpful in successfully controlling each one.
player’s internal clock.
1
1
from antenna
or cable
1
2
2
Connect the RF antenna cable from your indoor/outdoor antenna
or cable wall outlet to the IN(FROM ANT.) jack on the rear panel
of the DHR
2
Press the DVD button on the remote control or on the front
panel when you want to control the DVD deck.
• The DVD indicator will light on the Front Panel Display to show
that the DVD deck is selected.
3
Press again the HDD button on the remote control or on the
front panel when you want to control the HDD.
• The HDD indicator will light on the Front Panel Display to show
that the HDD is selected.
Choose one of the following methods to connect the DHR to
your TV:
RF Connection:
Connect the supplied RF antenna cable from the OUT(TO TV) jack
on the rear panel of the DHR to your television’s Antenna Input.
To TV’s
Antenna Input
Line Connection:
Connect an RCA-type audio/video cable(red, white, yellow) from
the LINE OUT jacks on the rear panel of the DHR to your television’s
Line In jacks.
Use red for right audio, white for left audio, and yellow for video.
3
➢
3
Auto Setup
Auto CH Search
DVD INITIAL SCREEN
Connect the DHR power cord to a standard 110~240V /50Hz
wall outlet. Then power is automatically turned on.
• Don’t press any buttons on the DHR or remote during auto setup.
“AUTO” blinks while the DHR runs an auto setup procedure,
where it will automatically search for all active channels.
Enter
Return
Menu
Exit
LINE1
2
Press the STANDBY/ON button on your TV.
5
Set TV to Channel 21~69 or AV.
Be sure to use the same channel you selected.
◆ Even if you plan to use the S-Video Output, you MUST
connect the DHR to your television with either the
standard RF or the AV Out connection.
This enables you to operate the DHR setup menu.
Basic DVD Playback
Follow these instructions to playback a DVD.
1
Open disc drawer.
• Press the Open/Close button on the remote control or front panel.
1
2
Insert disc.
• Place the disc in the drawer with the label side of the disc facing
up. If the disc has two sides, orient the disc with the desired label
facing up.
3
3
Close disc drawer.
• Press the Open/Close button on the remote control or front panel
to close the disc drawer.
4
Press the ❿II(Play/Pause) button on the remote control or front
panel.
• Many discs will begin playback automatically when the disc drawer
closes.
• If the DVD has a disc menu, or more than one title, the disc menu
may appear.
46%
Move
3
HDD INITIAL SCREEN
LOADING
Audio Options
Display
Please Options
Wait
lnstructions
1
It is recommended that you use the Line Connection if your TV
is equipped with RCA jacks.
4
➢
Press the STANDBY/ON button on the remote control or the front
panel to turn on the DHR.
5
4
Additional DVD options.
• See pages 44~55.
22
23
Basic TV Tuner Operations
1
Playing a Disc
1
Press the PROG. ❷ buttons.
• Press to change to the next or previous channel.
1
Press the OPEN/CLOSE button.
• The STANDBY indicator light is on and the tray opens.
2
Press the 0~9 buttons.
• Press to select channels directly.
2
Place a disc gently into the tray with the disc’s label facing up.
3
Press the PLAY/PAUSE button to start play.
• When a conventional Audio CD (CDDA) is inserted, it is
automatically played back as the File List is displayed on the
screen. For MP3 or Photo CDs, a desired file must be selected
for playback once the File List is displayed on the screen.
4
Press the STOP button to stop play.
3
➢
1
Press the DISPLAY button.
• Display the channel’s information you are watching.
◆ When you press the TV/DHR button, you will be
taken directly to the screen of the AV device
connected to the LINE2.
➢
2
◆ When you stop disc play, the player remembers where
you stopped, so when you press PLAY again, it will
pick up where you left off (unless the disc is
removed, the STOP button is pressed twice or the
player is unplugged.). This function works only when
playing DVD video.
3
◆ To listen to the next song, press and briefly hold down
the Forward (❿❿) button.
◆ If there are more than 8 files on the disc, press the ➛➛
Previous or ❿❿ Next button to view additional pages in
units of 8 contiguous files.
3
4
24
25
You can setup about special functions of
Menu
Language
Photo Album
Buffer Time
Change set language
Set-Up
Audio Options
Display Options
You can select set language.
Channel
Clock Setting
HDD Format
Move
DHR.
You can select set language.
Menu
Digital Recorder
DVD Player
Juke Box
lnstructions
Set-Up
Change set language
Set-Up
Enter
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Language using
❿ buttons.
4
Select language you want to change using ❷ buttons,
then press the ENTER or ❿ buttons.
• Set language would be changed to selected language.
see page 27
Return
Menu
Exit
Set the TV channel
You can set air/cable TV channel in manual or automatically.
see page 28
Set the clock
Digital Recorder
DVD Player
Juke Box
1
❷buttons,
❷
then press the ENTER or ❿
buttons, then press the ENTER or
Photo Album
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
Return
Menu
Exit
Menu
Digital Recorder
DVD Player
Juke Box
Language
Photo Album
Buffer Time
Set-Up
You can adjust clock on front panel display.
Channel
Clock Setting
Audio Options
Display Options
HDD Format
see page 29
lnstructions
Move
Enter
Set the time-shift buffering time
You can select buffer time for time shift feature
see page 29
Set the output audio option
Menu
Digital Recorder
Language
English
DVD Player
Channel
Clock Setting
Francais
Juke Box
Photo Album
Buffer Time
Italiano
Set-Up
Audio Option
Display Option
Espanol
Deutsch
Nederlands
HDD Format
You can select audio option depends on audio system you have.
see page 30
lnstructions
Move
Enter
Set the display option
You can select display option fit to your taste.
see page 31
HDD Format
You can erase all data or change system format in HDD.
see page 32
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
26
27
Return
Menu
Exit
Set-Up
Set the TV channel
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
lnstructions
Move
Enter
Return
Menu
Language
Photo Album
Buffer Time
Set-Up
Audio Options
Display Options
You can set air/cable TV channel in manual or automatically.
You can adjust present time and see it thru front panel display.
Also you can add or remove channels.
To use timer recording, you have to set the clock.
1
Press the MENU button.
2
Select Set-Up using
buttons.
❷
buttons, then press the ENTER or ❿
1
Press the MENU button.
2
Select Set-Up using
buttons.
❷
Channel
Clock Setting
Menu
Digital Recorder
Language
DVD Player
Channel
Juke Box
Clock Setting
Clock
Setting
Buffer Time
Photo Album
buttons, then press the ENTER or ❿
Set-Up
Time
Date Options
Month
Audio
Year
12:00
01
01
Display
Options
2002
HDD Format
Exit
Menu
Digital Recorder
DVD Player
Juke Box
Set-Up
Set the clock
lnstructions
buttons, then press the ENTER or ❿
3
Select Channel using
buttons.
4
See below submenu setup.
Select mode using ❷ buttons, then press the ENTER or ❿
buttons.
❷
3
Select Clock Setting using
or ❿ buttons.
4
Adjust present time using
ENTER button.
❷
Move
Enter
Return
Menu
Exit
buttons, then press the ENTER
❷➛❿
buttons, then press the
HDD Format
Auto Set-up
Auto Setup
lnstructions
Move
Enter
Return
Menu
• The DHR will automatically search for all available
channels in the selected Tuner Band.
This procedure may take a few minutes to complete.
• When finished, the lowest channel found will be displayed.
Exit
Auto CH Search
Audio Options
Display
Please Options
Wait
50%
lnstructions
Move
Enter
Return
Menu
Exit
Menu
Digital Recorder
DVD Player
Juke Box
Language
Photo Album
Buffer Time
Set-Up
Audio Options
Display Options
Channel
Clock Setting
Auto Set-up
Manual Set-up
Manual Set-up
Output CH
TV System
• Search & setup individual channel option in manual
• Set channels using ❷➛❿ or 0~9 buttons, then press the
ENTER button to save.
HDD Format
lnstructions
Move
Enter
Return
Menu
You never miss live TV programs. DHR memorizes live TV
programs for 30 min up to 2 hours.
Exit
Set-Up
Set the time-shift buffering time
1
Press the MENU button.
Digital Recorder
DVD Player
Juke Box
Language
Photo Album
Buffer Time
Set-Up
Audio Options
Display Options
buttons, then press the ENTER or ❿
2
Select Set-Up using
buttons.
3
Select Buffer Time using
or ❿ buttons.
4
Select hours using ❷ buttons, then press the ENTER or ❿
buttons.
• Over the selected buffer time, erased from starting scene of buffer.
• The shorter buffer time will be helpful to save HDD’s recording
space
• The default buffer time is 1 hour.
❷
Menu
HDD Format
lnstructions
Output CH
Menu
Digital Recorder
DVD Player
Juke Box
Language
Photo Album
Buffer
Time CH
Output
Set-Up
Audio Options
Display36
Options
Channel
Clock Setting
Auto Set-up
Manual Set-up
Output CH
TV System
HDD Format
lnstructions
Move
Enter
Return
Menu
• Select output channel to TV tuner. (21 ~ 69CH)
• Set out channel to TV using ❷ buttons, then press the
ENTER button.
• Make sure connect RF coaxial cable between DHR and TV.
Exit
TV System
• Select system to TV out
• Set TV system using ➛❿ buttons, then press the ENTER
button.
➢
❷
Channel
Clock Setting
Move
Enter
Menu
Exit
Menu
Digital Recorder
DVD Player
Juke Box
Language
Photo Album
Buffer Time
Set-Up
Audio Options
Display Options
30 Min
1 Hr
Channel
Clock Setting
1 Hr 30 Min
2 Hr
Off
HDD Format
lnstructions
Move
Enter
◆ Press the Return button to move to the start buffered
position.
It can be taken a few seconds when the buffer time is changed.
28
Return
buttons, then press the ENTER
29
Return
Menu
Exit
Set-Up
Set the output audio options
You can optimize audio status depends on your audio system.
Set-Up
Set the display options
You can adjust TV display status.
Menu
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Audio Options using
ENTER or ❿ buttons.
4
Menu
❷
buttons, then press the ENTER or ❿
❷
buttons, then press the
See below audio output setup. Select mode using
then press the ENTER or ❿ buttons.
❷
buttons,
1
Press the MENU button.
2
Select Set-Up using
buttons.
3
Select Display Options using
or ❿ buttons.
4
❷
Digital Recorder
DVD Player
Juke Box
buttons, then press the ENTER or ❿
Select option to change using
ENTER.
Photo Album
Set-Up
❷ buttons, then press the ENTER
lnstructions
❷
Move
Enter
Return
Menu
Exit
Return
Menu
Exit
or ❿ buttons, then press the
Menu
Digital Recorder
DVD Player
Juke Box
Language
Photo Album
Buffer Time
Set-Up
Audio Options
Display Options
Channel
Clock Setting
Dolby D-out
HDD Format
lnstructions
Move
Enter
Return
Menu
Exit
• PCM : Converts to PCM(2CH) audio. Select PCM when
using the analog audio outputs.
• Dolby Digital : Converts to Dolby Digital Bitstream(5.1CH).
Select Bitstream when using the digital audio output.
• Be sure to select the correct digital output or no audio will
be heard.
MPEG 2 D-out
Menu
Digital Recorder
DVD Player
Juke Box
Language
Dolby D-out
Channel
Clock Setting
MPEG2 D-Out
Photo Album
Buffer Time
D-Compression
Set-Up
Audio Options
Display Options
DTS
HDD Format
lnstructions
Move
Enter
Return
Menu
• This feature supports only disc encoding to MPEG Audio.
• PCM : Converts to PCM(2CH) audio. Select PCM when
using the analog audio outputs.
• MPEG 2 : Converts to Dolby Digital Bitstream(5.1CH).
Select Bitstream when using the digital audio output.
Exit
Menu
Language
• Aspect Ratio
Digital Recorder
Language
¥ Aspect Ratio
DVD Player
Channel
¥ OSD Message
DVD Player
Channel
• OSD Message
Juke Box
Clock Setting
¥ Front Display
Juke Box
Clock Setting
¥ Front Display
¥ Video Out
Photo Album
Set-Up
Aspect Ratio
Buffer Time
Audio4:3
Options
¥ System
4:3 PS
LB 16:9 Wide
lnstructions
Set-Up
OSD Message
Buffer Time
Audio
On Options
Off
Display Options
Display Options
HDD Format
HDD Format
Move
Enter
Return
Menu
Exit
Language
Photo Album
Buffer Time
Set-Up
Menu
Digital Recorder
Photo Album
Digital Recorder
DVD Player
Juke Box
lnstructions
Move
Audio Options
Display Options
HDD Format
¥ Video Out
¥ System
lnstructions
Enter
Channel
Clock Setting
Return
Menu
Move
Enter
Exit
Aspect ratio
OSD Message
• 4:3 PS (Pan-Scan) : Select this for conventional size
TVs when you want to see the central portion of the
16:9 screen.(Extreme left and right side of movie
picture will be cut off.)
• 4:3 LB (Letter Box) : Select when you want to see total
16:9 ratio screen DVD supplies, even though you have
a TV with 4:3 ratio screen. Black bars will appear at the
top and bottom of the screen.
• 16:9 Wide : You can view the full 16:9 picture on your
widescreen TV.
• On : Displays playing status icon or message
on screen.
• Off : Not displays playing status icon or message
on screen.
Menu
Digital Recorder
DVD Player
Juke Box
Language
Aspect Ratio
Channel
Clock Setting
OSD Message
Photo Album
Buffer Time
Set-Up
Audio Options
Display Options
lnstructions
Move
Enter
• Off : Does not output digital signal.
• On : Outputs DTS bitstream via digital output only.
Select DTS when connecting to a DTS Decoder.
Menu
DVD Player
Juke Box
Photo Album
Set-Up
Language
¥ Aspect Ratio
Channel
¥ OSD Message
Clock Setting
• Front Display
Front
Display
Buffer Time
Audio OptionsOff
On
¥ Video Out
¥ System
Display Options
HDD Format
D-Compression
• This feature compresses the dynamic range (quietest
sound to loudest sound) of a disc’s soundtrack. For
example, action scenes might be loud, while whispered
dialog is quiet. The Dynamic Compression feature evens
out the range of the volume by making loud sounds
quieter and soft sounds louder.
• Off : To select normal dynamic range.
• On : To select compressed dynamic range.
lnstructions
Move
Enter
Return
Menu
Exit
Front Display
Video Out
• On : Turn on display panel all the time.
• Off : Turn off display panel all the time.
• COMPONENT
• S-Video
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
Language
¥ Aspect Ratio
Channel
¥ OSD Message
Clock Setting
• Front Display
Color
System
Buffer Time
PALAudio Options
SECAM
¥ Video Out
¥ System
Display Options
HDD Format
lnstructions
Move
Enter
Return
Menu
Exit
Color System
• PAL : Make sure select PAL when you watch
PAL program.
• SECAM : Make sure sulect SECAM when you
watch SECAM program.
30
Color System
HDD Format
DTS
Digital Recorder
Front Display
Video Out
31
Return
Menu
Exit
Set-Up
HDD Format
You can erase all data in HDD.
1
Menu
Digital Recorder
DVD Player
Juke Box
Language
Photo Album
Buffer Time
Channel
Clock Setting
Set-Up
2
Audio Options
Display Options
3
HDD Format
lnstructions
Move
Enter
Return
Menu
HDD Format
MP3
1
40Hr
250
10k
2
30Hr
2500
10k
1
❷
buttons, then press the ENTER or ❿
Select HDD Format using
or ❿ buttons.
Watch the recorded program in HDD
❷
buttons, then press the ENTER
Select Format option using ➛❿ buttons, then press the ENTER
button.
• Option 1 : 40Hours recording (SQ Standard)
250 MP3 Songs Store (128Kbps, 4min Standard)
10,000 JPG Images Store
• Option 2 : 30Hours recording (SQ Standard)
2500 MP3 Songs Store (128Kbps, 4min Standard)
10,000 JPG Images Store
5
Select Yes, then press the ENTER button.
• Some options you already setup can be initialized.
6
The power will be turned off automatically after formatting the
HDD.
2
It shows you recorded program list.
Menu
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Set-Up
lnstructions
Move
Enter
see page 34
Set the parental lock
You can lock adult or violent programs for children.
see page 35~36
Edit the recorded program in HDD
You can combine, divide, delete or partial delete saved programs.
see page 37~40
Record TV program
Menu
Digital Recorder
DVD Player
Juke Box
Photo Album
Set-Up
So you can edit saved programs and record in digital
format(MPEG2).
Exit
4
Video
It has a 40Giga Byte large quantity HDD(Hard Disk Drive).
Press the MENU button.
Select Set-Up using
buttons.
Digital Recorder
Clock Setting
You can record TV programs by timer recording function.
Buffer Time
Audio Options
Display
Options
HDD
Format
see page 41~43
TV Type
Background Change
Do you really want to format?
Yes
No
HDD Format
lnstructions
Move
32
Enter
Return
Menu
Exit
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
33
Return
Menu
Exit
Watch the recorded program in HDD Digital Recorder
It shows recorded data and you can make it play.
Digital Recorder
Set the parental lock
It prevents children from watching adult or violent programs.
Menu
Menu
Digital Recorder
Digital Recorder
DVD Player
1
Press the MENU button.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or ❿ buttons.
2
Select Digital Recorder, then press the ENTER or ❿ buttons.
3
Select Program List , then press the ENTER or ❿ buttons.
3
Select Parental Lock using
or ❿ buttons.
DVD Player
Juke Box
Juke Box
Photo Album
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
4
Menu
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
5
➢
➢
Select program to see using ❷ buttons, then press the ENTER
button.
• The Selected program starts to play, then go back to the Program
list after end of playback.
• Press the Stop button during playback, then go back to the Program
list .
• Highlight play
Select program, then press the P-LIST button. The selected program
will be played for 5 seconds in every 5 minutes length.
4
Virtual keyboard
• Select character using ❷➛❿ buttons, then press the ENTER
button.
• Move cursor to the bottom right corner, then select OK and
press the ENTER or RETURN button to save.
Set-Up
then press the ENTER
Enter a 4-digit password using the 0-9 buttons on the remote
control.
• Write your password down, and keep it in safe place in case you
need it to change your setting later.
• Initial password is set as 1111 .
5
Select Lock Setting, then press the ENTER button.
6
Select programs to lock using ❷ buttons, then press ➛ or ❿
button.
• Lock icon is displayed.
• The locked program is not displayed in Program list .
• You must release the locked program first to watch it again.
Press Text button to change title.
◆ Press the RETURN button to go back to the previous menu.
◆ Press the MENU button to close menu mode.
◆ Press the P-LIST button to see program list in direct digest
mode. (See the key-Feature part page 5)
❷ buttons,
Photo Album
lnstructions
Move
Enter
Return
Menu
Exit
Return
Menu
Exit
Return
Menu
Exit
Menu
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Set-Up
lnstructions
Move
Enter
Menu
7
Press Return or Menu button to save lock setting.
Digital Recorder
DVD Player
➢
Parental Lock
Juke Box
◆ Press the RETURN button to go back to the previous menu.
◆ Press the MENU button to close menu mode.
◆ This password is for HDD only and is different from the
DVD password setting.
◆ See the page 65 when you forget the password.
Photo Album
Set-Up
Program List
Edit
Parental
Lock
Recording
Enter Password
lnstructions
Move
Enter
Menu
Title Insert
001
005
002
006
003
007
004
008
Current : PROGRAM
New A
Digital Recorder
Program List
Lock Setting
DVD Player
Parental Lock
Change Password
Juke Box
Edit
Photo Album
Recording
Set-Up
A B C
lnstructions
Move
Enter
• This is the picture that appears in the program list when the
TEXT key is pressed.
34
35
Return
Menu
Exit
Change the lock password
Digital Recorder
You can change password in Parental Lock menu.
Edit the recorded program in HDD(Combine)
You can combine several programs to one, so play programs
continuously.
Menu
Menu
Digital Recorder
Program List
Lock Setting
DVD Player
Parental Lock
Change Password
Juke Box
Edit
Photo Album
Recording
1
1
Press the MENU button.
Digital Recorder
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or ❿ buttons.
2
Select Digital Recorder, then press the ENTER or ❿ buttons.
3
Select Parental Lock using
or ❿ buttons.
3
Select Edit using
buttons.
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Set-Up
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
4
Menu
Digital Recorder
Program List
Lock Setting
DVD Player
Parental Lock
Change Password
5
Edit Password
Change
Juke Box
Photo Album New Password
Recording
Set-Up
Confirm Password
lnstructions
Move
Enter
Return
Menu
Program List
Lock Setting
DVD Player
Parental Lock
Change Password
Juke Box
Change
Password
Edit
Photo Album
Recording
New Password
Set-Up
Confirm Password
lnstructions
Move
xxxx
Enter
Return
Menu
Exit
Enter a 4-digit password using the 0-9 buttons on remote control.
• Write your password down, and keep it in a safe place in case you
need it to change your setting later.
• Initial password is set as 1111 .
Select Change Password using
ENTER or ❿ buttons.
❷
7
Enter the new password again to confirm.
If you press RETURN button, then change password procedure
is cancelled.
❷
buttons, then press the ENTER or ❿
lnstructions
4
Select Combine, then press the ENTER or ❿ buttons.
5
Select a program to combine using ➛❿ buttons, then press
the ENTER button.
• Selected programs are displayed at below window.
• Up to 6 programs can be selected.
• The same program can not be selected.
buttons, then press the
Enter new 4-digit password using the 0-9 buttons on the remote
control.
➢
Digital Recorder
then press the ENTER
6
Exit
Menu
❷ buttons,
6
➢
Enter
Menu
Digital Recorder
Program List
Combine
DVD Player
Parental Lock
Divide
Juke Box
Edit
Delete
Photo Album
Recording
Exit
Partial Delete
Set-Up
Select Execute using ❷ button.
Move
Enter
Press the ENTER button.
• If you would like to combine selected programs, select Yes and
press the ENTER button.
• Selected programs combine to one program.
• The combined program’s initial name is “New”.
◆ If you would like to cancel the Combine, select No using
➛❿ buttons and press the ENTER button.
◆ If you would like to erase the selected scene, press clear button,
then the last selected scene will be erased
◆ Only final combined file is saved & displayed in program list.
The original files will be erased.
Original file
A
B
After combine
A
B
C
C
◆ Live TV control will be stopped at the Edit mode.
◆ The combine operation cannot be performed between files
whose recording qualities (SQ, HQ, or SHQ) are not the
same.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
36
Return
Menu
lnstructions
7
Move
37
Return
Menu
Exit
Edit the recorded program in HDD(Divide) Digital Recorder
You can divide a program to several parts and save.
You can delete recorded programs.
Menu
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Edit the recorded program in HDD(Delete)
Menu
This is used to delete unwanted files to free up more space.
1
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or ❿ buttons.
3
Select Edit using
buttons.
1
Press the MENU button.
lnstructions
Move
Enter
Return
Menu
Exit
then press the ENTER or ❿
4
Select Divide using
❿ buttons.
5
Select a program to divide using ➛❿ buttons, then press
the ENTER button.
• Selected program is played and playback progress bar is displayed
at below.
❷
buttons, then press the ENTER or
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Set-Up
Set-Up
❷ buttons,
Digital Recorder
2
Select Digital Recorder, then press the ENTER or ❿ buttons.
3
Select Edit using
4
Select Delete using
buttons.
❷ buttons,
❷
then press the ENTER or ❿ buttons.
lnstructions
Move
Enter
Return
Menu
Exit
buttons, then press the ENTER or ❿
Menu
Menu
Digital Recorder
Program List
Combine
DVD Player
Parental Lock
Divide
Juke Box
Edit
Delete
Photo Album
Recording
Partial Delete
Set-Up
6
lnstructions
7
8
➢
Search parts you want to divide using ➛➛(REW), ❿❿(FF),
❿ll (Play/Pause) buttons.
Press the ENTER button at start & end position to divide.
• Press ❿ll (Play/Pause) button to search in normal speed.
• Press ➛➛ (REW), ❿❿(FF) buttons to search in fast.
• Press ❿ll (Play/Pause) button at start or end position, then press
the ENTER button in pause mode.
• The selected part would be changed from white to blue color,
and the first scene of part is displayed at bottom.
You can divide a program to several parts by repeat step 7.
• Up to 6 parts can be selected.
• The divided program’s initial name is “New”.
5
Select a program to delete using ➛❿ buttons, then press the
ENTER or ❿ buttons.
6
Select Yes to delete the program using
7
Selected program is deleted.
➢
❷ buttons.
Digital Recorder
Program List
Combine
DVD Player
Parental Lock
Divide
Juke Box
Edit
Delete
Photo Album
Recording
Partial Delete
Set-Up
lnstructions
Move
Enter
◆ Press the RETURN button to go back to the previous menu.
◆ Press the MENU button to close menu scene.
◆ Live TV control will be stopped at the Edit mode.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆ Only final divided parts are saved & displayed in Program
list. The original file will be erased.
Original file
Divide to parts
A
A’
B
A’
C
A’
After divided, New A’, B, C files will be existed
White : Unselected part
Blue : Selected part
Red : Current playback position
38
◆ Live TV control will be stopped at the Edit mode.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆ Make sure select the END point before move down to the
Execute.
39
Return
Menu
Exit
Edit the recorded program in HDD(Partial Delete)
Digital Recorder
You can delete parts you want to skip like commercial.
You can record TV programs in the HDD.
Menu
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Move
Enter
Return
Exit
Menu
Make sure present time is set.
Press the MENU button.
2
Select Digital Recorder, then press the ENTER or ❿
1
Press the MENU button.
buttons.
2
Select Digital Recorder, then press the ENTER or ❿ buttons.
3
Select Recording using
or ❿buttons.
4
Select Timer Recording, then press the ENTER button.
• If clock was not set, then the popup menu is displayed. Set the
present time using ❷➛❿ buttons, then it goes back to Timer
recoding menu automatically.
3
Select Edit using
❷buttons,
then press the ENTER or ❿
buttons.
4
Menu
Digital Recorder
Program List
Combine
DVD Player
Parental Lock
Divide
Juke Box
Edit
Delete
Photo Album
Recording
Partial Delete
5
Set-Up
lnstructions
Move
Enter
Return
Menu
Select Partial Delete using
ENTER or ❿ buttons.
❷buttons,
then press the
Select a program to delete using ➛❿buttons, then press
Search parts you want to delete using ➛➛(REW), ❿❿(FF), ❿ll (Play
/Pause) buttons.
7
Press the ENTER button at start & end position to delete.
• The selected part would be changed from white to blue
color, and the first scene of blue part is displayed at bottom.
8
You can delete part of program by repeat step 7.
• Up to 6 parts can be selected.
Digital Recorder
Program List
DVD Player
Parental Lock
Juke Box
Edit
Photo Album
Recording
Set-Up
lnstructions
the ENTER or ❿ buttons.
6
Digital Recorder
Menu
1
Set-Up
lnstructions
Record TV program(Timer program setting)
❷buttons,
Move
Enter
then press the ENTER
Exit
➢
Original file
Delete parts
After delete
Time Date Month
5
ENTER specific data to record using ❷➛❿ buttons.
• Press the ENTER button to change or enter data.
• Press clear button to delete programmed schedule.
6
Turn off the power after finishing the timer recording.
A
A’
B
A’
C
A’
A’
◆ Live TV control will be stopped at the Edit mode.
◆ The program can be broken or erased in case of sudden
power off or plug off during Edit mode (Combine, divide,
delete, partial delete) using.
◆ Make sure select the END point before move down to the
Execute.
Year
➢
◆ See to page 42 to select recording quality(Speed).
◆ If the current time is set, you can directly move the Timer
Program mode by pressing the TIMER button on the
remote control.
White : Unselected part
Blue : Selected part
Red : Current playback position
40
41
Return
Menu
Exit
Recording Television Broadcast
Digital Recorder
You can save watching TV program or DVD title in HDD.
1
1
Press the REC button to save current watching TV program
or DVD title.
2
REC mark is displayed on the screen.
• Recording contents will be saved automatically.
You can check saved programs in program list.
4
3
3
Press the ■ (STOP) button to finish recording.
4
Press Speed button to adjust recording quality.
The higher quality is needed more space in HDD.
• Change the recording quality before recording.
After starting record, you can not change quality.
SQ : Standard Quality (2Mbps/40Hr)
HQ : High Quality (4Mbps/20Hr)
SHQ : Super High Quality (6Mbps/13Hr)
Record TV program (One Touch Recording)
Your DHR stops automatically after the requested length of time.
1
Switch on the television.
2
To monitor the programme being recorded, select the
television channel reserved for use with your DHR
(or the LINE input if used).
3
Select:
• The station to be recorded using the PROG ( or ❷) buttons
or
• The LINE1, LINE2 source using the INPUT SEL. button for a
satellite tuner or external video source
Result: The channel number is displayed and the programme
can be seen on the television.
4
Hold the REC button ( ● ) down for a while to start recording.
Result: The record mark appears on the television screen.
5
Press the REC button (● ) several times to increase the
recording time:
• From 30 min. to 8 hours
6
42
Digital Recorder
3
3
3
4
If you wish to cancel the recording before the end, press
STANDBY/ON.
43
Disc Copy
DVD player
You can setup DVD title's language and rate.
Menu
Digital Recorder
Disc Language
DVD Player
Audio Language
Juke Box
Sub-Title
Photo Album
Parental Lock
2
Disc Language
Enter
1
Insert DVD title to copy and change to DVD mode using
DVD button on the remote control or on the front panel.
2
Press the Copy button on the front panel or the REC button on
the remote control.
3
Press the ■ (STOP) button to finish copy.
You can select DVD title's menu language.
see page 46
Move
You can copy DVD title to HDD.
Copy protected DVD titles will not be copied.
Set-Up
lnstructions
DVD player
Return
Menu
Exit
Audio Language
You can select DVD title's audio language.
see page 46
Subtitle
You can select DVD title's subtitle language.
see page 46
➢
◆ After end of copy, “program”(file name) is created
automatically.
◆ Copy protected titles can not be copied.
2
After 2 hours and 30 minutes copying, it stops automatically.
Parental Lock
You can lock adult or violent DVD titles for children.
see page 47~48
➢
The language change functions support only to
multi-language menu included DVD titles.
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
44
45
DVD player
Preset of DVD language
You can select language of DVD title's menu, audio, subtitle.
Menu
Digital Recorder
DVD Player
1
Press the MENU button.
2
Select DVD Player using
or ❿ buttons.
Set the parental lock
You can adjust DVD title's rating for children.
Menu
Digital Recorder
1
Press the MENU button.
2
Select DVD Player using
or ❿ buttons.
3
Select Parental Lock using
or ❿ buttons.
4
Enter a 4-digit password using the 0-9 buttons on remote control,
then press the ENTER button.
• Write your password down, and keep it in safe place in case you need
it to change your setting later.
• Initial password is set as 1111 .
DVD Player
Juke Box
Juke Box
Photo Album
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
3
❷
buttons, then press the ENTER
Select submenu you want to change using
then press the ENTER or ❿ buttons.
❷
buttons,
Menu
Menu
Digital Recorder
Disc Language
DVD Player
Audio Language
Juke Box
Sub-Title
Parental Lock
Digital Recorder
Disc Language
DVD Player
Audio Language
Photo Album
Juke Box
Sub-Title
Set-Up
Photo Album
Parental Lock
❷
buttons, then press the ENTER
❷
buttons, then press the ENTER
Set-Up
Photo Album
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
Menu
Digital Recorder
Disc Language
DVD Player
Audio Language
Juke Box
Sub-Title
Photo Album
Parental Lock
Set-Up
lnstructions
lnstructions
Move
Enter
Return
Menu
Disc Language
Audio Language
Francais
Juke Box
Sub-Title
Deutsch
Photo Album
Parental Lock
Espanol
Set-Up
Enter
Return
Menu
Exit
5
Disc language
DVD title's menu language selection.
Audio language
DVD title's audio language selection.
Sub-Title
DVD title's subtitle language selection.
English
DVD Player
Move
Select Lock setting using
or ❿ buttons.
❷
buttons, then press the ENTER
Exit
Menu
Digital Recorder
DVD player
4
ltaliano
Nederlands
Select language using
button.
❷
lnstructions
6
Move
Enter
Return
Menu
Exit
Return
Menu
Exit
Adjust rate using ❷ buttons, then press the ENTER button.
• If you adjust rating up to 6 level, upper 7, 8 level titles are not played.
• The higher level is the closer to adult or violent titles.
Menu
Digital Recorder
Menu
Lock
Setting
Disc Language
Lock Setting
Digital Recorder
DVD Player Level 8Audio Language AdultChange Password
Juke Box
Level 7Sub-Title
buttons, then press the ENTER
Photo Album Level 6Parental Lock
Level 5
Set-Up
Level 4
Level 3
Level 2
Level 1
Arabic
Disc Language
DVD Player
Audio Language
Juke Box
Photo Album
Set-Up
Sub-Title Lock
Parental
Parental Lock
Enter Password
Kid Safe
Unlock
lnstructions
Move
Enter
Return
Menu
Exit
➢
lnstructions
◆ Press the RETURN button to go back the previous menu.
◆ Press the MENU button to close menu scene.
➢
Move
Enter
Return
Menu
Exit
◆ This function supports only to DVD title's included
rating information.
◆ This password is for DVD only and is different from
the HDD password setting.
lnstructions
Move
Enter
Menu
Digital Recorder
Disc Language
Lock Setting
DVD Player
Audio Language
Change Password
Juke Box
Sub-Title
Photo Album
Parental Lock
Set-Up
◆ See the page 65 when you forget the password.
lnstructions
Move
Enter
Return
Menu
Exit
Menu
Lock
Setting
Disc Language
Lock Setting
Digital Recorder
DVD Player Level 8Audio Language AdultChange Password
Juke Box
Sub-Title
Level 7
Photo Album Level 6Parental Lock
Level 5
Set-Up
Level 4
Level 3
Level 2
Level 1
Kid Safe
Unlock
lnstructions
46
Move
Enter
47
Return
Menu
Exit
DVD player
Change the lock password
You can change password in Parental Lock menu.
Disc Language
Lock Setting
DVD Player
Audio Language
Change Password
Juke Box
Sub-Title
Photo Album
Parental Lock
1
Press the MENU button.
2
Select DVD Player, then press the ENTER or ❿ buttons.
3
Select Parental Lock using
button.
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
Disc Language
Lock Setting
DVD Player
Audio Language
Change Password
Change
Sub-TitlePassword
Juke Box
Photo Album
New Password
Parental Lock
Set-Up
Confirm Password
lnstructions
Move
Enter
Return
Menu
5
Select Change Password using
ENTER or ❿ buttons.
6
Enter new 4-digit password using the 0-9 buttons on the remote
control.
7
Enter the new password again to confirm.
➢
Digital Recorder
Disc Language
Lock Setting
DVD Player
Audio Language
Change Password
Change
Sub-TitlePassword
Juke Box
Photo Album
New Password
Parental Lock
Set-Up
Confirm Password
lnstructions
Move
Enter
Return
❷ buttons,
Menu
Press the DISC MENU button to access DVD's disc menu.
• Move to DVD's disc menu.
2
Press the TITLE button to access DVD's title menu.
• Move to DVD's title menu.
2
then press the
◆ If you press RETURN button, then change password
procedure is cancelled.
◆ This password is for DVD only and is different from
the HDD password setting.
xxxx
1
1
Enter a 4-digit password using the 0-9 buttons on remote control.
• Write your password down, and keep it in a safe place in case you
need it to change your setting later.
• Initial password is set to 1111 .
Exit
Menu
then press the ENTER
4
Menu
Digital Recorder
❷ buttons,
DVD player
Many DVDs feature their own menu system, where you can select
Titles, Chapters, Audio Tracks, Subtitles, and special disc features,
such as movie trailers, and information on the cast. Use these
buttons to make selections in the Disc menus.
Menu
Digital Recorder
Using the Disc/Title Menu
3D Sound Function
DVD player
Exit
3D Audio is an enhanced audio mode that creates the illusion of
Surround Sound with only two speakers.
1
2
48
During playback of a Disc, press the 3D button on the remote
control.
1
Press the 3D button to set 3D SOUND On/Off.
49
Selecting the Audio Language
DVD player
You can select a desired language quickly and easily with the AUDIO
button.
1
1
Press the AUDIO button.
2
Select the desired language on DVD using
3
Select audio output mode(Stereo, Right, Left) on VCD/CD using
❷ buttons.
➢
DVD
❷
buttons.
• This function depends on what languages are encoded
on the disc and may not work with all DVDs.
• How to have the same audio language comes up whenever
you play DVD titles ; See “Disc Language/Audio Language
/Sub-Title” on page 46.
Using the Display Function
DVD player
You check DVD title's status or select options.
1
Press the Display button during DVD playing.
2
Select submenu to change using
using ➛❿ buttons.
➢
1
❷ buttons, then change option
• If you would like to save changes or escape menu, press
the Return or Display buttons again.
• The display submenu can be changed if you use VCD
using.
Title
Display
Title
1/5
Chapter
Time
Audio
2
Display current playback title's status
and move to a title
Subtitle
Angle
VCD/CD
Repeat
lnstructions
Chapter
Display
Title
Chapter
01/40
Time
Audio
Display current playback chapter's
status and move to a chapter
Subtitle
Angle
Repeat
lnstructions
Selecting the Subtitle Language
DVD player
Time
Display
Title
Chapter
Time
00:00:00
Audio
Subtitle
Angle
Repeat
Display current playback time
Enter time using 0~9 buttons to more the
scene, then press the ENTER button.
lnstructions
You can select a desired subtitle quickly and easily with the
subtitle button.
Audio
Display
Title
Chapter
Time
1
Audio
Press the SUBTITLE button.
AC-3 3CH 1/2
Display current audio language and
change another
Subtitle
Angle
Repeat
lnstructions
2
Select the desired subtitle language using
3
Select subtitle On/Off using ➛❿ buttons.
❷
buttons.
1
Subtitle
Display
Title
Chapter
Time
Audio
➢ • This function depends on what languages are encoded on
Subtitle
korean
Display current subtitle language and
change another
Angle
Repeat
lnstructions
A
the disc and may not work with all DVDs.
• How to make the same audio language comes up
whenever you play DVD titles ;See “Disc Language/Audio
Language/Sub-Title" on page 46.
* If DVD titles have own languages, default disc’s language
comes out.
A
Angle
Display
Title
Chapter
Time
Audio
Subtitle
Angle
1/5
Repeat
Change scene angles
This function supports only multi-angle
scene included DVD titles.
lnstructions
Repeat
Display
Title
Repeat title or chapter
Chapter
Time
Audio
Subtitle
Angle
Repeat
Title
lnstructions
50
51
Special Playback Features
DVD player
During DVD/CD playback you can select from the following
special playback options. To resume normal playback, press the ❿ll
(PLAY/PAUSE) button.
Pause
A-B Repeat
The A-B Repeat function allows you to repeat any segment of a
DVD or CD. Simply mark the beginning point (A) and the ending
point (B) of the segment you want to review.
1
Press the ❿ll (PLAY/PAUSE) button on the remote control during playback.
• The picture will Pause and the audio will mute.
• To resume playback, press the ❿ll (PLAY/PAUSE) button.
• If the player is left in Pause mode for 5 minutes, it will play automatically.
Frame Search (Step)
DVD player
Press the REPEAT A-B button at starting position.
•“A” will be selected when A-B repeat is selected.
“B” will be selected after pressing the REPEAT A-B button.
2
Repeat from "A" to "B".
3
Press the REPEAT A-B button again to cancel A-B repeat.
1
A
to
B
SET
A
A
to
B
SET
B
A
to
B
CANCELLED
While in Pause mode, roll the jog on the remote control to forward/backward
one frame at a time.
• Audio is muted during Frame search mode.
• Press ❿ll (PLAY/PAUSE) to resume normal playback.
Forward/Backward Chapter Search
While a CD or DVD disc is in Play mode, press and hold the Skip
Forward/Backward (❿❿ / ➛➛) buttons on the remote control or front panel
to jump forward and backward through disc chapters/tracks.
• Skip Forward will jump to the next chapter/track.
• Skip Back will jump to the beginning of the current chapter/track.
• Press the Skip Back button again to jump to the beginning of the previous
chapter/track.
Forward/Backward Picture Search
While a disc is in Play mode, press and the Forward/Backward (❿❿ /➛➛)
buttons on the remote control or front panel to visually search
forward/backward at 2X - 4X - 8X - 16X - 32X - 64X - 128X speed.
Press ❿ll (PLAY/PAUSE) button to resume normal speed.
Slow Motion
During playback, press the ❿ll (PLAY/PAUSE) button to Pause the image.
Then use the Search Forward (❿❿) to play in slow motion at variable speeds.
• Each press increases the slow motion speed playback to 1/8, 1/4
or 1/2 of normal speed.
• Audio is muted during slow motion playback.
• Press the ❿ll (PLAY/PAUSE) button to resume normal playback.
Stop/Resume
• Press the ■ (Stop) button ONCE to stop playback. Press
❿ll(PLAY/PAUSE) button to resume the current stop position.
• Press the ■ (Stop) button TWICE to completely stop playback.
The next time you press the ❿ll(PLAY/PAUSE) button, the disc will
start from the beginning.
52
53
Using the Zoom (DVD/VCD)
DVD player
Zooms the scene to see more specific.
1
Press the Zoom button during playback or Pause mode.
2
Select part of screen to zoom using
press the ENTER button.
• DVD : Normal/1.5X/2X/4X
• VCD : Normal/1.5X/2X/4X
1
3
❷➛❿
buttons, then
Press the ENTER button.
• During DVD play : press ENTER to zoom in1.5X/2X/4X/2X/1.5X/
Normal in order.
• During VCD play, press ENTER to zoom in 1.5X/2X/1.5X/Normal
in order.
Using the Bookmark Function (DVD/VCD)
DVD player
The Bookmark function lets you select parts of a DVD or VCD
(MENU OFF mode) so that you can quickly find the section at a later
time.
1
Press the Mark button during playback.
2
Mark desired scene using the Enter button.
• You can mark up to 3 scenes.
3
Press the Mark button again to turn off menu.
4
Press the Mark button to recall marked scenes, then select a
scene(1, 2, or 3) using ➛❿, ❿ll buttons.
• The marked scene will be played.
5
Delete Mark Number Select a mark number to delete using
➛❿ buttons, then press the Clear button.
➢
1
◆ When in VCD 2.0 mode(Menu On mode), this
function does not work.
◆ The Bookmark function may not work depends on
disc.
Changing the Camera Angle
DVD player
When a DVD contains multiple angles of a particular scene,
you can use the Angle function.
1
54
Press the ANGLE button to see if an ANGLE (
) mark is
present at the upper right hand corner of the screen.
1
Press the Angle button when an angle icon is shown at the upper
right hand corner, then angle selection icon will be appeared
at the upper left hand corner.
2
Select desired screen angle using ➛❿ buttons.
3
To turn off the display, press the ANGLE button again.
55
View the MP3 file list in HDD/CD
Juke Box
Menu
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy MP3 CD to HDD
You can play MP3 files in HDD.
You can display files on screen and play.
You also make your own play-list or edit MP3 files easily.
• HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of
HDD PlayList.
View the MP3 file list in HDD
You can display saved MP3 files list in HDD and play.
Move
Menu
Digital Recorder
DVD Player
Juke Box
Set-Up
lnstructions
Juke Box
Enter
Return
Menu
Exit
1
Press the MENU button.
2
Select Juke Box using
❿ buttons.
see page 57
Edit the MP3 file in HDD
You can move, copy, save, or delete files and also change file
name in HDD.
You can display MP3 files list in CD and play.
Set-Up
❷
buttons, then press the ENTER or
lnstructions
3
Select HDD Playlist using
or ❿ buttons.
4
Select Folder or file using ❷ buttons, then press the ENTER
button.
• Press the ENTER button again to cancel file selection.
❷ buttons,
Enter
➢
Menu
Exit
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy MP3 CD to HDD
Menu
Exit
Set-Up
If you select folder, then it shows you included files in folder.
5
Press the P-LIST button.
• The selected files are displayed in selected order and play the
first file.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
6
Select Repeat All using ➛❿ buttons, then press the ENTER
button.
• The selected MP3 files will be played continuously.
Copy MP3 file from CD to HDD
You can copy MP3 files from CD to HDD.
Move
Enter
see page 59
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
Select Slide Show using ➛❿ buttons, then press the ENTER
button.
• The JPEG files will be displayed as a slide show during MP3
playing if JPEG files are in the same folder.
• Press the DISPLAY button to make full screen slideshow.
➢
56
Return
then press the ENTER
lnstructions
see page 57
Move
Menu
see page 58
View the MP3 file list in CD
Photo Album
Press ■ button to Stop or to select other file.
57
Return
Juke Box
Edit the MP3 file in HDD
You can move, save, or delete files and also change file name in
HDD.
Menu
Digital Recorder
DVD Player
1
Juke Box
2
lnstructions
Move
Enter
Return
Menu
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy MP3 CD to HDD
lnstructions
Move
Enter
Return
Menu
Select Juke Box using
❿ buttons.
❷ buttons,
Select HDD Edit using
❿ buttons.
4
Select folder or file using ❷ buttons, then press the ENTER
button.
• If you select files, then Check icon is displayed.
• Press the ENTER button to cancel file selection.
• If you select folder, then it shows you included files in the folder.
❷
Press the MENU button.
2
Select Juke Box using ❷buttons, then press the ENTER or
❿ buttons.
3
Select Copy MP3 CD to HDD using
ENTER or ❿ buttons.
4
Select folder or files to copy from CD to HDD using
buttons, then press the ENTER button.
• Press the ENTER button again to cancel file selection.
buttons, then press the ENTER or
5
Move to the right side edit menu using ➛❿ buttons, then edit
selected files using ❷➛❿, ENTER buttons.
6
In case of move :
Select folder to move using ❷ buttons, then press the ENTER
button.
Select Execute using ➛❿ buttons, then press the ENTER button.
Exit
Digital Recorder
1
then press the ENTER or
3
Set-Up
➢
5
Move
Enter
Return
Menu
Menu
DVD Player
Juke Box
Photo Album
Exit
Menu
You can copy MP3 files from CD to HDD.
Press the MENU button.
Photo Album
Set-Up
Juke Box
Copy MP3 file from CD to HDD
❷buttons, then press the
Set-Up
lnstructions
Move
Enter
• If you would like to choose all files in folder, move to Select
All using ➛❿ buttons, then press the ENTER button.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy MP3 CD to HDD
Move file
Move files to another folder
And after move, existed file would
be deleted.
lnstructions
Move
Enter
Select Copy to HDD using ➛❿ buttons, then press the ENTER
button.
Up to 200 files can be copied at once.
Delete file
Delete files
Make Folder
Make new folder
Rename
Change file or folder name
Enter the new file or folder
using ❷➛❿, ENTER buttons.
Delete Folder
Delete folder
58
❿
➢
Menu
Exit
Set-Up
In case of making new folder :
1. Select Make New Folder using ❷ buttons, then press the
ENTER button.
2. Enter a new folder name using ❷➛❿, ENTER buttons.
3. Press the RETURN button to cancel.
4. Select OK to save folder name on the virtual keyboard, then
press the ENTER or RETURN button.
5. Press the CLEAR button to delete previous character.
Clear All
Unselect all files
Exit
Menu
Prev/Next Page
Select All
Select all files
Menu
❷
❿
Exit
Return
You can make new folder only in the Root.
59
Return
View the JPEG file list in HDD/CD
Photo Album
You can display JPEG files in CD or HDD and make your own
Menu
Photo Album or edit JPEG files easily.
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy Photo CD to HDD
You can display files on screen and play.
• HDD playlist is exactly same to CD Playlist in menu operation. Below step is an example of HDD
playlist.
Move
Menu
Digital Recorder
DVD Player
Juke Box
View the JPEG file list in HDD
Photo Album
1
Press the MENU button.
2
Select Photo Album using
or ❿ buttons.
Set-Up
Set-Up
lnstructions
Photo Album
Enter
Return
Menu
Exit
You can display up to 8 JPEG files on a screen with thumbnail size
or one JPEG file on a screen with full size. Also you can display
JPEG files continuously thru slideshow function.
see page 61
❷
buttons, then press the ENTER
lnstructions
3
Select HDD Playlist using
or ❿ buttons.
4
Select Folder or file using ❷ buttons, then press the ENTER
button.
• You can preview the selected file at the right side window.
• Press the ENTER button again to cancel file selection.
❷ buttons,
Move
Enter
Return
Menu
Exit
Menu
Exit
then press the ENTER
Menu
Edit the JPEG file in HDD
You can move, copy, save, or delete files and also change file
name in HDD.
see page 62
➢
5
View the JPEG file list in CD
You can display JPEG files list in CD and display on screen.
➢
If you select folder, then it shows you included file’s folder.
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy Photo CD to HDD
Set-Up
lnstructions
Move
Enter
Press the P-LIST button.
• 8 files are display.
see page 61
◆ Select Next using ❷➛❿ buttons, then press the Enter button to
see the next 8 files.
Copy JPEG file from CD to HDD
◆ Select Previous using ❷➛❿ buttons, then press the Enter button
to see the previous 8 files.
You can copy JPEG files from CD to HDD.
see page 63
Turn the power off and on again when the DHR works abnormal
by sudden power off, plug off or not supported files, broken files
in HDD.
– Abnormal working case : no key input except Standby/On button,
flickering display panel.
– Supported files in DHR : MP3, JPG.
6
Select file to see using ➛❿ buttons, then press the ENTER button.
• You can enlarge it to full screen size.
7
Select Slideshow using
button.
8
Select interval using ➛❿ buttons, then press the ENTER button.
• Interval is from 3 sec to 10 sec.
9
Slide Show will be started for all JPEG files in playlist on the
screen with full size.
➢
◆ Press
❷➛❿
❷➛❿
buttons, then press the ENTER
buttons to rotate pictures.
◆ Press the ZOOM button to change picture scale.
(Scale : 25%, 50%, 100%, 150%, 200%)
Press the ENTER button to change scale.
60
61
Return
Photo Album
Edit the JPEG file in HDD
You can edit saved JPEG files in HDD.
Photo Album
Copy JPEG file from CD to HDD
You can copy JPEG files from CD to HDD.
Menu
Menu
Digital Recorder
Digital Recorder
DVD Player
1
Press the MENU button.
1
Press the MENU button.
2
Select Photo Album using
or ❿ buttons.
2
Select Photo Album using
or ❿ buttons.
3
Select HDD Edit using
❿ buttons.
buttons, then press the ENTER or
3
Select Copy Photo CD to HDD using
the ENTER or ❿ buttons.
4
Select folder or file using ❷ buttons, then press the ENTER
button.
• If you select files, then Check icon is displayed.
• Press the ENTER button to cancel file selection.
4
Select files to copy from CD to HDD using
press the ENTER button.
• Press ENTER button to cancel file selection.
DVD Player
Juke Box
Juke Box
Photo Album
Set-Up
lnstructions
Move
Enter
Return
Menu
Exit
Menu
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy Photo CD to HDD
➢
❷ buttons,
❷
then press the ENTER
➢
If you select folder, then it shows you included files in the folder.
Set-Up
5
lnstructions
Move
Enter
Return
Menu
Exit
Move to the right side edit menu using ➛❿ buttons, then edit
selected files using ❷➛❿, ENTER buttons.
In case of move :
Select Execute using
❷
buttons, then press the ENTER
❷
buttons, then press
❷ buttons,
Photo Album
Set-Up
lnstructions
Move
Enter
• If you would like to choose all files in folder, move to Select
All using ➛❿ buttons, then press the ENTER button.
• All files in the folder are selected when you press the P-LIST
button after selecting a folder.
Digital Recorder
HDD Playlist
DVD Player
HDD Edit
Juke Box
CD Playlist
Photo Album
Copy Photo CD to HDD
Move
Enter
Select Copy to HDD using ➛❿buttons, then press the ENTER
button.
buttons, then press the ENTER button.
In case of making new folder :
1. Select Make New Folder using ❷ buttons, then press the
ENTER button.
2. Enter a new folder name using ❷➛❿, ENTER buttons.
3. Press the RETURN button to cancel.
4. Select OK to save folder name on the virtual keyboard, then
press the ENTER or RETURN button.
5. Press the CLEAR button to delete previous character.
Move file
Move files to another folder
And after move, existed file would
be deleted.
❿
Delete file
Delete files
Make Folder
Make new folder
Rename
Change file or folder name
Enter the new file or folder
using ❷➛❿, ENTER buttons.
➢
You can make new folder only in the Root.
Delete Folder
Delete folder
62
Exit
Menu
Exit
Set-Up
❿
Clear All
Unselect all files
Menu
Menu
Up to 200 files can be copied at once.
Select All
Select all files
Return
then
lnstructions
5
6
❷
63
Return
Technical Specifications
General
Problems and Solutions
Rated voltage
110 - 240V~, 50Hz
Power consumption
33 Watts
Weight
4.5 Kg
Size
430mm X 360mm X 70mm
Operating ambient temperature
+5°C ~ +35°C
Installation conditions
Operation position : Horizontal,
Relative humidity : Below 75%
Input
Output
Video (Rear)
RCA Jack 1 : 1.0Vp-p (unbalanced) 75Ω
Audio (Rear)
RCA Jack 1 : -8dBm, 47KΩ unbalanced
Video (Front)
RCA Jack 2 : 1.0Vp-p (unbalanced) 75Ω
Audio (Front)
RCA Jack 2 : -8dBm, 47KΩ unbalanced
Video (Rear)
S-Video
Audio (Rear)
for S-Video using
RF out
UHF 21-69 (Initial CH36)
Audio
RCA Jack
Audio
Digital audio out (OPTICAL, COAXIAL)
Video
RCA Jack
Video
S-Video
CODEC Format
MPEG II
REC Speed
SQ(2Mbps), HQ(4Mbps), SHQ(6Mbps)
Color system
PAL for Video signal output
Tuning system
B/G, D/K, I
Video S/N
Above 43dB (standard recording)
Resolution
Above 350 lines (standard recording)
Audio S/N
Above 70dB (standard recording)
COMPONENT : RCA Jack
HDD
Audio frequency characteristics
20Hz - 20KHz
Disc
DVD, CD (12cm), CD (8cm), VIDEO-CD (12cm)
DVD
CD-R (12cm), CD-RW (12cm)
Audio S/N
95dB
Audio dynamic range
105dB
1. No power
- Check that the power plug is connected to a wall outlet.
- Have you pressed the STANDBY/ON button?
2. When the power is turned on, the logo is displayed for some time before the picture appears.
- The DHR has a built-in hard disk drive (HDD). Because of the time required to initialize the hard disk
drive, the logo will be displayed on the screen for about 15 seconds after power-on.
3. The television programme was not recorded
- Check the DHR aerial connections.
- Is the DHR tuner properly set?
- Check the HDD’s free space.
4. Timer recording was unsuccessful
- Was the STANDBY/ON button pressed to activate the timer?
- Re-check the recording start/stop time setting.
- If there was a power failure or interruption during timer recording, the recording will have been
cancelled.
5. The picture is paused or an earlier broadcast than the current time is showing.
- The DHR has the Time Shift function (see page 29) so that you can pause the incoming broadcast signal
and resume watching the program later.
- Press the PLAY/PAUSE ( ❿ll ) button while watching a TV broadcast to pause the picture.
To resume viewing the broadcast, press the ❿ll button again.
- If you press the ❿❿ button to watch the broadcast in real-time, the picture will be fast forwarded until
incoming live broadcast is reached and played back at normal speed again.
6. The picture is played back at 2X speed in the reverse direction while watching a broadcast.
- The DHR has the Time-Shift function that allows you to instantly replay certain scenes from the current
television programming. You can watch the program starting from as far back into the program as the
time set in the Setup.
- Press the ➛➛ button to play back at 2X speed in the reverse direction during the reception of a TV
program.
7. The Copy key is pressed, but does not respond.
- The copy function will only work with DVDs, but if they contain a copy-protection signal the copy
operation cannot be performed.
- Discs other than DVDs, such as VCDs and CDs, cannot be copied.
8. The recorded video signals cannot be combined.
- The Combine operation is possible only on the files with the same record speed.
That is, it doesn't work if one file is in SHQ mode and the other is in HQ mode.
9. I have forgotten the password.
- In the DVD mode, while "NO DISC" is displayed, press and hold down both the ■ and ❿ll buttons on the
front panel at the same time for over 5 seconds to initialize the password to "1111".
- The password will be initialized to default, but the user setup will remain the same.
10. Disc does not play
- Ensure that the disc is installed with label side facing up.
- Check the region number of the DVD.
- This player cannot play some kinds of discs. (See page 12)
64
65
Problems and Solutions (cont.)
Memo
11. The
icon appear or screen.
- The features or action cannot be completed at this because;
(1) The DVD’s software restricts it.
(2) The DVD’s software doesn’t support the feature (e.g., angles).
(3) The feature is not available at the moment.
(4) You’re requested a title or chapter number or search time that is out of range.
12. Playback mode differs from the Setup menu selection.
- Some of the function selected in the Setup Menu may not work properly if the disc is not encoded with
the corresponding function.
13. The screen ratio cannot be changed.
- The screen ratio is fixed on your DVDs. (See page 31)
14. No audio.
- Make sure you have selected the correct Digital Output in the Audio Option Menu. (See page 30)
15. If you experience other problems.
- Go the contents and find the section of the instruction book that contains the explanations regarding the
current problem, and follow the procedure once again.
- Turn the power off and on again.
- If the problem still cannot be solved, please contact your nearest authorized service center.
66
67
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
