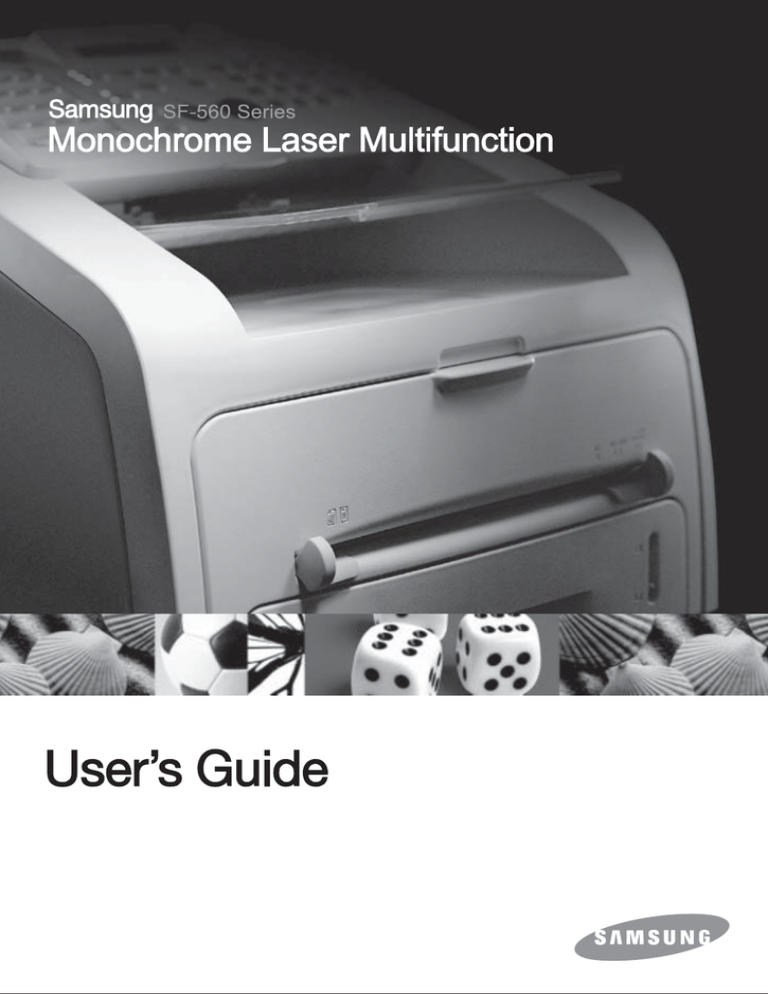

Samsung CF-565PR, SF-565P Owner's manual

Samsung CF-565PR, SF-565P Owner's manual
About the User’s Guides
Your machine comes with the two user’s guides:
This Laser MFP User’s Guide provides information you need for setting up your machine
and installing the supplied software. It also provides all of the detailed instructions for using
your machine as a printer, a scanner, a copier and a facsimile and information for maintaining
and troubleshooting the machine.
The SmarThru 3 User’s Guide provides the basic description about using the multi-function
application. Samsung SmarThru allows you to scan and edit images, and to scan for copying,
faxing and sending an e-mail on your computer. You can also find a brief description on the
automatic text recognition program, AnyPage.
This manual is provided for information purposes only. All information included herein is
subject to change without notice. Samsung Electronics is not responsible for any direct or
indirect damages, arising from or related to use of this manual.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.
• SF-565PR and Samsung logo are trademarks of Samsung Electronics Co., Ltd.
• PCL and PCL 6 are trademarks of hewlett-packard Company.
• IBM and IBM PC are trademarks of International Business Machines Corporation.
• Microsoft, Windows, Windows Vista, Windows 7 and Windows 2008 Server R2 are
either registered trademarks or trademarks of Microsoft Corporation.
• All other brand or product names are trademarks of their respective companies or
organizations.
• Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license
information.
Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding Samsung products, contact the Samsung customer
care center.
Country
Customer Care Center
Web Site
ARGENTINE
AUSTRALIA
AUSTRIA
BELARUS
0800-333-3733
1300 362 603
0810-SAMSUNG (7267864, € 0.07/min)
810-800-500-55-500
BELGIUM
02 201 2418
BRAZIL
0800-124-421
4004-0000
1-800-SAMSUNG (726-7864)
www.samsung.com/ca
800-SAMSUNG (726-7864)
www.samsung.com/cl
400-810-5858
www.samsung.com/cn
010-6475 1880
01-8000112112
www.samsung.com.co
0-800-507-7267
www.samsung.com/latin
800-SAMSUNG (800-726786)
www.samsung.com/cz
Samsung Zrt., ?eská organiza?ní složka, Oasis Florenc, Sokolovská394/17,
180 00, Praha 8
8-SAMSUNG (7267864)
www.samsung.com/dk
1-800-10-7267
www.samsung.com/latin
800-6225
www.samsung.com/latin
800-7267
www.samsung.com/ee
8-10-800-500-55-500
www.samsung.com/
kz_ru
00-800-500-55-500
30-6227 515
www.samsung.com/fi
01 4863 0000
www.samsung.com/fr
01805 - SAMSUNG (726-7864 € 0,14/min)
www.samsung.de
1-800-299-0013
www.samsung.com/latin
800-7919267
www.samsung.com/latin
3698-4698
www.samsung.com/hk
www.samsung.com/hk_en/
06-80-SAMSUNG (726-7864)
www.samsung.com/hu
www.samsung.com/in
3030 8282
1800 110011
1800 3000 8282
0800-112-8888
www.samsung.com/id
800-SAMSUNG (726-7864)
www.samsung.com/it
1-800-234-7267
www.samsung.com/latin
0120-327-527
www.samsung.com/jp
8000-7267
www.samsung.com/lv
8-800-77777
www.samsung.com/lt
CANADA
CHILE
CHINA
COLOMBIA
COSTA RICA
CZECH
REPUBLIC
DENMARK
ECUADOR
EL SALVADOR
ESTONIA
KAZAKHSTAN
KYRGYZSTAN
FINLAND
FRANCE
GERMANY
GUATEMALA
HONDURAS
HONG KONG
HUNGARY
INDIA
INDONESIA
ITALIA
JAMAICA
JAPAN
LATVIA
LITHUANIA
ii
www.samsung.com/ar
www.samsung.com/au
www.samsung.com/at
www.samsung/ua
www.samsung.com/ua_ru
www.samsung.com/be
(Dutch)
www.samsung.com/be_fr
(French)
www.samsung.com/br
Country
Customer Care Center
LUXEMBURG
MALAYSIA
MEXICO
MOLDOVA
02 261 03 710
1800-88-9999
01-800-SAMSUNG (726-7864)
00-800-500-55-500
NETHERLANDS
NEW ZEALAND
NICARAGUA
NORWAY
PANAMA
PHILIPPINES
0900-SAMSUNG (0900-7267864) (€ 0,10/min)
0800 SAMSUNG (0800 726 786)
00-1800-5077267
3-SAMSUNG (7267864)
800-7267
1800-10-SAMSUNG (726-7864)
1-800-3-SAMSUNG (726-7864)
1-800-8-SAMSUNG (726-7864)
02-5805777
0 801 1SAMSUNG (172678)
022-607-93-33
80820-SAMSUNG (726-7864)
1-800-682-3180
1-800-751-2676
0818 717 100
8-800-555-55-55
1800-SAMSUNG (726-7864)
0800-SAMSUNG (726-7864)
0860 SAMSUNG (726-7864)
902-1-SAMSUNG(902 172 678)
0771 726 7864 (SAMSUNG)
0848-SAMSUNG (7267864, CHF 0.08/min)
8-10-800-500-55-500
0800-329-999
1800-29-3232
02-689-3232
1-800-SAMSUNG (726-7864)
POLAND
PORTUGAL
PUERTO RICO
REP. DOMINICA
EIRE
RUSSIA
SINGAPORE
SLOVAKIA
SOUTH AFRICA
SPAIN
SWEDEN
SWITZERLAND
TADJIKISTAN
TAIWAN
THAILAND
TRINIDAD &
TOBAGO
TURKEY
U.A.E
U.K
U.S.A
UKRAINE
444 77 11
800-SAMSUNG (726-7864)
8000-4726
0845 SAMSUNG (726-7864)
1-800-SAMSUNG (7267864)
8-800-502-0000
UZBEKISTAN
8-10-800-500-55-500
VENEZUELA
VIETNAM
0-800-100-5303
1 800 588 889
Web Site
www.samsung.com/lu
www.samsung.com/my
www.samsung.com/mx
www.samsung/ua
www.samsung.com/ua_ru
www.samsung.com/nl
www.samsung.com/nz
www.samsung.com/latin
www.samsung.com/no
www.samsung.com/latin
www.samsung.com/ph
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/ie
www.samsung.ru
www.samsung.com/sg
www.samsung.com/sk
www.samsung.com/za
www.samsung.com/es
www.samsung.com/se
www.samsung.com/ch
www.samsung.com/tw
www.samsung.com/th
www.samsung.com/latin
www.samsung.com/tr
www.samsung.com/ae
www.samsung.com/uk
www.samsung.com/us
www.samsung/ua
www.samsung.com/ua_ru
www.samsung.com/
kz_ru
www.samsung.com/latin
www.samsung.com/vn
iii
CONTENTS
Chapter 1:
CONTENTS
Chapter 1:
GETTING STARTED
Unpacking .................................................................... 1.2
Selecting a Location ................................................. 1.4
Understanding the Component Location ........................... 1.5
Front View .............................................................. 1.5
Rear View ............................................................... 1.5
Control Panel Functions ............................................ 1.6
Attaching Accessories .................................................... 1.8
Document Output Support ........................................ 1.8
Handset and Handset Cradle ..................................... 1.9
Installing the Toner Cartridge ....................................... 1.10
Loading Paper ............................................................ 1.12
Making Connections .................................................... 1.15
Turning the Machine On ............................................... 1.18
About Samsung Software ............................................. 1.19
Printer Driver Features ........................................... 1.20
Installing Samsung Software in Windows ....................... 1.21
System Requirements ............................................ 1.21
Installing Samsung Software ................................... 1.22
Installing Samsung SmarThru ................................. 1.24
Repairing Software ...................................................... 1.27
Removing Software ..................................................... 1.28
Uninstalling the MFP Driver ..................................... 1.28
Uninstalling Samsung SmarThru .............................. 1.29
Changing the Display Language .................................... 1.30
Setting the Machine ID ................................................ 1.31
Entering Characters Using the Number Keypad .......... 1.32
Setting the Date and Time ........................................... 1.34
Changing the Clock Mode ....................................... 1.35
Setting the Paper Type and Size ................................... 1.36
Setting Sounds ........................................................... 1.37
Speaker, Ringer, Key Sound and Alarm Sound ........... 1.37
Speaker Volume .................................................... 1.38
Using the Save Modes ................................................. 1.38
Toner Save Mode .................................................. 1.38
Toll Save Mode ...................................................... 1.39
Power Save Mode .................................................. 1.40
Chapter 2:
PAPER HANDLING
Selecting Print Materials .................................................
Type, Input Sources and Capacities ...........................
Guidelines for Paper and Special Materials ..................
Selecting an Output Location ..........................................
Printing to the Front Output Tray (Face down) .............
iv
2.2
2.2
2.3
2.4
2.5
Printing to the Rear Output Slot (Face up) .................. 2.5
Loading Paper in the Paper Tray ...................................... 2.7
Using the Manual Feeder ................................................ 2.8
Setting the Paper Type and Size for the Manual Feeder 2.10
Chapter 3:
PRINTING
Printing a Document in Windows ..................................... 3.2
Canceling a Print Job ................................................ 3.5
Using a Favorite Setting ........................................... 3.6
Using Help .............................................................. 3.6
Setting Paper Properties ................................................ 3.7
Setting Graphic Properties .............................................. 3.8
Printing Multiple Pages on One Sheet of the Paper ........... 3.10
Printing a Reduced or Enlarged Document ...................... 3.12
Fitting Your Document to a Selected Paper Size .............. 3.13
Printing Posters .......................................................... 3.14
Using Watermarks ...................................................... 3.15
Using an Existing Watermark .................................. 3.15
Creating a Watermark ............................................ 3.16
Editing a Watermark .............................................. 3.17
Deleting a Watermark ............................................ 3.17
Using Overlays ........................................................... 3.18
What is an Overlay? ............................................... 3.18
Creating a New Page Overlay .................................. 3.18
Using a Page Overlay ............................................. 3.20
Deleting a Page Overlay ......................................... 3.21
Setting Up the Locally Shared Printer ............................. 3.22
Chapter 4:
COPYING
Loading Paper for Copying .............................................
Preparing a Document ...................................................
Making a Copy ..............................................................
Setting Copy Options .....................................................
Darkness ................................................................
Original Type ..........................................................
Number of Copies ....................................................
Reduced/Enlarged Copying .......................................
Changing the Default Settings ........................................
Setting the Time Out Option ...........................................
Collation Copying ..........................................................
Chapter 5:
4.2
4.2
4.3
4.4
4.4
4.5
4.5
4.6
4.7
4.8
4.8
SCANNING
Scanning Basics ............................................................ 5.2
Scanning Using Samsung SmarThru ................................ 5.2
Scanning Process with TWAIN-enabled Software ............... 5.6
Chapter 6:
FAXING
v
Changing the Fax Setup options ...................................... 6.2
Available Fax Setup Options ........................................... 6.3
Loading a Document ..................................................... 6.5
Adjusting the Document Resolution ................................. 6.6
Sending a Fax Automatically ........................................... 6.7
Sending a Fax Manually ................................................. 6.8
Redialing the Last Number ............................................. 6.8
Confirming Transmission ................................................ 6.9
Automatic Redialing ...................................................... 6.9
About Receiving Modes ................................................ 6.10
Loading Paper for Receiving Faxes ................................. 6.11
Receiving Automatically in Fax Mode ............................. 6.11
Receiving Manually in Tel Mode ..................................... 6.11
Receiving Automatically in Ans/Fax Mode ....................... 6.12
Receiving Manually Using an Extension Telephone ........... 6.13
Receiving Faxes Using the DRPD Mode ........................... 6.13
Receiving Faxes in the Memory ..................................... 6.14
One-touch Dialing ....................................................... 6.15
Storing a Number for One-touch Dialing ................... 6.15
Sending a Fax using a One-touch Number ................. 6.16
Speed Dialing ............................................................. 6.16
Storing a Number for Speed Dialing ......................... 6.16
Sending a Fax using a Speed Number ...................... 6.17
Group Dialing ............................................................. 6.18
Setting a Group Dial Number .................................. 6.18
Editing Group Dial Numbers .................................... 6.19
Sending a Fax Using Group Dialing
(Multi-address Transmission) .................................. 6.20
Searching for a Number in the Memory .......................... 6.20
Searching Sequentially through the Memory .............. 6.20
Searching with a Particular First Letter ..................... 6.21
Printing a Phonebook List ............................................. 6.21
Sending Broadcasting Faxes ......................................... 6.22
Sending a Delayed Fax ................................................ 6.23
Sending a Priority Fax ................................................. 6.25
Polling a Remote Machine ............................................ 6.26
Adding Documents to a Scheduled Fax ........................... 6.27
Canceling a Scheduled Fax ........................................... 6.28
Using Secure Receiving Mode ....................................... 6.29
Printing Reports .......................................................... 6.31
Using Advanced Fax Settings ........................................ 6.33
Changing Setting Options ....................................... 6.33
Advanced Fax Setting Options ................................. 6.34
Using the Remote Control Panel .................................... 6.36
Chapter 7:
USING YOUR PRINTER
IN
LINUX
Getting Started .............................................................
Installing the MFP Driver ................................................
System Requirements ..............................................
Installing the MFP Driver ..........................................
vi
7.2
7.3
7.3
7.4
Uninstalling the MFP Driver ....................................... 7.5
Using the MFP Configurator ............................................ 7.6
Opening the MFP Configurator ................................... 7.6
Printers Configuration .............................................. 7.7
Scanners Configuration ............................................ 7.8
MFP Ports Configuration ........................................... 7.9
Configuring Printer Properties ....................................... 7.10
Printing a Document .................................................... 7.11
Printing from Applications ....................................... 7.11
Printing Files ......................................................... 7.12
Scanning a Document .................................................. 7.13
Using the Image Editor .......................................... 7.17
Chapter 8:
MAINTENANCE
Clearing the Memory ..................................................... 8.2
Adjusting Shading ......................................................... 8.3
Cleaning Your Machine ................................................... 8.3
Cleaning the Outside ................................................ 8.3
Cleaning the Inside .................................................. 8.4
Cleaning the Scan Unit ............................................. 8.5
Maintaining the Toner Cartridge ...................................... 8.7
Redistributing Toner ................................................ 8.8
Replacing the Toner Cartridge ................................... 8.9
Setting the Notify Toner Option ............................... 8.10
Cleaning the Drum ................................................ 8.11
Ignoring the Toner Empty Message .......................... 8.11
Consumables and Replacement Parts ............................. 8.12
Replacing the ADF Rubber Pad ...................................... 8.13
Chapter 9:
TROUBLESHOOTING
Clearing Document Jams ................................................ 9.2
Input Misfeed .......................................................... 9.2
Exit Misfeed ............................................................ 9.2
Clearing Paper Jams ...................................................... 9.3
In the Paper Tray .................................................... 9.4
In the Paper Exit Area .............................................. 9.5
In the Fuser Area or Around the Toner Cartridge .......... 9.6
In the Manual Feeder ............................................... 9.6
Tips for Avoiding Paper Jams ..................................... 9.7
Clearing LCD Error Messages .......................................... 9.8
Solving Problems ........................................................ 9.11
Paper Feeding Problems ......................................... 9.11
Printing Problems .................................................. 9.12
Printing Quality Problems ....................................... 9.15
Copying Problems .................................................. 9.19
Scanning Problems ................................................ 9.20
Faxing Problems .................................................... 9.21
Common Linux Problems ........................................ 9.23
Appendix A:
SPECIFICATIONS
General Specifications ................................................... A.2
vii
Scanner and Copier Specifications ................................... A.3
Printer Specifications ..................................................... A.4
Facsimile Specifications ................................................. A.5
Paper Specifications ...................................................... A.6
Overview ................................................................ A.6
Supported Sizes of Paper .......................................... A.6
Guidelines for Using Paper ........................................ A.7
Paper Specifications ................................................. A.8
Paper Output Capacity ............................................. A.8
Paper Storage Environment ...................................... A.9
Envelopes ............................................................... A.9
Labels .................................................................. A.11
Transparencies ...................................................... A.11
viii
Safety and Regulatory Information
Important Precautions and Safety Information
When using this machine, these basic safety precautions should always be followed to reduce risk of fire,
electric shock and injury to people:
1
Read and understand all instructions.
2
Use common sense whenever operating electrical appliances.
3
Follow all warnings and instructions marked on the machine and in the literature accompanying the
machine.
4
If an operating instruction appears to conflict with safety information, heed the safety information. You
may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales
or service representative for assistance.
5
Unplug the machine from the AC wall socket and/or telephone jack before cleaning. Do not use liquid
or aerosol cleaners. Use only a damp cloth for cleaning.
6
Do not place the machine on an unstable cart, stand or table. It may fall, causing serious damage.
7
Your machine should never be placed on, near or over a radiator, heater, air conditioner or ventilation
duct.
8
Do not allow anything to rest on the power. Do not locate your machine where the cords will be abused
by persons walking on them.
9
Do not overload wall outlets and extension cords. This can diminish performance, and may result in the
risk of fire or electric shock.
10 Do not allow pets to chew on the AC power, telephone or PC interface cords.
11 Never push objects of any kind into the machine through case or cabinet openings. They may touch
dangerous voltage points, creating a risk of fire or shock. Never spill liquid of any kind onto or into the
machine.
12 To reduce the risk of electric shock, do not disassemble the machine. Take it to a qualified service
technician when repair work is required. Opening or removing covers may expose you to dangerous
voltages or other risks. Incorrect reassembly could cause electric shock when the unit is subsequently
used.
13 Unplug the machine from the telephone jack, PC and AC wall outlet and refer servicing to qualified
service personnel under the following conditions:
• When any part of the power cord, plug or connecting cable is damaged or frayed.
• If liquid has been spilled into the machine.
• If the machine has been exposed to rain or water.
• If the machine does not operate properly after instructions have been followed.
• If the machine has been dropped, or the cabinet appears damaged.
• If the machine exhibits a sudden and distinct change in performance.
14 Adjust only those controls covered by the operating instructions. Improper adjustment of other controls
may result in damage, and may require extensive work by a qualified service technician to restore the
machine to normal operation.
15 Avoid using this machine during a lightning storm. There may be a remote risk of electric shock from
lightning. If possible, unplug the AC power and telephone cord for the duration of the lightning storm.
16 The Power cord supplied with your machine should be used for safe operation. If you are using a cord
which is longer than 2 m with 110 V machine, then it should be 16 AWG* or bigger.
ix
17 Use only No.26 AWG* or larger telephone line cord.
18 SAVE THESE INSTRUCTIONS.
Laser Safety Statement
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J
for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the
requirements of IEC 825.
Class I laser products are not considered to be hazardous. The laser system and printer are designed so
there is never any human access to laser radiation above a Class I level during normal operation, user
maintenance or prescribed service condition.
WARNING
Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The
reflected beam, although invisible, can damage your eyes.
When using this product, these basic safety precautions should always be followed to reduce risk of fire,
electric shock, and injury to persons:
Ozone Safety
During normal operation, this machine produces ozone. The ozone produced does not
present a hazard to the operator. However, it is advisable that the machine be operated
in a well ventilated area.
If you need additional information about ozone, please request your nearest Samsung
dealer.
Mercury Safety
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE
RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL
LAWS. For details see lamprecycle.org, eiae.org, or call 1-800-Samsung
* AWG: American Wire Gauge
x
Recycling
Please recycle or dispose of the packaging material for this product in an environmentally
responsible manner.
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in the European Union and other European countries with separate collection
systems)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
Radio Frequency Emissions
FCC Information to the User
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or experienced radio TV technician for help.
Caution:
Change or modifications not expressly approved by the manufacturer responsible for compliance could void
the user's authority to operate the equipment.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry
and Science Canada.
xi
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques
de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée
par l’Industrie et Sciences Canada.
Fax Branding
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other
electronic device to send any message via a telephone facsimile machine unless such message clearly
contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission
the following information:
(1) the date and time of transmission
(2) identification of either business, business entity or individual sending the message; and
(3) telephone number of either the sending machine, business, business entity or individual.
The Telephone Company may make changes in its communications facilities, equipment operations or
procedures where such action is reasonably required in the operation of its business and is not inconsistent
with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any
customer terminal equipment incompatible with telephone company communications facilities, or require
modification or alteration of such terminal equipment, or otherwise materially affect its use or performance,
the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain
uninterrupted service.
Ringer Equivalence Number
The Ringer Equivalence Number and FCC Registration Number for this machine may be found on the label
located on the bottom or rear of the machine. In some instances you may need to provide these numbers to
the telephone company.
The Ringer Equivalence Number (REN) is a measure of the electrical load placed on the telephone line, and
is useful for determining whether you have “overloaded” the line. Installing several types of equipment on the
same telephone line may result in problems making and receiving telephone calls, especially ringing when
your line is called. The sum of all Ringer Equivalence Numbers of the equipment on your telephone line
should be less than five in order to assure proper service from the telephone company. In some cases, a sum
of five may not be usable on your line. If any of your telephone equipment is not operating properly, you
should immediately remove it from your telephone line, as it may cause harm to the telephone network.
WARNING:
FCC Regulations state that changes or modifications to this equipment not expressly approved by the
manufacturer could void the user’s authority to operate this equipment. In the event that terminal equipment
causes harm to the telephone network, the telephone company should notify the customer that service may
be stopped. However, where prior notice is impractical, the company may temporarily cease service,
providing that they:
a) promptly notify the customer.
b) give the customer an opportunity to correct the equipment problem.
c) inform the customer of the right to bring a complaint to the Federal Communication Commission pursuant
to procedures set out in FCC Rules and Regulations Subpart E of Part 68.
xii
You should also know that:
• Your machine is not designed to be connected to a digital PBX system.
• If you intend to use a computer modem or fax modem on the same phone line as your machine, you may
experience transmission and reception problems with all the equipment. It is recommended that no other
equipment, except for a regular telephone, share the line with your machine.
• If your area experiences a high incidence of lightning or power surges, we recommend that you install
surge protectors for both the power and the telephone lines. Surge protectors can be purchased from
your dealer or telephone and electronic specialty stores.
• When programming emergency numbers and/or making test calls to emergency numbers, use a nonemergency number to advise the emergency service dispatcher of your intentions. The dispatcher will
give you further instructions on how to actually test the emergency number.
• This machine may not be used on coin service or party lines.
• This machine provides magnetic coupling to hearing aids.
• You may safely connect this equipment to the telephone network by means of a standard modular jack,
USOC RJ-11C.
Declaration of Conformity (European Countries)
Approvals and Certifications
The CE marking applied to this product symbolizes Samsung Electronics Co., Ltd.
Declaration of Conformity with the following applicable 93/68/EEC Directives of the
European Union as of the dates indicated:
The declaration of conformity may be consulted at www.samsung.com/printer, go to
Support > Download center and enter your printer name to browse the EuDoC.
January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the member states related to
low voltage equipment.
January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the laws of the Member
States related to electromagnetic compatibility.
March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal
equipment and the mutual recognition of their conformity.
A full declaration, defining the relevant Directives and referenced standards can be obtained from your
Samsung Electronics Co., Ltd. representative.
EC Certification
Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive
(FAX)
This Samsung product has been self-certified by Samsung for pan-European single terminal connection to
the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The
product has been designed to work with the national PSTNs and compatible PBXs of the European
countries:
In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first
instance.
The product has been tested against TBR21. To assist in the use and application of terminal equipment
which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued
an advisory document (EG 201 121) which contains notes and additional requirements to ensure network
compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of
the relevant advisory notes contained in this document.
xiii
Replacing the Fitted Plug (for UK Only)
Important
The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse.
When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace
the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.
Please contact the people from you purchased the machine.
The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings
(mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not
remove the moulded plug.
Warning
If you cut off the moulded plug, get rid of it straight away.
You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.
Important warning: You must earth this machine.
The wires in the mains lead have the following color code:
• Green and Yellow:
Earth
• Blue:
Neutral
• Brown:
Live
If the wires in the mains lead do not match the colors marked in your plug, do the following:
You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’
or colored green and yellow or green.
You must connect the blue wire to the pin which is marked with the letter “N” or colored black.
You must connect the brown wire to the pin which is marked with the letter “L” or colored red.
You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
xiv
1
GETTING STARTED
Thank you for purchasing this multifunctional product.
Your machine provides you with printing, copying,
scanning, and faxing functions!
This chapter gives you step-by-step instructions for
setting up your machine.
This chapter includes:
• Unpacking
• Understanding the Component Location
• Attaching Accessories
• Installing the Toner Cartridge
• Loading Paper
• Making Connections
• Turning the Machine On
• About Samsung Software
• Installing Samsung Software in Windows
• Removing Software
• Changing the Display Language
• Setting the Machine ID
• Setting the Date and Time
• Setting the Paper Type and Size
• Setting Sounds
• Using the Save Modes
Unpacking
Remove the machine and all accessories from the packing carton.
Make sure that the machine has been packed with the following
items. If there is a missing item, contact the retailer where you
bought the machine:
Starter Toner Cartridge
AC Power Cord*
Telephone Line Cord*
CD-ROM**
Quick Install Guide
Document Output Support
Handset
Cradle
TAM Lead
(for UK only)
1.2
GETTING STARTED
* The appearance of the power cord and the telephone line cord may differ
according to your country’s specifications.
** The CD-ROM contains the MFP driver, SmarThru software, the user’s guides
and the Adobe Acrobat Reader program.
NOTES:
• You should use the telephone line cord which is supplied with
your machine. If you are replacing it with another vendor’s, it
should be AWG #26 or larger telephone line cord.
• The power cord must be plugged into a grounded power socket.
• Components may differ from one country to another.
Remove the packing tape from the front, back and sides of the
machine.
Tape
GETTING STARTED
1.3
1
Selecting a Location
Select a level, stable place with adequate space for air
circulation. Allow extra space for opening covers and trays.
The area should be well-ventilated and away from direct sunlight
or sources of heat, cold and humidity. Do not set the machine
close to the edge of your desk or table.
Clearance Space
• Front: 482.6 mm (enough space so that the paper tray can be
removed)
• Back: 250 mm (enough space for ventilation)
• Right: 100 mm
• Left: 100 mm (enough space for ventilation)
1.4
GETTING STARTED
1
Understanding the Component
Location
These are the main components of your machine:
Front View
Document Input
Support
Automatic Document Feeder
Control Panel (See page 1.6)
Document Output
Tray
Document
Guides
Front Output Tray (Face down)
Paper Output
Extension
Front Cover
Toner Cartridge
Paper Level
Indicator
Handset
Manual Feeder
Manual Feeder
Guides
Paper Tray
Rear View
Rear Cover
Rear Output
Slot (Face up)
EXT Jack*
Line Jack
USB Connector
Power Switch
* If your country has a different
AC Power Cord Connector
telephone connection system,
this socket may be blocked.
GETTING STARTED
1.5
Control Panel Functions
1
Use to store frequently-dialed fax number and
dial them with a touch of the buttons.
Adjusts the brightness of the documents for
the current copy job.
2
C
O
P
Y
Selects the document type for the current
copy job.
Makes a copy smaller or larger than the
original document.
Selects the number of copies.
3
Displays the current status and prompts
during an operation.
Scrolls through the options available for the
selected menu item.
4
Confirms the selection on the display.
Enters Menu mode and scrolls through the
menus available.
1.6
GETTING STARTED
1
Sends you back to the upper menu level.
4
Stops an operation at any time.
In Standby mode, clears/cancels the copy
options, such as the darkness, the document
type setting, the copy size and the number of
copies.
Starts a job.
5
Dials a number or enters alphanumeric
characters.
6
Allows you to save on toner by using less
toner to print a document.
S
A
V
E
Allows you to save on call costs by sending a
fax at a preset toll-saving time. Using this
feature, you can take advantage of lower long
distance rates at night, for example.
Allows you to select the fax receiving mode.
• Allows you to store frequently-dialed fax
numbers using a one or two-digit speed dial
or group number for automatic dialing and
edit the stored numbers.
• Allows you to print a Phone book list.
7
F
A
X
Adjusts the resolution of the documents for
the current fax job.
Allows you to send a fax to multiple
destinations.
Engages the telephone line.
Redials the last number in Standby mode or
inserts a pause into a fax number in Edit
mode.
GETTING STARTED
1.7
Attaching Accessories
Document Output Support
Insert the two tabs on the supplied document output support
into the slots on both sides of the paper output tray.
Fold out the extender, if necessary.
NOTES:
• When you want to use the paper
output extension, first slightly lift
the document output support up,
then fold out the extension.
• When detaching the document
output tray, detach it by pressing
the front portion of document
output tray as seen from the
picture. As this time, even though
the dull sound is heard the
components are safe from damge.
1.8
GETTING STARTED
Handset and Handset Cradle
1 Plug the end of the coiled cord of the handset into the jack
on the left side of your machine.
2 Holding the cradle as shown, attach the handset cradle to
the machine.
➀ Insert the two tabs of the cradle into the slots on the left
side of the machine as shown.
➁ Push the cradle toward the machine until it locks into
place.
NOTES:
• The cradle and handset must be installed for correct operation of the set.
• To remove the cradle, push it down, pressing the latch on the
bottom of the cradle.
GETTING STARTED
1.9
1
Installing the Toner Cartridge
1 Open the front cover.
2 Remove the starter toner cartridge from its bag. Gently roll
the cartridge 5 or 6 times to distribute the toner evenly
inside the cartridge.
Thoroughly rolling the cartridge will assure the maximum
copies per cartridge.
CAUTIONS:
• To prevent damage, do not expose the toner cartridge to light for
more than a few minutes. Cover it with a piece of paper, if left
exposed for more than a few minutes.
• If toner gets on your clothing, wipe it off with a dry cloth and
wash clothing in cold water. Hot water sets toner into the fabric.
1.10 GETTING STARTED
3 Slide the toner cartridge into the machine until it locks into
place completely.
4 Close the front cover. Make sure that the cover is securely closed.
GETTING STARTED 1.11
1
Loading Paper
You can load approximately 250 sheets.
To load a stack of Letter-sized paper:
1 Pull open the paper tray and remove it from the machine.
2 Push down on the pressure plate until it locks into place.
3 Fan the edges of the paper stack to separate the pages.
Then tap the stack on a flat surface to even it up.
1.12 GETTING STARTED
4 Insert the paper stack into the paper tray with the side you
want to print on facing up.
NOTE: If you want to load a different size of paper, you need to
adjust the paper guides. For details, see page 1.14.
5 Pay attention to the paper limit mark on the left inside wall
of the tray. Paper overloading may cause paper jams.
6 Insert and slide the paper tray back into the machine.
NOTE: After you load the paper, you need to set up your machine
for the paper type and size you loaded. See page 1.36 for copying
and faxing, or page 3.7 for PC-printing.
GETTING STARTED 1.13
1
Changing the Paper Size in the Paper Tray
To load longer sizes of paper, such as Legal-sized paper, you
need to adjust the paper guides to extend the paper tray.
1 After pressing and unlatching the guide lock, slide the
paper length guide out completely to extend the paper tray
to its full length.
2 After inserting paper into the tray, slide in the guide until it
lightly touches the end of the paper stack.
For paper smaller than letter, adjust the paper length guide
accordingly.
1.14 GETTING STARTED
3 Pinching the paper width guide as shown, move it toward
the stack of paper until it lightly touches the side of the
stack.
NOTES:
• Do not push the paper width guide far enough to cause the
materials to warp.
• If you do not adjust the paper width guide, it may cause paper
jams.
Making Connections
1 Plug the telephone line cord into the LINE jack and the
other end into the wall jack.
➜ To the walljack
GETTING STARTED 1.15
1
2 To connect a telephone and/or answering machine to your
machine, plug the cord of your extension phone or
answering machine into the EXT jack.
➜ To an extension
phone or answering
UK users should plug the cord of the extension phone into
the supplied TAM lead and plug the cord of the TAM lead
into the EXT jack on the back of your machine.
TAM lead
(For UK users only)
NOTES:
• Use the TAM lead and the telephone line cord supplied with your
machine.
• In the United Kingdom, if a three-wire type (SHUNT-wire, found
on older equipment) telephone or answering machine is
connected to the EXT jack on the machine, the external
equipment will fail to ring when receiving an incoming call as the
machine is designed to operate with the latest technology. To
prevent this incompatibility, use two-wire (newer equipment)
telephones or answering machines.
1.16 GETTING STARTED
3 Connect a USB cable to the USB connector on your
machine.
You must purchase a USB 1.1 compliant cable that is no
more than 3 m in length.
NOTES:
• When using the USB connection, your machine provides two USB
modes; Fast and Slow. Fast is the default mode. Some PC users
may experience poor USB function in the default mode. If this
occurs, select the Slow mode to achieve successful results. For
details about changing the USB mode, see page 9.14.
GETTING STARTED 1.17
1
Turning the Machine On
1 Plug one end of the supplied three-pronged electrical type
cord into the AC socket on the machine and the other end
into a properly grounded AC outlet.
2 Press the power switch to turn the machine on. “Warming
Up Please Wait” appears on the display indicating that the
machine is now on.
➜ To the AC walljack
To view your display text in another language, see
page 1.30.
CAUTIONS:
• The fusing area inside the rear part of your machine becomes hot
once the machine is turned on. Be careful when you access this
area.
• Do not disassemble the machine when it is turned on as it may
give you an electric shock.
1.18 GETTING STARTED
Installing Software
About Samsung Software
You must install software using the supplied CD-ROM after you
have set up your machine and connected it to your computer.
The CD-ROM includes:
• Samsung software
• User’s Guides
• Adobe Acrobat Reader
The CD-ROM provides you with the following software:
Windows MFP Driver
To use your machine as a printer and scanner in Windows, you
must install the MFP driver. For information about installing the
MFP driver in Windows, see page 1.21.
Linux Driver
You can print and scan in Linux using your machine. For
information about installing the printer driver in Linux, see
page 7.2.
Remote Control Panel
This Windows-based program is automatically installed when
you install the MFP driver. For information about using the
program, see page 6.36.
SmarThru Software
SmarThru is the accompanying Windows-based software for
your multifunctional machine. SmarThru contains a powerful
image editor that allows you to edit images in many ways and
also includes powerful Internet mail client software. With
SmarThru, you can save the scanned images in a dedicated
storage area for subsequent editing, sending via e-mail or fax,
printing and processing by other programs of your choice.
GETTING STARTED 1.19
1
OCR Software (AnyPage Lite)
AnyPage Lite, the OCR (Optical Character Recognition) program,
is Windows-based software that has the ability to recognize
most character formats so that a scanned document can be read
and edited with word processing software.
NOTES:
• In case of Chinese, it does not support the OCR function.
• OCR is available only for languages supported by AnyPage Lite.
Supported languages are Africans, Albanian, Basque, Bulgarian,
Byelorussian, Catalan, Croatian, Czech, Danish, Digits, Dutch,
English, Estonian, Finnish, French, German, Hungarian,
Icelandic, Indonesian, Irish, Italian, Latvian, Lithuanian,
Macedonian, Norwegian (Bokmal), Norwegian (Nynorsk), Polish,
Portuguese, Romanian, Russian, Serbian, Slovak, Spanish,
Swahili, Swedish, Tagalog, Turkish, Ukrainian, Korean.
• Recommended Scan Option for OCR
Resolution: 200 or 300 dpi
Image Type: Mono(Black & White)
Printer Driver Features
Your printer drivers support the following standard features:
• Paper source selection
• Paper size, orientation and media type
• number of copies
The following table lists a general overview of features
supported by your printer drivers.
Feature
Printer Driver
Windows
Linux
Toner Save
Y
Y
Print quality option
Y
Y
Poster printing
Y
N
Multiple pages per
sheet (N-up)
Y
Y(2,4)
Fit to page printing
Y
Y
Scale printing
Y
Y
Watermark
Y
N
Overlay
Y
N
1.20 GETTING STARTED
Installing Samsung Software in
Windows
System Requirements
Before you begin, ensure that your system meets the minimum
requirements.
REQUIREMENT (RECOMMENDED)
OPERATING
SYSTEM
CPU
RAM
FREE HDD
SPACE
Windows
2000
Pentium II 400 MHz
(Pentium III 933 MHz)
64 MB
(128 MB)
600 MB
Windows XP
Pentium III 933 MHz
(Pentium IV 1 GHz)
128 MB
(256 MB)
1.5 GB
Windows
Server 2003
Pentium III 933 MHz
(Pentium IV 1 GHz)
128 MB
(512 MB)
1.25 GB to
2 GB
Windows
Server 2008
Pentium IV 1 GHz
(Pentium IV 2 GHz)
512 MB
(2048 MB)
10 GB
Windows
Vista
Pentium IV 3 GHz
512 MB
(1024 MB)
15 GB
Windows 7
Pentium IV 1 GHz 32-bit
or 64-bit processor or
higher
1 GB
(2 GB)
16 GB
•
•
Windows
Server 2008
R2
Support for DirectX 9 graphics with 128 MB
memory(to enable the Aero theme).
DVD-R/W Drive
Pentium IV 1 GHz(x86) or
1.4GHz(x64)
processors(2GHz or
faster)
512 MB
(2048 MB)
10 GB
NOTES:
• Internet Explorer 5.0 or higher is the minimum requirement for
all Windows operating systems.
• Users who have an administrator right can install the software.
GETTING STARTED 1.21
1
Installing Samsung Software
NOTES: Cancel the “New Hardware Found” window when your
computer boots up.
1 Insert the supplied CD-ROM into your CD-ROM drive.
The CD-ROM should automatically run and an installation
window appears.
If the installation window does not appear, click Start and
then Run. Type X:\Setup.exe, replacing “X” with the
letter of your drive and click OK.
If you use Windows Vista, Windows 7 and Windows Server 2008
R2, click Start → All programs → Accessories → Run, and
type X:\Setup.exe.
If the AutoPlay window appears in Windows Vista, Windows 7
and Windows Server 2008 R2, click Run Setup.exe in Install
or run program field, and click Continue in the User
Account Control window.
2 When the following window opens, connect your machine to
the computer and turn the printer on. Then click Next.
If the machine is already connected and turned on, this
screen does not appear. Skip to the next step.
NOTE: If you click Next and the machine is not connected to the
computer, an alert message window appears. After connecting the
machine and turning it on, click Yes. Or, if you want to install the
software without the machine, Click No.
1.22 GETTING STARTED
3 Choose the installation type.
1
•Typical: Installs the common software for your printer,
such as printer driver, Twain driver, Remote Control Panel.
This is recommend for most users.
•Custom: Allows you to choose the language of the
software and the components you want to install. After
selecting the language and the component(s), click Next.
•Install SmarThru: Installs the SmarThru program. If you
select to install SmarThru on this screen, follow from step
3 on page 1.24.
•View User’s Guide: Allows you to view this User’s Guide
or SmarThru User’s Guide. If your computer doesn’t have
Adobe Acrobat, click on this option and it will automatically
install Adobe Acrobat for you.
4 After the installation is finished, the window asking you to
print a test page appears. If you choose to print a test
page, select the check box and click Next.
Otherwise, Skip to step 6.
GETTING STARTED 1.23
5 When the test page prints out correctly, click Yes.
If not, click No to reprint it.
6 To register yourself as a user of Samsung Printers, select
the check box and click Finish. You are now accessed to the
Samsung web site.
Otherwise, just click Finish.
Installing Samsung SmarThru
1 Insert the supplied CD-ROM into your CD-ROM drive.
2 Click Install SmarThru.
3 Click Next.
1.24 GETTING STARTED
4 Follow the on-screen instructions and click Next.
5 Click Next.
6 Select the installation type and click Next.
The software installation supports two types of setup:
• Typical: Program will be installed with the most common
options and is recommended for most users.
• Custom: You may choose the options you want to install.
If you select the Custom installation, you may choose the
components you want to install.
• SmarThru Software: to scan and edit images
and to work with electronic documents.
• OCR Software: AnyPage Lite software to enable OCR.
7 Choosing the SmarThru networking option allows you to
share the modems on other computer in your network, and
the scan device or to access similar devices on other
computers.
GETTING STARTED 1.25
1
Stand-alone configuration does not allow you to use any
networking features, such as Remote Fax or Remote Scan
service.
When you select SmarThru networking, you can elect to
install it as a Server, a Client or both.
The Server option allows you to share a local fax modem
and/or a scanner over a LAN. You can control sharing by
managing a remote service user. The Client option allows
you to use Remote Fax or Remote Scan services provided
by a SmarThru Server over a LAN. You need to have a
client account provided by the server. For details about
Remote Fax/Scan Services, refer to the SmarThru User’s
Guide.
8 Follow the on-screen instructions to complete the
installation.
9 When the installation is finished, click Finish.
1.26 GETTING STARTED
1
Repairing Software
Repairing is required if your installation fails or the software
does not work properly. This Repairing procedure does not
repair SmarThru software.
1 You can select Start → Programs → Samsung MFP 560
Series →Maintenance.
Otherwise, Insert the supplied ‘D-ROM into your CD-ROM
drive.
2 Click Repair.
NOTE: If your machine is not connected to the computer, the
Connect Samsung MFP 560 Series window opens. After connecting
the machine, click Next.
3 Select the components you want to reinstall and click Next.
If you choose to repair the printer software, the window asking
you to print a test page appears. Do as follows:
a. To print a test page, select the check box and click Next.
b. When the test page prints out correctly, click Yes.
If not, click No to reprint it.
4 When the reinstallation is done, click Finish.
GETTING STARTED 1.27
Removing Software
Uninstall is required if you are upgrading the software or if your
installation fails. You can uninstall the item you want using the
Windows uninstallShield.
Uninstalling the MFP Driver
1 You can select Start → Programs → Samsung MFP 560
Series → Maintenance.
Otherwise, Insert the supplied ‘D-ROM into your CD-ROM
drive.
2
Click Remove.
Then you will see a component list so that you can remove
any of them individually.
If you want to uninstall the printer driver, check Printer.
If you want to uninstall the twain driver, check Scaner.
If you want to uninstall the Remote Control Panel, check
Remote Control Panel.
3 After selecting items you wish to remove, click Next.
4
When your computer asks you to confirm your selection,
click Yes.
The selected driver and all of its components are removed
from your computer.
5 When the uninstallation is done, click Finish.
1.28 GETTING STARTED
Uninstalling Samsung SmarThru
NOTE: Before beginning uninstallation, ensure that all applications
are closed on your computer. A system reboot is required after the
software is uninstalled.
1 From the Start menu, select Programs.
2 Select Samsung SmarThru, and then select SmarThru 3
Uninstall.
3 When your computer asks you to confirm your selection,
click Ok. The Uninstall Options window appears.
Uninstall options are:
• Backup and delete: Backs up all your data and options
to a safe place. It then removes the SmarThru system
including the data.
• Delete: Deletes all the SmarThru data and options. No
backup or copying takes place. Be careful while using this
option as you can easily lose your data.
• Leave intact: Uninstalls SmarThru software leaving data
and options intact. This can be useful, if, for example,
you decide to install the Stand Alone configuration over
the SmarThru Networking. In this case, uninstall
Samsung SmarThru having the Leave intact option set
and install the SmarThru Stand Alone configuration.
4 After selecting the uninstall option, click Next.
5 When the uninstallation is done, the message window
recommends restarting your computer. Click OK.
6 Click Finish.
When your computer doesn’t shut down and restart
automatically, you must shut it down manually and restart
it before the changes are saved.
GETTING STARTED 1.29
1
Setting Up the Machine
System
Changing the Display Language
To change the language that displays on the display of the
control panel, follow these steps:
1 Press Menu until “Machine Setup” appears on the top line
of the display.
2 Press the scroll button (W or X) until “Language” appears
on the bottom line of the display.
3 Press Enter. The current setting appears on the bottom
line of the display.
4 Press the scroll button (W or X) until the language you
want appears on the display.
5 Press Enter to save the selection.
6 To return to Standby mode, press Stop/Clear.
1.30 GETTING STARTED
1
Setting the Machine ID
In some countries, you are required by law to indicate your fax
number on any fax you send. The Machine ID, containing your
telephone number and name or company name, will be printed
at the top of each page sent from your machine.
1 Press Menu until “Machine Setup” appears on the top line
of the display. The first available menu item, “Machine Id”
displays on the bottom line.
2 Press Enter. The display asks you to enter the fax number.
If there is a number already set, the number appears.
3 Enter your fax number using the number keypad.
NOTE: If you make a mistake while entering numbers, press the W
button to delete the last digit.
4 Press Enter when the number on the display is correct. The
display asks you to enter the ID.
5 Enter your name or company name using the number
keypad.
You can enter alphanumeric characters using the number
keypad, and include special symbols by pressing the 0
button.
For details on how to use the number keypad to enter
alphanumeric characters, see page 1.32.
If you want to enter the same letter or number in
succession (e.g. SS, AA, 777), enter one digit, move the
cursor by pressing the X button and enter the next digit.
If you want to insert a space in the name, you can also use
the X button to move the cursor to skip the position.
6 Press Enter when the name on the display is correct.
7 Press Stop/Clear to return to Standby mode.
GETTING STARTED 1.31
Entering Characters Using the Number
Keypad
As you perform various tasks, you need to enter names and
numbers. For example, when you set up your machine, you
enter your name or your company’s name and telephone
number. When you store one or two digit speed dial or group dial
numbers, you may also enter the corresponding names.
To enter alphanumeric characters:
1 When you are prompted to enter a letter,
locate the button labeled with the
character you want. Press the button
until the correct letter appears on the
display.
For example, to enter the letter O, press
6, labeled with “MNO.”
Each time you press 6, the display shows
a different letter, M, N, O and finally 6.
You can enter special characters, such as space, plus sign,
and so on. For details, see “Keypad Letters and Numbers”
on page 1.33.
2 To enter additional letters, repeat step 1.
If the next letter is printed on the same button, move the
cursor by pressing the X button and then press the button
labeled with the letter you want. The cursor moves to the
right and the next letter appears on the display.
You can enter a space by pressing the
button.
3 When you finish entering letters, press Enter.
1.32 GETTING STARTED
Keypad Letters and Numbers
Key
Assigned numbers, letters or characters
1
1
Space
2
A
B
C
2
3
D
E
F
3
4
G
H
I
4
5
J
L
5
6
M
N
O
6
7
P
Q
R
S
8
T
U
V
8
9
W
X
Y
Z
9
0
+
-
,
.
’
K
7
/
*
#
&
0
Changing Numbers or Names
If you make a mistake while entering a number or name, press
the W button to delete the last digit or character. Then enter the
correct numbers or characters.
Inserting a Pause
With some telephone systems, you must dial an access code (9,
for example) and listen for a second dial tone. In such cases,
you must insert a pause in the telephone number. You can insert
a pause while you are setting up one-touch or speed dial
numbers.
To insert a pause, press Redial/Pause at the appropriate place
while entering the telephone number. A “–” appears on the
display at the corresponding location.
GETTING STARTED 1.33
1
Setting the Date and Time
The current date and time are shown on the display when your
machine is on and ready to work. All of your faxes will have the
date and time printed on them.
NOTE: If power to the machine is cut off, you need to reset the
correct time and date once the power is restored.
1 Press Menu until “Machine Setup” appears on the top line
of the display.
2 Press the scroll button (W or X) to display “Date & Time”
on the bottom line and press Enter.
3 Enter the correct time and date using the number keypad.
Month
= 01 ~ 12
Day
= 01 ~ 31
Year
= requires all four digits
Hour
= 01 ~ 12 (12-hour mode)
00 ~ 23 (24-hour mode)
Minute
= 00 ~ 59
NOTE: The date format may differ from each country.
You can also use the scroll button (W or X) to move the
cursor under the digit you want to correct and enter a new
number.
4 To select “AM” or “PM” for 12-hour format, press the
or
button or any number button.
When the cursor is not under the AM or PM indicator,
pressing the
or
button immediately moves the cursor
to the indicator.
You can change the clock mode to 24-hour format (e.g.
01:00 PM as 13:00). For details, see page 1.35.
1.34 GETTING STARTED
5 Press Enter when the time and date on the display is
correct.
When you enter a wrong number, the machine beeps and
does not proceed to the next step. If this happens, just
reenter the correct number.
Changing the Clock Mode
You can set your machine to display the current time using
either 12-hour or 24-hour format.
1 Press Menu until “Machine Setup” appears on the top line
of the display.
2 Press the scroll button (W or X) until you see “Clock Mode”
on the bottom line and press Enter.
The clock mode currently set for the machine displays.
3 Press the scroll button (W or X) to select the other mode
and then press Enter to save the selection.
4 To return to Standby mode, press Stop/Clear.
GETTING STARTED 1.35
1
Setting the Paper Type and Size
After loading paper in the paper tray, you need to set the paper
type and size using the control panel buttons. These settings will
apply to Fax and Copy modes. For PC-printing, you need to
select the paper type and size in the application program you
use.
1 Press Menu.
The display shows “Paper Setting” on the top line and the
first menu item, “Paper Type,” on the bottom line.
2 Press Enter to access the menu item.
3 Use the scroll button (W or X) to find the paper type you
are using and press Enter to save it.
4 Press the X button to scroll to “Paper Size” and press Enter
to access the menu item.
5 Press Enter when “Tray Paper” displays on the bottom line.
6 Use the scroll button (W or X) to find the paper size you
are using and press Enter to save it.
7 To return to Standby mode, press Stop/Clear.
1.36 GETTING STARTED
1
Setting Sounds
You can control the following sounds:
• Ringer: You can adjust the ringer volume.
• Key Sound: With this option set to “On,” a key tone sounds
each time any key is pressed.
• Alarm Sound: You can turn the alarm sound on or off. With
this option set to “On,” an alarm tone sounds when an error
occurs or fax communication ends.
• Speaker: You can turn on or off the sounds from the
telephone line through the speaker, such as a dial tone or a
fax tone. With this option set to “Comm.,” the speaker is on
until the remote machine answers.
You can adjust the speaker volume level using the On Hook
Dial button or the handset.
Speaker, Ringer, Key Sound and Alarm Sound
1 Press Menu until “Sound/Volume” appears on the top line
of the display.
2 Press the scroll button (W or X) to scroll through the
options. Press Enter when you see the sound option you
want.
3 Press the scroll button (W or X) to display the status or
loudness you want for the option you have selected.
For the ringer volume, you can select from “Off”, “Low”, “Med”
and “High”. Setting “Off” means that the ringer turns off. The
machine works normally even if the ringer is turned off.
4 Press Enter to save the selection.
5 If necessary, repeat steps 2 through 4.
6 To return to Standby mode, press Stop/Clear.
GETTING STARTED 1.37
Speaker Volume
To adjust the volume using the On Hook Dial button:
1 Press On Hook Dial. A dial tone sounds from the speaker.
2 Press the scroll button (W or X) until you hear the loudness
you want. The display shows the current volume level.
3 Press Stop/Clear to save the change and return to
Standby mode.
To adjust the volume using the handset.(for USA only)
1 Pick up the handset. A dial tone sounds from the earpice.
2 Press the scroll button (W or X) until you find the loudness
you want. You can select either “High” or “Low”.
3 Press Enter to save selection and replace the handset.
NOTE: You can adjust the speaker volume only when the telephone
line is connected.
Using the Save Modes
Toner Save Mode
Toner Save mode allows your machine to use less toner on each
page. Activating this mode extends the life of the toner cartridge
longer than normal, but it reduces the print quality.
To turn the toner save mode on or off, press Toner Save.
• If the button backlight is on, the mode is active and the
machine uses less toner when printing a document.
• If the button backlight is off, the mode is deactivated and the
machine prints with the normal quality.
NOTE: For PC-printing, you can also turn toner save mode on or
off, in the printer properties. See page 3.9.
1.38 GETTING STARTED
Toll Save Mode
Using the Toll Save button on the control panel, you can quickly
set your machine to send the document(s) stored in the memory
during the preset time slot, when the call charge is lowered. This
Toll Save mode helps you to take advantage of lower long
distance rates at night, for example.
NOTE: The toll-saving time slot may vary depending on your
contract with a long distance phone company.
To turn the toll save mode on:
1 Press Toll Save. The button backlight turns on.
2 Press Enter when “Start Time” displays on the bottom line.
3 Enter the time when your machine starts sending toll save
faxes, using the number keypad.
To select “AM” or “PM” for 12-hour format, press the
button or any number button.
or
4 Press Enter when the starting time on the display is
correct.
5 Press the scroll button (W or X) to display “End Time” and
press Enter.
6 Enter the time when the toll save transmission ends, using
the number keypad.
7 Press Enter to save the setting.
8 To return to Standby Mode, press Stop/Clear.
Once Toll Save mode is activated, your machine stores all of the
documents to be faxed into the memory and sends them at the
programed time.
To turn Toll Save mode off, press Toll Save again. The button
backlight turns off and the mode is deactivated.
NOTE: Once the toll-saving time is set, the Toll Save button
allows you to only enable or disable Toll Save mode. To change the
time setting, use the Toll Save item in the Advanced Fax menu.
See page 6.34.
GETTING STARTED 1.39
1
Power Save Mode
Power Save mode allows your machine to reduce power
consumption when it is not in actual use. You can turn this mode
on by selecting the length of time for which the machine waits
after a job is printed before it switches to a reduced power state.
1 Press Menu until “Machine Setup” appears on top line of
the display.
2 Press the scroll button (W or X) until “Power Save” appears
on the bottom line. Press Enter.
3 Press the scroll button (W or X) to display “On” on the
bottom line and press Enter.
Selecting “Off” means that Power Save mode turns off.
4 Press the scroll button (W or X) until the time settings you
want appears.
The available options are 5, 10, 15, 30 and 45 (minutes).
5 Press Enter to save the selection.
6 To return to Standby mode, press Stop/Clear.
1.40 GETTING STARTED
2
PAPER HANDLING
This chapter introduces you to the basics of selecting
print materials and loading them into your machine.
This chapter includes:
• Selecting Print Materials
• Selecting an Output Location
• Loading Paper in the Paper Tray
• Using the Manual Feeder
Selecting Print Materials
You can print on a variety of print materials, such as plain paper,
envelopes, labels, transparencies and so on. Always use print
materials that meet the guidelines for use with this machine.
See “Paper Specifications” on page A.6. To get the best possible
print quality, use only high-quality copier-grade paper.
When you choose print materials, consider the following:
• Desired outcome: The paper you choose should be
appropriate for your project.
• Size: You can use any size paper that fits easily within the
paper adjusters of the paper tray.
• Weight: Your machine supports paper weights as follows:
- 16 ~ 24 lbs (60 ~ 90 g/m2) bond for the paper tray
- 16 ~ 43 lbs (60 ~ 163 g/m2) bond for the manual feeder
• Brightness: Some papers are whiter than others and produce
sharper, more vibrant images.
• Surface smoothness: The smoothness of the paper affects
how crisp the printing looks on the paper.
CAUTION: Using print materials that dose not conform to the
specifications listed on page A.6 may cause problems that may
require service. This service is not covered by the warranty or
service agreements.
Type, Input Sources and Capacities
Paper Type
Input Source/Capacity*
Paper Tray
Manual Feeder
250
1
Envelopes
-
1
Labels**
-
1
Transparency films**
-
1
Card stocks**
-
1
Plain paper
* Maximum capacity may be reduced depending on the paper thickness.
** If you experience excessive jamming, load one sheet at a time through the
manual feeder.
2.2
PAPER HANDLING
Guidelines for Paper and Special Materials
When selecting or loading paper, envelopes, or other special
material, keep these guidelines in mind:
• Always use paper and other materials that conform with the
specifications listed under “Paper Specifications” on page A.6.
• Attempting to print on damp, curled, wrinkled, or torn paper
can cause paper jams and the poor print quality.
• Use only high quality copier grade paper for the best print
quality.
• Avoid paper with embossed lettering, perforations, or a
texture that is too smooth or too rough. Paper jams may
occur.
• Store paper in its ream wrapper until you are ready to use.
Place cartons on pallets or shelves, not on the floor. Do not
place heavy objects on top of the paper, whether it is
packaged or unpackaged. Keep it away from moisture, or
other conditions that can cause it to wrinkle or curl.
• Store unused materials at temperatures between 15 oC and
30 oC (59 oF to 86 oF). The relative humidity should be
between 10 % and 70 %.
• During storage, you should use moisture-proof wrap, such as
any plastic container or bag, to prevent dust and moisture
from contaminating your paper.
• Load special paper types one sheet at a time.
• Only use materials specifically recommended for use in laser
printers.
• To prevent special materials, such as transparencies and label
sheets from sticking together, remove them as they prints
out.
• For envelopes:
- Use only well-constructed envelopes with sharp, well
creased folds.
- Do not use envelopes with clasps and snaps.
- Do not use envelopes with windows, coated lining, selfadhesive seals, or other synthetic materials.
- Do not use damaged or poorly made envelopes.
• For transparencies:
- Place them on a flat surface after removing them from the
machine.
- Do not leave them in the paper tray for long periods of time.
Dust and dirt may accumulate on them resulting in spotty
printing.
PAPER HANDLING
2.3
2
- To avoid smudging caused by fingerprints, handle them and
coated paper carefully.
- To avoid fading, do not expose the printed transparencies to
prolonged sunlight.
• For labels:
- Verify that their adhesive material can tolerate fusing
temperature of 200 oC (392o F) for 0.1 second.
- Make sure that there is no exposed adhesive material
between them. Exposed areas can cause labels to peel off
during printing, which can cause paper jams. Exposed
adhesive can also cause damage to machine components.
- Do not load a sheet of them through the machine more than
once. The adhesive backing is designed for one pass
through the machine.
- Do not use labels that are separating from the backing
sheet or are wrinkled, bubbled, or otherwise damaged.
• Do not use Carbonless paper and Tracing paper. They could
make smell of chemicals and damage your machine.
Selecting an Output Location
The machine has two output locations; the rear output slot (face
up) and the front output tray (face down).
To use the front output tray, make sure that the rear cover is
closed. To use the rear output slot, open the rear cover.
NOTES:
• If paper coming out of the front output tray has problems, such
as excessive curl, try printing to the rear output slot.
• To avoid paper jams, do not open or close the rear cover while
the machine is printing.
2.4
PAPER HANDLING
Printing to the Front Output Tray
(Face down)
The front output tray collects printed paper face-down in correct
order. The tray should be used for most print jobs.
2
Printing to the Rear Output Slot
(Face up)
Using the rear output slot, paper comes out of the machine face
up.
Printing from the manual feeder to the rear output slot provides
the straight paper path. Using the rear output slot might
improve the output quality with the following:
• envelopes
• labels
• small custom-sized paper
• postcards
• transparencies
PAPER HANDLING
2.5
To use the rear output slot:
1 Open the rear cover by pulling it upward.
CAUTION: The fusing area inside the rear part of your machine
becomes hot once the machine is turned on. Be careful when you
access this area.
2 If you do not want to use the rear output slot, close the
rear cover. The pages stack on the front output tray.
2.6
PAPER HANDLING
Loading Paper in the Paper Tray
The paper tray can hold a maximum of 250 sheets of 20 lb(75g/
m2) plain paper. For faxing and copying, you can use A4-, Letteror Legal-sized paper only. For PC-printing, you can use many
different sizes of paper; see page A.6.
The paper level indicator on the front of the paper tray shows
the amount of paper currently left in the tray. When the tray is
empty, the indicator of the bar is lowered.
T Paper full
Paper empty S
To load paper, pull open the paper tray and load paper with the
print side face down.
You can load letterhead paper with the design side face down.
The top edge of the sheet with the logo should be placed at the
front side of the tray.
For details about loading paper in the paper tray, see “Loading
Paper” on page 1.12.
NOTES:
• If you experience problems with paper feed, place the paper in
the manual feeder.
• You can load up to 150 sheets of previously printed paper. The
printed side should be facing up with an uncurled edge at the top
side. If you experience problems with paper feed, turn the paper
around. Note that the print quality is not guaranteed.
PAPER HANDLING
2.7
2
Using the Manual Feeder
Use the manual feeder to print transparencies, labels, envelopes
or postcards in addition to making quick runs of paper types or
sizes that are not currently loaded in the paper tray.
Postcards, 3.5 by 5.83 in.(index) cards and other custom-sized
materials can be printed with this printer. The minimum size is
76 by 127 mm (3.0 by 5.0 in.) and the maximum size is 216 by
356 mm (8.5 by 14 in.)
Acceptable print materials are plain paper with sizes ranging
from 100 x 148 mm (3.9 x 5.8 in.) to Legal, 216 x 356 mm (8.5
x 14 in.), the largest size acceptable, and weighing between 16
lb and 32 lb.
NOTES:
• Always load only the print materials specified in the
Specifications on page A.6 to avoid paper jams and print quality
problems.
• Flatten any curl on postcards, envelopes and labels before
loading them into the manual feeder.
• When you print on 76 mm X 127 mm (3 X 5 in.) sized media with
loading into the tray, open the rear output tray.
1 Load a sheet of the print material with the print side face
up into the center of the manual feeder.
For envelopes, load a sheet with the flap side face down
and with the stamp area on the top left side.
For transparencies, hold them by the edges and avoid
touching the print side. Oils from your fingers can cause
print quality problems.
CAUTION: You must open the rear output slot when you print on
transparencies. If not, they may tear while exiting the machine.
2.8
PAPER HANDLING
2 Adjust the paper guide to the width of the print material.
2
NOTE: When printing on previously printed paper from the
manual feeder, the printed side should be facing down with an
uncurled edge to the machine. If you experience problems with
paper feed, turn the paper around.
3 Open the rear cover to use the rear output slot.
4 After printing, close the rear cover.
PAPER HANDLING
2.9
Setting the Paper Type and Size for the
Manual Feeder
After loading paper in the manual feeder, you need to set the
correct paper type and size using the control panel buttons.
These settings will apply to Copy mode. For PC-printing, you
need to select the paper size in the application program you use.
To set the paper size for the manual feeder:
1 Press Menu.
The display shows “Paper Setting” on the top line and the
first item, “Paper Type,” on the bottom line.
2 Press Enter to access the menu item.
3 Use the scroll button (W or X) to find the paper type you
are using and press Enter to save it.
4 Press the X button to scroll to “Paper Size” and press Enter
to access the menu item.
5 Use the scroll button (W or X) to display “Manual Feed” on
the bottom line. Press Enter to access the menu item.
6 Use the scroll button (W or X) to find the paper size you
are using and press Enter to save it.
7 To return to Standby mode, press Stop/Clear.
2.10 PAPER HANDLING
3
PRINTING
This chapter explains how to print your documents in
Windows and how to use the print settings.
This chapter includes:
• Printing a Document in Windows
• Setting Paper Properties
• Setting Graphic Properties
• Printing Multiple Pages on One Sheet of the Paper
• Printing a Reduced or Enlarged Document
• Fitting Your Document to a Selected Paper Size
• Printing Posters
• Using Watermarks
• Using Overlays
• Setting Up the Locally Shared Printer
Printing a Document in Windows
The following procedure describes the general steps required for
printing from various Windows applications. The exact steps for
printing a document may vary depending on the application
program you are using. Refer to your software application’s
user’s guide for the exact printing procedure.
NOTE: For detailed information about printing from Linux, Chapter
7, Using Your Printer in Linux.
1 Open the document you want to print.
2 Select Print from the File menu.
The Print window opens. It may look slightly different
depending on your application.
You can select the basic print settings within the Print
window. These settings include the number of copies and
the print range.
Make sure that your
machine is selected.
3 To take advantage of the printer features provided by your
machine, click Properties or Preferences in the
application’s print window and go to step 4.
If you see a Setup, Printer or Options button, click it
instead. Then click Properties on the next screen.
3.2
PRINTING
4 Now you see the Samsung MFP 560 Series Properties
window, which allows you to access all of information you
need when using your machine.
The Layout tab first displays.
3
The preview image
shows the sample page
with the settings you
specified.
If necessary, select the Orientation option.
The Orientation option allows you to select the direction in
which information is printed on a page.
• Portrait prints across the width of the page, letter style.
• Landscape prints across the length of the page,
spreadsheet style.
• If you want to turn the page upside down, select 180 from
the Rotate drop-down list.
S Landscape
S Portrait
5 From the Paper tab, select the paper source, size and type.
For further details, see page 3.7.
PRINTING
3.3
6 If necessary, you can set the sequence for the pages to
print from the Extra tab. Select the print order you want to
use from the P Order drop-down list.
• Normal: Your machine prints from the first page to the
last page.
• Reverse All Pages: Your machine prints from the last
page to the first page.
• Print Odd Pages: Your machine prints only the odd
pages of the document.
• Print Even Pages: Your machine prints only the even
pages of the document.
7 Click other tabs on the top of the Samsung MFP 560 Series
Properties window to access other features, if needed.
8 When you finish setting the properties, click OK until the
Print window displays.
9 Click OK to start printing.
Notes:
• Most Windows applications overrides the settings you specified in
the printer driver. Change all of the print settings available in the
software application first, and change any remaining settings
using the printer driver.
• The settings you change remain in effect only while you are
using the current program. To make your changes permanent,
make them in the Printers folder. Follow these steps:
1. Click the Windows Start menu.
2. For Windows 2000, select Settings and then Printers.
For Windows XP/2003, select Printers and Faxes.
For Windows Vista/2008, select Control Panel Hardware and
SoundPrinters.
For Windows 7, select Control Panel
Hardware and
SoundDevices and Printers.
For Windows Server 2008 R2, select Control Panel
Hardware
Devices and Printers.
3. Select the Samsung MFP 560 Series printer.
4. Click the right mouse button on the printer icon and select Printing
Preferences.
5. Change the settings on each tab and click OK.
3.4
PRINTING
Canceling a Print Job
There are two ways to cancel a print job:
To stop a print job from the control panel:
Press the Stop/Clear button.
Your machine finishes printing the
page that is moving through the
machine and deletes the rest of the
print job. Pressing the button cancels
only the current job. If more than one
print job is in the machine’s memory,
you need to press the button once for
each job.
3
To stop a print job from the Printers folder:
If the print job is waiting in a print queue or print spooler, such
as the Printer group in Windows, delete the job as follows:
1 Click the Windows Start menu.
2 For Windows 2000, Select Settings and then Printers.
For Windows XP/2003, select Printers and Faxes.
For Windows Vista/2008, select Control Panel
Hardware and
SoundPrinters.
For Windows 7, select Control Panel
Hardware and
SoundDevices and Printers.
For Windows Server 2008 R2, select Control Panel
Hardware
Devices and Printers.
3 Double-click the Samsung MFP 560 Series icon.
4 From the Document menu, select Cancel.
S Windows XP
NOTE: You can access this window simply by double-clicking the
printer icon at the bottom right corner of the Windows desktop.
PRINTING
3.5
Using a Favorite Setting
The Favorites option, which is visible on each tab, allows you
to save the current properties settings for future use.
To save a Favorites item:
1 Change the settings on each tab, as needed.
2 Enter a name for the item in the Favorites input box.
3 Click Save.
To use a saved setting, select it from the Favorites drop-down
list.
To delete a favorite setting item, select it from the list and click
Delete.
You can also restore the printer driver’s default settings by
selecting <Printer Default> from the list.
Using Help
Your machine has a help screen that can be activated using the
Help button in the printer’s Properties window. The help screen
gives detailed information about the printer features provided
by the printer driver.
You can also click
in the upper right hand corner, and then
click on any setting.
3.6
PRINTING
Setting Paper Properties
Use the following options for paper handling. See page 3.2 for
more information about accessing printer’s Properties.
Click the Paper tab to access many paper properties.
3
1
2
3
4
Property
Description
1 Copies
Copies allows you to choose the number of
copies to be printed. You can enter up to 999.
2 Size
Size allows you to choose the size of the paper
loaded in the tray.
If the required size is not listed in the Size box,
click Add Custom. When the Custom Page
Size window appears, set the size and click Ok.
The setting appears on the list so that you can
select it.
Enter the custom
name you want to
use.
Enter the paper
size.
PRINTING
3.7
Property
3 Source
4 Type
Description
Make sure that Source is set to the
corresponding paper tray.
Use the Manual Feed source when printing to
special material. You need to load one sheet at a
time into the manual feeder. See page 2.8.
If the paper source is set to Auto Select, the
machine automatically picks up print material in
the following order: the manual feeder and the
paper tray.
Make sure that Type is set to Printer
Default. If you load a different type of print
material, select the corresponding paper type.
For more information about print materials, see
Chapter 2, Paper Handling.
If you use cotton paper, set the paper type to
Thick for the best printing.
To use recycled paper, which weighs from 75g/
m2 to 90g/m2 (20lb to 24lb), or colored paper,
select Color Paper.
Setting Graphic Properties
Use the following graphic options to adjust the print quality for
your specific printing needs. See page 3.2 for more information
about accessing printer properties.
Click the Graphics tab to display the properties shown below.
1
2
3
3.8
PRINTING
Property
1 Resolution
2 Toner Save
Description
You can select the printing resolution by
choosing from 600 dpi (Normal) or 300
dpi (Draft). The higher the setting, the
sharper the printed characters and graphics.
Higher settings may increase the time it takes
to print a document.
Selecting this option extends the life of your
toner cartridge and reduces your cost per page
without a significant reduction in the print
quality.
• Printer Setting: When you select this
option, the Toner Save feature is
determined by the setting you’ve made
on the control panel of the machine.
• On: Select this option to allow the
machine to use less toner on each page.
• Off: When you do not need to save toner
to print a document, select this option.
3 Advanced
Options
You can make advanced settings by clicking
the Advanced Options button.
Darkness
Use this option to lighten or darken the image
appearance in your print.
• Normal: This setting is for normal
documents.
• Light: This setting is for bolder line widths
or darker grayscale images.
• Dark: This setting is for finer line width,
higher definition in graphics and lighter
grayscale images.
When the Darken Text option is checked, all
text in your document prints darker than
normal.
PRINTING
3.9
3
Property
3 Advanced
Options
(continued)
Description
True Type Options
This option determines what the driver tells
the machine about how to image the text in
your document. Select the appropriate
setting according to the status of your
document.
• Download as Bit Image: When this
option is selected, the driver downloads
the font data as bitmap images.
Documents with complicated fonts, such as
Korean or Chinese, or various types of
fonts print faster in this setting.
• Print as Graphics: When this option is
selected, the driver downloads any fonts as
graphics. When printing documents with
high graphic content and relatively few
TrueType fonts, printing performance
(speed) may be enhanced in this setting.
Print All Text Black
When the Print All Text Black option is
checked, all text in your document prints in
solid black, regardless of the color it appears
on the screen. When it is not checked,
colored text prints in shades of gray.
Printing Multiple Pages on One
Sheet of the Paper
1
2
3
4
You can select the number of pages to print on a single sheet of
paper. To print more than one page per sheet, the pages are
smaller and arranged in the order you specified on the sheet.
You can print up to 16 pages on one sheet.
1 To change the print settings from your software application,
access the printer’s Properties. See page 3.2.
2 From the Layout tab, choose Multiple Pages per Side
from the Type drop-down list.
3.10 PRINTING
3 Select the number of pages you want to print per sheet (1,
2, 4, 9 or 16) on the Pages per Side drop-down list.
3
4 Select the page order on the Page Order drop-down list, if
necessary.
Right, Then
Down
Down, Then
Right
Left, Then
Down
Down, Then
Left
Check Print Page Border to print a border around each
page on the sheet.
NOTE: Page Order and Print Page Border are enabled only
when the number of pages per side is 2, 4, 9 or 16.
5 Click the Paper tab and select the paper source, size and
type.
6 Click OK and print the document.
PRINTING 3.11
Printing a Reduced or Enlarged
Document
You can scale your print job on a page.
1 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
2 From the Layout tab, select Reduce/Enlarge on the
Type drop-down list.
3 Enter the scaling rate in the Percentage input box.
You can also click the ¼ or † button.
4 Click the Paper tab and select the paper source, size and
type.
5 Click OK and print the document.
3.12 PRINTING
Fitting Your Document to a Selected
Paper Size
A
You can scale your print job to any paper size regardless of the
digital document size. This can be useful when you want to
check the fine details on a small document.
1 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
2 From the Layout tab, select Fit to Page on the Type dropdown list.
3 Select the correct size from the Target Page drop-down
list.
4 Click the Paper tab and select the paper source and type.
5 Click OK and print the document.
PRINTING 3.13
3
Printing Posters
You can print a single-page document onto 4, 9 or 16 sheets of
paper, for the purpose of pasting the sheets together to form
one poster-sized document.
1 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
2 From the Layout tab, select Poster on the Type dropdown list.
3 Configure the poster option:
You can select the page layout from 2x2, 3x3 or 4x4. If
you select 2x2, the image is automatically stretched to
cover 4 physical pages.
¼2 x 2
¼3 x 3
Specify an overlap in millimeters or inches to make it easier
to reconstruct the resulting poster.
0.15 inches
0.15 inches
3.14 PRINTING
4 Click the Paper tab and select the paper source, size and
type.
5 Click OK and print the document. You can complete the
poster by posting the sheets together.
Using Watermarks
3
The Watermark option allows you to print text over an existing
document. For example, you may want to have large gray letters
reading “DRAFT” or “CONFIDENTIAL” printed diagonally across
the first page or all of the pages of a document.
There are several predefined watermarks that come with your
machine, and they can be modified or you can add new ones to
the list.
Using an Existing Watermark
1 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
2 Click the Extras tab and select a watermark on the
Watermark drop-down list. It appears in the preview
image window.
Preview
3 Click Ok and start printing.
PRINTING 3.15
Creating a Watermark
1 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
2 Click the Extras tab and click Edit in the Watermark
section. The Edit Watermarks window appears.
3 Enter text message you want to print in the Watermark
Message box.
The message displays in the preview image window.
When the First Page Only box is checked, the watermark
prints on the first page only.
4 Select the watermark options.
You can select the font name, style and size and gray scale
level from the Font Attributes section and set the angle of
the watermark from the Message Angle section.
5 Click Add to add a new watermark to the list.
6 When you finish creating, click Ok and start printing.
To stop printing the watermark, select <No Watermark> on
the Watermark drop-down list.
3.16 PRINTING
Editing a Watermark
1 When you change the print settings from your software
application, access the printer properties. See page 3.2.
2 Click the Extras tab and click Edit in the Watermark
section. The Edit Watermarks window appears.
3 Select the watermark you want to edit on the Current
Watermarks list, to change the watermark message and
the options. Refer to page 3.16.
4 Click Update to save the changes.
5 Click Ok.
Deleting a Watermark
1 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
2 From the Extras tab, click Edit in the Watermark section.
The Edit Watermarks window appears.
3 Select the watermark you want to delete on the Current
Watermarks list and click Delete.
4 When a confirming message window appears, click Yes.
5 Click Ok.
PRINTING 3.17
3
Using Overlays
What is an Overlay?
Dear ABC
Regards
WORLD BEST
An overlay is text and/or images stored on the computer hard
disk drive (HDD) as a special file format that can be printed on
any document. Overlays are often used to take the place of
preprinted forms and letterhead paper. Rather than using
preprinted letterhead, you can create an overlay containing the
exact same information that is currently on your letterhead. To
print a letter with your company’s letterhead, you need only tell
the machine to print the letterhead overlay on your document.
Creating a New Page Overlay
To use a page overlay, you must create a new page overlay
containing your logo or image.
1 Create or open a document containing text or an image for
WORLD BEST
use in a new page overlay. Position the items exactly as you
wish them to appear when printed as an overlay. If needed,
save the file for later use.
2 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
3 Click the Extras tab and click Edit in the Overlay section.
3.18 PRINTING
4 In the Edit Overlays window, click Create Overlay.
3
5 In the Create Overlay window, type a name of up to eight
characters in the File name box. Select the destination
path, if necessary. (The default is C:\Formover).
6 Click Save. The name appears on the Overlay List.
7 Click Ok or Yes to finish creating.
The file is not printed out. Instead it is stored in your
computer HDD disk.
NOTE: The overlay document size must be the same as the
documents you print with the overlay. Do not create an overlay
with a watermark.
PRINTING 3.19
Using a Page Overlay
After an overlay has been created, it is ready to be printed with
your document. To print an overlay with a document:
1 Create or open the document you want to print.
2 When you change the print settings from your software
application, access the printer’s Properties. See page 3.2.
3 Click the Extras tab.
4 Select the overlay you want to print from the Overlay
drop-down list box.
5 When the overlay file you want doesn’t appear on the
Overlay List, click Edit and Load Overlay, and select the
overlay file.
If you have stored the overlay file you want to use in an
external source, you can also load the file when you access
this Load Overlay window.
After you select the file, click Open. The file appears on the
Overlay List and is available for printing. Select the overlay
from the Overlay List box.
3.20 PRINTING
6 If necessary, click Confirm Page Overlay When
Printing. When this box is checked, a message window
appears each time you submit a document for printing,
asking you to confirm your wish to print an overlay on your
document.
Answering Yes to the window means that the selected
overlay prints with your document. Answering No to the
window cancels overlay printing.
If this box is empty and an overlay has been selected, the
overlay will be automatically printed with your document.
7 Click OK or Yes until the printing starts.
The overlay downloads with your print job and prints on
your document.
NOTE: The resolution of the overlay document must be the same
as that of the document you will print with the overlay.
Deleting a Page Overlay
You can delete page overlays that you no longer use.
1 In the printer’s properties window, click the Extras tab.
2 Click Edit in the Overlay section.
3 Select the overlay you want to delete from the Overlay List
box.
4 Click Delete Overlay.
5 When a confirming message window appears, click Yes.
6 Click OK until you exit the Print window.
PRINTING 3.21
3
Setting Up the Locally Shared Printer
You can connect the machine directly to a selected computer,
which is called “host computer,” on the network. Your machine
can be shared by other users on the network through a
Windows.
NOTE:Whether the printer is locally connected or networkconnected, you need to install the printer software on each
computer that will print documents to the printer.
Setting Up the Host Computer
1 Start Windows.
2 From the Start menu select Printers and Faxes.
3 Double-click your printer driver icon.
4 From the Printer menu, select Sharing.
5 Check the Share this printer box.
6
Fill in the Shared Name field, and then click OK.
Setting Up the Client Computer
1 Right-click the Windows Start button and select Explore.
2 Select My Network Places and then right-click Search
for Computers.
3 Fill in the IP address of host computer in Computer name
field, and click Search. (In case host computer requires
User name and Password, fill in User ID and password of
host computer account.)
4 Double-click Printers and Faxes.
5 Right-click printer driver icon, select Connect.
6
3.22 PRINTING
Click Yes, if the installation confirm message appears.
4
COPYING
This chapter gives you step-by-step instructions for copying
documents.
This chapter includes:
• Loading Paper for Copying
• Preparing a Document
• Making a Copy
• Setting Copy Options
• Changing the Default Settings
• Setting the Time Out Option
• Collation Copying
Loading Paper for Copying
The instructions for loading print materials are the same
whether you are printing, faxing or copying. For coping, you can
use Letter-, A4-, Legal-sized print materials. For further details,
see page 1.12 for loading in the paper tray and page 2.8 for
loading in the manual feeder.
Preparing a Document
Using the ADF (Automatic Document Feeder), you can load up
to 20 documents (47~90g/m2, 12.5~24lb) for one job.
When you use the ADF:
• Do not load documents smaller than 142 x 148 mm or larger
than 216 x 356 mm.
• Do not attempt to feed the following types of documents:
- carbon-paper or carbon-backed paper
- coated paper
- onion skin or thin paper
- wrinkled or creased paper
- curled or rolled paper
- torn paper
• Remove all staples and paper clips before loading documents.
• Make sure any glue, ink or correction fluid on the paper is
completely dry before loading documents.
• Do not load documents containing different sizes or weights
of paper.
• Do not load booklet, pamphlet, transparencies or documents
having other unusual characteristics.
4.2
COPYING
Making a Copy
1 Pull the document support all the way out. Fold out the
extender, if necessary.
2 Load the documents up to 20 pages face down into the ADF.
3 Adjust the document guides to the document size.
4 Customize the copy settings including number of copies,
copy size, darkness and original type by using the control
panel buttons. See “Setting Copy Options” on page 4.4.
Sorts the copy job. For example, if you make 2 copies of 3
page documents, one complete 3 page document will print
followed by the second complete document. see page 4.8
To clear the settings, use the Stop/Clear button.
COPYING
4.3
4
5 Press Start Copy/Fax.
Setting Copy Options
The buttons on the control panel let you make all the basic copy
options; darkness, document type, copy size and number of
copies. Set the following options for the current copy job before
pressing Start Copy/Fax to make copies.
NOTE: If you press Stop/Clear while you set the copy options,
all of the options you have set for the current copy job will be
canceled and return to their default status. Or, they will
automatically return to their default status after the machine
completes the copy.
Darkness
If you have an original document containing faint markings and
dark images, you can adjust the brightness to make a copy that
is easier to read.
To adjust the contrast, press Darkness. Each time you press
the button, the LED labeled with the selected mode turns on.
You can choose from the following contrast modes:
• Light: works well with dark print.
• Normal: works well with standard typed or printed
documents.
• Dark: works well with light print or faint pencil markings.
4.4
COPYING
Original Type
The Original Type setting is used to improve the copy quality by
selecting the document for the current copy job.
To select the document type, press Original Type. Each time
you press the button, the LED labeled with the selected mode
turns on.
You can choose from the following image modes:
• Text: Use for documents containing mostly text.
• Photo: Use when the originals are photographs.
NOTE: When you copy a document containing color on the
background, such as a newspaper or a catalog, you can get the
background on your copy. If you want to reduce the background,
change the Darkness setting to Light and/or the Original Type
setting to Text.
Number of Copies
Using the No. of Copies button, you can select the number of
copies from 1 to 99.
1 Press No. of Copies.
2 Press the scroll button (W or X) until the number you want
appears on the display.
Pressing and holding the buttons allows you to quickly
increase and decreases in increments of 5.
You can enter the value using the number keypad.
3 Press Enter to save the selection.
COPYING
4.5
4
Reduced/Enlarged Copying
Using the Reduce/Enlarge button, you can reduce or enlarge
the size of a copied image from 50% to 150%.
To select from the predefined copy sizes:
1 Press Reduce/Enlarge.
The default setting appears on the bottom line of the
display.
2 Use Reduce/Enlarge or the scroll button (W or X) to find
the size setting you want.
3 Press Enter to save the selection.
To fine-tune the size of copies:
1 Press Reduce/Enlarge.
2 Press Reduce/Enlarge or the scroll button (W or X) until
“Custom:50-150%” displays on the bottom line. Press
Enter.
3 Press the scroll button (W or X) until the copy size you
want appears on the display.
Pressing and holding the buttons allows you to quickly
increase and decreases in increments of 5.
You can enter the value using the number keypad.
4 Press Enter to save the selection.
NOTE: When you make a reduced copy, black lines may appear at
the bottom of your copy.
4.6
COPYING
Changing the Default Settings
Copy options, including darkness, original type, copy size and
number of copies, can be set to the most frequently used
modes. When you copy a document, the default settings are
used unless they are changed by using the corresponding
buttons on the control panel.
To create your own default settings:
1 Press Menu on the control panel until “Copy Setup”
appears on the top line of the display.
The first menu item, “Default-Change”, appears on the
bottom line.
4
2 Press Enter to access the menu item. The first setup
option, “Darkness,” appears on the bottom line.
3 Press the scroll button (W or X) to scroll through the setup
options.
4 When the option you want to set appears, press Enter to
access the option.
5 Change the setting using the scroll button (W or X) or
enter the value using the number keypad.
6 Press Enter to save the selection.
7 Repeat steps 3 through 6, as needed.
8 To return to Standby mode, press Stop/Clear.
NOTE: While you set copy options, pressing Stop/Clear cancels
the changed settings and restores their default status.
COPYING
4.7
Setting the Time Out Option
You can set the time the machine waits before it restores the
default copy settings, if you do not start copying after changing
them on the control panel.
1 Press Menu on the control panel until “Copy Setup”
appears on the top line of the display.
2 Press the scroll button (W or X) to display “Timeout” on
the bottom line.
3 Press Enter to access the menu item.
4 Press the scroll button (W or X) until the status you want
appears on the display.
You can select from 15, 30, 60 and 180 (seconds).
Selecting “Off” means that the machine does not restore
the default settings until you press Start Copy/Fax to
start copying, or Stop/Clear to cancel.
5 Press Enter to save the selection.
6 To return to Standby mode, press Stop/Clear.
Collation Copying
The Collation copying feature is available only when you load
documents in the ADF.
1 Press Menu on the control panel until “Copy Setup”
appears on the top line of the display.
2 Press the scroll button (W or X) to display “Copy Collated”
on the bottom line.
3 Press Enter to access the menu item.
4 If you are making multiple copies and want to collate them,
press the scroll button (W or X) to set “Copy Collated” to
“On” and press Enter.
1
2
1
3
2
1
3
S Copy Collated On
1
2
2
COPYING
3
S Copy Collated Off
5 Press Start Copy/Fax to begin copying.
4.8
3
5
SCANNING
Scanning with your machine lets you turn pictures and
text into digital files on your computer. Then you can fax
or e-mail the files, display them on your web site or use
them to create projects that you can print using
Samsung SmarThru software.
This chapter includes:
• Scanning Basics
• Scanning Using Samsung SmarThru
• Scanning Process with TWAIN-enabled Software
Scanning Basics
Your machine offers two ways to scan:
• From the Samsung SmarThru software: Launch Samsung
SmarThru and open the Scan Wizard to begin scanning. See
below.
• From TWAIN-compliant software: You can use other software
including Adobe PhotoDeluxe and Adobe Photoshop. See
page 5.6.
NOTES:
• To scan with your machine, you must install the MFP driver.
• Scanning is done through the same LPT or USB port currently
assigned for your printer port.
Scanning Using Samsung SmarThru
Samsung SmarThru is the accompanying software for your
machine. With the SmarThru, scanning becomes a pleasure.
Follow these steps to start scanning using the SmarThru:
1 Make sure that your machine and computer are turned on
and properly connected to each other.
2 Pull the document input support all the way out. Fold out
the extender, if necessary.
5.2
SCANNING
3 Load the document(s) to be scanned face down into the
ADF (Automatic Document Feeder) and adjust the
document guides.
For detailed guidelines for preparing an original document,
see page 4.2.
4 Once you have installed Samsung software, you see the SmarThru
icon on the desktop. Double-click the SmarThru 3 icon.
Double-click this icon.
The SmarThru 3 window opens.
SCANNING
5.3
5
5 To open the Scan Wizard, click the Scan Wizard icon in the
plug-in bar on the left of the SmarThru 3 window.
Scan Wizard icon.
The Scan Wizard lets you use the following services:
• Scan
Lets you scan the original documents and save them in
the Image Manager of the Samsung SmarThru system.
The Image Manager is an image database manager and
image editor program.
• Copy
Lets you use your machine to produce professional
quality copies. You can adjust the image size and select
advanced settings.
• Scan to Email
Lets you scan the original documents and then launches
a default mail program of your system, such as Microsoft
Outlook Express, so that you can send the scanned image
attached to a new mail. To send e-mail using the
Samsung SmarThru system, you need to enable the
Internet Gate and configure an e-mail account in
SmarThru Configuration. Refer to the SmarThru User’s
Guide.
• Scan to FAX
Lets you scan the original documents and then launches
a New Fax form which helps you to send them as a fax
image. This service is available only when you enable and
configure the Fax Gate in SmarThru Configuration. Refer
to the SmarThru User’s Guide.
5.4
SCANNING
• Scan to WEB
Lets you scan the original documents for further
publishing to the Web.
• Scan to OCR
Lets you scan the original documents and pass them to
the OCR program. OCR (Optical Character Recognition) is
the process of converting a scanned image into text that
you can edit in a word processing program. After you
scan your document, the software processes or
“recognizes” it. Then you can change it and either save
the file or open it in any word processing program on
your computer.
6 Click the service icon according to your job.
7 The Samsung Scan Manager opens for the selected service.
Adjust the scan settings. You can use the Help button to
receive on-line help.
5
8 To start scanning, click Scan.
For more information, please refer to the SmarThru User’s
Guide which came with your machine.
NOTE: If you want to cancel the scan job, press the Stop/Clear
button on the control panel.
SCANNING
5.5
Scanning Process with TWAINenabled Software
If you want to scan documents using other software, you will
need to use TWAIN-compliant software, such as Adobe
PhotoDeluxe or Adobe Photoshop. The first time you scan with
your machine, select it as your TWAIN source in the application
you use.
The basic scanning process involves a number of steps:
• Place your photograph or page in the ADF. See page 5.2.
• Open an application, such as PhotoDeluxe or Photoshop.
• Open the TWAIN window and set the scan options.
• Scan and save your scanned image.
You need to follow the program’s instructions for acquiring an
image. Please refer to the user’s guide of the application.
5.6
SCANNING
6
FAXING
This chapter gives you information about using your
machine as a fax machine.
This chapter includes:
• Setting Up the Fax System
• Sending a Fax
• Receiving a Fax
• Automatic Dialing
• Other Ways to Fax
• Additional Features
Setting Up the Fax
System
Changing the Fax Setup options
1 Press Menu until “Fax Setup” appears on the top line of the
display.
The first available menu item, “Ring To Answer,” displays on
the bottom line.
2 Press the scroll button (W or X) until the menu item you
want on the bottom line and press Enter.
3 Use the scroll button (W or X) to find the status or use the
number keypad to enter the value for the option you have
selected.
4 Press Enter to save the selection.
5 If necessary, repeat steps 2 through 4.
6 To return to Standby mode, press Stop/Clear.
6.2
FAXING
Available Fax Setup Options
You can use the following setup options for configuring the fax
system:
Option
Description
Ring To Answer
You can specify the number of times the machine rings, 1 to
7, before answering an incoming call.
Darkness
You can select the default darkness mode to fax your
documents lighter or darker.
• Light works well with dark print.
• Normal works well with standard typed or printed
documents.
• Dark works well with light print or faint pencil markings.
Redial Term
Your machine can automatically redial a remote fax machine
when the line is busy. Intervals from 1 to 15 minutes can be
entered.
Redials
You can specify the number of redial attempts, 0 to 13. If
you enter 0, the machine will not redial.
MSG Confirm
You can set your machine to print a report showing whether
the transmission was successful, how many pages were
sent, and more. The available options are On, Off and OnError, which prints only when a transmission is not
successful.
Image TCR
You can prevent the Image TCR from being included in the
confirmation report for privacy or security protection.
Auto Report
A report with detailed information about the previous 50
communications operations, including time and dates. The
available options are On or Off.
FAXING
6.3
6
Option
Auto Reduction
Description
When receiving a document as long as or longer than the
paper loaded in the paper tray, the machine can reduce the
size of the document to fit the size of paper loaded in the
machine. Select On if you want to automatically reduce an
incoming page.
With this feature set to Off, the machine cannot reduce the
document to fit onto one page, the document is divided and
printed in actual size on two or more pages.
Discard Size
When receiving a document as long as longer than the
paper installed in your machine, you can set the machine to
discard any excess at the bottom of the page. If the
received page is outside the margin you set, it will print on
two sheets of paper at the actual size.
When the document is within the margin and the Auto
Reduction feature is turned on, the machine reduces the
document to fit it onto the appropriate sized paper and
discard does not occur. If the Auto Reduction feature is
turned off or fails, the data within the margin will be
discarded. Settings range from 0 to 30 mm.
Receive Code
The Receive Code allows you to initiate fax reception from
an extension phone plugged into the EXT jack on the back
of the machine. If you pick up the extension phone and hear
fax tones, enter the Receive Code. The Receive Code is
preset to 9 at the factory. Settings range from 0 to 9.
See page 6.13 for more information about using the code.
DRPD Mode
You can receive a call using the Distinctive Ring Pattern
Detection (DRPD) feature which enables a user to use a
single telephone line to answer several different telephone
numbers. In this menu, you can set the machine to
recognize the ring patterns to answer. See page 6.13
6.4
FAXING
Sending a Fax
Loading a Document
1 Pull the document input support all the way out. Fold out
the extender, if necessary.
2 Load the documents up to 20 pages face down into the
ADF and adjust the document guides to the document size.
For detailed guidelines for preparing an original document,
see page 4.2.
3 Adjust the document resolution, referring to page 6.6.
FAXING
6.5
6
Adjusting the Document Resolution
The default document settings produce good results when
setting typical text based documents.
However, if you send documents that are of a poor quality, or
contain photographs, you can adjust the resolution to produce a
higher quality fax.
1 Press Resolution on the control panel.
2 By pressing Resolution or the scroll button (W or X), you
can choose from Standard, Fine, Super Fine and Photo.
The document types recommended for the resolution settings
are described in the following table below:
Mode
Recommended for:
Standard
Documents with normal-sized characters.
Fine
Documents containing small characters or thin
lines or documents printed using a dot-matrix
printer.
Super Fine
Documents containing extremely fine detail.
Super Fine mode is enabled only if the remote
machine also supports the Super Fine
resolution. See the notes below.
Documents containing shades of gray or
photographs.
NOTES:
• For the memory transmission, Super Fine mode is not available.
The resolution setting is automatically changed to Fine.
• When your machine is set to Super Fine resolution and the
remote fax machine does not support the Super Fine resolution,
the machine transmits using the highest resolution mode
supported by the remote fax machine.
6.6
FAXING
Sending a Fax Automatically
1 Load the document(s) face down into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Enter the remote fax phone number using the number
keypad.
You can use the one-touch keypad or speed or group dial
numbers. For details about storing a number, see
page 6.15.
4 Press Start Copy/Fax.
The document is scanned into memory, the number is then
dialed and the documents sent when the remote machine is
ready.
NOTE: When you want to cancel the fax job, press Stop/Clear at
any time while sending the fax.
FAXING
6.7
6
Sending a Fax Manually
1 Load the document(s) face down into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Press On Hook Dial or lift the handset. You hear a dial
tone.
4 Enter the remote fax machine’s fax number using the
number keypad.
You can use the one-touch keypad or speed or group dial
numbers. For details about storing a number, see
page 6.15.
5 When you hear a high-pitched fax signal from the remote
fax machine, press Start Copy/Fax.
NOTE: When you want to cancel the fax job, press Stop/Clear at
any time while sending the fax.
Redialing the Last Number
To redial the last number you dialed:
Press Redial/Pause.
If a document is loaded in the ADF, the machine automatically
begins to send.
6.8
FAXING
Confirming Transmission
When the last page of your document has been sent
successfully, the machine beeps and returns to Standby Mode.
When something goes wrong while sending your fax, an error
message appears on the display. For a listing of error messages
and their meanings, see page 9.8.
If you receive an error message, press Stop/Clear to clear the
message and try to send the document again.
You can set your machine to print a confirmation report
automatically each time sending a fax is completed. For further
details, see the MSG Confirm item on page 6.3.
Automatic Redialing
When the number you have dialed is busy or there is no answer
when you send a fax, the machine automatically redials the
number every three minutes up to seven times by the factory
default settings.
When the display shows “Retry Redial ?,” press Enter to redial
the number without waiting. To cancel the automatic redialing,
press Stop/Clear.
To change the time interval between redials and the number of
redial attempts. See page 6.3.
FAXING
6.9
6
Receiving a Fax
About Receiving Modes
• In Fax mode, the machine answers an incoming fax call and
immediately goes into the fax reception mode.
• In Tel mode, you can receive a fax by picking up the handset
or pressing On Hook Dial (you can hear voice or fax tone
from the remote machine) and then pressing Start Copy/
Fax on the control panel of your machine. You can also pick
up the handset of the extension phone and then press the
remote receive code; see page 6.13.
• In Ans/Fax mode, the answering machine answers an
incoming call, and the caller can leave a message on the
answering machine. If the fax machine senses a fax tone on
the line, the call automatically switches to Fax mode.
• In DRPD mode, you can receive a call using the Distinctive Ring
Pattern Detection (DRPD) feature. “Distinctive Ring” is a
telephone company service which enables a user to use a single
telephone line to answer several different telephone numbers.
For further details. See page 6.13
The current receiving mode displays when the machine is in
Standby mode.
When the memory is full, the receiving mode automatically
switches to Tel.
NOTES:
• To use Ans/Fax mode, connect an answering machine to the
EXT jack on the back of your machine. see page 1.15.
• If you do not want other people to view your received
documents, you can use Secure Receiving mode. In this mode,
all of the received faxes are stored in the memory. For further
details, see page 6.29.
6.10 FAXING
Loading Paper for Receiving Faxes
The instructions for loading paper in the paper tray are the same
whether you are printing, faxing, or copying, except that faxes
can only be printed on Letter-, A4- or Legal-sized plain paper.
For details about loading paper and setting the paper size in the
tray, see page 1.12 and page 1.36.
Receiving Automatically in Fax
Mode
Your machine is preset to Fax mode at the factory. If you have
changed the receiving mode, take the following steps to receive
faxes automatically:
1 Press Receive Mode.
2 Press and hold Receive Mode until “Fax” displays on the
bottom line. You may have to repeat this action once or
twice, depending on the mode you’re in.
3 When you receive a fax, the machine answers the call on a
specified number of rings and automatically receives the
fax.
To change the number of rings, see page 6.3.
Receiving Manually in Tel Mode
You can answer calls using the handset or the On Hook Dial
button.
1 Press Receive Mode.
2 Press and hold Receive Mode until “Tel” displays on the
bottom line. You may have to repeat this action once or
twice, depending on the mode you’re in.
3 When you receive a fax call, pick up the handset or press
On Hook Dial.
You can hear a fax tone or voice from the remote machine.
FAXING 6.11
6
4 Press Start Copy/Fax to receive the fax.
The machine begins receiving a fax and returns to Standby
Mode when the reception is completed.
Receiving Automatically in Ans/Fax
Mode
For using this mode, you must attach an answering machine to
the EXT jack on the back of your machine. See page 1.16.
1 Press Receive Mode.
2 Press and hold Receive Mode until “Ans/Fax” displays on
the bottom line. You may have to repeat this action once or
twice, depending on the mode you’re in.
3 When you receive a call, the answering machine answers.
If the caller leaves a message, the answering machine
stores the message as it would normally. If your machine
hears a fax tone on the line, it automatically starts to
receive the fax.
NOTES:
• When you have set your machine to Ans/Fax mode and your
answering machine is switched off or no answering machine is
connected to the EXT jack, your machine automatically goes into
Fax mode after a predefined number of rings.
• If your answering machine has a “user-selectable ring counter,”
set it to answer incoming calls within 1 ring.
• If you are in Tel mode, which is receiving faxes manually, when
the answering machine is connected to your machine, you must
switch off the answering machine, or the outgoing message from
the answering machine will interrupt your phone conversation.
6.12 FAXING
Receiving Manually Using an
Extension Telephone
You can receive a fax from someone you are talking to on the
extension telephone without going to the fax machine.
When you receive a call on the extension phone and hear fax
tones, press the keys 9 on the extension telephone. The
machine receives the document.
Press the buttons slowly in sequence. If you still hear the fax
tone from the remote machine, try pressing 9 once again.
9 is the remote receive code preset at the factory. The first
and the last asterisks are fixed, but you can change the middle
number to whatever you choose. For details about changing the
code, see page 6.4.
Receiving Faxes Using the DRPD Mode
“Distinctive Ring” is a telephone company service which enables
a user to use a single telephone line to answer several different
telephone numbers. The particular number someone uses to call
you on is identified by different ringing patterns, which consist
of various combinations of long and short ringing sounds. This
feature is often used by answering services who answer
telephones for many different clients and need to know which
number someone is calling in on to properly answer the phone.
Using the Distinctive Ring Pattern Detection feature, your fax
machine can “learn” the ring pattern you designate to be
answered by the FAX machine. Unless you change it, this ringing
pattern will continue to be recognised and answered as a FAX
call, and all other ringing patterns will be forwarded to the
extension telephone or answering machine plugged into the
EXT. jack. You can easily suspend or change Distinctive Ring
Pattern Detection at any time.
Before using the Distinctive Ring Pattern Detection option,
Distinctive Ring service must be installed on your telephone line
by the telephone company. To set up Distinctive Ring Pattern
Detection, you will need another telephone line at your location,
or someone available to dial your FAX number from outside.
FAXING 6.13
6
To set up the DRPD mode:
1 Press Menu until “Fax Setup” appears on the top line of the
display.
The first available menu item, “Receive Mode,” displays on
the bottom line.
2 Press the scroll button (W or X) until you see “DRPD Mode”
on the bottom line and press Enter.
3 When “Set” displays on the bottom line, press Enter.
The LCD displays ‘[Waiting Ring].”
4 Call your fax number from another telephone. It is not
necessary to place the call from a fax machine.
5 When your machine begins to ring, do not answer the call.
The machine requires several rings to learn the pattern.
When the machine completes learning, the LCD displays
“End DRPD [Setup]”.
If the DRPD setup fails, “DRPD Ring Error” appears. Press
Enter when “DRPD Mode” displays and retry from Step 3.
6 To return to Standby Mode, press Stop/Clear.
When the DRPD feature is set up, the DRPD option is available
in the Receive Mode menu. To receive faxes in the DRPD mode,
you need to set the menu to DRPD.
NOTES:
• DRPD must be set up again if you re-assign your fax number, or
connect the machine to another telephone line.
• After DRPD has been set up, call your fax number again to verify
that the machine answers with a fax tone. Then have a call
placed to a different number assigned to that same line to be
sure the call is forwarded to the extension telephone or
answering machine plugged into the EXT. jack.:
Receiving Faxes in the Memory
Since your machine is a multi-tasking device, it can receive
faxes while you are making copies or printing. If you receive a
fax while you are copying or printing, your machine stores
incoming faxes in the memory. Then, as soon as you finish
copying or printing, the machine automatically prints the fax.
6.14 FAXING
Automatic Dialing
One-touch Dialing
The 20 one-touch buttons on the control panel lets you store
frequently-used fax numbers and dial a number automatically
with a touch of a button.
Storing a Number for One-touch Dialing
1 Press and hold one of the one-touch dial buttons for about
2 seconds.
The display asks you to enter the fax number. “T” signifies
that you are assigning a one-touch dial button.
If a number is already stored in the location you chose, the
display shows the number to allow you to change it. To
start over with another one-touch button, press Stop/
Clear.
2 Enter the number you want to store using the number
keypad and press Enter.
To insert a pause between numbers, press Redial/Pause.
A symbol “-” appears on the display.
If you make a mistake while entering a number, press the
W button and re-enter the correct number.
3 To assign a name to the number, enter the name you want.
For details about entering characters, see page 1.32.
If you do not want to assign a name, skip this step.
4 Press Enter when the name appears correctly or without
entering a name.
5 To store more numbers, press a one-touch button and
repeat steps 2 through 4.
OR
To return to Standby mode, press Stop/Clear.
FAXING 6.15
6
Sending a Fax using a One-touch Number
1 Load the document(s) face down into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Press the one-touch button where you stored a number.
The document scans into the memory.
4 The machine dials the fax number stored in the one-touch
dial location and the document is sent when the remote fax
machine answers.
Speed Dialing
You can store up to 80 frequently-dialed numbers in one or twodigit speed dial locations (0-79).
Storing a Number for Speed Dialing
1 Press Phone Book on the control panel.
2 Press Phone Book or the scroll button (W or X) to display
“Store & Edit” on the bottom line of the display. Press
Enter.
3 Press Enter when “Speed Dials” appears on the display.
The display prompts you to enter a location number,
showing the first available number.
4 Enter a one or two-digit speed dial number between 0 and
79, using the number keypad or scroll button (W or X) and
press Enter.
If a number is already stored in the location you chose, the
display shows the number to allow you to change it. To start
over with another speed-dial number, press Upper Level.
6.16 FAXING
5 Enter the number you want to store using the number
keypad and press Enter.
To insert a pause between numbers, press Redial/Pause.
A symbol “-” appears on the display.
6 To assign a name to the number, enter the name you want.
For details about entering characters, see page 1.32.
OR
If you do not want to assign a name, skip this step.
7 Press Enter when the name appears correctly or without
entering a name.
8 To store more fax numbers, repeat steps 4 through 7.
OR
To return to Standby mode, press Stop/Clear.
Sending a Fax using a Speed Number
1 Feed the document(s) face up into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Enter the speed dial number.
• For a one-digit speed dial number, press and hold the
appropriate digit button.
• For a two-digit speed dial number, press the first digit
button and hold the last digit button.
The corresponding entry’s name briefly displays.
4 The document scans into the memory.
The fax number stored in the speed dial location is
automatically dialed. The document is sent when the
remote fax machine answers.
FAXING 6.17
6
Group Dialing
If you frequently send the same document to several
destinations, you can create a group of these destinations and
set them under a one or two-digit group dial location. This
enables you to use a group dial number setting to send the same
document to all the destinations in the group.
Setting a Group Dial Number
1 Press Phone Book on the control panel.
2 Press Phone Book or the scroll button (W or X) to display
“Store & Edit” on the bottom line of the display. Press
Enter.
3 Press the scroll button (W or X) to display “Group Dials” on
the bottom line and press Enter.
4 Press Enter when “New” displays on the bottom line.
The display prompts you to enter a location number,
showing the first available number.
5 Enter a group number between 0 and 79 using the number
keypad or scroll button (W or X) and press Enter.
6 Press a one-touch dial button, or enter a one or two-digit
speed number you want to include in the group and press
Enter.
7 When the display confirms the number to be added to the
group, press Enter.
8 Repeat steps 6 and 7 to enter other one-touch dial or speed
dial numbers into the group.
9 Press Upper Level when you have entered all of the
numbers. The display prompts you to enter a group ID.
6.18 FAXING
10 To assign a name to the group, enter the name.
OR
If you do not want to assign a name, skip this step.
11 Press Enter when the name appears correctly or without
entering a name.
12 If you want to assign another group, press Enter and
repeat from step 5.
OR
To return to Standby mode, press Stop/Clear.
NOTE: You cannot include one group dial number in another group
dial number.
Editing Group Dial Numbers
You can delete a specific speed dial number from a selected
group or add a new number to the selected group.
1 Press Phone Book on the control panel.
2 Press Phone Book or the scroll button (W or X) to display
“Store & Edit” on the bottom line of the display. Press
Enter.
3 Press the scroll button (W or X) to display “Group Dials” on
the bottom line and press Enter.
4 Press the scroll button (W or X) to display “Edit” on the
bottom line and press Enter.
5 Enter the group number you want to edit and press Enter.
6 Press a one-touch dial button to enter a speed dial number
you want to add or delete.
7 When you enter the specific number in the group, the
display shows “Delete?.”
When you enter a new number, the display shows “Add?.”
8 Press Enter to add or delete the number.
9 To change the group name, press Upper Level.
FAXING 6.19
6
10 Enter a new group name and press Enter.
11 If you want to edit another group, press Enter and repeat
from step 5.
OR
To return to Standby mode, press Stop/Clear.
Sending a Fax Using Group Dialing
(Multi-address Transmission)
You can use group dialing for Broadcasting or Delayed
transmissions.
Follow the procedure of the operation (Broadcasting
transmission; see page 6.22, Delayed transmission; see
page 6.23, Priority transmissionpage 6.25, Delayed RX Polling
transmissionpage 6.26). When you come to a step in which the
display asks you to enter the remote fax number:
• For a one-digit group number, press and hold the appropriate
digit button.
• For a two-digit group number, press the first digit button and
hold the last digit button.
You can use only one group number for one operation. Then
continue the procedure to complete the operation.
Your machine automatically scans the document loaded in the
ADF and then dials each of the numbers included in the group.
Searching for a Number in the Memory
There are two ways to search for a number in the memory. You
can either scan from A to Z sequentially, or you can search using
the first letter of the name associated with the number.
Searching Sequentially through the Memory
1 Press Phone Book.
2 Press Enter when “Search&Dial” appears on the display.
6.20 FAXING
3 Press the scroll button (W or X) to scroll through the
memory until the name and number you want to dial
display. You can search upwards or downwards through the
entire memory in alphabetical order, from A to Z.
While searching through the machine’s memory, you can
see that each entry is preceded by one of three letters; “T”
for one-touch dial, “S” for speed dial or “G” for group dial
number. These letters tell you how the number is stored.
4 When the name and/or the number you want displays,
press Start Copy/Fax or Enter to dial.
Searching with a Particular First Letter
1 Press Phone Book.
2 Press Enter when “Search&Dial” appears on the display.
3 Press the button labeled with the letter you want to search
for. A name beginning with the letter displays.
For example, if you want to find the name “MOBILE,” press
the 6 button, which is labeled with “MNO.”
4 Press the scroll button (W or X) to display the next name.
5 When the name and/or the number you want displays,
press Start Copy/Fax or Enter to dial.
Printing a Phonebook List
You can check your automatic dial setting by printing a
Phonebook list.
1 Press Phone Book.
2 Press Phone Book or the scroll button (W or X) until
“Print” appears on the bottom line and press Enter.
A list showing your one-touch dial, speed dial and group dial
entries prints out.
FAXING 6.21
6
Other Ways to Fax
Sending Broadcasting Faxes
Using the Broadcasting button on the control panel, you can
use the broadcasting fax feature, which allows you to send a
document to multiple locations. Documents are automatically
stored in the memory and sent to a remote station. After
transmission, the documents are automatically erased from the
memory.
1 Load the document(s) face down into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Press Broadcasting on the control panel.
4 Enter the number of the remote machine using the number
keypad.
You can use one-touch keypad or speed dial or group dial
numbers. For details about storing a number, see
page 6.15.
5 Press Enter to confirm the number. The display asks you to
enter another fax number to send the document.
NOTE: The Another No. prompt does not appear if you have added
numbers for another broadcasting or delay fax job. You must wait
until the job is completed.
6 To enter more fax numbers, press 1 to select “Yes” and
repeat steps 4 and 5. You can add up to 10 destinations.
Note that you cannot use group dial numbers for another
fax number.
6.22 FAXING
7 When you finish entering fax numbers, press 2 to select
“No” at a Another No. prompt.
The document is scanned into the memory before
transmission. The display shows the memory capacity and
the number of pages being stored in the memory.
The machine begins sending the document in order of the
numbers you entered.
Sending a Delayed Fax
You can set your machine to send a fax at a later time when you
will not be present.
1 Load the document(s) face down into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Press Menu until “Fax Feature” appears on the top line of
the display. The first available menu item, “DelayFax,”
displays on the bottom line.
4 Press Enter.
5 Enter the number of the remote machine using the number
keypad.
You can use one-touch keypad or speed dial or group dial
numbers. For details about storing a number, see
page 6.15.
6 Press Enter to confirm the number on the display. The
display asks you to enter another fax number to send the
document.
NOTE: The Another No. prompt does not appear if you have added
numbers for another broadcasting or delay fax job. You must wait
until the job is completed.
FAXING 6.23
6
7 To enter more fax numbers, press 1 to select “Yes” and
repeat steps 4 and 5. You can add up to 10 destinations.
Note that you cannot use group dial numbers for another
fax number.
8 When you finish entering fax numbers, press 2 to select
“No” at a Another No. prompt.
The display asks you to enter a name.
9 To assign a name to the transmission, enter the name. If
not, skip this step.
For details on how to enter the name using the number
keypad, see page 1.32.
10 Press Enter.
The display shows the current time and asks you to enter
the starting time when the fax is to be sent.
11 Enter the time using the number keypad.
To select “AM” or “PM” for 12-hour format, press the
button or any number button.
or
If you set a time earlier than the current time, the
document will be sent at that time on the following day.
12 Press Enter when the starting time displays correctly.
The document is scanned into the memory before
transmission. The display shows the memory capacity and
the number of pages being stored in the memory.
The machine returns to Standby mode. The display reminds
you that you are in Standby mode and that a delayed fax is
set.
NOTE: If you want to cancel the delayed transmission, see
“Canceling a Scheduled Fax” on page 6.28.
6.24 FAXING
Sending a Priority Fax
Using the Priority Fax feature, a high priority document can be
sent ahead of reserved operations. The document is scanned
into the memory and transmitted when the current operation is
finished. In addition, the priority transmission interrupts a
broadcast operation between stations (i.e., when the
transmission to station A ends, before transmission to station B
begins) or between redial attempts.
1 Load the document(s) face down into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Press Menu until “Fax Feature” appears on the top line of
the display.
4 Press the scroll button (W or X) to display “Priority Fax” on
the bottom line and press Enter.
5 Enter the number of the remote machine using the number
keypad.
To enter the number, you can use one-touch keypad or
speed dial or group dial numbers. For details, see
page 6.15.
6 Press Enter to confirm the number. The display asks you to
enter a name.
7 To assign a name to the transmission, enter the name. If
not, skip this step.
For details on how to enter a name using the number
keypad, see page 1.32.
8 Press Enter.
The document is scanned into the memory before
transmission. The display shows the memory capacity and
the number of pages being stored in the memory.
The machine shows the number being dialed and begins
sending the document.
FAXING 6.25
6
Polling a Remote Machine
Polling is used when one fax machine requests another to send
a document. This is useful when the person with the original
document to be sent is not in the office. The person who wants
to receive the document calls the machine holding it and
requests that the document be sent. In other words, it “polls”
the machine holding the original document.
You can set the machine to automatically receive documents
from the unattended remote fax machine at any time. This
feature permits unattended polling in the evening hours when
telephone rates are lower.
NOTE: The machine must be ready for polling.
1 Press Menu until “Fax Feature” appears on the top line of
the display.
2 Press the scroll button (W or X) to display “Delay Rx Poll”
on the bottom line and press Enter.
3 Enter the number of the remote machine to be polled using
the number keypad.
To enter the number, you can use a one-touch keypad or
speed dial number. For details, see page 6.15.
4 Press Enter to confirm the number on the display. The
display asks you to enter another fax number.
NOTE: The Another No. prompt does not appear if you have added
numbers for another broadcasting or delay fax job. You must wait
until the job is completed.
5 To enter more fax numbers, press 1 to select “Yes” and
repeat steps 4 and 5. You can add up to 10 destinations.
Note that you cannot use group dial numbers for another
fax number.
6 When you finish entering fax numbers, press 2 to select
“No” at a Another No. prompt.
7 Enter the time using the number keypad.
6.26 FAXING
To select “AM” or “PM” for 12-hour format, press the
button or any number button.
or
If you set a time earlier than the current time, your
machine will poll at that time on the following day.
8 When the remote machine is secured with a 4-digit poll
code, enter the correct code and press Enter.
If not, press Enter to accept “0000” which represents no
code, or enter 0000.
9 Press Enter when the starting time displays correctly.
At the specified time, the machine will dial the numbers in
the order you entered and receive documents from the
remote machines.
Adding Documents to a Scheduled Fax
You can add documents to the delayed transmission previously
reserved in your machine’s memory.
1 Load the document(s) face down into the ADF.
For details about loading a document, see page 6.5.
2 Adjust the document resolution to suit your fax needs. See
page 6.6.
If you need to change the darkness, see page 6.3.
3 Press Menu until “Fax Feature” appears on the top line of
the display.
4 Press the scroll button (W or X) to display “Add Page” on
the bottom line and press Enter.
The display shows the last job reserved in the memory.
FAXING 6.27
6
5 Press the scroll button (W or X) until you see the fax job to
which you want to add documents and press Enter.
The machine automatically stores the documents in the
memory, and the display shows the memory capacity and
the number of pages.
After storing, the machine displays the numbers of total
pages and added pages and then returns to Standby mode.
Canceling a Scheduled Fax
1 Press Menu until “Fax Feature” appears on the top line of
the display.
2 Press the scroll button (W or X) to display “Cancel Job” and
press Enter. The display shows the last job reserved in the
memory.
3 Press the scroll button (W or X) until you see the fax job
you want to cancel, and press Enter.
4 When the display confirms your selection, press 1 to select
“Yes.” The selected job is canceled and the machine returns
to Standby mode.
To cancel your selection, press 2 to select “No.”
6.28 FAXING
Additional Features
Using Secure Receiving Mode
You may need to prevent your received faxes from being
accessed by unauthorized people. You can turn on Secure
Receiving mode to restrict printing out all of the received faxes
when the machine is unattended. In Secure Receiving mode, all
of the incoming faxes go into the memory. When the mode turns
off, any faxes stored are printed.
To turn Secure Receiving mode on:
1 Press Menu until “Advanced Fax” appears on the top line of
the display.
2 Press the scroll button (W or X) until “Secure Receive”
appears on the bottom line and press Enter.
3 Press the scroll button (W or X) to display “On” on the
bottom line and press Enter.
4 Enter a four-digit passcode you want to use and press
Enter.
NOTE: You can activate Secure Receiving mode without setting a
passcode, but cannot protect your faxes.
5 Re-enter the passcode to confirm it and press Enter.
6 To return to Standby mode, press Stop/Clear.
When a fax is received in Secure Receiving mode, your machine
stores it into the memory and displays “Secure Receive” to let
you know that there is a fax stored.
FAXING 6.29
6
To print received documents:
1 Access the Secure Receive menu by following steps 1 and 2
on page 6.29.
2 Press the scroll button (W or X) to display “Print” on the
bottom line and press Enter.
3 Enter the four-digit passcode and press Enter.
The machine prints all of the faxes stored in the memory.
To turn Secure Receiving mode off:
1 Access the Secure Receive menu by following steps 1 and 2
on page 6.29.
2 Press the scroll button (W or X) to display “Off” on the
bottom line and press Enter.
3 Enter the four-digit passcode and press Enter.
The mode is deactivated and the machine prints all of the
faxes stored in the memory.
4 To return to Standby mode, press Stop/Clear.
6.30 FAXING
Printing Reports
Your machine can print reports containing useful information.
The following reports are available:
Phonebook List
This list shows all of the numbers currently stored in the
machine’s memory as speed dial and group dial numbers.
You can print this Phonebook list using the Phone Book button;
see page 6.21.
Sent Fax Report
This report shows information of the faxes you recently sent.
Received Fax Report
This report shows information of the faxes you recently
received.
System Data List
This list shows the status of the user-selectable options. You
may print this list to confirm your changes after changing any
settings.
Scheduled Job Information
This list shows the document currently stored for Delayed faxes
or Toll Save faxes. The list shows the starting time and type of
operation.
Message Confirmation
This report shows the fax number, the number of pages, the
elapsed time of the job, the communication mode, and the
communication results.
You can set up your machine to automatically print the message
confirmation report after each fax job. See page 6.3.
FAXING 6.31
6
Junk Fax Number List
This list shows up to 10 fax numbers specified as the junk fax
numbers by using the Junk Fax Setup menu; see page 6.34.
When the Junk Fax Barrier feature is turned on, incoming faxes
from those numbers are blocked.
This feature recognize the last 6 digits of the fax number set as
a remote fax machine’s ID.
Multi-communication Report
This report is printed automatically after sending documents
from more than one location.
Power Failure Report
This report is printed out automatically when power is restored
after a power failure, if there occurs any data loss due to the
power failure.
NOTE: The lists you have set to print out automatically don’t print
out when there is no paper loaded or a paper jam has occurred.
Printing a Report
1 Press Menu until “Reports” appears on the top line of the
display. The first available menu item, “Phone Book”
displays on the bottom line.
2 Press the scroll button (W or X) to display the report or list
you want to print on the bottom line.
• Phone Book: Phonebook list
• Sent Report: Sent fax report
• RCV Report: Received fax report
• System Data: System data list
• Scheduled Jobs: Scheduled job information
• MSG Confirm: Message confirmation
• Junk Fax List: Junk fax number list
3 Press Enter.
The selected information prints out.
6.32 FAXING
Using Advanced Fax Settings
Your machine has various user-selectable setting options for
sending or receiving faxes. These options are preset at the
factory, but you may need to change them. To find out how the
options are currently set, print the System Data list. For details
about printing the list, see page 6.31
Changing Setting Options
1 Press Menu until “Advanced Fax” appears on the top line of
the display. The first available menu item, “Send Forward,”
displays on the bottom line.
2 Press the scroll button (W or X) until you see the desired
menu item on the bottom line and press Enter.
3 When the option you want appears on the display, choose a
status by pressing the scroll button (W or X) or enter a
value using the number keypad.
4 Press Enter to save the selection.
5 You can exit from Setup mode at any time by pressing
Stop/Clear.
FAXING 6.33
6
Advanced Fax Setting Options
Option
Send Forward
Description
You can set the machine to always forward all of the
outgoing faxes to a specified destination, in addition to the
fax numbers you entered.
Select Off to turn this feature off.
Select On to turn this feature on. You can set the number
of the remote fax machine to which faxes are forwarded.
RCV Forward
You can set your machine to forward incoming faxes to
another fax number during a specified period of time.
When a fax arrives at your machine, it is stored in the
memory. Then, the machine dials the fax number that you
have specified and sends the fax.
Select Off to turn this feature off.
Select On to turn this feature on. You can set the fax
number to which faxes are forwarded. Then, you can enter
the starting time and/or the ending time. The Local Copy
option allows you to set the machine to print the fax, if fax
forwarding is completed without any error.
Toll Save
You can set your machine to store your faxes into the
memory and send them at the specified toll-saving time.
For details about Toll Save mode, see page 1.39.
Select Off to turn this feature off.
Select On to turn this feature on. You can set the starting
time and/or the ending time for Toll Save mode.
Junk Fax Setup
Using the Junk Fax Barrier feature, the system will not
accept faxes sent from remote stations of which there
machine ID’s are stored in the memory as junk fax
numbers. This feature is useful for blocking any unwanted
faxes.
Select Off to turn the feature off. Anybody can send you a fax.
Select On to turn the feature on. You can set up to 10 fax
numbers as junk fax numbers using the Set option. This
feature recognize the last 6 digits of the fax number set
as a remote fax machine’s ID.
After storing numbers, you do not receive any faxes from
the registered stations. To delete all the junk fax numbers,
use the All Delete option.
6.34 FAXING
Option
Secure Receive
Description
You can keep your received faxes from being accessed by
unauthorized people.
For further details about setting this mode, see page 6.29.
Prefix Dial No
You can set a prefix dial number of up to five digits. This
number dials before any automatic dial number is started.
It is useful for accessing the PABX exchange.
Stamp RCV Name
This option allows the machine to automatically print the
page number, and the date and time of the reception at
the bottom of each page of a received document.
Select Off to turn this feature off.
Select On to turn this feature on.
ECM Mode (Error
Correction Mode)
Error Correction Mode helps with poor line quality and
makes sure any fax you send are sent smoothly to any
other ECM-equipped fax machine. If the line quality is
poor, it takes more time to send a fax when you are using
the ECM mode.
Select Off to turn this feature off.
Select On to turn this feature on.
6
FAXING 6.35
Using the Remote Control Panel
Using the Remote Control Panel, you can create and edit
Phonebook entries or update the firmware program of your
machine on the desktop of your computer.
When you install the Samsungg software, the Remote Control
Panel program is automatically installed.
For information about installing the Samsung software, see
page 1.19.
To open the Remote Control Panel:
1 Start Windows.
2 From the Start menu, select Programs.
3 Select Samsung MFP 560 Series and then Remote
Control Panel.
The Remote Control Panel program opens.
4 The Remote Control Panel window provides the two tabs;
Phonebook and Firmware Update.
To exit, click the Exit button at the bottom of each tab.
For further details, click the Help button at the bottom of
each tab.
6.36 FAXING
The Phonebook Tab
Click the Phone Book tab to create and edit Phonebook entries.
Reads the
Phonebook entries
from the machine to
the Remote Control
Panel.
Downloads the
Phonebook entries
from the Remote
Control Panel to
the machine.
Shows Phonebook
entries
Allows you to
edit the selected
Phonebook entry
in a separate
Edit window.
Allows you to set
up group dial
numbers. See
below.
Deletes the selected
Phonebook entry.
Deletes all
Phonebook entries.
When you click Group Dial, the following window opens.
Enter a name for
the group.
Shows the
Phonebook entries
you can include in
the group. After
selecting a number,
click Add to move it
to the Included
numbers list.
Shows the numbers
included in the group.
To remove a number,
select it and click
Remove.
Click to save the group dial number after
adding or removing numbers for the group.
FAXING 6.37
6
The Firmware Update Tab
Click the Firmware Update tab to update the firmware of your
machine. This feature should be used by an authorized
technician. Please consult with the purchase point.
6.38 FAXING
7
USING YOUR PRINTER IN
LINUX
This chapter gives you information about how to use your
machine in the Linux system.
This chapter includes:
• Getting Started
• Installing the MFP Driver
• Using the MFP Configurator
• Configuring Printer Properties
• Printing a Document
• Scanning a Document
Getting Started
You need to download Linux software package from the
Samsung website (www.samsung.com/printer) to install the
printer softwares.
Samsung’s MFP driver package contains printer and scanner
drivers, providing the ability to print documents and scan
images. The package also delivers powerful applications for
configuring your machine and further processing of the scanned
documents.
After the driver is installed on your Linux system, the driver
package allows you to monitor a number of MFP devices via USB
simultaneously. The acquired documents can then be edited,
printed on the same local MFP or network printers, sent by email, uploaded to a FTP site or transferred to an external OCR
system.
The MFP driver package is supplied with a smart and flexible
installation program. You don't need to search for additional
components that might be necessary for the MFP software: all
required packages will be carried onto your system and installed
automatically; this is possible on a wide set of the most popular
Linux clones.
7.2
USING YOUR PRINTER IN LINUX
Installing the MFP Driver
System Requirements
Supported OS
• Redhat 7.1 and above
• Linux Mandrake 8.0 and above
• SuSE 7.1 and above
• Caldera OpenLinux 3.1 and above
• Turbo Linux 7.0 and above
• Slackware 8.1 and above
Recommended Hardware Requirements
• Pentium II or higher
• RAM 256 MB or higher
• HDD 1 GB or higher
NOTES:
• It’s also necessary to claim swap partition of 200MB or larger for
working with large scanned images.
• The Linux scanner driver supports the optional resolution at
maximum. see “Scanner and Copier Specifications” on page A.3.
7
Software
• Linux Kernel 2.4 or higher
• Glibc 2.2 or higher
• CUPS
• SANE 1.4 or higher
USING YOUR PRINTER IN LINUX
7.3
Installing the MFP Driver
1 Make sure that you connect your machine to your computer.
Turn both the computer and the machine on.
2 When the Administrator Login window appears, type in root
in the Login field and enter the system password.
NOTE: You must log in as a super user (root) to install the printer
software. If you are not a super user, ask your system
administrator.
3 From the Samsung website, download and unpack the
Unified Linux Driver package to your computer.
4 Click the
icon at the bottom of the desktop. When the
Terminal screen appears, type in:
[[email protected] root]#tar zxf [FilePath]/
UnifiedLinuxDriver.tar.gz
[[email protected] root]#cd [FilePath]/cdroot/Linux
[[email protected] Linux]#./install.sh
NOTE: If you do not use the graphical interface and failed to
install the software, you have to use the driver in the text mode.
Follow the steps 3 to 4, and then follow the instructions on the
terminal screen.
5 Click Install.
6 When the welcome screen appears, click Next.
7.4
USING YOUR PRINTER IN LINUX
7 When the installation is completed, click Finish.
The installation program has added the MFP Configurator
desktop icon and Samsung MFP group to the system menu
for your convenience. If you have any difficulties, consult
the on-line help that is available through your system menu
or can otherwise be called from the driver package windows
applications, such as MFP Configurator or Image Editor.
Uninstalling the MFP Driver
1 From the Startup Menu icon (
) at the bottom of the
desktop, select Samsung MFP and select Samsung MFP
560 Series Uninstall.
2 Click Next.
7
3 Click Finish.
USING YOUR PRINTER IN LINUX
7.5
Using the MFP Configurator
MFP Configurator is a tool primarily intended for configuring MFP
devices. Since an MFP device combines the printer and scanner,
the MFP Configurator provides options logically grouped for
printer and scanner functions. There is also a special MFP port
option responsible for the regulation of access to an MFP printer
and scanner via a single I/O channel.
After installing the MFP driver (see page 7.3), the MFP
Configurator icon will automatically be created on your desktop.
Opening the MFP Configurator
1 Double-click MFP Configurator on the desktop.
You can also click the Startup Menu icon and select
Samsung MFP and then MFP Configurator.
2 Press each button on the Modules pane to switch to the
corresponding configuration window.
Printers Configuration
button
Scanners Configuration
button
MFP Ports Configuration
button
You can use the on-line help by clicking Help.
3 After changing the configurations, click Exit to close the
MFP Configurator.
7.6
USING YOUR PRINTER IN LINUX
Printers Configuration
Printers Configuration has the two tabs; Printers and Classes.
Printers Tab
You can see the current system’s printer configuration by
clicking on the printer icon button on the left side of MFP
Configurator window.
Switches to Printer
configuration.
Printer control
buttons. See
below.
Shows all of the
installed printer.
Shows the status,
model name and
URI of your printer.
You can use the following printer control buttons:
• Refresh: renews the available printers list.
7
• Add Printer: allows you to add a new printer.
• Remove Printer: removes the selected printer.
• Set as Default: sets the current printer as a default printer.
• Stop/Start: stops/starts the printer.
• Test: allows you to print a test page to check if the machine
is working properly.
• Properties: allows you to view and change the printer
properties. For details, see page 7.10.
USING YOUR PRINTER IN LINUX
7.7
Classes Tab
The Classes tab shows the list of the available printer classes.
Renews the classes
list.
Allows you to add a
new printer class.
Shows all of the
printer classes.
Removes the
selected printer
class.
Shows the status of the
class and the number of
printers in the class.
Scanners Configuration
In this window, you can monitor activity of scanner devices,
view the list of installed Samsung MFP devices, change device
properties, and scan images.
Switches to
Scanners
configuration.
Shows all of the
installed scanners.
Allows you to
monitor the activity
of the scan drivers.
Shows the vendor,
model name and type of
your scanner.
7.8
USING YOUR PRINTER IN LINUX
Allows you to change
the scan properties and
scan a document. See
page 7.13.
MFP Ports Configuration
In this window, you can view the list of available MFP ports,
check the status of each port and release a port that is stalled
in busy state when its owner is terminated for any reason.
Renews the
available ports list.
Releases the selected
port.
Switches to
MPF ports
configuration.
Shows all of the
available ports.
Shows the port type,
device connected to
the port and status
Sharing Ports Between Printers and Scanners
Your machine may be connected to a host computer via the USB
port. Since the MFP device contains more than one device
(printer and scanner), it is necessary to organize proper access
of “consumer” applications to these devices via the single I/O
port.
The Samsung MFP driver package provides an appropriate port
sharing mechanism that is used by Samsung printer and
scanner drivers. The drivers address their devices via so-called
MFP ports. The current status of any MFP port can be viewed via
the MFP Ports Configuration. The port sharing prevents you from
accessing one functional block of the MFP device, while another
block is in use.
When you install a new MFP printer onto your system, it is
strongly recommended you do this with the assistance of an MFP
Configurator. In this case you will be asked to choose I/O port
for the new device. This choice will provide the most suitable
configuration for MFP’s functionality. For MFP scanners I/O ports
are being chosen by scanner drivers automatically, so proper
settings are applied by default.
USING YOUR PRINTER IN LINUX
7.9
7
Configuring Printer Properties
Using the properties window provided by the Printers
configuration, you can change the various properties for your
machine as a printer.
1 Open the MFP Configurator.
If necessary, switch to Printers configuration.
2 Select your machine on the available printers list and click
Properties.
3 The Printer Properties window opens.
The following five tabs display at the top of the window:
• General: allows you to change the printer location and
name. The name entered in this tab displays on the
printer list in Printers configuration.
• Connection: allows you to view or select another port.
• Driver: allows you to view or select another printer
driver. By clicking Options, you can set the default
device options.
• Jobs: shows the list of print jobs. Click Cancel job to
cancel the selected job and select the Show completed
jobs check box to see previous jobs on the job list.
• Classes: shows the class that your printer is in. Click
Add to Class to add your printer to a specific class or
click Remove from Class to remove the printer from the
selected class.
4 Click OK to apply the changes and close the Printer
Properties Window.
7.10 USING YOUR PRINTER IN LINUX
Printing a Document
Printing from Applications
There are a lot of Linux applications that you are allowed to print
from using Common UNIX Printing System(CUPS). You can print
on your machine from any such application.
1 From the application you are using, select Print from the
File menu.
2 Select Print directly using lpr.
3 In the Samsung LPR window, select the model name of
your machine from the Printer list and click Properties.
Click
4 Change the printer and print job properties.
USING YOUR PRINTER IN LINUX 7.11
7
The following four tabs display at the top of the window.
• General - allows you to change the paper size, the paper
type and the orientation of the documents, enables the
duplex feature, adds start and end banners and changes
the number of pages per sheet.
• Text - allows you to specify the page margins and set the
text options, such as spacing or colums.
• Graphics - allows you to set image options that are used
when printing images/files, such as color options, image
size or image position.
• Device: allows you to set the print resolution, paper
source and destination.
5 Click OK to apply the changes and close the sf565p
Properties window.
6 Click OK in the Samsung LPR window to start printing.
7 The Printing window appears to allow you to monitor the
status of your print job.
To abort the current job, click Cancel.
Printing Files
You can print many different types of files on the Samsung MFP
device using the standard CUPS way - directly from the
command line interface. The CUPS lpr utility allows you do that.
But the drivers package replaces the standard lpr tool by a much
more user-friendly Samsung LPR program.
To print any document file:
1 Type lpr <file_name> from the Linux shell command line
and press Enter. The Samsung LPR window appears.
When you type only lpr and press Enter, the Select file(s)
to print window appears first. Just select any files you want
to print and click Open.
2 In the Samsung LPR window, select your printer from the
list, and change the printer and print job properties.
For details about the properties window, see page 7.11.
3 Click OK to start printing.
7.12 USING YOUR PRINTER IN LINUX
Scanning a Document
You can scan a document using the MFP Configurator window.
1 Double-click the MFP Configurator on your desktop.
2 Click the
button to switch to Scanners Configuration.
3 Select the scanner on the list.
Click your
scanner.
When you have only one MFP device and it is connected to
the computer and turned on, your scanner appears on the
list and is automatically selected.
If you have two or more scanners attached to your
computer, you can select any scanner to work at any time.
For example, while acquisition is in progress on the first
scanner, you may select the second scanner, set the device
options and start the image acquisition simultaneously.
NOTE: The scanner name shown in Scanners configuration can be
different from the device name.
4 Click Properties.
USING YOUR PRINTER IN LINUX 7.13
7
5 Load the document(s) to be scanned face down into the
ADF (Automatic Document Feeder) and adjust the
document guides.
For detailed guidelines for preparing an original document,
see page 4.2.
6 Click Preview in the Scanner Properties window.
The document is scanned and the image preview appears in
the Preview Pane.
Drag the pointer to
set the image area
to be scanned.
7.14 USING YOUR PRINTER IN LINUX
7 Change the scan options in the Image Quality and Scan
Area sections.
• Image Quality: allows you to select the color
composition and the scan resolution for the image.
• Scan Area: allows you to select the page size. The
Advanced button enables you to set the page size
manually.
If you want to use one of the preset scan option settings,
select from the Job Type drop-down list. For details about
the preset Job Type settings, see page 7.16.
You can restore the default setting for the scan options by
clicking Default.
8 When you have finished, press Scan to start scanning.
The status bar appears on the bottom left of the window to
show you the scanning progress. To cancel scanning, press
Cancel.
9 The scanned image appears in the new Image Editor
window.
7
If you want to edit the scanned image, use the toolbar. For
further details about editing the image, see page 7.17.
10 When you are finished, click Save on the toolbar.
11 Select the file directory where you want to save the image
and enter the file name.
12 Click Save.
USING YOUR PRINTER IN LINUX 7.15
Using Preset Job Type Settings
You can save your scan option settings to retrieve for a later
scanning.
To save a new Job Type setting:
1 Change the options from the Scanner Properties window.
2 Click Save As.
3 Enter the name for your setting.
4 Click OK.
Your setting is added to the Saved Settings drop-down list.
To save a Job Type setting for the next scan job:
1 Select the setting you want to use from the Job Type dropdown list.
2 Click Save.
The next time you open the Scanner Properties window, the
saved setting is automatically selected for the scan job.
To delete a Job Type setting:
1 Select the setting you want to delete from the Job Type
drop-down list.
2 Click Delete.
The setting is deleted from the list.
7.16 USING YOUR PRINTER IN LINUX
Using the Image Editor
The Image Editor window provides you with menu commands
and tools to edit your scanned image.
Use these tools to
edit the image.
You can use the following tools to edit the image:
Tools
Function
Saves the image.
Cancels your last action.
Restores the action you canceled.
Allows you to scroll through the image.
Crops the selected image area.
Zooms the image out.
Zooms the image in.
USING YOUR PRINTER IN LINUX 7.17
7
Tools
Function
Allows you to scale the image size; you can enter
the size manually, or set the rate to scale
porportionally, vertically or horizontally.
Allows you to rotate the image; you can select the
number of degrees from the drop-down list.
Allows you to flip the image vertically or
horizontally.
Allows you to adjust the brightness or contrast of
the image, or to invert the image.
Shows the properties of the image.
For further details about the Image Editor program, refer to the
on-line help.
7.18 USING YOUR PRINTER IN LINUX
8
MAINTENANCE
This chapter provides information for maintaining your
machine and the toner cartridge.
This chapter includes:
• Clearing the Memory
• Adjusting Shading
• Cleaning Your Machine
• Maintaining the Toner Cartridge
• Consumables and Replacement Parts
• Replacing the ADF Rubber Pad
Clearing the Memory
You can selectively clear information stored in your machine’s memory.
1 Press Menu on the control panel until “Maintenance”
appears on the top line of the display.
2 Press the scroll button (W or X) until you see “Clear
Memory” on the bottom line and press Enter
The first available menu item, “Clear All Mem.” displays on
the bottom line.
3 Press the scroll button (W or X) until you see the item you
want to clear.
• Clear All Mem.: Clears all of the data stored in the memory
and resets all of your settings to the factory default.
• Paper Setting: Restores all of the Paper Setting options to
the factory default.
• Copy Setup: Restores all of the Copy Setup options to the
factory default.
• Fax Setup: Restores all of the Fax Setup options to the
factory default.
• Fax Feature: Cancels all of the scheduled fax jobs in the
machine’s memory.
• Advanced Fax: Restores all of the Advanced Fax setting
options to the factory default.
• Sound/Volume: Resets the sound and volume settings to the
factory default.
• Machine Setup: Resets all of the system settings, such as
the machine ID, date and time, display language and save
modes, to the factory default.
• Sent Report: Clears all of records of your faxes sent.
• RCV Report: Clears all of records of your faxes received.
• Phone Book: Clears the one-touch, speed and group dial
numbers stored in the memory.
4 Press Enter. The selected memory is cleared and the
display asks you to continue clearing the next item.
5 To clear another item, press Enter and repeat steps 3 and 4
OR
To return to Standby mode, press Stop/Clear.
8.2
MAINTENANCE
Adjusting Shading
When the scan unit becomes dirty, it can alter the shading value.
If your copy has black lines or is blurred, adjust the shading
setting.
1 Load a sheet of white paper into the ADF.
2 Press Menu on the control panel until “Maintenance”
appears on the top line of the display.
3 Press the scroll button (W or X) until “Adjust Shading ”
appears on the bottom line and press Enter.
4 Press the scroll button (W or X) to select “On” and press
Enter.
Your machine picks up the paper and adjusts the shading
value.
Cleaning Your Machine
To maintain the print quality, follow the cleaning procedures
below each time the toner cartridge is replaced or if print quality
problems occur.
NOTES:
• While cleaning the inside of the machine, be careful not to touch
the transfer roller, located underneath the toner cartridge. Oil
from your fingers can cause print quality problems.
• Cleaning the cabinet of your machine with products containing
large amounts of alcohol, solvent or other strong substances can
discolor or crack the cabinet.
Cleaning the Outside
Clean the cabinet of the machine with a soft lint-free cloth. You
can dampen the cloth slightly with water, but be careful not to
let any water drip onto or inside the machine.
MAINTENANCE
8.3
8
Cleaning the Inside
During the printing process, paper, toner and dust particles can
accumulate inside the machine. This buildup can cause print
quality problems, such as toner specks or smearing. Cleaning
the inside of the machine clears or reduces these problems.
1 Turn the machine off and unplug the power cord. Wait for
the machine to cool down.
2 Open the front cover and pull the toner cartridge out,
lightly pushing it down.
3 With a dry lint-free cloth, wipe away any dust and spilled
toner from the toner cartridge area and the toner cartridge
cavity.
CAUTION: To prevent damage to the toner cartridge, do not expose
it to light for more than a few minute. Cover it with a piece of paper, if
necessary. Do not touch the black transfer roller inside the machine.
4 Reinsert the toner cartridge and close the cover.
5 Plug in the power cord and turn the machine on.
8.4
MAINTENANCE
Cleaning the Scan Unit
Keeping the scan unit clean helps ensure the best possible
copies. We suggest that you clean the scan unit at the start of
each day and during the day, as needed.
1 Slightly dampen a soft lint-free cloth or paper towel with
water.
2 Open the control panel by gripping it on the bottom edge
and pulling it upwards.
3 Disassemble the white roller as follows:
The right end of the white roller has a plastic bush that is
snapped shut with small tab on it. Pull the tab inward
slightly then lift the tab until the roller is released. Lift the
roller upwards and to the right, releasing the left end from
its , then rotate the bushing until it reach a slot (➀). Then
pull the roller upward (➁).
8
MAINTENANCE
8.5
4 Wipe the roller surface with a soft cloth dampened with
water.
5 Carefully wipe the scanning glass with a soft dry cloth.
If the glass is very dirty, first wipe it with a slightly
dampened cloth, and then with a dry cloth. Be very careful
not to scratch the glass surface.
6 Replace the roller by inserting the left end first followed by
the right end, then rotating the bushing until it locks into
place.
7 Reconnect the support and the control panel and then close
the control panel firmly until it clicks into place.
8.6
MAINTENANCE
Maintaining the Toner Cartridge
Toner Cartridge Storage
To get the most from the toner cartridge, keep the following
guidelines in mind:
• Do not remove the toner cartridge from its package until
ready for use.
• Do not refill the toner cartridge. The machine warranty
does not cover damage caused by using a refilled
cartridge.
• Store toner cartridges in the same environment as your
machine.
• To prevent damage to the toner cartridge, do not expose it to
light for more than a few minute.
Saving Toner
To save toner, press the Toner Save button on the control
panel; see page 1.38. The button backlight turns on. Using this
feature extends the life of the toner cartridge and reduces your
cost per page, but it also reduces the print quality.
Expected Cartridge Life
The life of the toner cartridge depends on the amount of toner
that print jobs require. The actual number may be different
depending on the print density of the page you print. If you print
a lot of graphics, you may need to change the cartridge more
often.
8
MAINTENANCE
8.7
Redistributing Toner
When the toner cartridge is near the end of its life, white streaks
or light print occurs. The LCD displays the warning message,
“Toner Low.” You can temporarily reestablish the print quality by
redistributing the remaining toner in the cartridge.
1
Open the front cover.
2 Pull the toner cartridge out and gently roll the cartridge 5 or
6 times to distribute the toner evenly inside the cartridge.
NOTE: If the toner gets on your clothing, wipe it off with a dry
cloth and wash clothing in cold water. Hot water sets the toner into
fabric.
3 Reinstall the cartridge and close the front cover.
8.8
MAINTENANCE
Replacing the Toner Cartridge
When the toner eventually runs out, only blank pages print when a
print job is sent or when a fax is received. At this stage, the toner
cartridge needs to be replaced. The display on the control panel
shows the warning message, “Toner Empty” and the machine stops
printing.
NOTE: You can set the machine to ignore the “Toner Empty”
message and continue printing. See page 8.11.
1 Open the front cover.
2 Lightly pushing the used cartridge down, pull it out.
3 Unpack the new toner cartridge and gently roll it
horizontally four or five times to distribute the toner evenly
inside the cartridge.
Save the box and the Plastic bag for shipping.
4 Slide the new toner cartridge in until it locks into place.
8
5 Close the front cover.
MAINTENANCE
8.9
Setting the Notify Toner Option
If you have set the Notify Toner menu option to “On”, your
machine automatically sends a fax to your service company or
the dealer to notify them that your machine requires a new
toner cartridge when the toner cartridge needs to be replaced.
The fax number is preset by your dealer when you bought your
machine.
1 Press Menu on the control panel until “Maintenance”
appears on the top line of the display.
The first available menu item, “Clean Drum,” displays on
the bottom line.
2 Press the scroll button (W or X) to display “Notify Toner ”
on the bottom line and press Enter.
3 Press the scroll button (W or X) to change the setting.
Select “On” to enable this feature. Selecting “Off” disables
this feature.
4 Press Enter to save the selection.
8.10 MAINTENANCE
Cleaning the Drum
If there are streaks or spots on your print, the OPC drum of the
cartridge may require cleaning.
1 Before setting the cleaning procedure, make sure that
paper is loaded in the machine.
2 Press Menu on the control panel until “Maintenance”
appears on the top line of the display.
The first available menu item, “Clean Drum,” displays on
the bottom line.
3 Press Enter.
4 When the display asks you to confirm your selection, press
Enter.
The machine prints a cleaning page. Toner particles on the
drum surface are affixed to the paper.
5 If the problem remains, repeat steps 1 through 4.
Ignoring the Toner Empty Message
When the toner cartridge is empty, the machine shows a “Toner
Empty” message and stops printing.
You can set the machine to ignore the message when it displays
and to continue printing the pages.
1 Press Menu until “Machine Setup” appears on the display.
2 Press the scroll button (W or X) until “Ignore Toner”
appears on the bottom line and press Enter.
3 Press the Scroll button (W or X) to select “On” or “Off.”
Select “On” to ignore the Toner Empty message.
Select “Off” to stop printing when the message appears.
This is the default setting.
4 Press Enter to save the selection.
MAINTENANCE 8.11
8
Consumables and Replacement Parts
From time to time, you needs to replace the toner cartridge,
roller, and fuser unit to maintain top performance and to avoid
print quality problems and paper feed problems resulting from
worn parts.
The following items should be replaced after you have printed a
specified number of pages:
Items
Yield (Average)
ADF rubber pad
Approx. 10,000 pages
ADF roller
Approx. 60,000 pages
Paper feeding roller
Approx. 60,000 pages
Transfer roller
Approx. 60,000 pages
Fuser unit
Approx. 60,000 pages
To purchase the consumables and replacement parts, contact
your Samsung dealer or the retailer where you bought your
machine. We strongly recommend that items be installed by a
trained service professional, except for the toner cartridge and
the ADF rubber pad.
8.12 MAINTENANCE
Replacing the ADF Rubber Pad
You can purchase a ADF rubber assembly from a Samsung
dealer or the retailer where you bought your machine.
1 Open the control panel by gripping it on the bottom edge
and pulling it.
2 Disconnect the support on the left side of the machine from
the control panel and lift the control panel up to the
complete open position.
3 Remove the control panel from the machine by
disconnecting the hinge on the right.
8
NOTE: Be careful not to disconnect the connector on the control
panel from the machine as it turns the LCD off.
MAINTENANCE 8.13
4 Using a screw driver, press the slots on the ADF rubber
plate to unlatch the plate and the ADF rubber.
5 Align the holes on the new ADF rubber and the plate, and
insert the tabs on the plate into the slot on the machine.
Press them until they are lached.
6 Replace the control panel by connecting the hinge on the
right first, then inserting the left arm while pushing the
control panel to the right.
7 Reconnect the support and the control panel and then close
the control panel firmly until it clicks into place.
8.14 MAINTENANCE
9
TROUBLESHOOTING
This chapter gives helpful information for what to do if you
encounter an error.
This chapter includes:
• Clearing Document Jams
• Clearing Paper Jams
• Clearing LCD Error Messages
• Solving Problems
Clearing Document Jams
When a document jams while it passes through the ADF (Automatic
Document Feeder), “Document Jam” appears on the display.
Input Misfeed
1 Remove the remaining documents from the ADF.
2 Pull the jammed document gently out of the ADF.
3 Load the documents back into the ADF.
NOTE: To prevent document jams, do not use thick, thin or mixed
documents.
Exit Misfeed
1 Remove the remaining documents from the ADF.
2 Open the control panel by gripping it on the bottom edge
and pulling it.
9.2 TROUBLESHOOTING
3 Pull the document gently out of the ADF.
4 Close the control panel. Then load the documents back into
the ADF.
Clearing Paper Jams
When a paper jam occurs, “Paper Jam” appears on the display.
Refer to the table below to locate and clear the paper jam.
Message
[Paper Jam 0]
Open/Close Door
[Paper Jam 1]
Open/Close Door
Location of Jam
Go to
In the paper tray.
page 9.4
In the fuser area or
around the toner
cartridge.
page 9.6
In the manual feeder
[Paper Jam 2]
Check Inside
In the paper exit area
page 9.5
To avoid tearing the paper, pull the jammed paper out gently
and slowly. Follow the steps on the next pages to clear the jam.
TROUBLESHOOTING
9.3
9
In the Paper Tray
1 Open and close the front cover. The jammed paper
automatically exits the machine.
If the paper does not exit, continue to step 2.
2 Pull the paper tray open.
3 Remove the jammed paper by gently pulling it straight out.
If there is any resistance and the paper does not move
when you pull or if you cannot see the paper in this area,
skip to the fuser area around the toner cartridge. See
page 9.6.
4 Insert the paper tray into the machine until it snaps into
place.
5 Open and close the front cover to resume printing.
9.4 TROUBLESHOOTING
In the Paper Exit Area
1 Open and close the front cover. The jammed paper
automatically exits the machine.
If the paper does not exit, continue to step 2.
2 Gently pull the paper out of the front output tray. Skip to step 6.
If there is any resistance and the paper does not move
when you pull or if you cannot see the paper in the front
output tray, continue to step 3.
3 Open the rear cover.
4 Remove the jammed paper by gently pulling it straight out.
5 Close the rear cover.
9
6 Open and close the front cover to resume printing.
TROUBLESHOOTING
9.5
In the Fuser Area or Around the Toner Cartridge
NOTE: The fuser area is hot. Take care when removing paper from
the machine.
1 Open the front cover and pull the toner cartridge out,
lightly pushing it down.
2 Remove the jammed paper by gently pulling it straight out.
3 Replace the toner cartridge and close the front cover.
Printing automatically resumes.
In the Manual Feeder
“
” appears on the display when you try to print
using the manual feeder and the machine does not detect paper,
due to no paper or improper paper loading.
The error message may also occur when the paper is not
properly fed into the machine through the manual feeder. In that
case, pull the paper out of the machine.
9.6 TROUBLESHOOTING
Tips for Avoiding Paper Jams
By selecting the correct paper types, most paper jams can be
avoided. When a paper jam occurs, follow the steps outlined in
page 9.3.
• Follow the procedures on page 1.12 when you load paper.
Ensure that the adjustable guides are positioned correctly.
• Do not overload the paper tray. Ensure that the paper is
below the paper capacity mark on the inside wall of the paper
tray.
• Do not remove the paper from the tray while your machine is
printing.
• Flex, fan and straighten the paper before loading.
• Do not use creased, damp or highly curled paper.
• Do not mix paper types in the paper tray.
• Use only recommended print materials. See “Paper
Specifications” on page A.6.
• Ensure that the print side of print materials is facing down in
the paper tray and facing up in the manual feeder.
• If paper jams frequently occur when you print on the A5sized paper:
- Load the paper into the tray as shown below.
9
- Set the page orientation to Landscape in the printer’s
Properties window. See page 3.3.
TROUBLESHOOTING
9.7
Clearing LCD Error Messages
Messages appears on the display to indicate the control panel to
indicate the machine’s status or errors. Refer to the following
table to understand the message’s meaning and correct the
problem, if necessary. Messages and their meanings are listed
in alphabetical order.
Display
Meaning
Suggested solutions
Your machine’s memory has
become full while
documents were being
loaded into memory.
To cancel the fax job, press the
No 1 button “Yes.”
If you want to send the pages
already stored, press the No 2
button “No.” You should send
the remaining pages later when
the memory is available.
[Comm. Error]
The machine has a
communication problem.
Ask the sender to try again.
CRU Fuse Error
The machine has a problem
with recognizing the new
toner cartridge.
Please contact a service
representative.
[Document Jam]
The loaded document has
jammed in the ADF
(Automatic Document
Feeder).
Clear the document jam. See
page 9.2.
[Door Open]
The front or rear cover is not
securely latched.
Close the cover until it locks into
place.
Group Not Available
You have tried to select a
group location number
where only a single location
number can be used, such
as when adding locations for
a broadcasting operation.
Just use a one-touch or speed
dial number or dial a number
manually using the number
keypad.
Cancel ?
1:Yes 2:No
9.8 TROUBLESHOOTING
Display
Meaning
The remote machine does
not have the requested
feature, such as a delayed
transmission.
Suggested solutions
Reconfirm the remote machine’s
features.
[Incompatible]
It also occurs if the remote
machine does not have
enough memory space to
complete the operation you
are attempting.
[Jam 1] or
[No Cartridge]
The toner cartridge is not
installed.
Install the toner cartridge. See
page 1.10.
The remote person did not
answer or the line is already
engaged.
Try again after a few minutes.
Line Busy
[Line Error]
Your machine cannot
connect with the remote
machine or has lost contact
because of a problem with
the phone line.
Try again. If the problem
persists, wait an hour or so for
the line to clear and try again.
You have attempted to set
up a copy or fax operation
with no document loaded.
Load a document and try again.
There is a problem in the
fuser unit.
Unplug the power cord and plug
it back in. If the problem
persists, please contact a service
representative.
The memory is full.
Delete unnecessary documents,
retransmit after more memory
becomes available or split the
transmission into more than one
operation.
The remote fax machine has
not answered after several
redial attempts.
Try again. Make sure that the
remote machine is operational.
The one-touch or speed dial
location you tried to use has
no number assigned to it.
Dial the number manually using
the number keypad or assign the
number. For storing a number,
see “Automatic Dialing” on
page 6.15.
Load Document
Low Heat Error
Open Heat Error
[Over Heat]
Memory Full
[No Answer]
NO. Not Assigned
Or, turn the ECM on. See
page 6.35.
TROUBLESHOOTING
9.9
9
Display
Meaning
Suggested solutions
[No Paper]
Add Paper
The paper tray has run out
of paper.
Load paper in the paper tray.
See page 1.12.
Operation Not
Assigned
You are doing in the Add/
Cancel operation, but there
is no jobs waiting.
Check the display to see if there
is any scheduled job. The display
should indicate them in Standby
mode, for example, Delay Fax.
Paper has jammed in the
feeding area of the paper
tray.
Clear the jam. See page 9.4.
[Paper Jam 0]
Open/Close Door
[Paper Jam 1]
Open/Close Door
• Paper has jammed in
the paper exit area.
• A paper jam has
occurred in the manual
feeder or the machine
detects non-feeding
from the manual feeder.
Clear the jam. See page 9.6.
[Paper Jam 2]
Check Inside
Paper has jammed in the
fuser area.
Clear the jam. See page 9.5.
Power Failure
Power has turned off then on
and the machine’s memory
has not been saved.
You need to start again the job
which you were trying to do
before the power failure.
Retry Redial?
The machine is waiting for a
specified time interval to
redial a previously busy
station.
You can press Enter to
immediately redial, or Stop/
Clear to cancel the redial
operation.
The Stop/Clear button is
pressed during a copy or fax
operation.
Try again.
[Stop Pressed]
[Toner Empty]
The toner cartridge has run
out. The machine stops
printing.
Replace with a new toner
cartridge. See page 8.9.
The toner cartridge is almost
empty.
Take out the toner cartridge and
gently shake it. By doing this,
you can temporarily reestablish
printing operations.
[Toner Low]
9.10 TROUBLESHOOTING
Solving Problems
The following chart lists some conditions that may occur and the
recommended solutions. Follow the suggested solutions until
the problem is corrected. If the problem persists, please call for
service.
Paper Feeding Problems
Condition
Suggested solutions
Paper is jammed during
printing.
Clear the paper jam. See page 9.3.
Paper sticks together.
• Ensure that there is not too much paper in the paper tray.
The paper tray can hold up to 250 sheets of paper,
depending on the thickness of your paper.
• Make sure that you are using the correct type of paper. See
“Paper Specifications” on page A.6.
• Remove paper from the paper tray and flex or fan the paper.
• Humid conditions may cause some paper to stick together.
Multiple sheets of paper
do not feed.
• Different types of paper may be stacked in the paper tray.
Load the paper of only one type, size and weight.
• If multiple sheets have caused a paper jam, clear the paper
jam. See page 9.3.
Paper does not feed into
the machine.
• Remove any obstructions inside the machine.
• Paper has not been loaded correctly. Remove paper from the
tray and reload it correctly.
• There is too much paper in the paper tray. Remove excess
paper from the tray.
• The paper is too thick. Use only paper that meets the
specifications required by the machine. See “Paper
Specifications” on page A.6.
The paper keeps
jamming.
• There is too much paper in the paper tray. Remove excess
paper from the tray.
• An incorrect type of paper is being used. Use only paper that
meets the specifications required by the machine. See
“Paper Specifications” on page A.6. If you are printing on
special materials, use the manual feeder.
• There may be debris inside the machine. Open the front
cover and remove the debris.
Transparencies stick
together in the paper
exit.
Use only the transparencies specifically designed for a laser
printer. Remove each transparency as it exits from the
machine.
Envelopes skew or fail
to feed correctly.
Ensure that the paper guides are against both sides of the
envelopes.
TROUBLESHOOTING 9.11
9
Printing Problems
Condition
The machine
does not print.
Possible cause
Suggested solutions
The machine is not
receiving power.
Check the power cord connections. Check
the power switch and the power source.
The machine is not
selected as the default
printer.
Select Samsung MFP 560 Series as
your default printer in your Windows.
Check the machine for
the following:
• The front or rear
cover is not closed.
• Paper is jammed.
• No paper is loaded.
• The toner cartridge
is not installed.
After locating the problem, clear it.
• Close the cover.
• Clear the paper jam. See page 9.3.
• Load paper. See page 1.12.
• Install the toner cartridge. See
page 1.10.
The connection cable
between the computer
and the machine is not
connected properly.
Disconnect the printer cable and
reconnect it.
The connection cable
between the computer
and the machine is
defective.
If possible, attach the cable to another
computer that is working properly and
print a document. You can also try using a
different printer cable.
The port setting is
incorrect.
Check the Windows printer setting to
make sure that the print job is sent to the
correct port, for example, LPT1. If the
computer has more than one port, make
sure that the machine is attached to the
correct one.
The machine may be
configured incorrectly.
Check the printer properties to ensure
that all of the print settings are correct.
The printer driver may
be incorrectly
installed.
Remove the printer driver and then
reinstall it; see page 1.21 and page 1.21
respectively.
The machine is
malfunctioning.
Check the display message on the control
panel to see if the machine is indicating a
system error.
9.12 TROUBLESHOOTING
If a printer system error occurs, contact
your service representative.
Condition
Possible cause
Suggested solutions
The machine
selects print
materials from
the wrong
paper source.
The paper source
selection in the printer
properties may be
incorrect.
For many software applications, the paper
source selection is found under the
Paper tab within the printer properties.
Select the correct paper source. See
page 3.8.
A print job is
extremely
slow.
The job may be very
complex.
Reduce the complexity of the page or try
adjusting the print quality settings.
Half the page
is blank.
The page orientation
setting may be
incorrect.
Change the page orientation in your
application. See page 3.3.
The paper size and the
paper size settings do
not match.
Ensure that the paper size in the printer
driver settings matches the paper in the
tray.
The printer cable is
loose or defective.
Disconnect the printer cable and
reconnect. Try a print job that you have
already printed successfully. If possible,
attach the cable and the machine to
another computer and try a print job that
you know works. Finally, try a new printer
cable.
The wrong printer
driver was selected.
Check the application’s printer selection
menu to ensure that your machine is
selected.
The software
application is
malfunctioning.
Try printing a job from another
application.
The operating system
is malfunctioning.
Exit Windows and reboot the computer.
Turn the machine off and then back on
again.
The machine
prints, but the
text is wrong,
garbled, or
incomplete.
The maximum print speed of your
machine is 17 PPM for Letter-sized paper
16 PPM for A4-sized paper.
9
TROUBLESHOOTING 9.13
Condition
Pages print,
but are blank.
Possible cause
Suggested solutions
The toner cartridge is
defective or out of
toner.
Redistribute the toner. if necessary. See
page 8.8.
The file may have
blank pages.
Check the file to ensure that it does not
contain blank pages.
Some parts, such as
the controller or the
board, may be
defective.
Contact a service representative.
The
illustrations
print
incorrectly in
Adobe
Illustrator.
The setting in the
software application is
wrong.
Select Download as Bit Image in the
Advanced Options window of the
Graphic properties and print the
document.
An error occurs
repeatedly
when you are
printing with
the USB
connection.
When the USB mode
is set to “Fast,” some
PC users may
experience poor USB
communication.
Change the USB mode to “Slow.” To do
so, follow these steps:
If necessary, replace the toner cartridge.
1. Press Menu on the control panel until
“Machine Setup” appears on the top
line of the display.
2. Press the scroll button (W or X) until
“USB Mode” appears on the bottom
line, and press Enter.
3. Press the scroll button (W or X) to
select “Slow.”
4. Press Enter to save the selection.
5. Press Stop/Clear to return to
Standby Mode.
9.14 TROUBLESHOOTING
Printing Quality Problems
The dirty inside of the machine or improper paper loading may reduce the print
quality. See the table below to clear the problem.
Condition
Suggested solutions
Light or faded
print
If a vertical white streak or faded area appears on the page:
• The toner supply is low. You may be able to temporarily
extend the toner cartridge life. See “Redistributing Toner” on
page 8.8. If this does not improve the print quality, install a
new toner cartridge.
• The paper may not meet paper specifications; for example,
the paper is too moist or too rough. See “Paper
Specifications” on page A.6.
• If the entire page is light, the print resolution setting is too
low or Toner Save mode is on. Adjust the print resolution and
turn Toner Save mode off. See page 3.8 and page 1.38
respectively.
• A combination of faded or smeared defects may indicate that
the toner cartridge needs cleaning. See “Cleaning the Drum”
on page 8.11.
• The surface of the scan unit may be dirty. Clean the scan unit.
See page 8.5.
AaBbCc
AaBb
Cc
AaBb
Aa
BbCc
Cc
AaBb
Aa
BbCc
Cc
AaBb
Aa
BbCc
Cc
AaBb
Aa
BbCc
Cc
Toner specs
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Dropouts
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
• The paper may not meet specifications; for example, the
paper is too moist or too rough. See “Paper Specifications” on
page A.6.
• The transfer roller or paper path may be dirty. Clean the
inside of your machine and the drum. See page 8.4 and
page 8.11.
If generally rounded faded areas, occur randomly on the
page:
• A single sheet of paper may be defective. Try reprinting the
job.
• The moisture content of the paper is uneven or the paper has
moist spots on its surface. Try a different brand of paper. See
“Paper Specifications” on page A.6.
• The paper lot is bad. The manufacturing process can cause
some areas to reject toner. Try a different kind or brand of
paper.
• The toner cartridge may be defective. Vertical repetitive
defects on the next page.
• If these steps do not correct the problems, contact a service
representative.
TROUBLESHOOTING 9.15
9
Condition
Suggested solutions
Vertical lines
If black vertical streaks appear on the page:
• The drum inside the toner cartridge has probably been
scratched. Remove the toner cartridge and install a new one.
See “Replacing the Toner Cartridge” on page 8.9.
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Gray background
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
If the amount of background shading becomes
unacceptable:
• Change to a lighter weight pages. See “Paper Specifications”
on page A.6.
• Check the machine’s environment; very dry (low humidity) or
high humidity (higher than 80% RH) conditions can increase
the amount of background shading.
• Remove the old toner cartridge and install a new one. See
“Replacing the Toner Cartridge” on page 8.9.
Toner smear
• Clean the inside of the machine. See page 8.4.
• Check the paper type and quality. See “Paper Specifications”
on page A.6.
• Remove the toner cartridge and install a new one. See
“Replacing the Toner Cartridge” on page 8.9.
Vertical repetitive
defects
If marks repeatedly appear on the printed side of the page
at even intervals:
• The toner cartridge may be damaged. If a repetitive mark
occurs on the page, print a cleaning sheet several times to
clean the cartridge; see “Cleaning the Drum” on
page 8.11. After the printout, if you still have the same
problems, remove the toner cartridge and install a new
one. See “Replacing the Toner Cartridge” on page 8.9.
• Parts of the machine may have toner on them. If the
defects occur on the back of the page, the problem will
likely correct itself after a few more pages.
• The fusing assembly may be damaged. Contact a service
representative.
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
9.16 TROUBLESHOOTING
Condition
Suggested solutions
Background
scatter
Background scatter results from bits of toner distributed on
the printed page.
• The paper may be too damp. Try printing with a different
batch of paper. Do not open packages of paper until
necessary so that the paper does not absorb too much
moisture.
• If background scatter occurs on an envelope, change the
printing layout to avoid printing over areas that have
overlapping seams on the reverse side. Printing on seams can
cause problems.
• If background scatter covers the entire surface area of a
printed page, adjust the print resolution through your
software application or the printer properties.
A
Misformed
characters
• If characters are improperly formed and producing hollow
images, the paper stock may be too slick. Try a different
paper. See “Paper Specifications” on page A.6.
• If characters are improperly formed and producing a wavy
effect, the scanner unit may need service. For service,
contact a service representative.
Page skew
• Ensure that the paper is loaded properly.
• Check the paper type and quality. See “Paper Specifications”
on page A.6.
• Ensure that the paper or other material is loaded correctly
and the guides are not too tight or too loose against the
paper stack.
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Curl or wave
• Ensure that the paper is loaded properly.
• Check the paper type and quality. Both high temperature and
humidity can cause paper curl. See “Paper Specifications” on
page A.6.
• Turn the stack of paper over in the paper tray. Also try
rotating the paper 180° in the tray.
• Try printing to the rear output slot.
9
TROUBLESHOOTING 9.17
Condition
Suggested solutions
Wrinkles or
creases
• Ensure that the paper is loaded properly.
• Check the paper type and quality. See “Paper Specifications”
on page A.6.
• Turn the stack of paper over in the paper tray. Also try
rotating the paper 180° in the tray.
• Try printing to the rear output slot.
Back of printouts
are dirty
Check for leaking toner. Clean the inside of the machine.
See page 8.4.
Black pages
• The toner cartridge may not be installed properly. Remove
the cartridge and reinsert.
• The toner cartridge may be defective and need replacing.
Remove the toner cartridge and install a new one. See
“Replacing the Toner Cartridge” on page 8.9.
• The machine may require repair. Contact a service
representative.
A
Loose toner
9.18 TROUBLESHOOTING
• Clean the inside of the machine. See page 8.4.
• Check the paper type and quality. See “Paper Specifications”
on page A.6.
• Remove the toner cartridge and install a new one. See
“Replacing the Toner Cartridge” on page 8.9.
• If the problem persists, the machine may require repair.
Contact a service representative.
Condition
Character Voids
A
Horizontal stripes
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Curl
Suggested solutions
Character voids are white areas within the parts of
characters that should be solid black:
• If you are using transparencies, try another type of
transparency. Due to the composition of the transparency,
some character voids are normal.
• You may be printing on the wrong surface on the paper.
Remove the paper and turn it around.
• The paper may not meet paper specifications. See “Paper
Specifications” on page A.6.
If horizontally aligned black streaks or smears appear:
• The toner cartridge may be installed improperly. Remove and
reinsert the cartridge.
• The toner cartridge may be defective. Remove the toner
cartridge and install a new one. See “Replacing the Toner
Cartridge” on page 8.9.
• If the problem persists, the machine may require repair.
Contact a service representative.
If the printed paper is curl or paper does not feed into the
printer:
• Turn the stack of paper over in the paper tray. Also try
rotating the paper 180° in the paper tray.
• Try printing to the rear output slot.
Copying Problems
Condition
Suggested solutions
Copies are too light or too
dark.
Use the Darkness button to darken or lighten the
background of the copies.
Smears, lines, marks or
spots appears on copies.
• If defects are on the original document, press the
Darkness button to lighten the background of your
copies.
• If no defects are on the original document, clean the
Scan unit. See page 8.5.
Copy image is skewed.
• Ensure that the original document is positioned
correctly in the ADF (Automatic Document Feeder).
• Check that the copy paper is loaded correctly.
Blank copies print out.
Ensure that the original document is face down in the
ADF.
TROUBLESHOOTING 9.19
9
Condition
Suggested solutions
Image rubs off the copy
easily.
• Replace the paper in the paper tray with paper from a
new package.
• In high humidity areas, do not leave paper in the
machine for the extended periods of time.
Frequent copy paper jams
occurs.
• Fan the stack of paper, then turn it over in the paper
tray. Replace the paper in the tray with a fresh supply.
Check/adjust the paper guides, if necessary.
• Ensure that the paper is the proper paper weight.
75g/m2 (20 lb) bond paper is recommended.
• Check for copy paper or pieces of copy paper
remaining in the machine after a paper jam has been
cleared.
Fewer copies from the toner
cartridge than expected
prints out.
• Your original documents may contain pictures, solids
or heavy lines. For example, they may be forms,
newsletters, books or other documents that use more
toner.
• The machine may be turned frequently on and off.
Scanning Problems
Condition
Suggested solutions
The scanner does not work.
• Make sure that you place the document to be scanned
face down in the ADF.
• There may not be enough available memory to hold
the document you want to scan. Try the Prescan
function to see if that works. Try lowering the scan
resolution rate.
• Check that the USB cable is connected properly.
• Make sure that the USB cable is not defective. Switch
the cable with a known good cable. If necessary,
replace the cable.
• Check that the scanner is configured correctly. Check
scan setting in the SmarThru Configuration or the
application you want to use to make certain that the
scanner job is being sent to the correct port, for
example, LPT1.
9.20 TROUBLESHOOTING
Condition
Suggested solutions
The unit scans very slowly.
• Check if the machine is printing received data. Scan
the document after the current job is completed.
• Graphics are scanned more slowly than text.
• Communication speed becomes slow in scan mode
because of the large amount of memory required to
analyze and reproduce the scanned image. Set your
computer to the ECP printer mode through BIOS
setting. It will help to increase the speed. For details
about how to set BIOS, refer to your computer user’s
guide.
Message appears on your
computer screen:
• “Device can't be set to the
H/W mode you want.”
• “Port is being used by
another program.”
• “Port is Disabled.”
• “Scanner is busy receiving
or printing data. When the
current job is completed,
try again.”
• “Invalid handle.”
• “Scanning has failed.”
• There may be a copying or printing job in progress.
When the current job is complete, try the job again.
• The selected port is currently being used. Restart your
computer and try again.
• The printer cable may be improperly connected or the
power may be off. You must use a USB 1.1 compliant
cable.
• The scanner driver is not installed or an operating
environment is not set up properly.
• Ensure that port is properly connected and power is
on, and then restart your computer.
Faxing Problems
Condition
Suggested solutions
The machine is not
working, there is no
display and the buttons
are not working.
• Unplug the power cord and plug it in again.
• Ensure that there is power to the electrical receptacle.
No dial tone sounds.
• Check that the phone line is connected properly.
• Check that the phone socket in the wall is working by
plugging in another phone.
The numbers stored in
the memory do not dial
correctly.
Make sure that the numbers are stored in the memory
correctly. Print a Phonebook list, referring to page
page 6.21.
TROUBLESHOOTING 9.21
9
Condition
Suggested solutions
The document does not
feed into the machine.
• Make sure that the document is not wrinkled and you are
putting it in correctly. Check that the document is the
right size, not too thick or thin.
• Make sure that the control panel is firmly closed.
Faxes are not received
automatically.
• Fax mode should be selected.
• Make sure that there is paper in the tray.
• Check to see if the display shows “Memory Full.”
The machine does not
send.
• Make sure that the document is loaded in the ADF.
• “TX” should show up on the display.
• Check the other fax machine you are sending to, to see if
it can receive your fax.
The incoming fax has
blank spaces or is
received with a poorquality.
•
•
•
•
Some of the words on a
incoming fax are
stretched.
The fax machine sending you the fax had a temporary
document jam.
There are lines on the
documents you send.
Check your scan unit for marks and clean it. See
page 8.5.
The machine dials a
number, but a connection
with another fax machine
fails.
The other fax machine may be turned off, out of paper,
or cannot answer incoming calls. Speak with the other
machine operator and ask her/him to clear out the
problem.
Documents are not
stored in the memory.
There may not be enough memory to store the
document. If the display shows a “Memory Full”
message, delete any documents you no longer need
from the memory and then restore the document.
Blank areas appear at
the bottom of each page
or on other pages, with a
small strip of text at the
top.
You may have chosen the wrong paper settings in the
user option setting. See page 1.36.
9.22 TROUBLESHOOTING
The fax machine sending you the fax may be faulty.
A noisy phone line can cause line errors.
Check your machine by making a copy.
The toner cartridge may be empty. Replace the toner
cartridge, referring to page 8.9.
Common Linux Problems
Problem
The machine doesn't print
Possible Cause and Solution
• Check if the printer driver is installed in your system.
Open MFP configurator and switch to the Printers tab in
Printers configuration window to look at the list of
available printers. Make sure that your machine is
displayed on the list. If not, please, invoke Add new
printer wizard to set up your device.
• Check if the printer is started. Open Printers
configuration and select your machine on the printers list.
Look at the description in the Selected printer pane. If its
status contains "(stopped)" string, please, press the Start
button. After that normal operation of the printer should
be restored. The "stopped" status might be activated
when some problems in printing occurred. For instance,
this could be an attempt to print document when MFP
port is claimed by a scanning application.
• Check if the MFP port is not busy. Since functional
components of MFP (printer and scanner) share the same
I/O interface (MFP port), the situation of simultaneous
access of different "consumer" application to the same
MFP port is possible. To avoid possible conflicts, only one
of them at a time is allowed to gain control over the
device. The other "consumer" will encounter "device
busy" response. You should open MFP ports configuration
and select the port assigned to your printer. In the
Selected port pane you can see if the port is occupied by
some other application. If this is the case, you should
wait for completion of the current job or should press
Release port button, if you are sure that the present
owner is not functioning properly.
• Check if your application has special print option such as
"-oraw". If "-oraw" is specified in the command line
parameter then remove it to print properly. For Gimp
front-end, select "print" -> "Setup printer" and edit
command line parameter in the command item.
The machine does not
appear on the scanners list
• Check if your machine is attached to your computer.
Make sure that it is connected properly via the USB port
and is turned on.
• Check if the scanner driver for you machine is installed in
your system. Open MFP Configurator, switch to Scanners
configuration, then press Drivers. Make sure that driver
with a name corresponding to your machine's name is
listed in the window.
TROUBLESHOOTING 9.23
9
Problem
The machine does not
appear on the scanners
list (continued)
Possible Cause and Solution
• Check if the MFP port is not busy. Since functional
components of MFP (printer and scanner) share the same
I/O interface (MFP port), the situation of simultaneous
access of different "consumer" application to the same
MFP port is possible. To avoid possible conflicts, only one
of them at a time is allowed to gain control over the
device. The other "consumer" will encounter "device
busy" response. This can usually happen while starting
scan procedure, and appropriate message box displays.
To identify the source of the problem, you should open
MFP ports configuration and select the port assigned to
your scanner. MFP port's symbol /dev/mfp0 corresponds
to LP:0 designation displayed in the scanners' options, /
dev/mfp1 relates to LP:1 and so on. USB ports start at /
dev/mfp4, so scanner on USB:0 relates to /dev/mfp4
respectively and so forth sequentially. In the Selected
port pane you can see if the port is occupied by some
other application. If this is the case, you should wait for
completion of the current job or should press Release
port button, if you are sure that the present port's owner
is not functioning properly.
The machine doesn't scan
• Check if a document is loaded into the machine.
• Check if your machine is connected to the computer.
Make sure if it is connected properly if I/O error is
reported while scanning.
• Check if MFP port is not busy. Since functional
components of MFP (printer and scanner) share the same
I/O interface (MFP port), the situation of simultaneous
access of different "consumer" application to the same
MFP port is possible. To avoid possible conflicts, only one
of them at a time is allowed to gain control over the
device. The other "consumer" will encounter "device
busy" response. This can usually happen while starting
scan procedure, and appropriate message box will be
displayed.
To identify the source of the problem, you should open
MFP ports configuration and select the port assigned to
your scanner. MFP port's symbol /dev/mfp0 corresponds
to LP:0 designation displayed in the scanners' options, /
dev/mfp1 relates to LP:1 and so on. USB ports start at /
dev/mfp4, so scanner on USB:0 relates to /dev/mfp4
respectively and so forth sequentially. In the Selected
port pane you can see if the port is occupied by some
other application. If this is the case, you should wait for
completion of the current job or should press Release
port button, if you are sure that the present port's owner
is not functioning properly.
9.24 TROUBLESHOOTING
Problem
Possible Cause and Solution
I can't print when I
installed both Linux
Print Package (LPP) and
MFP driver on the same
machine
simultaneously.
• Since both Linux Printer Package and MFP driver make
a symbolic link to "lpr" printing command, which is
commonly used on Unix clones, it is not recommended
to use both package on the same machine.
• If you still want to use both packages simultaneously,
please install the LPP first.
• If you want to uninstall only one of them, please
uninstall both packages and install that one you want
to use again.
• If you don't want to uninstall MFP driver and install it
again, you may make the necessary symbolic link
yourself. Please, log in as root user and invoke the
following command:
ln -sf /usr/local/bin/samsung/slpr /usr/bin/lpr
Can't scan via Gimp
Front-end.
• Check if Gimp Front-end has "Xsane:Device dialog.." on
the "Acquire" menu. If not, you should install Xsane plugin for Gimp on the your computer. You can find Xsane
plug-in package for Gimp on Linux distribution CD or
Gimp home page. For the detail information, refer to the
Help for Linux distribution CD or Gimp Front-end
application.
If you wish to use other kind of scan application, refer to
the Help for application.
9
TROUBLESHOOTING 9.25
9.26 TROUBLESHOOTING
A
SPECIFICATIONS
This chapter includes:
• General Specifications
• Scanner and Copier Specifications
• Printer Specifications
• Facsimile Specifications
• Paper Specifications
General Specifications
Item
Automatic document
feeder (ADF)
ADF Document size
Paper input capacity
Paper output capacity
Description
Up to 20 sheets (weight: 75 g/m2, 20 lb)
Width: 142 to 216 mm (5.6 to 8.5 inches)
Length: 148 to 356 mm (5.8 to 14 inches)
Paper tray: 250 sheets (weight: 75 g/m2, 20 lb)
Manual feeder: 1 sheet (weight: 75 g/m2, 20 lb)
Front output tray: 150 sheets (face down)
Rear output slot: 1 sheet (face up)
Paper tray: Plain paper (60 ~ 90 g/m2, 16 ~ 24 lb)
Paper type
Manual feeder: Plain paper, Transparencies, Labels, Card
stock, Thick, Thin, Bond, Preprinted, Colored, Envelopes
(60 ~ 163 g/m2, 16 ~ 43 lb)
Consumables
1-piece toner cartridge system
Power requirements
100 ~ 127 VAC, 50/60 Hz, 4.0 A
220 ~ 240 VAC, 50/60 Hz, 2.5 A
Sleep mode: 10W(100 ~ 127 VAC) / 12W(220 ~ 240 VAC)
Power consumption
Standby mode: 85 W(100 ~ 127 VAC) / 95 W(220 ~ 240 VAC)
Average: 300 W
Warm-up: 52 dB
Noise
Standby mode: 39 dB
Scanning: 52 dB
Printing: 52 dB
Warm-up Time
Operating conditions
35 seconds
Temperature: 50 oF to 89 oF (10 oC to 32 oC)
Humidity: 20 % to 80 % RH
LCD
16 characters x 2 lines
Toner cartridge life*
3,000 pages (for starter, 1,000 pages)
SET dimension (W x D x H)
363.0 x 398.5 x 308.3 mm (without the handset)
A.2
Item
Description
Net: 9.7Kg (including consumables)
Weight
Gross: 11.7Kg (including consumables, accessories and
package)
Package Weight
Paper: 2.7 Kg
Plastic: 0.7 Kg
*Declared yield value in accordance with ISO/IEC 19752
Scanner and Copier Specifications
Item
Description
Compatibility
TWAIN standard
Scan method
CIS, Mono
Scan resolution
200 X 200 dpi (optical)
Scan length
Maximum: 15.7 inches (400 mm)
Scan width
Maximum: 8.5 inches (216 mm)
Effective: 8.2 inches (208 mm)
Mono bit depth
1 bit for Text mode
8 bit for Gray mode
Copy speed
Letter: 17 copies per minute
A4: 16 copies per minute
Copy resolution
300 x 300 dpi
Zoom rate
50 ~ 150 %
Multiple copies
99 pages
Halftone
256 levels
A
A.3
Printer Specifications
Item
Description
Print method
Laser Beam Printing
Print speed
Letter: 17 pages per minute
A4: 16 pages per minute
Paper size
Paper tray: Letter, A4, Legal, Folio, A5, A6, B5
Manual feeder: Letter, Legal, A4, Folio, Executive, A5,
B5, A6, A6 card, Post Card 4x6, Hagaki, Envelope 7-3/
4, Envelope 9, Envelope 10, Envelope DL, Envelope C5,
Envelope C6, Envelope B5
* Min.: 76 x 127 mm (3 x 5 in.)
Max.: 216 x 356 (8.5 x 14 in.)
Print resolution
Up to 600 x 600 dpi effective output
Emulation
SPL (GDI)
PC Interface
Compatible with USB 2.0 Specifications
Compatibility
Windows 2000/XP/2003/2008/Vista/7/Server 2008 R2
Linux:
•
•
•
•
•
•
Redhat 7.1 and above
Linux Mandrake 8.0 and above
SuSE 7.1 and above
Caldera OpenLinux 3.1 and above
Turbo Linux 7.0 and above
Slackware 8.1 and above
Memory
4MB
First printing time
Standby mode: 12 seconds
Power save mode: 47 seconds
A.4
Facsimile Specifications
Item
Description
Compatibility
ITU-T Group 3
Applicable line
Public Switched Telephone Network (PSTN) or behind
PABX
Data coding
MH/MR/MMR (ECM Mode)
Modem speed
33600/31200/28800/26400/24000/21600/19200/
16800/14400/12000/9600/7200/4800/2400 bps with
fall back
Transmission speed
Approx. 3 seconds/page
* Transmission time applies to memory transmission of
text data with ECM compression using only ITU-T
No.1 Chart.
Scan speed
Approx. 6 seconds/LTR (at standard fax resolution
mode)
Paper size
Letter, A4, Legal, Executive, Folio , B5
Resolution
Standard: 203 x 98 dpi
Fine: 203 x 196 dpi
Super Fine: 203 x 392 dpi
Photo: 203 x 196 dpi
User Memory
2 MB
Halftone
256 levels
Auto dialer
One-touch dialing (up to 20 numbers)
Speed dialing (up to 80 numbers)
A
A.5
Paper Specifications
Overview
Your machine accepts a variety of print materials, such as cut-sheet paper, including
up to 100% recycled fiber content paper, envelopes, labels, transparencies and
custom-size paper. Properties, such as weight, composition, grain and moisture
content, are important factors affecting the machine’s performance and the output
quality. Paper that does not meet the guidelines outlined in this user’s guide can
cause the following problems:
• Poor print quality
• Increased paper jams
• Premature wear on the machine.
NOTES:
• Some paper may meet all of the guidelines in this guide and still not produce
satisfactory results. This may be the result of improper handling, unacceptable
temperature and humidity levels or other variables over which Samsung has no
control.
• Before purchasing large quantities of paper, insure the paper meets the requirements
specified in this user’s guide.
CAUTION: Using paper that does not meet these specifications may cause problems,
requiring repairs. These repairs are not covered by the Samsung warranty or service
agreements.
Supported Sizes of Paper
Size (mm/in.)
Weight
Capacity*
Plain paper
Letter (215.9 x 279/8.5 x 11)
A4 (210 x 297/8.27 x 11.69)
Folio (215.9 x 330.2/8.5 x 13)
Legal (215.9 x 355.6/8.5 x 14)
Executive (184.2 x 266.7/7.25 x 10.5)
B5(182 x 257/7.2 x 10)
A5 (148 x 210/5.83 x 8.27)
A6 (105 x 148/4.13 x 5.88)
• 60 to 90 g/m2 bond
(16 to 24 lb) for the
paper tray
• 60 to 163 g/m2 bond
(16 to 43 lb) for the
manual feeder
• 250 sheets of 75 g/m2
bond (20 lb) paper for
the paper tray
• 1 sheet of paper for
the manual feeder
Envelopes
No.9 (98.4 x 225.4/3.88 x 8.88)
No.10 (104.8 x 241.3/4.13 x 9.5)
DL (110 x 220/4.33 x 8.66)
C5 (162 x 229/6.38 x 9.02)
C6 (114 x 162/4.49 x 6.38)
B5 (176 x 250/6.93 x 9.84)
No.7 3/4 (98.4 x 190.5/3.88 x 7.5)
75 to 90 g/m2
1 sheet of paper for the
manual feeder
A.6
Size (mm/in.)
Weight
Labels
Letter (215.9 x 279/8.5 x 11)
A4 (210 x 297/8.27 x 11.69)
120 to 150 g/m2
Transparency films
Letter (215.9 x 279/8.5 x 11)
A4 (210 x 297/8.27 x 11.69)
138 to 146 g/m2
Card stocks
A6 card (105 x 148/4.13 x 5.88)
Post Card (101.6 x 152.4/4 x 6)
Hagaki (100 x 148/3.94 x 5.83)
90 to 163 g/m2
Capacity*
1 sheet of paper for the
manual feeder
Minimum size (custom)
60 to 120 g/m2 bond
(16 to 32 lb)
Maximum size (Legal)
* Capacity may vary depending on print materials’ weight and thickness, and environmental
conditions.
NOTE: You may experience jams when using print materials with a length of less than
127 mm (5 in.). For optimum performance, ensure that you are storing and handling the
paper correctly. Please refer to “Paper Storage Environment” on page A.9.
Guidelines for Using Paper
For the best result, use conventional 75 g/m2 (20 lb) paper. Ensure that the paper is
of good quality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles,
voids, and curled or bent edges.
If you are unsure of what type of paper you are loading, such as bond or recycled
paper, check the label on the package.
The following problems may cause print quality deviations, jamming or even damage
to the machine:
Symptom
Problem with Paper
Solution
Poor print quality or toner
adhesion, problems with
feeding
Too moist, too rough, too
smooth or embossed; faulty
paper lot
Try another kind of paper,
between 100 ~ 400 Sheffied, 4 ~
5 % moisture content.
Dropout, jamming, curl
Stored improperly
Store paper flat in its moistureproof wrapping.
Increased gray background
shading/machine wear
Too heavy
Use lighter paper, use the rear
output slot.
Excessive curl problems with
feeding
Too moist, wrong grain
direction or short-grain
construction
• Use the rear output slot.
• Use long-grain paper.
A
A.7
Symptom
Problem with Paper
Solution
Jamming, damage to
machine
Cutouts or perforations
Do not use paper with cutouts or
perforations.
Problems with feeding
Ragged edges
Use good quality paper.
NOTES:
• Do not use letterhead paper printed with low-temperature inks, such as those used in
some types of thermography.
• Do not use raised or embossed letterhead.
• The machine uses heat and pressure to fuse toner to the paper. Insure that any colored
paper or preprinted forms use inks that are compatible with this fusing temperature
(200 °C or 392 °F for 0.1 second).
Paper Specifications
Category
Specifications
Acid Content
5.5 pH or lower
Caliper
0.094 ~ 0.18 mm (3.0 ~ 7.0 mils)
Curl in Ream
Flat within 5 mm (0.02 in.)
Cut Edge Conditions
Cut with sharp blades with no visible fray.
Fusing Compatibility
Must not scorch, melt, offset or release hazardous
emissions when heated to 200 °C (392 °F) for 0.1
second.
Grain
Long Grain
Moisture Content
4 % ~ 6 % by weight
Smoothness
100 ~ 400 Sheffied
Paper Output Capacity
Output Location
Capacity
Face-down output tray
150 sheets of 75 g/m2 bond (20 lb) paper
Face-up output slot
1 sheet of 75 g/m2 bond (20 lb) paper
A.8
Paper Storage Environment
Paper storage environmental conditions directly affect the feed operation.
Ideally, the machine and paper storage environment should be at or near room
temperature, and not too dry or humid. Remember that paper is hygroscopic; it
absorbs and loses moisture rapidly.
Heat works with humidity to damage paper. Heat causes the moisture in paper to
evaporate, while cold causes it to condense on the sheets. Heating systems and air
conditioners remove most of the humidity from a room. As paper is opened and used,
it loses moisture, causing streaks and smudging. Humid weather or water coolers can
cause the humidity to increase in a room. As paper is opened and used it absorbs any
excess moisture, causing light print and dropouts. Also, as paper loses and gains
moisture it can become distorted. This can cause paper jams.
Care should be taken not to purchase more paper than can be used in a short time
(about 3 months). Paper stored for long periods may experience heat and moisture
extremes, which can cause damage. Planning is important to prevent damage to
large supplies of paper.
Unopened paper in sealed reams can remain stable for several months before use.
Opened packages of paper have more potential for environment damage, especially
if they are not wrapped with a moisture-proof barrier.
The paper storage environment should be properly maintained to ensure optimum
performance. The required condition is 20 to 24 °C (68 to 75 °F), with a relative
humidity of 45 % to 55 %. The following guidelines should be considered when
evaluating the paper’s storage environment:
• Paper should be stored at or near room temperature.
• The air should not be too dry or too humid.
• The best way to store an opened ream of paper is to rewrap it tightly in its
moisture-proof wrapping. If the machine environment is subject to extremes,
unwrap only the amount of paper to be used during the day’s operation to prevent
unwanted moisture changes.
Envelopes
Envelope construction is critical. Envelope fold lines can vary considerably, not only
between manufacturers, but also within a box from the same manufacturer.
Successful printing on envelopes depends upon the quality of the envelopes. When
selecting envelopes, consider the following components:
• Weight: The weight of the envelope paper should not exceed 90g/m2 (24lb) or
jamming may occur.
• Construction: Prior to printing, envelopes should lie flat with less than 6mm
(0.25in.) curl, and should not contain air.
A
• Condition: Envelopes should not be wrinkled, nicked or otherwise damaged.
A.9
• Temperature: You should use envelopes that are compatible with the heat and
pressure of the machine.
• Size: You should only use envelopes within the following size ranges
NOTES:
• Use only the manual feeder to print envelopes.
• You may experience some paper jams when using any media with a length less than
140 mm (5.5 in.). This may be caused by paper that has been affected by
environmental conditions. For optimum performance, make sure you are storing and
handling the paper correctly. Please refer to “Paper Storage Environment” on page A.9.
Envelopes with Double Side Seams
Double side-seams construction has vertical seams at both ends of the envelope
rather than diagonal seams. This style may be more likely to wrinkle. Be sure the
seam extends all the way to the corner of the envelope as illustrated below.
Correct
Incorrect
Envelopes with Adhesive Strips or Flaps
Envelopes with a peel-off adhesive strip or with more than one flap that folds over to
seal must use adhesives compatible with the heat and pressure in the machine. The
extra flaps and strips might cause wrinkling, creasing or even jams and may even
damage the fuser.
Envelope Margins
The following gives typical address margins for a commercial #10 or DL envelope.
Type of Address
Minimum
Maximum
Return address
15 mm (0.6 in.)
51 mm (2 in.)
Delivery address
51 mm (2 in.)
90 mm (3.5 in.)
A.10
NOTES:
• For the best print quality, position margins no closer than 15 mm (0.6 in.) from the
edges of the envelope.
• Avoid printing over the area where the envelope’s seams meet.
Envelope Storage
Proper storage of envelopes helps contribute to print quality. Envelopes should be
stored flat. If air is trapped in an envelope, creating an air bubble, then the envelope
may wrinkle during printing.
Labels
CAUTIONS:
• To avoid damaging the machine, use only labels recommended for laser printers.
• To prevent serious jams, always use the manual feeder to print labels and always use
the rear output tray.
• Never print on the same sheet of labels more than once and never print on a partial
sheet of labels.
When selecting labels, consider the quality of each component:
• Adhesives: The adhesive material should be stable at 180°C (356°F), the
machine’s fusing temperature.
• Arrangement: Only use labels with no exposed backing between them. Labels can
peel off sheets with spaces between the labels, causing serious jams.
• Curl: Prior to printing, labels must lie flat with no more than 13mm (5in.) of curl in
any direction.
• Condition: Do not use labels with wrinkles, bubbles or other indications of
separation.
Transparencies
Transparencies used in the machine must be able to withstand 180°C (356°F), the
machine’s fusing temperature.
CAUTION: To avoid damaging the machine, use only transparencies recommended for
use in laser printers.
A
A.11
INDEX
A
adding documents 6.27
ADF (Automatic Document Feeder),
load 4.3
ADF rubber pad, replace 8.13
automatic dialing
group 6.18
one-touch 6.15
speed 6.16
automatic redialing 6.9
B
broadcasting faxes 6.22
C
canceling
fax 6.8
print 3.5
scan 5.5
scheduled faxes 6.28
characters, enter 1.32
cleaning
drum 8.11
inside 8.4
outside 8.3
scan unit 8.5
connection
AC power 1.18
extension phone 1.16
telephone line cord 1.15
consumables 8.12
control panel 1.6
copying 4.3
default setting, change 4.7
image 4.5
number of pages 4.5
time out, set 4.8
D
date and time, set 1.34
delay receive polling 6.26
delayed fax 6.23
display language, change 1.30
document
jam, clear 9.2
loading 1.12
preparing 4.2
drum, clean 8.11
E
error messages 9.8
extension phone, connect 1.16
F
Favorite setting, use 3.6
fax system, set
advanced settings 6.33
basic settings 6.2
fitting to page, print 3.13
front output tray, use 2.5
G
graphic properties, set 3.8
group dial
dialing 6.20
editing 6.19
setting 6.18
H
handset, attach 1.9
help, use 3.6
I
installing
Linux software 7.3
toner cartridge 1.10
Windows software 1.21
J
jam, clear
document 9.2
paper 9.3
L
Linux
common problems 9.23
driver, install 7.4
printing 7.11
scanning 7.13
M
machine ID, set 1.31
memory, clear 8.2
MFP driver, install
Linux 7.4
Windows 1.21
N
network printer, set 3.22
notifying toner low 8.10
O
one-touch dial
dialing 6.16
storing 6.15
orientation, print 3.3, 7.12
output location, select 2.4
overlay, use 3.18
P
paper guidelines 2.3
paper jam, clear 9.3
paper level indicator 2.7
paper load
in manual feeder 2.8
in paper tray 1.12
paper load capacity 2.2
paper properties, set 3.7
paper size, set
manual feeder 2.10
paper tray 1.36
print 3.7, 7.12
paper source, set 3.8, 7.12
paper type 2.2
paper type, set
manual feeder 2.10
paper tray 1.36
print 3.8, 7.12
paper, load 6.11
polling 6.26
poster, print 3.14
power save mode, use 1.40
print order, set 3.4
print resolution 3.9
printer driver, install
Linux 7.4
Windows 1.21
printer properties
Linux 7.11
windows 3.2
printing
fitting to a selected paper size 3.13
from Linux 7.11
from Windows 3.2
multiple pages on one sheet 3.10
Phonebook list 6.21
posters 3.14
reduced or enlarged document
3.12
reports 6.31
using overlays 3.18
watermarks 3.15
priority fax 6.25
problems, solve
copying 9.19
error messages 9.8
faxing 9.21
Linux 9.23
paper feeding 9.11
printing 9.12
printing quality 9.15
scanning 9.20
R
rear output slot, use 2.5
receiving a fax
in Ans/Fax mode 6.12
in Fax mode 6.11
in Secure Receiving mode 6.29
in Tel mode 6.11
in the memory 6.14
redialing
automaically 6.8
manually 6.9
reduced/enlarged
copy 4.6
print 3.12
Remote Control Panel 6.36
reports, print 6.31
resolution
fax 6.6
print 3.9
S
scanning
Linux 7.13
Windows 5.2
searching Phonebook 6.20
Secure Receiving mode 6.29
sending a fax
automatically 6.7
manually 6.8
sharing printer, set 3.22
SmarThru
install 1.21
uninstall 1.29
sounds, set 1.37
specifications
facsimile A.5
general A.2
paper A.6
printer A.4
scanner and copier A.3
speed dial
dialing 6.17
storing 6.16
system requirements
Linux 7.3
Windows 1.21
T
tel line, connect 1.15
toll save mode, use 1.39
toner cartridge
install 1.10
life 8.7
redistribute 8.8
replace 8.9
toner save mode, use 1.38
TWAIN, scan 5.6
U
uninstalling
MFP driver
Linux 7.5
Windows 1.28
Remote Control Panel 1.28
SmarThru 1.29
USB
mode, change 9.14
V
volume, adjust
ringer 1.37
speaker 1.37
W
watermarks, use 3.15
Rev. 3.00
