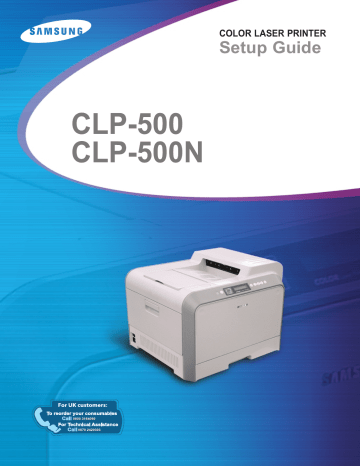

COLOR LASER PRINTER
Setup Guide
CONTENTS
Step 1. Unpacking ............................................. 3
Step 2. Understanding Your Printer ................... 5
Step 3. Installing the Imaging Unit, Transfer Belt
and Toner Cartridges ............................. 7
Step 4. Loading Paper ..................................... 16
Step 5. Connecting a Printer Cable .................. 19
Using a Parallel Cable .................................19
Using a USB Cable .....................................20
For Networking Printing ..............................21
Step 6. Turning the Printer On ........................ 22
Step 7. Printing a Demo Page .......................... 23
Step 8. Changing the Display Language .......... 23
Step 9. Installing the Printer Software ............ 24
Installing Printer Software in Windows ..........24
Reinstalling Printer software ........................26
Removing Printer software ..........................26
Changing the Display Language ...................26
Step 10. Viewing the User’s Guide ................... 27
In Windows ..............................................27
In Linux ...................................................28
2
SETUP GUIDE
Step 1.
Unpacking
packing carton. Make sure that the printer has been packed
with the following items:
Toner Cartridges
Power Cord
Transfer Belt
Imaging Unit
CD-ROM
Setup Guide
SyncThru CD-ROM
(CLP-500N only)
SyncThru Quick Guide
(CLP-500N only)
NOTES:
• If any items are missing or damaged, notify your dealer
immediately.
• Components may differ from one country to another.
• The CD-ROM contains the printer driver, the User’s Guide, and
the Adobe Acrobat Reader program.
• The power cord may be different depending on your country.
CAUTION: This printer weighs 35kg including developer cartridge
and cassette. Use safe lifting and handling techniques. If you need
to move the printer it must be moved by two people. Use the
lifting handles located as shown in the diagram (see page 5). Back
injury could be caused if a single person attempts to lift the
printer.
SETUP GUIDE
3
English
1 Remove the printer and all of the accessories from the
2 Carefully remove all of the packing tapes from the printer.
3 Pull the paper tray out of the printer and remove the
packing tapes from the tray.
4 Select a location for the printer:
•Leave enough room to open the printer trays, covers, and
allow for proper ventilation.
•Provide the proper environment:
– A firm, level surface
– Away from direct airflow of air conditioners, heaters, or
ventilators
– Free of temperature, sunlight, or humidity extremes or
fluctuations
– Clean, dry, and free of dust
CAUTION: You must place your printer in the level surface. If you
do not, the print quality problems can occur.
4
SETUP GUIDE
Step 2.
Understanding Your Printer
English
These are the main components of your printer:
Top Cover
(Open to install the imaging unit,
and transfer belt.)
Paper Output Tray
Output Support
Control Panel
(refer to Chapter
5 in the User’s
Guide which is
on the CDROM.)
Top Cover
Release Button
Front Cover
(Open to replace
the waste toner
container.)
Handle
(Lifting handles are
located at the lower
edge of both sides
of the printer.)
Tray 1
(250-sheet paper feeder)
Left Cover
(To install the toner cartridges
press the top cover release
button and open fully.)
Optional Tray 2
(500-sheet paper feeder)
SETUP GUIDE
5
Right Cover
(Open to remove paper jams.)
Muti-purpose Tray
(Open to load special print materials.)
Handle
(Use it to lift the printer.)
Optional Tray 2 Jam Cover
(Open to remove jams in the optional tray 2.)
Wireless Network
Antenna*
Network Port**
Control Board
Cover
(Open to install optional
accessories.)
Power Switch
USB Port
Parallel Port***
Power Receptacle
* This wireless network port is not supplied with the printer. It is an option that must be purchased and
installed separately.
** The network port is fitted as standard on the CLP-500N. CLP-500 users can purchase and install
separately an optional Network Card. For details, see the User's Guide of the printer in the CD-ROM.
*** The parallel port may not be available depending on your country.
6
SETUP GUIDE
Step 3.
1 Using the handle, completely open the left cover until it is at
right angles to the main frame.
CAUTION: If the left cover is not completely open, the top cover
release button does not press.
2 Press the top cover release button to unlatch the top cover
and open it all the way.
Top cover release
button
SETUP GUIDE
7
English
Installing the Imaging Unit, Transfer
Belt and Toner Cartridges
3 Take the imaging unit out of the package using the handle.
4 Remove the paper covering the imaging unit by removing
the tape under the handle of the imaging unit.
CAUTIONS:
• Do not use sharp objects, such as a knife or scissors, to open the
imaging unit package and tape on the protective paper liner. You
could damage the surface of the imaging unit.
• To prevent damage, do not expose the imaging unit to light for
more than a few minutes. Cover it with black paper, if necessary.
• Do not touch the surface of the green roller on the imaging unit
or print quality problems can occur.
5 Locate the imaging unit slots inside the printer, one on each
side.
8
SETUP GUIDE
6 Hold the handle on the imaging unit with the green roller
CAUTION: Insert the imaging unit carefully so as not to scratch
and damage the surface of the green roller.
7 Slide the imaging unit down into the printer until it cannot
be pushed in any further and fold the handle down.
CAUTION: To prevent damage, do not expose the imaging unit
to light for more than a few minutes. Close the top and left
cover should the setup need to be halted for any reason.
SETUP GUIDE
9
English
facing you. Align the imaging unit with the slots in your
printer so that the colors on both sides of the imaging unit
slide into the corresponding colors of the slots.
8 Take the transfer belt out of the package.
9 Remove the paper covering the transfer belt by removing
the tape.
CAUTION: Don’t use sharp objects, such as a knife or scissors, to
open the transfer belt package. You could damage the surface of
the transfer belt.
10 Pinch the transfer belt tention levers on both sides of the
transfer belt. Then, pull them out, as shown below.
11 Locate the transfer belt slots inside the printer, one on each
side.
10
SETUP GUIDE
12 Hold the handle on the transfer belt and align it with the
English
slots in your printer.
NOTE: Keep the transfer belt level, do not turn the transfer belt
over otherwise looses toner may be spilled.
13 Slide the transfer belt down into the printer. Press it firmly
to make sure that it latches into place.
SETUP GUIDE
11
14 Firmly push the lock levers on each side towards the top
cover, as shown below, to lock the transfer belt into place.
CAUTION: If you open the left cover for a few minutes, the
imaging unit can be exposed to light. This causes damage to the
imaging unit.
15 After making sure that the left cover is open, close the top
cover. Make sure that it is securely latched.
CAUTION: Do not try to close the left cover with the top cover
open. This may cause damage to the printer.
12
SETUP GUIDE
16 Take the toner cartridges out of their packages.
English
CAUTION: Do not use sharp objects, such as a knife or scissors,
to open the toner cartridges packages. You could damage the
surface of the toner cartridges.
17 Holding both sides of the cartridges, gently roll them from
side to side to distribute the toner.
18 Place the toner cartridges on a flat surface as shown and
remove the paper covering the toner cartridge by removing
the tape.
NOTE: If toner gets on your clothing, wipe it off with a dry cloth
and wash it in cold water. Hot water sets toner into fabric.
SETUP GUIDE
13
19 On the right hand side of the toner cartridge slot is a label
that identifies which color cartridge to fit into each slot.
K
Black
Y
Yellow
M
Magenta
C
Cyan
20 Holding each toner cartridge, insert them into their
corresponding positions shown in order of Cyan, Magenta,
Yellow and then Black. Using both hands, grip the cartridge
to insert into the slot. Then hold the handle to slide the
cartridge in.
Grip here.
K
Y
M
C
•When the toner cartridges are correctly installed the yellow
and black cartridges are not fully inserted. These will be
pushed into place when you close the left cover.
14
SETUP GUIDE
21 Close the left cover. Make sure that it is securely latched.
English
If you have installed the toner cartridges wrongly, the left
cover will not close properly. Check again to make sure the
cartridge colors correspond to those marked on the right
hand side. Never use force to close the cover.
NOTE: When printing text at 5% coverage, you can expect a
toner cartridge life of about 7,000 pages for black and 5,000 pages
for color. However, the toner cartridge that is shipped with the
printer prints 2,000 pages for black and white, 1,500 pages for
color.
SETUP GUIDE
15
Step 4.
Loading Paper
The tray (Tray 1) can hold a maximum of 250 sheets of plain
paper. You can use A4 and letter-sized paper.
To load paper:
1 Pull the tray out of the printer.
2 Push down on the metal plate until it locks into position.
3 Flex the paper sheets back and forth to separate the pages
and then fan them while holding one edge. Tap the edges of
the stack on a flat surface to even it up.
16
SETUP GUIDE
4 Load paper with the print side facing up.
English
Make sure that all four corners are flat in the tray and under
the corner brackets as shown below.
5 Do not exceed the maximum stack height. Overfilling the
tray may cause a paper jam.
SETUP GUIDE
17
6 Pinch the paper guide as shown and move it toward the
paper until it lightly touches the side of the stack. Do not
press the guide too tightly against the edge of the paper;
the guide may bend the paper.
NOTE: If you want to change the paper size in the tray, refer to
the User’s Guide of your printer supplied in the CD-ROM.
7 Slide the tray back into the printer.
NOTES:
• Do not push the width guide far enough to cause the material to
warp.
• If you do not adjust the width guide, it may cause paper jam.
18
SETUP GUIDE
Step 5.
Connecting a Printer Cable
Using a Parallel Cable
NOTES:
• The parallel port may not be available depending on your
country.
• To connect the printer to the parallel port of the computer
requires a certified parallel cable. You need to buy a IEEE1284
compliant cable that is within 3m in length.
1 Make sure that both the printer and the computer are
turned off.
2 Plug the parallel printer cable into the connector on the
back of the printer.
Push the metal clips down to fit inside the notches on the
cable plug.
To the parallel port on
your computer
3 Connect the other end of the cable to the parallel interface
port on your computer, and tighten the screws.
See the User’s Guide of your computer, if you need help.
SETUP GUIDE
19
English
You need to connect your printer to the computer with either a
parallel interface cable or a Universal Serial Bus (USB) cable.
Using a USB Cable
NOTE: Connecting the printer to the USB port of the computer
requires a certified USB cable. You will need to buy a USB 2.0
compliant cable that is within 3m in length.
1 Make sure that both the printer and the computer are
turned off.
2 Plug the USB printer cable into the connector on the back of
the printer.
To the USB port on
your computer
3 Connect the other end of the cable to the USB port on your
computer.
See the User’s Guide of your computer, if you need help.
NOTE: To print using the USB interface, you must run Windows
98/Me/2000/XP.
20
SETUP GUIDE
For Networking Printing
CLP-500N has a built-in network interface card. If you are a
CLP-500 user, you need to install an optional network interface
card.
If you want to use the printer in both a wired and a wireless
network environments, you need to install an optional wired/
wireless network interface card. For details about installing the
card, see the User’s Guide of your printer in the CD-ROM.
Using an Ethernet cable
1 Make sure that both the printer and the computer are
turned off.
2 Plug one end of the Ethernet cable into the Ethernet
network port on the Printer.
To the network
LAN connection
3 Plug the other end of the cable into a network LAN
connection.
For details about installing the network card, see the User’s
Guide of your printer in the CD-ROM.
SETUP GUIDE
21
English
You can attach your CLP-500 or CLP-500N printer to a network
using an Ethernet cable (UTP cable with RJ.45 connector).
Using a network antenna
1 If you install the wired/wireless network card, you can use
your printer in wireless environment.
For details about installing the wired/wireless network card,
see the User’s Guide of your printer in the CD-ROM.
NOTE: After connecting the printer you need to configure the
network parameters on the control panel. See the User’s Guide of
your printer. You can use the software supplied with the card.
Refer to the software User’s Guide.
Step 6.
Turning the Printer On
1 Plug the power cord into the power receptacle on the back
of the printer.
2 Plug the other end into a properly grounded AC outlet and
turn on the power.
1
2
CAUTIONS:
• Some parts inside of the printer may be hot when power is on or
after printing. Be careful not to burn yourself when working
inside the printer.
• Do not disassemble the printer when it is powered on. Doing so
may give you an electric shock.
22
SETUP GUIDE
Step 7.
Printing a Demo Page
1 In ready mode, press and hold the Upper Level button
( ) on the control panel for 2 seconds to print a demo
page.
A demo page showing the printer’s features and capabilities
prints out.
Step 8.
Changing the Display Language
To change the language that is displayed on the control panel,
take the following steps:
1 In ready mode press the Menu button (
) on the control
panel until you see ‘Setup’ on the bottom line of the display.
2 Press the Enter button (
) to access the menu.
3 Press the scroll button (
or
Language’ on the bottom line.
) until you see ‘LCD
4 Press the Enter button (
) to confirm the menu item.
5 Press the scroll button (
or
) to display the language
you want to use.
6 Press the Enter button (
) to save the selection.
7 Press the On Line/Continue button (
) to return to
ready mode.
SETUP GUIDE
23
English
Print a demo page to make sure that the printer is operating
correctly.
Step 9.
Installing the Printer Software
The supplied CD-ROM contains Windows printing software,
Linux printing software, on-line User's Guide and
Acrobat Reader to view the User’s Guide.
If you are printing from Windows:
You can install the following printer software using the CD-ROM.
• Printer Driver for windows. Use this driver to take full
advantage of your printer’s features. See page 25.
• USB driver only for Windows 98/Me/2000/XP. For details
about installing the USB driver, see page 25.
If you are printing in Linux:
For information about installing the Linux driver, refer to
Appendix A in the User’s Guide. To view the User’s Guide, see
page 28.
Installing Printer Software in Windows
Verify the following before you install the printer software:
Item
Operating system
Requirements
Windows 95/98/Me/NT 4.0/2000/XP
95/98/Me
32 MB
NT 4.0/2000
64 MB
XP
128 MB
Free disk space
95/98/Me/NT 4.0/
2000/XP
300 MB
Internet Explorer
5.0 or higher
RAM
NOTE: For Windows NT 4.0/2000/XP, the system administrator
should install the software.
24
SETUP GUIDE
All applications should be closed on your PC before beginning
installation.
English
1 Place the CD-ROM in the CD-ROM drive. Installation will
start automatically.
If the CD-ROM drive does not automatically run:
Select Run from the Start menu, and type
x:\cdsetup.exe in the Open box (where x is the drive
letter for the CD-ROM drive), then click OK.
NOTE: If the New Hardware Found window appears during the
installation procedure, click
in the upper right corner of the box,
or click Cancel.
2 When the language selection window appears, select the
appropriate language.
If you can’t find the desired language from the screen,
scroll through the screen using the scroll button on the
bottom right of the screen.
3 Click Install the Samsung Software on your PC.
4 The installation window opens. Click Next.
5 Follow the instructions on the window to complete the
installation.
NOTE: If you connect the printer with the USB cable at first and
then you want to use the parallel interface, remove the USB cable
and connect the parallel cable. Then reinstall the printer driver.
SETUP GUIDE
25
Reinstalling Printer software
Reinstallation is required if your installation fails.
1 From the Start menu, select Programs.
2 Select Samsung CLP-500 Series, and then Samsung
CLP-500 Series Driver Maintenance.
3 The Samsung CLP-500 Series Driver Maintenance window
appears. Click Repair and then click Next.
4 When reinstallation is done, click Finish.
Removing Printer software
1 From the Start menu, select Programs.
2 Select Samsung CLP-500 Series, and then Samsung
CLP-500 Series Driver Maintenance.
3 The Samsung CLP-500 Series Driver Maintenance window
appears. Check Remove and then click Next.
4 When you are asked to confirm your selection, click OK.
The Samsung CLP-500 Series printer driver and all of its
components are removed from your computer.
5 When removing is completed, click Finish.
Changing the Display Language
After installation of the software, you can change the display
language.
1 From the Start menu, select Programs.
2 Select Samsung CLP-500 Series, and Language
Selection.
3 Select the desired language from the language selection
window, and click OK.
26
SETUP GUIDE
Step 10.
Viewing the User’s Guide
You can view the manuals on-screen in different formats
(viewing a single page, continuous single page or continuous
facing page, zooming in up to 1600% or out up to 12.5%,
scrolling two-up page or article flow). You can also print the
manual, if necessary.
In Windows
1 Place the CD-ROM in the CD-ROM drive.
2 When the language selection window appears, select the
appropriate language.
3 Click View User’s Guide.
The Adobe Acrobat program opens and you can view the
User’s Guide.
NOTE: To open the User’s Guide, you should install the Adobe
Acrobat Reader program on your computer. If you do not have the
program, click Install the Bonus Software on your PC to install
the program.
SETUP GUIDE
27
English
The Samsung CLP-500 Series User’s Guide, which is in the
software CD-ROM, is in Adobe Acrobat PDF format. The manual
will give you flexibility and convenience when you have to access
information.
In Linux
1 When the Administrator Login window appears, type in
“root” in the login field and enter the system password.
2 Insert the printer software CD-ROM.
3 Click the
icon at the bottom of the screen. When the
terminal screen appears, type in:
[[email protected] /root]# cd /mnt/cdrom(the CD-ROM directory)
[[email protected] cdrom]# gv manual/EnGuide.pdf
NOTE: If your ghostscript version is old, you may not be able to
see the pdf file. Then, install Acrobat Reader on your system or try
to read the User’s Guide on a Windows system.
1. Click the
icon at the bottom of the screen. When the
terminal screen appears, type in:
[[email protected] /root]# cd /mnt/cdrom(the CD-ROM directory)
[[email protected] cdrom]# manual/acrobat4/INSTALL
2. After reading the license agreement, type accept
.
3. When you are asked of the installation directory, just type the
enter key.
4. You need to make a symbolic link to execute Acrobat Reader
without full path:
[[email protected] cdrom] # ln -s/ usr/local/acrobat4/bin/
acroread /usr/bin/acroread
5. Now, you can read the pdf files with Acrobat Reader.
[[email protected] cdrom]# acroread /mnt/cdrom/manual/
EnGuide.pdf
28
SETUP GUIDE
Home
Visit us at:
www.samsungprinter.com
Rev.3.00
COLOR LASER PRINTER
User’s Guide
This manual is provided for information purposes only. All information included herein is
subject to change without notice. Samsung Electronics is not responsible for any changes,
direct or indirect, arising from or related to use of this manual.
© 2003 Samsung Electronics Co., Ltd. All rights reserved.
• CLP-500, CLP-500N and Samsung logo are trademarks of Samsung Electronics
Co., Ltd.
• Centronics is a trademark of Centronics Data Computer Corporation.
• IBM and IBM PC are trademarks of International Business Machines Corporation.
• Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0
and Windows XP are registered trademarks of Microsoft Corporation.
• All other brand or product names are trademarks of their respective companies or
organizations.
1
CONTENTS
Chapter 1 :
Introduction
Special Features ........................................................ 1.2
Printer Components ..................................................
Front View ...........................................................
Right View ...........................................................
Rear View ............................................................
Chapter 2 :
1.4
1.4
1.5
1.6
Using the Control Panel
Understanding the Control Panel .............................. 2.2
Display ............................................................... 2.2
Buttons ............................................................... 2.3
Using Control Panel Menus ........................................ 2.5
Accessing Control Panel Menus ............................... 2.5
Overview of Control Panel Menus ............................ 2.6
Information Menu ................................................. 2.6
Layout Menu ........................................................ 2.7
Printer Menu ........................................................ 2.8
Color Menu .......................................................... 2.9
Setup Menu ......................................................... 2.9
Network Menu .................................................... 2.12
Chapter 3 :
Using Print Materials
Choosing Paper and Other Materials ......................... 3.2
Sizes and Capacities ............................................. 3.2
Guidelines for Paper and Special Materials ............... 3.3
Loading Paper ........................................................... 3.4
Using Tray 1 ........................................................ 3.4
Changing the Paper Size in the Tray ........................ 3.7
Using the Optional Tray 2 ...................................... 3.8
Using the Multi-purpose Tray ................................. 3.9
Using the Manual Feed ........................................ 3.12
2
Printing on Special Print Materials ..........................
Printing on Envelopes ..........................................
Printing on Labels ...............................................
Printing on Transparencies ...................................
Printing on Preprinted Paper ................................
Printing on Card Stock or Custom-sized Materials ...
Chapter 4 :
3.14
3.14
3.16
3.17
3.20
3.21
Printing Tasks
Printer Driver Features ............................................. 4.2
Printing a Document ................................................. 4.3
Canceling a Print Job ............................................. 4.4
Printer Settings ......................................................... 4.5
Layout tab ........................................................... 4.6
Paper tab ............................................................ 4.7
Graphics tab ........................................................ 4.9
Extras tab ......................................................... 4.12
About tab .......................................................... 4.13
Using a Favorite Setting ...................................... 4.13
Using Help ......................................................... 4.14
Chapter 5 :
Advanced Printing
Printing on Both Sides of the Paper ........................... 5.2
Scaling Your Document ............................................. 5.4
Fitting Your Document to a Selected Paper Size ........ 5.5
Printing Multiple Pages on One Sheet of the Paper ... 5.6
Printing Posters ........................................................ 5.7
Printing Booklets ...................................................... 5.9
Using Watermarks ..................................................
Using an Existing Watermark ...............................
Creating a Watermark .........................................
Editing a Watermark ...........................................
Deleting a Watermark .........................................
5.10
5.10
5.11
5.12
5.12
Using Overlays ........................................................
What is an Overlay? ............................................
Creating a New Page Overlay ...............................
Using a Page Overlay ..........................................
Deleting a Page Overlay ......................................
5.13
5.13
5.13
5.15
5.16
3
Chapter 6 :
Maintaining Your Printer
Printing a Configuration Page ................................... 6.2
Replacing the Supplies .............................................. 6.3
Managing the Toner Cartridges .................................
Toner Cartridge Storage ........................................
Toner Cartridge Life Expectancy .............................
Redistributing the Toner ........................................
6.4
6.4
6.4
6.5
Replacing the Toner Cartridges ................................. 6.8
Replacing the Waste Toner Container ..................... 6.11
Replacing the Imaging Unit ..................................... 6.14
Replacing the Transfer Belt ..................................... 6.22
Cleaning the Printer ................................................
Cleaning the Outside of the Printer .......................
Cleaning the LSU Inside the Printer .......................
Cleaning the Inside of the Printer ..........................
6.29
6.29
6.30
6.31
Replacement Part .................................................... 6.38
Chapter 7 :
Solving Problems
Troubleshooting Checklist ......................................... 7.2
Solving General Printing Problems ............................ 7.3
Clearing Paper Jams ................................................. 7.7
In the Paper Feed Area ......................................... 7.8
In the Multi-purpose Tray .................................... 7.10
Inside the Printer ............................................... 7.10
In the Paper Exit Area ......................................... 7.11
In the Duplex Area ............................................. 7.14
In the Optional Tray2 .......................................... 7.18
Tips for Avoiding Paper Jams ................................ 7.21
Solving Print Quality Problems ................................ 7.22
Understanding Display Messages ............................ 7.26
Common Windows Problems ................................... 7.30
Common Linux Problems ......................................... 7.31
4
Appendix A :
Using Your Printer in Linux
Installing the Printer Driver ......................................
System Requirements ...........................................
Installing the Printer Driver ....................................
Changing the Printer Connection Method .................
Uninstalling the Printer Driver ................................
A.2
A.2
A.2
A.6
A.7
Using the Configuration Tool ..................................... A.8
Changing LLPR Properties ....................................... A.10
Appendix B :
Using Your Printer on a Network
About Sharing the Printer on a Network ................... B.2
Setting Up a Locally Shared Printer ........................... B.3
In Windows 95/98/Me ........................................... B.3
In Windows NT 4.0/2000/XP .................................. B.4
Setting Up a Network-Connected Printer .................. B.6
Configuring Network Parameters on the
Control Panel ....................................................... B.6
Appendix C :
Installing Printer Options
Installing Printer Memory ......................................... C.2
Removing the Memory .......................................... C.6
Installing a Network Interface Card .......................... C.7
Installing an Optional Tray ...................................... C.12
5
Appendix D :
Specifications
Printer Specifications ................................................ D.2
Paper Specifications .................................................. D.4
Overview ............................................................. D.4
Supported Sizes of Paper ....................................... D.5
Guidelines for Using Paper ..................................... D.6
Paper Specifications .............................................. D.7
Paper Output Capacity .......................................... D.7
Paper Input Capacity ............................................ D.7
Printer and Paper Storage Environment ................... D.8
Envelopes ............................................................ D.9
Labels ............................................................... D.11
Transparencies ................................................... D.11
6
Environmental and Safety Consideration
Laser Safety Statement
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR,
chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is certified as a
Class I laser product conforming to the requirements of IEC 825.
Class I laser products are not considered to be hazardous. The laser system and
printer are designed so there is never any human access to laser radiation above a
Class I level during normal operation, user maintenance, or prescribed service
condition.
WARNING
Never operate or service the printer with the protective cover removed from Laser/
Scanner assembly. The reflected beam, although invisible, can damage your eyes.
When using this product, these basic safety precautions should always be followed to
reduce risk of fire, electric shock, and injury to persons:
7
Ozone Safety
OZONE
During normal operation, this machine produces ozone. The
ozone produced does not present a hazard to the operator.
However, it is advisable that the machine be operated in a well
ventilated area.
If you need additional information about ozone, please contact
your nearest Samsung dealer.
Power Saver
This printer contains advanced energy conservation technology
that reduces power consumption when it is not in active use.
When the printer does not receive data for an extended period of
time, power consumption is automatically lowered.
The energy star emblem does not represent EPA endorsement of
any product or service.
Recycling
Please recycle or dispose of packaging materials for this product
in an environmentally responsible manner.
Radio Frequency Emissions
FCC regulations
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the equipment.
8
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux
appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur:
“Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.
United States of America
Federal Communications Commission (FCC)
Intentional emitter per FCC Part 15
Low power, Radio LAN type devices (radio frequency (RF) wireless communication
devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer
system. This section is only applicable if these devices are present. Refer to the
system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the United
States of America if an FCC ID number is on the system label.
The FCC has set a general guideline of 20 cm (8 inches) separation between the
device and the body, for use of a wireless device near the body (this does not include
extremities). This device should be used more than 20 cm (8 inches) from the body
when wireless devices are on. The power output of the wireless device (or devices),
which may be embedded in your printer, is well below the RF exposure limits as set
by the FCC.
This transmitter must not be collocated or operation in conjunction with any other
antenna or transmitter.
Operation of this device is subject to the following two conditions:(1) This device may
not cause harmful interference, and(2) this device must accept any interference
received, including interference that may cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify them in any
way. Modification to a wireless device will void the authorization to use
it. Contact manufacturer for service.
FCC Statement for Wireless LAN use:
“While installing and operating this transmitter and antenna combination
the radio frequency exposure limit of 1mW/cm2 may be exceeded at
distances close to the antenna installed. Therefore, the user must
maintain a minimum distance of 20cm from the antenna at all times.
This device can not be colocated with another transmitter and
transmitting antenna.”
9
Declaration of Conformity (European Countries)
Approvals and Certifications
The CE marking applied to this product symbolises Samsung
Electronics Co., Ltd. Declaration of Conformity with the following
applicable 93/68/EEC Directives of the European Union as of the
dates indicated:
January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the
member states related to low voltage equipment.
January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the
laws of the Member States related to electromagnetic compatibility.
March 9, 1999: Council Directive 1999/5/EC on radio equipment and
telecommunications terminal equipment and the mutual recognition of their
conformity.
A full declaration, defining the relevant Directives and referenced standards can be
obtained from your Samsung Electronics Co., Ltd. representative.
EC Certification
Certification to 1999/5/EC Radio Equipment & Telecommunications
Terminal Equipment Directive (FAX)
This Samsung product has been self-certified by Samsung for pan-European single
terminal connection to the analogue public switched telephone network (PSTN) in
accordance with Directive 1999/5/EC. The product has been designed to work with
the national PSTNs and compatible PBXs of the European countries:
In the event of problems, you should contact the Euro QA Lab of Samsung Electronics
Co., Ltd. in the first instance.
The product has been tested against TBR21 and/or TBR 38. To assist in the use and
application of terminal equipment which complies with this standard, the European
Telecommunication Standards Institute (ETSI) has issued an advisory document (EG
201 121) which contains notes and additional requirements to ensure network
compatibility of TBR21 terminals. The product has been designed against, and is fully
compliant with, all of the relevant advisory notes contained in this document.
European Radio Approval Information
(for products fitted with EU-approved radio devices)
This Product is a printer; low power, Radio LAN type devices (radio frequency (RF)
wireless communication devices), operating in the 2.4 GHz band, may be present
(embedded) in your printer system which is intended for home or office use. This
section is only applicable if these devices are present. Refer to the system label to
verify the presence of wireless devices.
10
Wireless devices that may be in your system are only qualified for use in the
European Union or associated areas if a CE mark with
a Notified Body
Registration Number and the Alert Symbol is on the system label.
The power output of the wireless device or devices that may be embedded in you
printer is well below the RF exposure limits as set by the European Commission
through the R&TTE directive.
European States qualified under wireless approvals:
EU
Austria, Belgium, Denmark, Finland, France (with frequency
restrictions), Germany, Greece, Ireland, Italy, Luxembourg,
The Netherlands, Portugal, Spain, Sweden and the United
Accept EU
Iceland, Liechtenstein, Norway and Switzerland
European States with restrictions on use:
EU
In France, the frequency range is restricted to 2446.5-2483.5 MHz
for devices above 10 mW transmitting power such as wireless
Accept EU
No limitations at this time.
Regulatory Compliance Statements
Wireless Guidance
Low power, Radio LAN type devices (radio frequency (RF) wireless communication
devices), operating in the 2.4 GHz Band, may be present (embedded) in your printer
system. The following section is a general overview of considerations while operating
a wireless device.
Additional limitations, cautions, and concerns for specific countries are listed in the
specific country sections (or country group sections). The wireless devices in your
system are only qualified for use in the countries identified by the Radio Approval
Marks on the system rating label. If the country you will be using the wireless device
in, is not listed, please contact your local Radio Approval agency for requirements.
Wireless devices are closely regulated and use may not be allowed.
The power output of the wireless device or devices that may be embedded in your
printer is well below the RF exposure limits as known at this time. Because the
wireless devices (which may be embedded into your printer) emit less energy than is
allowed in radio frequency safety standards and recommendations, manufacturer
believes these devices are safe for use. Regardless of the power levels, care should
be taken to minimize human contact during normal operation.
As a general guideline, a separation of 20 cm (8 inches) between the wireless device
and the body, for use of a wireless device near the body (this does not include
11
extremities) is typical. This device should be used more than 20 cm (8 inches) from
the body when wireless devices are on and transmitting.
This transmitter must not be collocated or operation in conjunction with any other
antenna or transmitter.
Some circumstances require restrictions on wireless devices. Examples of common
restrictions are listed below:
Radio frequency wireless communication can interfere with equipment
on commercial aircraft. Current aviation regulations require wireless
devices to be turned off while traveling in an airplane. 802.11B (also
known as wireless Ethernet) and Bluetooth communication devices are
examples of devices that provide wireless communication.
In environments where the risk of interference to other devices or
services is harmful or perceived as harmful, the option to use a wireless
device may be restricted or eliminated. Airports, Hospitals, and Oxygen
or flammable gas laden atmospheres are limited examples where use of
wireless devices may be restricted or eliminated. When in environments
where you are uncertain of the sanction to use wireless devices, ask the
applicable authority for authorization prior to use or turning on the
wireless device.
Every country has different restrictions on the use of wireless devices.
Since your system is equipped with a wireless device, when traveling
between countries with your system, check with the local Radio Approval
authorities prior to any move or trip for any restrictions on the use of a
wireless device in the destination country.
If your system came equipped with an internal embedded wireless
device, do not operate the wireless device unless all covers and shields
are in place and the system is fully assembled.
Wireless devices are not user serviceable. Do not modify them in any
way. Modification to a wireless device will void the authorization to use
it. Please contact manufacturer for service.
Only use drivers approved for the country in which the device will be
used. See the manufacturer System Restoration Kit, or contact
manufacturer Technical Support for additional information.
12
13
MEMO
14
1
INTRODUCTION
Congratulations on the purchase of your printer!
This chapter includes:
• Special Features
• Printer Components
Special Features
Your new printer is equipped with special features that improve
the print quality. You can:
Print in color with excellent quality and speed
• You can print in a full range of colors using cyan, magenta,
yellow, and black.
• You can print up to 1200 x 1200 dpi (effective output).
See page 4.9.
• In black & white mode your printer prints A4-sized paper
at 20 ppm and letter-sized paper at 21 ppm (pages per
minute). For color printing, A4/letter-sized paper prints at
5 ppm.
• In duplex printing, your printer prints A4/Letter sized
paper at 9.6 IPM (images per minute) for black & white
and 5 IPM for color.
Handle paper flexibly
• Multi-purpose Tray supports letterhead, envelopes,
labels, transparencies, custom-sized materials, postcards,
and heavy paper. A 100-sheet Multi-purpose Tray
supports plain paper.
• The Standard 250-sheet input tray (Tray1) and optional
500-sheet input tray (Tray2) supports A4/letter-sized
paper.
Create professional documents
8
9
• Print Watermarks. You can customize your documents
with a word, such as “Confidential.” See page 5.10.
• Print Booklets. This feature enables you to easily print the
pages to create books. Once printed, all you have to do is
to fold and staple the pages. See page 5.9.
• Print Posters. The text and pictures of each page of your
document are magnified and printed across sheet of paper
and taped together to form a poster. See page 5.7.
1.2
INTRODUCTION
Save time and money
• You can print on both sides of the paper to save paper
(double-sided printing). See page 5.2.
1
• You can print multiple pages on one single sheet of paper
to save paper.
• You can use preprinted forms and letterhead on plain
paper. See “Using Overlays” on page 5.13.
• This printer automatically conserves electricity by
substantially reducing power consumption when not
printing.
• This printer meets Energy Star guidelines for energy
efficiency.
Expand the printer capacity
• This printer has 64 MB of memory which can be expanded
to 192 MB.
• You can install an optional 500-sheet tray in your printer.
This tray reduces how often you have to add paper to the
printer.
• A Network interface enables network printing. You can
add the optional network interface card to CLP-500.
CLP-500N comes with a built-in network interface, 10/100
Base TX. You can also use an optional wireless network
interface.
Print in various environments
• You can print in Windows 95/98/Me/NT 4.0/2000/XP.
• Your printer is compatible with various Linux OS.
• Your printer comes with both the USB and Parallel
interface. The Parallel interface is available depending on
your country.
You can also use a Network interface. CLP-500N comes
with a built-in network interface, 10/100 Base TX. You can
also use an optional wireless network interface, but, you
need to add the optional network interface card to
CLP-500.
INTRODUCTION
1.3
Printer Components
Front View
Top Cover
(Open to install the imaging unit
and transfer belt.)
Paper Output Tray
Output Support
Control Panel
(see page 2.2.)
Top Cover
Release Button
Front Cover
(Open to replace
the waste toner
container.)
Handle
(Use it to lift
the printer.)
Tray 1
(250-sheet paper feeder)
Left Cover
(To install the toner cartridges
press the top cover release
button and open fully.)
Optional Tray 2
(500-sheet paper feeder)
NOTE: If you continuously print many pages, the surface of the
output tray may become hot. Ensure that you, and especially
children, do not touch the surface.
1.4
INTRODUCTION
Right View
1
Right Cover
(Open to remove paper jams.)
Muti-purpose Tray
(Open to load special print materials.)
Handle
(Use it to lift the printer.)
Optional Tray 2 Jam Cover
(Open to remove jams from Tray 2.)
INTRODUCTION
1.5
Rear View
Wireless Network
Antenna*
Network Port**
Control Board
Cover
(Open to install
optional accessories.)
USB Port
Parallel Port***
Power Switch
Power Receptacle
* This wireless network port is not supplied with the printer. It is an option that must be purchased and
installed separately.
** The network port is fitted as standard on the CLP-500N. CLP-500 users can purchase and install
separately an optional Network Card. For details, see page C.7.
*** The parallel port may not be available depending on your country.
1.6
INTRODUCTION
2
USING THE CONTROL PANEL
This chapter describes how to use the printer’s control
panel.
This chapter includes:
• Understanding the Control Panel
• Using Control Panel Menus
Understanding the Control Panel
The control panel on the top right side of your printer has a
display and seven buttons.
Buttons
Status Map
Display: displays the printer
status and job in progress.
Display
Message
Description
Ready
• The printer is on-line and ready to print.
• If you press On Line/Continue, the
printer switches to off-line.
Offline
• The printer is off-line and cannot print.
• If you press On Line/Continue, the
printer switches to on-line.
Processing...
• The printer is printing.
• If you want to cancel printing, press
Cancel.
Sleeping...
• The printer is in Power Save mode,
using less power. When a print job is
received from the computer or if any
button is pressed, the printer switches
to on-line.
• To deactivate the Power Save mode or
change the power-saving time, see
page 2.9.
See “Understanding Display Messages” on page 7.26 for a
complete listing of all the printer messages.
2.2 USING THE CONTROL PANEL
Buttons
Button
(status
map)
Description
When an error occurs, a lamp turns on at the
corresponding location on the Status map. An error
message appears on the display so that you can
locate the error. For details on the meaning of the
error messages, see page 7.26.
• Press to switch between on-line and off-line.
• In menu mode, press to return to ready mode.
The color of the On Line/Continue button
indicates the status of the printer.
On
The printer is on-line and can
receive data from the
computer.
Blinking
• When the backlight blinks
slowly, the printer is receiving
data from the computer.
• When the backlight blinks
quickly, the printer is
receiving and printing data.
On
The printer stops printing due
to a major error. Check the
display message. See
page 7.26 for details on the
meaning of the error message.
Blinking
A minor error has occurred and
the printer is waiting for the
error to be cleared. Check the
display message. When the
problem is cleared, the printer
resumes printing. If you want
to ignore this warning, press
this button.
Green
Orange
Off
• The printer is off-line and cannot print.
• The printer is in Power Save mode.
When data is received, it switches to
on-line.
• Press to enter menu mode.
• In menu mode, press to scroll through the menus.
USING THE CONTROL PANEL 2.3
2
Button
Description
In menu mode, press to select the displayed
submenu item or confirm the changed setting. The
selected item is marked with an *.
In menu mode, press to scroll through submenu
items or setting options. Pressing ❿ moves you to
the next option and pressing ➛ sends you back to
the previous option.
• Press to cancel the current print job.
• In menu mode, press to return to ready mode.
In menu mode, press to go back to the upper menu
level.
2.4 USING THE CONTROL PANEL
Using Control Panel Menus
A number of menus are available to make it easy for you to
change the printer settings. The diagram on page 2.6 shows the
menus and all of the items available in each menu. The items in
each menu and the options you can select are described in more
detail in the tables beginning on page 2.6.
Accessing Control Panel Menus
You can configure your printer from the printer’s control panel.
You can also use the control panel menus while the printer is in
use.
1 In ready mode press the Menu button (
) until you see
the menu you want on the bottom line of the display.
2 Press the Enter button (
2
) to access the menu.
3 Press the scroll button (
or
) until the menu item you
want displays on the bottom line.
4 Press the Enter button (
) to confirm the selected item.
5 If the menu item has submenus, repeat steps 3 and 4.
6 Press the scroll button (
or
) until the setting option
you want displays on the bottom line or enter the required
value.
7 Press the Enter button (
) to save your input or selection.
An asterisk (*) appears next to the selection on the display,
indicating that it is now the default.
8 To exit the menu, press the Upper Level button (
repeatedly, or the Cancel button(
)
).
After 60 seconds of inactivity (no key has been pressed),
the printer automatically returns to ready mode.
NOTE: Print settings made from the printer driver override the
settings on the control panel.
USING THE CONTROL PANEL 2.5
Overview of Control Panel Menus
The control panel menus are used to configure the printer. The
control panel provides access to the following menus:
Information
Layout
Printer
(See page 2.6.)
Configuration
Menu Map
Demo Page
(See page 2.7.)
Duplex
Duplex Margin
(See page 2.8.)
Default Set
Current Job
Color
Setup
(See page 2.9.)
LCD Language
Power Save
Auto Continue
Jam Recovery
Altitude Adj.
Maintenance
NETWORK*
(See page 2.12.)
Config Network
Config TCP
IP Get Method
IP Address
Subnet Mask
Gateway
Config 802.11b
(See page 2.9.)
Calibration
Custom Color
* This menu only appears when a
Network Card is fitted (CLP-500N or
CLP-500 with optional Network
card).
Netware
Config Netware
IPX Frame Type
Reset Network
Default Set
Print Net CFG
Information Menu
This menu contains information pages that you can print to give
details about the printer and its configuration.
Item
Explanation
Configuration
The configuration page shows the
printer’s current configuration. See
page 6.2.
Menu Map
The menu map shows the layout and
current settings of the control panel menu
items.
2.6 USING THE CONTROL PANEL
Item
Explanation
The demo page allows you to check to see
if your printer is printing properly.
Demo Page
Layout Menu
Use the Layout menu to define all settings relating to output.
(*: the default setting)
Item
Explanation
Options: Off*, Long Edge, Short Edge
To print on both sides of paper, choose the
edge as follows.
• Long Edge: Flips on the long edge. Prints
pages to read like a book.
• Short Edge: Flips on the short edge.
Prints pages to read by flipping over like a
note pad.
2
Duplex
3
2
5
3
5
Long Edge in the
Portrait orientation
Long Edge in the
Landscape orientation
2
3
2
5
Short Edge in the
Landscape orientation
3
5
Short Edge in the
Portrait orientation
Select Off to print on one side of the paper.
USING THE CONTROL PANEL 2.7
2
Item
Explanation
In this menu, you can set the margins for
double-sided printing. You can increase or
decrease the value in 0.1mm increments.
Duplex Margin
• Top Margin: Set the top margin, from
0.0mm to 9.9mm.
• Left Margin: Set the left margin, from
0.0mm to 9.9mm.
• Short Binding: Set the bottom margin of
the back of the page for short binding,
from 0.0mm to 10mm.
Binding position: In the portrait
orientation, appears in the upper line of
the page. In the landscape orientation,
appears on the right side of the page.
• Long Binding: Set the right margin of
the back of the page for long binding, from
0.0mm to 22mm.
Binding position: In the portrait
orientation, appears on the left side of the
page. In the landscape orientation,
appears in the upper line of the page.
Printer Menu
This menu allows you to reset the printer settings or cancel the
current job.
Item
Explanation
Default Set
This menu item allows you to restore the
printer’s factory default settings.
Current Job
You can cancel the current print job and
remove it from the printer buffer.
2.8 USING THE CONTROL PANEL
Color Menu
This menu allows you to adjust the color setting.
Item
Explanation
Options: Off, Auto*, Run Now
Calibration
This menu item allows you to calibrate the
printer for the best possible color printer
quality.
• Off: The printer is calibrated by the
default setting.
• Auto: It automatically calibrates the
printer to produce the best possible print
quality for color documents.
• Run Now: It manually calibrates the
printer.
This item allows you to adjust a specific
color contrast individually.
• CMYK: It allows you to adjust the contrast
of the toner in each toner cartridge.
Default: It optimizes the colors
automatically.
Custom Color
Manual Adjust: It allows you to
manually adjust the selected color
contrast for each cartridge.
Note: You should use the Default setting
for a best color quality.
Setup Menu
Use the Setup menu to configure a variety of printer features.
(*: the default setting)
Item
Explanation
Options: English*, German, French, Italian,
Spanish, Portuguese, Russian
LCD Language
The LCD Language setting determines the
language of the text that appears on the
control panel display and information
printing.
USING THE CONTROL PANEL 2.9
2
Item
Explanation
Options: 5 Minutes, 10 Minutes, 15 Minutes, 30
Minutes*, 45 Minutes, 60 Minutes, 120 Minutes
Power Save
When the printer does not receive data for
an extended period of time, power
consumption is automatically lowered. Set
how long the printer waits before going to
power save.
Options: Off, On*
This item determines whether or not the
printer continues printing when it detects
paper mismatched to your paper setting.
Auto Continue
• Off: If a paper mismatch occurs, the
message remains on the display and the
printer remains off-line until you insert the
correct paper.
• On: If the paper is mismatched, an error
message displays. The printer goes off-line
for 30 seconds then automatically clears
the message and continues printing.
Options: Off*, On
Jam Recovery
This item determines how the printer
behaves when a paper jam occurs.
• Off: The printer does not reprint pages.
Printing performance might be increased
with this setting.
• On: The printer automatically reprints
pages after you clear the paper jam.
Options: Low*, High
Altitude Adj.
You can optimize the print quality according
to your altitude.
2.10 USING THE CONTROL PANEL
Item
Explanation
This item allows you to maintain the toner
cartridge and other consumables.
• Check Others
Maintenance
Imaging Unit: allows you to check the
total number of images printed.
Transfer Belt: allows you to check the
total number of images printed.
Fuser, Transfer Roll., MP Pickroll ,
Tray1 Pickroll , Tray2 Pickroll : These
items are only for the service technians.
• Alarm Shortage: This item determines
how the printer behaves when the
consumables are low.
Off: The printer does not display the
warning message.
On: The printer displays the warning
message.
USING THE CONTROL PANEL 2.11
2
Network Menu
This menu lets you configure the network interface card
installed in your printer according to how the network is set up.
You can upgrade the firmware of the network interface card, and
print the configuration.
NOTE: This menu only appears when a Network Card is fitted
(CLP-500N or CLP-500 with optional Network card).
(*: the default setting)
Item
Explanation
Options: Yes, No*
Sets whether or not you want to
configure the network.
Config Network
If you select Yes, you can configure the
TCP/IP and Netware menus.
If you select Yes, the following options
are available: Config TCP, Netware
and Config Netware.
Options: Yes, No*
Select whether you want to set the IP
address or not.
Config TCP
If you select Yes, you can configure IP
address item.
If you select Yes, the following options
are available: IP Get Method, IP
Address, Subnet Mask and
Gateway.
Options: Static*, BOOTP, DHCP
You can set this item only when you set
the Config TCP to Yes.
IP Get Method
2.12 USING THE CONTROL PANEL
• Static: You can enter IP address,
subnetmask, and gateway manually.
• BOOTP: The BOOTP server allots the
IP address to you automatically.
• DHCP: The DHCP server allots the IP
address to you automatically.
Item
IP Address
Explanation
You can select this item only when you
set IP Get Method to Static. This item
lets you enter the IP address manually.
Press the scroll button to set the value of
the 1st byte between 1 and 255, and
then press the Enter button.
Set the value for the 2nd to the 4th byte
the same way.
Subnet Mask
You can set this item only when you set
IP Get Method to Static. This item lets
you enter the subnet mask manually.
Press the scroll button to set the value of
the 1st byte between 1 and 255, and
then press the Enter button.
Set the value for the 2nd to the 4th byte
the same way.
Gateway
You can set this item only when you set
IP Get Method to Static. This item lets
you enter the gateway manually. Press
the scroll button to set the value of the
1st byte between 1 and 255, and then
press the Enter button.
Set the value for the 2nd to the 4th byte
the same way.
Values: Yes, No*
Configure the Wireless Network
environments.
Config 802.11b
If you select Yes, the following options
are available : SSID, Operation Mode,
Channel, Authentication, Encryption,
Using Key, KeyType and Key.
See “Configuring the Wireless Network”
on page B.12
Note: This menu only appears when a
Wireless Network interface Card is fitted.
USING THE CONTROL PANEL 2.13
2
Item
Explanation
Options: On*, Off
You can select whether or not you want
to use the Netware protocol.
Netware
If you select On, you can access the
Config Netware menu item.
In the Config Netware menu, you can
specify the frame type parameter used
on your network.
Options: Yes, No*
Config Netware
You can set this item only when you set
Netware to On. This item lets you
select whether or not you set the frame
type parameter. Select Yes to select the
frame type.
If you select Yes, the IPX Frame Type
option appears on the display.
Values: Auto*, EN_8022, EN_8023, EN_II,
EN_SNAP
You can select this item only when you
set Config Netware to Yes. This item
lets you select IPX Frame Type.
IPX Frame Type
• Auto:You can set the frame type
automatically.
• EN_8022: Select this value to use the
IEEE 802.2 frame type.
• EN_8023:Select this value to use the
IEEE 802.3 frame type.
• EN_II :Select this value to use the
ETHERNET II frame type.
• EN_SNAP:Select this value to use the
SNAP frame type.
Reset Network
This item reboots the network interface
card.
Default Set
This item performs a simple reset and
restores the factory default for the
network configuration.
Print Net CFG
This item prints a page showing the
network parameters you set.
2.14 USING THE CONTROL PANEL
3
USING PRINT MATERIALS
This chapter will help you understand the types of paper you
can use with your printer and how to properly load paper in
the different paper trays for the best print quality.
This chapter includes:
• Choosing Paper and Other Materials
• Loading Paper
• Printing on Special Print Materials
Choosing Paper and Other Materials
You can print on a variety of print materials, such as plain paper,
envelopes, labels, transparencies and so on. See “Printing on
Special Print Materials” on page 3.14. To get the best possible
print quality, use only high-quality copier-grade paper.
When you choose print materials, consider the following:
• Desired outcome: The paper you choose should be
appropriate for the project.
• Size: You can use any size paper that fits easily within the
paper adjusters of the paper tray.
• Weight : Your printer supports paper weighs as follows:
-16~24lbs (60~90g/m2) bond for Tray 1 or
optional Tray 2
-16~43lbs (60~163g/m2) bond for the
Multi-purpose Tray
-20~24lbs (75~90g/m2) bond for duplex printing
• Brightness: Some papers are whiter than others and
produce sharper, more vibrant images.
• Surface smoothness: The smoothness of the paper affects
how crisp the printing looks on the paper.
CAUTION: Using a material that does not conform to the
specifications listed on page D.7 can cause problems that may
require service. This service is not covered by the warranty or
service agreements.
Sizes and Capacities
Input Source/Capacity*
Size
Tray 1
Tray 2
(option)
Multipurpose Tray
Manual
Feed
250
500
100
1
Envelopes
—
—
10
1
Labels**
—
—
10
1
Transparencies**
—
—
30
1
Card stock**
—
—
10
1
Plain Paper
*Depending on paper thickness, the maximum capacity may be reduced.
** If you are experiencing excessive jamming, feed one sheet at a time through the
Multi-purpose Tray.
3.2
USING PRINT MATERIALS
Guidelines for Paper and Special Materials
When selecting or loading paper, envelopes, or other special
materials, keep these guidelines in mind:
• Attempting to print on damp, curled, wrinkled, or torn paper
can cause paper jams and poor print quality.
• Use cut-sheet paper only. You cannot use multi-part paper.
• Use only high-quality, copier grade paper for the best print
quality.
• Do not use paper with irregularities, such as tabs or staples.
• Do not attempt to load any tray while printing and never
overfill the tray. This could cause a paper jam.
• Avoid paper with embossed lettering, perforations, or a
texture that is too smooth or too rough.
• Colored paper should be of the same high quality as white
photocopy paper. The pigments must withstand the printer’s
fusing temperature of 180°C (356°F) for 0.1 seconds without
deteriorating. Do not use paper with a colored coating that
was added after the paper was produced.
• Preprinted forms must be printed with nonflammable, heatresistant ink that does not melt, vaporize, or release
hazardous emissions when subject to the printer’s fusing
temperature.
• Store paper in its ream wrapper until you are ready to use it.
Place cartons on pallets or shelves, not on the floor.
• Do not place heavy objects on top of the paper, whether it is
packaged or unpackaged.
• Keep paper away from moisture, direct sunlight or other
conditions that can cause it to wrinkle or curl.
NOTE: Do not use carbonless paper and tracing paper. They are
unstable at the fusing temperature and can give of fumes, or
cause damage to the printer.
USING PRINT MATERIALS
3.3
3
Loading Paper
Proper paper loading helps prevent paper jams and ensure
trouble-free printing. Do not remove the paper tray while a job
is printing. Doing so may cause a paper jam. See “Sizes and
Capacities” on page 3.2 for acceptable paper capacities for each
tray.
Using Tray 1
The tray, Tray 1, can hold a maximum of 250 sheets of plain A4
and letter-sized paper.
You can purchase an optional tray, Tray 2, and attach it below
Tray 1, to load an additional 500 sheets of paper.
1 Pull the tray out of the printer.
2 Push down on the metal plate until it locks into position.
3.4
USING PRINT MATERIALS
3 Flex the paper sheets back and forth to separate the pages,
and then fan them while holding one edge. Tap the edge of
the stack on a flat surface to even it up.
3
4 Load paper with the print side facing up.
Make sure that all four corners are flat in the tray and under
the corner brackets as shown below.
USING PRINT MATERIALS
3.5
5 Do not exceed the maximum stack height. Overfilling the
tray may cause a paper jam.
6 While pinching the paper guide as shown, move it toward
the paper until it lightly touches the side of the stack. Do
not press the guide too tightly against the edge of the
paper; the guide may bend the paper.
NOTE: If you want to change the paper size in the tray, refer to
page 3.7.
7 Slide the tray back into the printer.
8 When you print a document, select the paper type, size and
source in your software application. For details, see
page 4.7.
3.6
USING PRINT MATERIALS
Changing the Paper Size in the Tray
The tray is preset to Letter or A4 size, depending on your
country. To change the size to A4 or Letter, you must adjust the
paper length guide properly.
1 Lift the paper length guide and place it in the correct
3
position for the paper size you are loading.
Paper length guide
To remove the paper length guide, turn it slightly to your
right to release the locks on the bottom of the guide, then
pull it up.
To place the paper length guide in the paper position you
want, insert the locks on the bottom of the guide into the
desired paper slot and push it all the way in.
USING PRINT MATERIALS
3.7
2 Load paper with the print side facing up. For more
information see steps 4 and 5 on page 3.5~3.6.
3 While pinching the paper guide as shown, move it toward
the paper until it lightly touches the side of the stack. Do
not push the guide to tightly against the edge of the paper
as it may cause the paper to bend.
Using the Optional Tray 2
The optional tray, Tray 2, can hold a maximum of 500 sheets of
plain paper.
To load paper in Tray 2, follow the instructions for loading paper
on page 3.4.
3.8
USING PRINT MATERIALS
Using the Multi-purpose Tray
The Multi-purpose Tray is located on the right side of your
printer. It can be closed when you are not using it, making the
printer more compact.
3
Multi-purpose Tray
The Multi-purpose Tray can hold several sizes and types of
material, such as transparencies, cards and envelopes. You may
also want to use the Multi-purpose Tray for single page print jobs
on letterhead, colored paper for use as separator sheets, or
other special materials that you do not normally keep in the
paper tray. You can load approximately 100 sheets of plain
paper, 10 envelopes, 30 transparencies, 10 sheets of card stock
or 10 labels at a time.
• Load only one size of print material at a time in the
Multi-purpose Tray.
• To prevent paper jams, do not add paper when there is still
paper in the Multi-purpose Tray. This also applies to other
types of print materials.
• Print materials should be loaded face down with the top edge
going into the Multi-purpose Tray first and be placed in the
center of the tray.
To load print material in the Multi-purpose Tray:
1 Lower the Multi-purpose Tray and unfold the paper support
extension as shown.
USING PRINT MATERIALS
3.9
2 If you are using paper, flex or fan the edge of the paper
stack to separate the pages before loading.
For transparencies, hold them by the edges and avoid
touching the print side. Oils from your fingers can cause
print quality problems.
3 Load the print material with the print side facing down
and against the right edge of the tray.
4 Pinch the paper width guide and slide it to the right to touch
lightly against the edge of the material without bending it.
3.10 USING PRINT MATERIALS
If you want to print on previously printed paper from the
Multi-purpose Tray, the printed side should be facing up
with the uncurled edge towards the printer. If you
experience problems with the paper feeding, turn the paper
around.
NOTE: Make sure that you have
not loaded too much print
material.
The print material buckles if you
load a stack that is too deep or if
you push it in too far.
3
5 When you print a document, set the paper source to MP
Tray and select the correct paper type in the software
application. For details, see page 4.7.
NOTE: After printing fold away the
paper support extension and close
the Multi-purpose Tray.
USING PRINT MATERIALS 3.11
Using the Manual Feed
If you select Manual in the Source option when changing print
settings, you can manually load a sheet of print material in
Multi-purpose Tray. Manually loading paper can be helpful when
you want to check the print quality after each page is printed.
This loading procedure is almost the same as the procedure for
loading in the Multi-purpose Tray, except you load paper
sheet-by-sheet in the Tray, send print data to print the first
page, and press the On Line/Continue button ( ) on the
control panel to print each following page.
1 Load a sheet of print material with the print side down
and against the right edge of the Multi-purpose Tray.
2 Pinch the paper width guide and slide it to the right to touch
lightly against the edge of the paper without bending it.
3.12 USING PRINT MATERIALS
3 When you print a document, you must select Manual for
Source in the software application, and then select the
correct paper size and type. For details, see page 4.7.
3
4 Print the document.
The display shows a message prompting you to load paper.
5 Press the On Line/Continue button (
).
The printer picks up the print material and prints. After one
page is printed, the message appears again.
6 Insert the next sheet into the Multi-purpose Tray and press
the On Line/Continue button (
).
Repeat this step for every page to be printed.
USING PRINT MATERIALS 3.13
Printing on Special Print Materials
Printing on Envelopes
• Load envelopes into the Multi-purpose Tray only.
• Only use envelopes recommended for laser printers. Before
loading envelopes in the Multi-purpose Tray, make sure that
they are undamaged and are not stuck together.
• Do not feed stamped envelopes.
• Never use envelopes with clasps, snaps, windows, coated
linings, or self-stick adhesives.
To print on envelopes:
1 Open the Multi-purpose Tray and unfold the paper support.
2 Flex or fan the edge of the envelope stack to separate them
before loading.
3 Load the envelopes into the Multi-purpose Tray with the
flap side up. The end of the envelope with the stamp area
enters the printer first.
3.14 USING PRINT MATERIALS
4 Pinch the paper width guide and slide it to the right to touch
lightly against the edge of the stack without bending it.
3
5 When you print, configure the paper source to MP Tray, the
paper type to Envelope and the paper size in the software
application. For details, see page 4.7.
USING PRINT MATERIALS 3.15
Printing on Labels
• Only use labels recommended for laser printers.
• Verify that the labels’ adhesive material can tolerate a fusing
temperature of 180°C (356°F) for 0.1 seconds.
• Make sure that there is no exposed adhesive material
between the labels. Exposed areas can cause labels to peel
off during printing, which can cause paper jams. Exposed
adhesive can also cause damage to the printer components.
• Never print on the same sheet of labels more than once or
print on a partial sheet of labels.
• Do not use labels that are separating from the backing sheet
or are wrinkled or damaged in any way.
• To prevent labels from sticking together, do not let the printed
label sheets stack up as they are printed out.
To print on labels:
1 Open the Multi-purpose Tray and unfold the paper support.
2 Load labels only in the Multi-purpose Tray with the print
side down and the top, short edge in first. Adjust the guide
to fit the width of the labels.
3.16 USING PRINT MATERIALS
3 When you print, configure the paper source to MP Tray, the
paper type to Labels and the size in the software
application. For details, see page 4.7.
3
Printing on Transparencies
• When you print a color document do not use transparencies
with an attached backing sheet. This may cause print quality
problems.
• Only use transparencies recommended for use in laser
printers.
• Ensure that transparencies do not have torn edges and are
not wrinkled or curled.
• Hold the transparencies by the edges and avoid touching the
print side. Oils from your fingers can cause print quality
problems.
• Be careful not to leave fingerprints on or scratch the print
side.
• You should use the following paper type:
A4: 003R96002, Letter: 3R3108
NOTE: Before printing on
transparencies, make sure that
the output support is laid down.
USING PRINT MATERIALS 3.17
To print on transparencies:
1 Open Multi-purpose Tray and unfold the paper support.
2 Only load transparencies into the Multi-purpose Tray. They
must be loaded with the print side downwards and the
top with the white leading edge entering the printer
first. Adjust the guide to fit the width of the transparencies.
3.18 USING PRINT MATERIALS
3 When you print, configure the paper source to MP Tray, the
paper type to Transparency, and the paper size in the
software application. For details, see page 4.7.
3
NOTES:
• To prevent transparencies from sticking together, do not let the
printed sheets stack up as they are printed out.
• Place transparencies on a flat surface after removing them from
the printer.
• Prints made on transparency film with this printer are not
compatible with overhead projectors and may appear as a black
and white image if projected.
USING PRINT MATERIALS 3.19
Printing on Preprinted Paper
• Preprinted paper is paper that has some type of printing
placed on it before it is sent through the printer (paper that
has a preprinted logo at the top of the page, for example).
• Letterhead must be printed with heat-resistant ink that will
not melt, vaporize, or release hazardous emissions when
subjected to the printer’s fusing temperature of 180°C
(356°F) for 0.1 seconds.
• Ink on letterhead must be non-flammable and should not
adversely affect any printer rollers.
• Forms and letterhead should be sealed in moisture-proof
wrapping to prevent changes during storage.
• Before you load preprinted paper, such as forms and
letterhead, verify that the ink on the paper is dry. During the
fusing process, wet ink can come off of preprinted paper,
reducing the print quality.
To print on preprinted paper:
1 Open the Multi-purpose Tray and unfold the paper support.
2 Load letterhead only in the Multi-purpose Tray with the
print side down and the top, short edge, in first.
Adjust the guide to fit the width of the paper stack.
3.20 USING PRINT MATERIALS
3 When you print, configure the paper source to MP Tray, the
paper type to Preprinted, and the paper size in the
software application. For details, see page 4.7.
3
Printing on Card Stock or Custom-sized
Materials
• Postcards, 3.5in. by 5.5in. (index) cards and other customsized materials can be printed with your printer. The
minimum size is 90mm by 140mm (3.5in. by 5.5in.) and the
maximum size is 216mm by 356mm (8.5in. by 14in.).
• Always insert the short edge into the Multi-purpose Tray first.
If you want to print in landscape mode, make this selection
using your software. Inserting paper long edge first may
cause a paper jam.
• Do not load more than 10 cards into the Multi-purpose Tray at
a time.
• Do not print on material smaller than 90mm (3.5in.) wide or
140mm (5.5in.) long.
• Set margins at least 4.3mm away from the edges of the
material in the software application.
USING PRINT MATERIALS 3.21
To print on card stock:
1 Open the Multi-purpose Tray and unfold the paper support.
2 Load print material only in the Multi-purpose Tray with the
print side down and the short edge first. Slide the guide
until it lightly touches the stack without bending it.
3.22 USING PRINT MATERIALS
3 When you print, configure the paper source to MP Tray, the
paper type and size in the software application. For details,
see page 4.7.
3
If the size of your print material is not listed in the Size box
in the Paper tab, click the Custom button and set the size
manually. See page 4.7.
USING PRINT MATERIALS 3.23
MEMO
3.24 USING PRINT MATERIALS
4
PRINTING TASKS
This chapter explains the printing options and common
printing tasks.
This chapter includes:
• Printer Driver Features
• Printing a Document
• Printer Settings
Printer Driver Features
Your printer drivers will support the following standard features:
• Paper source selection
• Paper size, orientation and media type
• number of copies
Table below lists a general overview of features supported by
your printer drivers.
SPL
Feature
4.2 PRINTING TASKS
Win9x/Me
Win2000/XP
NT4.0
Color mode
Y
Y
Y
Print quality option
Y
Y
Y
Poster printing
Y
Y
Y
Double-sided printing
Y
Y
Y
Booklet printing
Y
Y
Y
Multiple pages per sheet
(N-up)
Y
Y
Y
Fit to page printing
Y
Y
Y
Scale printing
Y
Y
Y
Different source for first
page
Y
Y
Y
Watermark
Y
Y
Y
Overlay
Y
Y
Y
TrueType fonts option
Y
Y
Y
Printing a Document
The following procedure describes the general steps required for
printing from various Windows applications. The exact steps for
printing a document may vary depending on the application
program you are using. Refer to the User’s Guide of your
software application for the exact printing procedure.
NOTE: For detailed information about printing from a Linux
system, see Appendix A.
4
1 Open the document you want to print.
2 Select Print from the File menu. The Print window opens.
It may look slightly different depending on your application.
You can select the basic print settings within the Print
window. These settings include the number of copies and
the print range.
Make sure that your
printer is selected.
œWindows 98
3 To take advantage of the printer features provided by your
printer, click Properties in the application’s print window.
For details, see “Printer Settings” on page 4.5
If you see a Setup, Printer or Options button in your Print
window, click it instead. Then click Properties on the next
screen.
4 Click OK to close the Properties window.
5 To start the print job, click OK in the Print window.
PRINTING TASKS
4.3
Canceling a Print Job
A print job can be stopped from a program, from a print queue,
or from the Cancel button ( ) on the printer.
To stop a print job from the control panel:
• If the print job is already printing, press the Cancel button
( ). The printer finishes printing the pages that are already
moving through the printer and deletes the remainder of the
print job.
• Pressing the Cancel button ( ) cancels only the current job
in the printer. If more than one print job is in the printer
memory, you must press the Cancel button once for each job
after the job starts printing.
To stop a print job from the Printers folder:
If the print job is waiting in a print queue or print spooler, such
as the Printer group in Windows, delete the job as follows:
1 From the Windows Start menu, select Settings.
2 Select Printers to open the Printers window, and
double-click the Samsung CLP-500 Series icon.
3 From the Document menu, select Cancel Printing
(Windows 9x/Me) or Cancel (Windows NT 4.0/2000/XP).
œWindows 98
4.4 PRINTING TASKS
Printer Settings
You can use the Samsung CLP-500 Series Properties window,
which allows you to access all of the information you need when
using your printer. When the printer properties are displayed, you
can review and change whatever settings are needed for your print
job.
Your printer’s Properties window consists of 5 tabs: Layout,
Paper, Graphics, Extras and About.
If you access the printer properties through the Printers folder,
you can view more Windows-based tabs; refer to your Windows
User’s Guide.
The printer’s Properties window may differ, depending on your
operating system. This User’s Guide shows the Properties window
on Windows 98.
Notes:
• Most Windows applications will override the settings you specify in
the printer driver. Change all of the print settings available in the
software application first, and change any remaining settings using
the printer driver.
• The settings you change remain in effect only while you are using
the current program. To make your changes permanent, make
them in the Printers folder. Follow this procedure:
1. Click the Windows Start menu.
2. For Windows 95/98/Me/NT 4.0/2000, select Settings and then
Printers.
For Windows XP, select Printers and Faxes.
3. Select the Samsung CLP-500 Series printer.
4. Click the right mouse button on the printer icon and:
• In Windows 95/98/Me, select Properties.
• In Windows 2000/XP, select Printing Preferences.
• In Windows NT 4.0, select Document Default.
5. Change the settings on each tab, and click OK.
PRINTING TASKS
4.5
4
Layout tab
The Layout tab provides options for you to adjust how the
document appears on the printed page. The Layout Options
includes Multiple Pages per Side, Booklet Printing, and
Poster. You can also use Duplex(Double-sided Duplex) in
this tab. See page 4.3 for more information on accessing your
software application.
1
2
The preview image
shows the sample page
with the settings you
specified.
3
Property
1 Orientation
Description
Orientation allows you to select the
direction in which information is printed
on a page.
• Portrait prints across the width of the
page, letter style.
• Landscape prints across the length of
the page, spreadsheet style.
If you want to turn the page upside
down, select Rotate 180 Degrees.
œLandscape
œportrait
2 Layout
Options
3 Duplex(Double
-Sided Duplex)
4.6 PRINTING TASKS
Layout Options allows you to select
advanced printing options. For details ,
see Chapter 5, "Advanced Printing."
Duplex(Double-Sided Duplex)
allows you to automatically print twosided documents. If you use the printer
driver’s default setting, select Printer
Setting. For details, see page 5.3.
Paper tab
You can use the following options for the basic paper handling.
See page 4.3 for more information about accessing your
software application.
Click the Paper tab to display the Paper properties.
1
4
2
3
4
5
6
Property
1 Copies
2
Size
Description
Copies allows you to choose the number of
copies to be printed. You can enter up to 999.
Size allows you to choose the size of the
paper loaded in the tray.
If the required size is not listed in the Size
box, click Custom. When the Custom
Paper Size window appears, set the paper
size and click OK. The setting appears on the
list so that you can select it.
Enter the custom
name you want to
use.
Enter the paper
size.
PRINTING TASKS
4.7
Property
3 Source
Description
Make sure that Source is set to the
corresponding paper tray.
Use the Manual source when printing to
special material. You have to load one sheet
at a time into the Multi-purpose Tray. See
page 3.9.
If the paper source is set to Auto Select,
the printer automatically picks up print
material in the following order: Multi-purpose
Tray, Tray1, Optional Tray2.
4 Type
Make sure that Type is set to Plain Paper.
If you load a different type of print material,
select the corresponding paper type. For
more information on print material, refer to
Chapter 3, "Using Print Materials."
If you use cotton paper 16lb to 24lb
(60~90g/m2), such as Gilbert 25% and
Gilbert 100%, set the paper type to Cotton
for the best printing.
To use recycled paper, select Recycled
Paper.
5 Different
Source for
First Page
This property allows you to print the first
page using a different paper type from the
rest of the document. You can select the
paper source for the first page.
For example, load thick stock for the first
page into the Multi-purpose Tray, and plain
paper into Tray1. Then, select Tray1 in the
Source option and MP Tray in the
Different Source for First Page option.
6 Scaling
Scaling allows you to automatically or
manually scale your printer job on a page.
You can choose from None, Scale Printing,
Fit to Page. For details, see page 5.4 and
page 5.5.
4.8 PRINTING TASKS
Graphics tab
Use the following graphic options to adjust the print quality for
your specific printing needs. See page 4.3 for more information
about accessing your software application.
Click the Graphics tab to display the Graphics properties.
1
4
2
3
Property
1 Resolution
2 Color Mode
Description
You can select the printing resolution by
choosing from 1200 dpi (Best),
600 dpi (Normal). The higher the setting,
the sharper the printed characters and
graphics. The higher settings may increase
the time it takes to print a document.
You can set the color options. Setting to
Color typically produces the best possible
print quality for color documents. If you
want to print a color document in grayscale,
select Grayscale.
PRINTING TASKS
4.9
Property
Description
2 Color Mode
If you click Adjust Color, you can change
the appearance of the document’s images.
(Continued)
The preview image
shows the sample
page with the
settings you
specified.
• Color Basics: You can adjust the
appearance of the images by changing
the settings in the Levels option.
• Tone Tuning: You can adjust the
tonal range of images by changing the
Tone Curve option.
• Color Info: This tab contains
information about the driver’s color
conversion system.
3 Advanced
Options
You can make advanced settings by clicking
the Advanced Options button.
TrueType Options
This option is only avaliable when you
use Windows 9x. This option
determines what the driver tells the
printer about how to image the text in
your document. Select the appropriate
setting according to the status of your
document.
• Download as Bit Image: When this
option is selected, the driver will
download the font data as bitmap
images. Documents with complicated
fonts, such as Korean or Chinese, or
various types of fonts will print faster in
this setting.
4.10 PRINTING TASKS
Property
3 Advanced
Options
(Continued)
Description
• Print as Graphics: When this option
is selected, the driver will download any
fonts as graphics. When printing
documents with high graphic content
and relatively few TrueType fonts,
printing performance (speed) may be
enhanced in this setting.
• Darken Text: When this option is
selected all text in your document prints
darker than normal.
• Print All Text Black: When this option
is selected all text in your document
prints solid in black, regardless of the
color it appears on the screen. When it
is not selected colored text prints in
shades of gray.
PRINTING TASKS 4.11
4
Extras tab
See page 4.3 for more information about accessing your
software application. Click the Extras tab to access the
following features:
1
2
3
Option
1 Watermark
2 Overlay
3 Output
Options
Description
You can create a background image of text
to print on each page of your document. See
“Using Watermarks” on page 5.10.
Overlays are often used to take the place of
preprinted forms and letterhead paper. See
“Using Overlays” on page 5.13.
Print Order: You can set the sequence for
the pages to print. Select the print order
from the drop-down list.
• Normal: Your printer prints all pages from
the first page to the last page.
• Reverse All Pages: Your printer prints
all pages from the last page to the first
page.
• Print Odd Pages: Your printer prints
only the odd pages of the document.
• Print Even Pages: Your printer prints
only the even pages of the document.
Reverse Duplex: In duplex printing, your
printer reverses the order of the printed
pages.
4.12 PRINTING TASKS
Option
3 Output
Options
(Continued)
Description
Reprint When Jammed: When this
option is checked, the printer keeps the
image for a printed page until the printer
signals that the page has successfully exited
the printer. When a paper jam occurs, the
printer reprints the last page after you clear
the jam.
About tab
4
Use the About tab to display the copyright notice and the
version number of the driver. If you have an Internet browser,
you can connect to the Internet by clicking the website icon. See
page 4.3 for more information about accessing your software
application.
Using a Favorite Setting
The Favorites option, which is visible on each tab, allows you
to save the current properties settings for future use.
To save a Favorites item:
1 Change the settings as needed on each tab.
2 Enter a name for the item in the Favorites input box.
PRINTING TASKS 4.13
3 Click Save.
When you save Favorites, all current driver settings are
saved.
To use a saved setting, select the item from the Favorites drop
down list.
The printer is now set to print according to the Favorites setting
you selected.
To delete a Favorites item, select it from the list and click
Delete.
You can also restore the printer driver’s default settings by
selecting <Printer Default> from the list.
Using Help
Your printer has a help screen that can be activated using the
Help button in the printer’s Properties window. The help screen
gives you detailed information about the printer features
provided by the printer driver.
You can also click
in the upper right hand corner, and then
click on any setting.
4.14 PRINTING TASKS
5
ADVANCED PRINTING
This chapter explains the printing options and advanced
printing tasks.
This chapter includes:
• Printing on Both Sides of the Paper
• Scaling Your Document
• Fitting Your Document to a Selected Paper Size
• Printing Multiple Pages on One Sheet of the Paper
• Printing Posters
• Printing Booklets
• Using Watermarks
• Using Overlays
Printing on Both Sides of the Paper
You can print on both sides of the paper automatically. Before
printing, decide how you want your documents oriented.
The options are:
• Long Edge, which is the conventional layout used in book
binding, or portrait.
• Short Edge, which is the type often used with calendars, or
landscape.
2
2
3
2
3
2
5
5
3
5
3
5
œLong Edge
œShort Edge
NOTES:
• Do not print on both sides of labels, transparencies, envelopes,
or thick paper. Paper jamming and damage to the printer may
result.
• To use double-sided printing, you can use only the following
paper sizes: A4, Letter, Legal and Folio that weigh 20~24lbs
(75~90g/m2).
There are two ways to enable or disable double-sided printing:
Using the Control Panel Menu
Select Duplex in the Layout menu. Set the Duplex Margin
item in the same menu, if necessary. See page 2.7 for more
details.
For further details about using the control panel menu, see
page 2.5.
5.2 ADVANCED PRINTING
From the software application
1 When you change the print settings from your software
application, access the printer’s Properties. See page 4.3.
2 From the Layout tab, select the paper orientation.
3 From the Duplex(Double-Sided Duplex) section, select
either Printer Setting, None, Short Edge, or Long Edge.
5
4 Click the Paper tab and select the paper source, size and
type.
5 Click OK and print the document.
NOTE:
• The settings in the software application override those on the
control panel.
• When you select the Reverse Duplex option in the Extra tab,
your printer reverses the order of the printed pages.
ADVANCED PRINTING
5.3
Scaling Your Document
You can scale your print job on a page.
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 From the Paper tab, select Scale Printing from the Type
drop-down list.
3 Enter the scaling rate in the Percentage input box.
You can also click the œor ❷ button.
4 Select the paper source, size and type in Paper Options.
5 Click OK and print the document.
5.4 ADVANCED PRINTING
Fitting Your Document to a Selected
Paper Size
A
This printer feature allows you to scale your print job to any
paper size regardless of the digital document size. This can be
useful when you want to check the fine details on a small
document.
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 From the Paper tab, select Fit to Page from the Type
drop-down list.
5
3 Select the correct size from the Target Paper drop-down
list.
4 Select the paper source, size and type in Paper Options.
5 Click OK and print the document.
ADVANCED PRINTING
5.5
Printing Multiple Pages on One
Sheet of the Paper
1
2
3
4
You can select the number of pages to print on a single sheet of
paper. To print more than one page per sheet, the pages are
smaller and arranged in the order you specify on the sheet. You
can print up to 16 pages on one sheet.
1 To change the print settings from your software application,
access the printer Properties. See page 4.3.
2 From the Layout tab, choose Multiple Pages per Side
from the Type drop-down list.
3 Select the number of pages you want to print per sheet
(1, 2, 4, 9 or 16) from the Pages per Side drop-down list.
4 Select the page order from the Page Order drop-down list,
if necessary.
1
2
1
3
2
1
3
1
3
4
2
4
4
3
4
2
Right, Then
Down
Down, Then
Right
Left, Then
Down
Down, Then
Left
The Page Order drop down list is enabled only if the
number of pages per side is 4, 9 or 16.
5.6 ADVANCED PRINTING
Check Print Page Border to print a border around each
page on the sheet. Print Page Border is enabled only if
the number of pages per side is 2, 4, 9, or 16.
5 Click the Paper tab and select the paper source, size and
type.
6 Click OK and print the document.
Printing Posters
This feature allows you to print a single-page document onto 4,
9 or 16 sheets of paper, for the purpose of pasting the sheets
together to form one poster-sized document.
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 From the Layout tab, select Poster from the Type dropdown list.
ADVANCED PRINTING
5.7
5
3 Configure the poster option:
You can select the page layout from 2x2, 3x3 or 4x4. If you
select 2x2, the image is automatically stretched to cover 4
physical pages.
Specify an overlap in millimeters or inches to make it easier
to pasting the sheets together.
0.1 inches
0.1 inches
4 Click the Paper tab and select the paper source, size and
type.
5 Click OK and print the document. You can complete the
poster by pasting the sheets together.
5.8 ADVANCED PRINTING
Printing Booklets
The Booklet printing feature allows you to print your document
on both sides of the paper and arranges the pages so that the
paper can be folded in half after printing to produce a booklet.
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 From the Layout tab, choose Booklet Printing from the
Type drop-down list.
5
NOTE: The booklet printing option is available when A4, Letter,
Legal or Folio size is selected in the Size option on the Paper tab.
3 Click the Paper tab, and select the paper source, size and
type.
4 Click OK and print the document.
5 After printing, fold and
staple the pages.
8
9
ADVANCED PRINTING
5.9
Using Watermarks
The Watermark option allows you to print text over an existing
document. For example, you may want to have large gray letters
reading “DRAFT” or “CONFIDENTIAL” printed diagonally across
the first page or all of the pages of a document.
There are several predefined watermarks that come with your
printer, and they can be modified or you can add new ones to
the list.
Using an Existing Watermark
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 Click the Extras tab, and select a watermark from the
Watermark drop-down list. You will see the selected
watermark in the preview image.
Preview
3 Click OK and start printing.
NOTE: The preview image shows how the page will look when it is
printed.
5.10 ADVANCED PRINTING
Creating a Watermark
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 Click the Extras tab, and click the Edit Watermarks
button in the Watermark section. The Watermarks window
appears.
5
3 Enter a text message in the Watermark Message box. You
can enter up to 40 characters and it displays in the preview
window.
When the First Page Only box is checked, the watermark
prints on the first page only.
4 Select the watermark options.
You can select the font name, style, color, grayscale level
and size from the Font Attributes section and set the
angle of the watermark from the Message Angle section.
5 Click Add to add a new watermark to the list.
6 When you finish editing, click Ok and start printing.
To stop printing the watermark, select <No Watermark>
from the Watermark drop-down list.
ADVANCED PRINTING 5.11
Editing a Watermark
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 Click the Extras tab, and click the Edit Watermarks
button in the Watermark section. The Watermarks window
appears.
3 Select the watermark you want to edit from the Current
Watermarks list to change the watermark message and
the options. Refer to page 5.11.
4 Click Update to save the changes.
5 Click Ok.
Deleting a Watermark
1 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
2 From the Extras tab, click the Edit Watermarks button in
the Watermark section. The Watermarks window appears.
3 Select the watermark you want to delete from the Current
Watermarks list and click Delete.
4 Click Ok.
5.12 ADVANCED PRINTING
Using Overlays
What is an Overlay?
Dear ABC
Regards
WORLD BEST
An overlay is text and/or images stored on the computer hard
disk drive (HDD) as a special file format that can be printed on
any document. Overlays are often used to take the place of
preprinted forms and letterhead paper. Rather than using
preprinted letterhead, you can create an overlay containing the
exact same information that is currently on your letterhead. To
print a letter with your company’s letterhead, you need only tell
the printer to print the letterhead overlay on your document.
Creating a New Page Overlay
To use a page overlay, you must create a new page overlay
containing your logo or image.
1 Create or open a document containing text or an image for
WORLD BEST
use in a new page overlay. Position the items exactly as you
wish them to appear when printed as an overlay. If needed,
save the file for later use.
2 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
3 Click the Extras tab, and click the Edit Overlays button in
the Overlay section.
ADVANCED PRINTING 5.13
5
4 In the Overlays window, click Create Overlay.
5 In the Create Overlay window, type a name of up to eight
characters in the File name box. Select the destination
path, if necessary. (The default is C:\Formover).
6 Click Save. The name appears on the Overlay List box.
7 Click OK or Yes to finish creating.
The file is not printed out. Instead it is stored on your
computer hard disk drive.
NOTE: The overlay document size must be the same as the
documents you print with the overlay. Do not create an overlay
with a watermark.
5.14 ADVANCED PRINTING
Using a Page Overlay
After an overlay has been created, it is ready to be printed with
your document. To print an overlay with a document:
1 Create or open the document you want to print.
2 When you change the print settings from your software
application, access the printer Properties. See page 4.3.
3 Click the Extras tab.
4 Select an overlay from the Overlay drop-down list box.
5 If the overlay file you want does not appear on the Overlay
list, click the Edit Overlays button and Load Overlay, and
select the overlay file.
If you have stored the overlay file you want to use in an
external source, you can also load the file when you access
this Load Overlay window.
After you select the file, click Open. The file appears in the
Overlay List box and is available for printing. Select the
overlay from the Overlay List box.
ADVANCED PRINTING 5.15
5
6 If necessary, click Confirm Page Overlay When Printing.
If this box is checked, a message window appears each
time you submit a document for printing, asking you to
confirm your wish to print an overlay on your document.
If this box is empty and an overlay has been selected, the
overlay automatically prints with your document.
7 Click OK or Yes until the printing starts.
The selected overlay downloads with your print job and
prints on your document.
NOTE: The resolution of the overlay document must be the same
as that of the document you are printing with the overlay.
Deleting a Page Overlay
You can delete page overlays that you no longer use.
1 In the printer Properties window, click the Extras tab.
2 Click Edit Overlays button in the Overlay section.
3 Select the overlay you want to delete from the Overlay
List box.
4 Click Delete Overlay.
5 Click OK until you exit the Print window.
5.16 ADVANCED PRINTING
6
MAINTAINING YOUR PRINTER
This chapter provides information for maintaining your
printer and suggestions for high-quality and economical
printing.
This chapter includes:
• Printing a Configuration Page
• Replacing the Supplies
• Managing the Toner Cartridges
• Replacing the Toner Cartridges
• Replacing the Waste Toner Container
• Replacing the Imaging Unit
• Replacing the Transfer Belt
• Cleaning the Printer
• Replacement Part
Printing a Configuration Page
You can print a configuration page from the printer’s control
panel. Use the configuration page to view the current settings,
to help troubleshoot problems, or to verify the installation of
optional accessories, such as memory or an optional tray.
To print the configuration page:
1 In ready mode press the Menu button (
) on the control
panel until you see ‘Information’ on the bottom line of the
display.
2 Press the Enter button (
) to access the menu.
3 Press the Enter button (
) when ‘Configuration’ displays
on the bottom line.
The configuration page prints out.
6.2
MAINTAINING YOUR PRINTER
Replacing the Supplies
From time to time, you need to replace the following items to
maintain top performance and to avoid print quality problems.
Refer to the table below:
Printer message
Pages Printed
See
page
Black toner
cartridge
Replace Black
Toner
7,000 pages*
6.8.
Color toner
cartridges
Replace [Color]
Toner
5,000 pages*
6.8.
Waste toner
container
Waste Toner Tank
Full/Not Install
12,000 pages
for black and
3,000 pages for
color**
6.11.
Imaging Unit
Replace
Imaging Unit
50,000 pages
for black and
12,500 pages
for color**
6.14.
Replace
Transfer Belt
50,000 pages
for black and
12,500 pages
for color**
6.22.
Item(s)
Transfer Belt
6
*Average A4-/letter-sized pages counts based on 5% coverage of
individual colors on each page. Usage conditions and print patterns
may cause results to vary.
**The number of pages may be affected by operating environment, media
type, media size, and color vs. black printing.
MAINTAINING YOUR PRINTER
6.3
Managing the Toner Cartridges
Toner Cartridge Storage
To get the maximum results from the toner cartridge, keep the
following guidelines in mind:
• Do not remove the toner cartridges from their packages until
you are ready to use them.
• Do not refill the toner cartridges. The printer warranty
does not cover damage caused by using a refilled
cartridge.
• Store the toner cartridges in the same environment as the
printer.
• To prevent damage to the toner cartridges, do not expose
them to light for more than a few minutes.
Toner Cartridge Life Expectancy
The life of the toner cartridge depends on the amount of toner
that your print jobs require. When printing text at 5% coverage,
a new toner cartridge lasts an average of 7,000 pages for black
and 5,000 pages for each color. The starter toner cartridge
supplied with the printer lasts an average of 2,000 pages for
black and 1,500 pages for each color.
6.4
MAINTAINING YOUR PRINTER
Redistributing the Toner
When a toner cartridge is nearly empty, faded or light areas may
appear. Equally it is possible that colored images may have
incorrect colors due to incorrect mixing of the toner colors when
one of the colored toner cartridge is nearly empty. 'Ready
[Color] Low Toner' appears on the display. The printer can
continue to print using the current toner cartridge until the
control panel displays a message telling you to replace the
cartridge.
You may be able to temporarily improve the print quality by
redistributing the toner. The control panel display tells you which
color cartridge is low in toner.
1 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
6
MAINTAINING YOUR PRINTER
6.5
2 Pull the handle lightly first, and then holding the used toner
cartridge, remove it.
CAUTION: If you open the left cover for a few minutes, the
imaging unit can be exposed to light. This causes damage to the
imaging unit.
3 Holding both sides of the toner cartridge, gently roll it from
side to side to redistribute the toner.
NOTE: If toner gets on your clothing, wipe it off with a dry cloth
and wash it in cold water. Hot water sets toner into fabric.
6.6
MAINTAINING YOUR PRINTER
4 Slide the toner cartridge back into the printer.
5 Close the left cover. Make sure that the cover is securely
latched.
6
If you are installed the toner cartridges wrong, the left
cover will not close properly. Check again to make sure the
colors correspond. Never use force to close the cover.
MAINTAINING YOUR PRINTER
6.7
Replacing the Toner Cartridges
The printer uses four colors and has a different toner cartridge
for each one: cyan (C), magenta (M), yellow (Y), and black (K).
Replace a toner cartridge when the printer control panel displays
‘Replace [Color] Toner’. The control panel display tells you which
color needs to be replaced.
1 Turn the printer off, then wait a few minutes for the printer
to cool.
2 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
3 Pull the handle lightly first, and then holding the used toner
cartridge, remove it.
CAUTION: If you open the left cover for a few minutes, the
imaging unit can be exposed to light. This causes damage to the
imaging unit. Close the top and left cover should the setup need to
be halted for any reason.
6.8
MAINTAINING YOUR PRINTER
4 Take a new toner cartridge out of the package.
CAUTION: Don’t use sharp objects, such as a knife or scissors, to
open the toner cartridge package. You could damage the surface
of the toner cartridge.
5 Holding both sides of the toner cartridge, gently roll it from
side to side to distribute the toner.
6
6 Place the toner cartridge on a flat surface as shown and
remove the paper covering the toner cartridge by removing
the tape.
NOTE: If toner gets on your clothing, wipe it off with a dry cloth
and wash it in cold water. Hot water sets toner into fabric.
MAINTAINING YOUR PRINTER
6.9
7 Make sure that the color of the toner cartridge matches the
color slot and then slide the new toner cartridge into the
printer. Using both hands, grip the cartridge to insert into
the slot. Then hold the handle to slide the cartridge in.
•When the toner cartridges are correctly installed the yellow
and black cartridges are not fully inserted. These will be
pushed into place when you close the left cover.
8 Close the left cover. Make sure that the cover is securely
latched, and then turn the printer on.
If you have installed the toner cartridges wrongly, the left
cover will not close properly. Check again to make sure the
cartridge colors correspond to those marked on the right
hand side. Never use force to close the cover.
6.10 MAINTAINING YOUR PRINTER
Replacing the Waste Toner
Container
The life of the waste toner container is approximately 12,000
pages for black and 3,000 pages for color. Replace the waste
toner container when the control panel displays ‘Waste Toner
Tank Full/Not Install’.
1 Unlatch the front cover, by quickly pressing and releasing it
using the depressions at the top.
6
2 Push the lock lever up and pull the waste toner container
out.
NOTE: Make sure that you lay the waste toner container on a flat
surface so that the toner does not spill.
MAINTAINING YOUR PRINTER 6.11
3 Remove the container’s caps which are attached as shown
below and use them to close the waste toner container.
4 Take a new waste toner container out of the package.
5 Insert the lower of the new container into place and then
push it to make sure that it is seated in place.
6 Make sure that the lock lever latches the container.
6.12 MAINTAINING YOUR PRINTER
7 Close the front cover. Make sure that the cover is securely
latched.
8 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
6
9
Close the left cover firmly.
MAINTAINING YOUR PRINTER 6.13
Replacing the Imaging Unit
The life of the imaging unit is approximately 50,000 pages for
black and 12,500 pages for color. Replace the imaging unit when
the printer control panel displays ‘Replace Imaging Unit’.
1 Turn the printer off, then wait a few minutes for the printer
to cool.
2 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
CAUTION: If the left cover is not completely open, the top cover
release button does not press.
6.14 MAINTAINING YOUR PRINTER
3 Press the top cover release button to unlatch the top cover
and open it all the way.
4 Pull the lock levers on each side towards you, as shown
below, to release the transfer belt.
6
MAINTAINING YOUR PRINTER 6.15
5 Using the handle, lift the transfer belt out of the printer by
lightly pulling it towards the left of the printer. Set it on a
clean flat surface.
6 Lift the handle of the used imaging unit and use it to pull
the imaging unit out of the printer.
6.16 MAINTAINING YOUR PRINTER
7 Take a new imaging unit out of the package using the
handle.
8 Remove the paper covering the imaging unit by removing
the tape under the handle of the imaging unit.
CAUTIONS:
• Don’t use sharp objects, such as a knife or scissors, to open the
imaging unit package and tape on the protective paper liner. You
could damage the surface of the imaging unit.
• To prevent damage, do not expose the imaging unit to light for
more than a few minutes. Cover it with black paper, if necessary.
• Close the top and left cover should the setup need to be halted
for any reason.
• Do not touch the surface of the green roller on the imaging unit
or print quality problems can occur.
9 Locate the imaging unit slots inside the printer, one on each
side.
MAINTAINING YOUR PRINTER 6.17
6
10 Hold the handle of the new imaging unit with the green
roller facing you. Align the imaging unit with the slots in
your printer so that the colors on both sides of the imaging
unit slide into the corresponding colors of the slots.
CAUTION: Insert the imaging unit carefully so as not to scratch
and damage the surface of the green roller.
11 Slide the imaging unit down into the printer until it cannot
be pushed in any further and fold the handle down.
6.18 MAINTAINING YOUR PRINTER
12 To replace the transfer belt, hold its handle and then align it
with the slots inside your printer, on each side.
NOTE: Do not turn the transfer belt over. If you do this, the toner
may spill.
13 Slide the transfer belt down into the printer and press it
firmly into place.
MAINTAINING YOUR PRINTER 6.19
6
14 Firmly push the lock levers on each side towards the top
cover, as shown below, to lock the transfer belt into place.
15 After making sure that the left cover is open, close the top
cover. Make sure that it is securely latched.
CAUTION: Do not try to close the left cover with the top cover
open. This may cause damage to the printer.
6.20 MAINTAINING YOUR PRINTER
16 Close the left cover firmly.
17 Turn the printer on.
18 In ready mode press the Menu button (
) on the control
panel until you see ’Setup’ on the bottom line of the display.
19 Press the Enter button (
) to access the menu.
20 Press the scroll button (
or
) until ‘Maintenance’
displays on the bottom line and press the Enter button
( ).
21 Press the scroll button (
or
) to until ‘Check Others’
displays on the bottom line and press the Enter button
( ).
22 Press the scroll button (
or
) to until ‘Imaging Unit’
displays on the bottom line and press the Enter button
( ).
23 Press the scroll button (
press the Enter button (
or
).
) to display ‘Reset’ and
24 ‘Reset Now’ appears on the bottom line of the display and
the printer returns to the ready mode.
NOTE: After replacing the imaging unit, you must reset the image
counter for the imaging unit. If you do not this, ‘Replace Imaging
Unit’ continuously appears on the display.
MAINTAINING YOUR PRINTER 6.21
6
Replacing the Transfer Belt
The life of the transfer belt is approximately 50,000 black pages
and 12,500 color pages. Replace the transfer belt when the
control panel displays ‘Replace Transfer Belt’.
To replace the transfer belt:
1 Turn the printer off, then wait a few minutes for the printer
to cool.
2 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
CAUTION: If the left cover is not completely open, the top cover
release button does not press.
6.22 MAINTAINING YOUR PRINTER
3 Press the top cover release button to unlatch the top cover
and open it all the way.
4 Pull the lock levers on each side towards you, as shown
below, to release the transfer belt.
6
MAINTAINING YOUR PRINTER 6.23
5 Using the handle, lift the used transfer belt out of the
printer by lightly pulling it towards the left of the printer.
NOTE: Keep the transfer belt level, do not turn the transfer belt
over otherwise looses toner may be spilled.
6 Take a new transfer belt out of the package.
7 Remove the paper covering the transfer belt by removing
the tape.
CAUTION: Don’t use sharp objects, such as a knife or scissors, to
open the transfer belt package. You could damage the surface of
the transfer belt.
6.24 MAINTAINING YOUR PRINTER
8 Pinch the transfer belt tention levers on both sides of the
transfer belt. Then, pull them out, as shown below.
9 Locate the transfer belt slots inside the printer, one on each
side.
6
CAUTION: To prevent damage, do not expose the imaging unit to
light for more than a few minutes. Close the top and left cover
should the setup need to be halted for any reason.
MAINTAINING YOUR PRINTER 6.25
10 Hold the handle on the new transfer belt and then align it
with the slots inside your printer, on each side.
NOTE: Keep the transfer belt level, do not turn the transfer belt
over otherwise looses toner may be spilled.
11 Slide the new transfer belt down into the printer and press
it firmly into place.
6.26 MAINTAINING YOUR PRINTER
12 Firmly push the lock levers on each side towards the top
cover, as shown below, to lock the transfer belt into place.
13 After making sure that the left cover is open, close the top
cover. Make sure that it is securely latched.
6
CAUTION: Do not try to close the left cover with the top cover
open. This may cause damage to the printer.
MAINTAINING YOUR PRINTER 6.27
14 Close the left cover firmly.
15 Turn the printer on.
16 In ready mode press the Menu button (
) on the control
panel until you see ’Setup’ on the bottom line of the display.
17 Press the Enter button (
) to access the menu.
18 Press the scroll button (
or
) until ‘Maintenance’
displays on the bottom line and press the Enter button
( ).
19 Press the scroll button (
or
) to until ‘Check Others’
displays on the bottom line and press the Enter button
( ).
20 Press the scroll button (
or
) to display ‘Transfer Belt’
on the bottom line and press the Enter button ( ).
21 Press the scroll button (
press the Enter button (
or
).
) to display ‘Reset’ and
22 ‘Reset Now’ appears on the bottom line of the display and
the printer returns to the ready mode.
NOTE: After replacing the transfer belt, you must reset the image
counter for the transfer belt. If you do not this, ‘Replace Transfer
Belt’ continuously appears on the display.
6.28 MAINTAINING YOUR PRINTER
Cleaning the Printer
During the printing process, particles of paper, toner and dust
can accumulate inside the printer. Over time, this build-up can
cause print-quality problems such as toner specks or smearing.
Your printer has a cleaning mode that can correct and prevent
these types of problems.
Cleaning the Outside of the Printer
Clean the cabinet of the printer with a soft, lint-free cloth. You
can dampen the cloth slightly with water, but be careful not to
be let any water drip onto the printer or inside of it.
NOTE: While cleaning the inside of the printer, be careful not to
touch the transfer roller. Oil from your fingers can cause print
quality problems.
CAUTION: Cleaning the cabinet of the printer with cleaners
containing large amounts of alcohol, solvent or other strong
substances can discolor or crack the cabinet.
MAINTAINING YOUR PRINTER 6.29
6
Cleaning the LSU Inside the Printer
NOTE: Clean the LSU when you remove the particles of paper,
toner and dust inside the printer.
Open and close the left cover to clean the LSU inside of the
printer automatically.
1 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
2 Close the left cover firmly.
6.30 MAINTAINING YOUR PRINTER
Cleaning the Inside of the Printer
NOTE: While cleaning the inside of the printer, be careful not to
touch the transfer roller. Oil from your fingers can cause print
quality problems.
1 Turn the printer off and unplug the power cord, then wait a
few minutes for the printer to cool.
2 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
6
CAUTION: If the left cover is not completely open, the top cover
release button does not press.
MAINTAINING YOUR PRINTER 6.31
3 Pull the handle lightly first, and then holding the toner
cartridges, remove them from the printer. Set them on a
clean flat surface.
4 Press the top cover release button to unlatch the top cover
and open it all the way.
CAUTION: If you open the left cover for a few minutes, the
imaging unit can be exposed to light. This causes damage to the
imaging unit. Close the top and left cover should the setup need to
be halted for any reason.
6.32 MAINTAINING YOUR PRINTER
5 Pull the lock levers on each side towards you, as shown
below, to release the transfer belt.
6 Using the handle, lift the transfer belt out of the printer by
lightly pulling it towards the left of the printer. Set it on a
clean flat surface.
MAINTAINING YOUR PRINTER 6.33
6
7 Lift the handle of the imaging unit and use it to pull the
imaging unit out of the printer. Set it on a clean flat surface.
CAUTIONS:
• To prevent damage, do not expose the imaging unit to light for
more than a few minutes. Cover it with black paper, if necessary.
• Close the top and left cover should the setup need to be halted
for any reason.
• Do not touch the surface of the green roller on the imaging unit
or print quality problems can occur.
8 Look inside the printer. Remove any dust, paper particles,
and spilled toner with a damp, soft lint-free cloth or small
vacuum cleaner.
6.34 MAINTAINING YOUR PRINTER
9 Insert the imaging unit back into the printer. Make sure you
hear it click, and then fold the handle down. For details, see
steps 9 to 10 on page 6.17.
CAUTION: Replace the imaging unit carefully so as not to scratch
and damage the surface of the green roller on the imaging unit.
10 Insert the transfer belt back into the printer. Press it firmly
to make sure it fits into place. For details, see steps 9 and
10 on page 6.25.
NOTE: Keep the transfer belt level, do not turn the transfer belt
over otherwise looses toner may be spilled.
MAINTAINING YOUR PRINTER 6.35
6
11 Firmly push the lock levers on each side towards the top
cover, as shown below, to lock the transfer belt into place.
12 After making sure that the left cover is open, close the top
cover. Make sure that it is securely latched.
CAUTION: Do not try to close the left cover with the top cover
open. This may cause damage to the printer.
6.36 MAINTAINING YOUR PRINTER
13 Look inside the printer on the right and then locate the color
of the toner cartridges that matches the color of the slot.
K
Black
Y
Yellow
M
Magenta
C
Cyan
14 Holding each toner cartridge, insert them into their
corresponding positions in order of Cyan, Magenta, Yellow
and then Black. Using both hands, grip the cartridge to
insert into the slot. Then hold the handle to slide the
cartridge in.
6
Grip here.
K
Y
M
C
•When the toner cartridges are correctly installed the yellow
and black cartridges are not fully inserted. These will be
pushed into place when you close the left cover.
MAINTAINING YOUR PRINTER 6.37
15 Close the left cover. Make sure that it is securely latched.
If you have installed the toner cartridges wrongly, the left
cover will not close properly. Check again to make sure the
cartridge colors correspond to those marked on the right
hand side. Never use force to close the cover.
16 Plug the power cord in and turn the printer on.
Replacement Part
From time to time, you will need to replace the roller and fuser
unit to maintain top performance and avoid print quality
problems and paper feed problems resulting from worn parts.
The following items should be replaced after you have printed a
specified number of pages. See the table below.
Item(s)
Yield (Average)
Pick-up roller
Approx. 150,000 pages
Transfer roller
Approx. 50,000 pages
Fuser unit
Approx. 100,000 black pages (50,000
color pages)
To purchase the replacement parts, contact your Samsung
dealer or the retailer where you bought your printer. We strongly
recommend that items be installed by a trained service
professional.
6.38 MAINTAINING YOUR PRINTER
7
SOLVING PROBLEMS
This chapter provides helpful information for what to do if
you encounter an error while using your printer.
This chapter includes:
• Troubleshooting Checklist
• Solving General Printing Problems
• Clearing Paper Jams
• Solving Print Quality Problems
• Understanding Display Messages
• Common Windows Problems
• Common Linux Problems
Troubleshooting Checklist
If the printer is not working properly, consult the following
checklist. If the printer does not pass a step, follow the
corresponding troubleshooting suggestions.
Check
Make sure that the
On Line/Continue
button on the control panel
is green and “Ready” is
shown on the display.
Solution
• If the button backlight is off, check the power cord
connection. Check the power switch. Check the power
source by plugging it into another outlet.
• If the button backlight is orange, check the display
message and go to “Understanding Display Messages” on
page 7.26.
Print a demo page to verify
that the printer is feeding
paper correctly. See the
Setup Guide.
• If a demo page does not print, check the paper supply in
the paper tray.
• If the paper jams in the printer, go to “Clearing Paper
Jams” on page 7.7.
• If an error message appears on the display, go to
“Understanding Display Messages” on page 7.26.
Check the demo page to see
if it is printed correctly.
If there is a print quality problem, go to “Solving Print
Quality Problems” on page 7.22.
Print a short document
from a software application
to verify that the computer
and printer are connected
and are communicating
correctly.
• If the page does not print, check the cable connection
between the printer and the computer.
• Check the print queue or print spooler to see if the
printer has been paused.
• Check the software application to ensure that you are
using the proper printer driver and communication port.
If the page is interrupted during printing, go to “Solving
General Printing Problems” on page 7.3.
If completing the checklist
does not resolve the printer
problem, check the
following troubleshooting
sections.
•
•
•
•
7.2
SOLVING PROBLEMS
See
See
See
See
“Solving General Printing Problems” on page 7.3.
“Understanding Display Messages” on page 7.26.
“Common Windows Problems” on page 7.30.
“Common Linux Problems” on page 7.31.
Solving General Printing Problems
For problems with the operation of your printer, refer to the table
for suggested solutions.
Problem
The printer does
not print.
Possible Cause
Solution
The printer is not
receiving power.
Check the power cord connections. Check
the power switch and the power source.
The printer is not
selected as the default
printer.
Select Samsung CLP-500 Series as your
default printer.
Check the printer for
the following:
• The printer cover is
not closed.
• Paper is jammed.
• No paper is loaded.
• The toner cartridge is
not installed.
Solve the problems.
The printer may be in
manual feed mode and
out of paper.
Check the display message, add paper to
the Multi-purpose Tray and press the
On Line/Continue button on the printer’s
control panel.
The connection cable
between the computer
and the printer is not
connected properly.
Disconnect the printer cable and reconnect
it.
The connection cable
between the computer
and the printer is
defective.
If possible, attach the cable to another
computer that is working properly and print
a document. You can also try using a
different printer cable.
The port setting is
incorrect.
Check the Windows printer setting to make
sure that the print job is sent to the correct
port, for example, LPT1. If the computer
has more than one port, make sure that the
printer is attached to the correct one.
The printer may be
configured incorrectly.
Check the printer properties to ensure that
all of the print settings are correct.
The printer driver may
be incorrectly installed.
Reinstall the printer driver; refer to the
Setup Guide. Try printing a demo page.
The printer is
malfunctioning.
Check the display message on the control
panel to determine if the printer is
indicating a system error.
SOLVING PROBLEMS
7.3
7
Problem
Possible Cause
Solution
Printer selects
print materials
from the wrong
paper source.
The paper source
selection in the printer
properties may be
incorrect.
For many software applications, the paper
source selection is found under the Paper
tab within the printer properties. Select the
correct paper source. See page 4.7.
Paper does not
feed into the
Printer.
Paper has been loaded
incorrectly.
Remove paper from the tray and reload it
correctly.
Print job is
extremely slow.
Check that the paper size adjusters are set
correctly.
There is too much
paper in the paper tray.
Remove excess paper from the tray.
The paper is too thick.
Use only paper that meets the specifications
required by the printer.
The job may be very
complex.
Reduce the complexity of the page or try
adjusting the print quality settings.
Adjust the print quality settings, such as
reducing the resolution. If you set the
resolution to 1200 dpi (Best) change it to
600 dpi (Normal).
Change the port setting to the USB or
network port to improve the print speed.
Your printer prints A4-sized paper at 20
ppm and letter-sized paper at 21 ppm in
black &white mode. For color printing, A4/
letter-sized paper prints at 5 ppm.
Half the page is
blank.
7.4
If using Windows 9x/
Me, the Spooling
Setting may be set
incorrectly.
From the Start menu, choose Settings and
Printers. Right-click the Samsung
CLP-500 Series printer icon, choose
Properties, click the Details tab, and then
choose the Spool Settings button. Select
the desired spool setting.
The page orientation
setting may be
incorrect.
Change the page orientation in your
application. See page 4.6.
The paper size and the
paper size settings do
not match.
Ensure that the paper size in the printer
driver settings matches the paper in the
tray.
SOLVING PROBLEMS
Problem
Possible Cause
The paper
keeps jamming.
There is too much
paper in the paper tray.
Solution
Remove excess paper from the tray.
If printing on special materials, use the
Multi-purpose Tray.
Check that the paper size adjusters are set
correctly.
An incorrect type of
paper is being used.
Use only paper that meets the specifications
required by the printer.
If printing on special materials, use the
Multi-purpose Tray.
The printer
prints, but the
text is wrong,
garbled, or
incomplete.
Pages print, but
are blank.
The illustrations
print incorrectly
in Adobe
Illustrator.
There may be debris
inside the printer.
Open the top cover and remove the debris.
The printer cable is
loose or defective.
Disconnect the printer cable and reconnect.
Try a print job that you have already printed
successfully. If possible, attach the cable
and printer to another computer and try a
print job that you know works. Finally, try a
new printer cable.
The wrong printer
driver was selected.
Check the application’s printer selection
menu to ensure that your printer is
selected.
The software
application is
malfunctioning.
Try printing a job from another application.
The operating system is
malfunctioning.
Exit Windows and reboot the computer.
Turn the printer off and then back on again.
The toner cartridge is
defective or out of
toner.
Redistribute the toner. If necessary, see
page 6.5.
The file may have blank
pages.
Check the file to ensure that it does not
contain blank pages.
Some parts, such as
the controller or the
board, may be
defective.
Contact a service representative.
The setting in the
software application is
wrong.
Select Download as Bit Image in the
Advanced Options window of the graphic
properties. Print the document.
If necessary, replace the toner cartridge.
SOLVING PROBLEMS
7.5
7
Problem
Possible Cause
The printing
quality of photo
is not clear.
The resolution is set to
600 dpi (Normal).
Change the resolution to 1200 dpi (Best)
and then try to print again.
The resolution of photo
is very low.
If you adjust the photo size in the software
application, the resolution will be reduced.
Reduce the photo size and then improve the
resolution.
7.6
SOLVING PROBLEMS
Solution
Clearing Paper Jams
NOTE: When removing paper that is jammed in the printer if
possible always pull the paper in the direction that it normally
moves so as not to damage internal components. Allways pull
firmly and evenly, do not jerk the paper. If the paper tears ensure
that all fragments of paper are removed, otherwise a jam will
occur again.
The display on the control panel tells you where a paper jam
occurs. Refer to the table below to locate the paper jam and to
clear it:
Message
Location of Jam
Go to...
Jam0 In Tray1
In the paper feed area
page 7.8
Jam0 In Tray2
In the optional tray 2
page 7.18
Jam
Inside Printer
Inside printer
page 7.10
Jam
In Exit Area
In the paper exit area
page 7.11
Jam
In Duplex Path
In the duplex area
page 7.14
Jam0 In MP Tray
In the multi-purpose tray
page 7.10
To resume printing after clearing paper jams, you must open
and close the right cover.
SOLVING PROBLEMS
7.7
7
In the Paper Feed Area
If paper is jammed in the paper feed area, ‘Jam0 In Tray1’
appears on the display.
1 Using the handle, open the right cover.
2 Carefully remove the misfed paper in the direction as
shown. Go to step 6.
If there is any resistance, and the paper does not move
immediately when you pull, stop pulling and go to step 3.
7.8
SOLVING PROBLEMS
3 Pull the tray open. After you pull it all the way out, lift up
the front part of the tray slightly to release the tray from
the printer.
4 Remove the jammed paper by gently pulling it straight out.
7
5 To replace the tray, lower the rear edge, align it to the slot
and slide it into the printer.
6 Close the right cover. The printer resumes printing.
SOLVING PROBLEMS
7.9
In the Multi-purpose Tray
‘Jam0 In MP Tray’ appears on the display when you print using
the Multi-purpose Tray and the printer detects either there is no
paper or the paper is improperly loaded.
If the paper is not feeding properly, pull the paper out of the
printer.
To resume printing, open and close the right cover.
Inside the Printer
If paper is jammed inside the printer, ‘Jam Inside Printer’
appears on the display.
1 Using the handle, open the right cover.
7.10 SOLVING PROBLEMS
2 Remove the jammed paper, in the direction shown. To avoid
the paper tearing, pull it out gently and slowly.
NOTE: If the paper tears, make sure that all of the paper
fragments are removed from the printer.
3 Close the right cover. The printer resumes printing.
In the Paper Exit Area
If paper is jammed in the paper exit area, ‘Jam In Exit Area’
appears on the display.
1 If a long portion of the paper is visible, pull it straight out.
Go to step 7.
If you cannot find the jammed paper or there is any
resistance removing the paper, go to step 2.
SOLVING PROBLEMS 7.11
7
2 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
CAUTION: If the left cover is not completely open, the top cover
release button does not press.
3 Press the top cover release button to unlatch the top cover
and open it all the way.
7.12 SOLVING PROBLEMS
4 Carefully take the jammed paper out of the printer.
The fuser
is hot!
CAUTION: Do not touch the fuser. It is hot and could cause
burns! The fuser’s operating temperature is 180°C (356° F). Take
care when removing paper from the printer.
5 After making sure that the left cover is open, close the top
cover. Make sure that it is securely latched.
7
CAUTION: Do not try to close the left cover with the top cover
open. This may cause damage to the printer.
SOLVING PROBLEMS 7.13
6 Close the left cover firmly.
7 Open and close the right cover to resume printing.
In the Duplex Area
If paper is jammed in the duplex area, ‘Jam In Duplex Path’
appears on the display.
1 Using the handle, open the right cover.
7.14 SOLVING PROBLEMS
2 Locate the jammed paper, and then pull it out gently and
slowly to avoid the paper tearing. Go to step 8.
OR
NOTE: If the paper tears, make sure that all of the paper
fragments are removed from the printer.
If you cannot find the jammed paper or there is any
resistance removing the paper, go to step 3.
3 Using the handle, completely open the left cover until it is at
right angles to the main frame and the toner cartridges are
ejected.
7
CAUTION: If the left cover is not completely open, the top cover
release button does not press.
SOLVING PROBLEMS 7.15
4 Press the top cover release button to unlatch the top cover
and open it all the way.
5 Locate the jammed paper, and then carefully take it out of
the printer.
The fuser
is hot!
CAUTION: Do not touch the fuser. It is hot and could cause
burns! The fuser’s operating temperature is 180°C (356°F). Take
care when removing paper from the printer.
7.16 SOLVING PROBLEMS
6 After making sure that the left cover is open, close the top
cover. Make sure that it is securely latched.
CAUTION: Do not try to close the left cover with the top cover
open. This may cause damage to the printer.
7 Close the left cover firmly.
7
8 Close the right cover. The printer resumes printing.
SOLVING PROBLEMS 7.17
In the Optional Tray2
If paper is jammed in the optional tray2, ‘Jam0 In Tray2’
appears on the display.
1 Using the handle, open the right cover.
2 Remove the jammed paper in the direction shown. To avoid
the paper tearing, pull it out gently and slowly. Go to step
10.
If you cannot find the jammed paper in the printer, go to
step 3.
7.18 SOLVING PROBLEMS
3 Open the outer jam cover in Tray 2.
4 Open the inner cover of Tray 2.
7
5 Pull the jammed paper out in the direction shown. To avoid
the paper tearing, pull it out gently and slowly.
SOLVING PROBLEMS 7.19
6 Close the two jam covers and go to step 10.
If there is any resistance, and paper does not move
immediately when you pull, stop pulling and continue to
step 7.
7 Pull the optional tray2, out of the printer.
8 If you see the jammed paper, remove the paper from the
printer by gently pulling it straight out.
7.20 SOLVING PROBLEMS
9 Slide the tray back into the printer and close the two jam
covers.
10 Open and close the right cover. The printer resumes
printing.
Tips for Avoiding Paper Jams
By selecting the correct paper types, most paper jams can be
avoided. If a paper jam occurs, follow the steps outlined in
“Clearing Paper Jams” on page 7.7.
• Follow the procedures on page 3.4. Ensure that the adjustable
guides are positioned correctly.
• Do not overload the paper tray. Ensure that the paper is below
the paper limit mark on the inside wall of the tray.
• Do not remove the paper from the tray while printing.
• Flex, fan and straighten the paper before loading.
• Do not use creased, damp or highly curled paper.
• Do not mix paper types in the tray.
• Use only recommended print materials. See “Paper
Specifications” on page D.4.
• Ensure that the print side is facing down when loading paper
in the tray and in the Multi-purpose Tray.
SOLVING PROBLEMS 7.21
7
Solving Print Quality Problems
Dirt inside of the printer or improper paper loading may reduce
the print quality. See the table below to troubleshoot the
problem.
Problem
Solution
Light or faded
print
If a vertical white streak or faded area appears on the page:
• The toner supply is low. You may be able to temporarily
extend the toner cartridge life. See “Redistributing the Toner”
on page 6.5. If this does not improve the print quality, install a
new toner cartridge of faded color.
• The paper may not meet paper specifications (for example,
the paper is too moist or too rough). See “Paper
Specifications” on page D.4.
• A combination of faded or smeared defects may indicate that
the toner cartridge needs cleaning. See page 6.31.
• The surface of the LSU may be dirty. Clean the LSU. See
page 6.30.
AaBbCc
AaBb
Cc
AaBb
Aa
BbCc
Cc
AaBb
Aa
BbCc
Cc
AaBb
Aa
BbCc
Cc
AaBb
Aa
BbCc
Cc
Toner specs
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Dropouts
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
7.22 SOLVING PROBLEMS
• The paper may not meet specifications (for example, the
paper is too moist or too rough). See “Paper Specifications” on
page D.4.
• The transfer roller or the paper path may be dirty. See
“Cleaning the Inside of the Printer” on page 6.31.
If generally rounded, faded areas occur randomly on the page:
• A single sheet of paper may be defective. Try reprinting the
job.
• The moisture content of the paper is uneven or the paper has
moist spots on its surface. Try a different brand of paper. See
“Paper Specifications” on page D.4.
• The paper lot is bad. The manufacturing process can cause
some areas to reject toner. Try a different kind or brand of
paper.
• The toner cartridge may be defective. See “Vertical repetitive
defects” on the next page.
• If these steps do not correct the problems, contact a service
representative.
Problem
Vertical lines
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Color or Black
background
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
Solution
If black vertical streaks appear on the page:
• The imaging unit inside the printer has probably been
scratched. Install a new imaging unit.
If white vertical lines appear on the page:
• The Laser Scanner window has probably been contaminated,
clean the Laser Scanner window. Holding the end of the
cleaner, slide it in and out several times. See “Cleaning the
LSU Inside the Printer” on page 6.30.
If the amount of background shading becomes unacceptable,
the procedures below may fix the problem.
• Change to lighter weight pages. See “Paper Specifications” on
page D.4.
• Check the printer’s environment; very dry (low humidity) or
high humidity (higher than 80% RH) conditions can increase
the amount of background shading.
• Remove the old imaging unit and install a new one. See
“Replacing the Imaging Unit” on page 6.14.
Toner smear
• Clean the inside of the printer. See “Cleaning the Inside of the
Printer” on page 6.31
• Check the paper type and quality. See “Paper Specifications”
on page D.4.
• Remove the transfer belt and install a new one. See “Replacing
the Transfer Belt” on page 6.22.
Vertical repetitive
defects
If marks repeatedly appear on the printed side of the page at
even intervals:
• Clean the inside of the printer. See “Cleaning the Inside of the
Printer” on page 6.31. After cleaning the inside of the printer,
if you still have the same problems, install a new toner
cartridge of defected color. See “Replacing the Toner
Cartridges” on page 6.8.
• Parts of the printer may have toner on them. If the defects
occur on the back of the page, the problem will likely correct
itself after a few more pages.
• The fusing assembly may be damaged. Contact a service
representative.
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
SOLVING PROBLEMS 7.23
7
Problem
Solution
Background scatter
Background scatter results from bits of toner distributed on the
printed page.
• The paper may be too damp. Try printing with a different batch
of paper. Do not open packages of paper until necessary so
that the paper does not absorb too much moisture.
• If background scatter occurs on an envelope, change the
printing layout to avoid printing over areas that have
overlapping seams on the reverse side. Printing on seams can
cause problems.
• If background scatter covers the entire surface area of a
printed page, adjust the print resolution through your software
application or the printer properties.
A
Misformed
characters
• If characters are improperly formed and producing hollow
images, the paper stock may be too slick. Try a different paper.
See “Paper Specifications” on page D.4.
• If characters are improperly formed and producing a wavy
effect, the scanner unit may need service. Verify that it also
occurs on a demo page. Refer to the Setup Guide. For service,
contact a service representative.
Page skew
• Check the paper type and quality. See “Paper Specifications”
on page D.4.
• Ensure that the paper or other material is loaded correctly and
the guides are not too tight or too loose against the paper
stack.
AaBbC
AaBbCcc
AaBbCc
AaBbCc
AaBbCc
Curl or wave
• Check the paper type and quality. Both high temperature and
humidity can cause paper curl. See “Paper Specifications” on
page D.4.
• Turn the stack of paper over in the tray. Also try rotating the
paper 180° in the tray.
Wrinkles or
creases
Ensure that the paper is loaded properly.
• Check the paper type and quality. See “Paper Specifications”
on page D.4.
• Turn the stack of paper over in the paper tray. Also try rotating
the paper 180° in the tray.
7.24 SOLVING PROBLEMS
Problem
Back of printouts
are dirty
Color or Black
pages
A
Solution
• The transfer roller may be dirty. See “Cleaning the Inside of
the Printer” on page 6.31.
• Check for leaking toner. Clean the inside of the printer.
• The imaging unit may not be installed properly. Remove the
imaging unit and reinsert.
• The imaging unit may be defective and need replacing. Install
a new imaging unit.
• The printer may require repair. Contact a service
representative.
Loose toner
Clean the inside of the printer.
• Check the paper type and quality. See “Paper Specifications”
on page D.4.
• Install a new toner cartridge. See “Replacing the Toner
Cartridges” on page 6.8.
• If the problem persists, the printer may require repair. Contact
a service representative.
Character Voids
Character voids are white areas within the parts of characters
that should be solid black:
• If you are using transparencies, try another type of
transparency. Due to the composition of the transparency,
some character voids are normal.
• You may be printing on the wrong surface on the paper.
Remove the paper and turn it around.
• The paper may not meet paper specifications. See page D.4.
A
Horizontal stripes
AaBbCc
AaBbCc
AaBbCc
AaBbCc
AaBbCc
If horizontally aligned color or black streaks or smears appear:
• The imaging unit may be installed improperly. Remove the
imaging unit and reinsert.
• The imaging unit may be defective. Install a new imaging unit.
See “Replacing the Imaging Unit” on page 6.14.
• If the problem persists, the printer may require repair. Contact
a service representative.
SOLVING PROBLEMS 7.25
7
Understanding Display Messages
Messages appear on the display on the control panel to indicate
the printer’s status or errors. Refer to the tables below to
understand the message’s meaning and correct the problem if
necessary. Messages and their meanings are listed in
alphabetical order.
NOTE: When you call for service, it is very helpful to tell the
service representative the display message.
Message
Status
Do this...
ADC Not
Confirm Error
A problem has occurred
in the ADC in the printer.
Contact a service representative.
Cover Open
The top cover is open.
Close the top cover firmly.
CTD Calibration
Error
The CTD sensor is
polluted by dust or
toner.
Contact a service representative.
Dev. Motor
Error
A problem has occurred
in the development
motor of the printer.
Unplug the power cord and plug it
in again. If the problem persists,
please call for service.
Engine Fuser
Low Heat Error
The temperature in the
fuser is abnormally low.
Unplug the power cord and plug it
in again. If the problem persists,
please call for service.
Engine Fuser
Over Heat Error
The temperature in the
fuser is abnormally high.
Unplug the power cord and plug it
in again. If the problem persists,
please call for service.
Engine LSU
Error
A problem has occurred
in the LSU (Laser
Scanning Unit) in the
printer.
Unplug the power cord and plug it
in again. If the problem persists,
please call for service.
Install
[Color] Toner
The indicated color toner
cartridge is not installed
in the printer.
Install the corresponding color
toner cartridge.
Install
Imaging Unit
The imaging unit is not
installed in the printer.
Install the imaging unit.
Install
Transfer Belt
The transfer belt is not
installed in the printer.
Install the transfer belt.
7.26 SOLVING PROBLEMS
Message
Status
Do this...
Invalid
Imaging Unit
An invalid imaging unit
is installed.
Only install a Samsung-approved
imaging unit, designed for your
printer. If you have installed an
approved imaging unit and this
error still occurs contact an
authorized service agent.
Invalid
Transfer Belt
An invalid transfer belt
is installed.
Only install a Samsung-approved
transfer belt, designed for your
printer. If you have installed an
approved transfer belt and this
error still occurs contact an
authorized service agent.
Invalid NewToner
[Color]
An invalid new toner
cartridge is installed.
Only install a Samsung-approved
toner cartridge, designed for your
printer. If you have installed an
approved toner cartridge and this
error still occurs contact an
authorized service agent.
Invalid Toner
[Color]
An invalid toner
cartridge is installed.
Only install a Samsung-approved
toner cartridge, designed for your
printer. If you have installed an
approved toner cartridge and this
error still occurs contact an
authorized service agent.
Jam0 In Tray1
A paper jam has
occurred from the
indicated tray.
Remove the jammed paper from
the corresponding tray, referring to
page 7.8.
Jam
In Duplex Path
A paper jam has
occurred while printing
on both sides of the
paper.
Remove the jammed paper from
the printer, referring to page 7.14.
Jam
In Exit Area
A paper jam has
occurred in the paper
exit area.
Remove the jammed paper from
the printer, referring to page 7.11.
Jam
Inside Printer
A paper jam has
occurred inside the
printer.
Open the right cover and remove
the jammed paper from the
printer, referring to page 7.10.
Lever Unlocking
Error
After installing the
transfer belt, the lock
levers is not locked.
Push the lock levers on each side
away from you, referring to
page 6.27.
OR
Jam0 In Tray2
SOLVING PROBLEMS 7.27
7
Message
Status
Do this...
The paper size specified
in the printer properties
does not match the
paper you are loading.
Load the correct paper in the tray.
Load Manual
Press Cont Key
It is waiting user’s
action to print from the
manual feeder with
paper.
Load a sheet of print material and
press the On Line/Continue
button. You need to press the
button for each page to be printed.
Main Motor
Error
A problem has occurred
in the main motor of the
printer.
Unplug the power cord and plug it
in again. If the problem persists,
please call for service.
Memory Overflow
The printer does not
have enough memory to
print the current job.
The job automatically clears and
the printer returns to Standby
Mode.
• Expand the memory in your
printer. See “Installing Printer
Memory” on page C.2.
Load
[Size] In Tray1
OR
Load
[Size] In Tray2
An error has occurred in
the firmware program of
the printer.
Paper Empty
[Size] In Tray1
The paper tray has run
out of papers.
Load paper in the paper tray. See
page 3.4.
Too much complicated
data was sent to the
printer.
Simplify the page layout and
remove unnecessary graphics from
your document.
Paper Empty
[Size] In Tray2
Paper Empty
[Size] In Mp
Paper Empty
[Size] In Manual
Page Too Complex
To expand the memory in your
printer, see “Installing Printer
Memory” on page C.2.
Ready [Color]
Low Toner
The corresponding toner
cartridge in your printer
is nearly empty.
Redistribute the toner in
corresponding toner cartridge,
referring to page 6.5.
Ready
IP Conflict
An IP address conflicts
with only other devices
on the network.
Contact your network
administrator and choose an
address within your subnet which
will not conflict with any other
devices.
7.28 SOLVING PROBLEMS
Message
Status
Do this...
Replace [Color]
Toner
The corresponding toner
cartridge in your printer
is empty.
Replace the corresponding toner
cartridge with a new one. See
page 6.8.
Replace
Imaging Unit
The lifetime of the
imaging unit is ended.
Replace the imaging unit with a
new one. See page 6.14.
Replace Imaging
Unit Soon
The lifetime of the
imaging unit is nearly
ended.
When “Replace Imaging Unit”
appears on the display, replace the
imaging unit.
Replace MP
Pick-roller
The lifetime of the MP
pickup roller is ended.
Contact a service representative.
Replace
Transfer Belt
The lifetime of the
transfer belt is ended.
Replace the transfer belt with a
new one. See page 6.22.
Replace Transfer
Belt Soon
The lifetime of the
transfer belt is nearly
ended.
When “Replace Transfer Belt”
appears on the display, replace the
transfer blet.
Replace
Transfer Roller
The lifetime of the
Transfer Roller is ended.
Contact a service representative.
Replace Transfer
Roller Soon
The lifetime of the
Transfer Roller is nearly
ended.
When “Replace Transfer Roller”
appears on the display, contact a
service representative.
Replace Tray1
Pick-roller
The lifetime of the Tray1
pickup roller is ended.
Contact a service representative.
Replace Tray2
Pick-roller
The lifetime of the Tray2
pickup roller is ended.
Contact a service representative.
Transfer Belt
Error
The transfer belt is
either not working or
not correctly installed in
the printer.
Replace the transfer belt.
OR
Make sure the installed transfer
belt is properly seated.
Tray2 Error
Optional Tray2 is not
properly installed or
connected to the printer.
After turn the printer off and then
back on, reinstall the optional
tray2. If the message persists,
contact a service representative.
Tray2 Jam
Cover Open
Tray2 jam cover is open.
Close Tray2 cover firmly.
Waste Motor
Error
A problem has occurred
in waste toner motor.
Contact a service representative.
Waste Toner Tank
Full/Not Install
The waste toner
container is full.
Replace the waste toner container
with a new one. See page 6.11.
SOLVING PROBLEMS 7.29
7
Common Windows Problems
Problem
Possible Cause and Solution
“File in Use” message
appears during installation.
Exit all software applications. Remove all software from the
StartUp Group, then restart Windows. Reinstall the printer
driver.
“Error Writing to LPTx”
message appears.
• Ensure that the cables are connected correctly and the
printer is on.
• If bi-directional communication is not turned on in the
driver, it will also cause this message.
“General Protection Fault”,
“Exception OE”, “Spool32”,
or “Illegal Operation”
messages appear.
Close all other applications, reboot Windows and try
printing again.
“Fail To Print”, “A printer
timeout error occurred.”
message appear.
This message may appear during printing. Just keep
waiting until it finishes printing. If the message appears in
standby mode or after printing is completed, check the
connection and/or whether an error occurred.
NOTE: Refer to the Microsoft Windows 9x/Me/NT 4.0/2000/XP
User’s Guide that came with your PC for further information on
Windows error messages.
7.30 SOLVING PROBLEMS
Common Linux Problems
Problem
Possible Cause and Solution
I can’t change settings in
the configuration tool.
You need to have administrator privileges to be able to
change global settings.
I am using the KDE
desktop but the
configuration tool and LLPR
won’t start.
You may not have the GTK libraries installed. These usually
come with most Linux distributions, but you may have to
install them manually. Refer to your distribution’s installation
manual for more details about installing additional packages.
I just installed this
package but can’t find
entries in the KDE/Gnome
menus.
Some versions of the KDE or GNOME desktop environments
may require that you restart your session for the changes to
take effect.
I get a “Some options are
not selected” error
message while editing the
printer settings.
Some printers have conflicting settings, meaning that some
settings for two options can’t be selected at the same time.
When you change a setting and the Printer Package detects
such a conflict, the conflicting option is changed to a “No
Choice” value. You have to choose an option that does not
conflict before being able to submit the changes.
I can’t make a printer the
system default.
In some conditions, it may not be possible to change the
default queue. This happens with some variants of LPRng,
especially on recent RedHat systems that use the “printconf”
database of queues.
When using printconf, the /etc./printcap file is
automatically refreshed from the database of printers
managed by the system (usually through the “printtool”
command), and the queues in /etc./printcap.local are
appended to the resulting file. The default queue in LPRng is
defined as the first queue in /etc./printcap, therefore it is
not possible for the Linux Printer Package to change the
default when some queues have otherwise been defined using
printtool.
LPD systems identify the default queue as the one named “lp”.
Thus, if there is already a queue by this name, and if it
doesn’t have any alias, then you won’t be able to change the
default. To work around this, you can either delete the queue
or rename it by manually editing the /etc./printcap file.
The N-up setting does not
work correctly for some of
my documents.
The N-up feature is achieved through post-processing of the
PostScript data that is being sent to the printing system.
However, such post-processing can only be adequately
achieved if the PostScript data conforms to the Adobe
Document Structing Conventions. Problems may arise when
using N-up and other features relying on post-processing if
the document being printed isn’t compliant.
SOLVING PROBLEMS 7.31
7
Problem
Possible Cause and Solution
I am using BSD lpr
(Slackware, Debian, older
distributions) and some
options chosen in LLPR
don’t seem to take effect.
Legacy BSD lpr systems have a hard limitation on the length
of the option string that can be passed to the printing system.
As such, if you selected a number of different options, you
may exceed the length of the options and some of your
choices won’t be passed to the programs responsible for
implementing them. Try to select less options that deviate
from the defaults, to save on memory usage.
I am trying to print a
document in Landscape
mode, but it prints rotated
and cropped.
Most Unix applications that offer a Landscape orientation
option in their printing options will generate correct PostScript
code that should be printed as is. In that case, you need to
make sure that you leave the LLPR option to its default
Portrait setting, to avoid unwanted rotations of the page that
would result in a cropped output.
Some pages come out all
white (nothing is printed),
and I am using CUPS.
If the data being sent is in Encapsulated PostScript (EPS)
format, some earlier versions of CUPS (1.1.10 and before)
have a bug preventing them from being processed correctly.
When going through LLPR to print, the Printer Package will
work around this issue by converting the data to regular
PostScript. However, if your application bypasses LLPR and
feeds EPS data to CUPS, the document may not print
correctly.
I can’t print to a SMB
(Windows) printer.
To be able to configure and use SMB-shared printers (such as
printers shared on a Windows printer), you need to have a
correct installation of the SAMBA package that enables that
feature. The “smbclient” command should be available and
usable on your system.
My application seems to be
frozen while LLPR is
running.
Most Unix applications will expect a command like the regular
“lpr” command to be non-interactive and thus return
immediately. Since LLPR is waiting for user input before
passing the job on to the print spooler, very often the
application will wait for the process to return, and thus will
appear to be frozen (its windows won’t refresh). This is
normal and the application should resume functioning
correctly after the user exits LLPR.
How do I specify the IP
address of my SMB server?
It can be specified in the “Add Printer” dialogue of the
configuration tool, if you don’t use the CUPS printing system.
Unfortunately, CUPS currently doesn’t allow you to specify the
IP address of SMB printers, so you will have to be able to
browse the resource with Samba in order to be able to print.
Some documents come out
as white pages when
printing.
Some versions of CUPS, especially those shipped with
Mandrake Linux before the 8.1 release, have some known
bugs when processing the PostScript output from some
applications. Try upgrading to the latest version of CUPS (at
least 1.1.14). Some RPM packages for the most popular
distributions are provided as a convenience with this Linux
Printing Package.
7.32 SOLVING PROBLEMS
Problem
Possible Cause and Solution
I have CUPS and some
options (such as N-up)
seem to be always enabled
even though I don’t choose
them in LLPR.
There may be some local options defined in your ~/
.lpoptions file, which are manipulated by the lpoptions
command. These options are always used if not overridden by
LLPR settings. To get rid of all options for a printer, run the
following command, replacing “printer” with the name of the
queue: lpoptions -x printer
I configured a printer to
print to a file, but I get
“Permission denied” errors.
Most printing systems will not run as the super-user but as a
special user (usually “lp”). Therefore, make sure that the file
you have chosen to print to is accessible to the user owning
the spooler daemon.
On my PCL (or GDI)
printer, I sometimes get
error messages printing
instead of my document.
Unfortunately, some Unix applications may generate noncompliant PostScript output that may not be supported by
Ghostscript, or even the printer itself in PostScript mode. You
can try to capture the output to a file and view the results
with Ghostscript (gv or ghostview will allow you to do so
interactively) and see if you get error messages. However,
since the application is at fault probably, contact your
software vendor to inform them of the issue.
Some color images come
out all black.
This is a known bug of Ghostscript (until GNU Ghostscript
version 7.05) when the base color space of the document is
indexed color space and it is converted through CIE color
space. Because Postscript uses CIE color space for Color
Matching System, you should upgrade Ghostscript on your
system at least GNU Ghostscript version 7.06 or later. You can
find the recent Ghostscript at www.ghostscript.com.
7
SOLVING PROBLEMS 7.33
MEMO
7.34 SOLVING PROBLEMS
A
USING YOUR PRINTER IN
LINUX
You can use your printer in a Linux environment.
This chapter includes:
• Installing the Printer Driver
• Using the Configuration Tool
• Changing LLPR Properties
Installing the Printer Driver
System Requirements
Supported OS
• Redhat 6.2/7.0/7.1 and above
• Linux Mandrake 7.1/8.0 and above
• SuSE 6.4/7.0/7.1 and above
• Debian 2.2 and above
• Caldera OpenLinux 2.3/2.4 and above
• Turbo Linux 6.0 and above
• Slackware 7.0/7.1 and above
Recommended Requirements
• Pentium IV 1 GHz or higher
• RAM 256 MB or higher
• HDD 1 GB or higher
Softwares
• Glibc 2.1 or higher
• GTK+ 1.2 or higher
• GhostScript
Installing the Printer Driver
1 Make sure that you connect the printer to your computer.
Turn both the computer and the printer on.
2 When the Administrator Login window appears, type in
“root” in the Login field and enter the system password.
NOTE: You must log in as a super user (root) to install the printer
software. If you are not the super user, ask your system
administrator.
A.2 USING YOUR PRINTER IN LINUX
3 Insert the printer software CD-ROM. The CD-ROM
automatically runs.
NOTE: If the CD-ROM does not automatically run, click the
icon at the bottom of the window. When the Terminal screen
appears, type in:
[[email protected] /root]# cd /mnt/cdrom (the CD-ROM directory)
[[email protected] cdrom]# ./setup.sh
4 Select the installation type, either Recommended or
Expert, and then click Continue.
Recommended is fully automated and no interaction is
required. Expert installation allows you to select the install
path or printing system.
5 If you selected Recommended, go to Step 6.
For Expert, select an option and then click Begin Install.
A
USING YOUR PRINTER IN LINUX
A.3
6 The printer driver installation begins. When the installation
is completed, click Start.
7 The Linux Printer Configuration window opens. Click the
Add Printer icon on the tool bar at the top of the window.
NOTE: Depending on the printing system in use, the
Administrator Login window may appear. Type in “root” in the
Login field and enter the system password.
8 You see the printers currently added to your system. Select
the printer you want to use. The function tabs available for
the selected printer appear at the top of the Add a Printer
window.
A.4 USING YOUR PRINTER IN LINUX
9 Click the Connection tab and ensure that the printer port is
set properly. If not, change the device setting.
10 You can use the Settings tab and the Queue tab to view the
printer’s current settings. If necessary, you can change the
settings.
NOTE: The options may differ depending on the printer in use. The
Description and the Location field in the Queue screen may not
appear depending on the printing system in use.
11 To exit, click OK.
12 When the window prompts that the new printer is
successfully configured, click OK.
13 The Linux Printer Configuration window reappears. You can
view the information about your printer from the Info tab. If
necessary, you can change the printer’s configuration. For
details about changing the printer’s configuration, see “Using
the Configuration Tool” on page A.8.
A
USING YOUR PRINTER IN LINUX
A.5
Changing the Printer Connection Method
If you change the printer connection method from USB to
parallel or vice versa while in use, you must re-configure your
Linux printer by adding the printer to your system. Take the
following steps:
1 Make sure that you connect the printer to your computer.
Turn both the computer and the printer on.
2 When the Administrator Login window appears, type in
“root” in the Login field and enter the system password.
NOTE: You must log in as a super user (root) to install a new
printer to the printing system. If you are not the super user, ask
your system administrator.
3 From the Startup Menu icon at the bottom of the desktop,
select Linux Printer and then Configuration Tool.
You can also access the Linux Printer Configuration window
by typing “linux-config” in the Terminal screen.
4 When the Linux Printer Configuration window appears, click
the Add Printer icon on the tool bar at the top of the
window.
5 Click the Connection tab at the top of the Add a Printer
window.
Ensure that the printer port is set properly. If not, change
the device setting.
6 Click OK.
A.6 USING YOUR PRINTER IN LINUX
Uninstalling the Printer Driver
1 From the Startup Menu icon at the bottom of the desktop,
select Other and then Configuration Tool.
You can also access the Linux Printer Configuration window
by typing “linux-config” in the Terminal screen.
2 In the Linux Printer Configuration window, select the
Uninstall command from the File menu.
3 The Administrator Login window appears. Type in “root” in
the Login field and enter the system password. Click
Proceed.
NOTE: You must log in as a super user (root) to uninstall the
printer software. If you are not the super user, ask your system
administrator.
4 A message window appears asking you to confirm the
uninstallation. Click Yes.
5 Select Complete uninstall and then click Uninstall.
A
USING YOUR PRINTER IN LINUX
A.7
6 Click OK to begin uninstallation.
7 When the uninstallation is completed, click Finished.
Using the Configuration Tool
The configuration tool accesses administrative tasks, including
adding and removing a new printer, and changing their global
settings. Regular users can also run it to easily inspect job
queues, examine the printer properties and change their local
preferences.
To access the Configuration Tool:
1 From the Startup Menu icon at the bottom of the screen,
select Linux Printer and then Configuration Tool. The
Linux Printer Configuration window appears.
You can also open this window from the Terminal screen by
typing in “linux-config.”
2 The Linux Printer Configuration window shows a list of
installed printers in the left pane. The right pane shows a
number of tabs that display information regarding the
currently selected printer.
Select your printer, if not currently selected.
A.8 USING YOUR PRINTER IN LINUX
3 The Info tab shows general information about the printer.
If you are an Internet user, you can click Go to the Web
page for this printer to access the web page.
Click the Jobs tab to inspect and manage the job queue for
the selected printer. You can suspend, resume or delete a
specific job(s) in the queue. If you drag a specific job(s),
you can drop it into the print queue of another printer.
The Properties tab allows you to change the default printer
settings.
NOTE: Regular users are able to override the system-wide default
settings defined by the administrator. When a regular user clicks
Apply, these custom settings are saved in the user’s profile and
may be later used with LLPR. If the administrator is running the
configuration tool, then the settings are saved as the new global
defaults.
A
USING YOUR PRINTER IN LINUX
A.9
Changing LLPR Properties
You can fine tune the printer’s properties by opening the LLPR
Properties window.
To open the LLPR Properties window:
1 From the application you are using, select the Print
command.
2 When the Linux LPR window opens, click Properties.
Click
Properties.
You can also open the LLPR window:
• Click the Startup Menu icon at the bottom of the screen
and select Linux Printer and then Linux LPR.
• If the Linux Printer Configuration window is currently
open, select Test Print from the Print menu.
A.10 USING YOUR PRINTER IN LINUX
3 The LLPR Properties window opens.
The following six tabs are at the top of the window:
• General - allows you to change the paper size, the paper
type, the paper source, the orientation of the documents;
enables the duplex feature, adds start and end banners,
and changes the number of pages per sheet.
• Margins - allows you to specify the page margins. The
graphics on the right shows the current settings. These
margins do not apply when printing regular PostScript
data.
• Image - allows you to set image options that are used
when printing image files, i.e. when a non-PostScript
document is passed to LLPR on the command line. Color
settings will also take effect for postscript documents.
• Text - allows you to select the density of the text and
turn the syntax coloring on or off.
• HP-GL/2 - allows you to set default options to print
documents in the HP-GL/2 format, which is used by some
plotters.
• Advanced - allows you to override the default settings for
the printer.
If you click the Save button at the bottom of the window,
the options are kept between LLPR sessions.
Use the Help button to view details about the options in the
window.
4 To apply the options, click OK in the LLPR Properties
window. You are returned to the Linux LPR window. To
start printing, click OK.
USING YOUR PRINTER IN LINUX A.11
A
MEMO
A.12 USING YOUR PRINTER IN LINUX
B
USING YOUR PRINTER ON
A NETWORK
If you work in a networked environment, the printer can be
shared by other users on the network.
This chapter includes:
• About Sharing the Printer on a Network
• Setting Up a Locally Shared Printer
• Setting Up a Network-Connected Printer
NOTE: If you are a CLP-500 user, you need to install an
optional network interface card. For more information, see
Appendix C, "Installing Printer Options".
About Sharing the Printer on a
Network
If you work in a networked environment, you can connect your
printer to the network.
Locally-Shared Printer
You can connect the printer directly to a selected computer,
which is called the “host computer” on the network. The printer
can then be shared by other users on the network through a
Windows 9x/Me/XP/NT 4.0/2000 network printer connection.
Wired Network-connected Printer
A CLP-500N printer has the built-in network interface. See
page C.7 for information about installing the card.
To use a CLP-500 printer as a network printer, you need to install
an optional network interface card in your printer.
Wireless Network-connected Printer
To use your printer in a wireless network environment, you need
to install an optional wired/wireless network interface card in
your printer. See page C.7.
Printing Across a Network
Whether the printer is locally connected or network-connected,
you need to install the CLP-500 series printer software on each
computer that prints documents using the printer.
B.2 USING YOUR PRINTER ON A NETWORK
Setting Up a Locally Shared Printer
In Windows 95/98/Me
Setting Up the Host Computer
1 Start Windows.
2 From the Start menu, select Control Panel from Settings
and double-click on the Network icon.
3 Check the File and Print Sharing box, and click OK. Close
the window.
4 From the Start menu, select Printers from Settings and
double-click your printer name.
5 Select Properties in the Printer menu.
6 Click the Sharing tab and check the Shared As box. Fill in
the Shared Name field and click OK.
Setting Up the Client Computer
1 Right-click the Windows Start button and select Explorer.
2 Open your network folder in the left column.
3 Right-click the shared name and select Capture Printer
Port.
4 Select the port you want, check the Reconnect at log on
box, and click OK.
5 From the Start menu, select Settings and then Printers.
6 Double-click your printer icon.
B
7 From the Printer menu, select Properties.
8 From the Details tab, select the printer port and click OK.
USING YOUR PRINTER ON A NETWORK
B.3
In Windows NT 4.0/2000/XP
Setting Up the Host Computer
1 Start Windows.
2 For Windows NT 4.0/2000, select Settings, and Printers
from the Start menu.
For Windows XP, select Printers and Faxes from the Start
menu.
3 Double-click your printer icon.
4 From the Printer menu, select Sharing.
5 For Windows NT 4.0, check the Shared box.
For Windows 2000, check the Shared As box.
For Windows XP, check the Share this printer box.
6 For Windows NT 4.0, fill in the Shared Name field and click
OK.
For Windows 2000/XP, fill in the Shared Name field and
click OK.
B.4 USING YOUR PRINTER ON A NETWORK
Setting Up the Client Computer
1 Right-click the Windows Start button and select Explorer.
2 Open your network folder in the left column.
3 Click the shared name.
4 For Windows NT 4.0/2000, select Settings and Printers
from the Start menu.
For Windows XP, select Printers and Faxes from the Start
menu.
5 Double-click your printer icon.
6 From the Printer menu, select Properties.
7 From the Ports tab, click Add Port.
8 Select Local port and click New Port.
9 Fill in the Enter a port name field, enter the shared name.
10 Click OK and click Close.
11 For Windows NT 4.0, click OK.
For Windows 2000/XP, click Apply and click OK.
B
USING YOUR PRINTER ON A NETWORK
B.5
Setting Up a Network-Connected
Printer
You have to set up the network protocols on the printer to use it
as your network printer. Setting protocols can be accomplished
by using the supplied network program. Please refer to
SyncThru User’s Guide.
You can configure the basic network parameters through the
printer’s control panel. Use the printer control panel to do the
following:
• Enable or disable network protocols (IPX/SPX)
• Configure TCP/IP
• Configure IPX frame types
Configuring Network Parameters on the
Control Panel
Supported Operating Systems
NOTE: The operating systems supported by the network card may
be different the operating systems supported by the printer.
The following table shows the network enviroment supported by
the printer.
Item
•
•
•
•
•
Requirements
Network Interface
10/100 Base-TX (standard for CLP-500N)
or 802.11b Wireless LAN
Network Operating
System
• Novell NetWare 4.x, 5.x, 6.x
• Windows 95/98/Me/NT 4.0/2000/XP
• Various Linux OS
Network Protocols
• Netware IPX/SPX
• TCP/IP, DLC/LLC on Windows
Dynamic Addressing
Server
DHCP, BOOTP
IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange
TCP/IP: Transmission Control Protocol/Internet Protocol
DLC/LLC: Data Link Control/Logical Link Control
DHCP: Dynamic Host Configuration Protocol
BOOTP: Bootstrap Protocol
B.6 USING YOUR PRINTER ON A NETWORK
Printing a Network Configuration Page
The Network Configuration page shows how the network
interface card on your printer is configured. The default settings
which are suitable for most applications are enabled.
1 In ready mode press the Menu button (
) until you see
‘Network’ on the bottom line of the display.
2 Press the Enter button (
) to access the menu.
3 Press the scroll button (
or
displays on the bottom line.
4 Press the Enter button (
) until ‘Print Net CFG’
).
The Network Configuration page prints out.
Setting Network Protocols
When you first install the printer, all supported network
protocols are enabled when you turn the printer on. If a network
protocol is enabled, the printer may actively transmit on the
network even when the protocol is not in use. This may increase
network traffic slightly. To eliminate unnecessary traffic, you can
disable unused protocols.
1 In ready mode press the Menu button (
) until you see
‘Network’ on the bottom line of the display.
2 Press the Enter button (
) to access the menu.
3 Press the scroll button (
or
) until ‘Config Network’
displays on the bottom line. Press the Enter button ( ).
4 Press the scroll button (
the Enter button (
( ).
or
) to display ‘Yes’ and press
). Then press the Upper Level button
5 Press the scroll button (
or
protocol on the bottom line.
) until you see the desired
You can choose ‘Netware’.
6 Press the Enter button (
7 Press the scroll button (
).
or
‘On’ (enable) or ‘Off’ (disable).
8 Press the Enter button (
) to change the setting to
) to save the selection.
9 Press the On Line/Continue button (
) to return to
ready mode.
USING YOUR PRINTER ON A NETWORK
B.7
B
Configuring TCP/IP
Your printer can be set up on a variety of TCP/IP networks. There
are several ways in which your printer can be assigned a TCP/IP
address, depending on your network.
• Static Addressing: TCP/IP address is assigned manually by
the system administrator.
• Dynamic Addressing BOOTP/DHCP(default): TCP/IP address
is assigned automatically by the server.
Static Addressing
To enter the TCP/IP address from your printer’s control panel,
take the following steps:
1 In ready mode press the Menu button (
) until you see
‘Network’ on the bottom line of the display. Press the Enter
button ( ) to access the menu.
2 Press the Enter button (
) when ‘Config Network’ displays
on the bottom line.
3 Press the scroll button (
the Enter button (
or
4 Press the Upper Level button (
button (
) to display ‘Yes’ and press
).
), then use the scroll
).
5 Press the Enter button (
) when ‘Config TCP’ displays.
6 Press the scroll button (
or
the Enter button (
7 Press the Upper Level button (
button (
) to display ‘Yes’ and press
).
), then use the scroll
).
8 Press the Enter button (
) when ‘IP Get Method’ displays.
9 Press the scroll button (
or
).
press the Enter button (
10 Press the Upper Level button (
button (
) to display ‘Static’ and
), then use the scroll
).
11 Press the Enter button (
menu.
B.8 USING YOUR PRINTER ON A NETWORK
) to access the IP Address
An IP address consists of 4 bytes.
Enter a number between 0
and 255 for each byte.
12 Press the scroll button (
or
) to enter a number
between 0 and 255 and press the Enter button ( ).
13 Repeat Step 12 to complete the address from the 1st byte
to the 4th byte.
14 To select other parameters, such as the Subnet Mask or
Gateway, press the scroll button (
Enter button ( ).
or
). Press the
15 Repeat steps 12 through 13 to configure the other TCP/IP
parameters.
16 Press the On Line/Continue button (
) to return to
ready mode.
Dynamic Addressing (BOOTP/DHCP)
To assign the TCP/IP address automatically by the server, take
the following steps:
1 In ready mode press the Menu button (
) until you see
‘Network’ on the bottom line of the display. Press the Enter
button ( ) to access the menu.
2 Press the Enter button (
) when ‘Config Network’ displays
on the bottom line.
3 Press the scroll button (
the Enter button (
or
4 Press the Upper Level button (
button (
) to display ‘Yes’ and press
).
), then use the scroll
B
).
5 Press the Enter button (
) when ‘Config TCP’ displays.
6 Press the scroll button (
or
the Enter button (
) to display ‘Yes’ and press
).
USING YOUR PRINTER ON A NETWORK
B.9
7 Press the Upper Level button (
button (
), then use the scroll
).
8 Press the Enter button (
) when ‘IP Get Method’ displays.
9 Press the scroll button (
or
).
press the Enter button (
) to display ‘DHCP’ and
10 To assign the address from the BOOTP server, press the
Enter button (
) when “BOOTP” displays.
11 Press the On Line/Continue button (
) to return to
ready mode.
Configuring IPX Frame Types
On IPX/SPX protocol networks (for example, Novell NetWare),
the format of the network communication frames must be
specified for the printer. In most cases, you can keep the default
setting ‘Auto’. However, you can manually set the frame type
format, if required.
• Auto (default): Automatically senses and limits the frame
type to the first one detected.
• EN_8023: Limits the frame type to IPX over IEEE 802.3
frames. All others will be discarded.
• EN_II: Limits the frame type to IPX over Ethernet Frames.
All others will be discarded.
• EN_8022: Limits the frame type to IPX over IEEE 802.2 with
IEEE 802.3 frames. All others will be discarded.
• EN_SNAP: Limits the frame type to IPX over SNAP with IEEE
802.3 frames. All others will be discarded.
Note that the IPX/SPX protocol must be enabled in the Netware
menu before you can configure frame types. See “Setting
Network Protocols” on page B.7.
B.10 USING YOUR PRINTER ON A NETWORK
Take the following steps to change the frame type format:
1 In ready mode press the Menu button (
) until you see
‘Network’ on the bottom line of the display. Press the Enter
button ( ) to access the menu.
2 Press the Enter button (
) when ‘Config Network’ displays
on the bottom line.
3 Press the scroll button (
or
) to display ‘Yes’ on the
bottom line. Press the Enter button ( ).
4 Press the Upper Level button (
).
5 Press the scroll button (
or
) until ‘Netware’ displays
on the bottom line. Press the Enter button ( ).
6 Press the Enter button (
) when ‘On’ displays.
7 Press the Upper Level button (
button (
), then use the scroll
).
8 Press the Enter button (
) when ‘Config Netware’
displays.
9 Press the scroll button (
or
) to display ‘Yes’ on the
bottom line. Press the Enter button ( ).
10 Press the Upper Level button (
button (
), then use the scroll
).
11 Press the Enter button (
) when ‘IPX Frame Type’
displays.
12 Press the scroll button (
or
) until you see the desired
frame type and press the Enter button ( ).
13 Press the On Line/Continue button (
) to return to
ready mode.
B
USING YOUR PRINTER ON A NETWORK B.11
Restoring the Network Configuration
You can return the network configuration to its default settings.
1 In ready mode press the Menu button (
) until you see
‘Network’ on the bottom line of the display.
2 Press the Enter button (
3 Press scroll button (
or
) to access the menu.
) until ‘Default Set’ displays on
the bottom line.
4 Press the Enter button (
) to confirm the selection.
Configuring the Wireless Network
See the instructions supplied with the optional Wireless Network
interface card.
Configure the Wireless Network environments.
You can easily configure the Wireless Network environments
using the SetIP program in Windows. See Wireless Network
User's Guide.
To Configure the Wireless Settings using the Menu
system.
Refer to page 2.5 and open the 'Network' menu.
Select 'Yes' in the 'Config Network' option and then select 'Config
802.11b'.
After selecting 'Yes' in 'Config 802.11b', configure the following
items:
• SSID: When you select 'Search List', the wireless network
card on your printer searches for wireless networks in the
area and shows the results on the list. Select one on the list.
You cannot change ‘Operation Mode’ and ‘Channel’. If you
select ‘Custom’ on the list, you can configure the wireless
settings according to your needs and enter a name of up to
32 letters for your ‘Custom’ setting. ‘SSID’ is case sensitive,
so you need to change it carefully. Using the Scroll buttons,
find the alphabet you want and press the Enter button ( ) .
When the cursor moves to the next input field, enter the next
letters the same as you entered the first letter. After you
entered the last letter of the name, press the Enter button
( ) once again to save the ID. The way to enter the key
number for the encryption key is the same as to enter letters.
B.12 USING YOUR PRINTER ON A NETWORK
• Operation Mode: ‘Ad-hoc’ mode allows the wireless devices
to communicate directly with each other. This is the default
operating mode for the print server.
If your network uses an Access Point, you must reconfigure
the operation mode to ‘InfraStructure’. ‘InfraStructure’ mode
allows both wireless and cabled computers to send files to the
printer through an Access Point.
If you select ‘Auto’, the print server selects the operation mode
automatically according to the network cable’s connection
each time it boots up. If the network cable is detected, the
print server enters ‘Ad-hoc’ mode; if not, enters
‘InfraStructure’ mode.
• Channel: This option is available in the ‘Ad-hoc’ mode only.
In most cases, you will not need to change this setting. The
print server will scan all available channels for the specified
network and will adapt its channel to the one detected.
Default setting is 10.
• Authentication: ‘Open System’ or ‘Shared Key’. The
Samsung print server is not configured for network
authentication (Open System). If required by your network,
the proper authentication method must be configured on the
print server.
• Encryption: No data Encryption, 64 bits, or 128 bits. Default
setting is No data Encryption. If your network uses WEP
encryption keys, you must configure the encryption keys. You
can configure up to four keys. The active key must match the
value and active key position (for example, Key 1) configured
on other wireless devices.
• Using Key: Select the key to use in your network.
• Key Type: Select the key type of your network.
• Key 1, Key 2, Key 3, Key 4: Enter the key number for
“Encryption”. The number you can enter are as follows:
Hexadecimal
Alphanumeric
64-bit WEP
10 digits
5 characters
128-bit WEP
26digits
13 characters
B
USING YOUR PRINTER ON A NETWORK B.13
MEMO
B.14 USING YOUR PRINTER ON A NETWORK
C
INSTALLING PRINTER
OPTIONS
Your printer is a full-featured laser printer that has been
optimized to meet most of your printing needs. Recognizing
that each user may have different requirements, however,
Samsung makes several options available to enhance your
printer’s capabilities.
This chapter includes:
• Installing Printer Memory
• Installing a Network Interface Card
• Installing an Optional Tray
Installing Printer Memory
Your printer has a dual in-line memory module (DIMM) slot. Use
this DIMM slot to install more memory for the printer.
NOTE: Your printer has 64 MB of memory which can be expanded
to 192 MB. Samsung part no ML-00MC (64 MB) or part no
ML-00MD (128MB), contact your Samsung dealer.
CAUTION: Static electricity can damage DIMMs. When handling a
DIMM, either wear an antistatic wrist strap, or frequently touch the
surface of the DIMM antistatic package and then touch bare metal
on the printer.
1 Turn the printer off and unplug all cables from the printer.
2 To remove the control board cover, press down on the tabs
at the top and take it off.
3 Remove the two screws holding the metal plate in place,
and then remove the metal cover, as shown below.
C.2
INSTALLING PRINTER OPTIONS
4 Open the lever on each side of the DIMM slot all the way.
5 Remove the memory DIMM from the antistatic package.
Locate the alignment notches on the bottom edge of the
DIMM.
Notches
Connection
points
NOTE: Avoid touching the connection points along the edge of the
memory.
6 Holding the DIMM by the edges, align the notches on the
DIMM with the notches at the top of the DIMM slot.
C
INSTALLING PRINTER OPTIONS
C.3
7 Insert the ends of the memory DIMM into the slots on the
levers.
8 Push it firmly to make sure you fully insert the memory
DIMM into the slot. The levers on each side are
automatically latched.
NOTE: If you have difficulty inserting the memory DIMM or
closing the levers, make sure the notches on the bottom of the
DIMM are aligned with the notches in the DIMM slot.
9 Replace the metal cover, as shown below, and tighten the
two screws you removed in step 3.
C.4
INSTALLING PRINTER OPTIONS
10 Replace the control board cover.
11 Reconnect the power cord and printer cable, and turn the
printer on.
C
INSTALLING PRINTER OPTIONS
C.5
Removing the Memory
1 Follow steps 1 through 3 on page C.2 to access the control
board.
2 Push the levers at both ends of the DIMM slot away from
the DIMM.
3 Place the DIMM in its original packaging or wrap it with
sheet of metal as thin as paper such as aluminium foil and
store it in a box.
4 Follow from step 9 on page C.4.
C.6
INSTALLING PRINTER OPTIONS
Installing a Network Interface Card
NOTE: When you purchase the wired/wireless network interface
card, the antenna connected to the card is not separated from the
card depending on your country.
To use your printer on a network, you must be equipped in your
printer.
CLP-500N has a built-in network interface card. If you are a
CLP-500 user, you need to install an optional network interface
card.
If you want to use the printer in both a wired and a wireless
network environments, you need to install an optional wired/
wireless network interface card.
Check if there is missing parts in your package of the optional
interface card.
CLP-500 only
CLP-500, CLP-500N
Ethernet 10/100 Base TX
(Internal)
Ethernet 10/100 Base TX +
802.11b Wireless LAN (Internal)
Order number: ML-00NC
Order number: ML-00LC
Network interface Card,
SyncThru CD-ROM and SyncThru
Quick Guide
Wireless Network interface Card,
SyncThru CD-ROM, SyncThru
Quick Guide and Wireless Quick
Guide
1 Turn the printer power off and unplug all cables from the
printer.
C
INSTALLING PRINTER OPTIONS
C.7
2 To remove the control board cover, press down on the tabs
at the top and take it off.
3 Remove the two screws holding the metal plate in place,
and then remove the metal cover, as shown below.
C.8
INSTALLING PRINTER OPTIONS
4 Push the hole lid using a tool with sharp end.
If you replace the network interface card with a new one,
remove the two screws and the old card.
5 Align the connector on the network interface card with the
connector on the control board. Make sure that the jacks on
the card go through the holes. Push the card firmly into the
connector until it is completely inserted into place.
C
INSTALLING PRINTER OPTIONS
C.9
6 Tighten the two screws.
7 Replace the metal cover, as shown below, and tighten the
two screws you removed in step 3.
8 Replace the control board cover.
C.10 INSTALLING PRINTER OPTIONS
9 Plug one end of the Ethernet cable into the Ethernet
network port on the Printer and the other end of the cable
into a network LAN connection.
To the network
LAN connection
10 Connect the network cable, reconnect the power cord and
then turn the printer on.
NOTE: For information about configuring and using the printer in
a network environment, refer to the User’s Guide provided with
the network interface card. You can also configure the network
parameters using the control panel; see page B.6.
C
INSTALLING PRINTER OPTIONS C.11
Installing an Optional Tray
You can increase the paper handling capacity of your printer by
installing an optional Tray2. This tray holds 500 sheets of paper.
1 Turn the printer off and unplug all cables from the printer.
2 Remove the packing tape and the packing material inside of
the tray.
3 Find the location of the connector and the optional tray
positioners.
C.12 INSTALLING PRINTER OPTIONS
4 Place the printer over the tray, aligning the feet on the
printer with the positioners in the optional tray.
Lifting handles are
located at the lower
edge of both sides
of the printer.
CAUTION: This printer weighs 35kg including developer cartridge
and cassette. Use safe lifting and handling techniques. If you need
to move the printer it must be moved by two people. Use the
lifting handles located as shown in the diagram. Back injury could
be caused if a single person attempts to lift the printer.
5 Load paper in the optional tray. For information about
loading paper in this tray, see “Using the Optional Tray 2”
on page 3.8.
6 Reconnect the power cord and cables and then turn the
printer on.
When you print a document on the paper loaded in Tray 2, you
must configure the properties of the printer driver.
To access the properties of the printer driver:
1 Click the Windows Start menu.
2 For Windows 95/98/Me/NT 4.0/2000, select Settings and
then Printers.
For Windows XP, select Printers and Faxes.
3 Select the Samsung CLP-500 Series printer.
C
INSTALLING PRINTER OPTIONS C.13
4 Click the right mouse button on the printer icon and:
In Windows 95/98/Me, select Properties.
In Windows NT 4.0/2000/XP, select Properties.
5 Click the Printer tab, and select Tray 2 from the Optional
Tray drop-down list.
6 Click OK and print the document.
C.14 INSTALLING PRINTER OPTIONS
D
SPECIFICATIONS
This chapter includes:
• Printer Specifications
• Paper Specifications
Printer Specifications
Item
Print Speed*
Specifications and Description
Black:Up to 20 PPM in A4 (21 PPM in Letter);
Color: Up to 5 PPM in A4 (5 PPM in Letter)
Duplex: Up to 9.6 IPM in A4/Letter (Black); Up to 5 IPM in
A4/Letter (Color)
Resolution
Up to 1200 x 1200 dpi effective output
Warm-up Time
Less than 120 seconds
First Printing on Time
15 seconds (Black); 24 seconds (4-Color)
Power Rating
AC 110 ~ 127V (USA, Canada) / 220 ~ 240V (Others),
50 / 60Hz
Power consumption
450 W average during operation /
Less than 30 W in sleep mode
Less than 48 dBA (Color printing)
Noise Level**
Less than 49 dBA (Black printing)
Less than 40 dBA (Standby printing)
Black toner cartridge: 7,000 A4/Letter pages at 5%
Coverage (Ships with 2,000 pages Starter toner cartridge)
Color(Yellow/Margenta/Cyan) toner cartridge: 5,000 A4/
Letter pages at 5% Coverage (Ships with 1,500 pages
Starter toner cartridge)
Consumables Life
Imaging Unit: Approx. 50,000 black pages (12,500 color
pages)***
Transfer Belt: Approx. 50,000 black pages (12,500 color
pages)***
Waste Toner Container: Approx. 12,000 black pages (3,000
color pages)***
Duty Cycle
Monthly: Up to 35,000 black pages
Weight
32kg (including consumables)
Package Weight
Paper: 4.36Kg, Plastic: 1.48Kg
External Dimensions
(W x D x H)
510 (W) x 470 (D) x 405 (H) mm
Operating Environment
Temperature: 15 ~ 32.5°C / 50 ~ 90°F
Humidity: 20 ~ 80% RH
Emulation
SPL-C (Samsung Printer Language Color)
D.2 SPECIFICATIONS
Item
Specifications and Description
64 MB (Max. 192 MB)
Memory
D
64, 128 MB optional memory available
Use only the Samsung-approved DIMM.
64 MB : ML-00MC; 128 MB: ML-00MD
Fonts
Windows font
CLP-500: USB 2.0, IEEE 1284 Parallel
Interface
CLP-500N: USB 2.0, IEEE 1284 Parallel, Ethernet 10/100
Base TX
OS Compatibility
Windows 95/98/NT 4.0/2000/XP, Various Linux OS
Options
****
CLP-500: Ethernet 10/100 Base TX(Internal), Ethernet 10/
100 Base TX + 802.11b Wireless LAN(Internal)
CLP-500N: Ethernet 10/100 Base TX + 802.11b Wireless
LAN(Internal)
*Print speed will be affected by Operating system used, computing persformance,
application software, connecting method, media type, media size and job complexity.
**Sound Pressure Level, ISO7779
***May be affected by operating environment, printing interval, media type, media size
and color/black.
****Please visit www.samsungprinter.com to download the latest software version.
SPECIFICATIONS
D.3
Paper Specifications
Overview
Your printer accepts a variety of print materials, such as cutsheet paper (including up to 100% recycled fiber content
paper), envelopes, labels, transparencies and custom-size
paper. Properties, such as weight, composition, grain and
moisture content, are important factors affecting the printer’s
performance and the output quality. Paper that does not meet
the guidelines outlined in this User’s Guide can cause the
following problems:
• Poor print quality
• Increased paper jams
• Premature wear on the printer.
NOTES:
• Some paper may meet all of the guidelines in this guide and still
not produce satisfactory results. This may be the result of
improper handling, unacceptable temperature and humidity
levels, or other variables over which Samsung has no control.
• Before purchasing large quantities of paper, ensure that the
paper meets the requirements specified in this User’s Guide.
CAUTION: Using paper that does not meet these specifications
may cause problems, requiring repairs. These repairs are not
covered by the Samsung warranty or service agreements.
D.4 SPECIFICATIONS
Supported Sizes of Paper
Tray1
/
Tray2
Dimensions*
Letter
216 X 279mm
(8.5 X 11in.)
A4
210 X 297mm
(8.3 X 11.7in.)
MultiPurpose Tray
Weight
Capacity**
• 60 to 90g/m2 bond
(16 to 24lb) for
single-sided
printing
• 75 to 90 g/m2 bond
(20 to 24lb) for
duplex printing
• 250 sheets of
75g/m2 bond
paper for
Tray 1
• 500 sheets of
75g/m2 bond
paper for
Tray 2
Weight
Capacity**
Dimensions*
Minimum Size
(custom)
90 X 140mm
(3.5 X 5.5in.)
Maximum Size
(custom)
216 X 356mm
(8.5 X 14in.)
Transparency
Labels***
Envelopes
Same minimum
and maximum
paper sizes as
listed above.
60 to 163g/m2
bond
(16 to 43lb)
100 sheets of
75g/m2 bond
paper
Thickness:
0.10 X 0.14
mm (0.0039 X
0.0055in.)
30 typical
Thickness:
0.10 X 0.14
mm (0.0039 X
0.0055in.)
10 typical
up to 90g/m2
(16 to 24lb)
up to 10
*The printer supports a wide range of media sizes. See “Printing on Card Stock
or Custom-sized Materials” on page 3.21.
**Capacity may vary depending on media weight and thickness, and
environmental conditions.
***Smoothness: 100 to 250 (Sheffield)
NOTE: You may experience jams when using print materials with
a length of less than 140mm (5.5in.). For optimum performance,
ensure that you are storing and handling the paper correctly.
Please refer to “Printer and Paper Storage Environment” on
page D.8.
SPECIFICATIONS
D.5
D
Guidelines for Using Paper
For the best result, use conventional 75g/m2 (20lb) paper.
Ensure that the paper is of good quality, and free of cuts, nicks,
tears, spots, loose particles, dust, wrinkles, voids, and curled or
bent edges.
If you are unsure of what type of paper you are loading, such as
bond or recycled paper, check the label on the package.
The following problems may cause print quality deviations,
jamming or even damage to the printer.
Symptom
Problem with
Paper
Poor print quality
or toner adhesion,
problems with
feeding
Too moist, too
rough, too smooth
or embossed;
faulty paper lot
Try another kind of
paper, between 100 ~
250 Sheffield, 4 ~ 5%
moisture content.
Dropout,
jamming, curl
Stored improperly
Store paper flat in its
moisture-proof
wrapping.
Increased gray
background
shading/printer
wear
Too heavy
Use lighter paper, open
the rear output tray.
Excessive curl
problems with
feeding
Too moist, wrong
grain direction or
short-grain
construction
Use long-grain paper.
Jamming, damage
to printer
Cutouts or
perforations
Do not use paper with
cutouts or perforations.
Problems with
feeding
Ragged edges
Use good quality paper.
Solution
NOTES:
• Do not use letterhead paper printed with low-temperature inks,
such as those used in some types of thermography.
• Do not use raised or embossed letterhead.
• The printer uses heat and pressure to fuse toner to the paper.
Ensure that any colored paper or preprinted forms use inks that
are compatible with this fusing temperature (180°C or 356°F for
0.1 second).
D.6 SPECIFICATIONS
Paper Specifications
Category
D
Specifications
Acid Content
5.5 ~ 8.0pH
Caliper
0.094 ~ 0.18mm (3.0 ~ 7.0mils)
Curl in Ream
Flat within 5mm (0.02in.)
Cut Edge Conditions
Cut with sharp blades with no visible
fray.
Fusing Compatibility
Must not scorch, melt, offset, or release
hazardous emissions when heated to
180°C (356°F) for 0.1 second.
Grain
Long Grain
Moisture Content
4% ~ 6% by weight
Smoothness
100 ~ 250 Sheffield
Paper Output Capacity
Output Tray
Face-down
Capacity
250 sheets of 75g/m2 bond paper
Paper Input Capacity
Input Tray
Capacity
Cassette
250 sheets of 75g/m2 bond paper
MP tray
100 sheets of 75g/m2 bond paper
Optional tray
500 sheets of 75g/m2 bond paper
SPECIFICATIONS
D.7
Printer and Paper Storage Environment
Paper storage environmental conditions directly affect the feed
operation.
Ideally, the printer and paper storage environment should be at
or near room temperature, and not too dry or humid. Remember
that paper is hygroscopic; it absorbs and loses moisture rapidly.
Heat works with humidity to damage paper. Heat causes the
moisture in paper to evaporate, while cold causes it to condense
on the sheets. Heating systems and air conditioners remove
most of the humidity from a room. As paper is opened and used,
it loses moisture, causing streaks and smudging. Humid
weather or water coolers can cause the humidity to increase in
a room. As paper is opened and used it absorbs any excess
moisture, causing light print and dropouts. Also, as paper loses
and gains moisture it can become distorted. This can cause
paper jams.
Care should be taken not to purchase more paper than can be
used in a short time (about 3 months). Paper stored for long
periods may experience heat and moisture extremes, which can
cause damage. Planning is important to prevent damage to
large supplies of paper.
Unopened paper in sealed reams can remain stable for several
months before use. Opened packages of paper have more
potential for environment damage, especially if they are not
wrapped with a moisture-proof barrier.
The paper storage environment should be properly maintained
to ensure optimum printer performance. The required condition
is 20° to 24°C (68° to 75°F), with a relative humidity of 45% to
55%. The following guidelines should be considered when
evaluating the paper’s storage environment:
• Paper should be stored at or near room temperature.
• The air should not be too dry or too humid.
• The best way to store an opened ream of paper is to rewrap it
tightly in its moisture-proof wrapping. If the printer
environment is subject to extremes, unwrap only the amount
of paper to be used during the day’s operation to prevent
unwanted moisture changes.
D.8 SPECIFICATIONS
Envelopes
Envelope construction is critical. Envelope fold lines can vary
considerably, not only between manufacturers, but also within a
box from the same manufacturer. Successful printing on
envelopes depends upon the quality of the envelopes. When
selecting envelopes, consider the following components:
• Weight: The weight of the envelope paper should not exceed
90g/m2 (24lb) or jamming may occur.
• Construction: Prior to printing, envelopes should lie flat with
less than 6mm (0.25in.) curl, and should not contain air.
• Condition: Envelopes should not be wrinkled, nicked, or
otherwise damaged.
• Temperature: You should use envelopes that are compatible
with the heat and pressure of the printer.
• Size: You should only use envelopes within the following size
ranges.
Minimum
Multi-purpose
Tray
90 X 140mm
(3.5 X 5.5in.)
Maximum
216 X 356mm
(8.5 X 14in.)
NOTES:
• Use only the Multi-purpose Tray to print envelopes.
• You may experience some paper jams when using any media
with a length less than 140mm(5.5in.). This may be caused by
paper that has been affected by environmental conditions. For
optimum performance, make sure you are storing and handling
the paper correctly. Please refer to “Printer and Paper Storage
Environment” on page D.8.
SPECIFICATIONS
D.9
D
Envelopes with Double Side Seams
Double side-seams construction has vertical seams at both ends
of the envelope rather than diagonal seams. This style may be
more likely to wrinkle. Be sure the seam extends all the way to
the corner of the envelope as illustrated below.
Correct
Incorrect
Envelopes with Adhesive Strips or Flaps
Envelopes with a peel-off adhesive strip or with more than one
flap that folds over to seal must use adhesives compatible with
the heat and pressure in the printer. The extra flaps and strips
might cause wrinkling, creasing, or even jams and may even
damage the fuser.
Envelope Margins
The following gives typical address margins for a commercial
#10 or DL envelope.
Type of Address
Minimum
Maximum
Return address
15mm (0.6in.)
51mm (2in.)
Delivery address
51mm (2in.)
90mm (3.5in.)
NOTES:
• For best print quality, position margins no closer than 15mm
(0.6in.) from the edges of the envelope.
• Avoid printing over the area where the envelope’s seams meet.
D.10 SPECIFICATIONS
Envelope Storage
Proper storage of envelopes helps contribute to print quality.
Envelopes should be stored flat. If air is trapped in an envelope,
creating an air bubble, then the envelope may wrinkle during
printing. See “Printing on Envelopes” on page 3.14.
Labels
CAUTIONS:
• To avoid damaging the printer, use only labels recommended for
laser printers.
• To prevent serious jams, always use the Multi-purpose Tray to
print labels and always use the rear output tray.
• Never print on the same sheet of labels more than once and
never print on a partial sheet of labels.
When selecting labels, consider the quality of each component:
• Adhesives: The adhesive material should be stable at 180°C
(356°F), the printer’s fusing temperature.
• Arrangement: Only use labels with no exposed backing
between them. Labels can peel off sheets with spaces
between the labels, causing serious jams.
• Curl: Prior to printing, labels must lie flat with no more than
13mm (5in.) of curl in any direction.
• Condition: Do not use labels with wrinkles, bubbles, or other
indications of separation.
See “Printing on Labels” on page 3.16.
Transparencies
Transparencies used in the printer must be able to withstand
180°C (356°F), the printer’s fusing temperature.
CAUTION: To avoid damaging the printer, use only transparencies
recommended for use in laser printers.
See “Printing on Transparencies” on page 3.17.
SPECIFICATIONS D.11
D
INDEX
C
I
cancel, print jobs 4.4
card stock, print 3.21
clean
inside the printer 6.31
LSU 6.30
outside of the printer 6.29
color mode 4.9, 4.10
components 1.4
configuration page, print 6.2
connect
Ethernet C.11
control panel 2.2
buttons 2.3
display 2.2
menus 2.5
custom-sized materials, print 3.21
imaging unit, replace 6.14
Install
Memory C.2
Network Interface Card C.7
optional Tray2 C.12
install
printer options C.1
SPL driver for Linux A.2
interface card, install C.7
L
E
labels, print 3.16
Linux
common problems 7.31
configuration tool A.8
driver, install A.2
LLPR properties A.10
load, paper
in the Multi-Purpose Tray 3.9
in the optional Tray2 3.8
in the Tray1 3.4
using the manual feed 3.12
envelopes, print 3.14
error messages 7.26
Ethernet cable, print C.11
M
D
double-sided printing 5.2
F
Favorite setting, use 4.13
features
printer 1.2
G
graphic properties, set 4.9
H
help, use 4.14
i
manual feed mode, use 3.12
memory DIMM, install C.2
memory DIMM, remove C.6
Multi-Purpose Tray, use 3.9
N
network interface card, install C.7
network printing
card, install C.7
locally shared printer, set B.3
network-connected printer, set B.6
parameters, configure B.6
n-up printing 5.6
O
option, install
memory DIMM C.2
network interface card C.7
paper tray 2 C.12
optional tray, install C.12
orientation, select 4.6
overlay, use 5.13
P
paper
choose 3.2
guideline 3.3
load 3.4
sizes and capacities 3.2
specifications D.4
paper jam
in the duplex area 7.14
in the Multi-Purpose Tray 7.10
in the optional Tray 2 7.18
in the paper exit area 7.11
in the paper feed area 7.8
inside the printer 7.10
tips for avoiding 7.21
paper properties, set 4.7
paper size, change in the tray 3.7
paper size, set 4.7
paper size,set 4.7
paper source, set 4.8
paper type, set 4.8
poster printing 5.7
preprinted paper, print 3.20
print order, set 4.12
print quality problems 7.22
print quality problems, solve 7.22
print resolution, set 4.9
printer software
install
in Linux A.2
uninstall
in Linux A.7
printing
booklets 5.9
configuration page 6.2
double-sided 5.2
fitting to a selected paper 5.5
from Windows 4.3
multiple pages on one sheet 5.6
posters 5.7
reduced/enlarged document 5.4
using overlays 5.13
watermarks 5.10
printing problems 7.3
problem, solving
checklist 7.2
error messages 7.26
general 7.3
Linux 7.31
paper jams 7.7
print quality 7.22
Windows 7.30
Q
quality problems, solve 7.22
R
replace
imaging unit 6.14
toner cartridge 6.8
transfer belt 6.22
waste toner container 6.11
S
specification
paper D.4
printer D.2
system requirements
for Linux A.2
T
toner cartridge
maintain 6.4
redistribute 6.5, 6.8
replace 6.8
transfer belt, replace 6.22
transparencies, print 3.17
Tray1, use 3.4
ii
U
uninstall
Linux A.7
W
waste toner container, replace 6.11
watermarks, use 5.10
iii
Home
Visit us at:
www.samsungprinter.com
Rev.4.00
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
