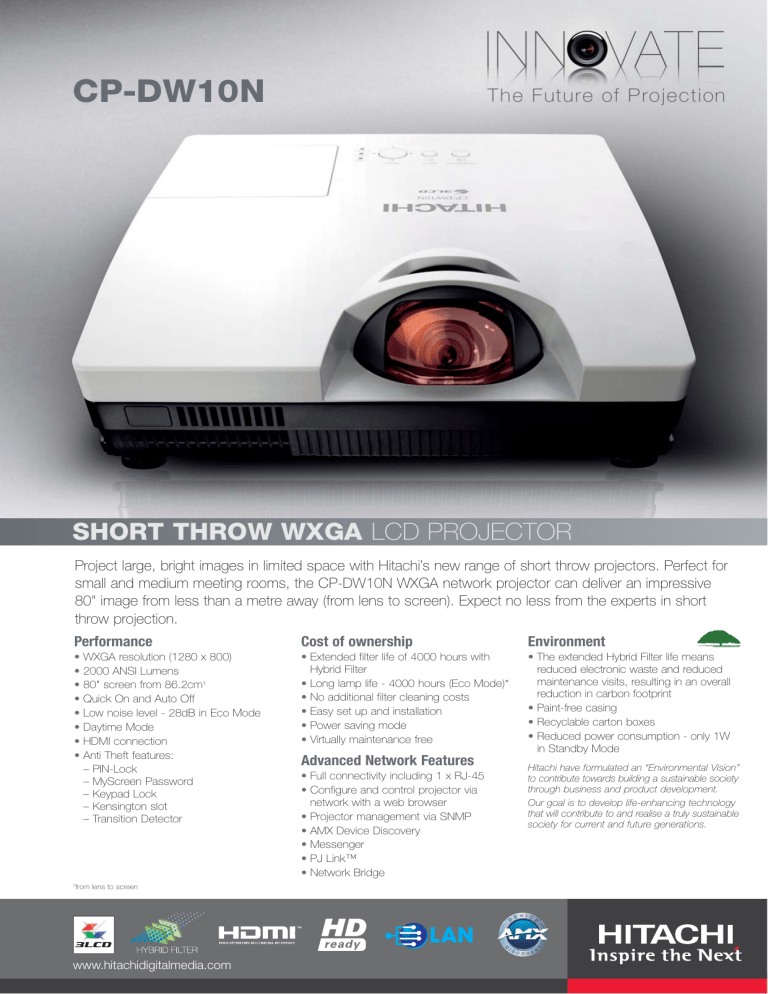

CP-DW10N
SHORT THROW WXGA LCD PROJECTOR
Project large, bright images in limited space with Hitachi’s new range of short throw projectors. Perfect for
small and medium meeting rooms, the CP-DW10N WXGA network projector can deliver an impressive
80" image from less than a metre away (from lens to screen). Expect no less from the experts in short
throw projection.
Performance
Cost of ownership
Environment
• WXGA resolution (1280 x 800)
• 2000 ANSI Lumens
• 80" screen from 86.2cm†
• Quick On and Auto Off
• Low noise level - 28dB in Eco Mode
• Daytime Mode
• HDMI connection
• Anti Theft features:
– PIN-Lock
– MyScreen Password
– Keypad Lock
– Kensington slot
– Transition Detector
• Extended filter life of 4000 hours with
Hybrid Filter
• Long lamp life - 4000 hours (Eco Mode)*
• No additional filter cleaning costs
• Easy set up and installation
• Power saving mode
• Virtually maintenance free
• The extended Hybrid Filter life means
reduced electronic waste and reduced
maintenance visits, resulting in an overall
reduction in carbon footprint
• Paint-free casing
• Recyclable carton boxes
• Reduced power consumption - only 1W
in Standby Mode
†
from lens to screen
www.hitachidigitalmedia.com
Advanced Network Features
• Full connectivity including 1 x RJ-45
• Configure and control projector via
network with a web browser
• Projector management via SNMP
• AMX Device Discovery
• Messenger
• PJ Link™
• Network Bridge
Hitachi have formulated an “Environmental Vision”
to contribute towards building a sustainable society
through business and product development.
Our goal is to develop life-enhancing technology
that will contribute to and realise a truly sustainable
society for current and future generations.
CP-DW10N
OPTICAL
LCD Panel
Resolution
Brightness
Normal Mode
Eco Mode
Contrast ratio
Lens
Lamp wattage
Lamp life
Diagonal display size
Number of colours
Keystone Correction
Distance to Width Ratio
0.59" P-Si TFT x 3
WXGA
2000 ANSI Lumens
1500 ANSI Lumens
400:1
Manual focus
180W UHB
3000 hours (Normal Mode)/4000 hours (Eco Mode)*
60~100" (80"@86cm)
8 Bit/colour, 16.7M colours
Fixed, 5.1:-1 upward shift
0.5:1 (fixed)
COMPATIBILITY
Computer compatibility
Composite/S-Video
Component Video
HDMI Video
Plug & Play
IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, SXGA+,
UXGA Compressed, MAC 16"
NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43/PAL60
525i(480i), 525p(480p), 625i(576i), 1125i([email protected]/60),
750p([email protected]/60), 1125p([email protected]/60)
Signal: 525i(480i), 525p(480p), 625i(576i), 1125i([email protected]/60),
750p([email protected]/60), 1125p([email protected]/60)
DDC2B (RGB1 Input)
FEATURES
Speaker
Basic functions
Picture adjustments
Digital keystone
Advanced features
Outward
Power on & off
Security systems
Computer In 2
Computer In 1
Computer Out
LAN
Network
Security bar
HDMI
OSD languages
10W Mono
Freeze, Magnifying, Blank, Auto adjustment, Auto Signal Search
Digital zoom x 1.35, Equalizing Gamma Correction, 2-3 pull down,
Progressive Scan, Noise Reduction
Manual V keystone ±6 degrees
MyScreen, My Memory, My Button, My Text, My Source,
Blackboard/Whiteboard mode, Daytime Mode, Input Source
Naming (English), Resolution setting, Template, Closed Caption
(for NTSC only), Audio Pass Through
Easy lamp replace from top, Air filter slides towards front side or top
Quick Power On, Direct On, Auto Off
Security bar, PIN-Lock, MyScreen Password, Keypad-Lock,
Kensington slot, Transition detector, My Text, Security label
Configure and control projector via web browser, receive alerts via
e-mail, projector management via SNMP, Scheduling, My Image,
Command Control via network, Messenger, AMX Device Discovery,
PJLink™, Network Bridge
English, French, German, Spanish, Italian, Norwegian, Dutch,
Japanese, Portuguese, Simplified Chinese, Traditional Chinese,
Korean, Swedish, Russian, Finnish, Polish, Turkey, Arabian, Persian,
Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek,
Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil)
CONNECTIONS
Kensington slot
Digital input
Computer input
Computer output
Video input
Audio Out
Audio In 3
Audio In 1
Audio In 2
Control (RS-232C)
S-Video
Composite Video
Audio input
Audio output
Control
Network
a2
a1
1 x HDMI
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
2 x Component D-sub (shared with analogue RGB)
1 x RCA for composite
1 x Mini-DIN for S-Video
2 x Stereo Mini Jack
1 x pair RCA (L/R) (Selectable on OSD)
1 x pair RCA (L/R)
1 x 9-pin D-sub for RS-232C control
1 x RJ-45
POWER
V
Power supply
Power Consumption/Standby
b1
16 x 10
100-120V/220-240V, auto switching
270W/<1W
PHYSICAL
Dimensions (W x H x D)
Weight
Noise level
Air filter
H
b2
b2
333 x 103 x 303mm (excluding feet and extrusions)
3.7Kg
28dB (Eco Mode)/36dB (Normal Mode)
Hybrid
MISCELLANEOUS
Lamp indicator light, Power light, Ceiling mount image, Rear projection image, Serial number label on side
b1
CERTIFICATION
EN60950-1 (Low voltage directive) CE Marking EN61000-3-2, EN61000-3-3, EN55022,
EN55024 (EMC directive), GOST-R
a1
a2
ACCESSORIES SUPPLIED
Remote control with batteries, Computer cable, Power cord, Lens cap, Security label,
User manual (detail & concise)
Throw distance (from the top of the lens)
Screen size
(diagonal)
60" (1.5m)
70" (1.8m)
80" (2.0m)
90" (2.3m)
100" (2.5m)
HxV
(m)
1.3
1.5
1.7
1.9
2.2
(m)
0.8
0.9
1.1
1.2
1.3
a1
(m)
0.634
0.748
0.862
0.975
1.089
a2
(m)
0.921
1.035
1.149
1.262
1.376
b1
(m)
0.264
0.298
0.331
0.364
0.397
b2
(m)
1.072
1.240
1.408
1.575
1.743
OPTIONAL ACCESSORIES
Replacement lamp
Laser pointer remote control
Cable cover
DT01091
HL02483
CCAW100
WARRANTY
Projector warranty
Lamp warranty
3 Years
6 Months**
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 500 www.hitachidigitalmedia.com
*The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps should achieve this figure. **Where a lamp fails within warranty and a
replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated). The specification above and photography is for reference only and may be subject to change.
12/09
