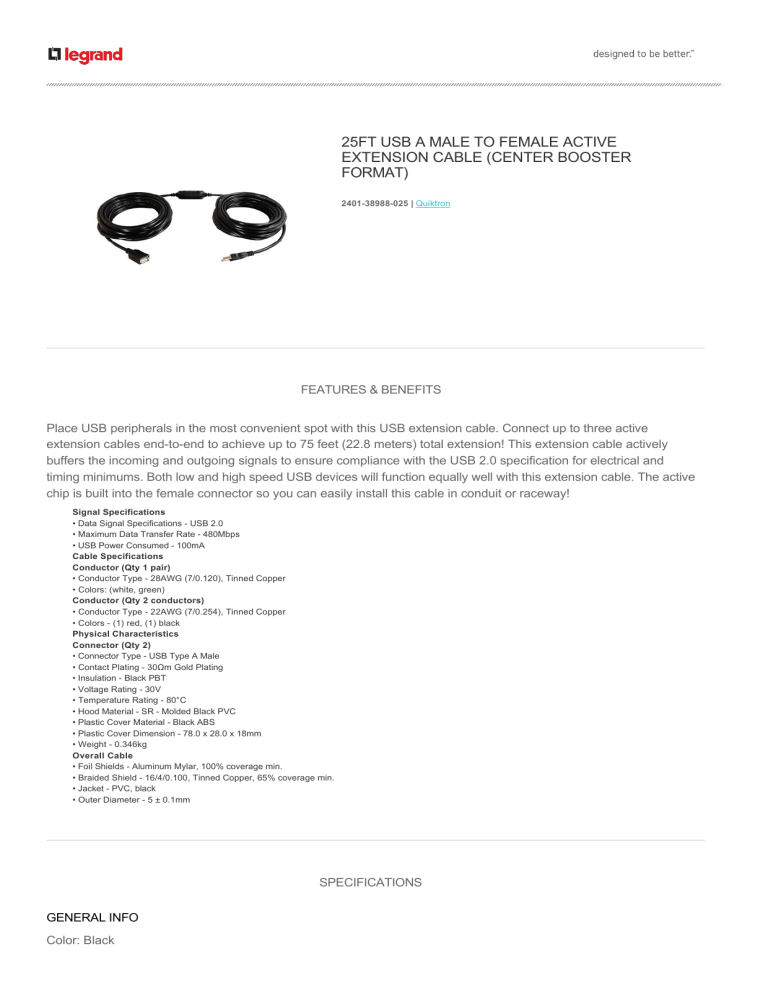

25FT USB A MALE TO FEMALE ACTIVE
EXTENSION CABLE (CENTER BOOSTER
FORMAT)
2401­38988­025 | Quiktron
FEATURES & BENEFITS
Place USB peripherals in the most convenient spot with this USB extension cable. Connect up to three active
extension cables end­to­end to achieve up to 75 feet (22.8 meters) total extension! This extension cable actively
buffers the incoming and outgoing signals to ensure compliance with the USB 2.0 specification for electrical and
timing minimums. Both low and high speed USB devices will function equally well with this extension cable. The active
chip is built into the female connector so you can easily install this cable in conduit or raceway!
Signal Specifications
• Data Signal Specifications ­ USB 2.0
• Maximum Data Transfer Rate ­ 480Mbps
• USB Power Consumed ­ 100mA
Cable Specifications
Conductor (Qty 1 pair)
• Conductor Type ­ 28AWG (7/0.120), Tinned Copper
• Colors: (white, green)
Conductor (Qty 2 conductors)
• Conductor Type ­ 22AWG (7/0.254), Tinned Copper
• Colors ­ (1) red, (1) black
Physical Characteristics
Connector (Qty 2)
• Connector Type ­ USB Type A Male
• Contact Plating ­ 30Ωm Gold Plating
• Insulation ­ Black PBT
• Voltage Rating ­ 30V
• Temperature Rating ­ 80°C
• Hood Material ­ SR ­ Molded Black PVC
• Plastic Cover Material ­ Black ABS
• Plastic Cover Dimension ­ 78.0 x 28.0 x 18mm
• Weight ­ 0.346kg
Overall Cable
• Foil Shields ­ Aluminum Mylar, 100% coverage min.
• Braided Shield ­ 16/4/0.100, Tinned Copper, 65% coverage min.
• Jacket ­ PVC, black
• Outer Diameter ­ 5 ± 0.1mm
SPECIFICATIONS
GENERAL INFO
Color: Black
Type: USB Active A/A Cables
Component Type: M/F Extension Cable
GENERAL INFO
Color: Black
Type: USB Active A/A Cables
Component Type: M/F Extension Cable
