Alloy Sn96-Sn96.5

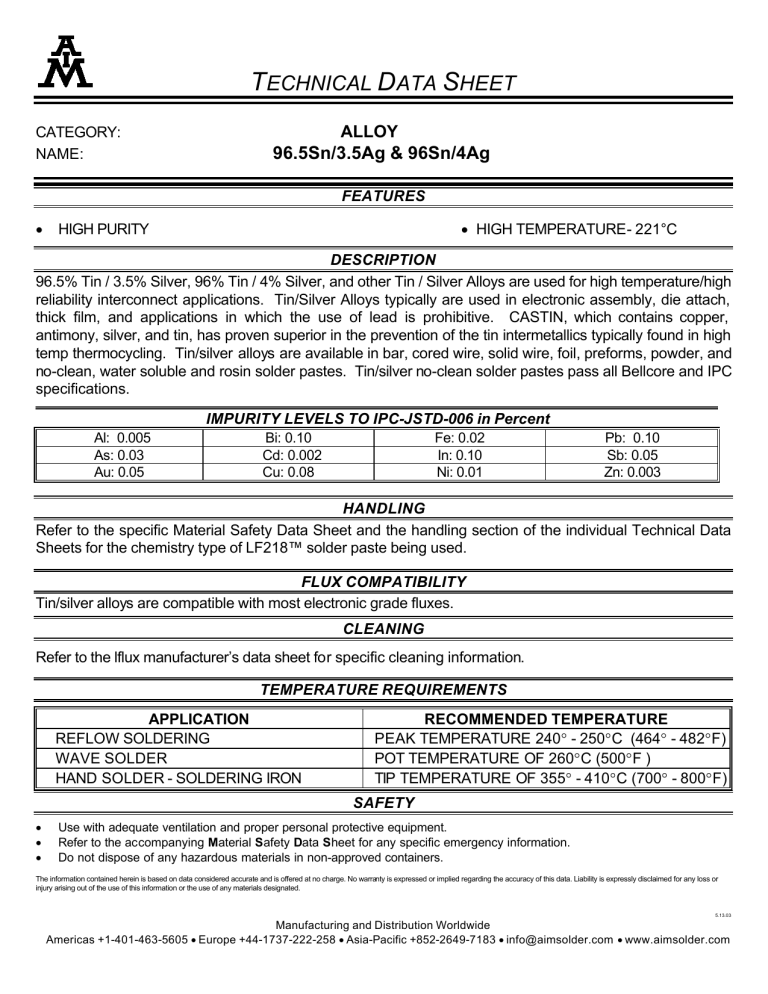

TECHNICAL DATA SHEET
CATEGORY:
NAME:
ALLOY
96.5Sn/3.5Ag & 96Sn/4Ag
FEATURES
•
• HIGH TEMPERATURE- 221°C
HIGH PURITY
DESCRIPTION
96.5% Tin / 3.5% Silver, 96% Tin / 4% Silver, and other Tin / Silver Alloys are used for high temperature/high
reliability interconnect applications. Tin/Silver Alloys typically are used in electronic assembly, die attach,
thick film, and applications in which the use of lead is prohibitive. CASTIN, which contains copper,
antimony, silver, and tin, has proven superior in the prevention of the tin intermetallics typically found in high
temp thermocycling. Tin/silver alloys are available in bar, cored wire, solid wire, foil, preforms, powder, and
no-clean, water soluble and rosin solder pastes. Tin/silver no-clean solder pastes pass all Bellcore and IPC
specifications.
IMPURITY LEVELS TO IPC-JSTD-006 in Percent
Al: 0.005
As: 0.03
Au: 0.05
Bi: 0.10
Cd: 0.002
Cu: 0.08
Fe: 0.02
In: 0.10
Ni: 0.01
Pb: 0.10
Sb: 0.05
Zn: 0.003
HANDLING
Refer to the specific Material Safety Data Sheet and the handling section of the individual Technical Data
Sheets for the chemistry type of LF218™ solder paste being used.
FLUX COMPATIBILITY
Tin/silver alloys are compatible with most electronic grade fluxes.
CLEANING
Refer to the lflux manufacturer’s data sheet for specific cleaning information.
TEMPERATURE REQUIREMENTS
APPLICATION
REFLOW SOLDERING
WAVE SOLDER
HAND SOLDER - SOLDERING IRON
RECOMMENDED TEMPERATURE
PEAK TEMPERATURE 240° - 250°C (464° - 482°F)
POT TEMPERATURE OF 260°C (500°F )
TIP TEMPERATURE OF 355° - 410°C (700° - 800°F)
SAFETY
•
•
•
Use with adequate ventilation and proper personal protective equipment.
Refer to the accompanying Material Safety Data Sheet for any specific emergency information.
Do not dispose of any hazardous materials in non-approved containers.
The information contained herein is based on data considered accurate and is offered at no charge. No warranty is expressed or implied regarding the accuracy of this data. Liability is expressly disclaimed for any loss or
injury arising out of the use of this information or the use of any materials designated.
5.13.03
Manufacturing and Distribution Worldwide
Americas +1-401-463-5605 • Europe +44-1737-222-258 • Asia-Pacific +852-2649-7183 • [email protected] • www.aimsolder.com
