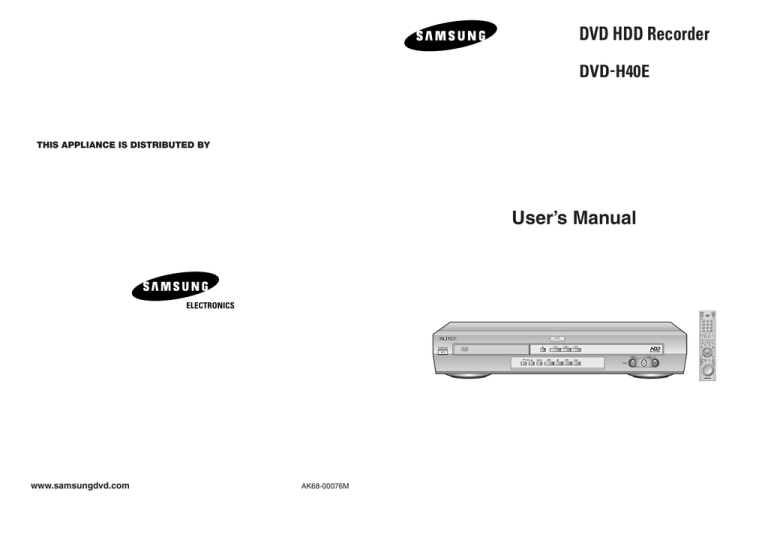

DVD HDD Recorder
DVD-H40E
THIS APPLIANCE IS DISTRIBUTED BY
User’s Manual
ELECTRONICS
www.samsungdvd.com
AK68-00076M
Safety Instructions
The following illustrations represent precautions.
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION. TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER. NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.
DO NOT OPEN THE DHR. Refer to service personnel.
DANGER
This symbol is intended to alert you to the presence of
dangerous voltage within the product.
IMPORTANT NOTE
10%
75%
40¡C
The mains lead on this equipment is supplied with a mould plug
incorporating a fuse. The value of the fuse is indicated on the
pin face of the plug. If it requires replacing, a fuse approved to
BS1362 of the same rating must be used.
CAUTION
H
H
5¡C
This symbol is intended to alert you to the presence of
important instructions accompanying the product.
Never use the plug with the fuse cover omitted if the cover is
detachable. If a replacement fuse cover is required, it must be
of the same colour as the pin face of the plug.
Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your
house or the cable is not long enough to reach a power point,
you should obtain a suitable safety approved extension lead or
consult your dealer for assistance.
However, if there is no alternative to cutting off the plug,
remove the fuse and then safely dispose of the plug.
Do not connect the plug to a mains socket, as there is a risk of
shock hazard from the bared flexible cord.
Do NOT expose the DHR to
extreme temperature conditions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).
Do NOT expose the DHR to
direct sunlight.
Do NOT expose the DHR to
any liquids.
Do NOT place any objects on
the DHR or remote control.
During a storm and/or lightning, unplug the DHR from the
mains jack and aerial.
If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.
IMPORTANT
The wires in the mains lead are coloured in accordance with
the following code: BLUE = NEUTRAL
BROWN = LIVE
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed as
follows: The wire coloured BLUE must be connected to the terminal
marked with the letter N or coloured BLUE or BLACK. The wire
coloured BROWN must be connected to the terminal marked
with the letter L or coloured BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE LETTER
E OR BY THE EARTH SYMBOL
, OR COLOURED
GREEN OR GREEN AND YELLOW.
2
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS
3
Key features of DVD-H40E
1. Digital Video Recording.
2. Recorded Program List.
3. Highlight Play.
4. Editing Recorded Video.
5. DVD, CD, VCD, MP3, Photo CD Play.
6. Digital Audio Juke Box.
7. Family Photo Album.
8. Connection with DVC, VCR or STB.
1. Digital Video Recording
“ Instant recording ” of TV program by pushing one button.
Unlike VCR, it provides consumer to record TV program instantly by touching record button on the remote.
“ Live TV Pause ” guarantees consumer not to miss a single
TV scene.
This function allows consumer who is watching TV program
to work on other stuffs without missing a single scene.
“ High Quality Video recording ” from TV DVD (VCD), DVC and
STB to HDD.
It supports 3 video recording modes at the different bit rates such as SQ (2Mbps / 40h), HQ (4Mbps / 20h)
and SHQ (6Mbps / 13 hours). It can be stored up to 500 Clips.
Key features of DVD-H40E (cont.)
2. Recorded Program List
• If customer record the video program, “ Program List ” will be generated automatically for easy
understanding of the recorded program.
• This program list includes “Title Name”, “Date” and “Length”. Title name can be changed by the
“Title Insert Function”. Date and length information are automatically generated.
Thumbnail picture of the
first clip will be displayed.
Every necessary keys for operating
the current menu screen are also
arranged in this bottom area with
icons and instructions.
3. Highlight Play
• At the program list, if you push “ P – List ” button on the remote, you can preview the highlight of selected
video program like as you can see in the start part of the movie for introducing the next coming movie.
“ Live TV Control ” allows you to go back in time axes and experience what you missed on the live TV
broadcasting.
Simply press the Pause button ( ❿II ) when you leave and when you return, DVD-H40 will instantly replay
what you missed while you were away.
Playback
for 5 sec
Jump
Repeat highlight playback
4. Editing the Recorded Video Program
• Samsung DVD-H40 will offer the fun to generate his own video program by himself.
• User can combine 2 or more video programs as a one video program.
shows the selected file information
4
5
Key features of DVD-H40E (cont.)
Key features of DVD-H40E (cont.)
4. Editing the Recorded Video Program
6. Digital Audio Jukebox
• DVD-H40 can divide selected video program as 2 or more programs.
1. playing picture ( I frame )
2. FPS, RPS, pause keys
can be used
< start position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(White -> Blue)
• “Juke box” enables consumer to enjoy thousands of music in HDD without replacing Audio CD every time.
DVD-H40 allows MP3 music from CD to be downloaded into HDD as many as consumer wants.
( Max. capacity of HDD for MP3 : 10GB)
Indicates selected file
< end position >
1. Pressing enter button,
then division will start
2. Color will be changed.
(Blue->White)
3. Create sub-picture
divided
File
Current
position
White bar
File length
• DVD-H40 can delete unnecessary video programs.
• Even partial deletion of selected video program is possible.
• If user include his/her favorite photos in the same music folder, then user can enjoy the music slide show
also.
Play list
Selected file enter key, then display
pop-up menu for delete option
Mark
Play list
Total : 012
Name
MP3
MP3
MP3
MP3
MP3
MP3
MP3
MP3
Something like you
Back for good
Love of my life
Slide
More than words
Power of love
Autumn
Tears in heaven
My love
Mark
MP3
MP3
MP3
MP3
Show TimeSinger : Queen
Time : 04:13
MP3
MP3
MP3
05
MP3
Repeat All
Total : 012
Name
Something like you
Back for good
Love of my life
More than words
Power of love
Autumn
Tears in heaven
My love
Slide Show
Repeat All
lnstructions
Slide Show
lnstructions
5. DVD, CD, VCD, MP3, Photo CD Play
• DVD-H40 can play many kinds of discs like as DVD, Audio CD, Video CD, MP3 (CD-R/RW), Photo CD
(Kodak), CD-G, etc.
• At the edit mode, user can generate his/her own music folder like as “CLASSIC”, “JAZZ”, “POP SONG” and
so on.
Edit
Mark
MP3
Total : 777
Name
pops
Select All
Jazz
Copy
Clear
to HDD
All
MP3
BREAD - IF
Copy
Move
to File
HDD
MP3
HEAVEN
Copy
Delete
to HDD
File
MP3
Video Kill the
MP3
CARELESS WHISPER
MP3
Three Times AL
MP3
I cant Tell you
Copy
MaketoFolder
HDD
Copy
Rename
to HDD
Copy
DeletetoFolder
HDD
lnstructions
6
7
Key features of DVD-H40E (cont.)
Key features of DVD-H40E (cont.)
• Editing function enables you to select, delete, move or rename your favorite images or photo and
make your own directory.
7. Family Photo Album
• Enjoy JPEG Images from CD or HDD with easy & user friendly GUI.
Up to 10,000 JPEG images (Standard file size 100kbyte) can be saved and edited in HDD.
It supports Kodak Photo CD format.
Page indicates number of
pages of thumbnails
8 Thumbnails per page
Selected photo is
highlighted for enlargement.
“Enter” on remote control
enlarges photo to full
screen
Navigate between
thumbnails using remote
control directional
buttons
Indicates selected file
Date show when the
selected photo was taken
Limited to 20 string
• User can easily select the photos what he wants to copy from CD to HDD at the below GUI screen.
• “Viewing Individual Photo”
Indicates selected file
8. Connection to DVC or DSC
• “Slide Show”
• Connecting DSC or DVC through A/V Input port enables to enjoy and edit those video programs simply
through TV screen.
Store /Edit in HDD
Time setting range
3 sec ~ 10 sec
Pushed “enter” key, then pop-up menu will be display.
After delay time setting, started slide show.
8
Image from
DVC or DSC
Enjoy through TV
9
Contents
Contents (cont.)
SETUP DHR(DVD HDD Recorder)
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corpration and other rights owners. Use of this copyright protection
technology must by authorized by Macrovision Corporized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
Digital Recorder
Watch the recorded program in HDD
Set the parental lock
Change the lock password
Edit the recorded program in HDD(Combine)
Edit the recorded program in HDD(Divide)
Edit the recorded program in HDD(Delete)
Edit the recorded program in HDD(Partial Delete)
Record TV program(Timer program setting)
Record TV program(Showview)
Recording Television Broadcast
Record TV program (One Touch Recording)
