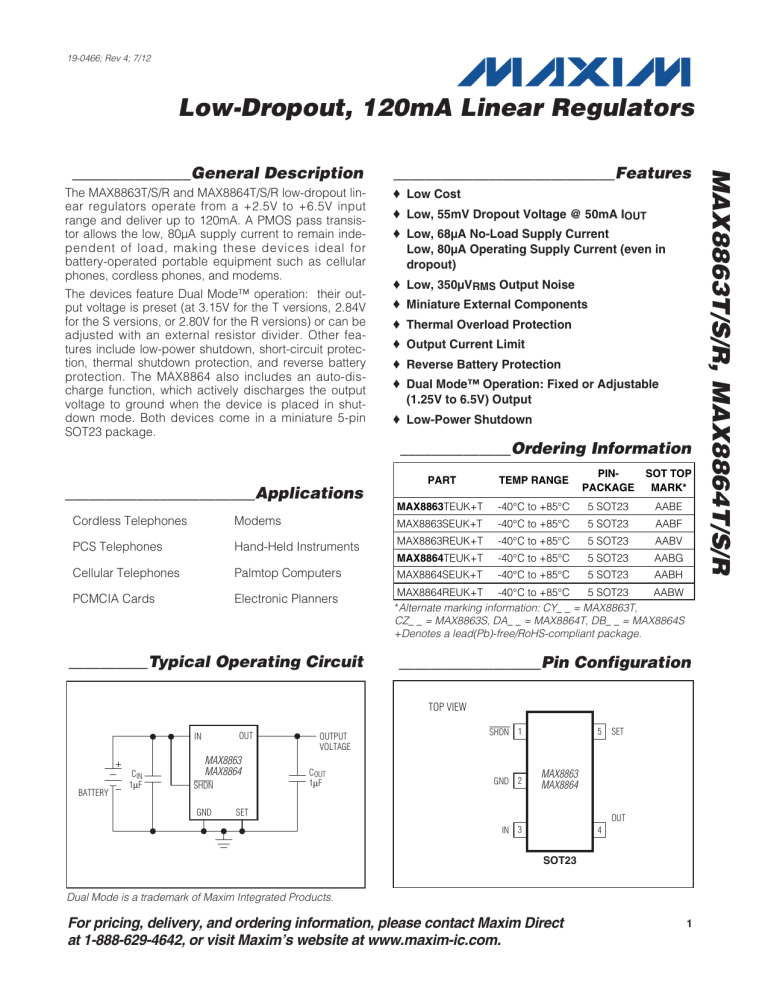

19-0466; Rev 4; 7/12 Low-Dropout, 120mA Linear Regulators The MAX8863T/S/R and MAX8864T/S/R low-dropout linear regulators operate from a +2.5V to +6.5V input range and deliver up to 120mA. A PMOS pass transistor allows the low, 80µA supply current to remain independent of load, making these devices ideal for battery-operated portable equipment such as cellular phones, cordless phones, and modems. The devices feature Dual Mode™ operation: their output voltage is preset (at 3.15V for the T versions, 2.84V for the S versions, or 2.80V for the R versions) or can be adjusted with an external resistor divider. Other features include low-power shutdown, short-circuit protection, thermal shutdown protection, and reverse battery protection. The MAX8864 also includes an auto-discharge function, which actively discharges the output voltage to ground when the device is placed in shutdown mode. Both devices come in a miniature 5-pin SOT23 package. ____________________________Features o Low Cost o Low, 55mV Dropout Voltage @ 50mA IOUT o Low, 68µA No-Load Supply Current Low, 80µA Operating Supply Current (even in dropout) o Low, 350µVRMS Output Noise o Miniature External Components o Thermal Overload Protection o Output Current Limit o Reverse Battery Protection o Dual Mode™ Operation: Fixed or Adjustable (1.25V to 6.5V) Output o Low-Power Shutdown ______________Ordering Information PART TEMP RANGE PINPACKAGE SOT TOP MARK* MAX8863TEUK+T -40°C to +85°C 5 SOT23 AABE MAX8863SEUK+T -40°C to +85°C 5 SOT23 AABF MAX8863REUK+T -40°C to +85°C 5 SOT23 AABV MAX8864TEUK+T -40°C to +85°C 5 SOT23 AABG MAX8864SEUK+T -40°C to +85°C 5 SOT23 AABH ________________________Applications Cordless Telephones Modems PCS Telephones Hand-Held Instruments Cellular Telephones Palmtop Computers PCMCIA Cards Electronic Planners __________Typical Operating Circuit MAX8864REUK+T -40°C to +85°C 5 SOT23 AABW *Alternate marking information: CY_ _ = MAX8863T, CZ_ _ = MAX8863S, DA_ _ = MAX8864T, DB_ _ = MAX8864S +Denotes a lead(Pb)-free/RoHS-compliant package. __________________Pin Configuration TOP VIEW OUT IN BATTERY CIN 1µF MAX8863 MAX8864 SHDN GND OUTPUT VOLTAGE COUT 1µF SHDN 1 GND 2 5 SET MAX8863 MAX8864 SET OUT IN 3 4 SOT23 Dual Mode is a trademark of Maxim Integrated Products. For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com. 1 MAX8863T/S/R, MAX8864T/S/R _______________General Description MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 120mA Linear Regulators ABSOLUTE MAXIMUM RATINGS Continuous Power Dissipation (multilayer board, TA = +70°C) SOT23 (3.9mW/°C above +70°C).............................312.6mW Operating Temperature Range ...........................-40°C to +85°C Junction Temperature ......................................................+150°C Storage Temperature Range .............................-65°C to +160°C Lead Temperature (soldering, 10s) .................................+300°C Soldering Temperature (reflow) .......................................+260°C VIN to GND ..................................................................-7V to +7V Output Short-Circuit Duration ............................................Infinite SET to GND ..............................................................-0.3V to +7V SHDN to GND..............................................................-7V to +7V SHDN to IN ...............................................................-7V to +0.3V OUT to GND ................................................-0.3V to (VIN + 0.3V) Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. PACKAGE THERMAL CHARACTERISTICS (Note 1) SOT23 Junction-to-Ambient Thermal Resistance (θJA)...............255.9°C/W Junction-to-Case Thermal Resistance (θJC)......................81°C/W Note 1: Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a fourlayer board. For detailed information on package thermal considerations, refer to www.maxim-ic.com/thermal-tutorial. ELECTRICAL CHARACTERISTICS (VIN = +3.6V, VGND = 0V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 2) PARAMETER Input Voltage (Note 3) Output Voltage Adjustable Output Voltage Range (Note 4) SYMBOL CONDITIONS VIN VOUT Ground Pin Current TYP MAX UNITS 6.5 V 2.5 0mA ≤ IOUT ≤ 50mA, SET = GND MAX886_T 3.05 3.15 3.25 MAX886_S 2.75 2.84 2.93 MAX886_R 2.70 2.80 2.88 VOUT VSET Maximum Output Current Current Limit (Note 5) MIN 6.5 120 ILIM IQ Dropout Voltage (Note 6) ILOAD = 0mA 68 ILOAD = 50mA 80 IOUT = 1mA 1.1 55 120 0 +0.15 SET = GND 0.011 0.040 SET tied to OUT 0.006 ∆VLNR VIN = 2.5V to 6.5V, SET tied to OUT, IOUT = 1mA Load Regulation ∆VLDR IOUT = 0mA to 50mA Output Voltage Noise mA 150 IOUT = 50mA Line Regulation 10Hz to 1MHz -0.15 V mA 280 SET = GND V COUT = 1µF 350 COUT = 100µF 220 µA mV %/V %/mA µVRMS SHUTDOWN SHDN Input Threshold 2 VIH VIL 2.0 0.4 V Low-Dropout, 120mA Linear Regulators MAX8863T/S/R, MAX8864T/S/R ELECTRICAL CHARACTERISTICS (continued) (VIN = +3.6V, VGND = 0V, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 2) PARAMETER SYMBOL CONDITIONS SHDN Input Bias Current I SHDN V SHDN = VIN Shutdown Supply Current IQSHDN VOUT = 0V TYP MAX TA = +25°C MIN 0 100 TA = TMAX 0.05 TA = +25°C 0.0001 TA = TMAX 0.02 Shutdown Discharge Resistance (MAX8864) SET INPUT Set Reference Voltage (Note 4) Set Input Leakage Current (Note 4) UNITS nA 1 µA Ω 300 VSET VIN = 2.5V to 6.5V, IOUT = 1mA ISET VSET = 1.3V TA = +25°C 1.225 1.25 1.275 TA = TMIN to 1.215 1.25 1.285 TA = +25°C 0.015 2.5 TA = TMAX 0.5 V nA THERMAL PROTECTION Thermal Shutdown Temperature Thermal Shutdown Hysteresis TSHDN 170 °C ∆TSHDN 20 °C Note 2: Limits are 100% production tested at TA = +25°C. Limits over the operating temperature range are guaranteed through correlation using Statistical Quality Control (SQC) Methods. Note 3: Guaranteed by line regulation test. Note 4: Adjustable mode only. Note 5: Not tested. For design purposes, the current limit should be considered 120mA minimum to 420mA maximum. Note 6: The dropout voltage is defined as (VIN - VOUT) when VOUT is 100mV below the value of VOUT for VIN = VOUT +2V. __________________________________________Typical Operating Characteristics (VIN = +3.6V, CIN = 1µF, COUT = 1µF, TA = +25°C, MAX886_T, unless otherwise noted.) OUTPUT VOLTAGE vs. LOAD CURRENT OUTPUT VOLTAGE vs. INPUT VOLTAGE 95 MAX8863/4-03 3.5 MAX8863/4-02 3.25 3.0 3.20 3.15 3.10 OUTPUT VOLTAGE (V) 90 SUPPLY CURRENT (µA) OUTPUT VOLTAGE (V) 100 MAX8863/4-01 3.30 SUPPLY CURRENT vs. LOAD CURRENT 85 80 75 70 65 2.5 2.0 NO LOAD 1.5 1.0 60 3.05 0.5 55 3.00 50 0 10 20 30 40 50 60 70 80 90 100 LOAD CURRENT (mA) 0 0 10 20 30 40 50 60 70 80 90 100 LOAD CURRENT (mA) 0 1 2 3 4 5 6 INPUT VOLTAGE (V) 3 ____________________________Typical Operating Characteristics (continued) (VIN = +3.6V, CIN = 1µF, COUT = 1µF, MAX886_T, TA = +25°C, unless otherwise noted.) OUTPUT VOLTAGE vs. TEMPERATURE ILOAD = 50mA 3.25 70 ILOAD = 0mA 60 50 40 30 100 ILOAD = 50mA 90 80 3.20 3.15 3.10 20 70 60 50 40 30 20 3.05 10 10 3.00 2 4 3 5 -20 0 20 40 80 60 100 -20 40 60 80 100 OUTPUT SPECTRAL NOISE DENSITY vs. FREQUENCY 70 60 50 PSRR (dB) TA = -40°C 40 VOUT = 3.15V RL = 100W COUT = 10µF 40 30 COUT = 1µF 20 20 10 0 0 10 20 30 40 50 60 70 80 90 100 0.1 1 10 FREQUENCY (kHz) 100 COUT = 1µF 1 COUT = 100µF 0.10 1000 0.1 100 INTERNAL FEEDBACK 10 EXTERNAL FEEDBACK 1 VOUT STABLE REGION 0.1 0.01 10 20 30 40 50 60 70 80 90 100 LOAD CURRENT (mA) 1 10 OUTPUT NOISE DC TO 1MHz MAX8863/64-8B COUT = 1µF RL = 50Ω FREQUENCY (kHz) REGION OF STABLE COUT ESR vs. LOAD CURRENT 1000 10 0.01 0.01 LOAD CURRENT (mA) OUTPUT SPECTRAL NOISE DENSITY (µV/÷Hz) POWER-SUPPLY REJECTION RATIO vs. FREQUENCY 60 COUT ESR (Ω) 20 DROPOUT VOLTAGE vs. LOAD CURRENT 80 0 0 TEMPERATURE (°C) TA = +25°C 0 -40 TEMPERATURE (°C) TA = +85°C 100 0 -40 INPUT VOLTAGE (V) 140 120 6 MAX8863/4-08 1 MAX8863/4-07 0 MAX8863/64-8A 0 1ms/div ILOAD = 50mA, VOUT IS AC COUPLED 4 MAX8863/4-06 3.30 SUPPLY CURRENT (µA) ILOAD = 50mA OUTPUT VOLTAGE (V) SUPPLY CURRENT (µA) 80 MAX8863/4-04 90 SUPPLY CURRENT vs. TEMPERATURE MAX8863/4-05 SUPPLY CURRENT vs. INPUT VOLTAGE DROPOUT VOLTAGE (mV) MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 120mA Linear Regulators 100 1000 Low-Dropout, 120mA Linear Regulators LOAD TRANSIENT LINE TRANSIENT 3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V VIN 4.6V ILOAD 3.6V 10µs/div ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED 50µs/div ILOAD = 50mA, VOUT IS AC COUPLED LOAD TRANSIENT LOAD TRANSIENT 3.16V 3.16V VOUT 3.15V VOUT 3.15V 3.14V 3.14V 50mA ILOAD 0mA ILOAD 10µs/div 10µs/div VIN = VOUT + 0.2V, ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED VIN = VOUT + 0.1V, ILOAD = 0mA to 50mA, CIN = 10µF, VOUT IS AC COUPLED MAX8864 SHUTDOWN (NO LOAD) MAX8864 SHUTDOWN 4V VOUT 4V 2V VOUT 0V VSHDN 2V 0V 2V VSHDN 0V 2V 0V 500µs/div NO LOAD 200µs/div ILOAD = 50mA 5 MAX8863T/S/R, MAX8864T/S/R ____________________________Typical Operating Characteristics (continued) (VIN = +3.6V, CIN = 1µF, COUT = 1µF, MAX886_T, TA = +25°C, unless otherwise noted.) MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 120mA Linear Regulators ______________________________________________________________Pin Description PIN NAME FUNCTION 1 SHDN Active-Low Shutdown Input. A logic low reduces the supply current to 0.1nA. On the MAX8864, a logic low also causes the output voltage to discharge to GND. Connect to IN for normal operation. 2 GND Ground. This pin also functions as a heatsink. Solder to large pads or the circuit board ground plane to maximize thermal dissipation. 3 IN 4 OUT Regulator Output. Fixed or adjustable from 1.25V to +6.5V. Sources up to 120mA. Bypass with a 1µF, <0.2Ω typical ESR capacitor to GND. 5 SET Feedback Input for Setting the Output Voltage. Connect to GND to set the output voltage to the preset 2.80V (MAX886_R), 2.84V (MAX886_S), or 3.15V (MAX886_T). Connect to an external resistor divider for adjustable-output operation. Regulator Input. Supply voltage can range from +2.5V to +6.5V. Bypass with 1µF to GND (see Capacitor Selection and Regulator Stability). _______________Detailed Description The MAX8863/MAX8864 are low-dropout, low-quiescentcurrent linear regulators designed primarily for batterypowered applications. They supply an adjustable 1.25V to 6.5V output or a preselected 2.80V (MAX886_R), 2.84V (MAX886_S), or 3.15V (MAX886_T) output for load currents up to 120mA. As illustrated in Figure 1, these devices consist of a 1.25V reference, error amplifier, MOSFET driver, Pchannel pass transistor, Dual Mode™ comparator, and internal feedback voltage divider. The 1.25V bandgap reference is connected to the error amplifier’s inverting input. The error amplifier compares this reference with the selected feedback voltage and amplifies the difference. The MOSFET driver reads the error signal IN SHDN and applies the appropriate drive to the P-channel pass transistor. If the feedback voltage is lower than the reference, the pass-transistor gate is pulled lower, allowing more current to pass and increasing the output voltage. If the feedback voltage is too high, the pass-transistor gate is pulled up, allowing less current to pass to the output. The output voltage is fed back through either an internal resistor voltage divider connected to the OUT pin, or an external resistor network connected to the SET pin. The Dual Mode comparator examines the SET voltage and selects the feedback path. If SET is below 60mV, internal feedback is used and the output voltage is regulated to the preset output voltage. Additional blocks include a current limiter, reverse battery protection, thermal sensor, and shutdown logic. REVERSE BATTERY PROTECTION ERROR AMP MAX8863 MAX8864 SHUTDOWN LOGIC N * THERMAL SENSOR 1.25V REF DUAL-MODE COMPARATOR GND * AUTO-DISCHARGE, MAX8864 ONLY Figure 1. Functional Diagram 6 P MOS DRIVER WITH ILIMIT 60mV OUT SET Low-Dropout, 120mA Linear Regulators MAX8863 MAX8864 SHDN R1 20pF SET R2 GND COUT 1µF RL Shutdown Figure 2. Adjustable Output Using External Feedback Resistors Internal P-Channel Pass Transistor The MAX8863/MAX8864 feature a 1.1Ω typical P-channel MOSFET pass transistor. This provides several advantages over similar designs using PNP pass transistors, including longer battery life. The P-channel MOSFET requires no base drive current, which reduces quiescent current considerably. PNPbased regulators waste considerable amounts of current in dropout when the pass transistor saturates. They also use high base-drive currents under large loads. The MAX8863/MAX8864 do not suffer from these problems, and consume only 80µA of quiescent current, whether in dropout, light load, or heavy load applications (see Typical Operating Characteristics). Output Voltage Selection The MAX8863/MAX8864 feature Dual Mode operation: they operate in either a preset voltage mode or an adjustable mode. In preset voltage mode, internal, trimmed feedback resistors set the MAX886_R output to 2.80V, the MAX886_S output to 2.84V, and the MAX886_T output to 3.15V. Select this mode by connecting SET to ground. In adjustable mode, select an output between 1.25V and 6.5V using two external resistors connected as a voltage divider to SET (Figure 2). The output voltage is set by the following equation: VOUT = VSET (1 + R1 / R2) where VSET = 1.25V. To simplify resistor selection: ⎛V R1 = R2 ⎜ OUT ⎜ VSET ⎝ ⎞ − 1⎟ ⎟ ⎠ A low input on the SHDN pin shuts down the MAX8863/MAX8864. In shutdown mode, the pass transistor, control circuit, reference, and all biases are turned off, reducing the supply current to typically 0.1nA. Connect SHDN to IN for normal operation. The MAX8864 output voltage is actively discharged to ground when the part is placed in shutdown (see Typical Operating Characteristics). Current Limit The MAX8863/MAX8864 include a current limiter that monitors and controls the pass transistor’s gate voltage, estimating the output current and limiting it to about 280mA. For design purposes, the current limit should be considered 120mA (min) to 420mA (max). The output can be shorted to ground for an indefinite time period without damaging the part. Thermal Overload Protection Thermal overload protection limits total power dissipation in the MAX8863/MAX8864. When the junction temperature exceeds T J = +170°C, the thermal sensor sends a signal to the shutdown logic, turning off the pass transistor and allowing the IC to cool. The thermal sensor will turn the pass transistor on again after the IC’s junction temperature typically cools by 20°C, resulting in a pulsed output during continuous thermal overload conditions. Thermal overload protection is designed to protect the MAX8863/MAX8864 in the event of fault conditions. Stressing the device with high load currents and high input-output differential voltages (which result in die temperatures above +125°C) may cause a momentary overshoot (2% to 8% for 200ms) when the load is completely removed. This can be remedied by raising the minimum load current from 0µA (+125°C) to 100µA (+150°C). For continuous operation, do not exceed the absolute maximum junction temperature rating of TJ = +150°C. 7 MAX8863T/S/R, MAX8864T/S/R OUT IN CIN BATTERY 1µF OUTPUT VOLTAGE Choose R2 = 100kΩ to optimize power consumption, accuracy, and high-frequency power-supply rejection. The total current through the external resistive feedback and load resistors should not be less than 10µA. Since the VSET tolerance is typically less than ±25mV, the output can be set using fixed resistors instead of trim pots. Connect a 10pF to 25pF capacitor across R1 to compensate for layout-induced parasitic capacitances. In preset voltage mode, impedances between SET and ground should be less than 100kΩ. Otherwise, spurious conditions could cause the voltage at SET to exceed the 60mV Dual Mode threshold. MAX8863T/S/R, MAX8864T/S/R Low-Dropout, 120mA Linear Regulators Operating Region and Power Dissipation Maximum power dissipation of the MAX8863/MAX8864 depends on the thermal resistance of the case and circuit board, the temperature difference between the die junction and ambient air, and the rate of air flow. The power dissipation across the device is P = IOUT (VIN VOUT). The resulting maximum power dissipation is: PMAX = (TJ - TA) / θJA where (TJ - TA) is the temperature difference between the MAX8863/MAX8864 die junction and the surrounding air, and θJA is the thermal resistance of the chosen package to the surrounding air. The GND pin of the MAX8863/MAX8864 performs the dual function of providing an electrical connection to ground and channeling heat away. Connect the GND pin to ground using a large pad or ground plane. Reverse Battery Protection The MAX8863/MAX8864 have a unique protection scheme that limits the reverse supply current to less than 1mA when either VIN or V SHDN falls below ground. The circuitry monitors the polarity of these two pins, disconnecting the internal circuitry and parasitic diodes when the battery is reversed. This feature prevents the device from overheating and damaging the battery. VIN > 5.5V Minimum Load Current When operating the MAX8863/MAX8864 with an input voltage above 5.5V, a minimum load current of 20µA is required to maintain regulation in preset voltage mode. When setting the output with external resistors, the minimum current through the external feedback resistors and load must be 30µA. __________Applications Information Capacitor Selection and Regulator Stability Normally, use a 1µF capacitor on the input and a 1µF capacitor on the output of the MAX8863/MAX8864. Larger input capacitor values and lower ESR provide better supply-noise rejection and transient response. A higher-value input capacitor (10µF) may be necessary 8 if large, fast transients are anticipated and the device is located several inches from the power source. Improve load-transient response, stability, and power-supply rejection by using large output capacitors. For stable operation over the full temperature range, with load currents up to 120mA, a minimum of 1µF is recommended. Noise The MAX8863/MAX8864 exhibit 350µVRMS noise during normal operation. When using the MAX8863/MAX8864 in applications that include analog-to-digital converters of greater than 12 bits, consider the ADC’s power-supply rejection specifications (see the Output Noise DC to 1MHz photo in the Typical Operating Characteristics). Power-Supply Rejection and Operation from Sources Other than Batteries The MAX8863/MAX8864 are designed to deliver low dropout voltages and low quiescent currents in batterypowered systems. Power-supply rejection is 62dB at low frequencies and rolls off above 300Hz. As the frequency increases above 20kHz, the output capacitor is the major contributor to the rejection of power-supply noise (see the Power-Supply Rejection Ratio vs. Ripple Frequency graph in the Typical Operating Characteristics). When operating from sources other than batteries, improve supply-noise rejection and transient response by increasing the values of the input and output capacitors, and using passive filtering techniques (see the supply and load-transient responses in the Typical Operating Characteristics). Load Transient Considerations The MAX8863/MAX8864 load-transient response graphs (see Typical Operating Characteristics) show two components of the output response: a DC shift of the output voltage due to the different load currents, and the transient response. Typical overshoot for step changes in the load current from 0mA to 50mA is 12mV. Increasing the output capacitor’s value and decreasing its ESR attenuates transient spikes. Low-Dropout, 120mA Linear Regulators For the latest package outline information and land patterns (footprints), go to www.maxim-ic.com/packages. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status. PACKAGE TYPE PACKAGE CODE OUTLINE NO. LAND PATTERN NO. 5 SOT23 U5+1 21-0057 90-0174 9 MAX8863T/S/R, MAX8864T/S/R Package Information Input-Output (Dropout) Voltage A regulator’s minimum input-output voltage differential (or dropout voltage) determines the lowest usable supply voltage. In battery-powered systems, this will determine the useful end-of-life battery voltage. Because the MAX8863/MAX8864 use a P-channel MOSFET pass transistor, their dropout voltage is a function of RDS(ON) multiplied by the load current (see Electrical Characteristics). Low-Dropout, 120mA Linear Regulators MAX8863T/S/R, MAX8864T/S/R Revision History REVISION NUMBER REVISION DATE DESCRIPTION PAGES CHANGED 3 5/11 Added lead-free designation and updated continuous power dissipation and θJA specs 1, 2 4 7/12 Corrected units for TOC 7 4 Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time. The parametric values (min and max limits) shown in the Electrical Characteristics table are guaranteed. Other parametric values quoted in this data sheet are provided for guidance. 10 _______________Maxim Integrated Products, Inc. 160 Rio Robles, San Jose, CA 95134 USA 1-408-601-1000 © 2012 Maxim Integrated Products Maxim is a registered trademark of Maxim Integrated Products, Inc.
