EV-Z1GB-RDS
6/4/03 9:47
Page 1

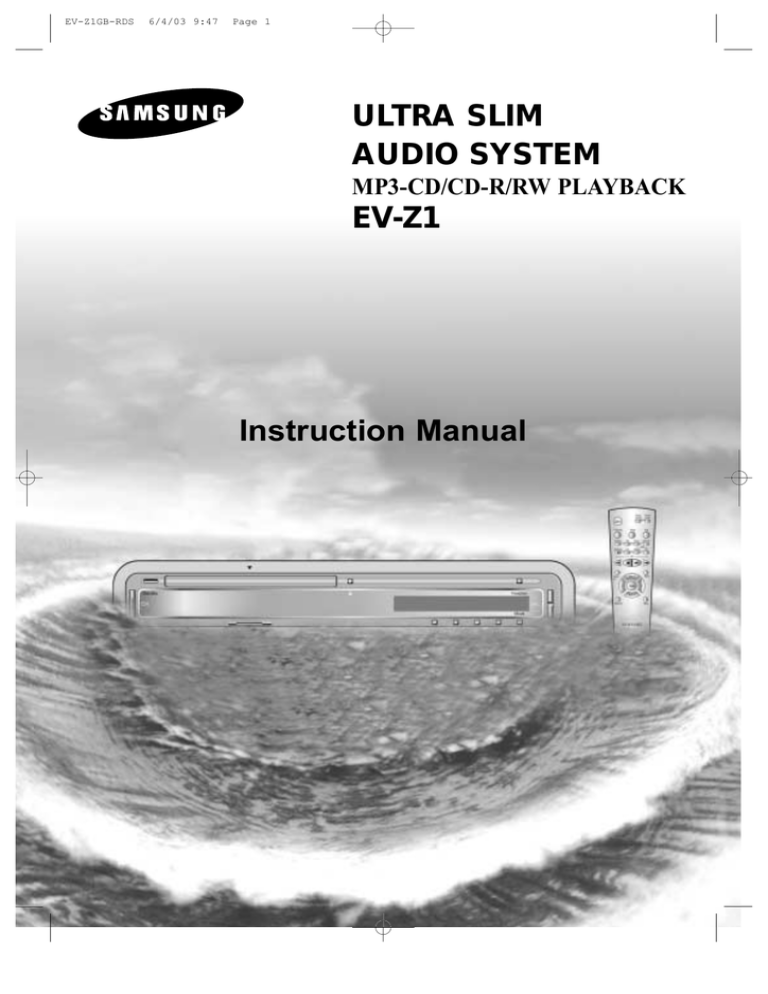

ULTRA SLIM
AUDIO SYSTEM
MP3-CD/CD-R/RW PLAYBACK
EV-Z1
Instruction Manual
EV-Z1GB-RDS
6/4/03 9:47
Page 2
Safety Warnings
GB
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTER LOCKS DEFEATED, AVOID EXPOSURE TO
BEAM.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE REAR COVER, NO USER
SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
This symbol indicates that dangerous voltage constituting of a risk of electric shock is present within
this unit.
This symbol indicates that there are important operating and maintenance instructions in the owners
manual accompanying this unit.
Wiring the Mains Power Supply Plug(UK Only)
IMPORTANT NOTICE
The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face
of the plug and, if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover omitted. If the cover is detachable. If a replacement fuse cover is required, it must be of the same
colour as the pin face of the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain
a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do NOT connect the plug to
a mains socket as there is a risk of shock hazard from the bared flexible cord.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:–
BLUE = NEUTRAL
BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured
BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING:
1
DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY
THE EARTH SYMBOL
, OR COLOURED GREEN OR GREEN AND YELLOW.
EV-Z1GB-RDS
6/4/03 9:47
Page 3
Precautions
GB
Standby
Function
+
VOL.
Function
+
Mode
—
VOL.
—
Mode
Standby
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are
not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become hot.
Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the CD player to the
stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the
main plug from the wall outlet, especially when left unused for a long period of time.
During thunderstorms, disconnect the main plug from the
socket.
Main voltage peaks due to lightning could damage the unit.
Standby
Do not expose the unit to direct sun radiation or other heat
sources.
This could lead to overheating and malfunction of the unit.
Function
+
VOL.
Mode
—
Phones
Protect the player from moisture(dripping or splashing and that no objects
filled with liquids,such as vases, shall be placed on the player), and excess
heat(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...) disconnect the power cable from the mains electricity supply
if the player malfunction. Your player is not intended for industrial use but
for domestic purposes only. Use of this product is for personal use only.
Condensation If your player or disc have been stored in a cold atmosphsre.
as for example during transportation in the winter, wait for approximately 2
hours until they have reached room temperature.
The battery used in this product contains the chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household waster.
It is recommended that the replacement of the battery should
be done by technician.
2
EV-Z1GB-RDS
6/4/03 9:47
Page 4
Thank you for buying this
SAMSUNG ULTRA SLIM audio system.
Contents
Please take time to read these instructions.
They will allow you to operate your
system with ease and take full advantage
of its features.
GB
SAFETY WARNINGS .................................................................................................................................................................................. 1
Precautions ............................................................................................................................................................................................2
INSTALLING YOUR ULTRA SLIM AUDIO SYSTEM
Front Panel View ........................................................................................................................................................................................4
Rear Panel View ........................................................................................................................................................................................4
Remote Control ..........................................................................................................................................................................................5
Connecting the Speakers ..........................................................................................................................................................................6
Connecting your System to the Power Supply ..........................................................................................................................................6
Connecting the FM and AM(MW/LW) Antennas ........................................................................................................................................7
Connecting to an External Source ............................................................................................................................................................8
Viewing the Various Functions on Your System ........................................................................................................................................8
Adjusting the brightness of the LCD display ..............................................................................................................................................8
Using the Function button ..........................................................................................................................................................................9
Using the Mode button ..............................................................................................................................................................................9
Setting the Clock ......................................................................................................................................................................................10
CD-PLAYER
To replay the CD/MP3-CD ......................................................................................................................................................................10
Selecting a Track......................................................................................................................................................................................11
To select the MP3-CD album and track ..................................................................................................................................................11
Searching for a Specific Music Passage on a CD ..................................................................................................................................12
Function to skip through 10 tracks at a time ............................................................................................................................................12
Random play function ..............................................................................................................................................................................12
Repeating One or All Tracks on the Compact Discs ..............................................................................................................................12
Programming the Order of Playback........................................................................................................................................................13
Checking or Changing Programmed Tracks............................................................................................................................................13
Resume Function ....................................................................................................................................................................................13
TUNER
Searching for and Storing the Radio Stations ........................................................................................................................................14
Selecting a Stored Station........................................................................................................................................................................14
Improving Radio Reception ......................................................................................................................................................................14
About RDS broadcasting..........................................................................................................................................................................15
About RDS DISPLAY function..................................................................................................................................................................15
PTY(Program Type) indication and PTY-SEARCH function ....................................................................................................................16
OTHER FUNCTIONS
Timer Function ........................................................................................................................................................................................17
Cancelling the Timer ................................................................................................................................................................................17
Mute Function ..........................................................................................................................................................................................18
Selecting an Equalizer Preset ..................................................................................................................................................................18
S. Bass Function ....................................................................................................................................................................................18
Power Sound............................................................................................................................................................................................18
Setting the System to Switch off Automatically........................................................................................................................................19
Connecting Headphones..........................................................................................................................................................................19
RECOMMENDATIONS FOR USE
Cleaning Your ULTRA SLIM Audio System ............................................................................................................................................19
Precautions When Using Compact Discs ................................................................................................................................................19
Before Contacting the After Sales Service .............................................................................................................................................. 20
Technical Specifications .......................................................................................................................................................................... 21
Symbols
Press
3
Push
Important
Note
EV-Z1GB-RDS
6/4/03 9:47
Page 5
Front Panel View
GB
Standby
Function
+
VOL.
Sub Mode
1
2
3
4
—
5 6 7
1. On/Standby button
5. Sub Mode button
2. Disc Tray button
6. Function(CD, TUNER, AUX) button
3. Open/Close button
7. Volume button
4. Multifunction button
(Depending on the selected Mode, pressing the
corresponding button will activate that button.)
Rear Panel View
PHONES
DIGITAL OUT
OPT.
AM
ANTENNA
AUX IN
COAXIAL
L
FM
75
R
1
2
L
SPEAKERS
(6 )
3
R
4
5
6
1. AM Aerial Connector Terminal
2. FM Aerial Connector Terminal
3. Speaker Connector Terminal
4. Aux-Input
5. Headphone Jack connector
6. Digital Out Jack
4
EV-Z1GB-RDS
6/4/03 9:47
Page 6
Remote Control
GB
Timer/
Clock
Timer
On/Off
On/Standby
Timer/Clock
Timer On/Off
P.Sound
Sleep
AUX
P.Sound
S.Bass
EQ
S.Bass
EQ
Demo
Open/Close
+10
Display
AUX
Sleep
Dimmer
Dimmer
RDS
Demo
PTY(RDS),CD Repeat
Display(RDS),CD Random
PTY
Open/Close
+10
CD Skip or Search
CD
Repeat
Random
CD Play
CD Stop
Program/Set
Tuning Up/Down
Band
Program/
Set
VOL.
Band
Volume Control
Mode
Tuning Mode, MP3-CD
Album/Track Mode
VOL.
Mono/ST
Mute
Mono/ST
Insert Remote Batteries
1
2
Remove the battery cover
on the back of the remote
by pressing down and
sliding the cover in the
direction of the arrow.
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
Mute
Range of Operation of the Remote Control
The remote control can be used up to
approximately 23 feet/7 meters in a straight line.
It can also be operated at a horizontal angle of
up to 30° from the remote control sensor.
Standby
Function
+
VOL.
Mode
30
30
7~10m
Sleep
S.Bass
EQ
Open/close
+10
Demo
Display
CD
3
CAUTION
5
Replace the battery cover.
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match
the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look
similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
Timer/
Clock
Timer
On/Off
P.Sound
Program/
Set
Repeat
VOL.
AUX
Dimmer
RDS
PTY
Random
Band
Mode
VOL.
Mono/ST
Mute
—
EV-Z1GB-RDS
6/4/03 9:47
Page 7
Connecting the Speakers
GB
• Speaker Connection: Connect the Speaker cords(red/black) to the Speaker jack of the system.
PHONES
DIGITAL OUT
OPT.
AM
ANTENNA
AUX IN
COAXIAL
L
L
FM
75
SPEAKERS
(6 )
R
R
— +
L
SPEAKERS
(6 )
R
—+
(Left Speaker)
(Right Speaker)
Directions in Installing Speaker
• Installation in a place near heating apparatus, under directly of light or with high humidity may
cause performance deration of the speaker.
• Do not install on the wall or on a high place of pole or other unstable place to
prevent any safety accident caused by falling of the speaker.
• Do not take the speaker apart from TV or computer monitor.
The speaker near the TV or computer monitor may influence the quality of the screen display.
Connecting your System to the Power Supply
The main lead must be plugged into an appropriate socket.
Before plugging your system into a main socket, you must check the voltage.
1
2
Plug the main lead (marked AC Cord on the rear of the system) into an appropriate socket.
Press the on/standby button to switch your mini-compact system on.
PHONES
DIGITAL OUT
OPT.
AM
ANTENNA
AUX IN
COAXIAL
L
FM
75
L
SPEAKERS
(6 )
R
R
6
EV-Z1GB-RDS
6/4/03 9:47
Page 8
Connecting the FM and AM(MW/LW) Antennas
GB
If FM reception is poor,
connect an outdoor FM
antenna (not supplied).
AM Loop Antenna
(supplied)
ANTENNA
Snap the tabs on the loop into the slots of
the base to assemble the AM loop antenna.
FM Antenna (supplied)
PHONES
DIGITAL OUT
OPT.
AM
ANTENNA
AUX IN
COAXIAL
L
L
FM
75
SPEAKERS
(6 )
R
R
Cooling fan (See “About cooling Fan” below.)
FM antenna connection
1. Connect the FM antenna supplied to the FM 75Ω
COAXIAL terminal.
2. Slowly move the antenna wire around until you find
a location where reception is good, then fasten it to
a wall or other rigid surface.
AM(MW/LW) antenna connection
1. Connect the AM loop antenna supplied to the AM
and
terminals.
2. If reception is poor, connect an outdoor single
vinyl-covered wire to the AM terminal.
(Keep the AM loop antenna connected).
• If reception is poor, connect an outdoor antenna.
Before attaching a 75Ω coaxial cable (with a standard
type connector), disconnect the supplied FM antenna.
(About the cooling fan)
A cooling fan is mounted on the rear panel of the center unit to
prevent abnormal temperature inside the center unit, thus assuring
normal operation. The cooling fan automatically starts rotating to
supply external cool air to the inside of the center unit when the
internal temperature exceeds the specified limit.
7
For safety, observe the following carefully.
• Make sure there is good ventilation around the center unit.
Poor ventilation could overheat and cause damage.
• DO NOT block the cooling fan and the ventilation openings or
holes. (If they are blocked by a newspaper or cloth, etc., the heat
may not be able to escape.)
EV-Z1GB-RDS
6/4/03 9:47
Page 9
Viewing the Various Functions on
Your System
Connecting to an External Source
GB
The auxiliary input can be used to take advantage of the
sound quality of your ULTRA SLIM audio system when
listening to other sources.
Examples: A television
A video disc player
A Hi-Fi stereo video cassette recorder
You can view the various functions available on your system.
1
All these functions are described in detail in this booklet.
For instructions on how to use them, refer to the appropriate
sections.
To connect the external source, the source must have an audio
output. In addition, you need an RCA connection cable.
1
Set the system to standby mode and disconnect it and the external
source from the main.
2
Connect the audio cable to the rear of the ULTRA SLIM audio system.
Connect the...
To the connector marked...
Red jack
White jack
R (right)
L (left)
Press the Demo button.
Result: The various functions available are listed in turn on the
display.
2
To cancel this function, press Demo again.
3
4
5
Plug the system back into the main socket and press On/Standby
(
) to switch it on.
P.Sound
S.Bass
Select the AUX source by pressing the AUX button.
Result: AUX is displayed.
Timer/
Clock
Timer
On/Off
For optimum sound quality, do not invert the right and left
channels.
Open/Close
Sleep
EQ
Demo
Dimmer
Display
+10
Switch the external source on.
AUX
CD
RDS
Repeat
PTY
Random
Adjusting the brightness of the
LCD display
AUX IN
L
You can adjust the brightness of the LCD display depending
on the surrounding lighting conditions
L
SPEAKERS
(6 )
R
R
Press the Dimmer button on the remote control to adjust the brightness.
The selection switches each time the button is pressed:
Dimmer1(Bright) ➞ Dimmer2 (Medium) ➞ Dimmer3(Dim).
P.Sound
Sleep
P.Sound
AUX
S.Bass
Open/Close
S.Bass
EQ
Demo
Open/Close
+10
Display
Timer/
Clock
Timer
On/Off
Timer/
Clock
Timer
On/Off
Dimmer
Sleep
EQ
Demo
Display
+10
CD
Repeat
AUX
Dimmer
RDS
PTY
Random
RDS
PTY
Program/
VOL.
Band
8
EV-Z1GB-RDS
6/4/03 9:47
Page 10
Using the Function button
Using the Mode button
GB
Function
Sub Mode
Function
+
+
VOL.
VOL.
—
• Press the Function button
Each time the button is pressed, one of the following
function are selected.
Select CD
Sub Mode
—
• Press the Sub Mode button on the front panel.
Each time the button is pressed, the selection changes as follows.
You can pressed the button below the display to select the
desired function.
During CD/MP3-CD operation
(For example, 15 tracks with
playback time of 53:05)
Normal
Mode
Play
Back
Next
Stop
Sub Mode
Select AUX
Mode 1
Repeat
Random
Repeat
Random
Sub Mode
Rpt-1
Rand-On
Rpt-All
Mode 2
Pass
Select TUNER
Psnd
SBass
Sub Mode
Pass
(For example, FM 89.1 MHz)
Classic
Psnd
SBass
Rock
Pop
Psnd-On
SBass-1
SBass-2
During TUNER operation
Normal
Mode
FM
Down
Up
Manual
Sub Mode
About the Mode button
FM
MW
LW
If no button is pressed within 8 seconds
while in the Mode 1 or Mode 2, the
Display switches to the Normal Mode.
Mode 1
Pass
Psnd
SBass
Sub Mode
Pass
Classic
Rock
Pop
Psnd
SBass
Psnd-On
SBass-1
SBass-2
Mode does not work in AUX Function.
9
EV-Z1GB-RDS
6/4/03 9:47
Page 11
Setting the Clock
To replay the CD/MP3-CD
GB
Your system is equipped with a clock which allows you to
turn your system on and off automatically.
You should set the clock:
When you first purchase the ULTRA SLIM audio system
After a power failure
After unplugging the unit
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
1
2
Switch the system on by pressing On/Standby (
3
Press Program/Set.
Result: The hour flashes.
4
To...
).
Press Timer/Clock twice.
Result: Clock is displayed.
You can play 12 cm or 8 cm compact discs without an
adapter. This unit has been designed to playback the CDs:
Audio CD, CD Text, CD-R and CD-RW.
Continued use of irregular shape CDs (heart-shape, octagonal,
etc.) can damage the unit.
1
2
Place your disc in the compartment, with the label on the disc facing
upwards.
4
Close the compartment by pressing the Open/Close (
again.
5
Press the PLAY/PAUSE(
) button.
The English name of the song may be indicated on the display
only if directly downloaded from the PC or if the purchased
MP3-CD is sorted according to titles(directory).
(Other languages besides English may not be indicated.)
The English name of the track may not be indicated depending
on the characteristics of the MP3-CD.
Press...
Decrease the hours
6
When the correct hour is displayed, press Program/Set.
Result: The minutes flash.
To...
Press the Open/Close ( ) button on the front panel.
Result: The compartment opens.
3
Increase the hours
5
Select the CD function by pressing Function button.
<CD Playback>
) button
<MP3-CD Playback>
Press...
Increase the minutes
Playtime Indicator
Decrease the minutes
7
Track Indicator
When the correct time is displayed, press Program/Set.
Result: The clock starts and is displayed, even when the system is in
standby mode.
You can display the time, even when you are using another
function, by pressing Timer/Clock once.
1
Sleep
To stop playback temporarily, press the PLAY/PAUSE(
Press PLAY/PAUSE (
disc
7
Press the STOP (
) button.
) again to continue playing the
) button when you have finished.
Timer/
Clock
Timer
On/Off
P.Sound
6
Playtime Indicator
Album or Track Indicator
1
2AUX
Function
+
VOL.
S.Bass
EQ
Demo
Open/Close
+10
Display
CD
Repeat
Dimmer
Sub Mode
—
RDS
PTY
Random
3,5,7
Program/
Set
VOL.
Band
S.Bass
EQ
Demo
Open/Close
+10
Display
Mode
Dimmer
RDS
VOL.
4,6
Mono/ST
4,6
Mute
2,4
CD
7
Repeat
PTY
Random
5,6
10
EV-Z1GB-RDS
6/4/03 9:47
Page 12
Selecting a Track
GB
You can select the track you wish to listen to, either when the
compact disc player is stopped or when a disc is playing.
To start playback at the beginning of the...
Press...
Next track
once
Current track
once
Previous track
What is MP3?
MP3 means MPEG1 Layer 3, the global standard for audio
signal compression technology. It uses digital compression
technology to compress original sound data by up to 12 times
without sound quality degradation.
twice
Track of your choice
or
the
appropriate number
of times.
CD
Program/
Set
VOL.
Band
To select the MP3-CD album and track
The album and track of the MP3-CD desired to listen may be
selected on stopping or during playbacks.
Press the Mode button then select “Track Mode or “Album Mode” and
press the
,
button.
If “Track Mode ” is selected in the display, the track moves.
If “Album Mode” is selected in the display, the album moves.
File Compatibility
The unit will playback files created in MP3 format
(Mpeg1.Layer3) with *.mp3 as their extension.
Files created in MP2 format (Mpeg1.Layer2) with
*.mp2 as their extension can also be played back.
How many MP3 files can a CD-R or CD-RW disc record?
The maximum capacity of one CD-R or CD-RW disc is
680MB.
Normally, one MP3 file has a capacity of 4MB, therefore
approximately 170 files can be recorded on a single disc.
Regarding the playback of CD-R/RW
In the case of an original CD-R(Recordable) recorded in
audio CD format, CD-RW(Rewritable) and editing by
the user, playback is processed on the respective
completed status. (The player may not be played back
according to the characteristics of the CD or recorded
status.)
The CD-RW is comparably less reflexive than CD which
causes more time delay to read.
CD
Playback sequence of album and tracks
Program/
Set
VOL.
Band
Mode
Mode
(E) CD-ROM drive
VOL.
Mono/ST
In case of Window Explorer display.
The arrows indicates playback sequence of albums and
tracks.
Tracks with jpg, wav or doc only are not audio files and
therefore will be skipped.
Album 01
Skipped
Mute
Kevin01.mp3
Kevin02.mp3
Kevin03.mp3
Kevin04.mp3
Life.doc
Album 02
Album 04
This function works only with remote control .
Summer05.mp3
Summer06.mp3
Garden.mp3
Garden.mp3
Album 03
Album 05
Michael07.mp3
Michael08.mp3
Water.mp3
Water.mp3
Skipped
Album 06
Kenny01.wav
Kenny02.wav
11
Album 07
Butterfly.mp3
Piano14.mp3
John15.mp3
EV-Z1GB-RDS
6/4/03 9:47
Page 13
Searching for a Specific Music
Passage on a CD
Random play function
GB
When listening to a compact disc, you can quickly search for a
specific music passage on a track.
To search through the tracks...
You can listen to the tracks on a compact disc in a different
order each time, as the various tracks will be selected
automatically in a random sequence.
Press and hold down...
Forwards
Backwards
for at least one second
for at least one second
1
Press the Sub Mode button on the Front Panel until “Random”is
displayed to bottom.
If this button is pressed when the CD is being played back or
stopped, any track recorded in the CD may be selected to
playback again.
2
3
Press Random button, “Rand-On”is displayed.
It is recommended that you turn the volume down before using
this function.
CD
Repeat
Random
When you finished the random playback, press the Random
button again.
If no button is pressed within 8 seconds, the Display changes to
the Normal Mode. To proceed with the third operation, you
should repeat from the first operation.
Band
VOL.
Program/
Set
Mode
Function
+
VOL.
Repeat
Random
Sub Mode
VOL.
2, 3
Mono/ST
1
Mute
Function to skip through 10
tracks at a time
Press the +10 button briefly while playing back a
CD. The track 10 tracks after the current one will then
be played back.
—
Repeating One or All Tracks
on the Compact Discs
You can repeat indefinitely:
A specific track on a compact disc.
All tracks on the compact disc selected.
Example: If you want to select track 43 during playback of track
15, press the +10 button three times, and then press
the
button three times.
1
Press the Sub Mode button on the front Panel until “Repeat” is
displayed to buttom.
15 ➝ 20 ➝ 30 ➝ 40 ➝ 41 ➝ 42 ➝ 43
2
To repeat...
Press the Repeat button one or
more times until...
The current track indefinitely
All songs
Repeat 1 is displayed
Repeat All is displayed
+10
+10
+10
3
S.Bass
Open/Close
EQ
Demo
Display
+10
CD
Repeat
Dimmer
RDS
PTY
When you wish to stop the Repeat function, press the Repeat button
until “Repeat off” is displayed.
If no button is pressed within 8 seconds, the Display changes to
the Normal Mode. To proceed with the third operation, you
should repeat from the first operation.
Random
Function
+
VOL.
Repeat
Random
Sub Mode
Program/
Set
VOL.
Band
2, 3
—
1
12
EV-Z1GB-RDS
6/4/03 9:47
Page 14
Checking or Changing
Programmed Tracks
Programming the Order of Playback
GB
You can decide:
You can check or change your selection of tracks at any time.
The order of the track desired to listen
The track not desired to listen
A maximum of up to 24 order of tracks desired to listen
may be programmed.
Before selecting the track, the CD player should be stopped.
This function may be used simultaneously with the CD
Repeat function.
1
2
3
Press
once if you have started listening to the selection.
Press Program/Set twice.
Result: The following indications are displayed:
Load the selected CDs.
Program no.
If the CD function is selected, stop the player by pressing
Track no. on the disc
4
Select the required track by pressing:
to move back through the tracks
to move forward through the tracks
5
Press Program/Set to confirm your selection.
Result: The selection is stored and is displayed.
6
7
8
To select other tracks, repeat Steps 4 to 5.
Press CD (
3
Press Program/Set one or more times until the track to be changed
is displayed.
4
5
6
Press
or
to select a different track.
Press Program/Set to confirm your change.
Press CD ( ) to start listening to the selection.
Result: The first track selected is played.
Open/Close
Press...
Listen to the current track again
Listen to the previous track
Listen to the next track
Skip forwards or backwards
one or more tracks
once
twice
once
or
the appropriate
number of times
Display
+10
2, 9
CD
3, 5
Random
4
6
2,3,5
Program/
Set
Band
VOL.
Repeat
Resume Function
This function enables you to restart the disc at exact track
where playback last stopped or the unit was turned off.
RDS
PTY
Random
4,8
Press the Program/Set button.
Result: Each time the button is pressed, the selection alternates
between Resume On and Resume Off.
This function works only with MP3 CDs.
7
Open/Close
Program/
Set
Repeat
PTY
button.
This function does not work with MP3 CDs.
If you open the compartment, the selection is cancelled.
4, 8
CD
RDS
4
To...
Open/Close
Display
+10
1
) to listen to the track selection in the order programmed.
To cancel the selection, press
Track no. on the disc
If you have already programmed 24 tracks, Ch is displayed
instead of Pr when you press Program/Set.
button .
Press Program/Set.
Result: The following indications are displayed:
Program no.
9
1
2
VOL.
Display
+10
RDS
PTY
Band
CD
Repeat
Random
Mode
VOL.
Mono/ST
Mute
Program/
Set
VOL.
Mode
13
Band
EV-Z1GB-RDS
6/4/03 9:47
Page 15
Searching for and Storing the
Radio Stations
Selecting a Stored Station
GB
You can listen to a stored radio station as follows:
You can store up to:
15 FM stations
8 MW stations
7 LW stations
1
2
3
1
2
Switch the system on by pressing On/Standby (
).
Select the required frequency band by pressing Band on the
remote control.
Result: The appropriate indication is displayed:
FM
Frequency Modulation
AM(MW)
Medium Wave
LW
Long Wave
To search for a
station...
3
Switch the system on by pressing On/Standby (
).
Select the required frequency band by pressing Band on the
remote control.
Select the radio station as follows.
To listen to ...
Press ...
Stored station
1. Press the Mode button on the remote
control until “Preset” is displayed.
2. Press
or
button to select the
required program.
Press Mode on the remote
Control
One or more times until Manual is
displayed.
Automatically
One or more times until Auto is
displayed.
PRESET function is explained in detail in the section
“ Selecting a Stored Station” on.
Manually
4
Select the station to be stored by:
Pressing
or
buttons to increase or decrease the
frequency respectively.
To scroll through the frequencies faster when
searching manually, hold down the
or
buttons.
The automatic search procedure may stop on a
frequency that does not correspond to a radio station.
If this happens, use the manual search mode.
5
2
Program/
Set
VOL.
Band
3
Mode
3
3
VOL.
Mono/ST
Mute
If you do not want to store the radio station found, revert to Step 4
and search for another station.
Otherwise:
a Press Program/Set.
Result: ’Program No.’ is displayed for a few seconds.
b Press Program/Set to store the radio station.
Result: ’Program No.’ is no longer displayed and the station is
stored.
6
To store any other radio frequencies required, repeat Steps 3 to 5.
The PROGRAM function can be used to assign a new station
to an existing program number.
5
Improving Radio Reception
You can improve the quality of radio reception by:
Rotating the FM or AM(MW) aerial
If reception from a specific FM radio station is poor, press Mono/ST.
to switch from stereo mode to mono. The quality of the sound will be
improved.
2
Program/
Set
Band
VOL.
3
4
Mode
Program/
Set
Band
Mode
4
VOL.
Mono/ST
VOL.
VOL.
Mute
Mono/ST
Mute
14
EV-Z1GB-RDS
6/4/03 9:47
Page 16
About RDS broadcasting
GB
About RDS DISPLAY function
About "PS NAME" MODE
This unit has the RDS (Radio Data System) function, which enables for
the various information such as broadcasting station, radio text, time
and 30 types of programs (News, Rock, Classic, etc.) to be received
from the FM RDS station together with normal radio signal.
1
2
3
Press the On/Standby (
) button.
Receive the FM radio.
See the radio receiving method on the page 14.
FM and frequency are shown on the display
If the received station transfers the RDS information, 'RDS'
appears automatically on the display.
Displays the name of broadcasting station.
Press the RDS Display button to select the PS NAME.
"PS NAME" appears on the display.
If the PS information is being received, the PS name (BBC, AFO, NDR,
etc.) is shown on the display.
If the PS information isn't received, the original FM frequency is shown.
Even though no RDS Display button is pressed, the reception
of PS information ensues the PS name is displayed.
Press the RDS Display button to select the desired RDS mode.
Whenever the button is pressed, RDS mode changes as follows.
PS NAME
RT
CT
Current FM frequency
The RDS function is available only in FM broadcasting.
S.Bass
EQ
Demo
Open/Close
+10
Display
Description on RDS function
CD
Repeat
Dimmer
RDS
PTY
Random
1. PTY(Program Type) : Displays the type of programme
currently being broadcast
2. PS NAME(Program Service Name) : Indicates the name of
broadcasting station and is composed of 8 characters.
3. RT(Radio Text) : Decodes the text broadcast by a station (if
any) and is composed of maximum 64 characters.
4. CT(Clock Time) : Decodes the real time clock from the FM
frequency.
Some stations may not transmit PTY, RT or CT
information therefore this may not be displayed in all
cases.
5. TA(Traffic Announcement) : When this symbol flashes it
shows that the traffic announcement is in progress.
P.Sound
Displays the character transmitted from the broadcasting station.
Press the RDS Display button to select the RT MODE.
"RT" appears on the display.
If the RT information is being received, the received information is
shown on the display.
If the RT information isn't received, the "NO RT" is shown.
On the display.
S.Bass
EQ
Demo
Open/Close
+10
Display
Timer/
Clock
Timer
On/Off
1
About 'RT' MODE
Sleep
AUX
CD
Repeat
Dimmer
RDS
PTY
Random
About CT(Clock Time)
Sets the time of RDS clock.
S.Bass
EQ
Demo
Open/Close
+10
Display
3
CD
Repeat
Dimmer
To select the CT time, set the RDS Display button to CT MODE.
RDS
PTY
The CT information will take up to 2 minutes to be decoded
therefore the clock isn’t displayed immediately.
Random
If there is no received CT information, "NO CT" is
displayed.
S.Bass
EQ
Demo
Open/Close
+10
Display
CD
15
Repeat
Dimmer
RDS
PTY
Random
EV-Z1GB-RDS
6/4/03 9:47
Page 17
PTY(Program Type) indication
and PTY-SEARCH function
GB
◆ The PTY information is composed of an identification symbol, which helps
the FM radio to recognize the program type of each FM station.
About PTY-SEARCH
◆ The below 30 PTY information is shown on the display by pressing the Pty
button.
1
Receive the FM radio.
See the radio receiving method on the page 14.
The FM and frequency appear on the display.
If the
e received
station is transmitting the RDS information, “RDS”
r
lights up.
2
Press the PTY button.
The PTY MODE(NEWS, AFFAIRS, etc.) appears on the display.
Program Type
Display
News
• News including an announced opinion and report
Affairs
• Several matters including a current incident, documentary,
discussion and analysis.
Info
• Information including weights and measures, returns and forecast, matters interesting the customer, medical information, etc.
Sport
• Sports
Educate
• Education
Drama
• Drama-Radio serial, etc.
Culture
• Culture-National or local culture including the religious problem,
social science, language, theater,etc.
Science
• Natural science and technology
Varied
• Others-Speech, amusing program (quiz, game), interview,
comedy and satirical play, etc.
Pop M
• Pop music
Rock M
• Rock music
M.O.R.M
• M.O.R- Comfortable music, occasionally vocal or piece
Light M
• Light classical music- Classical music and instrumental
and chorus music
Classic
• Heavy classical music-Orchestra music, symphony, chamber
music and opera
Other M
• Other music - Jazz, R&B country music
Weather
• Weather
Finance
• Finance
Children
• Children’s programmes
Social
• Social affairs
Religion
• Religion
Phone In
• Phone in
Travel
• Travel
Leisure
• Leisure
Jazz
• Jazz Music
Country
• Country Music
National M
• National Music
Oldies
• Oldies Music
Folk M
• Folk Music
Document
• Documentary
Test
• Alarm Test
Press the TUNING
or
button to select the desired PTY
MODE.
If the station is transmitting no PTY information, 'NO PTY' lights
on the display.
When the PTY MODE is selected(The PTY MODE is shown on
the display), press the PTY KEY once again to convert into
PTY-SEARCH MODE and auto-search the station sequentially.
If the PTY MODE received in the course of auto-search agrees
with the selected PTY MODE, the auto-search stops and the
PTY-SEARCH is finished.
If the PTY MODE which agrees with the PTY MODE selected in
the course of auto-search, isn't received, it is returned to the first
frequency at beginning the PTY SEARCH and the auto-search
and PTY SEARCH are suspended.
S.Bass
EQ
Demo
Open/Close
+10
Display
CD
Program/
Set
Repeat
VOL.
Dimmer
RDS
PTY
2
Random
Band
2
2
Mode
VOL.
Mono/ST
Mute
16
EV-Z1GB-RDS
6/4/03 9:47
Page 18
Timer Function
GB
The timer enables you to switch the system on or off at
specific times.
Example: You wish to wake up to music every morning.
1,9
Before setting the timer, check that the current time is correct.
For each step, you have a few seconds to set the required
options. If you exceed this time, you must start again.
1
2
3
Switch the system on by pressing On/Standby (
Press Timer/Clock until
P.Sound
5
6
7
Timer is displayed.
S.Bass
EQ
Demo
Open/Close
+10
Display
8
9
Set the timer switch-off time.
a Set the hour by pressing
or
button.
b Press Program/Set.
Result: The minutes flash.
c Set the minutes by pressing
or
button.
d Press Program/Set.
Result: Volume 20 is displayed, where 20 corresponds to the
volume already set.
Press
or
button to adjust the volume level and press
Program/Set.
Result: The source to be selected is displayed.
Press
or
button to select the source to be played when the
system switches on.
If you select...
You must also...
TUNER (radio)
a Press Program/Set.
b Select a preset station by pressing
or
.
Tuning
AUX
Dimmer
RDS
PTY
Repeat
Random
3,4,5,6,7,8
Program/
Set
Band
VOL.
4,5,6,7
4,5,6,7
Mode
VOL.
Cancelling the Timer
After having set the timer, it will start automatically as shown
by the TIMER indication on the display. If you no longer wish
to use the timer, you must cancel it.
You can stop the timer at any time (system on or in standby mode).
To...
Press Timer On/Off...
Cancel the timer
Once.
Result:
is no longer displayed.
Restart the timer
Twice.
Result:
is displayed again.
Load a compact disc.
Press Program/Set to confirm the timer.
Press On/Standby (
) to set the system to standby mode.
Result:
is displayed to the bottom right of the time, indicating that
the timer has been set. The system will switch on and off
automatically at the required times.
If the timer switch on and off times are identical, the word Error is
displayed.
17
CD
Set the timer switch-on time.
a Set the hour by pressing
or
button.
b Press Program/Set.
Result: The minutes flash.
c Set the minutes by pressing
or
button.
d Press Program/Set.
Result: Off Time is displayed for a few seconds, followed by any
switch-off time already set; you can now set the timer
switch-off time.
CD (compact disc)
Sleep
).
Press Program/Set.
Result: On Time is displayed for a few seconds, followed by any
switch-on time already set; you can set the timer switch-on time.
4
Timer/
Clock2
Timer
On/Off
If you no longer want the system to be switched on or off
automatically, you must cancel the timer.
Timer
On/Off
P.Sound
Sleep
Timer/
Clock
AUX
EV-Z1GB-RDS
6/4/03 9:47
Page 19
S. Bass Function
Mute Function
GB
You can turn the sound off temporarily on your system.
Example: You wish to answer a telephone call.
S.Bass(Super Bass) function emphasizes the bass sound to
produce the effect of explosion or booms.
Press the S.Bass button.
1
2
Press Mute.
Press S.Bass on the remote control repeatedly to select
S-Bass Off ➔ S-Bass 1 ➔ S-Bass 2.
To switch the sound back on (at the same volume as before), press
Mute again or the Volume buttons.
Program/
Set
Select the desired level for the bass.
S.Bass
EQ
Demo
Open/Close
+10
Display
Dimmer
Band
VOL.
Mode
RDS
PTY
Repeat
CD
Random
VOL.
Mono/ST
Mute
Power Sound
Selecting an Equalizer Preset
Your ULTRA SLIM audio system is equipped with a preset
equalizer that allows you to choose the most appropriate
balance between treble and bass frequencies, according to the
type of music you are listening to.
Press EQ on the remote control until the required option is selected.
Sleep
S.Bass
EQ
Demo
Open/Close
+10
Display
CD
Repeat
1
2
Press the button repeatedly to select
Pass ➞ Classic ➞ Rock ➞ Pop.
P.Sound
This machine is equipped with the function of Power Sound
which amplifies bass treble output to twice as much for
powerful real sound.
Press the P. Sound button.
Press the button repeatedly to select P-Sound On ➞ P-Sound Off.
To cancel this function, press P. Sound button again.
Dimmer
Timer/
Clock
Timer
On/Off
AUX
P.Sound
Sleep
AUX
RDS
PTY
Random
S.Bass
EQ
Demo
Dimmer
RDS
18
EV-Z1GB-RDS
6/4/03 9:47
Page 20
Setting the System to Switch
off Automatically
Cleaning Your ULTRA SLIM
Audio System
GB
While listening to a compact disc or a cassette, you can
set the system to switch off automatically
Example: You wish to go to sleep to music.
1
Press Sleep.
Result: The following indications are displayed:
2
Sleep 90
Press Sleep one or more times to indicate how long the
system should continue playing before it switches off:
Sleep 90
Sleep Off
Sleep 60
Sleep 45
Sleep 10
Sleep 20
Sleep 30
At any time, you can:
Check the remaining time by pressing Sleep
Change the remaining time by repeating Steps 1 and 2
3
To cancel SLEEP function, press Sleep one or more times until
Sleep Off is displayed.
Timer/
Clock
Timer
On/Off
P.Sound
S.Bass
Sleep
EQ
Demo
AUX
To obtain the best possible results from your ULTRA SLIM audio
system, you must clean the following elements regularly:
The outer casing
The compact disc player
Always unplug the system from the wall outlet:
Before cleaning it
If you are not going to be using it for a long time
Outer Casing
Clean the outer casing regularly using a soft cloth and a light detergent.
Do not use abrasive powders, liquids or aerosol cleaners.
Never let any liquids get into the system.
Compact Disc Player
1
Before playing a compact disc, clean it with a special CD cleaning
agent. Do not use the same cleaning agents as for vinyl LP records.
Carefully wipe the disc from the centre outward.
2
Regularly clean the player with a special cleaning disc (available from
your local dealer).
If you will not be using the remote control for a long time,
remove the batteries to prevent corrosion.
Although your system is very hard-wearing, it should not be
used in an excessively dusty environment or subjected to
shocks or extreme heat (close to heating appliances or in
direct sunlight, etc.).
If the unit emits an unpleasant odor when in use, unplug it
from the main supply and contact the after-sales service.
Dimmer
RDS
Connecting Headphones
You can connect a set of headphones to your ULTRA SLIM
audio system so that you can listen to music or radio programmers without disturbing other people in the room. The
earphones must have a 3.5ø jack or an appropriate adapter.
Connect the headphones to the PHONES jack on the rear panel.
Result: The loudspeakers are no longer used to output the sound.
Prolonged use of headphones at a high volume may damage
your hearing.
Precautions When Using
Compact Discs
Handle your compact discs with care. Always hold them by the
edges to avoid leaving fingerprints on the shiny surface.
When you have finished playing a compact disc, always put it back
in its case.
Do not fix paper or adhesive tape to the discs and do not write on
the label.
Clean them with a special-purpose cloth.
Store your compact discs in a clean place, out of direct sunlight,
where they will not be exposed to high temperatures.
Always use compact discs marked
.
COMPACT
DIGITAL AUDIO
PHONES
AUX IN
L
AKERS
(6 )
R
19
EV-Z1GB-RDS
6/4/03 9:47
Page 21
Before Contacting the After Sales Service
GB
It always takes a little time to become familiar with a new appliance.
If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service
call.
Problem
G
E
N
E
R
A
L
C
D
R
A
D
I
O
Checks/Explanation
The system does not work
• The main lead is not correctly plugged into a wall socket or the wall
socket is not switched on.
• The remote control batteries need replacing or the polarity has not
been respected.
• The On/Standby button has not been pressed.
There is no sound
• The volume has been completely turned down.
• The correct function (TUNER, CD, AUX) has not been selected.
• You have connected a set of earphones.
• The loudspeaker wires have been disconnected.
• The Mute button on the front panel for has been pressed.
The Timer does not work
• The timer has been stopped by pressing Timer On/Off.
In case it does not work, even the
action is taken as above.
• Press the Sub Mode button on the front panel for 5
seconds in power ‘OFF’(standby), then it is returned the original
position (RESET)
The compact disc player does not
start playing
• The CD function has not been selected.
• The disc has been inserted face down or is either dirty or scratched.
• The laser sensor is dirty or dusty.
• The system has not been installed on a flat, horizontal surface.
• Condensation has formed in the player; leave the system in a warm,
airy room for at least one hour.
Reception is poor or no radio
stations are received at all
• The TUNER function has not been selected.
• The radio frequency has not been correctly selected.
• The aerial has been disconnected or is not facing the right way.
Turn it until you find the best orientation.
• You are in a building that blocks radio waves; you must use an
outside aerial.
If the above guidelines do not allow you to solve the problem, take a note of:
The model and serial numbers, normally printed on the rear of the system
Your warranty details
A clear description of the problem
Then contact your local dealer or SAMSUNG after-sales service.
20
EV-Z1GB-RDS
6/4/03 9:47
Page 22
Technical Specifications
GB
SAMSUNG strives to improve its products at all times. Both the design specifications and these user
instructions are thus subject to change without notice.
RADIO
LW
Usable sensitivity
60 dB
AM (MW)
Signal/noise ratio
40 dB
Usable sensitivity
54 dB
Total harmonic distortion
2%
FM
Signal/noise ratio
62 dB
Usable sensitivity
5 dB
Total harmonic distortion
1.0 %
COMPACT DISC PLAYER
Frequency range
20 Hz - 20 KHz (± 1 dB)
Signal/noise ratio
90 dB (at 1 KHz) with filter
Distortion
0.05 % (at 1 KHz)
Channel separation
75 dB
Disc sizes
Diameter: 120 or 80 mm. Thickness: 1.2 mm
AMPLIFIER
Output power
Main(6 Ω) ................................................30W/CH (total harmonic distortion : 10%)
Channel separation
50 dB
Signal/noise ratio
75 dB
GENERAL
Dimensions
21
350(W) x 60 (H) x 290(D) mm
EV-Z1GB-RDS
6/4/03 9:47
Page 23
THIS APPLIANCE IS MANUFACTURED BY:
AH68-01325B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
