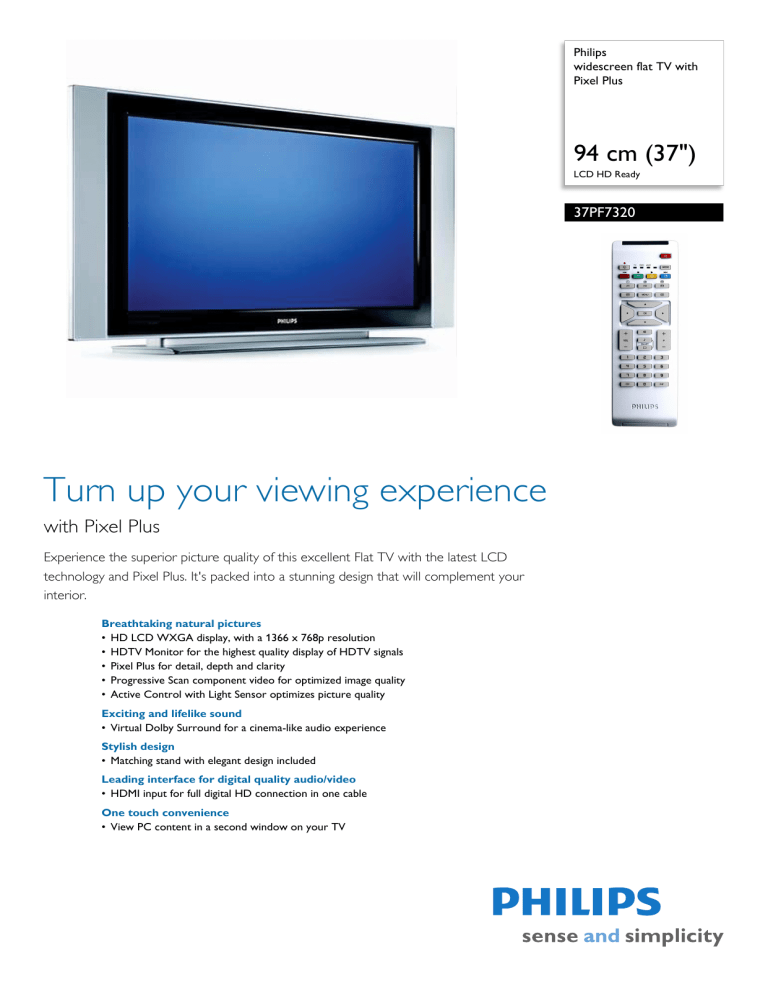

User manual | 37PF7320/79 Philips widescreen flat TV with Pixel Plus

Philips
widescreen flat TV with
Pixel Plus
94 cm (37")
LCD HD Ready
37PF7320
Turn up your viewing experience
with Pixel Plus
Experience the superior picture quality of this excellent Flat TV with the latest LCD
technology and Pixel Plus. It's packed into a stunning design that will complement your
interior.
Breathtaking natural pictures
• HD LCD WXGA display, with a 1366 x 768p resolution
• HDTV Monitor for the highest quality display of HDTV signals
• Pixel Plus for detail, depth and clarity
• Progressive Scan component video for optimized image quality
• Active Control with Light Sensor optimizes picture quality
Exciting and lifelike sound
• Virtual Dolby Surround for a cinema-like audio experience
Stylish design
• Matching stand with elegant design included
Leading interface for digital quality audio/video
• HDMI input for full digital HD connection in one cable
One touch convenience
• View PC content in a second window on your TV
37PF7320/79
Widescreen flat TV with Pixel Plus
94 cm (37") LCD HD Ready
Highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
screen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HDTV Monitor
HDTV is the latest and best television signal
available. It produces picture quality more than
twice that of traditional analog broadcasts. In
order to effectively maximize the HDTV signal,
a television must incorporate advanced signal
input connectivity
Pixel Plus
Pixel Plus is a digital picture processing
technology that increases the number of lines
and the number of pixels. The result is razor
sharp pictures with incredible detail and depth,
every time from any source.
Progressive Scan
Progressive Scan doubles the vertical
resolution of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
Active Control + Light Sensor
Active Control is a unique and intelligent way
of optimizing picture quality by measuring and
analyzing the incoming signal to automatically
adjust picture quality settings. Active Control
with Light Sensor uses a sensor to adjust the
picture brightness depending on the room light
conditions.
Virtual Dolby Surround
Virtual Dolby Surround is a processing
technology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
Bypacked tabletop stand
A table-top stand with matching design is
packed with the set.
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Picture in Graphics
Picture-in-Graphics is a small window in the
main picture, allowing to watch data/graphics
in your main TV screen. It provides the ability
to simultaneously watch data/graphics and the
TV.
37PF7320/79
Widescreen flat TV with Pixel Plus
94 cm (37") LCD HD Ready
Specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
•
Aspect ratio: 16:9
Brightness: 550 cd/m²
Diagonal screen size: 37 inch / 94 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Pixel Plus, Progressive scan,
Active Control + Light sensor, 3/2 - 2/2 motion
pull down, 3D Combfilter, Contrast Plus, Digital
Noise Reduction, Dynamic contrast, Jagged Line
Suppression
Color cabinet: Bicolour Black and Silver Frost
Screen enhancement: Anti-Reflection coated
screen
Panel resolution: 1366 x 768p
Response time (typical): 8 ms
Viewing angle: 176º (H) / 176º (V)
Contrast ratio (typical): 800:1
Supported Display Resolution
• Computer formats
Refresh rate
Resolution
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60, 70, 75Hz
1280 x 1024
60Hz
• Video Formats
Refresh rate
Resolution
640 x 480i
1Fh
640 x 480p
2Fh
720 x 576i
1Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
•
•
•
•
Sound System: Virtual Dolby Surround
Output power (RMS): 2 x 15W
Sound Enhancement: Dynamic Bass Enhancement
Equalizer: 5-bands
Loudspeakers
• Built-in speakers: 2
Convenience
• Ease of Installation: Autostore, Plug & Play, Auto
Program Naming, Automatic Channel Install(ACI),
Automatic Tuning System (ATS), Fine Tuning,
Program Name, Sorting
• Ease of Use: Side Control, Smart Picture, Auto
Volume Leveller (AVL), Program List, Smart Sound
• Remote control type: RCFE05SPS00
• Teletext: 10 page Smart Text
• Picture in Picture: Picture in graphics, Twin page
text
• Remote Control: Amp, DVD, Multi-functional, TV
• Screen Format Adjustments: Auto Format, Subtitle
and Heading Shift, 4:3, Subtitle Zoom, Super
Zoom, Widescreen, Zoom 14:9, Zoom 16:9
• Clock: Sleep Timer
Tuner/Reception/Transmission
•
•
•
•
•
•
Tuner bands: Hyperband, S-Channel, UHF, VHF
TV system: NTSC, PAL, SECAM
Video Playback: NTSC, PAL, SECAM
Aerial Input: 75 ohm coaxial (IEC75)
Number of Preset Channels: 100
Tuner Display: PLL
Connectivity
•
•
•
•
•
AV 1: Audio L/R in
AV 2: Audio L/R in, CVBS, S-Video Y/C
AV 3: VGA PC-in, HDMI compatible
AV 4: HDMI
Front / Side connections: Audio L/R in, CVBS in,
Headphone Out, S-video in
Power
•
•
•
•
Power consumption: 185 W
Standby power consumption: < 2 W
Mains power: AC 220 - 240 V +/- 10%
Ambient temperature: 5 °C to 40 °C
Dimensions
•
•
•
•
Product weight: 24 kg
Weight incl. Packaging: 32 kg
Set dimensions (W x H x D): 1105 x 610 x 97 mm
VESA wall mount compatible: 800 x 400 mm
Issue date 2012-01-20
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 10.0.11
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 22641
EAN: 87 10895 89211 7
www.philips.com
Accessories
• Included accessories: Table top stand, Wall
mounting bracket, DVI-I to VGA adapter, Power
cord, Quick start guide, Registration card, Remote
Control, RF antenna cable, User Manual, Warranty
certificate, VGA to YPbPr-Cinch cable
• Optional accessories: Floor stand
•
