Thermal Imaging Intelligent Camera Series

Thermal Imaging Intelligent Camera Series
Thermal Imaging
Intelligent Camera
Series
Security Solutions by Design
Features

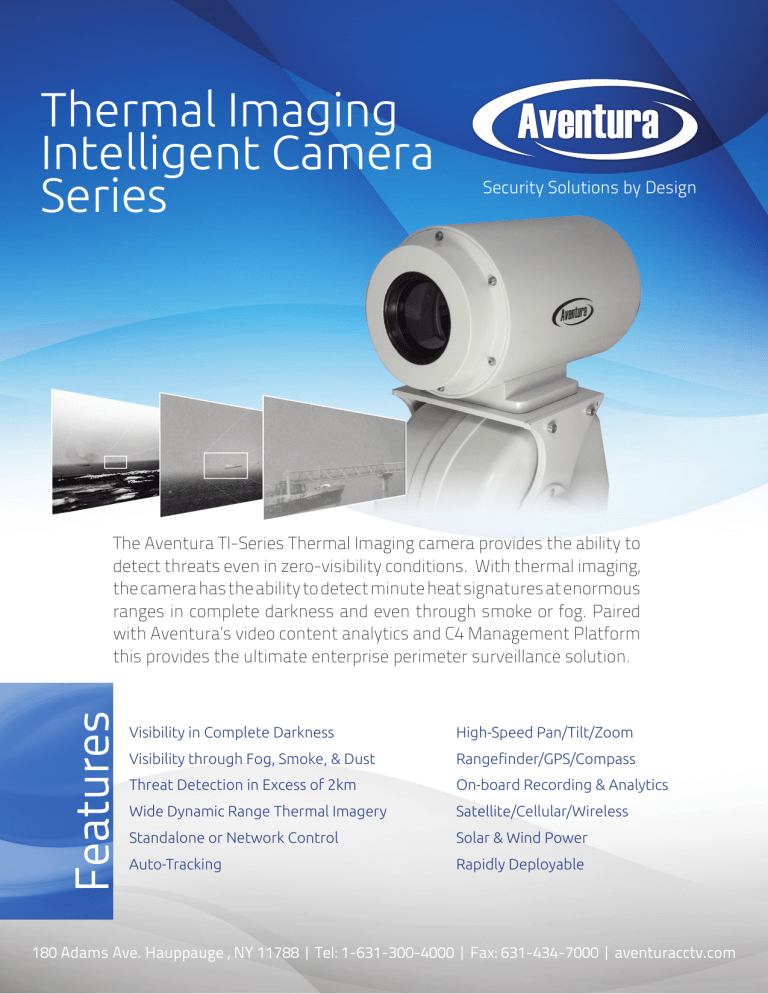

The Aventura TI-Series Thermal Imaging camera provides the ability to
detect threats even in zero-visibility conditions. With thermal imaging,
the camera has the ability to detect minute heat signatures at enormous
ranges in complete darkness and even through smoke or fog. Paired
with Aventura’s video content analytics and C4 Management Platform
this provides the ultimate enterprise perimeter surveillance solution.
Visibility in Complete Darkness
High-Speed Pan/Tilt/Zoom
Visibility through Fog, Smoke, & Dust
Rangefinder/GPS/Compass
Threat Detection in Excess of 2km
On-board Recording & Analytics
Wide Dynamic Range Thermal Imagery
Satellite/Cellular/Wireless
Standalone or Network Control
Solar & Wind Power
Auto-Tracking
Rapidly Deployable
180 Adams Ave. Hauppauge , NY 11788 | Tel: 1-631-300-4000 | Fax: 631-434-7000 | aventuracctv.com
Aventura Thermal Imaging Intelligent Camera Systems
CAM-TI Series
MODEL
CAM-TIVL Series
CAM-TIVL-MP Series
Standard Features
(Models with Motorized Pan & Tilt only)
THERMAL CAMERA
Style
Sensor Type
Image Processing
LENS
Field of View
Standalone Thermal Imaging Camera
Thermal Imaging / Visible-Light Camera
Thermal Imaging / Visible-Light IP Camera
320x200 or 640x480 pixel resolution
4th Generation uncooled VOx FPA detector
High Sensitivity NETD ≤ 35mk
320x200 or 640x480 pixel resolution
4th Generation uncooled VOx FPA detector
High Sensitivity NETD ≤ 35mk
640x480 pixel resolution
4th Generation uncooled VOx FPA detector
High Sensitivity NETD ≤ 35mk
Digital Detail Enhancement (DDE)
Automatic Gain Control (AGC)
Digital Detail Enhancement (DDE)
Automatic Gain Control (AGC)
Digital Detail Enhancement (DDE)
Automatic Gain Control (AGC)
LENS
LENS
FOV
LENS
Auto-Tracking
Track, follow, and record moving objects in
the camera’s field of view without operator
interaction
Video
Analytics
Automatic object detection, object classification, object count, tripwire, wrong direction
monitoring, speed detection and more.
IP Encoders
Converts camera to transmit video across a
local area network
Stabilization
Corrects for minor camera movement due to
vibration or sway
Built-in
Recording
On-board DVR for portable or remote camera
installations
FOV
20mm
36° x 27°
150mm
4.6° x 3.5°
33mm
28° x 22°
200mm
2.2° x 1.7°
40mm
19° x 15°
250mm
1.4° x1.1°
50mm
14° x 11°
20~100mm
36° x 27° ~ 7.0° x 5.6°
100mm
7.0° x 5.6°
45~135mm
15° x 11° ~ 5.4° x 4.2°
125mm
5.5° x 4.2°
75~150mm
9.3° x 7° ~ 4.6° x 3.5°
FOV
FOV
33mm
28° x 22°
33mm
28° x 22°
50mm
14° x 11°
50mm
14° x 11°
20~100mm
36° x 27° ~ 7.0° x 5.6°
20~100mm
36° x 27° ~ 7.0° x 5.6°
Options and Accessories
VISIBLE-LIGHT CAMERA
Imager
-
1/4” Ex-View super CCD (~440,000 pixels)
1/3” Progressive Scan CCD (1.3 Megapixel)
Field-of-View
-
57.8° ~ 1.7°
48° ~ 2.8°
MECHANICAL
Pant/Tilt Functionality
Field-of-Regard
Pan/Tilt Rate of Speed
Position Accuracy
Optional
Integrated
Integrated
355° pan, +6° ~ -90° tilt
360° pan, +/- 90° tilt
360° pan, +/- 90° tilt
7.5°/s pan, 6°/s tilt
1.5 ~ 40°/s pan,1.2 ~ 60°/s tilt
1.5 ~ 40°/s pan,1.2 ~ 60°/s tilt
1 mrad
1 mrad
1 mrad
RS-485 (RS-232 optional)
RS-485 (RS-232 optional)
TCP/IP
SYSTEM FEATURES
Remote Control
Programmable Search
Protocol
Yes
Yes
Yes
Selected Pelco D Commands
Selected Pelco D Commands
Selected Pelco D Commands
NTSC or PAL composite video
NTSC or PAL composite video
H.264 compression, 64Kbps~4Mbps
Mil
Mil
Mil
Laser
Range-Finder
Reports distance between camera and
observed objects
Gyroscope
Reports relative direction and angle camera
is facing
Compass
Reports absolute direction camera is facing
GPS
Reports physical location of camera (for use
with mobile applications)
Wireless
Converts camera to transmit video wirelessly
WInd / Solar
Power camera with wind or solar energy
Tripod
Portable mounting options
Carrying
Case
For safe transport of camera
Keyboard
Controller
Pan-Tilt-Zoom controller with 3d joystick
Rapid
Deployment Kit
Portable command and control for Aventura
Intelligent Camera Systems
IMAGE PRESENTATION
Video Format
Connectors
POWER
Input Voltage
Power Consumption
24VAC
24VAC
24VAC
36W peak @ startup, <8 W nominal @ 77°F
<30 W nominal @ 77°F
<30 W nominal @ 77°F
ENVIRONMENTAL
Operating Temperature
-13°F~131°F (-25°C~55°C)
-13°F~131°F (-25°C~55°C)
-13°F~131°F (-25°C~55°C)
Storage Temperature
-40°F~149°F (-40°C~ 65°C)
-40°F~149°F (-40°C~ 65°C)
-40°F~149°F (-40°C~ 65°C)
Rain, Sand/Dust, Shock, Vibration
Rain, Sand/Dust, Shock, Vibration
Rain, Sand/Dust, Shock, Vibration
IP66 Weatherproof
IP66 Weatherproof
IP66 Weatherproof
9.9 lb (4.5 kg)
14.3 lb (6500 g)
14.3 lb (6500 g)
MIL-STd 810E
Ingress Protection (IEC 60529)
PHYSICAL
Weight
Dimensions (W x H x D)
Standard Equipment
13 x 6.8 x 6.3 in (330 x 172 x 160mm)
14.6 x 9.6 x 8.6 in (372 × 243 × 218 mm)
14.6 x 9.6 x 8.6 in (372 × 243 × 218 mm)
Hot Shoe with 6 m cable, break-out cable to standard connector, lab
power supply, user interface, Operator Manual
Hot Shoe with 6 m cable, break-out cable to
standard connector, lab power supply, user
interface, operator manual
Hot Shoe with 6 m cable, break-out cable to
standard connector, lab power supply, user
interface, Operator Manual
CE, FCC, UL
CE, FCC, UL
CE, FCC, UL
1 Year
1 Year
1 Year
REGULATORY & WARRANTY
Regulatory Type
Warranty
Equipment described herein may require U.S. Government authorization for export purposes. Export of products controlled under the International Traffic in Arms Regulations (ITAR) require a valid export license issued by the U.S. Department of State Office of Defense Trade Controls as prescribed by Title 22, CFR Parts 120-130.
