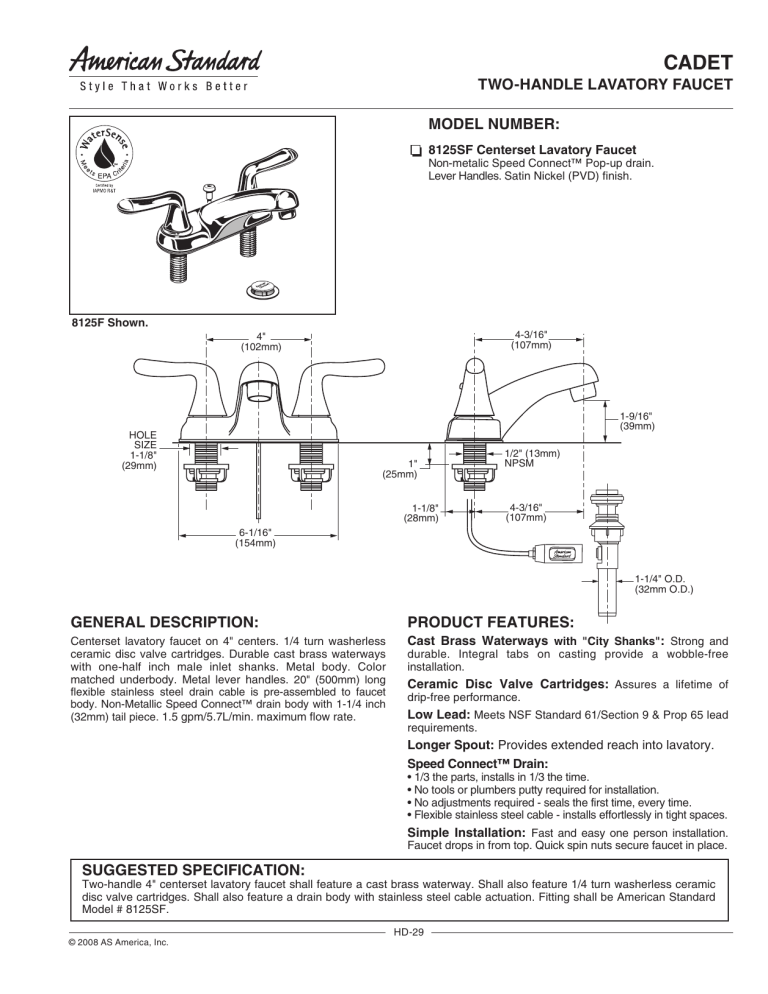

CADET
TWO-HANDLE LAVATORY FAUCET
MODEL NUMBER:
8125SF Centerset Lavatory Faucet
Non-metalic Speed Connect™ Pop-up drain.
Lever Handles. Satin Nickel (PVD) finish.
8125F Shown.
4-3/16"
(107mm)
4"
(102mm)
1-9/16"
(39mm)
HOLE
SIZE
1-1/8"
(29mm)
1"
(25mm)
1-1/8"
(28mm)
1/2" (13mm)
NPSM
4-3/16"
(107mm)
6-1/16"
(154mm)
1-1/4" O.D.
(32mm O.D.)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Centerset lavatory faucet on 4" centers. 1/4 turn washerless
ceramic disc valve cartridges. Durable cast brass waterways
with one-half inch male inlet shanks. Metal body. Color
matched underbody. Metal lever handles. 20" (500mm) long
flexible stainless steel drain cable is pre-assembled to faucet
body. Non-Metallic Speed Connect™ drain body with 1-1/4 inch
(32mm) tail piece. 1.5 gpm/5.7L/min. maximum flow rate.
Cast Brass Waterways with "City Shanks": Strong and
durable. Integral tabs on casting provide a wobble-free
installation.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Longer Spout: Provides extended reach into lavatory.
Speed Connect™ Drain:
• 1/3 the parts, installs in 1/3 the time.
• No tools or plumbers putty required for installation.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Simple Installation: Fast and easy one person installation.
Faucet drops in from top. Quick spin nuts secure faucet in place.
SUGGESTED SPECIFICATION:
Two-handle 4" centerset lavatory faucet shall feature a cast brass waterway. Shall also feature 1/4 turn washerless ceramic
disc valve cartridges. Shall also feature a drain body with stainless steel cable actuation. Fitting shall be American Standard
Model # 8125SF.
© 2008 AS America, Inc.
HD-29
CADET
TWO-HANDLE LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125
NSF 61/Section 9
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Product
Number
8125SF
Description
Centerset lavatory. Lever Handles. Non-metalic Speed Connect™ Pop-up drain. Satin Nickel (PVD) Finish.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2008 AS America, Inc.
HD-30
