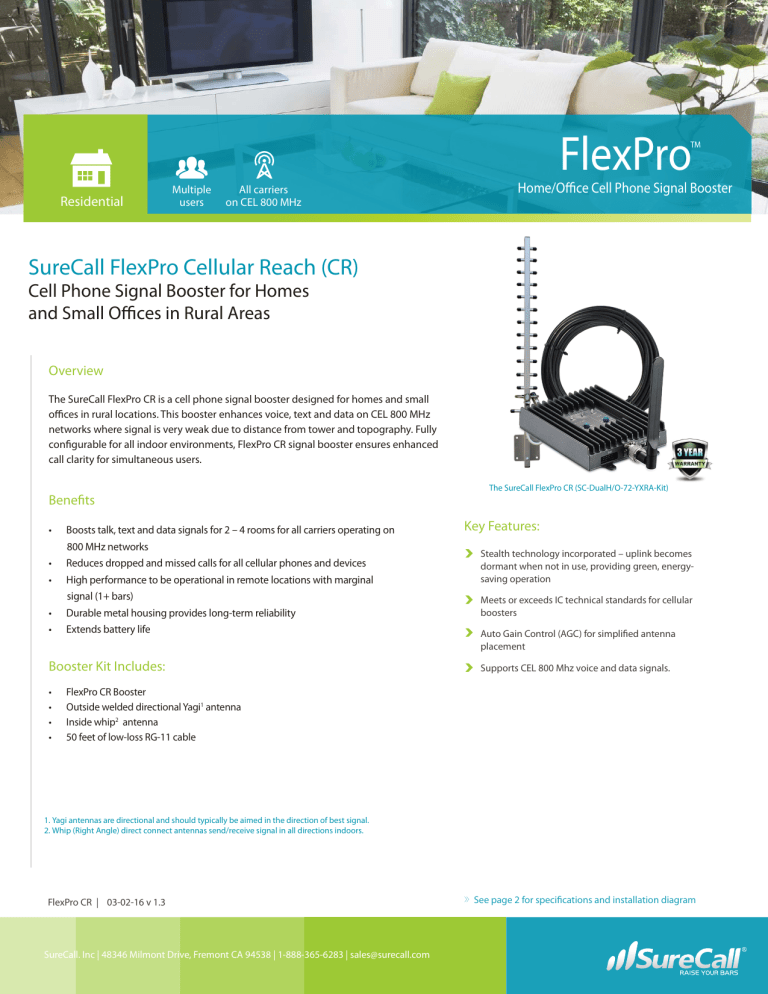

FlexPro CR Canada Data Sheet
FlexPro
TM
Residential
Multiple
users
All carriers
on CEL 800 MHz
Home/Office Cell Phone Signal Booster
SureCall FlexPro Cellular Reach (CR)
Cell Phone Signal Booster for Homes
and Small Offices in Rural Areas
Overview
The SureCall FlexPro CR is a cell phone signal booster designed for homes and small
offices in rural locations. This booster enhances voice, text and data on CEL 800 MHz
networks where signal is very weak due to distance from tower and topography. Fully
configurable for all indoor environments, FlexPro CR signal booster ensures enhanced
call clarity for simultaneous users.
Benefits
•
Boosts talk, text and data signals for 2 – 4 rooms for all carriers operating on
800 MHz networks
•
Reduces dropped and missed calls for all cellular phones and devices
•
High performance to be operational in remote locations with marginal
•
Durable metal housing provides long-term reliability
•
Extends battery life
signal (1+ bars)
Booster Kit Includes:
•
•
•
•
The SureCall FlexPro CR (SC-DualH/O-72-YXRA-Kit)
Key Features:
Stealth technology incorporated – uplink becomes
dormant when not in use, providing green, energysaving operation
Meets or exceeds IC technical standards for cellular
boosters
Auto Gain Control (AGC) for simplified antenna
placement
Supports CEL 800 Mhz voice and data signals.
FlexPro CR Booster
Outside welded directional Yagi1 antenna
Inside whip2 antenna
50 feet of low-loss RG-11 cable
1. Yagi antennas are directional and should typically be aimed in the direction of best signal.
2. Whip (Right Angle) direct connect antennas send/receive signal in all directions indoors.
FlexPro CR | 03-02-16 v 1.3
SureCall. Inc | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected]
》See page 2 for specifications and installation diagram
FlexPro
TM
Home/Office Cell Phone Signal Booster
Specification
Model No.
SC-DualH/O-72-YXRA-Kit
Uplink Frequency Range (MHz):
824-849
Downlink Frequency Range (MHz):
869-894
Supported Standards:
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO
Input/Output Impedance:
75Ω outside port / 50Ω inside port
Maximum Booster Gain:
65 dB - Cellular
Maximum System Gain:
77 dB - Cellular
Noise Figure:
7dB
VSWR:
≤2.0
AC Input:
5 -15V
Maximum Output Power:
1Watt EIRP
Cable:
RG-11
RF Connectors:
F female external / N Female internal
Power Consumption:
<10W
Dimensions:
8" x 1.25" x 5"
Weight:
1lb. 8oz.
Specifications are subject to change.
Installation Example
Outside Antenna
Coaxial Cable
Signal Booster
Inside Antenna
Power Supply
