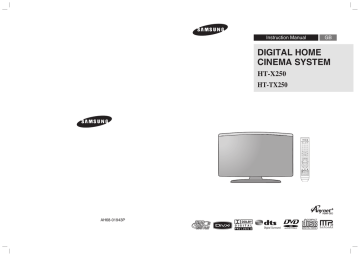

Instruction Manual
GB
DIGITAL HOME
CINEMA SYSTEM
HT-X250
HT-TX250
THIS APPLIANCE IS MANUFACTURED BY:
AH68-01943P
COMPACT
AH68-01660E
REV: 01
DIGITAL VIDEO
PREPARATION
Safety Warnings
CAUTION
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
GB
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
7cm
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
10cm
10cm
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED, AVOID EXPOSURE TO
BEAM.
10cm
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player or subwoofer.
Install your player or subwoofer horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make
sure the ventilation slots are not covered. Do not stack anything on top of the player or subwoofer. Do not place the player or subwoofer
on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc insert hole is empty. This player is
designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to
disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a
long period of time.
PREPARATION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
Precautions
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains
plug shall be readily operable.
CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
During thunderstorms, disconnect AC main plug from
the wall outlet. Voltage peaks due to lightning could
damage the unit.
Phones
Protect the player from moisture (i.e. vases),
and excess heat (e.g.fireplace) or equipment
creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable
from the AC supply if the player malfunctions.
Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc
has been stored in cold temperatures.
If transporting the player during the winter,
wait approximately 2 hours until the unit has
reached room temperature before using.
2
Do not expose the unit to direct sunlight or
other heat sources.
This could lead to overheating and malfunction
of the unit.
The batteries used with this product contain
chemicals that are harmful to the environment.
Do not dispose of batteries in the general
household trash.
3
Features
Multi-Disc Playback & FM Tuner
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio.
The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range,
low-level resolution and high-frequency detail.
USB HOST Function support
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc.
using the Home Theater's USB HOST function.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing
Dolby Pro Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency
5.1 channel sound.
TV Screen Saver Function
If the main unit remains in stop mode for 3 minutes, Samsung logo appears on TV screen.
The HT-X250/HT-TX250 automatically switches itself into the power saving mode after 20 minutes in the Screen
Saver mode.
Power Saving Function
The HT-X250/HT-TX250 automatically shuts itself off after 20 minutes in Stop mode.
Customized TV Screen Display
The HT-X250/HT-TX250 allows you to select your favorite image during JPEG of DVD or VCD playback and set it as your
background wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
Anynet+ (HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the
Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support
Anynet+.)
4
GB
PREPARATION
SETUP
Safety Warnings ..................................................2
Precautions..........................................................3
Features ..............................................................4
Notes on Discs ....................................................6
Description...........................................................8
Settings..............................................................44
Setting the Language ....................................44
Setting TV Screen type..................................45
Setting Parental Controls (Rating Level) .......46
Setting the Password.....................................46
Setting the Wallpaper ....................................47
To Select One of the 3 Wallpaper
Settings you've made ....................................47
DVD Playback Mode .....................................48
DivX (R) registration ......................................48
Setting the Speaker Mode .............................48
Setting the Delay Time ..................................49
Setting the Test Tone ....................................50
Setting the Audio ...........................................51
Setting the DRC (Dynamic Range Compression) ..52
Setting the AV SYNC.....................................52
Setting the HDMI Audio .................................53
Sound Field (DSP)/EQ Function........................54
Dolby Pro Logic II Mode ....................................55
Dolby Pro Logic II Effect ....................................56
CONNECTIONS
Connecting the Speakers ..................................12
Speaker Installation ...........................................14
Connecting the Optional Wireless Receiving Amplifier ........15
Installing the Main Unit ......................................18
Connecting the Video Out to your TV ................20
HDMI Function...................................................21
Connecting Audio from External Components ......22
Connecting the FM Antenna ..............................24
Connecting Microphone.....................................24
OPERATION
Before Reading the User's Manual....................25
Before Using Your Home Theater .....................26
Disc Playback ....................................................27
MP3/WMA-CD Playback ...................................28
JPEG File Playback ...........................................29
DivX Playback ...................................................30
Using the Playback Function .............................32
Displaying Disc Information ...........................32
Checking the Remaining Time .......................33
Fast Playback ................................................33
Slow Playback................................................33
Skipping Scenes/Songs .................................34
Repeat Playback ............................................35
To Select a Repeat Playback Mode in the
Disc Information Screen.................................35
A-B Repeat Playback .....................................36
Step Function .................................................36
Angle Function ...............................................37
Zoom (Screen Enlarge) Function ...................37
Bonus Group ..................................................38
Navigating Pages ...........................................38
Audio Language Selection Function ..............39
Subtitle Language Selection Function ...........39
Moving Directly to a Scene/Song ...................40
Using the Disc Menu ......................................41
Using the Title Menu ......................................41
Playing Media Files using the USB Host Feature ......42
PREPARATION
The HT-X250/HT-TX250 combines the convenience of multi-disc playback capability, including DVD-AUDIO,
DVD-VIDEO, VCD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD R/RW, with a sophisticated FM tuner,
all in a single player.
Contents
MISCELLANEOUS
Listening to Radio ..............................................57
Convenient Functions ........................................59
Operating a TV with the Remote Control...........60
Troubleshooting .................................................62
Cautions on Handling and Storing Discs ...........64
Language Code List ..........................................65
USB Host Feature Supported Products.............66
Specifications ....................................................67
5
Notes on Discs
GB
1
~ 6
DVD players and the discs are coded by region. These regional codes must match
in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
Playable Discs
Disc Recording Format
This product does not support Secure (DRM) Media files.
CD-R Discs
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition
of the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be playback.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly <closed> can be fully played. If the session is closed but the disc is left open, you may not
be able to fully play the disc.
PREPARATION
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby
Digital surround sound and MPEG-2 video compression technology.
Now you can enjoy these realistic effects in the home, as if you were in a movie
theater or concert hall.
CD-R MP3 Discs
Disc Type
Mark (Logo)
Disc Size
12cm
DVD-AUDIO
DVD-VIDEO
AUDIO-CD
VIDEO-CD
Recorded Signals
Audio + Video
8cm
COMPACT
DIGITAL VIDEO
Divx
Audio
Audio + Video
Audio + Video
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
•
•
•
•
•
Approx. 160 min. (double-sided)
12cm
74 min.
8cm
20 min.
12cm
74 min.
8cm
20 min.
•
•
•
•
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
Only files with the <mp3> and extensions can be played.
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
A maximum of 500 tracks can be played per CD.
A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE,CHECK REGION CODE> message
appears on the TV screen.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
6
•
•
•
•
•
Only files with the <jpg> extensions can be played.
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc,
the disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
DVD R/RW, CD-R/RW DivX Discs
• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might
not play.
• Software updates for incompatible formats are not supported.
(Example: QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., please visit <www.divxnetworks.net>.
7
Description
GB
Front Panel
2
3
4
5
6
7
8
9
1. Power (
10
PREPARATION
1
Side Panel
) button
2. Disc Insert Hole
3. Display
1
4. Eject button
MIC
5. Function button
6. Tuning Down & Skip (
2
3
4
) button
2. AUX IN 1 Jack
3. MIC Jack
4. USB Port
7. Stop ( ) button
8. Play/Pause (
1. Headphone Jack
) button
9. Tuning Up & Skip (
) button
10. Volume Control button
Rear Panel
1
2
3
4
5
Accessories
Daljinski
upravljalnik
12 11 10
9
8
1. 5.1 Channel Speaker Output Connectors
2. Component Video Output Jacks
Connect a TV with Component video inputs to these jacks.
3. Video Output Jack
Connect your TV's Video Input jack (VIDEO IN) to
the VIDEO OUT Jack on this unit.
4. External Digital Optical Input Jack
Use this to connect external equipment capable of digital
output.
8
7
Video kabel
HDMI Cable
FM-antena
Uporabniški
priročnik
6
5. HDMI OUT Jack
6. TX Card Connection(WIRELESS)
7. AUX IN 2 Jacks
8. FM 75Ω COAXIAL Jack
9. Stand
10. Cable Tie
11. Stand Fix Hole
12. Cooling Fan
9
Description (Con’t)
GB
Remote Control
2
3
4
19
20
21
5
6
7
22
23
8
24
9
25
26
10
27
28
29
11
12
13
14
15
30
31
32
33
34
35
16
36
10
17
37
18
38
1. DVD RECEIVER button
2. TV button
3. TV/VIDEO button
4. POWER button
5. Number (0~9) buttons
6. REMAIN button
7. STEP button
8. Tuning Preset/CD Skip buttons
9. VOLUME button
10. MENU button
11. AUDIO button
12. PL II EFFECT button
13. PL II MODE button
14. TUNER MEMORY, SD(Standard Definition)/
HD(High Definition) button
15. ZOOM button
16. SLEEP button
17. SLOW, MO/ST button
18. ECHO, NT/PAL button
DVD button
19.
TUNER button
USB, AUX button
20. EJECT button
21. DIMMER button
22. CANCEL button
23. REPEAT button
PLAY/PAUSE button
24.
1
2
Remove the battery cover in the direction of the arrow.
3
Replace the battery cover.
Insert two 1.5V AAA batteries, paying attention to the correct polarities
(+ and –).
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity :
(+) to (+) and (–) to (–).
• Use the correct type of batteries.Batteries that look similar may differ in
voltage.
• Always replace both batteries at the same time.
• Do not expose the batteries to heat or a flame.
PREPARATION
1
Insert Remote Batteries
Operation Range of the Remote Control
The remote control can be used up to approximately 7 meters(23 feet) in a straight line. It can also be operated
at a horizontal angle of up to 30° from the remote control sensor.
STOP button
SEARCH buttons
25. TUNING/CH button
26. MUTE button
27. RETURN button
28. Cursor/ENTER button
29. SUBTITLE button
30. EXIT button
31. DSP/EQ button
32. INFO button
33. SOUND EDIT button
34. DIGEST button
35. TEST TONE button
36. MIC VOL button
37. SLIDE MODE button
38. LOGO button
11
CONNECTIONS
Connecting the Speakers
GB
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
HT-TX250
HT-X250
Front Speaker (R)
Front Speaker (L)
Front Speaker (R)
Front Speaker (L)
SUB
Subwoofer
Center Speaker
Subwoofer
Rear Speaker (R)
Rear Speaker (L)
Rear Speaker (R)
Position of the DVD Player
Selecting the Listening Position
• Place it on a stand or cabinet shelf, or under the TV stand.
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from
the TV.
Example : For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
Front Speakers ei
• Place these speakers in front of your listening position,
facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be at the
same height as your ear.
• Align the front face of the front speakers with the front
face of the center speaker or place them slightly in front
of the center speakers.
Center Speaker f
• It is best to install it at the same height as the front
speakers.
• You can also install it directly over or under the TV.
Rear Speakers hj
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they
face each other.
• Place them about 60 to 90cm (2 to 3feet) above your
ear, facing slightly downward.
the front and center speakers, the rear
* Unlike
speakers are used to handle mainly sound effects
and sound will not come from them all the time.
Subwoofer g
Rear Speaker (L)
Connecting the Speakers
1
2
Black
• The position of the subwoofer is not so critical.
Place it anywhere you like.
12
CONNECTIONS
Center Speaker
Red
1
2
Press down the terminal tab on the back of the speaker.
3
Connect the connecting plugs to the back of the Home
Theater.
Insert the black wire into the black terminal (–) and the red
wire into the red (+) terminal, and then release the tab.
 Make sure the colors of the speaker terminals match the
colors of the connecting plugs.
• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
• Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien
substances into the duct (hole) of the subwoofer speaker.
• Do not hang the subwoofer on the wall through the duct (hole).
• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated
by the speaker. If this occurs, place the speaker away from your TV set.
13
Speaker Installation
Connecting the Optional Wireless Receiving Amplifier
GB
To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and
TX card from your Samsung retailer.
Speaker Components (HT-TX250 only)
When you have Purchased the Wireless Receiving Module (SWA-3000)
HT-X250
Front Speaker (R)
SPEAKER
STAND
STAND BASE
Screw (A)
Center Speaker
Screw (B)
2
1
Subwoofer
Turn the STAND upside-down and connect it to the
STAND BASE.
2
Insert two screws (A) into the two holes marked with
arrows using a screwdriver as shown in the illustration.
3
3
4
5
Rear Speaker (R)
Rear Speaker (L)
Insert a screw (B), into the hole on the rear of the Speaker
STAND.
4
WIRELESS RECEIVER MODULE
Connect the assembled stand to the SPEAKER.
Insert another screw (B) into the hole on the rear of the
HT-TX250
Front Speaker (L)
speaker using a screwdriver as shown in the illustration.
6
5
6
CONNECTIONS
How to Install the Speaker on the Stand
1
Front Speaker (L)
Front Speaker (L)
This is the SPEAKER successfully assembled with the
Stand.
• Make sure that the speaker is installed on a flat and stable
area. Otherwise it may be easily knocked over.
Center Speaker
Subwoofer
Rear Speaker (L)
Rear Speaker (R)
WIRELESS RECEIVER MODULE
14
15
Connecting the Optional Wireless Receiving Amplifier (Con’t)
GB
Resetting the Wireless Receiving Module
Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not
light up and the <REAR CHECK> message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.
1
With the main unit turned off, press and hold the remote
control's REMAIN button for 5 seconds.
TX card
2
Slanted side faces down
1
referring to pages 12~14.
2
 The STANDBY LED on the front panel of the wireless receiver
module blinks 2 Times.
3
Connect the front, center and Subwoofer speakers to the main unit,
With the main unit turned off, insert the TX card into the TX Card
Connection(WIRELESS) on the back of the main unit.
With the wireless receiver module turned on, use a ball point
pen or a pair of toothpick to press the RESET button on the
back of the unit.
CONNECTIONS
 The STANDBY LED on the front panel of the wireless
receivermodule blinks.
Turn on the main unit.
 The LINK LED of the wireless receiver module is lit and the
Reset is completed.
 If Power Standby mode continues, repeat Steps 1 to 3 above.
• Hold the TX card so that the slanted side faces downward and insert the
card into the port.
• The TX card enables communication between the main unit and
the wireless receiver.
3
Connect the left and right rear speakers to the wireless receiving
module.
4
Plug the power cord of the wireless receiving module in the wall
outlet and switch the power switch <ON>.
• Do not insert a card other than the TX card dedicated for the product.
The product might be damaged or the card may not be removed easily.
• Do not insert the TX card upside down or in the reverse direction.
• Insert the TX card when the main unit is turned off.Inserting the card
when it is turned on may cause a problem.
• If the TX Card is inserted, sound is not output from the Rear Speaker
connectors on the main unit.
16
• When the wireless receiving module setting is complete, no audio signal is output from the Rear Speaker Output
Connector on the back of the main unit.
• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and
moisture.
• For optimal listening performance, make sure that the area around the wireless receiver module location is clear
of any obstructions.
• Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
• In 2-CH mode, no sound will be heard from the wireless rear speakers.
• Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too
close to the main unit, some sound interruption may be heard due to interference.
• If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device
that uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to
interference.
• The transmission distance of radio wave is about 10m, but may vary depending on your operating environment.
If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system
may not operate at all, because the radio wave cannot penetrate metal.
17
Installing the Main Unit
GB
Method 1 : Installing the Stand so that the DVD Player Lays Flat.
Method 2 : Installing the Stand so that the DVD Player Stands up.
Preparation
Preparation
 Disconnect the AC power cord from the AC outlet before installing the main unit.
 Connect the cables before installation.
 Disconnect the AC power cord from the AC outlet before installing the main unit.
 Connect the cables before installation.
1
2 3
4
1
2 3
4
CONNECTIONS
1
1
Turn the stand counter-clockwise and pull it apart.
 The DVD player and stand are separated.
 The DVD Player and stand are separated.
2
2
3
Hold the DVD Player and stand as shown by the figure
and turn the right side of the stand upward so that it is
slightly slanted.
3
Lift the right side of the stand so that it is slightly slanted.
Insert the 2 stand anchors into the holes on the bottom of
the DVD Player.
Insert the 2 stand anchors into the holes on the back of the
4
DVD Player.
4
Turn the stand in the direction of the arrow and pull it apart.
Turn the right side of the stand clockwise to fix it to the
bottom of the DVD Player.
Turn the right side of the stand clockwise to fix it to the
back of the DVD Player.
• Be careful not to scratch the surface the DVD Player when
installing the stand.
• Do not turn the DVD Player left or right as it may separate
it from the stand.
Arranging the Cables
Use the cable tie to keep the cables together.
18
19
Connecting the Video Out to your TV
HDMI Function
GB
Choose one of the three methods for connecting to a TV.
Resolution Selection
This function allows the user to select the screen resolution for HDMI output.
In Stop mode, press and hold the SD/HD (Standard Definition/High Definition)
button on the remote control.
 Resolutions available for the HDMI output are 576p(480p), 720p and 1080i.
 SD(Standard Definition) resolution is 576p(480p) and HD(High Definition)
resolution is 720p/1080i.
METHOD 3
(supplied)
METHOD 1
(supplied)
• If the TV does not support the configured resolution, you will not be able
to see the picture properly.
• When a HDMI TV is connected, composite and component video signals are not output.
• See your TV owner's manual for more information on how to select the TV's
Video Input source.
CONNECTIONS
METHOD 2
What is HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD
video signal digitally without
the process of converting to
analog. You will get sharper
digital pictures when using
an HDMI connection.
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet + can be used
by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.
METHOD 1 : HDMI ....... (Best Quality)
Connect the HDMI cable from the HDMI OUT jack on the back of the main unit to the HDMI IN jack
on your TV.
METHOD 2 : Component Video .... (Better Quality)
If your television is equipped with Component Video inputs, connect a component video cable
(not supplied) from the Pr, Pb and Y jacks on the back panel of the main unit to the corresponding
jacks on your television.
1
With Anynet+
You can operate this unit,
power on your TV, or
watch a movie by pressing
the Play button on your
Samsung TV's remote
control.
2
Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable.
(See page 20)
Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
 You can operate the Home Theater by using the TV remote control.
(Available TV buttons :
, , ,
, ▲, ▼ and ►,◄ buttons,
~
button)
If you select the TV
Set the Anynet+(HDMI-CEC) to <On> on your TV.
 <Receiver : On> : You can listen to audio through the Home Theater.
 <Receiver : Off> : You can listen to audio through the TV.
METHOD 3 : Composite Video ....... (Good Quality)
Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the
VIDEO IN jack on your TV.
• This product operates in Interlace scan mode (576i, 480i) for component output.
• After making the video connection, set the Video input source on your TV to match the corresponding
Video output (HDMI, Component or Composite) on your Home theater.
See your TV owner's manual for more information on how to select the TV's Video Input source.
• If you use an HDMI cable to connect a Samsung TV to the main unit, you can operate the Home Theater using
the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).
• Please check the
logo, then it supports Anynet+ function.
logo. If your TV has an
20
MOVE
ENTER
EXIT
If you select the THEATER
Select <THEATER to connector> and set the option of each items below.
 <View TV> : If Anynet+(HDMI-CEC) set to on and you select View TV, the
Home Theater will automatically switched to DIGITAL IN.
 <THEATER Menu> : You can access the Home Theater menu.
 <THEATER Operation> : The Home Theater disc playback information will be displayed.
 <Receiver : On> : You can listen to audio through the Home Theater.
 <Receiver : Off> : You can listen to audio through the TV.
MOVE
ENTER
EXIT
• When watching TV, if you want to listen to TV sound via home theater, the optical cable
should be connected.
• If Anynet+ (HDMI-CEC) is on and you turn off the main unit, your TV will also
turn off.
• Anynet+ (HDMI-CEC) will only work while in the DVD mode.
21
Connecting Audio from External Components
AUX1 : Side Panel
GB
AUX2 : Rear Panel
OPTICAL : Rear Panel
MIC
(not supplied)
Audio Cable
(not supplied)
If the external analog
component has only one
Audio Out, connect either left
or right.
Optical Cable
(not supplied)
CONNECTIONS
Audio Cable
AUX1 : Connecting an External Component/MP3 player
OPTICAL : Connecting an External Digital Component
Components such as an MP3 Player
1
Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player.
Digital signal components such as a Set-Top Box.
2
Press the AUX button on the remote control to select <AUX1> input.
1
Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.
2
Press the AUX button on the remote control to select <D.IN>.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD D.IN AUX1 AUX2 USB FM
AUX2 : Connecting an External Analog Component
• You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD D.IN AUX 1 AUX 2 USB FM
Analog signal components such as a VCR.
1
Connect AUX IN 2 (Audio) on the Home Theater to Audio Out on the external analog component.
• Be sure to match connector colors.
2
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Press the AUX button on the remote control to select <AUX2> input.
Please observe the following cautions for your safety.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD D.IN AUX1 AUX2 USB FM
 Make sure the unit is well-ventilated. If the unit has poor ventilation, the
temperature inside the unit may rise and may damage it.
• You can connect the Video Output jack on your VCR to the TV, and connect the Audio Output jacks on the VCR
 Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes
are covered with a newspaper or cloth, heat may build up inside the unit and fire may
result.)
to this product.
22
23
OPERATION
Connecting the FM Antenna
Before Reading the User's Manual
GB
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon
DVD
Term
Definition
DVD
This involves a function available on DVD or DVD-R/DVD-RW discs that have
been recorded and finslized in Video Mode.
VCD
This involves a function available on a Video CD (CD-R or CD-RW).
FM Antenna (supplied)
VCD
CD
MP3
1
2
Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
DivX
MP3
This involves a function available on CD-R/-RW discs.
JPEG
This involves a function available on CD-R/-RW discs.
DivX
This involves a function available on MPEG4 discs. (DVD R/RW, CD-R or CD-RW)
Caution
• This unit does not receive AM broadcasts.
This involves a function available on a data CD (CD-R or CD-RW).
Note
This involves a case where a function does not operate or settings may be
cancelled.
This involves tips or instructions on the page that help each function operate.
OPERATION
Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
JPEG
CD
Connecting Microphone
You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics
displayed on the TV screen against the accompaniment.
1
Connect the microphone to the MIC jack on the front panel.
 You can connect up to two microphones.
• In this manual, the instructions marked with <DVD ( DVD )> are applicable to DVD-VIDEO,
DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then finalized.
Where a particular DVD type is mentioned, it is indicated separately.
• If a DVD-R/-RW discs has not been recorded properly in DVD Video format, it will not be playable.
MIC
MIC
2
3
Press the MIC VOL button to adjust the voice volume of the microphone.
Press the ECHO button to adjust the echo level of the microphone.
• If you hear strange noises (squealing or howling) while using the Karaoke
feature, move the microphone away from the speakers. Turning down the
microphone volume or the speaker volume is also effective.
• Microphone doesn't work while HDMI mode and HDMI AUDIO ON.
24
25
Before Using Your Home Theater
GB
Disc Playback
DVD
VCD
CD
To Operate your Samsung TV and the Home Theater with the HT-X250/HT-TX250's Remote Control
The DVD Home Theater's remote can be used to control Samsung TVs.
1
2
3
4
1
Load a disc vertically into the Disc Insert Hole.
Plug the main unit's power cord into the AC power supply.
 Insert a disc so that the label side faces forward.
• Before plugging your system into a main socket, you must checkthe voltage
setting (OPTIONAL). If the voltage of the socket doesnot correspond to the
setting on the rear of the unit, you mayseriously damage your system.
 Playback starts automatically.
ALL
Press the TV button to set the remote to TV mode.
Press the POWER button to turn on your Samsung TV with this remote.
Press the TV/VIDEO button to select VIDEO mode on your TV.
VIDEO
5
To eject the disc, press the EJECT button.
Press the DVD RECEIVER button to switch to DVD RECEIVER mode to
operate the DVD Home Theater
6
OPERATION
2
Press the FUNCTION button on the main unit or DVD button on the remote
to enable DVD/CD playback.
Selecting the Video Format
d To stop playback, press the STOP button during playback.
 If pressed once, <PRESS PLAY> is displayed and the stop position will be stored in memory.
If the PLAY/PAUSE (
) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
 If pressed twice, <STOP> is displayed, and if the PLAY/PAUSE (
from the beginning.
d To temporarily pause playback, press the PLAY/PAUSE (
Press the and hold NT/PAL button on the remote controller for over 5 seconds
while the power is turned off.
 To resume playback, press the PLAY/PAUSE (
) button is pressed, playback starts
) button during playback.
) button again.
 By default, the video format is set to <PAL>.
 <NTSC> or <PAL> will appear in the display. At this time, press the NT/PAL button
shortly to select between <NTSC> and <PAL>.
 Each country has a different video format standard.
• Depending on the content of the disc, the initial screen may appear different.
• Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection
system) recommendations.
 For normal playback, the video format of the disc must be the same as the video format
of your TV.
26
27
MP3/WMA-CD Playback
JPEG File Playback
MP3
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
1
Slide Mode
Load the MP3 disc.
1
 The appearance of the menu depends on the MP3/WMA disc.
2
 WMA-DRM files cannot be played.
 Playback starts automatically. Each image is displayed for 5 seconds
and then the next image is displayed.
Press the SLIDE MODE button.
SLIDE SHOW MODE : NONE
d Press the #,$ button to skip to the next slide.
To change the album, use the Cursor ▲,▼,◄,► button to select another
album in Stop mode, and then press the ENTER button.
 To select another album and track, repeat Steps 2 and 3 above.
4
Load the JPEG disc.
 Each time the button is pressed, the image makes the transition as follows:
SLIDE SHOW MODE : 1~5 SLIDE SHOW MODE : RANDOM In Stop mode, use the Cursor ▲,▼,◄,► button to select the album, and then
press the ENTER button.
 Use ▲,▼ to select the track.
3
JPEG
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played
back with this Home Theater.
 The MP3/WMA menu screen will appear and playback will start.
2
GB
Press the STOP() button to stop playback.
 Each time the button is pressed, the slide moves backward or forward.
Digest Function
You can view 9 JPEG images on the TV screen.
1
Press the DIGEST button during playback.
 JPEG files will be shown in 9 windows.
2
Press the Cursor ▲,▼,◄,► button to select the desired image and then
press the ENTER button.
 The selected image is played for 5 seconds before moving to the next image.
d To view the previous or next image with 9 windows, press the #,$
button.
OPERATION
• Depending on the recording mode, some MP3/WMA-CDs may not play.
• Table of contents of a MP3/WMA-CD varies depending on the MP3/WMA track
format recorded on the disc.
• Rissian filenames are not supported.
d To play a file icon in the screen,
 Press the Cursor ▲,▼,◄,► button when it is in Stop mode and select a desired icon from the top part of the
menu.
Music File Icon : To play music files only, select the
Icon.
Image File Icon : To view image files only, select the
Icon.
Movie File Icon : To view movie files only, select the
Icon.
All File Icon : To select all files select the
Rotate/Flip Function
Press the Cursor ▲,▼,◄,► button
during playback.
Icon.
▲ button: Flip Vertically
◄ button: Rotate 90°
Original Image
Counterclockwise
► button:
Rotate 90° Clockwise
▼ button: Flip Horizontally
28
• The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files and
2048 x 1536 (or 3.0 MPixel) for progressive image files.
• If a JPEG file is played when the HDMI output resolution is 720p/1080i, the mode is automatically converted to 480p/576p mode.
• Rissian filenames are not supported.
• In some cases, depending on JPEG files record conditions, those files may be displayed not the full screen size
or low quality.
29
DivX Playback
GB
DivX
The functions on this page apply to DivX disc playback.
Subtitle Display
Skip Forward/Back
During playback, press the #,$ button.
Press the SUBTITLE button.
 Goes to the next file whenever you press the $ button, if there are over 2 files in the disk.
 Each time you press the button, your selection will toggle between
<SUBTITLE (1/N, 2/N ...)> and <SUBTITLE OFF>.
 Goes to the previous file whenever you press the # button, if there are over 2 files in
the disk.
 If the disc has only one subtitle file, it will be played automatically.
 See number 2 (Caption Function) below for more details concerning Subtitle
usage with DivX discs.
Fast Playback
If the disc has more than one subtitle file
To play back the disc at a faster speed, press the  or  button during
playback.
If the disc has more than one subtitle file, the default subtitle may not match the
movie and you will have to select your subtitle language as follows:
 Each time you press the either button, the playback speed will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
5 Minute Skip function
 Playback skips 5 minutes forward whenever you press the Cursor ► button.
 Playback skips 5 minutes back whenever you press the Cursor ◄ button.
1
When you select the desired DivX file from the TV screen, the movie will be
played normally.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio
and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near
DVD-quality video and audio.
Press the ZOOM button.
1. Supported Formats
Press the Cursor ▲,▼,◄,► button to move to the area you want to enlarge.
• A DivX file can be zoomed only in ZOOM X2 mode.
• DivX files have .Avi file extensions, however, not all .Avi files are DivX and
may not be playable in this unit.
This product only supports the following media formats. If both video and audio formats are not supported, the user may
experience problems such as broken images or no sound.
Supported Video Formats
Format
AVI
WMV
Supported Versions
DivX3.11~DivX5.1, XviD
V1/V2/V3/V7
Supported Audio Formats
Format
Bit Rate
Sampling Frequency
Audio Display
Press the AUDIO button.
 If there are multiple audio tracks on a disc, you can toggle between them.
 Each time you press the button, your selection will toggle between
<AUDIO (1/N, 2/N ...)> and .
•
30
2
)
Zoom Function
 Each time you press the button, your selection will toggle between
<ZOOM X2> and <ZOOM OFF>.
2
In Stop mode, press the Cursor ▲,▼ button, select the desired subtitle (
from the TV screen, and then press the ENTER button.
is displayed when there is one supported language in the disc.
OPERATION
During playback, press the Cursor ◄ ,► button.
1
MP3
WMA
80~384kbps
56~128kbps
44.1khz
AC3
DTS
128~384kbps
44.1/48khz
1.5Mbps
44.1khz
• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio: Although default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels
(16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on
the screen during playback.
2. Caption Function
• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi)
within the same folder.
Example. Root Samsung_007CD1.avi
Samsung_007CD1.smi
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.
31
GB
Using the Playback Function
Displaying Disc Information
DVD
VCD
CD
MP3
JPEG
Checking the Remaining Time
DivX
DVD
VCD
CD
MP3
You can view disc playback information on the TV screen.
Press the REMAIN button.
Press the INFO button.
 For checking the total and remaining time of a title or chapter being played.
 Each time the button is pressed, the display changes as follows:
Each time the Remain button is pressed
DVD
The information
Display disappears
from the screen
DVD-VIDEO
TITLE ELAPSED ➞ TITLE REMAIN ➞ CHAPTER ELAPSED ➞ CHAPTER REMAIN
DVD-AUDIO
GROUP ELAPSED ➞ GROUP REMAIN ➞ TRACK ELAPSED ➞ TRACK REMAIN
VCD
TRACK ELAPSED ➞ TRACK REMAIN ➞ TOTAL ELAPSED ➞ TOTAL REMAIN
CD
TRACK REMAIN ➞ TRACK ELAPSED
MP3
VCD
CD
Fast Playback
VCD
CD
MP3
DivX
Press the , button.
 Each time the button is pressed during playback, the playback speed changes
as follows:
MP3
JPEG
DivX
 2X ➞  4X ➞  8X ➞  32X ➞ ► PLAY
 2X ➞  4X ➞  8X ➞  32X ➞ ► PLAY
The information
Display disappears
from the screen
• During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and
not at 4x, 8x, and 32x speeds.
• Depending on the disc, the disc information display may appear different.
• Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC.
appears on the TV screen!
If this symbol appears on the TV screen when pressing a button, that operation is not
possible with the disc currently being played.
Slow Playback
DVD
32
DivX
 Each time the button is pressed during playback, the playback speed changes as follows:
TITLE display
ELAPSED TIME display
STEREO (L/R) display
DVD
DVD
AUDIO
VCD
Press the SLOW button.
Screen Display
DVD display
OPERATION
The information
Display disappears
from the screen
DVD
DVD-AUDIO
display
CHAPTER display
VCD
display
TRACK (FILE) display
AUDIO LANGUAGE display
CD display
GROUP display
SUBTITLE display
REPEAT PLAYBACK display
DOLBY DIGITAL display
VCD
ANGLE display
DivX
1/2 ➞ 1/4 ➞ 1/8 ➞ 1/2 ➞ 1/4 ➞ 1/8 ➞ ► PLAY
1/2 ➞ 1/4 ➞ 1/6 ➞ ► PLAY
1/2 ➞ 1/4 ➞ 1/8 ➞ ► PLAY
• No sound is heard during slow playback.
• Reverse slow playback does not work with VCD and DivX.
33
GB
Using the Playback Function (Con’t)
Skipping Scenes/Songs
DVD
VCD
Repeat Playback
MP3
DVD
VCD
CD
MP3
JPEG
DivX
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
Press the #,$ button.
 Each time the button is pressed during playback, the previous or next chapter,
track or directory (file) will be played.
 You cannot skip chapters consecutively.
 Each time the button is pressed during playback, the repeat playback mode
changes as follows:
REPEAT : CHAPTER ➞ REPEAT : TLTLE ➞ REPEAT : OFF
DVD-VIDEO
DVD
TITLE 01/05 CHAPTER 002/045
Press the REPEAT button.
TITLE 01/05 CHAPTER 004/045
REPEAT : TRACK ➞ REPEAT : GROUP ➞ REPEAT : OFF
DVD-AUDIO
VCD
CD
MP3
JPEG
REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF
REPEAT:RANDOM ➞ REPEAT:TRACK ➞ REPEAT:DIR ➞
DivX
REPEAT:DISC ➞ REPEAT:OFF
Repeat Playback Options
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
GROUP : Repeatedly plays the selected group.
RANDOM : Plays tracks in random order.
(A track that has already been played may
be played again.)
TRACK : Repeatedly plays the selected track.
DIR : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
OPERATION
VCD
• Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned on. To use Repeat Playback on a
 When watching a VCD with a track longer than 15 minutes, each time # $ is
pressed, playback will skip back or forward 5 minutes.
VCD with PBC, you should set the MENU to OFF in the disc menu. (See page 39.)
To Select a Repeat Playback Mode in the Disc Information Screen
DVD
VCD
CD
MP3
1
2
3
4
Press the INFO button twice.
Press the Cursor ► button to move to REPEAT PLAYBACK ( ) display.
Press the Cursor ▼ button to select the desired Repeat Playback mode.
 To select another album and track, repeat Steps 2 and 3 above.
Press the ENTER button.
DVD
VCD
CD
• For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
34
35
GB
Using the Playback Function (Con’t)
A-B Repeat Playback
DVD
Angle Function
VCD
DVD
You can repeatedly play back a designated section of a DVD.
This function allows you to view the same scene in different angles.
1
1
2
3
Press the INFO button twice.
 For a VCD, press the INFO button once.
2
3
Press the Cursor ► button to move to REPEAT PLAYBACK (
) display.
Press the Cursor ▲,▼ button to select <A-> and then press ENTER button
at the beginning of the desired segment.
Press the INFO button.
Press the Cursor ► button to move to ANGLE (
) display.
Press the Cursor ▲,▼ button or numeric buttons to select the desired angle.
 Each time the button is pressed, the angle changes as follows:
 When the ENTER button is pressed, the selected position will be stored in
memory.
4
Press the ENTER button at the end of the desired segment.
 The specified segment will be played repeatedly.
A-B
d To return to normal playback, press the Cursor ▲,▼ button to select
OFF.
• The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
Zoom (Screen Enlarge) Function
DVD
VCD
DivX
OPERATION
• The Angle function works only with discs on which multiple angles have been
recorded.
REPEAT : A-B
This function allows you to enlarge a particular area of the displayed image.
Step Function
DVD
VCD
1
2
3
DivX
Press the STEP button.
 The picture moves forward one frame each time the button is pressed during playback.
Press the ZOOM button.
Press the Cursor ▲,▼,◄,► button to move to the area you want to enlarge.
Press the ENTER button.
 Each time the button is pressed, the zoom level changes as follows:
ZOOM X 1.5 ➞ ZOOM X 2 ➞ ZOOM X 3 ➞ ZOOM OFF
• No sound is heard during step motion playback.
SELECT ZOOM POSITION
• When a DivX disc is being played, the screen is enlarged up to twice the
normal size.
36
37
GB
Using the Playback Function (Con’t)
Bonus Group
Audio Language Selection Function
DVD-AUDIO
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc
packaging for details and the-key number.
1
2
DVD
Press the INFO button twice.
Press the Cursor ▲,▼ button or numeric buttons to select the desired audio language.
 Depending on the number of languages on a DVD disc, a different audio
language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the
button is pressed.
When you play a DVD-Audio disc that has a bonus group, the key number
input screen appears automatically.
BONUS GROUP
KEY NUMBER :
• If you eject the disc, switch the power off, or unplug the player, you will need to
re-enter the key number.
SP 2/3
FR 3/3
Navigating Pages
DVD-AUDIO
 You can select the desired image from a DVD-Audio disc containing still
images.
 With some discs, you may not be able to select images.
Subtitle Language Selection Function
1
2
3
DVD
Press the INFO button twice.
Press the Cursor ► button to move to SUBTITLE (
) display.
OPERATION
During playback, press the ,,. button on the remote control.
Press the Cursor ◄ button or numeric buttons to select the desired subtitle.
EN 1/3
EN 01/ 03
OFF
SP 02/ 03
FR 03/ 03
OFF / 03
• To operate this function, you can also press the AUDIO or SUBTITLE buttons on the
remote control.
• Depending on the disc, the Subtitle and Audio Language functions may not be available.
38
39
ENG
Using the Playback Function (Con’t)
Moving Directly to a Scene/Song
DVD
VCD
CD
MP3
Using the Disc Menu
JPEG
DVD
VCD
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
DVD
1
2
3
4
5
6
VCD
CD
1
Press the INFO button.
 When playing a VCD (version 2.0), this toggles between <MENU ON> and
<MENU OFF>.
Press the Cursor ▲,▼ button or numeric buttons to select the desired
title/track ( ) and then press the ENTER button.
Press the Cursor ◄,► button to move to Chapter (
2
) display.
Press the Cursor ▲,▼ button to move to <Disc Menu> and then press the
ENTER button.
 When you select Disc Menu and it is not supported by the disc,
the <This menu is not supported> message appears on the screen.
Press the Cursor ▲,▼ button or numeric buttons to select the desired
chapter and then press the ENTER button.
Press the Cursor ◄,► button to move to time (
In Stop mode, press the MENU button.
3
4
) display.
Press the numeric buttons to select the desired time and then press
the ENTER button.
Press the Cursor ▲,▼,◄,► button to select the desired item.
Press the ENTER button.
d Press the EXIT button to exit the setup screen.
MOVE
MP3
ENTER
EXIT
JPEG
Press the numeric button.
• MENU ON : This VCD disc is version 2.0. The disc is played back according to the
menu screen. Some functions may be disabled. When some functions
are disabled, select <MENU OFF> to enable them.
• MENU OFF : This VCD disc is version 1.1. The disc is played back in the same way as with
a music CD.
 The selected file will be played.
 When playing an MP3 or JPEG disc, you cannot use the Cursor ▲,▼ button to
move to a folder.
To move a folder, press the STOP () button and then press the Cursor ▲,▼
button.
OPERATION
MENU ON/OFF (PBC) Function
When playing a VCD (version 2.0), you can select and view various scenes
according to the menu screen.
• The Disc menu display may be different depending on the disc.
Using the Title Menu
DVD
For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability
of this feature may vary.
1
2
3
• You can press the #,$ button on the remote control to move directly to the
desired title, chapter, or track.
• Depending on the disc, you may not be able to move to the selected title or time.
In Stop mode, press the MENU button.
Press the Cursor ▲,▼ button to move to <Title Menu>.
Press the ENTER button.
 The title menu appears.
d Press the EXIT button to exit the setup screen.
• The Title menu display may be different depending on the disc.
MOVE
40
ENTER
EXIT
41
GB
Playing Media Files using the USB Host Feature
You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high
quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.
Compatible Devices
1
Connect the USB device to the USB port on the side of the unit.
1. USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in
Windows (2000 or later) without additional driver installation.)
2. MP3 Player : HDD and flash type MP3 players.
PHONES
USB
3. Digital camera : Cameras that support USB Mass Storage v1.0.
• Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation.
4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
• You may experience a difference in playback quality when you connect a USB1.1 device.
• For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
5. USB card Reader : One slot USB card reader and Multi slot USB card reader.
2
Press the FUNCTION button on the main unit or the USB button on the
remote control to select the USB mode.
 The <USB> appears on the display screen and then disappears.
 USB MENU screen appears on the TV screen and the saved file is played.
To stop playback, press the STOP () button.
d Safe USB Removal
To prevent damage to the memory stored in the USB device,
perform safe removal before disconnecting the USB cable.
1) Press the STOP () button twice in a row.
The display will show REMOVE USB.
2) Remove the USB cable.
• To listen to your music files with 5.1 channel home theater sound, you must set
the Dolby Pro Logic II mode to Matrix. (See page 53)
Skip Forward/Back
During playback, press the # $ button.
 When there is more than one file and you press the $ button, the next file is
selected.
 When there is more than one file and you press the # button, the previous
file is selected.
Fast Playback
6. If you use a USB extension cable, the USB device might not be recognized.
Supported Formats
Still Picture
Music
Movie
File name
File extension
Bit rate
Version
Pixel
Sampling Frequency
JPG
JPG .JPEG
–
–
640X480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
WMA
.WMA
56~128kbps
V8
–
44.1kHz
VCD
MPG.MPEG
.DAT
1.5Mbps
VCD1.1,VCD2.0
320X480
44.1kHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720X480
44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~DivX5.1,XviD
800X600
44.1KHz~48KHz
OPERATION
3
• Depending on the manufacturer. the USB card reader may not be supported.
• If you install multiple memory devices into a multi card reader, you may experience problems.
• CBI (Control/Bulk/Interrupt) is not supported.
• Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not
supported.
• A device using NTFS file system is not supported.
(Only FAT 16/32 (File Allocation Table 16/32) file system is supported.)
• Some MP3 players, when connected to this product,may not operate depending on the sector size of their file system.
• The USB HOST function is not supported if a product that transfers media files by its manufacturer-specific program is
connected.
• Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
• The USB host function of this product does not support all USB devices. For information on the supported
devices, see page 66.
To play back the disc at a faster speed, press the   button during
playback.
 Each time you press either button, the playback speed will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
42
43
SETUP
Settings
GB
Setting the Language
OSD(On-Screen Display) language is set to English by default.
1
2
3
4
MOVE
ENTER
RETURN
EXIT
5
Setting TV Screen type
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
1
2
3
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
Select <LANGUAGE> and then press the ENTER button.
Press the Cursor ▲,▼ button to select <OSD LANGUAGE> and then press the
ENTER button.
MOVE
ENTER
RETURN
EXIT
Press the Cursor ▲,▼ button to select the desired language and then press the
ENTER button.
ENTER
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
Press the Cursor ▼ button to move to <TV DISPLAY> and then press the
ENTER button.
Press the Cursor ▲,▼ button to select the desired item and then press the
ENTER button.
 Once the setup is complete, you will be taken to the previous screen.
 Once the setup is complete, the OSD will be English if English has been
selected as language.
MOVE
4
In Stop mode, press the MENU button.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MOVE
SELECT
RETURN
EXIT
Adjusting the TV Aspect Ratio (Screen Size)
MOVE
ENTER
RETURN
EXIT
OSD LANGUAGE : Selecting the OSD Language
AUDIO : Selecting the Subtitle Language (recorded on the disc)
SUBTITLE : Selecting the Audio Language (recorded on the disc)
DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
a IIf the language you selected is not recorded on the disc, menu language will not
change even if you set it to your desired language.
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs
is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust
the aspect ratio to fit your TV or monitor.
For a standard TV, select either <4:3PS> or <4:3LB> option according to personal preference.
Select <WIDE/HDTV> if you have a widescreen TV.
4:3PS (4:3 Pan&Scan)
SETUP
•
•
•
•
Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.
 You can see the central portion of the screen only (with the sides of the 16:9
picture cut off).
• OTHERS : To select another language, select OTHERS and enter the language code
of your country. (See page 65 for language codes) AUDIO, SUBTITLE and
DISC MENU language can be selected.
MOVE
SELECT
RETURN
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a conventional TV.
 Black bars will appear at the top and bottom of the screen.
EXIT
WIDE/HDTV
Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.
 You can enjoy the widescreen aspect.
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on the software,
the type of TV, and the TV aspect ratio setting.
• In HDMI operation, the screen is automatically converted to Wide mode.
44
45
Settings (Con’t)
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1
2
MOVE
ENTER
RETURN
EXIT
3
4
Setting the Wallpaper
Press button Cursor ▼ button to move to <Setup> and then press button
ENTER button.
Press the Cursor ▼ button to move to <PARENTAL> and then press the ENTER button.
Press the Cursor ▲,▼ button to select the desired rating level and then press the ENTER button.
SELECT
RETURN
EXIT
3
The power will turn off and then back on.
 <COPY LOGO DATA> will be displayed on the TV screen.
 The selected wallpaper will be displayed.
 You can select up to 3 wallpaper settings.
COPY LOGO DATA
• This function will not work when the HDMI output is 720p or 1080i.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
To Select One of the 3 Wallpaper Settings you've made
You can set the password for the Parental (rating level) setting.
RETURN
EXIT
1
2
3
4
5
In Stop mode, press the MENU button.
MOVE
ENTER
RETURN
EXIT
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
Press the Cursor ▼ button to move to <PASSWORD> and then press the ENTER button.
Press the ENTER button.
Enter the password and then press the ENTER button.
5
MOVE
SELECT
RETURN
Press the EXIT button to exit the setup screen.
• ORIGINAL : Select this to set the Samsung Logo image as your wallpaper.
• USER : Select this to set the desired image as your wallpaper.
 The setting is complete.
MOVE
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
Press the Cursor ▼ button to move to <LOGO> and then press the ENTER button.
Press the Cursor ▲,▼ button to select the desired <USER>, and then press the
ENTER button.
 This selects one of the 3 wallpaper screens
 Enter the old password, a new password, and confirm new password.
• The password is set to <7890> by default.
In Stop mode, press the MENU button.
SETUP
1
2
3
4
Setting the Password
ENTER
JPEG
During playback, press the PLAY/PAUSE button when an image you like appears.
Press the LOGO button.
Enter the password and then press the ENTER button.
• This function works only if a DVD disc contains the rating level information.
MOVE
VCD
1
2
 The password is set to <7890> by default.
 Once the setup is complete, you will be taken to the previous screen.
MOVE
DVD
While watching a DVD,VCD or JPEG CD, you can set the image you like as background wallpaper.
In Stop mode, press button MENU button.
 If you have selected Level 6, you cannot view DVDs with Level 7 or higher.
 The higher the level, the closer the content is to violent or adult material.
5
GB
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
EXIT
If you have forgotten the rating level password, do the following
• While the player is in
(No Disc) mode, hold the main unit's STOP () button for longer than 5 seconds. <INITIALIZE>
appears on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings. Do not use this unless necessary.
46
47
Settings (Con’t)
Setting the Delay Time
DVD Playback Mode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.
1
2
3
4
MOVE
ENTER
RETURN
EXIT
GB
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio
signals from the center and rear speakers.
Press the EJECT button and then press the MENU button.
1
2
3
4
Press the Cursor ▼ button to move to <Setup> and then press the ENTER button.
Press the Cursor ▼ button to move to <DVD TYPE> and then press the ENTER button.
Press the Cursor ▲,▼ button to move to <DVD VIDEO> and then press the ENTER button.
 Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.
MOVE
ENTER
RETURN
EXIT
5
• DVD VIDEO : set to play the DVD video contents contained on a DVD audio disc.
• DVD AUDIO : set to play the default DVD audio.
MOVE
SELECT
RETURN
• DVD Play mode is set to DVD Audio as factory default setting.
• Powering off the main unit will automatically switch to the DVD Audio mode.
EXIT
DivX (R) registration
Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker
configuration and whether certain speakers are used or not.
ENTER
RETURN
EXIT
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
In the <SPEAKER SETUP>, press the ENTER button again.
Press the Cursor ▲,▼,◄,► button to move to the desired speaker and then
press the ENTER button.
 For C, SL, and SR, each time the button is pressed, the mode switches alternately
as follows : SMALL NONE.
 For L and R, the mode is set to SMALL.
• SMALL : Select this when using the speakers.
• NONE : Select this when no speakers are connected.
MOVE
SELECT
RETURN
EXIT
• Depending on PRO LOGIC and STEREO settings, the speaker mode may
vary (see page 55).
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
48
Press the Cursor ◄,► button to set the Delay time.
 You can set the delay time for C between 00 and 05mSEC and for SL and SR
between 00 and 15mSEC.
MOVE
CHANGE
RETURN
EXIT
d Press RETURN button to return to the previous level.
d Press EXIT button to exit the setup screen.
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker
is the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can
adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.
Ideal CENTER SPEAKER
placement
Ideal
SURROUND
SPEAKER
placement
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the distance of Df in the
figure, set the mode as 0ms. Otherwise, change the setting according
to the table.
Distance between Df
and Dc
0.00 m
0.34 m
0.68 m
1.02 m
1.36 m
1.70 m
Delay Time
0 ms
1 ms
2 ms
3 ms
4 ms
5 ms
SETUP
Setting the Speaker Mode
MOVE
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
Press the Cursor ▼ button to move to <DELAY TIME> and then press the ENTER button.
Press the Cursor ▲,▼,◄,► button to move to the desired speaker and then
press the ENTER button.
Setting up the Speaker Delay Time
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
1
2
3
4
In Stop mode, press the MENU button.
Setting REAR (SURROUND) SPEAKERS
If the distance of Df is equal to the distance of Ds in the figure,
set the mode as 0ms. Otherwise, change the setting according
to the table.
Distance between Df
and Dc
0.00 m
1.02 m
2.04 m
3.06 m
4.08 m
5.10 m
Delay Time
0 ms
3 ms
6 ms
9 ms
12 ms
15 ms
• With
(Dolby Pro Logic II), the delay time may be different for each mode.
• With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.
49
Settings (Con’t)
GB
Setting the Audio
Setting the Test Tone
Use the Test Tone feature to check the speaker connections.
1
2
3
MOVE
ENTER
RETURN
EXIT
You can adjust the balance and level for each speaker.
In Stop mode, press the MENU button.
1
2
3
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
Press the Cursor ▼ button to move to <TEST TONE> and then press the
ENTER button.
 The test tone will be sent to L C R SR SL SW in order.
If the ENTER button is pressed again at this time, the test tone will stop.
MOVE
ENTER
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
STOP
4
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
Press the Cursor ▼ button to move to <SOUND EDIT> and then press the
ENTER button.
Press the Cursor ▲,▼ button to select and adjust the desired item.
Press the Cursor ◄,► button to adjust the settings.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
EXIT
MOVE
Alternate method : press the TEST TONE button on the remote.
Multi-Channel Pro Logic Mode
Press the TEST TONE button.
Start
RETURN
EXIT
Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.
Press the SOUND EDIT button and then press the Cursor ◄,► button.
SETUP
 Test tone will be produced as follows:
When playing a DVD or CD, this will work only in Stop mode.
CHANGE
 Use this function to check that each speaker is correctly connected
and that there is no problem.
 When HDMI AUDIO is on (audio is produced through TV
speakers), the TEST TONE function is not available.
L: Front Speaker (L) C: Center Speaker
SW: Subwoofer
R: Front Speaker (R) SL: Rear Speaker (L) SR: Rear Speaker (R)
d To end the test tone, press the TEST TONE button again.
Adjusting Front/Rear Speaker Balance
• You can select between 0 and –6 and OFF.
• The volume decreases as you move closer to –6.
Adjusting Center/Rear/Subwoofer Speaker Level
• The volume level can be adjusted in steps from +6dB to –6dB.
• The sound gets louder as you move closer to +6dB and quieter as you get closer
to -6dB.
50
51
Settings (Con’t)
Setting the DRC (Dynamic Range Compression)
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby
Digital sound when watching movies at low volume at night.
1
2
3
4
MOVE
ENTER
RETURN
GB
Setting the HDMI Audio
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
1
2
3
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
Press the Cursor ▼ button to move to <DRC> and then press the ENTER button.
Press the Cursor ▲,▼ button to adjust the DRC.
MOVE
ENTER
RETURN
EXIT
 When the Cursor ▲ button is pressed, the effect is greater, and when the
Cursor ▼ button is pressed, the effect is smaller.
EXIT
d Press the EXIT button to exit the setup screen.
1
2
3
4
RETURN
SELECT
RETURN
EXIT
through the home theater speakers only.
EXIT
In Stop mode, press the MENU button.
• The default setting of this function is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
SETUP
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to match
the video.
ENTER
Press the Cursor ▲,▼ button to select <ON> or <OFF> and then press the
ENTER button.
EXIT
Setting the AV SYNC
MOVE
Press the Cursor ▼ button to move to <HDMI AUDIO> and then press the
ENTER button.
• OFF : Video is transmitted over the HDMI connection cable only, and audio is output
MOVE
RETURN
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
• ON : Both video and audio signals are transmitted over the HDMI connection cable,
and audio is output through your TV speakers only.
d Press the RETURN button to return to the previous level.
CHANGE
4
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Audio> and then press the ENTER button.
Press the Cursor ▼ button to move to <AV-SYNC> and then press the ENTER button.
Press the Cursor ▲,▼ button to select the AV-SYNC Delay Time and then
press the ENTER button.
 You can set the audio delay time between 0 ms and 300 ms.
Set it to the optimal status.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MOVE
52
SELECT
RETURN
EXIT
53
Settings (Con’t)
Sound Field (DSP)/EQ Function
DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.
EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing.
Press the DSP/EQ button.
 <DSP> appears on the display panel.
GB
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press the
PL II MODE button.
 Each time the button is pressed, the mode changes as follows.
 Each time the button is pressed, the selection changes as follows:
PRO LOGIC II
• MUSIC : When listening to music, you can experience sound effects as if you are
listening to the actual performance.
• PRO LOGIC : You will experience a realistic multi-channel effect, as if using five
speakers, while using just the front left and right speakers.
SETUP
• CINEMA : Adds realism to the movie soundtrack.
• MATRIX : You will hear 5.1 channel surround sound.
•
•
•
•
•
•
•
POP, JAZZ, ROCK : Depending on the genre of music, you can select POP, JAZZ, and ROCK.
STUDIO : Provides a sense of presence as if in a studio.
CLUB : Simulates the sound of a dance club with a throbbing bass beat.
HALL : Provides a clear vocal as if listening in a concert hall.
MOVIE : Provides the feeling of a movie theater.
CHURCH : Gives the feel of being in a grand church.
PASS : Select this for normal listening.
STEREO : Select this to listen to sound from the front left and right speakers and the
subwoofer only.
• When selecting Pro Logic II mode, connect your external device to the AUDIO
INPUT jacks (L and R) on the player. If you connect to only one of the inputs
(L or R), you cannot listen to surround sound.
• DSP/EQ function is only available in STEREO mode.
Press the PL II mode button to show STEREO on the display.
• This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby
Digital discs.
• When playing a DVD disc encoded with two or more channels, multi-channel
mode will be selected automatically and DSP/EQ function does not work.
54
55
MISCELLANEOUS
Settings (Con’t)
Listening to Radio
GB
Remote Control
Dolby Pro Logic II Effect
This function works only in Dolby Pro Logic MUSIC mode.
1
Press the
2
Press the
PL II EFFECT button to select <P> (PANORAMA), then press
the Cursor ◄,► button to select the desired effect setting.
1
2
 This mode extends the front stereo image to include the surround
speakers for an exciting <wraparound> effect with side wall imaging.
Press the
PL II EFFECT button to select <C> (C-WIDTH), then press
the Cursor ◄,►button to select the desired effect setting.
 You can select between 0 and 7.
 This sets the width of the center image. The higher the setting, the less
sound comes from the center speaker.
4
Press the
PL II EFFECT button to select <D> (DIMENS), then press
the Cursor ◄,► button to select the desired setting.
 You can select between 0 and 6.
 Incrementally adjusts the sound field (DSP)from the front or rear.
56
Main Unit
1
2
Press the FUNCTION button to select the FM band.
Select a broadcast station.
 Automatic Tuning 1 : Press the STOP () button to select PRESET and
then press the #,$ button to select the preset station.
 Automatic Tuning 2 : Press the STOP () button to select <MANUAL>
and then press the and hold #,$ button to automatically search the band.
 Manual Tuning : Press the STOP () button to select <MANUAL> and
then briefly press the #,$ button to tune in to a lower or higher frequency.
d Press the MO/ST button to listen in Mono/Stereo.
(This applies only when listening to an FM station.)
 Each time the button is pressed, the sound switches between
(STEREO) and
(MONO).
 In a poor reception area, select
(MONO) for a clear, interference-free
broadcast.
MISCELLANEOUS
• When playing a DVD disc encoded with two or more channels, multi-channel
mode will be selected automatically and the
(Dolby Pro Logic II) button
does not work.
Tune in to the desired station.
 Automatic Tuning 1 : When the #,$ button is pressed, a preset broadcast station is
selected.
 Automatic Tuning 2 : Press the and hold .,, button to automatically
search for active broadcasting stations.
 Manual Tuning : Briefly press the .,, button to increase or decrease the
frequency incrementally.
PL II MODE button to select <MUSIC> mode.
 You can select either 0 or 1.
3
Press the TUNER button to select the FM band.
57
Listening to Radio (Con’t)
Presetting Stations
GB
Sleep Timer Function
Example : Presetting FM 89.10 in the memory
1
2
Convenient Functions
You can set the time that the Home Theater will shut itself off.
Press the TUNER button to select the FM band.
Press the SLEEP button.
Press the .,, button to select <89.10>.
 Each time the button is pressed, the preset time changes as follows :
10 20 30 60 90 120 150 OFF.
3
4
d To confirm the sleep timer setting, press the SLEEP button.
Press the TUNER MEMORY button.
 The remaining time before the Home Theater will shut itself off is displayed.
 Pressing the button again changes the sleep time from what you have set earlier.
 <01> flashes in the display.
d To cancel the sleep timer, press the SLEEP button until <OFF> appears on
the display.
Press the #,$ button to select preset number.
 You can select between 1 and 15 presets.
Adjusting Display Brightness
5
6
Press the TUNER MEMORY button again.
You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.
 Press the TUNER MEMORY button before <number> disappears from the display.
 <number> disappears from the display and the station is stored in memory.
Press the DIMMER button.
To preset another station, repeat steps 2 to 5.
 Each time the button is pressed, the brightness of front display will be adjusted.
d To tune in to a preset station, press the #,$ button on the remote control
to select a channel.
• This unit does not receive AM broadcasts.
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
 <MUTE> appears in the display.
 To restore the sound, press the MUTE button again.
58
MISCELLANEOUS
Mute Function
59
Operating a TV with the Remote Control
When operating a TV with the remote control
1
2
3
Press the TV button to set the remote to TV mode.
Press the POWER button to turn on the TV.
While holding down the POWER button, enter the code corresponding to
your brand of TV.
 If there is more than one code listed for your TV in the table, enter one at a
time to determine which code works.
Example : For a Samsung TV
While holding down the POWER button, use the number buttons to enter
00, 15, 16, 17 and 40.
4
If the TV turns off, the setting is complete.
 You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons
(0~9).
• The remote control may not work on some brands of TVs.
Also, some operations may not be possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the
remote control will work on a Samsung TV by default.
TV Brand Code List
No.
Brand
Code
No.
Brand
1
Admiral (M.Wards)
56, 57, 58
44
MTC
18
2
A Mark
01, 15
45
NEC
18, 19, 20, 40, 59, 60
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
46
Nikei
03
13, 14
47
Onking
03
4
AOC
01, 18, 40, 48
48
Onwa
03
5
Bell & Howell (M.Wards)
57, 58, 81
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
6
Brocsonic
59, 60
50
Penney
18
7
Candle
18
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
8
Cetronic
03
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
9
Citizen
03, 18, 25
53
Pioneer
63, 66, 80, 91
10
Cinema
97
54
Portland
15, 18, 59
11
Classic
03
55
Proton
40
12
Concerto
18
56
Quasar
06, 66, 67
13
Contec
46
57
Radio Shack
17, 48, 56, 60, 61, 75
14
Coronado
15
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
15
Craig
03, 05, 61, 82, 83, 84
59
Realistic
03, 19
16
Croslex
62
60
Sampo
17
Crown
03
18
Curtis Mates
59, 61, 63
19
CXC
20
Daewoo
Code
40
00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59,
61
Samsung
03
62
Sanyo
19, 61, 65
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
63
Scott
03, 40, 60, 61
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
64
Sears
15, 18, 19
15, 57, 64
60, 98
21
Daytron
40
65
Sharp
22
Dynasty
03
66
Signature 2000 (M.Wards)
57, 58
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
67
Sony
50, 51, 52, 53, 55
24
Fisher
19, 65
68
Soundesign
03, 40
25
Funai
03
69
Spectricon
01
26
Futuretech
03
70
SSS
18
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
71
Sylvania
18, 40, 48, 54, 59, 60, 62
28
Hall Mark
40
72
Symphonic
61, 95, 96
29
Hitachi
15, 18, 50, 59, 69
73
Tatung
06
30
Inkel
45
74
Techwood
18
31
JC Penny
56, 59, 67, 86
75
Teknika
03, 15, 18, 25
32
JVC
70
76
TMK
18, 40
33
KTV
59, 61, 87, 88
77
Toshiba
19, 57, 63, 71
34
KEC
03, 15, 40
78
Vidtech
18
35
KMC
15
79
Videch
59, 60, 69
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
37
Luxman
18
81
Yamaha
18
38
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
82
York
40
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
83
Yupiteru
03
40
Marantz
40, 54
84
Zenith
58, 79
41
Matsui
54
85
Zonda
01
42
MGA
18, 40
86
Dongyang
03, 54
43
Mitsubishi/MGA
18, 40, 59, 60, 75
MISCELLANEOUS
60
GB
61
Troubleshooting
GB
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or
if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer
or Samsung Electronics Service Center.
Symptom
I cannot eject the disc.
Check/Remedy
 Is the power cord plugged securely into the outlet?
 Turn off the power and then turn it back on.
 Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
Playback does not start.
 CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
 Make sure that the rating level is correct.
Playback does not start
immediately when the
Play/Pause button is pressed.
Sound is not produced.
Sound can be heard only from a few
speakers and not all six.
The remote control does not work.
 Wipe the disc clean.
 No sound is heard during fast playback, slow playback, and step
motion playback.
 Are the speakers connected properly? Is the speaker setup correctly
customized?
 Is the disc severely damaged?
 When listening to a CD or radio, sound is output to the front speakers
(L/R) only. Select <PRO LOGIC II> by pressing
PL II (Dolby Pro
Logic II) on the remote control to use all six speakers.
 Make sure that the DVD disc is 5.1-CH compatible.
 If you set C, SL, and SR to NONE in the speaker mode in the audio
setup of the setup screen, no sound is heard from the center speaker
and the front left and right speakers. Set C, SL, and SR to SMALL.
 Is there <Dolby Digital 5.1 CH> mark on the disc? Dolby Digital 5.1
CH Surround Sound is produced only if the disc is recorded with 5.1
channel sound.
 Disc is rotating but no
picture is produced.
 Picture quality is poor and
picture is shaking.
•
•
•
•
Audio language and subtitles do not
work.
• Audio language and subtitles will not work for DVDs not containing
them. And depending on the disc, they may work differently.
Menu screen does not appear even when
the menu function is selected.
• Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio
only. Refer to the DVD disc jacket and then select the appropriate
function.
 The main unit is not working.
(Example: The power goes out or
strange noise is heard.)
 The DVD player is not working
normally.
The password for rating level has been
forgotten.
 Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the
information display?
 Is the remote control being operated within its operation range of
angle and distance?
 Are the batteries exhausted?
 Have you selected the mode(TV/DVD) functions of the remote control
(TV or DVD) correctly?
Is the TV power on?
Are the video cables connected properly?
Is the disc dirty or damaged?
A poorly manufactured disc may not be playable.
• Turn off the power and hold the STOP() button on the main unit for
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While
(NO DISC) message appears on the display of main unit,
hold the main unit's STOP() button for longer than 5 seconds.
<INITIALIZE> appears on the display and all settings will return to the
default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio broadcast.
Can't receive radio broadcastç
62
Check/Remedy
MISCELLANEOUS
Dolby Digital 5.1 CH Surround Sound is
not produced.
 Are you using a deformed disc or a disc with scratches on the
surface?
Symptom
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in
an area with good reception.
• If the eject button is pressed while listening to TV audio using
the D.IN, AUX functions, the DVD functions are turned on and this
stops the TV audio.
63
Cautions on Handling and Storing Discs
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get
on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Do not keep in
direct sunlight
Keep in a clean
Protection jacket.
Store vertically.
• Do not allow the discs to become contaminated with dirt.
• Do not load cracked or scratched discs.
Handling and Storing Discs
• When cleaning, wipe gently from the inside to the outside of the disc.
• Condensation may form if warm air comes into contact with cold parts inside
the player. When condensation forms inside the player, the player may not
operate correctly. If this occurs, remove the disc and let the player stand for
1 or 2 hours with the power on.
Code
Language
Code
Language
Code
Language
Code
Language
1027
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
MISCELLANEOUS
When you get fingerprints or dirt on the disc, clean it with a mild
detergent diluted in water and wipe with a soft cloth.
64
GB
Enter the appropriate code number for the initial settings <Disc Audio>, <Disc Subtitle> and/or <Disc Menu> (See page 44).
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Keep in a cool
ventilated area
Language Code List
65
USB Host Feature Supported Products
Digital Camera
USB Flash Disk
GB
Power Consumption
60W
Weight
5.2 kg
Dimensions (W x H x D)
460 x 315 x 190 mm
Product
Company
Type
Product
Company
Type
Finepix-A340
Fuji
Digital Camera
Cruzer Micro
Sandisk
USB 2.0 USB Flash Drive 128M
Finepix-F810
Fuji
Digital Camera
Cruzer Mini
Sandisk
USB 2.0 128M
Operating Temperature Range
+5°C~+35°C
Finepix-F610
Fuji
Digital Camera
Cruzer Mini
Sandisk
USB 2.0 256M
Operating Humidity Range
10% ~ 75%
Finepix-f450
Fuji
Digital Camera
SONY Micro Vault
Sony
USB 2.0 64MB
Finepix S7000
Fuji
Digital Camera
FLEX DRIVE
Serotech
USB 2.0 32MB
Usable Sensitivity
10dB
S/N Ratio
60dB
Finepix A310
Fuji
Digital Camera
AnyDrive
A.L tech
USB 2.0 128MB
GENERAL
FM TUNER
KD-310Z
Konica
Digital Camera
XTICK
LG
USB 2.0 128M
Distortion
0.5%
Finecam SL300R
Kyocera
Digital Camera
Micro Mini
Iomega
USB 2.0 128M
Finecam SL400R
Kyocera
Digital Camera
iFlash
Imation
USB 2.0 64M
Composite Video
1.0Vp-p(75Ω load)
Finecam S5R
Kyocera
Digital Camera
LG
XTICK(M)
USB 2.0 64M
Finecam Xt
Kyocera
Digital Camera
RiDATA
EZDrive
USB 2.0 64M
Dimage-Z1
Minolta
Digital Camera
Dimage Z1
Minolta
Digital Camera
Dimage X21
Minolta
Digital Camera
Coolpix4200
Nikon
Digital Camera
Product
Company
Type
Coolpix4300
Nikon
Digital Camera
Creative MuVo NX128M
Creative
128 MB MP3 Player
Coolpix 2200
Nikon
Digital Camera
Iriver H320
Iriver
20G HDD MP3 Player
Coolpix 3500
Nikon
Digital Camera
YH-920
Samsung
20G HDD MP3 Player
Samsung
MP3 Player
Y : 1.0Vp-p(75Ω load)
VIDEO OUTPUT
Component Video
Pr : 0.70Vp-p(75Ω load)
Pb : 0.70Vp-p(75Ω load)
MP3 Player
HDMI
Impedance : 85~115Ω
Front speaker output
100W x 2(3Ω)
Center speaker output
100W(3Ω)
Rear speaker output
100W x 2(3Ω)
Subwoofer speaker output
100W(3Ω)
Frequency range
20Hz~20KHz
S/N Ratio
70dB
Coolpix 3700
Nikon
Digital Camera
YP-T7
Coolpix 4100
Nikon
Digital Camera
YP-MT6
Samsung
MP3 Player
Coolpix 5200
Nikon
Digital Camera
YP-T6
Samsung
MP3 Player
Stylus 410 digital
Olympus
Digital Camera
YP-53
Samsung
MP3 Player
300-digital
Olympus
Digital Camera
YP-ST5
Samsung
MP3 Player
Channel separation
60dB
U300
Olympus
Digital Camera
YP-T5
Samsung
MP3 Player
Input sensitivity
(AUX) 400mV
X-350
Olympus
Digital Camera
YP-60
Samsung
MP3 Player
C-760
Olympus
Digital Camera
YP-780
Samsung
MP3 Player
C-5060
Olympus
Digital Camera
YP-35
Samsung
MP3 Player
X1
Olympus
Digital Camera
YP-55
Samsung
MP3 Player
U-mini
Olympus
Digital Camera
iAUDIO U2
Cowon
MP3 Player
Lumix-FZ20
Panasonic
Digital Camera
iAUDIO G3
Cowon
MP3 Player
DMC-FX7GD
Panasonic
Digital Camera
iAudio M3
Cowon
HDD MP3 Player
Lumix LC33
Panasonic
Digital Camera
SI-M500L
Sharp
256MB MP3 Player
LUMIX DMC-F1
Panasonic
Digital Camera
H10
Iriver
MP3 Player
Optio-S40
Pentax
Digital Camera
YP-T5 VB
Samsung
MP3 Player
Optio-S50
Pentax
Digital Camera
YP-53
Samsung
256MB MP3 Player
Optio 33LF
Pentax
Digital Camera
Optio MX
Pentax
Digital Camera
Digimax-420
Samsung
Digital Camera
Digital Camera
Digimax-400
Samsung
Sora PDR-T30
Toshiba
Digital Camera
Coolpix 5900
Nikon
Digital Camera
Coolpix S1
Nikon
Digital Camera
Coolpix 7600
Nikon
Digital Camera
DMC-FX7
Panasonic
Digital Camera
Dimage Xt
Minolta
Digital Camera
AZ-1
Olympus
Digital Camera
AMPLIFIER
MISCELLANEOUS
66
Specifications
67
Specifications (Con’t)
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre.
Region
HT-X250
Speaker system
SPEAKER
5.1ch speaker system
Front/Center/Rear speaker
Subwoofer speaker
Impedance
3Ω (DCR 3.4Ω)
3Ω (DCR 3.4Ω)
Frequency range
150Hz~20KHz
40Hz~200Hz
Output sound pressure level
86dB/W/M
86dB/W/M
Rated input
100W
100W
Maximum input
200W
200W
Dimensions (W x H x D)
Weights
Front/Rear 92.5 x 276.5x 158 mm
Center
365 x 83 x 173 mm
Front/Rear 1.46 kg/1.28 kg
Center
1.4 kg
176 x 388.8 x 396.3 mm
6.6 kg
HT-TX250
Speaker system
SPEAKER
Front/Center/Rear speaker
Subwoofer speaker
Impedance
3Ω (DCR 3.4Ω)
3Ω (DCR 3.4Ω)
Frequency range
150Hz~20KHz
40Hz~200Hz
Output sound pressure level
86dB/W/M
86dB/W/M
Rated input
100W
100W
Maximum input
200W
200W
Dimensions (W x H x D)
Weights
68
5.1ch speaker system
Front/Rear 89 x 1200 x 146 mm
Center
365 x 83 x 173 mm
Front/Rear 5.4 Kg
Center
1.4 Kg
176 x 388.8 x 396.3 mm
6.6 Kg
Country
Customer Care Center
Web Site
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
