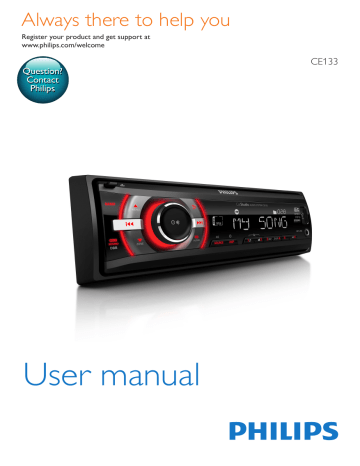

User manual

Always there to help you

Register your product and get support at www.philips.com/welcome

Contact

Philips

CE133

User manual

Contents

1 Safety

2

2 Your car audio system

Introduction 3

What's in the box

Overview of the system

3

3

4

3 Install the car audio system

Connect wires

Mount into the dashboard

Attach the front panel

8

9

6

7

4 Get started

For the first time use

Set the time format

Set the clock

Select a source

Select a listening zone

Mute the button beep

5 Listen to radio

Switch to radio mode

Select a tuner region

Select a tuner sensitivity

Search for a radio station

Store radio stations in memory

6 Play from a storage device

Control play

Switch tracks

7 Listen to an external player

8 Adjust sound

14

15

13

13

14

10

10

11

10

10

10

10

11

11

11

11

12

12

9 Additional information

Charge your USB device

Reset the system

Replace the fuse

15

15

15

16

10 Product Information

11 Troubleshooting

16

17

12 Notice

17

Disposal of your old product and batteries 17

Trademark notice 18

Copyright 18

EN

1

1 Safety

Read and understand all instructions before you use this device. If damage is caused by failure to follow instructions, the warranty does not apply.

• Modification of the product could result in hazardous radiation of EMC or other unsafe operation.

• The device is designed for negative ground

(earth) 12 V DC operation only.

• To ensure safe driving, adjust the volume to a safe and comfortable level.

• Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

• Use only the supplied mounting hardware for a safe and secure installation.

• To avoid short circuits, do not expose the device to rain or water.

• The device shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the device (e.g. liquid filled objects, lighted candles).

• Never insert objects into the ventilation slots or other openings on the device.

• Clean the device with soft, damp cloth.

Never use substances such as alcohol, chemicals or household cleaners on the device.

2

EN

2 Your car audio system

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this system, you can:

• enjoy audio from USB storage devices,

SD card, SDHC card, and other external players, and

• listen to radio stations.

You can enrich sound output with these sound effects:

• Dynamic bass boost (DBB)

• Digital sound control (DSC)

Playable media:

• USB storage device

• Compatibility: USB 2.0, USB 1.1

• Class support: MSC (Mass Storage

Class)

• Maximum capacity: 32 G

• SD/SDHC card

• Maximum capacity: 32 G

• Files

• File system: FAT16, FAT32

• Maximum number of folders: 99

• Maximum number of tracks/files: 999

• Maximum level of directory: 8

• .mp3 files

Sampling frequencies: 32 kHz, 44.1 kHz,

48 kHz

Bitrates: 8-320 kbps and variable bitrates

• .wma files

Versions: V4, V7, V8, V9 (L1 and L2)

Sampling frequencies: 44.1 kHz, 48 kHz

Bitrates: 64-192 kbps and variable bitrates

• ID3 tag V2.0 or later

• Unsupported files:

AAC, WAV, and PCM files

DRM protected WMA files (.wav, .m4a,

.m4p, .mp4, and .aac)

WMA files in lossless format d

What's in the box

Check and identify the contents of the package: a b e a

Main unit (with a sleeve) c f b

Carrying case (with front panel included) c

Trim plate d

Disassembly tool X 2 e

ISO male connector X 2 f

User manual

EN

3

4

EN

• Connect to a USB storage device.

e

Overview of the system

a b c a b t srq p

• Unlock the front panel.

• Press to select a tuner band.

• Return to the previous menu.

d

LCD screen c o

• For .wma and .mp3 tracks, press to select the previous folder.

• Press and hold to access the system menu.

n m l k j i h u f

MP3-LINK

• Connect to the audio output socket

(usually the headphone socket) of an external device.

g h d v

• Start, pause, or resume the play of tracks.

• In radio mode, press to select the preset radio station of No. 6.

• In radio mode, press and hold to store the current radio station at channel

No. 6.

g e f

• In radio mode, press to select the preset radio station of No. 5.

• In radio mode, press and hold to store the current radio station at channel

No. 5.

i

• In radio mode, press to select the preset radio station of No. 4.

• In radio mode, press and hold to store the current radio station at channel

No. 4.

• For .wma and .mp3 tracks, press repeatedly to select a play mode: play all tracks randomly ([SHU ALL]), play tracks in the current folder randomly

([SHU FLD]), or play all tracks in the storage device in sequence ([SHU

OFF]).

j

• In radio mode, press to select the preset radio station of No. 3.

• In radio mode, press and hold to store the current radio station at channel

No. 3.

• For .wma and .mp3 tracks, press repeatedly to select a repeat mode: repeat the current track ([REP ONE]), repeat all tracks in the current folder

([RPT FLD]), or repeat all tracks in the storage device ([RPT ALL]).

k

• In radio mode, press to select the preset radio station of No. 2.

• In radio mode, press and hold to store the current radio station at channel

No. 2.

• For .wma and .mp3 tracks, press to access the folder list.

l

• In radio mode, press to select the preset radio station of No. 1.

• In radio mode, press and hold to store the current radio station at channel

No. 1.

• For .wma and .mp3 tracks, press to access the track list.

m

/DSP

• Press repeatedly to display available information about the current track.

• Press repeatedly to display available

RDS information.

• Press and hold to display the set clock.

n

AS/SOURCE

• Press repeatedly select a source.

• In radio mode, press and hold to activate the automatic search of radio stations.

o

• Press repeatedly to select a preset sound equalizer.

• Press and hold to activate the setup of bass, treble, balance, and fader.

p

• Press to turn on the system.

• Press and hold to turn off the system.

• Press to mute the speakers or release them from mute status.

• Press to confirm an option.

• Rotate to switch between menu options.

• Rotate to adjust the volume level.

q

• For .wma and .mp3 tracks, press to select the next folder.

• Press and hold to activate the selection of listening zones.

• Press to select a tuner band.

r

/

• Tune to a radio station.

• Press to skip to the previous/next track.

• Press and hold to rewind a track or search fast forward.

s

• Press to enable or disable the MAX

Sound feature.

• Press and hold to enable or disable the DBB (dynamic bass boost) sound effect.

EN

5

t

BAND

• Press repeatedly to select a tuner band.

u

• Insert an SD/SDHC card.

v

RESET

• Press to reset the system to factory default settings.

3 Install the car audio system

Caution

Use the controls only as stated in this user manual.

Always follow the instructions in this chapter in sequence.

These instructions are for a typical installation.

However, if your car has different requirements, make the adjustment accordingly. If you have any question regarding installation kits, consult your local retailer.

Note

This system is designed for negative ground (earth) 12V

DC operation only.

Always install this system in the car dashboard. Other locations can be dangerous as the rear of the system heats up during use.

To avoid short-circuit: before you connect, make sure that the ignition is off.

Make sure that you connect the yellow and red power supply leads after all other leads are connected.

Make sure that all loose leads are insulated with electrical tape.

Make sure that the leads do not get caught under screws iron parts that will move (e.g. seat rail).

Make sure that all ground (earth) leads are run to a common ground (earth) point.

Use only the supplied mounting hardware for a safe and secure installation.

Improper fuses can cause damage or fire. When you need to change the fuse, consult a professional.

When you connect other devices to this system, make sure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

Never connect speaker wires to the metal body or chassis of the car.

Never connect speaker wires with stripes to one another.

6

EN

Connect wires

Note f g h

Blue strip e Red strip c d a

1

Check the car's wiring carefully and connect them to the the ISO male connectors.

b

Make sure that all loose leads are insulated with electrical tape.

Consult a professional to connect wires as instructed below.

ISO male connectors

Green strip, blackedged green strip

White strip, blackedged white strip

Gray strip, blackedged gray strip

Purple strip, blackedged purple strip

Connect to

Rear left speaker

Front left speaker

Front right speaker

Rear right speaker

Ignition key +12V

DC when ON/

ACC

Motor/electric antenna relay control lead

Amplifier relay control lead

Ground

White-edged blue strip

Black strip

5 Purple strip

2

Connect the antenna and amplifier as illustrated, if applicable.

Sockets on rear panel

1 For ISO male connectors

2 REAR L

3 REAR R

4 ANTENNA i Yellow strip d

L

R c

REAR b

To the +12V car battery which is energized at all times e

External sockets or connectors

As indicated above

Rear left speaker

Rear right speaker

Antenna a

OE remote control module

Tip

The pin arrangement for the ISO connectors depends on the type of your vehicle. To avoid damage to the unit, connect properly.

EN

7

8

EN

Mount into the dashboard

• If the car does not have an on-board drive or navigation computer, disconnect the negative terminal of the car battery.

• If the car battery is not disconnected, to avoid short-circuit, make sure that the bare wires do not touch each other.

1

Make sure that the car dashboard opening is within these measurements:

5mm

183 mm

2

Remove the mounting sleeve with the supplied disassembly tools.

53mm

183 mm

3

Install the sleeve into the dashboard and bend the tabs outward to fix the sleeve.

4

Slide the unit into the sleeve until you hear a "click".

5

Attach the trim plate.

6

Reconnect the negative terminal of the car battery.

1

Insert the notch on the front panel to the chassis on the main unit.

Attach the front panel

2

Press the left end of the front panel inwards until it is securely locked with a

"click".

Detach the front panel

Note

Before you insert an SD/SDHC card or reset the system, detach the front panel.

Before you detach the front panel, make sure that the system is turned off.

1

Press to release the front panel.

2

Pull the front panel outwards to remove it.

EN

9

4 Get started

For the first time use

1

Press to turn on the system.

»

[PHILIPS] is displayed and then

[SELECT OPERATING REGION]

(select a radio region) scrolls.

2

When one of the following options is displayed, rotate to select a radio region that matches your location.

• [AREA EUROPE] (Western Europe)

• [AREA ASIA] (Asia Pacific)

• [AREA MID--EAST] (Middle East)

• [AREA AUST] (Australia)

• [AREA RUSSIA] (Russia)

• [AREA USA] (United States)

• [AREA LATIN] (Latin America)

• [AREA JAPAN] (Japan)

3

Press to confirm.

»

The system switches to radio mode automatically.

• To turn off the system, press and hold

until the screen backlight is off.

Set the time format

1

Press and hold to access the system menu.

2

Press / repeatedly until [CLK 24H] or [CLK 12H] is displayed.

3

Rotate to select [CLK 24H] or [CLK

12H].

• [CLK 24H]: 24-hour time format

• [CLK 12H]: 12-hour time format

Set the clock

1

Press and hold to access the system menu.

2

Press / repeatedly until [CLK] is displayed with time digits blinking.

3

Rotate anti-clockwise to set the hour.

4

Rotate clockwise to set the minute.

Display the clock

Press and hold /DISP until [CLK] and the set clock are displayed.

• To exit the clock display, press any button or rotate .

Select a source

Press AS/SOURCE repeatedly to select a source.

• [RADIO]: Listen to FM/AM radio.

• [MP3--LINK]: Listen to the audio input through the MP3-LINK socket.

• [USB]: When a USB storage device is connected and recognized, you can select this source to play audio files that are stored on it.

• [SD/SDHC]: When an SD/SDHC card is inserted and recognized, you can select this source to play audio files that are stored on it.

Select a listening zone

1

Press and hold until one of the following options is displayed.

• [ALL]: For all passengers

• [FRONT-L]: For the front-left seat only

• [FRONT-R]: For the front-right seat only

• [FRONT]: For front passengers only

10 EN

2

Press / repeatedly to select a listening zone.

Mute the button beep

The beep sound of buttons is enabled by default.

1

Press and hold to access the system menu.

2

Press / repeatedly until [BEEP ON] or [BEEP OFF] is displayed.

• [BEEP ON]: Enable the beep sound of buttons.

• [BEEP OFF]: Mute the beep sound of buttons.

3

Rotate to change the setting.

5 Listen to radio

Switch to radio mode

1

Press AS/SOURCE repeatedly to switch the source to [RADIO].

2

Press / repeatedly to select a band.

Select a tuner region

You can select a radio region that matches your location.

1

Press and hold to access the system menu.

2

Press / repeatedly until one of the following options is displayed.

• [AREA EUROPE] (Western Europe)

• [AREA ASIA] (Asia Pacific)

• [AREA MID--EAST] (Middle East)

• [AREA AUST] (Australia)

• [AREA RUSSIA] (Russia)

• [AREA USA] (United States)

• [AREA LATIN] (Latin America)

• [AREA JAPAN] (Japan)

3

Rotate to select a region.

Select a tuner sensitivity

To search for radio stations with strong signals only or more radio stations, you can change the tuner sensitivity.

1

Press and hold to access the system menu.

2

Press / repeatedly until [LOC ON] or [LOC OFF] is displayed.

3

Rotate to select a setting.

EN

11

• [LOC ON]: Search for radio stations with strong signals only.

• [LOC OFF]: Search for radio stations with strong and weak signals.

Search for a radio station

Search for a radio station automatically

Press or to search for the previous or next radio station with strong signals.

Search for a radio station manually

1

Press and hold or until [M] blinks.

2

Press or repeatedly until the target frequency is displayed.

Store radio stations in memory

Note

You can store a maximum of six stations in each band.

Store radio stations automatically

1

Press or repeatedly to select a band.

2

Press and hold AS/SOURCE until

[STORE---] is displayed.

»

After the search is complete, the first stored radio station is broadcast automatically.

• To select a stored radio station, press

, , , , , or .

Store radio stations manually

1

Press or repeatedly to select a tuner band.

2

Tune to the radio station that you want to store.

3

Press and hold , , , ,

, or to store the radio station at the selected channel.

• To select a stored radio station, press

, , , , , or .

12 EN

6 Play from a storage device

This system can play .mp3 and .wma files that are copied onto a compatible storage device.

Note

Philips does not guarantee compatibility with all storage devices.

NTFS (New Technology File System) file system is not supported.

1

Connect a compatible USB storage device or SD/SDHC card.

• For an SD/SDHC card, detach the front panel first, insert the card into the front panel.

slot, and then attach the

2

Press AS/SOURCE repeatedly to switch the source.

• [USB]: For a USB storage device that is connected to the USB socket on the front panel

• [SD/SDHC]: For an SD/SDHC card that is inserted into the slot

3

If the play does not start, press .

Control play

Button Function

/ Press repeatedly to select a folder.

Pause or resume play.

/ Press to play the previous or next track.

/DISP

/ Press and hold to rewind a track or search forward fast.

Press repeatedly to display available information about the current track.

Press repeatedly to select a repeat mode:

• [REP ONE]: repeat the current track,

• [RPT FLD]: repeat all tracks in the current folder, or

• [RPT ALL]: repeat all tracks in the storage device.

Press repeatedly to select a play mode:

• [SHU ALL]: play all tracks randomly,

• [SHU FLD]: play tracks in the current folder randomly, or

• [SHU OFF]: play all tracks in the storage device in sequence.

EN

13

14 EN

Switch tracks

During play, you can switch tracks or folders quickly.

Switch tracks directly

1

Press to access the track list.

»

The file name of current track scrolls.

2

Rotate to toggle through tracks.

3

Press to play the selected track.

Switch folders for a track

1

Press to access the folder list.

» The name of current folder scrolls.

2

Rotate to toggle through folders.

3

Press to select the folder.

» The system starts playing the first track under the folder.

7 Listen to an external player

You can use the system to amplify the audio input from an external player, for example, MP3 player.

MP3-LINK

1

Press AS/SOURCE repeatedly to switch the source to [MP3--LINK].

2

Connect an audio input cable with a 3.5 mm connector on both ends between

• the MP3-LINK socket on the front panel, and

• the audio output socket (usually the headphone socket) on the external player.

3

Play audio on the external player.

8 Adjust sound

The following operations are applicable to all supported media.

Button Function

Rotate to increase or decrease the volume level.

Press to mute the speakers or release them from mute status.

Press to enable or disable the MAX

Sound feature.

Press and hold to enable or disable the Dynamic Bass Boost (DBB) effect.

Press repeatedly to select a sound equalizer.

1

Press and hold to activate the setup of customized sound equalizer.

2

Press repeatedly to select an option:

[BAS] (bass), [TRE] (treble), [BAL]

(balance), or [FAD] (fader).

3

Rotate to adjust the setting.

9 Additional information

Charge your USB device

You can charge your USB device, for example, smart phone, with this product.

Note

The output voltage through the USB socket is 5 V with output current 1 A.

Connect your USB device to this product with

USB cable. Once the USB device is connected and recognized, it begins to charge automatically.

If the system works abnormally, reset the system to factory default settings.

Reset the system

1

Detach the front panel.

2

Press the RESET button with the tip of a ball-point pen or toothpick.

»

All settings are reset to factory default.

EN

15

16 EN

Replace the fuse

If there is no power, check the fuse and replace it if it is damaged.

Note

1

Check the electric connection.

2

Remove the damaged fuse from the rear panel.

3

Insert a new fuse with the same specifications (15 A).

L

R

REAR

If the fuse gets damaged immediately after it is replaced, an internal malfunction may occur. In such case, consult your Philips retailer.

10 Product

Information

Note

Specifications are subject to change without prior notice.

General

Power supply

Fuse

Suitable speaker impedance

Maximum power output

Weight

Aux-in level

12 V DC (11 V

- 16 V), negative ground

15 A

4 - 8

50 W x 4

Continuous power output 22 W x 4 RMS (4

10% T.H.D.)

Pre-Amp output voltage

Dimension (W x H x D)

2.5 V

500 mV

Radio

Frequency range

- FM

Usable sensitivity -

FM (S/N = 20 dB)

Frequency range -

AM(MW)

Usable sensitivity -

AM(MW) (S/N =

20 dB)

87.5 - 108.0 MHz (100 kHz per step in auto search and 50 kHz per step in manual search)

8 µV

522 - 1,620 KHz (9

KHz)

530 - 1710 KHz (10

KHz)

30 µV

11 Troubleshooting

Warning

Never remove the casing of this product.

To keep the warranty valid, never try to repair the product yourself.

If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.

philips.com/support). When you contact Philips, make sure that the product is nearby and the model number and serial number are available.

No power or no sound.

• The power supply from car battery is cut off, or the car battery runs out of energy.

Power the system with car battery.

• Car engine is not on. Turn the car engine on.

• Cable is not correctly connected. Check connections.

• The fuse is burnt. Replace the fuse.

• Volume is too low. Adjust volume.

• If the above solutions cannot help, press the RESET button.

• Make sure that the current track is in a compatible format.

Noise in broadcasts.

• Signals are too weak. Select other stations with stronger signals.

• Check the connection of the car antenna.

• Change the broadcast setting from stereo to mono.

Preset stations lost.

• Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

Display shows ERR-12.

• Data error. Check the USB storage device or SD/SDHC card.

12 Notice

Any changes or modifications made to this device that are not expressly approved by

WOOX Innovations may void the user’s authority to operate the equipment.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries.

The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries, which cannot be disposed of with normal household waste.

Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Please visit www.recycle.philips.com for additional information on a recycling center in your area.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

EN

17

Trademark notice

Windows Media and the Windows logo are trademarks, or registered trademarks of

Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names are those of their respective owners.

Copyright

2014 © WOOX Innovations Limited. All rights reserved.

Specifications are subject to change without notice. WOOX reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

18 EN

EN

19

Specifications are subject to change without notice

2014 © WOOX Innovations Limited. All rights reserved.

This product was brought to the market by WOOX Innovations Limited or one of its affiliates, further referred to in this document as WOOX Innovations, and is the manufacturer of the product. WOOX

Innovations is the warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.”

CE133_55_UM_V1.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
