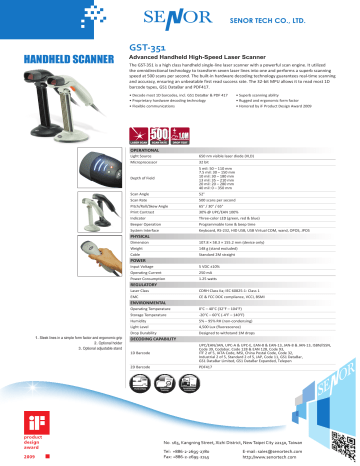

GST-351
HANDHELD SCANNER
GST-351
Advanced Handheld High-Speed Laser Scanner
The GST-351 is a high class handheld single-line laser scanner with a powerful scan engine. It utilized
the omnidirectional technology to transform seven laser lines into one and performs a superb scanning
speed at 500 scans per second. The built-in hardware decoding technology guarantees real-time scanning
and accuracy, ensuring an unbeatable first read success rate. The 32-bit MPU allows it to read most 1D
barcode types, GS1 DataBar and PDF417.
• Decode most 1D barcodes, incl. GS1 DataBar & PDF 417
• Proprietary hardware decoding technology
• Flexible communications
• Superb scanning ability
• Rugged and ergonomic form factor
• Honored by iF Product Design Award 2009
OPERATIONAL
Light Source
650 nm visible laser diode (VLD)
Microprocessor
32 bit
Depth of Field
5 mil: 50 – 110 mm
7.5 mil: 30 – 150 mm
10 mil: 30 – 180 mm
13 mil: 35 – 210 mm
20 mil: 20 – 280 mm
40 mil: 0 – 350 mm
Scan Angle
52°
Scan Rate
500 scans per second
Pitch/Roll/Skew Angle
65° / 30° / 65°
Print Contrast
30% @ UPC/EAN 100%
Indicator
Three-color LED (green, red & blue)
Beeper Operation
Programmable tone & beep time
System Interface
Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
PHYSICAL
Dimension
107.8 × 58.3 × 155.2 mm (device only)
Weight
148 g (stand excluded)
Cable
Standard 2M straight
POWER
Input Voltage
5 VDC ±10%
Operating Current
250 mA
Power Consumption
1.25 watts
REGULATORY
Laser Class
CDRH Class IIa; IEC 60825-1: Class 1
EMC
CE & FCC DOC compliance, VCCI, BSMI
ENVIRONMENTAL
1. Sleek lines in a simple form factor and ergonomic grip
2. Optional holder
3. Optional adjustable stand
Operating Temperature
0°C – 40°C (32°F – 104°F)
Storage Temperature
-20°C – 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
4,500 Lux (fluorescence)
Drop Durability
Designed to withstand 1M drops
DECODING CAPABILITY
1D Barcode
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN,
Code 39, Codabar, Code 128 & EAN 128, Code 93,
ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32,
Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar,
GS1 DataBar Limited, GS1 DataBar Expanded, Telepen
2D Barcode
PDF417
Point-of-Sale
Document
Tracking
Governmental
Automation
