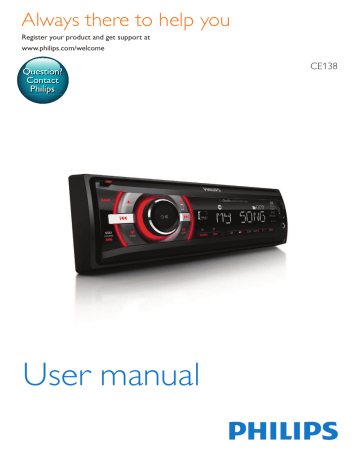

User manual

Always there to help you

Register your product and get support at www.philips.com/welcome

Question?

Contact

Philips

CE138

User manual

Contents

1 Safety

2 Your car audio system

Introduction

What's in the box

Overview of the system

3 Install the car audio system

Connect wires

Mount into the dashboard

Attach the front panel

4 Get started

!"#$%&'$(#)%$%*+'$,)'$

Set the time format

Set the clock

Select a source

Select a listening zone

Mute the button beep

5 Listen to radio

Select a tuner region

Select a tuner sensitivity

Search for a radio station

Store radio stations in memory

Play with RDS

6 Play from a storage device

Control play

Switch tracks

7 Play from an iPod/iPhone

Compatible iPod/iPhone models

Connect your iPod/iPhone

Control play

Charge your iPod/iPhone

12

12

13

12

12

12

15

15

15

17

17

17

17

18

10

10

10

11

10

-.

10

7

7

8

9

2

3

4

3

3

8 Listen to an external player

9 Adjust sound

10 Additional information

Reset the system

Replace the fuse

11 Product Information

12 Troubleshooting

13 Notice

Care of the environment

Trademark notice

Copyright

14 Glossary

19

20

21

21

21

22

23

24

24

24

25

26

EN 1

1 Safety

Read and understand all instructions before you use this device. If damage is caused by failure to follow instructions, the warranty does not apply.

/$ 0"1*(23%*"4$"5$%&'$6#"1,2%$2",71$#'),7%$ in hazardous radiation of EMC or other unsafe operation.

/$ The device is designed for negative ground

(earth) 12 V DC operation only.

/$ To ensure safe driving, adjust the volume to a safe and comfortable level.

/$ Improper fuses can cause damage or

(#'8$9&'4$:",$4''1$%"$2&34;'$%&'$5,)'<$ consult a professional.

/$ Use only the supplied mounting hardware for a safe and secure installation.

/$ To avoid short circuits, do not expose the device to rain or water.

/$ The device shall not be exposed to dripping or splashing.

/$ Do not place any sources of danger on

%&'$1'=*2'$>'8;8$7*?,*1$(77'1$"@A'2%)<$7*;&%'1$ candles).

/$ Never insert objects into the ventilation slots or other openings on the device.

/$ Clean the device with soft, damp cloth.

Never use substances such as alcohol, chemicals or household cleaners on the device.

2 EN

2 Your car audio system

Congratulations on your purchase, and

B'72"+'$%"$C&*7*6)D$E"$5,77:[email protected]'4'(%$5#"+$%&'$ support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this system, you can:

/$ enjoy audio from a USB storage device,

SD/SDHC card, iPod/iPhone, and external player,

/$ charge your iPod/iPhone, and

/$ listen to radio stations.

You can enrich sound output with these sound effects:

/$ Dynamic bass boost (DBB)

/$ Digital sound control (DSC)

Playable media:

/$ USB storage device

/$ Compatibility: USB 2.0, USB 1.1

/$ Class support: MSC (Mass Storage

Class)

/$ SD/SDHC card

/$ Files

/$ File system: FAT16, FAT32

/$ Maximum number of folders: 99

/$ 03F*+,+$4,[email protected]'#$"5$%#32G)H(7')I$JJJ

/$ Maximum level of directory: 8

/$ 8+6K$(7')

Sampling frequencies: 32 kHz, 44.1 kHz,

48 kHz

Bitrates: 8-320 kbps and variable bitrates

/$ 8B+3$(7')

Versions: V4, V7, V8, V9 (L1 and L2)

Sampling frequencies: 44.1 kHz, 48 kHz

Bitrates: 64-192 kbps and variable bitrates

/$ ID3 tag V2.0 or later

/$ !"#$%%&'()*+,-)#.

LLM<$9LN<$341$CM0$(7')

OP0$6#"%'2%'1$90L$(7')$>8B3=<$8+Q3<$

.m4p, .mp4, and .aac)

90L$(7')$*4$7"))7'))$5"#+3%

What's in the box

Check and identify the contents of the package: a d a Main unit (with a sleeve) b e c f b Carrying case (with front panel included) c Trim plate d Disassembly tool X 2 e ISO male connector X 2 f User manual

EN 3

4 EN select a control mode: control play on the iPod/iPhone or on this system.

/$ Return to the previous menu.

/$ For iPod/iPhone, press repeatedly to c

Overview of the system

t srq p a b a b c o

/$ Unlock the front panel.

n m l k j i h

/$ For .wma and .mp3 tracks, press to select the previous folder.

/$ Press and hold to access the system menu.

/$ Press to select a tuner band.

u d v d LCD screen e

/$ Connect to a USB storage device.

/$ Connect to a compatible iPod/iPhone.

f MP3-LINK

/$ Connect to the audio output socket

(usually the headphone socket) of an external device.

g e f g

/$ Start, pause, or resume the play of tracks.

/$ In radio mode, press to select the preset radio station of No. 6.

/$ In radio mode, press and hold to store the current radio station at channel

No. 6.

h

/$ In radio mode, press to select the preset radio station of No. 5.

/$ In radio mode, press and hold to store the current radio station at channel

No. 5.

i

/$ In radio mode, press to select the preset radio station of No. 4.

/$ In radio mode, press and hold to store the current radio station at channel

No. 4.

/$ For .wma and .mp3 tracks, press repeatedly to select a play mode: play all tracks randomly ([SHU ALL]), play tracks in the current folder or album randomly ([SHU FLD]/[SHU ALBM]), or play all tracks in the storage device in sequence ([SHU OFF]).

j

/$ In radio mode, press to select the preset radio station of No. 3.

/$ In radio mode, press and hold to store the current radio station at channel

No. 3.

/$ For .wma and .mp3 tracks, press repeatedly to select a repeat mode.

k

/$ In radio mode, press to select the preset radio station of No. 2.

/$ In radio mode, press and hold to store the current radio station at channel

No. 2.

/$ For .wma and .mp3 tracks on a storage device, press to access the folder list.

l

/$ In radio mode, press to select the preset radio station of No. 1.

/$ In radio mode, press and hold to store the current radio station at channel

No. 1.

/$ For .wma and .mp3 tracks on a storage device, press to access the track list.

/$ Press to access the music menu of an iPod/iPhone.

m /DSP

/$ Press repeatedly to display available information about the current track.

/$ Press repeatedly to display available

RDS information.

/$ Press and hold to display the set clock.

n AS/SOURCE

/$ Press repeatedly to select a source.

/$ In radio mode, press and hold to activate the automatic search of radio stations.

o

/$ Press repeatedly to select a preset sound equalizer.

/$ Press and hold to activate the setup of bass, treble, balance, fader, and subwoofer.

p

/$ Press to turn on the system.

/$ Press and hold to turn off the system.

/$ Press to mute or restore sound.

/$ C#'))$%"$2"4(#+$34$"6%*"48

/$ Rotate to switch between menu options.

/$ Rotate to adjust the volume level.

q

/$ For .wma and .mp3 tracks on a storage device, press to select the next folder.

/$ Press and hold to activate the selection of listening zones.

/$ Press to select a tuner band.

r

/

/$ Tune to a radio station.

/$ Press to skip to the previous/next track.

/$ Press and hold to rewind a track or search fast forward.

EN 5

s

/$ Press to enable or disable the maximum volume.

/$ Press and hold to enable or disable the DBB (dynamic bass boost) sound effect.

t BAND

/$ Press repeatedly to select a tuner band.

u Slot for SD/SDHC card

/$ Insert an SD/SDHC card.

v RESET

/$ Press to reboot the system.

6 EN

3 Install the car audio system

Caution

/

Use the controls only as stated in this user manual.

Always follow the instructions in this chapter in sequence.

These instructions are for a typical installation.

However, if your car has different requirements, make the adjustment accordingly. If you have any question regarding installation kits, consult your local retailer.

Note

/

This system is designed for negative ground (earth) 12V

DC operation only.

/

Always install this system in the car dashboard. Other locations can be dangerous as the rear of the system heats up during use.

/

To avoid short-circuit: before you connect, make sure that the ignition is off.

/

Make sure that you connect the yellow and red power supply leads after all other leads are connected.

/

Make sure that all loose leads are insulated with electrical tape.

/

Make sure that the leads do not get caught under screws iron parts that will move (e.g. seat rail).

/

Make sure that all ground (earth) leads are run to a common ground (earth) point.

/

Use only the supplied mounting hardware for a safe and secure installation.

/

R+6#"6'#$5,)')$234$23,)'$13+3;'$"#$(#'8$9&'4$:",$ need to change the fuse, consult a professional.

/

When you connect other devices to this system, make sure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

/

Never connect speaker wires to the metal body or chassis of the car.

/

Never connect speaker wires with stripes to one another.

Connect wires

Note

/

Make sure that all loose leads are insulated with electrical tape.

/

Consult a professional to connect wires as instructed below.

f Blue strip

1

Check the car's wiring carefully and connect them to the the supplied ISO

ISO male male connectors.

connectors a Green strip, blackedged green strip

Connect to

Rear left speaker

Front left speaker b White strip, blackedged white strip c Gray strip, blackedged gray strip

Front right speaker d Purple strip, blackedged purple strip e Red strip

Rear right speaker

Ignition key +12V

DC when ON/ACC

Motor/electric antenna relay control lead

L+67*('#$#'73:$ control lead

Ground

To the +12V car battery which is energized at all times g White-edged blue strip h Black strip i Yellow strip

EN 7

4

Slide the unit into the sleeve until you hear a "click".

5

Attach the trim plate.

6

Reconnect the negative terminal of the car battery.

Attach the front panel

1

Insert the notch on the front panel to the chassis on the main unit.

2

Press the left end of the front panel inwards until it is securely locked with a

"click".

Detach the front panel

Note

/

Before you insert an SD/SDHC card or reset the system, detach the front panel.

/

Before you detach the front panel, make sure that the system is turned off.

1

Press to release the front panel.

2

Pull the front panel leftward to release it from the chassis of the main unit.

3

Pull the front panel outwards to remove it.

EN 9

4 Get started

/&'+(0)+,'#(+(12)+$#)

1

Press to turn on the system.

» [PHILIPS] is displayed and then

[SELECT OPERATING REGION]

(select a radio region) scrolls.

2

When one of the following options is displayed, rotate to select a radio region that matches your location.

/$ [AREA EUROPE] (Western Europe)

/$ [AREA ASIA]$>L)*3$C32*(2S

/$ [AREA MID--EAST] (Middle East)

/$ [AREA AUST] (Australia)

/$ [AREA RUSSIA] (Russia)

/$ [AREA USA] (United States)

/$ [AREA LATIN] (Latin America)

/$ [AREA JAPAN] (Japan)

3

Press $%"$2"4(#+8

» The system switches to radio mode automatically.

/$ To turn off the system, press and hold

until the screen backlight is off.

Set the time format

1

Press and hold to access the system menu.

2

Press / repeatedly until [CLK 24H] or [CLK 12H] is displayed.

3

Rotate to select [CLK 24H] or [CLK

12H].

/$ [CLK 24H]: 24-hour time format

/$ [CLK 12H]: 12-hour time format

Set the clock

1

Press and hold to access the system menu.

2

Press / repeatedly until [CLK] is displayed with time digits blinking.

3

Rotate anti-clockwise to set the hour.

4

Rotate clockwise to set the minute.

Display the clock

Press and hold /DISP until [CLK] and the set clock are displayed.

/$ To exit the clock display, press any button or rotate .

Select a source

Press AS/SOURCE repeatedly to select a source.

/$ [RADIO]: Listen to FM/AM radio.

/$ [MP3--LINK]: Listen to the audio input through the MP3-LINK socket.

/$ [USB]: When a USB storage device or compatible iPod/iPhone is connected and recognized, you can select this source to

673:$3,1*"$(7')$%&3%$3#'$)%"#'1$"4$*%8

/$ [SD/SDHC]: When an SD/SDHC card is inserted and recognized, you can select this

)",#2'$%"$673:$3,1*"$(7')$%&3%$3#'$)%"#'1$ on it.

Select a listening zone

1

Press and hold until one of the following options is displayed.

/$ [ALL]: For all passengers

/$ [FRONT-L]: For the front-left seat only

/$ [FRONT-R]: For the front-right seat only

/$ [FRONT]: For front passengers only

10 EN

2

Press / repeatedly to select a listening zone.

Mute the button beep

The beep sound of buttons is enabled by default.

1

Press and hold to access the system menu.

2

Press / repeatedly until [BEEP ON] or [BEEP OFF] is displayed.

/$ [BEEP ON]: Enable the beep sound of buttons.

/$ [BEEP OFF]: Mute the beep sound of buttons.

3

Rotate to change the setting.

EN 11

5 Listen to radio

Search for a radio station

Select a tuner region

You can select a radio region that matches your location.

1

In radio mode, press and hold to access the system menu.

2

Press / repeatedly until one of the following options is displayed.

/$ [AREA EUROPE] (Western Europe)

/$ [AREA ASIA]$>L)*3$C32*(2S

/$ [AREA MID--EAST] (Middle East)

/$ [AREA AUST] (Australia)

/$ [AREA RUSSIA] (Russia)

/$ [AREA USA] (United States)

/$ [AREA LATIN] (Latin America)

/$ [AREA JAPAN] (Japan)

3

Rotate to select a region.

Select a tuner sensitivity

To search for radio stations with strong signals only or more radio stations, you can change the tuner sensitivity.

1

Press and hold to access the system menu.

2

Press / repeatedly until [LOC ON] or [LOC OFF] is displayed.

3

Rotate to select a setting.

/$ [LOC ON]: Search for radio stations with strong signals only.

/$ [LOC OFF]: Search for radio stations with strong and weak signals.

Search for a radio station automatically

Press or to search for the previous or next radio station with strong signals.

Search for a radio station manually

1

Press and hold or until [M] blinks.

2

Press or repeatedly until the target frequency is displayed.

Store radio stations in memory

Note

/

You can store a maximum of six stations in each band.

Store radio stations automatically

1

Switch the source to [RADIO].

2

Press BAND, , or repeatedly to select a band.

3

Press and hold AS/SOURCE until

[STORE---] is displayed.

» After the search is complete, the

(#)%$)%"#'1$#31*"$)%3%*"4$*)[email protected]#"3123)%$ automatically.

/$ To select a stored radio station, press

, , , , , or .

Store radio stations manually

1

Press BAND, , or repeatedly to select a tuner band.

12 EN

2

Tune to the radio station that you want to store.

3

Press and hold , , ,

, or to store the radio station at the

, selected channel.

Play with RDS

The RDS (Radio Data System) function operates only in areas with FM stations broadcasting RDS signals. If you tune to an RDS station, the station name is displayed.

Enable the RDS function

Note

/

The RDS function is enabled by default.

/

Only when the RDS function is enabled, RDS related settings can be accessed.

1

Press and hold to access the system menu.

2

Press / repeatedly until [RDS ON] or [RDS OFF] is displayed.

3

Rotate to select [RDS ON].

» The RDS function is enabled.

/$ To disable the RDS function, rotate

to select [RDS OFF].

Select a program type

Before tuning to RDS stations, you can select a program type to search for programs of the selected category only.

1

Press and hold to access the system menu.

2

Press / repeatedly until [PTY] is displayed.

3

Press to access the list of program types.

4

Rotate to select a program type, and then press $%"$2"4(#+8

23

24

25

19

20

21

22

16

17

18

12

13

14

15

29

30

31

26

27

28

8

9

10

11

Item Program type

1

2

3

4

5

6

NEWS

AFFAIRS

Description

News services

Politics and current affairs

INFO Special information programs

Sports SPORT

EDUCATE Education and advanced training

DRAMA Radio plays and literature

7 CULTURE

SCIENCE

VARIED

POP M

ROCK M

Culture, religion and society

Science

Entertainment programs

Pop music

Rock music

EASY M

LIGHT M

CLASSICS

OTHER M

FINANCE

CHILDREN

SOCIAL

TRAVEL

LEISURE

JAZZ

Light music

Light classical music

Classical music

Special music programs

WEATHER Weather

Finance

Children’s programs

Social Affairs

RELIGION Religion

PHONE IN Phone In

Travel

Leisure

Jazz Music

COUNTRY Country Music

NATION M

OLDIES

FOLK M

ALARM

National Music

Oldies Music

Folk Music

DOCUMENT Documentary

TEST Alarm Test

Alarm

EN 13

Use alternate frequencies

If the signal of an RDS station is poor, enable the AF (Alternate Frequency) function to search for another station that broadcasts the same program.

1

Press and hold to access the system menu.

2

Press / repeatedly until [AF ON] or

[AF OFF] is displayed.

3

Rotate to select a setting.

/$ [AF ON]: Enable the AF function.

/$ [AF OFF]: Disable the AF function.

Set the region for AF tuning

You can set the region for AF tuning.

1

Press and hold to access the system menu.

2

Press / repeatedly until [REG ON] or [REG OFF] is displayed.

3

Rotate to select a setting.

/$ [REG ON]: Only RDS stations in current region can be tuned to automatically.

/$ [REG OFF]: All RDS stations can be tuned to automatically.

3)4)15)+('67,4+6""&$"4)2)"(

R5$:",$B34%$%"$#'2'*='$%#35(2$344",42'+'4%<$

'[email protected]'$%&'$EL$>E#35(2$L44",42'+'4%S$5,42%*"48

1

Press and hold to access the system menu.

2

Press / repeatedly until [TA ON] or

[TA OFF] is displayed.

3

Rotate to select a setting.

/$ [TA ON]I$9&'4$3$%#35(2$ announcement is on air, the system automatically switches to the tuner mode and begins to broadcast the

%#35(2$344",42'+'4%8$9&'4$%&'$%#35(2$ announcement is over, the system returns to the previous mode.

/$ [TA OFF]I$E#35(2$344",42'+'4%$1"')$ not cut in.

14 EN

Tip

/

9&'4$3$%#35(2$344",42'+'4%$2,%)$*4<$:",$234$6#'))$ to switch the system to the previous mode.

Synchronize the system clock

You can synchronize the system clock with an

RDS station that transmits time signals.

1

Press and hold to access the system menu.

2

Press / repeatedly until [CT ON] or [CT OFF] is displayed.

3

Rotate to select a setting.

/$ [CT ON]: Synchronize the system clock with the RDS station automatically.

/$ [CT OFF]: The automatic clock synchronization with RDS station is disabled.

Tip

/

The accuracy of time depends on the RDS station that transmits time signals.

6 Play from a storage device

1

Connect a compatible USB storage device or SD/SDHC card.

/$ For an SD/SDHC card, detach the

5#"4%$634'7$(#)%<$*4)'#%$%&'$23#1$*4%"$ the card slot, and then attach the front panel.

2

Switch the source to [USB] or [SD/

SDHC].

/$ When a USB storage device is connected and recognized, the system switches the source to [USB] automatically.

3

If the play does not start, press .

Control play

Button

/

/

/

/DISP

Function

Press repeatedly to select a folder.

Pause or resume play.

Press to play the previous or next track.

Press and hold to rewind a track or search forward fast.

Press repeatedly to display available information about the current track.

Press repeatedly to select a repeat mode:

/$ [REP ONE]: repeat the current track,

/$ [RPT FLD]: repeat all tracks in the current folder, or

/$ [RPT ALL]: repeat all tracks in the storage device.

Press repeatedly to select a play mode:

/$ [SHU ALL]: play all tracks randomly,

/$ [SHU FLD]: play tracks in the current folder randomly, or

/$ [SHU OFF]: play all tracks in the storage device in sequence.

Switch tracks

During play, you can switch tracks or folders quickly.

Switch tracks directly

1

Press to access the track list.

» E&'$(7'$43+'$"5$2,##'4%$%#32G$)2#"77)8

2

Rotate to toggle through tracks.

3

Press to play the selected track.

EN 15

Switch folders for a track

1

Press to access the folder list.

» [ROOT] scrolls.

2

Rotate to toggle through folders.

» The name of current folder scrolls.

3

Press to select the folder.

4

Rotate to toggle through tracks in the folder.

5

Press to play the selected track.

16 EN

7 Play from an iPod/iPhone

» The system starts playing tracks that are stored on your iPod/iPhone.

Note

/

Before you disconnect the iPod/iPhone, switch the system to another source.

Note

/

During play, no audio signals are transferred through the headphone socket of your iPod/iPhone.

Compatible iPod/iPhone models

This car audio system supports the following iPod and iPhone models.

/$ iPhone 4S, iPhone 4, iPhone 3GS, and iPhone 3G

/$ iPod touch (2nd, 3rd, and 4th generations)

/$ iPod classic

/$ iPod nano (3rd, 4th, 5th, and 6th generations)

Connect your iPod/iPhone

Connect an Apple 30-pin USB cable to:

/$ the USB socket on the front panel of this system, and

/$ your iPod/iPhone.

» [USB] is displayed, and then [IPOD].

Control play

Button Function

Press repeatedly to select a control mode: control play on your iPod/ iPhone, or on the system.

Press to pause or resume play.

/DISP

/ Press to play the previous or next track.

/ Press and hold to rewind a track or search forward fast.

Press repeatedly to display available information about the current track.

Press repeatedly to select a repeat mode:

/$ [REP ONE]: repeat the current track, or

/$ [REP ALL]: repeat all tracks.

Press repeatedly to select a play mode:

/$ [SHU ALL]: play all tracks randomly,

/$ [SHU ALBM]: play tracks in the current album randomly, or

/$ [SHU OFF]: play all tracks in the iPod/iPhone library in sequence.

Search for a track

After accessing the iPod/iPhone menu, you can

)'7'2%$3$)6'2*(2$%#32G$?,*2G7:8

1

Press to access the iPod/iPhone menu.

» [PLAYLIST] scrolls.

2

Rotate to select a category.

EN 17

3

Press to access the list of tracks under the category.

» E&'$(7'$43+'$"5$%&'$(#)%$%#32G$)2#"77)8

4

Rotate to select a track.

» E&'$(7'$43+'$"5$2,##'4%$%#32G$)2#"77)8

5

Press to start play.

Charge your iPod/iPhone

Once the iPod/iPhone is !"##$!%$& and recognized, the charging starts.

18 EN

8 Listen to an external player

You can use the system to amplify the audio input from an external player, for example, MP3 player.

1

Switch the source to [MP3--LINK].

2

Connect an MP3 link cable to

MP3-LINK

/$ the MP3-LINK socket on the system, and

/$ the audio output socket (usually the headphone socket) on the external player.

3

Play the external player.

EN 19

9 Adjust sound

The following operations are applicable to all supported media.

Button Function

Rotate to increase or decrease the volume level.

Press to mute or restore sound.

Press to enable or disable the maximum volume.

Press and hold to enable or disable the Dynamic Bass Boost (DBB) effect.

Press repeatedly to select a sound equalizer.

1

Press and hold to activate the setup of customized sound equalizer.

2

Press repeatedly to select an option: [BAS] (bass), [TRE] (treble),

[BAL] (balance), [FAD] (fader), or

[SUBW] (subwoofer).

3

Rotate to adjust the setting.

20 EN

10 Additional information

Reset the system

If the system works abnormally, reset the system to factory default settings.

1

Detach the front panel.

2

Press the RESET button with the tip of a ball-point pen or toothpick.

» All settings are reset to factory default.

Replace the fuse

If there is no power, check the fuse and replace it if it is damaged.

1

Check the electric connection.

2

Remove the damaged fuse from the rear panel.

3

Insert a new fuse with the same

)6'2*(23%*"4)$>-T$LS8

Note

L

R

REAR

/

If the fuse gets damaged immediately after it is replaced, an internal malfunction may occur. In such case, consult your retailer.

EN 21

11 Product

Information

Note

/

8%)41,46(1&"#+6')+#$9:)4(+(&+406";)+<1(0&$(+%'1&'+ notice.

General

Power supply

Fuse

Suitable speaker impedance

Maximum power output

Continuous power output

Pre-Amp output voltage

Aux-in level

Radio

Frequency range

- FM

12 V DC (11 V - 16 V), negative ground

15 A

4 - 8

50 W x 4 channels

22 W x 4 RMS (4

10% T.H.D.)

2.5 V

500 mV

Usable sensitivity -

FM (S/N = 20 dB)

Frequency range -

AM(MW)

Usable sensitivity -

AM(MW) (S/N =

20 dB)

87.5 - 108.0 MHz

(100kHz per step in auto search and 50kHz per step in manual search)

8 µV

522 - 1620 KHz (9 kHz)

530 - 1710 kHz (10 kHz)

30 µV

22 EN

12 Troubleshooting

Warning

/

Never remove the casing of this product.

To keep the warranty valid, never try to repair the product yourself.

If you encounter problems when using this product, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www.

philips.com/support). When you contact the

Consumer Care, make sure that the device is nearby and the model number and serial number are available.

No power or no sound

= The power supply from car battery is cut off, or the car battery runs out of energy.

Power the system with car battery.

= Car engine is not on. Turn the car engine on.

= Cable is not correctly connected. Check connections.

= The fuse is burnt. Replace the fuse.

= Volume is too low. Adjust volume.

= If the above solutions cannot help, press the RESET button.

= Make sure that the current track is in a compatible format.

Noise in broadcasts

= Signals are too weak. Select other stations with stronger signals.

= Check the connection of the car antenna.

Preset stations are erased.

= Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

Cannot switch the source to iPod/iPhone

/$ Check whether the iPod/iPhone is securely connected.

/$ Check whether the iPod/iPhone is compatible with this system.

/$ Check whether the iPod/iPhone battery is nearly empty. Connect it to this system for

2&3#;*4;$(#)%8$

Display shows ERR-12.

= Data error. Check the USB storage device or SD/SDHC card.

EN 23

13 Notice

L4:$2&34;')$"#$+"1*(23%*"4)$+31'$%"$%&*)$ device that are not expressly approved by

WOOX Innovations may void the user’s authority to operate the equipment.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/

EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

24 EN

Trademark notice

Windows Media and the Windows logo are trademarks, or registered trademarks of

Microsoft Corporation in the United States and/or other countries.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been

1')*;4'1$%"$2"44'2%$)6'2*(2377:$%"$*C"1$"#$

*C&"4'$#')6'2%*='7:<$341$&3)[email protected]''4$2'#%*('[email protected]:$ the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

Other trademarks and trade names are those of their respective owners.

Copyright

2014 © WOOX Innovations Limited. All rights reserved.

Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.

U6'2*(23%*"4)$3#'$),@A'2%$%"$2&34;'$B*%&",%$ notice. WOOX reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

EN 25

14 Glossary

M

MP3

L$(7'$5"#+3%$B*%&$3$)",41$13%3$2"+6#'))*"4$ system. MP3 is the abbreviation of Motion

Picture Experts Group 1 (or MPEG-1) Audio

Layer 3.

S

SD

Secure Digital. A type of memory card with a

V3)&$+'+"#:8

SDHC

Secure Digital High Capacity (SDHC) is a type

"5$V3)&$+'+"#:$23#[email protected])'1$"4$%&'$UOL$W8..$

)6'2*(23%*"48$E&'$UOL$W8..$)6'2*(23%*"4$'[email protected]')$

SD cards to reach higher capacities from 4GB to 32GB, and growing.

W

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology.

Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.

26 EN

2014 © WOOX Innovations Limited. All rights reserved.

Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from

Koninklijke Philips N.V.

CE138_10_UM_V2.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
