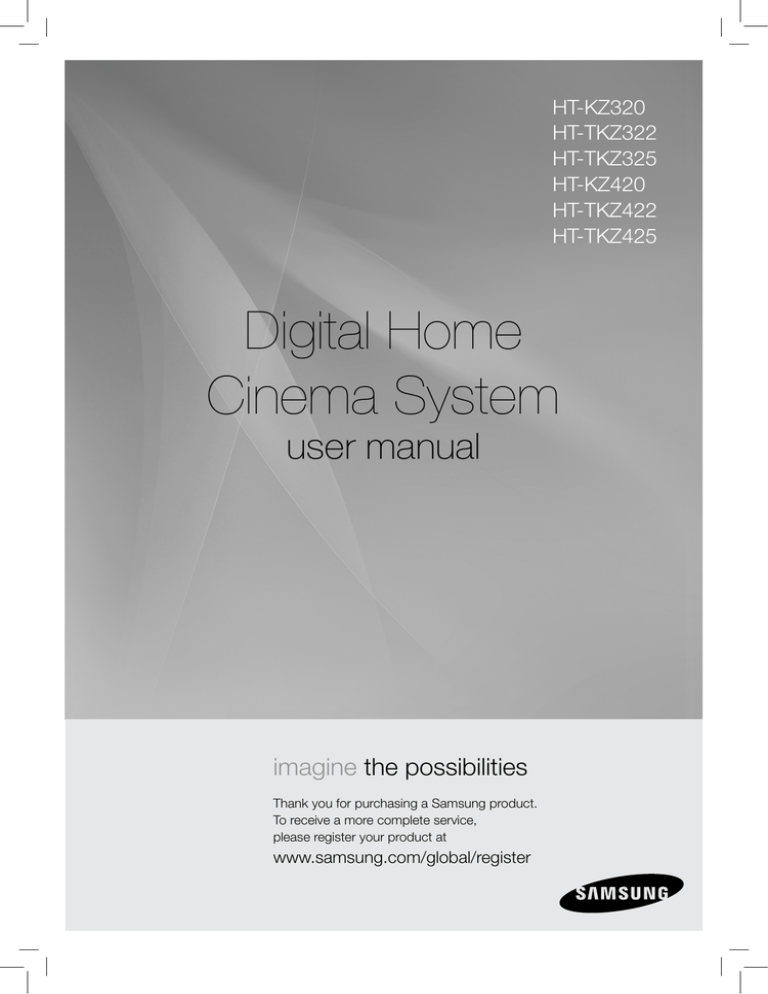

Digital Home
Cinema System
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
features
Playback of many disc types
This Home Cinema System allows you to play back various discs, including DVD-VIDEO, CD, MP3-CD,
WMA-CD, DivX, CD-R/RW, and DVD±R/RW.
USB Host support
You can enjoy media files such as pictures, movies and music saved on a MP3 player, digital camera or
USB memory stick by connecting the storage device to the USB port of the Home Cinema.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro
Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel
sound.
TV Screen Saver Function
If the main unit remains in Stop mode for 5 minutes, the Samsung logo appears on the TV screen.
This product will automatically switch to the Power Saving mode after 20 minutes in the Screen Saver
mode.
Power Saving Function
This product will automatically shut off after 20 minutes in Stop mode.
Anynet+ (HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by
connecting the Home Cinema to a SAMSUNG TV using a HDMI Cable. (This is only available with SAMSUNG
TV's that support Anynet+.)
Bluetooth Function
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
2
ENG
What’s included
Check for the supplied accessories below.
Video Cable
FM Antenna
User's Manual
Remote Control
DVD Karaoke Disc
Song List Book
ASC microphone
MIC
SWA-4100(HT-KZ420/TKZ422/TKZ425)
TX Card
Wireless Receiver Module
Speaker Cable (2EA)
3
safety information
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CLASS 1 LASER PRODUCT
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
KLASSE 1 LASER PRODUKT
LASER product.
LUOKAN 1 LASER LAITE
Use of controls, adjustments or performance of
KLASS 1 LASER APPARAT
procedures other than those specified herein may result
PRODUCTO LASER CLASE 1
in hazardous radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
•T
his apparatus shall always be connected to a AC outlet with a protective grounding connection.
•T
o disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
•A
pparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on
the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
4
ENG
safety information
Precautions
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your
player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10
cm). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the
player on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc tray is
empty. This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not
disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main
plug from the wall outlet, especially when left unused for a long period of time.
During thunderstorms, disconnect the AC main plug
from the wall outlet. Voltage peaks due to lightning could
damage the unit.
Do not expose the unit to direct sunlight or other heat
sources. This could lead to overheating and malfunction
of the unit.
Phones
Protect the player from moisture (i.e. vases) , and excess
heat (e.g.fireplace) or equipment creating strong magnetic
or electric fields (i.e.speakers...). Disconnect the power
cable from the AC supply if the player
malfunctions. Your player is not intended for industrial
use. Use of this product is for personal use only.
Condensation may occur if your player or disc has been
stored in cold temperatures. If transporting the player
during the winter, wait approximately 2 hours until the unit
has reached room temperature before using.
The batteries used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
5
contents
features
3
What’s included
safety information
4
5
Safety Warnings
Precautions
9
10
10
10
11
Before Reading the User’s Manual
Playable Discs
Do not use the following types of disc!
Copy Protection
Disc Type and Characteristics
3
4
getting started
9
description
12
remote control
14
connections
18
before using your home
cinema
34
6
12 Front Panel
12 Display
13 Rear Panel
14 Tour of the Remote Control
16 Setting the Remote Control
18
25
27
29
29
31
Connecting the Speakers
Connecting the Wireless Receiving Amplifier
Connecting the Video Out to Your TV
HDMI Function
BD wise
Connecting Audio from External
Components
33 Connecting the FM Antenna
34 Before Using Your Home Cinema
ENG
contents
playback
35
36
37
38
40
47
49
Disc Playback
MP3/WMA-CD Playback
JPEG File Playback
DivX Playback
Using The Playback Function
Using Bluetooth
Playing Media Files Using the USB Host
Feature
system setup
51
51
52
53
53
54
55
56
56
57
58
58
59
59
60
60
60
61
Setting the Language
Setting the HDMI video out mode
Setting TV Screen Type
Setting Parental Controls (Rating Level)
Setting the Pasword
Setting the Speaker Mode
Setting the Delay Time
Using the Test Tone
Setting the Audio
Setting the DRC (Dynamic Range
Compression)
Setting the AV SYNC
Setting the HDMI Audio
Sound field (DSP)/EQ Function
Dolby Pro Logic II Mode
Dolby Pro Logic II Effect
P.BASS
Conntcting microphone
ASC setup
63
63
64
64
65
67
69
71
71
71
72
72
Playing DVD-OK Discs
Reserving a Song
Reserving a Song During Accompaniment
Priority Playing Accompaniment Music
Karaoke Seting Function
Searching Song Function
Favorite Song Function
Lyric View Function
Key Control
Tempo Control
Male-female Key Control
Bowling Game Function
35
51
karaoke
63
7
contents
radio
74
convenient function
77
troubleshooting
79
Language Code list
81
appendix
82
8
74 Listening To Radio
74 Presetting Stations
75 About RDS broadcasting
77 Sleep Timer Function
77 Mute Function
78 CD Ripping
79 Troubleshooting
81 Language Code list
82 Cautions on Handling and Storing Discs
83 Specifications
ENG
Before Reading the User’s Manual
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
d
B
A
G
D
M
Term
Definition
DVD
This involves a function available with DVD or DVD-R/DVD-RW discs that
have been recorded and finalized in Video Mode.
CD
This involves a function available with a data CD (CD-R or CD-RW).
MP3
This involves a function available with CD-R/-RW discs.
JPEG
This involves a function available with CD-R/-RW discs.
DivX
This involves a function available with MPEG4 discs.
(DVD±R/RW, CD-R or CD-RW)
Caution
This involves a case where a function does not operate or settings may be
cancelled.
Note
This involves tips or instructions on the page that help each function
operate.
● getting started
Icon
MM `` In this manual, the instructions marked with "DVD (
)" are applicable to DVDDVD
VIDEO and DVD-R/-RW discs that have been recorded in Video Mode and then
finalized. Where a particular DVD type is mentioned, it is indicated separately.
`` If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be
playable.
About the use of this user’s manual
1) Be sure to be familiar with Safety Instructions before using this product. (See pages 4~5)
2) If a problem occurs, check the Troubleshooting. (See pages 79~80)
Copyright
©2008 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
9
getting started
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie cinema or concert hall.
1
~ 6
DVD players and the discs are coded by region. These regional codes must match in order for the
disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
Playable Discs
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
12 cm
DVD-VIDEO
VIDEO
8 cm
AUDIO-CD
COMPACT
AUDIO
DIGITAL AUDIO
DivX
AUDIO + VIDEO
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
12 cm
74 min.
8 cm
20 min.
12 cm
—
8 cm
—
Do not use the following types of disc!
• CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message appears on the
TV screen.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player
directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD
discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
10
ENG
Disc Type and Characteristics
This product does not support Secure (DRM) Media files.
❖❖ CD-R Discs
❖❖ CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession
disc, the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.
❖❖ CD-R JPEG Discs
• Only files with the "jpg" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters
(. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession
disc, the disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
❖❖ DVD±R/RW, CD-R/RW DivX Discs
• Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device
that plays DivX video.
11
● getting started
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
condition of the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minutes as they may not be played back.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
may not be able to fully play the disc.
description
Front PaneL
FUNC.
FUNC.
MIC 1
MIC 2
12
10
FUNCTION BUTTON
TUNING UP & SKIP (
TUNING DOWN & SKIP ( )
BUTTON
VOLUME CONTROL
10
USB CONNECTOR
STOP (
OPEN/CLOSE BUTTON
11
MIC 1,MIC 2 JACK
DISC TRAY
12
POWER( ) BUTTON
) BUTTON
PLAY/PAUSE (
) BUTTON
DISPLAY
TUNER PRESETTING INDICATOR
SYSTEM STATUS DISPLAY
RADIO FREQUENCY INDICATOR
12
11
) BUTTON
AUX IN 1/ASC IN CONNECTOR
ENG
Rear Panel
1
2
3
4
5
6
7
FM ANT
FM ANT
8
9
10
9
10
TX CARD CONNECTION (WIRELESS)
The TX card enables communication between the main unit and the
wireless receiver amplifier.(The wireless module is not provided for
HT-KZ320/TKZ322/TKZ325 )
HDMI OUT JACK
U se the HDMI cable, connect this HDMI output terminal to the HDMI input
terminal on your TV for the best quality picture.
External Digital Optical Input Jack
Use this to connect external equipment capable of digital output.
VIDEO OUTPUT JACK
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
AUX IN 2 JACKS
Connect to the 2CH Analogue output of an external device (such as a
VCR).
SCART JACK
Connect to a TV with scart input jack.
FM 75Ω COAXIAL JACK
Connect the FM antenna.
COOLING FAN
The fan always revolves when the power is on. Ensure a minimum of
4 inches of clear space on all sides of the fan when installing the
product.
SPEAKER OUTPUT CONNECTORS
Connect the front, centre,rear speakers and subwoofer.
(HT-KZ420/TKZ422/TKZ425 does not have rear speaker connectors on
the main unit,the rear speakers are connected to the Wireless module.)
CLAMP-WIRE
Fasten the speaker wires.
13
remote control
Tour of the Remote Control
LYRIC VIEW
INFO
19
20
1
2
21
3
22
23
4
5
6
7
24
25
RESERVE
26
27
8
28
29
9
30
10
31
11
TEMPO
KEY CONTROL
12
13
14
15
16
17
18
14
b
#
ASC
MALE
FEMALE
FAVORITE
SONG
SEARCH
SONG
32
33
34
35
36
37
38
POWER button
2
DVD RECEIVER button
3
TV button
22
PORt button
4
Number (0~9) buttons
23
RDS Selection buttons
5
CD RIPPING,RESERVE button
24
CANCEL button
6
REPEAT button
25
PAUSE button
7
Tuning Preset/CD Skip buttons
8
VOLUME button
9
MENU button
27
MUTE button
10
Cursor/ENTER button
28
TUNING/CH button
11
P.BASS button
29
SOUND EDIT button
12
KEY CONTROL button
30
RETURN button
13
PL II MODE button
31
EXIT button
DVD
DVD
21
26
DVD
ENG
DVD button
TUNER button
AUX button
1
PLAY button
STOP button
SEARCH buttons
14
MALE FEMALE/ZOOM button
32
TEMPO button
15
ECHO/SLEEP button
33
ASC button
16
TUNER MEMORY, SD(Standard
Definition)/HD(High Definition) button
34
FAVORITE SONG/AUDIO button
17
MIC VOLUME
35
SEARCH SONG, SUBTITLE button
36
DSP/EQ button
37
MIC VOLUME + button
38
SLOW, MO/ST button
button
18
PL II EFFECT button
19
LYRIC VIEW, INFO button
20
OPEN/CLOSE button
Insert Remote Batteries
1. Remove the battery
cover in the direction
of the arrow.
2. Insert two 1.5V AAA batteries, paying
attention to the correct polarities
(+ and –).
3. Replace the battery
cover.
MM Follow these precautions to avoid leaking or cracking cells:
`` Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).
`` Use the correct type of batteries. Batteries that look similar may differ in voltage.
`` Always replace both batteries at the same time.
`` Do not expose the batteries to heat or a flame.
15
remote control
Setting the Remote Control
You can control certain functions of your TV with this remote control.
When operating a TV with the remote control
1. P
ress the TV button to set the remote to TV mode.
2. P
ress the POWER button to turn on the TV.
3. While holding down the POWER button, enter the code corresponding to your brand of TV.
•If there is more than one code listed for your TV in the
table, enter one at a time to determine which code works.
Example : For a Samsung TV
While holding down the POWER button, use the number
buttons to enter 00, 15, 16, 17 or 40.
4. If the TV turns off, the setting is complete.
•You can use the TV POWER, VOLUME, CHANNEL, and
Numeric buttons (0~9).
MM ``The remote control may not work on some brands of TVs. Also, some operations may not
be possible depending on your brand of TV.
`` If you do not set the remote control with the code for your brand of TV, the remote control
will work on a Samsung TV by default.
Operation Range of the Remote Control
The remote control can be used up to approximately
23 feet (7 meters) in a straight line.
It can also be operated at a horizontal angle of up to 30° from the
remote control sensor.
16
FUNC.
MIC 1
MIC 2
No.
No.
Brand
1
Admiral (M.Wards)
56, 57, 58
44
MTC
18
2
A Mark
01, 15
45
NEC
18, 19, 20, 40, 59, 60
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
46
Nikei
03
12, 13, 14
47
Onking
03
Code
Brand
ENG
TV Brand Code List
Code
AOC
01, 18, 40, 48
48
Onwa
03
5
Bell & Howell (M.Wards)
57, 58, 81
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
6
Brocsonic
59, 60
50
Penney
18
7
Candle
18
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
8
Cetronic
03
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
9
Citizen
03, 18, 25
53
Pioneer
63, 66, 80, 91
10
Cinema
97
54
Portland
15, 18, 59
11
Classic
03
55
Proton
40
12
Concerto
18
56
Quasar
06, 66, 67
13
Contec
46
57
Radio Shack
17, 48, 56, 60, 61, 75
14
Coronado
15
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
15
Craig
03, 05, 61, 82, 83, 84
59
Realistic
03, 19
16
Croslex
62
60
Sampo
40
17
Crown
03
61
Samsung
00, 15, 16, 17, 40, 43, 46, 47, 48, 49,
18
Curtis Mates
59, 61, 63
19
CXC
03
62
Sanyo
19, 61, 65
20
Daewoo
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
63
Scott
03, 40, 60, 61
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
64
Sears
15, 18, 19
21
Daytron
40
65
Sharp
15, 57, 64
22
Dynasty
03
66
Signature 2000 (M.Wards)
57, 58
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
67
Sony
50, 51, 52, 53, 55
24
Fisher
19, 65
68
Soundesign
03, 40
25
Funai
03
69
Spectricon
01
26
Futuretech
03
70
SSS
18
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
71
Sylvania
18, 40, 48, 54, 59, 60, 62
28
Hall Mark
40
72
Symphonic
61, 95, 96
29
Hitachi
15, 18, 50, 59, 69
73
Tatung
06
30
Inkel
45
74
Techwood
18
31
JC Penny
56, 59, 67, 86
75
Teknika
03, 15, 18, 25
32
JVC
70
76
TMK
18, 40
33
KTV
59, 61, 87, 88
77
Toshiba
19, 57, 63, 71
● remote control
4
59, 60, 98
34
KEC
03, 15, 40
78
Vidtech
18
35
KMC
15
79
Videch
59, 60, 69
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
37
38
Luxman
18
81
Yamaha
18
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
82
York
40
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
83
Yupiteru
03
40
Marantz
40, 54
84
Zenith
58, 79
41
Matsui
54
85
Zonda
01
42
MGA
18, 40
86
Dongyang
03, 54
43
Mitsubishi/MGA
18, 40, 59, 60, 75
17
connections
This section involves various methods of connecting the Digital Home Cinema to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connecting the Speakers
Position of the DVD Player
Place it on a stand or cabinet shelf .
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.
Example : For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
Front Speakersei
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
Align the front face of the front speakers with the front face of the center speaker or place them slightly in front
of the center speakers.
Center Speaker
f
It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.
Rear Speakers
hj
P
lace these speakers behind your listening position. If there isn't enough room, place these speakers so they face each
other. Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.
nlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not
* Ucome
from them all the time.
Subwoofer
The position of the subwoofer is not so critical. Place it anywhere you like.
18
ENG
Speaker Components
HT-KZ320
(R)
(L)
FRONT
● connections
(L)
(R)
REAR
CENTER
SUBWOOFER
HT-TKZ322
SCREW (Small): 10EA
CENTER
(L) (R)
(L)
FRONT
SCREW (Large): 2EA
(R)
REAR
STAND
SPEAKER CABLE SUBWOOFER
STAND BASE
HT-TKZ325
CENTER
(L) (R)
(L) (R)
FRONT
REAR
STAND
SCREW (Small): 20EA SCREW (Large): 4EA
SPEAKER CABLE SUBWOOFER
STAND BASE
19
connections
Speaker Components
HT-KZ420
(L)
CENTER
(R)
(L)
(R)
FRONT
FRONT
SPEAKER CABLE
REAR
SUBWOOFER
CRADLE STAND/
WALL MOUNT
HT-TKZ422
SCREW (Small): 10EA
(L) (R)
CENTER
(L)
FRONT
SCREW (Large): 2EA
(R)
REAR
STAND
SPEAKER CABLE SUBWOOFER
STAND BASE
HT-TKZ425
CENTER
(AH81-04973A)
20
(L) (R)
(L) (R)
FRONT
REAR
STAND
SCREW (Small): 20EA SCREW (Large): 4EA
SPEAKER CABLE SUBWOOFER
STAND BASE
ENG
Installing the Cradle Stand
HT-KZ420 - Front Speakers
<Front>
1
● connections
1. Insert the stand so that it fits into the hole as described in the figure.
2
2. Turn the stand clockwise to lock it.
(Turning it counter-clockwise will loosen it.)
3. This is the completion of the stand
installation.
3
Front/Rear Tallboy Stand
How to Install the Speaker on the Stand
HT-TKZ322/TKZ422 - Front Speakers
HT-TKZ325/TKZ425 - Front/Rear Speakers
1
1. T
urn the STAND upside-down and connect
it to the STAND BASE.
2. Insert five small SCREWS into the five holes
marked with arrows using a screwdriver as
shown in the illustration.
3. Connect upper SPEAKER to the assembled
STAND.
2
STAND BASE
STAND
3
4
4. Insert another large SCREW into the hole on
the rear of the speaker marked with arrow
using a screwdriver.
21
connections
Front Speakers Wall Mount Installation
Installing the Wall Mount
<Front>
HT-KZ420 - Front Speakers
1. Insert the wall mount so that it fi ts into the
rear hole of the speaker as in the figure.
2. Turn the wall mount counter clockwise to
fix it. (This is in the reverse direction of the
cradle stand installation.)
3. Use the wall mount hole (bracket) to install
the speaker on the wall.
1
2
3
MM `` Make sure the speaker is hung properly to avoid accidents or injury.
22
ENG
Connecting the Front, Center,Rear and Subwoofer Speakers
1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (–) and the red
wire into the red terminal(+), and then release the tab.
HT-KZ320
HT-TKZ322
Front Speaker (R)
Front Speaker (R)
Center Speaker
Front Speaker (L)
Front Speaker (L)
Center Speaker
Speaker
Stand
ipod
ipod
AUX IN 2
Rear Speaker (R)
Rear Speaker (L)
Rear Speaker (R)
Subwoofer
Rear Speaker (L)
Subwoofer
HT-TKZ325
Front Speaker (R)
Center Speaker
Front Speaker (L)
ipod
AUX IN 2
Rear Speaker (R)
Rear Speaker (L)
Subwoofer
23
● connections
3. Connect the other end of the speaker cable to the
Black Red
connecting jacks on the back of the Home Theater and
Wireless Receiving Module.
• Make sure the colors of the connecting plugs match the connecting jacks.
connections
Connecting the Front, Rear, Center and Subwoofer Speakers
HT-KZ420
HT-TKZ422/TKZ425
Front Speaker (R)
Front Speaker (R) Center Speaker Front Speaker (L)
Front Speaker (L)
Center Speaker
Speaker
Stand
FM ANT
FM ANT
Subwoofer
Subwoofer
HT-KZ420/TKZ422
HT-TKZ425
Rear Speaker (L)
Rear Speaker (L)
Rear Speaker (R)
Rear Speaker (R)
WIRELESS RECEIVER MODULE
WIRELESS RECEIVER MODULE
`` Do not let children play with or near the speakers. They could get hurt if the speaker falls.
`` When connecting the speaker wires to the speakers, make sure that the polarity (+/­–) is correct.
`` Keep the subwoofer speaker out of the reach of children so as to prevent them from inserting their
hands or alien substances into the duct (hole) of the subwoofer speaker.
`` Do not hang the subwoofer on the wall through the duct (hole).
MM `` If you place a speaker near your TV set, screen color may be distorted because of the magnetic field
generated by the speaker. If this occurs, place the speaker away from your TV set.
24
ENG
Connecting the Wireless Receiving Amplifier
Wireless Receiving Module (SWA-4100)
● connections
Center Speaker
Front Speaker (R)
Front Speaker (L)
RESET
ipod
Rear Speaker (L)
Rear Speaker (R)
WIRELESS RECEIVER MODULE
Subwoofer
1. C
onnect the front, Center and Subwoofer speakers to the
DVD Player, referring to page 23~24.
2. With the DVD Player turned off, insert the TX card into the
TX Card Connection (WIRELESS) on the back of the main unit.
• Hold the TX card so that the slanted side faces to the left
and insert the card into the port.
• The TX card enables communication between the main
unit and the wireless receiver.
3. Connect the left and right rear speakers to the wireless
receiving module.
4. Plug the power cord of the wireless receiving module
in the wall outlet
MM ``
AUX IN 2
Slanted side face left
TX card
HT-KZ420/TKZ422/TKZ425 doesn’t have rear speaker connectors on the main unit.The rear
speakers are connected to the Wireless module.
`` The rear speakers for HT-KZ320/TKZ322/TKZ325 can also be connected to the Wireless module
(SWA-4100) if you purchase it separately.
`` The HT-KZ420/TKZ422/TKZ425 only can connect with wireless receiving module (SWA-4100).
25
connections
MM `` Place the wireless receiver module at the rear of the listening position. If the wireless
receiver module is too close to the main unit, some sound interruption may be heard due
to interference.
`` If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment,
or any other device that uses the same frequency (2.4GHz) near the system, some sound
interruption may be heard due to interference.
`` The transmission distance from the main unit to the wireless receiving module is about 33
feet (10m), but may vary depending on your operating environment. If a steel-concrete wall
or metallic wall is between the main unit and the wireless receiver module, the system may
not operate at all, because the radio wave cannot penetrate metal.
`` This product is also compatible with the wireless receiver module SWA-4000.
`` If the main unit doesn't make wireless connection, the system needs ID Setting between
main unit and wireless receiver module.With the main unit turned off, press remote
control's number buttons "0""1""3""5" and main unit will turn on. With the wireless
receiver module turned on, press "ID SET" button on the back of the wireless module for 5
seconds.
`` Do not insert any other card except the provided TX card.
If a different TX card is used, the product may be damaged or the card may not be
removed easily.
`` Do not insert the TX card upside down or in the reverse direction.
`` Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned
on may cause a problem.
`` If the TX Card is inserted and wireless receiving module setting is complete, sound is not
output from the Rear Speaker connectors on the main unit.
`` The wireless receiving antenna is built into the wireless receiver module. Keep the unit
away from water and moisture.
`` For optimal listening performance, make sure that the area around the wireless receiver
module location is clear of any obstructions.
`` If no sound is heard from the wireless rear speakers, switch the mode to DVD 5.1
channel or Dolby ProLogic II .
`` In 2-CH mode, no sound will be heard from the wireless rear speakers.
26
ENG
Connecting the Video Out to your TV
Choose one of the three methods for connecting to a TV.
FM ANT
EXT(AV)
EXT(AV)
● connections
AUX IN 2
METHOD2
(supplied)
METHOD1
METHOD3
METHOD 1 : HDMI
Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the DVD Player to the
HDMI IN jack on your TV.HDMI enables you to view movies in High Definition on your HDTV.
METHOD 2 : Composite Video
Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the
VIDEO IN jack on your TV.
METHOD 3 : Scart
If your television is equipped with a SCART input, connect a SCART (not supplied) from the AV OUT jack
on the back panel of the main unit to the SCART IN jack on your television.
VIDEO SELECT Function
Press and hold the Number 0 (VIDEO SEL.) button on the remote control for over 5 seconds.
• <COMPOSITE> or <RGB> will appear in the display. At this time, press the Number 0 (VIDEO SEL.)
button shortly to select between <COMPOSITE> and <RGB>.
• If Scart (RGB Input) is equipped for your TV, press the Number 0 (VIDEO SEL.) button to select RGB
mode.You can get a better picture quality by using Scart setting.
• If Scart (RGB Input) is not equipped for your TV, press the Number 0 (VIDEO SEL.) button to select
COMPOSITE mode.
MM `` Resolutions available for the HDMI output are 576p (480p), 720p,1080i/1080p.See page 29 for
resolution setting.
`` This product operates in Interlace scan mode 576i/480i for component output.
`` If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home
Cinema using the TV's remote control. This is only available with SAMSUNG TV's that support
Anynet+(HDMI-CEC).
`` If your TV has the
logo, then it supports the Anynet+ function.
`` When HDMI is on ,please don't pull HDMI cable out.
27
connections
HDMI Auto Detection Function
The player's video output will automatically change to HDMI mode when connecting an HDMI cable
while power is on.
• HDMI (High Definition Multimedia Interface)
HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
Using HDMI, the DVD Home Cinema transmits a digital video and audio signal and displays a vivid
picture on a TV having an HDMI input jack.
• HDMI connection description
HDMI connector - Supports video and digital audio data.
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise
appears on the screen.
• Why does Samsung use HDMI?
Analogueue TV's require an Analogueue video/audio signal. However, when playing a DVD, the data
transmitted to a TV is digital. Therefore either a digital-to-Analogueue converter (in the DVD Home
Cinema) or an Analogueue-to-digital converter (in the TV) is required. During this conversion, the
picture quality is degraded due to noise and signal loss. HDMI technology is superior because it
requires no D/A conversion and is a pure digital signal from the player to your TV.
• What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted
via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc)
and a display device (TV, projector. etc). Content is encrypted at the source device to prevent
unauthorized copies from being made.
• What is Anynet+?
Anynet+ is a convenient function that offers linked operation of this unit through Samsung TV's with
the Anynet+ feature.
- If your Samsung TV has an
logo, then it supports the Anynet+ function.
-If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on
automatically and switch to HDMI mode.
- If you turn on the player and press the Play button with a disc already inserted, the TV will
immediately turn on and switch to HDMI mode.
28
ENG
HDMI FUNCTION
Resolution Selection
This function allows the user to select the screen resolution for
HDMI output.
MM `` If the TV does not support the configured resolution,
you will not be able to see the picture properly.
`` When a HDMI cable is connected, composite(Video)
and component video signals are not output.
`` See your TV owner's manual for more information on
how to select the TV's Video Input source.
● connections
In Stop mode, press and hold the SD/HD (Standard
Definition/High Definition) button on the remote control until
the resolution changes.
• Resolutions available for the HDMI output are
576p(480p), 720p, 1080i/1080p.
• SD(Standard Definition) resolution is 576p(480p) and HD
(High Definition) resolution is 720p, 1080i/1080p.
Why use HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD
video signal digitally without
the process of converting to
Analogueue. You will get sharper
digital pictures when using an
HDMI connection.
BD Wise (Samsung products only)
You can select to use the BD Wise menu only if the Samsung home theater is connected to a Samsung
TV that supports BD Wise using an HDMI cable.
• What is BD Wise?
BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them.
This feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an
HDMI cable.
• To use BD Wise
1.Use an HDMI cable to connect the Samsung home theater to a BD Wise-compliant Samsung TV.
2.Set each BD Wise menu of the Samsung home theater and the Samsung TV to On, respectively.
- This will optimize the picture quality according to the content (In the disc, DVD, etc) that you want to play.
- This will also optimize the picture quality between the home theater and your BD Wise-compliant Samsung TV.
MM `` If you want to change the resolution in BD Wise mode, you must set BD mode to Off in advance.
`` If you set the BD Wise mode to off, the resolution of the connected TV will be adjusted to its
maximum resolution automatically.
`` BD Wise will be disabled if the player is connected to a device that does not support BD Wise.
LANGUAGE
BD WISE
: ON
HDMI VIDEO OUT:
:
WIDE/HDTV
PARENTAL
:
OFF
:
CHANGE
PASSWORD
MOVE
RGB
TV DISPLAY
ENTER
RETURN
EXIT
29
connections
HDMI FUNCTION
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung
Devices with your Samsung TV's remote control. Anynet + can be
used by connecting this Home Cinema to a SAMSUNG TV using a
HDMI Cable. This is only available with SAMSUNG TVs that
support Anynet+.
1. Connect the main unit of the Home Cinema to a Samsung
TV with an HDMI cable. (See page 27)
2. Set the Anynet+ function on your TV.
(See the TV instruction manual for more information.)
• You can operate the Home Cinema by using the TV
,
,
remote control. (Available TV buttons : ,
, and , buttons, ~
button)
With Anynet+
THEATER
View TV
You can operate this unit, power
on your TV, or watch a movie by
pressing the Play button on your
Samsung TV's remote control.
THEATER M
Con
Setu
,
MOVE
MOVE
ENTER
ENTER
EXIT
EXIT
Move
Enter
Exit
If you select the TV
Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+
button on your TV remote control.
• Receiver : On : You can listen to audio through the Home Cinema.
• Receiver : Off : You can listen to audio through the TV.
THEATER
View TV
THEATER M
If you select the THEATER
MOVE ENTER
EXIT
Select THEATER to connect and set the option of each item
below.
• View TV : If anynet+(HDMI CEC) is set to on and you select View TV,
the home cinema will automatically switch to digital in mode.
• Theater Menu : You can access and control the Home cinema menu.
• Theater Operation : The Home Cinema disc playback information will be displayed.
You can control the Disc operation of the Home Cinema such as title, chapter and subtitle
change.
• Receiver : On : You can listen to audio through the Home Cinema.
• Receiver : Off : You can listen to audio through the TV.
Move
Enter
MM `` In case that you choose 'View TV', if you want to listen to TV sound through Digital In, you
have to connect the optical cable between the TV and the Home Theater.
30
Con
Setu
Exit
ENG
Connecting Audio from External Components
AUX1 : Connecting an External Component/MP3 player
Components such as an MP3 Player.
● connections
FUNC.
MIC 1
MIC 2
Audio Cable
(not supplied)
Audio OUT
1. Connect AUX IN 1 (Audio) on the Home Cinema to the Audio Out of the external component/ MP3 player.
2. Press the AUX button on the remote control to select AUX1 input.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ B/T ➞ FM.
31
connections
AUX2 : Rear Panel
OPTICAL : Rear Panel
FM ANT
FM ANT
EXT(AV)
Optical Cable
(not supplied)
Audio Cable (not supplied)
If the external Analogue
component has only one Audio
Out, connect either left or right.
External Digital Component
External Analogue
Component
AUX2 : Connecting an External Analogue Component
Analogue signal components such as a VCR.
1. Connect AUX IN 2 (Audio) on the Home Cinema to the Audio Out of the external Analogue component.
•Be sure to match connector colours.
2. P
ress the AUX button on the remote control to select AUX 2 input.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ B/T ➞ FM.
MM `` You can connect the Video Output jack of your VCR to the TV, and connect the Audio
Output jacks of the VCR to this product.
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1. Connect the Digital Input (OPTICAL) on the Home Cinema to the Digital Output of the external digital component.
2. Press the AUX button on the remote control to select DIGITAL IN.
• You can also use the FUNCTION button on the main unit to select D-IN.
The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB ➞ B/T ➞ FM.
32
ENG
Connecting the FM Antenna
1. Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.
FM ANT
EXT(AV)
FM ANT
FM Antenna
(supplied)
MM ``
This unit does not receive AM broadcasts.
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise
and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)
FM ANT
EXT(AV)
33
before using your home cinema
The DVD Home Cinema's remote can be used to control Samsung TV's.
1. Plug the main unit's power cord into the AC power supply.
FUNC.
MIC 1
MIC 2
2. Press the DVD RECEIVER button to operate the DVD Home
Cinema.
3. Press the FUNCTION button on the main unit or DVD button
on the remote to enable DVD/CD playback.
4. Press the TV button to set the remote to TV mode.
5. Press the POWER button to turn on your Samsung TV
with this remote.
6. Press the CURSOR button to select VIDEO mode
on your TV.
34
VIDEO
ENG
Disc Playback
dB
2. Load a disc.
• Place a disc gently into the tray with the disc’s label
facing up.
● playback
1. Press the OPEN/CLOSE ( ) button to open the disc tray.
FUNC.
3. Close the compartment by pressing the OPEN/CLOSE ( )
button again.
• Playback starts automatically.
To stop playback, press the STOP ( ) button during playback.
• If pressed once, PRESS PLAY is displayed and the stop position will be stored in memory. If the PLAY ( ) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
• If pressed twice, STOP is displayed, and if the PLAY ( ) button is pressed, playback starts from the
beginning.
To temporarily pause playback, press the PAUSE (
• To resume playback, press the PLAY ( ) button.
) button during playback.
MM `` The initial screen may appear different, depending on the content of the disc.
`` Pirated discs will not run in this player because it violates the CSS (Content Scrambling System :
a copy protection system) recommendations.
35
playback
MP3/WMA-CD Playback
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
A
1. Place the MP3/WMA disc on the disc tray.
• The MP3/WMA menu screen will appear and
playback will start.
• The appearance of the menu depends on the
MP3/WMA disc.
• WMA-DRM files cannot be played.
2. In Stop mode, use the Cursor ,,, button
to select the album, and then press the ENTER button.
• Use the Cursor , button to select the track.
3. To change the album, use the Cursor ,,,
button to select another album in Stop mode, and then press
the ENTER button.
4. Press the STOP (@) button to stop playback.
MM `` Depending on the recording mode, some MP3/WMA-CDs may not play.
`` Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded
on the disc.
To play a file icon in the screen,
• Press the Cursor ,,, button when it is in Stop mode and select a desired icon from the
top part of the menu.
Music File Icon : To play music files only, select the
Icon.
Image File Icon : To view image files only, select the
Icon.
Movie File Icon : To view movie files only, select the
Icon.
All File Icon : To view all files select the
36
Icon.
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back
with this Home Cinema.
ENG
JPEG File Playback
G
Slide Mode
Place the JPEG disc on the disc tray.
● playback
• Playback starts automatically.
Each image is displayed for 5 seconds and then the next image is displayed.
Press the [,] button to skip to the next slide.
• Each time the button is pressed, the slide moves backward or forward.
G
Rotate/Flip Function
Press the Cursor ,,, button during playback.
button: Flip Vertically
button: Rotate 90°
Counterclock wise
button: Rotate 90°
Clockwise
Original Image
button: Flip Horizontally
MM `` The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for
standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
37
playback
DivX Playback
The functions on this page apply to DivX disc playback.
D
Skip Forward/Back
During playback, press the [,] button.
• Goes to the next file whenever you press the ]
button,
if there are 2 files or more on the disc.
• Goes to the previous file whenever you press the
[ button, if there are 2 files or more on the disc.
Forward/Reverse Search
D
To play back the disc at a faster speed, press the ( or ) button during playback.
• Each time you press either button, the playback speed will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
5 Minute Skip function
D
During playback, press the Cursor , button.
• Playback skips 5 minutes forward whenever you
press the Cursor  button.
• Playback skips 5 minutes back whenever you press
the Cursor  button.
Audio Display
D
Press the AUDIO button.
• If there are multiple audio languages on a disc, you
can toggle between them.
• Each time you press the button, your selection will
toggle between AUDIO (1/N, 2/N ...) and .
MM ``
is displayed when there is one supported language in the disc.
Subtitle Display
Press the SUBTITLE button.
• Each time you press the button, your selection will
toggle between SUBTITLE (1/N, 2/N ...) and
SUBTITLE OFF.
• If the disc has only one subtitle file, it will be played
automatically.
• See number 2 (Caption Function) on the next page for
more details concerning Subtitle usage with DivX discs.
38
D
If the disc has more than one subtitle file, the default
subtitle may not match the movie and you will have to
select your subtitle language as follows:
ENG
D
If the Disc has more than One Subtitle File
1. In Stop mode, press the Cursor , button, select the
desired subtitle ( ) from the TV screen, and then
press the ENTER button.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to
provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at
near DVD-quality video and audio.
1. Supported Formats
This
product only supports the following media formats.If both video and audio formats are not
supported, you may experience problems such as broken images or no sound.
Supported Video Formats
Format
AVI
WMV
Supported Versions
DivX3.11~DivX5.1, XviD
V1/V2/V3/V7
Supported Audio Formats
Format
MP3
WMA
AC3
DTS
Bit Rate
80~384kbps
56~128kbps
128~384kbps
1.5Mbps
44.1/48khz
44.1khz
Sampling Frequency
44.1khz
• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio : Although the default DivX resolution is 640x480 pixels, this product supports up to
800x600 pixels. TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may
experience shaking on the screen during playback.
2. C
aption Function
• You must have some experience with video extraction and editing in order to use this feature
properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
media file (*.avi) within the same folder.
Example. RootSamsung_007CD1.avi
Samsung_007CD1.smi
• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean
and Chinese) for the file name.
39
● playback
2. When you select the desired DivX file from the TV
screen, the movie will be played normally.
playback
Using the Playback Function
Displaying Disc Information
dBAGD
You can view disc playback information on the TV screen.
Press the LYRIC VIEW INFO button.
MM `` Depending on the disc, the disc information display may appear different.
`` Depending on the disc, you can also select
DTS, DOLBY DIGITAL, or PRO LOGIC.
appears on the TV screen!
If this symbol appears on the TV screen when pressing
a button, that operation is not possible with the disc
currently being played.
Forward/Reverse Search
dBAD
Press the (,) button.
• Each time the button is pressed during playback, the playback speed changes as follows:
( 2X ➞ ( 4X ➞ ( 8X ➞ ( 32X ➞  PLAY
) 2X ➞ ) 4X ➞ ) 8X ➞ ) 32X ➞  PLAY
MM `` During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x,
8x, and 32x speeds.
40
Press the SLOW button.
• Each time the button is pressed during playback, the playback speed changes as follows:
ENG
dD
Slow Playback
➞*1/4 ➞*1/8 ➞&1/2 ➞&1/4 ➞&1/8 ➞
d *1/2
PLAY
● playback
D *1/2 ➞*1/4 ➞*1/8 ➞  PLAY
MM `` No sound is heard during slow playback.
`` Reverse slow playback does not work with DivX.
Skipping Scenes/Songs
dA
Press the [,] button.
• Each time the button is pressed during playback, the
previous or next chapter, track or directory (file) will be played.
• You cannot skip chapters consecutively.
Repeat Playback
dBAGD
Repeat playback allows you to repeatedly play a chapter, title,
track (song), or directory (MP3 file).
Press the REPEAT button.
• When karaoke disc is played,repeat function is not available.
• Each time the button is pressed during playback, the repeat
playback modechanges as follows:
DVD-VIDEO
REPEAT : CHAPTER ➞ REPEAT : TITLE ➞ REPEAT : OFF
B REPEAT : TRACK ➞ REPEAT : DISC ➞ REPEAT : OFF
AGD REPEAT : RANDOM ➞ REPEAT : TRACK ➞ REPEAT : DIR ➞ REPEAT : DISC ➞
REPEAT : OFF
41
playback
Using the Playback Function
Repeat Playback Options
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
RANDOM : P
lays tracks in random order. (A track that has already been played may be played again.)
TRACK : Repeatedly plays the selected track.
DIR : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
To Select a Repeat Playback Mode in the Disc Information Screen
dB
1. Press the LYRIC VIEW INFO button twice.
2. Press the Cursor  button to move to REPEAT
PLAYBACK ( ) display.
3. Press the Cursor  button to select the desired Repeat
Playback mode.
• To select another album and track, repeat Steps 2
and 3 above.
4. Press the ENTER button.
d OFF ➞ A- ➞ CHAP ➞ TITLE ➞ OFF
B OFF ➞ A- ➞ TRACK ➞ DISC ➞ OFF
MM `` For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
d
A-B Repeat Playback
You can repeatedly play back a designated section of a DVD or CD.
1. Press the LYRIC VIEW INFO button twice.
2. Press the Cursor  button to move toA -REPEAT
PLAYBACK ( ) display.
3. Press the Cursor , button to select A- and then press
the ENTER button.
• When the ENTER button is pressed, the selected
A -?
position
will be stored in memory.
REPEAT : AÐ
4. Press the ENTER button at the end of the desired
segment.
• The specified segment will be played repeatedly.
A-B
dTo return to normal playback, press the Cursor , button to select
OFF.
MM `` The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
A TO B REPEAT ON
42
This function allows you to view the same scene in different angles.
ENG
d
Angle Function
1. Press the LYRIC VIEW INFO button.
2. Press the Cursor  button to move to ANGLE (
display.
)
1/3 ➞
2/3 ➞
3/3 ➞
● playback
3. Press the Cursor , button or numeric buttons to
select the desired angle.
• Each time the button is pressed, the angle changes as
follows:
1/3
MM `` The Angle function works only with discs on which multiple angles have been recorded.
d
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the displayed image.
1. Press the ZOOM button.
2. Press the Cursor ,,, button to move to the area
you want to enlarge.
3. P
ress the ENTER button.
• Each time the button is pressed, the zoom level
changes as follows:
ZOOM X 1.5 ➞ZOOM X 2 ➞ZOOM X 3
➞ZOOM OFF
SELECT ZOOM POSITION
ENTER SELECT
43
playback
d
Audio Language Selection Function
1. Press the LYRIC VIEW INFO button twice.
2. Press the Cursor , button or numeric buttons to
select the desired audio language.
• Depending on the number of languages on a DVD
disc, a different audio language (ENGLISH,
SPANISH, FRENCH, etc.) is selected each time the
button is pressed.
EN 1/3 ➞ SP 2/3 ➞ FR 3/3 ➞ EN 1/3
Subtitle Language Selection Function
d
1. Press the LYRIC VIEW INFO button twice.
2. Press the Cursor  button to move to SUBTITLE (
display.
)
3. Press the Cursor  button or numeric buttons to select
the desired subtitle.
EN 01/03 ➞ SP 02/03 ➞ FR 03/03 ➞ OFF/03 ➞
EN 01/03
MM `` To operate this function, you can also press the AUDIO or SUBTITLE buttons on the
remote control.
`` Depending on the disc, the Subtitle and Audio Language functions may not be available.
44
ENG
dBAG
Moving Directly to a Scene/Song
dB
1. Press the LYRIC VIEW INFO button.
● playback
2. Press the Cursor , button or numeric buttons to
select the desired title/track ( ) and then press the
ENTER button.
3. Press the Cursor , button to move to the Chapter
( ) display.
4. Press the Cursor , button or numeric buttons to
select the desired chapter and then press the ENTER
button.
5. Press the Cursor , button to move to time (
display.
)
6. Press the numeric buttons to select the desired time
and then press the ENTER button.
Moving Directly to a Scene/Song
dBAG
AG
Press the numeric buttons.
• The selected file will be played.
• When playing an MP3 or JPEG disc, you cannot use the
Cursor , button to move to a folder.
To move a folder, press the STOP (@) and then press the
Cursor , button.
MM `` You can press the [,] button on the remote control to move directly to the desired title,
chapter, or track.
`` Depending on the disc, you may not be able to move to the selected title or time.
45
playback
``
Using the Playback Function
d
Using the Disc Menu
You can use the menus for the audio language, subtitle
language, profile, etc.
DVD menu contents differ from disc to disc.
1. In Stop mode, press the MENU button.
2. Press the Cursor , button to move to Disc Menu and
then press the ENTER button.
• When you select Disc Menu and it is not supported by
the disc, the "This menu is not supported" message
appears on the screen.
3. Press the Cursor ,,, button to select the desired
item.
4. Press the ENTER button.
dPress the EXIT button to exit the setup screen.
MOVE
ENTER
EXIT
MM `` The disc menu display may be different depending on the disc.
d
Using the Title Menu
For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the
availability of this feature may vary.
1. In Stop mode, press the MENU button.
2. Press the Cursor , button to move to Title Menu.
3. Press the ENTER button.
• The title menu appears.
dPress the EXIT button to exit the setup screen.
MOVE
ENTER
MM `` The Title menu display may be different depending on the disc.
46
EXIT
ENG
USING BLUETOOTH
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
What is Bluetooth?
To connect the Home Cinema System to a bluetooth device
Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function.
1. Press the FUNCTION button on the front panel of the home cinema system repeatedly until the
"B/T" appears.
• The mode switches as follows :
DVD/CD ➞ D.IN ➞ AUX 1 ➞ AUX 2 ➞ USB
➞ B/T ➞ FM.
• You will see “WAIT” for 2 seconds and then “READY”
on the front display of the Home Theater System.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (refer to Bluetooth device's
user manual)
3. Select a Stereo headset menu on the Bluetooth device.
• You will see a list of scanned devices.
4. Select "Samsung Home Theater" from the searched
list.
Connect
• When the Home Cinema System is connected to the
Bluetooth device, the Home Cinema System will display
"Connect" on the front display, followed by the name of
the connected Bluetooth device.
Bluetooth
• The Home Cinema System connection is complete.
Device
5. Play music on the connected device.
• You can listen to the music playing on the connected Bluetooth device over the home cinema system.
FUNC.
MIC 1
MIC 2
MM `` You may be required to enter a PIN code(password) when connecting the Bluetooth
device to the home cinema system. If the PIN code input window appears, enter <0000>.
`` The Home Cinema System may control play related function only when connected device
supports the function.
`` If connected device dose not support some play related function, the Home Cinema
System can't control the device.
`` The Home Cinema System only supports Middle Quality SBC data(up to
[email protected]), and does not support High Quality SBC data([email protected]).
47
● playback
Bluetooth is a new technology that enables Bluetooth-compliant devices to easily interconnect
with each other using a short wireless connection.
• A Bluetooth device may cause a noise or malfunction, depending on usage.
• When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device
or the Home Cinema System.
• Electrical variation from electrical jamming by the wall, corner or office partitioning.
• Electrical interference from the same frequency-band devices including medical equipment,
microwave oven and wireless LAN.
• Pair the Home Cinema System with the Bluetooth device while maintaining a close distance.
• The further the distance is between Home Cinema System and Bluetooth device, the worse the
quality. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
• The Home Cinema System has an effective reception range of up to 10 m in all directions if there are
no obstacles. The connection will be automatically cut off if the distance is out of this range. Even
within this range, the sound quality may be deteriorated by obstacles such as walls or doors.
playback
To disconnect the Bluetooth device from the Home Cinema System
You can disconnect the Home Cinema System from the Bluetooth
device (refer to Bluetooth devices’ user manual).
• The Home Cinema System will be disconnected.
• When the Home Cinema System is disconnected from the
Bluetooth device, the Home Cinema System will display
"DISCONNECT" on the front display.
FUNC.
MIC 1
MIC 2
FUNC.
To disconnect the Home Cinema System from the Bluetooth device
Press the FUNCTION button on the front panel of the home cinema system to switch from “BT AUDIO”
to another mode.
• The bluetooth device connected will wait a certain time for response from the home cinema system
before terminating the connection. (Time to disconnection may differ, depending on the bluetooth
device)
• The currently connected device will be disconnected.
MM `` In Bluetooth connection mode, the Bluetooth connection will be lost if the distance
between the Home Cinema System and the Bluetooth device exceeds 10 m.
If the distance is returned to the effective range or you restart the Bluetooth device, the
Bluetooth connection can be restored.
`` With some bluetooth devices, some functions may not work properly.
`` The DOLBY PRO LOGIC ll modes do not work in Bluetooth connection mode.
48
ENG
Playing Media Files using the USB Host Feature
You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital
camera in high quality video with 5.1 channel Home Cinema sound by connecting the storage device to the USB port of
the Home Cinema.
2. Press the FUNCTION button on the DVD Player or the
PORT button on the remote control to select the USB
mode.
• USB appears on the display screen and then
disappears.
• The USB MENU screen appears on the TV screen
and the saved file is played.
FUNC.
MIC 1
MIC 2
3. To stop playback, press the STOP (@) button.
Safe PORT Removal
To prevent damage to the memory stored in the USB
device,
perform safe removal before disconnecting the USB cable.
• Press the STOP (@) button twice in a row.
The display will show REMOVE USB.
• Remove the USB cable.
MM `` To listen to your music files with 5.1 channel home cinema sound, you must set the Dolby
Pro Logic II mode to Matrix. (See page 59)
`` In USB mode, you are not able to change the resolution or use the SETUP menu if there is no
USB device connected to the USB port.
Skip Forward/Back
During playback, press the [,] button.
• When there is more than one file and you press the ]
button, the next file is selected.
• When there is more than one file and you press the [
button, the previous file is selected.
Fast playback
During playback, press the (,) button.
• Each time you press either button, the playback speed
will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
49
● playback
1. Connect the USB device to the USB port on the front
of the unit.
playback
USB Host Specifications USB Host Specification
Non-compliance
Operational Limitations
• Supports USB 1.1 or USB 2.0 compliant devices.
• Supports devices connected using the USB A type cable.
• Supports UMS (USB Mass Storage Device) V1.0 compliant devices.
• Supports the device of which the connected drive is formatted in the FAT(FAT,
FAT16, FAT32) file system.
• Does not support a device that requires installing a separate driver on the PC (Windows).
• Does not support connection to a USB hub.
• A USB device that is connected using the USB extension cable may not be recognized.
• A USB device requiring a separate power source needs to be connected to the
player with the separate power connection.
• If the connected device has multiple drives (or partitions) installed, only one drive
(or partition) can be connected.
• A device supporting USB 1.1 alone may cause a difference in the picture quality,
depending on the device.
USB Devices that can be used with the Home Theater
1. USB Storage Device
2. MP3 Player
3. Digital Camera
4. Removable HDD
• Removable HDDs equipped with less than 160 Gbytes are supported. Removable HDDs
equipped with 160Gbytes or more may not be recognized, depending on the device.
• If the connected device does not work due to insufficient power supply, you can use a separate
power cable to supply power so that it can work properly. The connector of the USB cable may
differ, depending on the manufacturer of the USB device.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader.
• Depending on the manufacturer. the USB card reader may not be supported.
• If you install multiple memory devices into a multi card reader, you may experience problems.
Compliant File Formats
Format
File name
File
extension
Bit rate
Version
Pixel
Sampling
Frequency
Still Picture
JPG
JPG .JPEG
–
–
640x480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
WMA
.WMA
56~128kbps
V8
–
44.1kHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720x480
44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~
DivX5.1, XviD
720x480
44.1KHz~48KHz
Music
Movie
• CBI (Control/Bulk/Interrupt) is not supported.
• Digital Cameras that use PTP protocol or require additional program installation when connected to a
PC are not supported.
• A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file
system is supported.)
• Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
50
ENG
system setup
For your convenience, you can set this DVD Home Cinema's features for the best use in your home
environment.
Setting the Language
OSD(On-Screen Display) language is set to English by default.
● system setup
LANGUAGE
1. In Stop mode, press the MENU button.
BD WISE
2. Press the Cursor % button to move to Setup and then press the
ENTER button.
3. Select Language and then press the ENTER button.
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
4. Press the Cursor $,% button to select OSD Language and then
press the ENTER button.
5. Press the Cursor $,% button to select the desired language
and then press the ENTER button.
• Once the setup is complete, the OSD will be English if
English has been selected as language.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
• OSD LANGUAGE : S
electing the OSD Language
• AUDIO : Selecting the Audio Language (recorded on the disc)
• SUBTITLE
: Selecting the Subtitle Language (recorded on the disc)
• DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
a If the language you selected is not recorded on the disc, the menu
language will not change even if you set it to your desired language.
OTHERS : To select another language, select OTHERS and
enter the language code of your country (see page 81).
AUDIO, SUBTITLE and DISC MENU languages can be
selected.
Setting the HDMI VIDEO OUT MODE
Selects the type of output from the HDMI/OUT jack.
• YCbCr : Normally, select this when connecting to an HDMI device.
• RGB : Gives brighter colours and deeper blacks. Select this if colours are weak.
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Setup and then press the
ENTER button.
3. Press the Cursor % button to move to HDMI VIDEO OUT and then
press the ENTER button.
4. Press the Cursor $,% button to select the desired item
and then press the ENTER button.
• Once the setup is complete, you will be taken to the
previous screen.
LANGUAGE
BD WISE
: ON
HDMI VIDEO OUT:
:
WIDE/HDTV
PARENTAL
:
OFF
:
CHANGE
PASSWORD
MOVE
RGB
TV DISPLAY
ENTER
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
51
system setup
Setting THE TV Screen Type
You can select the TV's aspect ratio, depending on your TV type (Widescreen or conventional 4:3).
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Setup and then press the
ENTER button.
LANGUAGE
BD WISE
3. Press the Cursor % button to move to TV DISPLAY and then
press the ENTER button.
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
PASSWORD
:
CHANGE
4. Press the Cursor $,% button to select the desired item
and then press the ENTER button.
• Once the setup is complete, you will be taken to the
previous screen.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MOVE
SELECT
RETURN
EXIT
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TV's is 4:3, while that of widescreen and high
definition TV's is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
For a standard TV, select either 4:3PS or 4:3LB option according to personal preference.
Select WIDE/HDTV if you have a widescreen TV.
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a
conventional TV.
• You can see the central portion of the screen only (with the sides of the
16:9 picture cut off).
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a
conventional TV.
• Black bars will appear at the top and bottom of the screen.
WIDE/HDTV
Select this to view a 16:9 picture in the full-screen mode on your
widescreen TV.
• You can enjoy the widescreen aspect.
MM `` If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
`` Since DVD discs are recorded in various image formats, they will look different depending
on the software, the type of TV, and the TV aspect ratio setting.
`` When using HDMI, the screen is automatically converted to Wide mode.
52
ENG
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1. In Stop mode, press the MENU button.
3. Press the Cursor % button to move to PARENTAL and then
press the ENTER button.
4. Press the Cursor $,% button to select the desired rating level and
then press the ENTER button.
• If you have selected Level 6, you cannot view DVDs with Level 7
or higher.
• The higher the level, the closer the content is to violent or adult
material.
5. E
nter the password and then press the ENTER button.
• The password is set to "7890" by default.
• Once the setup is complete, you will be taken to the previous
screen.
● system setup
2. Press the Cursor % button to move to Setup and then press the
ENTER button.
LANGUAGE
BD WISE
: ON
HDMI VIDEO OUT:
RGB
TV DISPLAY
:
WIDE/HDTV
PARENTAL
:
OFF
:
CHANGE
PASSWORD
MOVE
ENTER
RETURN
EXIT
MOVE
SELECT
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MM `` This function works only if a DVD disc contains the rating level information.
Setting the Password
You can set the password for the Parental (rating level) setting.
1. In Stop mode, press the MENU button.
LANGUAGE
2. Press the Cursor % button to move to Setup and then press
the ENTER button.
3. Press the Cursor % button to move to PASSWORD and then
press the ENTER button.
BD WISE
: ON
HDMI VIDEO OUT:
:
WIDE/HDTV
PARENTAL
:
OFF
:
CHANGE
PASSWORD
MOVE
RGB
TV DISPLAY
ENTER
RETURN
EXIT
4. Press the ENTER button.
5. Enter the password and then press the ENTER button.
• Enter the old password, a new password, and confirm new
password.
• The setting is complete.
MOVE
SELECT
RETURN
EXIT
MM `` The password is set to "7890" by default.
If you have forgotten the rating level password, do the following
• While the player is in No Disc mode, hold the remote control's STOP (@) button for longer than
5 seconds. INITIAL appears on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
53
system setup
DivX (R) Registration
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
Setting the Speaker Mode
Signal outputs and frequency responses from the speakers will
automatically be adjusted according to your speaker configuration
and whether certain speakers are used or not.
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Audio and then press
the ENTER button.
MOVE
ENTER
MOVE
CHANGE
RETURN
EXIT
3. In the SPEAKER SETUP, press the ENTER button again.
4. Press the Cursor ,,, button to move to the desired
speaker and then press the ENTER button.
• For C, SL, and SR, each time the button is pressed, the mode
switches alternately as follows : SMALL ➞ NONE.
• For L and R, the mode is set to SMALL.
• SMALL : S
elect this when using the speakers.
• NONE : Select this when no speaker is connected.
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MM `` Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 59).
54
ENG
Setting the Delay Time
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay
time of the audio signals from the Centre and rear speakers.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each
speaker is the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can
adjust this difference by adding a delay effect to the sound of the Centre and Rear Speakers.
Setting Centre SPEAKER
Ideal Centre SPEAKER
placement
If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance
between
Df and Dc
0.00 m
0.34 m
0.68 m
1.06 m
1.40 m
1.76 m
Delay Time
0 ms
1 ms
2 ms
3 ms
4 ms
5 ms
Ideal REAR
SPEAKER
placement
Setting REAR SPEAKER
If the distance of Dc is equal to or longer than the distance of Dr
in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance
between
Df and Dc
0.00 m
1.06 m
2.11 m
3.16 m
3.62 m
5.29 m
Delay Time
0 ms
3 ms
6 ms
9 ms
12 ms
15 ms
MM `` With
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from Centre SPEAKER
Dr: The distance from REAR SPEAKER
PL II (Dolby Pro Logic II), the delay time may be different for each mode.
`` With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
`` The Centre channel is only adjustable on 5.1 channel discs.
55
● system setup
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Audio and then press the ENTER button.
3. Press the Cursor % button to move to DELAY TIME and then press the ENTER button.
4. Press the Cursor ,,, button to move to the desired speaker and then press the ENTER button.
5. P
ress the Cursor , to set the Delay time.
• You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.
system setup
Using the Test Tone
Use the Test Tone feature to check the speaker connections.
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Audio and then press the
ENTER button.
3. Press the Cursor % button to move to TEST TONE and then
press the ENTER button.
• The test tone will be sent to L ➞ C ➞ R ➞ SR ➞ SL ➞ SW in
order.
If the ENTER button is pressed again at this time, the test tone
will stop.
MOVE
ENTER
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
STOP
EXIT
Setting the Audio
You can adjust the balance and level for each speaker.
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Audio and then press the
ENTER button.
3. Press the Cursor % button to move to SOUND EDIT and then
press the ENTER button.
4. Press the Cursor , button to select and adjust the desired item.
Press the Cursor , button to adjust the settings.
MOVE
ENTER
RETURN
EXIT
MOVE
CHANGE
RETURN
EXIT
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
56
Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.
ENG
Setting the Audio
Press the SOUND EDIT button and then press the Cursor , button.
● system setup
Adjusting Front/Rear Speaker Balance
`` You can select between 0, -6, and OFF.
`` The volume decreases as you move closer to –6.
Adjusting Centre/Rear/Subwoofer Speaker Level
`` The volume level can be adjusted in steps from +6dB to –6dB.
`` The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
Setting the DRC (Dynamic Range Compression)
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby
Digital sound when watching movies at low volume at night.
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Audio and then press
the ENTER button.
3. Press the Cursor % button to move to DRC and then press
the ENTER button.
MOVE
ENTER
RETURN
EXIT
RETURN
EXIT
4. Press the Cursor , to adjust the DRC.
• When the Cursor  button is pressed, the effect is greater,
and when the Cursor  button is pressed, the effect is
smaller.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
CHANGE
57
system setup
Setting the AV SYNC
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to
match the video.
1. In Stop mode, press the MENU button.
2. Press the Cursor % button to move to Audio and then press
the ENTER button.
3. Press the Cursor % button to move to AV-SYNC and then
press the ENTER button.
MOVE
ENTER
MOVE
SELECT
MOVE
ENTER
MOVE
SELECT
RETURN
EXIT
4. Press the Cursor , button to select the AV-SYNC Delay
Time and then press the ENTER button.
• You can set the audio delay time between 0 ms and 300 ms.
Set it to the optimal status.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
RETURN
EXIT
Setting the HDMI Audio
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
1. In Stop mode, press the MENU button.
2. Press the Cursor  button to move to Audio and then press
the ENTER button.
3. Press the Cursor  button to move to HDMI AUDIO and then
press the ENTER button.
4. Press the Cursor , button to select ON or OFF and then
press the ENTER button.
RETURN
EXIT
• ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your
TV speakers only.
• OFF : Video is transmitted over the HDMI connection cable only,
and audio is output through the home cinema speakers only.
d Press the RETURN button to return to the previous level.
d Press the EXIT button to exit the setup screen.
MM `` The default setting of this function is HDMI AUDIO OFF.
`` HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
`` When HDMI AUDIO is on,PRO LOGIC II /DSP EQ/P.BASS doesn't work.
58
RETURN
EXIT
DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.
ENG
Sound Field (DSP)/EQ Function
EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing
Press the DSP/EQ button.
• DSP appears on the display panel.
● system setup
Each time the button is pressed, the selection changes as follows:
POPS ➞ JAZZ ➞ ROCK ➞ STUDIO ➞ CLUB ➞ HALL ➞ MOVIE ➞ CHURCH ➞ PASS
• POPS, JAZZ, ROCK : Depending on the genre of music, you can select POPS, JAZZ, and ROCK.
• STUDIO : Provides a sense of presence as if in a studio.
• CLUB : Simulates the sound of a dance club with a
throbbing bass beat.
• HALL : Provides a clear vocal as if listening in a concert
hall.
• MOVIE : Provides the feeling of a movie cinema.
• CHURCH : Gives the feel of being in a grand church.
• PASS : Select this for normal listening.
MM `` The DSP/EQ function is only available in STEREO mode.
Press the
PL II mode button to show STEREO on the display.
`` This feature works with CDs, MP3-CDs, DivX, tuner and Dolby Digital discs.
`` When playing a DVD disc encoded with two or more channels, the multi-channel mode will
be selected automatically and DSP/EQ does not work.
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press the
PL II MODE button.
• Each time the button is pressed, the mode changes as follows.
MUSIC ➞ CINEMA ➞ PRO LOGIC ➞ MATRIX ➞
STEREO ➞ MUSIC
PRO LOGIC II
• MUSIC : When listening to music, you can experience
sound effects as if you are listening to the actual performance.
• CINEMA : Adds realism to the movie soundtrack.
• PRO LOGIC : Y
ou will experience a realistic multi-channel effect, as if using five speakers, while using just the front left and right speakers.
• MATRIX : You will hear 5.1 channel surround sound.
• STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.
MM `` When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks
(L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen
to surround sound.
`` PRO LOGIC II function is only available in STEREO mode.
59
system setup
Dolby Pro Logic II Effect
This function works only in Dolby Pro Logic MUSIC mode.
1. Press the
PL II MODE button to select MUSIC mode.
2. Press the
PL II EFFECT button.
3. Press the , buttons to select the desired effect setting.
• PANORAMA : You can select either 0 or 1.
• C- WIDTH : You can select between 0 and 7.
• DIMENS : You can select between 0 and 6.
P.BASS
The P.BASS function provides a bass boost to reinforce
the low frequencies.
1. Press the P.BASS button to select P.BASS mode.
2. Press the P.BASS button again to turn off the P.
BASS mode.
MM `` The P.BASS function is only available with 2 channel LPCM sources such as mp3,Divx,cd
and wma. Press P.BASS button and "POWER BASS ON" will be displayed on the screen.
`` The P.bass does not work with DSP/EQ or DOLBY PRO LOGIC ll modes.
If you press P.BASS in the DSP/EQ mode, the DSP/EQ mode is automatically shut off and
the P. BASS function comes on.
Connecting Microphone
ou can enjoy the feeling of a karaoke bar in the comfort of your home.
Y
Watch the video and sing along the lyrics displayed on the TV screen against the accompaniment.
1. Connect the microphone to the MIC jack on the front panel.
• You can connect up to two microphones.
• When HDMI Audio/Bluetooth is on,Mic is not available.
FUNC.
MIC 1
MIC 2
2. Press the MIC +,- button to adjust the voice volume of the microphone.
3. Press the ECHO button to adjust the echo level of the microphone.
60
ENG
ASC (Auto Sound Calibration) SETUP
By setting the ASC function just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 5.1-channel sound field optimized for your environment.
FUNC.
MIC 2
● system setup
MIC 1
ASC
Microphone
L: Front Speaker (L)
R: Front Speaker (R)
C: Centre Speaker
SW: Subwoofer
SL: Rear Speaker (L)
SR: Rear Speaker (R)
MM `` ASC SETUP can be made when there is no disc in the unit.
`` Because the volume level of the tone is fixed during the ASC setup, you cannot adjust the
volume using the volume control buttons.
`` If the auto sound microphone is disconnected during the ASC setup, the setup will be
cancelled.
`` When ASC function is activated, the DSP/EQ, DOLBY PRO LOGIC ll, and P. BASS sound
effects will not work.
To Verify the ASC
Briefly press the ASC button.
• Distance and level values specified for each channel will appear in the display.
61
system setup
ASC (Auto Sound Calibration) SETUP
1. Plug the ASC microphone into the ASC input jack.
2. Place the ASC microphone at the listening position.
3. Press ASC button.
• To create the optimal 5.1 channel sound field, the
selections are in the following sequence:
L ➞ C ➞ R ➞ SR ➞ SL ➞ SW
4. When the message "REMOVE MIC" appears in the
display, unplug the ASC microphone.
MM `` Setting the ASC function takes about 3 minutes.
To cancel the ASC (Auto Sound Calibration) setup, press the ASC
button.
The test tone output stops, "CANCEL ASC" appears in the display .
To listen in the ASC (Auto Sound Calibration) mode, briefly press
ASC button.
The selection alternates between ASC ON and ASC OFF in the display.
If you select "ASC ON", you will hear sound in the ASC mode.
If you select "ASC OFF", you will hear sound in the mode set in the audio setup.
62
ENG
Playing DVD-OK Discs
You can enjoy the feeling of a karaoke bar in the comfort of your
home. Watch the video and sing along the lyrics displayed
on the TV screen with company.
● Karaoke
1. Use the number (0~9) buttons to select the song you
want to play back.
• The number and title of the song will be displayed
on top of the screen .
2. Press the PLAY ( ) button.
• The title of the song will be displayed on the screen
and the accompaniment starts.
d To Clear Incorrectly Entered Song Numeric
• Press the CANCEL button.
d To Stop During Accompaniment
• Press the STOP (@) button.
Reserving a SONG
Case 1>
1. In Stop / Play mode, use the number (0~9) button to select a
song.
2. Press the RESERVE button.
Case 2>
1. In the Search song list, use the ,,, button to select
a song.
2. Press the RESERVE button.
Case 3>
1. In the Favorite list, use the ,,, button to select a song.
2. Press the RESERVE button.
63
karaoke
Reserving a Song During Accompaniment
While the accompaniment is playing, you can reserve the next
song you want to sing.
1. Press the number (0~9) buttons to select the song
you want to reserve.
2. Press the RESERVE button.
• The next song is reserved.
d To Cancel the Reservation
1. Enter the number of the song you have reserved.
2. Press the CANCEL button.
MM `` A maximum of ten songs can be reserved.
Priority Playing Accompaniment Music
Even if there is a song already reserved, you can have the song
you want to sing to be played first.
1. In Stop mode, press the number (0~9) buttons to select
the song you want to play back.
2. Press the PLAY ( ) button.
64
ENG
karaoke setting function
• It consists of two modes: Karaoke and Setup.
• In Karaoke mode, you can select from Search song/ Favorite List/ Bowling game.
• In Setup mode, you can select from Back-vocal/ Fanfare/ Assesment level/ Shadow/ Language.
● Karaoke
1. Press the MENU button in Stop mode.
2. Use the , button to select a desired mode (Karaoke/ Setup) and use the ,,, button to
select a desired item.
Setting the Back-vocal
You can set the back-vocal to ON or OFF.
1. Load a DVD-OK disc.
2. Press MENU button.
3. Use the ,,, button to select SETUP  Back-vocal.
4. Use the , button to select the desired item and press the
ENTER button.
• The selection changes as follows :
On  Off
MM `` If you operate the Tempo function while a song with supporting chorus is played back, the
chorus will be released.
`` Back-vocal function may not work depending on information recorded in the disc.
Setting the Fanfare
You can set Fanfare to come out after singing a song.
1. Load a DVD-OK disc.
2. Press MENU button.
3. Use the ,,, button to select SETUP  Fanfare.
4. Use the , button to select the desired item and press the
ENTER button.
• The selection changes as follows :
On  Off
65
karaoke
Setting the Assesment Level
You can set the grade of scores displayed in the screen in advance.
1. Load a DVD-OK disc.
2. Press MENU button.
3. Use the ,,, button to select SETUP  Assesment Level.
4. Use the , button to select the desired item and press the
ENTER button.
• The selection changes as follows :
Off  Easy  Middle  Hard
Setting the Shadow
You can set the lyrics to be displayed on the blue shadow box.
1.
2.
3.
4.
Load a DVD-OK disc.
Press MENU button.
Use the ,,, button to select SETUP  Shadow.
Use the , button to select the On/Off popup and use the
ENTER button to select a desired item.
• The selection changes as follows :
On  Off
Setting the Language
You can select the OSD language between English and Russian.
1.
2.
3.
4.
Load a DVD-OK disc.
Press MENU button.
Use the ,,, button to select SETUP  Language.
Use the , button to select the English/Russian popup and use
the ENTER button to select a desired item.
• The selection changes as follows :
English  Russian
66
ENG
SearchING Song Function
You can easily search songs on screen without viewing the song list book.
Pressing the (,) button in Song list mode will move one page at a time. , moves one song at a time.
Items
Detailed Items
Alphabet(and Number)
Russian
Ukranian
Foreign
Title
Artist
A ~ Я, 1 ~ 0
A ~ Я, 1 ~ 0
A ~ Я, 1 ~ 0
Duets
Title
Genres
Rock
Chanson
Folk
Ballad
Romances
Hits
Modern
70-80
Kids
Patriotic
● Karaoke
Structure of Song Search
Searching by Language
1. During the stop mode, press the SEARCH SONG
button. or in MENU mode, use the ,,, button to
select Karaoke  SEARCH SONG
2. Press the RED (b) button press the , button to
select the language you want.
• You can select the language among Russian 
Ukranian  ForeignDuetsGenresHits.
• At this time, press RETURN button to move to the
song list on the bottom.
3. Press GREEN (#) button and then press the ,
button to select the Title or Artist.
4. Press YELLOW (-) button to move to alphabet and
press , button to select a character.
5. Press the BLUE (+) button and then press the , buttons
to move to the detailed items.
6. Press ENTER button to move to the song list and
then press , button to select the song you want.
7. Press the PLAY button to play back the selected song.
d To Exit Search Song Screen
• Press EXIT button.
67
karaoke
Searching a DUET SONG
1. During the stop mode, press the SEARCH SONG button.
or in MENU mode, use the ,,, button to select
Karaoke  SEARCH SONG
2. Press the RED (b) button, press the , button to
select the Dutes.
• At this time, press RETURN button to move to the
song list on the bottom.
3. Press GREEN (#) button to select the Title.
4. Press YELLOW (-) button to move to alphabet and
press , button to select a character.
5. Press the BLUE (+) button and then press the ,
buttons to move to the detailed items.
6. Press ENTER button to move to the song list and
then press , button to select the song you want.
7. Press the PLAY button to play back the selected song.
d To Exit Search Song Screen
• Press EXIT button.
Searching by Genre
1. During the stop mode, press the SEARCH SONG button.
or in MENU mode, use the ,,, button to select
Karaoke  SEARCH SONG
2. Press the RED (b) button, press the , button to
select the Genres.
• At this time, press RETURN button to move to the
song list on the bottom.
3. Press GREEN (#) button to move to the detailed items
and then press , button to select the genre you
want.
• You can select the genre among ROCK  Chanson
 Folk  Ballad  Romances.
4. Press YELLOW (-) button to move to alphabet and
press , button to select a character.
5. Press the BLUE (+) button and then press the ,
buttons to move to the detailed items.
6. Press ENTER button to move to the song list and
then press , button to select the song you want.
7. Press the PLAY button to play back the selected song.
d To Exit Search Song Screen
• Press EXIT button.
68
ENG
SearchING Song Function
Searching by HIT SONGS
1. During the stop mode, press the SEARCH SONG button.
or in MENU mode, use the ,,, button to select
Karaoke  SEARCH SONG
● Karaoke
2. Press the RED (b) button press the , button to
select the Hits.
• At this time, press RETURN button to move to the
song list on the bottom.
3. Press GREEN (#) button to move to the detailed items
and then press , button to select the hits song.
• You can select the song list among the detailed
category Modern  70~80  Kids  Patriotic.
4. Press YELLOW (-) button to move to alphabet and
press , button to select a character.
5. Press the BLUE (+) button and then press the , buttons
to move to the detailed items.
6. Press ENTER button to move to the song list and
then press , button to select the song you want.
7. Press the PLAY button to play back the selected song.
d To Exit Search Song Screen
• Press EXIT button.
Favorite Song Function
You can save the song you like or sing often in the Favorite list 1,2 or 3 with which you can easily find and sing
a song. You can save 50 songs for each Favorite list.
Saving FAVORITE SONG
Case 1>
1. During the stop mode, press the FAVORITE SONG button.
• During the Menu mode, Use Cursors ,,, button to
select Favorite Lists.
2. Press RED (b), GREEN (#), Yellow (-) button to select the
location to save among FAVORITE1, 2, 3.
3. Press the number (0~9) button to enter the song you want.
4. Press FAVORITE SONG button to save it on the favorite list.
Case 2>
1. Select Search Song function.
2. Select a song and press FAVORITE SONG button to
Add to Favorite.
3. Select a location of Favorite, and press ENTER button.
69
karaoke
Case 3>
1. During the playback, press PAUSE (
) button.
2. Press FAVORITE SONG button.
3. Press , button to select the favorite list you want to save
the song.
4. Press ENTER button to save the song.
Deleting FAVORITE SONG
1. Press the FAVORITE SONG button in Stop mode, or use
,,, button to select Karaoke  Favorite lists in Menu
screen.
2. Use the RED (b), GREEN (#), YELLOW (-) buttons to select
a desired Favorite list.
3. Select a song to delete and press the CANCEL button.
Singing FAVORITE SONG
1. Press the FAVORITE SONG button in Stop mode, or use
,,, button to select Karaoke  Favorite lists in Menu
screen.
2. Use the RED (b), GREEN (#), YELLOW (-) buttons to select a
desired Favorite list.
3. Press , button to select the song you want.
4. Press the PLAY button to play back the selected song.
d To Exit FAVORITE SONG Screen
• Press EXIT button.
70
ENG
lyric view function
You can view lyrics for the current music.
1. Plays a song from Stop Mode/Favorite Song/Search Song/Bowling
Game.
2. Press the Pause button and then press the LYRIC VIEW INFO
Button.
3. Use the , button to move to a desired lyric text.
● Karaoke
MM `` To exit the Lyric View mode, press the EXIT button.
Key Control
During the playback, press the KEY CONTROL buttons.
• Each time GREEN (#) button is pressed, the key is
increased, and each time RED (b) button is pressed, the
key is decreased.
Tempo Control
During the playback, press the TEMPO buttons.
• Each time BLUE (+) button is pressed, the tempo gets faster,
and each time YELLOW (–) button is pressed the tempo gets
slower.
71
karaoke
Male-Female Key Control
During the playback, press the MALE/FEMALE button.
• Each time the MALE/FEMALE button is pressed, this
selection alternates between Male and Female.
• Select Male when singing in male voice and select Female
when singing in female voice.
Bowling Game Function
• You can make a team to participate in a singing contest.
• You can make the singing contest in up to 5 rounds with 3 different
teams (max).
• One team can select 1st, 3rd or 5th round in a 2- or 3-teams
contest.
1. Press the MENU button in Stop mode.
2. Use the ,,, button to select Karaoke  Bowling
Game.
Starting Bowling Game
1. Select Bowling Game mode.
2. Use the ,,, button to move to the team or to the
applicable round and choose a song.
3. Use the number (0~9) button or the Search Song list
to select a song.
4. When done, press the RED (b) button to start the game.
• You can select a song in any round of the contest, not just
at your turn.
• If you do not select a song, a random song will be played.
72
ENG
Bowling Game Function
Reserving a song in the Bowling Game
● Karaoke
1. In Bowling Game mode, use the number (0~9) button to select
a song.
• or In Bowling Game mode, press the SEARCH SONG
button. Select a song in the Search song list.
MM `` To return to the Bowling Game mode, press the EXIT button.
Setting Bowling Game
1. In Bowling Game mode, select the GREEN (#) button.
2. Use the , button to select a desired item (Team, Round)
and press the ENTER button.
3. When a dialog box pops up, use the , button to select a
desired number and press the ENTER button.
4. To apply your settings, press the GREEN (#) button.
73
radio
Listening to Radio
Remote Control
1. Press the TUNER button to select the FM band.
2. Tune in to the desired station.
• Automatic Tuning 1 : When the [,] button is
pressed, a preset broadcast station is selected.
• Automatic Tuning 2 : Press and hold the ,,.
button to automatically search for active
broadcasting stations.
• Manual Tuning : Briefly press the ,,. button to
increase or decrease the frequency incrementally.
Main Unit
1. Press the FUNCTION button to select the FM band.
2. Select a broadcast station.
• Automatic Tuning 1 : Press the STOP (@) button to select PRESET and then press the [,]
button to select the preset station.
• Automatic Tuning 2 : Press the STOP (@) button to select MANUAL and then press and hold
the [,] button to automatically search the band.
• Manual Tuning : Press the STOP (@) button to select MANUAL and then briefly press the
button to tune in to a lower or higher frequency.
Press the MO/ST button to listen in Mono/Stereo.
• Each time the button is pressed, the sound switches between STEREO and MONO.
• In a poor reception area, select MONO for a clear, interference-free broadcast.
Presetting Stations
Example : Presetting FM 89.10 in the memory
1. Press the TUNER button to select the FM band.
2. Press the ,,. button to select 89.10.
3. Press the TUNER MEMORY button.
4. Press the [,] button to select a preset number.
• You can select between presets 1 and 15.
5. P
ress the TUNER MEMORY button again.
6. To preset another station, repeat steps 2 to 5.
• To tune in to a preset station, press the [,]
button on the remote control to select a
channel.
74
ENG
About RDS broadcasting
Using the RDS (Radio Data System) to receive FM stations
RDS allows FM stations to send an additional signal along with
their regular program signals. For example, the stations send
their station names, as well as information about what type of
program they broadcast, such as sports or music, etc.
Description on RDS function
• PTY (Program Type) : Displays the type of programme currently being
broadcast
• PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8
characters.
• RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64
characters.
the real time clock from the FM frequency.
• CT (Clock Time) : Decodes
• TA (Traffic Announcement) : " TA ON"shows that the traffic announcement is in progress.
MM `` RDS may not operate correctly if the station tuned is not transmitting RDS signal properly
or if the signal strength is weak.
`` Some stations may not transmit PTY, RT or CT information therefore this may not be
displayed in all cases.
To show the RDS signals
You can see the RDS signals the station sends on the display.
Press the RDS DISPLAY while listening to an FM
station.
ASC
``
ach time you press the button, the display change
E
to show you the following information : PS NAME ;
RT ; CT ; Frequency
•
PS (Program Service) : While searching, <PS> appears and then the station names will be displayed.
<NO PS> appears if no signal is sent.
RT(RadioText) : w
hile searching, <RT> appears and then text messages the station sends will be
displayed. <NO RT> appears if no signal is sent.
Frequency : station frequency (non-RDS service)
CD RIPPING
•
•
About characters shown in the display
When the display shows PS,or RT signals,the following characters are used.
•
•
he display window cannot differentiate upper case and lower case letters and always uses
T
upper case letters.
The display window cannot show accented letters, <A,> for instance, may stand for accented
<A’s> like <À, Â, Ä, Á, Å and Ã.>
75
Radio
PTY (Program Type) indication and PTY-SEARCH function
One of the advantages of the RDS service is that you can locate a particular kind of program from
the preset channels by specifying the PTY codes.
To search for a program using the PTY codes
Before you start, remember...
• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press PTY SEARCH while searching.
• There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step 1 again.
• When pressing the buttons on the primary remote control, make sure that you have selected the FM
station using the primary remote control.
1. Press the PTY SEARCH while listening to an
FM station.
2. Press the PTY- or PTY+ until the PTY code you
want appears on the display.
• The display gives you the PTY codes described to
the right.
3. Press the PTY SEARCH again, while the PTY
code selected in the previous step is still on the
display.
• The Centre unit searches 15 preset FM stations,
stops when it finds the one you have selected, and tunes in that station.
Display
Program Type
NEWS
News including an announced opinion
and report
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
Several matters including a current
incident, documentary, discussion and
analysis.
Display
Program Type
LIGHT M
Light classical music- Classical music
and instrumental and chorus music
CLASSICS
Heavy classical music-Orchestra music, symphony, chamber music and opera
Information including weights and
measures, returns and forecast, matters
interesting the customer, medical
information, etc.
OTHER M
Other music - Jazz, R&B country
music
WEATHER
Weather
FINANCE
Finance
Sports
CHILDREN
Children’s programmes
Education
SOCIAL A
Social affairs
Drama-Radio serial, etc.
RELIGION
Religion
Culture-National or local culture
including the religious problem, social
science, language, cinema, etc.
PHONE IN
Phone in
Natural science and technology
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
VARIED
Others-Speech, amusing program
(quiz, game), interview, comedy and
satirical play, etc.
POP M
Pop music
OLDIES
Oldies Music
ROCK M
Rock music
FOLK M
Folk Music
M.O.R.M
Current contemporary music considered
to be “easy listening.”
76
COUNTRY
Country Music
NATION M
National Music
DOCUMENT
Documentary
ENG
convenient function
Sleep Timer Function
You can set the time that the Home Cinema will shut itself off.
Press the SLEEP button.
● CONVENIENT FUNCTION
• SLEEP will be displayed. Each time the button is pressed, the preset time in minutes changes as follows :
10 ➞ 20 ➞ 30 ➞ 60 ➞ 90 ➞ 120 ➞ 150 ➞ OFF.
To confirm the sleep timer setting, press the SLEEP button.
• The remaining time before the Home Cinema will shut itself off is
displayed.
• Pressing the button again changes the sleep time from what you
have set earlier.
To cancel the sleep timer, press the SLEEP button until OFF
appears on the display.
Mute Function
This is useful when answering a doorbell or telephone call.
Press the MUTE button.
• MUTE appears in the display.
• To restore the sound, press the MUTE button again.
CD RIPPING
AUDIO
UPSCALE
S.VOL
77
convenient function
CD rIPPING
Converts audio sound of the CD into a MP3 file format before sending to a USB storage device.
B
FUNC.
1. Connect the USB device.
MIC 1
MIC 2
2. Insert the audio CD into the CD tray.
3. Press the CD RIPPING button.
• To start ripping the current track, press the CD
RIPPING button on the remote control while the
system is playing a track or stopped temporarily.
• To rip the entire CD, press and hold the CD RIPPING
button on the remote control.
-"FULL CD RIPPING" appears on the display and ripping starts.
4. Press the STOP (@) button to stop ripping.
• When the CD ripping is done, a directory named
"RIPPING" will be created in the USB device and
the ripped file will be saved in a format of "SAMXXXX”.mp3".
MM `` Do not disconnect the USB connection or the power cable during the CD ripping.
``
``
``
``
``
``
``
``
``
78
Otherwise, it may cause damage to the data. To stop CD ripping, press the STOP button
and disconnect the USB device after the system stops playing the CD completely.
If you disconnect the USB connection during the CD ripping, the system will turn off and you will not
be able to delete the ripped file.
If you connect the USB device to the system while it is playing a CD, the system stops
playing and will resume playing when the USB connection initialization is completed.
(The initialization time may differ depending on the type of the USB device.)
DTS-CDs cannot be ripped.
If the ripping duration is less than 5 seconds, a ripping file may not be created.
CD ripping works only if the USB device or the HDD is formatted in the FAT file system.
(The NTFS file system is not supported.) For a list of compliant devices, refer to the
specification of the USB host.
Ripping is performed at a normal speed of x1. The ripping time may be longer with some
USB devices.
While the system is ripping a CD, the audio sound will not be output.
Do not put touch or move the system while it is ripping a CD.
When CD Ripping is on , all buttons can't be worked except STOP and POWER buttons.
ENG
troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed
below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest
authorized dealer or Samsung Customer Service Centre.
SYMPTOM
Check/Remedy
● TROUBLESHOOTING
Disc tray does not open.
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
Playback does not start
immediately when the
Play/Pause button is pressed.
• Are you using a deformed disc or a disc with scratches on
the surface?
• Wipe the disc clean.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and
step motion playback.
• Are the speakers connected properly? Is the speaker setup
correctly customized?
• Is the disc severely damaged?
Sound can be heard only from a
few speakers and not all six.
• When listening to a CD or radio, sound is output to the front
speakers (L/R) only. Select "PRO LOGIC II" by pressing
PL II (Dolby Pro Logic II) on the remote control to use all
six speakers.
• Make sure that the DVD disc is 5.1-CH compatible.
• If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
Centre speaker and the rear left and right speakers. Set C,
SL, and SR to SMALL.
Dolby Digital 5.1 CH Surround
Sound is not produced.
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby
Digital 5.1 CH Surround Sound is produced only if the disc is
recorded with 5.1 channel sound.
• Is the audio language correctly set to DOLBY DIGITAL
5.1-CH in the information display?
The remote control does not
work.
• Is the remote control being operated within its operation
range of angle and distance?
• Are the batteries exhausted?
• Have you selected the mode(TV/DVD) functions of the
remote control (TV or DVD) correctly?
• Disc is rotating but no
picture is produced.
•P
icture quality is poor and
picture is shaking.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
79
SYMPTOM
Check/Remedy
Audio language and subtitles do
not work.
• Audio language and subtitles will not work if the disc does
not contain them.
Menu screen does not appear
even when the menu function is
selected.
• Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER
BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be
seen in 4:3 ratio only. Refer to the DVD disc jacket and then
select the appropriate function.
• T
he main unit is not working.
(Example: The power goes out
or the front panel key doesn't
work or a strange noise is
heard.)
• The DVD player is not working
normally.
• Turn off the power and hold the STOP ( ) button on the
remote control for longer than 5 seconds (reset function).
The rating level password has
has been forgotten.
• While “NO DISC” message appears on the display of the
main unit, hold the remote control's STOP ( ) button for
longer than 5 seconds. “INITIAL” appears on the display and
all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Can't receive radio broadcast.
80
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
antenna in an area with good reception.
ENG
language code list
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu”
(See page 51).
Code
Language
Code
Language
Code
Language
Code
Language
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Canada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
● LANGUAGE CODE LIST
1027
81
appendix
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Do not keep in direct sunlight
Keep in a cool
ventilated area
Keep in a clean Protection jacket.
Store vertically.
MM `` Do not allow the discs to become contaminated with dirt.
`` Do not load cracked or scratched discs.
Handling and Storing Discs
If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with
a soft cloth.
• When cleaning, wipe gently from the inside to the outside of the disc
MM `` Condensation may form if warm air comes into contact with cold parts inside the player.
When condensation forms inside the player, the player may not operate correctly. If this
occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.
82
General
ENG
Specifications
75 W
Weight
3.5 Kg
Dimensions
430 (W) x 70 (H) x 282 (D) mm
Operating Temperature Range
+5°C~+35°C
Operating Humidity Range
10 % to 75 %
Reading Speed : 3.49 ~ 4.06 m/sec.
DVD (Digital Versatile Disc)
Disc
● APPENDIX
Power Consumption
Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
CD : 12 cm (COMPACT DISC)
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
CD : 8cm (COMPACT DISC)
Maximum Play Time : 20 min.
576i/480i
Composite Video
1 channel : 1.0 Vp-p (75 Ω load)
576i/480i
Video Output
Y : 1.0 Vp-p (75 Ω load)
Component Video
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Video/Audio
Amplifier
HDMI
1080p, 1080i, 720p, 576p/480p
Front speaker output
166W x 2(3Ω)
Centre speaker output
166W(3Ω)
Rear speaker output
166W x 2(3Ω)
Subwoofer speaker output
170W(3Ω)
Frequency range
20Hz~20KHz
S/N Ratio
70dB
Channel separation
60dB
Input sensitivity
(AUX)400mV
SWA-4100(HT-KZ420/TKZ422/TKZ425 )
Power Consumption
Weight
Dimensions (W x H x D)
Operating Temperature Range
Operating Humidity Range
Output
50 W
1.3 Kg
Frequency range
76 x 256 x 175 mm
+5°C~+35°C
10% ~ 75%
166W x 2
20Hz~20KHz
S/N Ratio
75dB
83
appendix
Specifications
HT-KZ320
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
5.1ch speaker system
Front/Rear
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Centre
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Dimensions (W x H x D)
Front/Rear : 100 x 150 x 89 mm
Centre : 300 x 59 x 50 mm
Subwoofer : 180 x 320 x 380 mm
Weights
Front : 0.5 kg, Centre : 0.6 kg Rear : 0.4 kg, Subwoofer : 4.5 kg
Subwoofer
3Ω
45Hz~160Hz
86dB/W/M
170 W
340 W
HT-TKZ322
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Rear
Centre
Subwoofer
3Ω
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
45Hz~160Hz
86dB/W/M
86dB/W/M
86dB/W/M
166W
166W
170 W
332W
332W
340 W
Front : 240 x 1020 x 240 mm (stand base : 240 x 240)
Rear : 100 x 100 x 93 mm
Centre : 300 x 59 x 50 mm
Subwoofer : 180 x 320 x 380 mm
Front : 2.8 kg, Centre : 0.6 kg Rear : 0.4 kg, Subwoofer : 4.5 kg
HT-TKZ325
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
84
5.1ch speaker system
Front/Rear
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Centre
3Ω
140Hz~20KHz
86dB/W/M
166W
332W
Subwoofer
3Ω
45Hz~160Hz
86dB/W/M
170 W
340 W
Front/Rear : 240 x 1026x 240 mm (stand base : 240 x 240)
Centre : 300 x 59 x 50 mm
Subwoofer : 180 x 320 x 380 mm
Front : 2.8 kg, Centre : 0.6 kg Rear : 2.6 kg, Subwoofer : 4.5 kg
Speaker system
Speaker
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Rear
Centre
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
86dB/W/M
86dB/W/M
166W
166W
332W
332W
Front : 100 x 210 x 99 mm
Rear : 101 x 151 x 88 mm
Centre : 300 x 57 x 48 mm
Subwoofer : 180 x 320 x 380 mm
Subwoofer
3Ω
45Hz~160Hz
86dB/W/M
170W
340W
● APPENDIX
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
ENG
HT-KZ420
Front : 0.6 kg, Centre : 0.9 kg Rear : 0.5 kg, Subwoofer : 4.5 kg
HT-TKZ422
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Rear
Centre
Subwoofer
3Ω
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
45Hz~160Hz
86dB/W/M
86dB/W/M
86dB/W/M
166W
166W
170W
332W
332W
340W
Front : 260 x 1202 x 260 mm (stand base : 260 x 260)
Rear : 101 x 151 x 88 mm
Centre : 300 x 57 x 48 mm
Subwoofer : 180 x 320 x 380 mm
Front : 3.0 kg, Centre : 0.9 kg Rear : 0.5 kg, Subwoofer : 4.5 kg
HT-TKZ425
Speaker system
Speaker
Impedance
Frequency range
Output sound pressure level
Rated input
Maximum input
Dimensions (W x H x D)
Weights
5.1ch speaker system
Front/Rear
Centre
Subwoofer
3Ω
3Ω
3Ω
140Hz~20KHz
140Hz~20KHz
45Hz~160Hz
86dB/W/M
86dB/W/M
86dB/W/M
166W
166W
170W
332W
332W
340W
Front /Rear: 260 x 1202 x 260 mm (stand base : 260 x 260)
Centre : 300 x 57 x 48 mm
Subwoofer : 180 x 320 x 380 mm
Front : 3.0 kg, Centre : 0.9 kg Rear : 3.0 kg, Subwoofer : 4.5 kg
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
85
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care Centre.
Region
North America
Latin America
Europe
CIS
Asia Pacific
Middle East &
Africa
86
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
BELGIUM
CZECH REPUBLIC
DENMARK
Customer Care Centre 
1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421 , 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
02 201 2418
800-726-786 (800 - SAMSUNG)
70 70 19 70
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com/us
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
FINLAND
030-6227 515
www.samsung.com/fi
FRANCE
01 48 63 00 00
www.samsung.com/fr
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
01805 - SAMSUNG(726-7864) (
06-80-SAMSUNG(726-7864)
800-SAMSUNG(726-7864)
02 261 03 710
0,14/Min)
0900-SAMSUNG(726-7864) ( 0,10/Min)
815-56 480
0 801 1SAMSUNG(0-801172 678)
80820-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
902-1-SAMSU(72678)
0771-400 200
0845 SAMSUNG (7267864)
0818 717 100
0800-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.com/lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
RUSSIA
8-800-555-55-55
www.samsung.ru
KAZAHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
TURKEY
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
8-800-502-0000
8-800-77777
8000-7267
800-7267
1300 362 603
0800 SAMSUNG (0800 726 786)
800-810-5858, 400-810-5858, 010-6475 1880
3698-4698
3030 8282, 1800 110011, 1-800-3000-8282
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG(726-7864)
1800-SAMSUNG(726-7864)
1800-29-3232, 02-689-3232
0800-329-999
1 800 588 889
444 77 11
www.samsung.com/kz_ru
www.samsung.com/kz_ru
www.samsung.ua
www.samsung.lt
www.samsung.com/lv
www.samsung.ee
www.samsung.com/au
www.samsung.com/nz
www.samsung.com/cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/tr
SOUTH AFRICA
0860-SAMSUNG(726-7864 )
www.samsung.com/za
U.A.E
800-SAMSUNG (726-7864), 8000-4726
www.samsung.com/ae
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly
to promote the sustainable reuse of material resources. Household users should contact either the retailer
where they purchased this product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling. Business users should contact their supplier and
check the terms and conditions of the purchase contract. This product should not be mixed with other
commercial wastes for disposal.
Code No. AH68-02167G(0.0)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
