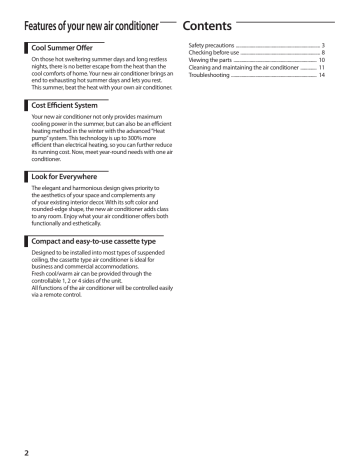

Features of your new air conditioner Contents

Features of your new air conditioner Contents
Features of your new air conditioner
Cool Summer Offer
On those hot sweltering summer days and long restless
nights, there is no better escape from the heat than the
cool comforts of home. Your new air conditioner brings an
end to exhausting hot summer days and lets you rest.
This summer, beat the heat with your own air conditioner.
Cost Efficient System
Your new air conditioner not only provides maximum
cooling power in the summer, but can also be an efficient
heating method in the winter with the advanced “Heat
pump” system. This technology is up to 300% more
efficient than electrical heating, so you can further reduce
its running cost. Now, meet year-round needs with one air
conditioner.
Look for Everywhere
The elegant and harmonious design gives priority to
the aesthetics of your space and complements any
of your existing interior decor. With its soft color and
rounded-edge shape, the new air conditioner adds class
to any room. Enjoy what your air conditioner offers both
functionally and esthetically.
Compact and easy-to-use cassette type
Designed to be installed into most types of suspended
ceiling, the cassette type air conditioner is ideal for
business and commercial accommodations.
Fresh cool/warm air can be provided through the
controllable 1, 2 or 4 sides of the unit.
All functions of the air conditioner will be controlled easily
via a remote control.
2
Contents
Safety precautions . ........................................................................ 3
Checking before use ..................................................................... 8
Viewing the parts . ....................................................................... 10
Cleaning and maintaining the air conditioner . ............. 11
Troubleshooting . ......................................................................... 14
Safety precautions
ENGLISH
Before using your new air conditioner, please read this manual thoroughly to ensure that
you know how to safely and efficiently operate the extensive features and functions of your
new appliance.
Because the following operating instructions cover various models, the characteristics of
your air conditioner may differ slightly from those described in this manual. If you have any
questions, call your nearest contact center or find help and information online at www.
samsung.com.
Important safety symbols and precautions:
WARNING Hazards or unsafe practices that may result in severe personal
CAUTION
injury or death.
Hazards or unsafe practices that may result in minor personal
injury or property damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
FOR INSTALLATION
WARNING
Use the power line with the power specifications of the product or higher
and use the power line for this appliance only. In addition, do not use an
extension line.
 Extending the power line may result in electric shock or fire.
 Do not use an electric transformer. It may result in electric shock or fire.
 If the voltage/frequency/rated current condition is different, it may cause fire.
The installation of this appliance must be performed by a qualified
technician or service company.
 Failing to do so may result in electric shock, fire, explosion, problems with the
product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
 Failing to do so may result in electric shock or fire.
Fix the outdoor unit firmly so that the electric part of the outdoor unit is not
exposed.
 Failing to do so may result in electric shock or fire.
Do not install this appliance near a heater, inflammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
 This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall
where it could fall.
 If the outdoor unit falls, it may result in injury, death or property damage.
3
Safety precautions
This appliance must be properly grounded. Do not ground the appliance to
a gas pipe, plastic water pipe, or telephone
line.
 Failure to do so may result in electric shock, fire, an explosion, or other
problems with the product.
 Never plug the power cord into a socket that is not grounded correctly and
make sure that it is in accordance with local and national codes.
FOR INSTALLATION
CAUTION
Install your appliance on a level and hard floor that can support its weight.
 Failing to do so may result in abnormal vibrations, noise, or problems with the
product.
Install the draining hose properly so that water is drained correctly.
 Failing to do so may result in water overflowing and property damage.
When installing the outdoor unit, make sure to connect the draining hose
so that draining is performed correctly.
 The water generated during the heating operation by the outdoor unit may
overflow and result in property damage.
In particular, in winter, if a block of ice falls, it may result in injury, death or
property damage.
FOR POWER SUPPLY
WARNING
When the circuit breaker is damaged, contact your nearest service center.
Do not pull or excessively bend the power line. Do not twist or tie the
power line. Do not hook the power line over a metal object, place a heavy
object on the power line, insert the power line between objects, or push
the power line into the space behind the appliance.
 This may result in electric shock or fire.
FOR POWER SUPPLY
CAUTION
When not using the air conditioner for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
 Failing to do so may result in electric shock or fire.
FOR USING
WARNING
If the appliance is flooded, please contact your nearest service center.
 Failing to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke,
unplug the power plug immediately and contact your nearest service
center.
4
FOR USING
WARNING
FOR USING
ENGLISH
 Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line.
Do not touch the appliance or power line.
 Do not use a ventilating fan.
 A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
 Failing to do so may result in problems with the product, water leakage,
electric shock, or fire.
 A delivery service for the product is not provided. If you reinstall the product in
another location, additional construction expenses and an installation fee will
be charged.
 Especially, when you wish to install the product in an unusual location such as
in an industrial area or near the seaside where it is exposed to the salt in the air,
please contact your nearest service center.
WARNING
Do not touch the circuit breaker with wet hands.
 This may result in electric shock.
Do not strike or pull the air conditioner with excessive force.
 This may result in fire, injury, or problems with the product.
Do not place an object near the outdoor unit that allows children to climb
onto the machine.
 This may result in children seriously injuring themselves.
Do not turn the air conditioner off with the circuit breaker while it is
operating.
 Turning the air conditioner off and then on again with the circuit breaker may
cause a spark and result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous to
children.
 If a child places a bag over its head, it may result in suffocation.
Do not insert your fingers or foreign substances into the outlet when the air
conditioner is operating or the front panel is closing.
 Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not touch the front panel with your hands or fingers during the heating
operation.
 This may result in electric shock or burns.
Do not insert your fingers or foreign substances into the air inlet/outlet of
the air conditioner.
 Take special care that children do not injure themselves by inserting their
fingers into the product.
5
AA precautions
Safety
FOR USING
WARNING
Do not use this air conditioner for long periods of time in badly ventilated
locations or near infirm people.
 Since this may be dangerous due to a lack of oxygen, open a window at least
once an hour.
If any foreign substance such as water has entered the appliance, cut the
power by unplugging the power plug and turning the circuit breaker off
and then contact your nearest service center.
 Failing to do so may result in electric shock or fire.
Do not attempt to repair, disassemble, or modify the appliance yourself.
 Do not use any fuse (such as cooper, steel wire, etc.)other than the standard
fuse.
 Failing to do so may result in electric shock, fire, problems with the product, or
injury.
FOR USING
CAUTION
Do not place objects or devices under the indoor unit.
 Water dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoor unit is not broken at least
once a year.
 Failing to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
FOR USING
6
CAUTION
Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on
the appliance.
 This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
 This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
 As well as being harmful to humans, it may also result in electric shock, fire or
problems with the product.
Do not drink the water from the air conditioner.
 The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not
disassemble the remote controller.
Do not touch the pipes connected with the product.
 This may result in burns or injury.
FOR USING
CAUTION
FOR CLEANING
ENGLISH
Do not use this air conditioner to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
 This may result in property damage.
Avoid directly exposing humans, animals or plants from the air flow from
the air conditioner for long periods of time.
 This may result in harm to humans, animals or plants.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
WARNING
Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner or alcohol to clean the appliance.
 This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the air conditioner
from the wall socket and wait until the fan stops.
 Failing to do so may result in electric shock or fire.
FOR CLEANING
CAUTION
Take care when cleaning the surface of the heat exchanger of the outdoor
unit since it has sharp edges.
 To avoid cutting your fingers, wear thick cotton gloves when cleaning it.
Do not clean the inside of the air conditioner by yourself.
 For cleaning inside the appliance, contact your nearest service center.
 When cleaning the internal filter, refer to the descriptions in the ‘Cleaning and
maintaining the air conditioner’ section.
 Failure to do may result in damage, electric shock or fire.
7
Checking before use
Operation ranges
The table below indicates the temperature and humidity ranges the air conditioner can be operated within.
Refer to the table for efficient use.
MODE
OPERATIONAL TEMPERATURE
INDOOR
OUTDOOR
COOLING
64˚F to 90˚F
23˚F to 118˚F
(18˚C to 32˚C)
(-5˚C to 48˚C)
81˚F (27˚C)
-4˚F to 75˚F
or less
(-20˚C to 24˚C)
64˚F to 90˚F
23˚F to 118˚F
(18˚C to 32˚C)
(-5˚C to 48˚C)
HEATING
DRYING
NOTE
INDOOR HUMIDITY
IF OUT OF CONDITIONS
80%
or less
Condensation may occur on
the indoor unit with risk to have
either water blow off or drops
on the floor.
-
Internal protection triggers and
the air conditioner will stop.
-
Condensation may occur on
the indoor unit with risk to have
either water blow off or drops
on the floor.
• T he standardized temperature for heating is 45˚F(7˚C). If the outdoor temperature drops to 32˚F(0˚C) or below, the
heating capacity can be reduced depending on the temperature condition.
If the cooling operation is used at over 90˚F(32˚C) (indoor temperature), it does not cool at its full capacity.
• The use of the air conditioner at a relative humidity above the expected one (80%) may cause the formation of
condensate and the leakage of water drops on the floor.
Maintaining your air conditioner
Internal protections via the unit control system
 This internal protection operates if an internal fault occurs in the air conditioner.
Type
Against cold air
The internal fan will be off to against cold air when the heat pump is heating.
De-ice cycle
(Defrost cycle)
The internal fan will be off to against cold air when the heat pump is heating.
Anti-Freezing of Indoor
Heat Exchanger
The compressor will be off if the heat exchanger temp of indoor unit decrease to 0˚C or
more to protect from ice build up on the heat exchanger.
Protect compressor
The air conditioner does not start operating immediately to protect the compressor of
the outdoor unit after it has been started.
NOTE
8
Description
• If the heat pump is operating in Heat mode, De-ice cycle is actuated to remove frost from an outdoor unit that may
have deposited at low temperatures.
The internal fan is switched off automatically and restarted only after the de-ice cycle is completed.
Tips on using air conditioner
Here are some tips that you would follow when using your air conditioner.
RECOMMENDATION
Cooling
• If current outside temperatures are much higher than the selected indoor
temperature, it may take time to bring the inner temperature to the desired
coolness.
• Avoid drastically turning down the temperature. Energy is wasted and the room
does not cool faster.
Heating
• Since the air conditioner heats the room by taking heat energy from outdoor air,
the heating capacity may decrease when outdoor temperatures are extremely
low. If you feel the air conditioner insufficiently heats, using an additional heating
appliance in combination with the air conditioner is recommended.
Frost & De-ice
• When the air conditioner runs in Heat mode, due to temperature difference
between the unit and the outside air, frost will form.
If this happens:
- The air conditioner stops heating.
-The air conditioner will operate automatically in De-ice mode for 10 minutes.
- The steam produced on the outdoor unit in De-ice mode is safe.
No intervention is required; after about 10 minutes, the air conditioner operates
again normally.
 The unit will not operate when it starts to de-ice.
Fan
• Fan may not operate for about 3~5 minutes at the beginning to prevent any cold
blasts while the air conditioner is warming up.
High indoor/
outdoor
temperatures
• If both indoor and outdoor temperatures are high and the air conditioner is
running in Heat mode, the outdoor unit’s fan and compressor may stop at times.
This is normal; wait until the air conditioner turns on again.
Power failure
• If a power failure occurs during the operation of the air conditioner, the operating
immediately stops and unit will be off. When power returns, the air conditioner
will run automatically.
Protection
mechanism
• If the air conditioner has just been turned on after operation stops or being
plugged in, cool/warm air does not come out for 3 minutes to protect the
compressor of the outdoor unit.
ENGLISH
TOPIC
Automatic air flow • If the air conditioner is operating in abnormal conditions (such as operating the
blade control
air conditioner with windows open or when small capacity indoor unit is installed
and operating in a room that is too large) indoor can become very humid when
the angle of the air flow blade is small and performance of the product may
decrease. When indoor humidity increases, indoor unit will automatically detect it
and open the air flow blade in wider angle to make sure that performance of the
product is stable.
9
Viewing the parts
Main parts
Air flow blade
Air intake
Air filter (under the grille)
Display
Indicator
On/Off operation indicator
Removing frost indicator
Timer indicator
Filter reset indicator
Remote control sensor
NOTE
10
• Y our air conditioner and display may look slightly different from the illustration shown above depending on your
model.
Cleaning and maintaining the air conditioner
Cleaning the exterior
CAUTION
ENGLISH
Wipe the surface of the unit with a slightly wet or dry cloth when needed.
Wipe off dirt of odd-shaped area by using a soft brush.
•Do not use Benzene or Thinner.
They may damage the surface of the air
conditioner and can create a risk of fire.
11
Cleaning and maintaining the air conditioner
Cleaning air filter and grille
Detach the front grille.
Open the front grille.

Pull both hooks and take the grille downward. Two
safety clips are mounted to the front grille to prevent it
from dropping.
PULL
 Remove the safety clip from panel front. (There are
two safety clips between grille and panel base.)
 If you want to clean the filter only, you do not have to
detach the grille. Follow step 4 and 5
PULL
Clean the grille and Air filter with a vacuum cleaner
or soft brush. If dust is too heavy, then rinse it with
running water and dry it in a ventilated area.
Pull out the Air filter.
 For best conditions, repeat every two weeks.
 If the Air filter dries in a confined (or humid) area, odors
may generate. If it occurs, re-clean and dry it in a
well-ventilated area.
Insert the Air filter back in its original position.
Attach the front grille.
 You will hear a click sound when the Air filter is
 Reverse the above steps to attach the front grille.
properly placed.
NOTE
12
• The illustration shown above may differ from yours depending on your model.
• After cleaning the filter, press the Filter Reset button on the remote control for 2 seconds to reset the filter
schedule. Filter sign indicator will be on for cleaning time.
• If the angle on the air flow blades has been changed by user due to opening the front grille for installation or
maintenance, you must turn off the circuit breaker and turn it on again before using the air conditioner.
Otherwise, angles of the each angle can be different or some of the blade may not close when the product is off.
If the air conditioner will not be used for an extended period of time, dry the air
conditioner to maintain it in best condition.
Periodical checks
Refer to the following chart to maintain the air conditioner properly.
Type
Description
Clean the air filter (1)
Indoor unit
Monthly
Every 4
months
Once a year

Clean the condensate drain pan (2)

Thoroughly clean the heat exchanger (2)

Clean the condensate drain pipe (2)

Replace the remote control batteries (1)
Clean the heat exchanger on the outside of the unit (2)
Outdoor unit


Clean the heat exchanger on the inside of the unit (2)

Clean the electric components with jets of air (2)

Verify that all the electric components are firmly tightened (2)

Clean the fan (2)

Verify that all the fan assembly is firmly tightened (2)

Clean the condensate drain pan (2)

 : This check mark requires checking the indoor/outdoor unit periodically, following to the description to maintain the
air conditioner properly.
NOTE
(1) The described operations should be performed more frequently if the area of installation is very dusty.
(2) These operations must always be performed by qualified personnel. For more detailed information, see the
installation part in the manual.
13
ENGLISH
 Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and
disconnect the power plug.
There may be internal damage if moisture is left in components.
 Before using the air conditioner again, dry the inner components of the air
conditioner again by running in Fan mode for 3 to 4 hours. This helps remove
odors which may have generated from dampness.
AA
Troubleshooting
Refer to the following chart if the air conditioner operates abnormally. This may save
time and unnecessary expenses.
PROBLEM
SOLUTION
The air conditioner • Because of the protective mechanism, the appliance does
does not operate
not start operating immediately to keep the unit from
immediately
overloading.
after it has been
The air conditioner will start in 3 minutes.
restarted.
The air conditioner • Check that the power plug is properly connected. Insert the
does not work at
power plug into the wall socket correctly.
all.
• Check if the circuit breaker is switched off.
• Check if there is a power failure.
• Check your fuse. Make sure it is not blown out.
The temperature • Check if you selected Fan mode.
does not change.
Press the Mode button on the remote control to select
another mode.
The cool (warm)
• Check if the set temperature is higher (lower) than the
air does not come
current temperature. Press the Temperature button on
out of the air
the remote control to change the set temperature. Press
conditioner.
the Temperature button to decrease or increase the
temperature.
• Check if the air filter is blocked by dirt.
• Check if the air conditioner has just been turned on. If so,
wait 3 minutes. Cool air does not come out to protect the
compressor of the outdoor unit.
• Check if the air conditioner is installed in a place with a
direct exposure to sunlight. Hang curtains on windows to
boost cooling efficiency.
• Check if the cover or any obstacle is not near the outdoor
unit.
• Check if the refrigerant pipe is too long.
• Check if the air conditioner is only available in Cool mode.
• Check if the remote control is only available for cooling
model.
The fan speed
• Check if you selected Auto or Dry mode.
does not change.
The air conditioner automatically adjusts the fan speed to
Auto in Auto/Dry mode.
Timer function
• Check if you press the Set button on the remote control
does not set.
after you have set the time.
14
The air conditioner • A bubbling sound may be heard when the refrigerant is
makes a bubbling
circulating through the compressor. Let the air conditioner
sound.
operate in a selected mode.
• When you press the Power button on the remote control,
noise may be heard from the drain pump inside the air
conditioner.
Water is dripping • Check if the air conditioner has been cooling for an
from the air flow
extended period of time with the air flow blades pointed
blades.
downwards. Condensation may generate due to the
difference in temperature.
Remote control is • Check if your batteries are depleted.
not working.
• Make sure batteries are correctly installed.
• Make sure nothing is blocking your remote control sensor.
• Check that there are strong lighting apparatus near the air
conditioner. Strong light which comes from fluorescent
bulbs or neon signs may interrupt the electric waves.
The air conditioner • Check if you set the wired remote control for group control.
does not turn on
or off with the
wired remote
control.
The wired remote
control does not
operate.
• Check if TEST indicator is displayed on the wired remote
control. If so, turn off the unit and switch off the circuit
breaker. Call your nearest contact center.
The indicators of
the digital display
flashes.
• Press the Power button on the remote control to turn the
unit off and switch the circuit breaker off. Then, switch it on
again.
15
ENGLISH
PROBLEM
SOLUTION
Odors permeate in • Check if the appliance is running in a smoky area or if there
the room during
is a smell entering from outside. Operate the air conditioner
operation.
in Fan mode or open the windows to air out the room.
QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
CANADA
1-800-SAMSUNG(726-7864)
www.samsung.com/ca (English)
www.samsung.com/ca_fr (French)
MEXICO
01-800-SAMSUNG(726-7864)
www.samsung.com
U.S.A
- Consumer Electronics
1-800-SAMSUNG(726-7864)
www.samsung.com
ARGENTINE
0800-333-3733
www.samsung.com
URUGUAY
40543733
www.samsung.com
PARAGUAY
98005420001
www.samsung.com
BRAZIL
0800-124-421
4004-0000
www.samsung.com
CHILE
800-SAMSUNG(726-7864)
From mobile 02-24 82 82 00
www.samsung.com/cl
BOLIVIA
800-10-7260
www.samsung.com
COLOMBIA
01-8000 112 112
Bogotá: 6001272
www.samsung.com/co
COSTA RICA
0-800-507-7267
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
DOMINICA
1-800-751-2676
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
ECUADOR
1-800-10-7267
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
NICARAGUA
00-1800-5077267
www.samsung.com
HONDURAS
800-7919267
www.samsung.com
EL SALVADOR
800-6225
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
GUATEMALA
1-800-299-0013
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
HONDURAS
800-27919267
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
JAMAICA
1-800-234-7267
www.samsung.com
NICARAGUA
00-1800-5077267
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
PANAMA
800-7267
www.samsung.com/latin (Spanish)
www.samsung.com/latin_en (English)
PERU
0-800-777-08(Only from landline)
336-8686 (From HHP & landline)
www.samsung.com
PUERTO RICO
1-800-682-3180
www.samsung.com
TRINIDAD & TOBAGO
1-800-SAMSUNG (726-7864)
www.samsung.com
VENEZUELA
0-800-100-5303
www.samsung.com
Mini 4 Way Cassette Type
Air Conditioner
user manual
This manual is made with 100% recycled paper.
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
EN ES FR PT DB68-03761A-1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
