Sansui HDLCDVD260 Owner Manual

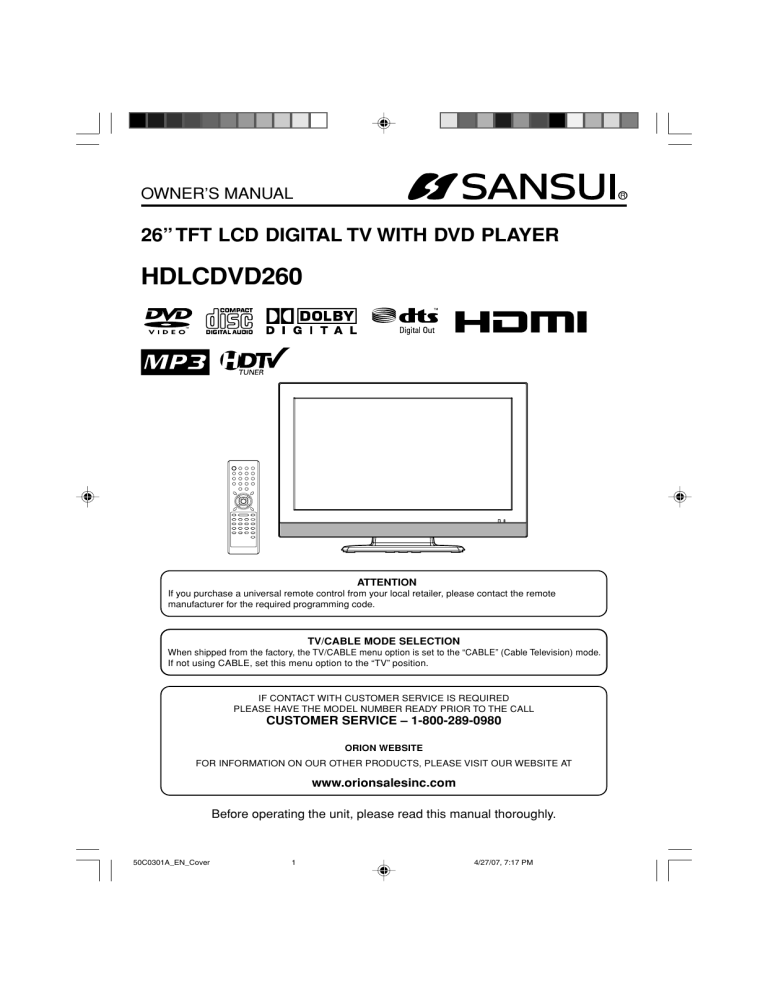

OWNER’S MANUAL
R
26” TFT LCD DIGITAL TV WITH DVD PLAYER
HDLCDVD260
ATTENTION
If you purchase a universal remote control from your local retailer, please contact the remote
manufacturer for the required programming code.
TV/CABLE MODE SELECTION
When shipped from the factory, the TV/CABLE menu option is set to the “CABLE” (Cable Television) mode.
If not using CABLE, set this menu option to the “TV” position.
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL
CUSTOMER SERVICE – 1-800-289-0980
ORION WEBSITE
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
www.orionsalesinc.com
Before operating the unit, please read this manual thoroughly.
50C0301A_EN_Cover
1
4/27/07, 7:17 PM
The lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
CAUTION:
RAIN OR MOISTURE.
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with
the FCC Rules could void the user's authority to operate this equipment.
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE
READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN
FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE
MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM,
DO NOT TRY TO OPEN THE ENCLOSURE. RADIATION MANY
BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT
STARE INTO THE BEAM.
Location of the required Marking
The rating sheet and the safety caution
are on the rear of the unit.
CERTIFICATION: COMPLIES WITH FDA
RADIATION PERFORMANCE STANDARDS,
21 CFR SUBCHAPTER J.
The lamp(s) within this product contain mercury.
Disposal should be in compliance with local, state or federal laws.
2
50C0301A_EN_P02-05
2
4/27/07, 7:17 PM
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a clean dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician to replace the obsolete receptacle.
10) Protect the power cord from being walked on or pinched particularly at plug, and the point where it exits
from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
PORTABLE CART WARNING
(symbol provided by RETAC)
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when
S3126A
the apparatus has been damaged in any way, such as power-supply cord or
plug damage, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such a vases,
should not be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits, as
contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short
out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is
grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for
the grounding electrode.
3
50C0301A_EN_P02-05
3
4/27/07, 7:17 PM
IMPORTANT SAFETY INSTRUCTIONS (continued)
EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
ANTENNA LEAD
IN WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
NEC-NATIONAL ELECTRICAL CODE
S2898A
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
20) When replacement parts are required, be sure the service technician uses replacement parts specified by
the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22) Keep your fingers clear of the disc slot as it is closing. It may cause injury.
23) When you connect the product to other equipment, turn off the power and unplug all of the equipment from
the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's
manual of the other equipment carefully and follow the instructions when making any connections.
24) Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume
sound may cause hearing or speaker damage.
25) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker
overheating and fire.
26) When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.
27) Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the
laser beam. It may cause eye damage.
28) Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious
personal injury and product malfunction.
29) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
4
50C0301A_EN_P02-05
4
4/27/07, 7:17 PM
IMPORTANT SAFETY INSTRUCTIONS (continued)
CONDENSATION
Moisture will form in the operating section of the player if the player is brought from cool surroundings into a
warm room or if the temperature of the room rises suddenly. When this happens, player's performance will
be impaired.
To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or
make sure that the room temperature rises gradually.
Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In such cases, change the location of the player.
HOW TO HANDLE THE LCD PANEL
• Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause
skin inflammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in
your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean
water.
5
50C0301A_EN_P02-05
5
4/27/07, 7:17 PM
SAFETY PRECAUTIONS
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause
overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When
placing on a shelf leave 10 cm (4 inches) free space around the entire unit.
10cm
Notes when mounting the LCD TV/DVD on a wall
• When installing the unit on a wall, allow at least 6 cm (2 1/2 inches) clearance between the rear of the LCD
TV/DVD and the wall. Clearance of less than 6 cm (2 1/2 inches) will obstruct the vents and may cause the
interior of the unit to overheat, resulting in damage to the unit.
• If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/DVD for advice,
and have the equipment professionally installed. Incomplete or improper installation may cause injury to you,
and/or damage to the LCD TV/DVD.
IMPORTANT NOTICE
Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for long
periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD
Panel on for long periods of time while it is displaying the following formats or images:
• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a
normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a
widescreen (16:9) display (black bars on left and right sides of screen).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim
any responsibility for these symptoms.
• LCD Panels are manufactured using an extremely high level of precision technology, however sometimes
parts of the screen may be missing picture elements or have luminous spots.
This is not a sign of a malfunction.
• Do not install the LCD Panel near electronic equipment that is susceptible to electromagnetic waves. Some
equipment placed too near this unit may cause interference.
• Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless
headphones.
6
50C0301A_EN_P06-13
6
4/27/07, 7:17 PM
Features
LCD color TV With DVD/CD player
Unique space saving design combines a 26” LCD color TV and a DVD/CD player.
A DVD disc has much more capacity, but is the same size as an audio CD disc. The Picture/Audio quality of a
DVD exceeds other software. The picture quality is higher than Super VHS video cassettes. The audio quality is
higher than an audio CD. The DVD also has special options; audio language selection, subtitle language selection, or multi-angle, etc.
The DVD PLAYER can play back both audio CDs and MP3/WMA/JPEG CDs.
Compatible with a wide range of DVD audio outputs
Digital Audio Jack (Coaxial)
• When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the
effect of being in a movie theater or a concert hall.
• Surround standard is different from Dolby Digital. This format is already in use in many theaters. By connecting
this unit to a DTS decoder or an AV amplifier with a built-in DTS decoder, the DTS audio of DVD discs recorded
in this format can be enjoyed. However, audio will not be output from the analog audio output jacks.
• By connecting this unit to an AV amplifier with a built-in MPEG decoder, the MPEG audio of DVD discs recorded in this format can be enjoyed.
• The Linear PCM sound of a 48 kHz/24 bit through 96 kHz/24 bit exceeds audio CD sound.
Convenience Features
Direct selection of your desired scenes using Title/Chapter/Time/Track - You can play back from the desired
scene.
Recalling Up to 3 Scenes (DVD only) - You can program up to 3 scenes in memory and recall the marked scenes.
Frame Advance - The PAUSE/STILL moves one frame at a time.
Slow Motion - The SLOW moves you back and forth through the program by 4 steps of 1/7-1/2 times.
Repeat Playback - You can repeat chapter, track, title, sides or material between two selected points.
Program Playback (Audio CD/MP3/WMA CD) - You can play back tracks in programmed sequences.
Zoom (DVD only) - You can zoom in the selected subject on the screen during playback.
Note: Make sure that discs are suitable for the following functions.
Multi-Language - Maximum 32 language subtitles and maximum 8 language soundtracks can be played back
for movies or programs.
Multi-Angle - Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc,
you can change the angles during playback.
Parental Control - You can limit the play back of scenes or sounds of DVD discs that have a rating level encoded
on the disc.
Video Aspect Ratio - You can change the aspect ratio of the screen for your monitor.
TV Features
Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.
Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for
hearing impaired viewers.
Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed for up to 120
minutes to turn off automatically.
On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for onscreen programming.
V-Chip - The V-Chip function can read the rating of a TV program or movie content if the program is encoded
with this information. V-chip will allow you to set a restriction level.
* This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
*
is a trademark of DVD Format/Logo Licensing Corporation.
* Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
* “DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc.
7
50C0301A_EN_P06-13
7
4/27/07, 7:17 PM
Contents
Playback operation
Before using your unit
IMPORTANT SAFETY INSTRUCTIONS ......... 3
SAFETY PRECAUTIONS ................................ 6
IMPORTANT NOTICE ..................................... 6
Features ........................................................... 7
Contents ........................................................... 8
Disc .................................................................. 9
Location of controls ........................................ 10
Remote control ............................................... 12
Power source ................................................. 13
Antenna connections ...................................... 14
Cable TV connections .................................... 15
TV operation
Setting the on-screen display language ......... 16
TV operation ................................................... 17
Memorizing channels ..................................... 19
Setting the V-Chip .......................................... 21
Labeling channels .......................................... 24
Selecting the video input source .................... 25
Labeling the video input source ..................... 25
Setting the picture size ................................... 26
Setting the picture scroll ................................. 28
Selecting the cinema mode ............................ 29
Using the aspect feature ................................ 29
Adjusting the picture preference .................... 30
Picture control adjustment .............................. 30
Selecting the color temperature ..................... 31
Adjusting the back lighting feature ................. 31
Resetting your picture adjustments ................ 31
Closed Caption ............................................... 32
CC advanced ................................................. 33
Selecting Stereo/Second Audio Program
(SAP) .............................................................. 34
Sound control adjustment .............................. 34
Selecting the HDMI audio input source .......... 35
Selecting the audio language ......................... 35
Selecting the digital output ............................. 36
Resetting your audio adjustments .................. 36
Checking the Digital-signal strength ............... 37
Setting the auto shut off ................................. 37
Picture/Audio control adjustment in the
PC mode ........................................................ 38
Preparation ..................................................... 40
Status display of disc ..................................... 40
Playback procedure ....................................... 41
Special playback ............................................ 42
MP3/WMA/JPEG and Audio CD playback ..... 43
Setting the JPEG interval ............................... 45
Advanced function
Program playback (CD) .................................. 46
Repeat playback (CD) .................................... 47
Random playback (CD) .................................. 47
Zooming ......................................................... 48
Locating desired scene .................................. 48
Repeat playback ............................................ 49
Marking desired scenes ................................. 50
Changing soundtrack language ..................... 51
Subtitles ......................................................... 51
Changing angles ............................................ 52
Title selection ................................................. 52
DVD menu ...................................................... 52
Additional information
Setting the language ...................................... 53
Setting the aspect ratio of TV screen ............. 54
Setting on screen display ............................... 54
Setting the picture mode ................................ 55
Night Mode ..................................................... 56
Digital out ....................................................... 56
Parental control setting .................................. 57
Setting the new password .............................. 58
Temporary disabling of rating level by
DVD disc ........................................................ 59
Language code list ......................................... 60
Connections to other equipment .................... 61
Reception disturbances .................................. 64
Problems and troubleshooting ....................... 65
Specifications ................................................. 67
Limited WARRANTY ........................ Back cover
8
50C0301A_EN_P06-13
8
4/27/07, 7:17 PM
Disc
Playable discs
Disc type and logo mark
content
Audio
+
Video
(moving
pictures)
DVD Video
Audio
CD-DA
The following discs are also available.
• DVD-R/RW discs of DVD video format.
• CD-R/RW discs of MP3/WMA/JPEG.
CAUTION:
• Only the left types of discs can be played on this unit.
DVD-ROM, CD-ROM, SVCD, CVD, VCD, etc. cannot be
played.
• 8cm discs can be played directly. If an 8cm disc adapter is
used it will cause errors.
• If you insert an irregular shaped disc, it may get stuck and
cause a malfunction.
• The use of a ring protector or other disc accessories will
cause errors.
• This unit is to be used exclusively with the NTSC color
system. PAL and SECAM system discs cannot be used
with this unit.
• Some CD-R/RWs and DVD-R/RW can not be played
back depending on the recording conditions.
Region Number
Region number (Regional restriction code) is built-in to the unit and DVD video discs.
Region number “1” or “ALL” of DVD video discs can be used on this unit.
1
ALL
DVD DISC
Title
TITLE 1
When two or more movies are recorded on a disc,
the disc is divided into two or more sections.
Each section is called a “TITLE”.
TITLE 2
CHAPTER 1
CHAPTER 2
TRACK 1
TRACK 2
CHAPTER 1
CHAPTER 2
CHAPTER 3
TRACK 4
TRACK 5
Chapter
The titles can be subdivided into many sections.
Each section is called a “CHAPTER”.
Track
Audio - CD
TRACK 3
An Audio CD can contain several items.
These are assigned to the tracks.
Removing Disc from Case
Be sure to hold the edge of disc. Do not touch the surface of the disc.
Pick up the disc gently from the case.
• Do not scratch the disc.
• Do not get dirt on the surface of the disc.
• Do not stick a label or adhesive tape on the disc.
• Do not drop or bend the disc.
Storing Disc
• Store the disc in the case to avoid risk of scratches, dirt or damage.
• Do not leave disc exposed to direct sunlight or in hot or humid places.
Cleaning Disc
Wipe the disc with a clean, dry cloth from center to edge.
• Do not wipe the disc in a circular motion.
• Do not use liquid or aerosol cleaners.
9
50C0301A_EN_P06-13
9
4/27/07, 7:17 PM
Location of controls
Top
VOLUME +/– buttons
EJECT button
SKIP button
STOP button
PLAY button
CHANNEL ▲/▼ buttons
MENU button
INPUT button
POWER button
Front
Remote sensor
POWER indicator
To display the menu screen.
Press MENU button to display the menu screen.
CHANNEL ▲/▼ buttons and VOLUME +/– buttons can be used to select the desired setting during the menu
screen operations.
10
50C0301A_EN_P06-13
10
4/27/07, 7:17 PM
Location of controls
(continued)
Right side
DISC slot
Left side
COAXIAL DIGITAL
AUDIO OUT jack
AV1 IN jacks
RF (ANT) IN jack
AV2 IN jacks
COMPONENT IN jacks
PC IN jack
HDMI/PC AUDIO IN jack
HDMI IN jack
11
50C0301A_EN_P06-13
11
4/27/07, 7:17 PM
Remote control
Page
POWER
DISPLAY/–
Power On/Off
16,17,40,41
Call TV information
18,22
Call DVD information
40
Input “–” for digital channels
17
TV/DVD
Switch between TV/AV and DVD
16,40,41
5 (EJECT)
Eject a disc
41,59
0-9
Direct channel selection of TV
17
Input setting
25,26,43,44,48
Enter a password
21~23,57~59
VOL +/–
Adjust volume of TV
17,18
MUTE
Switch off the sound
18,22
SLEEP
Sleep timer
18
SETUP/TV MENU TV mode - Display menu of TV 16,19~26,30~39
DVD mode - Call up initial setup mode
45,53~58
DVD MENU
Display DVD menu
52
CH /
Select channel of TV
18
Cursor buttons 16,19~26,28~39,41,43~50,52~59
ENTER
Enter information in the menu
20~24,26,33,36,41,43~50,52~59
EXIT
Exit from On-Screen menu 16,19,20,22~26,28~38
CANCEL
Reset information in the menu
48,50,57,58
TOP MENU
Select title
52
SEARCH
Fast Forward/Review playback
42
PLAY
Playback
41~44,46,47,49,52
SKIP
Skip chapter to forward or reverse direction 42,47
SUBTITLE
Set subtitle
51
STOP
Stop
41,43,44
SLOW
Forward/Reverse- slow motion
42
PAUSE/STILL
Pause CD sound
Still picture of DVD
42
PLAY MODE
Select playback mode
49
AUDIO
Display AUDIO menu
34
Switch the sound of TV
Change sound track language
51
RETURN
Remove DVD setup menu
45,53~59
REPEAT A-B
Repeat playback between A and B
49
ANGLE
Change playback angle
52
SCREEN SIZE
Display PICTURE SIZE menu
26
MARKER
Index
50
JUMP
Locating desired scene
48
QUICK VIEW
Switch between present/last channel
18
ZOOM
Zoom
48
INPUT SELECT
Display SOURCE SELECTION menu
25,38
12
50C0301A_EN_P06-13
12
4/27/07, 7:17 PM
Remote control
(continued)
Inserting Batteries
1
Open the battery compartment cover in the direction of
the arrow.
two “AAA” batteries,
2 Install
3
paying attention to the polarity
Replace the compartment
cover.
diagram in the battery
compartment.
Operation
• Aim the remote control at the remote sensor and press control
buttons to operate.
• Operate the remote control within a 30° angle on either side of
the remote sensor, up to a distance of approximately 15 feet.
Approximately 15 feet
NOTES:
• Do not leave the remote control unit exposed to direct sunlight or in hot or humid places.
• The remote control unit uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote
sensor may shorten operating distance.
• Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries
properly.
• Do not mix old and new batteries.
• Remove batteries if the remote control will not be operated for an extended period of time.
Power source
TO USE AC POWER
1. Connect the AC cord plug into this unit's AC IN jack.
2. Connect the AC cord into an AC outlet.
Wider Hole
and Blade
AC Outlet
AC 120V, 60Hz
AC cord (supplied)
NOTES:
• Please make sure to insert the cord securely at both the LCD TV/DVD and the wall outlet.
• The AC Cord has a grounding-type AC line plug. If the supplied AC cord does not match your AC outlet,
contact a qualified electrician, do not defeat the purpose of a grounding plug.
WARNING:
• DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC
CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
• DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD
CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
• WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF
SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
• DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL
SHOCK.
• IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS
RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.
13
50C0301A_EN_P06-13
13
4/27/07, 7:17 PM
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna
system. If you are using a Cable TV service, see page 15 for Cable TV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack.
Antenna
jack
Antenna
jack
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, the use of the 300-75 ohm
matching transformer may be necessary.
75 ohms
coaxial
cable
300-75 ohms
matching
transformer
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
300-75 ohms
matching
transformer
Antenna
jack
Connect the UHF 300 ohm twin-lead wire to the
Combiner (not supplied). Connect the VHF 300
ohm twin-lead wire to the 300-75 ohm Matching
Transformer. Attach the Transformer to the Combiner, then attach the Combiner to the Antenna
Jack.
Combiner
UHF 300 ohms
VHF 300 ohms
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the Combiner (not supplied).
Attach the Combiner to the Antenna Jack.
Antenna
jack
VHF 75 ohms
Combiner
UHF 300 ohms
14
50C0301A_EN_P14-19
14
4/27/07, 7:17 PM
Cable TV connections
This TV/DVD has an extended tuning range and can tune most cable channels without using a Cable
TV Converter box. Some cable companies offer “premium pay channels” where the signal is
scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device
which is generally provided by the Cable TV company.
FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE
Antenna
jack
For basic Cable TV service not requiring a Converter/
Descrambler box, connect the 75 ohm Coaxial Cable directly to
the Antenna Jack on the back of the TV/DVD.
75 ohms
coaxial cable
FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the
incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable,
connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV/DVD. Follow the
connections shown below. Set the TV/DVD to the output channel of the Converter/Descrambler box (usually
channel 3 or 4) and use the Converter/Descrambler box to select channels.
Incoming
75 ohm
Cable TV
Cable
75 ohm Cable
to TV/DVD
Converter/
Descrambler
Antenna
Jack
FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH
SCRAMBLED PREMIUM CHANNELS
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the
use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from
the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the
“B” position, you can directly tune any nonscrambled channels on your TV/DVD. With the switch in the “A” position,
tune your TV/DVD to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/
Descrambler box to tune scrambled channels.
Incoming
75 ohm
Cable TV
Cable
Converter/
Descrambler
Splitter
A/B Switch A
75 ohm Cable
to TV/DVD
Antenna
Jack
B
15
50C0301A_EN_P14-19
15
4/27/07, 7:17 PM
Setting the on-screen display language
You can choose from three different
languages (English, French and
Spanish) for the on-screen displays.
On-screen language selecion (step 5)
will automatically appear on the
screen when you press SETUP/MENU
initially. Select the language you
prefer first, then proceed with the
other menu options.
1 Press POWER to turn on the unit.
2 Press TV/DVD to select the TV mode.
3 Press SETUP/TV MENU. The TV menu screen will appear.
4 Press or to select
(SETUP) menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
CABLE
:SELECT
:ADJUST
5 Press ▲ or ▼ to select
“LANGUAGE”.
6 Press
or to select the desired language: English (ENGLISH),
French (FRANÇAIS) or Spanish (ESPAÑOL).
7 Press EXIT to return to the normal screen.
NOTES:
• If the unit does not operate properly (by
the buttons on the unit and/or the
remote control) disconnect the AC
cord, wait a few minutes and plug it
back in. Static electricity, etc., may have
affected the player's operation.
• If no buttons are pressed for more than
60 seconds, the MENU screen will return
to normal TV-operation automatically.
16
50C0301A_EN_P14-19
16
4/27/07, 7:17 PM
TV operation
1 To turn on the unit, press POWER.
the volume level by pressing
2 Adjust
VOL + or – . The volume level will
be indicated on the screen by white
bars. As the volume level increases,
so do the number of bars. If the
volume decreases, the number of
white bars also decreases.
the TV/CABLE menu
3 Set
option to the appropriate
VOLUME
25
TV - VHF/UHF channels
CABLE - CABLE TV channels
position (see page 19).
the Direct Channel Selection
4 Press
(0-9,–) buttons to select the channel.
To select analog channels
When the TV/CABLE menu option is
in the TV position, all channels can be
12
instantly selected by using two
buttons.
(For example, to select channel 2, press “0”, then “2”. If you press
only “2”, channel selection will be delayed for a few seconds.)
For channels 10 and above, press the 2 digits in order.
ANT
ABCD
CABLE
ANALOG
When the TV/CABLE menu option is in the CABLE position,
channels can be selected as follows:
1-9:
Press 0 twice, then 1-9 as needed.
Example, to select channel 2, press 002.
10-12:
Press 0, then remaining 2 digits.
Example, to select channel 12, press 012.
13-99:
Press the 2 digits in order.
Example, to select channel 36, press 36.
100-125: Press the 3 digits in order.
Example, to select channel 120, press 120.
To select digital channels
Press the channel number in order.
When “–” is contained in the channel number, Press the first 3
digits, then press “–/DISPLAY”, followed by the remaining 3 digits.
(Example, to select channel 015-001, press 015 – 001.)
• If a channel is selected with only audio content, “AUDIO ONLY”
will be displayed on the screen.
• If a channel is selected with a weak digital signal, “DIGITAL
CHANNEL SIGNAL STRENGTH IS LOW” will be displayed on
the screen.
If the digital channel has the same analog channel, you may be
able to watch the same channel with analog.
• If a channel is selected to which you have not subscribed, “DIGITAL
CHANNEL IS ENCRIPTED” will be displayed on the screen.
VHF/UHF/CABLE CHANNELS
NOTES:
• If a channel with no broadcast is
selected, the sound will automatically be muted.
• It may take a few seconds for a
digital channel picture to appear on
screen after being selected.
50C0301A_EN_P14-19
17
TV
VHF
2-13
UHF
14-69
CABLE
VHF
2-13
STD/HRC/IRC
14-36
(A) (W)
37-59
(AA) (WW)
60-85
(AAA) (ZZZ)
86-94
(86) (94)
95-99
(A-5) (A-1)
100-125 (100) (125)
01
(5A)
4/27/07, 7:17 PM
17
TV operation
(continued)
CH
/
Press and release CH
or
. The channel
automatically stops at the next channel set
into memory.
For proper operation, before selecting
channels, they should be set into the memory.
See pages 19 and 20 “Memorizing channels”.
ANT
ABCD
CABLE
ANALOG
12
DISPLAY
Press DISPLAY to display the current information on the screen.
When the TV receives a digital signal, the
digital information will appear.
• Channel number
• Broadcast program name
• Station name
• Remaining time
• Audio language
• Program guide
• V-CHIP RATING
• V-Chip mark
• Sleep time
• Picture size
When the TV receives a analog signal, the
analog information will appear.
• Channel number or VIDEO mode
selected
• Channel label (if preset)
• Stereo or SAP (second audio program)
audio status
• Content rating
• Sleep time
• Picture size
Press DISPLAY again to clear the call display.
QUICK VIEW
This button allows you to go back to the last
channel selected by pressing QUICK VIEW.
Press QUICK VIEW again to return to the last
channel you were watching.
ANT
ABCD
CABLE
ANALOG
NOTES:
• The unit is capable of holding a still
video image or On screen display
image on your television screen
indefinitely. If you leave the still video
image or On screen display image
displayed on your unit for an extended
period of time, you risk permanent
damage to your television screen.
• When the TV receives an analog
signal, DISPLAY shows only analog
information.
• After 10 seconds, DISPLAY screen will
return to normal TV-operation automatically, when a Digital signal is
received.
After 4 seconds, DISPLAY screen will
return to normal TV-operation automatically, when a Analog signal is
received.
MUTE
Press MUTE to switch off the sound. The unit’s
sound will be silenced and “MUTE” will briefly
appear on the screen. The sound can be
switched back on by pressing this button again
or the VOL + or –.
MUTE
SLEEP
To set the unit to turn off after a preset amount
of time, press SLEEP on the remote control.
The clock will count up 10 minutes for each
press of the SLEEP button (OFF, 0h10m, ...,
1h50m, 2h00m). After the sleep time is
programmed, the display will appear briefly
every ten minutes to remind you that the sleep
timer is operating. To confirm the sleep timer setting, press SLEEP and the
remaining time will be displayed for a few seconds. To cancel the sleep timer,
press SLEEP repeatedly until the display turns to OFF.
SLEEP TIMER
2 h 00m
18
50C0301A_EN_P14-19
18
10
4/27/07, 7:17 PM
Memorizing channels
This TV/DVD is equipped with a channel memory feature which allows channels to skip up or down to
the next channel set into memory, skipping over unwanted channels. Before selecting channels, they
must be programmed into the TV/DVD’s memory. To use this TV/DVD with an antenna, set the TV/
CABLE menu option to the TV mode. When shipped from the factory, this menu option is in the CABLE
mode.
TV/CABLE selection
1 Press SETUP/TV MENU in the TV mode.
The TV menu screen will appear.
or to select
2 Press(SETUP)
menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
CABLE
:SELECT
:ADJUST
3 Press ▲ or ▼ to select
“TV/CABLE”.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
TV/ CABLE
:SELECT
4 Press
or
“CABLE”.
:ADJUST
to select “TV” or
SETUP
TV - VHF/UHF channels
CABLE - CABLE TV channels
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
TV/CABLE
:SELECT
:ADJUST
5 Press EXIT to return to the normal screen.
CABLE CHART
The chart below is typical of many cable system channel allocations.
NOTE:
It may take a few seconds for a
digital channel picture to appear on
screen after being selected.
19
50C0301A_EN_P14-19
19
4/27/07, 7:17 PM
Memorizing channels
(continued)
Automatic memory tuning
SETUP/TV MENU in the TV mode.
1 Press
The TV menu screen will appear.
or to select
2 Press
(SETUP) menu, then press ▲ or
▼ to select “AUTO CH MEMORY”.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
CABLE
:SELECT
or . The unit will begin
3 Press
memorizing all the channels
available in your area.
:ADJUST
AUTO CH MEMORY
PROGRAMMING NOW
PLEASE WAIT
CABLE
• It may take from 15 minutes to
30 minutes to complete
EXIT : CANCEL
memorizing digital cable
channels.
Depending on the reception condition, a BAR display may not
advance for several minutes, please be patient.
To ADD/DELETE channels
1 Press SETUP/TV MENU. The menu screen will appear.
or to select
2 Press
(SETUP) menu, then press ▲ or
▼ to select “ADD/DELETE”.
Press or . The ADD/DELETE
menu will appear.
NOTES:
• Memorizing channels is best
accomplished during evening
“PRIMETIME” hours, as more
stations are broadcasting digital
signals. Memorizing channels can
only be accomplished while a
station is broadcasting a digital
signal to set that channel into
memory.
• If you are unsure of the digital
channels available in your area you
may visit www.antennaweb.org
to receive a list based on your
address or zip code. Should you
require further assistance you may
call our toll-free customer service
line at 1-800-289-0980.
• New digital channels may be
added to your area periodically, it
is recommended to perform the
“AUTO CH MEMORY” procedure
regularly.
• To return from ADD/DELETE menu
to SETUP menu, select “RETURN”,
then press or .
20
50C0301A_EN_P20-22
20
▲ or ▼ to select
3 Press
“ADD/DELETE”, then press
or
.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
A U TO C H M E M O RY
ADD/DELETE
CABLE
:SELECT
:ADJUST
ADD / DELETE
ADDING CHANNEL
ADD / DELETE
CH
SIGNAL
1
ANALOG
2
ANALOG
3
ANALOG
4
ANALOG
5
ANALOG
5-001
D I G I TA L
DELETE
ADD
DELETE
DELETE
ADD
ADD
CLEAR ALL
RETURN
4 Select the desired channel to
be memorized or deleted using
▲ or ▼.
Press or to select “ADD” or
“DELETE”, whichever function
you want to perform.
:SELECT
:ADJUST
ADD / DELETE
ADDING CHANNEL
ADD / DELETE
CH
SIGNAL
1
ANALOG
2
ANALOG
3
ANALOG
4
ANALOG
5
ANALOG
5-001
D I G I TA L
ADD/DELETE
ADD
DELETE
DELETE
ADD
ADD
CLEAR ALL
RETURN
:SELECT
:ADJUST
5
6 Press EXIT to return to the normal screen.
Repeat step 4 for other channels you want to add or delete, then
press ENTER.
To add a digital channel
Select the channel you wish to add.
Press ▲ or ▼ to select “ADDING CHANNEL” as in step 3 above,
then press or .
CLEAR ALL
All channels are deleted from the channel memory.
Press ▲ or ▼ to select “CLEAR ALL” in step 3 above,
then press or .
4/27/07, 7:18 PM
Setting the V-Chip
An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that
you may choose to exclude. The restriction applies to “TV RATING” and “MOVIE RATING” if this data is
transmitted. You may set this restriction separately. To use the V-Chip function, you must register a
password.
To register password
1 Press SETUP/TV MENU in the TV mode.
The TV menu screen will appear.
2 Press
or to select
(LOCKS) menu.
LOCKS
V-CHIP SET
NEW PASSWORD
:SELECT
:ADJUST
3 Press ▲ or ▼ to display the
password entering mode.
LOCKS
NEW PASSWORD
[0-9] : SELECT
ENTER : SET
EXIT : END
4 Select and enter a password
(4 digits) using Number
buttons (0-9), then press
ENTER.
LOCKS
NEW PASSWORD
[0-9] : SELECT
5 Enter the same password
again to confirm, then press
ENTER.
The password is now
registered and the LOCKS
menu will appear on the
screen.
ENTER : SET
EXIT : END
“ ” appears instead of the number.
LOCKS
C O N F I R M PA S S WO R D
[0-9] : SELECT
ENTER : SET
EXIT : END
NOTES:
• If you forget the password, contact
Customer Service at 1-800-289-0980
for assistance. Your original remote
control will be required.
• To avoid forgetting the password, write
it down and keep in the safe place.
21
50C0301A_EN_P20-22
21
4/27/07, 7:18 PM
Setting the V-Chip
(continued)
To set the V-Chip
1 Press SETUP/TV MENU in the TV
mode.
Then press or
(LOCKS) menu.
LOCKS
to select
V- C H I P S E T
N E W PA S S W O R D
:SELECT
:ADJUST
2 Press ▲ or ▼ to display the
password entering mode. Use
Number buttons (0-9) to enter
your password, then press ENTER.
The LOCKS menu appears.
▲ or ▼ to select “V-CHIP
3 Press
SET”, then press or . The V-
LOCKS
PA S S WO R D
[0-9] : SELECT
LOCKS
CHIP SET menu appears.
V- C H I P
V- C H I P S E T
V- C H I P S E T ( D T V )
N E W PA S S WO R D
▲ or ▼ to select “TV RAT4 Press
ING”. Then press or to display
the desired rating.
OFF
: TV RATING is not set
TV-Y
: All children
TV-Y7 : 7 years old and above
TV-G : General audience
TV-PG : Parental guidance
TV-14 : 14 years old and above
TV-MA : 17 years old and above
To use the TV after the TV is
protected.
When a program is received that is
blocked by the V-Chip, press MUTE
and enter the password, then press
ENTER. When the password is
entered correctly the protection will
be temporarily overridden. If the unit
is turned off, or the channel is
changed the V-Chip restriction will
be reactivated.
NOTES:
• The V-Chip function is activated
•
only on programs and input
sources that include a rating
signal.
The V-CHIP SET (DTV) will only
be selectable when the unit
receives a digital broadcast using
the new rating system. It may take
several minutes for the initial VChip Set-up to complete. At this
time some stations are still
developing this signal, in those
cases the V-CHIP SET (DTV) will
not function.
:SELECT
50C0301A_EN_P20-22
T V R AT I N G
:ADJUST
OFF
O F F / T V- Y / T V- Y 7 / T V- G
T V- P G / T V- 1 4 / T V- M A
M O V I E R AT I N G
:SELECT
:ADJUST
• When you select TV-Y7, TV-PG, TV-14 or TV-MA, press
DISPLAY to explain the rating. Press ▲ or ▼ to select the
desired rating you want. Press or to select the setting “ON”
or “OFF”.
▲ or ▼ to select “MOVIE
5 Press
RATING”, then press or . The
RATING SET menu appears.
▲ or ▼ to select a rating,
6 Press
then press or to select ON or
R AT I N G S E T
G
PG
PG-13
R
NC-17
X
:SELECT
ON/OFF
OFF
OFF
OFF
OFF
OFF
:ADJUST
OFF for each rating.
G
: All ages
PG
: Parental guidance
PG-13 : Parental guidance less than 13 years old
R
: Under 17 years old Parental guidance suggested
NC-17 : 17 years old and above
X
: Adult only
SETUP/TV MENU twice to
7 Press
return to the LOCKS menu, then
press ▲ or ▼ to select “V-CHIP”.
LOCKS
V- C H I P
V- C H I P S E T
V- C H I P S E T ( D T V )
N E W PA S S WO R D
:SELECT
Press or to select “ON”.
8 Your
settings are now set into
memory.
ON/OFF
:ADJUST
LOCKS
V- C H I P
V- C H I P S E T
V- C H I P S E T ( D T V )
N E W PA S S WO R D
9 Press EXIT to return to the normal screen.
22
OFF
V- C H I P S E T
:SELECT
22
ENTER : SET
EXIT : END
4/27/07, 7:18 PM
ON/OFF
:ADJUST
Setting the V-Chip
(continued)
To change the password
SETUP/TV MENU in the TV mode.
1 Press
The TV menu screen will appear.
or to select
2 Press
(LOCKS) menu.
LOCKS
V-CHIP SET
NEW PASSWORD
:SELECT
:ADJUST
3 Press ▲ or ▼ to display the
password entering mode.
Use Number buttons (0-9)
to enter your password,
then press ENTER. The
LOCKS menu appears.
LOCKS
PA S S WO R D
[0-9] : SELECT
ENTER : SET
EXIT : END
4 Press ▲ or ▼ to select
“NEW PASSWORD”, then
press or .
LOCKS
V-CHIP
V-CHIP SET
V-CHIP SET (DTV)
NEW PASSWORD
:SELECT
OFF
:ADJUST
5 Enter a new password
using Number buttons
(0-9), then press ENTER.
LOCKS
NEW PASSWORD
[0-9] : SELECT
ENTER : SET
EXIT : END
6 Enter the same password
again to confirm, then press
ENTER.
LOCKS
CONFIRM PASSWORD
[0-9] : SELECT
ENTER : SET
EXIT : END
7 Press EXIT to return to the normal screen.
23
50C0301A_EN_P23-28
23
4/27/07, 7:18 PM
Labeling channels
Channel labels appear over the
channel number display each time
you turn on the TV, select a
channel, or press DISPLAY.
You can choose any four characters to identify a channel.
To create channel labels
1 Select a channel you want to label.
SETUP/TV MENU in the
2 Press
TV mode, then press or to
select
(OPTION) menu.
Press ▲ or ▼ to select “CH
LABEL”, then press or . The
CH LABEL menu will appear.
OPTION
CH LABEL
VIDEO LABEL
:SELECT
:ADJUST
3 Press ▲ or ▼ to select “SET/
CLEAR”. Press
“SET”.
or
to select
C H LA B E L
:C H 11111 23
S E T / C LE A R
_ _ _ _
LA B E L
R E TU R N
:S E LE C T
:A D JU S T
E N TE R :S E T
4 Press ENTER to select “LABEL”.
Then press or to enter a
character in the first space.
Press the button repeatedly
until the character you want
appears on the screen.
CH LABEL
: CH1111123
SET
_ _ _ _
LABEL
RETURN
:SELECT
The characters rotation
as follows:
:ADJUST
+
SPACE
If the character which you desire appears, press ENTER.
Repeat this step to enter the rest of the characters.
If you would like a blank space in the label name, you must
choose the empty space from the list of characters; otherwise, a
dash will appear in that space.
When you finish inputting the label name, press ENTER.
5 Press EXIT to return to the normal screen.
steps 1-5 for other channel. You can assign a label to
6 Repeat
each channel.
To erase channel labels
1 Select a channel with a label which you want remove.
SETUP/TV MENU, then press or to select
2 Press
(OPTION) menu.
Press ▲ or ▼ to select “CH LABEL”, then press
the CH LABEL menu.
NOTE:
Select “RETURN” and press or
to return from CH LABEL menu to
OPTION menu.
Press ▲ or ▼ to select “SET/CLEAR”. Press
3 “CLEAR”,
then press ENTER.
or
4 Press EXIT to return to the normal screen.
5 Repeat steps 1 - 4 to erase other channel labels.
24
50C0301A_EN_P23-28
or
24
4/27/07, 7:18 PM
to display
to select
Selecting the video input source/
Labeling the video input source
Selecting the video input source
Press INPUT SELECT to view a
signal from another device connected to your TV, such as a VCR
or DVD player.You can select ANT,
VIDEO1, VIDEO2, COMPONENT,
HDMI or PC depending on which
input jacks you used to connect
your devices.
SOURCE SELECTION
0 : ANT
1 : VIDEO1
2 : VIDEO2
3 : COMPONENT
4 : HDMI
5 : PC
[0-5] : SELECT
Pressing INPUT SELECT on the remote control displays the current
signal source. To change the video input source, press INPUT
SELECT again or 0-5.
Labeling the video input source
The video label feature allows you to label each input source for
your unit.
1 Press SETUP/TV MENU in
the TV mode. Then press
or to select
(OPTION) menu.
Press ▲ or ▼ to select
“VIDEO LABEL”.
Press or . The VIDEO
LABEL menu will appear.
OPTION
CH LABEL
VIDEO LABEL
:SELECT
:ADJUST
2 Press ▲ or ▼ to select the
video source you want to
label.
VIDEO LABEL
1.
2.
3.
4.
VIDEO1
VIDEO2
COMPONENT
HDMI
- / VCR / DVD / DTV/SAT / CBL
-
RETURN
:SELECT
:ADJUST
or to select the
3 Press
desired label for that input
source.
– : Uses the default
label name
VCR : Video cassette
recorder
DVD : DVD video
DTV : Digital TV set-top box
SAT : Satellite box
CBL : Cable box
HD : HDMI device (only HDMI)
VIDEO LABEL
1.
2.
3.
4.
VIDEO1
VIDEO2
COMPONENT
HDMI
- / VCR / DVD / DTV/SAT / CBL
-
RETURN
:SELECT
:ADJUST
4 Press EXIT to return to the normal screen.
NOTE:
Select “RETURN” and press or
to return from VIDEO LABEL menu to
OPTION menu.
25
50C0301A_EN_P23-28
25
4/27/07, 7:18 PM
Setting the picture size
You can view 480i and 480p format
programs in a variety of picture
sizes—NATURAL, CINEMA
WIDE1, CINEMA WIDE2, CINEMA
WIDE3, and FULL.
Selecting the picture size
1 Press SETUP/TV MENU. Press
or to select
(SETUP)
menu. Press ▲ or ▼ to select
“PICTURE SIZE”.
SETUP
PICTURE SIZE
PICTURE SCROLL
CINEMA MODE
ASPECT
SIGNAL METER
AUTO SHUT OFF
FILM
OFF
OFF
:SELECT
Press or . The PICTURE
2 SIZE
menu will appear. Press ▲/
:ADJUST
PICTURE SIZE
▼ or a Number button (0-4) to
select the desired picture size, as
described below and on the next
page, then press ENTER.
0:NATURAL
1:CINEMA WIDE1
2:CINEMA WIDE2
3:CINEMA WIDE3
4:FULL
[0-4] : SELECT
3 Press EXIT to return to the normal screen.
NOTE:
You can also display the PICTURE SIZE menu by pressing the
SCREEN SIZE button on the remote control.
NATURAL picture size
In some cases, this image will display the size of standard 4:3
with a black side bar.
CINEMA WIDE1 picture size (for 4:3 format programs)
To fill the screen, the right and left edges are extended, however;
the center of the picture remains near its former ratio.
The top and bottom edges of the picture may be hidden.
NOTE:
Some High Definition and/or Digital
broadcasts may not allow you to
change the picture size.
26
50C0301A_EN_P23-28
26
4/27/07, 7:18 PM
Setting the picture size
NOTES:
• In HDMI or COMPONENT mode
with a scanning rate of 720p or
1080i, only the CINEMA WIDE2
and FULL PICTURE SIZE feature
are available.
• The PICTURE SIZE feature is in
the PC mode only for NATURAL or
FULL.
• In CINEMA WIDE2 picture size,
some of the on screen display
items may be positioned off the
visible portion of the screen. You
can use Picture Scroll, as
explained on the right, to view off
screen items.
(continued)
CINEMA WIDE2 picture size (for letter box programs)
The entire picture is uniformly enlarged—it is stretched the same
amount both wider and taller (retains its original proportion).
The top and bottom edges of the picture may be hidden. To view
the hidden areas, it is possible to make the picture scroll (see
page 28).
ABCDEFG----------------
CINEMA WIDE3 picture size (for letter box programs
with subtitles)
To fill the width of the screen, it is extended horizontally. However;
it is only slightly extended at the top and the bottom.
The top and bottom edges of the picture may be hidden. To view
the hidden areas (such as subtitles or captions), it is possible to
make the picture scroll (see page 28).
ABCDEFG----------------
ABCDEFG--------------------------
FULL picture size (for 16:9 source programs)
FULL will display the picture at the maximum size.
27
50C0301A_EN_P23-28
27
4/27/07, 7:18 PM
Setting the picture scroll
You can scroll the picture in
CINEMA WIDE2 and CINEMA
WIDE3
1 Press SETUP/TV MENU in
CINEMA WIDE2 or CINEMA
WIDE3 mode.
Then press or to select
(SETUP) menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
A U TO C H M E M O RY
ADD/DELETE
CABLE
:SELECT
:ADJUST
2 Press ▲ or ▼ to select
“PICTURE SCROLL”.
SETUP
PICTURE SIZE
PICTURE SCROLL
CINEMA MODE
ASPECT
SIGNAL METER
AUTO SHUT OFF
FILM
OFF
OFF
:SELECT
:ADJUST
3 Press
or to display the
SCROLL ADJUSTMENT
mode.
S C RO L L A D J U S T M E N T
0
:ADJUST
4 Press ▲ or ▼ to adjust the vertical position of the picture.
Normal (center) position
S C RO L L A D J U S T M E N T
0
:ADJUST
To raise the picture, press ▲.
S C RO L L A D J U S T M E N T
+10
:ADJUST
NOTE:
The scroll adjustments are as follows:
• 480i/480p signal source:
CINEMA WIDE1 : Not adjustable
CINEMA WIDE2 : -10 to +10
CINEMA WIDE3 : -10 to +10
To lower the picture, press ▼.
SCROLL ADJUSTMENT
:ADJUST
5 Press EXIT to return to the normal screen.
28
50C0301A_EN_P23-28
28
4/27/07, 7:18 PM
-10
Selecting the cinema mode/Using the aspect feature
Selecting the cinema mode
A smoother motion may be obtained by setting the Picture Mode to
Film when you view a DVD.
SETUP/TV MENU in the
1 Press
TV mode, then press or to
select
(SETUP) menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
CABLE
:SELECT
▲ or ▼ to select CINEMA
2 Press
MODE, then press or to
select “FILM”.
SETUP
PICTURE SIZE
PICTURE SCROLL
CINEMA MODE
ASPECT
SIGNAL METER
AUTO SHUT OFF
:SELECT
3
:ADJUST
FILM/VIDEO
OFF
OFF
:ADJUST
Press EXIT to return to the normal screen.
To set the CINEMA MODE to VIDEO :
Press or to select “VIDEO” in step 2 above.
Using the aspect feature
When the ASPECT feature is set to ON and the unit receives a 480i
signal, the picture size is automatically selected (as described in the
following table).
SETUP/TV MENU in the
1 Press
TV mode, then press or to
select
(SETUP) menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
A U TO C H M E M O RY
ADD/DELETE
CABLE
:SELECT
▲ or ▼ to select
2 Press
“ASPECT”, then press
or
to
SETUP
select “ON” or “OFF”.
PICTURE SIZE
PICTURE SCROLL
CINEMA MODE
ASPECT
SIGNAL METER
A U TO S H U T O F F
:SELECT
3
NOTES:
• CINEMA MODE is available only
for 480i mode.
• If the signal does not include
aspect information, the picture
size you selected on page 26 is
displayed.
:ADJUST
FILM
O N/ O F F
OFF
:ADJUST
Press EXIT to return to the normal screen.
Aspect ratio of signal source
4:3 Normal
16:9 Full
4:3 Letter box
Not defined
Automatic aspect size
(When ASPECT is ON)
NATURAL
FULL
CINEMA WIDE
User-set mode
29
50C0301A_EN_P29-37
29
4/27/07, 7:18 PM
Adjusting the picture preference/Picture control adjustment
You can select four picture
modes—SPORTS, STANDARD,
MOVIE, and MEMORY—as described in the following table:
Adjusting the picture preference
1 Press SETUP/TV MENU in the TV
mode, then press or to select
(PICTURE) menu.
PICTURE PREFERENCE SPORTS
BRIGHTNESS
CONTRAST
COLOR
TINT
SHARPNESS
25
50
25
0
25
:SELECT
:ADJUST
▲ or ▼ to select
2 Press
“PICTURE PREFERENCE”.
PICTURE PREFERENCE SPORTS
S P O R T S / S TA N D A R D / M O V I E / M E M O RY
BRIGHTNESS
25
CONTRAST
50
COLOR
25
TINT
0
SHARPNESS
25
:SELECT
:ADJUST
Press or to select the item you
3 want
to adjust.
PICTURE PREFERENCE MOVIE
SPORTS / STANDARD / MOVIE / MEMORY
BRIGHTNESS
25
CONTRAST
25
COLOR
25
TINT
0
SHARPNESS
25
:SELECT
:ADJUST
Mode
Picture Quality
SPORTS
Bright and dynamic picture (factory-set)
STANDARD
Standard picture quality (factory-set)
MOVIE
Movie-like picture setting (factory-set)
MEMORY
Your personal preferences (set by you; see “Picture
control adjustment” below).
your desired setting, press EXIT to return to the normal
4 After
screen.
Picture control adjustment
1 Press SETUP/TV MENU in the TV
mode, then press or to select
(PICTURE) menu.
PICTURE PREFERENCE SPORTS
BRIGHTNESS
CONTRAST
COLOR
TINT
SHARPNESS
25
50
25
0
25
:SELECT
:ADJUST
2 Press ▲ or ▼ to select the item you
want to adjust.
Press or to adjust the setting.
PICTURE PREFERENCE SPORTS
BRIGHTNESS
CONTRAST
COLOR
TINT
SHARPNESS
:SELECT
NOTE:
The CONTRAST default setting is
set to maximum at the factory.
BRIGHTNESS
CONTRAST
COLOR
TINT
SHARPNESS
:ADJUST
increase brightness
increase contrast
be brilliant color
be greenish color
makes picture clearer
your desired setting, press EXIT to return to the normal
3 After
screen.
30
50C0301A_EN_P29-37
decrease brightness
decrease contrast
be pale color
be reddish color
makes picture softer
25
50
25
0
25
30
4/27/07, 7:18 PM
Selecting the color temperature/Adjusting the back lighting feature/
Resetting your picture adjustments
Selecting the color temperature
Change the picture quality by selecting from three preset color
temperatures—COOL, MEDIUM, and WARM:
1 Press SETUP/TV MENU in the TV mode, then press
select
or
to
(PICTURE) menu.
▲ or ▼ to select “COLOR
2 Press
TEMPERATURE”.
Press or
you prefer.
to select the mode
COLOR
T E M P E R AT U R E
BACK LIGHTING
RESET
Mode
Picture Quality
COOL
MEDIUM
WARM
Blueish
Neutral
Reddish
COOL
C O O L / M E D I U M / WA R M
16
:SELECT
:ADJUST
3 Press EXIT to return to the normal screen.
Adjusting the back lighting feature
If your unit is in a bright room, the screen image may be difficult to
see. You can use the BACK LIGHTING feature to adjust the screen
brightness for improved picture clarity.
Press SETUP/TV MENU in the TV mode, then press
1 select
(PICTURE) menu.
or
to
2 Press ▲ or ▼ to select “BACK
LIGHTING”.
Press or to adjust the
3 screen
brightness.
COLOR
TEMPERATURE
COOL
BACK LIGHTING
RESET
EXIT to return to the
4 Press
normal screen.
16
:SELECT
:ADJUST
Resetting your picture adjustments
The RESET function returns your picture quality adjustments to the
following factory settings:
PICTURE PREFERENCE .... SPORTS
BRIGHTNESS ............. center (25)
CONTRAST ................... max (50)
COLOR ....................... center (25)
TINT .......................... center (0)
SHARPNESS ......... center (25)
COLOR TEMPERATURE .... COOL
SETUP/TV MENU in the TV mode, then press
1 Press
select
(PICTURE) menu.
or
to
▲ or ▼ to select “RESET”,
2 Press
and then press or .
COLOR
TEMPERATURE
BACK LIGHTING
RESET
:SELECT
COOL
16
:ADJUST
31
50C0301A_EN_P29-37
31
4/27/07, 7:18 PM
Closed Caption
WHAT IS CLOSED CAPTIONING?
This television has the capability to decode and display Closed Captioned television programs. Closed Captioning
will display text on the screen for hearing impaired viewers or it will translate and display text in another language.
Captions: This Closed Caption Mode will display text on the screen
in English or another language. Generally, Closed Captions in
English are transmitted on C1 and Closed Captions in other
languages are transmitted on C2.
Text: The Text Closed Caption Mode will usually fill 1/2 of the screen
with a programming schedule or other information.
1 Tune the TV to the desired program.
SETUP/TV MENU in the TV mode, then press
2 Press
(SETUP) menu.
display the
or
to
3 Press ▲ or ▼ to select “CLOSED CAPTION”.
When an Analog signal is
received, you can choose C1,
C2, T1, T2 and OFF.
SETUP
ANALOG CAPTION
D I G I TA L C A P T I O N
OFF
C1/C2/T1/T2/OFF
OFF
C C A D VA N C E D
:SELECT
When a Digital signal is
received, you can choose
from CS1, CS2, CS3, CS4,
CS5, CS6 and OFF.
:ADJUST
SETUP
ANALOG CAPTION
OFF
DIGITAL CAPTION
OFF
CS1/CS2/CS3/CS4/CS5/CS6/OFF
CC ADVANCED
NOTE:
Depending on the broadcast
:SELECT
signal, some Analog Captions
will function with a Digital broadcast signal.
4 Press
or
:ADJUST
to select the desired Closed Caption mode.
NOTE:
To turn the Closed Caption feature off, select “OFF”.
5
Press EXIT to return to the normal screen.
NOTES:
• If the program or video you selected is not closed-captioned, no captions will display on-screen.
• If text is not available in your viewing area, a black rectangle may appear on-screen. If this happens, set the
Closed Caption feature to “OFF”.
• When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.
• If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.
• Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with
Closed Captioning, especially with live programs. This is because during live programs, captions are also
entered live. These transmissions do not allow time for editing.
• When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may
interfere with Closed Captions.
• Some cable systems and copy protection systems may interfere with the Closed Captioned signal.
• If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may
appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use
an outdoor antenna.
• After selecting C1/C2 closed captions will be displayed while in the DVD mode. To turn off closed captioning,
select TV mode and set closed caption to OFF.
32
50C0301A_EN_P29-37
32
4/27/07, 7:18 PM
CC advanced
Closed Captions are factory
preset however you can adjust
them individually as follows:
This feature is designed to customize Digital Captions only.
1 Press SETUP/TV MENU. The menu screen will appear.
Press or to select
2 (SETUP)
menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
A U TO C H M E M O RY
ADD/DELETE
CABLE
:SELECT
:ADJUST
▲ or ▼ to select “CC
3 Press
ADVANCED”, then press or
.
The CC ADVANCED menu
will appear.
SETUP
ANALOG CAPTION
OFF
D I G I TA L C A P T I O N
OFF
C C A D VA N C E D
:SELECT
:ADJUST
4 Press ▲ or ▼ to select the
item you want to adjust, then
press or .
CC ADVANCED
TEXT SIZE
TEXT TYPE
TEXT COLOR
TEXT EDGE
BACKGROUND COLOR
TEXT OPACITY
BACKGROUND OPACITY
:SELECT
:ADJUST
5 Press ▲ or ▼ to select
desired setting, then press
ENTER.
TEXT SIZE
A U TO
SMALL
S TA N D A R D
LARGE
:SELECT
ENTER : SET
You can select from among the following items and parameters.
TEXT SIZE:
AUTO, SMALL, STANDARD, LARGE
TEXT TYPE:
AUTO, DEFAULT, MONO W. SERIF, PROP. W.
SERIF, MONO W/O SERIF, PROP. W/O SERIF,
CASUAL, CURSIVE, SMALL CAPITALS
TEXT COLOR: AUTO, BLACK, WHITE, RED, GREEN, BLUE,
YELLOW, MAGENTA, CYAN
NOTES:
• Do not set the Closed Caption
“TEXT COLOR” and
“BACKGROUND COLOR” as the
same color or you will not be able to
see the text.
• Do not set both the “TEXT
OPACITY” and the “BACKGROUND
OPACITY” to “TRANSPARENT” or
you will not be able to see the text.
TEXT EDGE:
AUTO, NONE, RAISED, DEPRESSED,
UNIFORM, LEFT DROP SHADOW, RIGHT
DROP SHADOW
BACKGROUND COLOR: AUTO, BLACK, WHITE, RED, GREEN,
BLUE, YELLOW, MAGENTA, CYAN
TEXT OPACITY: AUTO, TRANSPARENT, TRANSLUCENT,
SOLID, FLASHING
BACKGROUND OPACITY: AUTO, TRANSPARENT,
TRANSLUCENT, SOLID, FLASHING
6 Press EXIT to return to the normal screen.
50C0301A_EN_P29-37
33
4/27/07, 7:18 PM
33
Selecting Stereo/Second Audio Program (SAP)/
Sound control adjustment
The multi-channel TV sound (MTS)
feature provides high-fidelity
stereo sound. MTS also can
transmit a second audio program
(SAP) containing a second
language or other audio information.
When the TV receives a stereo or
SAP broadcast, the word
“STEREO” or “SAP” displays onscreen every time you turn the TV
on, change the channel, or press
DISPLAY.
Selecting Stereo/Second Audio Program (SAP)
SETUP/TV MENU in the TV
1 Press
mode, then press or to select
AUDIO
(AUDIO) menu.
MTS
BASS
TREBLE
BALANCE
SURROUND
:SELECT
STEREO
25
25
0
OFF
:ADJUST
▲ or ▼ to select “MTS”.
2 Press
Press or to select “STR
AUDIO
(Stereo)”.
MTS
BASS
TREBLE
BALANCE
SURROUND
:SELECT
3
STR / SAP / MONO
25
25
0
OFF
:ADJUST
Press EXIT to return to the normal screen.
NOTES:
• Generally you can leave your TV in stereo mode because the TV
automatically outputs the type of sound being broadcast (stereo or
mono).
• If the stereo sound is noisy, select MONO to reduce the noise.
• You can also display the AUDIO menu by pressing the AUDIO
button on the remote control.
To listen to a second audio program (SAP)
Press or to select “SAP” in step 2 above. The TV speakers will
output the second audio program instead of normal audio.
Sound control adjustment
SETUP/TV MENU in the TV
1 Press
mode, then press or to select
(AUDIO) menu.
AUDIO
MTS
BASS
TREBLE
BALANCE
SURROUND
:SELECT
STEREO
25
25
0
OFF
:ADJUST
▲ or ▼ to select the item
2 Press
you want to adjust.
BASS:
AU D I O
Press or to
MTS
STEREO
BA S S
25
TREBLE
25
adjust the bass
BA L A N C E
0
S U R RO U N D
OFF
sound.
TREBLE: Press or to
:SELECT
:ADJUST
adjust the treble
sound.
BALANCE: Press or to obtain an equal sound level from
both speakers.
SURROUND:
Press or to select “ON” or “OFF”.
ON: The dynamic presence and sound created offers a
thoroughly enjoyable listening experience.
OFF: Normal sound.
your desired setting, press EXIT to return to the normal
3 After
screen.
34
50C0301A_EN_P29-37
34
4/27/07, 7:18 PM
Selecting the HDMI audio input source/
Selecting the audio language
Selecting the HDMI audio input source
When you use HDMI AUDIO IN jacks with HDMI or DVI device, you
must select HDMI audio input source from “HDMI” or “DVI”.
1 Press SETUP/TV MENU in the TV
2
mode. Then press or
(AUDIO) menu.
to select
AUDIO
Press ▲ or ▼ to select “HDMI”,
then press or to select
“HDMI” or “DVI”.
MTS
BASS
TREBLE
BALANCE
SURROUND
STEREO
25
25
0
OFF
:SELECT
HDMI: When you connect the
HDMI device to the TV,
select this setting.
DVI: When you connect the DVI
device to the TV with
analog
audio cords, select this
setting.
:ADJUST
AU D I O
HDMI
AU D I O L A N G UAG E
D I G I TA L O U T P U T
H D M I/ DV I
PCM
RESET
:SELECT
:ADJUST
3 Press EXIT to return to the normal screen.
Selecting the audio language
When two or more audio languages are included in a digital signal,
you can select one of the audio language.
1 Press SETUP/TV MENU, then
press or to select
(AUDIO) menu.
AUDIO
MTS
BASS
TREBLE
BALANCE
SURROUND
STEREO
25
25
0
OFF
:SELECT
:ADJUST
2 Press ▲ or ▼ to select “AUDIO
LANGUAGE”.
Then press or to display the
AUDIO LANGUAGE menu.
AUDIO
HDMI
AUDIO LANGUAGE
D I G I TA L O U T P U T
HDMI
PCM
RESET
:SELECT
3 Press ▲ or ▼ to select your
:ADJUST
AUDIO LANGUAGE
desired language, then press
ENTER.
0.
1.
2.
3.
4.
5.
6.
7.
ENGLISH 1
ENGLISH 2
FRENCH
SPANISH
NO INFO
NO INFO
NO INFO
NO INFO
[0-7] : SELECT
ENTER : SET
4 Press EXIT to return to the normal screen.
35
50C0301A_EN_P29-37
35
4/27/07, 7:18 PM
Selecting the digital output/Resetting your audio adjustments
Selecting the digital output
You can choose the format of the digital audio output signal.
SETUP/TV MENU, then
1 Press
press or to select
(AUDIO) menu.
AUDIO
MTS
BASS
TREBLE
BALANCE
SURROUND
:SELECT
STEREO
25
25
0
OFF
:ADJUST
▲ or ▼ to select “DIGITAL
2 Press
OUTPUT”, then press or to
select “PCM” or “DOLBY
DIGITAL”.
AUDIO
HDMI
HDMI
AUDIO LANGUAGE
DIGITAL OUTPUT
PCM
PCM / DOLBY DIGITAL
RESET
:SELECT
:ADJUST
3 Press EXIT to return to the normal screen.
Resetting your audio adjustments
The RESET function returns the audio adjustments to the following
factory settings:
BASS ................. center (25)
TREBLE ............ center (25)
BALANCE ........... center (0)
SETUP/TV MENU in the
1 Press
TV mode, then press or to
select
(AUDIO) menu.
AUDIO
MTS
BASS
TREBLE
BALANCE
SURROUND
:SELECT
STEREO
25
25
0
OFF
:ADJUST
▲ or ▼ to select “RESET”,
2 Press
and then press or .
AUDIO
HDMI
AUDIO LANGUAGE
DIGITAL OUTPUT
HDMI
PCM
RESET
:SELECT
36
50C0301A_EN_P29-37
36
4/27/07, 7:18 PM
:ADJUST
Checking the Digital-signal strength/Setting the auto shut off
Checking the Digital-signal strength
This unit will allow you to view the digital signal meter for digital
channels.
1 Press SETUP/TV MENU, then
press or to select
(SETUP) menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
CABLE
:SELECT
:ADJUST
2 Press ▲ or ▼ to select “SIGNAL
METER”.
SETUP
PICTURE SIZE
PICTURE SCROLL
CINEMA MODE
ASPECT
SIGNAL METER
AUTO SHUT OFF
:SELECT
3 Press
FILM
OFF
OFF
:ADJUST
or to check the
Digital-signal strength.
SIGNAL METER
CHANNEL (DIGITAL)
23-077
100
ENTER:RETURN
4 Press EXIT to return to the normal screen.
Setting the auto shut off
If the AUTO SHUT OFF feature is ON, and a station being viewed
stops broadcasting, the TV will automatically shut itself off after 15
minutes.
Press SETUP/TV MENU, then
1 press
or to select
(SETUP) menu.
SETUP
LANGUAGE
ENGLISH
TV/CABLE
AUTO CH MEMORY
ADD/DELETE
CABLE
:SELECT
:ADJUST
▲ or ▼ to select “AUTO
2 Press
SHUT OFF”.
SETUP
PICTURE SIZE
PICTURE SCROLL
CINEMA MODE
ASPECT
SIGNAL METER
A U TO S H U T O F F
NOTES:
• Signal meter feature is not
available for analog channels.
• After 240 seconds, SIGNAL
METER screen will return to
normal TV-operation automatically.
:SELECT
3
Press or
or “OFF”.
:ADJUST
SETUP
PICTURE SIZE
PICTURE SCROLL
CINEMA MODE
ASPECT
SIGNAL METER
AUTO SHUT OFF
:SELECT
37
O N /O F F
to select “ON”
4 Press EXIT to return to the normal screen.
50C0301A_EN_P29-37
FILM
OFF
4/27/07, 7:18 PM
FILM
OFF
ON/OFF
:ADJUST
37
Picture/Audio control adjustment in the PC mode
PC Monitor Menu
There are a number of picture and audio settings you can adjust to
optimize the performance of the TV in PC mode.
Press INPUT SELECT repeatedly to select PC mode.
Press SETUP/TV MENU. The PC Monitor Menu will appear.
AUDIO Menu
PICTURE Menu
AUDIO
BRIGHTNESS
CONTRAST
HOR POSITION
VER POSITION
PHASE
CLOCK
25
50
25
25
25
0
:SELECT
:ADJUST
BASS
TREBLE
BALANCE
SURROUND
RESET
:SELECT
25
25
0
OFF
:ADJUST
Example: Adjust the contrast.
SETUP/TV MENU during PC mode, then press
1 Press
to select
(PICTURE) menu.
or
2 Press ▲ or ▼ to select CONTRAST.
NOTES:
• If you wish to change the on-screen
language, follow the steps 1 - 7 on page
16.
• If no buttons are pressed for more than
approx. 60 seconds, the PC Monitor
Menu-screen will return to normal
Monitor-screen automatically.
• The PC Monitor Menu settings are not
effective for normal mode, or external
input mode.
3 Press
or
to adjust the setting.
4 Press EXIT to return to the normal screen.
Picture menu setting:
Audio menu setting:
BRIGHTNESS:
BASS/TREBLE/BALANCE: To adjust the sound
quality of PC mode.
SURROUND:
To turn on or off the
surround effect in PC
mode.
CONTRAST:
HOR POSITION:
VER POSITION:
PHASE:
CLOCK:
RED/GREEN/BLUE:
WXGA INPUT:
BACK LIGHTING:
To adjust the brightness of
PC Monitor-screen.
To adjust the contrast of PC
Monitor-screen.
To adjust the horizontal
position of the image on the
PC Monitor-screen.
To adjust the vertical position
of the image on the PC
Monitor-screen.
This must be adjusted after
the frequency of your PC has
been set to 60Hz to optimize
picture quality (page 63).
To minimize any vertical bars
or stripes visible on the
screen background.
To adjust the color temperature
of PC monitor-screen
Set to ON, when you select
the WXGA mode on the PC.
To adjust the screen brightness
for improved picture clarity.
38
50C0301A_EN_P38-39
38
4/27/07, 7:18 PM
Picture/Audio control adjustment in the PC mode
Resetting your picture/audio adjustment in the PC mode
The RESET function returns your picture/audio adjustment to the
following factory settings:
PICTURE menu
BRIGHTNESS ........... center (25)
CONTRAST ................. max (50)
RED ........................... center (25)
GREEN ..................... center (25)
BLUE ......................... center (25)
AUDIO menu
BASS ...................... center (25)
TREBLE ................. center (25)
BALANCE .............. center (0)
SETUP/TV MENU during
1 Press
PC mode, then press or to
select
(PICTURE) or
(AUDIO) menu.
RED
GREEN
BLUE
WXGA INPUT
BACK LIGHTING
RESET
25
25
25
OFF
16
:SELECT
2 Press
or
to select “RESET”, then press
:ADJUST
or
.
39
50C0301A_EN_P38-39
39
4/27/07, 7:18 PM
Preparation/Status display of disc
The following pages describe the
setup/operation in DVD mode.
Preparation
Before DVD/CD operation, please make the following preparations.
the AC cord plug into a standard 120V 60Hz polarized
1 Insert
AC outlet.
• If the AC cord plug is plugged in for the first time, wait for
about 5 seconds before pressing POWER.
NOTE: When connecting to other equipment, unplug the unit
from the AC outlet.
POWER on the unit or on the remote control to turn on
2 Press
the unit. The POWER indicator will light.
• Each time you turn the unit ON, the TV/DVD starts from the
TV mode.
• When using an amplifier, switch on the amplifier.
Press TV/DVD to select DVD
3 mode.
The DVD startup screen will appear on the screen.
Status display of disc
Press DISPLAY. The status display of the disc will appear on the
screen.
DISC OPERATION
ELAPSED
TIME
TOTAL
TIME
DVD
00:15:25 01:41:39
Title 1/3
Chapter 2/24
1/1 Eng Dolby Digital
1/2 Eng
1/1
TITLE NO.
ANGLE NO.
CHAPTER
NO.
SUBTITLE LANGUAGE
AUDIO LANGUAGE A KIND OF AUDIO
To make the status display screen disappear, press DISPLAY
again.
NOTE:
If the unit does not operate properly:
Static electricity, etc., may affect the player's operation. Disconnect the AC power
cord once, then connect it again.
40
50C0301A_EN_P40-45
40
4/27/07, 7:19 PM
Playback procedure
1 Press TV/DVD to select DVD mode.
the disc in the disc
2 Place
slot with the label side
facing forward. (If the disc
has a label.) Hold the disc
without touching either of
its surfaces, align it with
the guides, and place it in
position.
5”
the screen, “5
3 On
changes to “Reading” and
then playback will
commence.
• A menu screen may
appear on the TV screen,
if the disc has a menu
feature. In this case,
,
,
,
or
press
ENTER to operate a
menu feature.
NOTES:
• If a non-compatible disc is loaded,
“Incorrect Disc”, “Region Code Error”
or “Parental Error” will appear on the TV
screen according to the type of loaded
disc. If these appear, check your disc
again (see pages 9 and 57).
• Some discs may take a minute or so
to start playback.
• If an 8 cm disc is placed into the disc slot
and picture playback or menu display
does not begin automatically, press
PLAY.
• A “Prohibition” symbol “ ” may appear
at the upper left of the screen. This
symbol means either the feature you
tried is not available on the disc, or the
unit cannot access the feature at this
time. This does not indicate a problem
with the unit.
• If you place a single-faced disc label
backwards (i.e. the wrong way) “Reading”
will appear in the display and then
“Incorrect Disc” will be displayed.
• Some playback operations of DVDs may
be intentionally fixed by software producers. Since this unit plays DVDs according
to the disc content recorded, some
playback features may not be
available. Also refer to the instructions
supplied with the DVDs.
Reading
4 Press STOP to end playback.
• The unit memorizes the stopped point, depending on
the disc. “ ” appears on the screen. Press PLAY to
resume playback (from the scene point).
• If you press STOP again (“ ” appears on the screen)
or unload the disc, the unit will clear the stopped point.
5 (EJECT).
5 Press
Remove the disc and then press POWER.
The unit turns off.
When you eject the disc, you may hear mechanism noise,
but it is not malfunction.
41
50C0301A_EN_P40-45
41
4/27/07, 7:19 PM
Special playback
NOTE: There may be a slight delay
between when you press the button
and the function activating.
Fast Forward Playback
Press SEARCH
during normal playback.
Each press of SEARCH
search
(CD:
(x 2),
(x 2),
will increase the speed of the
(x 4),
(x 8),
(x 4),
(x 8),
(x 15).
(x 20))
• To resume normal playback, press PLAY.
Review Playback
Press SEARCH
during normal playback.
will increase the speed of the
Each press of SEARCH
search
(x 2),
(x 4),
(x 8),
(x 15).
(x 2),
(x 4),
(x 8),
(x 20))
(CD:
• To resume normal playback, press PLAY.
Still Playback
Press PAUSE/STILL during
normal playback to pause playback.
• To resume normal playback,
press PLAY.
Frame Advance
Press PAUSE/STILL during still playback.
One frame is advanced each time you press PAUSE/STILL.
• To resume normal playback, press PLAY.
Slow-motion Playback
Press SLOW
Reverse or SLOW
Forward during
normal playback or still playback.
Each press of SLOW will change the speed of the slow x1/2,
x1/4, x1/6, x1/7.
• To resume normal playback, press PLAY.
• To resume the still playback, press PAUSE/STILL.
Locating a chapter or track
NOTE:
The unit is capable of holding a still video
image or On screen display image on
your television screen indefinitely. If you
leave the still video image or On screen
display image displayed on your TV for
an extended period of time, you risk
permanent damage to your television
screen.
Press SKIP
Forward or SKIP
Reverse during
playback to locate a chapter that you want to watch.
Each time you press the button, a chapter or track is
skipped.
42
50C0301A_EN_P40-45
42
4/27/07, 7:19 PM
MP3/WMA/JPEG and Audio CD playback
This player can play back MP3/WMA/JPEGdata which has been recorded on CD-R or
CD-RW. To produce MP3/WMA/JPEG-data,
you need a Windows-PC with CD-ROM drive
and MP3/WMA/JPEG-encoding software
(not supplied).
The Apple-HFS-System cannot be played.
MP3/WMA/JPEG CD information
Limitations on MP3/WMA/JPEG CD
playback
• MP3/WMA/JPEG CD is the disc that is standardized by ISO9660, its file name must include
3-digit extension letters, “mp3”, “wma”, “jpg”.
• The directory and file names of MP3/WMA/
JPEG CD must correspond to ISO standardized files.
• This unit can read 2000 files per disc. If one
directory has more than 2000 files, it reads
up to 2000 files, the remaining files will be omitted.
• MP3/WMA CDs cannot be used for playback
for the purpose of recording.
• If the CD has both audio tracks and MP3/
WMA/JPEG files, only audio tracks are
played.
• It may take more than one minute for this unit
to read MP3/WMA/JPEG files depending on
its structure.
• Music recorded by “Joliet Recording Specification” can be played back.
• The music files recorded by “Hierarchical File
System” (HFS) cannot be played.
• The unit can play back baseline and progressive JPEG files.
Limitations on display
• The maximum number for display is 15
characters. Long file names will be
condensed.
• Available letters for display are the following:
capital or lowercase letters A through Z, numbers 0 through 9, and _ (under score).
• Other letters than those above are replaced
by a hyphen.
Notes on MP3/WMA/JPEG files
To play back MP3/WMA/JPEG CD in the
recorded order,
1. Use MP3/WMA/JPEG software that records
data alphabetically or numerically.
2. Name each file including a two-digit or threedigit number (e.g. “01” “02” or “001” “002”).
3. Refrain from making too many sub-folders.
CAUTION:
• Some MP3/WMA/JPEG CDs cannot be played
back depending on the recording conditions.
• The CD-R/RW that has no music data or nonMP3/WMA/JPEG files can not be played back.
MP3 CD/WMA and Audio CD playback
a MP3/WMA/JPEG CD or an Audio CD in the disc
1 Load
slot.
will appear on the TV screen. Reading time will
2 “Reading”
depend on the number of files on the disc.
3 A file browser screen will appear on the TV screen.
Operation status
File number Elapsed time Selected file name
1/15 00:00:00
/MP3-5.MP3
Select Files
MP3-5
MP3-6
File list
WMA-11
WMA-12
Picture-1
Picture-2
Picture-3
Picture-4
Repeat
:Off
Mode
:Off
Tool kit
window
Music Playing
Cursor
Preview window
File type
: Indicates Music file (Audio CD/MP3/WMA)
: Indicates Picture file (JPEG)
• In case the current directory includes 9 files or more,
press
or
to scroll in the file list.
• To see contents in folder, select the folder and then press
ENTER. To return to the parent directory, select “ Go
Up ...” then press ENTER.
• In case of a CD containing a mixture of MP3, WMA and
JPEG files, the files are played back by selecting them
from the file browser.
or
4 Press
desired file.
to select the
/MP3-2.MP3
Folder-1
Folder-2
Select Files
Repeat
:Off
When PLAY is pressed after
MP3-1
Mode
:Off
MP3-2
displaying file browser
MP3-3
WMA-1
displayed, or when the disc
JPEG Preview
WMA-2
tray is closed by pressing
WMA-3
PLAY, playback begins
automatically starting from the first file. In this case, if the
first file is an MP3/WMA file, only MP3/WMA files are
played back in order. If the first file is a JPEG file, the first
JPEG file is played back. If there is no file at a root
directory, playback does not begin automatically.
ENTER.
5 Press
The selected file starts playing back.
STOP to end playback.
6 Press
• The unit records the stopped point. “
” appears on the
screen. Press PLAY to resume playback (from the scene
point).
• If you press STOP again or unload the disc, the unit will
clear the stopped point.
NOTES:
• During MP3/WMA/JPEG-Playback, you cannot use
JUMP and A-B Repeat functions.
• You can use Repeat (Track or All), Random functions and
Program playback for MP3/WMA/JPEG and Audio CD
Playback (see pages 46 and 47).
43
50C0301A_EN_P40-45
43
4/27/07, 7:19 PM
MP3/WMA/JPEG and Audio CD playback
1
In the file browser, press
/
to
select the desired JPEG file.
To display a thumbnail list, press
DVD MENU.
Press
/ / /
to select the
desired file.
(To return to the file browser,
press TOP MENU.)
(continued)
/Picture-01.JPG
Picture-01
Picture-02
Picture-03
Picture-04
Picture-05
Picture-06
Picture-07
Picture-08
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
W: 2048 H: 1536
When PLAY is pressed after displaying the file browser, or
when the disc tray is closed by pressing PLAY, playback
begins automatically starting from the first file. In this case, if
the first file is a JPEG file, the first JPEG file is played back. If
the first file is an MP3/WMA file, only MP3/WMA files are
played back in order. If there is no file at a root directory,
playback does not begin automatically.
ENTER.
2 Press
The selected picture appears
on the TV screen.
Rotating an image
You can rotate an image by 90 degrees.
Press ANGLE during playback of the image.
”, “ ”, “
” or “ ” appears on the screen.
“
Zooming an image
Zoom function also can be used in viewing JPEG files.
Press ZOOM (See “Zooming” on page 48 ).
3 Press STOP to end playback.
The file browser appears on the TV screen.
If you want to watch the other file, repeat steps 1-2.
Select Files
The file type to make it display in the file browser can
be chosen.
/
1 Press
browser.
to select “Select Files” at right column in the file
• Press ENTER, then press
list (Music or Picture).
/
to select file type from the
ENTER to add/remove check mark.
2 Press
Checked file type will be displayed in the file browser.
3 Press RETURN to save the setting.
NOTE:
MP3 or WMA files on the KODAK Picture
CD are not recognized on this unit.
44
50C0301A_EN_P40-45
44
4/27/07, 7:19 PM
Setting the JPEG interval
You can continuously play back all
JPEG files automatically.
1
Press SETUP/TV MENU in the stop mode.
or
to select
option, then press
Press
ENTER.
2 Press
or
to select
“JPEG Interval”, then press
or ENTER.
or
to select your
3 Press
desired time, then press
ENTER.
Off:
Plays back one file at a time.
/
or
TV Screen
: 16:9
Display
: On
Picture Mode
: Auto
JPEG Interval
: Off
TV Screen
: 16:9
Display
: On
Picture Mode
: Auto
JPEG Interval
Off
5 Seconds
10 Seconds
15 Seconds
5 Seconds:
Plays back images in the form of a slide show at 5 second
intervals.
10 Seconds:
Plays back images in the form of a slide show at 10 second
intervals.
15 Seconds:
Plays back images in the form of a slide show in 15 second
intervals.
4
Press SETUP/TV MENU or RETURN to remove the Menu
screen.
45
50C0301A_EN_P40-45
45
4/27/07, 7:19 PM
Program playback (CD)
You can arrange the order of tracks on
the disc.
file browser, press
/ /
1 In the
/
to select “Edit Mode”, then
press ENTER.
MP3 3
When “Edit Mode” is black color,
you can mark the files which you
want to add into Program list.
Press
/
/ /
to select the
2 file
you want to add into the
program list.
WMA 2
Press ENTER. Selected file was
marked.
Repeat this procedure to select the
other files.
/
/
3 ToPress
Program”.
/
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
Repeat
:Off
Mode
:Off
Edit Mode
JPEG Preview
WMA-3
/MP3-1.MP3
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
Repeat
:Off
Mode
:Off
Edit Mode
JPEG Preview
WMA-3
to select “Add
Then press ENTER. All marked
files are added into the program
list.
When you finish storing the files
you want into the Program list,
select “Edit Mode” again and press
ENTER to release edit mode.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Edit Mode
Program View
Add To Program
JPEG Preview
Press
/ to select “Program View”, then press ENTER.
4 Program
View shows only the programed files that you have
added in Step 2.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Edit Mode
Program View
Add To Program
MP3-1
MP3-2
MP3-3
WMA-3
JPEG Preview
Browser View
Edit Mode
Browser View
Clear Program
JPEG Preview
Program View
the Program View, press PLAY. The files start to playback in
5 Inprogrammed
order that were added by you.
To remove file from program list in
stop mode
In the Edit Mode, switch to Program View.
Select the files you want to remove, then
press ENTER. Select “Clear Program”
and press ENTER. Marked file is
removed from program list.
NOTE:
The program is cancelled when you eject
the disc or turn the power off.
46
50C0301A_EN_P46-55
46
4/27/07, 7:19 PM
Repeat playback (CD)/Random playback (CD)
Repeat playback
file browser, press
/ /
1 In the
/
to select “Repeat” during
stop mode.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
WMA-3
ENTER repeatedly to select
2 Press
“Track” or “All”.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
Select Files
Repeat
:Track
Mode
:Off
JPEG Preview
WMA-3
PLAY.
3 Press
The unit automatically starts repeat playback after finishing the
current track.
To resume normal playback, select Repeat : “Off” in step 2.
Random playback
file browser, press
/ /
1 In the
/
to select “Mode” during stop
mode.
Folder-1
Folder-2
MP3-1
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
Select Files
Repeat
:Off
Mode
:Off
JPEG Preview
2 Press ENTER to select “Random”.
Folder-1
Folder-2
MP3-1
Select Files
Repeat
:Off
Mode
:Random
MP3-2
MP3-3
WMA-1
WMA-2
WMA-3
JPEG Preview
PLAY.
3 Press
The Random playback will start.
NOTES:
• The repeat or random function is
canceled when you open the disc tray
or turn the power off.
• The track repeat function is canceled
or
is pressed.
when SKIP
• In case of Audio CD, the function of AB Repeat also can be used. See “A-B
Repeat playback” 49 .
To resume normal playback, select Repeat : “Off” in step 2.
47
50C0301A_EN_P46-55
47
4/27/07, 7:19 PM
Zooming/Locating desired scene
Zooming
This unit will allow you to zoom in on the frame image. You
can then make selections by switching the position of the
frame.
ZOOM during
1 Press
playback.
1
The center part of the
image will be zoomed in.
Each press of ZOOM will
change the ZOOM
magnification
1 (x 1.3),
2 (x 1.5) and
3
(x 2.0).
Press
/ / /
to view a different part of the frame.
2 You
may move the frame from the center position UP,
DOWN, LEFT or RIGHT.
mode press ZOOM repeatedly to return to a
3 In1:1theviewzoom
Off).
(
Locating desired scene
Use the title, chapter and time recorded on the disc to locate the
desired point to play back.
JUMP during playback
1 Press
or resume stop mode.
Press
or
2 “Chapter”.
Jump
Title
Chapter
Time
to select the “Time”, “Title/track” or
3 Press Number buttons (0–9) to input the number.
• If you input a wrong number, press CANCEL.
• Refer to the package supplied with the disc to check the
numbers.
4 Press ENTER.
NOTES:
• You can select the Pause, Slow or
Search playback in the zoom mode.
• Some discs may not respond to zoom
feature.
• Playback starts.
• When you change the title, playback starts from
Chapter 1 of the selected title.
• Some discs may not work in the above operation.
48
50C0301A_EN_P46-55
48
4/27/07, 7:19 PM
Repeat playback
Title, Chapter, Track Playback
1 Press PLAY MODE during playback or stop mode.
ENTER repeatedly to select
2 Press
“Chapter” or “Title”.
Play Mode
Repeat
: Off
The unit automatically starts
repeat playback after finishing the
current title or chapter.
• If you set the repeat mode during stop mode, press PLAY to
start Repeat playback.
3 Press PLAY MODE again to make the screen disappear.
• Press PLAY to start Repeat playback.
• To resume normal playback, select Repeat “Off” in step 2.
A-B Repeat Playback
A-B repeat playback allows you to repeat material between two
selected points.
REPEAT A-B during
1 Press
playback.
A
The start point is selected.
REPEAT A-B again.
2 Press
The end point is selected.
A B
Playback starts at the point
that you selected. Playback
stops at the end point, returns
to Point A automatically, then
starts again.
To resume normal playback press REPEAT A-B again.
“
Off ” appears on the screen.
NOTES:
• Some discs may not work with the
repeat operation.
• In A-B repeat mode, subtitles near
point A or B may not appear.
• During the A-B Repeat Playback the
ANGLE feature will not operate.
• You may not be able to set A-B
Repeat, depending on the scenes of
the DVD.
• A-B Repeat does not work with an
interactive DVD, MP3/MPEG/WMA/
JPEG-CD.
49
50C0301A_EN_P46-55
49
4/27/07, 7:19 PM
Marking desired scenes
The TV/DVD stores the points that you
want to watch again. You can resume
playback from that scene.
Marking the Scenes
MARKER during
1 Press
playback.
the blank Marker
2 Select
using
or
, then
press ENTER at the
desired scene.
Marker 1
Marker 2
Marker 3
Marker 1
Marker 2
Marker 3
00 27 54
• Up to 3 scenes can be selected.
• Repeat this procedure to set the other 2 scenes.
3 Press MARKER to remove this display.
Returning to the Scenes
MARKER during
1 Press
playback or stop mode.
or
to select
2 Press
the Marker 1-3.
Marker 1
Marker 2
Marker 3
00 27 54
01 16 25
02 08 31
Marker 1
Marker 2
Marker 3
00 27 54
01 16 25
02 08 31
ENTER.
3 Press
Playback starts from the marked scene.
To Cancel the Mark
1 Press MARKER.
2 Press or to select the Marker 1-3.
CANCEL.
3 Press
Press MARKER to remove this display.
NOTES:
• The marking is canceled when you eject
the disc or turn the power off.
• Some subtitles recorded around the
marker may fail to appear. [DVD]
50
50C0301A_EN_P46-55
50
4/27/07, 7:19 PM
Changing soundtrack language/Subtitles
Changing soundtrack language
You can select the language when you play a multilingual disc.
AUDIO during
1 Press
playback.
1/2 Eng Dolby Digital
The current soundtrack
language will appear.
AUDIO repeatedly
2 Press
until the desired language
2/2 Fre Dolby Digital
is selected.
The on-screen display will disappear after a few seconds.
Subtitles
Turning the subtitles on and off
When playing back a disc recorded with subtitles, you can
turn the subtitles on or off.
Press SUBTITLE during playback until “Off” appears.
Off
Changing the subtitle language
You can select the language when playing back a disc recorded
with multi-lingual subtitles.
SUBTITLE repeatedly
1 Press
during playback until your
1/5 Eng
desired language appears.
NOTES:
• If the desired language is not heard after
pressing AUDIO several times, the
language is not recorded on the disc.
• Changing soundtrack language is cancelled
when you eject the disc.
The initial default language or available
language will be heard if the disc is played
back again.
• Changing subtitle language is cancelled
when you eject the disc.
• Some functions may not work on some
DVDs. You may not be able to turn
subtitles on or off or change subtitles.
While playing the DVD, the subtitle may
change when:
- you eject the disc.
- you change the title.
• In some cases, the subtitle language is not
changed to the selected one immediately.
2 The on-screen display will disappear after a few seconds.
51
50C0301A_EN_P46-55
51
4/27/07, 7:19 PM
Changing angles/Title selection/DVD menu
Changing angles
When playing back a disc recorded with multi-angle facility, you
can change the view angle.
1 Press ANGLE during
1/2
playback.
The current angle will
appear.
2 Press ANGLE repeatedly until the desired angle is
selected.
Title selection
Two or more titles are recorded on some discs.
If the title menu is recorded on the disc, you can select the
desired title.
TOP MENU during playback.
1 Press
Title menu appears on the screen.
2 Press / or / to select the desired title.
ENTER or PLAY.
3 Press
The playback of the selected title will start.
DVD menu
Some DVDs allow you to select the disc contents using the
menu.
When you play back these DVDs, you can select the subtitle
language and soundtrack language, etc. using the DVD
menu.
DVD MENU during playback.
1 Press
The DVD menu appears on the screen.
• Press DVD MENU again to resume playback at the scene
when you pressed DVD MENU.
2 Press / or / to select the desired item.
ENTER.
3 Press
The menu continues to another screen. Repeat steps 2
NOTES:
• Depending on the DVD, you may not
be able to change the angles even if
multi-angles are recorded on the DVD.
• Depending on the DVD, you may not
be able to select the title. Depending
on the DVD, a “title menu” may simply
be called a “menu” or “title” in the
instructions supplied with the disc.
and 3 to set additional items if any.
52
50C0301A_EN_P46-55
52
4/27/07, 7:19 PM
Setting the language
You can select the language of
“Menu”, “Subtitle” and “Audio” if
more than one languages are
recorded onto the disc.
SETUP/TV MENU in the stop mode.
1 Press
Press
or
to select
option, then press
/
or
ENTER.
or
to select
2 Press
desired option, then press
or ENTER.
or
to select your
3 Press
desired language (e.g. English).
Menu
: English
Subtitle
: English
Audio
: English
Menu
English
Subtitle
Francais
Espanol
Audio
Other
English, Francais, Espanol :
The selected language will be heard or seen.
Other:
Other language can be selected (see the “Language code list”
on page 60).
Original (Audio):
The unit will select the first priority language of each disc.
Off (Subtitle):
Subtitles do not appear.
Press SETUP/TV MENU or RETURN to remove the Menu
4 screen.
NOTE:
If the selected language is not recorded on
the disc, the first priority language is
selected.
53
50C0301A_EN_P46-55
53
4/27/07, 7:19 PM
Setting the aspect ratio of TV screen/Setting on screen display
Setting the aspect ratio of TV screen
You can select the aspect ratio of the picture.
SETUP/TV MENU in the stop mode or No Disc.
1 Press
or
to select
option, then press
/
or
Press
ENTER.
Press
or
to select “TV
2 Screen”,
then press
or
ENTER.
Press
or
to select your
3 desired
screen type, then press
ENTER.
TV Screen
: 16:9
Display
: On
Picture Mode
: Auto
JPEG Interval
: Off
TV Screen
4:3
Display
4:3
Picture Mode
16:9
JPEG Interval
: Off
You have the following screen sizes to choose from:
Letterbox
4:3
When playing back a wide screen DVD disc, it displays the
wide picture with black bands at the top and bottom of
screen.
4:3
Panscan
It displays the wide picture on the whole screen with left
and right edges automatically cut off.
16:9
Wide
A wide screen picture is displayed full size.
Press SETUP/TV MENU or RETURN to remove the
4 Menu
screen.
Setting on screen display
On screen display can be switched on or off when you press the
DISPLAY button.
SETUP/TV MENU in the stop mode or No Disc.
1 Press
or
to select
option, then press
/
or
Press
ENTER.
2
NOTE:
It is not always possible for the DVD
disc to display the picture as per your
preferred picture setting - for example,
if you select “4:3 Panscan”, the disc
may not offer this option. In this case
the picture would display the format the
disc is capable of playing back.
Press or
then press
to select “Display”,
or ENTER..
or
to select “On” or
3 Press
“Off”, then press ENTER.
TV Screen
: 16:9
Display
: On
Picture Mode
: Auto
JPEG Interval
: Off
TV Screen
: 16:9
Display
Picture Mode
JPEG Interval
On:
Off:
On screen displays appear when you press the buttons (factory setting).
On screen displays do not appear when you press
any buttons except SUBTITLE, PLAY MODE,
MARKER and DISPLAY.
SETUP/TV MENU or RETURN to remove
4 Press
the Menu screen.
54
50C0301A_EN_P46-55
54
Off
On
: Off
4/27/07, 7:19 PM
Setting the picture mode
There are two types of source content
in pictures recorded in DVD video
discs: film content (pictures recorded
from films at 24 frames per second)
and video content (video signals
recorded at 30 frames per second).
Make this selection according to the
type of content being viewed.
Setting the picture mode
SETUP/TV MENU in the stop mode or No Disc.
1 Press
or
to select
option, then press
/
or
Press
ENTER.
or
to select “Picture
2 Press
or
Mode”, then press
ENTER.
or
to select your
Press
3 desired
picture mode, then
press ENTER.
TV Screen
: 16:9
Display
: On
Picture Mode
: Auto
JPEG Interval
: Off
TV Screen
: 16:9
Display
: On
Picture Mode
JPEG Interval
Auto:
Select this position normally.
The DVD player automatically
detects source content, film or
video, of playback source.
Auto
Film
Video
Film:
Suitable for playback of film content pictures.
Video:
Suitable for playback of video content pictures.
SETUP/TV MENU or RETURN to remove the menu
4 Press
screen.
NOTE:
Depending on the disc, pictures may be
cut off or doubled. In this case, select
“Video”.
55
50C0301A_EN_P46-55
55
4/27/07, 7:19 PM
Night Mode/Digital Out
Night Mode
Night Mode enables you to control the dynamic range so as
to achieve a suitable sound for your equipment.
SETUP/TV MENU in the stop mode or No Disc.
1 Press
or
to select
option, then press
/
or
Press
ENTER.
or
to select
2 Press
“Night Mode”, then press
or ENTER.
Press
or
to select
3 “On”
or “Off”, then press
ENTER.
Night Mode
: Off
Digital Out
:PCM
Night Mode
Off
Digital Out
On
On : Loud sound such as
explosion or similar is
toned down slightly
when play back. This
makes it suitable for when it is connected to a
stereo.
Off : It plays back at the recording level on the disk.
SETUP/TV MENU or RETURN to remove the Menu
4 Press
screen.
Digital Out
You can select the digital output sound format corresponding
to your system connection.
SETUP/TV MENU in the stop mode or No Disc.
1 Press
Press
or
to select
option, then press /
or
ENTER.
or
to select
2 Press
“Digital Out”, then press
or ENTER.
or
to select
3 Press
“PCM”, “Bitstreem” or “Off”,
then press ENTER.
Night Mode
: Off
Digital Out
:PCM
Night Mode
: Off
Digital Out
Off
PCM
Bitstream
PCM:
NOTES:
• This function works only during
playback of Dolby Digital recorded
discs.
• The level of Dynamic Range Reduction may differ depending on DVD
video disc.
• Even if you select “Bitstream”, MPEG
audio will be output in PCM format.
56
50C0301A_EN_P56-61
56
Change Dolby
Digital to PCM
for the output.
Select when
connected to a 2 channel digital stereo
amplifier.
Bitstream: Disc audio bitstream data will be output.
Off:
There is no sound output from DIGITAL
AUDIO OUT jack.
SETUP/TV MENU or RETURN to remove the Menu
4 Press
screen.
4/27/07, 7:19 PM
Parental control setting
Some discs are specified not suitable for children. Such discs can be
limited not to play back with the unit.
1 Press SETUP/TV MENU in the stop mode or No Disc.
Press
or
ENTER.
to select
option. Then press
or
to select
2 Press
or
“Parental”, then press
ENTER.
“Enter Password” screen will
appear.
“0000” using Number
3 Press
buttons (0-9). (Please note,
this pre-setting password of
this unit). Then press ENTER.
The parental level list will
appear.
/
or
Parental
: Off
Password
: Change
Parental
Password
1
2
3
4
5
6
7
8
Off
• Level Off : The parental control setting does not function.
• Level 8 : Virtually all DVD software can be played back.
• Level 1 : DVD software for adults cannot be played back.
• Select from level 1 to level 8. The limitation will be more
severe as the level number decreases.
• If you input a wrong number, press CANCEL.
or
to select the
4 Press
level 1 to level 8. The
limitation will be more severe
as the level number is lower.
Then press ENTER.
NOTES:
• If each setup (P.53~58) has been
completed, the unit can always be
operated under the same conditions (especially with DVD discs).
Each setup will be retained in the
memory when you turn the power
off.
• Depending on the discs, the unit
cannot limit playback.
• Some discs may not be encoded with
specific rating level information
though its disc jacket says “adult”. For
those discs, the age restriction will
not work.
• After the rating is locked, the setting
cannot be changed unless you enter
the correct password.
Parental
:2
Password
: Change
Press SETUP/TV MENU or RETURN to remove the Menu
5 screen.
57
50C0301A_EN_P56-61
57
4/27/07, 7:19 PM
Setting the new password
1 Press SETUP/TV MENU in the stop mode or No Disc.
Press
or
ENTER.
to select
option. Then press
or
to select
2 Press
“Password”, then press
or
/
Parental
: Off
Password
: Change
ENTER.
“Enter Current Password”
screen will appear.
Number buttons (0-9)
3 Press
to enter the password you
Parental
: Off
Password
: Change
have stored.
Enter Current Password
• If you input a wrong
number, press CANCEL.
Then press ENTER. “Enter
4 New
Password” screen will
Parental
: Off
Password
: Change
appear. Press Number
buttons (0–9) to input the
new password.
Enter New Password
ENTER.
5 Press
Now your new password has been set.
Be sure to remember this number!
NOTE:
Do not forget the password. If you forget
the password, contact Customer Service at
1-800-289-0980. The original remote control will be required.
58
50C0301A_EN_P56-61
58
4/27/07, 7:19 PM
or
Temporary disabling of rating level by DVD disc
Depending on the DVD disc, the disc
may try to temporarily cancel the
rating level that you have set.
It is up to you to decide whether to
cancel the rating level or not.
1 Load a DVD disc (see page 41).
the DVD disc has been designed to temporarily cancel the
2 IfRating
level, the screen which follows the “Reading” screen will
change, depending on which disc is played. If you select “YES”
with ENTER key, password input screen will then appear.
the password with
3 Enter
Number buttons (0-9).
Enter Password
Then press ENTER.
• If you interrupt the entering,
press RETURN.
4 Playback will commence if the entered password was correct.
NOTE:
This temporary cancellation of the rating
level will be kept until the disc is ejected.
When the disc is ejected, the original rating level will be set again automatically.
59
50C0301A_EN_P56-61
59
4/27/07, 7:19 PM
Language code list
Enter the appropriate code number for the initial settings “Menu”, “Subtitle” and/or “Audio” (see page 53).
Language Name Code Language Name Code Language Name Code Language Name Code
Abkhazian
1112
Fiji
1620
Lingala
2224
Singhalese
2919
Afar
1111
Finnish
1619
Lithuanian
2230
Slovak
2921
Afrikaans
1116
French
1628
Macedonian
2321
Slovenian
2922
Albanian
2927
Frisian
1635
Malagasy
2317
Somali
2925
Amharic
1123
Galician
1722
Malay
2329
Spanish
1529
Arabic
1128
Georgian
2111
Malayalam
2322
Sundanese
2931
Armenian
1835
German
1415
Maltese
2330
Swahili
2933
Assamese
1129
Greek
1522
Maori
2319
Swedish
2932
Aymara
1135
Greenlandic
2122
Marathi
2328
Tagalog
3022
Azerbaijani
1136
Guarani
1724
Moldavian
2325
Tajik
3017
Bashkir
1211
Gujarati
1731
Mongolian
2324
Tamil
3011
Basque
1531
Hausa
1811
Nauru
2411
Tatar
3030
Bengali; Bangla 1224
Hebrew
1933
Nepali
2415
Telugu
3015
Bhutani
1436
Hindi
1819
Norwegian
2425
Thai
3018
Bihari
1218
Hungarian
1831
Oriya
2528
Tibetan
1225
Breton
1228
Icelandic
1929
Panjabi
2611
Tigrinya
3019
Bulgarian
1217
Indonesian
1924
Pashto, Pushto
2629
Tonga
3025
Burmese
2335
Interlingua
1911
Persian
1611
Turkish
3028
Byelorussian
1215
Irish
1711
Polish
2622
Turkmen
3021
Cambodian
2123
Italian
1930
Portuguese
2630
Twi
3033
Catalan
1311
Japanese
2011
Quechua
2731
Ukrainian
3121
Chinese
3618
Javanese
2033
Rhaeto-Romance 2823
Urdu
3128
3136
Corsican
1325
Kannada
2124
Romanian
2825
Uzbek
Croatian
1828
Kashmiri
2129
Russian
2831
Vietnamese 3219
Czech
1329
Kazakh
2121
Samoan
2923
Volapük
Danish
1411
Kirghiz
2135
Sanskrit
2911
Welsh
1335
Dutch
2422
Korean
2125
Scots Gaelic
1714
Wolof
3325
English
1524
Kurdish
2131
Serbian
2928
Xhosa
3418
Esperanto
1525
Laothian
2225
Serbo-Croatian
2918
Yiddish
2019
3225
Estonian
1530
Latin
2211
Shona
2924
Yoruba
3525
Faroese
1625
Latvian, Lettish 2232
Sindhi
2914
Zulu
3631
60
50C0301A_EN_P56-61
60
4/27/07, 7:19 PM
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to this unit is dependent
on the model and features of each component. Check the Owner's Manual provided with each component for
the location of video and audio inputs and outputs.
To connect the LCD TV/DVD to a VCR
Left side of the unit
VCR
To Audio/Video OUT
To AUDIO/VIDEO IN 1 (or 2)
Audio/Video cord (not supplied)
To connect the LCD TV/DVD to a VCR with an S-Video cord
If you connect a VCR with a S-VIDEO cable to the S-VIDEO IN jack on the rear lower right of the unit, you must
also connect the audio cables to the AUDIO IN jacks on the rear lower right of the unit.
The S-VIDEO cable only carries the video signal. The audio signal is separate.
NOTE:
When the S-video cable and the standard video cable are connected at the same time, the S-video cable takes
precedence.
Left side of the unit
To S-VIDEO IN 1
VCR
To S-Video OUT
S-Video cord (not supplied)
Audio cord (not supplied)
To Audio OUT
To AUDIO IN 1
To connect to a DVD player with Component Video Input
You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD
player with the COMPONENT video cables (not supplied).
Left side of the unit
To AUDIO IN 2
To Component OUT
DVD
Audio cord (not supplied)
Y
PB
Video cord (not supplied)
To COMPONENT IN
PR
To Audio OUT
NOTE:
Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and
480p/720p progressive signals.
61
50C0301A_EN_P56-61
61
4/27/07, 7:19 PM
Connections to other equipment
(continued)
To connect a HDMI or a DVI device to the unit
The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital
video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate
analog audio cords required.
Left side of the unit
Audio cord (not supplied)
DVI device
HDMI - to - DVI adapter cable
(HDMI type A connector)
To DVI
output
or
(not supplied)
or
HDMI cable (type A connector)
HDMI device
(not supplied)
To HDMI out
NOTE:
You must choose an appropriate setting for each connection (see page 35. “Selecting the HDMI audio input
source”).
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as
shown below.
Left side of the unit
Front
Speaker
(Right)
Subwoofer
Coaxial Digital
Audio Output
Front
Speaker
(Left)
TV/DVD
Coaxial
digital cable
(not supplied)
Center Speaker
To Coaxial
Digital Audio Input
Surround
Speaker (Left)
AV Amplifier with built-in digital surround
decoder as listed above
Surround
Speaker
(Right)
NOTES:
• This unit will not work in conjunction with DTS audio. There will be no sound output if connected to an AV
amplifier with a built-in DTS decoder.
• Coaxial digital audio output is active only when receiving digital broadcasting, not when receiving analog
broadcasting.
62
50C0301A_EN_P62-Back
62
4/27/07, 7:19 PM
Connections to other equipment
(continued)
To connect the TV/DVD to a camcorder, or a TV Game
To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for
additional information.
Left side of the unit
To AUDIO/VIDEO IN 1 (or 2)
or
To Audio/Video OUT
Audio/Video cord (not supplied)
To connect the TV/DVD to a PC (Personal Computer)
Before you connect this TV/DVD to your PC, change the adjustment of your PC’s Resolution and Refresh rate
(60 Hz).
Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the
VGA connector PC MONITOR on the back of the TV/DVD. Attach the connectors firmly with the screws on the
plug. In case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia
computer and to the AUDIO connector of the PC/HDMI AUDIO IN jacks of the TV/DVD.
Press INPUT SELECT on the remote control to select PC mode.
Switch on the computer. The TV/DVD can operate as the computer monitor.
Left side of the unit
Monitor Display modes
To PC IN
PC/HDMI
AUDIO
IN jacks
MODE
Resolution
Refresh rate
VGA
VGA
WVGA
SVGA
XGA
WXGA
WXGA
640x480
720x400
848x480
800x600
1024x768
1280x768
1280x720
60Hz
70Hz
60Hz
60Hz
60Hz
60Hz
60Hz
VGA cable (not supplied)
Audio cord (not supplied)
To return to normal mode
Press INPUT SELECT again.
NOTES:
• The on-screen displays will have a different appearance in PC mode than in TV mode.
• When you select WXGA or WVGA mode, see the WXGA INPUT to ON in the PC PICTURE menu (see page
38).
• If there is no video signal from the PC when the unit is in PC mode, “NO SIGNAL” will appear on the TVscreen.
63
50C0301A_EN_P62-Back
63
4/27/07, 7:19 PM
Reception disturbances
Most types of television interference can be remedied by adjusting the height and position of the VHF/
UHF antenna. Outdoor antennas are recommended for best results. The most common types of
television interference are shown below. If one of these symptoms appear when the TV/DVD is
connected to a Cable TV system, the disturbance may be caused by the local Cable TV company
broadcast.
IGNITION
Black spots or horizontal streaks may appear, the picture may flutter
or drift. Usually caused by interference from automobile ignition
systems, neon lamps or AC powered tools and appliances such as
drills or hair dryers.
GHOSTS
Ghosts are caused by the television signal following two paths. One is
the direct path and the other is reflected by tall buildings, hills or other
large objects. Changing the direction or position of the antenna may
improve the reception.
SNOW
If the TV/DVD is located far from the TV station, in a fringe reception
area where the signal is weak, small dots may appear in the picture.
If the signal is extremely weak, the installation of a larger external
antenna may be necessary.
RADIO FREQUENCY INTERFERENCE (RFI)
Caused by two-way radios, this type of interference produces moving
ripples or diagonal streaks in the picture. Some cases may cause a
loss of contrast in the picture. Changing the direction and position of
the antenna or installing an RFI filter may improve the picture.
PICTURE SIZE VARIATION
A slight picture size variation is normal when you adjust the CONTRAST
or BRIGHTNESS settings.
CARE AND MAINTENANCE
To prevent fire or shock hazard, disconnect the TV/DVD from the power source before cleaning.
Clean the LCD using a dry soft cloth such as gauze.
The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other
furniture. Use caution when cleaning or wiping the plastic parts.
64
50C0301A_EN_P62-Back
64
4/27/07, 7:19 PM
Problems and troubleshooting
Use the following check list for troubleshooting when you have problems with your TV/DVD. Consult your local
dealer or service outlet if problems persist.
Be sure all connections are properly made when using with other units.
SYMPTOMS
POSSIBLE SOLUTIONS
PAGE
POWER
• Make sure the power cord is plugged in.
• Power is off, check fuse or circuit breaker.
• Unplug unit, then plug it back in.
TV/DVD does not operate.
13
TV BROADCAST RECEPTION
Poor sound or no sound.
• Station or Cable TV experiencing problems, tune to another station. 17
17,18
• Check Volume adjustments.
64
• Check for sources of possible interference.
Poor picture or no picture.
17
• Station or Cable TV experiencing problems, tune to another station.
14,15
• Check antenna or Cable TV connections, reorient antenna.
57
• Check for sources of possible interference.
30
• Check picture control adjustments.
• Station or Cable TV experiencing problems, tune to another station.
Poor reception on some channels. • Station signal is weak, reorient antenna to receive stronger station.
• Check for sources of possible interference.
17
14
64
• Station or Cable TV experiencing problems, tune to another station. 17
• Make sure channels are set into memory.
20
• Check picture control adjustments.
30
• Check antenna or Cable TV connections, reorient antenna.
14,15
• Check for sources of possible interference.
64
17
• Station or Cable TV experiencing problems, tune to another station.
20
• Make sure channels are set into memory.
–
• Cable TV company is scrambling signal.
14
• Check antenna orientation.
• Check all Cable TV connections.
15
• Set TV/CABLE menu option to the “CABLE” mode.
19
• Station or Cable TV system problems, try another station.
17
Poor color or no color.
Picture wobbles or drifts.
No Cable TV reception.
Horizontal or diagonal bars on
screen.
• Check antenna connections, reorient antenna.
• Check for sources of possible interference.
14
64
No reception above channel 13.
• Make sure TV/CABLE menu option is in the appropriate mode.
• If using antenna, check UHF antenna connections.
19
14
TV shuts off.
• No broadcast on station tuned.
• Sleep Timer is set.
• Power interrupted.
17
18
–
17
Closed - Caption is not activated.
• TV station experiencing problems or program tuned is not
closed captioned. Try another channel.
• Check Cable TV connection or VHF/UHF antenna, reposition
or rotate antenna.
• Set Closed Caption decoder in the menu.
14,15
32
Display is not shown in your
language.
• Select proper language in the menu options.
16
Digital broadcasting screen
problem.
• Check digital signal strength.
37
• The LCD panel is a very high technology product, giving you fine picture details. Occasionally, a few nonactive pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not
affect the performance of your product.
65
50C0301A_EN_P62-Back
65
4/27/07, 7:20 PM
Problems and troubleshooting
SYMPTOMS
(continued)
POSSIBLE SOLUTIONS
PAGE
DVD
Playback doesn’t start.
• No disc is inserted.
• The disc may be dirty. Clean up the disc.
• The unit cannot play CD-ROMs, etc.
41
9
9
No picture.
• TV/DVD selector is not set correctly.
40
No sound.
• Check the input selector of the amplifier is set properly.
• The unit is in the Special playback mode.
• Select the correct Audio Output position on AV amplifier.
–
42
62
Picture is distorted during CUE or
REVIEW.
• The picture will be distorted occasionally.
–
Stopping playback, search, slowmotion play, repeat play, or
program play, etc. cannot be
performed.
• Some discs may not allow some functions.
–
No 4:3 (16:9) picture.
• The setup does not match your TV.
No on-screen display.
• Select Display On.
54
No surround sound.
• The setup does not match your stereo system.
62
The unit or remote operation key
is not functioning.
• Turn off the unit and unplug the AC power cord for several minutes, then replug it.
16
Playback does not start when the
title is selected.
• Check the RATING LEVEL setup.
Audio soundtrack and/or subtitle
language is not changed when
you play back a DVD.
• Multilingual language is not recorded on the DVD disc.
51
No subtitle.
• Some discs have no subtitles.
• Subtitles are cleared. Press SUBTITLE.
51
Angle cannot be changed.
• Multi-angles are not recorded on the DVD disc.
52
• The function is prohibited with the unit or the disc.
41
• Aim at the remote control at the remote sensor.
• Operate within Approx. 5 Meters or reduce the light in the room.
• Clear the path of the beam.
• The batteries are weak. Replace the batteries.
• Check the batteries are inserted correctly.
13
” appears on the screen.
“
26,27,54
57,58
REMOTE CONTROL
The remote control does not
function.
R
FOR CUSTOMER SERVICE, ADDITIONAL SET-UP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:
1-800-289-0980
WHEN CALLING CUSTOMER SERVICE – PLEASE HAVE YOUR MODEL NUMBER READY
OR WRITE TO:
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
FOR INFORMATION ON OUR OTHER PRODUCTS, OR TO ORDER ACCESSORIES ONLINE, PLEASE VISIT OUR WEBSITE AT
www.orionsalesinc.com
66
50C0301A_EN_P62-Back
66
4/27/07, 7:20 PM
Specifications
GENERAL
Power supply:
Power consumption:
Weight:
Dimensions:
Operating temperature:
Operating humidity:
TELEVISION
Type:
Display method:
Number of Pixels:
Viewing angle:
Tuner type:
Receiving channels:
Input:
Digital audio out:
Component video input:
HDMI input:
PC Monitor input:
Antenna input:
Speaker:
Audio output power:
DVD/CD player
Signal system:
Applicable disc:
Pickup:
ACCESSORIES:
AC 120V 60Hz
Operation: 130W
Stand by: 1W
12.7 kg (28.0 lbs)
Width : 633 mm (24-15/16 inches)
Height : 495 mm (19-1/2 inches)
Depth : 211 mm (8-5/16 inches)
5˚C - 40˚C
Less than 80%
26.01 inches (660.5 mm diagonal)
Transmission TFT color LCD panel
1366 (H) x 768 (V)
Left/Right:
80/80 degree
Up/Down:
80/80 degree
NTSC standard
ATSC standard (8VSB), QAM
VHF
2-13
UHF
14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-125 (100)-(125)
01 (5A)
S-Video: Y-Input: 1.0 V (p-p), 75 ohms
C-Input: 0.3 V (p-p), 75 ohms
Video:
(RCA) 1 V p-p/75 ohms
Audio:
(RCA) –8 dBm/50K ohms
0.5 Vp-p 75 ohms terminated
(Y) 1 V (p-p), 75 ohms
(PB)/(PR) 0.7 V (p-p), 75 ohms
HDMI compliant (type A connector)
HDCP compliant
E-EDID compliant
Suggested scan rates: 1080i, 480p, 480i, 720p
HDMI Audio: 2-channel PCM
32/44.1/48 kHz sampling frequency
16/20/24 bits per sample
Mini-Dsub 15pin x 1
VHF/UHF In 75 ohms coaxial
41 mm x 122 mm (1-5/8 inches x 4-13/16 inches), 4 ohms x 2
5.0W + 5.0W
NTSC
1. DVD (12 cm, 8 cm)
2. CD (12 cm, 8 cm)
CD: Wavelength: 790 nm
Maximum output power: 7 mW
DVD: Wavelength: 655 nm
Maximum output power: 5 mW
Remote control
Batteries (UM-4) x 2
AC Cord
Designs and specifications are subject to change without notice.
67
50C0301A_EN_P62-Back
67
4/27/07, 7:20 PM
R
limited
WARRANTY
26” TFT LCD TV WITH DVD PLAYER
ORION warrants this product to be free from manufacturing defects in material and workmanship under
normal use and conditions for a period of 90 days from date of original purchase in the United States.
Should service be necessary under this warranty for any reason due to a manufacturing defect or
malfunction during the first ninety (90) days from date of original purchase, ORION will provide carry-in repair
service by an ORION authorized Independent Service Center at no charge. Also, if an original part fails due to
manufacturing defect in material and workmanship within one year from date of original purchase we will
replace the defective part only (LABOR NOT INCLUDED AFTER THE INITIAL NINETY (90) DAY WARRANTY
PERIOD) provided the defect or malfunction is verified along with dated proof of purchase.
There are ORION authorized Independent Service Centers located throughout the country. For the one
nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. This product is
eligible for in-home service for the first ninety (90) days from the original date of purchase, and thereafter for
CARRY-IN service only. ORION will not be liable for damages incurred in shipment of the unit. If there are no
ORION authorized Independent Service Centers in your area please call - 1-888-296-7466 for assistance.
Note: This warranty is void if the product is:
(a) Damaged through negligence, misuse, abuse, or accident.
(b) Used in a commercial application or rentals.
(c) Modified or repaired by anyone other than an Independent Service Center authorized by ORION to effect
warranty repairs to the class of product or by the ORION Factory Service Center.
(d) Damaged because it is improperly connected to the equipment of other manufacturers.
This warranty does not cover:
(a) Damage to video disc.
(b) Damage to equipment not properly connected to the product.
(c) Costs incurred in the shipping of the product to an ORION authorized Independent Service Center or
ORION Factory Service Center.
(d) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow
operating instructions provided with the product.
(e) Ordinary adjustments to the product which can be performed by customer as outlined in the owner’s
manual.
(f) Signal reception problems caused by external antenna or cable systems.
THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER
AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A
PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF
ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL
APPLY TO THIS PRODUCT THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE
PRODUCT FOR ANY PARTICULAR PURPOSE AND USE.
UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH
THE USE OF THIS PRODUCT.
THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE
TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR EXCLUSION OF
CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU.
ORION SALES, INC.
3471 N. UNION DR.
OLNEY, ILLINOIS 62450
50C0301A_EN_P62-Back
Printed in Thailand
68
4/27/07, 7:20 PM

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
