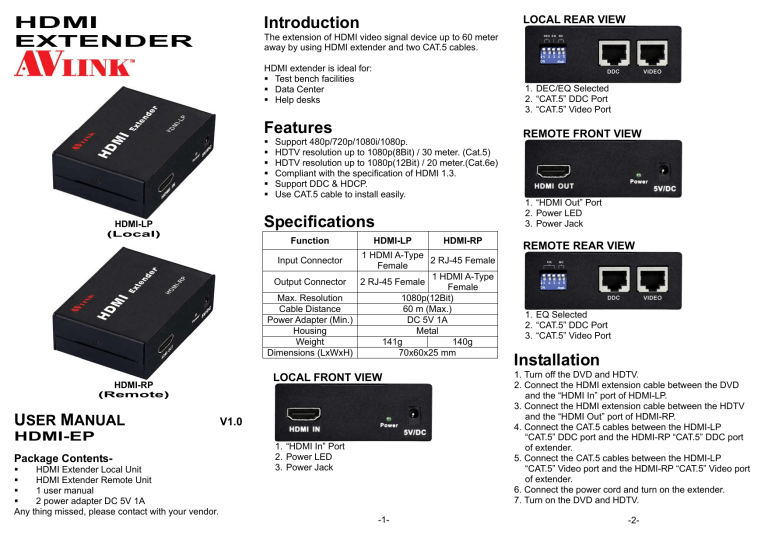

HDMI EXTENDER Introduction Features Specifications Installation

HDMI EXTENDER Introduction Features Specifications Installation
HDMI
EXTENDER
LOCAL REAR VIEW
Introduction
The extension of HDMI video signal device up to 60 meter
away by using HDMI extender and two CAT.5 cables.
HDMI extender is ideal for:
ƒ Test bench facilities
ƒ Data Center
ƒ Help desks
1. DEC/EQ Selected
2. “CAT.5” DDC Port
3. “CAT.5” Video Port
Features
ƒ
ƒ
ƒ
ƒ
ƒ
ƒ
Support 480p/720p/1080i/1080p.
HDTV resolution up to 1080p(8Bit) / 30 meter. (Cat.5)
HDTV resolution up to 1080p(12Bit) / 20 meter.(Cat.6e)
Compliant with the specification of HDMI 1.3.
Support DDC & HDCP.
Use CAT.5 cable to install easily.
Specifications
HDMI-LP
(Local)
Function
HDMI-LP
HDMI-RP
1 HDMI A-Type
2 RJ-45 Female
Input Connector
Female
1 HDMI A-Type
Output Connector
2 RJ-45 Female
Female
Max. Resolution
1080p(12Bit)
Cable Distance
60 m (Max.)
Power Adapter (Min.)
DC 5V 1A
Housing
Metal
Weight
141g
140g
Dimensions (LxWxH)
70x60x25 mm
LOCAL FRONT VIEW
HDMI-RP
(Remote)
USER MANUAL
HDMI-EP
Package Contentsƒ
HDMI Extender Local Unit
ƒ
HDMI Extender Remote Unit
ƒ
1 user manual
ƒ
2 power adapter DC 5V 1A
Any thing missed, please contact with your vendor.
V1.0
1. “HDMI In” Port
2. Power LED
3. Power Jack
-1-
REMOTE FRONT VIEW
1. “HDMI Out” Port
2. Power LED
3. Power Jack
REMOTE REAR VIEW
1. EQ Selected
2. “CAT.5” DDC Port
3. “CAT.5” Video Port
Installation
1. Turn off the DVD and HDTV.
2. Connect the HDMI extension cable between the DVD
and the “HDMI In” port of HDMI-LP.
3. Connect the HDMI extension cable between the HDTV
and the “HDMI Out” port of HDMI-RP.
4. Connect the CAT.5 cables between the HDMI-LP
“CAT.5” DDC port and the HDMI-RP “CAT.5” DDC port
of extender.
5. Connect the CAT.5 cables between the HDMI-LP
“CAT.5” Video port and the HDMI-RP “CAT.5” Video port
of extender.
6. Connect the power cord and turn on the extender.
7. Turn on the DVD and HDTV.
-2-
DIP Switch Settings
Local SW
De-Emphasis
Pin1,Pin2
Level in mVpp
On, On
1200
On, Off
850
Off, On
600
Off, Off
426
Pin3: Equalization
On: Enables
Off: Disables
Remote SW
Pin1,Pin2,Pin3
On, On, On
On, On, Off
On, Off, On
On, Off, Off
Off, On, On
Off, On, Off
Off, Off, On
Off, Off, Off
De-Emphasis
Level in dB
0
-3
-6
-9
EQ (dB)
9
14
18
21
24
26
28
30
Test Equipment: SONY KLV-40W300A
SONY PS3
HDMI Cable (V1.3) 1m x2
480p/720p/1080i 12Bit
(Belden 1583A)
Local SW
Remote SW
Cable Distance
Pin1, Pin2, Pin3 Pin1, Pin2, Pin3
< 40m
Off, Off, Off
On, Off, Off
> 40m
Off, Off, On
Off, Off, On
1080p 12Bit
(Sanwa Cat.6e)
15m
On, On, On
On, On, On
Test Equipment: SONY KLV-40W300A
DIGITAL VIDEO GENERATOR VG-859B
HDMI Cable (V1.3) 1m x2
[email protected] 8Bit
(Belden 1583A)
Local SW
Remote SW
Cable Distance
Pin1, Pin2, Pin3 Pin1, Pin2, Pin3
60m
On, On, On
Off, Off, Off
[email protected] 8Bit /[email protected] 8Bit
(Belden 1583A)
Local SW
Remote SW
Cable Distance
Pin1, Pin2, Pin3 Pin1, Pin2, Pin3
< 40m
Off, Off, Off
On, Off, Off
> 40m
Off, Off, Off
Off, Off, Off
[email protected] 8Bit
(Belden 1583A)
10m
On, On, Off
On, On, On
20m
On, On, Off
On, On, Off
30m
On, On, On
On, Off, Off
Note:
ƒ Test equipment for reference only.
ƒ The quality of CAT.5 cable which the video port used will
influence the transmit distance. DDC port can use the
general CAT.5 Cable.
Conductor
Identification
Pair 1
Pair 2
Pair 3
Pair 4
RJ45 Pin
Assignment
5
4
1
2
3
6
7
8
Color Code for
Conductor
White-Blue
Blue
White-Orange
Orange
White-Green
Green
White-Brown
Brown
Technical Specifications
Input/Output Signal
Pin #
Signal
1
TMDS Data 2+
2
TMDS Data 2 Shield
3
TMDS Data 2-
-3-
Wiring Information & Coding
4
TMDS Data 1+
5
6
7
8
9
10
TMDS Data 1 Shield
TMDS Data 1TMDS Data 0+
TMDS Data 0 Shield
TMDS Data 0TMDS Clock+
Pin #
Signal
11 TMDS Clock Shield
12 TMDS Clock 13 CEC
Reserved
14
(N.C. on device)
15 SCL
16 SDA
17 DDC/CEC Ground
18 +5 Power
19 Hot Plug Detect
-4-
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or
registered trademarks belonging to their respective
companies.
-5-
