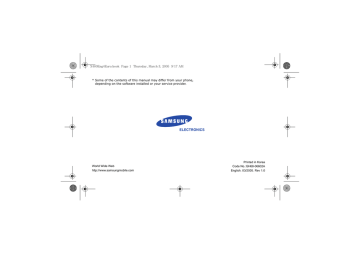

X480Eng4Euro.book Page 1 Thursday, March 3, 2005 9:17 AM
* Some of the contents of this manual may differ from your phone,
depending on the software installed or your service provider.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-06602A
English. 03/2005. Rev 1.0
X480Eng4Euro.book Page 2 Thursday, March 3, 2005 9:17 AM
SGH-X480
User’s Guide
X480Eng4Euro.book Page 3 Thursday, March 3, 2005 9:17 AM
Use road safety at all times
Do not use a hand-held phone while driving. Park
the vehicle first.
Important
safety
precautions
Failure to comply with the following
precautions may be dangerous or illegal.
Switch off the phone when refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference. Using them
in an aircraft is both illegal and dangerous.
Switch off the phone near all medical
equipment
Hospitals or health care facilities may be using
equipment that could be sensitive to external radio
frequency energy. Follow any regulations or rules in
force.
X480Eng4Euro.book Page 1 Thursday, March 3, 2005 9:17 AM
Keep your phone away from small children
All wireless phones may be subject to interference,
which could affect their performance.
Keep the phone and all its parts, including accessories,
out of the reach of small children.
Be aware of special regulations
Accessories and batteries
Meet any special regulations in force in any area and
always switch off your phone whenever it is forbidden
to use it, or when it may cause interference or danger.
Use only Samsung-approved accessories and
batteries. Use of any unauthorised accessories could
damage your phone and may be dangerous.
Water resistance
Your phone is not water-resistant. Keep it dry.
Sensible use
Use only in the normal position (held to the ear). Avoid
unnecessary contact with the antenna when the phone
is switched on.
Emergency call
Key in the emergency number for your present
location, then press [ ].
Important safety precautions
Interference
• The phone could explode if the battery is
replaced with an incorrect type.
• Dispose of used batteries according to the
manufacturer’s instructions.
Qualified service
Only qualified service personnel may repair your
phone.
For more detailed safety information, see "Health and
safety information" on page 58.
1
X480Eng4Euro.book Page 2 Thursday, March 3, 2005 9:17 AM
About this Guide
This User’s Guide provides you with condensed
information about how to use your phone. To quickly
learn the basics for your phone, please refer to
“Getting started and Step outside the phone.”
In this guide, the following instruction icons appear:
Indicates that you need to pay careful
attention to the subsequent information
regarding safety or phone features.
→
Indicates that you can get more
information on the referenced page.
Indicates that you need to press the
Navigation keys to scroll to the specified
option and then select it.
[key name] Indicates a key on the phone. For
example, [ ]
<soft key>
2
Indicates a soft key, whose function is
displayed on the phone screen. For
example, <Menu>
•
Tri-band operation
Use your phone in worldwide GSM networks, in
any of 900, 1800, and 1900 bands.
Special features of your phone
•
Simple, compact design with Intenna
Samsung’s powerful intenna technology allows
the best call quality without an annoying
external antenna.
•
WAP browser
Access the wireless web and
access various services and upto-the-minute information.
X480Eng4Euro.book Page 3 Thursday, March 3, 2005 9:17 AM
•
Multimedia Message Service (MMS)
Send and receive MMS messages with a
combination of text, images, and sounds.
•
Melody composer
Create your own melodies and
set them as your call ringer.
•
Calendar and To do list
Keep track of your daily, weekly,
and monthly schedules and
tasks.
•
Voice recorder
Record memos or sounds.
•
Java
Enjoy Java™-based embedded
games and download new
games.
Special features of your phone
•
Phonebook
Store up to 2000 contact
numbers.
3
X480Eng4Euro.book Page 4 Thursday, March 3, 2005 9:17 AM
Contents
Unpack
6
Make sure you have each item
Your phone
6
Buttons, features, and locations
Get started
7
First steps to operate your phone
Install and charge the phone ................................... 7
Power on or off ...................................................... 8
Keys and display .................................................... 9
Access menu functions.......................................... 11
Customise your phone .......................................... 12
Make/answer calls................................................ 13
Step outside the phone
13
Begin with your WAP, melody composer, messages, and other special features
Browse WAP ........................................................ 13
Use Phonebook .................................................... 14
4
Send messages.................................................... 14
View messages .................................................... 15
Compose your melody .......................................... 16
Enter text
17
ABC, T9, Number, and Symbol mode
Call functions
19
Advanced calling features
Menu functions
24
All menu options listed
Solve problems
56
Health and safety information
58
Index
64
X480Eng4Euro.book Page 5 Thursday, March 3, 2005 9:17 AM
Overview of menu functions
To access Menu mode, press <Menu> in Idle mode.
1 SIM AT
p. 24
2
2 Call records
p. 24
1
2
3
4
5
6
p.
p.
p.
p.
p.
p.
Missed calls
Received calls
Dialled calls
Delete all
Call time
Call costs*
24
24
24
24
25
25
3 Network services
p. 26
1
2
3
4
5
6
7
p.
p.
p.
p.
p.
p.
p.
Call diverting
Call barring
Call waiting
Network selection
Caller ID
Closed user group
Band selection
26
26
27
27
27
28
28
6 Funbox
p. 39
29
29
29
29
29
30
30
30
30
1
2
3
4
5
6
7
p.
p.
p.
p.
p.
p.
p.
7 Organiser
p. 44
5 Messages
p. 30
1
2
3
4
5
6
7
p.
p.
p.
p.
p.
p.
p.
1
2
3
4
5
6
7
p.
p.
p.
p.
p.
p.
p.
4 Sound settings
p. 29
1
2
3
4
5
6
7
8
9
p.
p.
p.
p.
p.
p.
p.
p.
p.
Ring tone
Ring volume
Alert type
Keypad tone
Message tone
Folder tone
Power on/off
Alert on call
Extra tones
Text messages
Multimedia messages
Push messages
Delete all
Voice mail
Broadcast messages
Memory status
30
33
37
37
38
38
38
WAP browser
Games
Sounds
Images
Delete all
Memory status
Melody composer
Alarm
Calendar
Time & date
Calculator
To do list
Voice memo
Currency exchange
39
41
42
42
42
43
43
45
45
46
47
47
48
49
8 Phonebook
p. 49
1
2
3
4
5
6
7
8
p.
p.
p.
p.
p.
p.
p.
p.
Search
Add entry
Group search
Group edit
Speed dial list
Delete all
Memory status
SDN*
49
50
50
50
51
51
51
51
9 Phone settings
p. 52
1
2
3
4
5
6
7
8
9
p.
p.
p.
p.
p.
p.
p.
p.
p.
Display settings
Greeting message
Own number
Language
Security
Extra settings
Side key
Short cut
Reset settings
52
53
53
53
53
55
55
55
55
*Shows only if supported by your
SIM card.
5
X480Eng4Euro.book Page 6 Thursday, March 3, 2005 9:17 AM
Unpack
Your phone
Make sure you have each item
Buttons, features, and locations
Earpiece
Phone
Battery
User’s manual
You can obtain various accessories from your local
Samsung dealer.
The items supplied with your phone and the accessories
at your Samsung dealer may vary, depending on your
country or service provider.
6
Display
Travel adapter
Headset jack
Left soft key
Volume keys
Dial key
Special
function keys
Navigation keys
(Up/Down/Left/
Right)
WAP access/
Confirm key
Right soft key
Power on/off/
Menu exit key
Cancel/Correct
key
Alphanumeric
keys
Microphone
X480Eng4Euro.book Page 7 Thursday, March 3, 2005 9:17 AM
Get started
3
Install the battery.
5
Plug the adapter into a standard AC wall outlet.
4
Plug the travel adapter
into the phone.
First steps to operate your phone
SIM card information
When you subscribe to a cellular network, you receive
a plug-in SIM (Subscriber Identity Module) card
loaded with your subscription details, such as your
PIN, and available optional services.
Install and charge the phone
1
Remove the battery.
➀
➁
2
Insert the SIM card.
the phone is completely charged (the battery
6 When
icon stops blinking), unplug the adapter from the
power outlet.
If the phone is already
on, first turn it off by
holding [ ].
Make sure that the goldcoloured contacts on the
card face down into the
phone.
7
X480Eng4Euro.book Page 8 Thursday, March 3, 2005 9:17 AM
Get started
7
Remove the adapter from the phone.
Power on or off
Power on
2. Press and hold [
the phone.
➀
➁
➀
Low battery indicator
When the battery is low:
• a warning tone sounds,
• the battery low message displays, and
• the empty battery icon [
] blinks.
If the battery level becomes too low, the phone
automatically turns off. Recharge your battery.
8
1. Open the phone.
] to turn on
Do not turn on
the phone when
mobile phone
use is prohibited.
3. If necessary, enter the PIN and
press <OK>.
Power off
1. Open the phone.
2. Press and hold [
].
X480Eng4Euro.book Page 9 Thursday, March 3, 2005 9:17 AM
Keys and display
Key(s)
Key(s)
Description
Ends a call.
Hold down to switch the phone on and off.
In Menu mode, cancels input and returns the
phone to Idle mode.
In Idle mode, access the following menus
respectively.
• Up/Down: your favourite menu option
p. 55
• Left: Text messages
• Right: Ring tone
In Menu mode, scroll through the menu
options.
Enter numbers, letters, and some special
characters.
In Idle mode, hold [1] down to access your
voicemail.
Enter special characters.
In Idle mode, hold [ ] down to activate or
deactivate Silent mode.
In Idle mode, launches the Wireless
Application Protocol (WAP) browser.
In Menu mode, selects the highlighted menu
option.
(on the left)
Adjust the volume of various sounds for the
phone.
In Idle mode, adjust the keypad tone
volume.
In Menu mode, scroll through menu options.
9
Get started
Deletes characters from the display.
In Menu mode, returns to the previous menu
level.
Performs the function indicated on the
bottom line of the display.
Sends or answers a call.
In Idle mode, retrieves the last number
dialled, missed, or received.
Description
X480Eng4Euro.book Page 10 Thursday, March 3, 2005 9:17 AM
Get started
Display
Layout
The display has the three areas.
Menu Phonebook
Icons
New voicemail message
New multimedia message
Text and graphics
displays messages,
instructions, and
information you enter.
Mute mode is activep. 21
Soft key function
indicators
shows the current
functions assigned to the
two soft keys.
Battery power level
Call in progress
Out of your service area; you
cannot send or receive calls
Call diverting feature is active
p. 26
GPRS network
10
New text message
(continued)
Icons
displays various icons.
Received signal strength
Roaming
Icons
Alarm set
Active Silent mode or call ringer set
to vibratep. 12, p. 29
X480Eng4Euro.book Page 11 Thursday, March 3, 2005 9:17 AM
Access menu functions
The roles of the soft keys vary
depending on the function you are
using. The bottom line of the
display indicates their current role.
Menu
Press the left soft
key to access
Menu mode.
1. Press the appropriate soft key.
2. Press the Navigation keys to
move to the next or previous
option.
Get started
Use the soft
keys
Select an
option
3. Press <Select> or [ ] to
confirm the function displayed
or option highlighted.
Phonebook
4. To exit, choose either of the
following methods:
• Press < > or [C] to move
up one level.
• Press [ ] to return to Idle
mode.
Press the right soft
key to access the
Phonebook menu.
Use shortcuts
Press the number key
corresponding to the option you
want.
11
X480Eng4Euro.book Page 12 Thursday, March 3, 2005 9:17 AM
Get started
Customise your phone
Display
language
1. In Idle mode, press <Menu>
and select Phone settings →
Language.
2. Select a language.
Call ringer
melody
1. In Idle mode, press <Menu>
and select Sound settings →
Ring tone.
2. Select a ringer melody.
Idle mode
wallpaper
You can set a wallpaper for the idle
screen.
1. In Idle mode, press <Menu>
and select Phone settings →
Display settings →
Wallpaper → Wallpaper list.
2. Select an image.
3. Scroll to the image you want.
4. Press <Select>.
12
Switch to
Silent mode
You can switch the phone to Silent
mode to avoid disturbing other
people with your phone sounds.
Press and hold [ ] in Idle mode.
Phone lock
You can protect the phone against
unauthorised use with a phone
password.
1. In Idle mode, press <Menu>
and select Phone settings →
Security → Change
password.
2. Enter the default password,
“00000000” and press <OK>.
3. Enter a new 4- to 8- digit
password and press <OK>.
4. Enter the new password again
and press <OK>.
X480Eng4Euro.book Page 13 Thursday, March 3, 2005 9:17 AM
Phone lock
(continued)
Step outside the phone
5. Select Phone lock.
6. Select Enable.
7. Enter the password and press
<OK>.
Make/answer calls
Make a call
1. Enter an area code and phone
number.
2. Press [
].
3. To end the call, press [
Answer a call
1. When the phone is ringing,
press [ ].
2. To end the call, press [
Adjust the
volume during
a call
].
Press [ / ].
].
Begin with your WAP, melody composer, messages, and
other special features
Browse WAP
Using a built-in WAP (Wireless Access Protocol)
browser, you can get easy access to the wireless web
to receive a variety of updated services and
information and to enjoy download of web contents.
Launch the
browser
In Idle mode, press [ ].
Navigate the
browser
•
•
•
•
•
To access browser options,
press <Menu>.
To scroll through browser items,
press [Up] or [Down].
To select an item, press [ ].
To return to the previous page,
press [C].
To return to the homepage,
press <Menu> and select
Home.
13
X480Eng4Euro.book Page 14 Thursday, March 3, 2005 9:17 AM
Step outside the phone
Use Phonebook
Find an entry
Add an entry
To the phone’s memory
1. In Idle mode, enter a phone
number and press <Save>.
2. Select a number type.
3. Select Phone.
4. Enter a name and press <OK>.
5. Press <OK> to save the entry.
To the SIM card
1. In Idle mode, enter a phone
number and press <Save>.
2. Select a number type.
3. Select SIM.
4. Enter a name and press <OK>.
5. Press <OK> to save the entry.
1. In Idle mode, press
<Phonebook> and select
Search.
2. Select an entry.
3. Select a number.
4. Press [ ] to dial, or
<Options> to access options.
Send messages
1. In Idle mode, press <Menu>
Send a text
and select Messages → Text
message (SMS)
messages → Create.
2. Enter the message text.
3. Press <Options> and select
Save and send or Send only.
4. If you selected Save and send,
select a memory location.
5. Enter a destination number and
press <OK>.
14
X480Eng4Euro.book Page 15 Thursday, March 3, 2005 9:17 AM
1. In Idle mode, press <Menu>
and select Messages →
Multimedia messages →
Create.
2. Enter the message subject
press <Next>.
Send a
multimedia
message
(MMS)
(continued)
3. Select Add here and add
message contents.
4. When you finish, press
<Options> and select Send.
5. Select a destination type.
6. Select one of Phone number,
E-mail, or Phone book.
7. Enter a destination number or
an e-mail address, or select
from Phonebook and press
<OK>.
8. To add other destinations,
select Add destination and
repeat from step 6.
9. To add destinations of other
types, press < > and repeat
from step 5.
Step outside the phone
Send a
multimedia
message
(MMS)
10. When you finish, select Send
message.
View messages
View a text
message
When a notification appears:
Press <View>. The message
displays.
From the Inbox:
1. In Idle mode, press <Menu>
and select Messages → Text
messages → Inbox.
2. Select a message.
15
X480Eng4Euro.book Page 16 Thursday, March 3, 2005 9:17 AM
Step outside the phone
View a
multimedia
message
When a notification appears:
1. Press <View>.
2. Press <Options> and select
Retrieve. The message
displays.
Create a
melody
(continued)
2. Select a message.
Compose your melody
Create a
melody
1. In Idle mode, press <Menu>
and select Funbox → Melody
composer → Compose
melody.
2. Move the selection point up or
down by pressing [Up] or
[Down].
16
4. Repeat steps 1 to 3 to add more
notes and rests.
5. When you have finished, press
<Options> and select Save.
From the Inbox:
1. In Idle mode, press <Menu>
and select Messages →
Multimedia messages →
Inbox.
3. Select a note or rest and press
<Select>.
6. Enter a melody name and press
<OK>.
Playing a
melody
1. In Idle mode, press <Menu>
and select Funbox → Melody
composer → Compose
melody.
2. Press <Options> and select
Open.
3. Select the melody you want and
press <Open>.
4. Press <Options> and select
Play.
X480Eng4Euro.book Page 17 Thursday, March 3, 2005 9:17 AM
Using ABC mode
Enter text
ABC, T9, Number, and Symbol mode
You can enter text for some features such as
messaging, Phonebook, or Organiser, using ABC
mode, T9 mode, Number mode, and Symbol mode.
Press the appropriate key until the character you want
appears on the screen.
Key
Characters in order displayed
Upper case
Lower case
Changing the text input mode
The text input mode indicator displays when the
cursor is in a text field.
Press the right soft key to change the input mode.
Example: Writing a text message
space
ABC mode
T9 mode
Number mode
None Symbol mode
Text input mode
indicator
Tips for using ABC mode
• To enter the same letter twice or to enter a
different letter on the same key, wait for the cursor
to move to the right automatically or press [Right].
Then, enter the next letter.
• Press [ ] to insert a space.
17
X480Eng4Euro.book Page 18 Thursday, March 3, 2005 9:17 AM
Enter text
•
•
•
Press [ ] to change case. Capital lock ( ), Lower
case ( ), and Initial capital ( ) are available.
Press [Left] or [Right] to move the cursor.
Press [C] to delete characters one by one. Press
and hold [C] to clear the display.
Using T9 mode
T9 is a predictive text input mode that allows you to
key in any character using single keystrokes.
Entering a word in T9 mode
1. Press [2] to [9] to start entering a word. Press
each key once for each letter.
For example, press [4], [3], [5], [5], and [6] to
enter Hello in T9 mode.
T9 predicts the word that you are typing, and it
may change with each key that you press.
2. Enter the whole word before editing or deleting
characters.
3. When the word displays correctly, go to step 4.
Otherwise, press [0] to display alternative word
choices for the keys that you have pressed.
18
For example, Of and Me use [6] and [3].
4. Press [ ] to insert a space and enter the next
word.
Tips for using T9 mode
• Press [1] to enter periods or apostrophes
automatically.
• Press [ ] to change case in T9 mode. Capital lock
( ), Lower case ( ), and Initial capital ( ) are
available.
• Press [Left] or [Right] to move the cursor.
• Press [C] to delete characters one by one. Press
and hold [C] to clear the display.
Adding a new word to the T9 dictionary
This feature may not be available for some languages.
1. Enter the word that you want to add.
2. Press [0] to display alternative words for your key
presses. When there are no more alternative
words, Add displays on the bottom line.
3. Press <Add>.
X480Eng4Euro.book Page 19 Thursday, March 3, 2005 9:17 AM
4. Enter the word you want using ABC mode and
press <OK>.
Call functions
Advanced calling features
Using Number mode
Number mode enables you to enter numbers.
Press the keys corresponding to the digits you want.
Using Symbol mode
Symbol mode enables you to insert symbols.
To
Press
display more symbols
[Up] or [Down].
select a symbol
the corresponding
number key.
clear the symbol(s)
[C].
insert the symbol(s)
<OK>.
Making a call
1. In Idle mode, enter the area code and phone
number.
2. Press [ ].
Press [C] to clear the last digit or press and hold
[C] to clear the whole display. You can move the
cursor to edit an incorrect digit.
Making an international call
1. In Idle mode, press and hold [0]. The + character
appears.
2. Enter the country code, area code, and phone
number, then press [ ].
Redialling recent numbers
1. In Idle mode, press [ ] to display the list of
recent numbers.
2. Scroll to the number you want and press [ ].
19
X480Eng4Euro.book Page 20 Thursday, March 3, 2005 9:17 AM
Call functions
Making a call from Phonebook
Once you have stored a number in Phonebook, you
can dial the number by selecting it from
Phonebook.p. 49
You can also use the speed dial feature to assign your
most frequently called numbers to specific number
keys. p. 51
Dialling a number from the phone’s memory
1. In Idle mode, press and hold [0]. A + appears.
2. Enter the location number for the phone number
you want and press [ ].
3. Press [Up] or [Down] to scroll through other
numbers.
4. Press <Dial> or [ ] to dial the number you want.
Dialling a number from the SIM card
1. In Idle mode, enter the location number for the
phone number you want and press [ ].
2. Press [Up] or [Down] to scroll through other
numbers.
3. Press <Dial> or [ ] to dial the number you want.
20
Ending a call
Close the phone or press [
].
Answering a call
When you receive an incoming call, the phone rings
and displays the incoming call image.
Press [
] or <Accept> to answer the call.
Tips for answering a call
• When Anykey answer in the Extra settings
menu is active, you can press any key to answer
a call, except for [ ] and <Reject>.p. 55
• Press <Reject> or [ ] to reject a call.
•
When Active folder is active, you can just open
the phone to answer a call.
X480Eng4Euro.book Page 21 Thursday, March 3, 2005 9:17 AM
Viewing missed calls
Options during a call
If you have missed calls, the screen displays how
many calls you have missed.
1. Press <View>.
2. If necessary, scroll through the missed calls.
3. Press [ ] to dial the number you want.
You can access a number of functions during a call.
Use the headset to make or answer calls without
holding the phone.
Connect the headset to the jack on the left side of the
phone.
The buttons on the headset work as listed below:
Call functions
Using the headset
Adjusting the volume during a call
Use [ / ] to adjust the earpiece volume during a call.
Press [ ] to increase the volume level and [ ] to
decrease the volume level.
Placing a call on hold/Retrieving
Press <Hold> or <Unhold> to place the call on hold
or retrieve the call.
Using the menu functions
Press <Options> and select Menu.
To
Press
Switching off the microphone (Mute mode)
redial the last call
the button twice.
answer a call
and hold the button.
You can temporarily switch off your phone’s
microphone so that the other person on the phone
cannot hear you.
end a call
and hold the button.
Press <Options> and select Mute or Unmute.
21
X480Eng4Euro.book Page 22 Thursday, March 3, 2005 9:17 AM
Call functions
Muting or sending key tones
Using Phonebook
You can turn the key tones off or on.
You can access the Phonebook menu to locate or
store entries.p. 49
Press <Options> and select Mute keys or Send
keys.
To communicate with answering machines or
computerised telephone systems, Send keys must
be selected.
Sending a sequence of DTMF tones
Dual tone multi-frequency (DTMF) tones are the tones
used in phones for tone dialling.
You can send DTMF tones as a group after entering the
entire number you need to send or retrieving a
number from Phonebook. This feature is helpful for
entering a password or an account number when you
call an automated system, like a banking service.
1. When connected with a teleservice system, press
<Options> and select Send DTMF.
2. Enter the number you need to send and press
<OK>.
22
Press <Options> and select Phonebook.
Answering a second call
You can answer an incoming call, if your network
supports it and you have activated the call waiting
feature.p. 27
1. Press [ ] to answer the call. The first call is
automatically put on hold.
2. Press <Swap> to switch between the calls.
3. Press <Options> and select End held call to end
the call on hold.
4. To end the current call, press [ ].
Making a multi-party call
Use this feature to allow as many as six people to join
a multi-party call, or conference call.
Your service provider must support multi-party calls
for you to use this feature.
X480Eng4Euro.book Page 23 Thursday, March 3, 2005 9:17 AM
Dropping one participant
1. Press <Options> and select Select one.
2. Select a name or number from the participant list.
3. Press [Down] and select Remove.
The participant is dropped from the call, but the
call continues with the other parties.
4. Close the phone or press [ ] to end the multiparty call.
Call functions
Setting up a multi-party call
1. Call the first participant.
2. Call the second participant. The first call is
automatically put on hold.
3. Press <Options> and select Join. The first
participant is added to the multi-party call.
4. If desired, call another person or answer an
incoming call.
5. Press <Options> and select Join.
6. Repeat steps 4 and 5 as desired.
Having a private conversation with one
participant
1. Press <Options> and select Select one.
2. Select a name or number from the participant list.
3. Select Private.
You can talk privately with that person, while the
other participants converse with each other.
4. To return to the multi-party call, press <Options>
and select Join.
23
X480Eng4Euro.book Page 24 Thursday, March 3, 2005 9:17 AM
Menu functions
All menu options listed
This menu displays the 20 most recently received calls
that you did not answer.
SIM AT
Received calls (Menu 2.2)
(Menu 1)
This menu is available if you use a SIM AT card that
provides additional services, such as news, weather,
sports, entertainment, and location services. Available
services may vary, depending on your service
provider’s plans.
For details, see your SIM card instructions or contact
your service provider.
Call records
(Menu 2)
Use this menu to view the calls you have dialled,
received, or missed, the length of your calls, and the
cost of your calls.
To access this menu, press <Menu> in Idle mode and
select Call records.
24
Missed calls (Menu 2.1)
This menu displays the 20 most recent calls you have
received.
Dialled calls (Menu 2.3)
This menu displays the 20 most recent calls you have
dialled.
Delete all (Menu 2.4)
Use this menu to delete all of the records in each call
type.
1. Press [ ] to check the call type(s) to be cleared.
2. Press <Delete>.
3. Press <Yes> twice to confirm the deletion.
X480Eng4Euro.book Page 25 Thursday, March 3, 2005 9:17 AM
This network feature displays the cost of calls. This
menu is available only if your SIM card supports this
feature. Note that this is not intended to be used for
billing purposes.
• Last call cost: check the cost of your last call.
• Total cost: check the total cost of all of your calls
since your last reset the cost counter. If the total
cost exceeds the maximum cost set in Set max
cost, you must reset the counter before you can
make another call.
• Max cost: check the maximum cost limit set in
Set max cost.
• Reset counters: reset the cost counters. You
need to enter your PIN2.
• Set max cost: set the maximum cost authorised
for your calls. You need to enter your PIN2.
• Price/unit: set the price per unit that is applied
when the cost of your calls is calculated. You need
to enter your PIN2.
The password is preset to 00000000. You can
change this password.p. 54
Call records (Menu 2)
Call costs (Menu 2.6)
This menu displays the time log for calls made and
received. The actual time invoiced by your service
provider will vary.
• Last call time: check the length of your last call.
• Total sent: check the total length of all the calls
you have dialled.
• Total received: check the total length of all the
calls you have received.
• Reset timers: reset the call timers. You need to
enter the phone password.
Menu functions
Call time (Menu 2.5)
25
X480Eng4Euro.book Page 26 Thursday, March 3, 2005 9:17 AM
Menu functions
Network services
(Menu 3)
Use this menu to access network services. Please
contact your service provider to check their availability
and subscribe to them, if you wish.
To access this menu, press <Menu> in Idle mode and
select Network services.
Call diverting (Menu 3.1)
This network service reroutes incoming calls to a
phone number that you specify.
1. Select a call diverting option:
• Divert always: divert all calls.
• Busy: diver calls when you are on another call.
• No reply: divert calls when you do not answer
the phone.
• Unreachable: divert calls when you are not in
an area covered by your service provider or
when your phone is switched off.
• Cancel all: cancel all call diverting options.
2. Select the type of calls to be diverted.
26
3. To activate call diverting, press <Activate>.
Otherwise, press <Options> and select Remove.
4. Enter the number to which calls are to be diverted
and press <OK>.
5. If you selected No reply, select the length of time
the network delays before diverting a call and
press <Select>.
Call barring (Menu 3.2)
This network service allows you to restrict your calls.
1. Select a call barring option:
• All outgoing: prohibit all outgoing calls.
• International: prohibit international calls.
• International except to home: only allow
calls to numbers within the current country
when you are abroad, and to your home
country, defined as where your home network
provider is located.
• All incoming: prohibit incoming calls.
X480Eng4Euro.book Page 27 Thursday, March 3, 2005 9:17 AM
•
This network service informs you when someone is
trying to reach you while you are on another call.
1. Select the type of calls to which the call waiting
option will apply.
2. Press <Activate>. To deactivate call waiting,
press <Deactivate>.
This network service allows you to either automatically
or manually select the network used when roaming
outside of your home area.
You can select a network other than your home
network only if there is a valid roaming agreement
between the two.
• Automatic: connect to the first available network
when roaming.
• Manual: select the network you want.
Network services
Call waiting (Menu 3.3)
Network selection (Menu 3.4)
Menu functions
Incoming while abroad: prohibit incoming
calls when you use your phone outside of your
home country.
• Cancel all: cancel all call barring settings,
allowing calls to be sent and received normally.
• Change barring password: change the call
barring password obtained from your service
provider.
2. Select the type of calls to be barred.
3. Press <Activate>. To deactivate call barring,
press <Deactivate>.
4. Enter the call barring password supplied by your
service provider and press <OK>.
Caller ID (Menu 3.5)
This network service allows you to prevent your phone
number from being displayed on the phone of the
person being called. However, some networks do not
allow the user to change this setting.
• Default: use the default setting provided by the
network.
• Hide number: ensure your number does not
display on the other person’s phone.
• Send number: send your number each time you
make a call.
27
X480Eng4Euro.book Page 28 Thursday, March 3, 2005 9:17 AM
Menu functions
28
Closed user group (Menu 3.6)
Band selection (Menu 3.7)
Use this menu to set incoming and outgoing calls to be
restricted to a selected user group. For details about
how to create a closed user group, contact your
service provider.
• Index list: list, add, or delete CUG index
numbers. Press <Options> to access the options
for setting up an index list.
• Outside access: enable calls to numbers other
than those in the Closed user group. This feature
depends on the nature of your CUG subscription.
• Default group: enable the default CUG, if you
have set one with your service provider. When
making a call, you are given the option of using
your default CUG, instead of selecting one from the
list.
• Deactivate: deactivate the CUG function, if the
default group is enabled or a CUG index is
selected.
For the phone to make and receive phone calls, it
must register with an available network.
Your phone can handle any of the following types of
networks: GSM 1900 and Combined GSM 900/1800.
The country where you purchased your phone
determines the default band that it uses. When you
travel abroad, you must remember to change to an
appropriate band.
When you select a new band, your phone
automatically searches for all available networks. Your
phone registers with a preferred network within the
band.
X480Eng4Euro.book Page 29 Thursday, March 3, 2005 9:17 AM
Sound settings
(Menu 4)
Use this menu to customise various sound settings.
Use this menu to select a ring tone for the call ringer.
You can select one of the default ring melodies,
downloaded sounds, or the melodies you have
created.
Vibra+melody: the phone vibrates three times
and then starts ringing.
Keypad tone (Menu 4.4)
Use this menu to select the tone that the phone
sounds when you press a key.
You can adjust the keypad tone volume using
[ / ] in Idle mode.
Message tone (Menu 4.5)
Use this menu to adjust the ringer volume.
Use this menu to select a ring tone or alert type for
incoming messages.
• SMS tone: specify how you are informed of a new
SMS message.
• SMS-CB tone: specify how you are informed of a
new cell broadcast (CB) message.
• MMS tone: specify how you are informed of a new
MMS message.
• Repetition: specify how often the phone informs
you of a new message.
Use this menu to specify how you are to be informed
of incoming calls.
• Light only: the phone flashes the service light.
• Melody: the phone rings using the selected ring
tone.
• Vibration: the phone vibrates but not rings.
Sound settings (Menu
Ring volume (Menu 4.2)
Alert type (Menu 4.3)
Menu functions
Ring tone (Menu 4.1)
•
29
X480Eng4Euro.book Page 30 Thursday, March 3, 2005 9:17 AM
Menu functions
Folder tone (Menu 4.6)
Use this menu to select the tone that the phone
sounds when you open or close the phone.
Power on/off (Menu 4.7)
Use this menu to select the melody that the phone
plays when it is switched on or off.
Alert on call (Menu 4.8)
Use this menu to select whether or not the phone
informs you when you receive a new message or when
the time for an alarm comes during a call.
Extra tones (Menu 4.9)
Use this menu to customise additional tones for the
phone.
• Error tone: set the phone to beep when you make
a mistake.
• Minute minder: set the phone to beep every
minute during an outgoing call to keep you
informed of the length of your call.
30
•
Connect tone: set the phone to beep when it is
connected to the system.
Messages
(Menu 5)
Use the Messages menu to send and receive short
messages, and multimedia messages. You can also
use WAP push message, Voice mail, and Cell broadcast
message features.
To access this menu, press <Menu> in Idle mode and
select Messages.
Text messages (Menu 5.1)
Short Message Service (SMS) allows you to send or
receive text messages including pictures, melodies,
and animated images.
The maximum number of characters allowed in a
short message varies by service provider. If your
message exceeds the maximum number of
characters, the phone will split the message.
X480Eng4Euro.book Page 31 Thursday, March 3, 2005 9:17 AM
6. Press <OK> to send the message.
Inbox (Menu 5.1.2)
You can view received text messages in this menu.
While viewing a message, press <Options> to access
the following options:
• Delete: delete the message.
• Send: forward the message.
• Text reply: reply to the sender.
• Call back: call the sender.
• Cut address: extract URLs, e-mail addresses, or
phone numbers from the message.
• Move to phone: move the message from the SIM
card to the phone’s memory.
• Move to SIM: move the message from the
phone’s memory to the SIM card.
• Select content: save images or sounds from the
message into your phone.
Menu functions
Messages (Menu 5)
Create (Menu 5.1.1)
You can create and send a text message.
1. Enter your message.
2. Press <Options> to access the following options:
• Text formatting: change the text attributes.
• Add content: add a sound, melody, picture, or
animation to the message.
• Add templates: retrieve a text template.
• Add emoticon: retrieve an emoticon.
• Add from phonebook: add a Phonebook
entry.
• Add from bookmarks: add a web page’s
address.
• Language: change the language used in T9
input mode.
3. Press <Options> and select Save and send or
Send only.
4. If you select Save and send or Save only, select
a memory location.
5. Enter a destination number.
31
X480Eng4Euro.book Page 32 Thursday, March 3, 2005 9:17 AM
Menu functions
Outbox (Menu 5.1.3)
You can view sent or saved text messages.
•
•
While viewing a message, press <Options> to access
the following options:
• Delete: delete the message.
• Send: forward the message.
• Cut address: extract URLs, e-mail addresses, or
phone numbers from the message.
• Move to phone: move the message from the SIM
card to the phone’s memory.
• Move to SIM: move the message from the
phone’s memory to the SIM card.
• Select content: save images or sounds from the
message into your phone.
Emoticon templates (Menu 5.1.5)
You can preset emoticon templates and retrieve them
to use in a message.
Templates (Menu 5.1.4)
You can preset maximum 5 templates to write a text
message.
While viewing the templates list, press <Options> to
access the following options:
• Edit: edit the template.
32
Send: send the template as an SMS message.
Delete: delete the template.
While viewing the emoticon list, press <Options> to
access the following options:
• Add: add a new emoticon.
• Edit: edit the selected emoticon.
• Send: send a message using the emoticon.
• Delete: delete the emoticon.
Settings (Menu 5.1.6)
Use this menu to customise the SMS settings.
The setting options available in this menu may vary
depending on your service provider.
•
Setting x (where x is the setting group number):
each group has its own submenu.
Setting name: change the name of the setting
group.
X480Eng4Euro.book Page 33 Thursday, March 3, 2005 9:17 AM
Multimedia messages (Menu 5.2)
Multimedia Message Service (MMS) delivers messages
containing a combination of text, picture, and sound,
from phone to phone or from phone to e-mail.
Menu functions
•
Create (Menu 5.2.1)
You can create and send an MMS message.
1. Enter a message subject and press <Next>.
2. Press <Options> and add message contents using
one of the following options:
• Add text: add message text.
• Add picture: add pictures to the message.
• Add sound: add sounds to the message.
• Send: send the message.
• Save: save the message in the Draft or
Templates box.
• Settings: change the message settings.
• Add destination: enter destination numbers
or addresses.
• Preview: view the message you created.
Messages (Menu 5)
Service center: store or changes the number of
your message centre.
Default destination: store a default destination
number.
Default type: set the default message type.
Validity period: set the length of time your
messages are stored in the message centre while
the network attempts to deliver them.
Common settings: The following options are
available.
Reply path: allow the recipient to reply to you
through your message centre.
Delivery reports: set the network to inform you
when your message has been delivered.
Bearer selection: select the GSM or GPRS
preferred bearer type.
Character support: select a character encoding
type. If you select Automatic, the phone switches
the encoding type from GSM-alphabet to Unicode if
you enter a Unicode character. Use of Unicode
encoding will reduce the maximum number of
characters in a message to about half.
33
X480Eng4Euro.book Page 34 Thursday, March 3, 2005 9:17 AM
Menu functions
3. If you want to change the added items, highlight
one and press <Options> to access the following
options:
• Edit text/picture/sound: edit the text,
picture, or sound.
• Add page: add pages. Move to each page by
pressing the Left or Right key on the message
screen.
• Delete: delete the item from your message.
• Duration: set how long one page displays.
After the specified time, the display
automatically scrolls to the next page.
4. When you have finished, select Send from the
options.
5. Select a destination type (To, Cc, Bcc).
6. Select one of Phone number, E-mail, or Phone
book.
7. Enter a destination number or an e-mail address,
or select a number from Phonebook and press
<OK>.
34
8. To add more destinations, select Add destination
and repeat from step 6.
9. To enter additional numbers or addresses to other
destination types, press < >and repeat from step
5.
10. When you have finished, select Send message.
Inbox (Menu 5.2.2)
This menu displays MMS messages that you have
received. The following icons tell you the message
status:
•
notification that you have read
•
notification that you have not read
•
you are retrieving from the server
•
the server is processing your request
•
the server is failed to send
•
you have read
•
you have not read
X480Eng4Euro.book Page 35 Thursday, March 3, 2005 9:17 AM
While viewing a message, press <Options> to access
the following options:
• Delete: delete the message.
• Cut address: extract URLs, e-mail addresses, or
phone numbers from the message.
• Send: send or resend the message.
• Edit: edit the message.
• Properties: view the message properties.
Messages (Menu 5)
When you select a notification, you can access
Retrieve to retrieve the message from the MMS
server.
Outbox (Menu 5.2.3)
This menu displays MMS messages that you have
sent. The following icons tell you the message status:
•
currently being sent
•
sent
•
your phone couldn’t send
•
to be sent
•
deferred
Menu functions
While viewing a message, press <Options> to access
the following message options:
• Delete: delete the message.
• Reply: reply to the sender.
• Callback: call the sender.
• Cut address: extract URLs, e-mail addresses, or
phone numbers from the message.
• Forward: forward the message to another person.
• Save picture: save an image from the message
into the Images folder.
• Save sound: save a sound from the message into
the Sounds folder.
• Properties: view the message properties.
35
X480Eng4Euro.book Page 36 Thursday, March 3, 2005 9:17 AM
Menu functions
Draft (Menu 5.2.4)
After creating a multimedia message, you can store it
in this message box for sending later.
You can view a message and use the options the same
as in the Outbox.
Templates (Menu 5.2.5)
This menu stores messages you saved as templates so
that you can use them to create new messages.
While viewing a message template, press <OK> to
access the following options:
• Edit: send the message using the template.
• Delete: delete the template.
Settings (Menu 5.2.6)
You can customise the settings for sending and
receiving MMS messages.
• Delivery report: set the network to inform you
when your message has been delivered.
• Read reply: request a reply from the recipient.
36
•
•
•
•
•
•
•
•
Auto download: set whether or not your phone
retrieves new incoming messages from the MMS
server without notifications.
Message acceptance: select the category of
messages you want to receive.
Hide ID: hide your phone number on the
recipient’s phone.
Validity period: set the length of time your
messages are stored in the message centre.
Delivery time: set the time delay before
messages are sent.
Priority: set the priority level of your messages.
Report allowed: send a delivery report from the
network to the sender.
Page duration: set how long one page in your
outgoing messages displays. After a specified time,
the display automatically scrolls to the next page.
X480Eng4Euro.book Page 37 Thursday, March 3, 2005 9:17 AM
MMS profile (Menu 5.2.7)
You can configure required network settings for MMS.
The last profile accessed is automatically activated for
sending or receiving subsequent messages.
•
•
Messages (Menu 5)
•
•
•
•
•
Profile name: assign a name to the MMS profile.
Connection URL: enter the address of your MMS
server.
Security: select a data transmission mode.
IP address: enter the gateway address.
User name: assign the user ID.
Password: enter the password.
APN: enter the access point name used for the
address of the MMS server.
Use this menu to access messages from the WAP
server.
• Inbox: view push messages you have received.
• Receive: determine whether or not your phone
receives push messages.
Never: the phone rejects push messages.
Always: the phone receives all push messages.
• Delete all: delete all of push messages.
Menu functions
Check with your service provider before you change
any MMS settings on your phone.
Push messages (Menu 5.3)
Delete all (Menu 5.4)
Use this menu to delete all of the messages in each
message box.
1. Select a message type.
2. Press [ ] to check the message box(es) to be
cleared.
3. Press <Delete>.
4. Press <Yes> twice to confirm the deletion.
37
X480Eng4Euro.book Page 38 Thursday, March 3, 2005 9:17 AM
Menu functions
Voice mail (Menu 5.5)
•
Use this menu to store the number of the voice mail
server and access your voice mails.
You must enter the voice server number before you
can access your voice mails. Your service provider
can give the voice server number.
•
•
Connect to voice server: connect to the voice
server to allow you to listen to your messages. You
can also connect to the voice mail server by
pressing and holding [1] in Idle mode.
Voice server number: change the voice mail
server name or number.
•
•
Broadcast messages (Menu 5.6)
Please contact your service provider for details.
The Cell Broadcast service delivers short messages on
various topics such as the weather or traffic.
Memory status (Menu 5.7)
Use this menu to change the settings for the service
and access broadcast messages.
38
•
Read: open received messages.
The Volatile box saves network messages until
the phone is switched off.
The Archive box saves network messages
indefinitely. Press <Options> and select Save
when a text notification appears. The message is
saved in the Archive box.
Receive: enable or disable the reception of
broadcast messages.
Channel list: specify the channels from which you
receive broadcast messages.
Language: select the language in which broadcast
messages display.
Use this menu to view the total number of messages
you can store and the number of messages you have
stored on the SIM card, in the phone’s memory, and in
the CB memory.
X480Eng4Euro.book Page 39 Thursday, March 3, 2005 9:17 AM
Funbox
(Menu 6)
Navigating with the WAP browser
<Menu>.
To access this menu, press <Menu> in Idle mode and
select Funbox.
scroll through browser items
[Up] or [Down].
select a browser item
[ ].
WAP browser (Menu 6.1)
return to the previous page
[C].
The Wireless Application Protocol (WAP) browser on
your phone allows you to access the wireless web.
Using the WAP browser, you can access updated
information and a wide variety of media content, such
as wallpapers and ring tones.
return to the homepage
<Menu> and select
Home.
Home (Menu 6.1.1)
Use this menu to connect your phone to the network
and load the homepage of the wireless web service
provider. You can also press [ ] in Idle mode.
Funbox (Menu 6)
Press
access browser options
Menu functions
To
The Funbox menu allows you to use the WAP browser,
play Java games, and access images and sounds
stored in the phone’s memory.
Selecting and using browser menu options
1. Press <Menu> and select a menu.
2. Select one of the following browser options:
• Bookmarks: open the bookmarks list.
• Reload: reload the current page.
• Home: go back to the homepage.
• Go to URL: enter a URL address manually.
• Show URL: view the URL address of the
current web page.
39
X480Eng4Euro.book Page 40 Thursday, March 3, 2005 9:17 AM
Menu functions
•
•
•
•
Clear cache: delete information stored in the
cache.
Security info: view security information.
Inbox: read messages received from a web
server.
Show image: view the image on the current
web page in order.
Exiting the WAP browser
Press [
] to exit the browser.
Bookmarks (Menu 6.1.2)
Use this menu to save URL addresses to quickly access
a website.
Adding a bookmark
1. Select an empty location.
2. Enter a URL address and press <Enter>.
3. Enter a name for the bookmark and press
<Enter>.
Accessing a bookmarked page
Scroll to a bookmark item and press [ ].
40
Using bookmark options
After saving an item, press <Options> to access the
following options:
• Go to URL: access the website.
• Edit: edit the address and name of the bookmark.
• Delete: delete the bookmark.
http:// (Menu 6.1.3)
Use this menu to manually enter the URL address of a
website and access the website.
WAP profiles (Menu 6.1.4)
Use this menu to set up servers for the WAP browser.
Contact your service provider for details about your
settings options.
For each server, the following options are available:
• Profile name: assign a name to the server profile.
• Homepage URL: set the address of your
homepage.
• Security: select a data transmission mode.
• Bearer: select a bearer for each type of network
address accessed; GPRS or Data.
X480Eng4Euro.book Page 41 Thursday, March 3, 2005 9:17 AM
When the bearer is set to GPRS:
• IP address: enter the WAP gateway address.
• User name: enter the user ID.
• Password: enter the password.
• APN: enter the access point name of the GPRS
network gateway.
Games (Menu 6.2)
When the bearer is set to Data:
• IP address: enter the WAP gateway address.
• Login name: enter the User ID.
• Password: enter the password.
• Dial-up number: enter the PPP server phone
number.
• Data call type: select a data call type.
Launching a MIDlet
1. Select the MIDlet you want on the games list.
2. On the startup screen of the MIDlet, you can
access the following options:
• START GAME: start a new game.
• CONTINUE: continue the last game you
played.
• HIGH SCORE: view the high score table. This
option may not be available for some games.
• HOW TO PLAY: view how to play the game
and the key functions for the game.
• OPTION: switch on or off the game sound.
3. Press [ ] to confirm your selection.
Menu functions
Java services may not available, depending on your
service provider.
Funbox (Menu 6)
Clear cache (Menu 6.1.5)
Use this menu to clear the cache, which is the
temporary memory that stores the web pages you
have recently accessed.
You can download MIDlets (Java applications that run
on mobile phones) from various sources using the
WAP browser, and store them in your phone.
41
X480Eng4Euro.book Page 42 Thursday, March 3, 2005 9:17 AM
Menu functions
Viewing MIDlet information
Scroll to the MIDlet you want and press <Info>.
Changing DNS settings
You may need to change the DNS setting of the Java
server at your service provider’s instructions.
1. Select Setting on the Games list.
2. Enter the primary address and press <OK>.
3. Enter the secondary address and press <OK>.
Sounds (Menu 6.3)
This menu displays sounds downloaded from the
wireless web or received in messages.
While accessing a sound, press <Options> to access
the following options:
• Rename: change the name of the sound.
• Delete: delete the sound.
• Set as ringtone: set the sound as your ring tone.
42
Images (Menu 6.4)
This menu displays images downloaded from the
wireless web or received in messages.
While accessing an image, press <Options> to access
the following options:
• Rename: change the name of the image.
• Delete: delete the image.
• Set as wallpaper: set the image as your
wallpaper for the idle screen.
Delete all (Menu 6.5)
You can delete all of the downloaded items in the
Games, Sounds, and Images folders.
1. Press [ ] to check the folder(s) to be cleared.
2. Press <Delete>.
3. Press <Yes> twice to confirm the deletion.
X480Eng4Euro.book Page 43 Thursday, March 3, 2005 9:17 AM
Memory status (Menu 6.6)
Melody composer (Menu 6.7)
Use this menu to compose your own melodies using a
variety of musical components. You can set one of
your melodies as your call ringer.
Creating a melody
1. Move the selection point up or down by pressing
[Up] or [Down].
2. Press <Input>.
3. Select a note or rest.
4. Repeat steps 1 to 3 to add more notes and rests.
Editing a melody
While composing a melody or after opening a saved
melody, you can edit it.
1. To change an entered note or rest, move the
selection point by pressing [Up] or [Down].
2. Change the position of the note or type of the note
or rest the same as you would when inserting it.
3. Press [ ] or [ ] to move a note to the next
semitone higher or lower position.
You can access the following options by pressing
<Options>:
• Range: select more than one note or rest. The
selected ones are indicated in yellow.
• Copy: copy the note or rest.
• Cut: cut the note or rest.
• Paste: paste the note or rest.
• Change: change the note or rest.
Funbox (Menu 6)
Compose melody (Menu 6.7.1)
When you access the Compose melody menu, a
stave screen displays with a selection point at the first
note position (Do).
5. When you have finished, press <Options> and
select Save.
6. Enter a melody name and press <OK>.
Menu functions
You can check the total amount of memory for media
items and the amount of memory currently in use in
each media box.
43
X480Eng4Euro.book Page 44 Thursday, March 3, 2005 9:17 AM
Menu functions
• Delete: delete the note or rest.
• Play: play the current melody.
4. After editing, press [Right] until the selection point
moves to an input position.
5. Press <Options> and select Save to save the
changes to the melody, or Save as to save the
melody under a different name.
Using composer options
While composing a melody, press <Options> to
access the following options:
• New: open a new composer screen.
• Open: open the list of your own melodies.
• Play: play the current melody.
• Save: save the melody.
• Save as: save the melody under a different name.
• Instrument: change the musical instrument to be
used for playing the melody.
• Background melody: use a background melody.
• Add note: add notes to the melody.
44
•
•
Tempo: change the tempo.
Volume: adjust the volume level of the main and
background melodies separately.
Memory status (Menu 6.7.2)
You can check the total amount of memory and the
amount of memory currently in use for melodies you
have created.
Organiser
(Menu 7)
The Organiser feature enables you to keep track of
your schedule and tasks, and to make a voice memo.
You can also set the time and date and use convenient
features, such as alarms, calculator, and currency
exchange.
To access this menu, press <Menu> in Idle mode and
select Organiser.
X480Eng4Euro.book Page 45 Thursday, March 3, 2005 9:17 AM
Alarm (Menu 7.1)
Use this menu to set alarms to ring at a specific time.
Stopping an alarm
• When the alarm sounds, press any key.
• To remove an alarm set, access it, press
<Options> and select Remove alarm.
• To remove all alarm sets, select Remove alarm
from the Alarm menu.
Calendar (Menu 7.2)
Use this menu to consult the calendar, write memos,
or set alarms to act as a reminder.
Writing a memo
1. Select a date on the calendar.
Press [ / ] to move to the next or previous
month.
Organiser (Menu 7)
4. If you selected Morning call in step 1, choose
Monday to friday or Monday to saturday.
If the phone is off when it is time for the alarm to ring,
the phone switches on and sounds the alarm.
Menu functions
Setting an alarm
1. Select the type of alarm.
2. Enter the time for the alarm to sound.
3. Select AM or PM in 12-hour time format.
Your phone is preset to a 24-hour format. You
can change the time format.p. 46
Setting the alarm to ring even if the phone is
off
From the Alarm screen, select Autopower → Enable.
2. Enter your memo and press <OK>.
3. Press [ ] to set an alarm to ring on the chosen
day.
Otherwise, press <Skip>.
4. Enter the time for the alarm.
To select an alarm melody, press <Melody>.
45
X480Eng4Euro.book Page 46 Thursday, March 3, 2005 9:17 AM
Menu functions
5. Select AM or PM in 12-hour format.
Your phone is set to a 24-hour format. You can
change the format. p. 46
The colour of the date on the calendar changes to
green to indicate that a memo exists for that date.
Viewing a memo
On the calendar screen, press <Options> to access
the following options:
• Search all: view all of the memos you created.
• Delete all: delete all memos.
• Go to date: go to a specific date.
• Exit: exit the Calendar feature.
While viewing a memo, press <Options> to access
the following options:
• New: add a new memo.
• Edit: edit the memo.
• Alarm: set an alarm for the memo.
• Delete: delete the memo.
46
•
•
Copy to: copy the memo to another date.
Move to: change the date of the memo.
Time & date (Menu 7.3)
Use this menu to change the time and date displayed
on your phone. Before setting the time and date,
specify your time zone in World time.
• Set time: enter the current time.
• Set date: enter the current date.
• World time: set your local time zone and find out
what time it is in another part of the world.
To apply Daylight Savings Time to a time zone,
press <Options> and select Set daylight
saving time.
•
Time format: select 12-hour or 24-hour time
format.
X480Eng4Euro.book Page 47 Thursday, March 3, 2005 9:17 AM
Calculator (Menu 7.4)
Press [ ] or [ ] to move the cursor.
To do list (Menu 7.5)
Use this menu to create tasks and manage them.
Creating the To do list
1. Press <New>.
2. Enter the first task and press <OK>.
Viewing the To do list
When you select the To do list menu, the tasks display
with a check mark, if the task has been done, and a
priority level indicator;
for High,
for Normal,
and
for Low.
To change the status of a specific task, press [ ].
Organiser (Menu 7)
2. Press the Navigation keys to access the math
function you want.
3. Enter the second number.
4. Press [ ] to view the result.
3. Select a priority level.
4. Enter your deadline and press [ ].
Otherwise, press <Skip>.
Menu functions
Use this menu to perform basic arithmetic functions
such as addition, subtraction, multiplication, and
division.
1. Enter the first number.
Press the left soft key to insert a decimal point and
a bracket.
While viewing a task from the list or the details for the
task, press <Options> to access the following
options:
• New: add a new task.
• Mark: change the status of the task.
• Edit: edit the task.
• Sort: sort the task by priority or status.
• Copy: copy the task.
• Copy to calendar: copy the task to the calendar
as a memo.
47
X480Eng4Euro.book Page 48 Thursday, March 3, 2005 9:17 AM
Menu functions
•
•
•
Delete: delete the task.
Delete all: delete all tasks.
Exit: exit the To do list menu.
Voice memo (Menu 7.6)
Use this menu to record voice memos. A voice memo
can be up to 30 seconds.
Record voice (Menu 7.6.1)
1. Press <Record> to start recording.
2. Speak into the microphone.
3. When you press <Stop>, or if the recording time
expires, the following options display:
• Replay: play back your memo.
• Re-record: discard the memo and records
another one.
• Save: save the memo.
• Quit: cancel your recording and exits the
Record voice menu.
4. Select Save to save the voice memo.
5. Enter a name of the voice memo and press <OK>.
48
Voice list (Menu 7.6.2)
Use this menu to access the list of voice memos you
have recorded.
Press <Options> to access the following options:
• Play: play back your voice memo.
• Send: send the voice memo via MMS.
• Rename: change the name of the voice memo.
• Properties: view the properties of the voice
memo.
• Delete: delete the voice memo.
Delete all (Menu 7.6.3)
Use this menu to delete all of the voice memos you
have recorded at one time.
Memory status (Menu 7.6.4)
You can check the total amount of memory and the
amount of currently in use for voice memos.
X480Eng4Euro.book Page 49 Thursday, March 3, 2005 9:17 AM
Currency exchange (Menu 7.7)
Search (Menu 8.1)
Use this menu to do currency conversions.
1. Enter the rate of foreign currency and press
<OK>.
2. Enter the amount of the source currency you want
to convert and press <OK>.
You can enter a demical point (.) using the [ ] key.
The amount you entered and its equivalent value
in the foreign currency display.
Use this menu to search for numbers in Phonebook.
You can store phone numbers on your SIM card and in
your phone’s memory. The SIM card and phone’s
memory are physically separate, but they are used as
a single entity called Phonebook.
To access this menu, press <Menu> in Idle mode and
select Phonebook.
Press <Phonebook> in Idle mode to quickly access
this menu.
Using Phonebook options
While viewing an entry in Phonebook, press
<Options> to access the following options:
• Edit: edit the entry information.
• Copy: copy the number to the phone’s memory or
SIM card.
• Paste: paste the number into the normal dialling
mode.
• Delete: delete the number from Phonebook.
• Caller group: assign a caller group.
• Add entry: add a new entry.
Phonebook (Menu 8)
(Menu 8)
Menu functions
Phonebook
Finding an entry
1. Enter the first few letters of the name that you
want to find.
2. Select the name you want from the list.
3. Press [ ] to dial the number, or <Options> to
access the Phonebook options.
49
X480Eng4Euro.book Page 50 Thursday, March 3, 2005 9:17 AM
Menu functions
Add entry (Menu 8.2)
Use this menu to add a new entry to Phonebook.
Storing a number or an e-mail address in the
phone’s memory
1. Select a number type.
2. Select Phone.
3. Enter a name and press <OK>.
4. Enter a number or an e-mail address and press
<Save>.
5. Change the location number, if you want, and
press <OK>.
Storing a number on the SIM card
1. Select a number type.
2. Select SIM.
3. Enter a name and press <OK>.
4. Enter a number and press <Save>
5. Change the location number, if you want, and
press <OK>.
50
Group search (Menu 8.3)
Use this menu to search your entries in Phonebook in
caller groups.
1. Enter the first few letters of the group name.
2. Select a group and press <View>.
3. Select the name you want.
4. Press [ ] to dial the number or <Options> to
access the Phonebook options.
Group edit (Menu 8.4)
Use this menu to edit your caller groups’ properties.
From the group list, press <Options> to access the
following options:
• Call ringtone: set a ring tone for incoming calls
from the group.
• SMS tone: set a ring tone for incoming messages
from the group.
• Graphic: set a graphic icon for incoming calls from
the group.
• Group name: assign a name to the group.
X480Eng4Euro.book Page 51 Thursday, March 3, 2005 9:17 AM
Delete all (Menu 8.6)
Use this menu to assign speed dial numbers (2 to 9) to
eight of your most frequently called numbers.
Use this menu to delete all of the entries from
Phonebook.
1. Press [ ] to check the location(s) to be cleared.
2. Press <Delete>.
3. Enter the phone password and press <OK>.
4. Press <Yes> twice to confirm the deletion.
Assigning speed dial entries
1. Select a key location from 2 to 9. Key 1 is reserved
for your voice mail server.
2. Select the name you want from the Phonebook list.
3. Select the number you want.
Dialling speed dial entries
Press and hold the appropriate key in Idle mode.
Memory status (Menu 8.7)
Phonebook (Menu 8)
Managing speed dial entries
While viewing the Speed dial screen, press
<Options> to access the following options:
• Change: assign a different number to an assigned
key.
• Delete: delete the setting for the key.
• Delete all: delete the settings for all the keys.
• Number: view the number assigned to the key.
Menu functions
Speed dial list (Menu 8.5)
Use this menu to check the total number of entries
you can store and the number of the entries you have
stored in Phonebook.
SDN (Menu 8.8)
This menu is available if your SIM card supports
Service Dialling Numbers (SDN). Use this menu to
view the list of SDNs assigned by your service
provider, including emergency numbers, directory
enquiries, and voice mail numbers.
Scroll to the number you want and press <Dial>
or [ ].
51
X480Eng4Euro.book Page 52 Thursday, March 3, 2005 9:17 AM
Menu functions
Phone settings
(Menu 9)
Use this menu to customise your phone settings. You
can also reset the settings to their default values.
To access this menu, press <Menu> in Idle mode and
select Phone settings.
Display settings (Menu 9.1)
Use this menu to change settings for the display and
light.
Wallpaper (Menu 9.1.1)
You can change the background image and the
settings for the text of Idle mode.
• Wallpaper list: select a background image.
• Text display: determine the phone displays the
time and date.
• Text color: select a colour of the text
52
Menu style (Menu 9.1.2)
You can select the menu display style.
Back light (Menu 9.1.3)
You can select the length of time the backlight and the
display stay on.
• Back light On: select the length of time the
backlight is on.
• Back light Dim: select the length of time the
display is in Dimming mode after the backlight
turns off. After a specified time, the display turns
off.
Contrast (Menu 9.1.4)
You can adjust the brightness of the display for
varying lighting conditions.
Service light (Menu 9.1.5)
You can select whether or not the service light is used.
You can also select a colour in which it flashes.
X480Eng4Euro.book Page 53 Thursday, March 3, 2005 9:17 AM
Graphic logo (Menu 9.1.6)
Use this menu to display your service provider’s logo
instead of its name.
Use this menu to enter the greeting that is displayed
briefly when the phone is switched on.
Own number (Menu 9.3)
Language (Menu 9.4)
Use this menu to select one of several languages for
the display text.
If you enter an incorrect PIN /PIN 2 three times in
succession, the SIM card is blocked. To unblock it
you need to enter your PUK/PUK2 (Personal
Unblocking Key). The codes are supplied by your
network operator.
PIN check (Menu 9.5.1)
The 4-to 8-digit PIN (Personal Identification Number)
protects your SIM card against unauthorised use.
When this feature is enabled, the phone requires your
PIN each time it is switched on.
Phone settings (Menu
Use this feature to check your phone numbers, or to
assign a name to each of the numbers. Changes made
here do not affect the actual subscriber numbers on
your SIM card.
Use this menu to protect the phone against
unauthorised use by managing the several access
codes of your phone and SIM card.
Menu functions
Greeting message (Menu 9.2)
Security (Menu 9.5)
Change PIN (Menu 9.5.2)
Use this menu to change your PIN. The PIN Check
feature must be enabled to use this feature.
53
X480Eng4Euro.book Page 54 Thursday, March 3, 2005 9:17 AM
Menu functions
Phone lock (Menu 9.5.3)
The Phone lock feature locks the phone from
unauthorised use.
When this feature is enabled, you must enter a 4- to
8-digit phone password each time the phone is
switched on.
The password is preset to 00000000. To change the
password, use the Change password menu.
Change Password (Menu 9.5.4)
Use this menu to change your phone password. The
password is preset to 00000000.
Privacy (Menu 9.5.5)
Use this menu to lock your media contents, including
MMS messages, voice list, images, and sounds.
1. Press [ ] to check the item(s) to be locked.
2. Press <OK> to lock the marked items.
3. Enter the phone password and press <OK>.
To access a locked item, you need to enter the phone
password.
54
SIM lock (Menu 9.5.6)
The SIM lock feature allows your phone to work only
with the current SIM by assigning a SIM lock code. You
must enter the SIM lock code to use a different SIM
card.
FDN mode (Menu 9.5.7)
If supported by your SIM card, Fixed Dialing Number
(FDN) mode restricts your outgoing calls to a limited
set of phone numbers. When this feature is enabled,
you can make calls only to phone numbers stored in
Phonebook. To use this feature, you must enter your
PIN2.
Change PIN2 (Menu 9.5.8)
If supported by your SIM card, the Change PIN2
feature changes your current PIN2.
X480Eng4Euro.book Page 55 Thursday, March 3, 2005 9:17 AM
Short cut (Menu 9.8)
You can turn the automatic redialing or answering
features on or off.
• Auto redial: make up to ten attempts to redial a
phone number after an unsuccessful call.
• Active folder: answer an incoming call simply by
opening the phone.
• Anykey answer: answer an incoming call by
pressing any key, except [ ] or <Reject>.
When this option is set to Off, you must press [ ]
or <Accept> to answer a call.
You can use the Navigation keys as shortcut keys to
access specific menus directly from Idle mode. Use
this menu to change the shortcut assignments for the
Up or Down key.
1. Select the key to be used as a shortcut key.
2. Scroll to the menu that will be assigned to the key.
3. Press <Select>.
Use this menu to set how the Volume key acts when a
call comes in.
Reject: allow you to reject calls by holding down the
key.
Reset settings (Menu 9.9)
Phone settings (Menu
Side key (Menu 9.7)
Menu functions
Extra settings (Menu 9.6)
Use this menu to reset the phone to its default
settings.
Enter the 4- to 8-digit phone password and press
<OK>.
The password is preset to 00000000. You can
change this password. p. 54
Silence: turn the ringer off by holding down the key.
55
X480Eng4Euro.book Page 56 Thursday, March 3, 2005 9:17 AM
Solve problems
Solve problems
To save the time and expense of an unnecessary service
call, perform the simple checks in this section before
contacting a service professional.
When you switch on your phone, the following
messages may appear:
“Insert SIM card”
• Be sure that the SIM card is correctly installed.
“Phone locked enter password”
• The automatic locking function has been enabled.
You must enter the phone’s password before you
can use the phone.
“Enter PIN”
• You are using your phone for the first time. You
must enter the PIN supplied with the SIM card.
• The PIN Check feature is enabled. Every time the
phone is switched on, the PIN has to be entered.
To disable this feature, use the PIN check menu.
56
“Enter PUK”
•
The PIN code has been entered incorrectly three
times in succession, and the phone is now blocked.
Enter the PUK supplied by your service provider.
“No Service,” “Network Failure,” or “Not
Done” displays
• The network connection has been lost. You may be
in a weak signal area. Move and try again.
• You are trying to access an option for which you
have no subscription with your service provider.
Contact the service provider for further details.
You have entered a number but it was not
dialled
• Be sure that you have pressed [ ].
• Be sure you have accessed the right cellular
network.
• Be sure that you have not set an outgoing call
barring option.
X480Eng4Euro.book Page 57 Thursday, March 3, 2005 9:17 AM
Your correspondent cannot reach you
• Be sure your phone is switched on. ([ ] pressed
for more than one second.)
• Be sure you are accessing the correct cellular
network.
• Be sure that you have not set an outgoing call
barring option.
•
Your correspondent cannot hear you speaking
• Be sure you have switched off the microphone.
• Be sure you are holding the phone close enough to
your mouth. The microphone is located at the
bottom of the phone.
If the above guidelines do not help you to
solve the problem, take note of:
• The model and serial numbers of your phone
• Your warranty details
• A clear description of the problem
The phone starts beeping and “Battery low”
flashes on the display
Then contact your local dealer or Samsung after-sales
service.
Your battery is insufficiently charged. Recharge the
battery.
No number is dialled when you re-call a
Contacts entry
• Use the Phonebook Search feature to ensure the
number has been stored correctly.
• Re-store the number, if necessary.
Solve problems
•
Try moving the phone slightly or moving closer to a
window if you are in a building.
The audio quality of the call is poor
• Check the signal strength indicator on the display
(
). The number of bars indicates the signal
strength from strong (
) to weak ( ).
57
X480Eng4Euro.book Page 58 Thursday, March 3, 2005 9:17 AM
Health and safety information
Health and safety information
SAR certification information
This phone meets European Union (EU) requirements
concerning exposure to radio waves.
Your mobile phone is a radio transmitter and receiver. It is
designed and manufactured to not exceed the limits for
exposure to radio-frequency (RF) energy, as
recommended by the EU Council. These limits are part of
comprehensive guidelines and establish permitted levels
of RF energy for the general population. The guidelines
were developed by independent scientific organisations
through the periodic and thorough evaluation of scientific
studies. The limits include a substantial safety margin
designed to ensure the safety of all persons, regardless of
age and health.
The exposure standard for mobile phones employs a unit
of measurement known as Specific Absorption Rate (SAR).
The SAR limit recommended by the EU Council is 2.0W/
kg.*
The highest SAR value for this model phone was 0.679W/
kg.
58
SAR tests are conducted using standard operating
positions with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a base
station, the lower the power output of the phone.
Before a new model phone is available for sale to the
public, compliance with the European R&TTE Directive
must be shown. This directive includes as one of its
essential requirements the protection of the health and
safety of the user and any other person.
* The SAR limit for mobile phones used by the public is 2.0
watts/kilogram (W/kg) averaged over ten grams of body tissue. The limit incorporates a substantial margin of safety to
give additional protection for the public and to account for any
variations in measurements. The SAR values may vary,
depending on national reporting requirements and the network
band.
X480Eng4Euro.book Page 59 Thursday, March 3, 2005 9:17 AM
Precautions when using batteries
•
•
•
•
•
•
•
•
Extreme temperatures will affect the charging capacity
of your battery: it may require cooling or warming
first.
Do not leave the battery in hot or cold places because
the capacity and lifetime of the battery will be
reduced. Try to keep the battery at room temperature.
A phone with a hot or cold battery may not work
temporarily, even when the battery is fully charged. Liion batteries are particularly affected by temperatures
below 0°C (32°F).
Do not short-circuit the battery. Accidental shortcircuiting can occur when a metallic object like a coin,
clip or pen causes a direct connection between the +
and – terminals of the battery (metal strips on the
battery). For example, do not carry a spare battery in
a pocket or bag where the battery may contact metal
objects. Short-circuiting the terminals may damage
the battery or the object causing the short-circuiting.
Dispose of used batteries in accordance with local
regulations. Always recycle. Do not dispose of
batteries in a fire.
59
Health and safety information
•
•
Never use a charger or battery that is damaged in any
way.
Use the battery only for its intended purpose.
If you use the phone near the network’s base station,
it uses less power. Talk and standby time are greatly
affected by the signal strength on the cellular network
and the parameters set by the network operator.
Battery charging time depends on the remaining
battery charge, the type of battery, and the charger
used. The battery can be charged and discharged
hundreds of times, but it will gradually wear out. When
the operation time is noticeably shorter than normal, it
is time to buy a new battery.
If left unused, a fully charged battery will discharge
itself over time.
Use only Samsung-approved batteries, and recharge
your battery only with Samsung-approved chargers.
Disconnect the charger from the power source when it
is not in use. Do not leave the battery connected to a
charger for more than a week, since overcharging may
shorten its life.
X480Eng4Euro.book Page 60 Thursday, March 3, 2005 9:17 AM
Health and safety information
Road safety
Electronic devices
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime. But an
important responsibility accompanies the benefits of
wireless phones, one that every user must uphold.
Most modern electronic equipment is shielded from radio
frequency (RF) signals. However, certain electronic
equipment may not be shielded against the RF signals
from your wireless phone. Consult the manufacturer to
discuss alternatives.
When driving a car, driving is your first responsibility.
When using your wireless phone while driving, follow local
regulations in the country or region you are in.
Operating environment
Remember to follow any special regulations in force in the
area you are in, and always switch off your phone
whenever it is forbidden to use it, or when it may cause
interference or danger.
When connecting the phone or any accessory to another
device, read its user’s guide for detailed safety
instructions. Do not connect incompatible products.
As with other mobile radio transmitting equipment, users
are advised that for the satisfactory operation of the
equipment and for the safety of personnel.
60
Pacemakers
Pacemaker manufacturers recommend that a minimum
distance of 15 cm (6 inches) be maintained between a
wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations
are consistent with the independent research and
recommendations of Wireless Technology Research. If you
have any reason to suspect that interference is taking
place, switch off your phone immediately.
Hearing aids
Some digital wireless phones may interfere with some
hearing aids. In the event of such interference, you may
wish to consult your hearing aid manufacturer to discuss
alternatives.
X480Eng4Euro.book Page 61 Thursday, March 3, 2005 9:17 AM
Potentially explosive environments
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is
adequately shielded from external RF energy.
Switch off your phone when in any area with a potentially
explosive atmosphere, and obey all signs and instructions.
Sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.
Your physician may be able to assist you in obtaining this
information.
Switch off your phone in health care facilities when
regulations posted in these areas instruct you to do so.
Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with
the manufacturer or its representative regarding your
vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted facilities
Switch off your phone in any facility where posted notices
require you to do so.
Health and safety information
Other medical devices
Users are advised to switch off the phone while at a
refuelling point (service station). Users are reminded of
the need to observe restrictions on the use of radio
equipment in fuel depots (fuel storage and distribution
areas), chemical plants, or where blasting operations are
in progress.
Areas with a potentially explosive atmosphere are often
but not always clearly marked. They include the areas
below decks on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas, such as
propane or butane, areas where the air contains chemicals
or particles, such as grain, dust or metal powders, and any
other area where you would normally be advised to turn
off your vehicle engine.
61
X480Eng4Euro.book Page 62 Thursday, March 3, 2005 9:17 AM
Health and safety information
Emergency calls
Other important safety information
This phone, like any wireless phone, operates using radio
signals, wireless, and landline networks as well as userprogrammed functions, which cannot guarantee
connection in all conditions. Therefore, you should never
rely solely on any wireless phone for essential
communications like medical emergencies.
•
To make or receive calls, the phone must be switched on
and in a service area with adequate signal strength.
Emergency calls may not be possible on all wireless phone
networks or when certain network services and/or phone
features are in use. Check with local service providers.
•
•
•
To make an emergency call:
62
1. Switch on the phone.
2. Key in the emergency number for your present
location. Emergency numbers vary by location.
3. Press [ ].
•
Certain features like Call Barring may need to be
deactivated before you can make an emergency call.
Consult this document and your local cellular service
provider.
•
Only qualified personnel should service the phone or
install the phone in a vehicle. Faulty installation or
service may be dangerous and may invalidate any
warranty applicable to the device.
Check regularly that all wireless phone equipment in
your vehicle is mounted and operating properly.
Do not store or carry flammable liquids, gases, or
explosive materials in the same compartment as the
phone, its parts, or accessories.
For vehicles equipped with an air bag, remember that
an air bag inflates with great force. Do not place
objects, including installed or portable wireless
equipment, in the area over the air bag or in the air
bag deployment area. Improperly installed wireless
equipment could result in serious injury if the air bag
inflates.
Switch off your phone before boarding an aircraft. It is
dangerous and illegal to use wireless phones in an
aircraft because they can interfere with the operation
of the aircraft.
Failure to observe these instructions may lead to the
suspension or denial of telephone services to the
offender, or legal action, or both.
X480Eng4Euro.book Page 63 Thursday, March 3, 2005 9:17 AM
Care and maintenance
•
•
•
•
•
•
Keep the phone and all its parts and accessories out of
the reach of small children.
Keep the phone dry. Precipitation, humidity, and
liquids contain minerals that corrode electronic
circuits.
Do not use the phone with a wet hand. Doing so may
cause an electric shock to you or damage to the
phone.
Do not use or store the phone in dusty, dirty areas, as
its moving parts may be damaged.
Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain
plastics.
Do not store the phone in cold areas. When the phone
warms up to its normal operating temperature,
moisture can form inside the phone, which may
damage the phone’s electronic circuit boards.
•
•
•
•
•
•
Do not drop, knock, or shake the phone. Rough
handling can break internal circuit boards.
Do not use harsh chemicals, cleaning solvents, or
strong detergents to clean the phone. Wipe it with a
soft cloth slightly dampened in a mild soap-and-water
solution.
Do not paint the phone. Paint can clog the device’s
moving parts and prevent proper operation.
Do not put the phone in or on heating devices, such as
a microwave oven, stove, or radiator. The phone may
explode when overheated.
Use only the supplied or an approved replacement
antenna. Unauthorised antennas or modified
accessories may damage the phone and violate
regulations governing radio devices.
If the phone, battery, charger, or any accessory is not
working properly, take it to your nearest qualified
service facility. The personnel there will assist you, and
if necessary, arrange for service.
Health and safety information
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for many
years.
63
X480Eng4Euro.book Page 64 Thursday, March 3, 2005 9:17 AM
Index
A
ABC mode, text input • 17
Alarm • 45
Alert • 29, 30
Answering
call • 20
second call • 22
Anykey answer • 55
Auto redial • 55
B
Backlight time, set • 52
Band selection • 28
Barring, calls • 26
Battery
charging • 7
low indicator • 8
precautions • 59
Broadcast messages • 38
Browser, WAP • 39
C
Calculator • 47
Call costs • 25
64
Call records
dialled • 24
missed • 24
received • 24
Call time • 25
Caller ID • 27
Calls
answering • 20
barring • 26
holding • 21
redialling • 19
rejecting • 20
waiting • 27
CB (Cell Broadcast) messages •
38
Characters, enter • 17
Compose, melody • 43
Conference call • 22
Connection tone • 30
D
Deleting
call records • 24
MMS • 35
phonebook • 51
SMS • 31, 32
Delivery reports, message • 36
Dialled calls • 24
Display
layout • 10
settings • 52
DTMF tones, send • 22
MMS • 34
SMS • 31
International calls • 19
Internet • 39
K
Emergency calls • 62
Extra tones 30
Key tones
sending • 22
setting • 29
Keys, description • 9
F
L
E
FDN (Fixed Dial Number) mode
• 54
Folder tone • 30
Funbox • 39
G
Games • 41
Greeting message • 53
H
Holding, call • 21
I
Icons, description • 10
Images, downloaded • 42
Inbox, messages
Language, select • 53
Last number, redial • 19
Locking
phone • 54
SIM card • 54
Low battery indicator • 8
M
Melody composer • 43
Memory status
downloaded items • 43
messages • 38
phonebook • 51
Message tone • 29
Messages
X480Eng4Euro.book Page 65 Thursday, March 3, 2005 9:17 AM
N
Names
entering • 17
searching • 49
Network selection • 27
Network services • 26
Number
dialling/searching • 20
storing • 50
O
Organiser • 44
Outbox, messages
MMS • 35
SMS • 32
Own number • 53
P
Password
call barring • 27
phone • 54
Phone
care and maintenance •
63
display • 10
icons • 10
locking • 54
resetting • 55
switching on/off • 8
unpacking • 6
Phonebook
copying • 49
deleting • 51
editing • 49
options • 49
speed-dialling • 51
PIN
changing • 53
locking • 53
PIN2, change • 54
Power on/off tone • 30
Privacy • 54
R
Received calls • 24
Recording
voice memos • 48
Redialling
automatically • 55
manually • 19
Resetting phone • 55
Ring
tone • 29
volume • 29
Road safety • 60
S
Safety
information • 58
precautions • 3
SDN (Service Dialling Numbers) • 51
Security, calls • 53
Sent messages
MMS • 34, 35
SMS • 32
SIM card
inserting • 7
locking • 54
SMS messages
creating/sending • 31
viewing • 31, 32
Sound settings • 29
Sounds, downloaded • 42
Speed-dial • 51
Switching on/off
microphone • 21
phone • 8
Index
cell broadcast • 38
greeting • 53
MMS • 33
SMS • 30
voice • 38
web • 37
Minute minder • 30
Missed calls • 24
MMS messages
creating/sending • 33
deleting • 35
setting • 36
viewing • 34, 35
Multi-party calls • 22
Muting
key tones • 22
microphone • 21
T
Templates
MMS • 36
SMS • 32
Text input mode, change • 17
Text, enter • 17
Tone
call ringer • 29
connect • 30
extra • 30
keypad • 29
message • 29
power on/off • 30
V
Voice mail • 38
Voice memos
recording • 48
65
X480Eng4Euro.book Page 66 Thursday, March 3, 2005 9:17 AM
Index
Voicemail server • 38
W
Waiting call • 27
WAP browser
access • 39
bookmarks • 40
cache, clear • 41
World time • 45
66
X480Eng4Euro.book Page 67 Thursday, March 3, 2005 9:17 AM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
