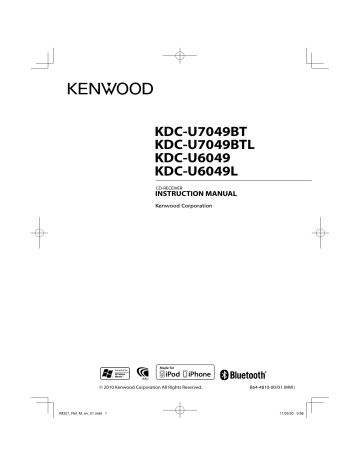

KDC-U7049BT KDC-U7049BTL KDC-U6049 KDC-U6049L

KDC-U7049BT KDC-U7049BTL KDC-U6049 KDC-U6049L
KDC-U7049BT
KDC-U7049BTL
KDC-U6049
KDC-U6049L
CD-RECEIVER
INSTRUCTION MANUAL
© 2010 Kenwood Corporation All Rights Reserved.
IM327_Ref_M_en_01.indd 1
B64-4810-00/01 (MW)
11/05/20 9:58
Contents
Before use
3
Component names
4
Function setting
4
Function setting operation
Audio adjustments
5
Audio control
Audio preset Memory
Audio preset recall
iPod control operation
11
Music search
Skip search
Play mode
Direct music search
Basic operation of Disc changer (Optional)
Direct search in Disc changer (Optional)
Tuner Operation
Selecting display type
Selecting text display
Information display setting
Illumination color selection
Display & Illumination setting
2 |
Bluetooth audio operation
Bluetooth setup
13
15
Log memory recall
Log memory item lock
Deleting a Log memory item
Log memory category setting
Tuner log memory time setting
Display settings
23
Before use
Registering cell-phone
Receiving a call
Calling a number in the Phone book
Dialing a number
Calling a number in the call log
Speed dialing (Preset dial)
Registering to the Preset dial number list
During a call
Call waiting
Clearing the Disconnection message
Making a voice dialing call
Displays of phone number type (category)
27
Before Use
Basic operation
Auto memory
Seek mode setting
Tuner setting
Direct access tuning
Frequency Step Setting
Log memory
20
Adjusting the Clock
Adjusting the Date
Dual clock display
Clock & Date display type setting
Auxiliary input display setting
Muting the audio upon reception of phone call
Initial setting
Demonstration mode Setting
Operation of hands-free phoning
7
Music search
Alphabet search
Related search
Direct search
Skip search
Skip search ratio setting
Play mode
Registering a song in the playlist
Playing the playlist
Deleting a song from the playlist
Music disc/Audio file (CD or USB)
Operation
General operation
28
Registering Bluetooth device
Registering Special bluetooth device
Registering PIN Code
Downloading the Phone book
Selecting the Bluetooth device you wish to
connect
Deleting a registered Bluetooth device
Displaying the firmware version
Adding a voice dialing command
Setting a voice command for category
Bluetooth detail setting
SMS (Short Message Service)
34
Displaying the SMS
Downloading the SMS
16
Basic operations of remote control
35
General control
In Tuner source
In CD/Audio file source
In iPod source
Hands-free phone control
Appendix
36
Troubleshooting guide
38
Specifications
40
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 2
11/05/20 9:58
Before use
Before using this unit for the first time
This unit is initially set on the Demonstration mode.
When using this unit for the first time, cancel the
Demonstration mode. Refer to <Exit Demonstration
Mode> (page 4) of Quick start guide.
2 WARNING
To prevent injury or fire, take the following
precautions:
• Stop the car before operating the unit.
• To prevent a short circuit, never put or leave any
metallic objects (such as coins or metal tools) inside
the unit.
¤ CAUTION
• Adjust the volume so that you can hear sounds
outside the car. Driving with the volume too high
may cause an accident.
• Wipe off the dirt on the panel with a dry silicon or
soft cloth.
Failure to observe this precaution may result in
damage to the monitor or unit.”
Cleaning the connector
Wipe off dirt on the connector of the unit and panel.
Use a cotton swab or cloth
Condensation
When the car is air-conditioned, moisture may collect
on the laser lens. This may cause disc read errors. In
this case, remove the disc and wait for the moisture
to evaporate.
Notes
• If you experience problems during installation,
consult your Kenwood dealer.
• When you purchase optional accessories, check with
your Kenwood dealer to make sure that they work
with your model and in your area.
• Characters that conform to ISO 8859-1 can be
displayed.
• To display characters in the following language,
additional setting is required.
KDC-U7049BT KDC-U6049
- Chinese
Refer to “Chinese” of <Initial setting> (page 22).
KDC-U7049BTL KDC-U6049L
- Arabic
- Persian
- Thai
Refer to “Language” of <Initial setting> (page 22).
• The illustrations of the display and the panel
appearing in this manual are examples used to
explain more clearly how the controls are used.
Therefore, what appears on the display in the
illustrations may differ from what appears on the
display on the actual equipment, and some of the
illustrations on the display may be inapplicable.
About discs used with this unit
• This unit can only play the CDs with
.
• The following discs cannot be used:
- Discs that are not round
- Discs with coloring on the recording surface or
discs that are dirty
- Recordable/Rewritable disc that has not been
finalized (For the finalization process, refer to
your disc writing software, and your disc recorder
instruction manual.)
- 8 cm (3 inch) disc (Attempt to insert using an
adapter can cause malfunction.)
Handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with
tape stuck on it.
• Do not use any accessories for the disc.
• Do not use any solvents to clean discs. Use a dry
silicon or soft cloth.
• Clean from the center of the disc and move
outward.
• When removing discs from this unit, pull them out
horizontally.
• Remove the rims from the center hole and disc
edge before inserting a disc.
How to reset your unit
If the unit fails to operate properly, press the Reset
button. The unit returns to factory settings when the
Reset button is pressed.
Reset button
English |
IM327_Ref_M_en_01.indd 3
3
11/05/20 9:58
Component names
1 23 4
5
Function setting
6
Function setting operation
Preferences of this unit can be set in the Function
setting mode. For detailed setting procedure and
items, refer to the explanation for each source
function.

Select the source
Press the [SRC] button.
Switch to the source to display the items to set.

Enter Function setting mode
Press the Control knob for at least 1 second.

5 [PRESET] button
Select the Function item
Turn the Control knob to display the item to
set, and then press the Control knob.
Press the [
] button to return to the previous
item.
6 [0] button
Example:
w
q
1 [
p
9
] button
8 7
2 Release button
3 [SRC] button
4 Control knob
7 USB terminal
Play Mode
AUX Name Set
8 Auxiliary input
9
Settings
KDC-U7049BT KDC-U7049BTL
[
][
] button
KDC-U6049 KDC-U6049L
[iPod] button
q [DISP] button
4 |
Summer Time
Clock Adjust
DISP&ILLUMI
Date Mode
In this Instruction manual, the procedure to select
“Clock Adjust” item in the Function setting layer as
above is described as the following example:
“Settings” > “Clock&Date” > “Clock Adjust”.
p [LOG] button
w [
Clock&Date
Initial Settings
] button

Determine the setting value
Turn the Control knob to display the value to
set, and then press the Control knob.
The previous item is displayed.

Exit Function setting mode
Press the [
] button for at least 1 second.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 4
11/05/20 9:58
Audio adjustments
Audio control
⁄
You can adjust following Audio Control items;
• You can set Bass, Middle, and Treble for each source.
About Supreme
Technology to extrapolate and supplement with proprietary
algorithm, the high-frequency range that is cut off when
encoding at low bit rate (less than 128Kbps, Sampling
frequency is 44.1kHz).
Supplementing is optimized by compression format (AAC,
MP3 or WMA) and processed according to bit rate.
The effect is negligible with music that is encoded at high
bit rate, variable bit rate or has minimal high frequency
range.
• About Dual Zone System
Main source and sub source (Auxiliary input) output Front
channel and Rear channel separately.
- When “2Zone” is set to “ON”, the main source sound and
AUX input sound are output to the front speakers and rear
speakers separately.
- Set up the channel of sub source by “2Zone”.
- Select Main source by [SRC] button.
- Adjust the volume of Front channel by Control knob.
- Adjust the volume of Rear channel by “2Zone Rear
Volume”.
- The Audio Control has no effect on sub source.
- When Bluetooth audio source is selected, set “2Zone F/R
Select” to “Rear”. “2Zone” cannot be turned “ON” when this
is set to “Front”. While “2Zone” is turned “ON”, “2Zone F/R
Select” function is disabled.
Display
“SubWoofer Level”
“Bass Boost”
“System Q”
Audio item
Subwoofer level
Bass Boost
Preset Equalizer
curve
“Bass Adjust”
“Bass Center FRQ” Bass Center
Frequency
“Bass Level”
Bass level
“Bass Q Factor” Bass Q Factor
“Bass EXT”
Bass Extend
“Middle Adjust”
“Middle Center
Middle Center
FRQ”
Frequency
“Middle Level”
Middle level
“Middle Q Factor” Middle Q Factor
“Treble Adjust”
“Treble Center FRQ” Treble Center
Frequency
“Treble Level”
Treble level
“Balance”
Balance
“Fader”
Fader
“2Zone Rear Volume” Rear volume during
Dual zone
“SubWoofer”
Subwoofer output
“Detailed Settings”
“HPF Front”
Front High Pass
Filter
“HPF Rear”
Rear High Pass Filter
Range
–15 — +15 (dB)
Level1/Level2/OFF
“Rock”/ “Pops”/ “Easy”/
“Top40”/ “Jazz”/ ”Game”/
“Natural”/ “User”‡
40/50/60/70/80/100/
120/150 (Hz)
–8 — +8 (dB)
1.00/1.25/1.50/2.00
OFF/ON
0.5/1.0/1.5/2.0 (kHz)
–8 — +8 (dB)
1.0/2.0
10.0/12.5/15.0/17.5 kHz
–8 — +8 (dB)
Left 15 — Right 15
Rear 15 — Front 15
0 — 35
OFF/ON
Through/40/60/80/100/
120/150/180/220 (Hz)
Through/40/60/80/100/
120/150/180/220 (Hz)
“LPF SubWoofer” Low Pass Filter
50/60/80/100/120/
Through (Hz)
“SubWoofer Phase” Subwoofer Phase Reverse (180°)/
Normal (0°)
“2Zone”
Dual Zone System ON/OFF
“2Zone F/R Select” Dual Zone output Rear/Front
channel
“Supreme”
Supreme setting ON/OFF
Recall/Memory
“Audio Preset”
Audio Preset
memoy†
“Volume Offset
Volume offset
–8 — ±0 (dB)
ADJ”
(AUX: -8 — +8)

Select the source to adjust
Press the [SRC] button.

Enter Audio control mode
Press the Control knob.

Select the Audio item to adjust
Turn the Control knob to select the audio item
for adjustment and then press the Control
knob.
Press the [
] button to return to the previous
item.

Adjust the Audio item
Turn the Control knob to display the value to
set, and then press the Control knob.
The previous item is displayed.

Exit Audio control mode
Press the [
] button for at least 1 second.
†
Refer to <Audio preset Memory> (page 6), <Audio preset
recall> (page 6).
“User”: The customized Bass, Middle, and Treble levels are
effective.
‡
English |
IM327_Ref_M_en_01.indd 5
5
11/05/20 9:58
Audio adjustments
Audio preset Memory
Audio preset recall
Registering the value setup by Audio Control.
Recalling the sound setup registered by <Audio
preset Memory> (page 6).





Setup Audio control
Setup the <Audio control> (page 5).

Select the source
Press the [SRC] button.

Enter Audio control mode
Press the Control knob.

Select the Audio preset memory
Turn the Control knob to select “Memory”, and
then press the Control knob.
Select Audio preset memory mode
The item can be selected and determined as
follows.
“Detailed Settings” > “Audio Preset”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Turn the Control knob to select “YES”, and
then press the Control knob.
“Memory Completed” is displayed.
Select the Audio preset recall
Turn the Control knob to select “Recall”, and
then press the Control knob.

Turn the Control knob to select “YES”, and
then press the Control knob.
“Recall Completed” is displayed.
Enter Audio control mode
Press the Control knob.
Select Audio preset memory mode
The item can be selected and determined as
follows.
“Detailed Settings” > “Audio Preset”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
 Exit Audio Control mode
Press the [
] button for at least 1 second.
⁄
 Exit Audio Control mode
Press the [
] button for at least 1 second.
• Register 1 pair of Audio Preset Memory. You cannot register
by the source.
• When you press the Reset, all the sources will be the setting
value which is registered.
• The following items can be registered.
“Bass Center FRQ”, “Bass Level”, “Bass Q Factor”, “Bass EXT”,
“Middle Center FRQ”, “Middle Level”, “Middle Q Factor”,
“Treble Center FRQ”, “Treble Level”, “SubWoofer Level”, “HPF
Front”, “HPF Rear”, “LPF SubWoofer”, “SubWoofer Phase”
6 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 6
11/05/20 9:58
iPod control operation
For basic operation to playback iPod contents, refer
to the Quick Start Guide.
Cancelling the Alphabet search mode
Press the [
] button for at least 1 second.
⁄
• The time of Alphabet search may become long depending
on the number of items (songs) in iPod.
• To search for a character other than A to Z and 1, enter “*”.
• If the first character string begins with an article “a”, “an”,
or “the” in the alphabet search mode, it is searched for in
defiance of the article.
Music search
Searching for the song you want to play.

Enter Music search mode
Press the [ ] button.
“MUSICSEARCH” is displayed.

Search for music
Related search
Operation type
Movement between items
Move to the Alphabet
search mode
Operation
Turn the Control knob.
Press the [ ] button for at least 1
second. Refer to <Alphabet search>
(page 7).
Press the Control knob.
Press the [ ] button.
Push the Control knob towards left for at
least 1 second.
Selection of item
Return to previous item
Return to Top menu
Cancelling the Music search mode
Press the [
] button for at least 1 second.
Browsing for music of the same artist or genre as
the one being played.

Enter Search select mode
Press the [ ] button for at least 1 second.

Select Related search mode
Turn the Control knob to select “Related
Search”, and then press the Control knob.

Select desired browsing item
Turn the Control knob to select browse item,
and then press the Control knob.
Display
Browses music
“Search Artist”
Displays the album of the same artist.
“Search Album”
Displays music in the album in which the one
being played is included.
“Search Genre”
Displays the artist of the same genre.
“Search Composer” Displays the album including music created by the
same composer.

Search for music
Operation type
Movement between items
Selection of item
Return to previous item
⁄
• If no characters included in a song name can be displayed,
the browse item name and digits are displayed.
Items
Playlists
Artists
Albums
Songs
Display
“PLIST***”
“ART***”
“ALB***”
“PRGM***”
Items
Podcasts
Genres
Composers
Display
“PDCT***”
“GEN***”
“COM***”
Alphabet search
You can select an alphabetic character from the
list in the browse item (artist, album, etc.) currently
selected.

Enter Music search mode
Press the [ ] button twice.
“MUSICSEARCH” is displayed.

Select Alphabet search mode
Turn the Control knob to select “Alphabet
Search”, and then press the Control knob.

Search for character
Operation type
Select the characters
Determine the characters.
Operation
Turn the Control knob.
Press the Control knob.
Press the [ ] button.
Cancelling the Related search mode
Press the [
] button for at least 1 second.
⁄
• Related search cannot be performed while playing a
Podcast.
• When the music being played has no information on
browsing items or no music was found, “Not Found” is
displayed.
Operation
Turn the Control knob.
Press the Control knob.
Return to the Music search mode.
English |
IM327_Ref_M_en_01.indd 7
7
11/05/20 9:58
iPod control operation
Direct search
Skip search
Searching for music by selecting a browse item and
an alphabetic character(s).
The number of songs to be skipped is determined
by the ratio of the total number of songs in the list
which is selected.



Enter Search select mode
Press the [ ] button for at least 1 second.
Select Direct search mode
Turn the Control knob to select “Direct Search”,
and then press the Control knob.
Select browse item
Turn the Control knob to select browse item,
and then press the Control knob.
Display
Browses item
“PLAYLISTS”
Playlists
“ARTISTS”
Artists
“ALBUMS”
Albums
“SONGS”
Songs
“PODCASTS”
Podcasts
“GENRES”
Genres
“COMPOSERS”
Composers

Select the character to be searched for
Turn the Control knob to select character, and
then press the Control knob.
You can select up to three characters.

Search for music
Turn the Control knob to select “DONE”, and
then press the Control knob.
A search result list is displayed.
 Select the music
Turn the Control knob to select music, and then
press the Control knob.

Enter Music search mode
Press the [ ] button.
“MUSICSEARCH” is displayed.

Enter Search select mode
Press the [ ] button.

Select Skip search mode
Turn the Control knob to select “Skip Search”,
and then press the Control knob.

Search for music
Operation type
Movement between items
Skip Search
Selection of item
Sets the ratio of skip
performed
Cancelling the Music search mode
Press the [
] button for at least 1 second.
⁄
• The ratio of the Skip Search is set to 0.5% as default. Refer to
<Skip search ratio setting> (page 8).
• Keep pushing Control knob for 3 seconds or longer skips
songs at 10% regardless of the setting.
Skip search ratio setting
Sets the ratio of skip performed with <Skip search>
(page 8).

Select iPod source
Press the [SRC] button.
Select the “iPod” display.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Skip search
The item can be selected and determined as
follows.
“Settings” > “Skip Search”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Set the Skip search ratio
Turn the Control knob to select ratio (“0.5%”,
“1%”, “5%”, or “10%”), and then press the
Cancelling the Direct search mode
Press the [
] button for at least 1 second.
8 |
Operation
Turn the Control knob.
Push the Control knob towards up or down.
Press the Control knob.
Push the Control knob towards right or left.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 8
11/05/20 9:58

Control knob.
Registering a song in the playlist
Exit Function setting mode
Press the [
] button for at least 1 second.
You can register your favorite songs to make a
playlist. You can register up to ten songs in the
playlist.
Play mode
You can select a Play Mode, such as Random play
and Repeat play.

Select iPod source
Press the [SRC] button.
Select the “iPod” display.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Play mode
Turn the Control knob to select “Play Mode”,
and then press the Control knob.

Select the desired Play function
Turn the Control knob to select Play function,
and then press the Control knob.
Display
“Play Mode”
“iPod by Hand”
Overview
When set to “ON”, allows you to operate iPod
with the control on the iPod.
“ON” / “OFF”
“Folder Random” When set to “ON”, plays the music in the folder
randomly. (Music only)
“ON” / “OFF”
“All Random”
When set to “ON”, plays all songs in iPod
randomly. (Music only)
“ON” / “OFF”
“File Repeat”
When set to “ON”, plays the music repeatedly.
“ON” / “OFF”
(

: Factory setting)
Set the Play function
Press the Control knob.
The previous item is displayed.
 Exit Function setting mode
Press the [
] button for at least 1 second.

Play the song you want to register
Push the Control knob towards up, down, right,
and left.

Enter Search select mode
Press the [ ] button for at least 1 second.

Register the song
Turn the Control knob to select “Register My
Playlist”, and then press the Control knob.
“## (registration number) Stored” is displayed. You
can register up to ten songs.
In Music search mode

Enter Music search mode
Press the [ ] button.
“MUSICSEARCH” is displayed.

Play the song you want to register
Refer to <Music search> (page 7).
 Enter Register playlist mode
Press the [

] button.
Register the song
Turn the Control knob to select “Register My
Playlist”, and then press the Control knob.
“## (registration number) Stored” is displayed. You
can register up to ten songs.
⁄
• When creating a playlist, you can register the songs stored
in one iPod. If you attempt to register a song by connecting
an unregistered iPod, “My Playlist Delete” is displayed.
Selecting “YES” deletes the playlist.
• If you attempt to register the eleventh song, “Memory Full”
is displayed and you cannot register the song. To register it,
delete an unnecessary song.
• Do not register Podcasts. Songs may be registered or played
improperly. For example, unintended songs are registered.
English |
IM327_Ref_M_en_01.indd 9
9
11/05/20 9:58
iPod control operation
Playing the playlist
Deleting a song from the playlist

Enter Search select mode
Press the [ ] button for at least 1 second.

Enter Search select mode
Press the [ ] button for at least 1 second.

Select Recall playlist mode
Turn the Control knob to select “Recall My
Playlist”, and then press the Control knob.

Select Delete playlist mode
Turn the Control knob to select “Delete My
Playlist”, and then press the Control knob.

Play a song in the playlist
Turn the Control knob to select the song you
want to play, and then press the Control knob.

Select how to delete song(s)
Turn the Control knob to select “Delete One” or
“Delete All”, and then press the Control knob.
Selecting “Delete All” deletes all songs.
Selecting “Delete All” moves to step 5 and all songs
are deleted.

Select the song to delete
Turn the Control knob to select the song, and
then press the Control knob.

Turn the Control knob to select “YES”, and then
press the Control knob.
“Completed” is displayed.
⁄
• To stop playing the song in the playlist, turn the power off.
• If a song does not end with 1 second or longer silence, its
last portion may not be played.
• Songs cannot be played at random during playback of the
songs in playlist.
In Function setting mode

Select iPod source
Press the [SRC] button.
Select the “iPod” display.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Playlist delete mode
The item can be selected and determined as
follows.
“Settings” > “My Playlist Delete” > “Delete One”
or “Delete All”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
Selecting “Delete All” deletes all songs.
Selecting “Delete All” moves to step 5 and all songs
are deleted.

Select the song to delete
Turn the Control knob to select the song, and
then press the Control knob.

Turn the Control knob to select “YES”, and then
press the Control knob.
“Completed” is displayed.
 Exit Function setting mode
Press the [
10 |
] button for at least 1 second.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 10
11/05/20 9:58
Music disc/Audio file (CD or USB) Operation
For basic operation to playback Music disc/Audio
file contents, refer to the Quick Start Guide.
Music Editor media
Skip search
The number of songs to be skipped is determined
by the ratio of the total number of songs in the list
which is selected.
Music search
Selecting the music you want to listen to from the
device or media being played now.

Enter Music search mode
Press the [ ] button.
“MUSICSEARCH” is displayed.

Search for music

Enter Music search mode
Press the [ ] button.
“MUSICSEARCH” is displayed.

Enter Search select mode
Press the [ ] button.

Select Skip search mode
Turn the Control knob to select “Skip Search”,
and then press the Control knob.

Search for music
Operation type
Movement between items
Skip Search
Selection of item
Sets the ratio of skip
performed
Audio file
Operation type
Movement between
folders/files
Selection of folder/flie
Return to previous folder
Return to root folder
Operation
Turn the Control knob.
Press the Control knob.
Press the [ ] button.
Push the Control knob towards left for at
least 1 second.
Cancel the Music Search Press the [ ] button for at least 1 second.
mode
¡ indicator: Audio file
] indicator: Folder
CD source
Operation type
Movement between track
Selection of track
Return to first track
Operation
Turn the Control knob.
Press the Control knob.
Push the Control knob towards left for at
least 1 second.
Cancel the Music Search Press the [ ] button.
mode
Operation
Turn the Control knob.
Push the Control knob towards up or down.
Press the Control knob.
Push the Control knob towards right or left.
Cancelling the Music search mode
Press the [
] button for at least 1 second.
⁄
• The ratio of the Skip Search is set to 0.5% as default. Refer to
<Skip search ratio setting> (page 8).
• Keep pushing Control knob for 3 seconds or longer skips
songs at 10% regardless of the setting.
English |
IM327_Ref_M_en_01.indd 11
11
11/05/20 9:58
Music disc/Audio file (CD or USB) Operation
“– –” is displayed.
Play mode
You can select a Play Mode, such as Random play
and Repeat play.

Select CD/ USB source
Press the [SRC] button.
Select the “CD” or “USB” display.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Play function mode
Turn the Control knob to select “Play Mode”,
and then press the Control knob.

Select the desired Play function
Turn the Control knob to select Play function,
and then press the Control knob.
Display
“Play Mode”
“Track Scan” (CD)/
“File Scan” (Audio
file)
“Disc Random” (CD)/
“Folder Random”
(Audio file)
“All Random”
Overview
When set to “ON”, plays the intro of the music
in the disc/folder successively.
“ON” / “OFF”
When set to “ON”, plays the music in the folder
randomly.
“ON” / “OFF”
When set to “ON”, plays all songs in CD/USB
randomly. (Audio file only)
“ON” / “OFF”
“Track Repeat” (CD)/ When set to “ON”, plays the music repeatedly.
“File Repeat” (Audio “ON” / “OFF”
file)
“Disc Repeat” (CD When set to “ON”, plays the music in the disc/
changer)/ “Folder folder repeatedly.
Repeat” (Audio file) “ON” / “OFF”
“MGZN Random” When set to “ON”, plays the music in the disc
changer randomly. (Disc changer only)
“ON” / “OFF”

Enter the music number
Press the number buttons on the remote
control.

Search the music
Press the [4] or [¢] button on the remote
control.
Cancelling Direct music search
Press the [
] button on the remote control.
Function of disc changers
Basic operation of Disc changer
(Optional)
Selecting CD changer source
Press the [SRC] button.
Select the “CD CH” display.
Music search
Push the Control knob towards right or left.
Disc search
Push the Control knob towards up or down.
Function of disc changers with remote control
Direct search in Disc changer
(Optional)
Searching the disc or music by entering the disc or
music number.

Enter Direct search mode
Press the [DIRECT] button on the remote
control.
“– –” is displayed.
Set the Play function
Press the Control knob.
The previous item is displayed.

Enter the disc or music number
Press the number buttons on the remote
control.
 Exit Function setting mode

Search the disc
Press the [FM] or [AM] button on the remote
control.

Search the music
Press the [4] or [¢] button on the remote
control.
(

Press the [
: Factory setting)
] button for at least 1 second.
Function of remote control
Direct music search
Searching the music by entering the track number.

Enter Direct Music search mode
Press the [DIRECT] button on the remote
control.
Cancelling Direct search
Press the [
] button on the remote control.
⁄
• Input “0” to select disc 10.
12 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 12
11/05/20 9:58
Tuner Operation
For basic operation to listen to the radio, refer to the
Quick Start Guide.
Seek mode setting
Selects the tuning mode of the radio.

Select Tuner source
Press the [SRC] button.
Select the “TUNER” display.
Memorizes 18 (FM)/ 6 (AM) stations with good
reception automatically.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Tuner source
Press the [SRC] button.
Select the “TUNER” display.


Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Seek mode
The item can be selected and determined as
follows.
“Settings” > “Seek Mode”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
Select the Auto memory mode
The item can be selected and determined as
follows.
“Settings” > “Auto Memory”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Set to the desired Seek mode
Auto memory

Start Auto memory mode
Turn the Control knob to select “YES”, and then
press the Control knob.
When 18 (FM)/ 6 (AM) stations that can be received
are put in the memory, auto memory entry closes.
Tuning mode
Auto seek
Preset station seek
Manual
Display
“Auto1”
“Auto2”
Operation
Automatic search for a station.
Search in order of the stations in the
Preset memory.
“Manual” Normal manual tuning control.
Turn the Control knob to select Seek mode, and
then press the Control knob.

Exit Function setting mode
Press the [
] button for at least 1 second.
English |
IM327_Ref_M_en_01.indd 13
13
11/05/20 9:58
Tuner Operation
Tuner setting
Function of remote control
Sets the tuner items.
Direct access tuning

Entering the frequency and tuning.
Select Tuner source
Press the [SRC] button.
Select the “TUNER” display.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Setting mode
Turn the Control knob to select “Settings”, and
then press the Control knob.

Select the desired Tuner setting item
Turn the Control knob to select Tuner setting
item, and then press the Control knob.
Display
“Settings”
“MONO”

Enter the frequency
Press the number buttons on the remote
control.
Example:
Desired frequency
92.1 MHz (FM)
810 kHz (AM)

You can reduce the noise when stereo
broadcasts are received as monaural.
“ON” / “OFF”
: Factory setting)
Set the Tuner setting item
Turn the Control knob to select desired value,
and then press the Control knob.
The previous item is displayed.
 Exit Function setting mode
Press the [
Enter Direct access tuning mode
Press the [DIRECT] button on the remote
control.
“– – – –” is displayed.
Press button
[9], [2], [1]
[8], [1], [0]
Overview
(


] button for at least 1 second.
Search the frequency
Press the [4] or [¢] button on the remote
control.
Cancelling Direct access tuning
Press the [
] button on the remote control.
Frequency Step Setting
Changing the tuning frequency step.
The original setting is FM band 50 kHz, and AM
band 9 kHz.

Turn the power OFF
Press the [SRC] button for at least 1 second.

Switch the frequency step
KDC-U7049BT KDC-U7049BTL
While pressing the [PRESET] button and [
button, press the [SRC] button.
]
KDC-U6049 KDC-U6049L
While pressing the [PRESET] button and [iPod]
button, press the [SRC] button.
Release your fingers from the button after the
display appears.
The frequency step changes to FM band 200 kHz,
and AM band 10 kHz.
⁄
• When the same operation is repeated, the frequency step
returns to the original setting.
• When the frequency step is changed, the frequencies in the
memory are deleted.
14 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 14
11/05/20 9:58
Log memory
Log memory recall
Log memory item lock
This unit automatically memorizes the previously
used functions and Function setting items, which
can easily be recalled.
Locks Log memory items to avoid them being
deleted.

Display the Log memory list
Press the [LOG] button.

Recall the desired function
Turn the Control knob to select function, and
then press the Control knob.
Category display
“FM”
“AM”
“iPod”
“USB”
“CD”
“PLAY”
“INIT”
“SET”
“DISP”
“AUD”
“BT”
Function category
FM broadcast
AM broadcast
iPod music
USB music
CD music
Play mode item
Initial setting item
Setting item
Display setting item
Audio control setting
Calling number

Display the Log memory list
Press the [LOG] button.

Lock the Log memory item
Turn the Control knob to select item, and then
press the Control knob for at least 1 second.
Locked items are indicated with “ ”.

Exit Log memory
Press the [
] button.
Deleting a Log memory item
Deletes Log memory items.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Log delete mode
The item can be selected and determined as
follows.
“Settings” > “Log” > “Log Delete”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select the Log memory item to delete
Turn the Control knob to select Log memory
item, and then press the Control knob.
Selecting “All” deletes all Log memory. (exclude a
locked items.)

Turn the Control knob to select “YES”, and then
press the Control knob.
“Completed” is displayed.

Exit Function setting mode
Press the [
] button for at least 1 second.
Cancelling the Log memory recall
Press the [
] button.
⁄
• Maximum of 15 recently used functions are logged. When
this limit is reached, they are deleted from the oldest.
• Logged functions can be deleted. Refer to <Deleting a Log
memory item> (page 15).
• Functions to be logged can be set by categories. Refer to
<Log memory category setting> (page 16).
• Logged functions can be locked to avoid them being
deleted. Refer to <Log memory item lock> (page 15).
• Stations are logged after 2 minutes of reception.
This timing can be changed. Refer to <Tuner log memory
time setting> (page 16).
English |
IM327_Ref_M_en_01.indd 15
15
11/05/20 9:58
Log memory
Display settings
Log memory category setting
Selecting display type
Sets the function category to be logged.
Shown below are examples of display types.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Log memory setting mode
The item can be selected and determined as
follows.
“Settings” > “Log” > “Log Settings”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
Display type
Type A
Type B
Type C
Type D
Type E


Enter Function setting mode
Press the Control knob for at least 1 second.
Set the category to be logged

Category display
“Tuner Log”
“Data CD Log”
“iPod Log”
“USB Log”
“Phone Log”
“Function Log”
Select the Display type select mode
The item can be selected and determined as
follows.
“Settings” > “DISP&ILLUMI” > “Display Select” >
“Type Select”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select the Display type
Turn the Control knob to select Display type,
and then press the Control knob.

Exit Function setting mode
Press the [
] button for at least 1 second.
Setting category
Radio-related
CD-related
iPod-related
USB-related
Call-related
Function setting-related
Turn the Control knob to select category, and
then press the Control knob.

Display information
Displays 3 lines of text.
Displays 2 line of text.
Displays the clock.
Displays the spectrum analyzer.
Displays off.
Exit Function setting mode
Press the [
] button for at least 1 second.
Tuner log memory time setting
You can set the timing to log the station by the
reception time.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Tuner log time set mode
The item can be selected and determined as
follows.
“Settings” > “Log” > “Tuner Log Time Set”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Set the reception time for the timing to start
logging the station
Turn the Control knob to select time (“10SEC”,
“30SEC”, “1MIN”, “2MIN”, or “5MIN”), and then
press the Control knob.

Exit Function setting mode
Press the [
] button for at least 1 second.
16 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 16
11/05/20 9:58
Selecting text display

Changes displayed information on each of the
following sources:
Enter Function setting mode
Press the Control knob for at least 1 second.

Select Text display selection mode
The item can be selected and determined as
follows.
“Settings” > “DISP&ILLUMI” > “Display Select” >
“Text Select”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select the text display part
Push the Control knob towards up or down.
The selected text display part blinks.

Select the text
Turn the Control knob.

Exit Function setting mode
Press the [
] button for at least 1 second.
In Tuner source
Information
Frequency
Spectrum analyzer & Clock
Date
Blank
Display
“Frequency”
“Speana/Clock”
“Date”
“Blank”
In CD & External disc source
Information
Disc title
Track title
Play time
Spectrum analyzer & Clock
Date
Blank
Display
“Disc Title”
“Track Title”
“P-Time”
“Speana/Clock”
“Date”
“Blank”
In Audio file/ iPod source
Information
Song Title*
Album name*
Artist name*
Title & Artist name**
Album & Artist name
Folder name
File name
Play time
Spectrum analyzer & Clock
Date
Blank
Display
“Song Title“
“Album Name”
“Artist Name”
“Title/Artist”
“Album/Artist”
“Folder Name”
“File Name”
“P-Time”
“Speana/Clock”
“Date”
“Blank”
*Dispaly type A only
**Dispaly type B only
In Standby/ Auxiliary input source
Information
Display
Source name
“Source Name”
Spectrum analyzer & Clock (AUX only)
“Speana/Clock”
Clock (Standby only)
“Clock”
Date
“Date”
Blank
“Blank”
⁄
• If the selected display item does not have any information,
alternative information is displayed.
• Setting is available when the Display type is A or B which
allows text display. Refer to <Selecting display type> (page
16).
• Some items cannot be selected depending on the display
type and row.
• When selecting “Folder name” while playing with iPod,
names will be displayed depending on currently selected
browsing items.
• If the iPod Control by Hand Mode is set to on while playing
the iPod, “iPod by Hand Mode” is displayed.
• If all characters cannot be displayed while playing with iPod,
the file number in the list is displayed.
Information
Music title
Folder name
File name
Display
“TITLE***”
“FLD***”
“FILE***”
In Bluetooth Audio “BT AUDIO EXT” (Optional
accessory KCA-BT200, KCA-BT300) source
Information
Display
Source name
“Source Name”
Spectrum analyzer & Clock
“Speana/Clock”
Date
“Date”
Title & Artist name (KCA-BT300 only)
“Title/Artist”
Album & Artist name (KCA-BT300 only)
“Album/Artist”
Blank
“Blank”
English |
IM327_Ref_M_en_01.indd 17
17
11/05/20 9:58
Display settings
Information display setting
Illumination color selection
Sets side and graphic parts of the display.
Selecting the Illumination Color of the panel.

Enter Function setting mode
Press the Control knob for at least 1 second.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Display select mode
The item can be selected and determined as
follows.
“Settings” > “DISP&ILLUMI” > “Display Select”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select Color select mode
The item can be selected and determined as
follows.
“Settings” > “DISP&ILLUMI” > “Color Select”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select the desired Information display setting
item
Turn the Control knob to select Display setting
item, and then press the Control knob.

Select the part where you want to set the
Illumination Color
Display
“Display Select”
“Side Select”
“Graphic Select”
“Status”
Overview
Sets the side part display for Type A, B, and D.
1/2/3
Sets the Type C clock display and Type D
spectrum analyzer display.
1/2
Sets the status display (ON/OFF indicator for
each function) for Type A and B.
“ON” / “OFF”
(


Display
“Color Select”
“ALL”
“Display”
“Key”
“USB&AUX”
Part
All
Display
Button
USB terminal and Auxiliary input
Turn the Control knob to select part, and then
press the Control knob.

: Factory setting)
Set the Display setting item
Turn the Control knob to select desired value,
and then press the Control knob.
The previous item is displayed.
Select the Illumination Color
Turn the Control knob to select color, and then
press the Control knob.
Select the color from “Variable Scan”/ “Color1” —
“Color24”.
Adjusting RGB values
You can create your original color during the
selection from “Color1” — “Color24.”
The color you created can be called when you
select “User”.
1. Press the Control knob for at least 1 second.
Enter the detail color adjustment mode.
2. Set the color.
Operation type
Operation
To select the color to adjust. Push the Control knob towards right
(red, green, or blue)
or left.
To adjust color.
Turn the Control knob.
(Range: 0 – 9)
Exit Function setting mode
Press the [
] button for at least 1 second.
3. Press the Control knob.
Exit the detail color adjustment mode.

18 |
Exit Function setting mode
Press the [
] button for at least 1 second.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 18
11/05/20 9:58
Display & Illumination setting
“ILLUMI Dimmer”
Sets the display and illumination.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Display & Illumination setting mode
The item can be selected and determined as
follows.
“Settings” > “DISP&ILLUMI”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

“ILLUMI Effect”
“ILLUMI Music
SYNC”
Reduces the key Illumination brightness.
“Auto”: Dims the illumination in conjunction
with the Light switch of the vehicle.
“Manual1”: Dims the illumination constantly.
“Manual2”: Dims the illumination darker than
Manual1.
“OFF”: Does not dim the illumination.
Sets whether the key illumination color is
changed in conjunction with the key operation.
“ON” / “OFF”
Sets whether the key illumination color is
changed in conjunction with the sound
volume.
“ON” / “OFF”
Select the desired Display & Illumination
setting item
Turn the Control knob to select Display &
Illumination setting item, and then press the
Control knob.

Display
“DISP&ILLUMI”
“Display Dimmer”
Set the Display & Illumination setting items
Turn the Control knob to select desired value,
and then press the Control knob.
The previous item is displayed.

Exit Function setting mode
Press the [
] button for at least 1 second.
Overview
Dims the display part in conjunction with the
light switch of the vehicle.
“Auto”: Dims the display in conjunction with
the Light switch of the vehicle.
“Manual1”: Dims the display constantly.
“Manual2”: Dims the display darker than
Manual1.
“OFF”: Does not dim the display.
“Contrast”
Sets the display contrast.
“1” – ”10” – “30”
“DISP NEGA/POSI” Switches the panel display between positive
or negative.
“NEGA1”: Displays the text in the negative.
“NEGA2”: When the interior light is off, the
text is displayed in the negative;
when the interior light is on, the text
is displayed in the positive.
“POSI1”: Displays the text in the positive.
“POSI2”: When the interior light is off, the text
is displayed in the positive; when
the interior light is on, the text is
displayed in the negative.
“Text Scroll”
Sets the method of scroll to view hidden text.
“Auto” : Scrolls.
“Once” : Scrolls once.
“OFF” : Does not scroll.
“BT DVC Status”
You can display the connection status, signal
strength, and battery level.
: Battery level of cell-phone.
: Signal strength of cell-phone.
(
: Factory setting)
English |
IM327_Ref_M_en_01.indd 19
19
11/05/20 9:58
General operation
Adjusting the Clock
Dual clock display

Enter Function setting mode
Press the Control knob for at least 1 second.
Sets time for two different cities.

Select the Clock Adjust mode
The item can be selected and determined as
follows.
“Settings” > “Clock&Date” > “Clock Adjust”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Set hour
Turn the Control knob to adjust the hour, and
then press the Control knob.

Set minute
Turn the Control knob to adjust the minute, and
then press the Control knob.

Exit Function setting mode
Press the [
] button for at least 1 second.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the City Select mode
The item can be selected and determined as
follows.
“Settings” > “Clock&Date” > “City Select”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select the clock display part
Push the Control knob towards up or down.

Set cities for Home/ Sub
Turn the Control knob.

Determine cities for Home/ Sub
Press the Control knob.
⁄
 Exit Function setting mode
• For adjustment during summer time, refer to “Summer Time”
of <Clock & Date display type setting> (page 21).
⁄
Adjusting the Date
• For adjustment of Home time, refer to <Adjusting the
Clock> (page 20).
• Time of Sub City is automatically derived from Home time.
When summer time systems are different between Home
and Sub cities, adjustment can be done by referring to
“Sub Clock Adjust” of <Clock & Date display type setting>
(page 21).
Press the [

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Date Adjust mode
The item can be selected and determined as
follows.
“Settings” > “Clock&Date” > “Date Adjust”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Set year
Turn the Control knob to adjust the year, and
then press the Control knob.

Set month
Turn the Control knob to adjust the month, and
then press the Control knob.

Set day
Turn the Control knob to adjust the day, and
then press the Control knob.
] button for at least 1 second.
 Exit Function setting mode
Press the [
20 |
] button for at least 1 second.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 20
11/05/20 9:58
Clock & Date display type setting
Auxiliary input display setting
Sets the display type of the clock and calendar.
Sets the display when switched to AUX source.

Enter Function setting mode
Press the Control knob for at least 1 second.


Select the Clock & Date setting mode
The item can be selected and determined as
follows.
“Settings” > “Clock&Date”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
Select the AUX source
Press the [SRC] button.
Select the “AUX” display.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Name set mode
The item can be selected and determined as
follows.
“Settings” > “AUX Name Set”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Sets the display of the AUX source
Turn the Control knob to select Auxiliary input
display, and then press the Control knob.
Select “AUX”, “DVD”, “PORTABLE”, “GAME”, “VIDEO”, or
“TV”.

Exit Function setting mode
Press the [
] button for at least 1 second.

Select the desired Clock & Date setting item
Turn the Control knob to select Clock & Date
display setting item, and then press the Control
knob.
Display
“Clock&Date”
“Summer Time”
Overview
Advances the clock one hour when set to ON.
“ON” / “OFF”
“Sub Clock Adjust” Adjusts the time difference caused by summer
time.
“-1h” / “0h” / “+1h”
“Date Mode”
Sets the date display mode.
7 types
(
: Factory setting)

Set the Clock & Date setting items
Turn the Control knob to select desired value,
and then press the Control knob.
The previous item is displayed.

Exit Function setting mode
Press the [
] button for at least 1 second.
Function of KDC-U6049, KDC-U6049L
Muting the audio upon reception of
phone call
The audio system automatically mutes when a call
comes in.
When a call comes in
“CALL” is displayed.
The audio system pauses.
Listening to the audio during a call
Press the [SRC] button.
The “CALL” display disappears and the audio system
comes back ON.
When the call ends
Hang up the phone.
The “CALL” display disappears and the audio system
comes back ON.
⁄
• To use the TEL Mute feature, you need to hook up the MUTE
wire to your telephone using a commercial telephone
accessory. Refer to <Connecting wires to terminals> (page
12) of Quick start guide.
English |
IM327_Ref_M_en_01.indd 21
21
11/05/20 9:58
General operation
Initial setting
“CD Read”
Sets the method for reading CD.
When unable to play special format CD, set
this function to “2” to force playing. Note that
some music CDs may be unplayable even
when set to “2”.
In addition, audio files cannot be played when
set to “2”. Normally, keep this set to “1”.
1: Automatically distinguishes between audio
file disc and music CD when playing disc.
2: Forces playing as music CD.
Selecting “OFF” turns off the built-in amplifier.
“Built-in AMP”
Turning off the built-in amplifier improves the
quality of the sound from Preout.
“ON” / “OFF”
“Speaker Select”
Fine-tuning so that the System Q value is
optimal when setting the speaker type as
follows;
“OFF”: OFF
“5/4inch”: For 5 & 4 in. speaker
“6x9/6inch”: For 6 & 6x9 in. speaker
“O.E.M.”: For the OEM speaker
“F/W Update #.##” Upgrades the firmware.
Selecting “YES” and then pressing Control knob
starts upgrading the firmware.
For how to update the firmware, access our
web site.
http://www.kenwood.com/cs/ce/
Configures initial settings of this unit.

Select Standby
Press the [SRC] button.
Select the “STANDBY” display.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Initial setting mode
Turn the Control knob to select “Initial Settings”,
and then press the Control knob.

Select the desired Initial setting item
Turn the Control knob to select Initial setting
item, and then press the Control knob.
Display
“Initial Settings”
“Source Select”
“Key Beep”
“TDF Alarm”
“Chinese”
“Language”
“Built-in AUX”
22 |
Overview
Select “2” to change the source selection
method. Press the [SRC] button, turn the
Control knob to select the source, and then
press the Control knob to determine it.
1/2
Setting the operation check sound (beep
sound) ON/OFF.
“ON” / “OFF”
If you turn off the engine key of the vehicle
without removing the panel, a beep sounds
for 30 seconds.
“ON” / “OFF”
When this is set to ON, the following character
strings are displayed in Chinese:
Folder name/ File name/ Song title/ Artist
name/ Album name/ KCA-BT300/BT200
(optional accessory)
(KDC-U7049BT/ KDC-U6049 only)
“ON” / “OFF”
When this is set to “Arabic”, ”Persian”, or “Thai”,
the following character strings are displayed in
Arabic, Persian, or Thai:
Folder name/ File name/ Song title/ Artist
name/ Album name/ KCA-BT300/BT200
(optional accessory)
(KDC-U7049BTL/ KDC-U6049L only)
“English” / “Arabic” / “Persian” / “Thai”
Sets whether to display AUX during source
selection.
“ON” / “OFF”
(

: Factory setting)
Set the Initial setting item
Turn the Control knob to select desired value,
and then press the Control knob.
The previous item is displayed.
 Exit Function setting mode
Press the [
] button for at least 1 second.
Demonstration mode Setting
Turning the demonstration mode ON/OFF.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select the Demonstration mode
Turn the Control knob to select “DEMO Mode”,
and then press the Control knob.

Set the Demonstration mode
Turn the Control knob to select desired value
(“ON” or “OFF”), and then press the Control
knob.
Exit Function setting mode.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 22
11/05/20 9:58
Function of KDC-U7049BT, KDC-U7049BTL, KCA-BT300/BT200 (Optional Accessory)
Operation of hands-free phoning
Before use
Receiving a call
KDC-U7049BT/ KDC-U7049BTL
• If your cell-phone is not yet registered, register (pair)
it by referring to <Registering cell-phone> (page 8)in
the Quick Start Guide or <Registering cell-phone>
(page 23) in this document.
• To register a new cell-phone, you can also refer to
<Registering cell-phone> (page 23).
Answering a phone call
KDC-U6049/ KDC-U6049L
• If your cell-phone is not yet registered, register (pair)
it by referring to <Registering cell-phone> (page 8)
in the Quick Start Guide or <Registering Bluetooth
device> (page 28) in this document.
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the Control knob.
⁄
• The following operations disconnect the line:
- Insering a CD.
- Connecting a USB device.
• The name of the calling party is displayed if it has already
been registered in the Phone Book.
Rejecting an incoming call
KDC-U7049BT KDC-U7049BTL
⁄
Press the [
• For details on the Bluetooth cell-phone with the
hands-free function, see <About the Cell-phone>
(page 37).
] button.
KDC-U6049 KDC-U6049L
Press the [SRC] button.
Calling a number in the Phone book
Function of KDC-U7049BT, KDC-U7049BTL

Registering cell-phone
Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Press the [

Enter Bluetooth mode
Press the [ ] button for at least 1 second.
If your cell-phone is not yet registered, the search
for a cell-phone starts with “Searching” displayed.
Paring with new cell-phone
Turn the Control knob to select “Device Search”,
and then press the Control knob.
The search for a cell-phone starts with “Searching”
displayed.

Select the used cell-phone
Turn the Control knob to select cell-phone
name, and then press the Control knob.

Input the PIN code
Operation type
Select the numbers.
Move to the next digit.
Delete the last digit.
Transmit the PIN code.
Operation
Turn the Control knob.
Push the Control knob towards right.
Push the Control knob towards left.
Press the Control knob.
Pairing completes with “HF Connect” displayed.
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Select the Name search mode
Turn the Control knob to select “Phone Book”,
and then press the Control knob.

Search for Phone book
Operation type
Select the Phone number.
Select the name.
Operation
Turn the Control knob.
Push the Control knob towards right
or left.
Select the initial.
Push the Control knob towards up or
down.
Determine the Phone number. Press the Control knob.

Make a call
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the Control knob.
⁄
⁄
• When any error code is displayed while the paring is in
progress, refer to <Troubleshooting guide> (page 38).
• Pressing [DISP] button each time switches between name
and telephone number.
• During search, a non-accent character such as “u” is
searched for instead of an accent character such as “ü”.
English |
IM327_Ref_M_en_01.indd 23
23
11/05/20 9:58
Function of KDC-U7049BT, KDC-U7049BTL, KCA-BT300/BT200 (Optional Accessory)
Operation of hands-free phoning
Dialing a number

Make a call
KDC-U7049BT KDC-U7049BTL

Enter Bluetooth mode
Press the [
KDC-U7049BT KDC-U7049BTL
KDC-U6049 KDC-U6049L
Press the [
Press the Control knob.
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Select the Number dial mode
Turn the Control knob to select “Number Dial”,
and then press the Control knob.

Enter a phone number
Turn the Control knob to select number, and
then Push the Control knob towards right.

Make a call
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
⁄
• Pressing [DISP] button each time switches between name
and telephone number.
• The outgoing call list, the incoming call list, and the missed
call list, are the lists of calls originated from and received
at this unit. They are not the ones stored in the cell-phone
memory.
Speed dialing (Preset dial)

] button.
Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
KDC-U6049 KDC-U6049L
Press the [
Press the Control knob.
KDC-U6049 KDC-U6049L
To erase the entered phone number digit by
digit:
Push the Control knob towards left.
⁄
• You can input a maximum of 32 (KCA-BT300/BT200)/ 25
(KDC-U7049BT/ KDC-U7049BTL) digits.
] button.
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Select the Preset dial mode
Turn the Control knob to select “Preset Call”,
and then press the Control knob.

Select the number you want to recall from the
memory
Turn the Control knob to select recall number
(“P1” – “P6”), and then press the Control knob.

Make a call
KDC-U7049BT KDC-U7049BTL
Calling a number in the call log
Press the [
] button.
KDC-U6049 KDC-U6049L

Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the Control knob.
⁄
• You need to register the preset dial number. Refer to
<Registering to the Preset dial number list> (page 25).
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Select the call log mode
Turn the Control knob to select “Incoming
Calls”, “Outgoing Calls”, or “Missed Calls”, and
then press the Control knob.
“Incoming Calls”: Incoming calls
“Outgoing Calls”: Outgoing calls
“Missed Calls”: Missed calls

Select a name or phone number
Turn the Control knob.
24 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 24
11/05/20 9:58
Registering to the Preset dial number
list

Enter the phone number you wish to register
Enter the phone number with reference to the
following:
Dialing a number/ Calling a number in the call log/
Calling a number in the Phone Book

Enter Preset memory mode
Press the [PRESET] button.

Select a number and store it in the memory
Turn the Control knob to select memory
number (“P1” – “P6”), and then press the
Control knob for at least 2 seconds.
Cancelling the Preset memory mode
Press the [
] button.
Call waiting
Answering another incoming call with the
current call suspended
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
1) Press the Control knob.
2) Turn the Control knob to select “Answer”, and
then press the Control knob.
Answering another Incoming call after
terminating the current call
Press the [SRC] button.
Continuing the Current Call
1) Press the Control knob.
2) Turn the Control knob to select “Reject”, and
then press the Control knob.
Answering the waiting call after terminating
the current call
During a call
KDC-U7049BT KDC-U7049BTL
Press the [
Disconnecting a Call
Press the [SRC] button.
Switching to the Private mode
Push the Control knob towards right or left.
Switches between Private talk (“PRIVATE”) and
Hands-free talk each time this button is pressed.
⁄
• Depending on the type of your cell-phone, switching
to the private talk mode may select the source that was
used before commencing the hands-free connection. If
this happens, the source cannot be switched back to the
hands-free talk mode by operating this unit. Operate your
cell-phone to return to the hands-free talk mode.
Adjusting the voice volume during a call
Turn the Control knob.
] button.
KDC-U6049 KDC-U6049L
Press the [SRC] button.
Switching between the current call and waiting
call
Press the Control knob.
Each pressing of this knob switches the calling
party.
Clearing the Disconnection message
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“HF Disconnect” disappears.
English |
IM327_Ref_M_en_01.indd 25
25
11/05/20 9:58
Function of KDC-U7049BT, KDC-U7049BTL, KCA-BT300/BT200 (Optional Accessory)
Operation of hands-free phoning
Making a voice dialing call

Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter voice recognize mode
Turn the Control knob to select “Voice
Recognize”, and then press the Control knob.

Have the unit recognize your spoken name
Press the Control knob. If you hear a beep,
speak a registered name within 2 seconds.

Have the unit recognize the spoken category
When you hear a beep, speak the category
within 2 seconds.
The recognized phone number (name) is displayed.
When you want to change the displayed phone
number (name), press the [DISP] button.

Make a call
Press the Control knob.
Displays of phone number type
(category)
The category items in the Phone Book are displayed
as follows:
“General” /
Display
Information
General
“Home” /
Home
“Office” /
Office
“Mobile” /
Mobile
“Other” /
Other
⁄
• If your voice cannot be recognized, a message is displayed.
Refer to <Troubleshooting guide> (page 38).
Pressing the Control knob allows you to retry voice input.
• Both the name and category requires registration of a voice
tag. Refer to <Setting a voice command for category>
(page 32).
26 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 26
11/05/20 9:58
Function of KCA-BT300/BT200 (Optional Accessory)
Bluetooth audio operation
Before Use
• You need to register your Bluetooth audio player
before using it with this unit. For more details, see
<Registering Bluetooth device> (page 28).
• You need to select the Bluetooth audio player you
wish to connect. Refer to <Selecting the Bluetooth
device you wish to connect> (page 30).
Basic operation
Selecting Bluetooth audio source
Press the [SRC] button.
Select the “BT AUDIO EXT” display.
Pause and play
Press the [
] button.
Music search
Push the Control knob towards right or left.
⁄
• All or some of the operations above cannot be performed if
the Bluetooth audio player is not ready for remote control.
• Switching between Bluetooth audio sources does not start
or stop playback automatically. Perform the operation for
starting or stopping playback.
• Some audio players cannot be controlled remotely or
reconnected after Bluetooth disconnection. Operate the
main unit of the audio player to connect Bluetooth.
• When “2Zone” is set to “ON” and “2Zone F/R Select” is set to
“Front” of <Audio control> (page 5), Bluetooth Audio source
cannot be selected.
English |
IM327_Ref_M_en_01.indd 27
27
11/05/20 9:58
Function of KDC-U7049BT, KDC-U7049BTL, KCA-BT300/BT200 (Optional Accessory)
Bluetooth setup
Registering Bluetooth device

To make your Bluetooth device (cell-phone) usable
with this unit, you need to register it (pairing). You
can register up to five Bluetooth devices to this unit.
When registering from Bluetooth devices



Enter a PIN code
Input the PIN code registered as mentioned in
<Registering PIN Code> (page 29).
Check that registration is complete on the
Bluetooth device.

By operating the Bluetooth device, start handsfree connection.
Operation
Turn the Control knob.
Push the Control knob towards right.
Push the Control knob towards left.
Press the Control knob.
If “Pairing Success” is displayed, registration is
complete.
Turn on the this unit.
Start registering a unit by operating the
Bluetooth device
By operating the Bluetooth device, register the
hands-free unit (pairing). Select “KENWOOD BT
CD/R-3P1”, “KCA-BT300”, or “KCA-BT200” from the list
of connected units.
Input the PIN code
Operation type
Select the numbers.
Move to the next digit.
Delete the last digit.
Transmit the PIN code.
 Return to the device list
Press the Control knob.

Exit Bluetooth mode
Press the [SRC] button.
⁄
• This unit allows up to eight digits to be input for a PIN code.
If a PIN code cannot be input from this unit, it can be input
from the Bluetooth device.
• If there are 5 Bluetooth devices registered, you cannot
register a new Bluetooth device.
• If the error message appears even though the PIN code is
correct, try <Registering Special bluetooth device> (page 28).
When registering from this unit

Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Bluetooth device registration mode
The item can be selected and determined as
follows.
“Settings” > “Pairing” > “Device Registration”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
Search for the Bluetooth device.
When search is completed, “Finished” is displayed.

Select the desired Bluetooth device
Turn the Control knob to select Bluetooth
device, and then press the Control knob.
Registering Special bluetooth device
Allow registration of a special device that cannot be
registered normally (pairing).

KDC-U7049BT KDC-U7049BTL
Press the [
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Special device registration mode
The item can be selected and determined as
follows.
“Settings” > “Pairing” > “SPCL Device Select”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select a desired device name
Turn the Control knob to select device name,
and then press the Control knob.
If “Completed” is displayed, registration is
completed.

Go through the procedure of <Registering
Bluetooth device> (page 28) and complete the
registration (pairing).
KDC-U7049BT KDC-U7049BTL
KDC-U6049 KDC-U6049L
28 |
] button.
KDC-U6049 KDC-U6049L
Input the PIN code (steps 5).
When “Paring Success” is displayed, PIN code input
(steps 5) is not required.
When “Pin Code NG” is displayed, press the Control
knob. Then enter the PIN code (steps 5).
Enter Bluetooth mode
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 28
11/05/20 9:58
Cancelling Bluetooth mode
Press the [SRC] button.
⁄
• If the device name is not in the list, select “Other Phones”.
Registering PIN Code
By operating the Bluetooth device, specify the PIN
code necessary for registering this unit.

Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.
Downloading the Phone book
Download the phone book data from the cellphone to this unit so that you can use the Phone
Book of this unit.
Downloading automatically
If the cell-phone supports a phone book
synchronization function, the phone book is
downloaded automatically after Bluetooth
connection.
⁄
• Setting on the cell-phone may be required.
• If no phone book data is found in the unit even after the
“Completed” is displayed, your cell-phone may not support
automatic download of phone book data. In this case, try
downloading manually.
Downloading from the cell-phone manually

Enter Function setting mode
Press the Control knob for at least 1 second.

Operate the cell-phone to end the hands-free
connection.

Select PIN code edit mode
The item can be selected and determined as
follows.
“Settings” > “Detailed Settings” >
“PIN Code Edit”
To select the item, turn the Control knob. To
determine the item, press the Control knob.


Input the PIN code
Operation type
Select the numbers.
Move to the next digit.
Delete the last digit.
Transmit the PIN code.
Operate the cell-phone to send the phone
book data to this unit
By operating the cell-phone, download the phone
book data to this unit.
• During downloading:
“Downloading” is displayed.
• After completion of downloading:
“Completed” is displayed.

Operate the cell-phone to start the hands-free
connection.
Operation
Turn the Control knob.
Push the Control knob towards right.
Push the Control knob towards left.
Press the Control knob.
If “Completed” is displayed, registration is complete.

Exit Bluetooth mode
Press the [SRC] button.
⁄
• By default, “0000” is specified.
• A PIN code can be specified with up to eight digits.
Clearing the downloading completion message
Press any button.
⁄
• Up to 1000 phone numbers can be registered for each
registered cell-phone.
• Up to 32 digits can be registered for each phone number
along with up to 50* characters representing a name.
(* 50: Number of alphabetic alphabetical characters.
Fewer characters can be input depending on the type of
characters.)
• To cancel downloading of the phone book data, operate
the cell-phone.
English |
IM327_Ref_M_en_01.indd 29
29
11/05/20 9:58
Function of KDC-U7049BT, KDC-U7049BTL, KCA-BT300/BT200 (Optional Accessory)
Bluetooth setup
Selecting the Bluetooth device you
wish to connect
Deleting a registered Bluetooth
device
When two or more Bluetooth devices have already
been registered, you need to select the Bluetooth
device you wish to use.
You can delete a registered Bluetooth device.

Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL

Enter Bluetooth mode
Press the [
KDC-U7049BT KDC-U7049BTL
KDC-U6049 KDC-U6049L
Press the [
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.
] button.
KDC-U6049 KDC-U6049L
] button.
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter Function setting mode
Press the Control knob for at least 1 second.

Enter Function setting mode
Press the Control knob for at least 1 second.


Select Bluetooth device selection mode
The item can be selected and determined as
follows.
“Settings” > “Pairing” > “Phone Selection” (to
select the cell-phone) or “Audio Selection” (to
select the audio player)
To select the item, turn the Control knob. To
determine the item, press the Control knob.
“(name)” is displayed.
Select Bluetooth device deletion mode
The item can be selected and determined as
follows.
“Settings” > “Pairing” > “Device Delete”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
Device name is displayed.

Delete the selected Bluetooth device
Turn the Control knob to select device name,
and then press the Control knob.

Turn the Control knob to select “YES”, and then
press the Control knob.
“Completed” is displayed.


Select a desired Bluetooth device
Turn the Control knob to select Bluetooth
device name, and then press the Control knob.
‘✱(name)’ or ‘-(name)’ is displayed.
“✱”: The selected Bluetooth device is busy.
“-”: The selected Bluetooth device is on standby.
“ “ (blank): The Bluetooth device is deselected.
Exit Bluetooth mode
Press the [SRC] button.
 Exit Bluetooth mode
Press the [SRC] button.
⁄
• When a registered cell-phone is deleted, its Phone Book,
log, SMS, and voice tag are also deleted.
⁄
• If a cell-phone is already selected, deselect it, and then
select a different one.
• If you cannot select a device using the audio player,
connect the device with the audio player.
30 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 30
11/05/20 9:58
If a voice tag has already been registered for a
name, “*” is displayed before the name.
Displaying the firmware version
Display the version of the firmware of this unit.


Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Press the [
Display
“Register”
“Check”*
“Delete”*
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Bluetooth firmware update mode
The item can be selected and determined as
follows.
“Settings” > “Detailed Settings” >
“BT F/W Update”
To select the item, turn the Control knob. To
determine the item, press the Control knob.
The firmware version appears.

Exit Bluetooth mode
Press the [SRC] button.
Adding a voice dialing command
Add a voice tag to the phonebook for voice dialing.
You can register up to 35 voice tags.

Selecting “Register” (Regist)
 Register a voice tag (first)
Press the Control knob. When you hear a beep,
speak the voice tag within 2 seconds.

Press the [
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Phonebook name edit mode
The item can be selected and determined as
follows.
“Settings” > “Voice Tag” > “PB Name Edit”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Search for the name to register
Turn the Control knob to select name, and then
press the Control knob.
Confirm the voice tag (second)
Press the Control knob. When you hear a
beep, speak the same voice tag again within 2
seconds.
“Completed” is displayed.
 Exit Function setting mode
Press the [
] button for at least 1 second.
Return to step 2. You can register another voice tag
continuously.
⁄
• If your voice cannot be recognized, a message is displayed.
(Refer to <Troubleshooting guide> (page 38))
Pressing the Control knob allows you to retry voice input.
Selecting “Check” (Play)
 Press the Control knob.
Play the registered voice and return to step 2.
Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Operation
Register a voice tag.
Play a voice tag.
Delete a voice tag.
*Displayed only when a name for which a voice tag has
been registered is selected.
⁄
• For how to update the firmware, access our web site.
www.kenwood.com/bt/information/
Select a mode
Turn the Control knob.
Selecting “Delete” (Delete)
 Delete a voice tag
Press the Control knob.

Turn the Control knob to select “YES”, and then
press the Control knob.
Exit Bluetooth mode
Press the [SRC] button.
English |
IM327_Ref_M_en_01.indd 31
31
11/05/20 9:58
Function of KDC-U7049BT, KDC-U7049BTL, KCA-BT300/BT200 (Optional Accessory)
Bluetooth setup
Setting a voice command for category
Bluetooth detail setting
Add a voice tag to the phone number category
(type) for voice calling.
Configures initial settings of this unit.


Enter Bluetooth mode
Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
KDC-U7049BT KDC-U7049BTL
Press the [
Press the [
KDC-U6049 KDC-U6049L
] button.
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Phonebook type edit mode
The item can be selected and determined as
follows.
“Settings” > “Voice Tag” > “PN Type Edit”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select the category (type) you wish to set
Turn the Control knob to select category name,
and then press the Control knob.
“General”/ “Home”/ “Office”/ “Mobile”/ “Other”

Select a mode
Turn the Control knob.
Display
“Register”
“Check”*
“Delete”*
] button.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select Bluetooth detail setting mode
The item can be selected and determined as
follows.
“Settings” > “Detailed Settings”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Select the desired Bluetooth detail setting
item
Turn the Control knob to select Bluetooth detail
setting item, and then press the Control knob.
Display
“Detailed Settings”
“Auto Answer”
Operation
Register a voice tag.
Play a voice tag.
Delete a voice tag.
*KCA-BT300/BT200 only. Displayed only when a name for
which a voice tag has been registered is selected.
 Register the category (type) by performing
steps 6 to 7 in <Adding a voice dialing
command> (page 31).

Exit Bluetooth mode
Press the [SRC] button.
⁄
“Auto Reconnect”
“Bluetooth HF”
“Bluetooth HF/
Audio”
• Set the voice tag for all the 5 categories. If the voice tag is
not registered for all the categories, the Phonebook may
not be recalled by voice command.
“Call Beep”
32 |
Overview
This function automatically answers (responds
to) a call after lapse of the preset time interval
for automatic answer.
“OFF”: Does not answer the phone call
automatically.
“0”: Automatically answers the phone call
at once.
“1SEC” – “8SEC” – “99SEC”:
Automatically answers the phone call after
lapse of 1 – 99 seconds.
When “ON” is selected, re-pairing with the
registered Bluetooth device starts automatically
when pairing is disconnected.
“ON” / “OFF”
You can specify output speakers for hands-free
voice communication and Bluetooth audio
sound.
“Front” : Outputs sound from the front
speakers.
“All” : Outputs sound from the front and rear
speakers.
You can output a beep from the speaker when
a call comes in.
“ON” : Beep is heard.
“OFF” : Beep is canceled.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 32
11/05/20 9:58
“MIC Gain”
Adjusts the sensitivity of the built-in
microphone for a telephone call. Adjust the
voice of caller. Setting to “+” increases the
voice volume.
Function of the KDC-U7049BT, KDC-U7049BTL
“-3” – ”0” – “+3”
SReduces the noises generated by surrounding
environment without changing the built-in
microphone volume. Adjust the voice of caller
when it is not clear. Setting to “+” increases
the noise reduction.
Function of the KDC-U7049BT, KDC-U7049BTL
“-3” – ”0” – “+3”
Sets the echo cancellation level.
Function of the KDC-U7049BT, KDC-U7049BTL
“-2” – ”0” – “+2”
“NR Level”
“Echo Cancel”
(

: Factory setting)
Set the Bluetooth detail setting item
Turn the Control knob to select desired value,
and then press the Control knob.
The previous item is displayed.
 Exit Function setting mode
Press the [
] button for at least 1 second.
English |
IM327_Ref_M_en_01.indd 33
33
11/05/20 9:58
Function of KDC-U7049BT, KDC-U7049BTL, KCA-BT300/BT200 (Optional Accessory)
SMS (Short Message Service)
Displaying the SMS
Downloading the SMS
The SMS received by at the cell-phone is displayed
on the receiver.
A newly received message is displayed.
Download the short message (SMS) received by the
cell-phone so that it can be read on this unit.
¤

Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
• To prevent car accidents, the driver should not read the
SMS while driving.
Press the [
When a new message arrives
“SMS Received” is displayed.
The display disappears with any operations.
Press the [LOG] button for at least 1 second.
“BT MODE” is displayed.

Enter Function setting mode
Press the Control knob for at least 1 second.

Select SMS download mode
The item can be selected and determined as
follows.
“Settings” > “SMS Download”
To select the item, turn the Control knob. To
determine the item, press the Control knob.

Start downloading
Press the Control knob.
“SMS Downloading” is displayed.
When the downloading finishes, “Completed” is
displayed.

Exit Bluetooth mode
Press the [SRC] button.
Displaying the SMS

Enter Bluetooth mode
KDC-U7049BT KDC-U7049BTL
Press the [
] button.
KDC-U6049 KDC-U6049L
Press the [LOG] button for at least 1 second.

Select SMS inbox display mode
Turn the Control knob to select “SMS Inbox”,
and then press the Control knob.

Select a message
Turn the Control knob.
Each press of the [DISP] button switches between
displaying the telephone number or name and
message reception date.

Display the text
Press the Control knob.
Turn the Control knob to scroll through the
message.
Press the Control knob to return to the message
list screen.

Exit Bluetooth mode
Press the [SRC] button.
] button.
KDC-U6049 KDC-U6049L
⁄
• The cell-phone must be able to transmit the SMS using
Bluetooth. Setting on the cell-phone may be required. If
the cell-phone does not support SMS function, the SMS
download item in Function Control mode is not displayed.
• When the SMS is downloaded from the cell-phone, the
unopened messages in the cell-phone are opened.
• The up to 75 already-read and unread short messages
respectively can be downloaded.
⁄
• The unopened message is displayed at the beginning of the
list. Other messages are displayed in the order of reception.
• The SMS that are received when the cell-phone is not linked
with Bluetooth cannot be displayed. Download the SMS.
• The short message cannot be displayed during
downloading the SMS.
34 |
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 34
11/05/20 9:58
Basic operations of remote control
Hands-free phone control
VOL
SRC
ATT
ENT
5/∞
EXIT
AUD
AM
FM
0—9
DIRECT
General control
• Volume control: [VOL]
• Source selection: [SRC]
• Volume reduction: [ATT]
When the button is pressed again, the volume returns to
the previous level.
•
•
•
•
•
Return to previous item: [ ]
Exit from mode: [EXIT]
Selection of item: [5]/[∞]
Determination: [ENT]
Enter Audio Control mode: [AUD]
Making a call
• Enter Bluetooth mode: [ ]
• Select a dialing method: [5]/[∞] ➜ [ENT]
• Number dial input:
Input a digit: [0] – [9]
Input “+”: [¢]
Input “#”: [FM]
Input “*”: [AM]
Clear the entered phone number: [4]
• Make a call: [DIRECT]
Receiving a call
• Answer the call: [
During a call
• End the call: [SRC]
Preparing the remote control unit
Pull the battery sheet out from the
remote control unit to the direction of
the arrow.
Changing the battery of the remote control
unit
Keep on slide
In Tuner source
• Band selection: [FM]/[AM]
• Station selection: [4]/[¢]
• Recall preset stations: [0] – [9] ➜ [ENT]
]
Call waiting
• Answer Another Incoming Call with the Current
Call Suspended: [ ]
Pull out
Use a commercially available
button battery (CR2025).
Insert the battery with the +
and – poles aligned properly,
CR2025 following the illustration
(+side)
inside the case.
In CD/Audio file source
•
•
•
•
•
Music selection: [4]/[¢]
Folder selection: [FM]/[AM]
Pause/Play: [ENT]
Enter Music search mode: [5]/[∞]
Movement between folders/files during Music
search mode: [5]/[∞]
• Return to previous folder: [ ]
In iPod source
• Enter Music search mode: [5]/[∞]
• Movement between items during Music search
mode: [5]/[∞]
• Return to previous item: [ ]
¤ CAUTION
• Keep battery out of reach of children and in
original package until ready to use. Dispose of
used batteries promptly. If swallowed contact
physician immediately.
• Do not leave the battery near fire or under direct
sunlight. A fire, explosion or excessive heat
generation may result.
• Do not set the remote control in hot places such
as on the dashboard.
• Danger of explosion if Lithium battery is
incorrectly replaced. Replace only with the same
or equivalent type.
English |
IM327_Ref_M_en_01.indd 35
35
11/05/20 9:58
Appendix
About Audio file
• Playable Audio file
AAC-LC (.m4a), MP3 (.mp3), WMA (.wma)
• Playable disc media
CD-R/RW/ROM
• Playable disc file format
ISO 9660 Level 1/2, Joliet, Romeo, Long file name.
• Playable USB device
USB mass storage class
• Playable USB device file system
FAT16, FAT32
Even if the audio files comply with the standards listed
above, the play may be impossible depending on the
types or conditions of media or device.
• Playing order of the Audio file
In the example of folder/file tree shown below, the
files are played in the order from ① to ⑩.
<:Folder
Folder
CD ()
v :Audio
Audiofile
fi
v
v
v
v
v
v.
An online manual about audio files is put on the site,
www.kenwood.com/cs/ce/audiofile/. On this online
manual, detailed information and notes which are not
written in this manual are provided. Make sure to read
through the online manual as well.
⁄
• In this manual, the word “USB device” is used for flash
memories and digital audio players which have USB
terminals.
About USB device
• When the USB device is connected to this unit,
it can be charged up provided that this unit is
powered.
• Install the USB device in the place where it will not
prevent you from driving your vehicle properly.
• You cannot connect a USB device via a USB hub and
Multi Card Reader.
• Save backups of the audio files used with this unit.
The files can be erased depending on the operating
conditions of the USB device.
We shall have no compensation for any damage
arising out of erasure of the stored data.
• No USB device comes with this unit. You need to
36 |
purchase a commercially available USB device.
• When connecting the USB device, usage of the
CA-U1EX (option) is recommended.
• Normal playback is not guaranteed when a cable
other than the USB compatible cable is used.
Connecting a cable whose total length is longer
than 4 m can result in abnormal playback.
iPod/iPhone that can be connected to this
unit
Made for
• iPod nano (6th generation)
• iPod nano (4th generation)
• iPod nano (2nd generation)
• iPod with video
• iPod touch (4th generation)
• iPod touch (2nd generation)
• iPhone 4
• iPhone 3G
• iPod nano (5th generation)
• iPod nano (3rd generation)
• iPod nano (1st generation)
• iPod classic
• iPod touch (3rd generation)
• iPod touch (1st generation)
• iPhone 3GS
• iPhone
• For information on the compatibility of iPod/iPhone
software, visit www.kenwood.com/cs/ce/ipod/.
• Type of control available varies depending
on the type of connected iPod. See
www.kenwood.com/cs/ce/ipod/ for further details.
• The word “iPod” appearing in this manual indicates
the iPod or the iPhone connected with the iPod
connection cable* (optional accessory).
* Not supported model KCA-iP500.
• Refer to the web site for connectable iPod and iPod
connection cable.
www.kenwood.com/cs/ce/ipod/
⁄
• If you start playback after connecting the iPod, the music
that was playing on the iPod is played first.
In this case, “RESUMING” is displayed without displaying a
folder name, etc. Changing the browse item will display a
correct title, etc.
• You cannot operate iPod if “KENWOOD” or “✓” displayed on
iPod.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 36
11/05/20 9:58
About “KENWOOD Music Editor”
• This unit supports the PC application “KENWOOD
Music Editor Light ver1.1” or later.
• When you use the audio file with database
information added by the “KENWOOD Music Editor
Light ver1.1”, you can search a file by title, album or
artist name using the <Music search> (page 11).
• In the Instruction manual, the term “Music Editor
media” is used to mean the device that contains
audio files with database information added with
KENWOOD Music Editor.
• “KENWOOD Music Editor Light ver1.1” is available
from the following web site:
www.kenwood.com/cs/ce/
• For further information on “KENWOOD Music
Editor Light ver1.1”, refer to the site above or the
application help.
Function of KDC-U7049BT, KDC-U7049BTL
About the Cell-phone
This unit conforms to the following Bluetooth
specifications:
Version
Bluetooth Ver. 2.0 Certified
Profile
HFP (Hands Free Profile)
HSP (Headset Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
OPP (Object Push Profile)
SYNC (Synchronization Profile)
For the cell-phones verified for compatibility, access
the following URL:
http://www.kenwood.com/cs/ce/bt/
⁄
• The units supporting the Bluetooth function have been
certified for conformity with the Bluetooth Standard
following the procedure prescribed by Bluetooth
SIG. However, it may be impossible for such units to
communicate with your cell-phone depending on its type.
• HFP is a profile used to make a hands-free call.
• OPP is a profile used to transfer data such as a phone book
between units.
English |
IM327_Ref_M_en_01.indd 37
37
11/05/20 9:58
Troubleshooting guide
Some functions of this unit may be disabled by
some settings made on this unit.
!
• Cannot set up Display.
▲ <Demonstration mode Setting> (page 22) is not set to
Off.
!
• Cannot set up “Text Select”, “Side Select”, and
“Status” of “Display Select”.
▲ <Selecting display type> (page 16) is set to Displays
off.
!
!
• Cannot set up the subwoofer.
• Cannot set up the low pass filter.
• No output from the subwoofer.
▲ “SubWoofer” of <Audio control> (page 5) is not set to
On.
Cannot set up the subwoofer Phase.
▲ “LPF SubWoofer” of <Audio control> (page 5) is set to
“Through”.
The messages shown below display your
systems condition.
TOC Error:
• No disc has been loaded in the disc
magazine.
• The CD is quite dirty. The CD is upsidedown. The CD is scratched a lot.
Error 05:
The disc is unreadable.
Error 77:
The unit is malfunctioning for some reason.
➪ Press the reset button on the unit. If the
“Error 77” code does not disappear, consult
your nearest service center.
Mecha Error:
Something is wrong with the disc magazine.
Or the unit is malfunctioning for some reason.
➪ Check the disc magazine. And then press
the reset button on the unit. If the “Mecha
Error” code does not disappear, consult
your nearest service center.
IN (Blink):
The CD player section is not operating
properly.
➪ Reinsert the CD. If the CD cannot be
ejected or the display continues to flash
even when the CD has been properly
reinserted, please switch off the power
and consult your nearest service center.
What might seem to be a malfunction in your unit
may just be the result of slight misoperation or
miswiring. Before calling service, first check the
following table for possible problems.
General
?
The Key beep does not sound
✔ The preout jack is being used.
☞ The Key beep cannot be output from the preout
jack.
Tuner source
?
Radio reception is poor.
✔ The car antenna is not extended.
☞ Pull the antenna out all the way.
Protect (Blink): The speaker wire has a short-circuit or
touches the chassis of the vehicle, and then
the protection function is activated.
➪ Wire or insulate the speaker cable properly
and press the reset button. If the “Protect”
code does not disappear, consult your
nearest service center.
NA File:
Copy PRO:
A copy-protected file is played.
Read Error:
The file system of the connected USB device
is broken.
➪ Copy the files and folders for the USB
device again. If the error message is still
displayed, initialize the USB device or use
other USB devices.
No Device:
The USB device is selected as a source
although no USB device is connected.
➪ Change the source to any source other
than USB. Connect an USB device, and
change the source to USB again.
N/A Device:
• An unsupported USB device is connected.
• Connection to the iPod has failed.
➪ Check that the connected iPod is an iPod
that is supported. See <About Audio file>
(page 36) for information on supported
iPods.
Disc source
?
The specified disc does not play, but another one
plays instead.
✔ The specified CD is quite dirty.
☞ Clean the CD, referring to the CD cleaning of the
section on <Handling discs> (page 3).
✔ The disc is severely scratched.
☞ Try another disc instead.
Audio file source
?
The sound skips when an Audio file is being
played.
✔ The media is scratched or dirty.
☞ Clean the media, referring to the CD cleaning of
the section on <Handling discs> (page 3).
✔ The recording condition is bad.
☞ Record the media again or use another media.
38 |
An Audio file is played with a format that this
unit can’t support.
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 38
11/05/20 9:58
No Music Data/Error 15:
• The connected USB device contains no
playable audio file.
• Media was played that does not have data
recorded that the unit can play.
Too Long:
No Message:
No short message in In Box.
USB ERROR:
No Record:
The voice tag is not registered in the
phonebook.
Memory Full:
The number of voice tags reaches the
maximum number to be registered in the
phonebook.
iPod Error:
Some trouble may have occurred to the
connected USB device.
➪ Remove the USB device, then cycle the
power switch to ON. If the same display is
repeated, use another USB device.
Connection to the iPod has failed.
➪ Remove the USB device and then
reconnect it.
➪ Confirm that the software for the iPod is
the latest version.
➪ Reset iPod/ iPhone.
No Number:
• The calling party does not notify a caller ID.
• There is no phone number data.
No Data:
• There is no outgoing call list.
• There is no incoming call list.
• There is no missed call list.
• There is no phone book list.
No Entry:
The cell-phone has not been registered
(pairing).
HF Disconnect: The unit cannot communicate with the cellphone.
HF Error 07:
The memory cannot be accessed.
➪ Turn off the power and on again. If this
message still appears, press the reset
button on the control unit.
HF Error 68:
The unit cannot communicate with the cellphone.
➪ Turn off the power and on again. If this
message still appears, press the reset
button on the control unit.
Unknown:
The Bluetooth device cannot be detected.
Device Full:
5 Bluetooth device have already been
registered. No more Bluetooth devices are
registered.
PIN Code NG:
The PIN code is wrong.
Connect NG:
The unit cannot be connected to the device.
Pairing Failed:
Pairing error.
The word or utterance is too long to be
recognized.
No Phonebook: Data is not contained in the phone book.
LOG: No Memory:
The procedure is not registered to Log Preset
Memory.
No Access:
The procedure preset with Log Preset
Memory cannot be available. The preset
content may not be recalled depending on
the selected source or mode.
No Voice:
No call.
Memory Full:
The tag memory of HD Radio is FULL.
iPod Full:
The iPod memory is FULL.
No TAG Function:
iPod which does not support the tag memory
is connected.
N/A Channels: No receivable channel and category.
Err No Matching:
The voice tag is wrong. Voice cannot be
recognized because of an unregistered voice
tag, etc.
Too Soft:
Voice is too small and cannot be recognized.
Too Loud:
Voice is too large to be recognized.
English |
IM327_Ref_M_en_01.indd 39
39
11/05/20 9:58
Specifications
FM tuner section
Frequency range
200 kHz step : 87.9 MHz – 107.9 MHz
50 kHz step : 87.5 MHz – 108.0 MHz
Usable sensitivity (S/N = 26dB)
: 11.2dBf (1 μV/75 Ω)
Quieting Sensitivity (S/N = 50dB)
: 19.2dBf (2.5 μV/75 Ω)
Frequency response (±3 dB)
: 30 Hz – 15 kHz
Signal to Noise ratio (MONO)
: 63 dB
Stereo separation (1 kHz)
: 40 dB
AM tuner section
Frequency range
10 kHz step : 530 kHz – 1700 kHz
9 kHz step : 531 kHz – 1611 kHz
Usable sensitivity (S/N = 20dB)
: 31 dBμ (36 μV)
CD player section
Laser diode
: GaAlAs
Digital filter (D/A)
: 8 Times Over Sampling
D/A Converter
: 24 Bit
Spindle speed
: 500 – 200 rpm (CLV)
Wow & Flutter
: Below Measurable Limit
Frequency response (±1 dB)
: 10 Hz – 20 kHz
Total harmonic distortion (1 kHz)
: 0.008 %
Signal to Noise ratio (1 kHz)
: 110 dB
Dynamic range
: 93 dB
MP3 decode
: Compliant with MPEG-1/2 Audio Layer-3
WMA decode
: Compliant with Windows Media Audio
AAC decode
: AAC-LC “.m4a” files
40 |
USB Interface
USB Standard
: USB1.1/ 2.0 (Full speed)
File System
: FAT16/ 32
Maximum Supply current
: 500 mA
MP3 decode
: Compliant with MPEG-1/2 Audio Layer-3
WMA decode
: Compliant with Windows Media Audio
AAC decode
: AAC-LC “.m4a” files
Bluetooth section
(KDC-U7049BT/ KDC-U7049BTL)
Version
: Bluetooth Ver. 2.0 Certified
Frequency range
: 2.402 – 2.480 GHz
Output Power
: +4dBm (MAX), 0dBm (AVE) Power Class 2
Maximum Communication range
: Line of sight approx.10m (32.8 ft)
Profiles
: HFP (Hands Free Profile)
: HSP (Headset Profile)
: SPP (Serial Port Profile)
: PBAP (Phonebook Access Profile)
: OPP (Object Push Profile)
: SYNC (Synchronization Profile)
Audio section
Maximum output power
: 50 W x 4
Full Bandwidth Power (at less than 1% THD)
: 22 W x 4
Speaker Impedance
:4–8Ω
Tone action
Bass : 100 Hz ±8 dB
Middle : 1 kHz ±8 dB
Treble : 12.5 kHz ±8 dB
Preout level / Load (CD)
: 2500 mV/10 kΩ
Preout impedance
: ≤ 600 Ω
KDC-U7049BT/ KDC-U7049BTL/ KDC-U6049/ KDC-U6049L
IM327_Ref_M_en_01.indd 40
11/05/20 9:58
Auxiliary input
Frequency response (±3 dB)
: 20 Hz – 20 kHz
Input Maximum Voltage
: 1200 mV
Input Impedance
: 10 kΩ
General
Operating voltage
KDC-U7049BT/ KDC-U7049BTL
: 14.4 V (10.5 – 16V allowable)
KDC-U6049/ KDC-U6049L
: 14.4 V (11 – 16V allowable)
Maximum Current consumption
: 10 A
Installation Size (W x H x D)
: 182 x 53 x 160 mm
Weight
: 1.3 kg
Specifications subject to change without notice.
English |
IM327_Ref_M_en_01.indd 41
41
11/05/20 9:58
IM327_Ref_M_en_01.indd 42
11/05/20 9:58
The marking of products using lasers (Except for some
areas)
CLASS 1
LASER PRODUCT
The label is attached to the chassis/case and says that the component
uses laser beams that have been classified as Class 1. It means that the
unit is utilizing laser beams that are of a weaker class. There is no danger
of hazardous radiation outside the unit.
IM327_Ref_M_en_01.indd 43
• The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks
by Kenwood Corporation is under license. Other
trademarks and trade names are those of their
respective owners.
• The “AAC” logo is a trademark of Dolby Laboratories.
• iTunes is a trademark of Apple Inc.
• “Made for iPod” and “Made for iPhone” mean that an
electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and has
been certified by the developer to meet Apple
performance standards. Apple is not responsible for the
operation of this device or its compliance with safety
and regulatory standards. Please note that the use of
this accessory with iPod or iPhone may affect wireless
performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch
are trademarks of Apple Inc., registered in the U.S. and
other countries.
11/05/20 9:58
This symbol mark indicates that Kenwood
manufactured this product so as to
decrease harmful influence on the
environment.
IM327_Ref_M_en_01.indd 44
11/05/20 9:58
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
