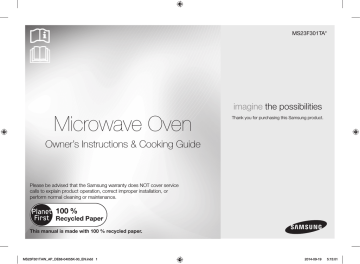

Microwave Oven
imagine the possibilities
Thank you for purchasing this Samsung product.
Owner’s Instructions & Cooking Guide
Please be advised that the Samsung warranty does NOT cover service
calls to explain product operation, correct improper installation, or
perform normal cleaning or maintenance.
This manual is made with 100 % recycled paper.
MS23F301TAW_AP_DE68-04055K-00_EN.indd 1
2014-09-19
5:15:01
contents
safety information
Safety information................................................................................. 2
Quick look-up guide..............................................................................11
Oven features.........................................................................................12
Oven.....................................................................................................12
Control panel........................................................................................12
Accessories..........................................................................................13
Oven use.................................................................................................13
How a microwave oven works..............................................................13
Checking that your oven is operating correctly......................................14
Setting the time....................................................................................14
Cooking/Reheating...............................................................................15
Power levels.........................................................................................15
Adjusting the cooking time....................................................................15
Stopping the cooking............................................................................16
Setting the energy save mode..............................................................16
Using the deodorize feature..................................................................16
Using the auto defrost feature...............................................................16
Using the auto cook feature..................................................................17
Switching the beeper off.......................................................................18
Safety-locking your microwave oven.....................................................18
Cookware guide....................................................................................19
Cooking guide........................................................................................20
Troubleshooting and error code..........................................................22
Troubleshooting....................................................................................22
Error code............................................................................................23
Warranty and service information..........................................................23
Technical specifications.......................................................................24
USING THIS INSTRUCTION BOOKLET
You have just purchased a SAMSUNG microwave oven. Your Owner’s
Instructions contains valuable information on cooking with your microwave
oven:
• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
• Cooking tips
LEGEND FOR SYMBOLS AND ICONS
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Warning; Fire hazard
Warning; Hot surface
Warning; Electricity
Warning; Explosive material
Do NOT attempt.
Do NOT touch.
Do NOT disassemble.
Follow directions explicitly.
Unplug the power plug
from the wall socket.
Make sure the machine is
grounded to prevent electric
shock.
Call the service center for
help.
Note
Important
English - 2
MS23F301TAW_AP_DE68-04055K-00_EN.indd 2
2014-09-19
5:15:02
WARNING
(Microwave function only)
WARNING: If the door or door seals
are damaged, the oven must not be
operated until it has been repaired by a
competent person.
WARNING: It is hazardous for anyone
other than a competent person to carry
out any service or repair operation that
involves the removal of a cover which
gives protection against exposure to
microwave energy.
This appliance is intended to be used in
household only.
WARNING: Only allow children to use
the oven without supervision when
adequate instructions have been given
so that the child is able to use the oven
in a safe way and understands the
hazards of improper use.
WARNING: This appliance can be
used by children aged from 8 years
and above and persons with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge
if they have been given supervision
or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and
user maintenance shall not be made by
children unless they are aged from 8
years and above and supervised.
Only use utensils that are suitable for use
in microwave ovens.
When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
01 SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR
FUTURE REFERENCE.
Make sure that these safety precautions are
obeyed at all times.
Before using the oven, confirm that the
following instructions are followed.
English - 3
MS23F301TAW_AP_DE68-04055K-00_EN.indd 3
2014-09-19
5:15:02
The microwave oven is intended for
heating food and beverages. Drying of
food or clothing and heating of warming
pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition
or fire.
If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
WARNING: Microwave heating of
beverages can result in delayed eruptive
boiling, therefore care must be taken
when handling the container.
WARNING: The contents of feeding
bottles and baby food jars shall be
stirred or shaken and the temperature
checked before consumption, in order to
avoid burns.
Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
The oven should be cleaned regularly
and any food deposits removed.
Failure to maintain the oven in a clean
condition could lead to deterioration of
the surface that could adversely affect
the life of the appliance and possibly
result in a hazardous situation.
The appliance is not intended for
installing in road vehicles, caravans and
similar vehicles etc.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
WARNING: Liquids and other foods
must not be heated in sealed containers
since they are liable to explode.
English - 4
MS23F301TAW_AP_DE68-04055K-00_EN.indd 4
2014-09-19
5:15:02
During use the appliance becomes hot.
Care should be taken to avoid touching
heating elements inside the oven.
WARNING: Accessible parts may
become hot during use. Young children
should be kept away.
A steam cleaner is not to be used.
WARNING: Ensure that the appliance is
switched off before replacing the lamp to
avoid the possibility of electric shock.
WARNING: The appliance and its
accessible parts become hot during use.
Care should be taken to avoid touching
heating elements.
Children less than 8 years of age shall
be kept away unless continuously
supervised.
The temperature of accessible surfaces
may be high when the appliance is
operating.
The door or the outer surface may get
hot when the appliance is operating.
Keep the appliance and its cord out of
reach of children less than 8 years.
WARNING
(Oven function only) - Optional
WARNING: When the appliance is
operated in the combination mode,
children should only use the oven
under adult supervision due to the
temperatures generated.
01 SAFETY INFORMATION
The appliance should not be cleaned
with a water jet.
This oven should be positioned proper
direction and height permitting easy
access to cavity and control area.
Before using the your oven first time,
oven should be operated with the water
during 10 minute and then used.
If the oven generates a strange noise,
a burning smell, or smoke is emitted,
unplug the power plug immediately and
contact your nearest service center.
The microwave oven has to be
positioned so that plug is accessible.
The microwave oven is intended to be
used on the counter or counter top use
only, the microwave oven shall not be
placed in a cabinet.
English - 5
MS23F301TAW_AP_DE68-04055K-00_EN.indd 5
2014-09-19
5:15:03
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
door glass since they can scratch the
surface, which may result in shattering of
the glass.
Appliances are not intended to be
operated by means of an external timer
or separate remote-control system.
INSTALLING YOUR MICROWAVE OVEN
Place the oven on a flat level surface 85 cm
above the floor. The surface should be strong
enough to safety bear the weight of the oven.
20 cm
10 cm
1.When you install your oven,
above
behind
make sure there is adequate
ventilation for your oven by
10 cm on
85 cm of
leaving at least 10 cm (4 inches) the floor the side
of space behind and, on the
sides of the oven and 20 cm (8 inches) of
space above.
2.Remove all packing materials inside the oven.
3.Install the roller ring and turntable. Check
that the turntable rotates freely.
(Turntable type model only)
4.This microwave oven has to be positioned
so that plug is accessible.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
For your personal safety, plug the cable
into a proper AC earthed socket.
English - 6
MS23F301TAW_AP_DE68-04055K-00_EN.indd 6
2014-09-19
5:15:03
CLEANING YOUR MICROWAVE OVEN
The following parts of your microwave oven
should be cleaned regularly to prevent
grease and food particles from building up:
•Inside and outside surfaces
•Door and door seals
•Turntable and Roller rings
(Turntable type model only)
ALWAYS ensure that the door seals are
clean and the door closes properly.
Failure to maintain the oven in a clean
condition could lead to deterioration of the
surface that could adversely affect the life
of the appliance and possibly result in a
hazardous situation.
1.Clean the outside surfaces with a soft cloth
and warm, soapy water. Rinse and dry.
2.Remove any splashes or stains on the
inside surfaces of oven with a soapy cloth.
Rinse and dry.
3.To loosen hardened food particles and
remove smells, place a cup of diluted
lemon juice in the oven and heat for ten
minutes at maximum power.
4.Wash the dishwasher-safe plate whenever
necessary.
DO NOT spill water in the vents. NEVER
use any abrasive products or chemical
solvents. Take particular care when
cleaning the door seals to ensure that no
particles:
•Accumulate
•Prevent the door from closing correctly
Clean the microwave oven cavity right after
each use with a mild detergent solution, but
let the microwave oven cool down before
cleaning in order to avoid injury.
01 SAFETY INFORMATION
Do not install the microwave oven in hot or
damp surroundings like next to a traditional
oven or radiator. The power supply
specifications of the oven must be respected
and any extension cable used must be
of the same standard as the power cable
supplied with the oven. Wipe the interior and
the door seal with a damp cloth before using
your microwave oven for the first time.
English - 7
MS23F301TAW_AP_DE68-04055K-00_EN.indd 7
2014-09-19
5:15:03
When cleaning the upper
part inside the cavity, it will
be convenient to turn heater
downward by 45 ° and clean it.
(Swing heater model only)
STORING AND REPAIRING YOUR
MICROWAVE OVEN
A few simple precautions should be taken
when storing or having your microwave oven
serviced.
The oven must not be used if the door or
door seals are damaged:
•Broken hinge
•Deteriorated seals
•Distorted or bent oven casing
Only a qualified microwave service technician
should perform repair.
NEVER remove the outer casing from
the oven. If the oven is faulty and needs
servicing or you are in doubt about its
condition:
•Unplug it from the wall socket
•Contact the nearest after-sales service
centre
If you wish to store your oven away
temporarily, choose a dry, dustfree place.
Reason : Dust and damp may adversely
affect the working parts in the oven.
This microwave oven is not intended for
commercial use.
The Light bulb should not be replaced in
person for safety reasons.
Please contact nearest authorised
Samsung customer care centre to arrange
for a qualified engineer to replace the bulb.
WARNING
Only qualified staff should be allowed to modify or
repair the appliance.
Do not heat liquids and other food in sealed
containers for microwave function.
For your safety, do not use high-pressure water
cleaners or steam jet cleaners.
Do not install this appliance; near heater,
inflammable material; in a humid, oily or dusty
location, in a location exposed to direct sunlight and
water or where gas may leak; on un level ground.
This appliance must be properly grounded in
accordance with local and national codes.
Remove all foreign substances such as dust or
water from the power plug terminals and contact
points using a dry cloth on a regular basis.
English - 8
MS23F301TAW_AP_DE68-04055K-00_EN.indd 8
2014-09-19
5:15:04
Do not pull or excessively bend or place heavy
objecton the power cord.
Do not pour or directly spray water onto the oven.
In the event of a gas leak (such as propane gas, LP
gas, etc.), ventilate immediately without touching the
power plug.
Do not place objects on the oven, inside or on the
door of the oven.
Do not touch the power plug with wet hands.
01 SAFETY INFORMATION
Do not spray volatile material such as insecticide
onto the surface of the oven.
Do not store flammable materials in the oven. Take
special care when heating dishes or drinks that
contain alcohol as alcohol vapours may contact a
hot part of the oven.
Do not turn the appliance off by unplugging the
power plug while an operation is in progress.
Do not insert fingers or foreign substances, If any
foreign substance such as water has entered the
appliance, unplug the power plug and contact your
nearest service centre.
Keep children away from the door when opening or
closing it as they may bump themselves on the door
or catch their fingers in the door.
Plug the power plug into the wall socket firmly. Do
not use a multiple plug adapter, an extension cord or
an electric transformer.
WARNING: Microwave heating of beverages can
result in delayed eruptive boiling, therefore care must
be taken when handling the container; To prevent
this situation ALWAYS allow a standing time of at
least 20 seconds after the oven has been switched
off so that the temperature can equalize. Stir during
heating, if necessary, and ALWAYS stir after heating.
In the event of scalding, follow these FIRST AID
instructions:
• Immerse the scalded area in cold water for at
least 10 minutes.
• Cover with a clean, dry dressing.
• Do not apply any creams, oils or lotions.
Do not hook the power cord on a metal object,
insert the power cord between the objects or behind
the oven.
Do not put the tray or rack in water shortly after
cooking because it may cause breakage or damage
of the tray or rack.
Do not use a damaged power plug, damaged power
cord or loose wall socket. When the power plug
or power cord is damaged, contact your nearest
service centre.
Do not operate the microwave oven for deep
fat frying because the oil temperature cannot be
controlled. This could result in a sudden boil over of
the hot liquid.
Do not apply excessive pressure or impact to the
appliance.
Do not place the oven over a fragile object such as a
sink or glass object.
Do not use benzene, thinner, alcohol, steam cleaner
or high pressure cleaner to clean the appliance.
Ensure that the power voltage, frequency and
current are the same as those of the product
specifications.
English - 9
MS23F301TAW_AP_DE68-04055K-00_EN.indd 9
2014-09-19
5:15:05
Do not operate the microwave oven when it is
empty. The microwave oven will automatically
shut down for 30 minutes for safety purposes. We
recommend placing a glass of water inside the oven
at all times to absorb microwave energy in case the
microwave oven is started accidentally.
CAUTION
Only use utensils that are suitable for use in
microwave ovens; DO NOT use any metallic
containers, Dinnerware with gold or silver trimmings,
Skewers, forks, etc.
Remove wire twist ties from paper or plastic bags.
Reason: Electric arcing or sparking may occur and
may damage the oven.
Install the oven in compliance with the clearances stated
in this manual. (See installing your microwave oven.)
Take care when connecting other electrical
appliances to sockets near the oven.
Do not use your microwave oven to dry papers or
clothes.
Use shorter times for smaller amounts of food to
prevent overheating and burning food.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY. (MICROWAVE FUNCTION ONLY)
Do not immerse the power cable or power plug in
water and keep the power cable away from heat.
Failure to observe the following safety precautions may result in harmful
exposure to microwave energy.
(a) Under no circumstances should any attempt be made to operate the
oven with the door open or to tamper with the safety interlocks (door
latches) or to insert anything into the safety interlock holes.
(b)Do NOT place any object between the oven door and front face or
allow food or cleaner residues to accumulate on sealing surfaces.
Ensure that the door and door sealing surfaces are kept clean by
wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been
repaired by a qualified microwave service technician trained by the
manufacturer. It is particularly important that the oven door closes
properly and that there is no damage to the:
(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces
(d)The oven should not be adjusted or repaired by anyone other than
a properly qualified microwave service technician trained by the
manufacturer.
Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since they
may explode, even after microwave heating has
ended; Also do not heat airtight or vacuum-sealed
bottles, jars, containers, nuts inshells, tomatoes etc.
Do not cover the ventilation slots with cloth or paper.
They may catch fire as hot air escapes from the
oven. The oven may also overheat and switch itself
off automatically, and will remain off until it cools
sufficiently.
Always use oven mitts when removing a dish from
the oven to avoid unintentional burns.
Stir liquids halfway during heating or after heating
ends and allow the liquid stand at least 20 seconds
after heating to prevent eruptive boiling.
Stand at arms length from the oven when opening
the door to avoid getting scalded by escaping hot air
or steam.
English - 10
MS23F301TAW_AP_DE68-04055K-00_EN.indd 10
2014-09-19
5:15:06
quick look-up guide
If you want to cook some food.
1. Place the food in the oven.
Select the power level by pressing the Microwave button
one or more times.
2. Select the cooking time by turning the Dial Knob as
required.
2. Press the Start/+30s button.
Result: Cooking starts. The oven beeps 4 times when
cooking is over.
If you want to Auto defrost some food.
1. Place the frozen food in the oven.
Select the type of food that you are cooking by pressing the
Auto Defrost button.
02 QUICK LOOK-UP GUIDE
Samsung will charge a repair fee for replacing an accessory or repairing
a cosmetic defect if the damage to the unit and/or damage to or loss of
the accessory was caused by the customer. Items this stipulation covers
include:
(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control
Panel.
(b)A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.
• Use this appliance only for its intended purpose as described in this
instruction manual. Warnings and Important Safety Instructions in this
manual do not cover all possible conditions and situations that may
occur. It is your responsibility to use common sense, caution, and
care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models,
the characteristics of your microwave oven may differ slightly from
those described in this manual and not all warning signs may be
applicable. If you have any questions or concerns, contact your
nearest service centre or find help and information online at www.
samsung.com.
• This microwave oven is supposed for heating food. It is intended for
domestic home-use only. Do not heat any type of textiles or cushions
filled with grains, which could cause burns and fire. The manufacturer
cannot be held liable for damage caused by improper or incorrect
use of the appliance.
• Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of the
appliance and possible result in a hazardous situation.
2. Select the weight by turning the Dial Knob as required.
3. Press the Start/+30s button.
If you want to add extra 30 seconds.
Leave the food in the oven.
Press Start/+30s one or more times for each extra 30 seconds
that you wish to add.
English - 11
MS23F301TAW_AP_DE68-04055K-00_EN.indd 11
2014-09-19
5:15:07
oven features
OVEN
CONTROL PANEL
1
2
3
4
1
2
5
6
7
8
9
10
7.TURNTABLE
2. VENTILATION HOLES
8.COUPLER
3.LIGHT
9.ROLLER RING
4.DISPLAY
10.SAFETY INTERLOCK HOLES
5. DOOR LATCHES
11.CONTROL PANEL
6.DOOR
4
5
6
7
11
1. DOOR HANDLE
3
8
9
10
1. DISPLAY
6. CHILD LOCK BUTTON
2. AUTO COOK BUTTONS
7. DIAL KNOB (WEIGHT/SERVING/TIME)
3. AUTO DEFROST BUTTON
8. CLOCK SETTING BUTTON
4. MICROWAVE BUTTON
9.CANCLE/ECO BUTTON
5. DEODORIZATION BUTTON
10.START/+30s BUTTON
English - 12
MS23F301TAW_AP_DE68-04055K-00_EN.indd 12
2014-09-19
5:15:07
oven use
ACCESSORIES
HOW A MICROWAVE OVEN WORKS
Depending on the model that you have purchased, you are supplied with several
accessories that can be used in a variety of ways.
Microwaves are high-frequency electromagnetic waves; the energy released enables
food to be cooked or reheated without the foods form or colour changing.
2.Turntable, to be placed on the roller ring with the centre
fitting to the coupler.
Purpose: The turntable serves as the main cooking
surface; it can be easily removed for cleaning.
You can use your microwave oven to:
• Defrost (manual & auto)
• Cook
• Reheat
Cooking Principle.
DO NOT operate the microwave oven without the roller ring and turntable.
1. The microwaves generated by the magnetron are distributed
uniformly as the food rotates on the turntable. The food is
thus cooked evenly.
03 OVEN FEATURES
1. Roller ring, to be placed in the centre of the oven.
Purpose: The roller ring supports the turntable.
2. The microwaves are absorbed by the food up to a depth of
about 1 inch (2.5 cm). Cooking then continues as the heat is
dissipated within the food.
3. Cooking times vary according to the recipient used and the
properties of the food:
• Quantity and density
• Water content
• Initial temperature (refrigerated or not)
As the centre of the food is cooked by heat dissipation, cooking continues even
when you have taken the food out of the oven. Standing times specified in recipes
and in this booklet must therefore be respected to ensure:
• Even cooking of the food right to the centre.
• The same temperature throughout the food.
English - 13
MS23F301TAW_AP_DE68-04055K-00_EN.indd 13
2014-09-19
5:15:08
CHECKING THAT YOUR OVEN IS OPERATING
CORRECTLY
SETTING THE TIME
The following simple procedure enables you to check that your oven is working correctly
at all times.
Open the oven door by pulling the handle on the right side of the door.
Place a glass of water on the turntable. Then, close the door.
1. Press the Microwave button.
Your microwave oven has an inbuilt clock. When power is supplied, “:0”, “88:88” or
“12:00” is automatically displayed on the display.
Please set the current time. The time can be displayed in either the 12-hour notation.
You must set the clock:
• When you first install your microwave oven
• After a power failure
Do not forget to reset the clock when you switch to and from summer and winter
time.
2. Set the time 4 to 5 minutes by turning the Dial Knob and
press the Start/+30s button.
Result: The oven light comes on and the turntable starts
rotating.
1) Cooking starts and when it has finished the
oven beeps 4 times.
2) The end reminder signal will beep 3 times
(once every minute).
3) The current time is displayed again.
The oven must be plugged into an appropriate wall socket. The turntable must be
in position in the oven. If a power level other than the maximum is used, the water
takes longer to boil.
1. To display the time in the...
12-hour notation
Press the Clock button.
2. Turn the Dial Knob to set the hour.
3. Press the Clock button.
4. Turn the Dial Knob to set the minute.
5. Press the Clock button.
English - 14
MS23F301TAW_AP_DE68-04055K-00_EN.indd 14
2014-09-19
5:15:08
COOKING/REHEATING
POWER LEVELS
The following procedure explains how to cook or reheat food.
ALWAYS check your cooking settings before leaving the oven unattended.
First, place the food in the centre of the turntable. Then, close the door.
You can choose among the power levels below.
2. Set the cooking time by turning the Dial Knob.
Result: The cooking time is displayed.
3. Press the Start/+30s button.
Result: The oven light comes on and the turntable starts
rotating.
1) Cooking starts and when it has finished the
oven beeps 4 times.
2) The end reminder signal will beep 3 times
(once every minute).
3) The current time is displayed again.
Percentage
HIGH
SAUTE
REHEAT
MEDIUM HIGH
SIMMER
MEDIUM
MEDIUM LOW
DEFROST
LOW
WARM
PL 100 %
PL 90 %
PL 80 %
PL 70 %
PL 60 %
PL 50 %
PL 40 %
PL 30 %
PL 20 %
PL 10 %
If you select a...
Then the cooking time must be...
Higher power level
Lower power level
Decreased
Increased
04 OVEN USE
1. Press the Microwave button.
Result: The 750 W (maximum cooking power)
indications are displayed:
Select the appropriate power level by pressing
the Microwave button again until the
corresponding wattage is displayed. Refer to the
power level table.
Power level
ADJUSTING THE COOKING TIME
Never switch the microwave oven on when it is empty.
If you wish to heat a dish for a short period of time at maximum power (750 W),
simply press the Start/+30s button once for each 30 seconds of cooking time. The
oven starts immediately.
You can increase the cooking time by pressing the Start/+30s
button once for each 30 seconds to be added.
Press the Start/+30s button once for each 30 seconds to be
added.
English - 15
MS23F301TAW_AP_DE68-04055K-00_EN.indd 15
2014-09-19
5:15:08
STOPPING THE COOKING
USING THE DEODORIZE FEATURE
You can stop cooking at any time to check the food.
Use this feature after cooking odorous food or when there is a lot of smoke in the oven
interior. First clean the oven interior.
1. To stop temporarily;
1) Open the door.
Result: Cooking stops. To resume cooking, close the
door and press the Start/+30s button again.
2) Press the Stop/Eco button.
Result: Cooking stops. To resume cooking, press the
Start/+30s button again.
Press the Deodorization button after you have finished
cleaning. you will hear four beeps when it has finished.
The deodorization time has been specified as 5 minutes. It increases by 30 seconds
whenever the Start/+30s button is pressed.
The maximum deodorization time is 15 minutes.
2. To stop completely;
Press the Stop/Eco button.
Result: The cooking stops. If you wish to cancel the
cooking settings, press the Stop/Eco button
again.
USING THE AUTO DEFROST FEATURE
You can also cancel any setting before starting by simply pressing the Stop/Eco
button.
The Auto Defrost feature enables you to defrost roast beef, pork, steaks, chops, fish,
ground meat, whole chicken and chicken pieces.
The defrost time and power level are set automatically. You simply select the programme
and the weight.
Use only dishes that are microwave-safe.
First, place the frozen food in the centre of the turntable and close the door.
SETTING THE ENERGY SAVE MODE
The oven has an energy save mode. This facility saves electricity
when the oven is not in use. Normal condition is standby mode
and show clock when not using.
• Press the Energy Save button.
Result: Display off.
• To remove energy save mode, open the door and then
display shows current time. The oven is ready for use.
1. Press the Auto Defrost button once. Then the display
shows “1.0”. (Refer to the table on the side).
2. Set the weight of food by turning the Dial Knob.
It is possible to set up to a maximum of 3.5 lbs.
3. Press the Start/+30s button.
Result:
• Defrosting begins.
• The oven beeps half way through defrosting
to remind you to turn the food over.
• Press the Start/+30s button again to finish
defrosting.
English - 16
MS23F301TAW_AP_DE68-04055K-00_EN.indd 16
You can also defrost food manually. To do so, select the microwave cooking/
reheating function with a power level of 30 %. Refer to the section entitled “Cooking/
Reheating” on page 15 for further details.
2014-09-19
5:15:08
USING THE AUTO COOK FEATURE
The following table presents the various Auto Defrost programmes, quantities and
appropriate instructions. Remove all kinds of package material before defrosting.
The Auto Cook features enables you to cook. You do not need to set either the cooking
times or the power level. You can select the food servings by pressing the Auto Cook
buttons.
Serving size
Instructions
0.1-3.5 lbs
Shield the edges with aluminum foil.
Turn the pieces over, when the oven beeps.
This programme is suitable for meat such as
roast beef, pork, steaks, chops, fish, ground
meat, whole chicken and chicken pieces.
Steaks, Chops,
Fish
Ground Meat
First, place the food in the centre of the turntable and close the door.
1. Select the type of food that you are cooking by pressing the
Auto Cook button once or more times.
2. Select the size of the serving by turning the Dial Knob.
(Refer to the table on the side.)
Whole Chicken
Chicken Pieces
3. Press the Start/+30s button.
Result: Cooking starts. When it has finished.
1) The oven beeps 4 times.
2) The end reminder signal will beep 3 times
(once every minute).
3) The current time is displayed again.
Check foods when the oven signals. After the final stage, small sections may still
be icy; let them stand to continue thawing. Do not defrost until all ice crystals have
thawed. Shielding roasts and steaks with small pieces of foil prevents the edges
from cooking before the center of the food has defrosted.
Use narrow, flat, smooth strips of aluminum foil to cover the edges and thinner
sections of the food.
04 OVEN USE
Food
Roast Beef, Pork
Use only dishes that are microwave-safe.
The following table presents the Auto Cook programmes, quantities and appropriate
instructions.
1. Palomitas
Food
Serving size
Palomitas
3 oz (0.18 lb)
3.5 oz (0.2 lb)
Instructions
Use one microwave-only bag of popcorn.
Use caution when removing and opening hot
bag from oven.
(continued)
English - 17
MS23F301TAW_AP_DE68-04055K-00_EN.indd 17
2014-09-19
5:15:09
SWITCHING THE BEEPER OFF
2. Papas
Food
Papas
You can switch the beeper off whenever you want.
Serving size
Instructions
1 ea
2 ea
3 ea
4 ea
Prick each potato several times with fork. Place
on turntable in spoke-like fashion. Remove from
oven, wrap in foil and let stand for 3-5 min.
1. Press the Stop/Eco and Start/+30s buttons at the same
time.
Result:
• The following indication is displayed.
• The oven does not beep each time you
press a button.
3. Menú Latino1
Code/Food
1
Vegetales
Frescos
2
Cena
Congelada
Serving size
Instructions
1 serving
2 servings
3 servings
4 servings
1 serving
(0.5-0.6 lb)
2 servings
(0.6-0.7 lb)
Place the vegetables into a casserole and add a
small amount of water (2-4 tbsp). Cover during
cooking and stir before standing.
Remove package from outer wrapping and
follow package instructions for covering and
standing. After cooking, let stand for 1-3 min.
• The oven operates with the beeper on again.
SAFETY-LOCKING YOUR MICROWAVE OVEN
4. Menú Latino2
Code/Food
Serving size
Instructions
1
Derretir Queso
3 oz (0.18 lb)
Unwrap the cheese and place on a microwavesafe container. Cut in half vertically. Let stand
for 2 min.
Use a microwave-safe mug of room temperature
coffee, tea, instant soup etc. Stir before serving.
2
Hervir Agua
½ cup
1 cup
2 cups
2. To switch the beeper back on, press the Stop/Eco and
Start/+30s buttons again at the same time.
Result:
• The following indication is displayed.
Your microwave oven is fitted with a special Child Safety programme, which enables
the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it
accidentally.
The oven can be locked at any time.
1. Press the Child Lock button for one second.
Result:
• The oven is locked (no functions can be
selected).
• The display shows “L”.
2. To unlock the oven, press the Child Lock button for one
second.
Result: The oven can be used normally.
English - 18
MS23F301TAW_AP_DE68-04055K-00_EN.indd 18
2014-09-19
5:15:09
cookware guide
Cookware
Aluminum foil
Microwavesafe
✓✗
Crust plate
China and
earthenware
✓
✓
Disposable
polyester
cardboard dishes
Fast-food
packaging
✓
• Polystyrene cups
containers
• Paper bags or
newspaper
• Recycled paper or
metal trims
✓
Comments
Can be used in small quantities to protect
areas against overcooking. Arcing can occur
if the foil is too close to the oven wall or if too
much foil is used.
Do not preheat for more than 8 minutes.
Porcelain, pottery, glazed earthenware
and bone china are usually suitable, unless
decorated with a metal trim.
Some frozen foods are packaged in these
dishes.
Cookware
Microwavesafe
Comments
Glassware
• Oven-to-tableware
✓
• Fine glassware
✓
• Glass jars
✓
Can be used, unless decorated with a metal
trim.
Can be used to warm foods or liquids.
Delicate glass may break or crack if heated
suddenly.
Must remove the lid. Suitable for warming
only.
Metal
• Dishes
• Freezer bag twist
ties
✗
✗
May cause arcing or fire.
✓
For short cooking times and warming. Also
to absorb excess moisture.
✗
May cause arcing.
Particularly if heat-resistant thermoplastic.
Some other plastics may warp or discolour
at high temperatures. Do not use Melamine
plastic.
Can be used to retain moisture. Should not
touch the food. Take care when removing
the film as hot steam will escape.
Only if boilable or oven-proof. Should not be
airtight. Prick with a fork, if necessary.
Can be used to retain moisture and prevent
spattering.
05 COOKWARE GUIDE
To cook food in the microwave oven, the microwaves must be able to penetrate the food,
without being reflected or absorbed by the dish used.
Care must therefore be taken when choosing the cookware. If the cookware is marked
microwave-safe, you do not need to worry.
The following table lists various types of cookware and indicates whether and how they
should be used in a microwave oven.
Paper
• Plates, cups,
napkins and
kitchen paper
• Recycled paper
Plastic
• Containers
✓
✗
Can be used to warm food. Overheating may
cause the polystyrene to melt.
May catch fire.
✗
May cause arcing.
• Cling film
✓
• Freezer bags
✓✗
Wax or greaseproof paper
✓
✓ : Recommended
✓✗
: Use Caution
✗ : Unsafe
English - 19
MS23F301TAW_AP_DE68-04055K-00_EN.indd 19
2014-09-19
5:15:09
cooking guide
Guide for cooking meat in your microwave
MICROWAVES
Microwave energy actually penetrates food, attracted and absorbed by its water, fat and
sugar content.
The microwaves cause the molecules in the food to move rapidly. The rapid movement of
these molecules creates friction and the resulting heat cooks the food.
Place meat on a microwave-safe roasting rack in a microwave-safe dish.
Start meat fat-side down. Use narrow strips of aluminum foil to shield any bone tips or
thin meat areas. Check the temperature in several places before letting the meat stand
the recommended time. The following temperatures are removal temperatures.
The temperature of the food will rise during the standing time.
Food
COOKING
Cookware for microwave cooking:
Cookware must allow microwave energy to pass through it for maximum efficiency.
Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but
they can penetrate through ceramic, glass, porcelain and plastic as well as paper and
wood. So food must never be cooked in metal containers.
Food suitable for microwave cooking:
Many kinds of food are suitable for microwave cooking, including fresh or frozen
vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups,
steamed puddings, preserves, and chutneys can also be cooked in a microwave oven.
Generally speaking, microwave cooking is ideal for any food that would normally be
prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips,
techniques and hints).
Covering during cooking
To cover the food during cooking is very important, as the evaporated water rises as
steam and contributes to cooking process. Food can be covered in different ways: e.g.
with a ceramic plate, plastic cover or microwave suitable cling film.
Standing times
After cooking is over food the standing time is important to allow the temperature to even
out within the food.
Roast Beef
Boneless
Up to 4.0 lbs
Pork boneless
or bone-in
Up to 4.0 lbs
Cook Time
Power Level
7-11 min. 1 lb for 46 °C - Rare
High for first 5 min.,
8-12 min. 1 lb for 49 °C - Medium
then Medium
9-14 min. 1 lb for 63 °C - Well Done
Directions
Place roast fat-side down on roasting rack. Cover with wax
paper. Turn over when cooking time is half up. Let stand for
10 min.
11-15 min. 1 lb for 71 °C - Well Done
High for first 5 min.,
then Medium
Directions
Place roast fat-side down on roasting rack. Cover with vented
plastic wrap. Turn over when cooking time is half up. Let stand
for 5-10 min.
Guide for cooking poultry in your microwave
Place poultry on a microwave-safe roasting rack in a microwave-safe dish.
Cover poultry with wax paper to prevent spattering. Use aluminum foil to shield bone tips,
thin meat areas, or areas that start to overcook. Check the temperature in several places
before letting the poultry stand the recommended time.
Food
Whole Chicken
Up to 4.0 lbs
Cook Time
Power Level
6-9 min. 1 lb 77-82 °C
High
Directions
Place chicken breast-side down on roasting rack. Cover with
wax paper. Turn over when the cooking time is half up. Cook
until juices run clear and meat near the bone is no longer pink.
Let stand for 5-10 min.
English - 20
MS23F301TAW_AP_DE68-04055K-00_EN.indd 20
2014-09-19
5:15:09
Food
Chicken Pieces
Up to 2.0 lbs
Cook Time
Power Level
6-9 min. 1 lb
82 °C dark meat
77 °C light meat
High
Guide for cooking seafood in your microwave
Cook fish until it flakes easily with a fork. Place fish on a microwave-safe roasting rack in
a microwave-safe dish. Use a tight cover to steam fish. A lighter cover of wax paper or
paper towel provides less steaming. Do not overcook fish; check it at minimum cooking
time.
Food
Steaks
Up to 1.5 lbs
Fillets
Up to 1.5 lbs
Shrimp
Up to 1.5 lbs
Cook Time
Power Level
6-10 min. 1 lb
Medium-High
Directions
Arrange steaks on roasting rack with meaty portions towards
the outside of rack. Cover with wax paper. Turn over and
rearrange when cooking time is half up. Cook until fish flakes
easily with a fork. Let stand for 3-5 min.
3-7 min. 1 lb
High
Never cook eggs in the shell, and never warm hard-cooked eggs in the shell; they can
explode. Always pierce whole eggs to keep them from bursting.
Cook eggs just until set; they become tough if overcooked.
Guide for cooking vegetables in your microwave
Vegetables should be washed just before cooking. Often, no extra water is needed.
If dense vegetables such as potatoes, carrots and green beans are being cooked, add
about ¼ cup water. Small vegetables (sliced carrots, peas, lima beans, etc.) will cook
faster than larger ones.
Whole vegetables, such as potatoes, acorn squash or corn on the cob, should be
arranged in a circle on the turntable before cooking. They will cook more evenly if turned
over after half the cooking time. Always place vegetables like asparagus and broccoli
with the stem ends pointing towards the edge of the dish and the tips toward the center.
When cooking cut vegetables, always cover the dish with a lid or vented microwavable
plastic wrap. Whole, unpeeled vegetables such as potatoes, squash, eggplant, etc,
should have their skin pricked in several spots before cooking to prevent them from
bursting. For more even cooking, stir or rearrange whole vegetables halfway through the
cooking time. Generally, the denser the food, the longer the standing time. (Standing time
refers to the time necessary for dense, large foods and vegetables to finish cooking after
they come out of the oven.) A baked potato can stand on the counter for five minutes
before cooking is completed, while a dish of peas can be served immediately.
06 COOKING GUIDE
Directions
Place chicken bone-side down on dish, with the thickest
portions towards the outside of the dish. Cover with wax paper.
Turn over when the cooking time is half up. Cook until juices run
clear and meat near the bone is no longer pink. Let stand for
5-10 min.
Guide for cooking eggs in your microwave
Directions
Arrange fillets in a baking dish, turning any thin pieces under
Cover with wax paper. If over ½ inch thick, turn over and
rearrange when cooking time is half up. Cook until fish flakes
easily with a fork. Let stand for 2-3 min.
3-5 min. 1 lb
High
Directions
Arrange shrimp in a baking dish without overlapping or layering.
Cover with wax paper. Cook until firm and opaque, stirring 2 or
3 times. Let stand for 5 min.
English - 21
MS23F301TAW_AP_DE68-04055K-00_EN.indd 21
2014-09-19
5:15:09
troubleshooting and error code
TIPS AND TRICKS
MELTING CRYSTALLIZED HONEY
Put 0.05 lb crystallized honey into a small deep glass dish.
Heat for 20-30 seconds using 30 %, until honey is melted.
TROUBLESHOOTING
If you have any of the problems listed below try the solutions given.
MELTING GELATINE
Lay dry gelatine sheets (0.02 lb) for 5 minutes into cold water.
Put drained gelatine into a small glass pyrex bowl.
Heat for 1 minute using 30 %.
Stir after melting.
COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)
Mix instant glaze (approximately 0.3 lb) with 0.08 lb sugar and 250 ml cold water.
Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 90 %, until glaze/icing
is transparent. Stir twice during cooking.
COOKING JAM
Put 1.3 lbs. fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid.
Add 0.65 lb preserving sugar and stir well.
Cook covered for 10-12 minutes using 90 %.
Stir several times during cooking. Empty directly into small jam glasses with twist-off lids.
Stand on lid for 5 minutes.
COOKING PUDDING/ CUSTARD
Mix pudding powder with sugar and milk (500 ml) by following the manufacturers
instructions and stir well. Use a suitable sized glass pyrex bowl with lid.
Cook covered for 6½ to 7½ minutes using 90 %.
Stir several times well during cooking.
BROWNING ALMOND SLICES
Spread 0.07 lb sliced almonds evenly on a medium sized ceramic plate.
Stir several times during browning for 3½ to 4½ minutes using 60 %.
Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!
This is normal.
• Condensation inside the oven.
• Air flow around the door and outer casing.
• Light reflection around the door and outer casing.
• Steam escaping from around the door or vents.
The oven does not start when you press the Start/+30s button.
• Is the door completely closed?
The food is not cooked at all.
• Have you set the timer correctly and/or pressed the Start/+30s button?
• Is the door closed?
• Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be
triggered?
The food is either overcooked or undercooked.
• Was the appropriate cooking length set for the type of food?
• Was an appropriate power level chosen?
The light bulb is not working.
• The Light bulb should not be replaced in person for safety reasons. Please contact
nearest authorised Samsung customer care, to arrange for a qualified engineer to
replace the bulb.
The oven causes interference with radios or televisions.
• Slight interference may be observed on televisions or radios when the oven
is operating. This is normal. To solve this problem, install the oven away from
televisions, radios and aerials.
• If interference is detected by the oven’s microprocessor, the display may be reset. To
solve this problem, disconnect the power plug and reconnect it. Reset the time.
English - 22
MS23F301TAW_AP_DE68-04055K-00_EN.indd 22
2014-09-19
5:15:09
WARRANTY AND SERVICE INFORMATION
To help us better serve you, please complete the enclosed registration card and promptly
return it by mail. If the registration card is missing, you can call Samsung Electronics.
Latin America-Panama, at 800-7267, 800-0101, or register online
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
Sparking and cracking occur inside the oven (arcing).
• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
• Is aluminum foil too close to the inside walls?
Colombia, at 018-000112112, or register online
www.samsung.com/co/support
If the above guidelines do not enable you to solve the problem, then contact your
local SAMSUNG customer service centre.
Please have the following information read;
• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
• A clear description of the problem
Then contact your local dealer or SAMSUNG aftersales service.
For the power level set to over 70 % of power level, after the first 20 minutes the
power level will automatically adjusted to 70 % of power level to avoid overcooking.
ERROR CODE
“SE” message indicates.
• The “SE” message indicate “Key Short” error happen.
Please check if one or more buttons are pressed for a long time.
Turn off the microwave oven and try setting again.
Mexico, at 01-800-SAMSUNG (726-7864), or register online
www.samsung.com/mx/support
When contacting Samsung, please provide the specific model and serial number
information which is usually located on the side or back of the product. Please record
these numbers below, along with the other requested information. Keep this information
in a safe place as a permanent record of your purchase to aid in identification in case of
theft or loss, and a copy of your sales receipt as a proof of purchase if warranty service
is needed.
Model Number
Serial Number
Date Purchased
Purchased From
07 TROUBLESHOOTING & TECHNICAL SPEC
Smoke and bad smell when initial operating.
• It’s a temporary condition by new component heating. Smoke and smell will
disappear completely after 10 minutes operation.
To remove smell more quickly, please operate microwave oven with putting lemon
formation or lemon juice in the cabinet.
Warranty service can only be performed by a Samsung Authorized Service Center. If you
should require warranty service, provide the above information with a copy of your sales
receipt to the Samsung Authorized Service Center.
For any codes not listed above, or if the suggested solution does not solve the
problem, contact your local SAMSUNG Customer Care Centre.
English - 23
MS23F301TAW_AP_DE68-04055K-00_EN.indd 23
2014-09-19
5:15:09
technical specifications
SAMSUNG strives to improve its products at all times. Both the design specifications and
these user instructions are thus subject to change without notice.
Model
Power source
Power consumption
Microwave
MS23F301TA*
120 V ~ 60 Hz
QUESTIONS OR COMMENTS
1200 W
COUNTRY
Output power
75 W ~ 750 W (IEC-705)
MEXICO
ARGENTINE
Operating frequency
2450 MHz
Magnetron
OM75S (31)
Cooling method
Cooling fan motor
Dimensions (W x H x D)
489 x 275 x 374 mm
Oven cavity
330 x 211 x 324 mm
Volume
Weight
Net
URUGUAY
000-405-437-33
PARAGUAY
009-800-542-0001
0.8 cu.ft
0800-124-421 (Demais cidades e regiões)
4004-0000 (Capitais e grandes centros)
www.samsung.com/br/support
800-SAMSUNG(726-7864)
www.samsung.com/cl/support
BOLIVIA
COSTA RICA
DOMINICA
ECUADOR
EL SALVADOR
HONDURAS
JAMAICA
NICARAGUA
PANAMA
PERU
PUERTO RICO
800-10-7260
www.samsung.com/cl/support
Bogotá 600 12 72
www.samsung.com/co/support
Gratis desde cualquier parte del país 01 8000 112 112 ó
desde su celular #SAM(726)
0-800-507-7267
00-800-1-SAMSUNG (726-7864)
1-800-751-2676
1-800-10-72670
1-800-SAMSUNG (72-6786)
www.samsung.com/latin/support (Spanish)
800-6225
www.samsung.com/latin_en/support (English)
1-800-299-0013
1-800-299-0033
800-27919267
800-2791-9111
1-800-234-7267
www.samsung.com/latin_en/support (English)
1-800-SAMSUNG (726-7864)
001-800-5077267
800-7267
800-0101
0-800-777-08
1-800-682-3180
TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864)
VENEZUELA
English - 24
MS23F301TAW_AP_DE68-04055K-00_EN.indd 24
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
CHILE
GUATEMALA
12 kg
OR VISIT US ONLINE AT
www.samsung.com/mx/support
www.samsung.com/ar/support
BRAZIL
COLOMBIA
Outside
CALL
01-800-SAMSUNG(726-7864)
0800-333-3733
0-800-SAMSUNG (726-7864)
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
www.samsung.com/pe/support
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
www.samsung.com/ve/support
DE68-04273B-00
2014-09-19
5:15:10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
