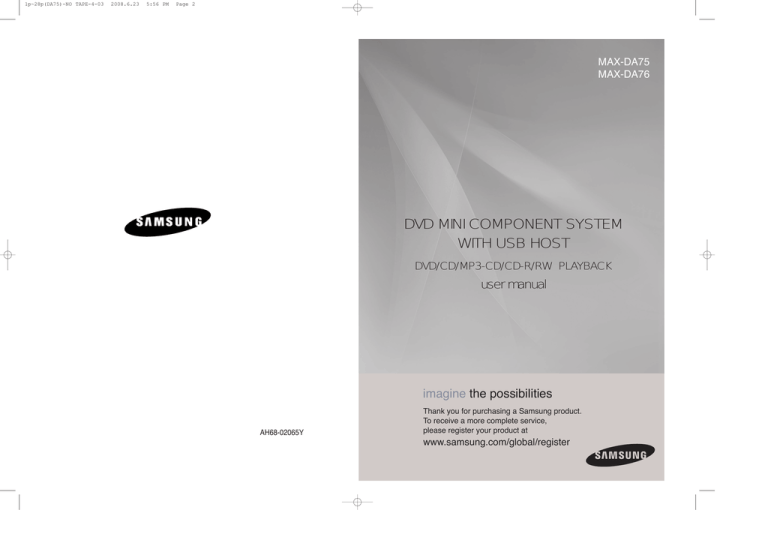

MAX-DA75
MAX-DA76
DVD MINI COMPONENT SYSTEM
WITH USB HOST
DVD/CD/MP3-CD/CD-R/RW PLAYBACK
user manual
imagine the possibilities
AH68-02065Y
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/global/register
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 4
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE REAR COVER. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
ENG
PREPARATION
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUCT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
Precautions
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may become
hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD player to
the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply,
remove the main plug from the wall outlet, especially when left unused for a long period of time.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
(Saudi Arabian Standards Organisation)
THIS APPLIANCE IS FITTED WITH 220V SASO APPROVED PLUG.THE CUSTOMER IS
ENTITLED TO A FREE SASO APPROVED 127V PLUG FROM THE LOCAL DEALER.
During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains
plug shall be readily operable.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,such as vases,shall be
placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
1
Phones
Protect the player from moisture(i.e. vases) , and excess
heat(e.g.fireplace) or equipment creating strong magnetic or electric
fields (i.e.speakers...). Disconnect the power cable from the AC supply if
the player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc have been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
The battery used with this product contain chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household trash.
2
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 6
Contents
Features
ENG
PREPARATION
PREPARATION
Multi-Disc Playback & FM Tuner, USB HOST.
The MAX-DA75/DA76 combines the convenience of multi-disc playback
capability, including DVD-VIDEO, CD, MP3-CD, CD-R, CD-RW, DivX,JPEG and
DVD-R/RW, with a sophisticated FM tuner, USB HOST all in a single player.
TV Screen Saver Function
If the main unit remains in the Stop mode for 3 minutes,the Samsung logo appears on the
TV screen.
The MAX-DA75/DA76 automatically switches itself into the power saving mode after 20
minutes in the screen saver mode.
Power Saving Function
The MAX-DA75/DA76 automatically shuts itself off after 20 minutes in the stop mode.
Customized TV Screen Display
The MAX-DA75/DA76 allows you to select your favorite image during JPEG, DVD playback
and set it as your background wallpaper.
Safety Warnings ............................................................................................................................................................................................1
Precautions....................................................................................................................................................................................................2
Features.........................................................................................................................................................................................................3
Notes on Discs...............................................................................................................................................................................................5
Description.....................................................................................................................................................................................................7
CONNECTIONS
Connecting the Speakers ..............................................................................................................................................................................11
Connecting the video Out to your TV.............................................................................................................................................................13
HDMI Function...............................................................................................................................................................................................14
Connecting External Components .................................................................................................................................................................15
Connecting the FM Antennas ........................................................................................................................................................................16
Setting the Clock............................................................................................................................................................................................17
OPERATION
Disc Playback ................................................................................................................................................................................................18
MP3/WMA/CD Playback................................................................................................................................................................................19
JPEG File Playback .......................................................................................................................................................................................20
DivX Playback................................................................................................................................................................................................21
Playing Media Files using the USB feature ...................................................................................................................................................23
Using Bluetooth(Option) ................................................................................................................................................................................25
Displaying Disc Information ...........................................................................................................................................................................27
Fast/Slow Playback .......................................................................................................................................................................................28
Skipping Scenes/Songs.................................................................................................................................................................................29
Angle Function...............................................................................................................................................................................................30
Repeat Playback............................................................................................................................................................................................31
A-B Repeat playback ....................................................................................................................................................................................32
Zoom Function...............................................................................................................................................................................................34
Selecting Audio/Subtitle Language................................................................................................................................................................35
Moving Directly to a Scene/Song...................................................................................................................................................................36
Using Disc Menu............................................................................................................................................................................................37
Using the Title Menu......................................................................................................................................................................................38
SETUP
USB Host support
You can enjoy media files such as pictures, movies and music saved on an MP3 player, digital
camera or USB memory stick by connecting the storage device to the USB port of the Mini
Component.
Setting the Language.....................................................................................................................................................................................39
Language Code List.......................................................................................................................................................................................40
Setting TV Screen type..................................................................................................................................................................................41
Setting Parental Controls (Rating Level) .......................................................................................................................................................43
Setting the Password.....................................................................................................................................................................................44
Setting the Wallpaper ....................................................................................................................................................................................45
Setting the DRC (Dynamic Range Compression) .........................................................................................................................................47
AV SYNC Setup ............................................................................................................................................................................................48
RADIO OPERATION
HDMI
HDMI transmits DVD video and audio signals simultaneously,and provides a clearer picture.
Listening to Radio ..........................................................................................................................................................................................49
Presetting Stations.........................................................................................................................................................................................50
MISCELLANEOUS
Timer Function...............................................................................................................................................................................................51
Canceling the Timer.......................................................................................................................................................................................52
POWER SOUND/POWER BASS/ DSP/EQ Function ...................................................................................................................................53
Sleep Timer Function / Mute Function...........................................................................................................................................................54
DEMO Function / DIMMER Function/ECO Function ....................................................................................................................................55
CD Ripping Function......................................................................................................................................................................................56
Connecting Headphones/Microphone ...........................................................................................................................................................57
Before Calling for Service ..............................................................................................................................................................................58
Notes on Discs...............................................................................................................................................................................................59
Specifications.................................................................................................................................................................................................61
USB Feature Supported Player .....................................................................................................................................................................62
Notes on Terminology....................................................................................................................................................................................63
3
4
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 8
Notes on Discs
ENG
Disc Recording Format
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
VIDEO
DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
This product does not support Secure (DRM) Media files.
CD-R Discs
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of
the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be playback.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be
Playable Discs
Disc Type
Mark (Logo)
able to fully play the disc.
Recorded Signals
Disc Size
12cm
Video
DVD-VIDEO
8cm
VIDEO
COMPACT
AUDIO-CD
Audio
Audio + Video
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
12cm
74 min.
8cm
20 min.
12cm
74 min.
8cm
20 min.
DIGITAL AUDIO
DivX
Max. Playing Time
CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the "mp3" and extensions can be played.
• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
•
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message
appears on the TV screen.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD
•
player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted
picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
5
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
• Only files with the "jpg" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc,
•
•
•
the disc can be played only up to the blank segment.
A maximum of 9,999 images can be stored on a single CD.
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
DVD R/RW, CD-R/RW DivX Discs
• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might
not play.
• Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".
6
PREPARATION
~ 6
1
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 10
Description
—Rear Panel—
ENG
MAX-DA76
MAX-DA75
PREPARATION
—Front Panel—
1
2
3
20
19
4
5
18
6
7
8
9
17
16
10
15
11
12
13
14
1
1
2
2
3
4
5
6
3
4
5
6
7
7
1. FM Antenna Connector
2. 2.0 Channel Speaker Output
Terminals
3. External Digital Optical Input Jack
4. HDMI OUT Jack
5. AUX IN 2 Jacks
6. Component Video Output Connectors
1. FM Antenna Connector
2. 2.1 Channel Speaker Output
Terminals
3. External Digital Optical Input Jack
4. HDMI OUT Jack
5. AUX IN 2 Jacks
6. Component Video Output Connectors
Connect a TV with component video input jacks to
these jacks.
Connect a TV with component video input jacks to
these jacks.
7. Video Output Connector
7. Video Output Connector
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
Connect the TV's video input jacks (VIDEO IN) to
the VIDEO OUT connector.
Accessories
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
STANDBY/ON/ECO
VOLUME
USB
DVD/CD BUTTON
TUNER BUTTON
SEARCH FUNCTION BUTTONS/TUNING MODE
OR STOP BUTTON/SKIP BUTTON
MUTE
EQ/DSP
POWER SOUND
DISC TRAY OPEN HOLE(NO POWER STATE)
USB HOST JACK
12.
13.
14.
15.
16.
17.
18.
19.
20.
PHONES
AUX IN 1
MIC 1
MIC 2
DISC TRAY
OPEN BUTTON
MULTI JOG
AUX/PORT
ENTER
• You can use MULTI JOG KNOB to instead of SKIP BUTTON .
• You can clockwise turn the gear to open CD-DOOR by hand in no power state.Do not use this
unless necessary.
7
Remote Control
FM Antenna
Video Cable
HDMI Cable
User's Manual
8
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 12
Description
ENG
PREPARATION
—Remote Control—
Insert Remote Batteries
TUNER button
DVD button
POWER button
USB button
PORT/AUX button
1 Remove the battery
OPEN/CLOSE button
DEMO/DIMMER button
cover in the direction
of the arrow.
2
Insert two 1.5V AAA
batteries, paying
attention to the correct
polarities (+ and –).
3
Replace the battery
cover.
Number(0~9) buttons
CD RIPPING button
STEP button
Tuning Preset/CD Skip button
MUTE button
VOLUME button
MENU button
CANCEL button
PAUSE button
Play button
SEARCH buttons
MIC VOLUME CONTROL button
RETURN button
Cursor/Enter button
AUDIO button
REPEAT button
POWER SOUND button
SD/HD button
P.BASS button
DSP/EQ button
MO/ST button
ECHO button
REMAIN button
9
Stop button
SUBTITLE button
EXIT button
SLEEP button
INFO button
SLOW button
LOGO button
TIMER ON/OFF button
Caution
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
Range of Operation of the Remote Control
The remote control can be used up to approximately 23
feet/7 meters in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control
sensor.
TUNER MEMORY button
ZOOM button
TIMER/CLOCK button
10
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 14
Connecting the Speakers
ENG
Connect the connecting jacks (2) to the back of mini-component system.
Position of the DVD Player
• Place it on a stand or cabinet shelf,
Make sure the polarities (+and -) are correct.
MAX-DA75
or under the TV stand.
Speakers L R
• Place these speakers in front of your listening
position, facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be
at the same height as your ear.
L
Selecting the Listening Position
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
Subwoofer SW
• The position of the subwoofer is not so critical.
Place it anywhere you like.
• Usually, it is placed by a corner near the front speakers.
Directions in Installing Speaker
• Installation in a place near heating apparatus, under direct lay of light or with high humidity may cause
performance degradation of the speaker.
• Do not install on the wall or on a high place of pole or other unstable place to prevent any safety accident
caused by falling of the speaker.
R
• Do not take the speaker near from TV or computer monitor.
The speaker near the TV or computer monitor may influence the quality of the screen display.
Caution
MAX-DA76
• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• Keep the speaker out of reach of children so as to prevent children from inserting their hands or alien substances
into the duct (hole) of the subwoofer speaker.
• Do not hang the subwoofer on the wall through the duct (hole).
Note
• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated
by the speaker. If this occurs, place the speaker away from your TV set.
L
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit
R
11
could rise and may damage it.
SW
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are
covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)
12
CONNECTIONS
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 16
Connecting the Video Out to your TV
HDMI Function
ENG
Choose one of the three methods for connecting to a TV.
Resolution Selection
This function allows the user to select the screen resolution for HDMI output.
■
Resolutions available for the HDMI output are 576p/480p, 720p, 1080i.
■
SD(Standard Definition) resolution is 576p/480p and HD(High Definition) resolution is 720p/1080i.
Note • If the TV does not support the configured resolution, you will not be able to see the
METHOD 2
METHOD 1
METHOD 3
picture properly.
• When an HDMI cable is connected, composite and component video signals
are not output.
• See your TV owner's manual for more information on how to select the TV's Video
Input source.
Why use HDMI (High Definition
Multimedia Interface)?
This device transmits a DVD
video signal digitally without
the process of converting to
analog. You will get sharper
digital pictures when using an
HDMI connection.
Setting the HDMI Audio
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
METHOD 1 : HDMI ....... (Best Quality)
1
2
3
Connect the HDMI cable from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV.
METHOD 2 : Component Video ....... (Better Quality)
If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from
the Component Video Output (Pr, Pb and Y) jacks on the back of the panel of the main unit to the corresponding
jacks on your television.
MOVE
ENTER
RETURN
EXIT
4
In Stop mode, press the MENU button.
Press the Cursor
button to move to <Audio> and then press the ENTER button.
Press the Cursor button to move to <HDMI AUDIO> and then press
the ENTER button.
Press the Cursor ,
the ENTER button.
button to select <ON> or <OFF> and then press
METHOD 3 : Composite Video....... (Good Quality)
• ON : Both video and audio signals are transmitted over the HDMI connection cable, and audio
Connect the supplied video cable from the VIDEO OUT jack on the back of the main unit to the VIDEO IN jack on
your TV.
is output through your TV speakers only.
• OFF : Video is transmitted over the HDMI connection cable only, and audio is output through
MOVE
Note
SELECT
RETURN
EXIT
the home theater speakers only.
• This product operates in Interlace scan mode for Component Output.
Note
• The default setting of this function is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
• P.BASS/CD RIPPING./MIC VOLUME UP/DOWN/ECHO/P.SOUND/EQ/DSP function is not
available when HDMI AUDIO is ON.
Press the RETURN button to return to the previous level.
Press the EXIT button to exit the setup screen.
13
14
CONNECTIONS
In Stop mode, press and hold the SD/HD (Standard Definition/High Definition)
button on the remote control.
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 18
Connecting External Components
OPTICAL:Connecting an External Digital Component
ENG
Digital signal components such as a Cable Box/Satellite receiver(Set -Top Box).
Connecting an External Analog Component
Example: Analog signal components such as a VCR, Camcorder, and TV.
Optical Cable
(not supplied)
CONNECTIONS
Extermal Digital Component
(not supplied)
Audio Cable
If the external analog component
has only one Audio Out, connect
either left or right.
1
Connect Audio In on the DVD player to Audio Out on the external analog component.
2
Press AUX/PORT to select AUX 1.
1
Connect the Digital Input(OPTICAL) on the Mini Component to the Digital Output of the
external digital component.
2
Press the AUX/PORT button to select DIGITAL IN.
Connecting the FM Antennas
• Be sure to match connector colors.
• ‘AUX 1’ appears in the display.
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
AUX2 : Rear Panel
Audio Cable (not supplied)
If the external analog
component has only
one Audio Out, connect
either left or right.
1
Connect AUX IN 2 (Audio) on the MINI
COMPONENT rear panel to the Audio Out of the
external analog component.
■ Be sure to match connector colors.
2
Press the AUX/PORT button to select <AUX2> input.
The mode switches as follows : AUX 1 ➝ AUX 2.
FM Antenna (supplied)
FM antenna connection
1. Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal as a temporary measure.
2. Slowly move the antenna wire around until you find a location where reception is good, then
fasten it to a wall or other rigid surface.
• If reception is poor, connect an outdoor antenna.
Before attaching a 75Ω coaxial cable (with a standard type connector), disconnect the supplied FM
antenna.
15
Note
• This unit does not receive AM broadcasts.
16
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 20
Disc Playback
Setting the Clock
ENG
For each step, you have a few seconds to set the required options.
If you exceed this time, you must start again.
1
Switch the system on
by pressing
STANDBY/ON button.
2
Press TIMER/CLOCK
twice.
3
• CLOCK is displayed.
• Increase the minutes :
• Decrease the minutes :
• Increase the hours :
• Decrease the hours :
Note
5
When the correct
time is displayed,
press ENTER.
1
2
• Insert a disc that the disc’s label facing up.
To open/close the disc tray,press
OPEN/CLOSE button.
• You can display the time, even
when you are using another
function, by pressing
TIMER/CLOCK once.
DVD
CD
• Playback starts automatically.
• "TIMER" appears in the display.
• The current time is now set.
MP3
•You
can also use Multi-Jog or
button on the panel front
instead of
,
buttons in step 3,4.
Note
Load a disc.
OPERATION
4
When the correct
hour is displayed,
press ENTER.
The minutes flash.
Press ENTER.
The hour flashes.
DivX
JPEG
• Playback starts automatically.
• If the TV is on, a list of MP3s on
the CD will appear on the TV
screen.
Checking the Remaining Time
Note
Press the REMAIN button.
• For checking the total and remaining time of a title or chapter being played.
Each time the REMAIN button is pressed
on the disc.
To stop playback, press STOP button during playback.
• If pressed once,
MP3
CD
DVD
• Depending on the content of the disc, the initial screen may appear different.
• Depending on the recording mode, some MP3-CDs cannot be played.
• Table of contents of a MP3-CD varies depending on the MP3 track format recorded
TITLE ELAPSED
TRACK ELAPSED
TRACK ELAPSED
TITLE REMAIN
TRACK REMAIN
TRACK REMAIN
CHAPTER ELAPSED
TOTAL ELAPSED
CHAPTER REMAIN
TOTAL REMAIN
•
the stop position will be stored in memory. If PLAY (
) button
or ENTER button is pressed, playback resumes from the stop position. (This
function works only with DVDs.)
If pressed twice, “STOP” is displayed, and if PLAY (
) button is pressed,
playback starts from the beginning.
To temporarily pause playback, press PAUSE button
during playback.
• To resume playback, press PLAY(
17
) button again.
18
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 22
MP3/WMA-CD Playback
JPEG File Playback
JPEG
ENG
Images captured with a digital camera or camcorder, or JPEG files on a PC can be
stored on a CD and then played back with this DVD player.
1
Load the MP3/WMA
disc.
2
• The MP3/WMA menu screen will appear
•
•
•
and playback will start.
The appearance of the menu depends
on the MP3/WMA disc.
WMA-DRM files cannot be played.
Use
In Stop mode, use
to select
the album, and then
press the ENTER
button.
Rotate/Flip Function
Press Cursor
,
,
,
buttons during playback.
to select the track.
button: Flip Vertically
OPERATION
button: Rotate 90°
Counterclockwise
button: Rotate 90° Clockwise
Original Image
3
To change the album,
use
to
select another album
in Stop mode, and
then press the
ENTER button.
4
Press the STOP
button to stop
playback.
button: Flip Horizontally
• To select another album and track,
repeat Steps 2 and 3 above.
Note
• Depending on the recording mode, some MP3/WMA-CDs may not play.
• Table of contents of a MP3-CD varies depending on the MP3/WMA track
format recorded on the disc.
To play a file icon in the screen,
Press the
button when it is in
stop status and select a desired icon from
the top part of the menu.
• To play music files only, select the
• To view image files only, select the
• To view movie files only, select the
Icon.
• To select all files select the
19
Icon.
Icon.
Icon.
• Music File Icon
• Image File Icon
• Movie File Icon
• All File Icon
20
1p~28p(DA75)-NO TAPE-4-03
2008.7.11
4:50 PM
Page 24
DivX Playback
Subtitle Display
ENG
Press the SUBTITLE button.
• Each time you press the button, your selection will toggle between “SUBTITLE ON” and “SUBTITLE OFF”.
• If the disc has only one subtitle file, it will be played automatically.
• Up to 8 subtitle languages are supported.
Skip Forward/Back
During playback, press the
•
•
Go to the next file whenever you press
2 files in the disk.
Go to the previous file whenever you press
2 files in the disk.
button.
button, if there are over
Press the AUDIO button.
Note
•"
“
OPERATION
• If there are multiple audio tracks on a disc, you can toggle between them.
• Each time you press the button, your selection will toggle between “AUDIO(1/1, 1/2 ...)” and
Fast playback
Press and hold
Audio Display
button, if there are over
”.
" is displayed when there is one supported language in the disc.
button.
• Each time the button is held down during playback,
DivX Feature Table
the playback speed changes as follows:
DivX Supported
Avi files are used to contain the audio and video data; these must be stored on CD in the ISO 9660 format.
SPEC
VIDEO Compatibility
AUDIO Compatibility
DivX3.11
Up to the latest VERSION
WMV
WMV V1/V2/V3/V7
MP3
CBR : 80kbps~384kbps
AC3
CBR : 128kbps~384kbps
WMA
CBR : 56kbps~128kbps
MPEGs containing DivX can be divided into Video and Audio.
• Video compatibility : All versions of DivX later than 3.11 (including
the latest 5.1) are supported. In addition, XviD is supported.
For WMV, V1, V2, V3, and V7 formats are possible.
The initial resolution is 720X480 and may support up to 720X576 .
• Audio compatibility : MP3s encoded at bitrates from 80kbps to
384kbps, AC3s from 128kbps to 384kbps, and WMAs from 56kbps
to 128kbps are supported.
• In addition, for subtitles, this unit will support Text format (SMI).
Note
• When playing the DivX disk, you can play the file with extension of AVI only.
• Among the available DivX audio formats, DTS Audio is not supported.
• WMV V8 is not supported for WMV files.
• When burning a subtitle file to a CD-ROM with your PC, be sure to burn it as an SMI file.
• Divx Disc does not playing when its sampling frequency is lower than 32KHz.
• Some of the discs recorded in DivX or XviD depending on the way of recording could be
•
21
played back not correctly or couldn’t be played back at all.
MP3 file support: MPEG1 LAYER3 (BITRATE : 128KBPS~320KBPS , SAMPLING FREQ.:
32K/44.1K/48KHz) .
22
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 26
Skip Forward/Back
Playing Media Files using the USB feature
During playback, press the
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory,
etc. using the player's USB function.
1
connect the USB
cable.
2
• When there is more than a file, when you press the
• When there is more than a file, when you press the
Press the USB button
to select the USB
mode.
ENG
button.
button, the next file is selected.
button, the previous file is selected.
Fast playback
To playback the disc at a faster speed, press and hold
during playback.
or
• Each time you press and hold either button, the playback speed will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
• “USB” appears on the display screen and
then disappear.
• USB SORTING screen appears on the
TV screen and the saved file is played.
Compatible Devices
1. USB devices that support USB Mass Storage v1.0.
(USB devices that operate as a removable disk in Windows
(2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 player.
3. Digital camera: PTP protocol is not supported.
To stop playback, press the STOP (
) button.
• Devices which require additional program installation when you have connected it to a computer, are not
supported.
• Video files (DivX, WMV, MPEG, etc.) are supported.
• To prevent the loss of data saved in the USB device, please turn the unit off or
4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
• You may experience a difference in playback quality when you connect a USB1.1 device.
• For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
switch it to another mode before disconnecting the USB cable.
5. USB card Reader: One slot USB card reader and Multi slot USB card reader
• Depending on the manufacturer. the USB card reader may not be supported.
• If you install multiple memory devices into a multi card reader, you may experience problems.
To play a file in the USB menu screen,
●
Supported Formats
• Music File Icon
• Image File Icon
• All File Icon
• Movie File Icon
Press the
button when it is in stop status and
select a desired icon from the top part of the menu.
• To play music files only, select the
• To view image files only, select the
Icon.
• To select all files select the
• To view movie files only, select the
23
Icon.
Icon.
Icon.
File name
Still Picture
Music
Movie
JPG
MP3
WMA
VCD
WMV
File
extension
Bit rate
.JPG .JPEG
–
.MP3
80~384kbps
.WMA
56~128kbps
MPG.MPEG .DAT
.WMV
Version
Pixel
Sampling
Frequency
–
–
V8
640*480
–
–
–
44.1kHz
44.1kHz
1.5Mbps
VCD1.1,VCD2.0
320*480
44.1KHz
4Mbps
V1,V2,V3,V7
720*480
44.1KHz~48KHz
720*480
44.1KHz~48KHz
(V9 is not supported)
DivX
.AVI,.ASF
4Mbps
DivX3.11~DivX5.1,Xvid
• A device using NTFS file system is not supported.(Only FAT file system is supported.)
The USB host function of this product does not support all USB devices.
For the information on the supported devices,pls see the P62.
24
OPERATION
Note
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 28
Using Bluetooth(Option)
You can use a Bluetooth device to let you enjoy music with high qualitystereo sound,all without wires!
What is Bluetooth?
Bluetooth is a new technology that enables Bluetooth-compliant devices to easily interconnect
with each other using a short wireless connection.
• A Bluetooth device may cause a noise or malfunction, depending on usage.
• When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device
or the Mini Component System.
• Electrical variation from electrical jamming by the wall, corner or office partitioning.
• Electrical interference from the same frequency-band devices including medical equipment,
microwave oven and wireless LAN.
Pair
the Mini Component System with the Bluetooth device while maintaining a close distance.
•
The
further
the distance is between Mini Component System and Bluetooth device, the worse the quality.
•
If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.
• The Mini Component System has an effective reception range of up to 10 m in all directions if there are
no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within
this range, the sound quality may be deteriorated by obstacles such as walls or doors.
To connect the Mini Component System to a bluetooth device
You can disconnect the Mini Component System from the Bluetooth device (refer to Bluetooth devices’ user manual).
• The Mini Component System will be disconnected.
• When the Mini Component System is disconnected from the Bluetooth device, the Mini Component System will
display "DISCONNECT" on the front display.
To disconnect the Mini Component System from the Bluetooth device
Press the AUX/PORT button of the Mini Component system to switch from “BT AUDIO”
to another mode.
• The bluetooth device connected will wait a certain time for response from the Mini Component system
When the Mini Component System is disconnected from the before terminating the connection. (Time to
disconnection may differ, depending on the bluetooth device)
• The currently connected device will be disconnected.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Mini
Component System and the Bluetooth device exceeds 10 m. If the distance is returned to the effective
range or you restart the Bluetooth device, the Bluetooth connection can be restored.
• With some bluetooth devices, some functions may not work properly.
• You may be required to enter a PIN code(password) when connecting the Bluetooth device to the home
cinema system. If the PIN code input window appears, enter <0000>.
• The Mini Component System may control play related function only when connected device supports
the function.
• If connected device dose not support some play related function, the Mini Component System can't
control the device.
• The Mini Component System only supports Middle Quality SBC data(up to 237kbps@48kHz), and does
not support High Quality SBC data(328kbps@44.1kHz).
25
ENG
OPERATION
Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function.
1. Press the AUX/PORT button of the
Mini Component system repeatedly until the "BT AUDIO" appears.
•You will see “WAIT” for serval seconds and then “READY” on the front display
of the Mini Component System.
2. Select the Bluetooth menu on the Bluetooth device you
want to connect. (refer to Bluetooth device's user manual)
Connect
3. Select a Stereo headset menu on the Bluetooth device.
You
will
see
a
list
of
scanned
devices.
•
4. Select "Samsung Mini Component" from the searched list.
• When the Mini Component System is connected to the
Bluetooth
Bluetooth device, the Mini Component System will display
Device
"Connect" on the front display, followed by the device name
of the connected Bluetooth device.
• The Mini Component System connection is complete.
5. Play music on the connected device.
• You can listen to the music playing on the connected Bluetooth device over the Mini Component system.
To disconnect the Bluetooth device from the Mini Component System
26
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 30
Displaying Disc Information
Fast/Slow Playback
ENG
You can view playback information on the disc on the TV screen.
Fast Playback
Press and hold
Press INFO button on the remote control .
CD
CD
MP3
.
• Each time the button is held down during playback,
• Each time the button is pressed, the display changes as follows:
DVD
DVD
the playback speed changes as follows:
MP3
JPEG
DivX
OPERATION
Display disappears
Display disappears
Slow Playback
Press SLOW button.
Display disappears
• Each time the button is pressed during playback,
the playback speed changes as follows:
• What is a Title?
A movie contained in a DVD disc.
Note
Each title on a DVD disc is divided into several smaller sections called "chapters".
• Depending on the disc, the disc
information display may appear different.
DivX
DVD
• What is a Chapter?
•
appears on the TV screen!
If this symbol appears on the TV screen while buttons are being operated, that
operation is not possible with the disc currently being played.
• What is a Track (File)?
A section of video or a music file recorded on a CD, or MP3-CD.
Screen Display
DVD display
MP3 CD display
TRACK (FILE) display
AUDIO LANGUAGE display
DOLBY DIGITAL display
TRACK (FILE) display
TITLE display
CD display
27
• Reverse slow playback does not work with DivX.
SUBTITLE display
ANGLE display
REPEAT PLAYBACK display
CHAPTER display
Note
STEREO (L/R) display
DivX display
• During fast playback of a CD or MP3-CD, sound is heard only at
2x speed, and not at 4x, 8x, and 32x speeds.
• No sound is heard during slow playback and step motion
playback.
28
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:56 PM
Page 32
Skipping Scenes/Songs
Angle Function
ENG
This function allows you to view the same scene in different angles.
DVD
DVD
MP3
Briefly press
.
• Each time the button is pressed briefly during playback, the previous or next chapter,
•
track, or directory (file) will be played.
But, you cannot skip chapters consecutively.
Press INFO button.
2
3
Press Cursor , buttons or numeric buttons
to select the desired angle.
MP3
OPERATION
DVD
1
Press Cursor
button to move to
ANGLE display.
TITLE 01/05 CHAPTER 002/040
• Each time the button is pressed, the angle changes as follows:
TITLE 01/05 CHAPTER 004/040
Step Function
DVD
Press STEP button.
• The picture moves forward one frame each time the button is pressed
during playback.
Note
• The Angle function works only with discs on which multiple angles
have been recorded.
• No sound is heard during slow playback and step motion playback.
29
30
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:57 PM
Page 34
Repeat Playback
ENG
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
DVD
DVD
CD
MP3
To Select a Repeat Playback Mode
in the Disc Information Screen
JPEG
Press REPEAT button.
• Each time the button is pressed during playback, the repeat playback mode changes as follows:
DVD
CD
MP3
JPEG
Repeat Playback Options
•For a
2
Press Cursor button
to move to REPEAT
PLAYBACK display.
CD,Press INFO button
once.
TITLE
Repeatedly plays the selected title.
RANDOM
Plays tracks in random order.
(A track that has already been played
may be played again.)
3
TRACK
Repeatedly plays the selected track.
CD
DIR
Repeatedly plays all tracks in the
selected folder.
Press Cursor
button to select the
desired Repeat
Playback mode.
4
Press ENTER
button.
DVD
DISC
Repeatedly plays the entire disc.
OFF
Cancels Repeat Playback.
CD
Note
• For MP3 and JPEG discs, you cannot select Repeat Play
from the information display screen.
31
32
OPERATION
CHAPTER
Repeatedly plays the selected chapter.
1
Press INFO button
twice .
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:57 PM
Page 36
Zoom Function
A↔B Repeat Playback
ENG
This function allows you to enlarge a particular area of the displayed image.
Zoom (Screen Enlarge) Function
DVD
1
2
3
4
CD
Press the INFO button twice.
Press the Cursor
button to move to the REPEAT PLAYBACK (
) display.
1
Press ZOOM
button.
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
3
Press ENTER
button.
• Each time the button is pressed, the
Press the Cursor , button to select <A-> and then press the ENTER
button at the beginning of the desired segment.
■
DVD
zoom level changes as follows:
When the ENTER button is pressed, the selected position will be stored in memory.
SELECT ZOOM POSITION
Press the ENTER button at the end of the desired segment.
The specified segment will be played repeatedly.
OPERATION
■
A-B
REPEAT: A-B
To return to normal playback, press the Cursor
OFF.
,
• The Zoom function does not operate with DivX discs.
button to select
• The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
Before Reading the User's Manual
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon
DVD
CD
MP3
JPEG
DivX
Term
DVD
CD
This involves a function available with DVD or
DVD-R/DVD-RW discs that have been recorded and
finalized in Video Mode.
This involves a function available with a data CD
(CD-R or CD-RW).
MP3
This involves a function available with CD-R/-RW discs.
JPEG
This involves a function available with CD-R/-RW discs.
DivX
This involves a function available with MPEG4 discs.
(DVD R/RW, CD-R or CD-RW)
CAUTION
NOTE
33
Definition
This involves a case where a function does not
operate or settings may be cancelled.
This involves tips or instructions on the page that help
each function operate.
• In this manual, the instructions marked with "DVD ( DVD )" are applicable to DVD-VIDEO, DVD-AUDIO
and DVD-R/-RW discs that have been recorded in Video Mode and then finalized.
Where a particular DVD type is mentioned, it is indicated separately.
• If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
34
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:57 PM
Page 38
Selecting Audio Subtitle Language
Audio Language Selection Function
1
2
Press INFO button
twice.
DVD
Press Cursor ,
buttons or numeric
buttons to select the
desired audio language.
Moving Directly to a Scene/Song
DVD
1
CD
Moving to a Title/Track
Press INFO button.
2
ENG
Moving to a Chapter
Press Cursor , buttons
or numeric buttons to select
the desired title/track and then
press ENTER button.
3
Press Cursor ,
buttons to move to
Chapter display.
• Depending on the number of languages on a
01/05
001/040
0:00:37
1/1
Moving to a Chapter
Subtitle Language Selection Function
1
2
Press INFO button
twice.
DVD
4
Press Cursor
button to move to
SUBTITLE display.
01/05
MP3
3
Press Cursor
button or numeric
buttons to select
the desired subtitle.
Note
•
•
You can use the SUBTITLE button on the
remote control to select a subtitle
language.
Depending on the disc, the Subtitle and
Audio Language functions may not work.
Press Cursor , buttons
or numeric buttons to select
the desired chapter and
then press ENTER button.
025/040
0:00:01
03/05
001/002
0:00:01
1/1
Moving to a Specific Time
5
1/1
01/05
025/040
1:17:30
0:00:01
1/1
Moving to a Specific Time
Press Cursor ,
buttons to move to
time display.
01/05
001/040
6
Press the numeric
buttons to select the
desired time and then
press ENTER button.
01/05
1/1
028/040
1:30:00
1/1
JPEG
Press the numeric
buttons.
• The selected file will be played.
• A MP3 or JPEG disc cannot be moved
Note
• You can press
•
on the remote
control to move directly to the desired
title, chapter, or track.
Depending on the disc, you may not
be able to move to the selected title or
time.
from the disc information screen.
• When playing a MP3 or JEPG disc, you
cannot use
,
to move a folder.
To move a folder, press (Stop) and
then press
, .
35
36
OPERATION
DVD disc, a different audio language (ENGLISH,
SPAIN,JAPANESE, etc.) is selected each time
the button is pressed.
1p~28p(DA75)-NO TAPE-4-03
2008.6.23
5:57 PM
Page 40
Using Disc Menu
Using the Title Menu
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, this function may either not work at all or may work differently.
DVD
DVD
1
In stop mode,Press
MENU button.
2
Press Cursor , buttons
to move to ‘DISC MENU’
and then press ENTER
button.
1
In stop mode Press
MENU button.
2
Press Cursor ,
button to move to
‘Title Menu’.
• When you select the disc menu that is not
4
OPERATION
3
3
Press ENTER button.
• The title menu appears.
supported by the disc, the "This menu is not
supported" message appears on the screen.
Press Cursor , ,
, buttons to select
the desired item.
ENG
Press ENTER button.
Press RETURN button to return to the previous level.
Press MENU/EXIT button to exit the setup screen.
37
38
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 30
Language Code List
Setting the Language
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle”
and/or “Disc Menu” (See page 39).
OSD language is set to English by default.
1
In stop mode,Press
MENU button.
5
Press Cursor ,
button to select the
desired language and then
press ENTER button.
• Once the setup is complete, if the language was
set to English, OSD will be displayed in English.
Selecting the
OSD Language
Selecting the
Audio Language
(recorded on the disc)
3
Note
• To select other language, select OTHER
and enter the language code of your
country.
(See 40 page for language code of
countries)
AUDIO, SUB TITLE and DISC MENU
language can be selected.
Selecting the
Subtitle Language
(recorded on the disc)
Press MENU/EXIT button to exit the setup screen.
39
Press ENTER
button.
Selecting the Disc Menu
Language (recorded on the disc)
Code
Language
Code
Language
Code
Language
Code
Language
1027
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
language you selected is
* Ifnottherecorded
on the disc, menu
language will not change even
if you set it to your desired
language.
Press RETURN button to return to the previous level.
40
SETUP
4
Press Cursor ,
button to select the
desired item and then
press ENTER button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
ENG
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 32
Setting TV Screen type
1
In stop mode,Press
MENU button.
ENG
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is
called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
For a standard TV, select either <4:3PS> or <4:3LB> option according to personal preference. Select <WIDE/HDTV> if you have
a widescreen TV.
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.
■ You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).
4:3LB (4:3 Letterbox)
Select this to play a 16:9 picture in the letter box mode on a conventional TV.
■ Black bars will appear at the top and bottom of the screen.
4
Press Cursor ,
button to select the
desired item and then
press ENTER button.
SETUP
3
Press Cursor
button to move to ‘TV
DISPLAY’ and then
press ENTER button.
WIDE/HDTV
Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.
■ You can enjoy the widescreen aspect.
• Once the setup is complete, you will
be taken to the previous screen.
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on the software,
the type of TV, and the TV aspect ratio setting.
• When using HDMI, the screen is automatically converted to Wide mode.
Press RETURN button to return to the previous level.
41
Press MENU/EXIT button to exit the setup screen.
42
36P~76P(DA75/76)-NO TAPE
1
Page 34
Setting Parental Controls (Rating Level)
Setting the Password
Use this to restrict playback of adult or violent DVDs you do not want children to view.
You can set the password for the Parental (rating level) setting.
in stop mode,Press
MENU button.
Press Cursor , button
to select the desired rating
level and then press
ENTER button.
• If you have selected Level 6, you
•
5:57 PM
cannot view DVDs with Level 7 or
higher.
The higher the level, the closer the
content is to violent or adult material.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
5
Enter the password
and then press
ENTER button.
3
Press Cursor
button to move to
‘PARENTAL’ and then
press ENTER button.
1
4
• The password is set to "7890" by default.
• Once the setup is complete, you will be
Press MENU button.
Press ENTER
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
5
Enter the password
and then press
ENTER button.
3
ENG
Press Cursor button to
move to ‘PASSWORD’
and then press ENTER
button.
SETUP
4
2008.6.23
• Enter the old password, a new
password, and confirm new password.
taken to the previous screen.
• The setting is complete.
Note
• This function works only if a DVD disc
contains the rating level information.
• The password is set to “7890” by default.
Press RETURN button to return to the previous level.
Press RETURN button to return to the previous level.
Press CANCEL button to cancel the error numeric when you inputting password.
43
Press MENU/EXIT button to exit the setup screen.
Press MENU/EXIT button to exit the setup screen.
44
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 36
Setting the Wallpaper
JPEG
ENG
DVD
While watching a DVD, JPEG CD, you can set the image you like as a wallpaper.
Setting the Wallpaper
1
During playback, press
PAUSE button when
the image you like
comes up.
2
To Change the Wallpaper
Press LOGO
button.
1
Press MENU
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
4
Press to select
the desired ‘USER’,
and then press
ENTER.
5
Press EXIT
button to exit the
setup screen.
3
Press Cursor
button to move to
‘LOGO’ and then
press ENTER button.
• “COPY LOGO DATA” will be
displayed on the TV screen.
COPY LOGO DATA
PAUSE
• The selected wallpaper will be displayed.
• You can repeat Steps 1 and 2 to set up to
3 wallpapers.
• The power will turn off and turn on
automatically and back on the display
mode.
SETUP
Note
Press RETURN button to return to the previous level.
Press MENU/EXIT button to exit the setup screen.
Select this to set the
Samsung Logo image as
your wallpaper.
45
Select this to set the desired
image as your wallpaper.
46
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 38
Setting the DRC (Dynamic Range Compression)
AV SYNC Setup
You can use this function to enjoy Dolby Digital sound when watching movies at
low volume at night.
Video may look slower than the audio if it is connected with digital TV.
In this case, adjust the delay time of audio to optimal status to fit the video.
1
Press MENU button.
2
Press Cursor button to
move to ‘Audio’ and then
press ENTER button.
1
Press the MENU button.
• Setup menu appears.
3
If “DRC” is
selected, press
ENTER.
4
Press Cursor ,
adjust the ‘DRC’.
2
ENG
Press Cursor , buttons
to move to ‘Audio’ and then
press ENTER button.
• 'Audio' menu appears.
to
3
Press Cursor ,
buttons
to move to ‘AV-SYNC’ and
then press ENTER button.
• AV-SYNC screen appears.
4
Press Cursor
, buttons
to select the Delay Time of
AV-SYNC and then press the
ENTER button.
• You can set the audio delay time between 0 ms
and 300 ms. Set it to the optimal status.
MOVE
ENTER
RETURN
EXIT
Press RETURN button to return to the previous level.
Press MENU/EXIT button to exit the setup screen.
47
Press RETURN button to return to the previous level.
Press MENU/EXIT button to exit the setup screen.
48
SETUP
button is pressed, the
• The more times the Cursor
greater the effect, and the more times Cursor
button is
pressed, the smaller the effect.
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 40
Listening to Radio
Presetting Stations
ENG
You can store up to:
15 FM stations
1
2
Press the TUNER button to select the FM band.
Select a broadcast station.
Automatic Tuning 1 : Press the STOP ( ) button to select <PRESET> and then press
the
button to select the preset station.
Automatic Tuning 2 : Press the STOP (
the
Example : Presetting FM 89.10 in the memory
1
2
Press the TUNER button to select the FM band.
Press the
button to select <89.10>.
) button to select <AUTO> and then press
button to automatically search the band.
Manual Tuning : Press the STOP ( ) button to select <MANUAL> and then briefly press
the
button to tune in to a lower or higher frequency.
kHz
MHz
3
Press the TUNER MEMORY button.
kHz
Press the MO/ST button to listen in Mono/Stereo.
Each time the button is pressed, the sound switches between <STEREO> and <MONO>.
In a poor reception area, select MONO for a clear, interference-free broadcast.
MHz
4
Press the
button to select preset number.
You can select between 1 and 15 presets.
kHz
MHz
5
Press the TUNER MEMORY button again.
The station is stored in memory.
To preset another station, repeat steps 2 to 5.
To tune in to a preset station, press the
control to select a channel.
button on the remote
• This unit does not receive AM broadcasts.
49
50
RADIO OPERATION
6
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 42
Canceling the Timer
Timer Function
•
•
•
•
The timer enables you to switch the system on or off at specific times.
If you no longer want the system to be switched on or off automatically, you must cancel the timer.
Before setting the timer, check that the current time is correct.
For each step, you have a few seconds to set the required options.
If you exceed this time, you must start again.
ENG
After having set the timer, it will start automatically as shown by the TIMER indication on the
display. If you no longer wish to use the timer, you must cancel it.
Example: You wish to wake up to music every morning.
1
Switch the system
on by pressing
POWER.
2
Press
TIMER/CLOCK
until TIMER is
displayed.
3
Press the ENTER
button.
To cancel the timer, press TIMER
ON/OFF once.
• ON TIME is displayed (instead
of the equalizer symbols) for a
few seconds, followed by any
switch-on time already set; you
can set the timer switch-on time.
4
5
Set the timer
switch-on time.
Set the timer
switch-off time.
a. Set the hour by pressing
or
button.
b. Press ENTER.
• The minutes flash.
c. Set the minutes by pressing
or
button.
d. Press ENTER.
• VOL 10 is displayed, where 10
corresponds to the volume
already set.
7
8
Press or button
to select the source to
be played when the
system switches on.
Press ENTER to
confirm the timer.
Press or button
to adjust the volume
level and press
ENTER.
is no longer displayed.
To resume the timer, press TIMER
ON/OFF again.
• The source to be selected is
•
displayed.
is displayed again.
Note
• You can cancel the timer while the power is on or while the player is in standby.
9
Press POWER to
set the system to
standby mode.
MISCELLANEOUS
a. Set the hour by pressing
or
button.
b. Press ENTER .
• The minutes flash.
c. Set the minutes by pressing
or
button.
d. Press ENTER.
• OFF TIME is displayed (instead
of the equalizer symbols) for a few
seconds, followed by any switchoff time already set; you can now
set the timer switch-off time.
6
•
• TAPE (cassette) : Insert a cassette
•
•
•
• is displayed to the top right of
tape.
the time, indicating that the timer
TUNER (radio) : a Press ENTER.
has been set.
b Select a preset
station by pressing
• The system will switch on and off
or .
automatically at the required
DVD/CD (compact disc) : Load on or
times.
more compact
disc.
USB :Insert a USB.
Note • If the timer switch on and off times are identical, the word ERROR is displayed.
51
•You can also use Multi Jog or
remote control in step 4,5,6,7.
button on the front panel to instead
,
button on the
52
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 44
POWER SOUND / POWER
BASS / DSP/EQ Function
Your mini-compact system is equipped with the function
of Power Sound.
The function of Power Sound amplifies bass and
improves high key or bass twice as much for you to
appreciate powerful real sound.
Your mini-compact system has a bass amplification
function called SBS (Super Bass Sound). This
function makes the sound more powerful and real.
Press the P.BASS button.
Press the P.SOUND button
Result: “P.SOUND” is displayed for a few seconds.
To cancel this function, press P.SOUND again, “PASS”
is displayed for a few seconds, and P.SOUND
disappears.
When CD Ripping,the P.SOUND function can’t work .
Result: BASS is displayed and “P. BASS” is
displayed for a few seconds.
To cancel this function, press P.BASS again, “OFF”
is displayed for a few seconds.
Sleep Timer Function / Mute Function
ENG
Sleep Timer Function
You can set the time that the DVD player will shut itself off.
Press SLEEP button.
• Each time the button is pressed, the selection changes as follows:
90 MIN ➝ 60 MIN ➝ 45 MIN ➝ 30 MIN ➝ 15 MIN ➝ OFF.
kHz
MHz
When CD Ripping,the P.BASS function can’t work and the
P.BASS automatically covert to “OFF” mode.
To confirm the sleep timer setting, press SLEEP button.
Press DSP/EQ on the remote control until the required option is selected.
Your mini-compact system is equipped with a preset equalizer that allows you to choose the most
appropriate balance between treble and bass frequencies, according to the type of music you are
listening to.
To obtain a...
Normal balance (linear)
Balance suitable for pop music
Balance suitable for jazz music
Balance suitable for rock music
Balance suitable for studio
Balance suitable for club
Balance suitable for hall
Balance suitable for movie
Balance suitable for chur ch
Select...
PASS
POPS
JAZZ
ROCK
STUDIO
CLUB
HALL
MOVIE
CHURCH
earlier.
To cancel the sleep timer, press SLEEP button until
OFF appears on the display.
Mute Function
This is useful when answering a doorbell or telephone call.
Press MUTE button.
MISCELLANEOUS
When CD Ripping,the DSP/EQ function can’t work and the
DSP/EQ automatically covert to “PASS” mode.
•The remaining time before the DVD player will shut itself off is displayed.
•Pressing the button again changes the sleep time from what you have set
• ‘MUTE ’ appears in the display.
• To turn off mute, press the button again.
kHz
MHz
53
54
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 46
DEMO Function / DIMMER Function/
ECO Function
DEMO Function
You can view the various functions available on
your system.
Press DEMO/DIMMER button.
• The various functions available are listed in turn on the
•
display.
All these functions are described in detail in this booklet.
For instructions on how to use them, refer to the
appropriate sections.
DIMMER Function
You can adjust the brightness of the display on the main
unit so it won't interfere with your movie viewing.
Press DEMO/DIMMER button.
• Each time the button is press, the brightness changes as
follows: DIMMER ON(Dim) ➞ DIMMER
OFF(Bright).
To cancel this function, press
DEMO/DIMMER again.
ECO Mode Function
• To activate the ECO mode,Press POWER while the unit is turned off (on standby),The
display illumination(including the display demonstration) disappears.
• While ECO mode is activated, the display demonstration is canceled temporarily.
ENG
You can rip a compact disc as a MP3 file on the USB
This feature enables you to ripping with the start of the disc or track of your choice.
1
4
Switch the system
on by pressing
STANDBY/ON.
Press CD
RIPPING button
on remote control
to starting ripping.
If the system is either at pause or playing state,turn
the CD RIPPING dial down or press CD RIPPING
button on the remote control to start the ripping for
the current track.
Turn CD RIPPING dial up or press and hold CD
RIPPING button on the remote control to start
ripping the all tracks of Disc.
“CD Ripping” is displayed in red and CD RIPPING
starts.
During CD ripping, do not disconnect USB device.
2
5
Connect the
USB.
To stop ripping, press
STOP button.and
then automatically
create and save as
the MP3 file.
3
Load a compact
disc(Digital
Audio).
Press the OPEN/CLOSE button to open
the disc tray.
Insert a CD and press the OPEN/CLOSE
button to close the disc tray.
Use the CD selection (
select the desired song.
) buttons to
After CD-Ripping,a directory named
“RIPPING” will be created in your device.The
file name follows the format:”SAMXXXX”.MP3.
Note
Don’t disconnected USB and AC Cord during CD-Ripping.This may cause the file
damage.If you want to stop CD-Ripping during CD-Ripping,you must press stop Key
first and after the CD Stopped,then you can remove the USB device.
If you disconnected USB device when CD Ripping,the main unit will be power off and
you may not delete the ripped file,In this case, please connect the USB on the PC and
backup the USB data on the PC first and then formate the USB device .
On the CD playing ,connect the USB,the CD play will be paused and will resume
playing till the USB initilization finished.
According the different USB the initilization time maybe different.
When the USB memory is not enough,it will be displayed “NOT ENOUGH MEMORY”
DTS-CD can’t for CD Ripping.
Starting CD ripping within 5 seconds can’t create the CD Ripping file.
Ripping file is only created when CD Ripping is stopped afters 5 seconds
(ex. SAM-0001.MP3).
With external HDD,FAT format the USB can be CD Ripping,but not NTFS.The CD
Ripping function of this product does not support all USB devices.
When you use CD high speed search function,the CD Ripping can’t work.
When CD Ripping, CD audio can’t be out.
During CD Ripping,do not deal impact.If is shocked while CD Ripping,CD Ripping
maybe disengage.
CD Ripping Feature Supported Player
Product
YP-T8
YP-T7F
YP-D1
YP-T8N
YP-U2
YP-T9
YP-K5
YP-K3
YV-150
YP-U3
Company
Type
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MISCELLANEOUS
You can save the power consumption while the unit is turned
off(on standby).
CD RIPPING Function
Sometimes, some of USB devices, CD Ripping time is long.
If you use scratched disc for CD Ripping, or connect/disconnect HDMI cable
during CD Ripping, there might be some noise and broken sound on ripped
file.
When HDMI audio on, the CD RIPPING can’t work.
55
56
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 48
Connecting Headphones/Microphone
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause breaks in
playback. Be especially careful not to scratch discs when handling them.
You can connect a set of headphones to your micro component system so that you
can listen to music or radio programmers without disturbing other people in the room.
The earphones must have a 3.5ø jack or an appropriate adapter.
Handling discs
ENG
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints will not
get on the surface.
Do not stick paper or tape on the disc.
Handling and Storing Discs
When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.
• When cleaning, wipe gently from the inside to the outside of the disc.
Connect the headphones
to the PHONES jack on
the front panel.
• The loudspeakers are no longer used to
output the sound.
Note
Note
• Condensation may form if warm air comes into contact with cold parts
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.
• Prolonged use of headphones at a high volume may damage
your hearing.
• HDMI AUDIO ON is converted to OFF when connected the
headphones.
• When CD ripping,CD Audio can’t be out.
Plug the microphone with a 6.3ø MIC
jack into microphone terminal.
• Connect the Microphone.
• Press the MIC VOL buttons to adjust the MIC level.
57
MISCELLANEOUS
• Press the ECHO button to select ECHO1,ECHO2, and ECHO OFF.
• When connected a MIC,HDMI output is not available.
58
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 50
Before Calling for Service
ENG
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not
listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact
the nearest authorized dealer or Samsung Electronics Service Center.
Symptom
Disc tray does not open.
Playback does not start.
Check/Remedy
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
•
•
The remote control does
not work.
DVD discs purchased from abroad may not be playable.
CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
Make sure that the rating level is correct.
• Is the remote control being operated within its operation range of
•
angle and distance?
Are the batteries exhausted?
Playback does not start
• Are you using a deformed disc or a disc with scratches on
the surface?
immediately when the
• Wipe the disc clean.
Play/Pause button is pressed.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and step
•
•
Picture does not appear, sound
is not produced, or the disc
tray opens 2 to 5 seconds later.
59
Was the DVD player suddenly moved from a cold place to a warm
one? When condensation forms inside the player, remove the disc
and let the player stand for 1 or 2 hours with the power on. (You
can use the player again after condensation disappears.)
Check/Remedy
Audio language and
subtitles do not work.
• Audio language and subtitles will not work for DVDs not containing
Menu screen does not appear even
when the menu function is selected.
• Are you using a disc that does not contain menus?
The volume falls off
The cassette is not erased correctly
There is excessive wow and flutter
• The audio heads are dirty.
• The rollers or drive capstans are dirty.
• The tape is worn.
Can't receive radio
broadcast.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
• The main unit is not working.
(Example: The power goes out or
strange noise is heard.)
• The DVD player is not
working normally.
The password for rating
level has been forgotten.
them. And depending on the disc, they may work differently.
antenna in an area with good reception.
• Turn off the power and hold the STOP button on the main unit for
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While the player is in “NO DISC” mode, hold the main unit's TUNING
MODE/ button for longer than 5 seconds. “INITIAL” appears on the
display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
MISCELLANEOUS
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
•
motion playback.
Are the speakers connected properly? Is the speaker setup
correctly customized?
Is the disc severely damaged?
Symptom
60
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 52
Specifications
USB Host Feature Supported Products
ENG
DIGITAL CAMERA
RADIO
FM
Signal/noise ratio
55 dB
Usable sensitivity
10 dB
Total harmonic distortion
0.6 %
COMPACT DISC PLAYER
Capacity
1 disc
Frequency range
20 Hz - 20 KHz (± 1 dB)
Signal/noise ratio
85 dB (at 1 KHz) with filter
Distortion
0.05 % (at 1 KHz)
Channel separation
75 dB
Disc sizes
Diameter: 120 or 80 mm. Thickness: 1.2 mm
AMPLIFIER
Output power
Front Speaker(3 Ω)
135W/CH RMS,IEC (total harmonic distortion: 10 %)
Subwoofer Speaker(3 Ω)
180W/CH RMS,IEC (total harmonic distortion: 10 %)(MAX-DA76 ONLY)
Channel separation
40 dB
Signal/noise ratio
75 dB
GENERAL
Power consumption
100W
Dimensions
350 (D) x 390 (H) x 180 (W) mm
Weights
4.8 Kg
Product
Finepix-A340
Finepix-F810
Finepix-F610
Finepix-f450
Finepix S7000
Finepix A310
KD-310Z
Finecam SL300R
Finecam SL400R
Finecam S5R
Finecam Xt
Dimage-Z1
Dimage Z1
Dimage X21
Coolpix4200
Coolpix4300
Coolpix 2200
Coolpix 3500
Coolpix 3700
Coolpix 4100
Coolpix 5200
Stylus 410 digital
300-digital
300-digital
Type
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Product
U300
X-350
C-760
C-5060
X1
U-mini
Lumix-FZ20
DMC-FX7GD
Lumix LC33
LUMIX DMC-F1
Optio-S40
Optio-S50
Optio 33LF
Optio MX
Digimax-420
Digimax-400
Sora PDR-T30
Coolpix 5900
Coolpix S1
Coolpix 7600
DMC-FX7
Dimage Xt
AZ-1
Company
Olympus
Olympus
Olympus
Olympus
Olympus
Olympus
Panasonic
Panasonic
Panasonic
Panasonic
Pentax
Pentax
Pentax
Pentax
Samsung
Samsung
Toshiba
Nikon
Nikon
Nikon
Panasonic
Minolta
Olympus
Type
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Digital Camera
Company
Sandisk
Sandisk
Sandisk
Sony
Serotech
A.L tech
Type
USB 2.0 USB Flash Drive 128M
USB 2.0 128M
USB 2.0 256M
USB 2.0 64MB
USB 2.0 32MB
USB 2.0 128MB
Product
XTICK
Micro Mini
iFlash
LG
RiDATA
Company
LG
Iomega
Imation
XTICK(M)
EZDrive
Type
USB 2.0 128M
USB 2.0 128M
USB 2.0 64M
USB 2.0 64M
USB 2.0 64M
Company
Creative
Iriver
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Samsung
Type
128 MB MP3 Player
20G HDD MP3 Player
20G HDD MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
Product
YP-780
YP-35
YP-55
iAUDIO U2
iAUDIO G3
iAudio M3
SI-M500L
H10
YP-T5 VB
YP-53
Company
Samsung
Samsung
Samsung
Cowon
Cowon
Cowon
Sharp
Iriver
Samsung
Samsung
Type
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
HDD MP3 Player
256MB MP3 Player
MP3 Player
MP3 Player
256MB MP3 Player
USB FLASH DISC
Product
Cruzer Micro
Cruzer Mini
Cruzer Mini
SONY Micro Vault
FLEX DRIVE
AnyDrive
MP3 PLAYER
MISCELLANEOUS
Product
Creative MuVo NX128M
Iriver H320
YH-920
YP-T7
YP-MT6
YP-T6
YP-53
YP-ST5
YP-T5
YP-60
WYW]_iTo{ThXWWShXWWjU•‹‹GGG\_T\`
61
Company
Fuji
Fuji
Fuji
Fuji
Fuji
Fuji
Konica
Kyocera
Kyocera
Kyocera
Kyocera
Minolta
Minolta
Minolta
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Nikon
Olympus
Olympus
Olympus
62
36P~76P(DA75/76)-NO TAPE
2008.6.23
5:57 PM
Page 54
Notes on Terminology
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care centre.
Region
North America
ANGLE
CHAPTER
NUMBER
DVD
Recorded onto some DVD discs are scenes which have been simultaneously shot
from a number of different angles (the same scene is shot from the front, from the
left , from the right , etc.).
With such discs, the Angle button can be used to change the angle of view for
specific scenes.
Latin America
These numbers are recorded on DVD discs. A Title is subdivided into many
sections, each of which is numbered, and specific parts of the video can be
searched quickly using these numbers.
A high-density optical disc on which high-quality pictures and sound have been
recorded by means of digital signals. Incorporating a new video compression
technology (MPEG-2) and high-density recording technology, a DVD disc
comprises two 0.6 mm thick discs bonded together.
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
NICARAGUA
HONDURAS
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
COLOMBIA
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
REGION NUMBER
Both the DVD player and DVD discs are encoded with a region number.
If the region number on the DVD disc does not correspond to the region number
of the DVD player, the player cannot play the disc.
SUBTITLES
Translated appearing at the bottom of the screen. A DVD disc can contain up to
32 subtitle languages.
TITLE NUMBER
These numbers are recorded on DVD discs. When a disc contains two or more
movies, these movies are numbered as Title 1, Title 2, etc.
TRACK NUMBER
These numbers are assigned to the tracks which are recorded on video and
audio CDs. They enable specific tracks to be located quickly.
CIS
Asia Pacific
Middle East &
Africa
63
3260 SAMSUNG ( 0,15/Min),
08 25 08 65 65 ( 0,15/Min)
Web Site
www.samsung.com/ca
www.samsung.com
www.samsung.com
www.samsung.com/ar
www.samsung.com
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com.co
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com
www.samsung.com/be
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com
www.samsung.com/se
www.samsung.com
www.samsung.com/ie
www.samsung.com/at
www.samsung.com/ch
www.samsung.com
www.samsung.kz
www.samsung.uz
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
EIRE
AUSTRIA
SWITZERLAND
RUSSIA
KAZAHSTAN
UZBEKISTAN
KYRGYZSTAN
TADJIKISTAN
UKRAINE
LITHUANIA
LATVIA
ESTONIA
AUSTRALIA
NEW ZEALAND
CHINA
HONG KONG
INDIA
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
TAIWAN
VIETNAM
TURKEY
01805 - SAMSUNG(726-7864) (
06-80-SAMSUNG(726-7864)
800-SAMSUNG(726-7864)
0035 (0)2 261 03 710
SOUTH AFRICA
0860-SAMSUNG(726-7864 )
www.samsung.com
U.A.E
800-SAMSUNG (726-7864), 8000-4726
www.samsung.com
0,14/Min)
0900-SAMSUNG(726-7864) ( 0,10/Min)
815-56 480
0 801 801 881 , 022-607-93-33
80820-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
902 10 11 30
0771-400 200
0845 SAMSUNG (7267864)
0818 717 100
0800-SAMSUNG(726-7864)
0800-SAMSUNG(726-7864)
8-800-555-55-55
8-10-800-500-55-500
8-10-800-500-55-500
00-800-500-55-500
8-10-800-500-55-500
8-800-502-0000
8-800-77777
800-7267
800-7267
1300 362 603
0800SAMSUNG(726-7864)
800-810-5858 , 010-6475 1880
3698-4698
3030 8282 , 1800 110011
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG(726-7864)
1800-SAMSUNG(726-7864)
1800-29-3232 , 02-689-3232
0800-329-999
1 800 588 889
444 77 11
www.samsung.com
www.samsung.lt
www.samsung.com/lv
www.samsung.ee
www.samsung.com
www.samsung.com/nz
www.samsung.com
www.samsung.com/hk
www.samsung.com
www.samsung.com
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com
www.samsung.com
www.samsung.com/tw
www.samsung.com
www.samsung.com
MISCELLANEOUS
5.1 (or 6) Channel Digital Surround sound reproduced from DVDs and LDs
recorded as a digital signals (with
disc marking). With better sound quality,
dynamic range, and directionality than traditional Dolby surround technology, you
can enjoy dynamic, realistic sound.
Europe
Customer Care Center
1-800-SAMSUNG(726-7864)
01-800-SAMSUNG(726-7864)
1-800-SAMSUNG(726-7864)
0800-333-3733
0800-124-421 , 4004-0000
800-SAMSUNG(726-7864)
00-1800-5077267
800-7919267
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-SAMSUNG(726-7864)
0-800-100-5303
01-8000112112
0032 (0)2 201 24 18
844 000 844
Distributor pro Českou republiku:
Samsung Zrt., česka organizační složka
Vyskočilova 4, 14000 Praha 4
70 70 19 70
030-6227 515
ENG
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
