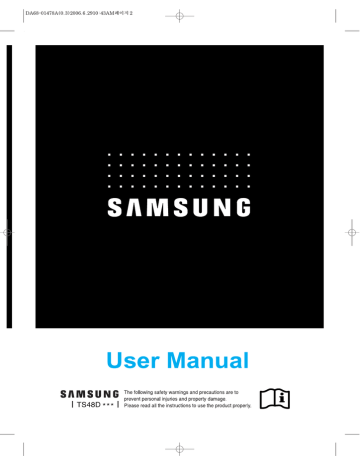

DA68-01478A(0.3)2006.6.2910:43AM페이지 2
DA68-01478A(0.3)2006.6.2910:43AM페이지 3
SAMSUNG refrigerators feature the following functions.
Its TDM cycle makes it possible to extend storage of food for longer peroids.
TWIN Cooling TDM
By monitoring the states of the freezer and the fridge
compartments on a real time basis, it runs both of the
evaporators in optimal conditions and makes it
possible to maintain world best 71% of humidity in the
fridge compartment and extend storage life of food.
SAMSUNG refrigerators’ licensed technology.
Condenser
Compr
essor
Fridge Evaporator
TDM
Valve
Freezer Evaporator
Nano Silver Health System for antibiosis and bacteriostasis
Elimination Rate
By nano-coating the liner surfaces (compartments and
doors) with silver, it prevents the propagation of bacteria
inside of the refrigerator making it possible to store foods
safely much longer.
■ Advantages of Silver Nano-Coating
- It does not harm the human body, is nonpoisonous and
prevents the propagation of more than 650 kinds of
bacteria, viruses and fungi.
- Most of bacteria, viruses and fungi will be destroyed or
impossible to propagate by the electric force of Ag+ions.
- It is made of silver particles which are effective without the
deterioration of its antibiosis and bacteriostasis functions
for its life time.
Fresh Island:Cutting Edge Customized Temp Control System
By optimizing storage temperatures and realizing 71%
of humidity with TWIN Cooling TDM, it is
now possible to customize its storage temperatures for
various types of foods and different
purposes.
DA68-01478A(0.3)2006.6.2910:43AM페이지 4
PREPERATION
USAGE
a
s
SAFETY PRECAUTIONS
4
NAME OF EACH COMPONENT
6
PRECAUTIONS BEFORE INSTALLATION
8
CHECKPOINTS BEFORE USE
CHECK THE FOLLOWING BEFORE USE.
10
BUTTON & DISPLAY PANEL
FUNCTION OF EACH BUTTON
11
HOW TO STORE FOOD
12
HOW TO CONTROL TEMP
TO ADJUST TEMPERATURES
14
HOW TO USE DISPENSER
16
HOW TO REPLACE WATER-PURIFYING FILTER
18
FRESH ISLAND
19
HOW TO STORE WINE
21
WISDOM FOR LIFE
23
HOW TO CLEAN AND TAKE CARE OF THE PRODUCT
26
CHECKPOINTS BEFORE SERVICE CALLS
29
PRODUCT SPEC
32
CONTENTS
ds.
e
OTHERS
%
or
3
DA68-01478A(0.3)2006.6.2910:44AM페이지 5
Make sure to follow the
instructions for your safety.
The following instructions are to prevent personal injuries and property damage.
Please read all the instructions to use the product properly.
SAFETY PRECAUTIONS
■ SAFETY WARNIINGS
• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Because these following operating instructions cover various models, the characteris tics of your
refrigerator may differ slightly from those described in this manual.
• The appliance is not intended for use by children or infirm persons without adult supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• HFC- R134a is used as a refrigerant.
• The refrigerator only use ice makers which are made by samsung Electronics for the refrigerator.
• The incorporated ice-makers are to be installed only by the manufacture or its service agent.
CAUTION/WARNING SYMBOLS USED
OTHER SYMBOLS USED
This product operates on rated 240V.
It explains terms to help users
to understand how to use the
product properly.
It helps users to use the
product more efficiently.
It indicates that there is possibility of
death or serious injury if the
instruction is not complied with.
It is a mark indicating that the
power plug should be removed
from the wall outlet.
It is a mark indicating that it is
prohibited to disassemble.
It indicates that there is possibility of
personal injuries or property damage
if the instruction is not complied with.
It is a mark indicating that
earthing is required to prevent
electric shock.
It is a mark for a reference
page.
WARNINGS
PREPERATION
Do not plug several appliances into the same multiple
power board.
• This could cause overheating and the risk of fire.
Do not disassemble or repair the refrigerator by yourself.
• You run the risk of causing a fire, malfunctions and/or
personal injury.
Make sure that the power plug is not squashed or damaged by the back of the refrigerator .
• A damaged power plug may overheat and cause fire.
Do not change the interior halogen lamp by yourself but
call to service center.
• Otherwise, there is a risk of electric shock.
Do not bend the power cord excessively or place heavy
articles on it .
• This constitutes a fire hazard. If the power cord is
damaged, have it replaced immediately by the
manufacturer or its service agent.
When disposing of a refrigerator, remove the door/door
seals/door latch so that children or small animals cannot
become trapped inside.
Do not directly spray water inside or outside the refrigerator.
• There is a risk of fire or electric shock.
Do not spray inflamable gas near the refrigerator.
• There is a risk of explosion or fire.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on the
refrigerator.
• If spilled, there is a risk of fire or electric shock.
Do not install the refrigerator in a damp place or a
place where it may come in contact with water.
• Deteriorated insulation of electrical parts may cause an
electric shock or fire.
Do not store volatile or flammable substances in the
refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas and
other such products may cause explosions.
4
The refrigerator must be earthed.
• You must earth the refrigerator to prevent any power leak
ages or electric shocks caused by current leakage from the
refrigerator.
Never use gas pipes, telephone lines or other potential
lightening rods as earth.
• Improper use of the earthed plug can result in electric
shock.
WARNINGS
• Keep ventilation openings in the appliance enclosure or
mounting structure clear of obstruction.
• Do not use mechanical devices or any other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the
refrigerator/freezer, unless they are of a type recommended
by the manufacturer.
DA68-01478A(0.3)2006.6.2910:44AM페이지 6
e.
This product has 360℃ rotating casters.
So, if you take your hands off the product on a slant, it
will skid on the slant and fall over. To preventlt, make
sure to hold the product firmly.
• If the product topples over, it cause severe injuries or death.
This product is top heavy. So, there is the possibility of
tipping forward when it is not installed properly. When
moving the product, make sure not to tip it over.
• If the product topples over, it cause severe injuries or death.
under the appliance.
• Any sharp edges may cause personal injury.
Never put fingers or other objects into the dispenser hole
and ice chute. It may cause personal injury or material
damage.
HFC-R134a is used as a refrigerant.
CAUTIONS
CAUTIONS
Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and
cause personal injury or material damage.
Do not put bottles or glass containers in the freezer.
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
Do not disconnect the power cord by pulling on it.
• Damage to the cord may cause a short-circuit, fire
and/or electric shock.
• If the power cord is damaged, it must be replaced by
the manufacturer, a certified service agent or qualified
service person in order to avoid a hazard.
Do not store articles on the top of the appliance.
• When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
Do not store pharmaceuticals products, scientific
materials or temperature-sensitive products in the
refrigerator.
• Products that require strict temperature controls must
not be stored in the refrigerator.
Do not let children hang on the door. a serious injury
may occur.
If you smell pharmaceutical or smoke, pull out the power
plug immediately and contact your SAMSUNG
Electronics service center.
Do not touch the inside walls of the freezer or products
stored in the freezer with wet hands.
• This may cause frostbite.
Do not insert your hands into the bottom area
The refrigerant used in the refrigerator/freezer and the
gases in the insulation material require special disposal
procedures. Ensure that none of the pipes on the back of
the appliance are damaged prior to disposal.
Do not use a wet or damp cloth when cleaning the plug.
Remove any foreign matter or dust from the power plug
pins.
• Otherwise there is a risk of fire.
• If the refrigerator is disconnected from the power supply, you
should wait for at least five minutes before plugging it back.
When there is thunder or lightening or when the product
is not used for a long time, flip up the grill panel and set
the power switch to the O (OFF).
• Possibility of electric shock or fire.
SAFETY PRECAUTIONS
WARNINGS
PREPERATION
The appliance is not intended for use by young children
or infirm persons without supervision.
Young children should be supervised to ensure that they
do not play with the appliance.
Do not store items in the ventilation space.
• It will cause a decrease in cooling capacity.
Do not place the fridge directly under the sunlight.
The power plug must be connected before the appliance
is positioned.
If the power cord is damaged it must be replaced by
manufacturer, a certified service agent or qualified
service personnel.
• Never start up an appliance showing any signs of damage. If
in doubt, consult your dealer.
Please dispose of the packaging material for this product
in an environmentally friendly manner.
Please contact your local authorities in regard to the
enviromentally safe disposal of this product.
This product is intended only for the storage of food in a
domestic environment.
5
DA68-01478A(0.3)2006.6.2910:44AM페이지 7
Remember each part name.
NAME OF EACH COMPONENT
Grill Panel
Button & Display Panel
Show the set functions.
PREPERATION
Freezer Door
Dispenser
supplies drink water via a water filter
and ice cubes made with the ice maker.
6
DA68-01478A(0.3)2006.6.2910:44AM페이지 8
Remember each part name.
NAME OF EACH COMPONENT
Filter
PREPERATION
Fridge Door
Door Handle
7
DA68-01478A(0.3)2006.6.2910:44AM페이지 9
Make sure to check before
installation.
PRECAUTIONS BEFORE INSTALLATION
■ Select an installation place
Please check the followings before install the product.
Check if the product can clear the doors on its way to the installation position.
▶If the product is not able to clear the doors, it is not possible to install.
Model
A
B
C
D
E
Etc
TS48D ***
1,219
706
2,134
2,458
2,248
48"
D
C
A
E
B
Please check if there is enough space to install the product.
▶If there is not enough space, it is not possible to install.
A
PREPERATION
Location of
Electrical
Receptacle
C
Water
Supply
Opening
B
8
Model
A
B
TS48D ***
1206
over than 610mm
C
2,120Min
2,140Max
Etc
48"
DA68-01478A(0.3)2006.6.2910:44AM페이지 10
Check if the floor is flat.
▶If the refrigerator is installed on an uneven floor, it will cause vibration and
noise.
Check if the floor can support the weight of the refrigerator and the
food inside (500Kg total).
▶ It could damage the refrigerator.
Check if the product is placed within the reach of a wall outlet.
When the product is a dispenser model, check if it is within easy access
of water supply and the humidity is low.
▶ Please select a place with easy access to water supply for the the water &
ice dispenser.
Avoid a place with high heat or extremely cold.
▶ Install the product with an ambient temperature between 5℃and 43℃.
▶ When it is installed in a place with an extremely cold or hot ambient
temperature, the product could mal-function and its cooling capacity will
decrease resulting in an increase in power consumption.
PRECAUTIONS BEFORE INSTALLATION
■ Select an installation place
PREPERATION
■ Earth the product
Make sure to earth the product to prevent electric leakage or an
electric shock.
Do not earth it to a gas
pipe or a telephone cord.
Possibility of explosion,
electric shock or fire.
● Maker sure your house power supply
has
an earth circuit always use a 3 pin plus
with an earth wire.
▶ When the product fails to operate : Make sure it is earthed to prevent
electric leakage or an electric shock.
▶ When there is no earth with normal products:When touching the
handle or surface of the product, a minute amount of electric leakage
can be felt. (It can be felt on all products made of electricity conducting
materials (metal plate).It is obliged to use a right angle power
plug.Also, make sure to earth the product.)
<When the wall outlet has a earth terminal>
earth
Terminal
▶ It doesn't need earthing. (But, when
the wall outlet has no earth terminal,
make sure to earth the product.)
<When the wall outlet has no earth terminal>
▶ When plugging the product into a wall outlet having no earth, connect
the earth wire to the earth screw on the back of the product and then
connect the other end to a metallic water pipe or earth guide.
▶ Never use a wall outlet or an extension cord having no earth wire.
(Without earth, minute electric leakage can be generated.)
▶ Please refer to the installation manual for installation details.
9
DA68-01478A(0.3)2006.6.2910:44AM페이지 11
Check the following before use.
CHECKPOINTS BEFORE USE
USAGE
Before using the refrigerator, make sure to check the followings.
It will show ways to use the product safely and efficiently.
When plastic smells are coming from the refrigerator
▶Open the refrigerator doors and air the inside.
- With a new product, there could be plastic smells inside the refrigerator.
▶Before using the product, please remove all the adhesive tapes eliminating
chemical smells.
When storing food for the first time
▶Place food in the refrigerator when it cools down in 2~3 hours after the
product is plugged in.
- When you place food in the refrigerator before it cools enough, food smells
permeate the inner liners.
When the start-up sound is loud
▶When starting up a new refrigerator, the compressor and the motor operate
at high rpm to cool down the freezer and the fridge compartments quickly,
generating a slight noise.
- When it gets to the set temperature and reaches a stable state, the noise decrease.
P
Y
to
When the power goes off
▶Please maintain the doors closed.
- When the power does not come back on for 2~3 hours in summer, the cool
temperature inside will be maintained.
When an alarm goes off during operation
▶If any one of the doors remains open at a more than 15 degree angle for
more than 2minutes, it sends off an alarming sound every minute
indicating that a door is open.
10
DA68-01478A(0.3)2006.6.2910:44AM페이지 12
Function of Each Button
POWER FRE.
FRE.TEMP
REF.TEMP
POWER REF.
POWER REF.
g
SOUND
LOCK
FRE. TEMP
Soft Freezing
ICE OFF
Quick Cool
Chill
REF. TEMP
Cool
LOCK
SOUND
LOCK
SOUND
You can lock all the buttons
with this function.
You can select or cancel it.
FRE. TEMP
ate
,
se.
Button &
The freezer compartment temperature Display Panel
can be set at between -25℃and -17℃
by pressing this button.
REF. TEMP
The fridge compartment temperature can be set
at between 0℃and 5℃by pressing this button.
POWER FRE.
POWER REF.
You can use this function to freeze food quickly or
to make ice cubes much faster.
■Dispenser Function Select Button
ICE OFF
ICE OFF
WATER
■ Fresh Island Function Display
Soft Freezing
CUBED ICE
Quick Cool
CRUSHED ICE
CRUSHED ICE
▶ Select it for crushed ice.
Quick Cool
▶ It shows that Fresh Island is operating in
quick cooling conditions.
Chill
Chill
▶ It shows that Fresh Island is operating in
▶ Select it for cubed ice.
r
e
Soft Freezing
▶ It shows that Fresh Island is operating in
soft freezing conditions.
▶ Select it for water.
CUBED ICE
USAGE
You can use this function to cool down the
compartment faster.
▶ Select it when you do not use the ice maker.
WATER
BUTTON & DISPLAY PANEL
POWER FRE.
Basic functions of each button and the display.
optimized refrigeration conditions.
Cool
Cool
▶ It shows that Fresh Island is operating in
cool freezing conditions.
※ The above functions are available only with Fresh Island.
■ Water Filter Indicator Function Display
Water Filter Indicator
▶ When the green light changes to yellow, it is time to replace the water filter. If indicator is red, quick replacement is strongly recommended.
▶ When the water filter is replaced, reset the indicator by pressing the FILTER CHANGE button for 3 seconds.
11
DA68-01478A(0.3)2006.6.2910:44AM페이지 13
Let's figure out the correct
use of each storage space.
Each storage space provides its own storage conditions for different kinds of food.
You can enjoy the optimum taste of food by storing it in a selected place.
HOW TO STORE FOOD
Ice Bin
Store ice cubes made by the ice maker.
Do not store other food except ice cubes.
Winter Closet
You can store frozen pizzas
and ice cream etc.
Freezer Compartment Shelf
You can store various kinds of frozen food such
as meat, fish, and ice creams.
Freezer Door Bin
You can store small packaged frozen food such as
beans. But, do not store ice creams or food
for long time storage
Dried Food & Meat Keeper.
USAGE
For the purpose of storing for a long time and
store meat and chicken after wrapping with
aluminum foil or plastic wrap.
■ Tips on food storage
Store fruits after washing in water.
12
Make sure to store food containers with
lids or plastic wrap on them.
Divide storing food into small sizes and
store them.
▶ Power can be saved because food can
be cooled-down quickly.
Do not store hot foods cooling it down.
▶ If you cool it down before putting it in the
refrigerator, the product can perform
efficiently and power can be saved.
▶ When hot food is put in the refrigerator, it could
cause water condensation or frost inside.
Put food with higher water contents on the
front part of the fridge shelf.
▶ When you put it on the inner part of the
fridge shelf directly exposed to the cold
air, it could becom frozen.
Please store foods with enough space between items.
▶ When excessive amount of food is stored, it
could interrupt air circulation resulting in a
decrease cooling capability.
DA68-01478A(0.3)2006.6.2910:44AM페이지 14
You can store dairy products such as butter
and cheese.
Fridge Compartment Shelf
Please put dishes or refrigerated foods with
enough space between items.
Fridge Door Bin
You can store small packaged refrigerated
food and beverages such as milk, fruit
juice and beer.
HOW TO STORE FOOD
Dairy Bin
Veggie/Fruit Drawer
You can store vegetables and fruits in fresh
conditions.
USAGE
Fresh Island
You can store meat, raw fish and food which
needs to be stored at lower temperature than
that in the fridge compartment to be used
within a week.(
Refer to P.19~20)
● Do not touch on containers or food in the freezer compartment with wet hands.Possibility of frostbite.
● Do not put food or containers in a place directly exposed to the cold air discharging port. It could be colder than
the set temperature resulting in food damage.
● Do not keep medical products or lab materials in the refrigerator. This product is only for food storage.
● Do not put any glass bottles in the freezer compartment. When the content freze, it can burst and causing
severe injury.
13
DA68-01478A(0.3)2006.6.2910:44AM페이지 15
To adjust temperatures
Learn how to control the fridge & the freezer temperatures.
Power can be saved by keeping food in appropriate temperatures.
HOW TO CONTROL TEMP
■ How to control freezer temperature
To control the freezer temperature, follow the procedures below.
POWER FRE.
POWER FRE.
FRE.TEMP
REF.TEMP
SOUND
LOCK
FRE. TEMP
ICE OFF
POWER REF.
POWER REF.
Soft Freezing
Quick Cool
Chill
REF. TEMP
Cool
LOCK
SOUND
Press the [ FRE. TEMP] button.
▶ Freezer temperatures can be adjusted between -25℃ and -17℃ with an
interval of 1℃. At this time, the temperature indication bars will be illuminating,
showing the temperature range (MAX, MID or MIN).
When the freezer temperature is set, it will display the set temperature for
the first 5 seconds. And then, it will display its current temperature.
FRE. TEMP
MAX
MID
▶When the set temperature and the displayed temperature are different from
each other, it will be automatically adjusted to the set temperature.
▶The numbers on the display represent the inside temperature of the freezer
compartment.
MIN
● The freezer temperature could change depends on the number of door
opening times, the quantity of stored food and the ambient temperature.
● Each storage section in the freezer compartment may have a different
temperature.
● When the temperature in the freezer compartment has increased due to
frequent use or the storage of hot food, the temperature display will blink.(In
this case, when the temperature reaches the set temperature, it will stop
blinking. if when it keeps on blinking, please contact our service center.)
USAGE
■ To speed up ice production
Press the [POWER FRE.] button.
▶ POWER FRE will illuminate in the display and it will start operating.
Press the [POWER FRE.]button one more time to cancel the POWER
FRE function.
POWER FRE.
14
● The POWER FRE function will be automatically turned off after a
certain period of time and the freezer temperature will return to the
temperature set right before the POWER FRE function is selected.
● When you press the [POWER FRE.] button, the refrigerator will
continuously operate for a certain period of time.
DA68-01478A(0.3)2006.6.2910:44AM페이지 16
To control the fridge temperature, follow the procedures below.
Press the [REF. TEMP] button.
▶ Fridge temperatures can be adjusted between 0℃and 5℃with an interval of 1℃.
At this time, the temperature indication bars will be illuminating, showing the
temperature range (MAX, MID or MIN).
When the fridge temperature is set, it will display the set temperature for
the first 5seconds. And then, it will display its current temperature.
MAX
REF. TEMP
MID
▶ When the set temperature and the displayed temperature are different from
each other, it will be automatically adjusted to the set temperature.
▶ The numbers on the display represent the inside temperature of the fridge
compartment.
MIN
● The fridge temperature could change depends on the number of door
opening times, the quantity of stored food and the ambient temperature.
● Each storage section in the fridge compartment may have a different
temperature.
● When the temperature in the fridge compartment has increased due to
frequent use or the storage of hot food, the temperature display will blink.
(In this case, when the temperature reaches the set temperature, it will stop
blinking. But, if it keeps on blinking, please contact our service center.)
HOW TO CONTROL TEMP
■ How to control fridge temperature
USAGE
■ To cool down the fridge compartment faster
Press the [POWER REF.] button.
▶ POWER REF will illuminate in the display and it will start operating.
Press the [POWER REF.] button one more time to cancel the POWER
REF function.
POWER REF.
● The POWER REF function will be automatically turned off after a certain
period of time and the fresh food temperature will return to the temperature
set right before the POWER REF function is selected.
● When you press the [POWER REF.] button, the refrigerator will continuously
operate for a certain period of time.
15
DA68-01478A(0.3)2006.6.2910:44AM페이지 17
Let's figure out how to
use the dispenser.
Enjoy high quality ice cubes and drinking water with the
dispenser of the SAMSUNG refrigerator.
HOW TO USE DISPENSER
■ HOW TO USE DISPENSER
Samsung refrigerators have embeded water filters.'
So, please use a supplied water filter when using it.
Ice cubes and water first made or supplied after the installation could send
out plastic smells.
▶ Throw away the first full bucket of ice.
▶ Throw away the first six glassfuls of water.
■ Check if the ice maker works with following methods.
②
1 Take out the ice bin in the upper part of the freezer compartment.
▶ Put your hand on the bottom of the ice bin and lift it up.And then,hold the upper
part of it and pull it forward.
If you drop it down, it could hurt your feet or damage the floor.
①
2 Press the ice maker test button at the upper part of the freezer
compartment for 2 seconds.
▶ After the ice tray rotates, it goes back to its initial position. When it completes its
rotation and water is supplied to the supply line, the operation of the ice maker
is normal.
If you need more storage space, remove ice bucket and you can use that
space as a storage space.
USAGE
■ Keep in mind the followings when using the ice maker!
▶ It takes 12 hours to get down to temperatures cold enough to make ice cubes
when the refrigerator is initially plugged in.
▶ In order to operate the ice maker properly, water pressure of 0.14 Mpa ~ 1.0
Mpa(1.4 ~10 kgf/㎠, 1.4bar~10 bar)is required. And it have to be connected to
portable water supply only.
▶ If common water pressure is higher than required pressure you had better use
a decompression device to prevent from breakage
Ice Maker Test Button
▶ The ice production speed depends on the number of door openings during its
operationand using conditions such as the ambient temperature.
▶ When ice dispenser is not used frequently, ice cubes will melt and get joined
together affecting the operation of the dispenser. At this time, take out the ice
maker and throw away the ice lump.
When you do not use water and ice for a long time such as during winter
or vacation season, shut off the water valve to cut the water supply.
- If the water pipe or the water purifier ruptures or water leaks out of it, it could get flooded.
When ice melts due to a power failure, wipe-dry the freezer compartment
after taking out the ice
maker and throwing away the ice lump
- Melted ice could escape the refrigerator making the floor slippery and damaging the floor.
16
DA68-01478A(0.3)2006.6.2910:44AM페이지 18
1 Press the CUBED ICE/CRUSHED ICE button and select the
shape of ice.
2 Press the glass gently against the middle of the dispenser pad.
▶ Take the glass closer to the chute to prevent ice from bouncing out of the cup.
● If you get ice with a thin glass cup or ceramic ware, it could get
broken.
r
● When you get ice stale in color, stop using it and contact our
service center.
● Do not put your hands into the ice crusher discharge
opening.You can get hurt.
■ To get water
HOW TO USE DISPENSER
■ To get ice
Press the WATER button and press the glass against the dispenser pad.
▶ Throw away the first six glassful of water after the installation.
When you take out water after the installation, it could have plastic smell.
▶ Even though the refrigerator is in operation, the first glass of water could be
warm. So, get several cubes of ice first and then take out water to drink cool
water.
USAGE
You can take out up to six glasses of water continuously and water will be
cooled down in 2~3 hours.
r.
17
DA68-01478A(0.3)2006.6.2910:44AM페이지 19
Have a knowledge of
water-purifying filter.
How To Replace Water-Purifying Filter
■ What is Water-Purifying Filter?
It is a parts filtering impurities that are bad for human being such as chlorine
and its smell and offensive taste contained in tap water.
So
Free
■ Filtrate and Purifying Effect
Filtrate of water-purifying filter is made from vegetable active carbon.
Purifying Effect
▶ It is NSF (National Science Foundation) certified, and meets a standard
requirement for food safety of NSF 42,53. It also passed the following standard test.
Certification Standard
Remove Capacity
NSF 42
Smell, Chloride
NSF 53
Pathogene, insecticide, asbestos, slime,
benzol,organic compound, mercury
When to Replace
▶ When the green lamp on
icon in the display part of refrigerator turns orange, it
is recommended to replace a filter. If the color of lamp turns red from orange, replace the
filter immediately.
▶ Purchase a water-purifying filter from a near service center for replacement.
■ How To Replace Water-Purifying Filter
USAGE
1
Separate a water-purifying filter
▶ Open the unit grill in the upper part of refrigerator, rotate the filter by 90°to
the left (unlock), and pull it down.
Place a bucket little bit bigger than the filter to catch the
dropping water when separating the filter.
2
Unlock
Put an installing date sticker on a new filter.
▶ Unpack the filter box, and peel off the red protective cap.
▶ Put an installing date sticker on the new filter.
Example) If installing it in October, put on 'OCT 10' sticker.
3
Fit a new filter in.
▶ Fit the filter in a fixing part, rotate it by 90°to the right(lock), and
match an indicating line ( ) with Lock ( ) sign.
▶ Close an unit grill, and press ice-maker test button to check if water flows out.
Lock
18
▶ It is recommended to run off water for about 2 minutes (or 2 liter)
when you install or replace a filter for the first time.
▶ After replacing a filter, press
button for 3 seconds until the
color of lamp turns green from red.
DA68-01478A(0.3)2006.6.2910:44AM페이지 20
Let's figure out the
Fresh Island function.
■ Function selection
Quick
Cool
Chill
Cool
LOCK
1 When Soft Freezing is selected
▶ When Soft Freezing is selected, the temperature of the Fresh Island will be
set to -5℃ and the temperature of the fridge compartment will be maintained
at -5℃ regardless of its temperature setting.
Soft
Freezing
Quick
Cool
Chill
Cool
LOCK
Fresh Island
Soft
Freezing
You can speed up cooling or make frozen food soft enough to cut easily with this
function. Also, by adjusting the temperature of each compartment, you can store
customize the storage of different kinds of food.
▶ The temperature (-5℃) of Soft Freezing falls into the Soft Freezing
temperature range. Water in meat or fish will not freeze hard it will freeze soft
enough that it can be cut easily.
2 When Quick Cool is selected
Soft
Freezing
Quick
Cool
Chill
Cool
LOCK
▶ With this Quick Cool function, you can cool down up to three bottles of room
temperature beer enough to drink within an hour.
▶ You can put food in the Fresh Island and press the Quick Cool button, the
refrigerator will operate for an hour continuously.
▶ If you use Quick Cool, take out the food from the Fresh Island and put it in
the fridge compartment during its operation. The food could become frozen
with the strong flow air.
▶ To cancel the Quick Cool function, press the Quick Cool button once more.
When the Quick Cool function is completed, it goes back to the previous
refrigeration setting.
USAGE
19
DA68-01478A(0.3)2006.6.2910:44AM페이지 21
Fresh Island
■ Function selection
3 When Chill is selected
▶ When Chill is selected, the temperature of the Fresh Island will be
set to -1℃ and the temperature of the fridge compartment will be
maintained at -1℃ regardless of its temperature setting.
Soft
Freezing
Quick
Cool
Chill
Cool
▶ -1℃ is a temperature at which water in food is on the verge of
freezing. With this temperature, you can freshly keep meat or fish
that you are about to cook.
LOCK
4
When Cool is selected
▶ When Cool is selected, the Fresh Island panel will display 3℃ set at
the Fresh Island temperature control and the Fresh Island will be
controlled based on 3℃ .
Soft
Freezing
Quick
Cool
Chill
Cool
LOCK
▶ When Cool is selected, it will be set to 3℃. So, you can have more
refrigeration space by using it as the fridge compartment.
USAGE
5
When LOCK is selected
▶ The system will be locked with its current setting and all the
function buttons can not be changed
▶ To cancel the LOCK function, press the LOCK button once more.
Soft
Freezing
Quick
Cool
Chill
Cool
LOCK
- Do not put food, vegetables or fruits with high water
content in the Fresh Island.
● It can freeze them.
● Water contained in food begins to freeze at -1℃ or -5℃. So,
beverages such as fruit punch and juice, vegetables and fruits
could become frozen.
- Different types of beverages and foods may have different
cooling times.
20
DA68-01478A(0.3)2006.6.2910:44AM페이지 22
HOW TO STORE WINE
Red Wines
▶ They are made of various red grapes which have lots of fruit
flavor, fragrance, silkiness and tannin. Different from white
wines, they have various levels of tannin and they work with
most of red meat dishes. They taste good at room
temperature (18℃~20℃).
White Wines
▶ They are made of ripe white grapes and some of red grapes.
Being golden -brown in color, they have layers of intense flavor
which are fruity, crisp, aromatic and oaky. Mostly, they are suited
to fish dishes. They taste good at cold temperature (10℃ ).
HOW TO STORE WINE
■ Types of wine
t
Rosé Wines
▶ Usually pink or washed red in color, Rosés are almost same in
the process of making wines. Those which are dry and fruity
make excellent partners for a whole range of dishes from
delicate fish to rich spicy food. They should be served chilled
and drunk young.
OTHERS
Sparkling Wines
▶ The key process in producing sparkling wines or Champagne is a second
fermentation that occurs in a sealed bottle. After the first fermentation, yeast
and sugar are added to the young wine before it's sealed in heavy aglass
bottles. The yeast performs a second bubble fermentation in the bottle.
Champagne and sparkling wine have a wire cage holding the cork in the bottle.
Without this cage, corks could fly off because of the pressure inside the bottles.
Particularly, those produced in Champagne, France are called Champagne.
Along with them, Spumante from Italy is a popular sparkling wine.
Port Wines
▶ Sweet or dry wines with 15 percent alcohol or more are usually
made by adding brandy or pure spirit to the wine. Adding brandy to
the fermenting wine to stop the fermentation made them both
alcoholic and deliciously sweet and that’s how they’ve stayed.
21
DA68-01478A(0.3)2006.6.2910:44AM페이지 23
HOW TO STORE WINE
■ Selecting good wines
A wine label is a guide to the contents of the bottle. Many wine labels
lay all the information about the wine itself such as the grape, the place,
the producer and the year with commendable clarity. So it is very
important for you to read these labels. It is also good to know how to
read wine labels.
▶ 1. The region the wine comes from
▶ 2. The appellation or the overall quality classification of the wine
▶ 3. The name and address of the wine bottler
▶ 4. The quantity of wine in the bottle
▶ 5. The alcohol content
▶ 6. The brand name of the producer
▶ 7. The address of the manufacturer
▶ 8. The place that the wine was bottled
▶ 9. The year the grapes were harvested
▶ 10. The country where the wine was produced
Please be sure to check how the wines are preserved in the
wine store.
▶ Keep it out of direct light or warm temperature. No wine tastes good
above a comfortable room temperature of about 20℃.
▶ Choose a wine whose content in the bottle is full to its neck. The cork
should not protrude from the bottle but should be flush with the rim. The
wine exposed to the light, warmth and dry air will conspire to ruin the wine.
■ Wine accessories
OTHERS
Wine Glasses
▶ The ideal wine glass is a fa irly large tulip shape, made of fine, clear glass,
with a slender stem. For white wine, it is important to hold the stem of the
glass as the warmth of your hand may damage the flavor of the wine.
Cork Screws
▶ As a tool for opening the bottles of wine, th ere are a variety of cork screws
from simple to automated types.
Vacuum Pump
▶ The lever pump creates more than enough vacuum to preserve your wine.
It produces great vacuum power to prevent the flavors of wine from being
deteriorated.
22
DA68-01478A(0.3)2006.6.2910:44AM페이지 24
Here is some information to
keep food in a fresh condition.
To make cold air to flow freely
To maintain the fridge compartment temperature to 4℃, it sends out cold air
near 0℃ . So, when food containing water is placed deep inside, it could
become frozen. If you place a wide, tall container it will block the cold air flow
resulting an increase of the room temperature. To get sufficient cold air, make
sure not to block its passages and let it flow freely.
How to arrange food
The veggie drawer is deep, vegetables pressed at the bottom could get bruised.
It is better to keep vegetables such as spinach and spring onions in standing
position. After cutting off the upper part of milk cartons matched to the height of
the veggie drawer with a cutter or a pair of scissors, bond several of milk cartons
together with plastic tape. By arranging vegetables with it, bruises can be
prevented and it is much easier to handle them.
WISDOM FOR LIFE
■ How to use the refrigerator
effectively
■ How to store food
To maintain crispy conditions of biscuits
You can put them in an air tight container. But, you can easily maintain its crispy
conditions by putting them in a regular container with a cube of sugar. Sugar absorbs
moistures making biscuits to maintain their crispy conditions for an extended period
of time.
OTHERS
To prevent food smells from permeating the
inner liners
To prevent food smells from permeating the inner liners, make sure to wrap food in
plastic wrap and put it in the refrigerator.
To maintain the taste of mayonnaise
It is best to keep the mayonnaise at room temperature. (Except sweltering
season) Mayonnaise is quite sensitive to not only hot temperatures but also
cold temperatures. So, it easily deteriorates in hot temperatures but also its
main ingredients such as vinegar, oil and egg yolk will be separated from
each other and it will lose its flavors when it is too cold. So, it is best to keep it
in a cool place out of reach of direct sunlight or heat.
23
DA68-01478A(0.3)2006.6.2910:45AM페이지 25
WISDOM FOR LIFE
To frost the surface of beer cup
After pouring warm water into the cup, empty the cup when it gets warmed up.
And, turn it upside down and put it in the freezer compartment for about 30 minutes
When you take it out later, you will find frosts sitting on the surface of the cup.
To keep tropical fruits
It is not a good idea keeping tropical fruits in the refrigerator tropical fruits
do not reguire low temp.
For example, bananas and pineapples will turn black avocados and papayas will rot
before they become ripe. Store them at room temperature and put them in the
refrigerator when they ripe enough to eat.
To enrich milk
OTHERS
Put it in the freezer compartment and freeze it. The appropriate quantity of freezing is
500cc~1L.
When it is frozen hard, take it out and thaw it to half-frozen state. Because the half-frozen
milk still contains ice with it, its percentage of water in milk is relatively low. So, its
concentration level is high and you can enjoy more enriched milk.
To make transparent and clean ice
When you make transparent and clean ice with the ice maker, boil water first and
then freeze it after cooling it down.
If you boil away impurities in water, you can make transparent and clean ice.
Store wines on their side
It's recommended to store wine bottles on their side.
24
DA68-01478A(0.3)2006.6.2910:45AM페이지 26
To store spices in the freezer or fridge
compartment
When storing spices, you need to prevent their flavors from escaping.
Store it in a dry place out of reach of direct sunlight. The freezer or fridge
compartment is the best suitable place to store spices.
To store potatoes freshly
Because potato buds contain toxins, you need to get rid of the buds. To store
potatoes that went sprout up, wrap them with the paper, put it in a plastic bag
and store it in the fruit drawer. You can enjoy fresh potatoes for an extended
period of time.
WISDOM FOR LIFE
■ How to store food
■ How to freeze food properly
To store honey not to be frozen
Store it in the freezer compartment. Higher quality honey becomes white and
harder when being stored in the fridge compartment. It is because its glucoses
become crystallized. Its quality will not be affected but it gets hard to dissolve it in
water and to handle it. When you put it in the freezer compartment, you can
keep it in its original liquid state.
OTHERS
To freeze food properly
There are none-appropriate foods to freeze such as vegetables, eggs, tofu and
devil's tong jelly.
You can freeze meat without salting but it's best to salt and freeze it.
To speed up freezing
When freezing food slowly, the property of food will be damaged resulting in
loss of taste. To speed up the freezing process, select the POWER FRE.
function.
25
DA68-01478A(0.3)2006.6.2910:45AM페이지 27
How to clean and
take care of the product.
HOW TO CLEAN AND TAKE CARE OF THE PRODUCT
OTHERS
■ HOW TO CLEAN AND TAKE
CARE OF THE PRODUCT
Inside refrigerator/Accessories
▶ Wipe with a clean cloth lightly dampened with water or mild liquid dish detergent.
Door gasket
▶ Wipe with a clean cloth lightly dampened with mild liquid dish detergent and
clean the grooves with cotton balls.
Dispenser
▶ After wiping with a wet cloth, wipe dry with a dry cloth.
▶ If the spill shelf is stained with slime, wipe with a clean cloth lightly dampened
with vinegar.
How to get rid of oders
▶Warm water, soft cloth and 2 table spoons of BI - CARB soda whip down all the
interior of fridge.
How to remove mold on door gaskets
▶ Brush with a tooth brush dampened with pure dish detergent.
It is difficult to scrub off the mold once it becomes black.
Care must be taken not to damage the gaskets.
When you do not use your refrigerator or when you clean it, open the
grille panel, set the power switch to the O (OFF) and dry the
compartments with their doors open. Then, wipe with a dry
cloth or towel.
● Do not directly spray water or wipe with benzene, thinner, bleach,
Caution
26
alcohol or acetone. Possibility of explosion, electric shock or fire.
● Do not use brushes or scouring pads to wipe the inside & outside of the
refrigerator.
● Make sure to set the power switch to the O (OFF) before cleaning the
refrigerator and set it to the l (ON) after the cleaning to prerent the Possibility of
electric shock or fire.
DA68-01478A(0.3)2006.6.2910:45AM페이지 28
Before cleaning the refrigerator, flip the grille panel up as shown in
the figure and set the power switch to the O (OFF). To prevent
electric shock then, disassemble when turned off.
Water tends to gather inside and flow down on the bottom. So,
wipe dry the components inside with a dry cloth and re-assemble.
Veggie/Fruit Box
▶ Hold it with one hand, pull it forward while lifting it up slightly to
remove.
HOW TO CLEAN AND TAKE CARE OF THE PRODUCT
■ Disassembling for cleaning
OTHERS
Veggie Box Lid
▶ Tilt the lid up at front, pull it forward and out of the refrigerator.
Take out the mid glass after removing the veggie box.
27
DA68-01478A(0.3)2006.6.2910:45AM페이지 29
HOW TO CLEAN AND TAKE CARE OF THE PRODUCT
Dairy Bin
▶ Flip up the dairy bin cover and remove it while pushing it back.
▶ Hold the dairy bin with both hands and lift it up and out of the door.
Freezer/Fridge Door Bin
▶ Hold it with both hands and lift it up and out of the door.
Freezer/Fridge Shelves
▶ Tilt shelf up at front, then lift it up and out of the tracks o n rear wall of
refrigerator.
OTHERS
- When you do not use your refrigerator or when you clean it, open
the grille panel, set the power switch to the O (OFF) and dry the
compartments with their doors open.
- Please contact our service center when replacing lamps to prevent
possibility of electric shock.
28
DA68-01478A(0.3)2006.6.2910:45AM페이지 30
Make sure to check
before calling for service.
Possible Causes
Fridge or freezer
compartment too warm.
(Low cooling power)
Master power control set to O (OFF).
Switch on the power ("I" pressed).
Refrigerator is unplugged.
Plug in the power plug again.
Temperature controls set at the
warmest setting.
Press the FRE. TEMP/REF. TEMP
button and set it colder.
Refrigerator installed in a place
exposed to direct sunlight and in the
vicinity of heater.
Keep the refrigerator away from
direct sunlight and heating
appliances.
Fridge control setting is too cold.
Press the temperature control button
and set to a warmer setting.
Refrigerator installed in a too cold
place.
When the ambient temperature is
lower than 5℃, food can become
frozen.
Frozen food in fridge
compartment.
What To Do
CHECKPOINTS BEFORE SERVICE CALLS
Problem
OTHERS
Vibration or rattling sounds.
Refrigerator has odor.
Food containing lots of water is placed
closer to the cold air discharging port.
Put food containing lots of water on
the front part of the self.
The floor is slanted or it is not firm
enough.
Move the refrigerator and put it on a
hard leveled floor.
There is something blocking the
ventilation in the machine
compartment on the top.
If there is anything blocking the
ventilation, remove it.
Dishes are stored without being
wrapped in plastic.
Make sure to put lids on containers
dishes wrapped.
Meat, fish and chicken are put in the
refrigerator without plastic packing.
Put them in clean plastic bags and tie
up their tops before storing them.
Foods are stored for too long.
Foods stored for a long time could
have odors.
29
DA68-01478A(0.3)2006.6.2910:45AM페이지 31
CHECKPOINTS BEFORE SERVICE CALLS
Problem
Possible Causes
What To Do
Ice cubes are made with tap water.
Water could contain chlorine sending
out odors. Make ice with filtered
water.
Interior of refrigerator needs
cleaning.
Clean the interior of the refrigerator
frequently to remove food smells.
Ice storage bin needs cleaning.
Wipe the surface of the ice bin
frequently.
Food dropped on the shelf.
Wipe it away completely.
Water supply line is turned off.
Turn on water supply.
Water supply line is not connected
properly.
Review the installation manual or
contact our service center.
The fridge compartment is too
warm.
Press the REF.TEMP button and set
to a colder setting.
Six glassfuls of water have been
used continuously.
When more than six glasses of water
are dispensed it takes long time for it
to cool down.
No ice cubes or not enough ice
cubes.
Wait 12 hours for ice cubes to be
made requires 24 hours to have
enough ice cubes in the ice bin.
Ice cubes get stuck together.
When ice is not used for a long time
or when there is a power failure, ice
cubes could get stuck together.
In this case, throw away the ice lump
and empty the ice bin to get freshly
made ice cubes.
Ice cubes have odor.
Water dispenser
does not work.
OTHERS
Water is warm.
Cube dispenser
does not work.
?
30
DA68-01478A(0.3)2006.6.2910:45AM페이지 32
Door hard to open!
It makes a water flowing noise.
(Ex: Gurgling, Sizzling,
Popping)
A clicking sound may occur in
the refrigerator! (Ex: Clicking,
Rattling, Chirping, Cracking)
Frost builds up in the freezer
compartment! (Moisture
collects inside the fridge
compartment)
Possible Causes
It has just closed after being opened.
What To Do
If you open the door again within
5~10 seconds, it could be hard to
open due to the pressure difference
between the inside and the outside of
the refrigerator.
Try again after a while.
The flow of refrigerant through the cooling coils may make a water flowing
noise (ex: gurgling, sizzling, popping) or a water dropping noise may occur
during the defrost cycle as ice melts and flows.
It is not a defect. This is a normal function.
When the refrigerator cools to the correct temperature, when cooling coils
expand or contract, or when relays activate to control refrigerator components,
you can hear these sounds.
It is not defect. This is a normal function.
The ambient temperature and
humidity are high, the door is left
open for a long time or food with
lots of water is stored without a lid.
In this case, frost or moisture could
build up. Wipe dry it.
The freezer door has remained
open for a long time.
When the fridge door remains open
for a long time, the fridge lamp cover
will be warmed up by the halogen
lamp (35W) resulting in water
condensation.
Wipe dry it.
The ambient humidity is too high.
When it is humid outside, water in the
air could get condensed on the
relatively cold fridge surfaces.
Moisture builds up on the
outside surface of the
refrigerator and on the
interior lamp cover!
CHECKPOINTS BEFORE SERVICE CALLS
Problem
OTHERS
31
DA68-01478A(0.3)2006.6.2910:45AM페이지 33
PRODUCT SPEC
TS48D***
Model Name
GROSS
vo/ume
48"
Total
766
Freezer Room
279
Fridge Room
487
Weight
Dimension
260㎏
Width(mm)
1,219
Height(mm)
2,134
Depth(mm)
706
AC 230~240V/50Hz
Rated Voltage/Frequency
▶ Design & specifications can be changed to improve quality without any notice in advance.
OTHERS
Height
Width
32
Depth
DA68-01478A(0.3)2006.6.2910:43AM페이지 1
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Samsung Electronics Australia
1300 362 603
www.samsung.com/au
DA68-01478A(0.3)
Download PDF

advertising
