Samsung | T23B350MO | User manual | Samsung T23B350MO User Manual

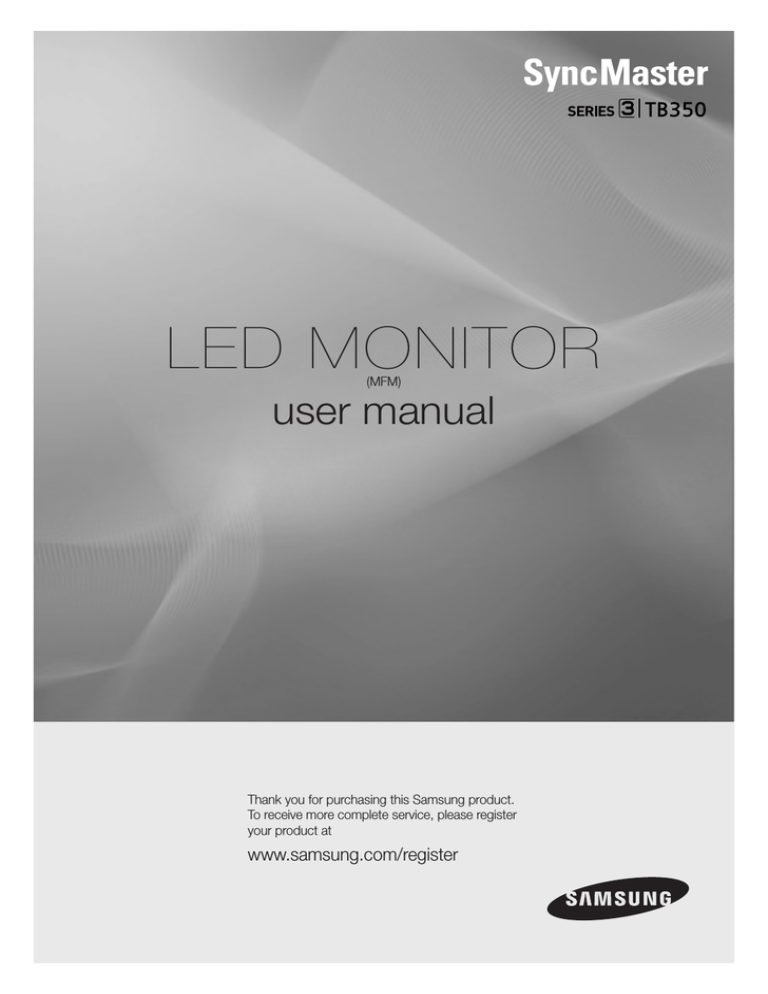

TB350
LED MONITOR
(MFM)
user manual
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Still image warning
Avoid displaying still images (like jpeg picture files) or still image element (like LED display programme logo, panorama or 4:3 image format, stock or news
bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of screen, which will affect image quality. To reduce risk of
this effect, please follow below recommendations:
• Avoid displaying the same LED display channel for long periods.
• Always try do display any image on full screen, use LED display set picture format menu for best possible match.
• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.
• Frequently use all LED display features designed to reduce image retention and screen burnout, refer to proper user manual section for details.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
✎✎ The actual appearance of the LED display may differ from the images in this manual, depending on the model.
✎✎ Be careful when you touch the LED display. Some parts can be somewhat hot.
Installation with a stand.
Installation with a wall-mount.
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
English
2
Contents
Getting Started
4
4
11
12
13
Safety Precautions
Accessories
Viewing the Control Panel
Viewing the Remote Control
Connections
14
14
15
17
17
Connecting to an AV Device
Connecting to a Audio device and PC
Store Demo mode and Home Use mode
Changing the Input Source
Basic Features
17
18
18
21
22
24
How to Navigate Menus
Using the INFO button
Picture Menu
Sound Menu
System Menu
Support Menu
17
Advanced Features
Other Information
32
33
34
38
Attaching a Wall Mount/Desktop Stand
Anti-theft Kensington Lock
Troubleshooting
Specifications
ENGLISH
25
32
25 Using the Media Play
Check the Symbol!
t
This function can be used by pressing the TOOLST button on the
remote control.
Note
Indicates additional information.
English
3
Getting Started
Safety Precautions
Icons used for safety precautions
Warning
Failing to follow the precautions marked with this sign may result in a serious injury or even
a fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or
property damage.
Do not perform.
Must be followed.
This symbol indicates that high voltage is present
inside. It is dangerous to make any kind of contact
with any internal part of this product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol alerts you that important literature
concerning operation and maintenance has been
included with this product.
¦¦ Power Related
✎✎ The following images are for your reference and may differ depending on models and countries.
Warning
Avoid using a damaged power cord
or plug or a loose power outlet.
xx Otherwise, it may result in
electric shock or fire.
Avoid connecting multiple electric
appliances to a single wall outlet.
xx Otherwise, it may result in fire due
to overheating of the wall outlet.
Avoid plugging in or unplugging the
power supply with wet hands.
xx Otherwise, it may result in
electric shock.
Plug the power plug in firmly.
xx Otherwise, it may result in fire.
!
!
Make sure to connect the power
cord to a grounded wall outlet (for
insulation class 1 equipment only).
xx Otherwise, it may result in
electric shock or injury.
Avoid bending or twisting the power
cord excessively and avoid placing
heavy objects on the cord.
xx Otherwise, it may result in electric
shock or fire due to a damaged
power cord.
English
4
Getting Started
Keep the power cord and the
product away from a heater.
x otherwise, it may result in
electric shock or fire.
If the pins of the power plug or the
wall outlet are covered in dust, clean it
using a dry cloth.
x otherwise, it may result in fire.
!
Caution
Avoid unplugging the power plug
while the product is operating.
x otherwise, it may damage the
product due to electric shock.
!
When unplugging the power plug
from the wall outlet, make sure to
hold it by the plug and not by the
cord.
x otherwise, it may result in
electric shock or fire.
!
!
Make sure to use only the power cord
supplied by our company. In addition,
do not use the power cord of another
electric appliance.
x otherwise, it may result in electric
shock or fire.
Connect the power plug to a wall
outlet that can be easily reached.
x When a problem occurs with the
product, you must unplug the
power plug to cut the power off
completely. You cannot cut the
power off completely using only
the power button on the product.
¦ Installation Related
Warning
Avoid placing burning candles,
mosquitorepellentor cigarettes on
the product.
x otherwise, it may result in fire.
!
Avoid installing the product in a
badly-ventilated location such as
inside a bookshelf or closet.
x otherwise, it may result in fire
due to internal over-heating.
Avoid installing the product in a
location that is unstable or exposed
to excessive vibration such as on an
unstable or slanted shelf.
x The product may fall and this
may result in damage to the
product or injury.
x If you use the product in a
location exposed to excessive
vibrations, it may result in a
problem with the product or fire.
!
!
Ask an installation engineer or relevant
company to install the product onto
the wall.
x otherwise, it may result in injury.
x Make sure to use the specified
wall mount.
Keep the plastic bags used to pack
the product away from children.
x If children place the plastic
bags over their heads, they may
suffocate.
Avoid installing the product in a
location exposed to dust, moisture
(sauna), oil, smoke or water (rain
drops) and installing it within a vehicle.
x This may result in electric shock
or fire.
English
5
Getting Started
Avoid installing the product in a
location exposed to direct sunlight
and installing the product near a heat
source such as a fireplace or heater.
x This may shorten the product
life cycle or cause fire.
Avoid installing the product where
children may reach it.
x If a child touches the product,
the product may fall and this may
result in injury.
x Since the front part is heavier,
install the product on a flat and
stable surface.
Do not let the product drop while
moving it.
x This may result in a problem
with the product or injury.
Do not place the product face down
on the floor.
x This may damage the panel of
the product.
When installing the product on a
console or shelf, make sure that
the front of the product does not
protrude out of the console or shelf.
x otherwise, this may cause the
product to fall off and result in a
malfunction or injury.
x Make sure to use a cabinet or
shelf suitable to the size of the
product.
When putting the product down,
handle it gently.
x otherwise, it may result in a
problem with the product or
injury.
Caution
!
SAMSUNG
!
!
If the product is installed in a location
where the operating conditions
vary considerably, a serious quality
problem may occur due to the
surrounding environment. In this
case, install the product only after
consulting one of our service
engineers about the matter.
x Places exposed to microscopic
dust, chemicals, too high or
low temperature, high humidity,
airports or stations where the
product is continuously used.
English
6
Getting Started
¦ Cleaning Related
Warning
Before cleaning the product, unplug
the power cord.
x otherwise, it may result in
electric shock or fire.
When cleaning the product, do not
spray water directly over the product
parts.
x Make sure that water does not
enter the product.
x otherwise, it may result in fire,
electric shock or a problem with
the product.
Avoid spraying cleansing agent
directly onto the product.
x This may result in discoloration
or cracking of the exterior of the
product or the panel coming off.
When cleaning the product,
disconnect the power cord and clean
the product with the supplied cleaning
cloth.
x Avoid using chemicals such as
wax, benzene, alcohol, thinner,
mosquitorepellent, fragrance,
lubrication or cleansing agent
when cleaning the product.
!
Caution
!
This may result in the exterior
being deformed or the print being
removed.
If you can't get the product clean
with just the supplied cloth, use a
soft, damp cloth with a "monitorexclusive cleansing agent" and wipe
the product with it.
x If no monitor-exclusive cleansing
agent is available, dilute a
cleansing agent with water at a
ratio of 1:10 before cleaning the
product.
!
Since the exterior of the product is
easily scratched, be sure to use the
supplied cleansing cloth.
!
¦ Usage Related
Warning
Since a high voltage runs through
the product, never disassemble,
repair or modify the product yourself.
x otherwise, it may result in fire or
electric shock.
x If the product needs to be fixed,
contact a service centre.
!
To move the product, turn the power
off and unplug the power cord, the
antenna cable and any other wires
connected to the product.
x otherwise, it may result in electric
shock or fire due to the damaged
power cord.
English
7
Getting Started
!
!
If the product generates a strange
noise, a burning smell, or smoke,
unplug the power plug immediately
and contact a service centre.
xx Otherwise, it may result in
electric shock or fire.
Avoid letting children hang or climb
onto the product.
xx Otherwise, it may result in the
product falling and this may result
in injury or death.
If you drop the product or the case
is damaged, turn the power off and
unplug the power cord. Contact a
service centre.
xx Otherwise, it may result in fire or
electric shock.
Avoid placing objects such as toys
and cookies on top of the product.
xx If a child hangs over the product
to grab an object, the object or
the product may fall and this may
result in injury or even death.
When thunder or lighting occurs,
unplug the power cord and under
no circumstance touch the antenna
cable as this is dangerous.
xx Otherwise, it may result in
electric shock or fire.
Avoid dropping an object over the
product or cause impact to the
product.
xx Otherwise, it may result in electric
shock or fire.
Avoid moving the product by pulling
the power cord or antenna cable.
xx Otherwise, it may result in
electric shock, fire or a problem
with the product due to damage
to the cable.
Avoid lifting up or moving the
product by holding only the power
cord or signal cable.
xx Otherwise, it may result in
electric shock, fire or a problem
with the product due to damage
to the cable.
Take care not to block the vent by a
table cloth or curtain.
xx Otherwise, it may result in fire
due to internal overheating.
!
GAS
!
When a gas leak occurs, do not touch
the product or the power plug and
ventilate immediately.
xx A spark may result in an
explosion or fire.
xx During a thunder or lighting
storm, do not touch the power
cord or antenna cable.
Avoid using or placing inflammable
spray or objects near the product.
xx This may result in an explosion
or fire.
!
100
Avoid inserting metal objects such
as a chopsticks, coins or hairpins, or
inflammable objects into the product
(the vents, ports, etc).
xx If water or substances enters
the product, turn the power
off, unplug the power cord and
contact a service centre.
xx Otherwise, it may result in a
problem with the product, electric
shock or fire.
English
8
Getting Started
Avoid placing a liquid container such
as a vase, flowerpot, beverage,
cosmetics or drugs, or a metal
object over the product.
x If water or substances enter
the product, turn the power
off, unplug the power cord and
contact a service centre.
x otherwise, it may result in a
problem with the product,
electric shock or fire.
Do not press down hard on the
product. The product may become
deformed or damaged.
Displaying a still image for a long
time may create a persistent image
or stain on the screen.
x If you do not use the product
for a long time, use the
power-saving mode or set the
screensaver to the moving
picture mode.
When not using the product for a
long time such as leaving your home,
unplug the power cord from the wall
outlet.
x otherwise, it may cause dust
accumulation and result in fire
caused by overheating or short
circuit or result in an electric
shock.
Caution
!
-_!
Set the appropriate resolution and
frequency for the product.
x otherwise, it may result in eye
strain.
Avoid turning the product upside
down or move the product holding
only the stand.
x This may cause the product to
fall, resulting in damage to the
product or injury.
Watching the product from too
close a distance continuously may
damage your eyesight.
Avoid using a humidifier or cooker
near the product.
x otherwise, it may result in electric
shock or fire.
It is important to give your eyes
some rest (5 minutes every hour)
when viewing the product screen for
long periods of time.
x This will alleviate any eye strain.
Since the display panel is hot after
using it for a long time, do not touch
the product.
!
!
!
English
9
Getting Started
Keep the small accessories in a
location out of the reach of children.
!
!
Take care when adjusting the angle of
the product or the height of the stand.
xx If your hand or finger is caught,
you may be injured.
xx If the product is tilted excessively,
the product may fall and this may
result in injury.
Avoid placing a heavy object over
the product.
xx Otherwise, it may result in a
problem with the product or
injury.
When using headphones or
earphones, do not turn the volume
too high.
xx Having the sound too loud may
damage your hearing.
Be careful that children do not place
the batteries in their mouths when
removed from the remote control.
Place the battery in a location that
children or infants cannot reach.
xx If children have had the battery
in their mouths, consult your
doctor immediately.
When replacing the batteries, insert
them with right polarity (+, -).
xx Otherwise, the battery may
become damaged or it may
cause fire, personal injury or
damage due to leakage of the
internal liquid.
Use only specified standard
batteries. Do not use new and used
batteries together.
xx This may cause a battery to
break or leak and may cause
fire, injury, or contamination
(damage).
!
!
The batteries (and rechargeable
batteries) are not ordinary refuse
and must be returned for recycling
purposes. The customer is
responsible for returning the used or
rechargeable batteries for recycling.
xx The customer can return used
or rechargeable batteries to a
nearby public recycling centre or
to a store selling the same type
of the battery or rechargeable
battery.
English
10
Getting Started
Accessories
✎✎Please make sure the following items are included with your LED display. If any items are missing, contact your dealer.
✎✎The items’ colours and shapes may vary depending on the models.
✎✎Cables not included in the package contents can be purchased separately.
✎✎Check that there is no accessory hidden behind packing materials when you open the box.
xx
xx
xx
User Manual
Remote Control & Batteries (AAA x 2)
Warranty Card / Safety Guide (Not available in some locations)
yy Stand Connector
xx
xx
xx
Quick Setup Guide
Cleaning Cloth
Power Cord
yy Stand Base
yy D-Sub Cable
yy Stereo Cable
yy Audio Cable
yy Component Cable
yy Optical Cable
Input Cables (Sold Separately)
yy HDMI to DVI Cable
yy HDMI Cable
English
11
Getting Started
Viewing the Control Panel
✎✎The product colour and shape may vary depending on the model.
Control Panel
SOURCE
E
Toggles between all the available input sources. In the on-screen menu, use this button as you
would use the ENTERE button on the remote control.
MENU
Displays an on-screen menu, the OSD (on screen display) of your LED display's features.
><
Adjusts the volume. In the OSD, use the Y buttons as you would use the
l and r buttons on the remote control.
In the OSD, use the >< buttons as you would use the d and u buttons on the remote
control.
P (Power)
Turns the LED display on or off.
Power Indicator
Blinks and turns off when the power is on and lights up in standby mode.
Remote control sensor
Aim the remote control towards this spot on the LED display.
Y
Standby mode
Do not leave your LED display in standby mode for long periods of time (when you are away on a holiday, for example). A small
amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
English
12
Getting Started
Viewing the Remote Control
✎✎This is a special remote control for the visually impaired and has Braille points on the Channel and Number buttons.
Turns the set on and off.
Displays and selects the available video
sources.
Number buttons.
Alternately select Teletext ON, Double,
Mix or OFF.
(not available in some models)
Adjusts the volume.
Not available.
Cuts off the sound temporarily.
Not available.
Displays the main on-screen menu.
Not available.
Displays the Media Play.
Quickly select frequently used functions.
Not available.
Displays information on the screen.
Move the cursor and select an item.
Confirm the setting.
Returns to the previous menu.
Exits the menu.
Use these buttons according to the
direction on screen.
PIP: Not available.
P.SIZE: Select the Picture Size.
AD/SUBT.: Not available.
Using these buttons in Media Play
mode.
Installing batteries (Battery size: AAA)
English
13
Connections
Connecting to an AV Device
Using an HDMI or an HDMI to DVI cable (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR
DVD /
Blu-ray player
HDMI OUT
DVI OUT
DVD /
Blu-ray player
R
AUDIO OUT
W
✎✎HDMI IN(DVI) / PC/DVI AUDIO IN
xx For better picture and audio quality, connect to a digital device using an HDMI cable.
xx An HDMI cable supports digital video and audio signals, and does not require an audio cable.
–– To connect the set to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.
xx The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of
HDMI mode is connected to the LED display. If such a problem occurs, ask the manufacturer of the external device about
the HDMI version and, if out of date, request an upgrade.
xx Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.
xx A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function
via HDMI.
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
Y
R
Y
PR
PB
VIDEO OUT
W
W
W
R
AUDIO OUT
COMPONENT
/ AV IN
R-AUDIO-L
Device
R
W
R
R
B
G
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
R
R
Red
W
W
R
B
G
AUDIO OUT
White
Red
Bule
Green
R-AUDIO-L
R
R
B
G
COMPONENT OUT
PR
PB
Y
Device
R
W
Y
Red
White
Yellow
✎✎When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).
✎✎For better picture quality, the Component connection is recommended over the A/V connection.
English
14
Connections
Connecting to a Audio device and PC
Using an Optical (Digital) or a Headphone Connection
Digital audio system
DIGITAL
AUDIO OUT
(OPTICAL)
✎✎DIGITAL AUDIO OUT (OPTICAL)
xx When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the
LED display and the system.
xx 5.1 CH (channel) audio is available when the LED display is connected to an external device supporting 5.1 CH.
xx When the receiver (home theatre) is set to on, you can hear sound output from the set’s optical jack. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to
the set via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect
the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home
theatre.
✎✎Headphones H: You can connect your headphones to the headphones output on your set. While the headphones are
connected, the sound from the built-in speakers will be disabled.
xx Sound function may be restricted when connecting headphones to the LED display.
xx Headphone volume and LED display volume are adjusted separately.
Using an HDMI cable or an HDMI to DVI cable or a D-sub cable
✎✎Connecting through the HDMI cable may not be supported depending on the PC.
HDMI Cable (Not Supplied)
HDMI to DVI Cable (Not Supplied)
Stereo Cable
Stereo Cable
D-Sub Cable
English
15
Connections
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution : 1920 x 1080 pixels @60Hz
Mode
IBM
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
Display Mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
720 x 400
70Hz
31.469
70.087
28.322
-/+
640 x 480
60Hz
31.469
59.940
25.175
-/-
640 x 480
67Hz
35.000
66.667
30.240
-/-
640 x 480
72Hz
37.861
72.809
31.500
-/-
640 x 480
75Hz
37.500
75.000
31.500
-/-
800 x 600
60Hz
37.879
60.317
40.000
+/+
800 x 600
72Hz
48.077
72.188
50.000
+/+
800 x 600
75Hz
46.875
75.000
49.500
+/+
832 x 624
75Hz
49.726
74.551
57.284
-/-
1024 x 768
60Hz
48.363
60.004
65.000
-/-
1024 x 768
70Hz
56.476
70.069
75.000
-/-
1024 x 768
75Hz
60.023
75.029
78.750
+/+
1152 x 864
75Hz
67.500
75.000
108.000
+/+
1152 x 870
75Hz
68.681
75.062
100.000
-/-
1280 x 720
60Hz
45.000
60.000
74.250
+/+
1280 x 800
60Hz
49.702
59.810
83.500
-/+
1280 x 1024
60Hz
63.981
60.020
108.000
+/+
1280 x 1024
75Hz
79.976
75.025
135.000
+/+
1366 x 768
60Hz
47.712
59.790
85.500
+/+
1440 x 900
60Hz
55.935
59.887
106.500
-/+
1600 x 900RB
60Hz
60.000
60.000
108.000
+/+
1680 x 1050
60Hz
65.290
59.954
146.250
-/+
1920 x 1080
60Hz
67.500
60.000
148.500
+/+
✎✎NOTE
xx The interlace mode is not supported.
xx The set might operate abnormally if a non-standard video format is selected.
xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
English
16
Connections
Store Demo mode and Home Use mode
Edit Name
■■ Store Demo mode: Press and hold the Menu button on
the control panel about 5 seconds. Until the screen display
"Store demo".
■■ Home Use mode: In Store Demo mode. Press the Volume
+ or - button on the control panel. Before the volume tips
disappear, press and hold the Menu button on the control
panel about 5 seconds. Until the screen display "picture
|standard|".
SOURCEs→ TOOLST → Edit Name → ENTERE
In the Source, press the TOOLST button, and then you can
set an external input sources name you want.
■■ VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI
Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name
the device connected to the input jacks to make your input
source selection easier.
✎✎When connecting a PC to the HDMI IN (DVI) port with
Changing the Input Source
HDMI cable, you should set the LED display to PC mode
under Edit Name.
Source
✎✎When connecting a PC to the HDMI IN (DVI) port with
HDMI to DVI cable, you should set the LED display to DVI
PC mode under Edit Name.
SOURCEs → Source
Use to select LED display or an external input
sources such as a DVD / Blu-ray player / cable
box /STB satellite receiver.
✎✎When connecting an AV devices to the HDMI IN (DVI) port
with HDMI to DVI cable, you should set the LED display to
DVI Devices mode under Edit Name.
■■ PC / HDMI/DVI / AV / Component / USB
✎✎In the Source, connected inputs will be
Information
✎✎PC always stay activated.
SOURCEs → TOOLST→ Information → ENTERE
highlighted.
You can see detailed information about the selected external
device.
Basic Features
How to Navigate Menus
How to Operate the OSD (On Screen Display)
Before using the LED display, follow the steps below to learn
how to navigate the menu and select and adjust different
functions.
MEDIA.P
HDMI
3
1
2
4
1 ENTERE / Direction button: Move the cursor and select
an item. Confirm the setting.
P.MODE
The access step may differ depending on the selected menu.
1
MENUm
2
3
4
5
▲/▼
6
7
ENTERE
ENTERE
▲/▼
◄/►
EXITe
The main menu options appear on
the screen:
Picture, Sound, System, Support.
Select an icon with the ▲ or ▼
button.
Press ENTERE to access the
sub-menu.
Select the desired submenu with the
▲ or ▼ button.
Adjust the value of an item with the
◄ or ► button. The adjustment in
the OSD may differ depending on the
selected menu.
Press ENTERE to complete the
configuration.
Press EXIT.
SRS
2 RETURN button: Returns to the previous menu.
3 MENU button: Displays the main on-screen menu.
4 EXIT button: Exits the on-screen menu.
English
17
Basic Features
Using the INFO button
Show the current source information.
Backlight / Contrast / Brightness /
Sharpness / Colour / Tint (G/R)
Your television has several setting options for picture quality
control.
✎✎NOTE
xx In PC, AV modes of the PAL system, the Tint (G/R)
function is not available.
xx When connecting a PC, you can only make changes to
Backlight, Contrast, Brightness and Sharpness.
Picture Menu
¦¦ Changing the Preset Picture Mode
xx Settings can be adjusted and stored for each external
device connected to the LED display.
xx Lowering picture brightness reduces power
consumption.
MENUm → Picture → Picture Mode → ENTERE
Screen Adjustment
Picture Mode t
■■ Picture Size: We highly recommend you
use 16:9 mode most of the time.
Select your preferred picture type.
✎✎When connecting a PC, the Picture Mode is only available
the Standard and Entertain.
■■ Dynamic: Suitable for a bright room.
■■ Standard: Suitable for a normal environment.
■■ Movie: Suitable for watching movies in a dark room.
■■ Entertain: Suitable for watching movies and games.
✎✎ It is only available when connecting a PC.
¦¦ Adjusting Picture Settings
MENUm → Picture → ENTERE
Samsung MagicAngle
Adjust screen viewing Angle to optimize screen quality according
to your viewing position.
■■ Samsung MagicAngle: When viewing the screen at an
angle from below or above by setting the appropriate mode
for each position you can obtain a similar picture quality as
viewing the screen directly from the front.
xx Off: Select when viewing from the front position.
xx Lean back mode: Select when viewing from a slightly
16:9: Sets the picture to 16:9 wide mode.
Wide Zoom: Magnifies the picture size
more than 4:3.
✎✎ Adjusts the Position by using u / d buttons.
Zoom: Magnifies the 16:9 wide pictures vertically to fit the
screen size.
Adjusts the Zoom or Position by using u / d
button.
✎✎
4:3: Sets the picture to basic (4:3) mode.
✎✎ Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and centre of
the screen may cause image retention (screen burn)
which are not covered by the warranty.
✎✎NOTE
xx Depending on the input source, the picture size options
may vary.
xx The available items may differ depending on the
selected mode.
xx When connecting a PC, only 16:9 and 4:3 modes can
be adjusted.
xx Settings can be adjusted and stored for each external
device connected to an input on the LED display.
lower position.
xx Standing Mode: Select when viewing from the upper
position.
■■ Mode: Adjust screen viewing angle.
✎✎When Samsung MagicAngle is set to Lean back mode
or Standing Mode, Gamma is not available.
English
18
Basic Features
■■ Zoom / Position: You can adjust the Zoom or Position by
using (u / d / l / r) button.
Maintaining the Correct Posture when Using this Product
xx It's only available when Picture Size is set as Zoom
and Wide Zoom.
xx In Wide Zoom mode, you can only use Position
adjustment.
xx Reset: Reset the Zoom and Position to the default
settings.
■■ PC Screen Adjustment
✎✎ Available only PC mode.
xx Coarse / Fine: Removes or reduces picture noise.
If the noise is not removed by Fine-tuning alone,
then adjust the frequency as best as possible
(Coarse) and Finetune again. After the noise has
been reduced, readjust the picture so that it is
aligned to the centre of screen.
xx Position: Adjusts the PC screen position with
direction button (u / d / l / r).
xx Image Reset: Resets the image to default settings.
Auto Adjustmentt
Frequency values/ position and fine tune are adjusted
automatically.
✎✎It's only available in PC mode.
Using Your set as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card, the
actual screens on your PC may differ in which case the same
basic set-up information will almost always be applied. (If not,
contact your computer manufacturer or Samsung Dealer.)
1. Click on “Control Panel” on the Windows start menu.
Maintain the correct posture when using this product.
xx Straighten your back.
xx Keep a distance of 45~50 cm (15~19 inches) from your
eyes to the screen. Look down at the screen and face the
screen forwards.
xx Adjust the angle of the product so that light is not reflected
onto the screen.
xx Keep your elbow at a right angle and keep your arm level
with the back of your hand.
xx Keep your elbow at a right angle.
xx Place your heels flat on the ground while keeping your
knees at an angle of 90 degrees or higher and maintain the
position of your arm so that your arm is below your heart.
2. Click on “Appearance and Themes” in the “Control Panel”
window and a display dialog-box will appear.
3. Click on “Display” and a display dialog box will appear.
4. Navigate to the “Settings” tab on the display dialog-box.
xx The correct size setting (resolution) [Optimum: 1920 x
1080 pixels]
xx If a vertical-frequency option exists on your display
settings dialog box, the correct value is “60” or “60 Hz”.
Otherwise, just click “OK” and exit the dialog box.
English
19
Basic Features
Picture Options
¦ Changing the Picture Options
MENUm → Picture → Picture Options → ENTERE
Advanced Settings
✎ When connecting a PC, you can only make changes to the
Colour Tone.
MENUm → Picture → Advanced Settings → ENTERE
(Advanced Settings are available in Standard / Movie mode)
Compared to previous models, new Samsung LED display have
a more precise picture.
Picture Options
Colour Tone
✎ When connecting a PC, you can only make changes to
White Balance and Gamma.
Advanced Settings
Dynamic Contrast
Black Tone
Colour Space
Low
Off
Off
0
• The displayed image may differ depending on the model.
Off
Native
Gamma
■
Colour Tone (Cool / Standard / Warm1 / Warm2)
✎
0
✎
• The displayed image may differ depending on the model.
■
Auto
HDMI Black Level
Film Mode
White Balance
■
Auto
MPEG Noise Filter
High
Flesh Tone
RGB Only Mode
Standard
Digital Noise Filter
Warm1 or Warm2 will be deactivated when the
picture mode is Dynamic.
Settings can be adjusted and stored for each
external device connected to an input on the LED
display.
Dynamic Contrast (Off / Low / Medium / High): Adjust
the screen contrast.
■
Black Tone (Off / Dark / Darker / Darkest): Select the
black level to adjust the screen depth.
Digital Noise Filter (Off / Low / Medium / High / Auto):
Reduce picture noise to avoid distracting lines and flicking.
■
MPEG Noise Filter (Off / Low / Medium / High / Auto):
Reduces MPEg noise to provide improved picture quality.
■
HDMI Black Level (Low / Normal): Selects the black level
on the screen to adjust the screen depth.
■
Flesh Tone: Emphasize pink “Flesh Tone.”
■
RGB Only Mode (Off / Red / Green / Blue): Displays the
Red, Green and Blue colour for making fine adjustments to
the hue and saturation.
■
Colour Space (Auto / Native): Adjust the range of colours
available to create the image.
■
White Balance: Adjust the colour temperature for a more
natural picture.
R-Offset / G-Offset / B-Offset: Adjust each colour’s (red,
green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjust each colour’s (red,
green, blue) brightness.
Reset: Resets the White Balance to it’s default settings.
■
Gamma: Adjust the primary colour intensity.
■
Motion Lighting (Off / On): Reduce power consumption by
brightness control.
✎
■
Available only in HDMI mode (RgB signals).
Film Mode (Off / Auto1 / Auto2): Sets the LED display
to automatically sense and process film signals from all
sources and adjust the picture for optimum quality.
✎
If the screen does not seem natural, change its
option to Off / Auto1 / Auto2 in Film Mode.
Reset Picture (Yes / No)
Resets your current picture mode to its default settings.
English
20
Basic Features
Sound Menu
¦¦ Changing the Preset Sound Mode
MENUm → Sound → Sound Mode → ENTERE
Sound Mode t
■■ Standard: Selects the normal sound mode.
■■ Music: Emphasizes music over voices.
■■ Movie: Provides the best sound for movies.
■■ Clear Voice: Emphasizes voices over other sounds.
■■ Amplify: Increase the intensity of high-frequency sound to
allow a better listening experience for the hearing impaired.
✎✎If Speaker Select is set to External Speaker , Sound
Mode is disabled.
¦¦ Adjusting Sound Settings
Sound Effect
MENUm → Sound → Sound Effect → ENTERE
(standard sound mode only)
■■ SRS TruSurround HD (Off / On)
This function provides a virtual 5.1 channel surround sound
experience through a pair of speakers using HRTF (Head
Related Transfer Function) technology.
■■ SRS TruDialog (Off / On)
This function allows you to increase the intensity of a voice
over background music or sound effects so that dialog can
be heard more clearly.
¦¦ Sound Systems, Etc.
MENUm → Sound → Additional Settings → ENTERE
■■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is
used to provide digital sound, reducing interference going to
speakers and various digital devices such as a DVD player.
–– Audio Format: You can select the Digital Audio output
(SPDIF) format.
The available Digital Audio output (SPDIF) format may
differ depending on the input source.
✎✎
–– Audio Delay: Correct audio-video sync problems, when
watching video, and when listening to digital audio
output using an external device such as an AV receiver
(0ms ~ 250ms).
Speaker Settings
■■ Speaker Select (External Speaker / Device Speaker):
A sound echo may occur due to a difference indecoding
speed between the main speaker and theaudio receiver. In
this case, set the Device to External Speaker.
✎✎ When Speaker Select is set to External Speaker,
the volume and MUTE buttons will not operate and
the sound settings will be limited.
✎✎ When Speaker Select is set to External Speaker.
xx Device Speaker: Off, External Speaker: On
✎✎ When Speaker Select is set to Device Speaker.
xx Device Speaker: On, External Speaker: On
✎✎ If there is no video signal, both speakers will be mute.
Reset Sound (Yes / No)
Reset all sound settings to the factory defaults.
■■ Equaliser
Adjusts the sound mode.
–– Balance L/R: Adjusts the balance between the right and
left speaker.
–– 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
–– Reset: Resets the equaliser to its default settings.
English
21
Basic Features
✎
System Menu
¦ Setting the Time
MENUm → System → ENTERE
Time
■
Clock Set: Set the Day, Month, Year, Hour and Minute
manually.
✎
The c mark indicates the day you've selected.
Time: Set the hour and minute.
Volume: Set the desired volume level.
Source: Select a desired input source when the LED
display is turned on automatically. (USB can be selected
only when a USB device is connected to the LED display)
Music / Photo (when the Source is set to USB): Select a
folder in the USB device containing music or photo files to
be played when the LED display is turned on automatically.
NOTE
✎
You can set the Day, Month, Year, Hour and Minute
directly by pressing the number buttons on the
remote control.
x
If there is no music file on the USB device or the
folder containing a music file is not selected, the
Timer function does not operate correctly.
x
When there is only one photo file in the USB, the
Slide Show will not play.
x
If a folder name is too long, the folder cannot be
selected.
x
Each USB you use is assigned its own folder.
When using more than one of the same type of
USB, make sure the folders assigned to each USB
have different names.
x
It is recommended that you use a USB memory
stick and a multi card reader when using On
Timer.
x
The On Timer function may not work with USB
devices with a built-in battery, MP3 players, or
PMPs made by some manufacturers because
these devices take a long time to be recognized.
Using the Sleep Timer
■
Sleep Timer t: Automatically shuts off the LED
display after a preset period of time. (30, 60, 90, 120, 150
and 180 minutes).
✎
To cancel Sleep Timer, select Off.
Setting the On / Off Timer
■
On Timer
On Timer 1 / On Timer 2 / On Timer 3 : Three different on
timer settings can be made. You must set the clock first.
On Timer 1
Setup
Sun
Off
Mon
Tue
Wed
Thu
Fri
■
Sat
Off Timer
Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off
timer settings can be made. You must set the clock first.
Time
0:00
Volume
20
Source
PC
Off Timer 1
Setup
Sun
Off
Mon
Tue
Wed
Thu
Fri
Sat
Close
Time
R Return
• The displayed image may differ depending on the model.
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at your convenience. If you
select Manual, you can set up the day you want to activate
the timer.
0:00
Close
R Return
• The displayed image may differ depending on the model.
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at your convenience. If you
select Manual, you can set up the day you want to activate
the timer.
The c mark indicates the day you've selected.
✎
Time: Set the hour and minute.
English
22
Basic Features
Language
General
■■ Menu Language: Set the menu language.
■■ Max. Power Saving (Off / On): Turn off PC monitor when
PC is not used for certain length of time to reduce power
consumption.
¦¦ Economical Solutions
MENUm → System → Eco Solution → ENTERE
Eco Solution
■■ Energy Saving (Off / Low / Medium / High / Picture Off):
This adjusts the brightness of the LED display in order to
reduce power consumption. If you select Picture Off, the
screen is turned off, but the sound remains on. Press any
button except volume button to turn on the screen.
■■ Auto Power Off (Off / On): Saves power by turning LED
display off automatically when no user operation is received
for 4 hours.
¦¦ Other Features
MENUm → System → ENTERE
Auto Protection Time
■■ Off / 2 hours / 4 hours / 8 hours / 10 hours: If the screen
remains idle with a still image for a certain period of time
defined by the user, the screen saver is activated to prevent
the formation of ghost images on the screen.
■■ Game Mode (Off / On): When connecting to a game
console such as PlayStation™ or Xbox™, you can enjoy a
more realistic gaming experience by selecting game mode.
✎✎NOTE
xx Precautions and limitations for game mode
–– To disconnect the game console and connect another
external device, set Game Mode to Off in the setup
menu.
–– If you display the LED display menu in Game Mode,
the screen shakes slightly.
xx Game Mode is not available when the input source is
set to PC.
xx After connecting the game console, set Game Mode
to On. Unfortunately, you may notice reduced picture
quality.
xx If Game Mode is On:
–– Picture mode is set to Standard and Sound mode is
set to Movie.
■■ Panel Lock (Off / On): Lock or unlock all the keys on the
front panel at once. When Panel Lock is on, none of the
keys on the front panel operate.
■■ Boot Logo (Off / On): Display Samsung logo when the LED
display is turned on.
¦¦ DivX® Video On Demand
If you connect to the DivX web site and register, you can
download the VOD registration file. If you play the VOD
registration using Media contents, the registration is
completed.
✎✎For more information on DivX® VOD,
visit “http://vod.divx.com”.
English
23
Basic Features
Support Menu
MENUm → Support → ENTERE
Self Diagnosis
✎✎Self Diagnosis might take few seconds, this is part of the
normal operation of the LED display
■■ Picture Test (Yes / No): Use to check for picture problems.
Yes: If the test pattern does not appear or there is noise
in the test pattern, select Yes. There may be a problem
with the LED display. Contact Samsung’s Call Centre for
assistance.
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
■■ Sound Test (Yes / No): Use the built-in melody sound to
check for sound problems.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes. There may be a
problem with the LED display. Contact Samsung’s Call
Centre for assistance.
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
Installing the Latest Version
■■ By USB: Insert a USB drive Set Side
containing the firmware
upgrade file, downloaded
from “www.samsung.com,”
USB Drive
into the set. Please be
careful not to disconnect
the power or remove the
USB drive until upgrades are complete. The display will
be turned off and on automatically after completing the
firmware upgrade. When software is upgraded, video and
audio settings you have made will return to their default
settings. We advise you to write down your settings so that
you can easily reset them after the upgrade.
■■ Alternative Software: Replace the current software with
the alternative.
Contact Samsung
View this information when your LED display does not work
properly or when you want to upgrade the software. You can
find information regarding our call centres, and how to download
products and software.
■■ Reset: Restores all settings to factory defaults except
network settings.
Software Upgrade
Software Upgrade can be performed via a broadcasting signal
or downloading the latest firmware from “www.samsung.com,”
to a USB memory device.
Current Version the software already installed in the LED
display.
✎✎Software is represented as “Year/Month/Day_Version”.
Software Upgrade
By USB
Alternative Software • The displayed image may differ depending on the model.
English
24
Advanced Features
Using the Media Play
Media Play / Videos /
Enjoy videos, photos, music files saved on a USB Mass
Storage Class (MSC) device.
Cruzer Blade
3.23GB Free / 3.55GB
Videos
CONTENT → ENTERE
Photos
Music
R Return
• The displayed image may differ depending on the model.
¦ Connecting a USB Device
1.
Turn on your set.
2.
Connect a USB device containing photo and music files to the USB jack on the side of
the set.
3.
When USB is connected to the set, popup window appears. Then you can select
Device connected.
Set Side
USB Drive
✎ It might not work properly with unlicenced multimedia files.
✎ Need-to-Know List before using Media Play.
x
x
x
x
MTP (Media Transfer Protocol) is not supported.
x
x
USB (HDD) is not supported.
x
x
x
x
x
Do not disconnect the USB device while it is loading.
x
x
A USB device that requires high power (more than 500mA or 5V) may not be supported.
The file system supports FAT16, FAT32 and NTFS.
Certain types of USB Digital camera and audio devices may not be compatible with this set.
Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-only Transport
device. Examples of MSC are Thumb drives and Flash Card Reader (USB HUB are not supported). Devices should be
connected directly to the set’s USB port.
Before connecting your device to the set, please back up your files to prevent them from damage or loss of data. SAMSUNg
is not responsible for any data file damage or data loss.
The higher the resolution of the image, the longer it takes to display on the screen.
The maximum supported JPEg resolution is 15360 x 8640 pixels.
For unsupported or corrupted files, the “Not Supported File Format” message is displayed.
MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM)
is a technology that supports the creation, distribution and management of the content in an integrated and comprehensive
way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of
contents, as well as managing billings and settlements.
If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be
recognized or may malfunction.
English
25
Advanced Features
x
x
x
x
If the set has been no input during time set in Auto Protection Time, the Screensaver will run.
x
Media Play only supports sequential jpeg format.
The power-saving mode of some external hard disk drives may be released automatically when connected to the set.
If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
If a USB device connected to the set is not recognized, the list of files on the device is corrupted or a file in the list is not
played, connect the USB device to the PC, format the device and check the connection.
¦ Screen Display
Move to the desired file using the u / d / l / r buttons and then press the ENTERE button. The file is played. Media Play
screen may differ depending on the way to enter the screen.
Information:
Displays the selected content
category (Music, for example),
device (USB drive,for example),
folder/file name and page.
Contents mode:
You can select the desired
Content Category.
Media Play / Videos /
Upper Folder
2/8
Cruzer.../Video_02.AVI
Video_01
1.Jan.2012
Video_02
Video_03
1.Jan.2012
1.Jan.2012
Video_04
Video_05
1.Jan.2012
1.Jan.2012
Video_06
Video_07
1.Jan.2012
1.Jan.2012
Video_02.AVI
1.Jan.2012
17.6MB
Displays the selected file
information.
Video_08
1.Jan.2012
�µ Page Move E Play T Tools R Return
• The displayed image may differ depending on the model.
Operation Buttons
• µ Turn to the next page. only available in Music.
• � Turn to the previous page. only available in Music.
• E Play: Play the media file.
• T Tools: Displays the option menu.
• R Return: Move to the previous step.
English
26
Advanced Features
Videos
Playing Video
1.
Press the l / r / u / d button to select the desired video in the
file list.
2.
Press the ENTERE button or ∂ (Play) button.
x
The selected file name is displayed on the top with its playing
time.
x
If video time information is unknown, play time and progress
bar are not displayed.
x
x
During video playback, you can search using l and r button.
You can use π (REW) and µ (FF) buttons during playback.
In this mode, you can enjoy movie clips contained on a
game, but you cannot play the game itself.
✎
• The displayed image may differ depending on the model.
Supported Subtitle Formats
– External
Name
Extension
MPEg-4 Timed text
.ttxt
SAMI
.smi
SubRip
.srt
SubViewer
.sub
Micro DVD
.sub or .txt
SubStation Alpha
.ssa
Advanced SubStation Alpha
.ass
Powerdivx
.psb
Name
Container
Xsub
AVI
SubStation Alpha
MKV
Advanced SubStation Alpha
MKV
SubRip
MKV
MPEg-4 Timed text
MP4
– Internal
English
27
Advanced Features
Supported Video Formats
File
Extension
Container
Video
Codec
Resolution
Frame rate
(fps)
Bit rate
(Mbps)
DivX 3.11
/ 4.x / 5.1
/ 6.0
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.m2ts
*.mts
*.divx
Comments
xx
GMC Not Support
xx
xx
Not Include FMO / ASO / RS
Support BP / MP / HP Level 4.1
xx
Profile3, restricted up to SD
resolution
xx
xx
xx
xx
xx
VC1 SP / MP /A P L3 Support,
L4 Not Support
Simple Profile Medium Level
Main Profile High Level
Advanced Profile Level 3
WMV9 support
MPEG2
xx
Hight Profile High Level
MPEG1
xx
MPEG-1 except D-picture
Audio Codec
MPEG4 SP
/ ASP
H.264 BP / 1920 x 1080
MP / HP
AVI
MKV
ASF
MP4
3GP
VRO
VOB
PS
TS
20 [40]
H.263
Motion
JPEG
640 x 480
30
10
Window
Media Video
v9
1920 x 1080
20 [40]
AC3
LPCM
ADMPCM
(IMA, MS)
AAC
HE-AAC
WMA
DD+
MPEG(MP3)
DTS Core
Vorbis
English
28
Advanced Features
Other Restrictions
✎ NoTE
x
x
x
If there are problems with the contents of a codec, the codec will not be supported.
x
x
If the Index Table is in error, the Seek (Jump) function is not supported.
If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly.
Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/ sec listed in
the table above.
You may experience file stuttering while playing a video through a network connection.
Name
x
x
x
x
Format
Supports up to H.264, Level 4.1
H.264 FMo / ASo / RS, VC1 SP / MP / AP L4 and
AVCHD are not supported.
MPEg4 SP, ASP:
– Below 1280 x 720: 60 frame max
– Above 1280 x 720: 30 frame max
gMC 2 over is not supported.
x
x
x
Supports up to WMA 7, 8, 9, STD , 9, 10PRo
WMA 9 PRo does not support 2 channel excess multi
channel or lossless audio.
WMA sampling rate 22050Hz mono is not supported.
Photos
Viewing a Photo (or Slide Show)
1.
Press the u / d / l / r button to select the desired photo in the
file list.
2.
Press the ENTERE button or ∂ button.
– When a selected photo is displayed, press the ENTERE button
to start the slide show.
– During the slide show, all files in the file list will be displayed in
order.
Media Play / Photos /
Cruzer... / Photos / IMG_0008.JPG 7 / 1000
1.Jan.2012
248.9KB
1200 x 1600
Upper Folder
✎ Music files can be automatically played during the Slide Show if the
Background Music is set to On.
✎ The Background Music cannot be changed until the BgM has
finished loading.
�µ Page Move E Play T Tools R Return
• The displayed image may differ depending on the model.
Supported Picture Formats
File Extension
Format
Resolution
JPEg
15360 x 8640
BMP
1920 x 1080
*.mpo
MPo
15360 x 8640
English
29
Advanced Features
Music
Playing Music
1.
2.
Press the u / d button to select the desired Music in the file
list.
Press the ENTERE button or ∂ button.
Media Play / Music /
Cruzer... / Music / Music_01.mp3
1 / 17
Upper Folder
Music_01
Music_02
✎ only displays the files with the file extension in following
Music_03
supported music formats list. other file extensions are not
displayed, even if they are saved on the same USB device.
Music_04
Music_05
✎ If the sound is abnormal when playing MP3 files, adjust the
Equaliser in the Sound menu. (An over-modulated MP3 file
may cause a sound problem.)
Music_06
Music_07
Music_01
2012
Now That's What I Call Music 75
Pop
Music_08
2:36 / 5:00
Music_09
b{ Page Move E Play T Tools R Return
• The displayed image may differ depending on the model.
Playing selected music
1.
Press the TOOLST button and select Play selection.
2.
Select music files.
✎
✎
The c mark will appears to the left of the selected files.
To select or deselect all files, press Select All or Deselect All.
3.
Press the r button to select the Play button.
4.
The selected files will be played in sequence.
Supported Music Formats
File Extension
Type
Codec
*.mp3
MPEg
MPEg1 Audio Layer 3
*.m4a
*.mpa
*.aac
*.3ga
MPEg4
AAC
*.flac
FLAC
FLAC
*.ogg
ogg
Vorbis
*.wma
WMA
WMA
English
30
Advanced Features
¦¦ Media Play - Additional Functions
Videos/Photos/Music Play Option menu
Press the TOOLST button and select selection play.
Category
Operations
Videos
Photos
Music
Shuffle Mode
You can play the music randomly.
Repeat Mode
You can play media files repeatedly.
>
Picture Mode
You can adjust the picture setting.
>
>
Sound Mode
You can adjust the sound setting.
>
>
Start Slide Show /
Stop Slide Show
You can start or pause a Slide Show.
Slide Show Speed
You can select the slide show speed during the slide show.
>
Background Music On
You can on/off background music when watching a Slide Show.
>
Background Music Setting
You can select background music when watching a Slide Show.
>
Zoom
You can zoom into images in full screen mode.
>
Rotate
You can rotate images in full screen mode.
Information
You can see detailed information about the played file.
>
>
>
Play Selection
You can play the items what you selected.
>
>
>
Title Search
You can move directly to another Title.
>
Time Search
You can search the movie using l and r buttons at intervals of
1 minute.
>
Picture Size
You can adjust the picture size to your preference.
>
Subtitle
You can set the subtitle On / Off.
>
Subtitle Settings
Play a video file with captions displayed. This option is available only
when the caption file name matches the video file name.
>
Audio language
View a video in a supported language of your choice. The option is
available only when a stream-type file that supports multiple audio
formats is played.
>
>
>
>
>
>
English
31
Other Information
Attaching a Wall Mount/Desktop Stand
Preparing before installing Wall-Mount/Desktop Stand
1. Turn the product off and unplug the power cord from the wall outlet.
2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product face down.
3. Hold the main body of the product with your hand. Pull the stand in the direction of the arrow as shown in the figure to separate
it.
Attaching a Wall Mount/Desktop Stand
2
1
A
3
4
B
A
A
Wall/Desktop
Stand Mount
B
B
Wall mount kit/desktop stand (not supplied)
[[Caution
B
Important
For the installation of Wall-mount, please don't use screws longer than 14mm(L14) of longitude.
4. Align wall mount/desktop stand to the Monitor/LED display and firmly fix the wall mount/desktop stand by fastening the screw.
5. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand, wall
mount stand or another stand) and firmly fix the stand by fastening the screw.
English
32
Other Information
✎✎NOTE
xx If you use screws that are longer than the standard specifications, the inside of the product may be damaged.
xx For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ depending
on the corresponding specifications.
xx Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them using excessive
force. This may result in damage to the product or injury due to the product falling. Samsung shall not be held liable for any
damage or injury.
xx Samsung shall not be held liable for any damage to the product or injury caused by using a wall mount/desktop stand that is
not compatible with the specifications or due to an installation not performed by an authorized installation engineer.
xx When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm (3.93 inches) of space
from the wall.
xx Use the wall mount according to the international specifications.
Anti-theft Kensington Lock
The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the
system when using it in a public place. The appearance and locking method may differ
from the illustration depending on the manufacturer. Refer to the manual provided with
the Kensington Lock for additional information on proper use.
<Monitor Rear>
1
✎✎Please find a “K” icon on the rear of the LED display. A kensington slot is beside
the “K” icon.
To lock the product, follow these steps:
1. Wrap the Kensington lock cable around a large, stationary object such as desk or
chair.
<Optional>
2. Slide the end of the cable with the lock attached through the looped end of the
Kensington lock cable.
3. Insert the locking device into the Kensington slot on the product (1).
4. Lock the lock.
✎✎These are general instructions. For exact instructions, see the User manual supplied with the locking device.
✎✎The locking device has to be purchased separately.
✎✎The location of the Kensington slot may be different depending on the LED display model.
English
33
Other Information
Troubleshooting
If you have any questions about the LED display, first refer to this list. If none of these troubleshooting tips apply, please visit “www.
samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.
Issues
Solutions and Explanations
Picture Quality
First of all, please perform the Picture Test and confirm that your LED display is properly displaying test
image. (go to MENU - Support - Self Diagnosis - Picture Test) If the test image is properly displayed, the
poor picture may caused by the source or signal.
The picture is distorted: macroblock error,
small block, dots, pixelization
• Compression of video contents may cause picture distortion especially in fast moving pictures such
as sports and action movies.
• Low signal level or bad quality can cause picture distortion. This is not a LED display issue.
• Mobile phones used close to the LED display (cca up to 1m) may cause noise in picture on analogue
and digital LED display.
There is poor colour or brightness.
• Adjust the Picture options in the LED display menu. (go to Picture Mode / Colour / Brightness /
Sharpness)
• Adjust Energy Saving option in the LED display menu. (go to MENU - System - Eco Solution Energy Saving)
• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Reset Picture)
There is a dotted line on the edge of the
screen.
• Change cable/satellite box resolution.
Sound Quality
First of all, please perform the Sound Test to confirm that your LED display audio is properly operating. (go
to MENU - Support - Self Diagnosis - Sound Test)
If the audio is OK, the sound problem may caused by the source or signal.
There is no sound or the sound is too low
at maximum volume.
• Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your LED
display.
The picture is good but there is no sound.
• If you are using a DVI to HDMI cable, LED display set does not support audio.
• Reboot the connected device by reconnecting the device’s power cable.
• If your LED display has a headphone jack, make sure there is nothing plugged into it.
No Picture, No Video
The LED display will not turn on.
• Make sure the AC power cord is securely plugged in to the wall outlet and the LED display.
• Make sure the wall outlet is working.
• Try pressing the POWER button on the LED display to make sure the problem is not the remote. If the
LED display turns on, refer to “The remote control does not work” below.
The LED display turns off automatically.
• Ensure the Sleep Timer is set to Off in the Time menu.
• If your PC is connected to the LED display, check your PC power settings.
• Make sure the AC power cord is plugged in securely to the wall outlet and the LED display.
There is no picture/video.
• Check cable connections (remove and reconnect all cables connected to the LED display and
external devices).
• Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the
connections to the LED display input. For example, if an external device’s output is HDMI, it should be
connected to an HDMI input on the LED display.
• Make sure your connected devices are powered on.
• Be sure to select the LED display correct source by pressing the SOURCE button on the LED display
remote.
• Reboot the connected device by reconnecting the device’s power cable.
Others
The picture will not display in full screen.
• HD source will have black bars on either side of the screen when displaying up scaled SD (4:3)
contents.
• Black bars on the top and bottom will appear during movies that have aspect ratios different from
your LED display.
• Adjust the picture size options on your external device or LED display to full screen.
The remote control does not work.
• Replace the remote control batteries with the poles (+/–) in the right direction.
• Clean the sensor’s transmission window on the remote.
• Try pointing the remote directly at the LED display from 5~6 feet away.
The cable/set top box remote control
doesn’t turn the LED display on or off, or
adjust the volume.
• Programme the Cable/Set top box remote control to operate the LED display. Refer to the Cable/Set
user manual for the SAMSUNG LED display code.
English
34
Other Information
Issues
Solutions and Explanations
A “Mode Not Supported” message
appears.
• Check the supported resolution of the LED display, and adjust the external device’s output resolution
accordingly.
There is a plastic smell from the LED
display.
• This smell is normal and will dissipate over time.
LED display is tilted to the right or left side.
• Remove the stand base from the LED display and reassemble it.
There are difficulties assembling the stand
base.
• Make sure the LED display is placed on a flat surface. If you can not remove the screws from the LED
display, please use a magnetized screw driver.
Your setting are lost after 30 minutes or
every time the LED display is turned off.
• If the LED display is in the Store Demo mode,it will reset audio and picture setting every 30 minutes.
You must change the setting from Store Demo mode to Home Use mode.Press the
Volume + or - button on the control panel. Before the volume tips disappear, press and hold the
Menu button on the control panel about 5 seconds. Until the screen display "picture | standard |", the
set is in the Home Use mode.
You have intermittent loss of audio or
video.
• Check the cable connections and reconnect them.
• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables
are flexible enough for long term use. If mounting the LED display to the wall, we recommend using
cables with 90 degree connectors.
You see small particles when you look
closely at the edge of the frame of the LED
display.
• This is part of the product’s design and is not a defect.
There are recurrent picture/sound issues.
• Check and change the signal/source.
A reaction may occur between the rubber
cushion pads on the base stand and the
top finish of some furniture.
• To prevent this, use felt pads on any surface of the LED display that comes in direct contact with
furniture.
✎✎This panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a
few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
English
35
Other Information
¦ Storage and Maintenance
✎ If you attched some stickers on the LED display screen, it remains some debris after removing the sticker. Please clean it to
watch LED display.
✎ The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen carefully
using the cloth provided or a soft cloth to prevent scratches.
Do not spray water or a cleaning agent directly onto the product. Clean the product with a soft cloth dapped in a small amount of
Any liquid that goes into the product may cause a failure, fire, or water.
electric shock.
[ CAUTION
If the height of " A " on one side is different from the other side,
adjust the heights.
English
36
Other Information
¦¦ Licence
TheaterSound HD, SRS and
symbol are trademarks of SRS Labs, Inc.
TheaterSound HD technology is incorporated under license form SRS Lab, Inc.
Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered
trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes
software. © DTS, Inc. All Rights Reserved.
Open source licence notice
In the case of using open source software, Open Source licence are available on the product menu.
Open Source Licence Notice is written only English.
DivX Certified to play DivX video up to HD 1080p, including premium content.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.
com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the DivX VOD section in the device setup menu.
Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274
English
37
Other Information
Specifications
Environmental
considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %. non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %. non-condensing
Tilt
-1°(±2°) ~ 20°(±2°)
Model Name
Screen Size (Diagonal)
Display Resolution
1920 x 1080 @ 60Hz
Sound (Output)
Dimensions
(W x D x H)
Weight
T23B350
23 inches (58 cm)
5W x 2
(Without Stand)
547.5 x 53.4 x 337.9 mm
(21.6 x 2.1 x 13.3 inches)
(With Stand)
547.5 x 195 x 416.1 mm
(21.6 x 7.7 x 16.4 inches)
(Without Stand)
3.25 kg (7.2 Ibs)
(With Stand)
3.5 kg (7.7 Ibs)
✎✎NOTE
xx Design and specifications are subject to change without prior notice.
xx For information about power supply, and more about power consumption, refer to the label attached to the product.
xx Some models may not be available for purchase depending on the region.
xx If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.
xx DPMS(Display Power Management Signaling) Function does not work if you used in conjunction with the
HDMI IN (DVI) port of this product.
English
38
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Country
Customer Care Centre
Web Site
NIGERIA
0800-726-7864
www.samsung.com
GHANA
0800-10077
0302-200077
www.samsung.com
COTE D’ IVOIRE
8000 0077
www.samsung.com
SENEGAL
800-00-0077
www.samsung.com
CAMEROON
7095- 0077
www.samsung.com
KENYA
0800 724 000
www.samsung.com
UGANDA
0800 300 300
www.samsung.com
TANZANIA
0685 88 99 00
www.samsung.com
SOUTH AFRICA
0860-SAMSUNG(726-7864 )
www.samsung.com
BOTSWANA
0800-726-000
www.samsung.com
NAMIBIA
8197267864
www.samsung.com
ANGOLA
91-726-7864
www.samsung.com
ZAMBIA
211350370
www.samsung.com
U.A.E
800-SAMSUNG(726-7864)
www.samsung.com
© 2012 Samsung Electronics Co., Ltd. All rights reserved.
BN46-00275B-00
Download PDF

advertising
