Outdoor Unit
APC3270E
APC3270EM
UPC3270E
UPC3270EM
ENGLISH
FRANÇAIS
Indoor Unit
ESPAÑOL

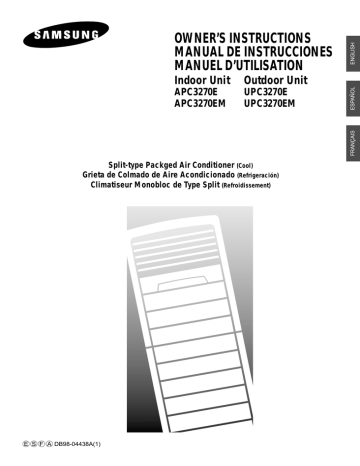

OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
Split-type Packged Air Conditioner (Cool)
Grieta de Colmado de Aire Acondicionado (Refrigeración)
Climatiseur Monobloc de Type Split (Refroidissement)
E S F A DB98-04438A(1)
Safety Precautions
WARNING
DANGER
CAUTION
E-2
◆ If the power supply cord of this air conditioner is damaged,
it must be replaced by the manufacturer or its authorized
service personnel only in order to avoid a safety hazard.
◆ Do not attempt to install this air conditioner by yourself.
◆ This unit contains no user-serviceable parts. Always consult authorized
service personnel for repairs.
◆ When moving, consult authorized service personnel for disconnection
and installation of the unit.
◆ Do not become over-exposed to cold air by staying in the direct path of
the airflow of the air conditioner for extended periods of time.
◆ Do not insert fingers or objects into the outlet port or intake grilles.
◆ Do not start and stop air conditioner operation by disconnecting the
power supply cord and so on.
◆ Take care not to damage the power supply cord.
◆ In the event of a malfunction (burning smell, etc.), immediately stop
operation, turn off the electrical breaker, and consult authorized
service personnel.
◆ Provide occasional ventilation during use.
◆ Do not direct air flow at fireplaces or heating apparatus.
◆ Do not climb on, or place objects on, the air conditioner.
◆ Do not hang objects from the indoor unit.
◆ Do not set flower vases or water containers on top of air conditioners.
◆ Do not expose the air conditioner directly to water.
◆ Do not operate the air conditioner with wet hands.
◆ Do not pull power supply cord.
◆ Turn off power source when not using the unit for extended periods.
◆ Check the condition of the installation stand for damage.
◆ Do not place animals or plants in the direct path of the air flow.
◆ Do not drink the water drained from the air conditioner.
◆ Do not use in applications involving the storage of foods, plants or
animals, precision equipment, or art works.
◆ Do not apply any heavy pressure to radiator fins.
◆ Operate only with air filters installed.
◆ Do not block or cover the intake grille and outlet port.
◆ Ensure that any electronic equipment is at least one metre away from
either the indoor or outdoor units.
◆ Avoid installing the air conditioner near a fireplace or other heating
apparatus.
◆ When installing the indoor and outdoor unit, take precautions to prevent
access to infants.
◆ Do not use inflammable gases near the air conditioner.
ENGLISH
Contents
◆ PREPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . .
■ Getting Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . .
■ Operating Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
4
6
7
8
8
◆ OPERATING YOUR AIR CONDITIONER
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . 10
■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . 11
■ Cooling Distant Place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Selecting Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . 15
■ Cleaning Air in Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . 17
■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . 17
◆ PROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
◆ RECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . .
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . .
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . .
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . .
21
21
22
24
◆ TECHNICAL SPECIFICATIONS
E-3
View of the Unit
Indoor Unit
Air flow blades
(up/down orientation)
Air flow blades
(right/left orientation)
Automatic shutter
Air outlet
Air filter
Air inlet
To open the grille
◆ Hold the upper
part of the
grille, then
pull it slightly
forward.
Control Panel You can operate the air conditioner with the control panel when you do not
wish to or cannot operate the air conditioner with the remote control.
Fan speed adjustment button
Energy saving indicator
Timer indicator
Operating mode indicator
Fan speed
Temperature setting
Sleep timer indicator
Remote control sensor
Temperature
adjustment buttons
On/Off button
Air clean button
Operating mode selection button
E-4
ENGLISH
Outdoor Unit
Air inlet(Rear)
Air outlet
Connection valve
E-5
Remote Control - Buttons and Display
Temperature setting
Temperature adjustment
buttons
Sleep timer button
Extra button
Operating mode selection button
(Cool, Auto, Dry, Fan)
Air flow swing button
On/Off timer button
E-6
Operating mode
(Cool, Auto, Dry, Fan)
Fan speed
(Auto, Low, Medium, High)
Timer settings
On/Off button
Turbo button
Fan speed adjustment button
Energy saving button
Air clean button
Timer set/cancel button
ENGLISH
Getting Start
You have just purchased a split-type packaged air conditioner and
it has been installed by your installation specialist.
You Owner's Instructions contain much valuable information on using your
air conditioner. Please take the time to read them as they will help you take
full advantage of unit's features.
The booklet is organized as follows.
◆ The following figures are shown on pages from 4 to 6:
- Indoor and outdoor units
- Remote control (buttons and display)
They will help you find the buttons and understand the symbols displayed.
◆ In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS
PUSH
HOLD DOWN
E-7
Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when :
◆ You purchase the air conditioner
◆ The remote control does not work correctly
Note
◆ Use two AAA, LR03 1.5V batteries.
◆ Do not use old batteries or different kinds of batteries together.
◆ Batteries may be completely discharged after 12 months,
even if they have not actually been used.
1
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
2
Insert the two batteries, taking care to respect the polarities :
◆ + on the battery with + on the remote control.
◆ - on the battery with - on the remote control.
3
Close the cover by sliding it back until it clicks into place.
Operating Preparation
Look around the indoor and outdoor unit. Confirm if any obstacles
that may prevent the air flow are present near the air conditioner.
1
Turn the power switch on.
IMPORTANT
ON
E-8
To operate the unit, the power switch is fitted to the wall
must be set to ON.
ENGLISH
Cooling Your Room
You must select the Cool mode if you wish to adjust the :
◆ Cooling temperature
◆ Fan speed when cooling
1
If necessary, press the
button.
◆ The air conditioner starts up in the Cool mode.
Result:
◆ The indoor unit beeps.
IMPORTANT
2
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
If the
is not displayed at the top of the remote control, press the
on the remote control one or more times until it appears.
Result:
◆ The indoor unit beeps each time you press the
Note
You can change modes at any time.
button
C
button.
◆ The air conditioner runs in the Cool mode.
3
To adjust the temperature, press the
button one or more times until the
required temperature is displayed. Possible temperatures are between 18OC
and 30OC inclusive.
Result:
4
C
◆ Each time you press the
button:
- The temperature is adjusted by 1OC.
- The indoor unit beeps.
◆ The air conditioner starts cooling, provided that the room
◆ temperature is higher than the selected temperature.
Select the fan speed by pressing the
the required setting is displayed :
Automatic(rotated :
button one or more times until
➔
➔
)
Low
C
Medium
High
Result:
5
◆ Each time you press the
button, the indoor unit beeps.
To control the direction of the air flow, refer to page 17.
E-9
Selecting the Automatic Operating Mode
You can start the air conditioner in the Automatic mode from your remote
control. In the Automatic mode, the temperature and the optimum fan
speed is selected automatically.
1
If necessary, press the
Result:
button.
◆ The air conditioner starts up in the Cool mode.
◆ The indoor unit beeps.
IMPORTANT
2
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
If the
is not displayed at the top of the remote control, press the
on the remote control one or more times until it appears.
Result:
◆ The indoor unit beeps each time you press the
button
button.
◆ The air conditioner runs in the Auto mode.
Note
3
To control the direction of the air flow, refer to page 17.
Note
E-10
You can change modes at any time.
To adjust the temperature, press the
button. The temperature
will be adjusted and the mode will be changed with the Cool mode.
ENGLISH
Changing the Room Temperature Quickly
The Turbo function is used to cool your room as quickly as possible.
Example :
You have just come home and find that the room is very hot.
You wish to cool it down as quickly as possible.
The Turbo function operates for 30 minutes with the maximum setting before
returning automatically to the mode and temperature previously selected.
1
If necessary, press the
Result:
button.
◆ The air conditioner starts up in the Cool mode.
◆ The indoor unit beeps.
IMPORTANT
2
Press the
Result:
3
button.
◆ The air conditioner cools the room as quickly as possible.
◆ The temperature and fan settings are adjusted automatically.
◆ After 30 minutes, the air conditioner is reset automatically to
the previous mode, temperature and fan setting. But, if you
press the
button in the Dry or the Fan mode that is
changed with the Auto mode automatically.
If you wish to stop the Turbo function before the end of 30-minute period,
press the
button again.
Result:
4
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
◆ The air conditioner is reset automatically to the previous
mode, temperature and fan settings.
To control the direction of the air flow, refer to page 17.
E-11
Cooling Distant Place
The Extra function is used to cool your room as far as possible.
In the Extra mode, the up/down orientation of air flow and fan speed
are selected automatically.
1
If necessary, press the
button.
◆ The air conditioner starts up in the Cool mode.
Result:
◆ The indoor unit beeps.
IMPORTANT
2
Press the
Result:
3
E-12
◆ The air conditioner cools the room as far as possible.
◆ The fan settings are adjusted automatically.
◆ If you press the
button in the Dry or the Fan mode that
is changed with the Auto mode automatically.
◆ Each time you press the
button:
- The temperature is adjusted by 1OC.
- The indoor unit beeps.
If you wish to stop the Extra function, press the
Result:
5
button.
To adjust the temperature, press the
button one or more times until
the required temperature is displayed. Possible temperatures are between
18OC and 30OC inclusive.
Result:
4
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
button again.
◆ The air conditioner is reset automatically to the previous
mode, temperature and fan settings.
To control the direction of the air flow horizontally, refer to page 17.
ENGLISH
Removing Excess Humidity
If the atmosphere in your room is very humid or damp, you can remove
excess humidity without lowering the room temperature too much.
1
If necessary, press the
Result:
button.
◆ The air conditioner starts up in the Cool mode.
◆ The indoor unit beeps.
IMPORTANT
2
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
If the
is not displayed at the top of the remote control, press the
on the remote control one or more times until it appears.
Result:
◆ The indoor unit beeps each time you press the
button
button.
◆ The air conditioner runs in the Dry mode.
Note
3
To adjust the temperature, press the
button one or more times until the
required temperature is displayed. Possible temperatures are between 18OC
and 30OC inclusive.
Result:
4
You can change modes at any time.
◆ Each time you press the
button:
- The temperature is adjusted by 1OC.
- The indoor unit beeps.
◆ The air conditioner starts removing the excess humidity;
◆ the quantity of air is adjusted automatically.
To control the direction of the air flow, refer to page 17.
E-13
Airing Your Room
If the atmosphere in your room is stale, you can air the room using
the Fan feature.
1
If necessary, press the
Result:
IMPORTANT
2
button.
◆ The air conditioner starts up in the Cool mode.
◆ The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
If the
is not displayed at the top of the remote control, press the
on the remote control one or more times until it appears.
Result:
◆ The indoor unit beeps each time you press the
button
button.
◆ The air conditioner runs in the Fan mode.
Note
3
You can change modes at any time.
Select the fan speed by pressing the
the required setting is displayed:
Low
button one or more times until
Medium
High
Result:
4
button, the indoor unit beeps.
To control the direction of the air flow, refer to page 17.
Note
E-14
◆ Each time you press the
To adjust the temperature, press the
button. The temperature
will be adjusted and the mode will be changed with the Cool mode.
ENGLISH
Selecting Energy Saving Mode
If your wish to save energy when using your air conditioner,
select the Energy saving mode with the Energy saving button.
1
If necessary, press the
◆ The air conditioner starts up in the Cool mode.
◆ The indoor unit beeps.
Result:
IMPORTANT
2
Press the
Result:
3
button.
◆ The indoor unit beeps.
◆ The air conditioner runs in the Energy saving mode.
- If the selected temperature is lower than 25°C,
it will slowly rise up to 26°C.
- If the selected temperature is higher than 26°C,
it will slowly rise.
◆ The outer air flow blade moves up and down.
You can adjust the temperature only when the air conditioner
runs in the Cool mode.
To select the fan speed, press the
required setting is displayed.
Note
5
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆ Plugged in
◆ Stopped
lt will start up normally after three minutes.
To adjust the temperature, press the
button one or more times until
the required temperature is displayed. Possible temperatures are between
26OC and 30OC inclusive.
Note
4
button.
button one or more times until the
You can adjust the fan speed only when the air conditioner
runs in the Cool mode.
To control the direction of the air flow, refer to page 17.
E-15
Cleaning Air in Your Room
You can clean air in your room with an electric dust collector in the
indoor unit which remove minute dust particles.
Since it is an additional function, you can select it in any mode,
even when the air conditioner is turned off.
1
Press the
Result:
Note
2
E-16
◆ The air conditioner starts up in the Clean mode.
◆ The indoor unit beeps.
If you press the
button during unit off, it will turn on automatically
and clean air in the Fan mode.
If you wish to stop the Cleaning function, press the
Result:
3
button.
button again.
◆ The air conditioner is reset automatically to the previous
mode, temperature and fan settings.
To control the direction of the air flow, refer to page 17.
ENGLISH
Adjusting the Air Flow Direction Vertically
Depending on the position of the indoor unit your room, you can
adjust the position of the outer air flow blade on the upper part of
the unit, thus increasing the efficiency of the air conditioner.
1
Press the
Result:
button.
◆ The outer blade moves up and down.
RECOMMENDATION
2
When...
Adjust the blade to face...
Cooling
Upwards.
To stop the blade moving up and down, press the
button again.
Adjusting the Air Flow Direction Horizontally
There are two sets of air flow blades. Just as the outer air flow
blade can be adjusted vertically, the inner blade can be adjusted
horizontally.
1
Press the
Result:
2
button.
◆ The inner blade moves right and left.
To stop the blade moving right and left, press the
button again.
E-17
Setting the On Timer
The On timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
1
Make sure that the air conditioner is turned off. The On timer can be set
only when the air conditioner is turned off.
2
Press the
button one or more times until the required time is displayed.
Possible time is between 0.5 hour and 24 hours inclusive.
Result:
3
Press the
Result:
4
C
◆ Each time you press the
button :
- The time is adjusted by 0.5 hour or 1 hour.
- The indoor unit beeps.
button to complete the setting.
◆ The remaining time is displayed.
◆ Blinking of the On timer indicator stops.
◆ The air conditioner will turn on automatically when the counter
displayed on the remote control reaches the setting time as
disappearing the On timer setting.
To select an operating mode in advance, press the
button until the
desired mode is displayed at the top of the remote control.
Result: ◆ The air conditioner will run in the selected mode when it is
turned on.
To Cancel the On Timer
Press the
Note
E-18
button again.
If you want to turn on the air conditioner before the timer reaches
the setting time, press the
button.
ENGLISH
Setting the Off Timer
The Off timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
1
Make sure that the air conditioner is turned on. The Off timer can be set
only when the air conditioner is turned on.
2
Press the
button one or more times until the required time is displayed.
Possible time is between 0.5 hour and 24 hours inclusive.
◆ Each time you press the
button :
- The time is adjusted by 0.5 hour or 1 hour.
- The indoor unit beeps.
Result:
3
Press the
Result:
button to complete the setting.
◆ The remaining time is displayed.
◆ Blinking of the Off timer indicator stops.
◆ The air conditioner will turn off automatically when the counter
displayed on the remote control reaches the setting time as
disappearing the Off timer setting.
To Cancel the Off Timer
Press the
Note
button again.
If you want to turn off the air conditioner before the timer reaches
the setting time, press the
button.
E-19
Setting the Sleep Timer
The Sleep timer can be used to switch the air conditioner off automatically
after maximum five hours.
1
Press the
button one or more times until the required time is displayed.
Possible time is between 0.5 hour and 5 hours inclusive.
Result:
◆ Each time you press the
button :
- The time is adjusted by 0.5 hour or 1 hour.
- The indoor unit beeps.
◆ The air conditioner will turn off automatically when the counter
displayed on the remote control reaches the setting time as
disappearing the Sleep timer setting.
To Cancel the Sleep Timer
Press the
disappears.
Note
E-20
button one or more times until the Sleep timer setting
If you want to turn off the air conditioner before the timer reaches
the setting time, press the
button.
ENGLISH
Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic
Recommendation
Power failure
If a power failure occurs when the air
conditioner is operating, the unit is switched off.
When the power returns, you must press the
(ON/OFF) button to restart it.
Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges,
within which the air conditioner can be used.
If the air conditioner is used at...
Then...
High temperature
The automatic protection feature may be
triggered and the air conditioner stopped.
Low temperature
A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
High humidity levels
Water may condense on and drip from
the surface of the indoor unit if it is used
for a long periods.
Mode
Outdoor Temperature
Indoor Temperature
Indoor Humidity
Cooling
21°C to 43°C approx.
18°C to 32°C approx.
80% or less
Drying
18°C to 43°C approx.
18°C to 32°C approx.
-
❇
If the cooling operation is used at over 33°C(indoor temperature) then,
it does not cool at its full capacity.
E-21
Cleaning Your Air Conditioner
To get the best possible use out of your air conditioner, you must clean it
regularly to remove the dust that accumulates on the air filter.
IMPORTANT
1
Open the front grille, then pull out the air filter.
2
Remove all dust on the air filter with a vacuum cleaner or brush.
3
When you have finished, insert the air filter into the original position and
close the front grille.
4
Clean the unit with a damp cloth and mild detergent (do NOT use benzene,
solvents or other chemicals).
Note
E-22
Before cleaning your air conditioner, ensure that you have switched
off the breaker for the unit.
If you have not used the air conditioner for a long period of time,
set the fan going for three to four hours to dry the inside of the air
conditioner thoroughly.
ENGLISH
To Clean the Electric Dust Collector
You have to clean the electric dust collector once a month and the
cleaning cycle depends on the time during which the air conditioner
is used.
1
2
Open the front grille, then pull out the electric dust collector.
Dissolve an alkaline detergent in tepid water, then put the Electric dust
collector in the water for 30 minutes.
Note
Electric Dust
Collector
◆ Do not handle the detergent with bare hands.
◆ Do not place the filter in the water for a long time.
It may damage the filter
3
Clean the electric dust collector with running water.
4
Dry the electric dust collector in the shade, then insert the collector into
the original position, close the front grille.
E-23
Solving Common Problems
Before contacting the after-sales service, perform the following simple checks.
They may save you the time and expense of an unnecessary call.
Problem
E-24
Explanation/Solution
The air conditioner does not
operate at all
◆ Check that the breaker used for the air conditioner is switched on.
◆ Check that the indoor unit is turned on;
if necessary press the
button on the remote control.
◆ Check whether the Timer indicator on the indoor unit is switched on.
If so:
- Wait until the switch-on time is reached and the air conditioner starts
up automatically.
- Cancel the timer (see pages 18~20 for further details)
The air conditioner does not
operate with the remote control
◆ Check that there are no obstacles between you and the indoor unit.
◆ Check the remote control batteries.
◆ Check that you are close enough to the indoor unit (seven metres/
yards or less).
No beep is heard when you press
the
button on the remote control
◆ Check that you are pointing the remote control at the remote control
sensor of the indoor unit.
◆ Replace the remote control batteries if necessary.
The air conditioner does not cool
◆ Check that the correct operating mode has been selected
(Cool, Auto).
◆ The room temperature may be too low or too high.
◆ Dust may be blocking the air filter guard; refer to pages 22~23
for cleaning instructions.
◆ Check that there is no obstacle in front of the outdoor unit.
The fan speed does not change
when you press the
button
◆ Check that the operating mode is set to Cool, or Fan ;
in the Auto, Turbo, Extra and Dry mode, the fan speed is
controlled automatically.
The air flow direction does not
change when you press the
or
button
◆ Check that the air conditioner has been switched on; if necessary,
press the
button on the remote control.
The timer is not correctly triggered
◆ Check that the timer has been programmed correctly;
see pages 18~20.
Odours are permeated in the room
during air conditioning
◆ Air the room.
ENGLISH
Technical Specifications
Model
APC3270E/APC3270EM
Power supply
1Ø, 220-240V~, 50Hz
Capacity
32000BTU/ h
Power Dissipation
3400W
Current
16.5A
E-25
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
ELECTRONICS
Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
