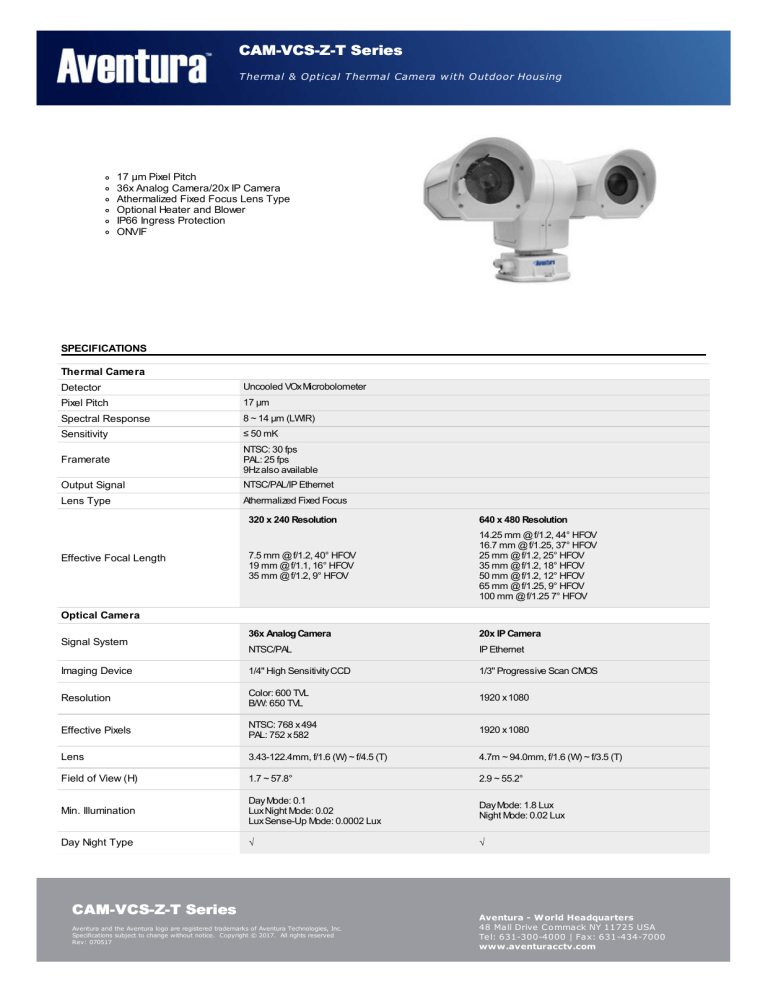

CAM-VCS-Z-T Series
T hermal & Optical T hermal Camera w ith Outdoor Housing
17 µm Pixel Pitch
36x Analog Camera/20x IP Camera
Athermalized Fixed Focus Lens Type
Optional Heater and Blower
IP66 Ingress Protection
ONVIF
SPECIFICATIONS
Thermal Camera
Detector
Pixel Pitch
Spectral Response
Sensitivity
Framerate
Output Signal
Lens Type
Uncooled VOx Microbolometer
17 µm
8 ~ 14 µm (LWIR)
≤ 50 mK
NTSC: 30 fps
PAL: 25 fps
9Hz also available
NTSC/PAL/IP Ethernet
Athermalized Fixed Focus
320 x 240 Resolution
640 x 480 Resolution
7.5 mm @ f/1.2, 40° HFOV
19 mm @ f/1.1, 16° HFOV
35 mm @ f/1.2, 9° HFOV
14.25 mm @ f/1.2, 44° HFOV
16.7 mm @ f/1.25, 37° HFOV
25 mm @ f/1.2, 25° HFOV
35 mm @ f/1.2, 18° HFOV
50 mm @ f/1.2, 12° HFOV
65 mm @ f/1.25, 9° HFOV
100 mm @ f/1.25 7° HFOV
36x Analog Camera
20x IP Camera
NTSC/PAL
IP Ethernet
Imaging Device
1/4" High Sensitivity CCD
1/3" Progressive Scan CMOS
Resolution
Color: 600 TVL
B/W: 650 TVL
1920 x 1080
Effective Pixels
NTSC: 768 x 494
PAL: 752 x 582
1920 x 1080
Lens
3.43-122.4mm, f/1.6 (W) ~ f/4.5 (T)
4.7m ~ 94.0mm, f/1.6 (W) ~ f/3.5 (T)
Field of View (H)
1.7 ~ 57.8°
2.9 ~ 55.2°
Min. Illumination
Day Mode: 0.1
Lux Night Mode: 0.02
Lux Sense-Up Mode: 0.0002 Lux
Day Mode: 1.8 Lux
Night Mode: 0.02 Lux
Day Night Type
√
√
Effective Focal Length
Optical Camera
Signal System
CAM-VCS-Z-T Series
Aventura and the Aventura logo are registered trademarks of Aventura Technologies, Inc.
Specifications subject to change without notice. Copyright © 2017. All rights reserved
Rev: 070517
Aventura - World Headquarters
48 Mall Drive Commack NY 11725 USA
Tel: 631-300-4000 | Fax: 631-434-7000
www.aventuracctv.com
CAM-VCS-Z-T Series
T hermal & Optical T hermal Camera w ith Outdoor Housing
Wide Dynamic Range
√
-
Video Out
1Vp-p, 75 Ohm, BNC (Composite Video Signal)
H.264 Dual Stream
Digital Zoom
12x
12x
Back Light Compensation
√
√
Auto White Balance
√
√
On-Screen Display
√
√
Additional Features
Pan/Tilt
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Accuracy
Presets
Protocol
Comm. Speed
Serial Communication
Environment
Operating Environment
Ingress Protection
Heater
Blower
Operating Temperature
Operating Humidity
Electrical
Input Voltage
Power Consumption
General
Weight
Dimensions
Regulatory Type
Warranty
360° Continuous
0.01 ~ 60º/s
-90º ~ 90º
0.01 ~ 30º/s
≤ 0.2º
80
Pelco-D (Pelco-P available)
2400/4800/9600/19200 bps
RS-485
Indoor/Outdoor
IP66
Optional
Optional
-4 ~ 149° F (-20 ~ 65° C)
-31 ~ 149° F (-35 ~ 65° C) with heater
≤ 90% non-condensing
AC 24V ± 10%
≤ 170 W
42 lbs (19 kg)
12.7" x 18.5" x 10.6" (322 x 470 x 269 mm)
CE, FCC, UL
3 Years
CAM-VCS-Z-T Series
Aventura and the Aventura logo are registered trademarks of Aventura Technologies, Inc.
Specifications subject to change without notice. Copyright © 2017. All rights reserved
Rev: 070517
Aventura - World Headquarters
48 Mall Drive Commack NY 11725 USA
Tel: 631-300-4000 | Fax: 631-434-7000
www.aventuracctv.com
CAM-VCS-Z-T Series
T hermal & Optical T hermal Camera w ith Outdoor Housing
AVAILABLE MODELS
Part number
Description
CAM-VCS-AZ-T340
CAM-VCS-AZ-T316
CAM-VCS-AZ-T309
CAM-VCS-AZ-T644
CAM-VCS-AZ-T637
CAM-VCS-AZ-T625
CAM-VCS-AZ-T618
CAM-VCS-AZ-T612
CAM-VCS-AZ-T609
CAM-VCS-IPZ-T340
CAM-VCS-IPZ-T316
CAM-VCS-IPZ-T309
CAM-VCS-IPZ-T644
CAM-VCS-IPZ-T637
CAM-VCS-IPZ-T625
CAM-VCS-IPZ-T618
CAM-VCS-IPZ-T612
CAM-VCS-IPZ-T609
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 320x240 Thermal Camera with 40 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 320x240 Thermal Camera with 16 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 320x240 Thermal Camera with 9 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 640x480 Thermal Camera with 44 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 640x480 Thermal Camera with 37 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 640x480 Thermal Camera with 25 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 640x480 Thermal Camera with 18 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 640x480 Thermal Camera with 12 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 36x Analog Camera, and 640x480 Thermal Camera with 9 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 320x240 Thermal Camera with 40 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 320x240 Thermal Camera with 16 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 320x240 Thermal Camera with 9 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 640x480 Thermal Camera with 44 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 640x480 Thermal Camera with 37 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 640x480 Thermal Camera with 25 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 640x480 Thermal Camera with 18 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 640x480 Thermal Camera with 12 deg HFOV
Visionary Camera System with Motorized Pan/Tilt, 2 Megapixel Camera, and 640x480 Thermal Camera with 9 deg HFOV
