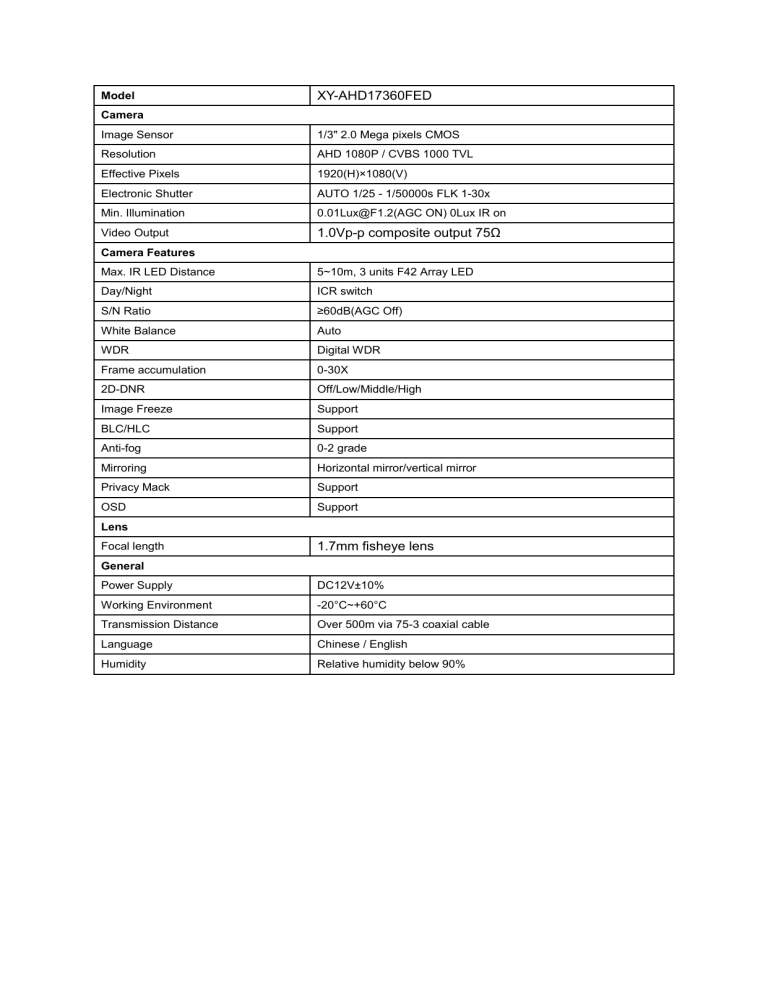

Model
XY-AHD17360FED
Camera
Image Sensor
1/3" 2.0 Mega pixels CMOS
Resolution
AHD 1080P / CVBS 1000 TVL
Effective Pixels
1920(H)×1080(V)
Electronic Shutter
AUTO 1/25 - 1/50000s FLK 1-30x
Min. Illumination
[email protected](AGC ON) 0Lux IR on
Video Output
1.0Vp-p composite output 75Ω
Camera Features
Max. IR LED Distance
5~10m, 3 units F42 Array LED
Day/Night
ICR switch
S/N Ratio
≥60dB(AGC Off)
White Balance
Auto
WDR
Digital WDR
Frame accumulation
0-30X
2D-DNR
Off/Low/Middle/High
Image Freeze
Support
BLC/HLC
Support
Anti-fog
0-2 grade
Mirroring
Horizontal mirror/vertical mirror
Privacy Mack
Support
OSD
Support
Lens
Focal length
1.7mm fisheye lens
General
Power Supply
DC12V±10%
Working Environment
-20°C~+60°C
Transmission Distance
Over 500m via 75-3 coaxial cable
Language
Chinese / English
Humidity
Relative humidity below 90%
