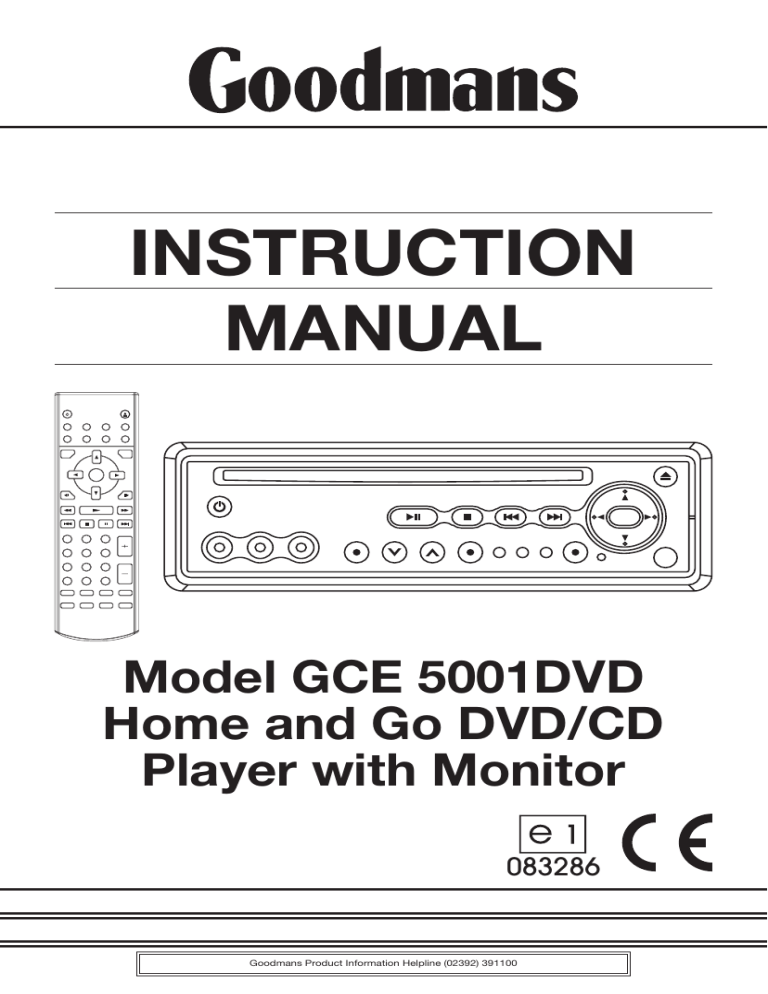

88-V2010-02 Goodmans
INSTRUCTION
MANUAL
Model GCE 5001DVD
Home and Go DVD/CD
Player with Monitor
083286
Goodmans Product Information Helpline (02392) 391100
IMPORTANT SAFEGUARDS
For your own safety read following instructions carefully before attempting to
connect this clock radio to the mains.
Mains Supply:
230V ~ 50Hz - AC only
This unit is designed to operate on a 230V ~ 50Hz supply only. Connecting it
to other power sources may damage it. Ensure that the supply corresponds
to the information on the rating label on the bottom of the unit.
This clock radio may be fitted with a non-rewireable plug. If it is neccssary to
change the fuse in a non-rewireable plug the fuse cover must be refitted.
If the fuse cover becomes lost or damaged, the plug must not be used until a
replacement, available from the manufacturer, is obtained. It is important that
the colour of the replacement fuse cover corresponds with the colour marking
on the base of the plug.
If the plug needs to be changed because it is not suitable for your socket, or
becomes damaged, it should be cut off and an appropriate plug fitted following
the wiring instructions below. The plug must then be disposed of safely, as
insertion into a 13A socket is likely to cause an electrical hazard.
IMPORTANT
FUSE
The wires in the mains plug should be connected
BLUE
as shown in the diagram.
(NEUTRAL)
N
The colours of the wires in the mains lead of the unit
BROWN
(LIVE)
may not correspond with the coloured markings
OUTER
L
SLEEVE
identifying the terminals in your plug. Connect them
CORD GRIP
as follows:The wire which is coloured blue must be cpmmected to the terminal which is
marked with the letter ‘N’ or coloured black.
The wire which is coloured brown must be connected to the terminal which is
marked with the letter ‘L’ or coloured red.
There should be no connection to the earth terminal of your plug.
If a 13 Amp (BS 1363) Plug is used, a 3 Amp Fuse must be fitted, or if any
other type of Plug is used a 3 Amp or 5 Amp Fuse must be fitted, either in the
Plug or Adaptor, or on the Distribution Board.
This symbol means that this unit is double insulated. An earth
connection is not required.
DANGER
LASER SAFETY
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK
FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO
This unit employs a laser. Only a qualified service person should remove the
cover or attempt to service.
CAUTION
To prevent electric shock, disconnect from the mains before removing cover.
No user serviceable parts inside. Refer servicing to qualified service personnel.
Goodmans Product Information Helpline (02392) 391100
IMPORTANT NOTES
Hearing is very important to you and to us so please take care when operating
this equipment . It is strongly recommended that you follow the listed guidelines
in order to prevent possible damage or loss of hearing.
ESTABLISH A SAFE SOUND LEVEL
• Over time your hearing will adapt to continuous loud sounds and will give
the impression that the volume has in fact been reduced. What seems normal
to you may in fact be harmful.
• To guard against this BEFORE YOUR HEARING ADAPTS set the volume
at a level.
Slowly increase the level until you can hear comfortably and clearly and
without distortion.
• Damage to your hearing is accumulative and is irreversible.
Any ringing or discomfort in the ears indicates that the volume is too loud.
• Remember listening for prolonged period of time at high volume levels will
harm your hearing.
Once you have established a comfortable listening level. DO NOT INCREASE
THE SOUND LEVEL FURTHER.
The following list of typical sound levels may assist you recognizing just how
loud you have set the volume level.
DECIBEL
Level (dB)
Example
30dB
40dB
50dB
60dB
70dB
Quiet library, soft whispers
Living room, fridge freezer, bedroom away traffic
Normal conservation, quiet office, light traffic
Electric sewing machine
Vacuum cleaner, hair dryer, noisy restaurant
THE FOLLOWING NOISE CAN BE HARMFUL UNDER CONSTANT EXPOSURE
80dB
90dB
100dB
120dB
Average city traffic, alarm clock buzzer at 2 feet, loud mixer
Motorcycle, heavy goods vehicle, petrol lawn mower.
Pneumatic drill, chain saw, garbage truck, discotheque right-club
Rock band concert, thunderclap fast train passing by.
PERMANENT LOSS OF HEARING
140dB
THRESHOLD OF PAIN Gunshot 2 feet away, jetplane taking off.
Goodmans Product Information Helpline (02392) 391100
Use Authorized Service Centers
Do not attempt to disassemble or adjust
this precision product. Please refer to the
Service Center list included with this
product for service assistance.
Features
Compatible with PAL DVD (Video
CD) and NTSC DVD (Video CD)
This player can play discs recorded in
either PAL or NTSC format.
Installation
The unit should be installed in a horizontal
position with the front end up at a
convenient angle, but not more than 30˚.
• A single LSI chip now integrates all
major DVD playback circuit functions
including MPEG2 decoder, video D/A
converter, and audio decoders.
• L/R stereo analog audio outputs for
connection to existing head unit aux
inputs. Video output is composite
video.
• Supplied remote handles multi-function
software (multi-language audiotrack/subtitle, multi-angle, multi-story,
etc.), plus all basic functions.
Use This Product Safely
When Driving
Keep the volume level low enough to be
aware of road and traffic conditions.
When Car Washing
Do not expose the product to water or
excessive moisture. This could cause
electrical shorts, fire or other damage.
When Parked
Parking in direct sunlight can produce
very high temperatures inside your vehicle.
Allow the interior to cool down before
starting playback.
Use the Proper Power Supply
This product is designed to operate with
a 12 volt DC, negative ground battery
system.
Protect the Disc Mechanism
Avoid inserting any foreign objects into
the slot of this player.
Failure to observe this may cause
malfunction due to the precise mechanism
of this unit.
P. 4
Goodmans Product Information Helpline (02392) 391100
CONTENTS
Safety Information ......................................................................................................6
Disc Notes ..................................................................................................................7
The Player ..................................................................................................................8
Front View..............................................................................................................8
Back View ..............................................................................................................8
Installation...................................................................................................................9
Electrical Connection...............................................................................................10
Remote Control ........................................................................................................11
Location and Function of Keys............................................................................11
Preparing the Remote Control.............................................................................13
Loading a disc .....................................................................................................13
Ejecting a disc .....................................................................................................13
Operation...................................................................................................................14
Basic Play ............................................................................................................14
On-Screen Display Function................................................................................16
Multi-audio Language Function...........................................................................17
Menu Function.....................................................................................................17
Title Menu Function .............................................................................................17
Subtitle Language Function.................................................................................17
Multi-angle Function............................................................................................17
MP3 Disc Play .....................................................................................................18
Setup..........................................................................................................................19
Initial Setup ..........................................................................................................19
General Setup......................................................................................................19
Speaker Setup .....................................................................................................21
Audio Setup .........................................................................................................21
Preferences Setup ...............................................................................................22
Defaults Table ......................................................................................................24
Specifications ...........................................................................................................25
Monitor ......................................................................................................................26
P. 5
Goodmans Product Information Helpline (02392) 391100
SAFETY INFORMATION
CAUTION:
Region Management Information
MOBILE DVD PLAYER IS A CLASS I
LASER PRODUCT. HOWEVER THIS
MOBILE DVD PLAYER USES A
VISIBLE/INVISIBLE LASER BEAM WHICH
COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE MOBILE
DVD PLAYER CORRECTLY AS
INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
This Mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD Player
cannot play this disc.
WARNING:
• TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
• TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
• THIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. patents
and other intellectual property rights
owned by Macrovision Corporation and
other rights owners. Use of this copyright
protection technology must be authorized
by Macrovision Corporation, and is
intended for home and other limited
viewing uses only unless otherwise
authorized by Macrovision Corporation.
Reverse engineering or disassembly is
prohibited.
P. 6
Goodmans Product Information Helpline (02392) 391100
DISC NOTES
conditions in the usage environment. Note
these scratches are not an indication of
any problem with the player.
Disc formats supported by this player
DVD
12 cm disc
(Single-sided disc only)
Label side up
Video CD
12 cm disc
CD
12 cm disc
Do not touch
the underside
of the disc
MP3
12 cm disc
Discs which cannot be played with this
player
• DVD-ROM
• DVD-R/ DVD-RAM
• CDV
• CD-G
Do not bend
Wipe the disc from center
toward the outside edge
Handling and Cleaning
• Dirt, dust, scratches and warped discs
will cause misoperation.
• Do not place stickers or make
scratches on discs.
• Do not warp discs.
• A disc should always be kept in its
case when not in use to prevent from
damaging.
• Do not place discs in the following
places:
1. Direct sunlight.
2. Dirty, dusty and damp areas.
3. Near car heaters.
4. On the seats or dashboard.
Preparing New Discs with Rough Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a
ballpoint pen or pencil as shown below.
To remove the rough edges, press the
side of the pen or pencil against the inside
and outside edges of the disc.
Rough spots on
outside edge
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become scratched (although
not enough to make it unusable)
depending on how you handle it and
Ball point pen
or pencil
Rough spots
on inside edge
P. 7
Goodmans Product Information Helpline (02392) 391100
THE PLAYER
FRONT VIEW
1
18
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
6
19
20
Power ( )
EJECT( )
SETUP
AUDIO
SOURCE
Disc Slot
PLAY/PAUSE (
STOP ( )
PREVIOUS(
)
)
NEXT(
VOLUME down (
4
7
11
8
12
)
10
14
2
5 15 16 17 3 22
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
)
9
21
)
VOLUME up (
/ , / cursor buttons
ENTER
Indicator Light for DVD
Indicator Light for AV INPUT 1
Indicator Light for AV INPUT 2
VIDEO IN 1
AUDIO IN 1 L
AUDIO IN 1 R
IR Sensor
Reset button
BACK VIEW
23
23.
24.
25.
26.
27.
24
25
26
27
DC 12V INPUT Socket
DC 12V OUTPUT Socket
REMOTE Socket
VIDEO 2 INPUT
AUDIO 2 INPUT L/R
28
28.
29.
30.
31.
13
29
30
DIGITAL AUDIO
VIDEO 1 OUTPUT
AUDIO OUTPUT L/R
VIDEO 2 OUTPUT
P. 8
Goodmans Product Information Helpline (02392) 391100
31
INSTALLATION
This unit is designed for home-use and car-use. When installed on the car, please
follow the installation instruction below.
REMOVE THESE TWO TRANSIT SCREWS
ORNAMENTAL BOARD
DOUBLE SIDED FIXING TAPE
COLUMN
Note:
First remove the two screws before connecting and operating the player.
P. 9
Goodmans Product Information Helpline (02392) 391100
ELECTRICAL CONNECTION
DVD PLAYER
DC 12V IN
INPUT OUTPUT
A/V 2 INPUT
REMOTE
VIDEO
L/R
DIGITAL
AUDIO
A/V OUTPUT
VIDEO 1
L/R
VIDEO 2
YELLOW
VIDEO 2 OUT
YELLOW
VIDEO 1 OUT
AC/DC
ADAPTOR
RED
AUDIO R OUT
WHITE
AUDIO L OUT
(OPTIONAL)
DIGITAL AUDIO
YELLOW
VIDEO 2 IN
RED
AUDIO 2 R IN
WHITE
AUDIO 2 L IN
CIGARETTE LIGHTER
P. 10
Goodmans Product Information Helpline (02392) 391100
REMOTE CONTROL
LOCATION AND FUNCTION OF KEYS
8
9
4
5
1
2
3
6
7
10
11
12
14
13
15
16
18
17
19
20
21
24
23
22
25
28
29
32
26
27
30
31
P. 11
Goodmans Product Information Helpline (02392) 391100
REMOTE CONTROL
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
POWER
EJECT
MUTE
SUBTITLE
ANGLE
DISPLAY
MODE
SETUP
PAL/NTSC
AUDIO
11. TITLE
12. MENU
13.
/ ,
/
14. ENTER
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
/
/
/
0-9
10+
CLEAR
VOLUME+/–
25. ZOOM
26. RESUME
27.
28.
29.
30.
31.
32.
GOTO
PBC
RANDOM
PROGRAM
REPEAT
A-B
Press POWER to turn the unit ON or OFF.
Press to eject the disc.
Press to mute the sound.
Change SUBTITLE language on multi-subtitle language DVD disc.
Change the viewing angle on multi-angle DVD disc.
Display disc information during playback.
Changing between DVD mode, AV1 mode and AV2 mode.
Display the SETUP menu.
Switch between PAL mode and NTSC mode.
Change the AUDIO soundtrack on multi-audio soundtrack DVD
disc.
Change the sound mode of the VCD/CD discs.
Display the TITLE menu of a DVD disc.
Display the root menu of a DVD disc.
When viewing a menu, / , / buttons serve as cursor
buttons to select item left/right, up/down.
Confirm the Track/Chapter selected with the numeric buttons or
selected with the cursor buttons on TV screen.
Slow motion forward/ reverse playback.
Press to play the disc.
Press
to search forward rapidly &
to search reverse rapidly.
Press
to skip to the next track & press
to skip back one
track.
Press to stop playback.
Press to pause playback.
Numeric buttons
Used to select numbers higher than 10.
When you input a number in error, press to clear it.
Press VOLUME+/– button to increase or decrease the volume
level.
Allows the picture to be increased or decreased in size.
When in stop mode, press the button, the play can be resumed
from the stop point.
Disc search button, used with numeric buttons.
Change between PBC ON and PBC OFF for VCD discs.
Play tracks in random order.
Play tracks in the order you programmed.
Change the Repeat mode of discs.
A-B repeat allows a passage to be repeated continuously.
P. 12
Goodmans Product Information Helpline (02392) 391100
REMOTE CONTROL
Preparing the Remote Control
Inserting the Batteries
1. Open the battery compartment cover.
2. Insert the new batteries. Make sure
that the positive and negative terminals
of the batteries are oriented as
indicated.
3. Close the cover.
• Battery: Two AAA size battery
Using the Remote Control
Point the remote control towards the IR
sensor on the front of the DVD player
(remote control signal receiver).
Operation angle: About ±30 degree in
each the direction of the IR sensor.
Loading a Disc
1. When using in the car, turn the ignition
on.
2. Press the POWER button (1).
3. Insert the disc with printed side facing
up into the disc slot (2).
4. The player will start playback
automatically.
Ejecting a Disc
Press
disc.
1
(EJECT) button (3) to eject the
2
3
P. 13
Goodmans Product Information Helpline (02392) 391100
OPERATION
Pause (still picture)
Pressing on the remote control or
on the front panel during playback will
stop play temporary. To return to normal
playback, press
on the remote control
on the front panel.
or
BASIC PLAY
Stopping play
- Briefly press the (Stop) button to
stop playback. After pressing the
(Play) button it will continue normal
playback from the stopped point.
- Press (Stop) button twice, it will stop
the playback and after pressing the
(Play) button go back to initial
Track/Chapter.
MUTE
Will mute the sound, but the disc
continues playing. To unmute the sound
press MUTE again.
REPEAT
Search forward / Search reverse
Press
&
during play.
Each time the button is pressed, the speed
of Search forward /reverse changes
according to the disc as follow.
DVD:
Normal Playback
2X
4X
6X
FOR DVD:
Press REPEAT button to select repeat
mode as follow:
CHAPTER REPEAT ON
8X
FOR VCD/CD:
Press the REPEAT button to select repeat
mode as follow.
VCD/CD:
Normal Playback
1X
2X
3X
4X
REP-ONE
MP3:
Normal Playback
2X
4X
REPEAT OFF
A-B
A-B repeat allows a passage to be
repeated continuously. Press A-B button
at the start of the required passage, then
press A-B button again at the end of the
passage. To revert to normal playing, press
A-B button again. Each time the button
pressed, the screen will display as follows:
Slow motion play
Press
/
during play.
Each time the button is pressed, the speed
of slow motion forward /reverse changes
according to the disc as follow.
DVD:
2X
REP-ALL
1. Continuously repeat the current
chapter/track, when REP-ONE mode
is selected.
2. Select REP-ALL mode to continuously
repeat all chapters/tracks on the current
disc.
3. REPEAT feature’s not supported on
VCD2.0 Discs (with PBC ON).
4X
Skipping track
Press
/
on the remote control
or buttons on the front panel during playback.
Press
to skip to next track, and
to skip back one track.
Note: For some VCD2.0 discs (PBCplayback control),
/
buttons
may be unavailable.
Normal Playback
TITLE REPEAT ON
REPEAT OFF
A TO B SET A A TO B SET B A TO B CANCELLED
8X
P. 14
Goodmans Product Information Helpline (02392) 391100
OPERATION
PROGRAM
In stop mode, press PROGRAM button,
the screen will display “PROGRAM
P00:00”. For example: press numeric
button 4 and
button, “PROGRAM
P01:04” appears. It means track 4 will be
played first.
Disc Search (GOTO)
FOR DVD
Press GOTO button once, the screen will
display the following message:
TITLE 01/01 CHAPTER 007 / 020
MODE SELECTION
Press SOURCE button on the front panel
of the unit or MODE button on the remote
control to select DVD, AV1 or AV2 mode.
After selecting a mode, the corresponding
indicator on the front panel will be
illuminated.
Select the chapter you wish to view using
the numeric buttons. Confirm your choice
by pressing ENTER key.
Press GOTO button twice, the screen will
display the following message:
Volume Level Adjustment
Press VOLUME /
on the front panel
or VOLUME +/- on the remote control to
increase or decrease the volume level.
TITLE 01/01 TIME -- : -- : -00:00:25
You can select the item you want to
watch through TIME setting by using
numeric buttons and ENTER key.
Remote Sensor (IR)
Point the remote handset to the remote
sensor IR on the front panel.
FOR CD/VCD (WITH PBC OFF):
Press GOTO button once, the screen will
display the following message:
Turning the player on/off
Press the (POWER) button on the front
panel or on the remote control to turn the
player on or off.
GOTO -- : -00:00:25
Reset
Reset button is placed on the front panel
and must be activated with either a
ballpoint pen or thin metal object. The
reset button is to be activated for the
following reasons:
- Initial installation of the unit when all
wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
Use numeric buttons to input the time
directly.
ZOOM
Allows the picture to be increased or
decreased in size. Press ENTER to toggle
between 1.5 scale, 2.0 scale and 3.0 scale.
RANDOM
Press RANDOM button, track selection
will be made in random order. The display
screen will show “SHUFFLE ON” on the
right-top corner. Press RANDOM button
again, “SHUFFLE OFF” appears and
release the mode.
P. 15
Goodmans Product Information Helpline (02392) 391100
OPERATION
On-Screen Display function
SINGLE REMAIN
Press the DISPLAY button during
playback to display the contents of the
current disc on the screen.
Example:
00:03:15
(3) Press DISPLAY for the third time:
DVD:
(1) Press DISPLAY once:
TOTAL ELAPSED
00:00:25
TITLE 01/03 CHAPTER 002/025
00:02:25
(4) Press DISPLAY for the fourth time:
Title Number, Total Title Number, Chapter
Number, Total Chapter Number of this
Title of the disc currently being played will
be shown on the screen, along with the
elapsed time.
TOTAL REMAIN
00:40:35
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
(2) Press DISPLAY for the second time:
TITLE REMAIN
CD:
(1) Press DISPLAY for the first time:
01:46:58
SINGLE ELASPED
00:00:25
(3) Press DISPLAY for the third time:
TOTAL TRACK : 14
TRACK : - 01
CHAPTER ELAPSED
00:00:24
(2) Press DISPLAY for the second time:
(4) Press DISPLAY for the fourth time:
SINGLE REMAIN
00:03:15
CHAPTER REMAIN
TOTAL TRACK : 14
TRACK : - 01
00:01:39
(3) Press DISPLAY for the third time:
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
TOTAL ELASPED
00:00:25
VCD:
(1) Press DISPLAY for the first time:
TOTAL TRACK : 14
TRACK : - 01
SINGLE ELAPSED
00:00:25
(4) Press DISPLAY for the fourth time:
(2) Press DISPLAY for the second time:
P. 16
Goodmans Product Information Helpline (02392) 391100
OPERATION
MONO LEFT
MONO RIGHT
STEREO
TOTAL REMAIN
00:40:35
MENU function (For DVD Only)
TOTAL TRACK : 14
TRACK : - 01
Press MENU button while the disc is
playing and the disc root menu will be
displayed. You can navigate with the
remote control navigation keys and select
a feature with the ENTER key.
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
MP3 (when set to NO MENU in SMART
NAV menu):
(1) Press DISPLAY for the first time:
TITLE menu function (For DVD Only)
If the DVD has multiple titles recorded on
the disc, the preferred title can be selected
from the title menu to start playback.
1. Press TITLE during playback.
- The title menu is display.
2. Use the cursor button to select preferred
title and confirmed by ENTER key.
CHAPTER ELASPED 00:00:25
TOTAL TRACK : 123
TRACK : - 01
(2) Press DISPLAY for the second time:
CHAPTER REMAIN
Multi-subtitle language function
(For DVD only)
00:04:25
Press SUBTITLE during playback.
Each time the button is pressed, number
of the subtitle language changes in
sequential order.
Notes:
- The language number is different
according to the disc.
- Some discs only contain one subtitle
language.
- When no different subtitle language
are recorded,
will be displayed in
the left top corner of the screen.
TOTAL TRACK : 123
TRACK : - 01
(3) Press DISPLAY for the third time:
The message on the screen will be cleared.
Multi-audio language function
For DVD
Press AUDIO on the remote control or on
the front panel during playback. Each time
the button is pressed, number of the audio
soundtrack language changes on
sequential order.
Notes:
- The language number is different
according to the disc.
- Some discs only contain one language
soundtrack.
- When no different language soundtrack
are recorded,
will be displayed in
the left top corner of the screen.
Multi-angle function (For DVD only)
Press ANGLE during playback.
Each time the button is pressed, number
of the angle changes in sequential order.
Notes:
- The angle number is different according
to the disc.
- The function only works for discs that
have scenes recorded at different
angles.
- When no different angle is recorded,
will be display in the left top corner
of the screen.
For VCD/CD
Press AUDIO during playback.
It is possible to switch the sound between
monaural and stereo sound.
P. 17
Goodmans Product Information Helpline (02392) 391100
OPERATION
MP3 Disc Play
The SMART NAVI displays the contents
of a MP3 disc in the format of folders.
SMART NAVI
ROOT
ROOT
0
MP3 MUSIC
1
SKY
MP3 HEAR YOUR
PLAY MODE
DISC
Use / , / on the remote control
or on the front panel of the unit to select
the item or folder, then press ENTER
button.
Press the REPEAT button to cycle through
the following types of repeat play in order.
REP-ONE: Play the same song over and
again.
FOLDER REP: Play all songs in the current
directory in sequence, over and again.
FOLDER: Play all songs in the current
directory once.
Use the / to select play mode. When
play mode is selected use / to change
between the following mode:
SINGLE
REP-ONE
DISC SCAN
SHUFFLE ON
DISC
FOLDER
FOLDER REP
DISC REP
RANDOM
PROGRAM PXXX
During playback use
or
to
advance or reverse one track.
: Rapid reverse,
: Rapid advance.
Note: The FOLDER cannot be selected
during playing. It can be selected after
(Stop) button pressed.
P. 18
Goodmans Product Information Helpline (02392) 391100
SETUP
INITIAL SETUP
GENERAL SETUP
SETUP MANU --- MAIN PAGE
-- GENERAL PAGE --
GENERAL SETUP
TV DISPLAY
NORMAL/PS
SPEAKER SETUP
PIC MODE
NORMAL/LB
AUDIO SETUP
ANGLE MARK
WIDE
PREFERENCES
OSD LANG
CAPTIONS
SCR SAVER
EXIT SETUP
1. Press SETUP on the remote control or
on the front panel in the stop mode.
(Press the stop button twice to ensure
the player is in STOP mode.)
MAIN PAGE
TV Screen
2. The initial SETUP menu is displayed.
4:3
Video Material
Normal
3. Select the preferred item by using the
/ buttons.
Pan Scan
Wide (16:9)
Letter-box
4:3
16:9
4. Press ENTER buttons.
a/. GENERAL SETUP
This setup menu includes all the
item of TV display & Audio output
feature.
For details please refer to GENERAL
SETUP MENU.
TV display setup
This is to select the appropriate TV aspect
(4:3 or 16:9) according to the connected
TV set.
b/.SPEAKER SETUP
Use this menu to activate the audio
output from DOLBY AC3 5.1
DOWNMIX to 2 channel mode.
Please refer to SPEAKER SETUP
MENU.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style. (If
connected to wide-screen TV, the left and
right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in letterbox style. (If
connected to wide-screen TV, black bands
appear at top and bottom of the screen.)
c/. AUDIO SETUP
This setup menu includes all the
items for AUDIO. Please refer to
AUDIO SETUP MENU.
Wide (For 16:9 TV)
Select when a wide-screen TV set is
connected.
d/.PREFERENCES SETUP
This setup menu includes all the
configuration of support feature.
Please refer to PREFERENCES
SETUP MENU.
P. 19
Goodmans Product Information Helpline (02392) 391100
SETUP
-- GENERAL PAGE --
-- GENERAL PAGE --
TV DISPLAY
TV DISPLAY
PIC MODE
AUTO
PIC MODE
ANGLE MARK
HI-RES
ANGLE MARK
OSD LANG
N-FLICKER
OSD LANG
CAPTIONS
CAPTIONS
SCR SAVER
SCR SAVER
MAIN PAGE
MAIN PAGE
PIC mode setup
Select AUTO, the player PIC mode will
depend on DVD disc.
Select HI-RES format for best image
resolution.
Select N-FLICKER format on images or
pictures affected by noise.
ENGLISH
OSD LANG type setup
Select the preferred OSD language by
using the / buttons.
-- GENERAL PAGE --
-- GENERAL PAGE --
TV DISPLAY
TV DISPLAY
PIC MODE
PIC MODE
ANGLE MARK
ON
OSD LANG
OFF
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
CAPTIONS
ON
SCR SAVER
OFF
MAIN PAGE
ANGLE MARK display setup
If it is set to ON, when a multi-angle DVD
disc is playing, “
” (the angle mark) will
appear on the screen; if is set to “OFF”,
the mark will not appear.
(Please note: If the DVD disc is not
recorded with multiple angles, the angle
mark will not appear at all.)
CAPTIONS setup
Activate the CAPTIONS feature by
selecting ON. And deactivate this feature
by selecting OFF.
P. 20
Goodmans Product Information Helpline (02392) 391100
SETUP
-- GENERAL PAGE --
AUDIO SETUP
-- AUDIO SETUP --
TV DISPLAY
PIC MODE
AUDIO OUT
ANALOG
ANGLE MARK
OP MODE
SPDIF/RAW
OSD LANG
DYNAMIC
SPDIF/PCM
CAPTIONS
LPCM OUTPUT
SCR SAVER
ON
OFF
MAIN PAGE
MAIN PAGE
AUDIO OUT
• Select ANALOG mode to active analog
audio output.
• Select SPDIF/RAW mode to activate raw
digital audio output. And the digital audio
format depends on the disc record format.
• Select SPDIF/PCM mode to active
PCM digital audio output.
Caution: When SPDIF/PCM mode
activated, the ANALOG audio has no
output.
SCR SAVER setup
Select the SCR SAVER output ON/OFF.
The SCREEN SAVER appears when the
player is left in pause/stop mode for a
period of time.
SPEAKER SETUP
-- SPEAKER SETUP PAGE -DOWNMIX
LT/RT
-- AUDIO SETUP --
STEREO
AUDIO OUT
MAIN PAGE
OP MODE
LINE OUT
DYNAMIC
RF REMOD
LPCM OUTPUT
MAIN PAGE
This is to activate the audio output from
DOLBY AC3 5.1 DOWNMIX to 2 channel
mode.
Select the preferred SPEAKER connection
by using the cursor buttons.
- Select the LT/RT to activate the Dolby
surround compatible output.
- Select the STEREO to activate simple
stereo mode.
OP MODE
• Select LINE OUT to output normal AV
OUTPUT that can be directly
connected to the monitor through the
AV connection cable.
• RF REMOD is the outputted level
amplitude fit for driving the RF
REMODULATOR.
P. 21
Goodmans Product Information Helpline (02392) 391100
SETUP
-- AUDIO SETUP --
PREFERENCES SETUP
-- PREFERENCES PAGE --
AUDIO OUT
OP MODE
FULL
DYNAMIC
LPCM OUTPUT
TV TYPE
AUTO
6/8
AUDIO
NTSC
4/8
SUBTITLE
PAL
2/8
DISC MENU
OFF
PARENTAL
PASSWORD
DEFAULTS
MAIN PAGE
SMART NAV
MAIN PAGE
Dynamic range Control
When select the different step, the
dynamic range of audio output is different.
TV type setup
This player can play discs recorded in
either PAL or NTSC format.
Select NTSC format, when you connected
to NTSC TV.
Select PAL format, when you connected
to PAL TV.
Select AUTO format, the player output
format will be according to the DVD disc
format.
--PREFERENCES PAGE--
-- AUDIO SETUP -AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
LPCM 48K
TV TYPE
LPCM 96K
AUDIO
ENGLISH
SUBTITLE
FRENCH
DISC MENU
SPANISH
PARENTAL
CHINESE
PASSWORD
JAPANESE
MAIN PAGE
DEFAULTS
LPCM OUTPUT
Selecting LPCM 48K mode or LPCM 96K
mode depends on the disc record format.
The audio quality of LPCM 96K format is
better than LPCM 48K format.
SMART NAV
MAIN PAGE
AUDIO language setup
Select the preferred AUDIO soundtrack
by using the cursor buttons.
P. 22
Goodmans Product Information Helpline (02392) 391100
SETUP
-- PREFERENCES PAGE --
-- PREFERENCES PAGE -TV TYPE
TV TYPE
1G
AUDIO
AUDIO
2
SUBTITLE
ENGLISH
SUBTITLE
3 PG
DISC MENU
FRENCH
DISC MENU
4 PG 13
PARENTAL
SPANISH
PARENTAL
5
PASSWORD
CHINESE
PASSWORD
6 PG-R
DEFAULTS
JAPANESE
DEFAULTS
7 NC-17
SMART NAV
OFF
SMART NAV
8 ADULT
MAIN PAGE
NO_PARENTAL
MAIN PAGE
SUBTITLE language setup
Select the preferred SUBTITLE language
by using the cursor buttons.
PARENTAL
Select suitable parental guidance by the
cursor buttons and conformed by pressing
ENTER button.
-- PREFERENCES PAGE --
-- PREFERENCES PAGE --
TV TYPE
TV TYPE
AUDIO
AUDIO
SUBTITLE
SUBTITLE
DISC MENU
ENGLISH
DISC MENU
PARENTAL
FRENCH
PARENTAL
PASSWORD
SPANISH
PASSWORD
DEFAULTS
CHINESE
DEFAULTS
SMART NAV
JAPANESE
SMART NAV
MAIN PAGE
CHANGE
MAIN PAGE
DISC MENU language setup
Select the preferred DISC MENU language
by using the cursor buttons.
PASSWORD
Select CHANGE and press ENTER button.
Type the old password (The initial code
is 3308) and key in a new 4 characters
password you want to use, and retype
again to confirm key in correctly.
P. 23
Goodmans Product Information Helpline (02392) 391100
SETUP
-- PREFERENCES PAGE --
-- PREFERENCES PAGE -TV TYPE
TV TYPE
AUDIO
AUDIO
SUBTITLE
SUBTITLE
DISC MENU
DISC MENU
PARENTAL
PARENTAL
PASSWORD
PASSWORD
DEFAULTS
DEFAULTS
NO MENU
SMART NAV
SMART NAV
WITH MENU
MAIN PAGE
MAIN PAGE
RESET
SMART NAV
In this item, you can select NO MENU
mode or WITH MENU mode.
DEFAULTS
Select reset to restore initial factory
settings.
DEFAULTS TABLE
General Setup
TV Display
Normal/LB
PIC Mode
AUTO
Angle Mark
ON
OSD Language
English
Captions
ON
SCR Saver
ON
Speaker Setup
Downmix
Stereo
Audio Setup
Audio Out
SPDIF/RAW
OP Mode
Line Out
Dynamic
FULL
Preferences
LPCM Output
LPCM 96K
TV Type
AUTO
Audio
English
Subtitle
English
DISC Menu
English
Parental
NO Parental
Password
3308
Smart NAV
With Menu
P. 24
Goodmans Product Information Helpline (02392) 391100
SPECIFICATIONS
Supply voltage:
Current consumption:
Signal system:
Discs played:
Audio output level:
Audio signal output
characteristics:
12V DC (11V-15V), test voltage 14.4V, negative ground
Less than 2A
Compositive video 1.0Vp-p 75Ω
(1) DVD-VIDEO disc
5”(12 cm) single-sided, single-layer
5”(12 cm) single-sided, double-layer
(2) Compact disc (CD-DA)
5”(12 cm) disc
600Ω (2 ch 2.0 Vrms)
(1) Frequency response:
(2) S/N ratio:
(3) Wow and Flutter:
20 Hz-20 kHz
80 dB (JIS)
Below measurable limits
Note:
Specifications and design are subject to modification, without notice, due to improvements
in technology.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
P. 25
Goodmans Product Information Helpline (02392) 391100
OWNER’S MANUAL
MONITOR
022929
P. 26
Goodmans Product Information Helpline (02392) 391100
ELECTRICAL CONNECTION
(1)
(2)
(3) YELLOW
PVC CABLE (BLACK)
(4) WHITE
(5) RED
(7) RED
(6) BLACK
(8) BLACK
CAUTION:
1. Put the 9-pin mini din plug (1) into the 9-pin mini din socket (2).
2. The yellow socket (3) is connected to the VIDEO socket. The white socket (4) is
connected to the AUDIO Out-Left socket and the red socket (5) is connected to the
AUDIO Out-Right socket.
3. The POWER SUPPLY plug (6) is connected to the DV 12V output.
P. 27
Goodmans Product Information Helpline (02392) 391100
CONTROL & FUNCTION KEYS
9
11
11
10
10
13
12
1
2
4
3 5
6
7
8
5 inch COLOUR TFT LCD MONITOR
P. 28
Goodmans Product Information Helpline (02392) 391100
1.
POWER
Press POWER button (1) to turn on the unit. Press it again to turn it off.
2.
POWER INDICATOR LIGHT
When the system is on, the indicator light (2) will be illuminated.
3.
SPEAKER
Press the SPEAKER button (4) to turn on the speaker. Press it again to turn it
off.
4.
VOLUME
Rotate the VOLUME knob (5) right to increase volume level, and slide the knob
left to decrease volume level.
5.
COLOUR
Rotate the COLOUR knob (6) right or left to adjust the colour level.
6.
CONTRAST
Rotate the CONTRAST knob (7) right or left to adjust the contrast level.
7.
BRIGHTNESS
Rotate the BRIGHT knob (8) right or left to adjust the brightness level.
8.
TFT LIQUID CRYSTAL DISPLAY
The display will show the DVD movie.
9.
SOCKET FOR HEADPHONES
There are two sockets (10) for headphones. Headphones can be connected to
either of the sockets.
10. HEADPHONES VOLUME CONTROL KNOB
Rotate the knob (11) to change the volume of the headphones.
11. REMOTE
When connect DVD unit or another unit to the monitor through the jack (12), you
can control the DVD unit or another unit by pointing the remote control handset
directly to the remote sensor (3).
12. 9-PIN MINI DIN SOCKET
The socket is used for AUDIO IN, VIDEO IN and power supply input. Through the
socket (13), you can connect audio/video system to the unit.
P. 29
Goodmans Product Information Helpline (02392) 391100
88-V2010-02
