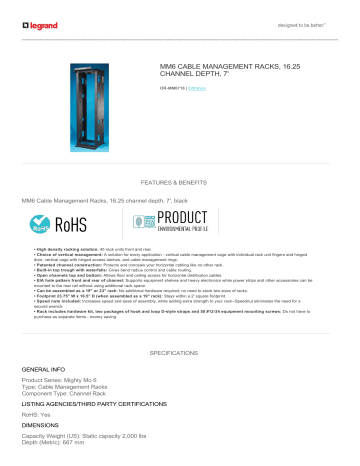

MM6 CABLE MANAGEMENT RACKS, 16.25
CHANNEL DEPTH, 7'
OR­MM6716 | Ortronics
FEATURES & BENEFITS
MM6 Cable Management Racks, 16.25 channel depth, 7', black
• High density racking solution: 45 rack units front and rear.
• Choice of vertical management: A solution for every application ­ vertical cable management cage with individual rack unit fingers and hinged
door, vertical cage with hinged access latches, and cable management rings.
• Patented channel construction: Protects and conceals your horizontal cabling like no other rack.
• Built­in top trough with waterfalls: Gives bend radius control and cable routing.
• Open channels top and bottom: Allows floor and ceiling access for horizontal distribution cables.
• EIA hole pattern front and rear of channel: Supports equipment shelves and heavy electronics while power strips and other accessories can be
mounted to the rear rail without using additional rack space.
• Can be assembled as a 19" or 23" rack: No additional hardware required; no need to stock two sizes of racks.
• Footprint 23.75" W x 16.5" D (when assembled as a 19" rack): Stays within a 2' square footprint.
• Speed nuts included: Increases speed and ease of assembly, while adding extra strength to your rack­­Speednut eliminates the need for a
second wrench.
• Rack includes hardware kit, two packages of hook and loop D­style straps and 50 #12­24 equipment mounting screws: Do not have to
purchase as separate items ­ money saving.
SPECIFICATIONS
GENERAL INFO
Product Series: Mighty Mo 6
Type: Cable Management Racks
Component Type: Channel Rack
LISTING AGENCIES/THIRD PARTY CERTIFICATIONS
RoHS: Yes
DIMENSIONS
Capacity Weight (US): Static capacity 2,000 lbs
Depth (Metric): 667 mm
Diameter (Metric): Mighty Mo 6
Height (Metric): 2.2 m
Height (US): 86"
DIMENSIONS
Capacity Weight (US): Static capacity 2,000 lbs
Depth (Metric): 667 mm
Diameter (Metric): Mighty Mo 6
Height (Metric): 2.2 m
Height (US): 86"
Width (Metric): 603 mm
Rack Units: 45
TECHNICAL INFORMATION
Patent No: D360,189
BUY AMERICAN ACT COMPLIANCE
Country Of Origin: UNITED STATES OF AMERICA
Buy American Act Status: Buy American Act Compliant
