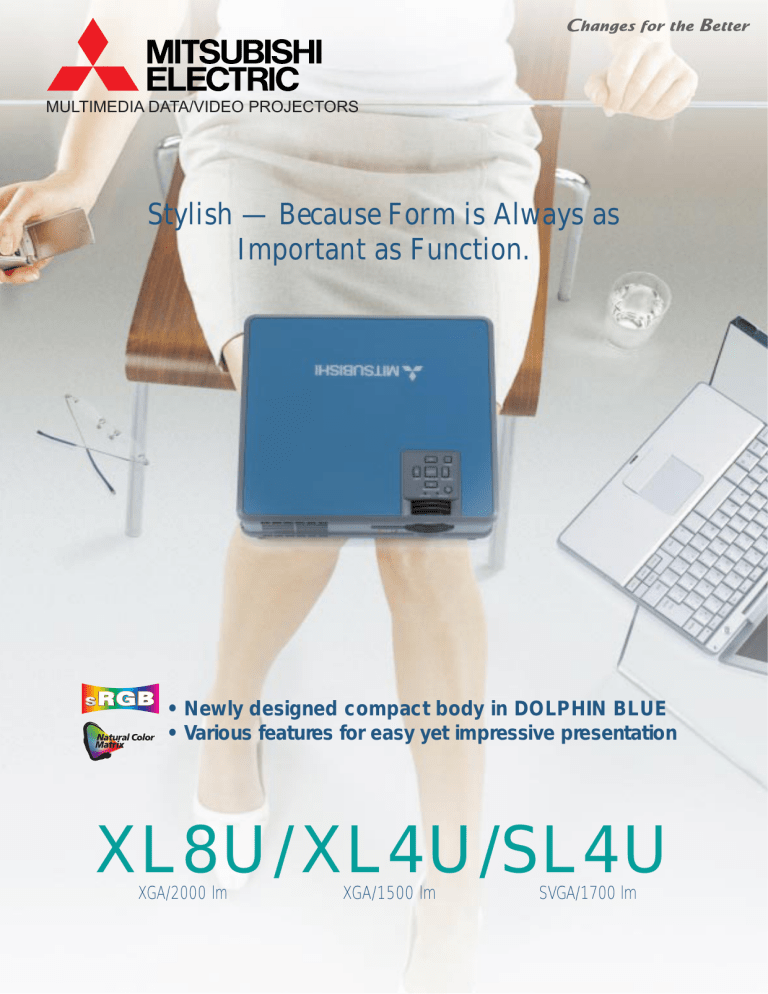

MULTIMEDIA DATA/VIDEO PROJECTORS
Stylish — Because Form is Always as
Important as Function.
• Newly designed compact body in DOLPHIN BLUE
• Various features for easy yet impressive presentation
XL8U/XL4U/SL4U
XGA/2000 lm
XGA/1500 lm
SVGA/1700 lm
XL8U/XL4U/SL4U
Great Features in Compact Body
• 3000Hrs life Lamp (low mode)
• Vertical/Horizontal Digital Keystone Correction (XL8U)
• Anti-Theft Password
• Auto Vertical Keystone Correction (XL8U)
• Short Throw Lens (XL4U / SL4U)
Other Features
• sRGB • Natural Color MatrixTM • Line Doubler • Versatile Input Terminals
• 3-mode Gamma Correction • User Logo Function • 2 Live Picture-In-Picture
• Digital Expanded Zoom
Specifications
Modela
Display technology
Resolution
Brightness
Color
Zoom / focus
Picture size
Source lamp
Computer compatibility
Video compatibility
Input terminals
Output terminals
Communication terminals
Audio speaker
Dimensions (W x H x D)
Weight
Power supply
XL8U
0.7” Polysillicon panel x 3 (with MLA)
1024 x 768 (total 2,359,296 pixels), 600 video lines
2000 lm
16,770,000 colours
Manual control (zoom ratio 1.2:1)
40” ~ 300” (100” = 3.7m)
180W / 2000hrs (normal mode), 160W / 3000hrs (low mode)
VGA® ~ SXGA® (640 x 400 ~ 1280 x 1024)
True: 1024 x 768, Sync on green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N)
SECAM / PAL 60 / Component Video (DVD / HDTV) (480i, 576i,
480p,576p,720p,1080i), SCART (RGB + 1V sync)
PC: mini D-sub 15 pin x 1, Video: RCA + S-Video x 1,
Audio: RCA (L, R) x 1
RGB: mini D-sub 15 pin x 1
RS-232C x 1 (8pin), mouse terminal for USB
2 W Mono
275 x 70 x 261 mm / 10.8” x 2.8” x 10.3” (Excluding all protrusions)
2.7 kg / 5.9 lbs
AC 100 ~ 240 V / ±10%, 50/60 Hz
XL4U
0.7” Polysillicon panel x 3
1024 x 768 (total 2,359,296 pixels), 600 video lines
1500 lm
16,770,000 colours
Manual control (zoom ratio 1.2:1)
40” ~ 300” (100” = 3.2m)
180W / 2000hrs (normal mode), 160W / 3000hrs (low mode)
VGA® ~ SXGA® (640 x 400 ~ 1280 x 1024)
True: 1024 x 768, Sync on green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N)
SECAM / PAL 60 / Component Video (DVD / HDTV) (480i, 576i,
480p,576p,720p,1080i), SCART (RGB + 1V sync)
PC: mini D-sub 15 pin x 1, Video: RCA + S-Video x 1,
Audio: RCA (L, R) x 1
RGB: mini D-sub 15 pin x 1
RS-232C x 1 (8pin), mouse terminal for USB
2 W Mono
275 x 70 x 261 mm / 10.8” x 2.8” x 10.3”(Excluding all protrusions)
2.7 kg / 5.9 lbs
AC 100 ~ 240 V / ±10%, 50/60 Hz
SL4U
0.7” Polysillicon panel x 3
800 x 600 (total 1,440,000 pixels), 600 video lines
1700 lm
16,770,000 colours
Manual control (zoom ratio 1.2:1)
40” ~ 300” (100” = 3.2m)
180W / 2000hrs (normal mode), 160W / 3000hrs (low mode)
VGA® ~ XGA® (640 x 400 ~ 1024 x 768)
True: 800 x 600, Sync on green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N)
SECAM / PAL 60 / Component Video (DVD / HDTV) (480i, 576i,
480p,576p,720p,1080i), SCART (RGB + 1V sync)
PC: mini D-sub 15 pin x 1, Video: RCA + S-Video x 1,
Audio: RCA (L, R) x 1
RGB: mini D-sub 15 pin x 1
RS-232C x 1 (8pin), mouse terminal for USB
2 W Mono
275 x 70 x 261 mm / 10.8” x 2.8” x 10.3” (Excluding all protrusions)
2.7 kg / 5.9 lbs
AC 100 ~ 240 V / ±10%, 50/60 Hz
* SXGA, XGA and SVGA are registered trademarks of IBM Corporation.* All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
System Operation Remote (Option)
Input and Output Terminals
To further improve operating ease, the System
Operation Remote can be programmed to control DVD
players and video recorders connected to the projector.
Mouse terminal for USB
Serial terminal RS-232C x 1 (8 pin)
PC/Component Video output
(mini D-sub 15 pin)
PC/Component Video input
(mini D-sub 15 pin)
S-Video/Video/Audio input
Projection Distance and Screen Size
(unit: mm, inch)
116.5
(46”)
126
(5.0”)
10.9
(4.3”)
Hd
233.5 (9.2”)
177.7 (7.0”)
173.5 (6.8”)
H
49
(1.9”)
51
(2.0”)
19
(0.7”)
Dimensions
VLT-XL8LP
Replacement lamp
φ28
(1.1”)
281 (11.1”)
234 (9.2”)
φ28
(1.1”)
XL8U
inch
40
60
80
100
150
200
250
300
70 (2.8”)
cm
102
152
203
254
381
508
635
762
inch
32
48
64
80
120
160
200
240
Height
cm
81
122
163
203
305
406
508
610
inch
24
36
48
60
90
120
150
180
cm
81
122
163
203
305
406
508
610
inch
24
36
48
60
90
120
150
180
Max. Zoom
cm
61
91
122
152
229
305
381
457
inch
57
87
117
147
221
296
370
444
cm
61
91
122
152
229
305
381
457
inch
49
75
101
126
191
255
319
383
Screen
Diagonal Size
261 (10.3”)
Distance from screen
Width
XL4U/SL4U
48.7
(1.9”)
70 (2.8”)
82 (3.2”)
267 (10.5”)
275 (10.8”)
Screen
Diagonal Size
73.5 (2.9”)
φ54.8
(2.2”)
Lw∼Lt
inch
40
60
80
100
150
200
250
300
inch
32
48
64
80
120
160
200
240
inch
69
105
140
176
265
355
444
-
m
1.8
2.7
3.6
4.5
6.7
9.0
11.3
-
Distance from screen
Width
cm
102
152
203
254
381
508
635
762
m
1.5
2.2
3.0
3.7
5.6
7.5
9.4
11.3
Height Projected
Min. Zoom
Height
Max. Zoom
m
1.3
1.9
2.6
3.2
4.8
6.5
8.1
9.7
cm
6.1
9.1
12.2
15.2
22.9
30.5
38.1
45.7
Height Projected
Min. Zoom
inch
60
91
121
152
229
306
383
-
Image(H)
inch
2.4
3.6
4.8
6.0
9.0
12.0
15.0
18.0
m
1.5
2.3
3.1
3.9
5.8
7.8
9.7
-
Image(H)
inch
2.4
3.6
4.8
6.0
9.0
12.0
15.0
18.0
cm
6.1
9.1
12.2
15.2
22.9
30.5
38.1
45.7
MITSUBISHI
VIDEO SYSTEMER APS
Midtager 26 B
2605 BRØNDBY
T L F. : 7 0 2 0 5 0 0 4
FAX: 7020 0451
We b : w w w. v i d e o s y s t e m e r. d k
E - m a i l : i n f o @ v i d e o s y s t e m e r. d k
L-188-3-B6452-A KY0309 Printed in Japan (OKA)
New publication, effective Sep. 2003
Specifications subject to change without notice.
