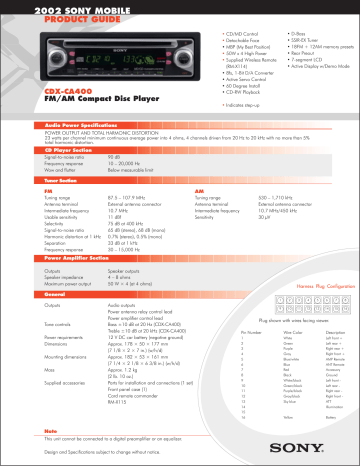

2002 SONY MOBILE PRODUCT GUIDE
2002 SONY MOBILE
PRODUCT GUIDE
CDX-CA400
FM/AM Compact Disc Player
• D-Bass
• SSIR-EX Tuner
• 18FM + 12AM memory presets
• Rear Preout
• 7-segment LCD
• Active Display w/Demo Mode
• CD/MD Control
• Detachable Face
• MBP (My Best Position)
• 50W x 4 High Power
• Supplied Wireless Remote
(RM-X114)
• 8fs, 1-Bit D/A Converter
• Active Servo Control
• 60 Degree Install
• CD-RW Playback
• Indicates step-up
Audio Power Specifications
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23 watts per channel minimum continuous average power into 4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more than 5%
total harmonic distortion.
CD Player Section
Signal-to-noise ratio
Frequency response
Wow and flutter
90 dB
10 – 20,000 Hz
Below measurable limit
Tuner Section
FM
Tuning range
Antenna terminal
Intermediate frequency
Usable sensitivity
Selectivity
Signal-to-noise ratio
Harmonic distortion at 1 kHz
Separation
Frequency response
87.5 – 107.9 MHz
External antenna connector
10.7 MHz
11 dBf
75 dB at 400 kHz
65 dB (stereo), 68 dB (mono)
0.7% (stereo), 0.5% (mono)
33 dB at 1 kHz
30 – 15,000 Hz
AM
Tuning range
Antenna terminal
Intermediate frequency
Sensitivity
530 – 1,710 kHz
External antenna connector
10.7 MHz/450 kHz
30 µV
Power Amplifier Section
Outputs
Speaker impedance
Maximum power output
Speaker outputs
4 – 8 ohms
50 W × 4 (at 4 ohms)
Harness Plug Configuration
General
Outputs
Tone controls
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Audio outputs
Power antenna relay control lead
Power amplifier control lead
Bass ±10 dB at 20 Hz (CDX-CA400)
Treble ±10 dB at 20 kHz (CDX-CA400)
12 V DC car battery (negative ground)
Approx. 178 × 50 × 177 mm
(7 1/8 × 2 × 7 in.) (w/h/d)
Approx. 182 × 53 × 161 mm
(7 1/4 × 2 1/8 × 6 3/8 in.) (w/h/d)
Approx. 1.2 kg
(2 lb. 10 oz.)
Parts for installation and connections (1 set)
Front panel case (1)
Card remote commander
RM-X115
Note
This unit cannot be connected to a digital preamplifier or an equalizer.
Design and Specifications subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Plug shown with wires facing viewer.
Pin Number
Wire Color
Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
White
Green
Purple
Gray
Blue/white
Blue
Red
Black
White/black
Green/black
Purple/black
Gray/black
Sky blue
Left front +
Left rear +
Right rear +
Right front +
AMP Remote
ANT Remote
Accessory
Ground
Left front Left rear Right rear Right front ATT
Illumination
Yellow
Battery
2002 SONY MOBILE
PRODUCT GUIDE
CDX-CA400
FM/AM Compact Disc Player
50 mm (2”)
178 mm (7”)
From car antenna
Audio OUT Rear
Fuse (10A)
BUS Audio IN
182 mm (7 1/4”)
88 mm (3 7/16”)
53 mm ( 2 1/16”)
47 mm (1 7/16”)
33 mm (1 5/16”)
50 mm (2”)
27 mm (1 1/16”)
170 mm (6 11/16”)
Design and Specifications subject to change without notice.
BUS Control IN
