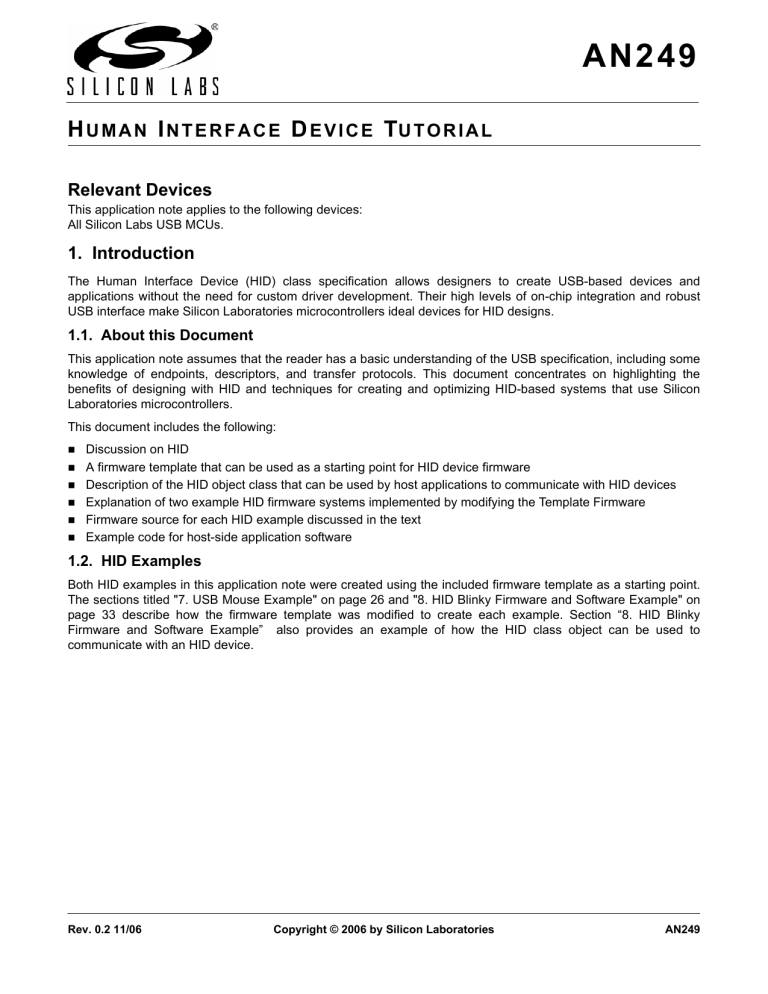

AN249

H

U M A N

I

N T E R F A C E

D

E V I C E

T

U T O R I A L

Relevant Devices

This application note applies to the following devices:

All Silicon Labs USB MCUs.

1. Introduction

The Human Interface Device (HID) class specification allows designers to create USB-based devices and applications without the need for custom driver development. Their high levels of on-chip integration and robust

USB interface make Silicon Laboratories microcontrollers ideal devices for HID designs.

1.1. About this Document

This application note assumes that the reader has a basic understanding of the USB specification, including some knowledge of endpoints, descriptors, and transfer protocols. This document concentrates on highlighting the benefits of designing with HID and techniques for creating and optimizing HID-based systems that use Silicon

Laboratories microcontrollers.

This document includes the following:

Discussion on HID

A firmware template that can be used as a starting point for HID device firmware

Description of the HID object class that can be used by host applications to communicate with HID devices

Explanation of two example HID firmware systems implemented by modifying the Template Firmware

Firmware source for each HID example discussed in the text

Example code for host-side application software

1.2. HID Examples

Both HID examples in this application note were created using the included firmware template as a starting point.

The sections titled "7. USB Mouse Example" on page 26 and "8. HID Blinky Firmware and Software Example" on page 33 describe how the firmware template was modified to create each example. Section “8. HID Blinky

Firmware and Software Example” also provides an example of how the HID class object can be used to

communicate with an HID device.

Rev. 0.2 11/06 Copyright © 2006 by Silicon Laboratories AN249

2

AN249

2. Introduction To HID

USB devices communicate with PCs as shown in Figure 1. Creating a USB interface between an embedded

system and a PC requires writing code for the following software subsystems:

Embedded device firmware

Host-side operating system drivers

Host-side PC application

PC

USB Device

System Drivers

Device Firmware Bi-directional Data Flow

System-

Level

Data

Buffers

Host-Side

Application

Figure 1. USB Interface between a PC and an Embedded System

2.1. USB System Development

USB specification defines a number of USB classes, such as HID, mass storage devices, etc. Developers creating a USB system that does not fit into one of the pre-defined USB classes must develop custom drivers along with device firmware and PC applications. For these systems, developers can use a software package such as Silicon

Laboratories USBXpress, which includes a set of custom drivers, firmware routines, and host routines that enable

USB communication. HID-class devices simplify USB communication one step further by using a standardized, flexible driver that comes pre-installed with all commonly used operating systems.

Benefits of developing with HID include:

Compatibility with all commonly used operating systems (XP, 2000, Mac, Linux)

No need for driver development or distribution

Streamlined device/host interface due to standardized but flexible HID specifications

2.2. Getting Started With HID

Designers can create embedded HID firmware using the Silicon Laboratories IDE, the evaluation version of the

Keil compiler, and the target board included in the Silicon Laboratories development kit. Designers developing host-side PC applications must install the Windows Driver Development Kit (DDK), which can be downloaded from http://www.microsoft.com/whdc/devtools/ddk/ . Once the DDK is installed, the developer will be able to take advantage of HID-specific API calls to send and receive data with HID-based devices.

For designers creating an HID-based system using this application note's associated firmware template as a

starting point, the typical system design flow is shown in Figure 2.

Rev. 0.2

AN249

Install Software development environments

(Silicon Laboratories IDE, Visual Studios, etc. )

Install the HID Driver

Development Kit

Copy Firmware Template to project directory.

Open Firmware Template in firmware development environment.

Use Section 5 of this Application

Note as a guide when modifiying

Firmware Template to suit your system requirements.

Open a host application project within host side software development environment

Design host application.

Connect device to host system.

Figure 2. Project Work Flow Chart

Send and receive data with

HID-class device using the

HIDDevice object class discussed in Section 6.

Rev. 0.2

3

4

AN249

3. HID Specification Overview

The HID class of the universal serial bus (USB) protocol was created to define devices that interact to some degree with humans and transfer data with a computer system.

3.1. Universal Serial Bus

USB protocol presents significant advantages over other PC interfaces in versatility, speed, and reliability. USB systems communicate under device/host relationships where a device is attached to a USB port of a host PC or a hub that is then connected to a PC. Host-side application software interacts with device-side firmware through the native operating system or customized drivers.

3.1.1. Device Endpoints

In USB-based systems, all data travels to or from device endpoints. The USB specification requires that all devices have a control endpoint. The host uses this endpoint to retrieve information about the device through data packets called descriptors. Many USB devices also support additional endpoints that transfer data to and from the host. IN endpoints transfer data from the device to the host while OUT endpoints transfer data from the host to the device.

3.1.2. Silicon Laboratories Microcontroller Capabilities

Silicon Laboratories microcontroller families with USB functionality can support a control endpoint and at least one additional endpoint. USB hardware controls low-level data transfer to and from the host. The hardware sends and receives data through user-accessible buffers. The microcontroller signals firmware about USB events, including data reception and transmission-related events, by setting flags. These flags trigger the servicing of an interrupt service routine (ISR) if interrupts have been enabled.

3.1.3. USB Device Classes

The USB specification and supplemental documents define a number of device classes that categorize USB devices according to capability and interface requirements. When a host retrieves device information, class classification helps the host to determine how to communicate with the USB device.

3.2. Human Interface Device Class

The HID class devices usually interface with humans in some capacity. HID-class devices include mice, keyboards, printers, etc. However, the HID specification merely defines basic requirements for devices and the protocol for data transfer, and devices do not necessarily depend on any direct human interaction.

3.2.1. Class Requirements

HID devices must meet a few general requirements that are imposed to keep the HID interface standardized and efficient:

All HID devices must have a control endpoint (Endpoint 0) and an interrupt IN endpoint. Many devices also use an interrupt OUT endpoint. In most cases, HID devices are not allowed to have more than one OUT and one IN endpoint.

All data transferred must be formatted as reports whose structure is defined in the report descriptor. Reports are discussed in detail later in this document.

HID devices must respond to standard HID requests in addition to all standard USB requests.

Rev. 0.2

AN249

4. Enumeration and Device Detection

Before the HID device can enter its normal operating mode and transfer data with the host, the device must properly enumerate. The enumeration process consists of a number of calls made by the host for descriptors stored in the device that describe the device’s capabilities.

The device must respond with descriptors that follow a standard format. Descriptors contain all basic information about a device. The USB specification defines some of the descriptors retrieved, and the HID specification defines other required descriptors. The next section discusses the descriptor structure a host expects to receive. The two sections after that describe the responsibilities of the device and the host during enumeration. These sections refer to sections of the HID firmware template, which is discussed in detail later in this document.

4.1. Descriptor Structure

Descriptors begin with a byte describing the descriptor length in bytes. This length equals the total number of bytes in the descriptor including the byte storing the length. The next byte indicates the descriptor type, which allows the host to correctly interpret the rest of the bytes contained in the descriptor. The content and values of the rest of the bytes are specific to the type of descriptor being transmitted. Descriptor structure must follow specifications exactly; the host will ignore received descriptors containing errors in size or value, potentially causing enumeration to fail and prohibiting further communication between the device and the host.

Descriptor contents are typically stored in FLASH memory space. The file named USB_Descriptor.h in the HID firmware template declares each value of every descriptor. The file USB_Descriptor.c defines the contents for each descriptor.

4.1.1. Descriptor Declaration Example

A declaration might look like the following.

//------------------------------------------

// Standard Device Descriptor Type Definition

//-----------------------------------------typedef struct

{

BYTE bLength; // Size of this Descriptor in Bytes

BYTE bDescriptorType; // Descriptor Type (=1)

WORD bcdUSB; // USB Spec Release Number in BCD

BYTE bDeviceClass; // Device Class Code

BYTE bDeviceSubClass; // Device Subclass Code

BYTE bDeviceProtocol; // Device Protocol Code

BYTE bMaxPacketSize0; // Maximum Packet Size for EP0

WORD idVendor; // Vendor ID

WORD idProduct; // Product ID

WORD bcdDevice; // Device Release Number in BCD

BYTE iManufacturer; // Index of String Desc for Manufacturer

BYTE iProduct; // Index of String Desc for Product

BYTE iSerialNumber; // Index of String Desc for SerNo

BYTE bNumConfigurations; // Number of possible Configurations

} device_descriptor; // End of Device Descriptor Type

This declaration exactly conforms to the USB specification’s requirements for the size and content order of the device descriptor. Some contents are stored in single bytes while others require two bytes.

Rev. 0.2

5

6

AN249

4.1.2. Descriptor Definition Example

The definition might look like the following: const code device_descriptor DeviceDesc =

{

18, // bLength

0x01, // bDescriptorType

0x1001, // bcdUSB

0x00, // bDeviceClass

0x00, // bDeviceSubClass

0x00, // bDeviceProtocol

EP0_PACKET_SIZE, // bMaxPacketSize0

0xC410, // idVendor

0x0001, // idProduct

0x0000, // bcdDevice

0x01, // iManufacturer

0x02, // iProduct

0x00, // iSerialNumber

0x01 // bNumConfigurations

}; //end of DeviceDesc

The definition exactly follows the declaration for the struct device_descriptor. All contents in this definition must be valid at the firmware system’s compile time because all of these values will be stored in nonvolatile memory. Descriptor values stored in multiple bytes must follow the "little endian" style of formatting, where the least significant byte is stored first. For example, a value of 300 or 0x012C, would be stored as 0x2C01.

4.1.3. A Reminder About Descriptors

Many HID devices have very similar descriptor contents, and in many cases, the descriptors defined in the firmware template will need to be changed in only a few places to create a customized HID-class device that suits the needs of a given application. For detailed discussions on each descriptor’s contents, read the sections of this document describing the firmware template and the two examples created by modifying the template.

4.2. Device Responsibilities During Enumeration

A device’s main responsibility during enumeration is to respond to requests for information made by the host system in a timely and accurate manner. The device transfers all enumeration data across the control endpoint. In the firmware template, this endpoint is handled during execution of the USB ISR.

Rev. 0.2

AN249

4.2.1. The Control Endpoint Handler

The USB ISR examines USB registers to determine the cause of the interrupt. If the ISR finds that an Endpoint 0 transaction caused the interrupt, the ISR calls the control endpoint handler. The Endpoint 0 handler parses the

Setup Packet sent by the host and stored in the Endpoint 0 buffer to determine what standard USB request has been made by the host system. The handler then calls the appropriate function. The firmware template file named

F3xx_USB0_Standard_Requests.c defines all standard requests.

Some of these standard requests require the device to transmit information back to the host. One such standard request, Get_Descriptor, allows the host to gather all basic information about the newly-attached device. Other standard requests require the device to receive additional packets of information before the transaction terminates.

4.3. Device Detection after Successful Enumeration

Standard requests sent during enumeration by the host system are not controlled by user-level code. When a device connects with a host’s USB port, the host system software will automatically retrieve descriptors and determine whether to enable communication with the device. Host-side application software wishing to interface with the device can then begin communicating with the device using standard API calls.

4.4. Application Communications

Once a device has successfully enumerated, the host can begin sending and receiving data in the form of Reports.

All data passed between an HID device and a host must be structured according to specifications found in the

Report Descriptor. These reports can be transmitted across either the “Control” pipe (endpoint 0) or the “Interrupt” pipe (endpoints configured to be IN or OUT).

The following sections discuss how to define the report structure inside the report descriptor and how to transfer these reports across either the “Control” pipe or the “Interrupt” pipe.

Usage Page/Usage Tags

Application Collection

Usage Page/Usage Tags

Nested Collections (Application, Physical, Logical)

Usage Tags,

Data Desc. Items

Report

Usage Tags,

Data Desc. Items

Report

Report Data Report Data

Figure 3. Report Descriptor Example Structure

Rev. 0.2

7

8

AN249

4.4.1. Report Descriptors

All data transferred to and from an HID device must be structured in the form of reports. The Report Descriptor defines the report structure, which contains all the information a host needs to determine the data format and how

the data should be processed. See Figure 3 for a Report Descriptor's example structure.

4.4.1.1. Report Structure Overview

Although the report structure must follow a few constraints and guidelines, the HID specification purposefully allows for a high degree of customization. This potential for customization gives HID device designers freedom to create a wide variety of HID-class devices.

4.4.1.2. Usage Page and Usage Items

A Report Descriptor begins with a Usage Page item that describes the general function of all of the reports that follow. For instance, in a Report Descriptor describing reports for a USB Keyboard or a USB Mouse (such as the one found in the USB Mouse example in this document), designers would use the “Generic Desktop” Usage Page.

Reports contained in defined Usage Pages have defined Usages, which provide more specific information about the Report contents. For example, a keyboard would use the “Keyboard” Usage for its “Generic Desktop” Usage

Page.

For a complete list of defined Usage Pages, check the “HID Usage Tables” document found at USB.org

.

4.4.1.3. Collections

“Collections” group similar data. Every Report Descriptor must have at least one top-level Collection in which the data is contained, but the descriptor can define more than one top-level collection. A keyboard with an attached mouse would have two top-level collections, one describing mouse reports and one describing keyboard reports.

Each Collection must have a Usage tag. For example, the “Keyboard” Usage can tag a collection of USB

Keyboard-related data. Also, collections can be nested.

The HID Specification defines three types of collections:

Application Collections group variables that carry out a common purpose. All report items must be contained inside an Application Collection.

Logical Collections group variables of different types that form a composite data structure. Think of Logical

Collections as a collection designator for “struct” data types, such as a struct that groups a buffer with index variables for that buffer.

Physical Collections group data describing a single data point. For instance, a physical collection of data could contain readings from a temperature sensor.

4.4.1.4. Data Types

Report Descriptors also contain extensive information describing the characteristics of each data item. Logical

Minimum and Logical Maximum items describe the boundary conditions the data contained in reports can reach.

The Report Size item describes how many bits each data item uses, and Report Count describes how many data items are contained inside the report. A report of Size 8 and Count 2 would contain 16 bits, or 2 bytes of data.

Data values are further described by designating each data item as Input, Output, or Feature. Input items travel from device to host, Output Items travel from host to device, and Feature items can travel in either direction.

Data items can also be designated as Variable, meaning that the values can be read and written, or Constant, meaning that the values are read-only. Another often-used designation indicates whether the value is Absolute, meaning that the value contained in a report is measured from a fixed origin, or Relative, meaning that the value has no fixed reference and instead describes the change of value since the last report.

Systems using more than one defined report structure also need to give each report a unique Report ID tag. This

Report ID precedes reports during transfer and signals to the receiver which report is being transmitted. For an example of a USB system that uses more than one Report Structure, see the HID Blinky Firmware and Software example. For a more detailed discussion on the items in a Report Descriptor, see the latest revision of the HID specification.

Rev. 0.2

AN249

4.4.2. Two Transfer Types

Data traffic contained in HID reports can be transferred between device and host through one of two methods.

Reports travel across the “Control Pipe” when control endpoint transfers are initiated by host calls to the Windows

API functions, HidD_SetOutputReport(), HidD_GetInputReport(), HidD_GetFeatureReport(), and

HidD_SetFeatureReport(). Reports travel across the “Interrupt Pipe” when data is made available for transfer across endpoints configured as Interrupt IN or Interrupt OUT. The next subsections examine Control Pipe and

Interrupt Pipe data transfers.

4.4.2.1. Control Transfers from the Perspective of the Host

The HID specification defines six HID-specific requests. For a complete list of HID-specific requests, see the relevant section in the HID specification.

HidD_SetOutputReport() and HidD_GetInputReport() allow host applications to send and receive IN and

OUT reports. Parameters passed in with the call to HidD_SetOutputReport() include the handle to the HID device, the buffer containing the report, and the number of bytes to transmit. Similarly, calls to

HidD_GetInputReport() require parameters for the handle to the HID device, a buffer where the incoming report will be stored, and the number of packets that the system expects to receive. HidD_GetFeatureReport() and HidDSetFeatureReport() receive and send Feature reports, which are bi-directional.

The API calls first send a packet to the control endpoint of the device that contains reserved command byte corresponding to HidD_SetOutputReport() or HidD_GetInputReport(). In the case of the

HidD_SetOutputReport() command, the system then transmits a second packet containing the report. In the case of the HidD_GetInputReport() command, the API transmits a second packet containing the Report ID of the report the application wishes to retrieve. The host then expects the device to ready that packet for transmission to the host, and the host makes an attempt to retrieve that packet.

4.4.2.2. Control Transfers from the Perspective of the Device

After the host initiates a control endpoint transfer, the device’s control endpoint handler parses the bytes of this setup packet to determine what request has been transmitted to the device.

If a HidD_SetOutputReport() request has been transmitted to the device, the Report ID of the report to be retrieved will be included as part of the setup packet. The device then transmits that report back to the host.

If a HidD_GetInputReport() request has been transmitted, the firmware switches the handler into

EP_GetReport mode. The host then transmits a report to the device. After the report has been transmitted, the microcontroller signals firmware of the availability of the report, and the report can be retrieved from the buffer.

4.4.2.3. Interrupt Transfers from the Perspective of the Host

During enumeration, host system software learns about the interface of the attached USB device. After reception of endpoint descriptors, the system polls any Endpoint configured as interrupt IN or interrupt OUT at an interval defined in the Endpoint Descriptor.

To retrieve IN Endpoint reports transmitted across the interrupt pipe by the device after a poll from the host, the application calls a Windows API function called Readfile(). This function requires parameters for the handle of the device, a buffer to store the information, the number of bytes requested, and a variable where the number of bytes successfully retrieved will be stored.

To transmit an OUT Endpoint Report across the Interrupt Pipe, an application calls the Windows API routine named

Writefile(), and passes into this function parameters including the device handle, a buffer containing the report to be transmitted, the number of bytes to be transmitted, and a variable where the number of bytes successfully transmitted will be stored.

4.4.3. Interrupt Transfers from the Perspective of the Device

Until a device has data to send across the IN endpoint, it should simply NAK the host’s polled requests for data by not signaling that data is ready to be received. Once data has been collected into a report structure and placed onto the IN endpoint’s buffer, firmware signals that data is ready to transmit.

When the host sends a packet across the OUT endpoint, the microcontroller signals the firmware and the OUT

Endpoint handler retrieves the bytes from the OUT Endpoint buffer.

Rev. 0.2

9

AN249

5. HID Firmware Template

The remainder of this document describes the example code from the HID firmware template and the included derivative example systems. This section gives a brief description of the firmware template and general usage techniques.

5.1. Firmware Template Goals

The firmware template takes advantage of the fact that many HID systems differ only in the way they handle data contained in incoming and outgoing Reports. By separating standard USB operation, which remains constant across almost all USB-based systems, from custom USB operation, which varies according to the needs of a particular firmware system, the template localizes customized operation to as few points as possible. The user needs to modify only a few sections of code to create a custom HID-class firmware system.

5.2. Template Files

The HID firmware template includes the following files.

F3xx_USB0_Main.c—contains all global variable declarations, the main() function, and all routines for peripherals other than USB.

F3xx_InterruptServiceRoutine.c—contains the USB Interrupt Service Routine and handler routines needed to service data on all Endpoints.

F3xx_USB0_InterruptServiceRoutine.h —includes prototypes for all USB routines.

F3xx_USB0_Register.h—includes all USB core register addresses, register access macros, and register bit masks.

F3xx_USB0_Standard_Requests.c—contains all standard USB-related functions called by the USB_ISR and associated handler routines.

F3xx_USB0_Descriptor.c—where all descriptors are declared.

F3xx_USB0_ReportHandler.c—contains all code for handling input and output packets and the declaration of the Input Vector table and Output Vector table.

F3xx_USB0_ReportHandler.h—includes definition of vector tables.

5.3. Using the Template

Below is a checklist of the locations in the firmware template that must be modified to create a customized HID firmware solution. The modifications on this list are all discussed in detail later in this document.

In F3xx_USB0_ReportHandler.c, modify descriptors as needed.

In F3xx_USB0_ReportHandler.c, add routines to handle all input and output data packets and populate the

Report Handler Vector tables.

In F3xx_USB0_Main.c, add any necessary foreground routines for processing USB traffic.

Add code to control any other peripherals needed to implement the system.

5.4. Default Descriptor Declaration Values

The file F3xx_USB0_Main.c declares values for each descriptor. Some of these values will remain the same across all HID-class devices, while others will need to be altered depending on the application. The following subsections discuss the values of each descriptor. Items most commonly modified to implement custom devices are highlighted in bold.

10 Rev. 0.2

AN249

5.4.1. Device Descriptor

The template defines the Device Descriptor as follows:

{

EP0_PACKET_SIZE, // bMaxPacketSize0

0xC410,

// idVendor

0x00,

0x01

};

// iProduct

// bNumConfigurations

The first item describes the descriptor length and should be common to all USB Device Descriptors.

0x01, // bDescriptorType

0x01 is the constant one-byte designator for Device descriptors and should be common to all device descriptors.

0x1001, // bcdUSB

This BCD-encoded two-byte item tells the system which USB specification release guidelines the device follows.

This number might need to be altered in devices that take advantage of additions or changes included in future revisions of the USB specification, as the host will use this item to help determine what driver to load for the device.

0x00, // bDeviceClass

If the USB device class is to be defined inside the device descriptor, this item would contain a constant defined in the USB specification. However, this firmware template assumes that the device will be defined in other descriptors. Device classes defined in other descriptors should set the Device Class item in the Device Descriptor to 0x00.

0x00, // bDeviceSubClass

If the Device Class item discussed above is set to 0x00, then the Device Sub Class item should also be set to

0x00. This item can tell the host information about the device’s subclass setting.

0x00, // bDeviceProtocol

This item can tell the host whether the device supports high speed transfers. If the above two items are set to 0x00, this one should also be set to 0x00.

EP0_PACKET_SIZE, // bMaxPacketSize0

Rev. 0.2

11

AN249

This item tells the host the maximum number of bytes that can be contained inside a single control endpoint transfer. For low speed devices, this byte must be set to 8, while full speed devices can have maximum Endpoint 0 packet sizes of 8, 16, 32, or 64. EP0_PACKET_SIZE is defined in the F3xx_USB0_Descriptor.h header file.

Reports can be larger than the maximum packet size. In this case, the report will be transferred across multiple packets.

This two-byte item identifies the Vendor ID for the device. Vendor IDs can be acquired through the USB.org

website. Devices using C8051F32x microcontrollers are allowed to use Silicon Laboratories’ Vendor ID, which is

0xC410, after applying for a Silicon Labs-issued PID.

Host applications will search attached USB devices’ Vendor IDs to find a particular device needed for an application.

Like the Vendor ID, this two-byte item uniquely identifies the attached USB device. Product IDs can be acquired through the USB.org web site. Alternatively, Silicon Laboratories has reserved a block of Product IDs to be used by customers designing products with Silicon Laboratories USB products. Contact Silicon Laboratories technical support to allocate one of these reserved Product IDs for your design. This service is free of charge.

This item is used along with the Vendor ID and the Product ID to uniquely identify each USB device.

0x00, // iManufacturer

The next three one-byte items tell the host which string array index to use when retrieving UNICODE strings describing attached devices that are displayed by the system on-screen. This string describes the manufacturer of the attached device. For example, the string could read “Silicon Laboratories.”

A string index value of 0x00 indicates to the host that the device does not have a value for this string stored in memory.

0x00, // iProduct

This index will be used when the host wants to retrieve the string that describes the attached product. For example, the string could read “USB Keyboard”.

0x00, // iSerialNumber

The string pointed to by this index can contain the UNICODE text for the product’s serial number.

0x01 // bNumConfigurations

This item tells the host how many configurations the device supports. A configuration is the definition of the device’s functional capabilities, including endpoint configuration. All devices must contain at least one configuration, but more than one can be supported. For this example, only one configuration will be defined.

12 Rev. 0.2

AN249

5.4.2. Configuration Descriptor

After the host retrieves the Device Descriptor, it can request other descriptors including the Configuration

Descriptor. The following is the firmware template’s Configuration Descriptor:

{

0x0000, // Totallength

}

0x00 // MaxPower (in 2 mA units)

This defines the length of the Configuration Descriptor. This is a standard length and should be common to all HID devices.

0x02 is the constant one-byte designator for Configuration descriptors.

This two-byte item defines the length of this descriptor and all of the other descriptors associated with this configuration. The length of this example is calculated by adding the length of the Configuration Descriptor, the

Interface Descriptor, the HID Descriptor, and one Endpoint Descriptor. This two-byte item follows a “little endian” data format.

This two-byte item defines the length of this descriptor and all of the other descriptors associated with this configuration. The length of this example is calculated by adding the lengths of the 9-byte Configuration Descriptor, the 9-byte Interface Descriptor, the 9-byte HID Descriptor, and one 7-byte Endpoint Descriptor. Note that this twobyte length value follows a "little endian" format, where the value is stored least significant byte first.

0x01, // NumInterfaces

This item defines the number of interface settings contained in this configuration.

0x01, // bConfigurationValue

This item gives this particular configuration a designation of 0x01, which can be used in the standard USB requests

Get_Configuration and Set_Configuration to identify this configuration. This number must be higher than

0.

0x00, // iConfiguration

This item defines the string index for a string that describes this configuration. This example defines no

Configuration String and sets the index to 0x00 to indicate this condition to the host.

0x80, // bmAttributes

This item tells the host whether the device supports USB features such as remote wake-up. Item bits are set or cleared to describe these conditions. Check the USB specification for a detailed discussion on this item.

0x00 // MaxPower (in 2 mA units)

This item tells the host how much current the device will require to function properly at this configuration.

Rev. 0.2

13

AN249

5.4.3. Interface Descriptor

The firmware template defines the Interface Descriptor as follows:

{

0x09,

0x04,

0x00,

0x00,

0x01,

0x03,

0x00,

0x00,

0x00

},

// bLength

// bDescriptorType

// bInterfaceNumber

// bAlternateSetting

// bNumEndpoints

// bInterfaceClass (3 = HID)

// bInterfaceSubClass

// bInterfaceProcotol

// iInterface

This item describes the size of the interface descriptor and is common to all devices’ Interface Descriptors.

0x04 is the constant one byte designator for Interface descriptors.

This item distinguishes between interfaces of a configuration. Composite devices, such as a keyboard with an embedded mouse, have more than one active interface. Each interface must be distinguished using this designation item. The firmware template only defines a single interface, so the Interface number can be set to

0x00.

This item is useful for devices that define multiple interfaces. This firmware template assumes that only one primary interface will be defined for the device, and sets this item to 0x00, which tells the host that the device defines no alternate setting.

This item tells the host how many endpoints, not counting the control endpoint, will be active in this configuration.

Remember that the HID specification requires at least one IN Interrupt Endpoint be defined in every device.

This item is used to define the device’s subclass. A value of 0x03 designates this device’s class as HID.

This item further describes the device by defining which subclass of the above-defined class the device falls under.

For many HID devices, this item will be set to set to 0x00. See the HID Specification for a list of defined HID subclasses.

This item can be used to define protocol settings for a USB device. For many HID devices, this item will be set to set to 0x00. See the HID Specification for a list of defined HID protocols.

14 Rev. 0.2

AN249

This item tells the host the string index of the Interface String that describes the specifics of the interface and can be displayed on-screen. The firmware template defines no such string, and so sets the index to 0x00.

5.4.4. IN Endpoint Descriptor

The firmware template defines the IN Endpoint Descriptor as follows:

{

0x07, // bLength

0x05, // bDescriptorType

0x81, // bEndpointAddress

0x03, // bmAttributes

EP1_PACKET_SIZE_LE, // MaxPacketSize (LITTLE ENDIAN)

}

0x07, // bLength

This item defines the length of this endpoint descriptor.

0x05, // bDescriptorType

0x05 is the constant one-byte designator for Endpoint descriptors.

0x81, // bEndpointAddress

This item describes the address and data flow direction of the endpoint. Bits 0 through 3 define the endpoint’s address, and bit 7 describes the data flow direction, with 1 meaning IN and 0 meaning OUT. The item in this descriptor defines an “IN” endpoint with Endpoint Address 1.

0x03, // bmAttributes

This item describes the type of data transfer the device is configured to use. “0x03” designates this endpoint as using the Interrupt data transfer method.

EP1_PACKET_SIZE_LE, // MaxPacketSize (LITTLE ENDIAN)

This item tells the host the maximum packet size for the endpoint. The maximum packet size should be at least as large as the largest Report. EP1_PACKET_SIZE_LE is defined in the F3xx_USB0_Descriptor.h header file.

10 // bInterval

The value contained in this item determines how often the endpoint will be polled for data by the system software.

Units of the value vary depending on the speed of the device.

Rev. 0.2

15

AN249

5.4.5. OUT Endpoint Descriptor

HID-class devices are not required to use an OUT Endpoint. The firmware template declares an OUT Endpoint in case custom systems require one. Most item values in this descriptor will be identical to the IN Endpoint descriptor.

The descriptor is defined as follows:

{

0x07,

0x05,

0x02,

// bLength

// bDescriptorType

// bEndpointAddress

0x03, // bmAttributes

EP2_PACKET_SIZE_LE, // MaxPacketSize (LITTLE ENDIAN)

10

}

// bInterval

0x07, // bLength

This item describes the size of the descriptor.

0x05, // bDescriptorType

0x05 is the constant one-byte designator for Endpoint descriptors.

0x02, // bEndpointAddress

This item configures the endpoint to be OUT at address 02.

0x03, // bmAttributes

This item describes the type of data transfer the device is configured to use. “0x03” designates this endpoint as using the Interrupt data transfer method.

EP2_PACKET_SIZE_LE, // MaxPacketSize (LITTLE ENDIAN)

This item tells the host the maximum packet size for the endpoint. The maximum packet size should be at least as large as the largest Report. EP2_PACKET_SIZE_LE is defined in the F3xx_USB0_Descriptor.h header file.

10 // bInterval

The value contained in this item determines how often the endpoint will be polled for data by the system software.

Units of the value vary depending on the speed of the device. For the firmware template, which transfers data full speed rates, the units for bInterval are 125 ms. This descriptor defines a polling speed of 125 ms x 10 or once every 1.25 seconds.

16 Rev. 0.2

AN249

5.4.6. HID Descriptor

This class-specific descriptor gives the host information specific to the device at the above-defined configuration.

The descriptor looks as follows:

{ // class_descriptor hid_descriptor

0x09, // bLength

0x21,

0x0101,

// bDescriptorType

// bcdHID

0x00,

0x01,

// bCountryCode

// bNumDescriptors

0x22, // bDescriptorType

HID_REPORT_DESCRIPTOR_SIZE_LE // wItemLength (total length of report descriptor)

}

0x09, // bLength

This length describes the size of the HID Descriptor. It can vary depending on the number of subordinate descriptors, such as Report Descriptors, that are included in this HID Configuration definition.

0x21, // bDescriptorType

0x21 is the constant one-byte designator for Device Descriptors and should be common to all HID Descriptors.

0x0101, // bcdHID

This two-byte item tells the host which version of the HID Class Specification the device follows. USB specification requires that this value be formatted as a Binary Coded Decimal digit, meaning that the upper and lower nibbles of each byte represent a the number '0'...9'. In this case, 0x0101 represents the number 0101, which equals a revision number of 1.01 with an implied decimal point.

0x00, // bCountryCode

If the device was designed to be localized to a specific country, this item tells the host which country. Setting the item to 0x00 tells the host that the device was not designed to be localized to any country.

0x01, // bNumDescriptors

This item tells the host how many Report Descriptors are contained in this HID configuration. The following twobyte pairs of items describe each contained Report Descriptor. The firmware template is configured to contain a single Report Descriptor, which can define multiple reports.

0x22, // bDescriptorType

This item describes the first descriptor which will follow the transfer of this HID descriptor. “0x22” indicates that the descriptor to follow is a Report Descriptor.

HID_REPORT_DESCRIPTOR_SIZE_LE // wItemLength (total length of report descriptor)

This item tells the host the size of the descriptor that is described in the preceding item. The value for

HID_REPORT_DESCRIPTOR_SIZE_LE can be set in the F3xx_USB0_Descriptor.h header file.

If the HID Descriptor contains more than one subordinate descriptor, those descriptors would be defined at this point, in two-byte pairs like the Report Descriptor declared above.

Rev. 0.2

17

AN249

5.4.7. String Descriptors

The USB device stores character strings defining the Product, the Manufacturer, the Serial Number, and other descriptive texts. A String Descriptor Table stores the memory addresses of these strings. The host retrieves strings through a standard request call that passes the index of the requested string.

The firmware template defines the following String Description Table:

BYTE* const StringDescTable[] =

{

String0Desc,

String1Desc,

String2Desc

};

The first String Descriptor of the String Descriptor Table, shown above to be defined as String0Desc, contains special information about the strings contained within the table. The Firmware Template defines String0Desc as follows: code const BYTE String0Desc[STR0LEN] =

{

STR0LEN, 0x03, 0x09, 0x04

}; //end of String0Desc

The first byte of this descriptor defines the descriptor's length, and the second byte defines this array as a String

Descriptor. The next two bytes form the Language ID code, which the host can use to determine how to interpret characters in the other strings of the String Descriptor Table. “0x09” indicates that the strings use the English language, and the “0x04” subcode indicates that the English language type is U.S. English.

Each element that follows the first special descriptor holds an address to a string. The first byte of each String

Descriptor defines the length of the String Descriptor, and the second byte tags the array as a String Descriptor.

After the first two bytes, all remaining bytes are two-byte Unicode-formatted string characters. For most strings, the

Unicode values will store the ANSI character in the low byte and a “0” in the high byte. Following USB's little endian format requirement, each character will appear in the String Descriptor with the ANSI character followed by a 0. For example, the firmware template would define the string “Silicon Laboratories” as follows: code const BYTE String1Desc[STR1LEN] =

{

STR1LEN, 0x03,

'S', 0,

'I', 0,

'L', 0,

'I', 0,

'C', 0,

'O', 0,

'N', 0,

' ', 0,

'L', 0,

'A', 0,

'B', 0,

'O', 0,

'R', 0,

'A', 0,

18 Rev. 0.2

AN249

'T', 0,

'O', 0,

'R', 0,

'I', 0,

'E', 0,

'S', 0

}; //end of String1Desc

The index values to USB-specification standard descriptive texts such as the Product String, the Manufacturer

String, and the Serial string are defined in the Device Descriptor. For instance, the firmware template defines the

Product String index as “0x02” in the Device Descriptor. At any point after the host retrieves the Device Descriptor, the host can retrieve the Product String by making a standard Get Descriptor request for a String Descriptor of index “0x02”. When the firmware template receives this request, it returns the value of the string held in memory addressed in indexed element “0x02” of the String Descriptor Table.

5.4.8. Report Descriptor

By default, the Report Descriptor declaration of the firmware template is left blank. The contents of this descriptor depend on device requirements. The next two sections provide examples of how the Report Descriptor can look and how Reports can be structured.

Rev. 0.2

19

AN249

5.5. F3xx_USB0_ReportHandler.c File

All Report preparation and formatting takes place inside Report Handlers contained within the

USB_ReportHandler.c file. Locations in the .c file that must be modified by the user are clearly commented. The following subsections describe how the firmware system functions and discuss each location where modifications will be necessary.

5.5.1. Behavior of the F3xx_USB0_ReportHandler.c File

Firmware calls handlers defined inside F3xx_USB0_ReportHandler.c every time a newly received output report has been received and every time an input report needs to be formatted before transmission.

The F3xx_USB0_ReportHandler.c file defines two Report Vector Tables, one for input reports and one for output reports. Each element of a vector table is composed of a struct linking a Report ID to its corresponding custom

Report Handler. Designers are responsible for entering their Report IDs and Report Handler function names into these tables.

When a report needs to be prepared or processed, firmware calls either ReportHandler_IN() or

ReportHandler_OUT(), with the Report ID passed as a parameter. These functions search the Report Vector

Tables for a matching Report ID and then call the corresponding Report Handler.

5.5.2. Handler Prototypes And Declarations

Toward the top of the file, designers will find a few sections where custom code must be added. A function prototype for each Report Handler must be placed in the Local Function Prototype section. Designers should link each of these functions to their corresponding Report IDs inside the Report Vector Tables. Input Reports should be added to IN_VectorTable, while output reports should be added to OUT_VectorTable. Designers must also set the vector table array sizes correctly by setting the pre-compiler directives IN_VectorTableSize and

OUT_VectorTableSize.

In the case where the HID system requires only one input or output report, the Vector Tables must link the Report

Handler to Report ID of 0x00. For an example of this, see “7. USB Mouse Example” .

5.5.3. Report Handler Requirements

Designers must define a function body for each Report Handler, and these handlers must follow a few simple guidelines. Input Report handlers must set the IN_Buffer field “Ptr” to the buffer containing data to be transferred, and must set the IN_Buffer field “length” to the number of bytes the USB system should attempt to transfer.

Before the firmware system calls the appropriate Output Report Handler, the system calls a function defined in

F3xx_USB0_ReportHandler.c called Setup_OUT_Buffer(). This routine points the OUT_Buffer field “Ptr” to a buffer where the received report can be stored. The routine must also set OUT_Buffer’s field “Length” to the size of the buffer.

Output Report Handlers must assume that data contained in OUT_Buffer will be overwritten after the Handler exits and should copy any data that needs to be preserved elsewhere in memory.

5.5.4. Including Report IDs

If the Report Descriptor defines Report IDs, Report Handlers must include Report IDs in the IN_Buffer.Ptr and adjust the IN_Buffer.Length accordingly. The first byte of the input buffer should be set to the Report ID of the report about to be transmitted. The number of bytes transmitted should be increased by 1 to include the Report ID byte. The USB Mouse example uses only one report, does not define any Report IDs, and so the Report Handler does not include any Report ID information in the buffer. The HID Blinky Example does use more than one report, so all of its Report Handlers must take Report IDs into account.

For systems that use more than one Report, each report must be tagged with a unique Report ID.

20 Rev. 0.2

AN249

6. CHIDDeviceclass Object Class

The files HIDDevice.cpp and HIDDevice.h define an object that can be declared and associated with an HID-class device. Host-side applications can communicate with HID-class devices using the following member functions included with this class:

GetConnectedDeviceNum()

GetSerialString()

Open()

IsOpened()

SetFeatureReport()

GetFeatureReport()

SetReport_Interrupt()

GetReport_Interrupt()

SetReport_Control()

GetReport_Control()

GetInputReportBufferLength()

GetOutputReportBufferLength()

GetFeatureReportBufferLength()

GetMaxReportRequest()

FlushBuffers()

- Returns number of device connected

- Retrieves a string from device

- Initiates communication

- Shows whether device is connected

- Sends feature report

- Receive feature report

- Send OUT report

- Receive IN report

- Send OUT report

- Receive IN report

- Returns size of biggest input report

- Returns size of biggest output report

- Returns size of biggest feature report

- Number of reports that can be retrieved

- Clear all of the object's buffers

The following sections describe how to use the CHIDDeviceclass.

6.1. Using The Class

To use the CHIDDeviceclass, the file HIDDevice.cpp must be added to the host application's build, and files using the class must include the HIDDevice.h header file.

The object requires that the Windows DDK has been installed on the developer's system. Please contact Microsoft for a copy of the DDK. After the DDK is installed, the following modifications must be made to the host application project before the HID device class will function properly:

In the project's properties' list of included directories, the following two directories must be added to the "Include files" list: C:\WINDDK\3790.1830\inc\wxp and C:\WINDDK\3790.1830\inc\crt

In the project's properties' list of included directories, the following directory must be added to the "Library files" list: c:\WINDDK\3790.1830\lib\wxp\i386

In the properties' Linker list of input sources, the following two files must be added to the "Additional

Dependencies" list: setupapi.lib and hid.lib

6.2. GetConnectedDeviceNum

Description:

Prototype:

Parameters:

Return Value:

This function returns the number of devices found on the USB that have PIDs and

VIDs matching the function's input parameters

DWORD GetConnectedDeviceNum(WORD vid, WORD pid)

1. vid - device VID used in search.

2. pid - device PID used in search.

Number of devices with matching vid and pid attached to the USB

Rev. 0.2

21

AN249

6.3. GetSerialString()

Description:

This routine obtains the serial string of a device by its index within its VID and PID. If only one device is connected with VID 0x10C4, 0x9999, its index is 0. If three devices are connected with VID 0x10C4, 0x9999, they would be referenced as devices 0, 1, and 2.

Prototype:

Parameters:

Return Value:

BYTE GetSerialString(DWORD deviceIndex, WORD vid, WORD pid,

LPSTR serialString, DWORD serialStringLength)

1. deviceIndex - identifier for device, 0 unless multiple devices with matching pid and vid are attached to the USB.

2. vid - device VID used in search.

3. pid - device PID used in search.

4.serialString - pointer where retrieved string will be stored.

5.serialStringLength - length of string to be retrieved.

Results = HID_DEVICE_NOT_FOUND or

HID_DEVICE_SUCCESS

6.4. Open()

Description:

This routine opens a communication link to an attached HID device identified by index,

VID, and PID. This routine also adjusts the number of input reports that can be received by the system's HID class driver buffer.

Prototype:

Parameters:

Return Value:

BYTE Open(DWORD deviceIndex, WORD vid, WORD pid, WORD numInputBuffers)

1. deviceIndex - identifier for device, 0 unless multiple devices with matching pid and vid are attached to the USB.

2. vid - device VID used in search.

3. pid - device PID used in search.

4.numInputBuffers - changes the size of the input report buffer. In most systems, it is not necessary to use this parameter.

Results = HID_DEVICE_SUCCESS or

HID_DEVICE_ALREADY_OPENED or

HID_DEVICE_NOT_FOUND

6.5. IsOpened()

Description:

This routine is used to determine when a call to Open() has successfully opened a communication link with an attached HID device.

Prototype:

Parameters:

Return Value:

BOOL IsOpened()

None.

TRUE if communication link is open, or

FALSE if no link has been opened.

22 Rev. 0.2

AN249

6.6. SetFeatureReport()

Description:

Prototype:

Parameters:

Return Value:

This routine sends a feature report across the control pipe using the HID API function

HidD_GetFeatureReport().

BYTE SetFeatureReport(BYTE* buffer, DWORD bufferSize)

1. buffer - pointer to the feature report to be transmitted. This buffer must be able to store at least bufferSize bytes.

2. bufferSize - size of the feature report in bytes.

Results = HID_DEVICE_SUCCESS or

HID_DEVICE_TRANSFER_FAILED or

HID_DEVICE_NOT_OPENED

6.7. GetFeatureReport()

Description:

This routine retrieves a feature report across the control pipe using the HID API function HidD_GetFeatureReport().

Prototype:

Parameters:

Return Value:

BYTE GetFeatureReport(BYTE* buffer, DWORD bufferSize)

1. buffer - pointer to location where retrieved feature report will be stored. This buffer must be able to store at least bufferSize bytes.

IMPORTANT NOTE: The first byte of this buffer should be the report ID of the report to be retrieved.

2. bufferSize - should be set to the size of the largest feature report listed in the device's report descriptor. This information can be obtained by calling the member function GetFeatureReportBufferLength().

Results = HID_DEVICE_SUCCESS or

HID_DEVICE_TRANSFER_FAILED or

HID_DEVICE_NOT_OPENED

6.8. SetReport_Interrupt()

Description:

Prototype:

Parameters:

Return Value:

This function sends an OUT report across the interrupt pipe using a call to

WriteFile().

BYTE SetReport_Interrupt(BYTE* buffer, DWORD bufferSize)

1. buffer - pointer to the OUT report to be transmitted. This buffer must be able to store at least bufferSize bytes.

2. bufferSize - size of the OUT report in bytes.

Results = HID_DEVICE_SUCCESS or

HID_DEVICE_TRANSFER_TIMEOUT or

HID_DEVICE_TRANSFER_FAILED or

HID_DEVICE_NOT_OPENED or

HID_DEVICE_INVALID_BUFFER_SIZE

Rev. 0.2

23

AN249

6.9. GetReport_Interrupt()

Description:

This function attempts to retrieve an IN report across the interrupt pipe using a call to

ReadFile().

Prototype:

Parameters:

Return Value:

BYTE GetReport_Interrupt(BYTE* buffer, DWORD bufferSize, WORD numReports, DWORD* bytesReturned)

1. buffer - pointer to the IN report to be transmitted. This buffer must be able to store at least bufferSize bytes.

2. bufferSize - should be set to the size of the largest feature report listed in the device's report descriptor. This information can be obtained by calling the member function GetInputReportBufferLength().

Results = HID_DEVICE_SUCCESS or

HID_DEVICE_TRANSFER_TIMEOUT or

HID_DEVICE_TRANSFER_FAILED or

HID_DEVICE_NOT_OPENED or

HID_DEVICE_INVALID_BUFFER_SIZE

6.10. SetReport_Control()

Description:

Prototype:

This function sends a report across the control pipe using the HID API function

HidD_SetOutputReport().

BYTE SetReport_Control(BYTE* buffer, DWORD bufferSize)

Parameters:

Return Value:

1. buffer - pointer to the OUT report to be transmitted. This buffer must be able to store at least bufferSize bytes.

2. bufferSize - size of the OUT report in bytes.

Results = HID_DEVICE_SUCCESS or

HID_DEVICE_TRANSFER_FAILED or

HID_DEVICE_NOT_OPENED or

HID_DEVICE_INVALID_BUFFER_SIZE

6.11. GetReport_Control()

Description:

This function receives a report across the control pipe using the HID API function

HidD_GetInputReport().

Prototype:

Parameters:

Return Value:

BYTE GetReport_Control(BYTE* buffer, DWORD bufferSize)

1. buffer - pointer to the OUT report to be transmitted. This buffer must be able to store at least bufferSize bytes.

2. bufferSize - size of the OUT report in bytes.

Results = HID_DEVICE_SUCCESS or

HID_DEVICE_TRANSFER_FAILED or

HID_DEVICE_NOT_OPENED or

HID_DEVICE_INVALID_BUFFER_SIZE

6.12. GetInputReportBufferLength()

Description:

Prototype:

Parameters:

Return Value:

This function returns the size of the largest IN report listed in the Report Descriptor of the opened HID device.

WORD GetInputReportBufferLength()

None.

The size of the largest IN report.

24 Rev. 0.2

AN249

6.13. GetOutputReportBufferLength()

Description:

This function returns the size of the largest OUT report listed in the Report Descriptor of the opened HID device.

Prototype:

Parameters:

Return Value:

WORD GetOutputReportBufferLength()

None.

The size of the largest OUT report.

6.14. GetFeatureReportBufferLength()

Description:

This function returns the size of the largest Feature report listed in the Report

Descriptor of the opened HID device.

Prototype:

Parameters:

Return Value:

WORD GetFeatureReportBufferLength()

None.

The size of the largest Feature report.

6.15. GetMaxReportRequest()

Description:

Prototype:

Parameters:

Return Value:

This function returns the maximum allowable reports to request for read during one

GetReport_Control().

WORD GetMaxReportRequest()

None.

Number of reports that can be retrieved during one call to GetReport_Control().

6.16. FlushBuffers()

Description:

This routine flushes the input queue of the opened HID device by calling the HID API function HidD_FlushQueue().

Prototype:

Parameters:

Return Value:

BOOL FlushBuffers()

None.

True if buffers were successfully flushed and false if they were not successfully flushed.

Rev. 0.2

25

AN249

7. USB Mouse Example

This section examines the steps taken to emulate a USB Mouse using the Silicon Laboratories target board. This example touches on all necessary firmware modifications that need to be made for HID-class device designs derived from the firmware template. The USB Mouse Example needs no host-side application to operate correctly.

For an example of host-side application software, read the next section, titled “HID Blinky Device And Host

Firmware Example.”

7.1. Overview

This example contains two versions of low-level mouse emulation code. Code running on a C8051F320/1 or a

C8051F34x microcontroller emulates mouse movement by measuring the potentiometer’s position. The axis of moment (whether motion on the potentiometer translates to up-down motion or left-right motion) is controlled by one of the switches found on the target board. Every press of the button switchies between X-axis movement and

Y-axis movement. The other switch on the target board acts as the left mouse button. Code running on a

C8051F326/7 emulates movement by setting mouse vector values in a predefined pattern.

The USB Mouse example was created by taking the following steps:

1. Configure all descriptors so that the host recognizes the attached device as a USB mouse.

2. Initialize Timer 2 and (for the C8051F320/1 and C8051F34x device builds) ADC peripherals.

3. Format captured data into a report structure defined in the Report Descriptor.

4. Add the report handler to transmit these reports to the host.

7.2. Descriptors

This section describes how each descriptor located in the firmware template file USB_Descriptor.c has been modified to create a device that appears to the host to be a USB mouse. This subsection describes only items in descriptors that have been modified from their default firmware template values.

7.2.1. Device Descriptor

The device descriptor for this example looks as follows. Changes from the firmware template are highlighted in bold.

{

26

EP0_PACKET_SIZE, // bMaxPacketSize0

0x0000, // idProduct

0x01,

0x02,

// iManufacturer

// iProduct

Rev. 0.2

AN249

};

//end of DeviceDesc

This example declares a string describing the hardware manufacturer at string table index 1. This item will allow the host to retrieve that string.

This example also declares a string describing the product at string table index 2.

7.2.2. Configuration Descriptor

0x2200,

// Totallength (= 9+9+9+7)

0x20 // MaxPower (in 2 mA units)

0x2200, // Totallength (= 9+9+9+7)

This item was calculated by adding together the lengths of the configuration descriptor (9) and all of the other descriptors associated with this particular configuration, specifically the Interface Descriptor (9), one IN Endpoint descriptor (7), and the HID Descriptor(9).

0x20 // MaxPower (in 2 mA units)

This item tells the host that the device will require 64 mA to function properly. This should be enough current to supply the microcontroller.

7.2.3. Interface Descriptor

{ // endpoint_descriptor hid_endpoint_in_descriptor

0x03,

0x01,

// bInterfaceClass (3 = HID)

// bInterfaceSubClass

};

This item has been set to the Boot Interface subclass, which is one of the defined HID subclass types. The Boot

Interface is a standard transfer mode that can be used by a system’s BIOS at boot time. This device must tell the firmware that it is compatible with the Boot Interface subclass in order to be recognized as a USB Mouse.

Rev. 0.2

27

AN249

This item chooses the “Mouse” protocol for the Boot Interface HID subclass. It must be set to 0x02 so that the system will know how to interpret the incoming Reports.

7.2.4. IN Endpoint Descriptor

// IN endpoint (mandatory for HID)

{ // endpoint_descriptor hid_endpoint_in_descriptor

0x07, // bLength

0x05, // bDescriptorType

0x81, // bEndpointAddress

0x03, // bmAttributes

EP1_PACKET_SIZE_LE, // MaxPacketSize (LITTLE ENDIAN)

10 // bInterval

}

EP1_PACKET_SIZE_LE

In the USB_Descriptor.h header file, this pre-compiler directive is defined to be “3”. which will be big enough to allow transfers of the example’s only defined Report Structure.

7.2.5. HID Descriptor

{ // class_descriptor hid_descriptor

0x09, // bLength

0x21,

0x0101,

// bDescriptorType

// bcdHID

0x00,

0x01,

0x22, // bDescriptorType

HID_REPORT_DESCRIPTOR_SIZE_LE // wItemLength (total length of report descriptor)

}

// bCountryCode

// bNumDescriptors

HID_REPORT_DESCRIPTOR_SIZE_LE // wItemLength (total length of report descriptor)

This pre-compiler directive is defined in the USB_Descriptor.h file and reflects the size of the Mouse example’s

Report Descriptor.

7.2.6. Report Descriptor

The Report Descriptor contains the definition for a Report that includes one bit describing the state of the left mouse button and two bytes describing the relative X- and Y- axis positions of the mouse pointer. This example will require that only one Report be defined.

This example’s only Report groups all data inside an Application Collection that contains Generic Desktop information pertaining to a mouse. Inside this Application Collection is a Physical Collection pertaining to a pointer that contains all information about a single data point, in this case information about the mouse. This Physical

Collection will group a byte of data containing the bit of data describing the left mouse button state and 7 bits of padding with two bytes of data describing the X- and Y- axis positions of the pointer.

The report descriptor for the Mouse Emulation Example looks as follows:

28 Rev. 0.2

AN249

{

0x05, 0x01, // Usage Page (Generic Desktop)

0x09, 0x02, // Usage (Mouse)

0xA1, 0x01, // Collection (Application)

0x09, 0x01, // Usage (Pointer)

0xA1, 0x00, // Collection (Physical)

0x05, 0x09, // Usage Page (Buttons)

0x19, 0x01, // Usage Minimum (01)

0x29, 0x01, // Usage Maximum (01)

0x15, 0x00, // Logical Minimum (0)

0x25, 0x01, // Logical Maximum (1)

0x95, 0x01, // Report Count (1)

0x75, 0x01, // Report Size (1)

0x81, 0x02, // Input (Data, Variable, Absolute)

0x95, 0x01, // Report Count (1)

0x75, 0x07, // Report Size (7)

0x81, 0x01, // Input (Constant) for padding

0x05, 0x01, // Usage Page (Generic Desktop)

0x09, 0x30, // Usage (X)

0x09, 0x31, // Usage (Y)

0x15, 0x81, // Logical Minimum (-127)

0x25, 0x7F, // Logical Maximum (127)

0x75, 0x08, // Report Size (8)

0x95, 0x02, // Report Count (2)

0x81, 0x06, // Input (Data, Variable, Relative)

0xC0, // End Collection (Physical)

0xC0

};

// End Collection (Application)

0x05, 0x01, // Usage Page (Generic Desktop)

This item tells the host that the controls, in this case mouse data, contained within this Report Descriptor are relevant to the desktop. Mouse, Keyboard, and Joystick controls would all be found on the Generic Desktop usage page.

0x09, 0x02, // Usage (Mouse)

This item tells the host that the following Collection contains data pertaining to a Mouse.

0xA1, 0x01, // Collection (Application)

This item begins the top-level collection of data that can be used by the host application, which is in this case the system software.

0x09, 0x01, // Usage (Pointer)

Rev. 0.2

29

AN249

This item tells the host that the following collection contains data pertaining to the characteristics of a Mouse pointer device.

0xA1, 0x00, // Collection (Physical)

This item begins the collection of data describing a single data point. In this case, the single data point is the state of the left mouse button and the relative position of the mouse along the X- and Y-axis.

0x05, 0x09, // Usage Page (Buttons)

This item tells the host that the following data should be interpreted as “buttons”, meaning that each bit represents some indicator that is either in the “On” or “Off” state.

0x19, 0x01, // Usage Minimum (01)

0x29, 0x01, // Usage Maximum (01)

These two items function to give the button in the following data a Usage. If the mouse supported multiple buttons, then the Usage Maximum would be increased and each button would be assigned a unique Usage.

0x15, 0x00, // Logical Minimum (0)

0x25, 0x01, // Logical Maximum (1)

These two items function to show the lowest and highest possible value of the data that will follow. Since the data can only take an “On” or “Off” state, the minimum can be set to 0 and the maximum can be set to 1.

0x95, 0x01, // Report Count (1)

0x75, 0x01, // Report Size (1)

These two items tell the host that one data point will follow, and that this data point will take one bit of space. This is the data bit that will show whether or not the left mouse button has been pressed.

0x81, 0x02, // Input (Data, Variable, Absolute)

This is the item that describes the data itself. The item tells the host that the data can change and that its value is absolute (i.e., not relative to any other data or axis).

0x95, 0x01, // Report Count (1)

0x75, 0x07, // Report Size (7)

These two items set up the padding needed to fill in the other bits of the byte containing the data pertaining to the button. These items refer to 7 1-bit data points.

0x81, 0x01, // Input (Constant) for padding

This item designates the above 7 bits of data to be constant. This will effectively create a byte of data where bit 0 contains information about the left mouse button and bits 2 through 7 are padding.

0x05, 0x01, // Usage Page (Generic Desktop)

0x09, 0x30, // Usage (X)

0x09, 0x31, // Usage (Y)

These items describe the next group of data. The Usage Page is set to Generic Desktop to tell the host that the following data will be relevant to system software. The next two usages tell the host that the Generic Desktop data to follow pertain to X- and Y-axis information controlled by the system. This usage definition informs the host that the following data will be formatted such that the data pertaining to the X-axis will be transferred before data pertaining to the Y-axis.

0x15, 0x81, // Logical Minimum (–127)

30 Rev. 0.2

AN249

0x25, 0x7F, // Logical Maximum (127)

These items describe the minimum and maximum values that the following data can take.

0x75, 0x08, // Report Size (8)

0x95, 0x02, // Report Count (2)

These items describe the data that follows as being two bytes (with 8 bits per byte).

0x81, 0x06, // Input (Data, Variable, Relative)

This item tells the host about the data’s direction of flow, that the data can change in value, and that it is relative to some axis. In this case, the data measured relative to the change in mouse position since the last measurement.

This item applies to both bytes of data.

0xC0, // End Collection (Physical)

0xC0 // End Collection (Application)

These two items should be considered “closing parentheses” on the above-defined collections. The first End

Collection closes the physical collection containing information about the mouse data point, and the second End

Collection closes the top-level application collection.

7.3. Mouse Emulation Data Sampling

The routines that capture and save mouse-related data are found in the file Mouse.c, and some global variables are included in the Mouse.h header file. In the C8051F320/1 build, the Mouse.c file contains two routines, the

“Timer 2 ISR” and the “ADC Sample Complete ISR”. In the C8051F326/7 build, the Mouse.c file contains only a

“Timer 2 ISR”.

Initialization routines, as well as port configuration, are also found in the Mouse.c file.

7.3.1. Timer 2 ISR

Once properly configured to overflow and enabled as an interrupt, Timer 2 is used to take readings from the two switches on the ‘F320 target board. Inside Timer2_ISR(), both switch values are captured by saving the state of the port pin connected to each switch. Timer overflows allow for switch “debouncing” by comparing switch values across two consecutive Timer 2 ISR servicings. Switch states are saved in variables of Mouse.c file scope.

In the C8051F326/7 build of the project, the Timer 2 ISR also controls mouse movement by setting the

Mouse_Vector and Mouse_Axis to a pattern that causes the cursor to move on-screen.

7.3.2. Adc_ConvComplete_ISR

In the C8051F320/1 version of the build, the ADC is configured to take samples at the port pin connected to the potentiometer. The captured value of the potentiometer is translated to relative mouse movement by first converting the unsigned potentiometer value to a signed character value by subtracting 128. The value is then divided by 16 to reduce the movement sensitivity of the potentiometer. Dividing by 16 makes cursor movement onscreen smoother.

At this point, the potentiometer value has been centered around 0 and reduced so that the maximum value is

128/16 = 8. This value is then saved as relative X- or Y- Axis movement, depending on whether X-Axis or Y-Axis movement is selected. Axis selection is accomplished by using one of the switches to toggle between the two axes.

Inside the ADC ISR, variables for the mouse button, mouse vector (relative movement), and active axis are saved in the global variables Mouse_Button, Mouse_Vector, and Mouse_Axis, respectively. These variables will be formatted into a report inside the Report Handler, which is discussed in the following section.

Rev. 0.2

31

AN249

7.4. IN Report Handler

Since only one input report was defined in the Report Descriptor of this example, only one input report handler is needed. This report will transfer mouse information stored the global variables Mouse_Button, Mouse_Vector, and Mouse_Axis to the host.

The function prototype for the Report Handler, called IN_Report(), has been placed in the appropriate spot at the top of the F3xx_USB0_ReportHandler.c file. IN_VectorTableSize is set to 1. The Report Handler is linked to a Report ID of 0. In the case where only one report is defined in the Report Descriptor, no Report ID should be defined, and 0 should be placed in the Report ID field of the Vector Table element.

The IN_Report() body takes the Mouse global variables and stores them in a buffer following the format defined in the Report Descriptor. Bit 0 of byte 0 of the buffer is set to Mouse_Button state. The report handler examines

Mouse_Axis to determine whether the X-Axis or the Y-Axis is being manipulated, and then sets either byte 1 or byte 2 of the buffer to Mouse_Vector, depending on whether the X-Axis or the Y-Axis is selected.

IN_Buffer.Ptr is set to the newly formatted buffer, and IN_Buffer.Length is set to “3”, following the Report

Descriptor’s definition of a 3-byte report.

This example does not require the use of any output reports. If it did, the function Setup_OUT_Buffer() would need to set the OUT_Buffer struct elements so that the firmware would know where to store output reports.

Reports stored in this output buffer would then be processed by defined output report handlers. For an example of how such a system could look, read the next section that describes the creation of an HID Blinky firmware and software system.

7.5. Alterations to Main()

The main(void) function of the firmware template requires only a few modifications. After peripheral initializations, the system enters a while(1) loop. Inside this loop, the SendPacket() function is repeatedly called, with a Report ID of 0 passed in as the Report to transmit to the host.

SendReport(), a function found in the USB_ISR.c file, checks to see if the IN Endpoint is set to IDLE. If it is not, meaning that another transfer is already in progress, SendReport exits with an error code of 0. If the IN Endpoint is set to IDLE, a transmission of the report with ID “0” is initiated.

32 Rev. 0.2

AN249

8. HID Blinky Firmware and Software Example

This example shows a system where device-side firmware and host-side software transfer data between each other using both the Interrupt and Control data pipes. Like the first example, this one takes advantage of the switches, LEDs, and the potentiometer on Silicon Laboratories target boards.

8.1. Overview

The data transfers in this example are written to exercise every data path between the device and the host. Data travels through the IN and OUT endpoints, and travels in both directions through the control endpoint. This example also shows how multiple reports can be employed to optimize data transfer.

This example exercises the following data paths:

LED blinking patterns transmitted to the device in OUT reports across the Interrupt OUT endpoint

Potentiometer position, used to choose from a list of blinking patterns, transmitted to the host in IN reports across the Interrupt IN endpoint

LED blinking rate configuration transmitted to the device in OUT reports across the control endpoint

LED blinking enable/disable command transmitted to the device in OUT reports across the control endpoint

Runtime-calculated statistical information transmitted to the host in IN reports across the control endpoint

LED brightness adjustment and command acknowledgement transmitted between device and host in Feature reports across the control endpoint

The HID Blinky Example's firmware was created by performing the following steps:

1. Modify descriptors so that the microcontroller appears as a device of some vendor-defined purpose.

2. Write code that controls LED lighting patterns.

3. Create a Report Descriptor that defines 5 Reports of different sizes and types.

4. Initialize ADC, Timer 2, and Timer 0 peripherals.

5. Write Report Handlers for each of the reports.

6. Modify main(void) to poll for changes in data and initiate transfers when necessary.

8.2. Firmware System

The firmware system blinks LEDs according to patterns received from the host application. It also saves measurements concerning these patterns that can be retrieved by the host. The C8051F320/1 and C8051F34x builds alter LED brightness by adjusting pulse width modulation signals connected to the LEDs.

8.2.1. Descriptors

Each of the following subsections describes modifications that need to be made to the firmware template’s descriptors.

8.2.1.1. Device Descriptor

The device descriptor for this example looks as follows:

{

EP0_PACKET_SIZE, // bMaxPacketSize0

Rev. 0.2

33

AN249

0x02, // iProduct

}; //end of DeviceDesc

When a device gets connected to the host system for the first time, the system saves a record that links the device’s Vendor ID and Product ID to the drivers the system determines it should use for communication. If an

‘F320 is loaded with the USB mouse example and connected to the host system, the system determines that the

USB mouse drivers should be used to interact with attached devices matching this Product and Vendor ID. Later, if the ‘F320 is loaded with HID firmware for this example but with the same Product and Vendor ID, the system expects that the attached device is a USB mouse and tries to communicate with it with those drivers. Host application software will not be able to communicate with the device. In this Device descriptor, the firmware has been given a distinct Product ID.

0x02, // iProduct

Manufacturer and Product strings have been added to this design so that some information appears on-screen when the device is attached.

8.2.1.2. Configuration Descriptor

0x2900,

// Totallength (= 9+9+9+7+7)

0x20

// MaxPower (in 2 mA units)

0x2900, // Totallength (= 9+9+9+7+7)

This example contains one more descriptor, than the USB mouse example because the design uses an OUT endpoint. The last 7 bytes added to the total length include this descriptor.

0x20 // MaxPower (in 2 mA units)

This amount of current will be sufficient to supply the ‘F320 with enough current to function properly.

8.2.1.3. Interface, IN Endpoint, and OUT Endpoint Descriptors

No changes to the firmware template need to be made to implement this design other than modifying the Endpoint

Sizes to be at least as large as the largest Reports.

34 Rev. 0.2

AN249

8.2.1.4. Report Descriptor

This example uses six different Reports, each with a unique Report Structure. Two input reports are created: one to transmit the potentiometer value, and one to transmit device statistics that are displayed in the application window.

Three output reports are created: one to transfer selected LED blinking patterns, one for enable and disable LED blinking, and one command sends a two-byte blinking rate to the device. One feature report is created to transmit

LED dimmer levels and dimmer acknowledgement signalling. The Report Descriptor for this example appears as follows:

{

0x06, 0x00, 0xff,

0x09, 0x01,

0xa1, 0x01,

// USAGE_PAGE (Vendor Defined Page 1)

// USAGE (Vendor Usage 1)

// COLLECTION (Application)

0x09, 0x01, // USAGE (Vendor Usage 1)

0x85, OUT_Blink_PatternID, // Report ID

0x95, OUT_Blink_PatternSize, // REPORT_COUNT ()

0x75, 0x08,

0x26, 0xff, 0x00,

// REPORT_SIZE (8)

// LOGICAL_MAXIMUM (255)

0x15, 0x00,

0x09, 0x01,

0x91, 0x02,

// LOGICAL_MINIMUM (0)

// USAGE (Vendor Usage 1)

// OUTPUT (Data,Var,Abs)

0x85, OUT_Blink_EnableID,

0x95, OUT_Blink_EnableSize,

0x75, 0x08,

0x26, 0xff, 0x00,

0x15, 0x00,

0x09, 0x01,

0x91, 0x02,

// Report ID

// REPORT_COUNT ()

// REPORT_SIZE (8)

// LOGICAL_MAXIMUM (255)

// LOGICAL_MINIMUM (0)

// USAGE (Vendor Usage 1)

// OUTPUT (Data,Var,Abs)

0x85, OUT_Blink_RateID,

0x95, OUT_Blink_RateSize,

0x75, 0x08,

0x26, 0xff, 0x00,

0x15, 0x00,

0x09, 0x01,

0x91, 0x02,

// Report ID

// REPORT_COUNT ()

// REPORT_SIZE (8)

// LOGICAL_MAXIMUM (255)

// LOGICAL_MINIMUM (0)

// USAGE (Vendor Usage 1)

// OUTPUT (Data,Var,Abs)

0x85, IN_Blink_SelectorID, // Report ID

0x95, IN_Blink_SelectorSize, // REPORT_COUNT ()

Rev. 0.2

35

AN249

0x75, 0x08,

0x26, 0xff, 0x00,

0x15, 0x00,

0x09, 0x01,

0x81, 0x02,

0x85, IN_Blink_StatsID,

0x95, IN_Blink_StatsSize,

0x75, 0x08,

0x26, 0xff, 0x00,

// Report ID

// REPORT_COUNT ()

// REPORT_SIZE (8)

// LOGICAL_MAXIMUM (255)

0x15, 0x00,

0x09, 0x01,

// LOGICAL_MINIMUM (0)

// USAGE (Vendor Usage 1)

0x81, 0x02, // INPUT (Data,Var,Abs)

0x85, FEATURE_BLINK_DIMMERID, // Report ID

0x95, FEATURE_BLINK_DIMMERSIZE, // REPORT_COUNT ()

0x75, 0x08, // REPORT_SIZE (8)

0x26, 0xff, 0x00,

0x15, 0x00,

// LOGICAL_MAXIMUM (255)

// LOGICAL_MINIMUM (0)

0x09, 0x01,

0xB1, 0x02,

0xC0

// USAGE (Vendor Usage 1)

// FEATURE (Data,Var,Abs)

// end Application Collection

};

// REPORT_SIZE (8)

// LOGICAL_MAXIMUM (255)

// LOGICAL_MINIMUM (0)

// USAGE (Vendor Usage 1)

// INPUT (Data,Var,Abs)

0x06, 0x00, 0xff,

0x09, 0x01,

// USAGE_PAGE (Vendor Defined Page 1)

// USAGE (Vendor Usage 1)

0xa1, 0x01, // COLLECTION (Application)

These items tell the host system that the Usage Pages and Usages found in this Report Descriptor are all Vendordefined, which means that the reports follow no standard format (such as the one used in the mouse example). The top-level Application Collection, tagged with vendor-defined usage, assumes that a host-side application will have some knowledge of the report structure and will be able to communicate with the device.

0x85, OUT_Blink_PatternID, // Report ID

0x95, OUT_Blink_PatternSize, // REPORT_COUNT ()

0x75, 0x08,

0x26, 0xff, 0x00,

// REPORT_SIZE (8)

// LOGICAL_MAXIMUM (255)

0x15, 0x00,

0x09, 0x01,

0x91, 0x02,

// LOGICAL_MINIMUM (0)

// USAGE (Vendor Usage 1)

// OUTPUT (Data,Var,Abs)

36 Rev. 0.2

AN249

The rest of the Report Descriptor is composed of similarly worded information describing each report used in this example. Each Report description begins with a Report ID, which is defined in the F3xx_Blink_Control.h file. The next item tells the number of data items contained in this particular report. This value is also defined in the

F3xx_Blink_Control.h file. The next item tells the host that each data item will be 1 byte in size. The two next items indicate that these data bytes can contain any value from 0 to 0xFF. The Usage item tags the data that follows as vendor-defined with the same Usage as the rest of the data. The last item of each report description tells the host whether data contained in this report is input or output.

8.2.2. Data Capture and Processing Routines

The data capture and storage of this system takes place inside the BlinkControl.c file and its associated header file

F3xx_Blink_Control.h. In the C8051F320/1 and C8051F34x versions of the build, the potentiometer’s value is captured by saving the high byte of the ADC0 during an ADC Complete ISR servicing. In the C8051F326/7 version of the build, switch 1’s state is saved instead. This value is sent to the host program, which uses it to select a blinking pattern. Effectively, the user will be able to scroll through LED lighting sequence choices on-screen using the potentiometer.

To optimize USB bandwidth usage, the firmware system transmits a report containing the potentiometer’s value only if the value has changed since the last transmitted report. The ADC ISR sets a global variable called

Blink_SelectorUpdate whenever the new ADC value does not match the next value. The firmware system’s foreground while(1) loop polls Blink_SelectorUpdate and when it finds the variable set, the foreground initiates a transfer of potentiometer information.

The host application transmits the lighting pattern, and the device saves this pattern in the Blink_Pattern array.

The host transmits a blinking rate to the device and the device saves it to variable Blink_Rate. For a detailed discussion on these data transfers, read the next subsection.

The firmware system configures Timer 0 ISR to interrupt at a rate of 0.5 ms. Inside the ISR, Blink_Rate multiplies this interrupt rate by being used in a comparison with a counter that is incremented once every interrupt servicing. For example, if Blink_Rate is equal to 2000, the LED pattern will be updated at a rate of 0.5 ms x 2000 or 1 s.

The Timer 0 ISR measures the percentage of time each LED is active during the sequence. The ISR stores these measurements in the global variables Blink_Led1Active and Blink_Led2Active. The host has access to these variables through the use of the Control data pipe.

The Timer 0 ISR updates the lighting pattern by checking the lower two bits of an element of the Blink_Pattern array, where bit 0 controls Led1 and bit 1 controls Led2. The ISR increments an index variable used to access the

Blink_Pattern array after every LED pattern update. When the element selected by the incremented index equals 0xFF, the index is reset to 0 and the pattern repeats.

8.2.3. Report Handler Creation

The five reports defined in the Report Descriptor each need a Report Handler. Prototypes for each handler have been added to the F3xx_USB0_ReportHandler.c file as follows: void IN_Blink_Selector(void); void OUT_Blink_Enable(void); void OUT_Blink_Pattern(void); void OUT_Blink_Rate(void); void IN_Blink_Stats(void); void FEATURE_Blink_Dimmer_Input(void); void FEATURE_Blink_Dimmer_Output(void);

Each of these functions corresponds to one of the reports. The IN and OUT Vector tables establish a link between these handlers and their associated reports.

Rev. 0.2

37

AN249

The file defines the IN and OUT Vector Tables as follows:

#define IN_VectorTableSize 3

#define OUT_VectorTableSize 4

The IN Vector table contains the following elements:

IN_Blink_SelectorID, IN_Blink_Selector,

IN_Blink_StatsID, IN_Blink_Stats

FEATURE_Blink_DimmerID, FEATURE_Blink_Dimmer_Input

The OUT Vector Table contains the following elements:

OUT_Blink_EnableID, OUT_Blink_Enable,

OUT_Blink_PatternID, OUT_Blink_Pattern,

OUT_Blink_RateID, OUT_Blink_Rate

FEATURE_Blink_DimmerID, FEATURE_Blink_Dimmer_Output

The F3xx_Blink_Control.h header file must be included for the compiler to recognize the Report IDs listed in these tables.

The function bodies for each Handler mostly perform simple data transfer, either from a Global Variable and into an input buffer, or from an Output Buffer to some global variable.

Since this example uses Output Reports, the firmware needs a body for the function Setup_OUT_Buffer. This function is called before data is retrieved from a buffer storing data transferred during either a Control OUT transfer or an OUT Endpoint transaction. The body of the function only needs to set the OUT_Buffer.Ptr struct to a data buffer and to save the size of this buffer in the struct element Length.

This example configures the Setup_OUT_Buffer as follows:

OUT_Buffer.Ptr = OUT_PACKET;

OUT_Buffer.Length = 10;

8.2.4. Alterations to main(void)

Only a few modifications need to be made to the main(void) function of the firmware template. Blink_Init() must be called to initialize the timer used for blink rate measurement. Inside the while(1) loop, the global variable defined in F3xx_USB0_Main.c named Blink_SelectionUpdate is polled. If this variable is set, the potentiometer value has changed, and the main(void) function initiates a transmission of a report containing potentiometer information by calling the function SendPacket().

8.3. Host-side PC Application

The host-side software application uses the CHIDDevice class to communicate with the HID Blinky device. The following sub-sections describe how the application connects to the device, and how data is transferred using the

CHIDDevice class.

8.3.1. Project Overview

The application was created using dialog-based MFC classes in Visual C++. All application functionality is contained within the HID_BlinkyDlg dialog. Controls and communication are contained in HID_BlinkyDlg.cpp.

All low-level HID communication is handled by the CHIDDevice, which is defined in HIDDevice.cpp and

HIDDevice.h.

8.3.2. HID Device Initialization

The dialog class's header file, called HID_BlinkyDlg.h, includes the file HIDDevice.h, which declares all member functions and variables for the CHIDDevice class. The CHID_BlinkyDlg definition in HID_BlinkyDlg.h contains the following line:

38 Rev. 0.2

AN249

CHIDDevice HID_Blinky;

This line defines HID_Blinky, which is the variable that the application uses to communicate with the HID Blinky device.

8.3.3. Device Connection/Removal Detection

The application recognizes three different device connection states:

Disconnected - device not detected on the USB

Connected, Idle - device detected, but the application has not opened a communications link

Connected, Active - application has established a communications link with the device

Device detection is handled using three notification routines. These routines enable the software to monitor the

USB for devices, and react anytime a device is connected or disconnected. The routines operate as follows:

RegisterNotification() - creates a notification handle that is signaled whenever a device is connected to or disconnected from the USB.

OnDeviceChange() - called whenever a device is attached or removed from the bus; connect/disconnect event notification is stored in the function parameter nEventType.

UnregisterNotification() - tells the system to no longer send notification of device connection/disconnection

RegisterNotification() is called when the dialog box is created, and UnregisterNotification() is called whenever the dialog box closes. OnDeviceChange() contains a switch statement on nEventType that recognizes two different notification event types:

DBT_DEVICEARRIVAL - this case verifies that a HID Blinky device was connected by calling CHIDDevice member function GetConnectedDeviceNum() to search for a device with a VID and a PID that match HID

Blinky's VID and PID.

DBT_DEVICEREMOVECOMPLETE - this case verifies that the HID Blinky device was disconnected by calling

GetConnectedDeviceNum() to check that no device is attached to the bus with HID Blinky's VID and PID.

8.3.4. Opening A Communication Link With A Device

A communication link is established with a connected device by pressing the "Activate" control button calls

GetConnectedDeviceNum() to check that the device is connected t o the bus, then calls the CHIDDevice member function IsOpened() to check that a communications link has not already been established with this device. If no link exists, Open() is called to establish one.

A link is terminated by pressing the "Deactivate" button. Link termination is accomplished by first checking that a link exists using IsOpened(). If a link exists, the software calls Close() to terminate the link.

8.3.5. Controls and Reports

Operating the buttons, check boxes, and sliders call routines with names that begin "On…"

(OnBnClickedDisconnect(), OnBnClickedRate (), etc.). These functions then call routines with names beginning "Update_..." that modify variables and communicate with the attached HID device. The Update_...

routines operate as follows:

Update_BlinkPattern() - transmits a BlinkPattern output report and transmits it by calling

SetReport_Interrupt().

Update_BlinkEnable() - transmits a Blink_Enable output report by calling SetReport_Control().

Update_BlinkRate() - transmits a BlinkRate output report by calling SetReport_Control().

Update_Stats() - receives a Blink_Stats input report by creating a buffer, setting the first element of that buffer to the Blink_Stats report ID, and calling GetReport_Control()

Update_Dimmer() - transmits a Blink_Slider feature report by calling SetFeatureReport() and then calls GetFeatureReport() to receive an acknowledge from the device

The application receives input reports across the interrupt pipe by creating a thread that constantly attempts to

Rev. 0.2

39

AN249

retrieve reports. This thread is created when a communication link is established with the device, and is destroyed when the communication link is terminated.

The thread calls InterruptThreadProc(), which continuously calls HID_InterruptGetReport (), which in turn calls the CHIDDevice member function GetReport_Interrupt(). If GetReport_Interrupt() successfully retrieves a report, HIDcallback() processes received data. In this application, HIDcallback() handles Blink_Selector input report reception.

40 Rev. 0.2

D

OCUMENT

C

HANGE

L

IST

Revision 0.1 to Revision 0.2

Added Section "2. Introduction To HID" on page 2.

Added Section "6. CHIDDeviceclass Object Class" on page 21.

Modified Section "8. HID Blinky Firmware and

Software Example" on page 33 to conform to latest

firmware and software example.

Minor formatting changes

.

AN249

Rev. 0.2

41

AN249

C

ONTACT

I

NFORMATION

Silicon Laboratories Inc.

400 West Cesar Chavez

Austin, TX 78704

Email: [email protected]

Internet: www.silabs.com

The information in this document is believed to be accurate in all respects at the time of publication but is subject to change without notice.

Silicon Laboratories assumes no responsibility for errors and omissions, and disclaims responsibility for any consequences resulting from the use of information included herein. Additionally, Silicon Laboratories assumes no responsibility for the functioning of undescribed features or parameters. Silicon Laboratories reserves the right to make changes without further notice. Silicon Laboratories makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Silicon Laboratories assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Silicon Laboratories products are not designed, intended, or authorized for use in applications intended to support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where personal injury or death may occur. Should Buyer purchase or use Silicon Laboratories products for any such unintended or unauthorized application, Buyer shall indemnify and hold Silicon Laboratories harmless against all claims and damages.

Silicon Laboratories and Silicon Labs are trademarks of Silicon Laboratories Inc.

Other products or brandnames mentioned herein are trademarks or registered trademarks of their respective holders.

42 Rev. 0.2

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
