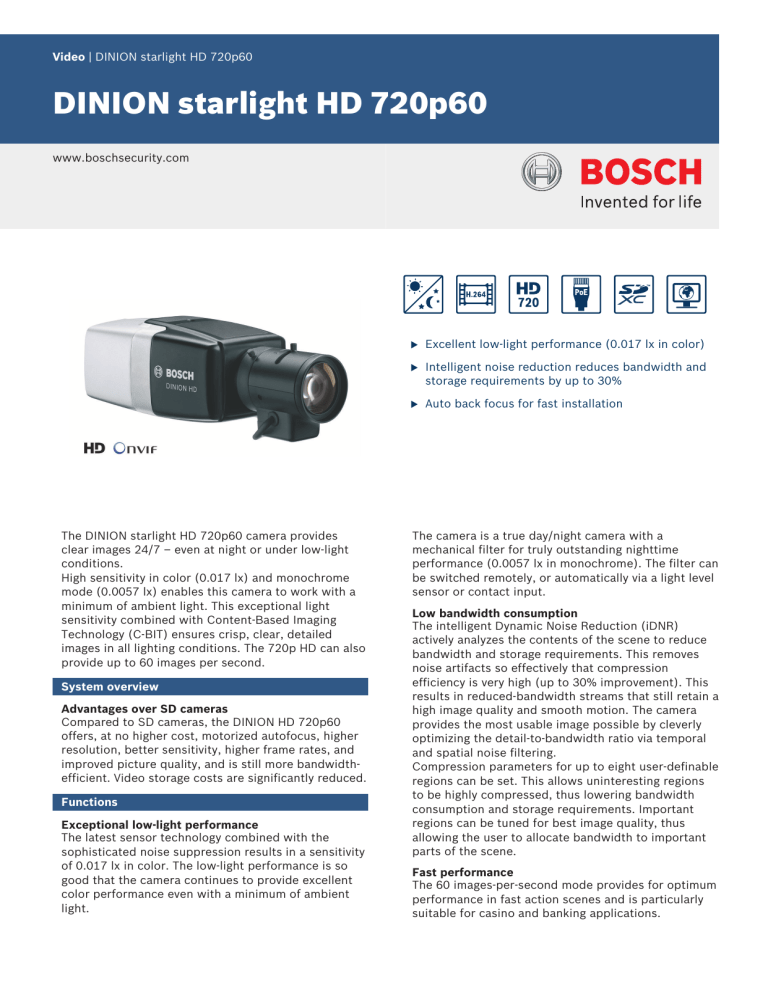

The DINION starlight HD 720p60 camera provides
clear images 24/7 – even at night or under low-light
conditions.
High sensitivity in color (0.017 lx) and monochrome
mode (0.0057 lx) enables this camera to work with a
minimum of ambient light. This exceptional light
sensitivity combined with Content-Based Imaging
Technology (C-BIT) ensures crisp, clear, detailed
images in all lighting conditions. The 720p HD can also
provide up to 60 images per second.
System overview
Advantages over SD cameras
Compared to SD cameras, the DINION HD 720p60
offers, at no higher cost, motorized autofocus, higher
resolution, better sensitivity, higher frame rates, and
improved picture quality, and is still more bandwidthefficient. Video storage costs are significantly reduced.
Functions
Exceptional low-light performance
The latest sensor technology combined with the
sophisticated noise suppression results in a sensitivity
of 0.017 lx in color. The low-light performance is so
good that the camera continues to provide excellent
color performance even with a minimum of ambient
light.
u
Excellent low-light performance (0.017 lx in color)
u
Intelligent noise reduction reduces bandwidth and
storage requirements by up to 30%
u
Auto back focus for fast installation
The camera is a true day/night camera with a
mechanical filter for truly outstanding nighttime
performance (0.0057 lx in monochrome). The filter can
be switched remotely, or automatically via a light level
sensor or contact input.
Low bandwidth consumption
The intelligent Dynamic Noise Reduction (iDNR)
actively analyzes the contents of the scene to reduce
bandwidth and storage requirements. This removes
noise artifacts so effectively that compression
efficiency is very high (up to 30% improvement). This
results in reduced-bandwidth streams that still retain a
high image quality and smooth motion. The camera
provides the most usable image possible by cleverly
optimizing the detail-to-bandwidth ratio via temporal
and spatial noise filtering.
Compression parameters for up to eight user-definable
regions can be set. This allows uninteresting regions
to be highly compressed, thus lowering bandwidth
consumption and storage requirements. Important
regions can be tuned for best image quality, thus
allowing the user to allocate bandwidth to important
parts of the scene.
Fast performance
The 60 images-per-second mode provides for optimum
performance in fast action scenes and is particularly
suitable for casino and banking applications.
2 | DINION starlight HD 720p60
Simple installation
The camera has a very intuitive user interface that
allows fast and easy configuration. Six configurable
user modes are provided with the best settings for a
variety of applications:
• Outdoor – general day-to-night changes with sun
highlights and street lighting
• Indoor – general day-to-night changes without sun
highlights and street lighting
• Motion – monitoring traffic or fast moving objects;
motion artifacts are minimized
• Lowlight – optimized for sufficient details at low light.
• Intelligent AE (BLC on non-IVA models) – for people
moving in front of a bright background
• Vibrant – enhanced contrast, sharpness and
saturation
The auto-focus lens wizard makes it easy for an
installer to accurately focus the camera for both day
and night operation. The wizard is activated from the
web browser or from the on-board camera push
button making it easy to choose the workflow that
suits best. The automatic motorized back focus
adjustment with 1:1 pixel mapping ensures the camera
is always focused accurately.
Streams
The innovative multi-streaming feature delivers various
H.264 streams together with an M‑JPEG stream. These
streams facilitate bandwidth-efficient viewing and
recording as well as integration with third-party video
management systems.
An upright mode can be selected for the second
stream. In this mode an image of 400 x 720 (9:16
aspect ratio) is cropped from the full sensor image.
When the scene to be monitored is suitable to this
mode, the bandwidth and storage requirements are
reduced.
Storage management
A microSD card can be used for local alarm recording
or for Automatic Network Replenishment (ANR) to
improve the overall recording reliability. Recording
management can be controlled by the Bosch Video
Recording Manager (VRM) or the camera can use iSCSI
targets directly without any recording software.
Intelligent Video Analytics
IVA versions of the cameras use the latest generation
of the Bosch Intelligent Video Analysis (IVA) software.
This IVA system is the guard-assistant system of choice
when reliable indoor or outdoor video analytics is
needed. The state-of-the-art system reliably detects,
tracks, and analyzes moving objects while suppressing
unwanted alarms from spurious sources in the image.
The face detection feature detects faces in the scene
and forwards a high quality JPEG image of the best
shot of each face when the face disappears from the
scene.
Retrospective forensic search capabilities are available
remotely from the web browser or the included
Bosch Video Client.
Regions of interest
Two Regions of Interest (ROI) can be user defined.
The remote electronic pan, tilt and zoom controls
allow you to select specific areas of the parent image.
These regions produce separate streams for remote
viewing and recording. These streams, together with
the main stream, allow the operator to separately
monitor the most interesting part of a scene while still
retaining an overall view.
The IVA Intelligent tracker can also follow objects
within the defined regions of interest. The Intelligent
tracker can autonomously detect and track moving
objects or the user can click on an object which the
Intelligent tracker will then follow.
Access Security
Password protection with three levels and 802.1x
authentication is supported. To secure Web browser
access, use HTTPS with a SSL certificate stored in the
camera. The video and audio communication channels
can be independently AES encrypted with 128-bit keys
by installing the optional encryption site license.
Surveillance software
There are many ways to access the camera’s video and
IVA-based features: using a web browser, with the
Bosch Video Management System, with the Bosch
Recording System, with the free-of-charge Bosch Video
Client, or with the iPad App.
The Bosch Video Client PC surveillance software offers
a user-friendly interface to support easy installation
and configuration. It also provides easy live viewing of
multiple cameras, playback, forensic search and
export.
Access to IVA metadata is available to integrators via
RTSP.
Video security App
The Bosch Video Security iPad App has been
developed to fully utilize our Dynamic Transcoding
features and enable Anywhere access to HD
surveillance images, even over low-bandwidth
connections. The App, together with the Bosch
transcoder, is configured to give you complete control
of all your cameras, from panning and tilting to zoom
and focus functions. It’s like taking your control room
with you.
Connections
The camera conforms to the ONVIF (Open Network
Video Interface Forum) Profile S specification. This
guarantees interoperability between network video
products regardless of manufacturer. For trouble-free
network cabling, the camera supports Auto-MDIX
which allows the use of straight or cross-over cables.
Camera power is supplied via PoE (Power-overEthernet) or via the 24 VAC/12 VDC connector.
Third-party integrators can easily access the internal
feature set of the camera for integration into large
projects. Visit the Bosch Technology Partner Program
(TPP) website (tpp.boschsecurity.com) for more
information.
3 | DINION starlight HD 720p60
Dimensions
Certifications and approvals
HD Standards
Complies with the 296M-2001 Standard in:
Resolution: 1280x720
Scan: Progressive
Color representation: complies with ITU-R BT.709
Aspect ratio: 16:9
Frame rate: 25/30 and 50/60 frames/s
66 (2.60)
–
–
–
–
–
Electro Magnetic Compatibility
140 (5.51)
Emission
EN 55022 Class B
FCC Part 15, class B
Immunity
EN 50130-4 (PoE, +12 VDC, 24 VAC)*
EN 50121-4
Safety
EN 60950-1
UL 60950-1 (2nd edition)
CAN/CSA-C 22.2 No. 60950-1
Vibration
Camera with 500 g (1.1 lb) lens as per IEC
60068-2-6 (5 m/s2, operational)
78 (3.07)
mm (in)
* Chapters 7 and 8 (mains voltage supply requirement) are not applicable to the camera.
However, if the system in which this camera is used needs to comply with this standard,
then any power supplies used must comply with this standard.
Region
Certification
Europe
CE
USA
UL
Technical specifications
Electrical
Power Supply
24 VAC 50/60 Hz
12 VDC
Power-over-Ethernet 48 VDC nominal
Current Consumption
500 mA (12 VDC)
450 mA (24 VAC)
175 mA (PoE 48 VDC)
Installation/configuration notes
Power Consumption
6W
Controls
Sensor
FCC
Canada
CSA
Type
1/3‑inch CMOS HD
Active Pixels
1305 x 1049
Video
4
5
6|4
5
6
E
T
H
P
o
E
D A
A L
T A
A R
M
2
3|1
2
3
µSD
1
- +
12VDC INSTALL
24VAC
Video compression
H.264 (ISO/IEC 14496-10); M- JPEG,
JPEG
Streaming
Multiple configurable streams in H.264
and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI)
MENU
Resolutions (H x V)
1
Data (RS485/422/232)
6
Reset button
2
Alarm in, relay out
7
Service video out
3
10/100 Base-T Fast
Ethernet
8
Power supply input
4
MicroSD card slot
9
Earth
5
Menu button
10
Audio in / Audio out
- 720p HD
1280 x 720
- 480p SD
Encoding: 704 x 480;
Displayed: 854 x 480
- 432p SD
768 x 432
- 288p SD
512 x 288
- 240p SD
Encoding: 352 x 240;
Displayed: 432 x 240
- 144p SD
256 x 144
4 | DINION starlight HD 720p60
- upright mode
400 x 720
• connector
3.5 mm stereo jack
- D1 4:3 cropped
704 x 480
• signal line in
12 kOhm typical, 1 Vrms max
• signal line out
1 Vrms at 1.5 kOhm typical,
Overall IP Delay
Min. 120 ms, Max. 240 ms
GOP structure
IP, IBP, IBBP
Sensitivity (3200 K, scene reflectivity 89%, F1.2)
Minimum illumination (30 IRE)
Color
0.017 lx (0.0017 fc)
Monochrome
0.0057 lx (0.00057 fc)
Day/Night
Color, Monochrome, Auto
White Balance
ATW (2500 to 10000K), ATWhold and
manual
Indoor and Outdoor ATW
Shutter
Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/150000)
selectable
Default shutter
Backlight compensation
(IVA)
Off, Auto, IntelligentAE (iAE)
Backlight compensation
(non IVA)
Off, Auto, BLC
Noise reduction
Intelligent Dynamic Noise Reduction
(iDNR) with separate temporal and spatial
adjustments
Contrast enhancement
On/off
Sharpness
Sharpness enhancement level selectable
Dynamic range
84 dB
Privacy Masking
Four independent areas, fully
programmable
Video Motion Analysis
Intelligent Video Analysis
Alarm
• activation
voltage
Relay
• voltage
2 inputs
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pullup resistor)
1 output
30 VAC or +40 VDC max.
Maximum 0.5 A continuous, 10VA
Local Storage
Memory card slot
Supports SDHC and SDXC microSD cards
Recording
Continuous recording, ring recording.
alarm/events/schedule recording
Software Control
Unit Configuration
Via web browser or Configuration Manager
Software update
Flash ROM, remotely programmable
Network
Protocols
IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP,
IGMP V2/V3, ICMP, RTSP, FTP, Telnet,
ARP, DHCP, SNTP, SNMP (V1, MIB‑II),
802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption
TLS 1.0, SSL, AES (optional)
Ethernet
STP, 10/100 Base-T, auto-sensing, half/
full duplex, RJ45
PoE supply
IEEE 802.3at compliant
Connectivity
ONVIF Profile S
Auto-MDIX
Optical
Focus control
Motorized back-focus adjustment
Iris control
Automatic iris control
Mechanical
Audio
Standard
AAC
G.711, 8kHz sampling rate
L16, 16kHz sampling rate
Signal-to-noise ratio
> 50 dB
Audio Streaming
Full duplex / half duplex
Input/output
Analog Video out
(service only)
CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack,
75 Ohm (non-protected)
Audio
1 x mono line in, 1 x mono line out
Dimensions (H x W x L)
78 x 66 x140 mm (3.07 x 2.6 x 5.52 in)
without lens
Weight
690 g (1.52 lb) without lens
Color
RAL 9006 Metallic Titanium
Tripod Mount
Bottom and top 1/4-inch 20 UNC
Environmental
Operating Temperature
-20°C to +50°C (-4°F to 122°F)
Non-IVA: -20°C to +55°C (-4°F to 131°F)
Storage Temperature
-30°C to +70°C (-22°F to +158°F)
5 | DINION starlight HD 720p60
Operating Humidity
20% to 93% RH
S1460 Service/Monitor Cable
Storage Humidity
up to 98% RH
2.5 mm connector to BNC for analog and IP cameras,
1m
Ordering information
DINION HD 720p
1/3-inch CMOS, 720p60, H.264, PoE
Order number NBN-733V-P
DINION HD 720p IVA
1/3-inch CMOS, 720p60, H.264, PoE, IVA
Order number NBN-733V-IP
Accessories
Varifocal SR Megapixel Lens
1/2.5-inch varifocal IR corrected lens, CS-mount,
9-40 mm, 5 MP, SR-iris
Order number LVF-5005C-S0940
Varifocal SR Megapixel Lens
1/2-inch varifocal lens, C-mount, 3.8-13 mm, 3 MP, SRiris
Order number LVF-5003N-S3813
Varifocal SR Megapixel Lens
1/2.5-inch varifocal IR corrected lens, CS-mount,
1.8-3 mm, 5 MP, SR-iris
Order number LVF-5005C-S1803
EX12LED‑3BD‑8M Infrared Illuminator
EX12LED IR Illuminator, 850 nm, 30 deg beam
Order number EX12LED-3BD-8M
EX12LED‑3BD‑8W Infrared Illuminator
EX12LED, IR Illuminator, 850 nm, 60 deg beam
Order number EX12LED-3BD-8W
EX12LED‑3BD‑9M Infrared Illuminator
EX12LED IR Illuminator, 940 nm, 30 deg beam
Order number EX12LED-3BD-9M
EX12LED‑3BD‑9W Infrared Illuminator
EX12LED, IR Illuminator, 940 nm, 60 deg beam
Order number EX12LED-3BD-9W
UPA-2430-60 Power Supply
120 VAC, 60 Hz, 24 VAC, 30 VA Out
Order number UPA-2430-60
UPA-2450-60 Power Supply, 120 V, 60 Hz
Indoor, 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Order number UPA-2450-60
UPA-2450-50 Power Supply, 220 V, 50 Hz
Indoor, 220 VAC, 50 Hz In; 24 VAC, 50 VA Out
Order number UPA-2450-50
S1374 Adapter
converts C mount lens to CS mount camera
Order number S1374
Order number S1460
VJT-XTCXF
VideoJet XTC XF, H.264 video transcoder
Order number VJT-XTCXF
Software Options
MVS-FENC-AES BVIP AES 128 Bit Encryption
BVIP AES 128‑bit encryption site license. This license
is required only once per installation. It enables
encrypted communication between BVIP devices and
management stations.
Order number MVS-FENC-AES
6 | DINION starlight HD 720p60
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2013 | Data subject to change without notice
9585768715 | en, V2, 10. Apr 2013
Asia-Pacific:
Robert Bosch (SEA) Pte Ltd, Security
Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2808
Fax: +65 6571 2699
[email protected]
www.boschsecurity.asia
China:
America Latina:
Bosch (Shanghai) Security Systems Ltd. Robert Bosch Ltda Security Systems Division
201 Building, No. 333 Fuquan Road
Via Anhanguera, Km 98
North IBP
CEP 13065-900
Changning District, Shanghai
Campinas, Sao Paulo, Brazil
200335 China
Phone: +55 19 2103 2860
Phone +86 21 22181111
Fax: +55 19 2103 2862
Fax: +86 21 22182398
[email protected]
www.boschsecurity.com.cn
www.boschsecurity.com

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
