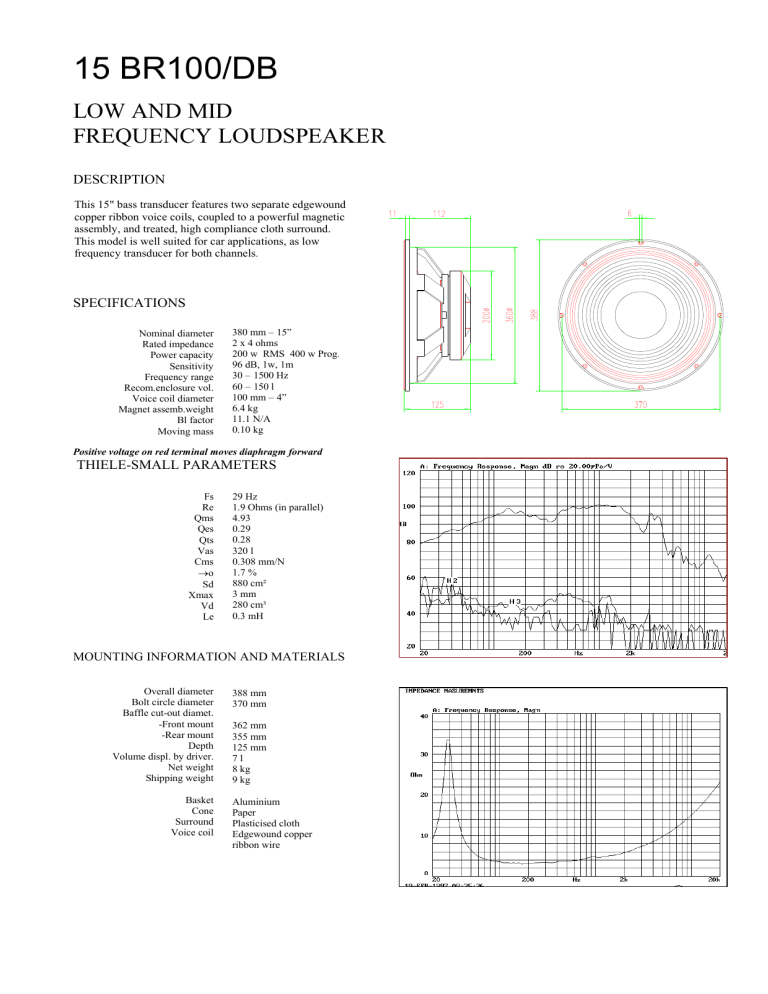

15 BR100/DB
15 BR100/DB
LOW AND MID
FREQUENCY LOUDSPEAKER
DESCRIPTION
This 15" bass transducer features two separate edgewound
copper ribbon voice coils, coupled to a powerful magnetic
assembly, and treated, high compliance cloth surround.
This model is well suited for car applications, as low
frequency transducer for both channels.
SPECIFICATIONS
Nominal diameter
Rated impedance
Power capacity
Sensitivity
Frequency range
Recom.enclosure vol.
Voice coil diameter
Magnet assemb.weight
Bl factor
Moving mass
380 mm – 15”
2 x 4 ohms
200 w RMS 400 w Prog.
96 dB, 1w, 1m
30 – 1500 Hz
60 – 150 l
100 mm – 4”
6.4 kg
11.1 N/A
0.10 kg
Positive voltage on red terminal moves diaphragm forward
THIELE-SMALL PARAMETERS
Fs
Re
Qms
Qes
Qts
Vas
Cms
→o
Sd
Xmax
Vd
Le
29 Hz
1.9 Ohms (in parallel)
4.93
0.29
0.28
320 l
0.308 mm/N
1.7 %
880 cm²
3 mm
280 cm³
0.3 mH
MOUNTING INFORMATION AND MATERIALS
Overall diameter
Bolt circle diameter
Baffle cut-out diamet.
-Front mount
-Rear mount
Depth
Volume displ. by driver.
Net weight
Shipping weight
Basket
Cone
Surround
Voice coil
388 mm
370 mm
362 mm
355 mm
125 mm
7l
8 kg
9 kg
Aluminium
Paper
Plasticised cloth
Edgewound copper
ribbon wire
