timer 50042 ENG ver. 3
125V ac / 60Hz / 1/2 HP
10A / 1250W tungsten
15A / 1875W resistive
Time interval: 1 minute

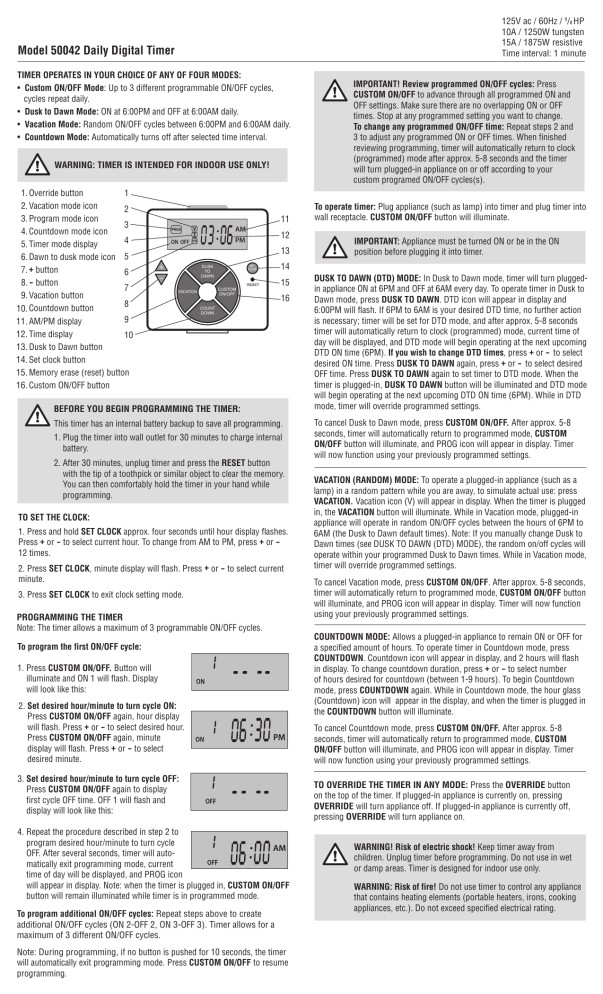

Model 50042 Daily Digital Timer
TIMER OPERATES IN YOUR CHOICE OF ANY OF FOUR MODES:
• Custom ON/OFF Mode: Up to 3 different programmable ON/OFF cycles,
cycles repeat daily.
• Dusk to Dawn Mode: ON at 6:00PM and OFF at 6:00AM daily.
• Vacation Mode: Random ON/OFF cycles between 6:00PM and 6:00AM daily.
• Countdown Mode: Automatically turns off after selected time interval.
!
WARNING: TIMER IS INTENDED FOR INDOOR USE ONLY!
1. Override button
1
2. Vacation mode icon
2
3. Program mode icon
3
4. Countdown mode icon
4
5. Timer mode display
6. Dawn to dusk mode icon 5
7. + button
6
8. - button
7
9. Vacation button
8
10. Countdown button
9
11. AM/PM display
12. Time display
10
13. Dusk to Dawn button
14. Set clock button
15. Memory erase (reset) button
16. Custom ON/OFF button
!
!
11
AM
PM
ON OFF
12
13
To operate timer: Plug appliance (such as lamp) into timer and plug timer into
wall receptacle. CUSTOM ON/OFF button will illuminate.
!
IMPORTANT: Appliance must be turned ON or be in the ON
position before plugging it into timer.
14
DUSK
TO
DAWN
CUSTOM
ON/OFF
VACATION
IMPORTANT! Review programmed ON/OFF cycles: Press
CUSTOM ON/OFF to advance through all programmed ON and
OFF settings. Make sure there are no overlapping ON or OFF
times. Stop at any programmed setting you want to change.
To change any programmed ON/OFF time: Repeat steps 2 and
3 to adjust any programmed ON or OFF times. When finished
reviewing programming, timer will automatically return to clock
(programmed) mode after approx. 5-8 seconds and the timer
will turn plugged-in appliance on or off according to your
custom programed ON/OFF cycles(s).
15
16
COUNT
DOWN
BEFORE YOU BEGIN PROGRAMMING THE TIMER:
This timer has an internal battery backup to save all programming.
1. Plug the timer into wall outlet for 30 minutes to charge internal
battery.
2. After 30 minutes, unplug timer and press the RESET button
with the tip of a toothpick or similar object to clear the memory.
You can then comfortably hold the timer in your hand while
programming.
TO SET THE CLOCK:
1. Press and hold SET CLOCK approx. four seconds until hour display flashes.
Press + or - to select current hour. To change from AM to PM, press + or 12 times.
2. Press SET CLOCK, minute display will flash. Press + or - to select current
minute.
3. Press SET CLOCK to exit clock setting mode.
PROGRAMMING THE TIMER
Note: The timer allows a maximum of 3 programmable ON/OFF cycles.
To program the first ON/OFF cycle:
1. Press CUSTOM ON/OFF. Button will
illuminate and ON 1 will flash. Display
will look like this:
2. Set desired hour/minute to turn cycle ON:
Press CUSTOM ON/OFF again, hour display
will flash. Press + or - to select desired hour.
Press CUSTOM ON/OFF again, minute
display will flash. Press + or - to select
desired minute.
3. Set desired hour/minute to turn cycle OFF:
Press CUSTOM ON/OFF again to display
first cycle OFF time. OFF 1 will flash and
display will look like this:
4. Repeat the procedure described in step 2 to
program desired hour/minute to turn cycle
OFF. After several seconds, timer will automatically exit programming mode, current
time of day will be displayed, and PROG icon
will appear in display. Note: when the timer is plugged in, CUSTOM ON/OFF
button will remain illuminated while timer is in programmed mode.
To program additional ON/OFF cycles: Repeat steps above to create
additional ON/OFF cycles (ON 2-OFF 2, ON 3-OFF 3). Timer allows for a
maximum of 3 different ON/OFF cycles.
Note: During programming, if no button is pushed for 10 seconds, the timer
will automatically exit programming mode. Press CUSTOM ON/OFF to resume
programming.
DUSK TO DAWN (DTD) MODE: In Dusk to Dawn mode, timer will turn pluggedin appliance ON at 6PM and OFF at 6AM every day. To operate timer in Dusk to
Dawn mode, press DUSK TO DAWN. DTD icon will appear in display and
6:00PM will flash. If 6PM to 6AM is your desired DTD time, no further action
is necessary; timer will be set for DTD mode, and after approx. 5-8 seconds
timer will automatically return to clock (programmed) mode, current time of
day will be displayed, and DTD mode will begin operating at the next upcoming
DTD ON time (6PM). If you wish to change DTD times, press + or - to select
desired ON time. Press DUSK TO DAWN again, press + or - to select desired
OFF time. Press DUSK TO DAWN again to set timer to DTD mode. When the
timer is plugged-in, DUSK TO DAWN button will be illuminated and DTD mode
will begin operating at the next upcoming DTD ON time (6PM). While in DTD
mode, timer will override programmed settings.
To cancel Dusk to Dawn mode, press CUSTOM ON/OFF. After approx. 5-8
seconds, timer will automatically return to programmed mode, CUSTOM
ON/OFF button will illuminate, and PROG icon will appear in display. Timer
will now function using your previously programmed settings.
VACATION (RANDOM) MODE: To operate a plugged-in appliance (such as a
lamp) in a random pattern while you are away, to simulate actual use: press
VACATION. Vacation icon (V) will appear in display. When the timer is plugged
in, the VACATION button will illuminate. While in Vacation mode, plugged-in
appliance will operate in random ON/OFF cycles between the hours of 6PM to
6AM (the Dusk to Dawn default times). Note: If you manually change Dusk to
Dawn times (see DUSK TO DAWN (DTD) MODE), the random on/off cycles will
operate within your programmed Dusk to Dawn times. While in Vacation mode,
timer will override programmed settings.
To cancel Vacation mode, press CUSTOM ON/OFF. After approx. 5-8 seconds,
timer will automatically return to programmed mode, CUSTOM ON/OFF button
will illuminate, and PROG icon will appear in display. Timer will now function
using your previously programmed settings.
COUNTDOWN MODE: Allows a plugged-in appliance to remain ON or OFF for
a specified amount of hours. To operate timer in Countdown mode, press
COUNTDOWN. Countdown icon will appear in display, and 2 hours will flash
in display. To change countdown duration, press + or - to select number
of hours desired for countdown (between 1-9 hours). To begin Countdown
mode, press COUNTDOWN again. While in Countdown mode, the hour glass
(Countdown) icon will appear in the display, and when the timer is plugged in
the COUNTDOWN button will illuminate.
To cancel Countdown mode, press CUSTOM ON/OFF. After approx. 5-8
seconds, timer will automatically return to programmed mode, CUSTOM
ON/OFF button will illuminate, and PROG icon will appear in display. Timer
will now function using your previously programmed settings.
TO OVERRIDE THE TIMER IN ANY MODE: Press the OVERRIDE button
on the top of the timer. If plugged-in appliance is currently on, pressing
OVERRIDE will turn appliance off. If plugged-in appliance is currently off,
pressing OVERRIDE will turn appliance on.
!
WARNING! Risk of electric shock! Keep timer away from
children. Unplug timer before programming. Do not use in wet
or damp areas. Timer is designed for indoor use only.
WARNING: Risk of fire! Do not use timer to control any appliance
that contains heating elements (portable heaters, irons, cooking
appliances, etc.). Do not exceed specified electrical rating.
