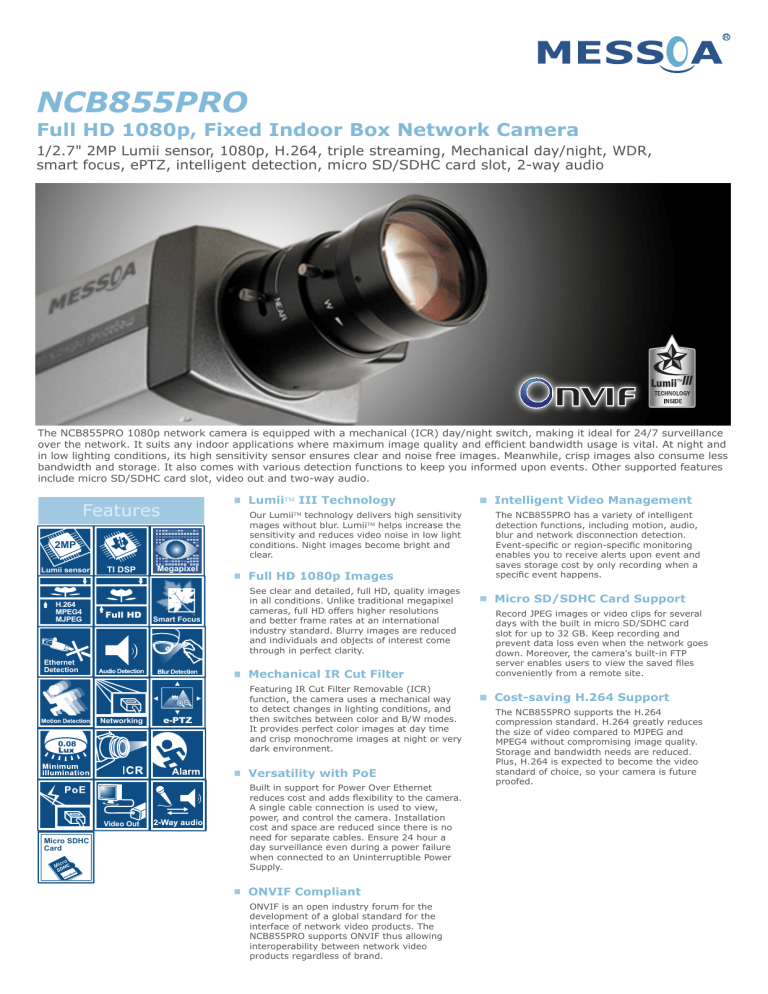

NCB855PRO
Full HD 1080p, Fixed Indoor Box Network Camera
1/2.7" 2MP Lumii sensor, 1080p, H.264, triple streaming, Mechanical day/night, WDR,
smart focus, ePTZ, intelligent detection, micro SD/SDHC card slot, 2-way audio
III
The NCB855PRO 1080p network camera is equipped with a mechanical (ICR) day/night switch, making it ideal for 24/7 surveillance
over the network. It suits any indoor applications where maximum image quality and efficient bandwidth usage is vital. At night and
in low lighting conditions, its high sensitivity sensor ensures clear and noise free images. Meanwhile, crisp images also consume less
bandwidth and storage. It also comes with various detection functions to keep you informed upon events. Other supported features
include micro SD/SDHC card slot, video out and two-way audio.
Lumii III Technology
Features
Our Lumii technology delivers high sensitivity
mages without blur. Lumii helps increase the
sensitivity and reduces video noise in low light conditions. Night images become bright and
clear.
2MP
Lumii sensor
H.264
MPEG4
MJPEG
TI DSP
Full HD
Megapixel
Smart Focus
Ethernet
Detection
Full HD 1080p Images
See clear and detailed, full HD, quality images
in all conditions. Unlike traditional megapixel
cameras, full HD offers higher resolutions
and better frame rates at an international
industry standard. Blurry images are reduced
and individuals and objects of interest come
through in perfect clarity.
Mechanical IR Cut Filter
Networking
0.08
e-PTZ
Featuring IR Cut Filter Removable (ICR)
function, the camera uses a mechanical way
to detect changes in lighting conditions, and
then switches between color and B/W modes.
It provides perfect color images at day time
and crisp monochrome images at night or very
dark environment.
Versatility with PoE
Video Out
Micro SDHC
Card
Built in support for Power Over Ethernet
reduces cost and adds flexibility to the camera.
A single cable connection is used to view,
power, and control the camera. Installation
cost and space are reduced since there is no
need for separate cables. Ensure 24 hour a
day surveillance even during a power failure
when connected to an Uninterruptible Power
Supply.
ONVIF Compliant
ONVIF is an open industry forum for the
development of a global standard for the
interface of network video products. The
NCB855PRO supports ONVIF thus allowing
interoperability between network video
products regardless of brand.
Intelligent Video Management
The NCB855PRO has a variety of intelligent
detection functions, including motion, audio,
blur and network disconnection detection.
Event-specific or region-specific monitoring
enables you to receive alerts upon event and
saves storage cost by only recording when a
specific event happens.
Micro SD/SDHC Card Support
Record JPEG images or video clips for several
days with the built in micro SD/SDHC card
slot for up to 32 GB. Keep recording and
prevent data loss even when the network goes
down. Moreover, the camera's built-in FTP
server enables users to view the saved files
conveniently from a remote site.
Cost-saving H.264 Support
The NCB855PRO supports the H.264
compression standard. H.264 greatly reduces
the size of video compared to MJPEG and
MPEG4 without compromising image quality.
Storage and bandwidth needs are reduced.
Plus, H.264 is expected to become the video
standard of choice, so your camera is future
proofed.
Specifications
Video
I/O & Controls
Sensor Type
1/2.7" 2MP sensor optimized for low-light performance
Power
2-pin Terminal Block
Active Pixels
1920x1080 (HxV)
Alarm In/Out
2/1, Terminal Block
Compression
H.264, MPEG-4, MJPEG
Network
RJ-45 with LEDs
Streaming
Triple simultaneous streams
Audio In/Out
1/1, 3.5mm phone jack
Resolution
1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF
RS-485
Terminal Block (Reserved)
Analog Video
BNC x 1, 1.0Vp-p, 75 ohm
Within 5 secs to reboot, ; More than 5 secs to load default
Max. Frame Rate
30/25 fps at 1920x1080 (NTSC/PAL)
Day/Night
Mechanical (ICR) D/N Control
Reset
Day/Night Mode
Auto, Forced BW, Forced Color, External
Power
Shutter Time
1/10000s to 1/3.75s Selectable (60Hz);
1/10000s to 1/3.125s Selectable (50Hz)
Power Requirement
DC 12V & AC 24V ± 10% / PoE(IEEE 802.3af)
Power Consumption
(Max.)
6W
Minimum Illumination
0.08 lux @30IRE; 0.20 lux @50IRE (F1.2, Shutter Speed: 1/15sec)
Video Output
NTSC: 720 X 480; PAL: 720 X 576
Bit Rate Control
CBR/VBR (Primary Stream)
Lens Mount
CS Mount; Adjustable lens back focus
Compression
Audio In/Out
Dimensions(DxH)
114 x 66 x 65 mm (4.5" x 2.6" x 2.6")
Weight
320g (0.70 lb) w/o lens
Environment
Audio
Audio Communication
Mechanism
Two-Way Mono Audio, Full-Duplex
G.711, PCM, 8kHz
External microphone and speaker
Operating Temperature
-10ºC ~ 50ºC (-14ºF ~ 122 ºF)
Operating Humidity
10~ 90% RH
Storage Temperature
-20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Regulatory
Image Enhancement
Image Settings
AWB, AES, AGC
Exposure mode, white balance, backlight compensation, brightness,
contrast, sharpness, staturation, digital WDR, privacy zone
Image Orientation
Mirror, Flip
Frequency Control
50Hz, 60Hz
Date & Time Stamp
Yes
Approvals
CE, FCC, RoHS
Order Information
Model No.
NTSC: NCB855PRO-HN5-MES; PAL: NCB855PRO-HP5-MES
Accessories
Wall Mount Bracket: SAB748-02
Outdoor Housing: SAH722/ SAH725
IR Illuminator Housing: SLI070HB
Intelligent Video
Motion Detection
5x5 zones, 5 level sensitivity or customized threshold
Audio Detection
5 level sensitivity or customized threshold
Blur Detection
Customized sensitivity in seconds
Ethernet Detection
Network loss detection
Smart Encoding
Configurable ROI
Others
Smart Focus, e-PTZ
Event
Event Trigger
Motion detection, audio detection, blur detection, Ethernet
detection, external alarm
Event Management
File upload via FTP, SMTP and SD Card
Notification via email, HTTP over TCP and external alarm
Local Storage
Memory Card Slot
MicroSD/SDHC Card up to 32 GB
Memory Card Overwrite
Yes
Recording Trigger
Alarm, Event, Schedule
Network
Protocol
IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,RTSP,
ICMP, UPnP
Ethernet
10Base-T/100Base-TX Ethernet, RJ-45, auto-sensing
PoE
IEEE 802.3af, Class 3
ONVIF
Yes
Browser
IE Browser 6.0 or Above
Security
Two-level access with password protection
Dimension
Unit: mm (inch)
114mm (4.5”)
66mm (2.6”)
Reset
1
ALM-In 2
ALM-In 1
ALM-Out
GND
Audio Out
RS485
RS485+
65mm(2.6”)
56mm(2.2”)
Micro
SD
Card
Power
2 3 4 5 6
Ethernet/PoE
Video
+
~ ~
DC 12V
AC 24V
2011.11.01 version.
MESSOA reserves the right to update this datasheet at any time without notice.
MESSOA USA e-mail:[email protected]//MESSOA Taiwan e-mail:[email protected]
