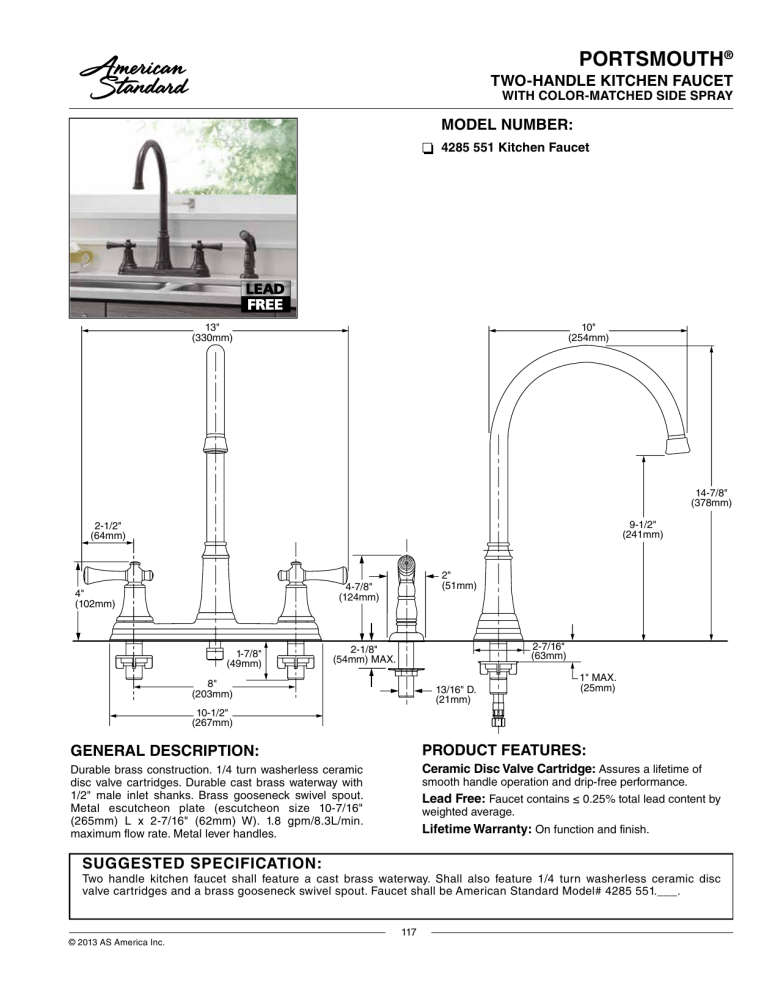

PORTSMOUTH®
TWO-HANDLE KITCHEN FAUCET
WITH COLOR-MATCHED SIDE SPRAY
MODEL NUMBER:
4285 551 Kitchen Faucet
13"
(330mm)
10"
(254mm)
14-7/8"
(378mm)
9-1/2"
(241mm)
2-1/2"
(64mm)
2"
(51mm)
4-7/8"
(124mm)
4"
(102mm)
1-7/8"
(49mm)
2-7/16"
(63mm)
2-1/8"
(54mm) MAX.
8"
(203mm)
13/16" D.
(21mm)
1" MAX.
(25mm)
10-1/2"
(267mm)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Durable brass construction. 1/4 turn washerless ceramic
disc valve cartridges. Durable cast brass waterway with
1/2" male inlet shanks. Brass gooseneck swivel spout.
Metal escutcheon plate (escutcheon size 10-7/16"
(265mm) L x 2-7/16" (62mm) W). 1.8 gpm/8.3L/min.
maximum flow rate. Metal lever handles.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Lifetime Warranty: On function and finish.
SUGGESTED SPECIFICATION:
Two handle kitchen faucet shall feature a cast brass waterway. Shall also feature 1/4 turn washerless ceramic disc
valve cartridges and a brass gooseneck swivel spout. Faucet shall be American Standard Model# 4285 551.___.
© 2013 AS America Inc.
117
PORTSMOUTH®
TWO-HANDLE KITCHEN FAUCET
WITH COLOR-MATCHED SIDE SPRAY
CODES AND STANDARDS
FLOW RATE*
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9 & Annex G
ANSI A117.1
IAPMO (cUPC)
2.5 (11.4 L/m)
2.1 (9.5 L/m)
1.7 (7.6 L/m)
1.25 (5.7 L/m)
0.83 (3.8 L/m)
0.4 (1.9 L/m)
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
1.8gpm/8.3L/min. FLOW RATE
Finish Options
Product
Number
4285 551
Description
Two handle kitchen faucet with side spray.
BARRIER FREE CSA B651-12
© 2013 AS America Inc.
118
Polished
Chrome
Stainless
Steel
(PVD)
Oil
Rubbed
Bronze
002
075
224
