Using the CD-RW Drive

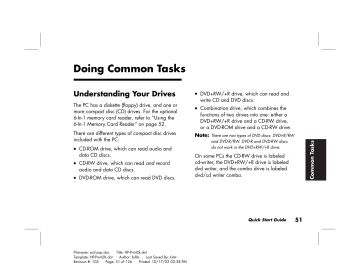

Doing Common Tasks
The PC has a diskette (floppy) drive, and one or
more compact disc (CD) drives. For the optional
6-In-1 memory card reader, refer to “Using the
6-In-1 Memory Card Reader” on page 52.
There are different types of compact disc drives
included with the PC:
CD-ROM drive, which can read audio and
data CD discs.
CD-RW drive, which can read and record
audio and data CD discs.
DVD-ROM drive, which can read DVD discs.
DVD+RW/+R drive, which can read and
write CD and DVD discs.
Combination drive, which combines the
functions of two drives into one: either a
DVD+RW/+R drive and a CD-RW drive,
or a DVD-ROM drive and a CD-RW drive.
Note: There are two types of DVD discs: DVD+R/RW
and DVD-R/RW. DVD-R and DVD-RW discs
do not work in the DVD+RW/+R drive.
On some PCs the CD-RW drive is labeled
cd-writer, the DVD+RW/+R drive is labeled
dvd writer, and the combo drive is labeled
dvd/cd writer combo.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 51 of 126
Printed: 10/17/02 03:38 PM
Common Tasks
Understanding Your Drives
51
Using the Diskette
(Floppy) Drive
Insert the diskette into the drive until it locks in
place. Make sure you insert the diskette with the
round metal disk face down and the arrow on
the top pointing into the drive.
You can copy files from or to the diskette.
When you are done, check that the light on the
drive is off, indicating that the PC is not writing
to the diskette, and then press the Eject button
on the PC and remove the diskette.
Using the 6-In-1
Memory Card Reader
The optional 6-In-1 memory card reader is
accessible on the front of the PC or located inside
the lower front cover of the PC. The card reader
has two horizontal card slots that accept six types
™
of memory cards and the IBM Microdrive disk
drive.
52
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 52 of 126
Printed: 10/17/02 03:38 PM
You can place media in one or both of the card
slots and access each media independently.
Place only one piece of media in a slot at
one time.
Each card slot has its own drive letter. The
icon you see for the drive displays the label
Removable Disk and the drive letter. When you
insert media, the display label may change to
the title of the media, if the title is present.
The top card slot accepts:
™
CompactFlash type I media
CompactFlash type II media
IBM Microdrive disk drive
The lower card slot accepts:
Secure Digital (SD) Memory Card
MultiMediaCard (MMC)
Memory Stick (MS) Memory Card
SmartMedia™ (SM) Memory Card
®
Special note about the Safely
Remove Hardware Utility
Warning: Do not click Stop in the Safely
Remove Hardware window with the USB
Mass Storage Device selected. Doing so
will remove the 6-In-1 reader from your
PC; you must restart the PC to see your
reader again.
Common Tasks
If you inadvertently open this window,
click Close.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 53 of 126
Printed: 10/17/02 03:38 PM
53
2 The In-use light on the card reader lights and
the computer automatically detects the media.
To use the 6-In-1
memory card reader
Important: CompactFlash and Microdrive are keyed
and cannot be inserted incorrectly. Insert the
receptacle edge (holes) of this media into the
top slot.
The Secure Digital (SD) card, the MultiMediaCard
(MMC), and the Memory Stick (MS) card must be
inserted upside down (gold connector fingers face
up). Note the direction of the notched corner on
the media.
3 The computer opens a window so you can
access the media contents. You can copy files
from or to the media.
4 When you are done, check that the In-use light
is on but not blinking, indicating that the PC is
not accessing the media, and then remove the
media.
1 Insert the media into the card slot until it stops.
Powered by
Warning: Do not try to remove media
when the In-use light is blinking. Doing
so may cause loss of data.
CompactFlash I/II
Top card slot
In-use light
Lower card slot
54
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 54 of 126
Printed: 10/17/02 03:38 PM
Insert
Into slot
CompactFlash
type I media
Receptacle
edge (holes)
Top slot
CompactFlash
type II media
Receptacle
edge (holes)
Top slot
IBM Microdrive
disk drive
Receptacle
edge (holes)
Top slot
Secure Digital
(SD) Memory
Card
Upside down
(gold connector
fingers up)
Lower slot
MultiMediaCard Upside down
(MMC)
(gold connector
fingers up)
Lower slot
Memory Stick®
(MS) Memory
Card
Upside down
(gold connector
fingers up)
Lower slot
SmartMedia™
(SM) Memory
Card
Face up
Lower slot
Inserting a CD or DVD
1 Make sure the computer is on.
2 Press the Eject button near the drive to eject
the disc tray.
Note: On some PCs, the media drive is located
behind a door on the front of the computer.
Your computer may look different from the
ones shown here.
Eject button
Common Tasks
Card
Drive door
3 Remove the CD/DVD from its case, holding on
to the disc edges only.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 55 of 126
Printed: 10/17/02 03:38 PM
55
4 Gently place the disc in the tray with the label
facing up.
Note: For the top drive in the PC, you can close the
tray by pressing the media control open/close
button on the keyboard.
Removing a CD or DVD
Note: You cannot remove a CD or DVD after you have
turned off the computer, so make sure you do so
before shutting down the computer.
1 Open the disc tray by pressing the Eject
button.
2 Holding on to the disc edges only, lift the CD
or DVD out of the tray.
3 Place the disc in its case.
5 Close the disc tray by gently pushing the tray
into the computer.
You can also close the tray by clicking the
close/open button on the control panel for
the program (such as MusicMatch Jukebox
or Windows Media Player) that controls the
drive.
56
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 56 of 126
Printed: 10/17/02 03:38 PM
4 Close the disc tray by gently pushing the tray
into the computer.
Handling CDs
Playing Music CDs
To avoid damaging a CD, follow these
guidelines:
The PC includes MusicMatch Jukebox
(select models) or Windows Media Player.
This software lets you play music CDs.
Return the CD to the case when you are
finished using it.
Handle the disc by its outside edges or center
hole only.
Do not touch the unlabeled side of a CD or
place the unlabeled side down on your desk.
Doing so could scratch the surface of the CD.
Store CDs at room temperature.
Using MusicMatch Jukebox
This software lets you play music CDs, as well
as record digital music files, create music CDs
on your CD-RW drive, organize your digital
music into libraries, and listen to music over
the Internet.
If you are connected to the Internet when
playing a music CD, MusicMatch Jukebox
searches a CD database on the Internet,
displays the song titles in the Playlist area, and
then begins playing the CD. The next time you
play this CD, you don’t need to be connected
to the Internet — MusicMatch Jukebox keeps
the song titles.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 57 of 126
Printed: 10/17/02 03:38 PM
57
Common Tasks
To play a music CD:
1 Insert the music CD into the drive. The
MusicMatch Jukebox window opens.
Or
If the MusicMatch window does not
automatically open, click Start on the taskbar,
choose All Programs, MUSICMATCH, and
then select MusicMatch Jukebox.
3 To control the CD currently in the drive,
click the buttons in the MusicMatch Jukebox
window. To play a particular song, doubleclick its song title (or track number) in the
Playlist. You can also control the CD using
the media control buttons if your keyboard
has them.
For more information on this software, refer to
the online Help within the MusicMatch Jukebox
program. To view the Help menu:
1 Insert a CD in the drive. The MusicMatch
Jukebox window opens.
Or
2 If you are not currently connected to the
Internet, the CDDB Internet Connectivity
dialog box appears. If you want to search the
Internet for the name of the artist and the song
titles on the CD, you will need to connect to
the Internet and then click Continue lookup.
If you don’t want to connect to the Internet,
click Quit.
58
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 58 of 126
Printed: 10/17/02 03:38 PM
If the MusicMatch window does not
automatically open, click Start on
the taskbar, choose All Programs,
MUSICMATCH, and then
select MusicMatch Jukebox.
2 Click the Help menu in the MusicMatch
Jukebox menu bar.
Using Windows Media Player
This software lets you play music CDs, as well
as play DVDs when you have a DVD drive. You
can use it to record digital music files, create
music CDs on your CD-RW drive, organize your
digital music into libraries, and listen to music
or view a music video over the Internet.
To play a music CD:
Or
If the Windows Media Player window does
not automatically open, click Start on the
taskbar, choose All Programs, and then
select Windows Media Player.
2 To control the CD currently in the drive, click
the buttons in the Windows Media Player
window. To play a particular song, doubleclick its song title (or track number) in the
Playlist. You can also control the CD using
the media control buttons if your keyboard
has them.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 59 of 126
Printed: 10/17/02 03:38 PM
59
Common Tasks
1 Insert the music CD into the drive. The
Windows Media Player window opens.
When you click the Media Guide or the Radio
Tuner features, Windows Media Player connects
to the Internet and obtains information about the
CD selections or streaming radio stations.
Using the CD-RW Drive
For more information on this software, refer to the
online Help within the Windows Media Player
program. To view the Help menu:
Note: The CD-RW drive is available on select
1 Insert a CD in the drive. The Windows Media
Player window opens.
Or
If the Windows Media Player window does
not automatically open, click Start on the
taskbar, select All Programs, and then select
Windows Media Player.
2 Click the Help menu in the Windows Media
Player menu bar.
60
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 60 of 126
Printed: 10/17/02 03:38 PM
Using the CD-RW drive, you can play a CD, or
record onto a recordable disc (CD-R or CD-RW).
models only.
1 Press the Eject button on the door of your
CD-RW drive, and place a CD in the center
of the CD-RW disc tray.
2 Close the disc tray by gently pushing the tray
into the computer.
3 Click Start on the taskbar.
4 Click My Computer.
5 Double-click the CD Drive icon.
From there, you can copy audio or data files
to a CD using the RecordNow software program.
To open RecordNow program:
1 Click Start on the taskbar.
2 Choose All Programs.
3 Choose RecordNow.
4 Click RecordNow again.
Note: For information about recording onto CDs, refer
to the Help menu in the RecordNow program.
Playing DVD Movies
The DVD-ROM drive (select models only) can run
software on CD-ROMs, play music CDs, and play
DVD movies and software.
Playing a DVD
DVDs automatically play after you insert the disc.
Note: DVD movies are often localized to geographical
1 Insert the disc into the DVD-ROM drive.
Note: On a double-sided DVD, read the text
around the inner hole of the disc to determine
which side (A versus B or Standard versus
Widescreen) to play. Place the disc in the tray
with the label face up for the side you want
to play.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 61 of 126
Printed: 10/17/02 03:38 PM
61
Common Tasks
countries/regions. For information about this, see
“Using Country/Region Codes” on page 64.
2 Close the disc tray by gently pushing the tray
into the computer. The movie plays in its own
resizable window, and the WinDVD control
panel appears.
You may want to start WinDVD and adjust the
settings before inserting the disc and starting the
movie.
To start WinDVD without a disc in the drive:
1 Click Start on the taskbar.
2 Choose All Programs.
3 Choose InterVideo WinDVD.
4 Click InterVideo WinDVD. The WinDVD
video window and control panel open.
62
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 62 of 126
Printed: 10/17/02 03:38 PM
™
For information on the WinDVD software,
refer to the online Help within the program.
To view the Help menu:
1 Insert a DVD disc in the drive. The WinDVD
window opens.
Or
If the program does not automatically
open, click Start on the taskbar, choose
All Programs, InterVideo WinDVD, and
then click InterVideo WinDVD again.
2 Click the ? in the WinDVD menu bar.
Understanding DVD Terminology
Each title is divided into multiple chapters.
A chapter is a particular segment or scene in
the movie. When watching a DVD movie, you
have the ability to jump to the next chapter, the
previous chapter, or to a specific chapter.
A single image in a movie is called a frame.
Using the WinDVD Control Panel
The WinDVD control panel automatically
appears when you insert a DVD.
If you are playing a movie full screen and the
panel is hidden, you can redisplay it as follows:
1 Right-click anywhere in the video window.
2 Click Player. The control panel appears.
To understand the DVD controls, you should be
familiar with DVD terminology. Each DVD can
hold one or more titles. Most full-length movies
have only one title on the DVD, but some DVDs
include several short movies, with each movie
being a separate title.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 63 of 126
Printed: 10/17/02 03:38 PM
63
Common Tasks
Viewing Help Information
To see what a button does on the control
panel, place the mouse pointer on the
button; the button title appears onscreen.
To move the WinDVD control panel, place
the mouse pointer on the panel (but not on
a button), and drag it to the desired location
on the screen.
To resize the video window when it is not
full screen, place the mouse pointer on a
window corner and drag the border.
Or
Click the Full Screen button in the
upper-right corner of the WinDVD
control panel.
Using Country/Region Codes
DVDs sometimes come with country/region
codes imprinted as part of the disc data.
These codes prevent DVD movies from being
played in countries/regions of the world that
are different from where they were sold. You can
play DVDs from other countries/regions only five
times before the country/region code locks and
becomes permanent. Once the code locks, you
can only play DVDs from that country/region.
When the country/region code locks, if you
need help, contact HP Support.
The country/region number is usually placed
over a world globe printed on the DVD
packaging and disc.
DVDs without country/region codes will play on
any player or drive in any country/region.
64
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 64 of 126
Printed: 10/17/02 03:38 PM
Country/Region 1: North America
Country/Region 2: Japan, Europe,
Middle East, South Africa
Country/Region 3: Southeast Asia
Country/Region 4: Australia,
New Zealand, Mexico, Central and
South America
Country/Region 5: Northwest Asia,
North Africa
Country/Region 6: China
WinDVD is not pre-set to a particular
country/region — the country/region code of
the first DVD movie you play determines your
DVD country/region.
For example, if you play a DVD with a
country/region 1 code, WinDVD sets the current
country/region of your DVD-ROM player to 1.
If you later play a DVD that is coded for a
different country/region, WinDVD asks if you
want to set this as the current country/region.
Warning: You can change the
country/region code only five times
before the setting becomes permanent.
When the country/region code locks, if
you need help, contact HP Support.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 65 of 126
Printed: 10/17/02 03:38 PM
65
Common Tasks
The six major DVD countries/regions are:
Using the Combo Drive
The combination drive is available on select
models only. It combines the functions of two
drives into one: either a DVD+RW/+R drive
and a CD-RW drive, or a DVD-ROM drive and
a CD-RW drive.
When you insert a disc in the combo drive, the
computer automatically detects the type of disc:
If you insert a software program CD, it is
available for use.
If you insert a music CD, a window opens
for the program that plays CDs. See
“Playing Music CDs” on page 57.
If you insert a DVD movie, the Video window
and WinDVD control panel open. See
“Playing DVD Movies” on page 61.
If you insert a blank CD-R or CD-RW, use
RecordNow to copy audio or data files. If you
insert a blank DVD, a program opens for you to
use to record to the disc. See “Using the CD-RW
Drive” on page 60.
66
HP Pavilion home PC
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 66 of 126
Printed: 10/17/02 03:38 PM
Using the
DVD+RW/+R Drive
The DVD+RW/+R drive is available on select
models only.
The DVD+RW/+R drive plays movie DVDs
and music CDs, reads data CDs and DVDs, and
records files to DVD+RW, DVD+R, CD-R, and
CD-RW discs.
Note: There are two types of DVD discs: DVD+RW/R
and DVD-R/RW. DVD-R and DVD-RW discs
do not work in the DVD+RW/+R drive.
The guide for this drive is printed and included
in the computer box (select models).
Playing Video CDs
Using HP Pavilion PC Tools
You can play MPEG (Motion Picture Experts
Group) videos. These MPEG-1 files have a
.dat or .mpg extension.
The HP Pavilion PC Tools folder in the
All Programs/Hewlett-Packard menu contains
special utilities for HP Pavilion owners. For
example, you’ll find a utility for displaying
system information. This folder also contains
the HP Tour Guide and any onscreen guides
included with your PC.
To play a video CD, insert the CD into a CD
drive or a DVD drive, and use either Windows
Media Player or WinDVD program. Refer to
“Using Windows Media Player” on page 59,
or to “Using the WinDVD Control Panel” on
page 63.
To see the items in the HP Pavilion PC Tools
folder:
Common Tasks
1 Click Start on the taskbar.
2 Choose All Programs.
3 Choose Hewlett-Packard.
4 Click hp pavilion pc tools.
5 Click an item to view or use it.
Note: If there are no guide titles listed in HP Pavilion PC
Tools, your PC has no onscreen guides.
Quick Start Guide
Filename: sa3usqs.doc
Title: HP-Print2k.dot
Template: HP-Print2K.dot
Author: billm
Last Saved By: kimt
Revision #: 105
Page: 67 of 126
Printed: 10/17/02 03:38 PM
67
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
