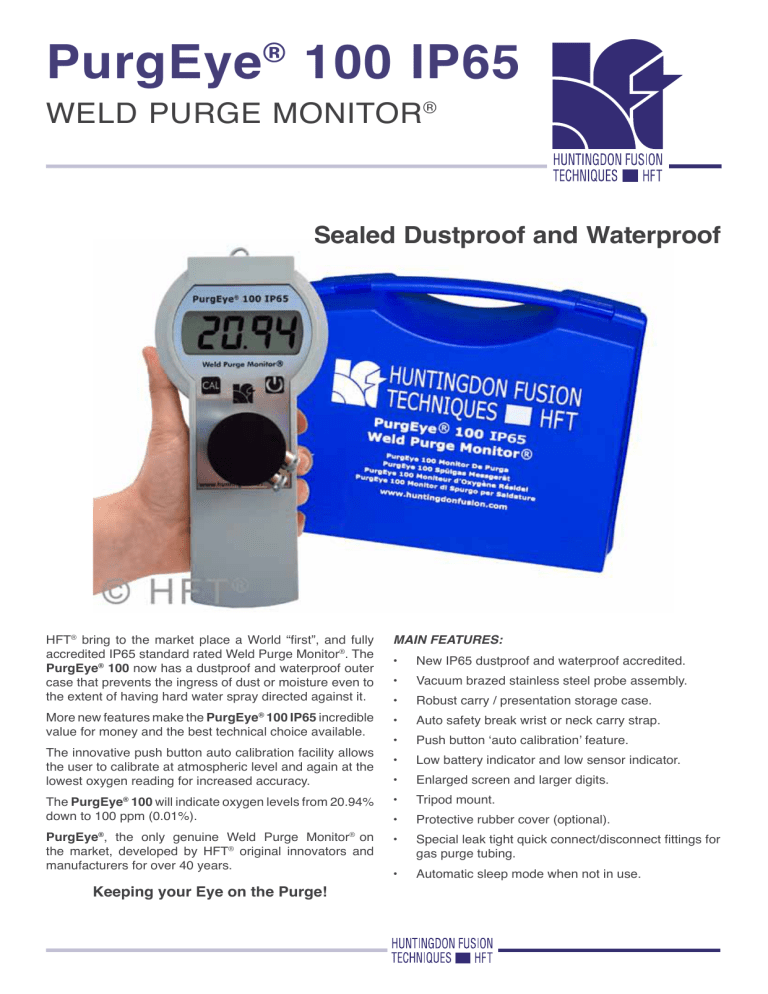

PurgEye® 100 IP65
WELD PURGE MONITOR®
Sealed Dustproof and Waterproof
HFT® bring to the market place a World “first”, and fully
accredited IP65 standard rated Weld Purge Monitor®. The
PurgEye® 100 now has a dustproof and waterproof outer
case that prevents the ingress of dust or moisture even to
the extent of having hard water spray directed against it.
MAIN FEATURES:
More new features make the PurgEye® 100 IP65 incredible
value for money and the best technical choice available.
•
New IP65 dustproof and waterproof accredited.
•
Vacuum brazed stainless steel probe assembly.
•
Robust carry / presentation storage case.
•
Auto safety break wrist or neck carry strap.
•
Push button ‘auto calibration’ feature.
•
Low battery indicator and low sensor indicator.
•
Enlarged screen and larger digits.
The PurgEye 100 will indicate oxygen levels from 20.94%
down to 100 ppm (0.01%).
•
Tripod mount.
PurgEye , the only genuine Weld Purge Monitor on
the market, developed by HFT® original innovators and
manufacturers for over 40 years.
•
Protective rubber cover (optional).
•
Special leak tight quick connect/disconnect fittings for
gas purge tubing.
•
Automatic sleep mode when not in use.
The innovative push button auto calibration facility allows
the user to calibrate at atmospheric level and again at the
lowest oxygen reading for increased accuracy.
®
®
Keeping your Eye on the Purge!
®
SOME ADVANTAGES and KEY FEATURES :
IP65 Sealed Dustproof and Waterproof Accredited
Dustproof standard rated 6 dust tight (no ingress of dust)
and waterproof standard rated 5 protected against water
jets (water projected from a nozzle against the enclosure
from any direction shall have no harmful effect).
Vacuum Brazed Stainless Steel probe Assembly
Auto Calibration Feature
Calibrate your own monitor at any time without having to
return it to the factory. Also, each time you weld to ensure
that your readings are the most accurate possible.
The calibration facility even has the ability at the touch
of a small button to calibrate both at atmospheric level of
20.94% and at 0.01% (100 ppm) level of oxygen.
Leak tight ‘one piece’ sealed assembly prevents
erroneous readings due to leaks in connections.
More Robust Carry/Presentation Storage Case
Ergonomically designed case with double sided preformed
cut outs, give a safe location for each part of your PurgEye®
instrument.
Auto Safety Break Wrist Or Neck Carry Strap
Quality lanyard fitted with an auto break.
Automatic Sleep Mode
When the monitor registers more than 20% oxygen for
periods longer than 1 hour, it will automatically switch off
to conserve sensor and battery life.
Tripod Mount
A rugged tripod mount has been integrated into the
housing. This allows the PurgEye® 100 IP65 Weld Purge
Monitor® to be firmly mounted on a tripod of your choice.
With mounting the instrument on a tripod, easy visual
observation is provided so you can see the PurgEye® 100
from any part of the working space.
A range of tripods or other fixing Instruments are available
on which you can mount and station your PurgEye® 100.
Enlarged Easy To Read Screen
© HFT®
Low Sensor Indicator
You will never again be with an unusable monitor!
The “low sensor level signal”, allows plenty of time to
obtain a new sensor which you can simply fit and calibrate
yourself.
Low Battery Indicator
The PurgEye® 100 Weld Purge Monitors® have a low
battery indicator that appears in the corner of the screen.
This was a feature designed for the first time in the earlier
models, such as the Mark V (MKV) meter which used
old technology in comparison to this revolutionary latest
PurgEye® 100 model.
The new enlarged screen uses 24 mm height digits for
easy viewing at longer distances from the work station.
These digits are approximately 41% larger than the
previous obsolete MKV model.
Immediate Welding
After connecting the PurgEye® 100 to the purge gas
exhaust, you will have immediate readings showing
reduction of oxygen down to your desired level.
Guaranteed Accuracy
The PurgEye® 100 Weld Purge Monitor® indicates oxygen
levels from 20.94% down to 100 ppm (0.01%), so use an
Argweld® PurgEye® Weld Purge Monitor® everytime for
guaranteed accuracy of oxygen indication to allow a weld
start with minimal risk of oxidation.
TECHNICAL DATA:
The PurgEye® 100 is shipped in a new low volume ergonomically designed, attractive, more robust carry / presentation and storage case to maintain the instrument in good
condition and to keep it together with all accessories.
The PurgEye® 100 can be used with any pipe welding
system, any weld purging chamber or weld purging
enclosure.
The sensor is easy to replace and self calibrate using
the advanced calibration features of the PurgEye® 100
and the specially written algorithm that provides extreme
accuracy at 0.1% where it is especially important for weld
purging.
The PurgEye® 100 Weld Purge Monitor® Gas Detection
and Analysing Instrument can be used as a continuously
reading instrument with free flow of the purge exhaust gas
across the sensor, or as a sampling instrument with the
hand vacuum pump and the new vacuum brazed leak tight
stainless steel probe assembly extracting samples from
the purged volume, as and when desired.
SPECIFICATIONS:
PurgEye® 100 IP65 Accuracy Range
Measuring 20.94% down to 100 ppm oxygen
Range:
(100 ppm to atmosphere)
Accuracy:
Size:
At oxygen level 20.0% = ± 0.2%
At oxygen level 2%
= ± 0.02%
94 mm (top width)
58.5 mm (handle width)
199 mm high (from bottom to top of eyelet) 63 mm deep (with flow adaptor)
44 mm deep (without flow adaptor)
Power:Battery type 2 x AA (included)
Scale:LCD (liquid crystal display) 24 mm Ref: Obsolete MKV Model 17 mm
41% increase in size
Weight:0.870 kg
Supplied With
•
New leaktight vacuum brazed stainless steel probe for
sampling.
•
New safety easy auto break lanyard for neck or wrist.
•
New strong ergonomically designed carrying storage
presentation case.
•
2 x AA batteries.
•
2 meters of sampling hose.
•
Sampling bulb (vacuum pump).
•
User instruction booklet.
PRODUCT CODES and SIZES:
PurgEye® 100 IP65 Weld Purge Monitor®.
Model part number API0100 (stock code).
Dimensions with carrying storage case:
290 x 265 x 120 mm
Nett weight Gross weight Volumetric weight 0.870 kg
1.1 kg
1.42 kg
Instrument weight 0.870 kg instrument only
(excluding carry case).
ACCESSORIES, SPARES and REPLACEMENTS:
•
Gorilla tripod.
•
Camera tripod.
•
Sensor removal tool.
•
Rubber protective housing.
Customs tariff for international shipments around the
world:
European customs tariff: International customs tariff: United States customs tariff: 9026 1089
9026 80 6000
9026 80 6000
PurgEye® 100 IP65 shown with protective rubber housing
available as an accessory.
Don’t use cheap instruments that are merely oxygen
monitors which are re-labled or repackaged, use a purpose
designed, high quality Weld Purge Monitor®.
Note: This is not a General Gas Detection or Analysing
Instrument.
Our Product Range:
Argweld® Inflatable Pipe Weld Purge Systems
Argweld® PurgEye® Weld Purge Monitors® (Models 100 to 1000)
Argweld® Water Soluble Weld Purge Film and Weld Purge Super Adhesive™
Argweld® Weld Trailing Shields®
Argweld® Weld Backing Tape™ & Weld Purge Tape™
Argweld® Flexible Welding Enclosures®
Argweld® Weld Purging Plugs™ & Orbital Welding Plugs
Techweld® MultiStrike® Tungsten Electrodes
HFT Pipestoppers® Division:
Nylon, Aluminium, Steel and Rubber Pipe Plugs and Inflatable Stoppers
API0100 LFTA4 03-10-16 ME
Huntingdon Fusion Techniques HFT®
Stukeley Meadow BURRY PORT Carms SA16 0BU United Kingdom (UK)
Tel +44 (0) 1554 836 836
Fax +44 (0) 1554 836 837
www.huntingdonfusion.com
Email [email protected]
E&OE. Copyright © HFT®.
All rights reserved.
This publication may not be reproduced by any means without the written permission of Huntingdon Fusion Techniques HFT®
