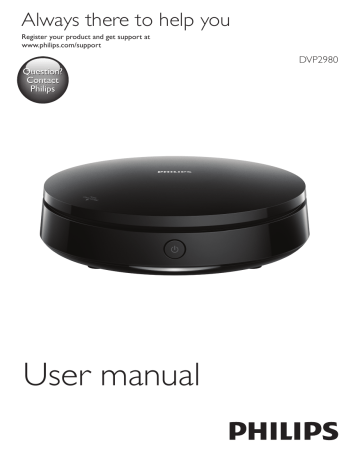

Always there to help you

Register your product and get support at www.philips.com/support

Question?

Contact

Philips

DVP2980

User manual

Safety and important notice

Read and understand all instructions before you use this DVD player. If damage is caused by failure to follow the instructions, the warranty does not apply.

2

Safety

Risk of electric shock!

• Never remove the casing of the player.

• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product.

If liquids are split on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer

Care to have the product checked before use.

• Never place the product and accessories near naked flames or other heat sources, including direct sunlight.

• Never insert objects into the ventilation slots or other openings on the product.

• Where the mains plug or an appliance coupler is used as the disconnect device, it shall remain readily operable.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Disconnect the product from the power outlet before lightning storms.

• When you disconnect the power cord, always pull the plug, never the cable.

Risk of short circuit or fire!

• Before you connect the product to the power outlet, make sure that the power voltage matches the value printed on the back or bottom of the product.

• Avoid applying pressure on the power plugs. Loose power plugs can cause arcing or fire.

Risk of injury or damage to the product!

• To avoid exposure to laser radiation, do not disassemble.

• Do not touch the optical lens inside the disc compartment.

• Never place the product or any objects on power cords or on other electrical equipment.

• If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

Risk of overheating!

• Never install this product in a confined space. Always leave a space of at least four inches around the product for ventilation.

Make sure that curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Remove the batteries if flat or if the remote control is not to be used for a long time.

• Batteries contain chemical substances. They should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain a coin type battery, which can be swallowed.

Keep the battery out of reach of children at all times!

Note

For identification and supply ratings, see the type plate at the back or bottom of the product.

Before you make or change any connections, make sure that all devices are disconnected from the power outlet.

Important notes for users in the U.K.

Mains fuse

This information applies only to products with a

UK mains plug.

This product is fitted with an approved nonmolded plug. If you replace the fuse, use one with:

• the ratings shown on the plug,

• a BS 1362 approval, and

• the ASTA approval mark.

Contact your dealer if you are not sure about what type of fuse to use.

Caution: To conform with the EMC directive

(2004/108/EC), do not detach the plug from the power cord.

How to connect a plug

The wires in the power cord are colored as follows: blue = neutral (N), brown = live (L).

If the colors do not correspond with the colors on your plug, identify the terminals in your plug as follows:

1

Connect the blue wire to the terminal marked N or colored black.

2

Connect the brown wire to the terminal marked L or colored red.

3

Do not connect either wire to the earth terminal in the plug, marked E (or e) or colored green (or green and yellow).

Before you replace the plug cover, make sure that the cord grip is clamped over the sheath of the cable and not just over the two wires in the cable.

Copyright in the U.K.

Recording and playback of material may require consent. see Copyright Act 1956 and The performer’s Protection Acts 1958 to 1972

Care for your product

• Do not insert any objects other than discs into the disc compartment.

• Do not insert warped or cracked discs into the disc compartment.

• Only use microfiber cloth to clean the product.

Care of the environment

Disposal of your old product and battery

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive

2012/19/EU.

This symbol means that the product contains batteries covered by European Directive

2013/56/EU which cannot be disposed of with normal household waste.

Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste. Correct disposal of old products and batteries helps prevent negative consequences for the environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see battery installation section.

3

4

Compliance

This product complies with the radio interference requirements of the European

Community.

This is CLASS II apparatus with double insulation, and no protective earth provided.

Copyright

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of

Rovi Corporation. Reverse engineering and disassembly are prohibited.

1

Quick start guide

5

6

2

HDMI

HDMI

AUX

VIDEO

HDMI

3

4

5

2

SOURCE

TV

7

8

6

USB

1

3

4

2

DVD

VCD

CD

MP3 / JPEG

2

3

4

MP3

1

Contents

1 Use your DVD player

Basic play control

Video options

Play a musical slideshow

Repeat play

Skip play

Play DivX videos

Record audio files from CD to USB

Use Philips EasyLink

2 Change settings

General (sleep, standby...)

Picture 6

Sound 6

Preference (languages, parental control...) 7

5

5

3 Software update

4 Specifications

5 Troubleshooting

7

8

9

4

4

3

3

4

2

3

2

2

EN

1

1 Use your DVD player

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Basic play control

Button Action

Turn on the player, or switch to standby.

USB

Access the USB mode.

Access the home menu.

DISC MENU Access or exit the disc menu.

OPTIONS

Access more options during

OK

/

BACK

STOP video play.

Navigate the menus.

Slow forward or backward.

Press repeatedly to change a search speed.

Navigate the menus.

Fast forward or backward.

Press repeatedly to change a search speed.

Confirm a selection or entry.

Return to a previous display menu.

Stop play.

Start, pause or resume play.

/

SUBTITLE

GOTO

AUDIO

Skip to the previous or next track, chapter or file.

Select a subtitle language.

Skip to a title, a chapter or a track.

Select an audio language or channel.

VOLUME

REPEAT/

REPEAT A-B

Fit the picture display to the

TV screen.

Zoom the picture in or out.

Activate volume control, and then press / to change a volume level.

Select a repeat play option.

During play, press the following buttons to control the player.

Video options

During video play, press OPTIONS to access the following options.

• [Info]: Display the current play information.

2

EN

• [PBC]: Display or skip the content menu for VCD and SVCD.

• [Aspect ratio]: Select a picture display format to fit the TV screen.

• [Volume]: Change a volume level.

• [Angle]: Select a camera angle from which video is viewed.

Play a musical slideshow

Play music and pictures simultaneously to create a musical slideshow.

1

From a disc or connected USB storage device, play a music file.

2

Press to navigate to the picture files.

3

Select a picture from the same disc or

USB, and press OK to start slideshow.

4

Press to stop slideshow.

5

Press again to stop music play.

Control photo play

During a photo slideshow, use the remote control to control the play.

Button

OPTIONS

OK

/

Action

Rotate a picture horizontally/ vertically.

Rotate a picture anti-clockwise/ clockwise.

Access to select [Color] to display a picture in color or black and white.

Access to select [Photo preview] to display pictures in thumbnail.

Zoom in or out of a photo.

Play pauses in zoom mode.

Start or resume a play.

Stop a play.

Repeat play

During play, press REPEAT/REPEAT A-B, then press / repeatedly to select a repeat play option.

• Repeat the current title, chapter, or track.

• Repeat all the contents on a disc, or the current folder on a USB storage device.

To Repeat play for a specific section

1

Press REPEAT/REPEAT A-B repeatedly to select as a start point.

2

Press REPEAT/REPEAT A-B again to select

as an end point.

»

The repeat play of the marked section starts.

3

To cancel repeat play, press REPEAT/

REPEAT A-B until [Off] is displayed.

Note

Repeat play of the marked section is only possible within a title or track.

Skip play

You can skip play to a specific title, chapter or track.

1

During play, press GOTO.

»

An input field bar is displayed.

2

Press to select a digit as a title, chapter, or track number.

3

After a digit is selected, press / to change a digit position.

4

If necessary, repeat step 2 and 3 to complete the input of a title, chapter, or track number.

5

Press OK.

»

The play skips to the selected title, chapter or track.

EN

3

Play DivX videos

You can play DivX videos from a disc or a USB storage device.

VOD code for DivX

• Before you purchase DivX videos and play them on this player, go to vod.divx.com to register this player using the DivX VOD code.

• Display the DivX VOD code: press , and select [Setup] > [General] > [DivX(R)

VOD Code].

DivX subtitles

• Press SUBTITLE to select a language.

• If subtitles are not displayed correctly, change the character set that supports

DivX subtitles. Select a character set: press

, and select [Setup] > [Preference] >

[DivX Subtitle].

Character set

Languages

[Standard] English, Albanian, Danish, Dutch,

Finnish, French, Gaelic, German,

Italian, Kurdish (Latin), Norwegian,

Portuguese, Spanish, Swedish, and

[Central

Europe]

Turkish

Albanian, Croat, Czech, Dutch,

English, German, Hungarian, Irish,

Polish, Romanian, Slovak, Slovene,

[Cyrillic]

[Greek] and Serbian

Bulgarian, Belorussian, English,

Macedonian, Moldavian, Russian,

Serbian, and Ukrainian

Greek

Note

To play DivX DRM protected files from a USB storage device, connect this player to a TV through HDMI.

To use the subtitles, make sure that the subtitle file has the same name as the DivX video file name. For example, if the DivX video file is named “movie.avi", save the subtitle file as “movie.srt”, or “movie.sub”.

This player can play subtitle files in the following formats: .srt, .sub, .txt, .ssa, and .smi.

4

EN

Record audio files from CD to USB

You can record audio files from an audio CD to a USB storage device. Audio files are recorded in .mp3 format.

1

Connect a USB storage device to this player.

2

Load a disc, and start disc play.

3

Press , and select [Create MP3], and then press OK.

4

Follow the on-screen instructions to complete an recording.

» A new folder is automatically created in the USB storage device to store all the recorded MP3 files.

Note

During recording, do not press any button.

DTS CDs and copy-protected CDs cannot be converted.

Write-protected or password-protected USB devices cannot be used to store MP3 files.

Use Philips EasyLink

This player supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics

Control) protocol. You can use a single remote control to control EasyLink compliant devices that are connected through HDMI. Philips does not guarantee 100% interoperability with all

HDMI CEC devices.

1

Connect the HDMI CEC compliant devices through HDMI, and turn on the HDMI

CEC operations on the TV and other connected devices (see the user manual of the TV or other devices for details).

2

Press .

3

Select [Setup]> [Video] > [HDMI Setup]

> [EasyLink Setup].

4

Select [On] under the options: [EasyLink],

[One Touch Play] and [One Touch

Standby].

» EasyLink function is turned on.

One Touch Play

When you play a disc on this player, the TV automatically switches to the correct video input source.

One Touch Standby

When a connected device (for example TV) is put to standby with its own remote control, this player is put to standby automatically.

1

2

3

2 Change settings

This section helps you change the settings of this player.

General

Video

Audio

Preference

Disc Lock

OSD Language

Sleep Timer

Auto Standby

DivX(R) VOD Code

Unlock

English

Off

On

Registration

Note

You cannot change a menu option that is grayed out.

To access [Preference], stop the disc play.

To return to the previous menu, press . To exit the menu, press .

General (sleep, standby...)

1

Press .

2

Select [Setup] > [General] to access the general setup options.

• [Disc Lock]: Lock or unlock a disc for play. To play a locked disc, you need to input your password: press to enter a digit, and press / to change a digit position. The default password is “136900”.

• [OSD Language]: Select a language for on-screen menu.

• [Sleep Timer]: Set a period of time for this player to switch automatically to standby mode from play.

EN

5

• [Auto Standby]: Enable or disable auto standby. If enabled, this player switches automatically to standby after 15 minutes of inactivity (for example, in pause or stop mode).

• [DivX(R) VOD Code]: Display the DivX

® registration code and deregistration code.


1

Press .

2

Select [Setup] > [Video] to access the video setup options.

• [TV System]: Select a TV system that matches your TV. By default, this setting matches the common TVs in your country.

• [Aspect ratio]: Select a picture display format to fit the TV screen.

• [Picture Setting]: Select a predefined color setting, or customize a setting.

• [HD JPEG]: Enable this feature to view high-definition pictures through HDMI connection.

• [HDMI Setup]: Set up for HDMI connection.

• [Resolution]: Select a resolution for high definition videos.

• [HDMI Deep Color]: Create vivid images with more color details when the video content is recorded in Deep Color and the

TV supports this feature.

• [Wide Screen]: Select a display format for wide screen videos.

• [EasyLink Setup]: See “Use your

DVD player” > “Use Philips

EasyLink” for details.

Sound

1

Press .

2

Select [Setup] > [Audio] to access the audio setup options.

• [Analogue Output]: Select an audio format for sound output when this player is connected through the

AUDIO OUT L/R connectors.

• [Digital Audio]: Select an audio format for sound output when this player is connected through the COAXIAL connector.

• [Digital Output]: Select a type of digital output: [Off] - Disable digital output; [All] - Support multi-channel audio formats; [PCM

Only] - Downmix to two-channel audio signal.

• [LPCM Output]: Select a LPCM

(Linear Pulse Code Modulation) output sampling rate. The higher the sampling rate, the better the sound quality. [LPCM Output] is enabled only when [PCM Only] is selected under [Digital Output].

• [HDMI Audio]: Enable or disable the audio output through HDMI connection.

• [Audio Sync]: Set a delay time for audio output to match the video play.

• [Volume]: Change a volume level.

• [Sound Mode]: Select a preset sound effect.

• [Night Mode]: Select quiet or full dynamic sound. Night mode decreases the volume of loud sound and increases the volume of soft sound

(such as speech).

Note

Night mode is only available for DVD discs encoded with Dolby Digital.

6

EN

Preference (languages, parental control...)

1

Press .

2

Select [Setup] > [Preference] to access the preference setup options.

• [Audio]: Select an audio language for video.

• [Subtitle]: Select a subtitle language for video.

• [Disc Menu]: Select a menu language for a video disc.

• [Parental Control]: Restrict access to discs that are encoded with ratings. Input “136900” to access the restriction options: When the password field is highlighted, press OK to enter an input stage, press to select a digit and press / to change a digit position.

• [PBC]: Display or skip the content menu for VCD and SVCD.

• [Password]: Set or change a password to play a restricted disc. Input “136900” if you do not have a password or if you have forgotten your password

• [DivX Subtitle]: Select a character set that supports the subtitle of your DivX video.

• [Version Info]: Display the software version for this player.

• [Default]: Reset all settings to the factory default, except for the settings for [Disc Lock], [Parental Control] and [Password].

Note

If your preferred language is not available for disc language, audio or subtitle, you can select [Others] from the menu options and input 4-digit language code which can be found at the back of this user manual.

The rating levels are country-dependent. To allow all discs to be played, select [8 Adult].

3 Software update

Note

Power supply must not be interrupted during software update.

To check for updates, compare the current software version of this player with the latest software version (if available) at the Philips website.

1

Press .

2

Select [Setup] > [Preference] > [Version

Info], and then press OK.

3

Write down the model name and the software version number.

4

Visit www.philips.com/support to check for the latest software version, using the model name and software version number.

5

Refer to the upgrade instructions given on the website to complete the software update.

EN

7

4 Specifications

Note

Specifications are subject to change without notice

Region code

This player can play discs with the following region codes.

DVD region code Countries

Europe

Playable media

• DVD, DVD-Video, VCD, SVCD, Audio CD

• DVD+R/+RW, DVD-R/-RW, DVD+R/-R

DL (Dual Layer), CD-R/-RW (maximum

199 folders and 9999 files)

• USB storage device

File format

• Video: avi, .divx, .xvid

• Audio: .mp3, .wma

• Picture: .jpg, .jpeg

USB

• Compatibility: Hi-Speed USB (2.0)

• Class support: USB Mass Storage Class

• File system: FAT16, FAT32, NTFS

• Maximum number of albums/folders: 199

• Maximum number of tracks/titles: 9999

• USB port: 5V , 500mA

• Support USB HDD (Hard Disc Drive): an external power source may be needed

Video

• Signal system: PAL, NTSC, Multi

• Composite video output: 1 Vp-p (75 ohm)

• HDMI output: 480i, 480p, 576i, 576p, 720p,

1080i, 1080p, Auto

Audio

• 2-channel analog output

• Audio Front L&R : 2 Vrms (47k Ohm)

• Digital output: 0.5 Vp-p (75 Ohm)

• Coaxial

8

EN

• HDMI output

• Sampling frequency:

• MP3: 22.05 kHz, 24 kHz, 32 kHz,

44.1 kHz, 48 kHz

• WMA: 44.1 kHz, 48 kHz

• Constant bit rate:

• MP3: 8 kbps - 320 kbps

• WMA: 64 kbps - 192 kbps

Main unit

• Dimensions (D x H): 180 x 53.5 (mm)

• Net Weight: 0.59 kg

Power

• Power supply rating: 220-240V~, 50-60Hz

• Power consumption: 11W

• Power consumption in standby mode:

< 0.5W

Accessories supplied

• Remote control and one battery

• AV cable

• Quick start guide

Laser specification

• Type: Semiconductor laser InGaAIP (DVD),

AIGaAs (CD)

• Wave length: 658 nm (DVD),

790 nm (CD)

• Output Power: 7.0 mW (DVD),

10.0 mW (VCD/CD)

• Beam divergence: 60 degrees

Standby information

• When the product remains inactive for

15 minutes, it automatically switches to standby or networked standby.

• The power consumption in standby or networked standby is less than 0.5W.

5 Troubleshooting

To keep the warranty valid, never try to repair the player yourself.

If you have problems using this player, check the following points before you request service. If you still have a problem, register your player and get support at www.philips.com/support.

If you contact Philips, you will be asked for the model and serial number of this player. The model number and serial number are on the back of this player. Write the numbers here:

Model No. ____________________________

Serial No. _____________________________

No picture.

• The TV video input channel is not correctly selected (see the TV’s user manual).

No picture on HDMI connection.

• If this player is connected to an unauthorized display device, the audio/ video signal cannot be output.

• If the HDMI cable is faulty, replace it with a new HDMI cable.

• If you have changed the setting for HDMI video resolution, switch to its default mode.

No sound output from the TV.

• Make sure that the audio cables are correctly connected between this player and the TV.

No sound during DivX video playback.

• The audio codes are not supported.

No sound on HDMI connection.

• If the connected device is non-HDCP compliant or only DVI-compatible, no sound can be heard from the HDMI output.

• Make sure that [HDMI Audio] is set to

[On].

No audio output from the loudspeakers of the connected external audio device (for example, stereo system, amplifier receiver).

• Make sure that the audio cables or coaxial cable are correctly connected.

• Switch the external audio device to correct audio input source.

Disc cannot be read.

• Make sure that this player supports the disc (see “Specifications” > “Playable media”).

• For a recorded disc, make sure that the disc is finalized.

A USB storage device cannot be read.

• Make sure that the format of the USB storage device is compatible with this player (see “Specifications” > “USB”).

• Make sure that the file system on the USB storage device is supported by this player

(see “Specifications” > “USB”).

Files cannot be displayed or read.

• Make sure that the number of files or folders does not exceed the supported limit of this player (maximum 9999 files or

199 folders).

• Make sure that this player supports these files (see “Specifications” > “File format”).

DivX video files cannot be played.

• Make sure that the DivX video file is complete.

• Make sure that the file extension is correct.

• To play DivX DRM protected files from a

USB storage device, connect this player to a TV through HDMI.

DivX subtitles do not display correctly.

• Make sure that the subtitle file has the same name as the DivX video file.

• Make sure that the subtitle file has an extension name supported by this player

(.srt, .sub, .txt, .ssa, or .smi).

• Select the character set that supports the subtitle (see “Use your DVD player” >

“DivX videos”).

EN

9

EasyLink feature does not work.

• Make sure that this player is connected to the Philips brand EasyLink TV, and the EasyLink option is turned on (see

“Use your DVD player” > “Use Philips

EasyLink”).

10

This DivX Certified

®

device has passed rigorous testing to ensure it plays DivX

®

video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX

®

, DivX Certified

® ®

, DivX Ultra and associated logos are trademarks of DivX, LLC and are used under license.

DivX Ultra

®

Certified to play DivX

®

video with advanced features and premium content.

HDMI, the HDMI logo, and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

Manufactured under license from Dolby

Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

'DVD Video' is a trademark of DVD Format/

Logo Licensing Corporation.

CLASS 1

LASER PRODUCT

11

12

Specifications are subject to change without notice

© 2015 Koninklijke Philips N.V. All rights reserved.

Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

DVP2980_05_UM_V1.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
