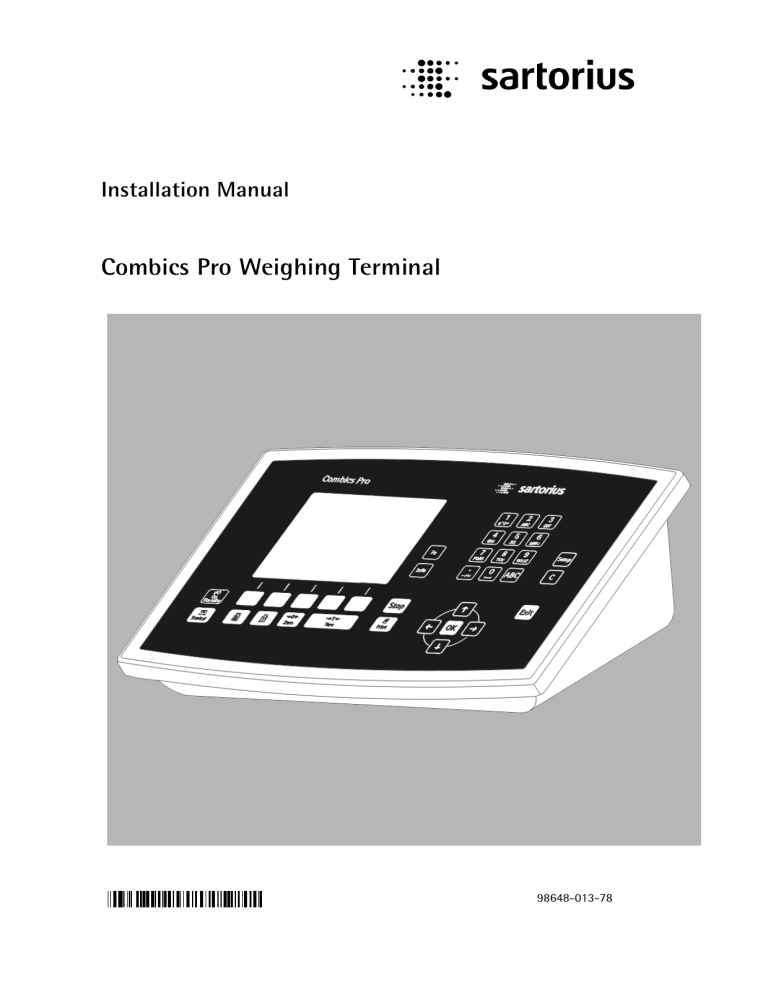

Installation Manual Combics Pro Weighing Terminal

Installation Manual Combics Pro Weighing Terminal
Installation Manual
Combics Pro Weighing Terminal
98648-013-78
Please note
Any information in this document is subject to change without notice and does not represent a commitment on the part of
Sartorius unless legally prescribed. This product should be operated only by trained and qualified personnel. In correspondence
concerning this product the type, name and release number as well as all license numbers in relation to the product have to be
quoted.
Bitte beachten
Alle Angaben in diesem Dokument sind - soweit nicht gesetzlich vorgegeben - unverbindlich für Sartoius und stehen unter
Änderungsvorbehalt. Die Bedienung des Produktes darf nur von geschultem, fach- und sachkundigem Personal durchgeführt
werden. Bei Schriftwechsel über dieses Produkt bitte Typ, Bezeichnung und Versionsnummer sowie alle mit dem Produkt in
Zusammenhang stehenden Lizenznummern angeben.
Combics Pro Installationshandbuch
Contents
Contents
1
Safety notes, electrical protection class............................................................................................................................................... 7
1.1 Application of the instrument ................................................................................................................................................................. 7
1.2 Initial inspection........................................................................................................................................................................................... 7
1.3 Before commissioning ................................................................................................................................................................................ 7
1.3.1
Installation
7
1.3.2
Opening the instrument
8
1.3.3
Earthing, protective earth
8
1.3.4
Power connection, power supply
8
1.3.5
Failure and excessive stress
8
1.3.6
For special attention
8
2
Weighing terminal ...................................................................................................................................................................................... 9
2.1 Basic instrument survey............................................................................................................................................................................. 9
2.2 Housing .........................................................................................................................................................................................................10
2.3 Displays and controls ..............................................................................................................................................................................11
2.3.1
Display
11
2.3.2
Keypad
12
2.3.3
Operation via softkeys
14
2.3.4
Selection via the navigation keys
14
2.3.5
System messages during entry
15
2.3.6
Survey of accessories
16
2.3.7
Plug-in cards
17
2.3.8
Program licenses
17
3
Installing instrument and plug-in cards ............................................................................................................................................18
3.1 Mechanical preparation...........................................................................................................................................................................18
3.2 Hardware construction.............................................................................................................................................................................18
3.3 Main board...................................................................................................................................................................................................18
3.3.1
Processor board
19
3.3.2
Main board LEDs
19
3.3.3
Display board
19
3.3.4
Network port
20
3.3.5
External PC keyboard
21
3.3.6
Barcode reader
22
3.3.7
Builtin RS 232 interface
23
3.4 Accessories ...................................................................................................................................................................................................26
3.4.1
Installing plug-in cards
26
3.4.2
Cable connection in the D-Sub connector counterparts
27
3.4.3
Cable entry glands of rear extension unit IP 67 accessories)
27
3.4.4
PR 5800/10 Internal weighing electronics
28
3.4.5
Connection of load cells to PR 5800/10
29
3.4.6
Connection of a load cell with 4-wire cable
29
3.4.7
Connection of max. 8 load cells (650 Ohm) by means of 6-wire connecting cable
30
3.4.8
Connection of platforms (CAP...)
33
3.4.9
PR 5510/02 Serial I/O
34
3.4.10
PR 5510/04 Serial I/O
35
3.4.11
PR 5510/07 Analog input/output card
40
3.4.12
PR 5510/08 BCD output (open emitter)
42
3.4.13
PR 5510/09 BCD output (open collector)
45
3.4.14
PR 5510/12 6 optocoupler inputs / 12 optocoupler outputs
50
3.4.15
PR 1721/31 Profibus interface
55
3.4.16
PR 1721/32 Interbus interface
56
3.4.17
PR 1721/34 DeviceNet interface
57
3.4.18
PR 5510/14 Ethernet TCP/IP
58
4
Commissioning...........................................................................................................................................................................................59
4.1 Data back-up / power failure.................................................................................................................................................................59
Sartorius
3
Contents
Combics Pro Installation Manual
4.1.1
CAL switch
59
4.1.2
Flashing of application programs not mandatory for verification
60
4.2 Switching on the instrument ................................................................................................................................................................ 61
4.2.1
BIOS menu
61
4.3 Operating concept commissioning...................................................................................................................................................... 62
4.3.1
Operation via program VNC
62
4.3.2
Operation via Internet explorer
62
4.3.3
Function INFO
63
4.3.4
Function set-up
66
4.3.5
Setup menu
66
4.3.6
Calibration tree, internal
68
4.3.7
System functions
69
4.3.8
Loading new software
70
4.4 Allocation of the weighing electronics.............................................................................................................................................. 71
4.5 Calibration, internal weighing electronics PR 5800/10................................................................................................................ 72
4.5.1
Calibration procedure
72
4.5.2
Selecting the weighing point
72
4.5.3
Display of calibration data
73
4.5.4
Selecting the calibration mode
74
4.5.5
Determining the maximum capacity (Max)
75
4.5.6
Determining the scale interval
76
4.5.7
Determining the deadload
77
4.5.8
Calibration with weight (by load)
78
4.5.9
Calibration with load cell data (smart calibration)
79
4.5.10
Calibration with mV/V value
80
4.5.11
Subsequent deadload correction
81
4.5.12
Linearization
81
4.5.13
Test value determination / display
82
4.5.14
Finishing / saving the calibration
82
4.5.15
Units for display
83
4.5.16
Parameter entry
84
4.6 Configuration for [liquid] and [user] .................................................................................................................................................. 87
4.6.1
Weighing point function for liquid counter
87
4.6.2
Weighing point function User Scale
87
4.7 xBPI scale ..................................................................................................................................................................................................... 88
4.7.1
xBPI set-up for serial port
88
4.7.2
xBPI scale function
89
4.7.3
xBPI platform configuration
90
4.7.4
xBPI scale parameters
91
4.7.5
xBPI parameter tables
92
4.7.6
xBPI setting deadload
94
4.7.7
xBPI calibration with built-in weight
95
4.7.8
xBPI calibration with the user weight
96
4.7.9
xBPI calibration with automatic weight detection
97
4.7.10
xBPI calibration with default weight
97
4.7.11
xBPI device information
97
4.7.12
xBPI scale error messages
97
4.8 Error messages ........................................................................................................................................................................................... 98
4.8.1
Error messages on the weight display
98
4.9 Configuration of general parameters................................................................................................................................................. 99
4.9.1
Clock (Date and time)
99
4.9.2
Serial ports
99
4.9.3
Operating parameters
101
4.9.4
Fieldbus parameter
102
4.9.5
Display settings
103
4.9.6
Boardnumber
104
4.9.7
License Settings
104
4.9.8
Network parameter
105
5
5.1
4
Repair and maintenance .......................................................................................................................................................................106
Battery for calendar / time ..................................................................................................................................................................106
Sartorius
Combics Pro Installationshandbuch
Contents
5.1.1
Battery replacement
106
5.1.2
Accumulator replacement
106
5.2 Solder work ............................................................................................................................................................................................... 107
5.3 Cleansing.................................................................................................................................................................................................... 107
6
Disposal ..................................................................................................................................................................................................... 107
7
Technical data ......................................................................................................................................................................................... 108
7.1 Instructions for use of 'Free Software'............................................................................................................................................. 108
7.2 General data ............................................................................................................................................................................................. 108
7.2.1
Back-up battery for time/calendar, alibi memory
108
7.2.2
Accumulator for processor back-up
108
7.2.3
Display
108
7.2.4
Power supply
108
7.3 Environmental effects ........................................................................................................................................................................... 109
7.3.1
Environmental conditions
109
7.3.2
Electromagnetic compatibility (EMC)
109
7.3.3
RF interference suppression
109
7.4 PR 5800/10 weighing electronics ...................................................................................................................................................... 110
7.4.1
Load cells
110
7.4.2
Principle
110
7.4.3
Accuracy and stability
110
7.4.4
Sensitivity
110
7.5 Mechanical data ...................................................................................................................................................................................... 111
7.5.1
Construction type
111
7.5.2
Dimensions
111
7.5.3
Weight
111
7.5.4
Mounting kit (accessories)
111
7.6 Use in 'legal for trade' mode ............................................................................................................................................................... 111
7.6.1
Documentation for verification on the enclosed CD
111
7.6.2
Further instructions
111
8
Index .......................................................................................................................................................................................................... 113
Sartorius
5
Combics Pro Installation Manual
Safety notes, electrical protection class
1 Safety notes, electrical protection class
This instrument was built and tested in compliance with the safety regulations for
measuring and control instrumentation for protective class I (protective earth connection)
according to IEC 1010/ EN61010 or VDE 0411. The instrument was delivered in safe
condition. To maintain this condition and to ensure safe operation, the operator must
follow the hints and warnings given in this documentation.
1.1
Application of the instrument
The instrument is intended for use as an indicator and control unit. Various application packages are available
and customer-specific programs can be created by means of programming tools. Product operation,
commissioning and maintenance must be done only by trained and qualified personnel aware of and able to
avoid the related hazards or taking suitable measures for self-protection.
The instrument is state of the art. No warranty is taken that the product is free from faults, especially with
reference to software and hardware supplied by third parties. The manufacturer does not take any liability for
damage caused by other system components or due to incorrect use of the product.
The use of this product is considered as recognition of the stipulations mentioned above.
1.2
Initial inspection
Check the content of the consignment for completeness and inspect it visually to find out if it was damaged
during transport. If there is reason to complain, a claim must be filed with the carrier immediately and the
Sartorius sales or service organization must be notified to permit repair or replacement of the unit.
1.3
Before commissioning
Visual inspection!
Before commissioning, after storage and transport, inspect the instrument visually to
preclude mechanical damage.
1.3.1
Installation
The instrument front panel meets IP67. It is suitable for mounting in any position. For cooling of the
instrument, the air circulation must not be impaired. Avoid heat effects, e.g. by direct sun radiation. The
environmental conditions must be taken into account. The following mounting methods are possible:
Table-top mounting
The unit stands on the rubber feet.
Mounting is done by means of 3 screws M4 on pedestal (accessories), e.g.
YDH02DWP.
By means of 3 screws M4 and a wall mounting bracket (accessories)
Wall mounting
YAS06CISPRO. The front lid should be turned so that the cable connections
point downwards.
By means of a mounting kit for control panels/cabinets (accessories), e.g.
Cabinet/ panel mounting
YAS04CISPRO
Terminal
IP67 unit
Sartorius
With rear extension unit (accessories) YAS01CISPRO
7
Safety notes, electrical protection class
1.3.2
Combics Pro Installation Manual
Opening the instrument
Working at the switched on unit may be dangerous to life.
Disconnect the instrument from the supply voltage! When removing covers or parts by
means of tools, live parts or terminals may be exposed.
Capacitors in the unit may still be charged also after disconnecting the unit from all
voltage sources.
CAUTION
DANGER TO LIFE !
After disconnecting from all voltage sources, wait at least one minute (LEDs on main and processor board off)
before opening the housing, until the processor has finished storing the instrument status. This instrument
contains electrostatically sensitive components. For this reason, potential equalization is required when working
at the open instrument (antistatic protection).
1.3.3
Earthing, protective earth
The instrument must be connected to protective earth via protective earth conductor PE in the power
connector. The power cable contains a protective earth conductor, which must not be interrupted inside or
outside the unit (e.g. by using an extension cable without protective earth). The protective earth is connected
to the housing rear in the instrument.
1.3.4
Power connection, power supply
As the unit does not have a power switch, it is ready for operation immediately after connecting the supply
voltage. Safe interruption of both supply voltage conductors by means of the power connector or an
additional switch must be possible. The unit is equipped with a wide range power supply and covers AC systems
with a frequency of 50 Hz / 60 Hz and a voltage range of 100 VAC ... 240 VAC +10% / -15% automatically
(without selecting). The power supply is protected against short circuit and overload and switches off
automatically in case of failure.
When the electronic protection has triggered:
• Disconnect the unit from all voltage sources and wait min. 1 minute.
• Determine and remove the trouble cause.
• Re-connect the unit to the supply voltage.
The graphic display can be switched off by pressing key 'On/Standby'. The supply for the PS/2 port
will be cut.
Caution! The instrument remains under voltage!
1.3.4.1 Direct voltage version 24 VDC
The 24 VDC version is designed for connecting to 24 V direct current. The voltage has to be applied with the
correct polarity (reverse voltage protection). Take care to provide strain relief.
1.3.5
Failure and excessive stress
When the instrument is suspected of being unsafe, shut it down and protect it against accidental operation.
This is the case when the unit
- is physically damaged,
- does not function any more,
- is stressed beyond the tolerable limits (e.g. during storage, transport).
1.3.6
For special attention
Make sure that the construction of the instrument is not altered to the detriment of safety. In particular,
leakage paths, air gaps (of live parts) and insulating layers must not be reduced. Sartorius cannot be held
responsible for personnel injury or damage caused by an instrument repaired incorrectly by user or installer.
8
Sartorius
Combics Pro Installation Manual
Weighing terminal
2 Weighing terminal
The instrument is equipped with a colour graphic display and an alphanumeric keypad. In conjunction with an
application program (e.g. for counting, checking, totalizing), the instrument is a powerful system for control /
documentation of weighing and batching processes. It associates the functions of a highly convenient
operator interface, a weighing and batching controller, a PLC and interfaces.
The unit is programmable in compliance with standard IEC 61131-3. For this purpose, the PR 1750/60 program
development tool is available as an accessory.
2.1
-
Basic instrument survey
Accuracy 10000 e (Class III) for the internal weighing electronics (2 slots)
High-speed conversion with measuring times from 10 msec
Connection of max. 62 units via xBPI protocol
Connection of 2 units via SBI protocol
Colour graphic LCD display with 320 x 240 dots
Front-panel controls and function keys
Stainless steel front panel to IP 67, rear to IP30
Rear extension unit to IP 67 (accessories)
LAN adaptor with 10 / 100 Mbits/sec (built-in)
Direct connection of PC keyboard or barcode reader
RS 232 interface, built in for e.g. printer or remote indicator
Extension possible by means of plug-in circuit boards (3 + 1 slots)
Galvanically isolated interfaces (RS 232, analog input and BCD output excepted)
Wide range power supply for 100 – 240 V AC, protection class I (protective earth)
Plug-in connections on the rear for load cells, inputs/outputs, LAN adaptor, PC keyboard
Suitable for wall, table-top or panel cut-out mounting (accessories)
Calibration by means of weights, by entry of the mV/V values or directly using load cell data (smart
calibration)
Configuration of the interface cards, e.g. for remote display
Analog test for the internal weighing electronics
Communication protocols:
The scope of protocol functions is dependent on the application software package.
For the internal RS 232 or RS 232/ 485 (accessories):
- remote display
- printer, “legal for trade” printer
- JBUS/MODBUS (slave)
- scale with xBPI protocol (max. 31 units, max. 2 interfaces)
- scale with SBI protocol
Fieldbus slave with PR 1721/3x (accessories):
- Profibus-DP
- Interbus-S
- DeviceNet
or PR 5510/10 Ethernet for Modbus TCP/IP
Sartorius
9
Weighing terminal
2.2
Combics Pro Installation Manual
Housing
The instrument is provided with a multi-functional stainless steel housing (377x260x145 mm) and a front
panel compliant with IP 67. It is suitable for use as a table-top or a wall-mounted unit, a for installation in a
cabinet. Keypad, display and display board form a unit with the front panel. The front panel is 15.5 mm high. It
is connected with the housing by means of 8 screws M4. A square cut-out (350 mm x 217 mm) is required for
panel mounting (mounting kit YAS04CISPRO). The cable connections are made on the housing rear. Max. 2 6pin plug-in terminal blocks are provided for connection of the internal weighing electronics. Connection of an
external keyboard or of a scanner is possible via a PS/2 socket. The built-in serial interface is taken to a 9-pole
D-Sub connector socket. Network connection is possible via the built-in RJ-45 LAN socket. 4 cut-outs for plugin cards are covered by dummy panels.
The power cable is taken into the instrument via a cable entry gland for strain relief. When using the
YAS01CISPRO rear extension unit available as an accessory, the complete instrument offers protection class
IP67.
Front view
View from bottom
10
Side view
Side view with IP67 rear extension unit
Sartorius
Combics Pro Installation Manual
2.3
Weighing terminal
Displays and controls
2.3.1
Display
320 x 240 colour graphic display
softkeys
function keys
indicator keys
alphanumeric keys
menu keys
The weight display permits indication of 7-digit weight values with decimal point and polarity sign.
Possible units of mass are t, kg, g, mg, lb or oz. Lb or
oz are not permitted in the EU and EEC.
Via the weight display, the instantaneous weight is
displayed as a bargraph in relation to the maximum
capacity (Max). At 100% of Max, the bargraph is
fully home at the right stop.
The following statuses can be displayed:
(G with NTEP or NSC mode)
The weight value is within +/- ¼ d
around zero
Net weight display,
Net = Gross - Tare
Stability of the weight value
The stored tare weight is displayed
No 'legal for trade' weight
(e.g. 10-fold resolution)
Preset tare is displayed
The test value is shown without mass unit
on the weight display
Sartorius
Batch mode,
blinking when 'stopped', blinking
quickly with 'error status'
11
Weighing terminal
2.3.2
Combics Pro Installation Manual
Keypad
The general meaning of symbols on the front-panel keys is given in the following table. Dependent on the
application programs, further key significations are possible.
Indicator
keys
Description
Indicator
keys
Display gross weight
Start print-out
Display tare weight
Selection key for changing
between scales
Taring, the instantaneous gross
weight is stored in the tare memory,
provided that:
- weight stable
- indicator not in error status
(function dependent on
configuration)
Menu keys Description
Set gross weight to zero, provided
that:
- weight stable
- weight within zero set range
(function dependent on
configuration)
Menu
keys
Move cursor right when editing /
selection
Function
keys
Description
Description
Softkey: select function
Move cursor left when editing /
selection
Backspace / delete
Scroll up in the menu
Exit from current menu, continue
operation at next higher level
Scroll down in the menu
Enter / confirm
Description
Function
keys
Description
Stand-by mode,
switch on /off graphic display and
PS/2 supply
Call up the set-up menu
Function key
Stop key
Information on version number,
fitted hardware,
10-fold resolution
12
Sartorius
Combics Pro Installation Manual
2.3.2.1
Weighing terminal
Entry of alphanumeric characters
An input field is marked clearly. Indication if the alphabetic letters are enabled is provided.
By pressing once, the relevant first character, e.g. 'A', is
displayed in the cursor position. After pressing twice, 'B' is
displayed in the cursor position and after pressing three
times, 'C' is displayed. The entry of a character is completed
by pressing other character keys, or the right arrow key .
Press key arrow left
to return to the previous character. By
pressing the delete key
, a character can be removed from
the display.
If only numeric values are required for an entry, letters are
not enabled.
Key
Character
Remark
For values smaller 1 a 0 has to be typed
before the decimal point (e.g. 0.01)
Decimal point and colon can be entered
with the dot key .
Values with polarity sign are entered also
with the dot key , by pressing once for
minus and twice for plus.
space key
alpha / numeric mode switch-over
Sartorius
To enter a space, press key .
During configuration, switching over
between the mass units is possible by
pressing .
13
Weighing terminal
2.3.3
Combics Pro Installation Manual
Operation via softkeys
The operation is menu-guided. For this purpose, the instrument offers a softkey functionality.
The five softkeys below the graphic display have the function described in the lower text line of the display.
Softkey functions shown in grey cannot be selected at this menu level.
In the descriptions of operating sequences which imply the use of softkeys, the softkey function to be selected
is shown in square brackets rather than including always the softkey symbol.
Setup
Config
Calib
Exit from a menu is possible by pressing
2.3.4
. The operation is continued at the next higher level.
Selection via the navigation keys
to scroll down, or key arrow up
to
Press key arrow down
scroll up in a menu. Selection is possible with key
. The
required setting for the selected menu item can be done with
or
.
Press key
to leave the menu and to continue the operation at the next higher level.
Further menu levels which follow are displayed by an arrow
selected with
is shown inversely.
in front of the menu item. The menu item
Info
Show version
Show status
Selection with key
If the list of menu items is long, a vertical bargraph on the left (black / grey) shows which part of the list is
displayed.
Weighingpoints/WP A/Calibration
Measuretime
Digital filter
Test mode
W&M
Stability time
Stability range
Lines in which settings are selectable with
or
320 ms
off
absolute
none
0.50 s
1.00 d
are marked by preceding double arrows .
Weighingpoints
Weighingpoint A
14
xBPI-Scale 1
Press
to select [xBPI-Scale 1].
Sartorius
Combics Pro Installation Manual
2.3.5
Weighing terminal
System messages during entry
The following types of messages are displayed as hints / warnings during input:
Question mark
Several possibilities, e.g. for exit from a program, are indicated by a
question mark:
Stop character
An important hint that an action cannot be executed. Read the cause
and continue with [OK]:
Processing time
An action taking a long time is shown by a clock symbol.
Warning
A warning is marked by three exclamation marks.
Information text
An information is marked by one exclamation mark.
Execution message
Successful execution of an action is marked by a tick.
For simplification, only the message texts without the clip graph may be shown in this manual.
Sartorius
15
Weighing terminal
2.3.6
16
Combics Pro Installation Manual
Survey of accessories
Sartorius
Combics Pro Installation Manual
2.3.7
Weighing terminal
Plug-in cards
On the main board, Combics Pro can be fitted with max. 2 weighing electronics and max. 4 further plug-in
cards.
Product
PR 5800/10
Weighing electronics
PR 5510/02
2 serial RS 232 interfaces
PR 5510/04
1 serial RS 232 interface and
1 serial RS 485/ RS 422 interface
PR 5510/07
1 analog output,
4 analog inputs
PR 5510/08
BCD output
PR 5510/09
BCD output
PR 5510/12
6 optocoupler inputs and 12
optocoupler outputs
PR 1721/31
Profibus-DP slave
PR 1721/32
Interbus-S slave
PR 1721/34
DeviceNet slave
PR 5510/14
Ethernet
Function
Position
Weighing electronics for strain gauges, 10000e
Slot A B
Protocols and parameters are adjustable via
software.
The serial RS 485/422 interface is configured by
means of DIL switches on the card. Protocols are
adjustable via software.
16-bit analog output, 0/4 - 20 mA.
Input: 4 channels with common ground, resolution
3000 d. (max. 1 card)
Output: 5 decades + polarity sign, or 3 bytes
binary, open emitter. 1 input
Output: 5 decades + polarity sign or 3 bytes binary,
open collector. 1 input
Digital interfaces galvanically isolated via
optocouplers. Passive inputs and outputs.
Configurable via software.
Slot 1 2 3
Slot 1 2 3
Slot 1 2 3
Slot 1 2 3
Slot 1 2 3
Slot 1 2 3
Profibus-DP to IEC 61158 with max. 12 Mbits/s
Slot 4
Interbus-S slave with max. 2 Mbits/s
Slot 4
DeviceNet slave with max. 500 kbits/s
Slot 4
10 / 100 Mbits/s Modbus-TCP Slave
Slot 4
For product details, see chapter 3.4 .
2.3.8
Program licenses
Examples for program licenses:
Type
PR 1713/20
PR 1791/13
PR 1713/32
Function
Alibi memory
OPC server
Batching
Examples for application packages:
Counting Checking Totalizing
Automatic and manual batching
Software licenses for writing individual application programs:
Type
PR 1750/60
Function
Development tool
Product details are given in the relevant data sheets/manuals.
Application software bought from Sartorius can be changed only in compliance with a source code agreement.
Sartorius
17
Installing instrument and plug-in cards
Combics Pro Installation Manual
3 Installing instrument and plug-in cards
Before starting work, read chapter 1 and follow the hints!
Further procedure:
• Check the consignment: unpack the components pertaining to the application.
• Safety check: inspect it for damage.
• Ensure that the on-site installation is correct and complete including cables, e.g. power cable fuse
protection, load cells, cable junction box, data cable, console/cabinet, etc.
• Follow the instructions for installation of the unit (related to application, safety, ventilation, sealing and
external effects)!
• If necessary, mount the plug-in cards (instrument must be disconnected from all voltage sources).
• Connect the cable from cable junction box or platform / load cell.
• If necessary, connect further data cables / power cable etc.
• Connect the power cable.
• Check the installation.
3.1
Mechanical preparation
If mounted as a table-top unit, Combics Pro requires a flat, stable surface.
For wall mounting, the lid of the instrument must be turned into a position that the connecting sockets point
downwards.
With cabinet or panel-mounting, a corresponding cut-out for the housing must be provided.
Keep all parts, technical documents and required tools ready for mounting. Take the cable to the place of
installation and mount it (e.g. by means of cable ties). Remove the insulation from the cable ends, keep the
strands short and fit them with end crimps.
3.2
Hardware construction
The electronics is accommodated on three printed circuit boards (main board, processor board and display
board). The main board accommodates the power supply, the processor board, the two slots for the internal
weighing electronics and four slots for further plug-in cards.
Connection to the main board is by flat-pin connector for the processor board and by flat cable for the display
board.
3.3
Main board
The main board
accommodates the power
supply, the accumulator
for data back-up, slots (A
and B) for the weighing
electronics, slots 1 ... 3 and
4 (slot 1 ... 4) for
additional cards, and CAL
switches 1 and 2. On the
picture, the processor
board is shown fitted on
the main board.
CAL switch 1 CAL switch 2
18
PS/2
LAN
RS232
Sartorius
Combics Pro Installation Manual
3.3.1
Installing instrument and plug-in cards
Processor board
The processor board accommodates the processor with the memory chips.
The chip with the unique board number (SIL chip) looks like a transistor.
The lithium battery is always activated and energizes the calendar/clock module and the alibi memory.
3.3.2
Main board LEDs
The main board is fitted with 3 LED groups of 9 LEDs (2+2+5), furthermore 2 LEDs are located at the network
connector.
A
B
1
2
5
6
7
8
9
LAN
Charging
Supply
RJ-45
3.3.3
LAN grn
LAN yel
Duplex
Speed
Current 60 mA
Current 300 mA
5 VDC supply
5 VDC board
3.3 VDC board
3.3 VDC CPU core
n.c.
Activity
Collision
Display board
The display board is connected to the main board via a flat cable (middle of picture). Graphic display and
keypad are controlled via the cable.
When opening / turning the front panel, take care not
to pull the cable out of the plug-in connections. The
plug-in connections are secured by catches.
Sartorius
19
Installing instrument and plug-in cards
3.3.4
Combics Pro Installation Manual
Network port
The network port is built in as standard. The port contains powerful TCP/IP connection circuitry with transfer
rates of 10 or 100 Mbits/sec. Function checking is possible via the LEDs on the connector/main board, see also
chapter 3.3.2.
Remote operation of Combics Pro is possible from the
PC (install program VNC version 3.3.7 on the PC).
The address to be entered
has to be extended by :1 :
e.g. 172.24.22.170:1
New software can be loaded using FlashIt 2.60.01 via the network port, see also chapter 4.3.8.
Transfer rate:
Connection method:
Cable:
Cable impedance:
Potential equalization:
Cable length:
Connection :
3.3.4.1
10 Mbits/sec (10Base-T), 100Mbits/sec
(100Base-T), full / half duplex, autodetection
point to point
patch cable CAT 5, twisted pairs,
screened
150 Ohm
yes
max. 30 m
RJ-45 socket on housing rear
Direct connection to a PC (cross-over cable)
Combics Pro RJ 45
6
3
2
1
Signal
TPTXn
TPTXp
TPRXn
TPRXp
Colour*
green
white-green
orange
white-orange
Signal
TPRXn
TPRXp
TPTXn
TPTXp
RJ 45
2
1
6
3
2 conductor pairs are required.
Caution: Different conductor colour assignment is possible!
3.3.4.2
Connection to a network via SWITCH / HUB (straight-through cable)
Combics ProRJ 45
6
3
2
1
Signal
TPTXn
TPTXp
TPRXn
TPRXp
Colour
green
white-green
orange
white-orange
Signal
TPRXn
TPRXp
TPTXn
TPTXp
RJ 45
6
3
2
1
2 conductor pairs are required.
Caution: different conductor colour assignment is possible!
20
Sartorius
Combics Pro Installation Manual
3.3.5
Installing instrument and plug-in cards
External PC keyboard
The instrument is provided with an alphanumeric keypad and a socket for a PC keyboard with 6-pole PS/2
connector on the rear. The two operating functions are equivalent and can be used alternatively.
We recommend keyboard 'Cherry Business Line' G83-6300 (with PS/2 connector, 35mA current).
Keyboard
Keypad
Keyboard
Keypad
The keyboard which should be connected can be selected in -[Operating parameter]-[PS/2 Keyboard]:
[German QWERTZ] or [French AZERTY] or [Italian QWERTY] or [Spanish QWERTY] or [English QWERTY].
The LEDs (NUM, CAPS LOCK, SCROLL) of the PC keyboard are not controlled.
Before connecting the keyboard, please, make sure that the power consumption does
not exceed 150 mA at 5 V.
Overload is prevented by a self-reset multifuse.
1
2
3
4
5
6
KBD Data
nc
GND
+5V
KBD Clock
nc
Layout of PS/2 PC keyboard
cable connector
Sartorius
21
Installing instrument and plug-in cards
3.3.6
Combics Pro Installation Manual
Barcode reader
As an alternative to an external keyboard, a barcode reader can be connected at the standard PS/2 socket on
the rear of the housing.
Before connecting the barcode reader, please, make sure that the power
consumption does not exceed 150 mA at 5 V.
Overload is prevented by a self-reset multifuse.
For standard connector pin allocation, see chapter 3.3.4.
The barcode reader setting (table: Opticon OPL 6735 Wedge) is made by scanning in the relevant codes (see
manual).
Default settings are shown in <>.
Opticon CPL 6735 wedge
Linker:
AT wedge
Keyboard layout:
<with keyboard>
Keyboard language:
<US>
Intercharacter delay for wedges:
Delay = 10
Set suffix:
Clear all suffixes
Read mode options:
Single read
Redundancy:
3 times redundant
Barcode readers Syntech (Cipher 1021G) and Gryphomn (M-100) can also be used.
For safe readings, we recommend setting 3 redundant read operation.
To confirm each read operation via the keypad, the automatic CR function of the reader must be switched off.
22
Sartorius
Combics Pro Installation Manual
3.3.7
Installing instrument and plug-in cards
Builtin RS 232 interface
The instrument is provided with a firmly built-in RS 232 interface which is accessible on the housing rear. The
interface can be used freely and can be configured e.g. for data transmission to a remote display, a printer or
an external scale with xBPI protocol via RS232.
Number of channels:
Type:
Transfer rate:
Parity:
Data bits:
Input signal level:
Output signal level:
Number of signals:
Potential isolation:
Cable type:
External
connection:
3.3.7.1
9-pole D-Sub socket (female)
Cable length:
1
RS 232, full duplex
300 to 115K2 bits/sec
none, uneven, even
7 / 8 bits
logic 1 (high) - 3 ... - 15 V
logic 0 (low) + 3 ... + 15 V
logic 1 (high) - 5 ... - 15 V
logic 0 (low) + 5 ... + 15 V
2 output signals (TXD, RTS)
2 input signals (RXD, CTS)
none
twisted pairs, screened
(e.g. LifYCY 3x2x0,20),
1 pair of wires for GND
max. 15 m
Connecting a remote display / remote terminal
A PR 1627 remote display or a PR 1628 remote terminal can be connected to the built-in RS 232 interface or
the PR 5510/04 card.
For this, select [Baudrate] 4800 in -[Serial ports parameter]-[Remote display]-[Builtin RS232]-[Param]. Now,
the Baudrate corresponds to the default settings of PR 1627 or PR 1628.
The following settings are fixed and cannot be changed: [Bits] 7, [Parity] even and [Stopbits] 1.
Sartorius
23
Installing instrument and plug-in cards
3.3.7.2
Combics Pro Installation Manual
Connecting a YDP12IS or YDP04IS ticket printer
The ticket printer YDP12IS-OCEUV or YDP04-OCEUV can be connected via [Builtin] RS 232 interface or the
RS232 on card PR 5510/04.
If the printer is connected to the [builtin] serial port :
Set in -[Serial ports parameter]-[Printer]-[Builtin RS232]-[Param] the [Protocol] to [RTS/CTS], [Baudrate] to
9600, [Bits] to 7, [Parity] to [none], [Stopbits] to 1 and [Output mode] to [raw] . The printer has to be set to
Line Mode (Factory settings are Page Mode !). Switching is done by the 'FEED' button, please refer to the
installation instructions delivered with the printer.
3.3.7.3
PC or terminal connection
Connection of a terminal or of a PC with a terminal program is possible only, if the function is supported by the
application or by a customer-specific IEC 61131-3 program (written by means of PR 1750/60.
With [Console] set to [Builtin RS232], the XON/XOFF protocol is set automatically. In this case, the settings for
[Baudrate], [Bits], [Parity], [Stopbits] and [Output mode] are also required.
24
Sartorius
Combics Pro Installation Manual
3.3.7.4
Installing instrument and plug-in cards
Connecting an xBPI platform (weighing module) via RS232
A platform with xBPI protocol can be connected via the [Builtin] RS 232 interface or via card PR 5510/04.
Only [Baudrate] and [Stopbits] must be selected, the remaining parameters are fixed.
For further information, refer to the platform manual.
3.3.7.5
Connecting an xBPI terminal via RS232
Connection of a terminal with xBPI protocol is possible via the [Builtin] RS 232 interface or via card PR
5510/04.
Only [Baudrate] and [Stopbits] must be selected, the remaining parameters are fixed.
For further information, refer to the terminal manual.
Sartorius
25
Installing instrument and plug-in cards
3.4
3.4.1
Combics Pro Installation Manual
Accessories
Installing plug-in cards
The main board is equipped with slots A and B for 2 internal PR 5800/10 weighing electronics, which have to
be plugged in directly and blocked by means of 2 screws M3 each.
The main board has three slots with identical pin allocation (34-pole, double row 2 x 17 contact pins) and
another slot (34-pole, double row 2 x 17 contact pins) for plug-in cards. The slot description is Slot 1 ... 3 and
Slot 4 (bottom left).
With application software packages, the cards are mostly inserted into firmly allocated slots, for which
subsequent changing may be not possible.
Before installing/modifying a plug-in card, controlled instrument shut-down using -[System
functions]-[Shutdown & Power off] and disconnection from all voltage sources is required, see
chapter 4.3.7.
Installation (1-4):
The flat cables plug into the connectors (1 ... 4)
on the main board. The cables are polarized, i.e.
wrong polarity is precluded.
Installation (A / B):
Insert the plug-in cards into the connectors of
slot A / B and block them by means of 2 screws
M3.
View: from top, rear connector on the bottom
A description of connections and connection
examples for the various cards are given in
chapter 3.4 .
Remove the dummies on the rear (2 screws M3)
and replace them by the holding plates of the
plug-in cards.
Preferably, the holding plates of the cards should
be mounted as shown opposite, with the flat
cable connectors inserted into the corresponding
slots on the main board.
View: from the rear
For detection of the plug-in cards, a cold start is required after installation/modification!
After installation/modification of plug-in cards, the following message appears on the top display line:
Hardware configuration changed
hit any key to continue
After pressing a key, the 'BIOS MENU' appears. Press key 2 for a cold start [ 2 Coldstart], see also chapter 4.2.1.
26
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
The installed plug-in cards can be displayed in
-[Show HW-Slots]:
Info/HW-Slots
Slot
Slot
Slot
Slot
Slot
Slot
3.4.2
1
2
3
4
A
B
Builtin RS 232
RS 485/232
RS 485/232
BCD out
Profibus-DP
Scale-ADC
-empty-
PR 5510/04
PR 5510/04
PR 5510/08
PR 1721/31
PR 5800/10
Firmly built-in interface
Slots(Slot 1, 2 and 3) are identical
Only fieldbus cards
Internal weighing electronics PR 5800/10
([empty], unless PR 5800/10 is installed)
Cable connection in the D-Sub connector counterparts
The connections on the rear are of plug-in type. The conductors should be taken to the terminals as shortly as
possible.The connector housings are conducting (metallized), i.e. part of the screening, and must be mounted
on the rear accordingly by means of screws.
Mounting a cable:
•
•
•
•
•
•
•
•
•
•
•
Open the connector housing (catches)
Release and open the cable clamp
Remove the cable insulation by approx. 50-60 mm
Shorten the screen to 5 mm and bend it over the cable sheath.
Remove 3mm strand insulation and connect it by soldering
Insert the pin unit
Put the cable under the cable clamp.
The grounding tang presses on the screen bended backwards,
the clamp presses on the cable sheath
Close and tighten the cable clamp
Check the strain relief
Insert the mounting screws on both sides
Close the connector housing (catches)
Both ends of the cable screens must be connected with the
metal housings!
3.4.3
Cable entry glands of rear extension unit IP 67 accessories)
To ensure protection class IP 67, cable entry glands are used. The cable screens must be connected in the metal
sleeves of the PG gland.
Mounting a cable:
• Remove the screw cap.
• Slip cap and plastic cone over the cable.
• Take the cable through the gland.
• Fold the cable screening over the lower part of
the plastic cone (by approx. 10mm).
• Connect the cable conductors.
• Tighten the screw cap.
Sartorius
27
Installing instrument and plug-in cards
3.4.4
Combics Pro Installation Manual
PR 5800/10 Internal weighing electronics
Max. 2 internal weighing electronics can be fitted in Slot A and Slot B on the main board.
Internal connection:
28-pole connector socket
Max. 2 cards, each with
Number of channels:
1 x 6-wire or 4-wire
12 V DC supply, symmetrical to zero (+
Load cell supply:
6 VDC -- -6 VDC)
>= 75 Ohm, corresponding to 8 load
Load (number of load
cells of 650 Ohm or
cells):
4 load cells of 350 Ohm
+ 6 VDC -- -6 VDC,
Sense input:
with monitoring
0 - 36 mV DC, symmetrical to zero
Measuring input:
max. 36 mV DC (deadload + span)
Deadload suppression:
Sensitivity,
0.5 µV/e corresponding to
5 mV for 10000e 'legal for trade'
Min. signal:
7.5 million counts at 3 mV/V
Resolution, max.
< 0.003 %
Linearity:
Temperature coeff. zero: < 0.05 µV/K, RTI
Temperature coeff. Vst: < +/- 4 ppm/K
max. 500 m
Cable length:
6-wire with screen for overall cable
Cable type:
and screen for measuring lines,
e.g. PR 6135
Dimensions:
(LxWxH):
Weight:
86 x 52 x 15 mm
33 g
External connection:
6-pin socket (male)
screen connected to housing
+M
-M
+V
+S
-S
-V
Accessories
(delivered with the
unit):
+ measuring input
- measuring input
+ supply
+ sense
- sense
- supply
2 screws M3, 6-pole connector with
screw terminals for 2.5 mm² cable
Load cells or analog platforms (e.g. CAPP series) can be connected.
A description is given in chapter 3.4.5 for connection of load cells and in chapter 3.4.8 for platforms. The
supply voltage is protected against overload by a self-reset multifuse.
The card is fitted with a solder switch (factory setting: closed), which should be opened only, when the supply
voltage and thus also the sense voltage drops below approx. +- 4 VDC.
Solder switch closed at +- 6 VDC load cell supply (factory setting)
When using intrinsically safe load cell interface PR 1626/60 with 7.5 VDC (MX 8 closed), the solder
switch for reduced load cell supply must be opened.
The function of the CAL switch located on the card is explained in chapter 4.1.1.
28
Sartorius
Combics Pro Installation Manual
3.4.5
Installing instrument and plug-in cards
Connection of load cells to PR 5800/10
Dependent on equipment, max. 2 connectors for load cells are located on the housing rear.
Terminal block
+M
-M
+V
+S
-S
-V
Housing
3.4.6
Terminals
+ meas.
- meas.
+ supply
+ sense
- sense
- supply
GND
Description
+ signal / LC output
- signal / LC output
+ supply / excitation
+ sense
- sense
- supply / excitation
screen / ground
Connection of a load cell with 4-wire cable
Fit a link across + supply and + sense and across – supply and - sense directly at the terminal block.
The cable colours shown above are applicable to the Sartorius PR 62.. series load cells.
Before connecting, see the signification of cable colours in the load cell manual.
3.4.6.1
Connection of PR 6221 load cells
See PR 6021/08, -/68 operating manual.
Sartorius
29
Installing instrument and plug-in cards
3.4.7
Combics Pro Installation Manual
Connection of max. 8 load cells (650 Ohm) by means of 6-wire connecting cable
Via cable junction box PR6130/.. by means of PR 6135 oder PR6136 connecting cable:
The cable colours
shown opposite are
valid for Sartorius
PR 62 . . series load
cells or for connecting
cable PR 6135.
When using different
load cells, the cable
colours may have a
different signification!
For this reason,
consult the relevant
manual/data sheet for
the signification of
cable colours before
connecting.
Recommendation:
- Install cable in steel pipe connected to earth potential
- Min. distance to power cables: 1m
Load cell supply circuit
Load resistance of load cell circuit > 75 Ohm, e.g. 8 load cells of 650
Supply voltage is 12 V DC, for further data, see chapter 7.4.
30
Ohm each,
Sartorius
Combics Pro Installation Manual
3.4.7.1
Installing instrument and plug-in cards
Connection of load cells with external supply
When the load of the load cells is < 75 Ohm (e.g. more than 4 load cells with 350 Ohm), external load cell
energization is required. With external load cell supply, the internal supply is replaced by a potential-free
external supply. The neutral wire of the external supply voltage (0 ext. supply) must be connected to the
instrument housing to ensure that the voltage is symmetrical to 0. The internal supply is not connected!
The cable colours given above are valid for connecting cable PR 6135.
When using different load cells / cables, the signification of colours may be different!
For this reason, the relevant manual / data sheet should be consulted for signification of cable colours
before connecting.
Sartorius
31
Installing instrument and plug-in cards
3.4.7.2
Combics Pro Installation Manual
Connection of load cells via intrinsically safe load cell interface PR 1626/60
The cable colours shown opposite are valid
for the Sartorius PR 62 . . series load cells
resp. for connecting cables PR 6135 and
PR 6136.
When using different load cells, the
signification of cable colours may be
different!
For this reason, the relevant manual/data
sheet should be consulted for signification
of cable colours before connecting.
32
Sartorius
Combics Pro Installation Manual
3.4.8
Installing instrument and plug-in cards
Connection of platforms (CAP...)
Dependent on equipment, max. 2 Combics analog platforms (CAP... series) can be connected to the terminals of
the internal weighing electronics.
The following example shows a platform with 6-wire connection to A and with 4-wire connection to B.
Platforms in 4-wire connection
require links across +V and +S
and across –V and –S.
The cable colours shown above are valid e.g. for a CAPP4 500 x 400 and a CAPP1 320 x 420.
The signification of relevant cable colours is given in the platform operating manual.
The cable screens must be connected to the GND terminals on the brackets below the Combics Pro connecting
terminals. If the measuring lines (+M, -M) are screened, these screens must be connected to the GND terminals
as well.
Sartorius
33
Installing instrument and plug-in cards
3.4.9
Combics Pro Installation Manual
PR 5510/02 Serial I/O
The plug-in card contains two RS-232 channels (A and B), which can be used simultaneously and
independently. Max. 3 PR 5510/04 cards can be plugged in (Slot 1 ... 3). The relevant interface parameters are
adjustable in
-[Serial ports parameter], no additional settings on the card are required.
Internal connection:
Number of channels:
Type:
Transfer rate:
Parity:
Data bits:
Signals RS 232:
Input signal level:
Output signal level:
Potential isolation:
Cable length:
Cable type:
34-pole connector socket
2
RS 232, full duplex
300 to 19k2 bits/sec
No, odd, even
7 / 8 Bit
Output: TX, RTS
Input: RX, CTS
logic 1 (high) - 3 ... - 15 V
logic 0 (low) + 3 ... + 15 V
logic 1 (high) - 5 ... - 15 V
logic 0 (low) + 5 ... + 15 V
No
max. 15m
twisted pairs, screened
(e.g. LifYCY 3x2x0,20),
1 conductor pair for GND.
External connection:
2x D-Sub 9-pole socket (female)
Accessories (delivered 2x connector counterpart D-Sub 9pin (male)
with the unit):
incl. screening hoods
Dimensions: (LxWxH): 86 x 52 x 15 mm
Weight:
appr. 30 g
The RS-232 can only be used as point to point connection. A max. cable length of 10-15m must not be
exceeded.
The PR5510/02 and the 'Builtin' comply with the standard pin allocation, i.e. they are equal in the following
connecting diagrams. Accordingly, the RS232 connections are described only for the builtin interface in this
manual (see chapter 3.3.7).
34
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
3.4.10 PR 5510/04 Serial I/O
The plug-in card contains two channels (1x RS 232 and 1x RS 422/485) which can be used simultaneously and
largely independently. The RS 422/485 interface is galvanically isolated. Max. 3 PR 5510/04 cards (Slot 1 ... 3)
can be plugged in. The relevant interface parameters are adjustable in
-[Serial ports parameter], whereby
the RS 422/485 requires additional settings of DIL switch S101.
Internal connection:
Number of channels:
Type:
Transfer rate:
RS 232C (V24) signals:
RS 422/485 signals:
Potential isolation:
Cable length:
34-pole connector socket
1x RS 232, 1x RS 422/485
RS 232
full duplex
RS 422/485 full duplex (4-wire) *
RS 485
half duplex (2-wire) *
300 to 9600 to 19k2 bits/sec
output: TXD, RTS, DTR
input: RXD, CTS, DCD, RI
TxA, RxA, TxB, RxB
RS 232 no, RS 422 / 485 yes
max. 15m with RS 232
max. 1000 m with RS 422 / 485
Cable type:
twisted pairs, screened
(e.g. LifYCY 3x2x0,20),
1 conductor pair for GND.
External connection:
Accessories (delivered
with the unit):
Dimensions: (LxWxH):
Weight:
2x D-Sub 9-pole socket (female)
2x connector counterpart D-Sub
9-pin (male)
incl. screening hoods
86 x 52 x 15 mm
33 g
3.4.10.1 PR 5510/04 - RS232
The RS 232 is independent of the S101 switch settings.
It can be used only as point-to-point connection. A max. cable length of 10-15m must not be exceeded,
otherwise, RS 422/485 must be selected.
For connection to a PC, RS232/RS485 converters as externals unit or plug-in PC cards are available
commercially.
PR 5510/04 is provided as an equivalent to the [Builtin] interface in the RS 232 channel, however, with
additional signals DCD, DTR, RI.
Builtin and PR 5510/04 comply with the standard pin allocation, i.e. they are equal in the following connecting
diagrams. Accordingly, the RS232 connections are described only for the builtin interface in this manual (see
chapter 3.3.7).
Sartorius
35
Installing instrument and plug-in cards
Combics Pro Installation Manual
3.4.10.2 PR 5510/04 RS422/485
When mounting, the RS 485/422 interface must be configured by DIL switch S101 on the card.
Using the RS 485 is compulsory with a multi-point connection (tristate status). The RS 485 can be used also for
point-to-point connection. Like 2-wire or 4-wire, this is dependent on the other communicating units.
2-wire is a half-duplex connection, which cannot send and receive simultaneously. It requires corresponding
driver programming (see relevant instrument manual).
Factory setting
Switch S101
1: Tristate enable:
Settings for RS 422/ 485
OFF - RS 422
ON - RS 485
2:
3:
4:
5:
OFF – 4-Draht
OFF – not connected
OFF – not connected
OFF – not connected
ON – 2-wire
ON - (RxB 1k54 +V)
ON - (RxA 205E RxB)
ON - (RxA 1k54 -V)
Rx enable
Rx pull-up resistor:
Rx bus termination:
Rx pull-down resistor
Survey which switches must be closed (ON) for which mode:
Other slaves
Two-wire system
Point to point
RS 485
1, 2, 3, 4, 5 = on
RS 485
1, 2 = on
-
Last slave
-
S101
Master
Individual slave
36
Bus
RS 485
1, 2, 3, 4, 5 = on
RS 485
1, 2 = on
RS 485
1, 2, 3, 4, 5 = on
Four-wire system
Point to point
RS 422
4 = on
RS 422
4 = on
-
Bus
RS 422
3, 4, 5 = on
RS 485
1 = on (default)
RS 485
1, 3, 4, 5 = on
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
3.4.10.3 Connection of a PR 1627 remote display via RS 485
Four-wire transmission, point to point, full duplex (simultaneous sending and receiving possible)
with PR 1627/00 remote display.
Configuration:
-[Serial ports parameter]-[Remote display]-Slot1/2/3-RS 485
3.4.10.4 RS 422 Point-to-point connection (four-wire)
Four-wire transmission: full duplex (simultaneous sending and receiving possible)
RS 422 can be used exclusively for point-to-point connection.
Configuration:
Sartorius
-[Serial ports parameter]-[.........]-[Slot1/2/3-RS 485]
37
Installing instrument and plug-in cards
Combics Pro Installation Manual
3.4.10.5 Connection of several PR 1627 remote displays via RS 485
Connection of several PR 1627 remote displays via RS 485, four-wire, full-duplex (simultaneous sending and
receiving possible):
38
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
3.4.10.6 Connection of an xBPI platform (weighing module) via RS485
Connection of a platform with xBPI protocol is possible via interface PR 5510/04 RS 485.
Set in -[Serial ports parameter]-[xBPI-Port 1/2]-[Slot 1/2/3 RS485]-[Param] the [Baudrate] and [Stopbits]. The
other parameters are fixed.
For additional information, see the manual of the platform scale.
3.4.10.7 Connection of an xBPI terminal via RS485
A terminal with xBPI protocol can be connected via interface PR 5510/04 RS 485.
Set in -[Serial ports parameter]-[xBPI-Port 1/2]-[Slot 1/2/3 RS485]-[Param] the [Baudrate] and [Stopbits].
The remaining parameters are fixed.
Additional information is given in the terminal manual.
Sartorius
39
Installing instrument and plug-in cards
Combics Pro Installation Manual
3.4.11 PR 5510/07 Analog input/output card
The plug-in card with 15-pole D-Sub socket for the analog channels is designed as 1 analog output (active)
and 4 analog inputs. The plug-in card is mounted mechanically in a cut-out on the rear and inserted into Slot
1 ... 3 on the main board by means of the flat cable.
Internal connection: 34-pole connector socket on flat cable
for Slot 1 ... 3
Number of outputs: 1 active current output: 20mA, 10V
output voltage via external 500 Ohm
resistor
gross / net / display following or
Output
dependent on the application
signification:
0/4 ... 20mA, configurable
Output range:
Output resolution: 16 bits binary,
20,000 internal counts @ 20 mA
@ 0 - 20mA: 0.04 %
Output
@ 4 - 20 mA: 0.02 %
linearity error:
Output temperature < 100 ppm/K
effect:
0.05 %
Output zero error:
Output Max error: < 0.1 %
max. 0 ... 500 Ohm
Load:
External connection: 15-pole D-Sub socket (female)
Dimensions:
(LxWxH):
Weight:
86x53x16mm
Accessories:
15-pole D-Sub connector
Inputs:
4 channels current or voltage input
0 ... 20 mA, input resistance 250 Ohm
0 ... 10 V, input resistance 100 kOhm
0 ... 5 V, input resistance >10 MOhm
3,000 internal counts according to e.g. 0 20 mA / 0 ... 10 V
0.2 %
40g
Input resolution:
Input accuracy:
Input,
linearity error:
Input
Temperature effect:
Input, reserve:
Potential isolation:
< 0.03 %
< 50 ppm/K
+- 15%, i.e. –1.5V ... +11,5V
Output yes, inputs no
The analog input has 4 channels with common GND without galvanic isolation between internal and external
electronics.
The card can be used only, provided that it is supported by the application program or by a special program
(written in IEC 61131). Only one card PR 5510/07 can be installed.
40
Sartorius
Combics Pro Installation Manual
Input channel
Current
0...+ 20mA DC
Voltage
0...+ 10V DC
Voltage
0...+ 5V DC
S201
CH1
CH2
CH3
CH4
----
ON
ON
ON
ON
----
OFF
OFF
OFF
OFF
----
OFF
OFF
OFF
OFF
----
S202
Analog input
Signal selection
Installing instrument and plug-in cards
CH1
CH2
CH3
CH4
----
OFF
OFF
OFF
OFF
----
ON
ON
ON
ON
----
OFF
OFF
OFF
OFF
----
250 Ohm
100 kOhm
> 10 MOhm
Input resistance
Pin allocation of rear socket (for installation, see chapter 3.4.1)
D-Sub 15
Input (PIN)
4 channels
2
+ CH1
Output (PIN)
1 channel
13
I+
Sartorius
9
GND
3
+ CH2
10
GND
4
+ CH3
11
GND
5
+ CH4
12
GND
14
I – GND (ext.)
41
Installing instrument and plug-in cards
Combics Pro Installation Manual
3.4.12 PR 5510/08 BCD output (open emitter)
The plug-in card is used for BCD-coded output of a weight value (5 decades + polarity sign) or as a digital IO
card (1x input / 24x output). The setting must be done in the relevant application.
-
BCD: Cyclical output of the 5-decade weight value is as a gross / net / tare / weight display following with
4-bit corresponding status (polarity sign, stability, error). The value is consistent in itself and its output
can be free running or held (frozen) by digital input DATA_IN.
-
digital: cyclical 24-bit output with a 1-bit input.
With IEC 61131 special programming, the card can be used also for output of other variables to external units
or controllers or as a parallel PLC interface.
Internal connection:
Number of outputs:
Number of inputs:
Output stage:
External supply:
Voltage drop:
Output current:
Enable input:
Cable:
Potential isolation:
External connection:
X102
Dimensions:
(LxWxH):
60x106x22
Weight:
55 g
Accessories (delivered
with the unit):
34-pole connector socket on flat cable
for Slot 1 ... 3
5 digits BCD + polarity sign or 24 bits
binary
input: 1 bit (DATA IN)
common collector at +Uext.,
open emitter
+5 V ... +24 V, max. 32 V
approx. 1.7 V
max. 50 mA
5 V / 24 V adjustable via S101
@ 5 V high > 3.1 V, low < 1.5 V
@ 24 V high > 16 V, low < 10V
protected against wrong polarity
screened, max. 50 m
no
D-Sub 26-pole socket (female)
D-Sub 26-pole (male) connector
counterpart
incl. screening hood
Before installing the card, set switches S101 and S102.
Insert the connector socket into Slot 1, 2 or 3 and mount the holding plate in the corresponding cut-out on
the rear.
The card can be used only if supported by the application program or by a special program (written in
IEC 61131).
42
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
External supply voltage required: PIN 1 - Uext, reference potential PIN 26 – GND
Sartorius
43
Installing instrument and plug-in cards
Combics Pro Installation Manual
Outputs
The PR 5510/08 outputs (PIN 2 … 24) work with common supply voltage at the collector as reference potential
and open emitter outputs. A non-activated output is of high impedance, and a voltage by approx. 1.7 V lower
than the supply voltage is applied to an active output.
The load to be connected is applied between the output (PIN 2 … 24, 25*) and GND (PIN26).
Input
Alternatively, the input (Pin 25) can be OUTPUT, according to DIL-switch S101-1, 2).
The signification of switches is given in the table in chapter 3.4.13.
PR 5510/08 pin allocation (dependent on application):
Configured as a BCD output for weight value
Configured as a single bit output
Output circuitry
3.4.12.1 Output modes
The output modes are identical with card PR 5510/08, see chapter 3.4.13.1
44
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
3.4.13 PR 5510/09 BCD output (open collector)
The plug-in card is used for BCD coded output of a weight value (5 decades + polarity sign) or as a digital IO
card (1x input / 24x output). The setting has to be done in the relevant application.
-
BCD: Cyclical output of the 5-decade weight value is as a gross /net / tare / weight display following with
4-bit corresponding status (polarity sign, stability, error). The value is consistent in itself and its output
can be free running or held (frozen) by digital input DATA_IN.
-
digital: cyclical 24-bit output with a 1-bit input.
With IEC 61131 special programming, the card can be used also for output of other correcting variables to
external units or controllers or as a parallel PLC interface.
Internal connection:
Number of outputs:
Number of inputs:
Output stage:
External supply:
Voltage drop:
Output current:
Enable input:
Cable:
Potential isolation:
External connection:
X102
Dimensions:
(LxWxH):
60x106x22
Weight:
55 g
Accessories (delivered
with the unit):
34-pole connector socket on flat cable
for Slot 1 ... 3
5 digits BCD + polarity sign or 24 bits
binary
input: 1 bit (DATA IN)
common emitter at GND,
open collector
+5 V ... +24 V, max. 32 VDC
approx. 1.7 V
max. 50 mA
5 V / 24 V adjustable via S101
@ 5 V high > 3.1 V, low < 1.5 V
@ 24 V high > 16 V, low < 10V
protected against wrong polarity
screened, max. 50 m
no
D-Sub 26-pole socket (female)
D-Sub 26-pin (male) connector
counterpart
incl. screening hood
Insert the connector socket into Slot 1, 2 or 3 and mount the holding plate in the corresponding cut-out on
the rear.
After installation, set switches S101 and S102.
The card can be used only if supported by the application program or by a special program (written in
IEC 61131).
Sartorius
45
Installing instrument and plug-in cards
Combics Pro Installation Manual
External supply voltage is required: PIN 1 - Uext, reference potential PIN 26 – GND
46
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
Outputs
PR 5510/09 outputs (Pin 2 ... 24) work with common GND as a reference potential and open collectors. A nonactivated output is of high impedance, a voltage by approx. 1.7 V lower than the supply voltage is applied to
an active one.
The load to be connected is applied between the collector (PIN 2 … 24,25*) and Uext (PIN 1).
Input
Alternatively, the input (Pin 25) can be also OUTPUT, according to DIL switch S101-1, 2).
When using DATA_IN as an input, the 23 outputs are controlled. Its function for the output data is “free
running/hold/tristate“ and it is TTL/24V active (high/low) signal configurable additionally. It is applied to Pin 25
– DATA_IN of the 26-pole connector and is effective only with DIL switch S101-2 = ON.
DATA_IN can be used also as a “normal“ digital input in the pre-selected digital mode.
Signification of switches S101 and S102
Fact. sett.
As OUTPUT
As INPUT
TARED
DATA_IN
When INPUT
DATA_IN
5V
When INPUT
When INPUT
DATA_IN
DATA_IN
5V
24V
When INPUT
Free-wheel
diode*
Free-wheel
diode*
DATA_IN
internal
24V
Active
HIGH
Active LOW
Active
HIGH
Active LOW
S101
-1
-2
-3
-4
-5
for:
OU
IN
Level
Level
Dio
de
Pin 25
Pin 25
ON
OFF
OFF
ON
x
x
x
x
Pin 25
OFF
ON
ON
ON
x
Pin 25
Pin 25
OFF
OFF
ON
ON
ON
OFF
OFF
ON
x
x
Pin 25
OFF
ON
OFF
OFF
x
ON
internal
OFF
*Only with PR 5510/09
S102
Fact. sett.
for:
Pin25 OUTPUT
TARED
Pin25 INPUT
DATA_IN
DATA_IN
DATA_IN
-1
-2
-3
Funct Funct Funct
ion
ion
ion
-4
-5
-
-
follow
follow
Pin 2…24
OFF
OFF
OFf
x
x
follow
tristate
tristate
hold
follow
hold
Pin 2…24
Pin 2…24
Pin 2…24
OFF
ON
ON
OFF
ON
ON
ON
OFF
ON
x
x
x
x
x
x
passive
active
Combination: output=input (S101-1 ON and S101-2 ON) is not permitted!
Signal level:
DATA IN (PIN25)
high
low
high
low
Sartorius
5 V mode
5 V mode
24 V mode
24 V mode
Logic level
> 3.1 V
< 1.5 V
> 16 V
< 10 V
I input
0.5 mA
0.3 mA
1.0 mA
0.5 mA
47
Installing instrument and plug-in cards
Combics Pro Installation Manual
PR 5510/09 connector, pin allocation (dependent on application):
Configured as a BCD output for weight value
Configured as a single bit output
Output circuitry
48
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
3.4.13.1 Output modes
In all modes, the data are output during each PLC cycle (IEC 61131 application).
Mode 1 : Continuous data output (follow), no DATA_IN:
Continuous output of consistent data, free running without request, e.g. for remote display.
-
The driver modules are always “enabled“
PIN25 is IEC 61131 application output
Mode 2: Data output on external request DATA_IN (hold):
Output of consistent data in "held" condition on request, otherwise free running.
- As long as DATA_IN is active, the last output value remains held.
- the driver modules are always “enabled“
- PIN25 DATA_IN is Data-hold (level S101-3, polarity S101-4, dependent on
application)
Note:
The internal data storage (data change) in the output memory may occur at the instant when the external
request signal changes from "Data Hold" to "Data valid". This means the reading instrument must wait another
100 µs, until the data may be considered as valid.
Mode 3 : Parallel_BUS system (tristate), external request DATA_IN (hold):
Parallel connection of n PR 5510/09 cards, controlled via the DATA_IN (tristate/hold) input.
Output of the consistent data in "held" condition on request, otherwise tristate (high-impedance).
- As long as DATA_IN is active, the last output value remains held.
- The driver modules are enabled (not tristate) only, when DATA_In (hold) is
active.
- PIN25 DATA_IN is Data-enable+hold (level S101-3, polarity S101-4,
dependent on application )
Mode 4 : continuous single bit output (23xDA), DATA_IN (1xDE):
Continuous bit output, free running without request (1xIN, 23xOUT, configurable).
-
The driver modules are always enabled
PIN25 is IEC 61131 application input
Mode 5 : Continuous single bit output(24xDA), no DATA_IN:
Continuous bit output, free running without request, e.g. application IO interface (24xOUT, configurable).
-
Sartorius
The driver modules are always enabled
PIN25 is IEC 61131 application output
49
Installing instrument and plug-in cards
Combics Pro Installation Manual
3.4.14 PR 5510/12 6 optocoupler inputs / 12 optocoupler outputs
The card converts the external binary process signals into the internal signal levels and vice versa.
12 digital outputs for process control, galvanically isolated with passive opto-coupler outputs (max. 25 mA),
each with 2 poles potential-free.
6 digital inputs for process control, galvanically isolated via optocouplers, each with two poles potential-free.
The input signal is logic "0" with open input.
Internal connection:
Number of inputs /
outputs:
Input signal:
Input current:
Output:
Potential isolation:
Cable:
Accessories (delivered
with the unit):
External connection:
Dimensions: (LxWxH): 60 x 106 x 22
70 g
Weight:
Accessories:
34-pole connector socket for Slot 1, 2, 3
inputs: 6 , outputs: 12
low: 0 ... 5 VDC or open
high: 10 ... 31 VDC
passive, external supply required
< 7 mA @ 24 V
< 3 mA @ 12 V
protected against wrong polarity
max. switching voltage: 32 VDC
max. switching current: 25 mA
voltage drop @ 25 mA: 3 V
protected against wrong polarity
passive, externe supply required
yes, via optocoupler
screened, max. 50 m
1 connector counterpart DB37 (male)
incl. screening hood
D-Sub 26-pole socket (female)
PR 1623/10 4m connecting cable
PR 1623/20 relay output terminal unit
Insert the connector socket into Slot 1, 2 or 3 and mount the holding plate in the corresponding cut-out on
the rear.
The card can be used only, when supported by the application program or by a special program (written in
IEC 61131).
50
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
Passive: External supply voltage required (IO channels potential-free, no common reference)
Sartorius
51
Installing instrument and plug-in cards
Combics Pro Installation Manual
Output circuitry
Input circuitry
Addressing
The card must be supported by an application program.
E.g.:( -[CONFIG] input/output config ...), the displayed address corresponds to internal socket: SLOT n ,
whereby 1, 2, 3 is possible. It is displayed automatically -[IO-SLOTS] after detection of the card (cold start).
In the application-dependent SETUP-CONFIG, the corresponding IO channels are e.g. provided with numbers
from:
no.1…6 for inputs and no.1 ... 12 for outputs
52
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
Circuit diagram PR 5510/12 – PR 1623/10 –PR 1623/20 relay:
Sartorius
53
Installing instrument and plug-in cards
Combics Pro Installation Manual
Circuit diagram PR 5510/12 – PR 1623/10 –PR 1623/30 terminals
54
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
3.4.15 PR 1721/31 Profibus interface
Profibus interface PR 1721/31 is a plug-in card for mounting in Slot 4, see chapter 3.3.1. Communication
protocols and syntax comply with the Profibus-DP bus standard.
The card includes powerful Profibus DP connection circuitry to standard IEC 61158 with chip ASIC SPC3 and
transfer rates up to 12 Mbits/s.
Internal connection: 34-pin connector on flat cable for Slot
4
External connection: 9-pole D-Sub socket in support plate
Transfer rate:
Connection mode:
Protocol:
Transport:
Cable:
Cable impedance:
Bus termination
Certificates:
Dimensions (LxWxH): 87 x 55 x 15 mm
125 g.
Weight:
Potential isolation:
Cable length:
9.6 kbits/s up to 12 Mbits/s,
Baudrate auto-detection
Profibus network,
Connections can be made/released
without affecting other stations
PROFIBUS-DP-V0 SLAVE
to EN 50 170 (DIN 19245),
Mono or multi-master systems are
supported. Master and slave devices,
max. 126 nodes possible.
Watchdog timer
EIA RS 485 , Profibus DIN 19245 Part 1
Profibus “special“, colour: violet
twisted two-wire cable, screened
150 Ohm
can be activated externally via DIL
switch
Profibus test centre Comdec in
Germany and PNO (Profibus User
Organisation). Suitable for industrial
applications to CE, UL and cUL
Optocoupler in line A and B (RS 485)
Max. distances 200m can be extended
with 1.5 Mbits/s by means of additional
“Repeater“
Ensure that the two rotary switches are set to position 0.
The terminating resistors can be switched ON and OFF by pressing switch
.
Connecting diagram for a master with three slaves
Sartorius
55
Installing instrument and plug-in cards
Combics Pro Installation Manual
3.4.16 PR 1721/32 Interbus interface
The Interbus interface PR 1721/32 is a plug-in card for installation in Slot 4, see chapter 3.3.1.
The interface is based on the Interbus chip technology of the Phoenix Contact company permitting transfer
rates of 500kbits/s and 2Mbits/s.
Internal connection: 34-pin connector on flat cable, only for
Slot 4
External connection: Standard IBS 9-pole D-Sub socket OUT
and D-Sub connector IN in holding
plate
Bus In
Bus Out
Transfer rate:
Topology:
Protocol:
Transport:
Cable:
Cable impedance:
Lead termination:
Certificates:
Dimensions (LxWxH): 87 x 55 x 15 mm
125 g
Weight:
With Bus OUT
,
Potential isolation:
Cable length:
500 kbits/s or 2 Mbits/s, selectable
Bus as a closed ring
INTERBUS-S master-slave
fixed telegram length, deterministic
cyclical process data transmission with
max. 10 words I/O.
EIA RS 422, cable-bound
Interbus, colour: green
3x2 twisted pairs, common screen
150 Ohm
Not required, because active ring
By INTERBUS CLUB e.V.: Compatibility
with Interbus standard
IEC 61158 (Parts 3 to 6)
EN 50254 (DIN 19258)
Suitable for industrial applications CE,
UL & cUL
Yes, optocoupler and DC/DC converter
400m (between two remote bus sharing
units) Overall length: 13 km
the link across 5 and 9 must be fitted, if another slave follows.
Connecting diagram for a master with three slaves
56
Sartorius
Combics Pro Installation Manual
Installing instrument and plug-in cards
3.4.17 PR 1721/34 DeviceNet interface
DeviceNet interface PR 1721/34 is a plug-in card for installation in Slot 4, see chapter 3.3.1. It is a complete
DeviceNet adaptor (SLAVE) with CAN controller and transfer rates up to 500kbit/s.
Internal connection:
External connection:
Transfer rate
Topology:
Protocol:
Transport:
Configuration:
Certificates/
conformity:
Cable:
Dimensions (LxWxH): 87 x 55 x 15 mm
125 g
Weight:
Cable impedance:
Bus termination:
Bus load:
Potential isolation:
Ensure that DIP switches 1- 8
34-pin connector on flat cable, only for
Slot 4
5-pole screw terminal block (plug-in)
in holding plate
125, 250 and 500kbits/s
Parallel bus
DeviceNet master slave
Polling method (polled IO)
CRC error detection
to IEC 62026 (EN50325)
max. 64 station nodes
Max. data width 512 bytes input&output
EIA RS 485
EDS file (PR 1721/34- specific)
MAC-ID (1…62)
Compatible with DeviceNet specification
Vol 1: 2.0, vol 2: 2.0
ODVA certificate according to conformity
test software version A-12
Suitable for industrial applications CE, UL
& cUL
DeviceNet, colour: petrol-green
2x2 twisted pairs, screened
150 Ohm
120 Ohm at the cable ends
33mA
Yes, optocoupler and DC/DC converter
are set to ON.
Connecting diagram for a master with three slaves
Sartorius
57
Installing instrument and plug-in cards
Combics Pro Installation Manual
3.4.18 PR 5510/14 Ethernet TCP/IP
Ethernet interface PR 5510/14 is a plug-in card for installation in Slot 4, see chapter 3.3.1. The card is fitted
with a standard RJ-45 socket for Ethernet connection.
It contains powerful TCP/IP and ModBus TCP connecting circuitry with transfer rates of 10 and 100Mbits/s.
Mechanical mounting is done preferably in cut-out 4 on the rear. For connection, the flat cable must be
inserted into Slot 4 on the main board.
Internal connection:
34-pin connector on flat cable for Slot-4
External connection: RJ-45 connecting socket
Transfer rate:
Connection mode:
Protocol:
Transport:
HMS certificates:
Dimensions
(LxWxH):
Weight:
87 x 55 x 15mm
in holding plate
10Mbits/sec (10BaseT , Ethernet) and
100Mbits/sec (100BaseTx, Fast Ethernet)
Auto-detection (10/100, HalfDX/FullDX)
Network
ModBus/TCP
TCP/IP or UDP/IP
compatible with ModBus-TCP standard of
ModBus organization
suitable for industrial applications CE, UL,
cUL
Twisted pairs, screened
Cable:
e.g. patch cable CAT5
dependent on straight/cross-over
application
150 Ohm
Cable impedance:
Cable length to HUB: Max. 30 m
Yes
Potential isolation:
125 g
PR 5510/14 cannot be used, if another option is already fitted in SLOT-4.
Application:
- ModBus TCP Slave (as a fieldbus interface)
58
Sartorius
Combics Pro Installation Manual
Commissioning
4 Commissioning
Front panel key signification and operating concept are explained in chapter 2.3.
4.1
Data back-up / power failure
The calibration data and parameters of the internal weighing electronics as well as general configuration and
interface data are stored in a non-volatile (EAROM) memory. For calibration data and parameters as well as
programs, additional write protection (CAL switch, see chapter 4.1.1) is provided. The alibi memory is a
separate memory, which is energized by the back-up battery in case of disconnection from the supply
voltage.
The overall working memory with the database content is dumped in a data FLASH in case of voltage sags or
disconnection from the supply voltage, i.e. it is stored permanently. After power recovery, all data are loaded
again from the data FLASH into the working memory and the unit changes to the display status as before
failure. Batch programs are stopped.
4.1.1
CAL switch
Up to 4 CAL switches are located on the instrument rear. CAL switches 1 and 2 are always provided. Dependent
on equipment, switches A and B, which are located beside the connectors for weighing electronics PR 5800/10
can be fitted. The exact function of the individual switches is given in the table below.
Generally, we recommend setting the switches into the active position (+) after calibration to prevent
accidental overwriting / data loss. If necessary (e.g. loading of a new program), the relevant CAL switch can be
opened (no write protection, position (o)).
With legal for trade applications, the CAL switches must be sealed in the active position.
Write protection active
No write protection
CAL switch
Signification write protection active
A
B
1
Change of calibration data and parameters of weighing electronics A is prevented.
Change of calibration data and parameters of weighing electronics B is prevented.
Change of allocation of weighing electronics to logic weighing points and change of
parameters for liquid / user / XBPI scales are prevented.
Flashing BIOS and firmware, see chapter 4.1.2 , as well as Erase (in the BIOS menu) are
prevented.
Change of application data is prevented (dependent on application), i.e. application data
which are saved in EAROM cannot be overwritten.
2
The position of the CAL switches can be displayed with
Sartorius
-[Show status].
59
Commissioning
4.1.2
Combics Pro Installation Manual
Flashing of application programs not mandatory for verification
If the CAL-switch 1 is closed ( sealed in legal for trade mode ) application programs not mandatory for
verification can be flashed and programs or functions already contained in the instrument can be activated via
license numbers. The license for ALIBI memory is essential. The activation of programs or functions is recorded
by the AUDIT-function and can be read-out.
The download (flashing) of programs not mandatory for verification is only possible by means of the program
tool FlashIt, which is delivered by Sartorius. The generation of these programs is only posible with the
programming tool PR 1750 which can be ordered at Sartorius.
Menu is reached via
- licence:
Setup/License
Boardnumber
Alibi memory
OPC-Server
Batching
Application number
( changes left
Add
Remove
192752895
Has to be activated
0
14 )
Audit
If the ALIBI function has not been activated yet: Press [Add] and enter the 7-digit license number, which has
been purchased for the corresponding instrument.
With [Audit] the recorded changes ( max. 15, as long as the CAL-switch 1 is closed) are shown:
Setup/License/Audit-Trail
2006-11-09- 13:11 OPC-Server added
Reset
The function [Reset] can only be accessed if the CAL-switch 1 is in the open position.
60
Sartorius
Combics Pro Installation Manual
4.2
Commissioning
Switching on the instrument
The instrument can be taken into operation via front-panel keys, via an external PC keyboard, via a PC with
programm VNC or an Internet explorer. At the first switching on or if plug-in cards were changed (position,
adding or removal), a cold start with [2 Coldstart] is required and date and time must be set.
4.2.1
BIOS menu
If the instrument is not in a regular status, the BIOS-Menu can be reached by:
- Buttons
have to be pressed simultaneously for approx. 6 s or
- Instrument for 1 minute to be cut from mains, keep button
pressed and switch it on again.
Normally the menu is called by
[System functions]- [Shutdown & call BIOS] :
CAL switch 1 open
CAL switch 1 closed
==== BIOS MENU ====
1 Warmstart (continue from powerfail)
2 Coldstart (reset application data)
3 Restore (load application data)
4 Erase (reset to factory settings)
5 Test (systemtests)
6 Flash (enter flash setup)
==== BIOS MENU ====
1 Warmstart (continue from powerfail)
2 Coldstart (reset application data)
3 Restore (load application data)
4 no erase (CAL switch 1 closed)
5 Test (systemtests)
6 no flash (CAL switch 1 closed)
INFO Show versions
INFO Show versions
The following items can be selected:
[1 Warmstart]: Warm start – all data remain unchanged, behaviour as after power failure
[2 Coldstart]: Cold start – the working memory (RAM) including database is deleted. 'Savesets' (loaded
programs (BIOS, firmware, application) stored in the program FLASH remain unchanged. Interface
configuration, calibration data and parameters remain unchanged (also with the CAL switch open). The plug-in
cards fitted in Slot 1-4 are detected.
[3 Restore]: Restoring of application data, selection from max. 6 previously stored data sets (3 sets stored via
[Shutdown] and 3 sets stored via [Backup application data]).
[4 Erase]: With Erase, max. 5 possibilities dependent on the installed cards are offered, with the advantage
that only selected memories are reset to default:
[1] The overall data FLASH memory is deleted.
[2] The data in the alibi memory are deleted (application must support the alibi memory).
[3] Calibration data and parameters of weighing electronics A are set to default.
[4] Calibration data and parameters of weighing electronics B are set to default.
[5] The configuration data are set to default.
[5 Test]: Menu for hardware tests
[6 Flash]: Loading of new software (BIOS, firmware, application)
With CAL switch 1 closed, flash is not possible. See also chapter 4.3.8.
[INFO Show versions]: display of existing program version
Sartorius
61
Commissioning
4.2.1.1
Combics Pro Installation Manual
Test menu
In the BIOS menu, the test menu can be activated with [5 Test].
==== SYSTEM TEST ====
Each key can be tested and marked individually
RGB, mixed colours, colour range S/W tests
Working memory test
Checksum test for Flash PROM
1 Keypad
2 Display
3 RAM
4 ROM
EXIT Return to BIOS MENU
4.3
Operating concept commissioning
Instrument configuration and operation are possible via the front-panel keypad (function keys, navigation keys
and softkeys), via an external PC keyboard (see chapter 3.3.5 ) or via a PC with program VNC / Internet explorer
(see chapter 4.3.1).
The sections for calibration of the internal weighing electronics and configuration can be selected directly by
pressing function key Setup . Information on the installed hardware (additional cards), programs and
instrument status can be displayed with .
4.3.1
Operation via program VNC
VNC stands for 'virtual network computing' and is a program for remote operation of computers.
VNC server and VNC client (viewer) are distinguished. The server program is part of the Combics Pro software.
The client program (viewer) must be installed and started on the PC intended for operation.
When starting the program on the PC, the IP address (extended by :1) of the built-in LAN adaptor must be
specified, e.g. 172.24.22.170:1 .
The address of the controlling PC must be enabled in the instrument, see chapter 4.9.8 .
4.3.2
Operation via Internet explorer
PR5800-WEIGHUDO
> Indicator
> Logfiles
> VNC
> Upload language files
> Browse Database
> Browse Alibi Memory
> Screenshot
> Configuration Printout
When the instrument is connected with a PC / network via the
LAN adaptor, instrument operation by means of the Internet
explorer is possible.
The address (or the area) of the controlling PC in the instrument
must be enabled, see chapter 4.9.8 .
With the Internet explorer, the [IP address] in [Network
parameter] must be filled in.
Example: http://172.24.22.170, the following text appears on
the monitor:
(The header line corresponds to the device name specified in
[Hostname]:
With [Indicator], the weight displays are shown with the
relevant function keys repetition rate approx. 2 s):
Example: scale A, gross weight 2629 kg
[VNC] instrument operation via VNC without additional installation of VNC
[Browse Alibi Memory] display of the alibi memory
[Screenshot] device display, is not updated automatically
[Configuration Printout] Configuration data print-out
62
Sartorius
Combics Pro Installation Manual
4.3.3
Commissioning
Function INFO
After pressing , the program versions and status messages contained in the instrument can be displayed. Key
has also other functions, see chapters 4.5.3.1 and 4.5.11.
Info
Show version
Show status
Show HW-slots
Browse alibi memory
Search the alibi memory, for function and
operation, see application manual.
After selection of [Show version], the installed programs are displayed:
Info/Version
Firmware
Rel. 00.01.02
2005-08-02 10:50
Rel. 00.01.02.1580
2005-06-02 10:50
Bios
Firmware release and creation date
BIOS release and creation date
After selection of [Show status], instrument statuses are displayed:
Info/Status
Free system RAM
Free file memory
Free database memory
Fragmentation
Clock battery
Temperature
Accu status
Accu charge
Cal-Switch A/B
Cal-Switch 1/2
Builtin RS232
Last powerfail
2992 of 13104 kb
425 of 475 kb
1536 of 1536 kb
1 blocks largest is 1536 kb
ok
31.25 °C
ok
inactive
closed/opened
opened/opened
no signal
2006-03-08-23:59:59
(low, when voltage too low)
accumulator temperature
(low, when voltage too low)
accumulator charge
(B is displayed only, when a PR 5800/10
is installed in Slot B )
Check of receive line
After selection of [Show HW-Slots], the installed plug-in cards are displayed:
Info/HW-Slots
Slot
Slot
Slot
Slot
Slot
Slot
1
2
3
4
A
B
PR 5510/04
PR 5510/04
PR 5510/08
PR 1721/31
PR 5800/10
When selecting the PR 5800/10 with
Sartorius
Builtin RS 232
RS 485/232
RS 485/232
BCD out
Profibus-DP
Scale-ADC
-empty-
([empty], unless a PR 5800/10 is installed)
, factory serial number and adjustment date are displayed:
63
Commissioning
Combics Pro Installation Manual
4.3.3.1 Alibi memory
The use of the alibi memory requires:
- Support by the application of the instrument (e.g. Basic)
- Purchase of the license for alibi memory
Activate alibi memory
Activation of the alibi memory is done in menu [Setup]-[License settings] by entering the license number
belonging to the instrument.
Setup/License
Board number
Alibi memory
OPC-Server
Batching
Application number
Add
192734308
0
Remove
With [Add] the 7 digits license number (instrument specific) for the alibi memory has to be entered.
Read out alibi memory
With key
-[Browse alibi memory] the stored data sets can be viewed.
Info/Browse alibi memory
Year
2007 ( 2321) Data sets per year
Month
9 ( 217) Data sets per month
Day
5 (
13) Data sets per day
Record
1/13 Current / number of data sets
Sequence number
4711
Date
2007-09-05
Time
11:56:45
Net weight
A
<111.33 kg>
+
-
+10
-10
Year, month and day can be selected.
With [+], [-], [+10] and [-10] the data set (stored at the selected day) to be shown can be incremented or
decremented.
A dataset is stored and shown with sequence number, date, time, scale (A, B, C, D), weight type, weight value
and unit.
64
Sartorius
Combics Pro Installation Manual
Commissioning
4.3.3.2 Modbus-TCP Master
With the Modbus-TCP master function the number of input and output channels can be increased.
The connection between Combics Pro and the I/O modules is established by the built-in Ethernet adapter, see
chapter 3.3.4 .
The connection between Combics Pro and the I/O
moduls must be clearly separated fom the house net!
If Combics Pro is connected to a PC and this PC is
connected to a further network, the PC must be
equipped with two network adapters (E1, E2).
At maximum 16 I/O blocks (e.g. Phoenix Contact ILB ETH 24) are supported. For inputs and outputs are
(depending on the application) up to 1024 bytes each (respectively 8000 bits) are available.
Info
Show version
Show status
Show HW-slots
Browse alibi memory
Modbus-TCP Master
With
-[Modbus-TCP Master] the connected modules and its activity is shown.
1
2
Info/Modbus-TCP Master
Phoenix Module 1
I/O Data active
Phoenix Module 2
Offline
Module name is defined in
the application
For the selected module (see example pos. 1) the following information is shown:
Info/Modbus-TCP Master/Module 1
Phoenix Module 1
172.24.22.158
I/O Data active since
2007-09-25-14:01
Connection counter
3
I/O cycles
727
Cycle time
0.05 s
Rd
HREGS 8000:
12AB
Wr
HREGS 8001:
CD34
Name and IP address of the module
No of connections
Cycles of current connection
Refresh rate for I/Os
Read
Write
In the example inputs with 16 bit are read (Rd) and Outputs with 16 bit are written (Wr), the status indication
of I/Os is done in HEX representation (e.g. 12AB).
Error information (see example pos. 2) at status [offline]:
Info/Modbus-TCP Master/Modul 2
Phoenix Module 2
172.24.22.157
Offline since
2007-09-25-15:01
Connection counter
0
Last error
Timeout
Sartorius
Name and IP address of the module
No of connections
No reply
65
Commissioning
4.3.4
Combics Pro Installation Manual
Function set-up
After pressing , the most important operating parameters can be adjusted. The instrument configuration is
dependent on provided application (licenses) and installed plug-in cards.
Calibration of the internal weighing electronics is in a simple dialogue. Compliance with the relevant
(verification) standards must be checked by the commissioner/ verification officer. To protect the calibration
against overwriting, close the corresponding CAL switch on the rear of the instrument. On legal for trade
instruments, the CAL witch must be sealed in closed position, see chapter 4.1.1.
4.3.5
Setup menu
- Serial ports parameter
- Console
- Printer
- Remote display
- JBUS/MOD-Bus
- xBPI-Port 1
- xBPI-Port 2
- Unused
- Param
- Change Date & Time
<none>, Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
<none>, Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
<none>, Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
<none>, Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
<none>, Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
<none>, Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
<none>, Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
Builtin RS232, Slot 1 .. 3 RS485, Slot 1 ... 3 RS 232
Assigned to, Protocol, Baudr., Bits, Parity, Stopbits,
Date and time )
- Operating parameter
- Display language
- PS/2 Keyboard
- Tare key
- Set zero key
- Software download
- Keyclick duration
- Fieldbus parameter
- PR 1721 protocol
- Network parameter
<Eglish>, Geman, French, Italian, Spanish
English QWERTY, German QWERTZ, French AZERTY, Italian, Spanish QWERTY
<tare & tare again>, tare & reset tare, disabled
<only when not tared>, reset tare on zeroset, disabled
<protected by setup>, always enabled
0 ms, 10, 20, 30, |<40>, 50, 100, 200, 400 ms
only if PR 1721/XX is fitted in Slot 4
Interbus-S, Profibus-DP, DeviceNet, see chapter 4.9.4
HW address (read only), Host name, IP address, Subnet mask, Default
gateway,
VNC-Client (access restriction)
- Weighingpoints
- Weighingpoint A
- Weighingpoint B
- Weighingpoint C
- Weighingpoint D
- Calib (for internal A/B)
66
none, internal A, liquid 1/2, user 1/2, xBPI-Scale 1/2, SBI-Scale 1/2
none, internal B, liquid 1/2, user 1/2, xBPI-Scale 1/2, SBI-Scale 1/2
none, A+B, liquid 1/2, user 1/2, xBPI-Scale 1/2, SBI-Scale 1/2
none, liquid 1/2, user 1/2, xBPI-Scale 1/2, SBI-Scale 1/2
New, Modify, Param, see chapter 4.3.6
Sartorius
Combics Pro Installation Manual
Commissioning
- Config (für liquid 1/2)
- W&M
- Max
- Scale interval
- Scale Weight /
- / Scale Counts
- Overload
- Min
- Update time
<none>, OIML, NSC, NTEP
0.000100 ...<3000>... 9999900 <kg>, t, lb, g, mg, oz
<1>, 2, 5, 10, 20, 50
weight per count(s)
<1 cnt> ... 65000 cnt
0 ... <9 d> ... 9999999 d
<0 d> ... 9999999 d
<0.1 s>, 0.2 ... 2 s
- Config (for user 1/2)
- W&M
- Max
- Scale interval
- Scale Weight /
- / Scale Counts
- Overload
- Min
- Update time
- SPM marker address
<none>, OIML, NSC, NTEP
0.000100 ...<3000>... 9999900 <kg>, t, lb, g, mg, oz
<1>, 2, 5, 10, 20, 50
weight per count(s)
<1 cnt> ... 65000 cnt
0 ... <9 d> ... 9999999 d
<0 d> ... 9999999 d
<0.1 s>, 0.2 ... 2 s
<32> ...255
- Config (for xBPI-Scale 1/2)
- W&M
- Tare timeout
- Update time
- Serial number
- SBN Address
- Setup (for xBPI-Scale 1/2)
<none>, OIML, NSC, NTEP
<0.1 s>, 0.2 ... 25 s
<0.1 s>, 0.2 ... 2 s
<0>, when >0, the serial number is checked
<0>, 1 ... 31, no bus operation with 0, otherwise up to 31 scales connected to
RS485
For xBPI set-up, see chapter 4.7.4
-Display settings
- Colour set
- Contrast a. Luminance
<daylight>, nightshade
With reset, contrast=50% and luminance=50% are set
-System functions
- Shutdown & Power off
- Backup application data
- Restore application data
- Shutdown & Call BIOS
- Remote configuration
- License settings
Sartorius
Shut down and stop processor
Save application data
Restore application data
Shut down and call up BIOS menu
Operate instrument with ConfigureIt
Display: board number, required for licenses
Enter license key, delete
67
Commissioning
4.3.6
Combics Pro Installation Manual
Calibration tree, internal
Weighingpoint A/B: internal
- Calib
Calibration of internal weighing electronics
- New
Span and deadload will be reset
- Max
- Scale interval
- Deadload at
- Max at
by load
- Calibrated at
- Sensitivity (µV/d)
- CalcTest
Exit calibration
- Modify
<Continue>, Cancel
0.000010 ...<3000>... 9999998 <kg>, t, lb, g, mg, oz
<1>, 2, 5, 10, 20, 50
<0.000000 mV/V> or [by load]
<1.000000mV/V> or [by load]
0.000010 ... 9999998 <kg>, t, lb, g, mg, oz
(only display)
(only display)
determine test value
Save or cancel changes
Only for small modifications/ set new deadload, otherwise [New]
see New
- Units
- Units
- Unit 2
- Unit 3
Additional mass units for display
1-3
kg, t, lb, g, mg, oz, display accuracy =, +1, +2, +3, -3, -2, -1
kg, t, lb, g, mg, oz, display accuracy =, +1, +2, +3, -3, -2, -1
- Param
- Measuretime
- Digital filter
- * Fcut
- Test mode
-W&M
- Stability time
- Stability range
- Tare timeout
- Zeroset range
- Zerotrack range
- Zerotrack step
- Zerotrack time
- Overload
- Minimum weight
- Range mode
- * Range limit 1
- * Range limit 2
5 ms, 10, 20, 40, 80, 160, <320>, 640, 960, 1280, 1600ms
<off>, bessel, aperiod., butterw., tscheby.
Cutoff frequency, only unless filtert 'off', 0.1 - 80.0 Hz
<Absolute>, relative
<none>, OIML, NSC, NTEP
0.01 s…<0.50 s> ... 2.0 s (range is dependent on Measuretime)
0.00 d ... <1.00 d> ... 10.00 d
0.1 s ... <2.5 s> ... 25 s, timeout due to instability
0.00 d ... <50.00 d> ... 10000.00 d
0.00 d ... <0.25 d> ... 10000.00 d
0.00 d ... <0.25 d> ... 10.00 d
<0.0 s> ... 25 s
0 d ... <9 d> ... 9999999 d
0 d ... <50 d> ... 9999999 d, minimum weight
<Single range>, multiple range, multi-interval
In weight, unit same as Max, transition from small to medium scale
interval, *only for multiple range or multi-interval
In weight, unit same as Max, transition from medium to high scale
interval, *only for multiple range or multi-interval
- Calib(when CAL switch closed)
68
- Max
- Scale interval
- Deadload at
- Max at
- Calibrated at
- Sensitivity (µV/d)
(only display)
(only display)
(only display)
(only display)
(only display)
(only display)
- Param
Items as in Param (only display)
Sartorius
Combics Pro Installation Manual
4.3.7
Commissioning
System functions
The system functions are accessible with
[System functions]:
Setup
Serial ports parameter
Change Date & Time
Operating parameter
Fieldbus parameter
Network parameter
Weighingpoints
Display settings
System functions
License settings
Press
and
to select [System functions]
Setup
Shutdown & Power off
Backup application data
Restore application data
Shutdown & Call BIOS
Remote configuration
[Shutdown & Power off] The application is shut down. Database, application settings and EAROM content
are stored as 'saveset' (data set) in the data flash with date, time and 'shutdown power off' identification. Max.
3 data sets for shut-down can be stored in the instrument. The processor is stopped. The instrument requests
disconnection from the supply voltage.
[Backup application data] Database, application settings and EAROM content are stored as 'saveset' (data
set) with date and time in the data flash. Max. 3 data sets for applications can be stored in the instrument. To
facilitate finding, an 18-digit alphanumeric text can be entered for a data set.
[Restore application data] Database, application settings and EAROM content of the selected 'saveset' (data
set) are restored from the data flash memory.
[Shutdown & Call BIOS] The application is shut down. Database, application settings and EAROM content
are stored as 'saveset' (data set) with date, time and identification 'shutdown to bios' in the data flash. Max. 3
data sets for shut down can be stored in the instrument. The instrument goes to the BIOS menu, see chapter
4.2.1.
[Remote configuration] Instrument parameter setting and calibration are possible via PC program
ConfigureIt. The PC is connected via the built-in LAN adaptor.
Memory types:
PROGRAMM FLASH
BIOS, firmware, application
RAM
Variables, Database
EAROM
CA , CONF data
SRAM
Alibi, settings
DATA FLASH
'savesets' (data sets)
Sartorius
69
Commissioning
4.3.8
Combics Pro Installation Manual
Loading new software
The instrument contains BIOS, firmware and an application software package (e.g. counting, checking,
totalizing). Program FlashIt!32 Rel 2.49 is required to load new BIOS and/or firmware and/or applications.
Normally, a new BIOS needs to be loaded only when requested by the instrument.
Loading of a BIOS must not be interrupted, because the loading program for FlashIt!32 is included
in the BIOS, otherwise, the instrument must be returned for repair.
•
Make the network connection between instrument and PC. With direct PC connection, use a CAT 5 crossover cable (see chapter 3.3.4 ).
•
•
Select [Shutdown & Call BIOS] in
Select menu item [6 Flash].
-[System functions] at the instrument. The BIOS menu appears.
==== BIOS MENU ====
1 Warmstart (continue from powerfail)
2 Coldstart (reset application data)
3 Restore (load application data)
4 Erase (reset to factory settings)
5 Test (systemtests)
6 Flash (enter flash setup)
**** Waiting for FlashIt ****
SETUP Enter network settings
C
Remove Application
EXIT Return to BIOS MENU
Flash : Waiting for FlashIt
INFO Show versions
•
•
Install program FlashIt!32 Rel. 2.49.01 on the PC.
Start FlashIt!32.
•
•
Set the network in [COM-Port]
Enter the instrument IP address.
•
Select BIOS or firmware or application file from the list in the
window [Select], press Flash.
When message [No communication, receive timeout] or [No prompt from device] is displayed, the causes may
be: faulty/incomplete address selected, connection of LAN cable between PC and instrument missing/faulty or
LAN cable does not meet the specification
During software loading, various status messages appear and the execution message is displayed on the
instrument, e.g. :
EXIT Return to BIOS-MENU
Update BIOS complete
The instrument remains in the flash menu, firmware and/or application can be loaded subsequently.
• After pressing [Exit] the instruments goes back to the BIOS menu.
• Initialize the instrument with [Coldstart].
When changing applications, the 'savesets' existing for the previous application should be deleted.
70
Sartorius
Combics Pro Installation Manual
4.4
Commissioning
Allocation of the weighing electronics
Combics Pro can manage max. 4 scales. However, the number of scales which should be used is determined by
the application software package. Distinction between physical weighing electronics / scale (e.g. [internal],
[xBPI-Scale]) and logic weighing point (WP-A, WP-B, WP-C and WP-D) is made.
Totalization of two scales is possible only on C = A+B.
In menu -[Weighingpoints], the physical weighing point can be allocated to a logic weighing point
according to the following table:
Weighing electronics
Logic weighing point
[none]
[internal]
[liquid] / [user]
[xBPI-Scale]
[SBI-Scale]
[A+B]
A
B
C
D
√
√
√
√
√
—
√
√
√
√
√
—
√
—
√
√
√
√
√
—
√
√
√
—
max. 2
max. 2
max. 2 (62 via bus)
max. 2
total C = A+B
With the PR 5800/10 internal weighing electronics installed in the slots for A and B, allocation to A or B is
automatic.
A weighing electronics can be allocated to a logic weighing point only once.
WP-A is displayed as default / initial start, display switch-over to WP-B, WP-C and WP-D is possible by pressing
.
Example of an internal weighing electronics PR 5800/10 in Slot A and an xBPI scale as WP-B:
Setup
Serial ports parameter
Change Date & Time
Operating parameter
Fieldbus parameter
Network parameter
Weighingpoints
Display settings
System functions
License settings
Press
and
to select [Weighingpoints]
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
A
B
C
D
Config
internal A Press
none
none
none
Calib
to select [internal A]
Param
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
Sartorius
A
B
C
D
Config
internal A
xBPI-Scale 1
none
none
Calib
Select [xBPI-Scale 1] with
Param
71
Commissioning
4.5
Combics Pro Installation Manual
Calibration, internal weighing electronics PR 5800/10
Calibration of the internal weighing electronics by means of weights, mV/V or load cell data can be done via
the keypad or via PC (using program VNC). The calibration data are protected by CAL switch (see chapter 4.1.1),
which is sealed in the 'safe' position for 'legal for trade' applications. During calibration, the instrument must
be set to gross weight display (reset tare, if necessary). For use in 'legal for trade' mode the selection of
settings has to be done according to the legal requirements and the conditions in the Test certificate and the
Type approval.
4.5.1
Calibration procedure
With legal for trade application, set the mode in -[Weighingpoints]-[internal A/B]-[Calib]-[Param] to
[W&M] before calibration start, see chapter 4.5.16.1. Press [New] to go to the maximum capacity [MAX] (see
chapter 4.5.5), select the scale interval and determine/enter the deadload. Now, calibrate the maximum
capacity by means of a test load, in mV/V or with load cell data. After determining the test value, the menu
can be left with
as described in chapter 4.5.14, in order to save or cancel the new settings.
4.5.2
Selecting the weighing point
Selection of the weighing point is via
-[Weighingpoints].
Setup
Serial ports parameter
Change Date & Time
Operating parameter
Fieldbus parameter
Network parameter
Weighingpoints
Display settings
System functions
License settings
Displayed in grey, unless a card is installed
Press
and
to select [Weighingpoints]
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
72
A
B
C
D
Config
to select [internal A],
internal A Press
[liquid
1/2],
[user
1/2], [XBPI-Scale 1/2]
none
none or [none]
none
Calib
Param
Select the calibration with
[Calib]
Sartorius
Combics Pro Installation Manual
4.5.3
Commissioning
Display of calibration data
Cannot calibrate!
CAL switch is closed
When the CAL switch is closed, the following message is displayed, only data
display possible with [Calib] followed by [Param]:
Cannot calibrate!
tare is active
If the scale was tared, the following message is displayed, data display with
[View], reset tare with [untare], return with [Cancel]:
With [View], the calibration data can be displayed, but not changed.
Weighingpoints/WP A/View Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1 kg
Deadload at
0.00 kg
0.000000
Max at
3000.00 kg
1.000000
Calibrated at
3000.00 kg
1.000000
Sensitivity
833.33
4.000000
Number of scale intervals and max. capacity
Scale interval
Deadload in weight and mV/V
Weight and mV/V for maximum capacity
Test load* and corresponding mV/V
Number of internal counts and voltage
per scale interval
Param
The calibration data and parameters (with [Param]) are displayed in the form as entered / determined during
calibration.
* After entry with mV/V, the maximum capacity and the entered mV/V value are displayed.
4.5.3.1
Increased resolution (10-fold) for internal weighing electronics
In menu [Weighingpoints], the weight is displayed with 10-fold resolution after selection of [internal A/B] with
key
and marked with
Sartorius
above the weight unit. Switch over to normal resolution with
.
73
Commissioning
4.5.4
Combics Pro Installation Manual
Selecting the calibration mode
Selection between [New] and [Modify] is possible with the softkeys:
New
Modify
4.5.4.1
Units
Param
New calibration
Go to the menu via
-[Weighingpoints]-[Internal X]-[Calib]-[New].
When pressing [New], the data are set to default first and calibration is started.
Span and deadload
will be reset
A safety prompt is displayed:
Press [Continue] for the default settings, or cancel the selection with [Cancel]
Default settings with [New]:
Weighingpoints/WP A/Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1 kg
Deadload at
0.000000
Max at
1.000000
Not calibrated
Sensitivity
4.000000
833.33
CalcTest
4.5.4.2
Changing the calibration
[Modify] may be used only for minor changes (e.g. changing the deadload, adaptation of mV/V values
for deadload and/ or Span) otherwise, use always [New]!
Go to the menu via
-[Weighingpoints]-[Internal X]-[Calib]-[Modify].
Weighingpoints/WP A/Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1 kg
Deadload at
1.07 kg
0.000358
Max at
3000.00 kg
1.000000
Calibrated at
3000.00 kg
1.000000
Sensitivity
4.000000
833.33
by load
by mV/V
CalcTest
For setting a new value for deadload, press
to select [Deadload] and either enter a new
with [by mV/V] or discharge the scale / hopper and press [by load].
Exit calibration
without CalcTest?
74
value
When leaving the menu with , a prompt if the menu should be left without
calculation of the test value is displayed:
Reply [Yes] for exit from the menu.
Sartorius
Combics Pro Installation Manual
4.5.5
Commissioning
Determining the maximum capacity (Max)
The maximum capacity (Max) determines the maximum weight without deadload of the weight, which must
be measured. Normally, Max is smaller than the load cell capacity (nominal capacity * number of load cells).
Permissible entries are
Maximum capacity
from 0.000 010 to 9 999 990
in kg, t, g, mg, lb or oz. Use of lb or oz is not permitted within the EU and EEC.
Max must be an integer multiple of the scale interval. It may have max. 7 digits and is entered as a numeric
value with or without decimal point.
Weighingpoints/WP A/Calibration
3000 d
3000 kg
Max
The weight unit can be changed from kg into t, g, mg, lb or oz by pressing
After pressing
or
.
confirmation of the change is displayed with:
Setting Max
Error messages
This message is displayed, if the maximum capacity is too high (the
calculated input voltage for the specified maximum capacity exceeds 36
mV)
Set Max failed
below calibration
Set Max failed
too many d
Set Max failed
Max not multiple of step
Set Max failed
incompatible units
Set span failed
no stability
Subsequent changing of the maximum capacity is possible. But when
decreasing it, a message is displayed, if the new maximum capacity is
lower than the test load ([Calibrated at]):
The message is displayed, if the selected resolution is so high that less than
0.8 internal counts per scale interval (d) or 0.5 µV/e for legal for trade acc.
to OIML / NSC are available
This message is displayed, unless the maximum capacity is an integer
multiple of the scale interval
Weight units don’t match, e.g. subsequent change for [Max] from kg to lb
This message appears, if the scale is 'instable':
Remedial action: Check the mechanical function of the scale, adapt the
filter setting, reduce the resolution, if necessary, adapt the stability
conditions
After [OK], the input value for the maximum capacity is cancelled.
Sartorius
75
Commissioning
4.5.6
Combics Pro Installation Manual
Determining the scale interval
Weighingpoints/WP A/Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1kg The scale interval
1, 2, 5 10, 20 or 50 can be set by pressing
.
The weight unit from [Max] is taken over and cannot be changed here.
After
or , confirmation of the change is displayed with:
Setting Scale interval
Set Scale interval failed
The message is displayed, unless the maximum capacity is an integer
Max not multiple of interval multiple of the scale interval.
76
Sartorius
Combics Pro Installation Manual
4.5.7
Commissioning
Determining the deadload
Weighingpoints/WP A/Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1 kg
Deadload at
0.00 kg
0.000000
Max at
3000.00 kg
1.000000
Not calibrated
Sensitivity
4.000000
833.33
by load
by mV/V
CalcTest
To use the empty scale / hopper as deadload (normal case):
- discharge the scale / hopper
- press [by load]
Confirmation of the change is displayed with:
Setting deadload
If the mV/V value of deadload was calculated, or if it is known from the previous calibration, the value can be
overwritten by [by mV/V] using the numeric keyboard.
Weighingpoints/WP A/Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1 kg
Deadload at
0.00 kg
0.000000
Max at
3000.00 kg
1.000000
Calibrated at
3000.00 kg
1.000000
4.000000
Sensitivity
833.33
by load
by mV/V
CalcTest
Possible error messages
Set deadload failed
above physmax
When the entered deadload in mV/V plus maximum capacity in mV/V is higher
than 3 mV/V ( = 36 mV):
Set deadload failed
no stability
Message with 'instable' scale:
Remedial action: Check the mechanical function of the scale, adapt the filter
setting, reduce the resolution, if necessary, adapt the stability conditions.
This message is output, if the measurement signal is negative (load cells
Set deadload failed
connected with wrong polarity or defective) when determining the deadload
deadload below -0.1mV/V
with [load]
Set deadload failed
overflow in arithmetics
Sartorius
With an entered deadload in mV/V higher than 5mV/V:
77
Commissioning
4.5.8
Combics Pro Installation Manual
Calibration with weight (by load)
When selecting [by load], the weight value for the calibration weight can be entered in an extra window.
Place CAL weight
on the scale and
enter value
3000 kg
After applying the weight, enter the weight value and confirm it with . The weight unit for the calibration
weight (switch-over with ) may vary from the unit of the instrument, conversion is automatic.
After doing so, the following message is displayed:
Setting span by load
Now, weight value, weight unit and measuring signal in mV/V corresponding to this value are displayed on line
[Calibrated at].
Message, when the scale is 'instable':
Remedial action: Check the mechanical function of the scale, adapt the
filter setting, reduce the resolution, if necessary, adapt the stability
conditions
Set span failed
no stability
Set span failed
current load below deadload
Message, when the weight of the scale is smaller than the deadload after
entry of the weight value
The next step is calculation of the test value with [CalcTest] (see chapter 4.5.13), and calibration is completed
with
(see chapter 4.5.14).
Determining Span without weight
Weighingpoints/WP A/Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1 kg
Deadload at
3.00 kg
0.001000
Max at
3000.00 kg
0.000000
Not calibrated
4.000000
Sensitivity
833.33
by load
by mV/V
by data
Linear.
CalcTest
If the mV/V value of span was calculated, see chapter 4.5.10, or if it is known from a previous calibration,
select [by mV/V] and enter the value in mV/V. After entry and confirmation with , the following message is
displayed:
Setting span by mV/V
The next step is calculation of the test value with [CalcTest] (see chapter 4.5.13), and calibration is completed
with
(see chapter 4.5.14).
78
Sartorius
Combics Pro Installation Manual
4.5.9
Commissioning
Calibration with load cell data (smart calibration)
Unless the scale which has to be calibrated is legal for trade, calibration without weights is possible. The
simplest method is with load cell data without calculation, another method (with mV/V) is described in chapter
4.5.10.
Weighingpoints/WP A/Calibration
Max
3000 d
3000 kg
Scale interval
3000 d
1 kg
Deadload at
3.00 kg
0.001000
Max at
3000.00 kg
0.000000
Not calibrated
4.000000
Sensitivity
833.33
by load
by mV/V
by data
Linear.
CalcTest
Start by pressing [by data].
WP A/Calibration/loadcell configuration
Number of loadcells
4
Nominal load
3000 kg
Gravity
9.81379 m/s²
Hysteresis error
not specified
Certified data
all LC same
LC sensitivity
1.000000
Enter
Calc
WP A/Calibration/loadcell configuration
LC resistance
600.000 ¥
Enter
Calc
[Number of loadcells]
Number of load cells connected in parallel (1, 2...<4>...9, 10)
[Nominal load]
Nominal load Emax of a load cell (not the overall nominal weight of the scale)!
[Gravity]
Gravity at the place of installation, default is the value for Hamburg with 9.81379 m/s².
[Hysteresis error]
When switching over from [not specified] to [specified], values for [Correction A/B] must be filled in. The data
are given on the load cell certificate.
[Certified data], [LC sensitivity], [LC resistance]
With [all LC same], only 1 value for the sensitivity [LC sensitivity] and the output resistance [LC resistance]
must be filled in. With [each LC specific], the individual data for each load cell are requested.
[Calc]
The mV/V value is calculated and after confirmation with [Ok], the calculated mV/V value is stored in the
calibration data.
Sartorius
79
Commissioning
Combics Pro Installation Manual
4.5.10 Calibration with mV/V value
Unless the scale which has to be calibrated is legal for trade, calibration without weights is possible. A 'smart'
method only with load cell data without further calculation is described in chapter 4.5.9, with automatic
conversion of the gravitation at the place of manufacture into the value for the place of installation.
During entry of the load cell mV/V value, the gravitation at the place of installation can be taken into account.
The STAR load cell data are based on the gravitation of Hamburg: 9.81379 m/s².
Calculation of the average load cell sensitivity:
With D1 specification load cells, the use of sensitivity C given in the data sheet is sufficient.
The average load cell sensitivity CAvr is calculated as follows:
CAvr =
C1 + C2 + ... + Cn
Ran
Ra1 Ra2
1 + 1 + ... + 1
Ran
Ra1 Ra2
The formula is simplified, when the output resistance Ra for the load cells is almost equal:
CAvr =
1
∑ C
n
Span: Calculation of the equivalent input voltage in mV/V
Span indicates the equivalent input voltage in mV/V related to the maximum capacity (Max) of the scale. It is
calculated as follows:
Span [mV/V] =
maximum capacity * load cell sensitivit y C Avr [mV/V ]
load cell capacity (nominal load * number of load cells)
Deadload:
Calculation of the equivalent input voltage in mV/V
The input voltage in mV/V equivalent to the deadload can be calculated by using the deadload rather than the
maximum capacity in the formula specified above.
Normally, calculation of the deadload (scale without load / empty hopper) is not necessary. Only when the
scale cannot be discharged, the deadload must be estimated and converted into mV/V. Subsequent deadload
correction (as described in chapter 4.5.11) can be used for later re-determination of the deadload, when the
scale/hopper is empty.
Example: Load cell(s) with rated output of 2mV/V at nominal load of 2000 kg, deadload 500 kg, load cell
supply voltage 12 VDC
All settings are shown clearly in the calibration mask:
Weighingpoints/WP A/Calibration
Max
1000 d
1000 kg
Scale interval
1000 d
1 kg
Deadload at
500.00 kg
0.500000
Max at
1000.00 kg
1.000000
Calibrated at
1000.00 kg
1.000000
Sensitivity
2500.00
12.000000
80
Sartorius
Combics Pro Installation Manual
Commissioning
4.5.11 Subsequent deadload correction
With changes of the hopper / platform weight e.g. due to deadload reduction, deadload increase or mechanical
changes by an amount which is higher than the zero set range, automatic zero tracking and manual zero
setting do not function. The range which is already utilized by zero tracking or zero setting can be displayed by
pressing key
in [Weighingpoints]-[internal A/B] with 10-fold weight resolution. Return is also with :
Current zero set: 0.123 kg
When the zero set range is already utilized, subsequent deadload correction (CAL switch must be open) is
possible without affecting the other calibration data / parameters.
For this, select the calibration via
-[Weighingpoints]-[Internal X]-[Calib]-[Modify] and determine the
deadload with [Deadload at]-[by load] (see chapter 4.5.7).
4.5.12 Linearization
After
-[Weighingpoints]-[Internal X]-[Calib]-[New]/[Modify] and after completing calibration, select the
linearization menu with softkey [Linear.]:
by load
by mV/V
by data
Linear.
CalcTest
After [Linear], the menu shown below appears:
Weighingpoints/WP A/Calibration/Linearisation
Max at
3000.00 kg
1.000000
Add
by mV/V
by load
A new linearization point is added with [Add], for this, fill in the weight value, apply the weight and press [by
load]. Now, fill in the corresponding value in mV/V for the weight. After pressing [mV/V], the value can be
entered directly.
Max. 3 linearization points can be determined.
A linearization point can be added with [Add], removed with [Delete] and changed with [Change].
Weighingpoints/WP A/Calibration/Linearisation
1. Lin. point
750 kg
0.250010
2. Lin. point
1500 kg
0.500020
3. Lin. point
2250 kg
0.750040
Max at
3000.00 kg
1.000000
Add
Change
Delete
by mV/V
A linearization point can be selected with
Sartorius
by load
,
changed with [Change] and deleted with [Delete].
81
Commissioning
Combics Pro Installation Manual
4.5.13 Test value determination / display
Press [CalcTest] to select the test value calculation. The maximum capacity (Max) with identification
without weight unit is displayed.
Weighingpoints/WP A/Calibration
CalcTest
When calling up the test subsequently with key
- the maximum capacity with [Absolute]
- the deviation from the test value with [Relative]
Test active
is displayed dependent on setting in [Calib]-[Param]-[Testmode].
4.5.14 Finishing / saving the calibration
Finish the calibration with
.
Safety prompt, if the calibration should be left without previous test value
determination:
Calibration not complete.
Exit calibration?
Unless all data were determined when calibrating with [New] (e.g. deadload not
set / entered), the following message is output:
After confirmation with [Yes] and pressing
displayed:
once more,another prompt is
Exit calibration ?
Press [Save] to save the changed calibration data.
After [Undo], the changes are not saved. This is followed by return to the
selection menu for the weighing points.
Saving calibration
Confirm with:
Exit calibration
Leave the menu:
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
A
B
C
D
Config
internal A
none
none
none
Calib
Param
After finishing the calibration, set the CAL switch into safe position, see also chapter 4.1.1.
82
Sartorius
Combics Pro Installation Manual
Commissioning
4.5.15 Units for display
The instrument is calibrated with a selected mass unit. Additionally up to 2 further units can be shown on the
display. The selection of the additinal units and the respective display accuracy is done in menu:
[Weighingpoints]-[internal X]-[Calib]-[Units] :
New
Modify
Units
Param
Weighingpoint/WP A /Calibration
Units
Unit 2
Display accuracy
Unit 3
Display accuracy
3
oz
equal
lb
1 level higher
In the example a 2nd unit in [oz] is defined, the display accuracy is set to [equal]. This means, that the scale
interval in weight corresponds (rounding) to the calibrated scale interval.
The unit 3 has got a 1 level higher display accuracy, this means the scale interval is approximately (rounding) 1
level smaller than the calibrated scale interval. The values for Max and Min for the additional units are
converted (rounding) taking into account the respective scale intervals.
The change over of the weight display is done at the main level with the key
. The key has got a toggle
function. For 3 weight units the change over is happening as follows: From 1 to 2, 3, 1, 2, ... .
If unit 2 or unit 3 is diplayed with a 'legal for trade' instrument, the sign appears on top of the weight unit.
Display for the calibrated mass unit
Display for [Unit 2]
Display for [Unit 3]
Sartorius
83
Commissioning
Combics Pro Installation Manual
4.5.16 Parameter entry
Go to the menu via
-[Weighingpoints]-[Internal X]-[Calib]-[Param]
Weighingpoints/WP A/Calibration
Measuretime
Digital filter
Fcut
Test mode
W&M
Stability time
Stability range
160 ms
bessel
3.00 Hz The menu line appears only unless the filter is
absolute 'off'
none
0.50 s
1.00 d
[Measuretime]
Select the measuring time, possible values: 5, 10, 20, 40, 80, 160, 320, 640, 960, 1280, 1600 ms. In 'legal for
trade' mode select <= 1 s.
[Digitalfilter]
The digital filter can be switched on only with the measuring time set to <= 160 ms.
Select the filter characteristic [off], [bessel], [aperiod.], [butterw.], [tscheby.].
[Fcut]
Enter the cut-off frequency for the filter (0.1 – 80 Hz), the setting is dependent on the measuring time.
[Testmode]
With [absolute], the test value is calculated when calling up the test. With [relative], the deviation from the
initially stored test value is displayed, see chapter 4.5.13.
[W & M]
Setting for 'legal for trade' mode, select [none], [OIML], [NTEP] (for USA) or [NSC] (for Australia), see chapter
4.5.16.1.
[Stability time] [Stability range]
For stability detection, the two parameters specified above are required to determine the mechanical stability
of the scale. For a defined period of time, the [Stability time], the weight value must be within defined limits
[Stability range], in order to detect stability for the scale.
[Stability time]
Entry in seconds, permissible range 0.01 to 2 sec. (max. Measuretime x 32). When setting time 0, stability
checking is omitted. The stability time must not be lower than the measuring time and not higher than 32
times the measuring time.
[Stability range]
As long as weight changes are within this range, stability can be detected, permissible range 0.01d to 10.00d.
In 'legal for trade' mode select <= 1 d.
84
Sartorius
Combics Pro Installation Manual
Commissioning
Weighingpoints/WP A/Calibration
Tare timeout
Zeroset range
Zerotrack range
Zerotrack step
Zerotrack time
Overload
2.5
50.00
0.25
0.25
0.0
9
s
d
d
d
s
d
[Tare timeout]
Enter the timeout value for a taring/zero set command which cannot be handled (e.g. mechanical scale
instability, faulty filter setting, too high resolution, too narrow stability condition) within 0.1 and 25 s.
[Zeroset range]
Determine a +/- range around the zero determined by the deadload during calibration within which
- the displayed gross weight can be set to zero by pressing the zero set key (or by a corresponding external
command) and
- automatic zero tracking is active
Adjustable range: 0.00 d to 10000.00d
In 'legal for trade' mode a value of <= 2 % of Max must be entered. Example: 60 d for 3000e, class III.
[Zerotrack range]
Range within which automatic zero tracking compensates deviations, 0.25 to 10000.00d.
In 'legal for trade' mode a value of 0.25 d has to be entered.
[Zerotrack step]
Step for automatic tracking, 0.25 to 10d. In 'legal for trade' mode a value of 0.25 d has to be entered.
[Zerotrack time]
Enter a time interval for automatic zero tracking within 0.0 (tracking switched off) and 25 s.
In 'legal for trade' mode a value of 1 s has to be entered.
[Overload]
Weighing range above the maximum capacity (Max), without error message. Range is 0 to 9999900 d.
In 'legal for trade' mode max. 9 d=e has to be entered.
Weighingpoints/WP A/Calibration
Min
Range mode
50 d
Single range
[Min]
Minimum weight at which a print command can still be started. Range is 0 to 9999900 d.
In 'legal for trade' mode min. 20 d has to be entered.
Sartorius
85
Commissioning
Combics Pro Installation Manual
4.5.16.1 Legal for trade operation
In menu -[Weighingpoints]-[internal A/B]-[Calib]-[Param]-[W&M], possibilities:
[none] and legal for trade modes [OIML], [NTEP] or [NSC] can be selected.
[none]
[OIML]
[NTEP]
[NSC]
0.125 mV/V
at 30000 d
0.25 mV/V
at 60000 d
0.125 mV/V
at 3000 e
0.25 mV/V
at 6000 e
0.42 mV/V
at 10000 e
0.125 mV/V
at 3000 e
0.25 mV/V
at 6000 e
0.42 mV/V
at 10000 e
0.125 mV/V
at 3000 e
0.25 mV/V
at 6000 e
0.42 mV/V
at 10000 e
Gross weight display
Min. meas. signal
If legal for trade operation was selected, the parameter settings (zero tracking etc.) must be selected
accordingly without checking. The relevant CAL switches (see chapter 4.1.1) must be sealed in the safe position.
With a scale interval (d) smaller than the verification
scale interval (e), additional digits are displayed 'with
a frame' (only permitted for scales of class I or II).
4.5.16.2 Multiple range scale / multi-interval scale
Range selection is controlled by three parameters in menu
-[Weighingpoints]-[internal A/B]-[Calib]-[Param].
Weighingpoints/WP A/Calibration
Range mode
Multiple range Select [Multiple range] or [Multi-interval]
Range limit 1
1000 kg Switch-over point from range 1 to 2
Range limit 2
2000 kg Switch-over point from range 2 to 3
Multiple range scale
With [Range mode] = [Multiple range], the scale has max. 3 ranges with different resolutions.
The switch-over points [Range limit 1] and [Range limit 2] are the range limits. As soon as the gross weight
exceeds range 1, the next higher range with the next higher interval becomes valid (1->2->5->10->20->50>100->200). When reducing the weight, the interval of the previous range is kept. With the gross weight <=
0.25 d of range 1, the scale in stability and not tared, return is to range 1 with the corresponding interval.
Multi-interval scale
With [Range mode] = [Multi-interval], the scale has max. three ranges with different resolution. Each range
has the corresponding interval. Unlike [Multiple range], interval switch-over occurs also with weight reduction,
i.e. when the weight falls below the range limits.
During calibration, the multiple range / multi-interval function is always switched off.
The weight display header includes the current range (R1, R2, R3), Max, Min and d (or e with legal for trade
instruments) (Example: multiple range scale in range 2):
86
Sartorius
Combics Pro Installation Manual
4.6
Commissioning
Configuration for [liquid] and [user]
The physical weighing points can be allocated to logic weighing points (WP-A, WP-B, WP-C, WP-D), see
chapter 4.4. After allocation, the weighing points must be configured. Configuration is different dependent on
scale type.
4.6.1
Weighing point function for liquid counter
The weighing points [liquid 1/2] each require a digital input for the pulses (counts). The fixed addresses are
channel 6 (liquid 1) and channel 5 (liquid 2) of the plug-in card installed in Slot 1.
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
A
B
C
D
internal A
liquid 1
none
none
Config
Calib
Select [liquid 1] with
Param
Configuration for the liquid counter is possible with [Config].
Weighingpoints/WP B
Type
W&M
Max
Scale interval
Scale Weight /
/ Scale Counts
Overload
Min
Update time
liquid 1
none
1000 kg
1
1 kg
1 cnt
9d
0d
0.3 s
[W&M], [Max], [Scale interval], [Overload] and [Min] are identical to the internal weighing point.
[Scale Weight /]
Enter the weight increase per n counts. The unit can be changed with
.
[/ Scale counts]
Number of pulses (1 ... 65 000) for the weight increase entered in [Scale Weight /]
[Update time]
Time in which a new weight value is presented.
4.6.2
Weighing point function User Scale
The menu items correspond to those for [liquid] plus an additional one:
[SPM marker address]
The SPM address in which the pulses are stored.
Weighingpoints/WP B
Type
SPM marker address
Sartorius
user
32
87
Commissioning
4.7
Combics Pro Installation Manual
xBPI scale
Combics Pro can communicate with scales (e.g. Combics1) or platforms (weighing modules) via the xBPI
protocol. Max. 2 instruments can be connected via serial interfaces (PR 5510/04 or Builtin) (see chapter 4.4).
Communication is serial. No variables or digital I/Os of the external scale are provided in the Combics Pro SPM.
Weight determination and transmission is largely dependent on scale / platform (weighing module). Weight
values up to 7 digits plus sign can be displayed. The maximum capacity (Max) must be adjusted in the scale or
is already set with a platform and cannot be changed via the xBPI protocol.
4.7.1
xBPI set-up for serial port
Determination and setting of the interface to which the scale / platform is connected must be done in menu
-[Serial ports parameter].
Setup
Serial ports parameter
Change Date & Time
Select [Serial ports parameter] with
and
Setup/Serial ports
Console
Printer
Remote display
JBUS/MOD-Bus
xBPI-Port 1
xBPI-Port 2
- none Builtin RS 232
Slot1 RS232
- none Slot2 RS485
- none -
Param
Setup/Serial ports/Slot2 RS485
Assigned to
XBPI-Port 1
Protocol
xBPI
Baudrate
9600
Bits
8
Parity
odd
Stopbits
1
88
Select the interface for the XBPI scale
with
Press [Param]
After [Param], the menu appears.
Set the following parameters with
:
9600, 19200 or 38400
1 or 2
Sartorius
Combics Pro Installation Manual
4.7.2
Commissioning
xBPI scale function
With the xBPI scale, the taring function must be determined according to the application. Moreover, the
update time must be determined. Furthermore, the serial number of the xBPI scale / weighing module must be
specified with legal for trade weighing.
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
A
B
C
D
Config
internal A
xBPI-Scale 1
none
none
Select [xBPI-Scale 1] with
Calib
Configuration for the xBPI scale is possible with [Config].
Weighingpoints/WP B
Type
W&M
Tare timeout
Update time
Serial number
SBN Address
XBPI-Scale 1
[W&M]
Select W&M mode [none], [OIML] or [NTEP] with
none
Local
0.3 s
0
0
.
[Tare timeout]
Waiting time for the execution of a zero set or taring command. If the xBPI-scale has not executed the
command in the specified time, the action will be aborted.
[Update time]
Specify the time interval for storage of the weight from an external scale (50 ms ... 2 sec)
[Serial number]
Serial number of the connected xBPI scale / weighing module. The number is required for checking with legal
for trade application. With serial number 0, checking is omitted.
[SBN Address]
With an address unequal to 0, bus operation active, possible addresses: 1 - 31, i.e. max. 31 xBPI scales can be
operated at an RS 485 bus line. The SBN Address is shown in the display.
Example: Address 31 at WP-C.
Sartorius
89
Commissioning
4.7.3
Combics Pro Installation Manual
xBPI platform configuration
The xBPI platforms are provided with specification blocks for selection of various operating modes (single
range, multiple range etc.).
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
A
B
C
D
Config
xBPI-Scale 1
none
none
none
Calib
Select [xBPI-Scale 1] with
then press
to select [Setup]
Read the parameters from the xBPI scale with [Setup].
Weighingpoints/xBPI Scale setup
Reading parameters
model
metrologie
device info
settings
Retrieve failed
timeout in communication
Ticks indicate the progress
Error message, unless communication with the xBPI scale is possible
Weighingpoints/xBPI Scale setup
Calibration
Configuration
Select
Show device info
Select [Select] with
confirm it with
and
Selection of specification block
Weighingpoints/xBPI Scale setup
Select 1
Select 2
Select 3
Select 4
Save changes ?
Select the block with
with , then leave with
Save the data with [YES],
or press [NO] for exit from the menu without data change.
Weighingpoints/xBPI Scale setup
Saving changes parameters
download values
write nonvolatile
reconfig system
90
and confirm it
Ticks indicate the progress
Sartorius
Combics Pro Installation Manual
4.7.4
Commissioning
xBPI scale parameters
The scale parameters are adjustable in menu -[Weighingpoints]-[xBPI-Scale 1/2]-[Setup] / [Configuration].
Before entry of the parameters, determination of the protocol (see chapter 4.7.1) and activation of the
communication between Combics Pro and scale or platform are required.
Weighingpoints
Weighingpoint
Weighingpoint
Weighingpoint
Weighingpoint
Setup
A
B
C
D
Config
xBPI-Scale 1
none
none
none
Calib
Param
Select [xBPI-Scale 1] with
then press
to select [Setup]
After [Setup], Combics Pro loads the parameters from the xBPI scale.
Weighingpoints/xBPI Scale setup
Reading parameters
model
metrologie
device info
settings
Retrieve failed
timeout in communication
Error message, unless communication with the xBPI scale is possible
Weighingpoints/xBPI Scale setup
Calibration
Configuration
Select
Show device info
Weighingpoints/xBPI Scale setup
Weighing parameters
Application settings
Interface settings
Select [Configuration] with
it with
and confirm
For further procedure, see chapter 4.7.5
After parameter changing and exit from the menu, the following message is output:
Save changes ?
Sartorius
Save the data with [YES],
or press [NO] for exit from the menu without changing data.
91
Commissioning
4.7.5
Combics Pro Installation Manual
xBPI parameter tables
The parameters which must be entered in -[Weighingpoints]-[xBPI-Scale 1/2]-[Setup]-[Configuration][Weighing parameters]/[Application settings]/[Interface settings] are listed in the following tables.
Weighingpoints/xBPI Scale setup
Ambient conditions
Very stable cond.1 Select the parameter with
Application/Filter
standard mode make the setting with
Stability range
1 digit
and
[Weighing parameters]
- Ambient conditions
- Very stable cond.
- Stable conditions
- Unstable cond.
- Very unstable cond
- Application/Filter
- standard mode
- manual filling
- automatic dosing
- checkweighing
- Stability range
- 0,25 digit
- 0,5 digit
- 1 digit
- 2 digit
- 4 digit
- 8 digit
- Stability symb.delay
- no delay
- short delay
- long delay
- extrem long delay
92
- Tare parameter
- at any time
- not until stable
- Auto zero function
- Auto Zero on
- Auto Zero off
- Adjustment function
- ext.adj.w.fact.wt.
- ext.adj.w.user.wt.
- ext.adj.w.pres.wt.
- internal adjust
- ext.lin.w.fact.wt.
- ext.lin.w.pres.wt.
- Confirm preload
- Delete preload
- adjust disabled
- Confirming adjust.
- automatically
- manual
- Zero range
- 1% of max load
- 2% of max load
- 5% of max load
- 10% of max load
- Power-On zero range
- factory settings
- 2% of max load
- 5% of max load
- 10% of max load
- 20% of max load
- Power-On tare/zero
- activ
- inactiv
- only for zeroing
- Measure rate
- normal output
- fast output
- Calibration check
- Off
- Calibration prompt
- External adjustment
- Accessible
- Blocked
- Maximum capacity
- reduced by preload
- constant
Sartorius
Combics Pro Installation Manual
Commissioning
[Application settings]
- Application Tare
- Accessible
- Blocked
- Number of ranges
- 1 weighing range
- 2 weighing ranges
- 3 weighing ranges
- Weight unit 1
- gramm
g
- kilogram
kg
- Carat
ct
- Pound
lb
- Unze
oz
- Troy unze
ozt
- Tael Hongkong tlh
- Tael Singapur tls
- Tael Taiwan tlt
- grain
GN
- pennyweight dwt
- milligramm
mg
- Parts/pound /lb
- Tael china tlc
- Momme
mom
- Karat
k
- Tola
tol
- Baht
bat
- Mesghal
m
- Tonne
t
- Output values 1
- basic accuracy
- reduced when moved
- one level lower
- two levels lower
- three levels lower
- 1%
- 0,5%
- 0,2%
- 0,1%
- 0,05%
- 0,02%
- 0,01%
- Multiinterval
- increased by 10
Sartorius
- Weight unit 2
- gramm
g
- kilogram
kg
- Carat
ct
- Pound
lb
- Unze
oz
- Troy unze
ozt
- Tael Hongkong tlh
- Tael Singapur tls
- Tael Taiwan tlt
- grain
GN
- pennyweight dwt
- milligramm
mg
- Parts/pound /lb
- Tael china tlc
- Momme
mom
- Karat
k
- Tola
tol
- Baht
bat
- Mesghal
m
- Tonne
t
- Output values 2
- basic accuracy
- reduced when moved
- one level lower
- two levels lower
- three levels lower
- 1%
- 0,5%
- 0,2%
- 0,1%
- 0,05%
- 0,02%
- 0,01%
- Multiinterval
- increased by 10
- Weight unit 3
- gramm
g
- kilogram
kg
- Carat
ct
- Pound
lb
- Unze
oz
- Troy unze
ozt
- Tael Hongkong tlh
- Tael Singapur tls
- Tael Taiwan tlt
- grain
GN
- pennyweight dwt
- milligramm
mg
- Parts/pound /lb
- Tael china tlc
- Momme
mom
- Karat
k
- Tola
tol
- Baht
bat
- Mesghal
m
- Tonne
t
- Output values 3
- basic accuracy
- reduced when moved
- one level lower
- two levels lower
- three levels lower
- 1%
- 0,5%
- 0,2%
- 0,1%
- 0,05%
- 0,02%
- 0,01%
- Multiinterval
- increased by 10
93
Commissioning
Combics Pro Installation Manual
[Interface settings]
- Communication type
- SBI protocol
- xBPI protocol
- Baudrate for SBI
- 150 baud
- 300 baud
- 600 baud
- 1200 baud
- 2400 baud
- 4800 baud
- 9600 baud
- 19200 baud
- Parity for SBI
- Mark
- Space
- Odd
- Even
4.7.6
- Stop bits
- 1 stop bit
- 2 stop bits
- Output format
- Handshake
- software handshake
- CTS with 2 chr.pau
- CTS with 1 chr.pau
- Data output print
- on requ always
- on requ when stab
- on requ with store
- auto
- auto when stable
- without ID 16 byte
- with ID 22 byte
- Data output interval
- with each display
- after 2 updates
- after 5 updates
- after 10 updates
- after 20 updates
- after 50 updates
- after 100 updates
- Parameter change
- Auto print
- start/stop by ESCP
- not stoppable
- can be changed
- cannot be changed
xBPI setting deadload
The deadload/preload can be adjusted in menu -[Weighingpoints]-[xBPI-Scale 1/2]-[Setup]-[Calibration].
Both terms 'deadload' and 'preload' are used by Sartorius.
Weighingpoints/xBPI Scale setup
Calibration
Configuration
Select
Show device info
Weighingpoints/xBPI Scale setup
Deadload
Set
Delete
Span
Adjust with user weight
Adjust with auto weight
Select [Calibration] with
confirm it with
Select [Set] with
confirm it with
and
and
For setting the deadload, remove the weight from the scale and select [Set]. After sending the command, 0 is
indicated on the gross weight display.
Alternatively, the stored deadload can be deleted:
Remove the weight from the scale and select [Delete]. The stored deadload is deleted. The instantaneous
deadload is shown on the weight display.
94
Sartorius
Combics Pro Installation Manual
4.7.7
Commissioning
xBPI calibration with built-in weight
In menu -[Weighingpoints]-[xBPI-Scale 1/2]-[Setup]-[Calibration]-[Adjust with intern weight], the scale can
be calibrated with the internal weight. Before calibration, the protocol (see chapter 4.7.1) and the additional
WP (see chapter 4.4) must be determined, and the communication between Combics Pro and the scale /
platform must have been activated.
Weighingpoints/xBPI Scale setup
Calibration
Configuration
Select
Show device info
Select [Calibration] with
and confirm it with
Weighingpoints/xBPI Scale setup
Deadload
Set
Delete
Span
Adjust with user weight
Adjust with auto weight
Weighingpoints/xBPI Scale setup
Adjust with default weight
Adjust with intern weight
Select [Adjust with intern weight] with
and confirm it with
The procedure is shown e.g. with the following message:
Weighingpoints/xBPI Scale setup
Calibration status
Motor in motion
Accept
Res Error
The calibration progress is displayed
Abort
After [Accept], the data are saved and the instrument generates a corresponding message:
Weighingpoints/xBPI Scale setup
Calibration status
complete
Sartorius
95
Commissioning
4.7.8
Combics Pro Installation Manual
xBPI calibration with the user weight
In menu -[Weighingpoints]-[xBPI-Scale 1/2]-[Setup]-[Calibration]-[Adjust with user weight], the scale is
calibrated with the user weight. Before entry of this menu, determine the protocol (as described in chapter
4.7.1) and allocate the weighing point (refer to chapter 4.4). The communication between Combics Pro and the
scale / platform must have been activated.
Weighingpoints/xBPI Scale setup
Calibration
Configuration
Select
Show device info
Weighingpoints/xBPI Scale setup
Deadload
Set
Delete
Span
Adjust with user weight
Adjust with auto weight
Weighingpoints/xBPI Scale setup
Calibration
Configuration
Select
Show device info
Select [Calibration] with
and confirm it with
Select [Adjust with user weight] with
and enter with
Select [Calibration] with
and confirm it with
The previously stored user weight is displayed
Enter user weight
2.000 kg and can be changed
Weighingpoints/xBPI Scale setup
Calibration status
Load too small
Cal-Target
2.000 kg
--
Calibration progress without weight
Target weight
Increased resolution
After applying the weight, the deviation is displayed. After selecting [Accept], the instrument returns to the
menu [xBPI Scale adjust].
If parameter [Confirming adjust.] was set to [automatically], confirmation with [Accept] is not necessary.
96
Sartorius
Combics Pro Installation Manual
4.7.9
Commissioning
xBPI calibration with automatic weight detection
The procedure is identical with the one in chapter 4.7.7 xBPI calibration with built-in weight.
Function [Adjust with auto weight] rather than [Adjust with intern weight] must be selected.
4.7.10 xBPI calibration with default weight
The procedure is identical to the one described in chapter 4.7.7 xBPI calibration with built-in weight.
Select function [Adjust with default weight] rather than [Adjust with intern weight].
4.7.11 xBPI device information
Weighingpoints/xBPI Scale setup
Calibration
Configuration
Select
Show device info
Select [Show device info] with
confirm it with
and
The following information is read out from the instrument and displayed with [Show device info]:
Weighingpoints/xBPI Scale setup
Model name
IS12CCE -SOCE
Version
00-20-12
Serial no.
12809189
User id
Superweigher
Manufacturer id
Sartorius
SBN
1
Set User
User name
Address for 1 to 31 xBPI at an interface
Set SBN
Enter the user name with [Set User] and determine the SBN address with [Set SBN] (see also chapter 4.7.2).
4.7.12 xBPI scale error messages
Weighingpoints/xBPI Scale setup
temporary error
Not zero at CalStart
Accept
Res Error
Abort
This menu is displayed in case of an error during
calibration (in this ex., the scale is not at 0).
Acknowledge the error with [ResError].
A [temporary error] is generated by failure to comply with the correct sequence (no defect of xBPI scale) and
acknowledged with [ResError].
Dependent on scale behaviour, the instrument remains at calibration (adjustment) level.
Sartorius
97
Commissioning
4.8
4.8.1
Combics Pro Installation Manual
Error messages
Error messages on the weight display
The internal weighing electronics and external weighing instruments can generate error messages which are
output on the weight display. If more than one weighing point was allocated, switch-over between scales is
possible with
. The messages are displayed in plain text (English).
Error messages on the weight display
Arith err
Internal arithmetic overflow (faulty calibration values)
Overload
Input voltage is higher than Max + overload
No EOC
Input signal is higher than the permissible range of 36 mV. However, the trouble
cause can also be due to an error in the analog section, to a defective load cell or to
a cable break
no dspl
Weight value exceeds the display digits
Not a number
Value of xBPI is not numeric
No sense voltage
Sense line or supply line is interrupted or connected with wrong polarity or sense
voltage is low
Negative Input
Input voltage is negative (e.g. wrong polarity of load cell signal or supply voltage)
bad unit
Weight unit not compatible
no values from scale
No communication with the weighing point
test active
No weight, because in test mode
no wgt-dat
No net /tare weight, scale in gross
scale not ready
Scale not started
bad serial number
No coincidence of serial number
98
Sartorius
Combics Pro Installation Manual
4.9
Commissioning
Configuration of general parameters
The configuration of parameters which are not related to the internal weighing point is divided into several
sections (see chapter 4.3.5 ).
4.9.1
Clock (Date and time)
Select [Change Date & Time] to set date and time
.
Setup/Clock
Date
Time
4.9.2
2005-08-17
16:21:52
Date and time can be overwritten
Serial ports
To configure the serial interfaces, press
and select [Serial Ports].
Setup
Serial ports parameter
Change Date & Time
Operating parameter
Fieldbus parameter
Network parameter
Weighingpoints
Display settings
System functions
License settings
Select [Serial ports parameter] with
and
Setup/Serial ports
Console
Printer
Remote display
JBUS/MOD-Bus
xBPI-Port 1
xBPI-Port 2
Not assigned
- none Builtin
Slot1
Slot2
Slot2
Slot3
RS232
RS232
RS485
RS232
RS485
Slot1 RS485
Slot3 RS232
Param
[Console]
Either a VDU terminal or a PC with a terminal simulation program can be connected as a console. The console
does not operate as an operating console for configuration of the instrument!
The console can be addressed only by an application program. Menu corresponds to [Printer], however,
[Protocol] [XON/XOFF] is fixed.
Sartorius
99
Commissioning
Combics Pro Installation Manual
[Printer]
Select the serial interface at which the printer is connected. Determine the transfer characteristics with
[Param]:
Setup/Serial ports/Builtin RS232
Assigned to
Printer
Protocol
XON/XOFF
Baudrate
9600 bd
Bits
7
Parity
even
Stopbits
1
Output mode
raw
Press
to set the following parameters:
XON/XOFF, RTS/CTS, W&M Printer, no protocol
300, 600, 1200, 2400, 4800, 9600, 19200, 38400
7, 8
none, odd, even
1, 2
raw, CR/LF translation
[Remote display]
Select the serial interface to which the remote display is connected. Now, the [Baudrate] can be determined
with [Param].
Setup/Serial ports/Builtin RS232
Assigned to
Remote display
Protocol
Remote display
Baudrate
9600 bd
Bits
7
Parity
even
Stopbits
1
Select [Baudrate] with
Baudrate with
and set the
Only Baudrate setting to 300, 600, 1200, 2400, 4800 or 9600 is possible. The other parameters (displayed in
light-grey) cannot be changed.
[JBUS/MOD-Bus]
Setup/Serial ports/Builtin RS232
Assigned to
JBUS/MOD-Bus
Protocol
JBUS/MOD-Bus
Baudrate
9600 bd
Bits
8
Parity
even
Stopbits
1
Slave
1
Return to the set-up menu for [Serial ports parameter] with
parameter), the following messages are output:
Select the [Baudrate] with
and
set it with
Select none, odd or even parity with
Select address 1 ... 255
. When leaving this menu (change of min. one
Save settings
Starting JBUS/MOD-Bus
100
Sartorius
Combics Pro Installation Manual
4.9.3
Commissioning
Operating parameters
Determination of the basic parameters is in menu
-[Operating parameter].
Setup/Operating parameter
Operating language
English
PS/2 Keyboard Layout
English
QWERTY
Tare key
tare & reset tare
Set zero key
only when not tared
Software download
protected by setup
Keyclick duration
40 ms
Color set
daylight
[Operating language]
[English], [Deutsch], [Francais], [Italiano] or [Espanol] can be selected as dialogue language for the menu items.
Selection is with
.
[PS/2 Keyboard Layout]
Select the connected keyboard from [English QWERTY], [German QWERTZ], [French AZERTY], [Italian QWERTY]
or [Spanish QWERTY].
[Tare key]
The function of the tare key on the keypad can be switched over:
With [tare & reset tare], the scale is tared if it was not tared previously and tare reset occurs if the scale was
tared previously.
With [tare & tare again], the instantaneous value is always stored in the tare memory and a net weight of 0 is
displayed when pressing the key.
When setting [disabled], the tare key is without function.
[Set zero key]
The function of the set zero key on the keypad can be limited to gross mode with [only when not tared]. If
[reset tare on zeroset] was selected, the set zero key switches over to gross mode automatically. If the
operation of the set zero key with these settings is without effect, the cause is that the adjusted zero set range
(around the zero set with the deadload) is already utilized by previous set zero operation and/or automatic
zero setting.
With [disabled], the key is without function.
[Software download]
To prevent a new application from being loaded into the instrument via the network (e.g. by means of
development tool PR 1750/60) and started, the download function can be protected with [protected by setup],
i.e. it can be re-enabled only via the keypad. With setting [always enabled], download is always possible.
[Keyclick duration]
The length of the signal tone output when pressing a key can be changed from 0 (off) to 10, 20, 30, <40>, 50,
100, 200 or 400.
Save changes ?
Sartorius
Exit from the menu is with . Press [YES] to save the data, or [NO] to leave the
menu without changing data.
101
Commissioning
4.9.4
Combics Pro Installation Manual
Fieldbus parameter
Setup
Serial ports parameter
Change Date & Time
Operating parameter
Fieldbus parameter
Select [Fieldbus parameter] with
and
This menu item can only be selected, if a PR 1721/3x card is installed in Slot 4.
4.9.4.1
PR 1721 protocols
Dependent on the installed fieldbus card, the corresponding protocol appears automatically:
[Interbus-S] for PR 1721/32, [Profibus-DP] for PR 1721/31 and [DeviceNet] for PR 1721/34.
Setup/Fieldbus parameter
PR1721 protocol
Profibus-DP
With [Scale interface] set to [disabled], transmission of weight values and statuses is omitted.
Dependent on interface type, additional parameters are required:
[Interbus-S]
Setup/Fieldbus parameter
PR1721 protocol
I/Os
Scale interface
Interbus-S
20 Byte I/O
disabled
Select 8, 16 or 20 with
Select [disabled], [A] or [A+B] with
8, 16 or 20-byte I/O can be selected for Interbus in [I/Os].
[Profibus-DP]
Setup/Fieldbus parameter
PR1721 protocol
I/Os
Profibus-DP address
Scale interface
Profibus-DP
20 Byte I/O
1
disabled
Select 8, 16 or 20 with
Press
A+B+C+D
to select A, A+B, A+B+C or
[DeviceNet]
Setup/Fieldbus parameter
PR1721 protocol
I/Os
DeviceNet baudrate
DeviceNet MAC-ID
Scale interface
102
DeviceNet
20 Byte I/O
500k
1
Select 8, 16, 20, 24, 32 or 64 with
Press
to select 500, 250 or 125 k
Select address 1 ... 62
disabled Select A, A+B, A+B+C or A+B+C+D with
Sartorius
Combics Pro Installation Manual
Commissioning
Exit from the menu
Save changes ?
4.9.5
Exit from the menu is with . Reply [YES] to save the data, or [NO] to leave the
menu without changing data.
Display settings
In menu -[Display settings], contrast and luminance can be adapted to the lighting conditions, default is
50 % for both.
[Color set]
Setting of the display colour to [daylight] or [night shade]
- / + can be used to change contrast and
luminance in steps of 5 %, [Reset] will restore the
default settings.
Sartorius
103
Commissioning
4.9.6
Combics Pro Installation Manual
Boardnumber
A 9-digit individual board number for each instrument is displayed in menu
-[License settings].
Setup/License
Boardnumber
Alibi storage
OPC-Server
4.9.7
192752895
License Settings
General licenses for functions and application licenses can be activated.
Access is via menu -[License Settings].
Setup/License
Boardnumber
Alibi storage
OPC-Server
Batching
Application number
Add
192752895
Identification of existing licenses
0
Remove
After pressing [Add], enter the license number for the required function as a 7digit number. License numbers are delivered as a certificate with the unit and are
valid only for this instrument / [Boardnumber]. If the license is valid, the relevant
license is marked with
after [OK].
Save settings ?
Wrong license key
Licenses marked with
Delete this license ?
104
After
and confirmation with [Yes], the entered license is saved and activated
This message is displayed, if the entered license number was not assigned to the
instrument.
can be deleted with [Remove].
After
, a safety prompt is displayed. When replying [Yes], the license is deleted.
Sartorius
Combics Pro Installation Manual
4.9.8
Commissioning
Network parameter
The settings for the network connections (built-in LAN adaptor)can be made.
Access is via menu -[Network parameter].
Setup/Network parameter
HW address
00:90:6C:7D:0C:08
Hostname
PR5800-UDOWEIGH
IP address
172.24.22.170
Subnet mask
255.255.240.0
Default gateway
0.0.0.0
Remote access
VNC-Client
172.24.21.101
Fixed address determined by the instrument
Device name, can be selected freely by the user
IP address, can be selected freely by the user
Mask for permissible IP address range
IP number for gateway
Permissible client for operation
of the instrument
For setting [IP address], [Subnet mask] and [Default gateway], please, refer to the responsible network
administrator.
The access can be enabled by means of the address which has to be specified in [VNC-Client]:
VNC-Client
VNC-Client
VNC-Client
VNC-Client
Sartorius
0.0.0.0.
172.24.21.101
172.24.21.255
255.255.255.255
Access via VNC not permitted
Access only by client with this address possible
Access by all clients with address range 172.24.21.1 - ..254 possible
Access by client with every address permitted
105
Repair and maintenance
Combics Pro Installation Manual
5 Repair and maintenance
Repairs are subject to checking and can be done only at Sartorius. In case of defect or functional trouble,
please, contact your local Sartorius organization for repair. When returning the instrument for repair, an exact
and complete fault description must be supplied. Maintenance work may be carried out only by a trained
technician aware of the involved hazards and taking the relevant precautions.
5.1
Battery for calendar / time
The lithium battery for back-up of calendar/time chip and alibi memory is located on the processor board.
After delivery, the battery is already activated.
After initial instrument switch-on, the clock must always be set (date and time).
5.1.1
Battery replacement
The instrument is equipped with a lithium battery for back-up of the time/calendar chip and of the alibi
memory. When exceeding the specified min. battery voltage, or in case of defect, the battery must be replaced
by the Sartorius customer service or by an equivalent trained person. For discarding, see chapter 6.
The battery voltage is monitored, see chapter 5.1.1.For battery lifetime, see chapter 7.2.1.
5.1.2
Accumulator replacement
The instrument is fitted with an NiMH accumulator. In case of power failure / switch-off, processor
energization continues during approx. 1 minute for saving the actual status and controlled switch-off. When
exceeding the minimum specified supply voltage, or in case of defects, the accumulator must be replaced by
the Sartorius customer service or by an equivalent trained person. For discarding, see chapter 6.
106
Sartorius
Combics Pro Installation Manual
5.2
Disposal
Solder work
Soldering work on the instrument is not necessary / permissible.
5.3
Cleansing
The units meet the EHEDG (European Hygienic Engineering & Design Group) guidelines for avoidance of
contaminations. It may be cleaned and desinfected easily.
!Disconnect the instrument from the supply voltage, remove connected data cables.
!Prevent moisture from penetrating into the instrument.
!Don’t use aggressive cleansing agents (solvents, etc.).
§
Cleanse the instrument using a cloth moistened in soap water.
$
With application in the foodstuffs industry, the permissible cleansers should be used.
§
Dry the instrument by means of a soft cloth.
!Splashing with water or blowing with compressed air are not permissible.
Cleansing the stainless steel surfaces
Cleanse all stainless steel parts regularly.
Cleanse stainless steel parts of the scale with a damp cloth or a sponge. Use only commercially available
household cleansing products which are suitable for stainless steel (e.g. Stahlfix). Cleanse stainless steel
surfaces simply by brushing with a cloth. Rinse carefully, until all residues are removed, and allow to dry. For
additional protection, a suitable oil can be applied.
Solvents should be used exclusively for cleansing stainless steel parts.
6 Disposal
Unless the packaging material is still required, discard it via the local facilities for refuse disposal. Only
ecologically compatible packaging material which is suitable for recycling is used.
Empty accumulators should not be discarded with the normal household refuse.
Discard empty accumulators in the local collecting boxes. On request, suitable
collecting boxes, e.g. provided by GRS (Stiftung Gemeinsames Rücknahmesystem
Batterien in Germany) are available from Sartorius.
Consult the local authorities for disposal of the complete instrument. Before
discarding, remove the accumulators. In Germany, legally correct disposal of the
instruments is offered by Sartorius.
In other countries, the local authorities should be consulted.
Sartorius
107
Technical data
Combics Pro Installation Manual
7 Technical data
7.1
Instructions for use of 'Free Software'
The instrument Combics Pro contains in the firmware 'Free Software', which is licensed under
GNU General Public License (GPL) Version 2, June 1991 and the
GNU Lesser General Public License (LGPL) Version 2.1, February 1999.
These 'Free Software' developed by third parties is protected by copyright and is left free of charge.
The license terms and conditions of Free Software Foundation, Inc in English language are enclosed in the delivery
of the instrument.
The source text written under the above conditions is contained on the CD-ROM delivered with the
instrument.
7.2
General data
The characteristic data are valid after a min. warm-up time of 60 minutes (reference temperature 23° C).
7.2.1
Back-up battery for time/calendar, alibi memory
The lithium battery for back-up of the time/calendar chip and of the alibi memory is activated already after
delivery.
Battery lifetime: instrument connected continuously to the supply voltage
10 years
instrument not (e.g. storage) / temporarily connected to supply voltage
7 years
7.2.2
Accumulator for processor back-up
An NiMH accumulator provides supply voltage back-up during approx. 1 minute for safe storage of the actual
status. The accumulator temperature is monitored and can be displayed.
7.2.3
Display
Colour-graphic LCD display with 320 x 240 dots for indication of weight value, status, bargraph and
dialogue/menu texts
7.2.4
Power supply
Supply voltage
Power consumption
7.2.4.1
+10% / -15%
50 / 60 Hz
Power supply 24V DC Version
Supply voltage
Power consumption
108
100 V - 240 V AC
18 W/ 20 VA
24 V DC
18 W
+20% / -20%
Sartorius
Combics Pro Installation Manual
7.3
Technical data
Environmental effects
7.3.1
Environmental conditions
Temperature range
Ambient temperature for operation
Switch-on temperature
Storage / transport
Humidity
Protection type
7.3.2
-10... +40 °C
0... +40 °C
-20... +70 °C
< 95 %, no condensation, (acc. to IEC 68-2)
IP 67 front panel, otherwise IP30 (rear)
IP67 with rear panel (accessories) YAS01CISPRO
Electromagnetic compatibility (EMC)
All data in compliance with NAMUR NE 21, EN 45501 and EN 61326
Housing
Radio frequency electromagnetic fields (80 – EN 61000-4-3
1000 MHz)
Electrostatic discharge (ESD)
EN 61000-4-2
Signal and control Fast transients (burst)
lines
Peak voltages (surge) 1.2/50 µs
Conducted disturbances by radio frequency
(0.15 – 80 MHz)
Mains inputs
7.3.3
Fast transients (burst)
Peak voltages (surge) 1.2/50 µs
Conducted disturbances by radio frequency
(0.15 – 80 MHz)
Voltage variations
Voltage dips
6 / 8 kV
EN 61000-4-4
1 kV
EN 61000-4-5
EN 61000-4-6
1 / 2 kV
10 V
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
1 / 2 kV
1 / 2 kV
10 V
EN 61000-4-11
EN 61000-4-11
40% / 0%
20 msec
RF interference suppression
Electromagnetic emission
Sartorius
10 V/m
acc. to EN 61326, limit value class A
109
Technical data
7.4
Combics Pro Installation Manual
PR 5800/10 weighing electronics
Max. 2 weighing electronics type PR 5800/10 can be installed (accessories).
7.4.1
Load cells
Load cell type
Supply voltage
Max. load
7.4.2
Principle
Principle
Conversion / measurement time
Digital filter
7.4.3
DC voltage, delta-sigma converter,
ratiometric to the load cell supply voltage
5, 10, 20, 40, 80, 160, 320, 640, 960, 1200, 1600 ms
Selectable, active 4th order (low-pass),
Characteristic: Bessel, aperiodic, Butterworth, Tschebyscheff
Adjustable cut-off frequency
Accuracy and stability
Accuracy class
Min. measuring signal (OIML)
Linearity error
Zero stability error (TK0)
SPAN stability error (TKSpn)
7.4.4
strain gauge load cells, 6 or 4-wire connection possible
U= 12V DC for Imax= 160 mA
for max. 8 load cells of 650 Ω each or 4 load cells of 350
Ω each
> 75 Ω
< 10000 e (Cl. III) acc. to OIML R76 / EN 45501
=/> 0.25mV/V = 3mV corr. to 0.5µV/e for 6000 e
< 0.003 %
< 0.05 µV/K RTI <= 0.004%/10K at 1mV/V
< +/- 4 ppm/K
Sensitivity
Sensitivity
Resolution
Input voltage (input signal + deadload)
Deadload range
110
0.5 µV/e @ 10000e (Cl. III) OIML R76, 0.5 µV/e @ 3000e OIML R76
7.5 million counts at 3mV/V, not legal for trade
0 ... max. 36 mV DC
36 mV DC (max. input signal); input/ calibration via software
Sartorius
Combics Pro Installation Manual
7.5
Mechanical data
7.5.1
Construction type
Technical data
All-metal stainless steel housing. Protection class IP 67 (front panel).
The IP 67 extension unit YAS01CISPRO for the instrument rear panel is available as an accessory.
7.5.2
Dimensions
Housing:
Width
Height
Depth
7.5.3
Weight
Net weight
Shipping weight
7.5.4
Dimensions
377 mm
260 mm
145 mm
3.8 kg
5.2 kg
Mounting kit (accessories)
Mounting kit YAS04CISPRO is required for cabinet or panel mounting.
Panel cut-out dimensions, (W x H): 350 mm x 218 mm
7.6 Use in 'legal for trade' mode
The instructions for verification and all actual documents can be found in the internat at:
www.sartorius.com/leitfaden_eichen
7.6.1
Documentation for verification on the enclosed CD
On the enclosed CD a directory exists with the following PDF-documents:
- CE Konformitätserklärung zur Richtlinie 90/384/EWG
- Schilder und Marken TN-Pro (Versiegelung und Beschilderung)
- Prüfschein D09-06.13 für das Auswertegerät vom Typ TN-Pro
- EG-Bauartzulassung D04-09-15 Typ SARTICS
7.6.2
CE Certificate of conformity
Sealing and labels
EC Test certificate
EC Type approval
Further instructions
The programmer shall be responsable for ensuring that any new applications that he writes on his own or any
modifications to the available application programs comply with the requirements of legal metrology.
Information on the meaning of the CAL-switches to be sealed can be found in chapter 4.1.1 , the respective
procedure is described in the document 'Schilder und Marken TN-PRO'.
It has to be observed, that the parameter settings (see chapter 4.5.15 ) have to be done according to the legal
requirements and the requirements of the EC Type approval and the EC Testcertificate. Furthermore the
settings and functions mentioned under point 7 (orders and conditions) in the Test certificate have to be
checked. The technician is responsable for selecting the legally permitted settings. The settings have to be
checked.
Sartorius
111
Combics Pro Installation Manual
Index
8 Index
A
Execution message ................................................................. 15
External supply ........................................................................ 31
A+B scale....................................................................................71
Accessories.................................................................................16
Accumulator .......................................................................... 106
Alibi memory ............................................................................64
Allocation of weighing electronics....................................71
Analog input/output .......................................................17, 40
Analog output ..........................................................................17
Application packages .............................................................17
Audit trail...................................................................................60
F
B
Housing ...................................................................................... 10
Barcode reader .........................................................................22
Battery ..................................................................................... 106
BCD output................................................................. 17, 42, 45
BIOS .............................................................................................70
Boardnumber......................................................................... 104
Builtin..........................................................................................23
I
C
Cable entry glands ..................................................................27
Cable junction box...........................................................29, 30
Cal Modify .................................................................................74
Cal New................................................................................74, 81
CAL switch ..........................................................................59, 66
Calibration .................................................................................80
CAP series...................................................................................33
Certificate of conformity................................................... 111
Cleansing................................................................................. 107
Cold / warm start ....................................................................61
Color set .................................................................................. 103
Combics1....................................................................................88
Commissioning .........................................................................59
ConfigureIt ................................................................................69
Connector housing .................................................................27
D
Data saving................................................................................59
Date & Time...............................................................................99
Deadload .............................................................................77, 94
Deadload correction ...............................................................81
Development tool....................................................................17
DeviceNet......................................................................... 17, 102
Digital interface.......................................................................17
Display board ............................................................................19
Display of calibration data ...................................................73
Display settings ..................................................................... 103
Disposal.................................................................................... 107
E
EMC........................................................................................... 109
EN 61010...................................................................................... 7
Error messages ..........................................................................98
Error messages on the weight display ..............................98
Error messages, calibration ................................... 75, 76, 77
Ethernet......................................................................................17
Sartorius
Factory adjustment date....................................................... 63
Firmware .................................................................................... 70
Flash ............................................................................................ 70
FlashIt!32 ................................................................................... 70
Free Software .........................................................................108
H
I/O Slots...................................................................................... 26
IEC 1010........................................................................................7
Increased resolution............................................................... 73
Info key ...................................................................................... 63
Information text...................................................................... 15
Interbus-S........................................................................ 17, 102
Internal weighing electronics ............................................. 28
Intrinsically safe load cell interface .................................. 32
K
Keyboard.......................................................................... 21, 101
Keyclick duration ..................................................................101
Keypad........................................................................................ 21
Kit for panel mounting ......................................................... 10
L
LAN adaptor.............................................................................. 20
LEDs on main board ............................................................... 19
Legal for trade operation ..................................................... 86
License ......................................................................................104
Licenses....................................................................................... 17
Load cell ..................................................................................... 29
Loading new firmware .......................................................... 70
Logic weighing point ............................................................. 71
M
Main board................................................................................ 18
Max.............................................................................................. 75
Maximum capacity ................................................................. 75
Modbus-TCP ............................................................................. 65
Multi-interval scale ................................................................ 86
Multiple range scale............................................................... 86
N
Navigation keys ....................................................................... 14
Network parameter ..............................................................105
Network port ............................................................................ 20
O
Operating concept...........................................................14, 59
Operating language..............................................................101
113
Index
Optocoupler inputs.................................................................17
Optocoupler outputs ..............................................................17
Output.........................................................................................17
P
PG gland.....................................................................................27
Phase configurator .................................................................17
Platforms....................................................................................33
Power connection ..................................................................... 8
PR 1626/60................................................................................32
PR 1627 ......................................................................................23
PR 1628 ......................................................................................23
PR 1721 protocol.................................................................. 102
PR 1721/31 Profibus interface............................................55
PR 1721/32 Interbus interface............................................56
PR 1721/34 DeviceNet interface ........................................57
PR 1750/60................................................................................17
PR 1791/13................................................................................17
PR 5510/02................................................................................34
PR 5510/04................................................................................35
PR 5510/07................................................................................40
PR 5510/08................................................................................42
PR 5510/09................................................................................45
PR 5510/12................................................................................50
PR 5800/10................................................................................28
Preload........................................................................................94
Processing time ........................................................................15
Processor board........................................................................19
Profibus-DP .....................................................................17, 102
Protective earth ......................................................................... 8
Q
Combics Pro Installation Manual
Serial Ports ................................................................................99
Set zero key............................................................................ 101
Setup menu...............................................................................66
Slot 1 2 3.................................................................................17
Slot 4...........................................................................................17
Slot A B .....................................................................................17
Smart calibration ....................................................................79
Software download ............................................................. 101
Stability detection ..................................................................84
Stop character..........................................................................15
Subsequent deadload correction .......................................81
System messages .....................................................................15
T
Tare key ................................................................................... 101
Terminal......................................................................................24
Test...............................................................................................62
Test certificate....................................................................... 111
Ticket printer ............................................................................24
U
Units for display ......................................................................83
V
VDE 0411 ..................................................................................... 7
VNC ..............................................................................................20
W
Warning......................................................................................15
Weighing electronics .............................................................17
Question mark ..........................................................................15
X
R
xBPI.......................................................................................25, 39
xBPI Scale ..................................................................................88
Remote terminal ......................................................................23
RS 232.......................................................................... 23, 35, 36
RS 422................................................................................. 35, 36
RS 485................................................................................. 35, 36
RS-232 ........................................................................................34
Y
YDP04IS-OCEUV ......................................................................24
YDP12IS-OCEUV ......................................................................24
S
Z
Safety notes ........................................................................... 7, 8
Scale interval ............................................................................76
Serial interface .........................................................................17
Serial number ...........................................................................63
Zero set range, utilized..........................................................81
Zero setting............................................................................ 101
Zeroset range............................................................................85
114
Sartorius
Sartorius Mechatronics T&H GmbH
Meiendorfer Straße 205
22145 Hamburg, Germany
Tel +49.40.67960.303
Fax: +49.40.67960.383
www.sartorius.com
 Sartorius Mechatronics T&H GmbH
All rights are strictly reserved
Printed in Germany
Publication No.: WCI6010-e10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
