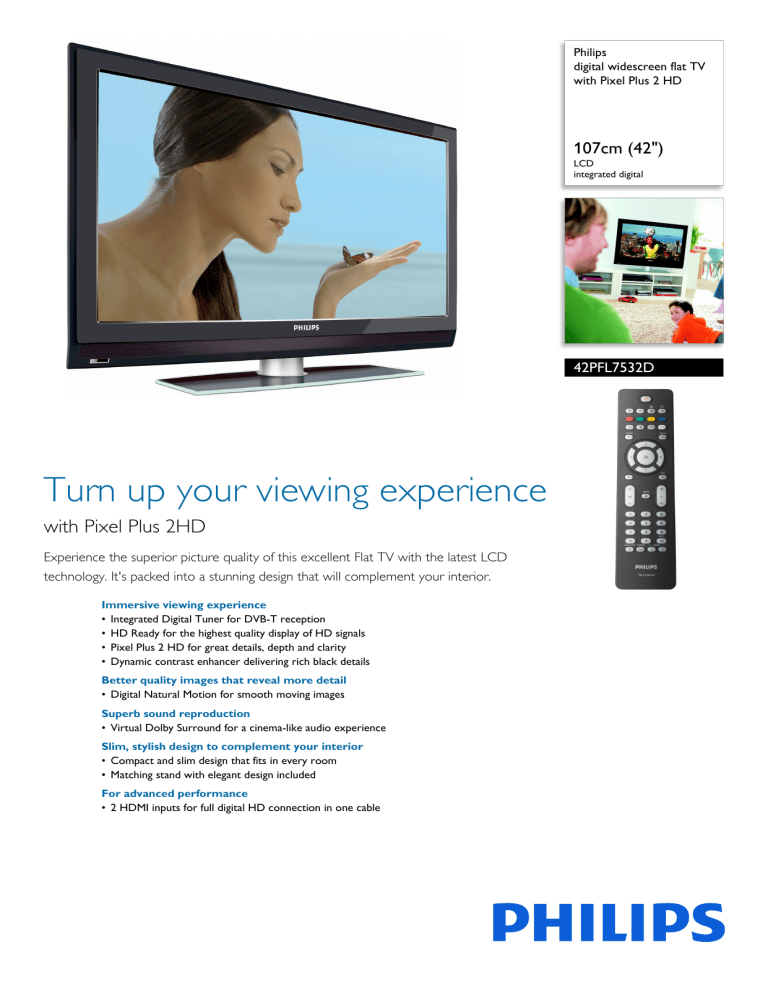

42PFL7532D/79 Philips digital widescreen flat TV with Pixel Plus 2 HD

42PFL7532D/79 Philips digital widescreen flat TV with Pixel Plus 2 HD
digital widescreen flat TV
with Pixel Plus 2 HD
107cm (42")
integrated digital
Turn up your viewing experience
with Pixel Plus 2HD
Experience the superior picture quality of this excellent Flat TV with the latest LCD
technology. It's packed into a stunning design that will complement your interior.
Immersive viewing experience
• Integrated Digital Tuner for DVB-T reception
• HD Ready for the highest quality display of HD signals
• Pixel Plus 2 HD for great details, depth and clarity
• Dynamic contrast enhancer delivering rich black details
Better quality images that reveal more detail
• Digital Natural Motion for smooth moving images
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
• Matching stand with elegant design included
For advanced performance
• 2 HDMI inputs for full digital HD connection in one cable
Digital widescreen flat TV with Pixel Plus 2 HD
107cm (42") LCD, integrated digital
Integrated Digital DVB-T tuner
The integrated Digital DVB-T tuner lets you
receive digital terrestrial TV without an
additional set top box. Enjoy quality TV clutter
HD Ready
Enjoy the exceptional picture quality of High
Definition pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Pixel Plus 2 HD
Pixel Plus 2 HD offers the unique combination
of ultimate sharpness, natural detail, increased
depth, vivid colors and smooth and natural
motion from standard TV, High Definition
signals and multimedia sources. Each pixel of
the incoming picture is enhanced to better
match the surrounding pixels, resulting in a
more natural picture. Artifacts in compressed
multimedia content are detected and reduced,
ensuring that the picture is clean and razor
sharp. Digital noise reduction ensures that the
picture is perfectly smooth yet razor sharp.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast and most vibrant images even at wide
viewing angle. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colors,
(* factor between 2 and 5, screen type and
picture content dependant).
Digital Natural Motion
Philips invented Digital Natural Motion to
eliminate juddering effects that are visible with
moving picture content. Digital Natural Motion
estimates motion in the picture and corrects
juddering movements in both broadcast and
recorded movie material (such as DVD). The
resulting smooth motion reproduction and
excellent sharpness take the viewing
experience to a higher level.
Virtual Dolby Surround
Virtual Dolby Surround is a processing
technology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
Bypacked tabletop stand
A table-top stand with matching design is
packed with the set.
2 HDMI inputs
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection. With 2 HDMI inputs you can
connect multiple HD sources, for instance an
HD settop box, and a Blu-ray player. Your TV
is fully prepared for the HD future.
Digital widescreen flat TV with Pixel Plus 2 HD
107cm (42") LCD, integrated digital
• Color cabinet: Black Cabinet with Hi Gloss Black
Deco Frame
• Aspect ratio: 16:9
• Brightness: 550 cd/m²
• Dynamic screen contrast: 7500:1
• Response time (typical): 5 ms
• Viewing angle: 176º (H) / 176º (V)
• Diagonal screen size: 42 inch / 107 cm
• Display screen type: LCD WXGA Active Matrix
• Panel resolution: 1366 x 768p
• Picture enhancement: Pixel Plus 2 HD, Digital
Natural Motion, Dynamic contrast enhancement,
3/2 - 2/2 motion pull down, 3D Combfilter, Active
Control + Light sensor, Active Control, Jagged
Line Suppression, Progressive scan, Widescreen
• Screen enhancement: Anti-Reflection coated
Supported Display Resolution
• Computer formats
Refresh rate
640 x 480
800 x 600
1024 x 768
• Video Formats
Refresh rate
640 x 480i
640 x 480p
720 x 576i
720 x 576p
1280 x 720p
1920 x 1080i
• Output power (RMS): 2x15W
• Sound Enhancement: Digital Signal Processing,
Graphic Equaliser, Dynamic Bass Enhancement
• Sound System: Virtual Dolby Digital
• Built-in speakers: 2
• Loudspeaker types: Dome tweeter
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic Tuning
System (ATS), Autostore, PLL Digital Tuning, Plug
& Play
• Ease of Use: 4 favorite lists, Auto Volume Leveller
(AVL), Delta Volume per preset, Graphical User
Interface, On Screen Display, Program List, Side
• Electronic Program Guide: Now + Next EPG
• Remote Control: TV
• Remote control type: RC2034302/01
• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Auto Format, Movie expand 14:9, Movie
expand 16:9, Subtitle and Heading Shift, Super
Zoom, Widescreen
• Picture in Picture: Text dual screen
• Teletext: 1200 page Hypertext
• Teletext enhancements: Habit Watch, Program
information Line
Multimedia Applications
• Multimedia connections: USB (streaming video
• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pictures, MPEG2
Aerial Input: 75 ohm coaxial (IEC75)
TV system: DVB COFDM 2K/8K
Video Playback: NTSC, SECAM, PAL
Digital TV: DVB Terrestrial *
Tuner bands: Hyperband, S-Channel, UHF, VHF
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: Audio L/R, CVBS in/out, RGB, S-video
• Ext 3: YPbPr
• Ext 4: HDMI
• Ext 5: HDMI
• Front / Side connections: Audio L/R in, CVBS in,
Headphone Out, S-video in, USB
• Other connections: Analog audio Left/Right out, S/
PDIF in (coaxial), S/PDIF out (coaxial)
• Ambient temperature: 5 °C to 40 °C
• Mains power: AC 220 - 240 V +/- 10%
Issue date 2014-02-12
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 6.0.11
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 30346
EAN: 87 12581 33776 6
• Power consumption: 255 W
• Standby power consumption: <1W
• Included accessories: Table top stand, Power cord,
User Manual, Registration card, Warranty
certificate, Remote Control, Batteries for remote
• Optional accessories: Floor stand
• Set dimensions (W x H x D):
1046 x 686 x 118 mm
• Set dimensions with stand (W x H x D):
1046 x 748.6 x 264.5 mm
• Product weight: 26.35 kg
• Product weight (+stand): 33.5 kg
• Box dimensions (W x H x D):
1152 x 800 x 277 mm
• Weight incl. Packaging: 39.2 kg
• VESA wall mount compatible: 600 x 400 mm
