,QVWDOODWLRQVKDQGEXFKIU
6XQ5D\:LQGRZV&RQQHFWRU /LQX[
February 2011

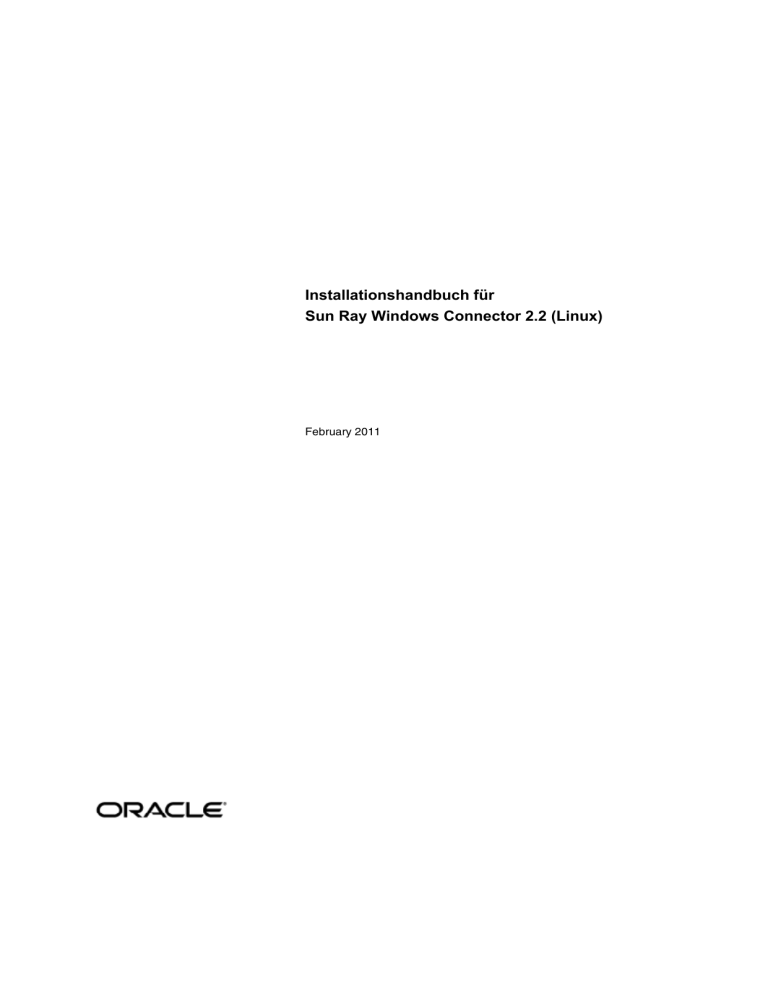

Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
Copyright © 2011, Oracle and/or its affiliates. All rights reserved.
This software and related documentation are provided under a license agreement
containing restrictions on use and disclosure and are protected by intellectual property
laws. Except as expressly permitted in your license agreement or allowed by law, you
may not use, copy, reproduce, translate, broadcast, modify, license, transmit,
distribute, exhibit, perform, publish, or display any part, in any form, or by any means.
Reverse engineering, disassembly, or decompilation of this software, unless required
by law for interoperability, is prohibited.
The information contained herein is subject to change without notice and is not
warranted to be error-free. If you find any errors, please report them to us in writing.
If this software or related documentation is delivered to the U.S. Government or
anyone licensing it on behalf of the U.S. Government, the following notice is
applicable:
U.S. GOVERNMENT RIGHTS Programs, software, databases, and related
documentation and technical data delivered to U.S. Government customers are
"commercial computer software" or "commercial technical data" pursuant to the
applicable Federal Acquisition Regulation and agency-specific supplemental
regulations. As such, the use, duplication, disclosure, modification, and adaptation
shall be subject to the restrictions and license terms set forth in the applicable
Government contract, and, to the extent applicable by the terms of the Government
contract, the additional rights set forth in FAR 52.227-19, Commercial Computer
Software License (December 2007). Oracle USA, Inc., 500 Oracle Parkway, Redwood
City, CA 94065.
This software is developed for general use in a variety of information management
applications. It is not developed or intended for use in any inherently dangerous
applications, including applications which may create a risk of personal injury. If you
use this software in dangerous applications, then you shall be responsible to take all
appropriate fail-safe, backup, redundancy, and other measures to ensure the safe use
of this software. Oracle Corporation and its affiliates disclaim any liability for any
damages caused by use of this software in dangerous applications.
Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other
names may be trademarks of their respective owners.
This software and documentation may provide access to or information on content,
products, and services from third parties. Oracle Corporation and its affiliates are not
responsible for and expressly disclaim all warranties of any kind with respect to
third-party content, products, and services. Oracle Corporation and its affiliates will not
be responsible for any loss, costs, or damages incurred due to your access to or use
of third-party content, products, or services.
2
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
Installationshandbuch für Sun Ray Windows Connector 2.2
(Linux)
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
Inhalt
SRS 5 System Requirements
Sun Ray Server Operating System Requirements
SRWC 2.2 System Requirements for Components
Licensing
Ports and Protocols (Ports und Protokolle)
SRWC-Operationen
Multimedia-Umleitung
So installieren Sie SRWC (Linux)
How to Install the Sun Ray Connector Windows Components
Multimedia Redirection - Next Steps
Adobe Flash Acceleration - Next Steps
Sun Ray Audio Driver - Next Steps
USB Redirection - Next Steps
So deinstallieren Sie SRWC
Installieren unter Linux (Alle Themen)
SRS 5 System Requirements
This page provides the product requirements for the SRS 5 release, which includes SRSS 4.2 and SRWC 2.2.
Sun Ray Server Operating System Requirements
The following table provides the supported Sun Ray server operating systems for the SRSS 4.2 and SRWC 2.2 releases.
Platform
Releases
Solaris
Solaris 10 5/09 or later on SPARC and x86 platforms
Solaris 10 5/09 or later on SPARC and x86 platforms with Solaris Trusted Extensions
Linux
Oracle Linux 5.4 and 5.5 (32-bit and 64-bit)
SuSE Linux Enterprise Server (SLES) 10 with Service Pack 2 (32-bit and 64-bit)
Red Hat Enterprise Linux 5 Update 3 server (32-bit and 64-bit)
For additional operating system requirements, see Additional Software Requirements.
SRWC 2.2 System Requirements for Components
3
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
The following table provides a software support matrix for all the components of SRWC.
Note
Windows 7 and Windows 2008 R2 support requires the SRWC 2.2 patch, version -02 or greater.
Windows
XP SP 2
(64-bit)
Windows
XP SP 3
(32-bit)
Windows
2003 R2 SP2
(32-bit/64-bit)
Windows
Vista SP 2
(32-bit/64-bit)
Windows
2008 SP 2
(32-bit/64-bit)
Windows 7
(32-bit/64-bit)
Windows
2008 R2
(64-bit)
Windows
XP SP 2
(64-bit)
Windows
XP SP 3
(32-bit)
Windows
2003 R2 SP2
(32-bit/64-bit)
Windows
Vista SP 2
(32-bit/64-bit)
Windows
2008 SP 2
(32-bit/64-bit)
Windows 7
(32-bit/64-bit)
Windows
2008 R2
(64-bit)
Windows Remote Desktop Connection
Support
SRWC Component
Multimedia Redirection
Supported only with Windows
Media Player 10 and 11
Adobe Flash Acceleration
Supported only with Internet
Explorer version 7 and 8, 32-bit
Adobe Flash 9 content with all
Adobe Flash Players from
versions 9 and 10
USB Redirection
Supported only with Sun Ray
server running Solaris 10 5/09
or later
Supported only in Full Screen
Windows Kiosk Mode
Audio Input
Session Directory/Session Broker
32-bit Color
Note
Multimedia redirection, Adobe Flash acceleration, and USB redirection require additional software to be installed on the
Windows server. For detailed information, see How to Install the Sun Ray Connector Windows Components.
Licensing
The Sun Ray Software can be licensed as follows:
Per Named User Plus - is defined as an individual authorized by the customer to use the programs which are installed on a single server
or multiple servers, regardless of whether the individual is actively using the programs at any given time.
Per Sun Ray Device - is defined as any licensed software or hardware device, whether from Oracle or a 3rd party, that accesses a Sun
Ray Server environment using the ALP (Appliance Link Protocol), an Oracle Virtual Desktop Infrastructure server environment using ALP
or RDP (Remote Desktop Protocol), or an Oracle Secure Global desktop environment using the AIP (Adaptive Internet Protocol).
4
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
Connecting to a Sun Ray Software environment via a Sun Ray client or the Oracle Virtual Desktop Access client without an appropriate software
license is prohibited.
Ports and Protocols (Ports und Protokolle)
Diese Seite enthält die Anforderungen für SRWC-Ports und -Protokolle. Informationen zu Port- und Protokollanforderungen für SRSS finden Sie
auf der Seite Ports und Protokolle für SRSS
SRWC-Operationen
Für einfache SRWC-Operationen (RDP-Port-Zugriff) muss für die Firewall des Windows-Servers TCP-Port 3389 für eingehende Verbindungen
offen sein. Für die Firewall des Sun Ray-Servers (auf dem SRWC ausgeführt wird) muss TCP-Port 3389 für ausgehende Verbindungen offen sein.
Multimedia-Umleitung
Bei der Multimedia-Umleitung muss für die Firewall des Windows-Servers TCP-Port 6000 für eingehende Verbindungen offen sein. Für die
Firewall des Sun Ray-Servers (auf dem SRWC ausgeführt wird) muss TCP-Port 6000 für ausgehende Verbindungen offen sein.
So installieren Sie SRWC (Linux)
Hier wird die Vorgehensweise zur Installation von Sun Ray Windows Connector (SRWC) auf einem Sun Ray-Server, auf dem das
Linux-Betriebssystem ausgeführt wird, beschrieben.
Schritte
1. Werden Sie Superuser auf dem Linux Sun Ray-Server.
Mit dem folgenden Befehl vermeiden Sie Installationsskript-Fehler bei der Konfiguration der Benutzerumgebung:
% su - root
2. Wechseln Sie in das Abbildverzeichnis der SRWC-Installation, das das SRWC-Installationsprogramm enthält.
3. Installieren Sie die SRWC-Software.
# ./installer
4. Führen Sie nach Abschluss der Installation das automatische Konfigurationsskript aus.
# /opt/SUNWuttsc/sbin/uttscadm -c
Das Skript „uttscadm“ fordert Sie möglicherweise auf, einen Pfad zu den OpenSSL-Bibliotheken einzugeben.
5. Akzeptieren Sie den Standardpfad zu den OpenSSL-Bibliotheken oder geben Sie einen anderen Pfad an, falls anwendbar.
6. Starten Sie die Sun Ray-Dienste neu, wenn Sie dazu aufgefordert werden.
# /opt/SUNWut/sbin/utrestart
Wenn Sie vom Skript uttscadm nicht dazu aufgefordert werden, müssen Sie die Sun Ray-Dienste nicht neu starten.
Nächste Schritte
Nach Abschluss der Installation von SRWC sind eventuell weitere Schritte erforderlich.
5
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
Aufgabe
Beschreibung
Install the Sun Ray
Connector Windows
Components
Enthält Beschreibungen der Schritte zum Installieren der SRWC-Komponenten auf einem Windows-System,
darunter Multimedia-Umleitung, Adobe Flash-Beschleunigung, Sun Ray-Audiotreiber und USB-Umleitung.
Konfiguration des
Druckerzugriffs
Um über SRWC auf Drucker zugreifen zu können, die mit dem Sun Ray-Server verbunden sind (über das
Netzwerk oder lokal), sind einige Konfigurationsschritte erforderlich.
Konfiguration einer
Kiosk-Sitzung
Konfigurieren Sie zur Einrichtung eines benutzerdefinierten oder eingeschränkten Zugriffs auf Windows eine
Kiosk-Implementierung für Sun Ray Windows Connector.
Verwandte Themen
So deinstallieren Sie SRWC
How to Install the Sun Ray Connector Windows Components
This procedure provides the steps to install the following SRWC components on the Windows system:
Multimedia redirection - Enhanced performance for Windows Media Player.
Adobe Flash acceleration - Enhanced playback capabilities for Adobe Flash content.
Sun Ray audio driver - Enhanced audio and video synchronization for multimedia content.
USB redirection - Enables access to USB devices connected to a Sun Ray DTU from a Windows session.
Audio input - Enables audio recording on a Sun Ray DTU from a Windows session.
Before You Begin
For information about how to install and configure SRSS 4.2 and SRWC 2.2, see the Sun Ray Server Software 4.2 and the Sun Ray
Connector for Windows OS Version 2.2 documentation.
If you want to install the Sun Ray Connector Windows components by using the *.msi files, you can use a 3rd-party tool to extract the
*.msi files from the srs-wininstaller.exe file.
Note
To bypass the installation UI, you can run srs-winstaller /S from the command line.
Steps
1. Log in to the Windows system as Administrator.
2. If you plan to install the USB Redirection component on a Virtual Machine (VM), you must add USB drivers on some VMs if they do not
provide drivers by default. See How to Add USB Drivers to a Virtual Machine for details.
3. The Windows system must have access to the SRWC image.
<SRWC_image>/srwc2.2/Sun_Ray_Connector_Windows_Components_1.0
4.
5.
6.
7.
Copy the srs-winstaller.exe file from the SRWC image to the Windows system.
Double-click the srs-winstaller icon to start the Sun Ray Connector Windows Components Setup Wizard.
Review the License Agreement and click I Agree.
Choose which components you want to install and click Install.
6
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
8. Click Finish once the installation has finished.
Restart the Windows system if instructed.
9. Go to the following sections (next steps) based on the features you installed.
Multimedia Redirection - Next Steps
Adobe Flash Acceleration - Next Steps
Sun Ray Audio Driver - Next Steps
USB Redirection - Next Steps
Multimedia Redirection - Next Steps
Additional Requirements for H.264 (MPEG-4)
The multimedia component does not include audio/video demux and decoders for H.264 (MPEG-4) streams. To ensure that MPEG-4 video
streams are accelerated properly, you need to download some third-party or freeware solutions.
Consider the following freeware:
MatroskaSplitter: http://haali.cs.msu.ru/mkv/
ffdshow: http://sourceforge.net/project/showfiles.php?group_id=173941
Alternatively, you can use a third-party codec, such as the SDK codec from MainConcept: http://www.mainconcept.com
For the MainConcept codec, the following items are required:
MPEG splitter
MPEG decoder
MP4 splitter
MP4 decoder
H.264 decoder
Many other solutions are possible. Not all solutions are listed here.
Xinerama Limitation
H.264 and VC-1 support on the DTU is not available for Xinerama sessions. In Xinerama sessions, video windows may be dragged from one DTU
to another or may span multiple DTUs. Audio/video synchronization of H.264 and VC-1 support is limited to the primary DTU, and the videos
cannot be synchronized between DTUs. H.264 and VC-1 videos may still be rendered by the application in the same manner as they would be
rendered on Sun Ray 1 DTUs.
7
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
For more information on Xinerama, see About Multihead Configurations.
Adobe Flash Acceleration - Next Steps
For Adobe Flash animations, users must enable "Third party browser extensions" in their browser's Internet Options.
Sun Ray Audio Driver - Next Steps
Caution
For audio to work properly, the Sun Ray audio driver must be set as the default. If users have changed their default audio
driver, they must perform the following procedure to make the Sun Ray audio driver the default.# From the Windows
Desktop, choose Settings->Control Panel.
1.
2.
3.
4.
Click Sounds & Audio Devices.
Click the Audio tab.
If the Sun Ray RDP Audio Driver is not the default, select it and click Apply.
Close your browser and reopen it.
USB Redirection - Next Steps
Under MyComputer, right-click Properties > Hardware > DeviceManager, the utSrSession under the System devices entry should be
displayed (Click image to enlarge).
See How to Verify that USB Redirection is Active for information about how to verify that USB redirection is working from a new session.
So deinstallieren Sie SRWC
Hier wird die Vorgehensweise zur Deinstallation von Sun Ray Windows Connector (SRWC) auf einem Sun Ray-Server beschrieben.
Schritte
1. Öffnen Sie als Superuser ein Shell-Fenster auf dem Sun Ray-Server.
Mit dem folgenden Befehl vermeiden Sie Installationsskript-Fehler bei der Konfiguration der Benutzerumgebung:
% su - root
2. Dekonfigurieren Sie die SRWC-Software vor der Deinstallation.
# /opt/SUNWuttsc/sbin/uttscadm -u
Unter Solaris wird der Eintrag uttscpd aus der Datei /etc/services entfernt und der SRWC-Proxy-Dämon angehalten.
3. Entfernen Sie die SRWC-Software.
8
3.
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
# /opt/SUNWuttsc/sbin/uninstaller
Aktualisierung (Alle Themen)
So aktualisieren Sie SRWC
Hier wird die Vorgehensweise zum Upgrade auf die neueste Version von Sun Ray Windows Connector (SRWC) beschrieben. Um ein Upgrade
einer früheren Version von Sun Ray Windows Connector durchzuführen, müssen Sie das Installationsprogramm und das Konfigurationsskript
uttscadm ausführen.
Schritte
1. Wechseln Sie in das Abbildverzeichnis der CD-ROM mit Sun Ray Windows Connector..
Beispiel:
# cd /cdrom/cdrom0
2. Installieren Sie die Sun Ray Windows Connector-Software.
# ./installer
Das Installationsskript zeigt an, welche Sun Ray Windows Connector-Software bereits auf dem System installiert ist.
Beispiel:
Sun Ray Connector 2.1 is currently installed.
Do you want to uninstall it
and install Sun Ray Connector 2.2?
Accept (Y/N):
3. Geben Sie in der Eingabeaufforderung „Accept (Y/N)“ entweder „Y“ (Ja) oder „N“ (Nein) ein.
a. Geben Sie „N“ ein, um die vorhandene Installation beizubehalten.
b. Geben Sie „Y“ ein, um die alte Version der Sun Ray Windows Connector-Software zu deinstallieren und die neuere Version zu
installieren.
Der vorhandene Sun Ray Data Store wird durch das Upgrade-Verfahren weder entfernt noch geändert.
4. Führen Sie das automatische Konfigurationsskript erneut aus.
# /opt/SUNWuttsc/sbin/uttscadm -c
Glossary
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
If you would like to add a term to the list, use the Add Comment link at the bottom of the page.
A
Term
Description
AAC
Advanced Audio Coding, a "lossy" compression format capable of delivering relatively high quality at relatively low bit rates.
9
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
alias token
An alias token that enables a card owner to access the same Sun Ray session with more than one physical token. This token
can be useful when a user needs a duplicate smart card.
ALP
The Sun Appliance Link Protocol, a suite of network protocols that enable communication between Sun Ray servers and
DTUs.
AMGH
Automatic Multigroup Hotdesking. See regional hotdesking.
AH
Authentication headers used as part of an IPSec implementation.
authentication
policy
The Authentication Manager uses the selected authentication module to determine what tokens are valid and which users, as
token owners, have access to the system and sessions.
authentication
token
Although all tokens are used by the Authentication Manager to grant or deny access to Sun Ray sessions, this term usually
refers to a user's smart card token. See token.
B
Term
Description
backplane
bandwidth
Sometimes also referred to as "switch fabric." A switch's backplane is the pipe through which data flows from an input port to
an output port. Backplane bandwidth usually refers to the aggregate bandwidth available among all ports within a switch.
barrier
mechanism
To prevent clients from downloading firmware that is older than the firmware that is already installed, the administrator can set
a barrier mechanism. The barrier mechanism symbol BarrierLevel is defined by default in the DHCP table of Sun Ray servers
running version 2.0 or later of Sun Ray Server Software.
bpp
Bits per pixel.
C
Term
Description
CABAC
Context-adaptive binary arithmetic coding, a "lossless" entropy coding technique used in H.264/MPEG-4 AVC video encoding.
CAM
Controlled Access Mode, also known as kiosk mode. As of SRSS 4.0, the CAM module was replaced by a rewritten Kiosk
module.
card reader
See token reader.
category 5
The most common type of wiring used in LANs. It is approved for both voice and data at up to 100 Mhz. Also called "cat 5."
client-server
A common way to describe network services and the user processes (programs) of those services.
codec
A device or program capable of encoding or decoding a digital data stream or signal.
cold restart
Pressing the Cold Restart button terminates all sessions on a given server before restarting Sun Ray services. See restart.
cut-through
switch
The switch begins forwarding the incoming frame onto the outbound port as soon as it reads the MAC address while
continuing to receive the remainder of the frame.
D
Term
Description
DHCP
Dynamic Host Configuration Protocol, a means of distributing IP addresses and initial parameters to the DTUs.
domain
A set of one or more system boards that acts as a separate system capable of booting the OS and running independently of any
other board.
DTU
Desktop Terminal Units, the original name of Sun Ray desktop units. These units are also referred to as Sun Ray thin clients, Sun Ray
ultra-thin clients, and Sun Ray virtual display terminals.
10
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
E
Term
Description
ESP
Encapsulating Security Payloads, used as part of IPSec.
Ethernet
Physical and link-level communications mechanism defined by the IEEE 802.3 family of standards.
Ethernet
address
The unique hardware address assigned to a computer system or interface board when it is manufactured. See MAC
address.
Ethernet switch
A unit that redirects packets from input ports to output ports. It can be a component of the Sun Ray interconnect fabric.
F
Term
Description
failover
The process of transferring processes from a failed server to a functional server.
failover
group
Two or more Sun Ray servers configured to provide continuity of service in the event of a network or system failure. Sometimes
abbreviated as FOG or HA (for high availability). The term high availability refers to the benefit of this type of configuration; the
term failover group refers to the functionality.
filling
station
Any private network configured for Sun Ray services or any shared network in which the Sun Ray DHCP server is the only DHCP
server. When a DTU's firmware is downgraded to an earlier version because it connects to a server running the earlier version, it
needs to be connected to a filling station so that it can download newer firmware.
firmware
barrier
See barrier mechanism.
FOG
See failover group.
fps
Frames per second.
frame
buffer
Video output device that drives the video display. See virtual frame buffer.
G
Term
Description
GEM
Gigabit Ethernet.
group-wide
Across a failover group.
H
Term
Description
H.264
A standard for video compression developed by MPEG and VCEG for a wide range of bit rates and resolutions. Also known as
MPEG-4 AVC (Advanced Video Coding) and MPEG-4 Part 10.
HA
High availability. Sun Ray HA groups have traditionally been called failover groups.
head
Colloquial term for a screen, or display, or monitor, especially in a context where more than one is used in conjunction with
the same keyboard and mouse, as in "multihead" feature.
high
availability
See failover. The term high availability refers to a benefit of this type of configuration. The term failover group refers to the
functionality.
hotdesking
The ability for a user to remove a smart card, insert it into any other DTU within a server group, and have the user's session
available for instantaneous access to the user's windowing environment and current applications from multiple DTUs.
11
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
hot key
A predefined keyboard shortcut used to trigger certain activities either on the DTU or within the Sun Ray session running on
the Sun Ray server. A hot key is used to bring up the Settings screen on the Sun Ray DTU.
hot-pluggable
A property of a hardware component that can be inserted into or removed from a system that is powered on. USB devices
connected to Sun Ray DTUs are hot-pluggable.
I
Term
Description
idle session
A session that is running on a Sun Ray server but to which no user (identified by a smart card token or a pseudo-token) is
logged in.
IKE
Internet Key Exchange, a component of IPSec.
interconnect
fabric
All the cabling and switches that connect a Sun Ray server's network interface cards to the Sun Ray DTUs.
intranet
A private network that uses internet protocols and is confined to an organization.
IP address
A unique number that identifies each host or other hardware system on a network. An IP address is composed of four integers
separated by periods. Each decimal integer must be in the range 0-255 (for example, 129.144.0.0).
IP address
lease
The assignment of an IP address to a computer system for a specified length of time, rather than permanently. IP address
leasing is managed by the Dynamic Host Configuration Protocol (DHCP). The IP addresses of Sun Ray DTUs are leased.
IPSec
The Internet Protocol (Security) set of protocols seeks to secure IP communications by encoding data packets through
authentication headers (AH) and encapsulating security payloads (ESP) and by providing a key exchange mechanism (IKE).
K
Term
Description
kiosk
mode
A facility to run sessions under an anonymous user account without a UNIX login. Kiosk sessions provide a preconfigured, usually
restricted, software environment. The term kiosk mode was used interchangeably with CAM in earlier versions of SRSS. As of SRSS 4.0,
this module was completely rewritten and is now officially called kiosk mode.
L
Term
Description
LAN
Local Area Network. A group of computer systems in close proximity that can communicate with one another through connecting
hardware and software.
layer
2
The data link layer. The OSI (Open Standards Interconnection) model contains seven layers. Layer 2 is concerned with procedures and
protocols for operating the communication lines between networks as well as clients and servers. Layer 2 also has the ability to detect
and correct message errors.
local
host
The CPU or computer on which a software application is running.
local
server
From the DTU's perspective, the most immediate server in the LAN.
M
Term
Description
MAC
address
Media Access Control. A MAC address is a 48-bit number programmed into each local area network interface card (NIC) at the
time of manufacture. LAN packets contain destination and source MAC names and can be used by bridges to filter, process,
and forward packets. 8:0:20:9e:51:cf is an example of a MAC address. See also Ethernet address
12
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
managed
object
An object monitored by the Sun Management Center software.
mobile
token
If mobile sessions are enabled, this pseudo-token enables a user to log in to an existing session from different locations
without a smart card, in which case the user name is associated with the session. This type of pseudo-token is called a mobile
token.
mobility
For the purposes of the Sun Ray Server Software, the property of a session that enables it to follow a user from one DTU to
another within a server group. On the Sun Ray system, mobility requires the use of a smart card or other identifying
mechanism.
modules
Authentication modules are used to implement various site-selectable authentication policies.
MPPC
Microsoft Point-to-Point Compression protocol.
MTU
Maximum Transmission Unit, used to specify the number of bytes in the largest packet a network can transmit.
multicasting
The process of enabling communication between Sun Ray servers over their Sun Ray network interfaces in a failover
environment.
multihead
See head.
multiplexing
The process of transmitting multiple channels across one communications circuit.
N
Term
Description
NAT
See network address translation.
namespace
A set of names in which a specified ID must be unique.
network address
The IP address used to specify a network.
network address
translation
Network address translation (NAT) typically involves the mapping of port numbers to allow multiple machines (Sun Ray
DTUs, but not Sun Ray servers) to share a single IP address.
network
interface
An access point to a computer system on a network. Each interface is associated with a physical device. However, a
physical device can have multiple network interfaces.
network
interface card
Abbreviated as NIC. The hardware that links a workstation or server to a network device.
network latency
The time delay associated with moving information through a network. Interactive applications such as voice, video
displays, and multimedia applications are sensitive to these delays.
network mask
A number used by software to separate the local subnet address from the rest of a given Internet protocol address. An
example of a network mask for a class C network is 255.255.255.0.
network
protocol stack
A network suite of protocols, organized in a hierarchy of layers called a stack. TCP/IP is an example of a Sun Ray protocol
stack.
NIC
Network interface card.
non-smart card
mobility
A mobile session on a Sun Ray DTU that does not rely on a smart card. NSCM requires a policy that allows pseudo-tokens.
NSCM
See non-smart card mobility.
O
Term
Description
OSD
On-screen display. The Sun Ray DTU uses OSD icons to alert the user of potential start-up or connectivity problems.
13
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
P
Term
Description
PAM
Pluggable Authentication Module. A set of dynamically loadable objects that gives system administrators the flexibility of
choosing among available user authentication services.
PAM session
A single PAM handle and runtime state associated with all PAM items, data, and the like.
patch
A collection of files and directories that replace or update existing files and directories that prevent proper execution of the
software on a computer system. The patch software is derived from a specified package format and can be installed only if
the package it fixes is already present.
PCM
Pulse Code Modulation.
policy
See authentication policy.
Pop-up GUI
A mechanism that enables configuration parameters for a Sun Ray DTU to be entered from the attached keyboard.
port
(1) A location for passing data in and out of a computer system. (2) The abstraction used by Internet transport protocols to
distinguish among multiple simultaneous connections to a single destination host.
POST
Power-on self test.
power cycling
Using the power cord to restart a DTU.
pseudo-session
A Sun Ray session associated with a pseudo-token rather than a smart card token.
pseudo-token
A user accessing a Sun Ray session without a smart card is identified by the DTU's built-in type and MAC address, known as a
pseudo-token. See token.
R
Term
Description
RDP
Microsoft Remote Desktop Protocol.
regional
hotdesking
Originally known as Automatic Multigroup Hotdesking (AMGH), this SRSS feature enables users to access their sessions across
wider domains and greater physical distances than was possible in earlier versions of SRSS. Administrators enable this feature by
defining how user sessions are mapped to an expanded list of servers in multiple failover groups.
RDS
Remote Desktop Services. Formally known as Terminal Services. See Windows Terminal Services.
RHA
Remote Hotdesk Authentication, a security enhancement that requires SRSS authentication before users can reconnect to an
existing session. RHA does not apply to Kiosk sessions, which are designed for anonymous access without authentication. RHA
policy can be administered either through a GUI option or with the utpolicy command.
restart
Sun Ray services can be restarted either from the utrestart command or with the Warm Restart or Cold Restart options
through the GUI. A a cold restart terminates all Sun Ray sessions; a warm restart does not.
S
screen flipping
The ability on a Sun Ray DTU with a single head to pan to individual screens that were originally created by a multihead
group.
server
A computer system that supplies computing services or resources to one or more clients.
service
For the purposes of the Sun Ray Server Software, any application that can directly connect to the Sun Ray DTU. It can
include audio, video, Xservers, access to other machines, and device control of the DTU.
session
A group of services associated with an authentication token. A session may be associated with a token embedded on a
smart card. See token.
session mobility
The ability for a session to "follow" a user's login ID or a token embedded on a smart card.
14
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
smart card
Generically, a plastic card containing a microprocessor capable of making calculations. Smart cards that can be used to
initiate or connect to Sun Ray sessions contain identifiers such as the card type and ID. Smart card tokens may also be
registered in the Sun Ray Data Store, either by the Sun Ray administrator or, if the administrator chooses, by the user.
smart card token
An authentication token contained on a smart card. See token.
SNMP
Simple Network Management Protocol
spanning tree
An intelligent algorithm that enables bridges to map a redundant topology and eliminates packet looping in Local Area
Networks (LANs).
store-and-forward
switches
The switch reads and stores the entire incoming frame in a buffer, checks it for errors, reads and looks up the MAC
addresses, and then forwards the complete good frame out onto the outbound port.
subnet
A working scheme that divides a single logical network into smaller physical networks to simplify routing.
system
The Sun Ray system consists of Sun Ray DTUs, servers, server software and the physical networks that connect them.
T
TCP/IP
Transmission Control Protocol/Internet Protocol (TCP/IP) is a networking protocol that provides communication across
interconnected networks between computers with diverse hardware architectures and operating systems.
thin
client
Thin clients remotely access some resources of a computer server, such as compute power and large memory capacity. The Sun Ray
DTUs rely on the server for all computing power and storage.
tick
The time interval since a specific network event. It is defined as 1/100th of a second, which is the usual SNMP convention.
timeout
value
The maximum allowed time interval between communications from a DTU to the Authentication Manager.
token
The Sun Ray system requires each user to present a token, which the Authentication Manager uses to allow or deny access to the
system and to sessions. A token consists of a type and an ID. If the user uses a smart card, the smart card's type and ID are used as
the token. If the user is not using a smart card, the DTU's built-in type and ID (the unit's Ethernet, or MAC, address) are used
instead as a pseudo-token. If mobile sessions are enabled, a user can log in to an existing session from different locations without a
smart card, in which case the user name is associated with the session. A pseudo-token used for mobile sessions is called a mobile
token. Alias tokens can also be created to enable users to access the same session with more than one physical token.
token
reader
A Sun Ray DTU that is dedicated to reading smart cards and returning their identifiers, which can be associate with card owners
(users).
trusted
server
Servers in the same failover group that "trust" one another.
U
URI
Uniform Resource Identifier, the generic term for all types of names and addresses that refer to objects on the World Wide
Web.
user
session
A session that is running on a Sun Ray server and to which a user (identified by a smart card token or a pseudotoken) is logged
in.
V
VC-1
Informal name of the SMPTE 421M video codec standard, now a supported standard for Blu-ray Discs and Windows Media
Video 9.
virtual
desktop
A virtual machine containing a desktop instance that is executed and managed within the virtual desktop infrastructure,
usually a Windows XP or Vista desktop accessed through RDP.
virtual frame
buffer
A region of memory on the Sun Ray server that contains the current state of a user's display.
15
Installationshandbuch für Sun Ray Windows Connector 2.2 (Linux)
W
Term
Description
warm
restart
See restart.
WMA
Windows Media Audio data compression file format and codec developed by Microsoft.
work group
A collection of associated users who exist in near proximity to one another. A set of Sun Ray DTUs that are connected to a Sun
Ray server provides computing services to a work group.
Windows
system
Throughout the SRWC documentation, "Windows system" indicates a Windows OS that can be accessed from a Sun Ray DTU
using SRWC. A Windows Terminal Server is one example of a Windows system.
Windows
Terminal
Server
A server running Windows Server software with Windows Terminal Services enabled.
Windows
Terminal
Service
A Microsoft Windows component that makes Windows applications and desktops accessible to remote users and clients.
Depending on the Windows release, this feature may be called Terminal Services, Remote Desktop Services, or Remote Desktop
Connection.
X
Term
Description
Xnewt
The new default Xserver for Sun Ray Server Software 4.1 and later on Solaris.
Xserver
A process which controls a bitmap display device in an X window system. It performs operations on request from client applications.
Sun Ray Server Software contains two Xservers: Xsun, which was the default Xserver in previous versions of SRSS, and Xnewt, which
is the default Xserver for SRSS 4.1 and later. Xnewt enables the latest multimedia capabilities.
Y
Term
Description
YUV
Simple, lossless mechanism to store images or a sequence of images.
16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
