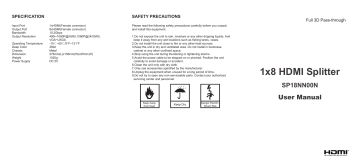

1x8 HDMI Splitter
SPECIFICATION
Input Port
Output Port
Bandwidth
Output Resolution
Operating Temperature
Deep Color
Chassis
Dimension
Weight
Power Supply
SAFETY PRECAUTIONS
1xHDMI(Female connector)
8xHDMI(Female connector)
10.2Gbps
[email protected]/60,[email protected]/50/60,
VGA~UXGA
-15℃~55℃/5°F~131°F
36bit
Metal
276mm(L)x156mm(W)x25mm(H)
1020g
DC 5V
Full 3D Pass-through
Please read the following safety precautions carefully before you unpack
and install this equipment.
1.Do not expose the unit to rain, moisture or any other dripping liquids. And
keep it away from any wet locations such as fishing tanks, vases.
2.Do not install the unit close to fire or any other heat sources.
3.Keep the unit in dry and ventilated area. Do not install in bookcase,
cabinet or any other confined space.
4.Stop using the unit during thundering or lightening storms.
5.Avoid the power cable to be stepped on or pinched. Position the unit
carefully to avoid damage or accident.
6.Clean the unit only with dry cloth.
7.Only use accessories specified by the manufacturer.
8.Unplug the equipment when unused for a long period of time.
9.Do not try to open any non-serviceable parts. Contact your authorized
servicing center and personnel.
1x8 HDMI Splitter
SP18NN00N
Keep Away
from Heat
Keep Dry
Danger Electric
Shock Risk
User Manual
INTRODUCTION
PANEL DESCRIPTION
INSTALLATION
This 1 x 8 HDMI splitter is one of our latest versions that allow one HDMI
source to be connected to eight HDMI displays simultaneously. You can enjoy
the same high performance of eight displays up to 1080P. Furthermore, this unit
has the capability of being controlled via IR signals. The splitter can be controlled
from the display.
Front Panel
•Connect HDMI input port to the signal source equipment such as
DVD player.
•Connect each HDMI output ports to the HDMI displays.
•Plug the 5VDC power supply into the unit and connect the adaptor to
AC outlet.
ON
1x8 HDMI Splitter
L8
L7
L6
It offers solutions for HDTV, STB, DVD, home theater, projector manufacture
plant environments testing, data center, information distribution, conference
room presentation, school and corporate training environments, AV installation
etc.
L5
L4
L3
L2
L1
1
1
2
3
4
Reset
Input
2
3
OFF
4
HDMI OUTPUT LED
RESET BUTTON
HDMI INPUT LED
POWER SWITCH BUTTON
PACKAGE CONTENTS
•1 x HDMI 1 by 8 Splitter unit
•1 x 5V DC power supply
•1 x User Manual
CONNECTION DIAGRAM
Rear Panel
HDMI OUT
DC 5V
Output1
HDMI Output
HDMI IN
Output3
Output2
Output4
Input
Output5
Output6
Output7
Output8
5
FEATURES
•HDMI, HDCP 1.2 and DVI compliant
•Support full 3D pass-through
•Support high resolution up to 1080P
•Support CEC bypass
•External and internal EDID settings
1
2
1 POWER SUPPLY INPUT
2 HDMI OUTPUT
3 HDMI INPUT
3
2
HDMI OUT
DC 5V
Output1
Output2
HDMI Output
HDMI IN
Output3
Output4
Output5
Input
Output6
Output7
Output8
DC 5V
ON
1x8 HDMI Splitter
L8
L7
L6
L5
L4
L3
L2
L1
Reset
Input
OFF
08:08
PLAY
6
7
