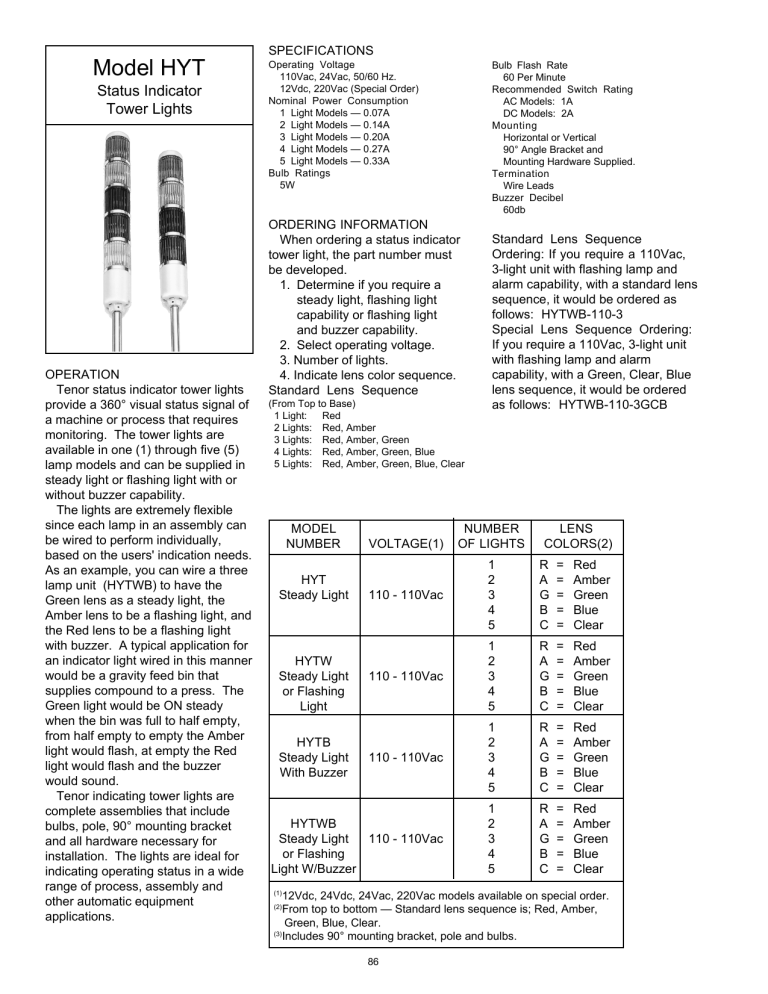

Model HYT
SPECIFICATIONS
Model HYT
Status Indicator
Tower Lights
OPERATION
Tenor status indicator tower lights
provide a 360° visual status signal of
a machine or process that requires
monitoring. The tower lights are
available in one (1) through five (5)
lamp models and can be supplied in
steady light or flashing light with or
without buzzer capability.
The lights are extremely flexible
since each lamp in an assembly can
be wired to perform individually,
based on the users' indication needs.
As an example, you can wire a three
lamp unit (HYTWB) to have the
Green lens as a steady light, the
Amber lens to be a flashing light, and
the Red lens to be a flashing light
with buzzer. A typical application for
an indicator light wired in this manner
would be a gravity feed bin that
supplies compound to a press. The
Green light would be ON steady
when the bin was full to half empty,
from half empty to empty the Amber
light would flash, at empty the Red
light would flash and the buzzer
would sound.
Tenor indicating tower lights are
complete assemblies that include
bulbs, pole, 90° mounting bracket
and all hardware necessary for
installation. The lights are ideal for
indicating operating status in a wide
range of process, assembly and
other automatic equipment
applications.
Operating Voltage
110Vac, 24Vac, 50/60 Hz.
12Vdc, 220Vac (Special Order)
Nominal Power Consumption
1 Light Models — 0.07A
2 Light Models — 0.14A
3 Light Models — 0.20A
4 Light Models — 0.27A
5 Light Models — 0.33A
Bulb Ratings
5W
Bulb Flash Rate
60 Per Minute
Recommended Switch Rating
AC Models: 1A
DC Models: 2A
Mounting
Horizontal or Vertical
90° Angle Bracket and
Mounting Hardware Supplied.
Termination
Wire Leads
Buzzer Decibel
60db
ORDERING INFORMATION
When ordering a status indicator
tower light, the part number must
be developed.
1. Determine if you require a
steady light, flashing light
capability or flashing light
and buzzer capability.
2. Select operating voltage.
3. Number of lights.
4. Indicate lens color sequence.
Standard Lens Sequence
(From Top to Base)
1 Light:
Red
2 Lights: Red, Amber
3 Lights: Red, Amber, Green
4 Lights: Red, Amber, Green, Blue
5 Lights: Red, Amber, Green, Blue, Clear
MODEL
NUMBER
HYT
Steady Light
HYTW
Steady Light
or Flashing
Light
HYTB
Steady Light
With Buzzer
VOLTAGE(1)
Standard Lens Sequence
Ordering: If you require a 110Vac,
3-light unit with flashing lamp and
alarm capability, with a standard lens
sequence, it would be ordered as
follows: HYTWB-110-3
Special Lens Sequence Ordering:
If you require a 110Vac, 3-light unit
with flashing lamp and alarm
capability, with a Green, Clear, Blue
lens sequence, it would be ordered
as follows: HYTWB-110-3GCB
NUMBER
OF LIGHTS
LENS
COLORS(2)
110 - 110Vac
1
2
3
4
5
R
A
G
B
C
=
=
=
=
=
Red
Amber
Green
Blue
Clear
110 - 110Vac
1
2
3
4
5
R
A
G
B
C
=
=
=
=
=
Red
Amber
Green
Blue
Clear
110 - 110Vac
1
2
3
4
5
R
A
G
B
C
=
=
=
=
=
Red
Amber
Green
Blue
Clear
1
2
3
4
5
R
A
G
B
C
=
=
=
=
=
Red
Amber
Green
Blue
Clear
HYTWB
Steady Light
110 - 110Vac
or Flashing
Light W/Buzzer
(1)
12Vdc, 24Vdc, 24Vac, 220Vac models available on special order.
From top to bottom — Standard lens sequence is; Red, Amber,
Green, Blue, Clear.
(3)
Includes 90° mounting bracket, pole and bulbs.
(2)
86
Tenor HYT tower lights are available in models from one (1) to five (5) lights.
The lights are supplied as complete assemblies including; bulb, pole,
mounting bracket and hardware.
Mounting and Pole Length Options
All light models within the HYT
product family are supplied with a
257mm (approximately 10 inches)
pole and an "L" shaped mounting
bracket, including nut and bolt
hardware.
Since some installations have
other mounting requirements,
several optional alternative
mounting methods are available
on Page 88 of this catalog.
The HYT series lights are extremely
application flexible. Individual lights
can be wired to be steady ON,
flashing or with an alarm buzzer with
either steady ON or flashing light.
The model on the right is equipped
with a built-in buzzer alarm.
DIMENSIONS
One Light
HYT & HYTW
Two Light
HYT & HYTW
Three Light
HYT & HYTW
For HYTWB models add 61mm to the overall height dimension.
Four Light
HYT & HYTW
Five Light
HYT & HYTW
Dimensions in millimeters.
HYT FAMILY MOUNTING OPTIONS
Model ST-012
Model HY-ST011
Model HY-ST009
Metal Mounting
Base
Plastic Mounting
Base
31.5 Inch Light
Pole
ST-012 Metal Mounting Base.
This die cast metal base allows
all HYT family lights to be bottom
mounted. ST-012 replaces the
standard "L" bracket at the base
of the light.
HY-ST011 Plastic Mounting Base.
This mounting base is used when
you want to eliminate the height
provided by the 10" pole. The
HY-ST011 base is equipped with
a brass sleeve that fits into the light
column base and the pole is
eliminated.
HY-ST009 31.5 Inch Light Pole.
This light pole allows the user to
increase the height of HYT family
lights up to an additional 20 inches.
The pole can be shortened or
cut-off on the non-threaded end
to provide optimum length.
ORDERING INFORMATION
The mounting options shown above provide installation flexibility which helps the user tailor an HYT indicating
light to fit their requirements. Since the standard length pole and "L" shaped bracket satisfy most requirements,
the mounting options on this page must be ordered as a separate item on an order. The part number required for
ordering is listed on the following chart.
Part
Number
HY-ST009
HY-ST011
ST-012
ISE, Inc.
Description
31.5 Inch Long Tower Light pole
Molded Plastic Base
Cast Metal Base
- 10100 Royalton Rd. - Cleveland, OH 44133 USA
- Tel: (440) 237-3200 - Fax: (440) 237-1744 - http://instserv.com
